Mechanistic and Experimental Study of the Cu_xO@C Nanocomposite Derived from Cu₃(BTC)₂ for SO₂ Removal

Abstract

A tunable and efficient strategy was adopted to synthesize highly porous nano-structured CuO−carbonized composites (Cu_xO@C) using Cu₃(BTC)₂ as a sacrificial template. The as-synthesized CuO nanocomposites exhibited hollow octahedral structures, a large surface area (89.837 m² g⁻¹) and a high proportion of Cu₂O active sites distributed on a carbon frame. Based on DFT calculations, both the Cu atoms on the surface (Cu_S) and oxygen vacancy (O_V) exhibited strong chemical reactivity. On the perfect CuO (111), the Cu_S transferred charge to O atoms on the surface and SO₂ molecules. A strong adsorption energy (−1.41 eV) indicated the existence of the chemisorption process. On the oxygen-deficient CuO (111), the O₂ preferably adsorbed on O_V and then formed SO₃ by bonding with SO₂, followed by the cleavage of the O−O bond. Furthermore, the CuO nanocomposites exhibited an excellent ratio of S/Cu in SO₂ removal experiments compared with CuO nanoparticles produced by coprecipitation.

1. Introduction

Sulfur dioxide (SO₂), as a major pollutant gas, is mainly derived from fossil fuel combustion for electrical energy in large industries, such as coal-fired power plants [1]. The emitted SO₂ in flue gas can directly cause acid rain by the reaction with oxygen and water vapor, which is seriously harmful to the ecology and human health [2]. Thereby, the SO₂ purification from flue gas has enormous significance for ecological and environmental improvement. Currently, the SO₂ separation method using metal oxides as a desulfurizer, which can effectively reduce the content of SO₂ in flue gas by catalytic oxidation, has gradually become the chief technology of SO₂ removal [3,4].

Among them, the method by the reaction of calcium oxide (CaO) with SO₂ and O₂ to form CaSO₃/ CaSO₄ is extensively applied in industrial applications. However, this product after SO₂ uptake is almost irreversible due to the high energy consumption for regeneration caused by a high decomposition temperature [5,6]. The commonly used metal oxide desulfurizer for the sulfide removal also include V₂O₅, CeO₂, MnO_x, Fe₂O₃, ZrO₂ and CuO [7,8,9,10,11,12,13].

CuO possesses the advantages of high selectivity for SO₂ and renewability, resulting in an excellent performance in SO₂ removal compared with the other metal oxides [14,15,16]. To reduce the amount of metal and economic cost, CuO is usually supported on porous materials and then on the active sites exposed in the flue gas [17,18,19,20,21,22,23]. Tseng et al. reported that copper-oxide-supported activated carbon has outstanding performance in SO₂ adsorption and regeneration [24]. The introduction of CuO contributes to the enhancement of SO₂ adsorption and oxidation reaction [19].

Yuan et al. found that SO₂ can be catalytically oxidized to SO₃ on the copper sites in the existence of O₂ and then form sulfates, which causes a gradual deactivation of copper-loaded activated coke [18]. In addition, the effect of the oxidation state of Cu on SO₂ adsorption has been reported in the existing literature. In the report of Soldemo et al., the unsaturated copper atoms at the Cu₂O (111) surface facilitated the SO₂ to SO₃ transformation [25].

Galtayries et al. presented two different paths and products for SO₂ adsorption on Cu₂O as the number of oxygen vacancies increases [26]. Moreover, Baxter et al. also obtained data on the Co−adsorption of O₂ and SO₂ on Cu₂O, which can lead to the formation of CuO and the adsorption of SO₃ (ads) [27]. Hammershøi et al. reported DFT calculations results indicating that both SO₂ and SO₃ can form stable species with Cu²⁺ and Cu⁺, while the Cu⁺ site and Cu²⁺ site preferably bond to SO₂ and SO₃, respectively [28].

Metal–organic frameworks (MOFs) are emergent materials with self-assembly metal cluster centers and bridging ligands, which have a wide range of potential applications [29,30,31,32]. Cu₃(BTC)₂ (BTC = benzo−1,3,5−tricarboxylate) (namely, MOF−199 and HKUST−1), as a representative copper-based MOF (Cu−MOF) material, is widely used in many fields, such as catalysis, sensors, gas separation and storage, due to its structurally characteristic pores and highly active open metal sites [5,30,31,32]. Jin et al. reported that a Cu−MOF−supported composite (CuO@HKUST−1) had enhanced photocatalytic activity and stability over methylene blue dye degradation [33].

Moreover, MOF materials can also be applied as templates to in situ synthesize MOF−based metals/metal oxides/metal-doped carbon composites through pyrolysis under controllable conditions [33,34,35,36,37,38,39]. The principle of this transformation is considered to be the release of small molecules from the precursors, which lead to the formation of porously hollow nanocomposites. The internal relationship between the structure and activity of CuO composites derived from Cu₃(BTC)₂ was investigated in the existing literature [38].

In the report of Wang et al., Cu₂O/CuO polyhedral materials with the shape of octahedral, truncated octahedral and cubic were successfully obtained by controlling the morphology of the Cu₃(BTC)₂ precursors, in which the octahedral Cu₂O/CuO exhibited excellent gas-sensing performance resulting from a large specific surface area and high ratio of adsorbed O on the surface [39]. In addition, this synthesized strategy that uses the Cu₃(BTC)₂ as a template has been reported in many applications related to the field of adsorption [40,41] and catalysis [34,35]. Peng et al. found that octahedral CuO composites could be synthesized by pyrolysis of Cu₃(BTC)₂ under the N₂ atmosphere, which showed a superior catalytic activity for NO_x at a low temperature [34].

Vantran et al. synthesized a Cu_xO−supported carbon matrix composite (Cu/Cu₂O/CuO@C) through the thermolysis of the Cu₃(BTC)₂ template, which exhibited a high removal efficiency over chloramphenicol antibiotic [35]. These studies towards derivatives effectively extend the potential applications of Cu−MOFs and reconfirm that the texture properties of Cu_xO@C composites are promising in the fields related to catalysis and gas separation. However, there are few studies on flue gas desulfurization (FGD) by using the pyrolysis product of Cu₃(BTC)₂ as a desulfurizer. Therefore, the study of MOF−derived composites for SO₂ purification is promising to further broaden the application scope of MOF.

Herein, the outcomes of previous studies prompted us to synthesize the hierarchically porous CuO composites supported on carbon by pyrolyzing Cu₃(BTC)₂ precursors and use these as a novel catalyst for FGD. The pyrolysis products of Cu₃(BTC)₂ are characterized, and its SO₂ removal performance is tested and compared with that of CuO nanoparticles prepared by coprecipitation. The theoretical calculation method was also adopted to further investigate the reaction mechanisms over the perfect and oxygen-deficient CuO (111) surface through the state density, Bader charge transfer and charge density difference; thus, a possible adsorption microscopic mechanism was postulated.

In summary, the main aim of this study is to provide an adjustable synthesis method of CuO nanocomposites using MOFs for highly efficient SO₂ removal and to study the microscopic mechanism behind the reaction. Moreover, this work broadens the potential applications of MOF materials.

2. Results and Discussion

2.1. Structure and Chemical Properties of Nano−CuOs

2.1.1. Morphology and Phase Analysis of Nano−CuOs

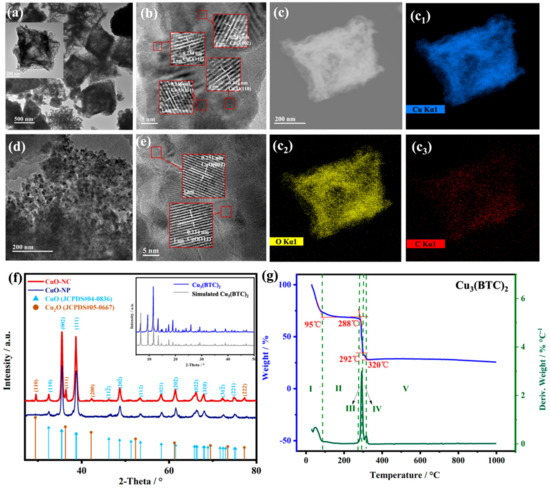

The Cu₃(BTC)₂ crystals show the morphologically octahedral structure with a size of about 1 μm (Figure S1), which is consistent with the work described in previous literature [36]. Figure 1a–e shows the TEM images of synthesized CuO composites, which describe the interior structure of the thermal decomposition products. As shown in Figure 1a, the CuO−NC derived from Cu₃(BTC)₂ almost completely maintains the well-defined octahedral structure of Cu₃(BTC)₂, while the numbers of loose pores are distributed within each octahedral unit, forming a hollow structure.

We found from the HR−TEM images (Figure 1b) that the microcrystal nanoparticles size ranged from 10 to 15 nm in the composition of this hollow structure. The interspacing of lattice fringes were 0.234, 0.251, 0.245 and 0.302 nm, corresponding to the CuO (111), CuO (002), Cu₂O (111) and Cu₂O (110) lattice planes, respectively [36,39]. Furthermore, in Figure 1(c1–c3), the Cu, O and C element mapping images matching the STEM image (Figure 1c) of CuO−NC demonstrated a uniform distribution of copper oxides and the existence of the carbon matrix in the hollow octahedral structure.

However, the CuO−NP produced by coprecipitation showed a compact aggregation of many interconnected particles ranging from 50 to 100 nm. There was one group of lattice fringes in the HR−TEM image of CuO−NP (Figure 1e). Figure 1f shows the XRD patterns of the Cu₃(BTC)₂ precursors and nano−CuOs. All peaks of the synthesized Cu₃(BTC)₂ matched well with that of simulated Cu₃(BTC)₂. The diffraction peaks of CuO−NC could be assigned to CuO (JCPDS#04−0836) and Cu₂O (JCPDS#05−0667), while those of CuO−NP could be exclusively attributed to CuO.

These results were consistent with HR−TEM analysis, indicating that using the Cu₃(BTC)₂ as the template led to the formation of multiple oxides of copper in pyrolysis products. The thermal decomposition temperature of 300 °C for Cu₃(BTC)₂ precursors in the air was determined based on the TG measurements. According to the TGA curves in Figure 1f, the weight loss process of Cu₃(BTC)₂ was divided into five stages. The first sharp weight loss stage (stage I) was attributed to the removal of water and solvent molecules (CH₃OH) from the surface and pores of the Cu₃(BTC)₂ precursors.

The second theoretical weight loss stage was observed between 288 and 320 °C (stage III and IV) was caused by the pyrolysis of the organic ligands and oxidation in Cu₃(BTC)₂ [34]. Notably, a decrease in the weight loss rate was observed at temperatures ranging between 292 and 320 °C, which could be related to the oxidation of Cu₂O. When the temperature was higher than 320 °C (stage V), the second platform was obtained, indicating that the Cu₂O may be oxidized entirely to CuO [34,42]. Therefore, the products at 330 °C were an intermediate presence of Cu₂O along with CuO, which is consistent with the literature [38,42,43]. In addition, the existence of carbon also provided a favorable atmosphere of reducing for the formation of Cu₂O in this work.

2.1.2. Porous Structures of Nano−CuOs

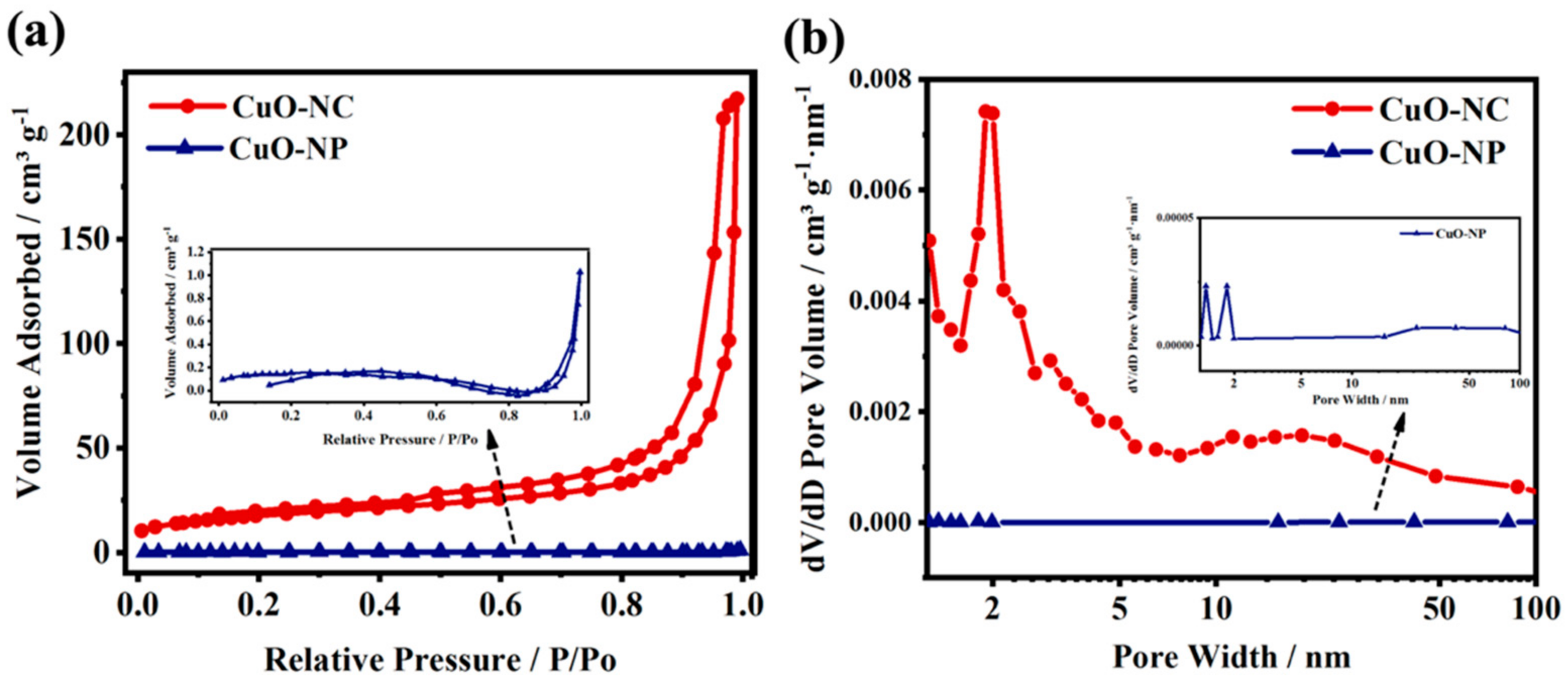

N₂ adsorption–desorption isotherms at 77 K were measured for examining the pore characteristics of the nano−CuOs. As shown in Figure 2a, in the CuO−NC prepared by Cu₃(BTC)₂, the N₂ adsorption capacity was less at the low P/P₀ region, while the amount of adsorbed N₂ rapidly increased once the value of P/P₀ reached 0.7. The curves of CuO−NC exhibited a typical type−IV sorption isotherm with the H3−type hysteresis loop between the relative pressure 0.45 and 1.0, which could be explained by the presence of slit-like pores that resulted from the aggregation of nanocrystalline particles [44], whereas the CuO−NP prepared by coprecipitation exhibited a low amount of N₂ adsorption ($\le$1.2 cm³ g⁻¹) with the variation of P/P₀.

Figure 2b shows the pore size distributions of CuO−NC and CuO−NP, which were obtained by the BJH method. The CuO−NC shows five pore size distributions with a sharp peak at 2.2 nm as well as three broad peaks at 4.8, 11.3 and 18.6 nm. The pores with small aperture could be derived from the octahedral frames and shells, while that with the large aperture may originate from the gap between octahedral units. The detailed data were summarized in Table S1.

The specific surface areas of the two nano−CuOs are 89.837 and 1.502 m² g⁻¹, corresponding to the CuO−NC and CuO−NP, respectively, where the value of the porous octahedral CuO−NC is higher than that of many nano−Cu₂Os or nano−CuOs reported in previous literature [34,36,42,45]. In addition, the CuO−NC showed a larger micropore volume (0.096 cm³ g⁻¹) and mesopore volume (0.160 cm³ g⁻¹) when compared with those of CuO−NP (0.000097 and 0.000998 cm³ g⁻¹). This suggested that using the Cu₃(BTC)₂ precursors as templates facilitated the formation of the hierarchical pore structure of calcined products.

2.1.3. Chemical Compositions of Nano−CuOs

XPS analysis was conducted to examine the chemical compositions on the surface of as-synthesized CuO−NC and CuO−NP. Figure 3a displays the Cu 2p XPS spectra, where four sub-peaks were deconvoluted from the corresponding curve of the CuO−NC. The two main peaks could be observed at the position of 932.6 and 952.6 eV, which corresponded to the 2p3/2 and 2p1/2 peaks of Cu⁺, respectively [46]. The other two major peaks at the higher binding energy positions (933.7 and 953.6 eV) mainly originated from Cu²⁺ [47].

Moreover, the typical satellite peaks accompanied by the electronic shake-up were also observed in the Cu2p XPS spectra of the CuO−NC, which reconfirmed the existence of Cu²⁺ [31,36]. Thereby, these results proved the coexistence of Cu₂O and CuO in the CuO−NC, where the relative proportion of Cu⁺ was about 59.5% (

Table 1. The results of curve fitting of Cu 2p _3/2 and O1s XPS spectra of nano−CuOs.

Samples ID	Cu 2p 3/2				O 1s
	Cu+ 2p 3/2		Cu2+ 2p 3/2		OL		OV		OC
	Binding Energy/eV	Percentage/%	Binding Energy/eV	Percentage/%	Binding Energy/eV	Percentage/%	Binding Energy/eV	Percentage/%	Binding Energy/eV	Percentage/%
CuO−NC	932.6	59.5	933.7	40.5	530.4	58.9	531.5	26.7	532.5	14.4
CuO−NP	−	−	933.7	100	530.2	70.3	531.4	19.4	532.2	10.3

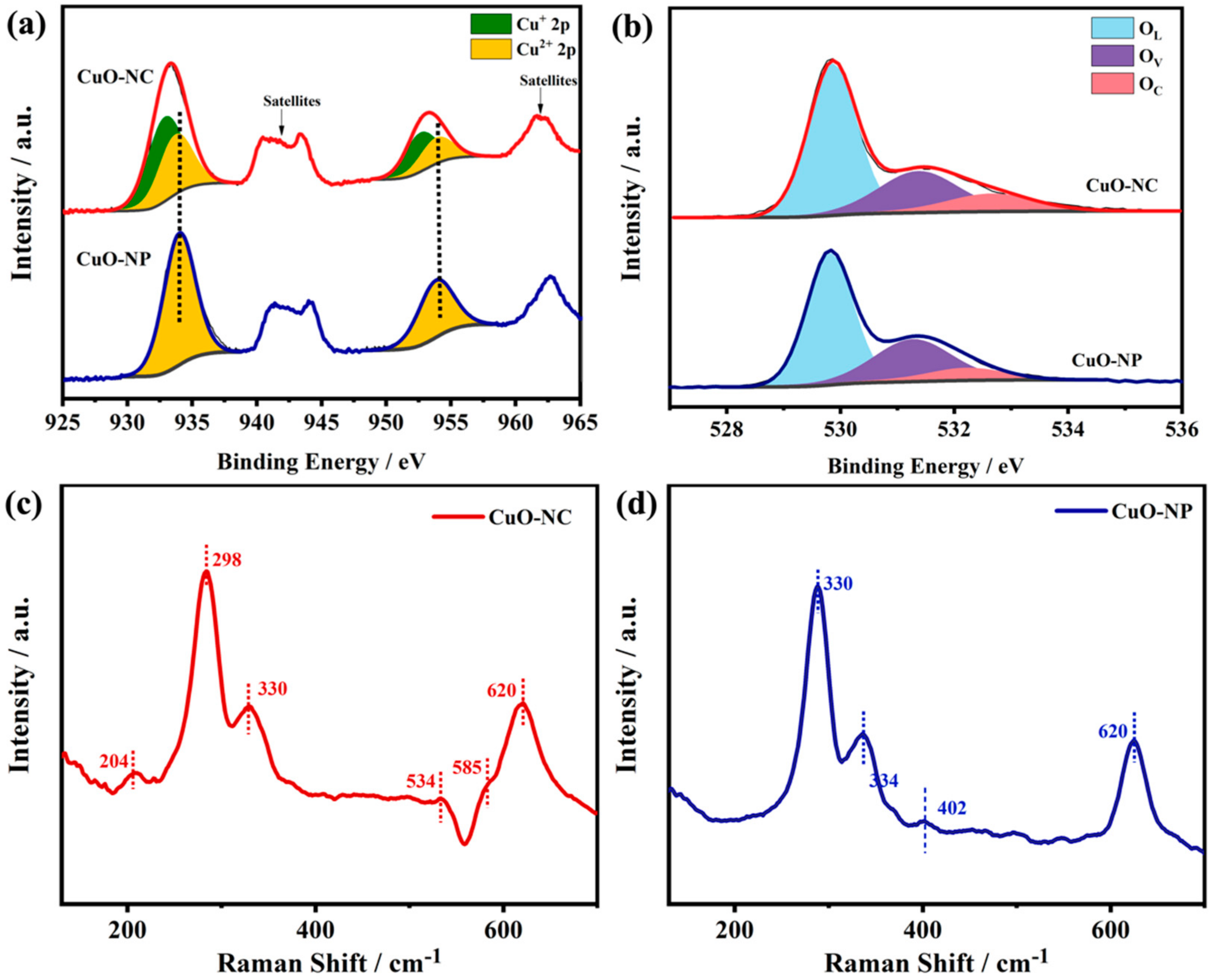

). In contrast, in Figure 3a, only two main peaks corresponding to Cu²⁺ appeared in the Cu 2p XPS spectra of the CuO−NP, indicating that the products may belong to a pure phase, which was consistent with the results of the HR−TEM and XRD analysis.

As shown in Figure 3b, the two nano−CuOs exhibited similar O1s XPS spectra that were resolved into three fitting peaks at 530.3 ± 0.1, 531.5 ± 0.1 and 532.3 ± 0.2 eV, respectively, corresponding to the lattice oxygen (O_L), oxygen vacancy (O_V) and adsorbed oxygen (O_C) peaks [38]. The O_C and O_V components represent the hydroxyl (OH⁻), chemically adsorbed and dissociated oxygen, such as O²⁻, O²⁻ and O⁻, which is usually related to the ability to adsorb oxygen [38,39]. Table 1 summarizes the O element proportion of the surface chemical compositions according to the fitting results of the XPS spectra.

The CuO−NC displayed a larger relative proportion of O_C than that of CuO−NP. In Figure 3c, the Raman spectroscopy analysis of CuO−NC and CuO−NP revealed that three similar peaks in both of two nano−CuOs were located at 298, 330 and 620 cm⁻¹, which were assigned to the characteristic peaks of CuO in the Raman active modes of Ag, B_1g and B_2g, respectively [48].

In particular, three other peaks at 204 cm⁻¹, 534 cm⁻¹ and 585 cm⁻¹ were observed in the CuO−NC, which was believed to be contributed by the Cu₂O phase [49]. The EPR analysis of CuO−NC and CuO−NP was conducted to study the oxidation states of the metal and surface chemisorbed oxygen. As shown in the EPR spectra (Figure 3d), a sharp peak of the g-value (g = 2.003) was discovered in the CuO−NC samples, which was the characteristic signal of the paramagnetic materials containing superoxide ions (O²⁻) [50,51,52]. Based on the relevant literature, it was also related to the existence of oxygen vacancies [50].

2.2. Microscopic Mechanism of SO₂ Removal on Simulated Nano−CuOs

2.2.1. Model of the CuO (111) Surface

To date, there have been very few studies regarding the fundamental understanding of the SO₂ adsorption mechanism on the CuO surface. It is also difficult to characterize the atomic-scale adsorption configurations through experiments. Owing to the lack of information on this research, we employ atomic simulations to investigate the SO₂ adsorption mechanism at the CuO surfaces.

Maimaiti et al. reported that the CuO (111) is the most stable surface by predicting the computed surface energies of different CuO surfaces using DFT simulations (E_{CuO (111)} < E_{CuO (011)} < E_{CuO (110)} < E_{CuO (010)} < E_{CuO (100)}) [53]. Therefore, the relatively stable (111) facet was adopted as the surface termination, which also was reconcilable with the XRD analysis of the experiment section (Figure 1f). Figure 4 shows the optimized surface slab models of CuO surface. The unit cell of simulated CuO−NC is shown in Figure 4a.

The periodic surface was 11.6 Å × 12.6 Å × 24 Å with a vacuum slab of 16 Å in thickness, which can separate the layer from its periodic images. As shown in Figure 4b, the atoms of the bottom six layers (two Cu layers and four O layers) were frozen in their equilibrium positions within the geometry optimizations, whereas all other atoms were allowed to structurally relax. There are four different types of surface atoms on the clean CuO (111) surface, which are separately attributed to unsaturated (Cu_3c) and saturated (Cu_4c) copper atoms, unsaturated (O_3c) and saturated (O_4c) oxygen atoms.

Among them, the bond length of bulk Cu−O is 1.941 Å, which is much longer than that of Cu_3c−O_3c (1.797 Å) and Cu_3c−O_4c (1.888 Å) and shorter than that of Cu_4c−O_4c (1.966 Å) and Cu_4c−O_3c (1.919 Å). Furthermore, the SO₂ adsorption was simulated on one side of the exposed surfaces of the slab, where the atoms of the top six layers and adsorbates were fully relaxed. The adsorption energies between all possible adsorption sites as well as the structures with each adsorbate were calculated; however, only the maximum was used for discussion.

2.2.2. Adsorption Configuration of SO₂ Molecules over Perfect CuO (111)

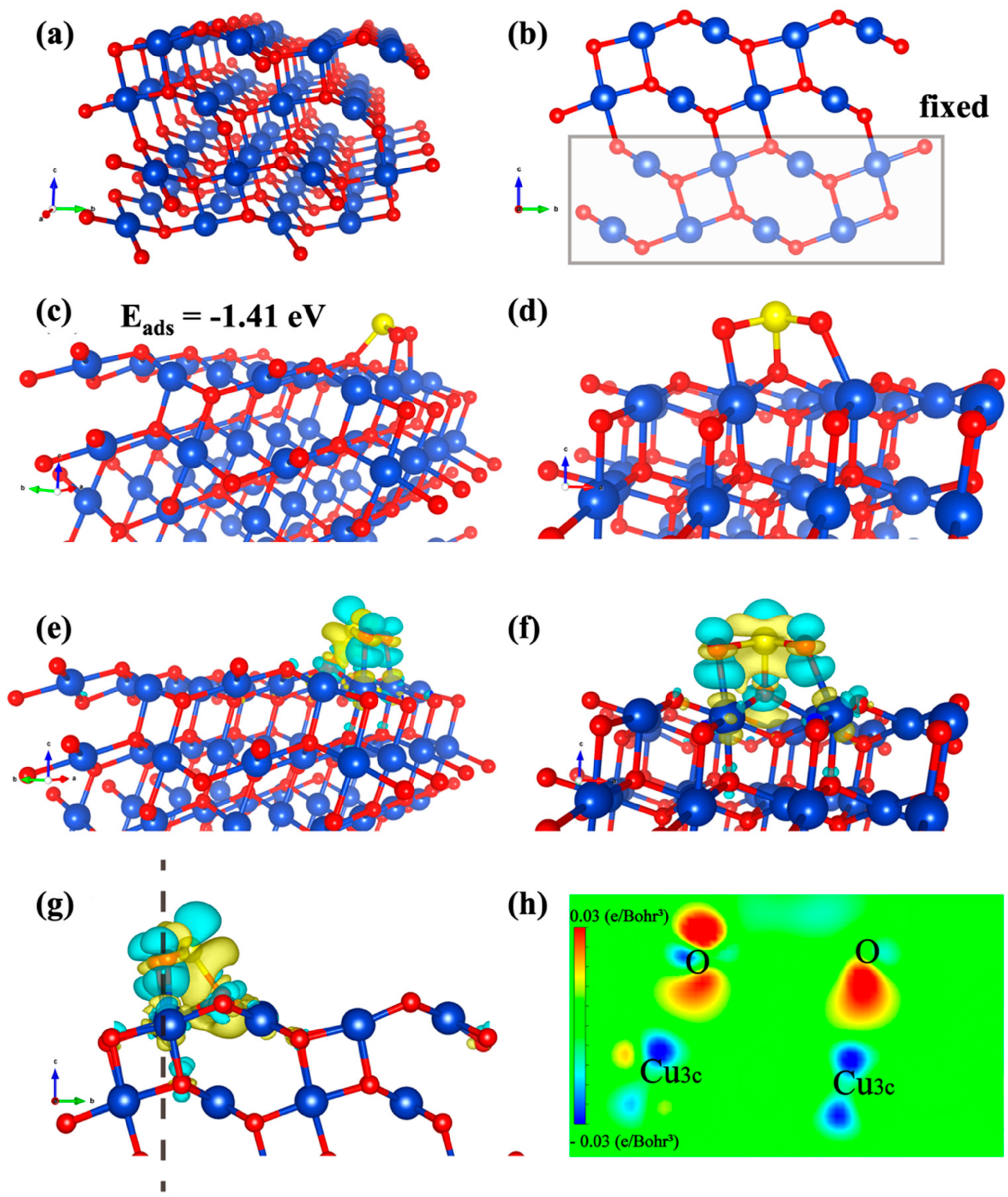

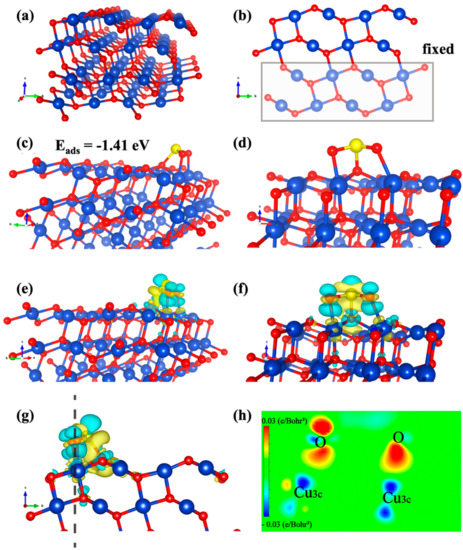

The most stable SO₂ adsorption position was identified, and the calculated adsorption energy was −1.41 eV (Figure 4c). In Figure 4d, the S atom of SO₂ molecule forms bonds with O_3c atom on the surface with the bond length of 1.74 Å, while two O atoms form bonds with Cu_3c atoms and the bond lengths are 1.96 and 2.09 Å. After SO₂ chemical adsorption on the surface, the bond angle of SO₂ molecules changed from 119.308° to 107.571°. The bond length of S−O bonds of SO₂ molecule became 1.612 Å and 1.462 Å from two equal 1.448 Å, which increased compared with before adsorption.

The adsorption energy is −1.41 eV, indicating that the chemisorption between SO₂ and CuO (111) is very stable [54,55]. Furthermore, the charge density difference (CDD) is beneficial to directly exhibit the charge accumulation and consumption of SO₂ molecules after adsorption on the surface of CuO, which can reflect the adsorption strength according to the amount of charge transfer. In this paper, CDD is defined as the charge density of the SO₂−CuO system after adsorption minus that of the CuO surfaces and the SO₂ molecules (CDD = C (CuO−SO₂) − C (CuO) − C (SO₂)). Figure 4e–g demonstrates the distribution of the charge density.

As shown in Figure 4f, after the adsorption of SO₂ molecules over the surface of CuO (111), there are more yellow zones around S atoms (S_m) of SO₂ molecules, while there are more turquoise zones near the O atoms (O_S) on the surface, indicating that charge is mainly transferred from SO₂ molecules to the surface. More charge consumption zones existed around Cu atoms (Cu_S) on the surface of CuO, whereas more charge accumulation zones appeared near the O atoms (O_m) of SO₂ molecules. These results revealed that the Cu_S has transferred charge to the O_m and O_S, which were used to form the Cu_S−O_m bond and O_S−S_m bond, respectively. In addition, the electrons lost by Cu_S are used to bond with O atoms, which can also be clearly observed in the 2D sectional view (Figure 4h).

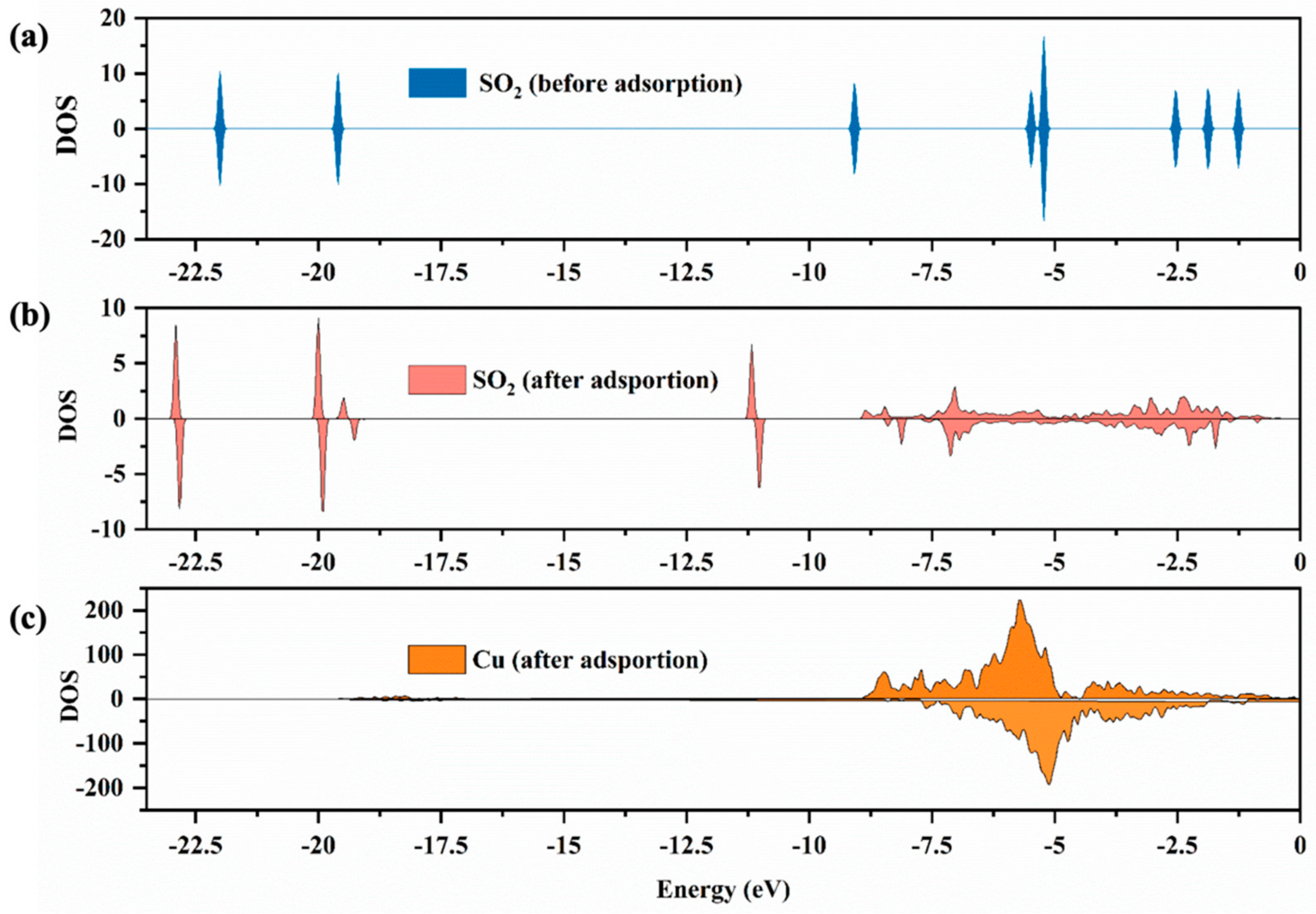

In addition to the change of adsorption structure, studying the properties of electrons by the analysis of the density of states (DOS) is also conducive to understanding the bonding mechanism of adsorption. Figure 5 shows the DOS of SO₂ molecules before and after adsorption on the surfaces of CuO. The DOS of SO₂ molecules before adsorption possesses the peaks with energy of −22, −19, −9, −6, −5, −2.5, −1.85 and −1.25 eV (Figure 5a), while those of SO₂ after adsorption are shifted to the deep energy level.

The value of DOS peaks decreased, which could result from the transfer of charge between the SO₂ molecule and surface. Notably, a new continuous density peak of SO₂ molecules after adsorption was discovered at −9 to −1 eV (Figure 5b), which corresponded to the contiguous density peak of Cu atoms after adsorption (Figure 5c), indicating the existence of a strong interaction between SO₂ molecules and Cu atoms on the surface.

In addition,

Table 2. Bader charge of the SO₂ adsorption over the CuO surface (111).

Sites	Before Adsorption/e	After Adsorption/e	Δ
aCus1	10.043	9.973	−0.070
Cus2	10.043	9.931	−0.112
bOs	6.996	7.043	0.047
cSm	3.734	3.759	0.025
dOm1	7.133	7.217	0.085
Om2	7.134	7.186	0.052

^aCu_s = Cu atoms on the surface of CuO (111); ^bO_s = O atoms on the surface of CuO (111); ^cS_m = S atoms of SO₂ molecules; ^dO_m = O atoms of SO₂ molecules

summarizes the results of the charge transfer between SO₂ molecules and CuO surfaces in the reaction process, which are favorable to understanding the mechanism of the reaction. These results demonstrated that the Cu_S atoms lose a total of 0.0182 e, while the O_S, S_m and O_m atoms gained 0.047 e, 0.025 e and 0.137 e, respectively, indicating that the charges were mainly transferred from the Cu_S to the O_S and SO₂ molecules, which is consistent with the CCD analysis in the previous section.

2.2.3. Adsorption Configuration of SO₂ Molecules on the Oxygen-Vacancy CuO (111)

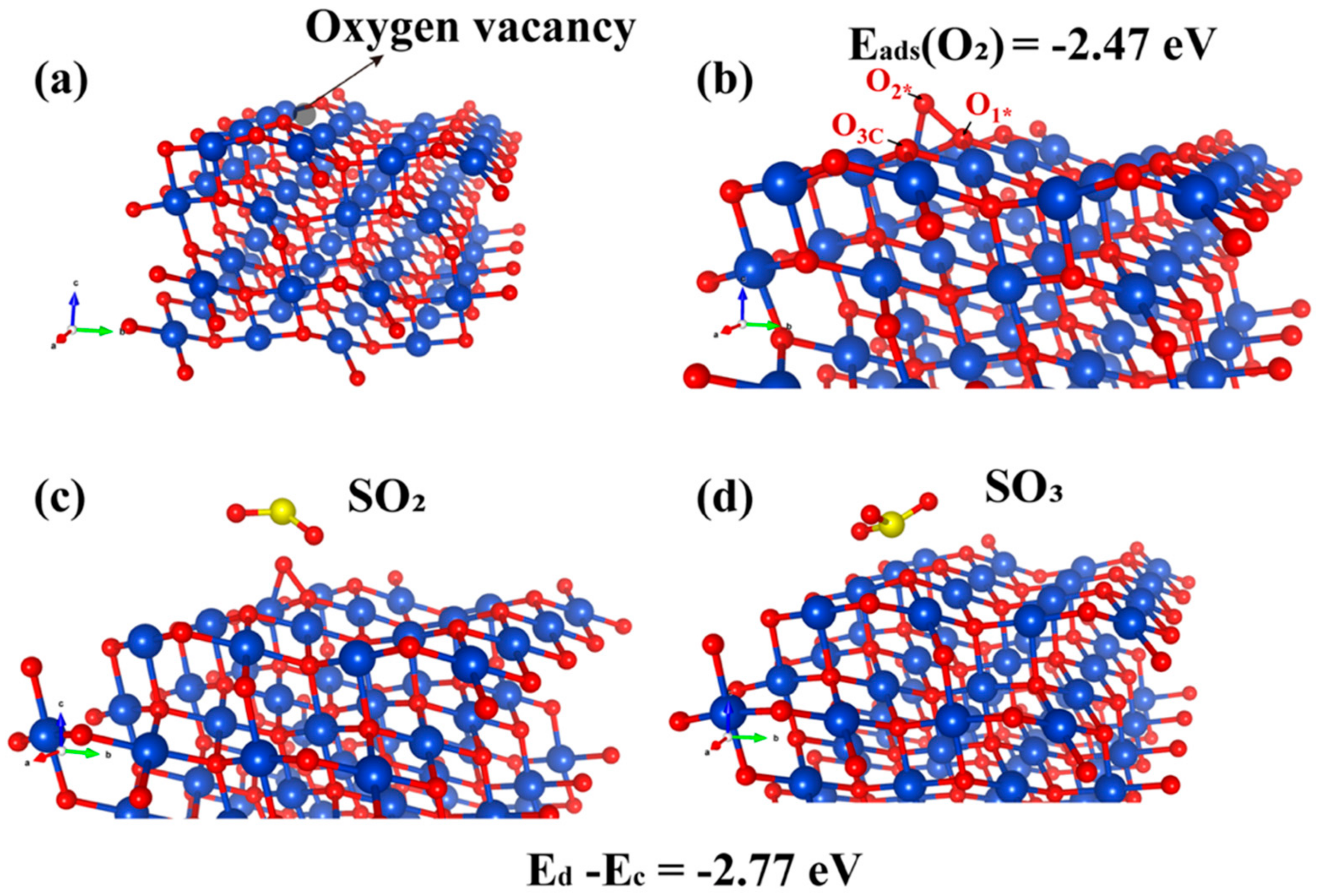

The DFT−calculated results regarding the adsorption configuration and electron-transfer mechanism on the perfect CuO (111) surface indicate that the Cu_S sites are the favorable active sites for SO₂. Following the experimental evidence on the existence of oxygen vacancy, we further investigated the adsorption configurations on oxygen vacancy on the CuO (111) surface and their energetics by the DFT calculations to understand the role of the vacancy of atomic oxygen. Figure 6a shows the oxygen vacancy formed by removing the O_3c.

According to the report of Rajendran et al., the O_3c vacancy was preferably formed as compared to O_4c [56]. Figure 6b illustrates the adsorption configuration of O₂ on the CuO (111) surface containing the oxygen vacancy. The O_1* atom in the O₂ molecules after adsorption bound to one Cu_3c and two Cu_4c sites, with the distances of 1.976, 1.944 and 1.991 Å, respectively. The O_1*−O_2* bond elongated to 1.477 from 1.235 Å (free O₂ molecules), which is also close to that of the O₂²⁻ ion (1.490 Å). This result indicates that the O species adsorbed on the oxygen vacancy of CuO (111) surface mainly exist in the form of O₂²⁻ ion, which is similar to the O₂ on the oxygen-deficient Cu₂O (111) surface [57].

In addition, the adsorption energy was −2.47 eV, which is higher than that of the O₂ on a perfect CuO (111) surface, indicating that the intermediate O₂, adsorbed on the oxygen vacancy of CuO (111) surface, is very stable. This intermediate for the adsorption of SO₂ was further investigated, and the structures are illustrated in Figure 6c,d after the optimization. For understanding the reaction mechanism of SO₂ removal, the adsorption energies of SO₂ on the O₂−adsorbed oxygen-vacancy CuO (111) surface (E_c) and the SO₃ adsorbed on the perfect CuO (111) surface (E_d) were calculated, where the difference of value (E_d − E_c = −2.77 eV) exhibited that the stability of SO₃ adsorption on the CuO (111) surface was superior to that of SO₂. The O_2* in intermediate stages (Figure 6b) is likely to be readily bonded to free SO₂ molecules, followed by the cleavage of the O_1*−O_2* bond. Subsequently, the free SO₃ molecules are adsorbed on the perfect CuO (111) surface and further form sulfates.

2.3. SO₂ Removal Performance of Nano−CuOs

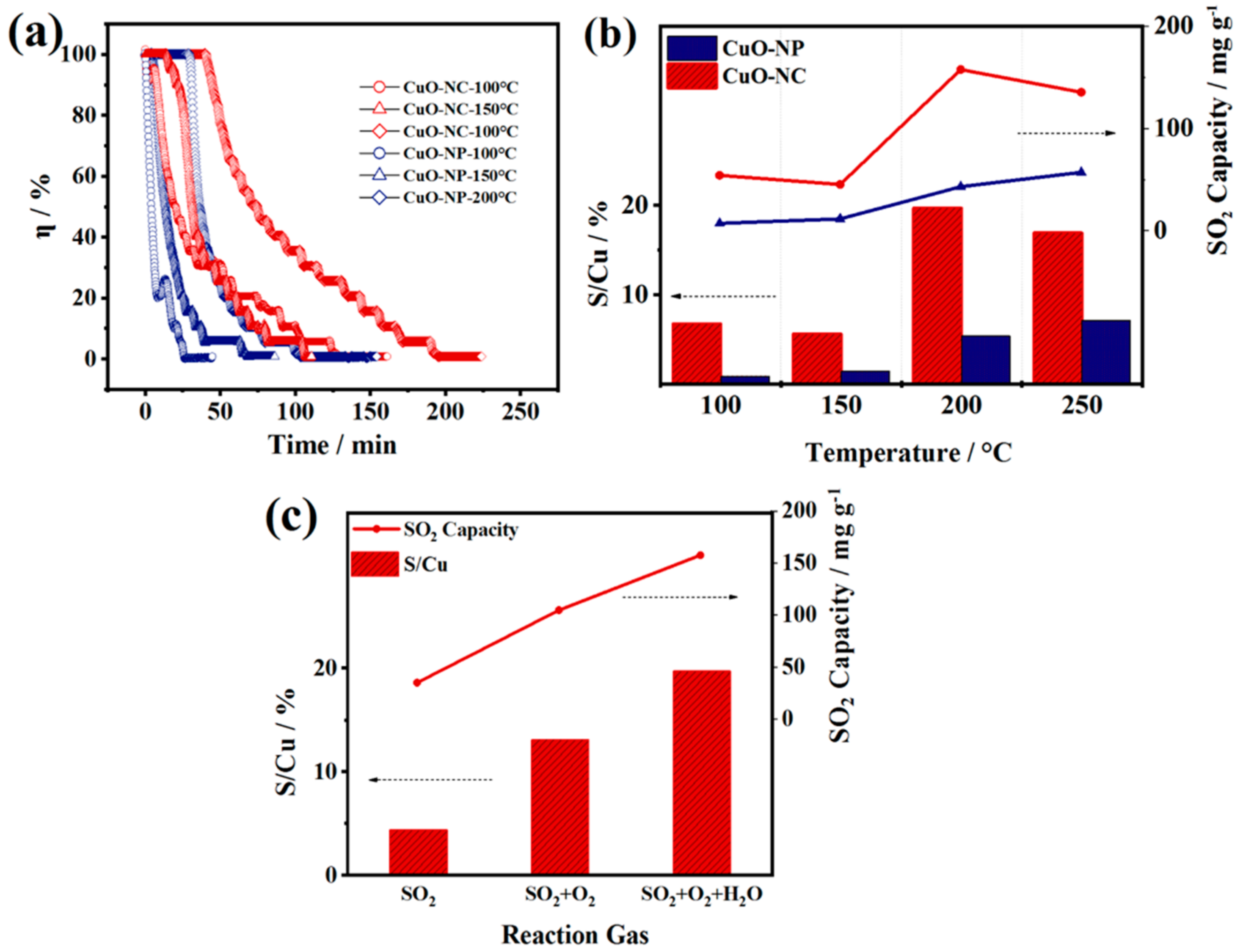

FGD tests were conducted in order to evaluate the SO₂ removal performance of the two nano−CuOs and confirm the SO₂ removal mechanism obtained by DFT calculations. The influence of operating temperatures on the desulfurization was investigated by exposing the CuO−NC and CuO−NP under a range of temperatures between 100 and 250 °C. As shown in Figure 7a, the SO₂ removal efficiency of the two CuOs decreased over time, which was resulted from gradual inactivation of CuO sites by reacting with SO₂. The S/Cu ratios and SO₂ capacity of the two nano−CuOs shown in Figure 7b were calculated by integration of the measured decrease in SO₂ concentrations of outlet (Figure 7a).

The CuO−NC demonstrated an excellent SO₂ removal performance at the range of 100 to 250 °C compared to CuO−NP, which could be explained by different desulfurization mechanisms. At the low temperature of 100 °C, there was a wide margin between the S/Cu ratio of CuO−NC and that of CuO−NP, which could be ascribed to the larger specific surface area and pores volume of CuO produced by Cu₃(BTC)₂ (Figure 2), resulting in an enhanced physisorption at this temperature.

In contrast, with the increasing reaction temperature from 100 to 150 °C, a weakened physisorption appeared, while the chemical action of CuO sites with SO₂ was almost absent, which led to a similarly low SO₂ uptake capacity in both of two nano−CuOs. The differential of the SO₂ uptake between two CuOs at 200 °C became more pronounced due to the prominent role of chemisorption, where the octahedral CuO−NC possessed larger S−uptakes, which may be related to the existence of Cu⁺. Hammershoi et al. reported that SO₂ is bound more strongly to Cu⁺ than Cu²⁺ by DFT calculations [28].

The outstanding SO₂ capacity could also be attributed to the support of carbon skeleton for Cu active sites in the hollow CuO−NC, which was beneficial in terms of both the SO₂ reaction and diffusion. However, the S/Cu ratio of CuO−NC slightly decreased as the temperature further rose to 250 °C, which may be rationalized by the faster chemical reaction rate at higher temperatures. On the one hand, Cu⁺ was rapidly oxidized to Cu²⁺, which narrowed the differentials of SO₂ removal performance, resulting from the chemical compositions, between the CuO−NC and CuO−NP. On the other hand, the CuO and SO₂ converted to CuSO₄ faster, which may cause the deactivation of desulfurizer due to the covering by rapidly formed sulfates [58].

Furthermore, a comparison of the desulfurization performance of CuO−NC at 200 °C in the presence and absence of O₂ (6 vol.%) and H₂O(g) (6 vol.%) is shown in Figure 7c. The results revealed that both of S/Cu and SO₂ capacity significantly increased in the presence of O₂, which can be explained by the oxidation of SO₂ and the formation process of sulfates (SO₂ + $\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.$O₂ → SO₃; SO₃ + CuO → CuSO₄) [18,58]. This process reconfirmed the adsorption mechanism of SO₂ molecules on the oxygen vacancy CuO (111) surface (Figure 6). In addition, based on the presence of O₂, the addition of H₂O(g) further facilitated the SO₂ uptake, which contributed to the formation of sulfurous acid and reaction with CuO (SO₂ + H₂O → H₂SO₃; H₂SO₃ + CuO + $\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.$O₂ → CuSO₄ + H₂O).

The SO₂ removal performance and test parameters of earlier reported CuO−based composites desulfurizers from literature were summarized in

Table 3. Performance comparison between CuO−based composites and earlier reported desulfurizers in the literature.

Sample ID	aSBET/m2 g−1	bQads/mg g−1	cCSO2/ppm	dη/%	eTads/°C	Ref
CaO	31–134	590–900	3000	−	800	[4]
0.95%−CuxO@ASC−3	506.62	233.1	2000	100	95	[59]
1%−AC−cop1	408	174.8	3000	5	80	[18]
3%−Cu/AC−HCl	3	25	400	−	250	[20]
4%−Cu/AC	829	57.6	13.3	−	20	[17]
5%−Cu−C−II−5	938	30	200	0	250	[19]
10%−Cu/AC	844	59	200	0	250	[24]
CuO−NC	89.84	157.63	2000	50	200	this work

^aS_BET/m² g⁻¹ = BET surface area. ^bQ_ads = SO₂ adsorption capacity. ^cC_SO2 = Initial concentration of SO₂. ^dη = Efficiency threshold. ^eT_ads = Adsorption temperature.

. In contrast, the best-performed sample CuO−NC of this work showed a smaller surface area but a larger removal capacity (157.63 mg g⁻¹), which can be attributed to the more effective interaction between the exposed Cu sites and SO₂.

3. Materials and Methods

3.1. Experimental Section

3.1.1. Materials

Copper nitrate trihydrate (Cu(NO₃)₂·3H₂O), sodium hydroxide (NaOH) and methanol (CH₃OH) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). 1,3,5−benzenetricarboxylic acid (BTC) was purchased from J&K Scientific Co., Ltd. (Beijing, China). All of chemical reagents and solvents in this work were analytical grades without further purification.

3.1.2. Synthesis of Nano−CuOs

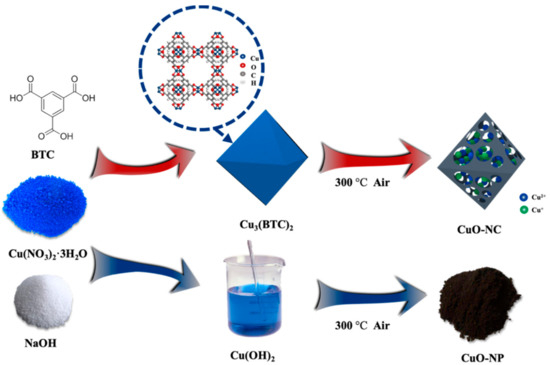

Figure 8 demonstrates the synthesis process of nano−CuOs. A synthetic route with high yield was adopted to fabricate octahedral Cu₃(BTC)₂ [39]. First, Cu(NO₃)₂·3H₂O and BTC with the mole ratio of 3:2 were separately dissolved in 25 mL methanol and then fully stirred for 10 min. The obtained solution was placed still at room temperature for 150 min after ultrasonication for 20 min. Then, the products were washed repeatedly with methanol and put inside the oven at 80 °C for 12 h, followed by marking as Cu₃(BTC)₂. Finally, the CuO nanocomposites were obtained by the pyrolysis of as-prepared Cu₃(BTC)₂ under an air atmosphere at 300 °C for 120 min and then named as “CuO−NC”.

In addition, the prepared CuO nanoparticles, as comparative samples, were synthesized by the coprecipitation method. 2.45 g of Cu(NO₃)₂∙3H₂O and 4.30 g of NaOH were dissolved in 50 mL of methanol. The black products were collected by centrifugation as well as repetitive washing with methanol and then was dried in the oven at 80 °C for 12 h. Then, the resulting sample was calcined at the same thermal treatment conditions with that of CuO−NC, which was labelled as “CuO−NP”.

3.1.3. Characterization

The Cu₃(BTC)₂ precursors and nano−CuOs were characterized by several analytical methods, such as scanning electron microscope (SEM), transmission electron microscope (TEM), powder X−ray diffractometer (XRD), thermogravimetric analyzer (TG−DTA), X−ray photoelectron spectrometer (XPS), Brunauer−Emmett−Teller (BET), Electron paramagnetic resonance (EPR). The crystal structure and phase were determined by XRD (X−Pert3 Powder, PANalytical, Almelo, The Netherlands). The surface morphology of CuO nanocomposites was observed by SEM (S4800, Hitach, Tokyo, Japan) and TEM (Tecnai F20, FEI, Hillsboro, OR, USA). TG (Q600SDT, TA, New Castle, DE, USA) measurement was conducted in air flow with a heating rate of 10 °C·min⁻¹.

The specific surface area was analyzed by the BET equation, which was measured by an accelerated surface area and porosity system (ASPS 2020 plus, Micromeritics, Norcross, GA, USA). The size distribution and volume of microporous and mesoporous were calculated by the t−plot method and the BJH (Barrett−Joyner−Halenda) method, respectively, and the total pore volume was given by adsorption amount at a relative pressure of P/P₀ = 0.99. The surface chemical composition of CuO nanocomposites was analyzed by XPS (ASIX Supra, Kratos Analytical, Manchester, UK). The oxidation states of metal oxide were investigated at room temperature by EPR (A200, Bruker, Billerica, MA, USA) using the X−band.

The chemical bonds of the CuO nanocomposites were examined by a laser confocal Raman spectrometer (JY−T64000, Jobin−Yvon, Longjumeau, France).

3.1.4. FDG Activity Test

Figure S3 shows a flow chart of the FGD simulated instrument. In a typical FGD test, the CuO nanocomposites were loaded into a quartz tube (6 mm i.d.), where all of samples were weighted with the equal amount (0.15 ± 0.01 g). Subsequently, the quartz tube loading with sample was dried in the oven at 80 °C for 12 h, followed by installing into the FGD simulated instrument and purging with N₂ (120 mL min⁻¹) for 30 min.

Finally, the reaction gases with a total flow rate of 120 mL min⁻¹ (2000 ppm SO₂, 6 vol.% O₂ and 6 vol.% H₂O (g), N₂ as balance gas) were introduced after the temperature was up to setpoint at a ramping rate of 5 °C min⁻¹, where the gas hourly space velocity (GHSV) was set to 16,900 h⁻¹. Moreover, the inlet content of SO₂ was measured by the mass flow meters, while the data of outlet SO₂ were collected by a flue gas analyser (Pro350, Testo, Titisee-Neustadt, Germany).

The items of SO₂ removal capacity (${\mathrm{Q}}_{{\mathrm{so}}_2}$, mg g⁻¹) and the ratio of S to Cu (S/Cu) were used to evaluate desulfurization performance of samples where the ${\mathrm{Q}}_{{\mathrm{so}}_2}$ of samples was calculated by the data that were correspondence with the duration before the SO₂ removal efficiency drops to the threshold of 50%. The expressions of the SO₂ removal efficiency (η, %) and capacity were given by the following equations

$$\mathsf{\eta }=\frac{{\mathrm{C}}_{\mathrm{in}}-{\mathrm{C}}_{\mathrm{out}}}{{\mathrm{C}}_{\mathrm{in}}}\times 100\%$$

(1)

$${\mathrm{Q}}_{{\mathrm{so}}_2}={{\displaystyle \int }}_0^{\mathrm{t}}\frac{{\mathrm{FM}}_{\mathrm{r}}{\mathrm{C}}_{\mathrm{in}}}{{\mathrm{m}\mathrm{V}}_{\mathrm{m}}}\mathsf{\eta }\mathrm{dt}$$

(2)

where C_in and C_out correspond to the inlet and outlet concentrations of SO₂ (ppm), respectively; F stands for the total flow of simulated flue gas (mL min⁻¹); M_r represents the relative molecular mass of SO₂ (g mol⁻¹); m and V_m are the standard the sample mass (g) and molar volume (L mol⁻¹) at setpoint conditions, respectively.

3.2. Models and Computational Details

3.2.1. Computational Method

All of the spin-polarized density functional theory (DFT) calculations were conducted using the Vienna Ab−Initio Simulation Package1–3 [60,61] (Version 5.4.4). The ion-electron interaction of Cu, O and S in the periodic boundary condition was performed by the standard VASP projector augmented-wave [62] (PAW) potentials. The valence electron configuration of Cu, O and S in the calculation corresponded to 3d¹⁰4s¹, 2s²2p⁴ and 3s²3p⁴, respectively. In this work, the Perdew–Burke–Ernzerhof [63] (PBE) exchange-correlation functional was selected as the generalized gradient approximation for the exchange-correlation functional.

The DFT−D3 method proposed by Grimme [64] was used for van der Waals force corrections, which consisted in adding a pair wise potential to the DFT total energy after each self-consistent cycle. Based on the on-site Coulombic repulsion between the d electrons, the Hubbard U corrections were performed to transition metal d-electrons and the values of U-J parameters for Cu atoms (7 eV). Through benchmark calculations, the plane-wave basis kinetic-energy cut-off adopted was 450 eV, and its corresponding Brillouin zone was sampled by a Monkhorst–Pack [65] k-point grid of 1 × 1 × 1. The self-consistent calculation converged to 10⁻⁵ eV and executed structural optimization by minimizing the forces on all the atoms until they were less than 0.01 eV Å⁻¹.

3.2.2. Adsorption Energy

The expression of adsorption energy (${\mathsf{\Delta }\mathrm{E}}_{\mathrm{ads}}$) can be given as

$${\mathsf{\Delta }\mathrm{E}}_{\mathrm{ads}}={\mathrm{E}}_{\mathrm{surface}+\mathrm{adsorbate}}-{\mathrm{E}}_{\mathrm{molecule}}-{\mathrm{E}}_{\mathrm{surface}}$$

(3)

where ${\mathrm{E}}_{\mathrm{surface}+\mathrm{adsorbate}}$, ${\mathrm{E}}_{\mathrm{molecule}}$ and ${\mathrm{E}}_{\mathrm{surface}}$ represent the total energy of adsorbate-substrate system, the total energy of bare surface and the total energy of gas-phase adsorbates, respectively. In particular, a negative value refers to an exothermic binding, which means a more stable state for the adsorbed species on the CuO (111) surface.

4. Conclusions

In conclusion, this work systematically investigated the mechanisms of SO₂ removal over as-synthesized CuO nanocomposite surfaces using experimental and theoretical methods. Octahedral CuO nanocomposites with a carbon frame were fabricated by the pyrolysis of Cu₃(BTC)₂ at 300 °C under an air atmosphere. The as-synthesized composites possessed a hollow structure and high surface area (89.837 m² g⁻¹) as well as multivalent copper oxides due to the presence of an MOF−derived carbon octahedra frame.

In addition, the effects of the synthetic method, reaction temperature and atmosphere on the SO₂ adsorption over CuO nanocomposites were investigated by experiments, where the CuO nanocomposites exhibited a superior SO₂ removal performance compared with the CuO nanoparticles produced by coprecipitation. Moreover, the charge transfer and density of state of the CuO (111) surface and SO₂ gas molecules before and after adsorption were studied based on the experimental results and DFT calculations.

On the perfect CuO (111) surface, the most stable SO₂ adsorption configuration was obtained over the CuO surface by the electron transfer mechanism between Cu atoms on the surface and SO₂ molecules. On the oxygen-deficient CuO (111) surface, O₂ molecules were adsorbed on the oxygen vacancy sites and bonded with free SO₂ molecules to form SO₃. Based on the above results, this work provides a novel strategy to produce highly effective CuO nanocomposites as catalysts by MOFs for desulfurization and to further validate the mechanisms of SO₂ chemisorption with the DFT calculations.
