A Mechanistic Study of Methanol Steam Reforming on Ni₂P Catalyst

Abstract

Methanol steam reforming (MSR) is a promising technology for on-board hydrogen production in fuel cell applications. Although traditional Cu-based catalysts demonstrate high catalytic activity and selectivity towards CO₂ relative to CO, which is produced via methanol decomposition, they suffer from poor thermal stability and rapid coke formation. Nickel phosphides have been widely investigated in recent years for many different catalytic reactions owing to their remarkable activity and selectivity, as well as their low cost. In this work, we present a mechanistic study of methanol decomposition and MSR pathways on Ni₂P using density functional theory (DFT) calculations. DFT-predicted enthalpic barriers indicate that MSR may compete with methanol decomposition on Ni₂P, in contrast to other transition metals (e.g., Pt, Pd, and Co) which primarily decompose methanol into CO. The formaldehyde intermediate (CH₂O*) can react with co-adsorbed hydroxyl (OH*) from water dissociation to produce H₂COOH* which then undergoes subsequent dehydrogenation steps to produce CO₂ via H₂COOH*→ HCOOH* → HCOO* → CO₂. We also examined the conversion of CO into CO₂ via the water–gas shift (WGS) reaction, but we ruled out this pathway because it exhibits high activation barriers on Ni₂P. These findings suggest that Ni₂P is a promising new catalyst for MSR.

1. Introduction

Proton-exchange membrane (PEM) fuel cells are widely considered to have significant potential for the future of energy [1,2]. Although PEM fuel cells are highly energy-efficient and environmentally friendly, mechanical and safety challenges associated with hydrogen storage hinder their range of applications [3,4,5]. To overcome these challenges, methanol steam reforming (MSR) has emerged as a promising technology for on-board hydrogen production from liquid hydrocarbons [6,7,8]. Methanol has a high hydrogen to carbon ratio with no carbon–carbon bonds and can be easily stored and handled [9,10]. Hydrogen can be produced via methanol decomposition:

CH₃OH → 2H₂ + CO

(1)

The formation of carbon monoxide poisons at the Pt-based anodes renders this pathway unsuitable for on-board fuel cell applications [11,12]. Therefore, this reaction must be followed by the water–gas shift (WGS) reaction:

CO + H₂O → H₂ + CO₂

(2)

to convert CO into CO₂ [13,14]. Alternatively, a high yield of hydrogen can be directly produced from methanol via steam reforming:

CH₃OH + H₂O → 3H₂ + CO₂

(3)

while minimizing the production of CO, thus making MSR an attractive process for hydrogen fuel cell applications.

Methanol and other alcohols, such as ethanol and propanol, steam reforming reactions have been studied extensively over the past two decades [9,15,16,17,18,19,20,21,22]. Cu/ZnO catalysts are considered the traditional catalysts for MSR, which selectively produce CO₂ (>99%) instead of CO with high catalytic activity [5]. However, they suffer from poor thermal stability due to metal sintering at the operating temperatures, in addition to coking and rapid deactivation [22,23,24]. Thus, finding new and more stable catalysts for MSR has become increasingly important. Subsequent studies have focused on Groups 8–10 metal catalysts [4,20,21], particularly Pd/ZnO and PdZn alloys [18,19]. Generally, Groups 8–10 metals predominantly produce CO via methanol decomposition and have poor selectivity towards CO₂. Pd/ZnO alloys have shown higher selectivity towards CO₂ via MSR but with lower catalytic activity, especially when PdZn alloys are formed by previously reducing the catalysts [25,26,27,28]. Catalyst performance improvement is focused on enhancing H₂ production rate, CO₂ selectivity, and long-term thermal stability.

Transition metal phosphides (TMPs) are a versatile class of catalysts [29] that have been recently investigated for many different reactions, such as hydrodesulfurization [30], hydrodenitrogenation [31], hydrodeoxygenation [32], and the water–gas shift reaction [33,34]. They exhibit unique selectivity and resistance to coking. For example, nickel phosphides (Ni₂P and Ni₁₂P₅) have remarkable selectivity towards cleaving the hindered C–O bonds (a near 50 times increase in selectivity) with an increasing P:Ni ratio in the hydrodeoxygenation of biomass-derived species when compared to pure Ni, which only cleaves the unhindered bonds [35,36]. The water–gas shift reaction was also investigated on Ni₂P using a combination of experimental and theoretical methods. These studies show that Ni₂P resistance to coke formation surpass those of pure Ni or even Cu, the traditional WGS reaction catalyst [33,34]. The unique characteristics of nickel phosphides were attributed to the role of phosphorus atoms in altering the electronic nature and geometry of Ni atoms, as well as disrupting and dispersing the Ni ensembles at the surface.

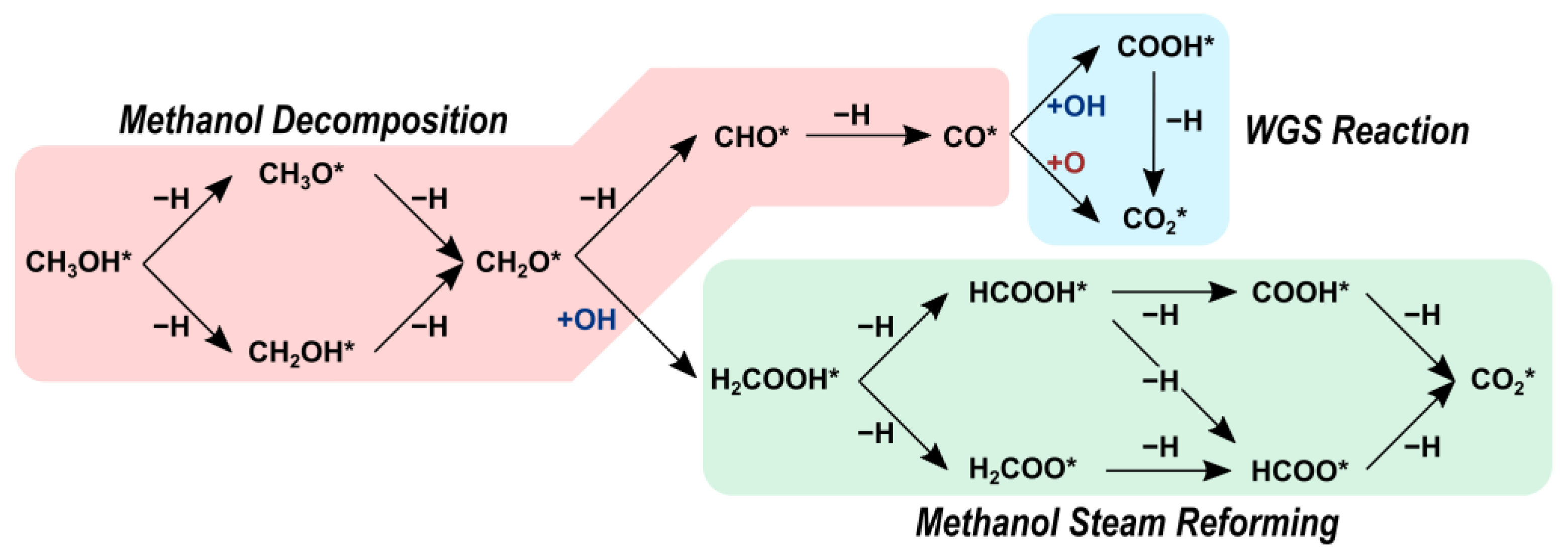

The mechanism of MSR on Cu-based catalysts is relatively well established [37,38]. Scheme 1 depicts the main possible reaction network of methanol decomposition, MSR, and WGS reactions examined in this study. On Cu-based catalysts, it has been proposed that methanol first undergoes O–H bond cleavage to form surface methoxy (CH₃O*) followed by C–H bond cleavage to form formaldehyde (CH₂O*), a key intermediate in determining the selectivity [14,16]. It can either undergo further dehydrogenation and decompose to CO or, when water is fed under steam reforming conditions, it can react with OH* to form H₂COOH* which eventually produces CO₂. Another possible pathway to form CO₂ is through methanol decomposition to CO* followed by the WGS reaction because the operating temperature of MSR overlaps with that of the low-temperature WGS reaction. Prior studies indicate that Cu predominantly produces CO₂ via MSR and/or WGS depending on the operating conditions, while Groups 8–10 metals (e.g., Pd and Co) predominantly produce CO via methanol decomposition [4,5,15,25]. Here, we use density functional theory (DFT) calculations to examine the mechanisms of methanol decomposition, MSR, and the WGS reaction over Ni₂P catalyst. We show that methanol decomposition and MSR pathways both have relatively similar barriers on Ni₂P, in contrast to other transition metals (except Cu) where methanol decomposition into CO is more dominant.

2. Results and Discussion

2.1. Structures and Energetics of Adsorbed Intermediates

The optimized structures and calculated binding energies of various intermediates involved in the MSR reaction on Ni₂P(001) are discussed in this section. Multiple configurations have been examined for each intermediate to determine the most stable adsorption mode, and the binding energies (ΔE_ads) were calculated using Equation (4).

Table 1. Calculated adsorbates binding energies ΔE_ads (Equation (4); kJ mol⁻¹) and their most stable adsorption modes on Ni₂P(001).

Species	Adsorption Mode	ΔEads
		kJ mol−1
H*	M3	−224
H2O*	M1	−23
OH*	M3	−294
O*	MP	−489
CH3OH*	M1	−24
CH2OH*	M2	−133
CH3O*	M3	−204
CH2O*	M3	−25
CHO*	M2	−161
CO*	M1	−109
H2COOH*	M3	−194
HCOOH*	M1	−24
H2COO*	M3	−360
COOH*	M2	−188
HCOO*	M2	−273
CO2*	Parallel	−1

lists all of the intermediates examined in this study, and their binding energies; Figure 1 shows the optimized structure for each intermediate.

Water (H₂O; Figure 1b), methanol (CH₃OH; Figure 1e), and formic acid (HCOOH; Figure 1l) show weak adsorption energies (around −24 kJ mol⁻¹), and they bind to the metal atop site (M₁) through their oxygen atoms (the oxygen from HCO* in the case of HCOOH). The phosphorus atop site (P₁) was attempted for these three species, but they eventually desorb from the surface after geometric convergence, indicating that these three species bind weakly to Ni sites only. Formaldehyde (CH₂O; Figure 1h), another saturated species and a key intermediate, also binds weakly to the metal three-fold hollow site (M₃) in a bidentate fashion, with the oxygen atom sitting above a bridge site and the carbon atom on an atop site. Its weak binding energy of −25 kJ mol⁻¹ is consistent with the weak binding energy of formaldehyde on Cu [16] relative to other transition metals such as Co [15], Pd [14], and Pt [39]. The binding strength of CH₂O* on the surface plays an important role in determining the selectivity towards CO₂ relative to CO, as shown previously [15]. In the MSR pathway, CH₂O* has to partially desorb from the surface (with only the O atom bound to the surface), then it can react with an adjacent OH* to form H₂COOH*, which subsequently dehydrogenates to form CO₂ (Scheme 1). Stronger CH₂O* binding hinders its partial desorption and subsequent reaction with OH*, leading to CO* formation via the methanol decomposition route. Therefore, metals that bind CH₂O* weakly such as Cu increase the selectivity towards CO₂, while metals that bind CH₂O* more strongly such as Pt, Pd, and Co predominantly produce CO. Similar findings were also reported on α-MoC(100) and α-MoC(111) surfaces, in which weaker CH₂O* binding on the α-MoC(100) surface leads to a facile reaction with OH* compared with the α-MoC(111) surface that strongly binds CH₂O* [40].

All other unsaturated species typically bind to the surface much more strongly. Hydroxyl (OH*; Figure 1c), methoxy (CH₃O*; Figure 1g), and hydroxymethoxy (H₂COOH*; Figure 1k), preferentially adsorb on the metal three-fold hollow sites (M₃) through their oxygen atoms in a monodentate fashion with binding energies of −294, −204, and −194 kJ mol⁻¹, respectively. Dioxymethylene (H₂COO*; Figure 1m) binds very strongly to the Ni₂P(001) surface; it binds to the M₃ site, but in a bidentate fashion, which is consistent with previous studies on other transition metals and metal carbides [14,15,16,40]. CH₂OH*, CHO*, COOH*, HCOO*, and O* all bind to the bridging sites and exclusively to Ni atoms, except atomic oxygen, which binds to the Ni-P bridge site (Figure 1d); it is the only species in which the phosphorus atom directly participates in binding. Carbon monoxide (CO*; Figure 1j) binds to the metal atop site (M₁) with an adsorption energy of −109 kJ mol⁻¹. Overall, these findings show that the trends in adsorbates binding energy on Ni₂P(001) are similar to those reported on other transition metals and metal carbides, and ΔE_ads values calculated here on Ni₂P are in range with those reported on Cu.

2.2. Reaction Pathways

Here, we describe the reaction pathways for methanol decomposition, methanol steam reforming, and the water–gas shift reaction on Ni₂P(001) surface based on the reaction network displayed on Scheme 1. All elementary steps examined in this work are listed in

Table 2. Calculated forward activation enthalpy (ΔH_act = H_TS − H_reactants) and the reaction (ΔH_rxn = H_products − H_reactants) for the elementary reactions considered in this study on Ni₂P(001) at 573 K.

No.	Reaction	ΔHact	ΔHrxn
		kJ mol−1	kJ mol−1
1	CH3OH → CH2OH + H	114	63
2	CH3OH → CH3O + H	98	9
3	CH2OH → CH2O + H	82	−8
4	CH3O → CH2O + H	73	41
5	CH2O → CHO + H	17	−3
6	CHO → CO + H	19	−60
7	CH2O + OH → H2COOH	5	−40
8	H2COOH → HCOOH + H	33	−38
9	H2COOH → H2COO + H	87	43
10	HCOOH → COOH + H	82	11
11	HCOOH → HCOO + H	61	20
12	H2COO → HCOO + H	13	−64
13	HCOO → CO2 + H	39	−33
14	COOH → CO2 + H	115	−25
15	CO + OH → COOH	69	53
16	CO + O → CO2	128	3
17	H2O → OH + H	91	5
18	OH → O + H	161	81
19	OH + OH → H2O + O	63	55
20	2H2O → H2O + OH + H	68	23

along with their forward activation barriers and reaction energies. Multiple configurations have been examined on different surface sites for each elementary step to find the most stable transition state. These ΔH_act and ΔH_rxn values listed on Table 2, however, denote differences between a transition state and the precursor reactant, or the product and the precursor reactant for that elementary step. They do not include diffusion of reactants or products from less stable into more stable adsorption sites or vice versa before and after the reaction. Diffusion steps are usually assumed to be fast and have low barriers [15].

2.2.1. Water Dissociation

Water dissociates on the Ni₂P(001) surface with an activation enthalpic barrier (ΔH_act) of 91 kJ mol⁻¹ and is nearly thermoneutral with ΔH_rxn = 5 kJ mol⁻¹ (Table 2; reaction 17). This reaction starts with an H₂O* adsorbed on a metal atop site (M₁) through the oxygen atom and proceeds to cleave the O–H bond on a metal three-fold hollow site (M₃), then OH* and O* diffuse into two adjacent M₃ sites (Figure S1; Supporting Information). Further dissociation of OH* into O* and H* (reaction 18) is highly unfavorable with an activation barrier of 161 kJ mol⁻¹, but O* can be produced via the disproportion of two OH* (reaction 19) with an activation barrier of 63 kJ mol⁻¹. In comparison with Cu, the barrier of H₂O dissociation on Ni₂P is lower by more than 30 kJ mol⁻¹ [14,41]. An adjacent H₂O molecule can also stabilize the O–H bond activation in water via hydrogen bonding as shown previously [15,42]. H₂O-assisted water dissociation (reaction 20) occurs with two adjacent H₂O molecules stabilized by a hydrogen bond (Figure S1; Supporting Information). This reaction has an enthalpic barrier of 68 kJ mol⁻¹ on Ni₂P(001), 23 kJ mol⁻¹ lower than that of direct water dissociation (reaction 17). Therefore, hydrogen bonding can promote O–H bond activation in water.

2.2.2. Methanol Decomposition

Adsorbed CH₃OH* can react with a vacant site on the Ni₂P(001) surface to undergo C–H bond cleavage which has a barrier of 114 kJ mol⁻¹, and it is strongly endothermic with a reaction energy of 63 kJ mol⁻¹ (Table 2; reaction 1). Alternatively, CH₃OH* undergoes O–H bond cleavage with an activation barrier of 98 kJ mol⁻¹ and a reaction energy of 9 kJ mol⁻¹ (Table 2; reaction 2), suggesting that O–H bond activation is more facile than C–H bond activation in methanol on Ni₂P. To compare the different reaction pathways depicted on Scheme 1, we examined the effective enthalpy (ΔH҂) calculated using Equation (5) which is defined as the energy of forming the transition state (or adsorbed species) and a stoichiometric amount of gas-phase H₂ (each H atom removed is desorbed from the surface) relative to gas-phase methanol and water (if the reaction involves water). Figure 2 shows the DFT-predicted effective enthalpy diagram for the reactions network displayed on Scheme 1. Here, we consider the most stable adsorption state for each intermediate discussed in Section 2.1.

Methanol has an adsorption enthalpy of −14 kJ mol⁻¹, and there are two possible pathways for its dehydrogenation to formaldehyde (CH₂O*). It can undergo C–H bond activation to form CH₂OH* and H* with a ΔH҂ value of 100 kJ mol⁻¹ (Figure 2). This H* atom is then desorbed from the surface to form ½ H₂(g), leaving CH₂OH* on the surface with an effective enthalpy of 61 kJ mol⁻¹. The O–H bond cleavage in CH₂OH* requires an activation barrier of 146 kJ mol⁻¹ to form CH₂O*. Another route to formaldehyde which is more favorable is through O–H bond cleavage in methanol with a barrier of 84 kJ mol⁻¹ to form surface methoxy (CH₃O*), which then undergoes C–H bond cleavage with a barrier of 75 kJ mol⁻¹ to form CH₂O*. This is consistent with the preference of formaldehyde formation through CH₃O* on Cu instead of CH₂OH*, which is more favorable on Pd [14,43,44].

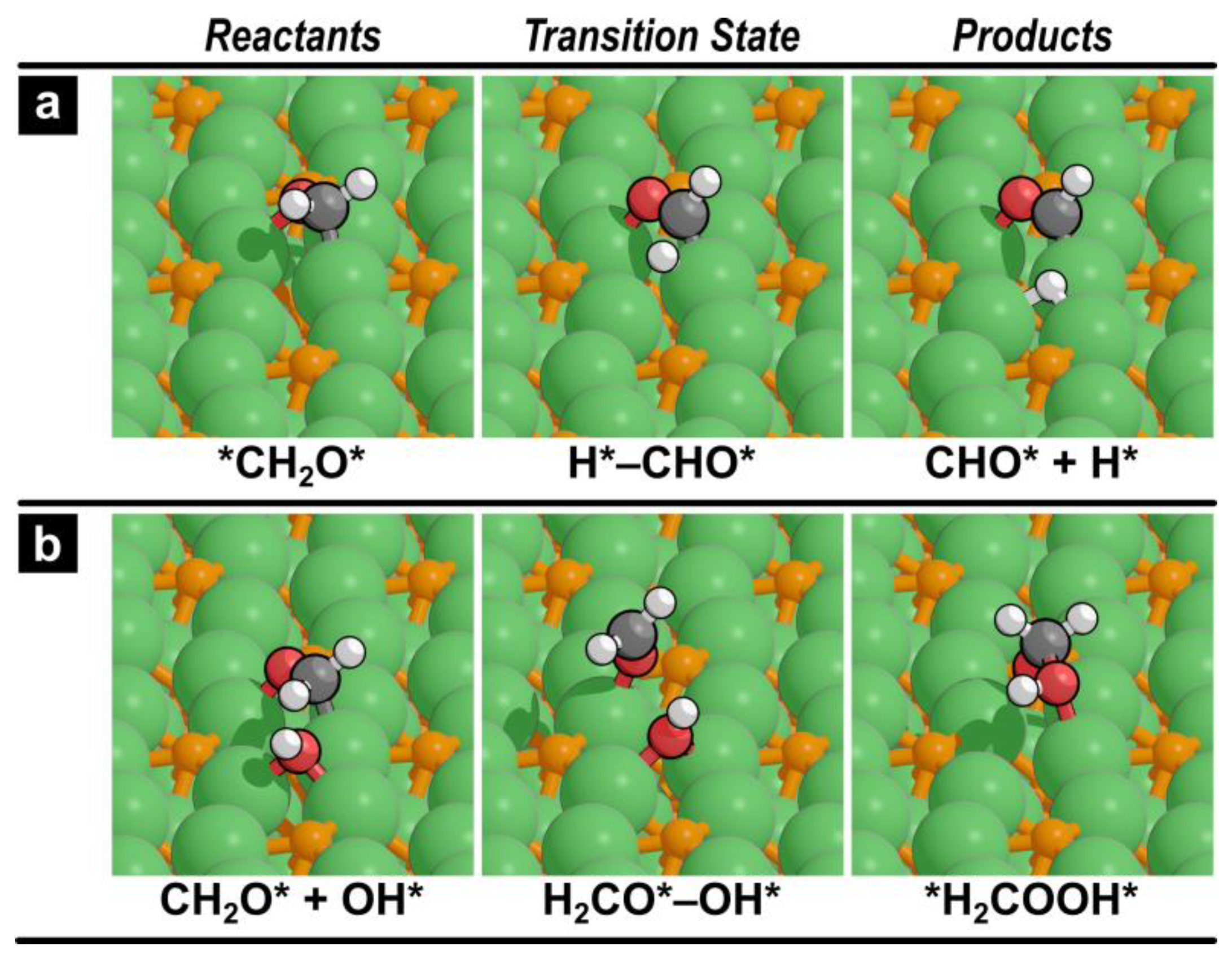

Formaldehyde (CH₂O*) is an important intermediate in determining the selectivity towards CO or CO₂. Subsequent dehydrogenation steps lead to the decomposition to CO. C–H bond cleavage in CH₂O* requires an effective activation barrier of 78 kJ mol⁻¹ (Figure 3a) to form CHO*, which further decomposes into CO* with a barrier of 89 kJ mol⁻¹ (Figure 2). CO* can desorb from the surface as the final product or it can be converted into CO₂ through the WGS reaction discussed in Section 2.2.4. Next, we examine the reaction of CH₂O* with co-adsorbed OH* to form CO₂.

2.2.3. Methanol Steam Reforming

Instead of further dehydrogenation of CH₂O* which yields CO, CH₂O* can react with co-adsorbed OH* from water dissociation to form hydroxymethoxy (H₂COOH*). Prior DFT studies have shown that Cu has a unique selectivity towards H₂COOH* formation relative to CH₂O* decomposition (by >50 kJ mol⁻¹) compared to other transition metals [14,16]. Here, on Ni₂P(001), we also observe a similar preference for H₂COOH* formation in terms of intrinsic barriers and reaction energies shown in Table 2. H₂COOH* formation (reaction 7) is highly exothermic (−40 kJ mol⁻¹), and it has an intrinsic activation enthalpy (ΔH_act) of 5 kJ mol⁻¹ compared to 17 kJ mol⁻¹ for CH₂O* dehydrogenation (reaction 5). CH₂O adsorbs weakly on the surface as shown in Table 1 (ΔE_ads = −25 kJ mol⁻¹), and it partially desorbs from the surface with only the oxygen atom bounding to a metal atop site (Figure 3b) before it reacts with an adjacent OH*. This reaction requires an effective enthalpic barrier (ΔH҂) of 82 kJ mol⁻¹, only 4 kJ mol⁻¹ higher than that of CH₂O* dehydrogenation (Figure 2). This small difference in barriers is within the margin of error expected from DFT calculations, indicating that both pathways may compete on Ni₂P.

We have also examined the possible H₂COOH* decomposition pathways to CO₂ (Figure 2). Dehydrogenation of H₂COOH* proceeds by either breaking the O–H bond or the C–H bond, but O–H activation requires a much higher barrier (by 58 kJ mol⁻¹) than C–H bond activation to form formic acid (HCOOH*), in agreement with previous findings on Cu [14,16]. After HCOOH* is formed, O–H bond cleavage becomes more favorable with an effective barrier of 87 kJ mol⁻¹ compared to 111 kJ mol⁻¹ for C–H bond cleavage. The final product of methanol steam reforming (CO₂*) is then produced by dehydrogenation of HCOO* with a barrier of 94 kJ mol⁻¹, which is the highest effective barrier in the MSR pathway. The highest effective barrier in the methanol decomposition pathway, on the other hand, is for the CO* formation from CHO* which requires an effective barrier of 89 kJ mol⁻¹. This small difference of 5 kJ mol⁻¹ is again within the margin of error expected from DFT calculations, suggesting that both pathways, methanol decomposition and MSR, may compete on Ni₂P.

2.2.4. Water-Gas Shift Reaction

Previous studies have suggested that the water-gas shift (WGS) reaction may play a role in dictating the CO/CO₂ selectivity during MSR [38,45]. The resulting CO* from the methanol decomposition route can desorb from the surface as the final product with a desorption energy of 109 kJ mol⁻¹ (Table 1). Alternatively, it can be converted into CO₂ through the reaction with O* or OH*. Here, we examined two different mechanisms for the WGS reaction on Ni₂P: the carboxyl mechanism (CO + OH → COOH → CO₂ + H) and the redox mechanism (CO + O → CO₂). In the carboxyl mechanism, the product of methanol decomposition (CO*) reacts with an adjacent hydroxyl (OH*) to form COOH* with a ΔH҂ value of 67 kJ mol⁻¹ (Figure 2). COOH* then undergoes a dehydrogenation reaction to form the product CO₂* with a large barrier of 164 kJ mol⁻¹. Instead, CO* may react directly with a co-adsorbed O* atom to form CO₂ in the redox mechanism with an effective barrier of 155 kJ mol⁻¹. Given the large barriers for both pathways compared with the MSR pathway or even with the energy required to desorb CO* from the surface (109 kJ mol⁻¹), we conclude that the WGS reaction may not contribute to CO₂ formation on Ni₂P.

3. Computational Methods

Periodic plane-wave DFT calculations were performed using the Vienna ab initio simulation package (VASP) [46,47,48,49], as implemented in the computational catalysis interface (CCI) [50]. Plane waves were constructed using projector augmented-wave (PAW) potentials [51,52] with an energy cutoff of 396 eV. The revised Perdew−Burke−Ernzerhof (RPBE) form of the generalized gradient approximation was used to describe exchange and correlation energies [53,54,55]. Gaseous species were modeled within 15 × 15 × 15 Å unit cells of vacuum. The unit cell of bulk Ni₂P (space group P62m) was built based on crystallographic data [56], and the lattice parameters were then optimized using DFT as described in more detail in our previous work [35]. The optimized bulk lattice parameters (a = b = 5.87 Å and c = 3.37 Å) were consistent with previous DFT and experimental studies (a = b = 5.86 Å and c = 3.38 Å) [57,58]. Calculations were not run spin-polarized because Ni₂P was previously shown not to have spin-polarized electronic structures [35,57].

The Ni₂P(001) surface with the Ni-rich termination (Figure 4a) was used for all calculations because it has the lowest surface formation energy [35]. The system was modeled as a 2 × 2 periodic lattice with two repeating units and a 10 Å of vacuum in the z-direction (Figure 4b). The atoms in the bottom unit (two atomic layers) were fixed in their bulk positions while all other atoms were relaxed. A 3 × 3 × 1 Monkhorst−Pack sampling of the first Brillouin zone (k-point mesh) was used during geometric convergence [59,60]. Wave functions were converged to within 10⁻⁶ eV, and structures were relaxed until all forces on unconstrained atoms were <0.05 eVÅ⁻¹.

Transition-state structures were obtained for each elementary reaction by using the nudged elastic band (NEB) method and the dimer method [61,62,63]. The NEB method was carried out using 8 images, and wave functions were converged to within 10⁻⁴ eV. The maximum force on each atom was converged to <0.5 eV Å⁻¹. These convergence criteria provided an estimate of the reaction path and initial transition-state structures and reaction modes. The dimer algorithm was then used with wave functions converged to within 10⁻⁶ eV, and the maximum force on each atom was converged to <0.05 eV Å⁻¹.

Frequency calculations were performed on gas-phase molecules and all optimized adsorbed species to determine zero-point vibrational energies; vibrational, translational, and rotational enthalpy; and free energy. These terms were then used, together with electronic energies (E₀, provided by VASP), to estimate enthalpies for the reactants, products, and transition states at 573 K (the typical temperature for MSR). The adsorbates binding energy (ΔE_ads) relative to the gas-phase species is defined as:

$$\Delta E_{\mathrm{ads}}=E_{\mathrm{species}/\mathrm{surf}}-E_{\mathrm{species}\left(\mathrm{g}\right)}-E_{\mathrm{surf}}$$

(4)

Thus, more negative values indicate stronger binding. DFT-derived intrinsic activation enthalpy (ΔH_act) and enthalpy of reaction (ΔH_rxn) denote differences between a transition state, or the product and the precursor reactant for that elementary step. Effective enthalpy barriers (ΔH҂) are defined as the enthalpy of forming the transition state and a stoichiometric amount of gas-phase H₂ from gas-phase methanol and water (if the reaction involves water):

$$\Delta H҂=H҂+\lambda H_{\mathrm{H}2\left(\mathrm{g}\right)}-H_{\mathrm{C}\mathrm{H}3\mathrm{O}\mathrm{H}\left(\mathrm{g}\right)}-H_{\mathrm{H}2\mathrm{O}\left(\mathrm{g}\right)}-H_{\mathrm{surf}}$$

(5)

where λ is the number of H₂ molecules evolved during the reaction from the dehydrogenation steps. Further details of the computational methods (Section S1) and the energy correction terms (Table S1) are reported in the Supporting Information (SI).

4. Conclusions

Methanol decomposition, methanol steam reforming, and the water–gas shift reaction pathways over the Ni₂P catalyst were investigated using DFT. Calculated effective enthalpy barriers (ΔH҂) indicate that methanol decomposition occurs through CH₃OH* → CH₃O* → CH₂O* → CHO* → CO*. In MSR, formaldehyde (CH₂O*) can react with a co-adsorbed OH* to produce H₂COOH*, which then undergoes subsequent dehydrogenation steps to produce CO₂ via H₂COOH*→ HCOOH* → HCOO* → CO₂. Effective barriers for both pathways are within 5 kJ mol⁻¹, suggesting that they both may compete on Ni₂P, unlike other transition metals where methanol decomposition is much more dominant. We also examined CO₂ formation via the WGS reaction; however, the high calculated activation barriers preclude this pathway from contributing to CO₂ formation on Ni₂P. These findings, taken together, suggest that Ni₂P with its unique selectivity and resistance to coke formation is a promising alternative for Cu in methanol steam reforming.
