Bis-NHC–Ag/Pd(OAc)2 Catalytic System Catalyzed Transfer Hydrogenation Reaction

by
Hui-Ju Chen
,
Chien-Cheng Chiu
,
Tsui Wang
,
Dong-Sheng Lee
* and
Ta-Jung Lu
Department of Chemistry, National Chung Hsing University, Taichung 40227, Taiwan
*
Author to whom correspondence should be addressed.
Catalysts 2021, 11(1), 8; https://doi.org/10.3390/catal11010008
Submission received: 18 November 2020 / Revised: 16 December 2020 / Accepted: 22 December 2020 / Published: 23 December 2020
(This article belongs to the Section Catalysis in Organic and Polymer Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
The bis-NHC–Ag/Pd(OAc)2 catalytic system (NHC = N-heterocyclic carbene), a combination of bis-NHC–Ag complex and Pd(OAc)2, was found to be a smart catalyst in the Pd-catalyzed transfer hydrogenation of various functionalized arenes and internal/terminal alkynes. The catalytic system demonstrated high efficiency for the reduction of a wide range of various functional groups such as carbonyls, alkynes, olefins, and nitro groups in good to excellent yields and high chemoselectivity for the reduction of functional groups. In addition, the protocol was successfully exploited to stereoselectivity for the transformation of alkynes to alkenes in aqueous media under air. This methodology successfully provided an alternative useful protocol for reducing various functional groups and a simple operational protocol for transfer hydrogenation.

Graphical Abstract

1. Introduction

Metal-N-heterocyclic carbene (NHC) complexes possess a strong metal–carbene bond and these complexes play an important role in organometallic catalysis [1,2,3,4,5]. They have been developed into valuable catalytic systems in various reactions including Pd-catalyzed C–C cross-coupling reactions [6,7,8], C–N formation [9], hydrogenation [10,11], etc. The transfer hydrogenation reaction in particular has attracted much attention. Transfer hydrogenation [12,13,14,15,16] is one of the useful synthetic methods for various hydrogenated compounds, is inherently safer than direct hydrogenation, and has an easy operational setup. Transfer hydrogenation donors such as 2-propanol [17,18,19,20,21], ethanol [22,23,24], and formic acid are desirable because of their easy handling. Formic acid in particular has been widely studied as an environmentally friendly transfer hydrogenation agent due to its accessibility and high stability [25,26,27,28,29].
Due to the reductive elimination of the hydrido-palladium complexes of NHC, leading to catalyst deactivation [30,31,32,33,34], Pd–NHC-catalyzed transfer hydrogenation has less successful examples. In 2004, Cavell and co-workers demonstrated the first successful example of a stable tricarbene-Pd-hydrido complex [35], and Pd–NHC-catalyzed transfer hydrogenation has recently attracted much attention. Elsevier et al. and Cazin et al. also illustrated the Pd(NHC)-catalyzed reduction of alkynes employing triethylammonium formate (TEAF) as the hydrogen source. They also proposed a catalytic mechanism to illustrate the formation of Z-alkenes in the transfer hydrogenation of alkynes [36,37,38,39,40,41,42]. Bis-NHC binds to metal to form stable complexes compared to their monodentate NHC complexes. In addition, bis-NHC ligand diversity could be easily accessed by the modification of the linker and the wingtips. In 2013, Elsevier et al. established various bis-NHC–Pd complexes and applied them to the semihydrogenation of 1-phenyl-1-propyne [43]. Unfortunately, only 18% conversion was obtained by using formic acid (5.0 eq) as a hydrogen donor at 70 °C in acetonitrile. The authors mentioned that the transfer semihydrogenation gave a mixture of Z-alkene, E-alkene, and alkane (over-reduced product) in a 98:2:0 ratio. Although an excellent Z/E ratio was displayed, the challenges are still functional group compatibility, chemoselectivity, stereoselectivity, and the control of over reduction. Therefore, it is desirable to develop an alternative method for efficient transfer hydrogenation. On the other hand, NHC ligands were recently found to play an important role in the synthesis of metallic nanoparticles (MNPs). Pd nanoparticles (Pd NPs) were formed by the decomposition of Pd–NHC bonds in a Pd/NHC catalytic system or by the reduction of the Pd precursor, especially in the presence of aliphatic amines such as triethylamine. The NHC-ligated Pd NPs present an efficient catalytic activity in the catalysis [44,45,46,47,48]. We recently reported an in situ-generated bis-NHC/Pd(OAc)2 catalytic system, which was derived from bis-benzimidazolium salt and Pd(OAc)2, as a catalyst for the Suzuki–Miyaura reaction, Mizoroki–Heck reaction, and Friedel-Crafts alkylation reaction of indole and nitrostyrene in good to excellent yields (Figure 1a) [49,50]. Motivated by these results we continued our efforts to develop an efficient bis-NHC–Ag/Pd(OAc)2 catalytic system to catalyze chemoselective transfer hydrogenation with TEAF as a hydrogen donor (Figure 1b).

2. Results

A testing protocol was examined by using trans-cinnamyl alcohol, formic acid, triethylamine, and a bis-NHC–Ag/Pd(OAc)2 catalytic system at 80 °C. To screen the optimized reaction conditions fast, various factors such as Pd loading, equivalents of TEAF, and solvents were evaluated (Table 1). Preliminary results illustrated that N,N-dimethylformamide (DMF) was a suitable solvent for transfer hydrogenation (entry 2 vs. 4). trans-cinnamyl alcohol was hydrogenated completely to 3-phenylpropan-1-ol in the presence of 1.0 mol % catalyst loading and a 4-fold excess of HCO2H/NEt3 in DMF (entry 5). A dramatic drop in conversion was obtained in the absence of bis-NHC–Ag complex (8% conversion, entry 6), which means the bis-NHC–Ag/Pd(OAc)2 catalytic system raises the reactivity of the Pd metal center on the catalytic hydrogenation reaction (entry 5 vs. entry 6).
After screening the optimal reaction conditions, the reduction of various functionalized substrates was studied. As illustrated in Table 2, quantitative conversions were observed in the reduction of olefins containing alcohol, acid, and ester functionalities (entries 1–3). Notably, the reduction of 1,2-diphenylacetylene 3a produced (Z)-4a as the only product, without the formation of the over-reduced product, 1,2-diphenylethane and (E)-4a (entry 4, 85%). The reduction of nitrobenzene catalyzed by the bis-NHC–Ag/Pd(OAc)2 catalytic system gave aniline 6a in a 99% isolated yield (entry 5). With a substrate containing two active functional groups, 4-nitroacetophenone 6b, the catalytic system was found to selectively reduce the nitro group, while no reduction product of the carbonyl group was observed on benzene ring 6b (entry 6). This demonstrates that the reduction rate of the nitro group is faster than that of ketone. In addition, aldehyde-bearing strong electron-withdrawing group CF3, which could afford the corresponding alcohol 8a in a 92% yield (entry 7), indicates that our reaction works for both electron-donating and electron-withdrawing substituents.
Recently, numerous studies of Pd-catalyzed transfer hydrogenation using H2O as the hydrogen agent and the solvent have been reported [51,52,53,54,55,56,57,58,59]. We turned our attention to the possibility that the transfer hydrogenation of internal/terminal alkynes may also continue in the presence of the bis-NHC–Ag/Pd(OAc)2 catalytic system in aqueous media under air. We began to develop a general method for the transfer hydrogenation of internal alkynes by using 1,2-diphenylacetylene 3a and formic acid (4 equiv) and triethylamine (4 equiv) as the model substrates. As described in Table 3, 3a was reduced to semihydrogenation product 4a with a Z/E ratio of 94/6 in DMF/H2O (9/1) mixed solvent (entry 1). The over-reduced product 9a was fully inhibited. When we continued to increase the amount of water, the conversion yields decreased because of the low solubility of 3a, but (Z)-4a was still the major product (entries 1–4). Notably, the ratio of (Z)-4a and (E)-4a decreased slightly as the amount of water decreased (entries 1–4). cis-Stilbene 8a was afforded as a major product regardless of the proportion of water. This observation is contrary to recent reports, in which trans-alkenes were found to be a major product through in situ Z→E isomerization in the Pd-catalyzed semihydrogenation of internal alkynes in aqueous solution [52,53,56,57,58]. In addition, K2CO3 and K3PO4·H2O were not the best choices as the base, indicating that the basicity of the base might affect the reaction rate (entries 2, 5, and 6) [60]. With Pd(II) sources, 3a was transformed to olefin efficiently, but Pd(OAc)2 was the best choice (entries 2, 7–9).

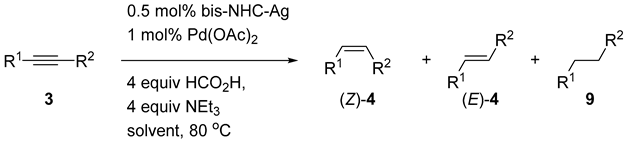

Based on this observation, transfer hydrogenation of internal alkynes 3 was subsequently investigated in aqueous media under air. The results summarized in Table 4 showed that various internal alkynes were readily reduced to the corresponding alkenes in moderate to excellent conversion yields. For 1,2-diphenylacetlene 3a as the substrate, the use of a DMF/H2O (5/5) solvent system at 80 °C (condition A) produced a 100% conversion yield confirmed by GC (Gas Chromatography) with a Z/E ratio of 93/7 (entry 1). On the other hand, the use of a DMF/H2O (9/1) solvent system at 80 °C (condition B) generated a 100% conversion GC yield and 94/6 Z/E ratio (entry 2). Surprisingly, the corresponding product 4b was formed in a 97% isolated yield with a Z/E ratio of 30/70 under condition B (entry 3) when using heteroaromatic alkynes 3b as a substrate. That might be the reason why the stereoselectivity of the product is affected by the pyridinyl group, the coordinative moiety [61,62]. It should be mentioned that 3c was successfully reduced to (Z)-4c with excellent stereoselectivity under condition B (entry 5). For the semihydrogenation of conjugated alkynes bearing ester 3d, good performance was demonstrated with a Z/E ratio of 95/5 under condition B (entry 6). In particular, only (Z)-alkenylamide, (Z)-4e, was prepared in an 83% isolated yield for 1 h at 60 °C (entry 8) and over-reduced amide 9e was the only product in a quantitative yield for 2 h at 80 °C (entry 7). This illustrated that the excellent chemoselectivity of the reduction of 3e can be controlled by prolonging the reaction time and conditions.
Similarly, the catalytic system was efficiently used to employ in the reduction of various terminal alkynes 10 (Table 5). The catalytic system was effective in the hydrogenation of phenylacetylene under condition B and styrene was observed with an 89% GC yield (entry 1). On the contrary, ethylbenzene 12a was obtained when the reaction time was spread to 5 h (entry 2). It was also noted that the terminal-alkyne-bearing electron-donating group on the benzene ring, i.e., 10b, 10c, and 10d, was easily reduced to the corresponding olefins within 30 min with conversion yields of 82–92% (entries 3 and 5). Completely reduced products, saturated alkanes 12, were achieved by extending reaction time to 3 h and moderate GC yields in the range 40–68% were obtained (entries 4 and 6). Notably, 4-nitrophenylacetylene, 10d, shows that the catalytic system displays excellent chemoselectivity between the alkyne and nitro groups (entry 7). Interestingly, the complete reduction product, 4-ethylaniline 12d, was generated in an 80% isolated yield when increasing reaction time to 2 h (entry 8). In addition, the catalytic system also tolerates well functionalities such as alcohol, methoxy, and nitro groups. Heteroaryl alkyne, 10e, was reduced to the corresponding olefin in a 72% GC yield (entry 9). In addition to aryl alkynes, the aliphatic alkynes, 10f and 10g, were also investigated in an aqueous medium under air. The semi-reduction products, 11f and 11g, were obtained in 99% and 78% isolated yields (entries 10 and 12), while the over-reduction products, 12f and 12g, were given in 97% and 72% isolated yields, respectively (entries 11 and 13).

3. Materials and Methods

3.1. General Methods

Unless otherwise noted, commercially available materials, which were received from Aldrich and Acros, were used without further purification. Anhydrous solvent, DMF, was received from Aldrich. Acetonitrile was obtained by distillation over calcium hydride. Toluene and t-BuOH were distilled and used after treatment with sodium. Reactions were monitored with pre-coated silica gel 60 (F-254) plates. The purification of products was performed by column chromatography (silica gel, 0.040–0.063 μm) eluting with n-hexane/ethyl acetate. 1H and 13C NMR spectra, found in the Supplementary Materials, were analyzed with an Agilent Mercury 400 spectrometer. J-values are given in Hz. Chemical shifts (δ) were recorded from CDCl3 (δ = 7.26 ppm) in the 1H NMR spectra and the central peak of CDCl3 (δ = 77.0 ppm) in the 13C NMR spectra. GC-FID (Gas Chromatography-flame ionization detector) was analyzed on a Shimadzu GC-2014 equipped with a capillary column (SPB®-5, 60 m × 0.25 mm × 0.25 μm). The conversion yields, GC-yield, and ratios were determined by using undecane as an internal standard. High-resolution mass spectra were obtained with a Finnigan/Thermo Quest MAT 95XL mass spectrometer using either the electron impact (EI) or the electrospray ionization (ESI) method. The synthesis of the bis-NHC–Ag complex was carried out according to our previous report [50].

3.2. Description of the Screening Experiments

3.2.1. General Procedures for Transfer Hydrogenation Reactions in Organic Solvent under N2

A Schlenk tube was charged with bis-NHC–Ag complex (0.5 mol %), Pd(OAc)2 (1 mol %), NEt3 (4 mmol), HCO2H (4 mmol), substrate (1 mmol), and DMF (5 mL). After stirring at 80 °C for 24 h under N2, 5 mL of brine were added to the reaction mixture. The aqueous phase was extracted with EtOAc (5 mL × 3). The combined organic phases were dried (Na2SO4) and filtered. The filtrate was concentrated under reduced pressure and the residue was purified by column chromatography.

3.2.2. General Procedures for Transfer Hydrogenation Reactions in Aqueous Media under Air

A Schlenk tube was charged with bis-NHC–Ag complex (0.5 mol %), Pd(OAc)2 (1 mol %), NEt3 (4 mmol), HCO2H (4 mmol), substrate 3 (1 mmol), and DMF/H2O (5 mL). After stirring at 80 °C for 24 h under air, 5 mL of brine were added to the resulting solution. After extracting the aqueous layer with EtOAc (5 mL × 3), the combined organic layers were dried (Na2SO4) and filtered. The filtrate was concentrated under reduced pressure and the residue was purified by column chromatography.

3.3. Analytical Data of the Reduction Products

3.3.1. Transfer Hydrogenation Reactions in Organic Solvent under N2

3-Phenylpropanol (2a) (Table 2, entry 1) [63]. 1H NMR (CDCl3, 400 MHz): δ 7.31−7.18 (m, 5H), 3.68 (t, J = 7.6 Hz, 2H), 2.72 (t, J = 7.6 Hz, 2H), 1.92 (quintet, J = 7.6 Hz, 2H); 13C NMR (CDCl3, 100 MHz): δ 141.7, 128.3, 128.2, 125.7, 61.8, 34.0, 31.9.
3-Phenylpropanoic acid (2b) (Table 2, entry 2) [64]. 1H NMR (CDCl3, 400 MHz): δ 7.32−7.21 (m, 5H), 2.97 (t, J = 7.6 Hz, 2H), 2.69 (t, J = 7.6 Hz, 2H); 13C NMR (CDCl3, 100 MHz): δ 179.5, 140.1, 128.5, 128.2, 126.3, 35.6, 30.5.
Methyl 3-phenylpropanate (2c) (Table 2, entry 3) [64]. 1H NMR (CDCl3, 400 MHz): δ 7.31−7.27 (m, 2H), 7.33−7.19 (m, 3H), 3.67 (s, 3H), 2.95 (t, J = 8.0 Hz, 2H), 2.64 (t, J = 8.0 Hz, 2H).
cis-Stilbene (4a) (Table 2, entry 4) [36]. 1H NMR (CDCl3, 400 MHz): δ 7.29–7.20 (m, 10H), 6.62 (s, 2H); 13C NMR (CDCl3, 100 MHz): δ 137.2, 130.2, 128.9, 128.2, 127.1.
Aniline (6a) (Table 2, entry 5) [65]. 1H NMR (CDCl3, 400 MHz): δ 7.17 (t, J = 7.6 Hz, 2H), 6.77 (t, J = 7.6 Hz, 1H), 6.70 (d, J = 7.6 Hz, 2H), 3.65 (br, 2H); 13C NMR (CDCl3, 100 MHz): δ 146.3, 129.1, 118.3, 114.9.
1-(4-Aminophenyl)ethan-1one (6b) (Table 2, entry 6) [65]. 1H NMR (CDCl3, 400 MHz): δ 7.81 (d, J = 8.4 Hz, 2H), 6.65 (d, J = 8.4 Hz, 2H), 4.11 (br, 2H), 2.51 (s, 3H); 13C NMR (CDCl3, 100 MHz): δ 186.5, 151.1, 130.8, 127.7, 113.6, 26.1.
(4-(Trifluoromethyl)phenyl)methanol (8a) (Table 2, entry 7) [63]. 1H NMR (CDCl3, 400 MHz): δ 1H NMR (CDCl3, 400 MHz): δ 7.51 (d, J = 7.6 Hz, 2H), 7.32 (d, J = 7.6 Hz, 2H), 4.58 (s, 2H), 3.99 (bs, 1H, OH); 13C NMR (CDCl3, 100 MHz): δ 144.6, 129.4 (q, JC−F = 32.1 Hz), 126.7, 125.2, 124.1 (q, JC−F = 270.5 Hz), 63.8.

3.3.2. Transfer Hydrogenation Reactions in Aqueous Media under Air

(E)-2-Styrylpyridine (4b) (Table 4, entry 3) [62]. 1H NMR (CDCl3, 400 MHz): δ 8.61 (d, J = 4.8 Hz, 1H), 7.69−7.64 (m, 2H), 7.64 (d, J = 16.0 Hz, 1H), 7.59 (d, J = 7.6 Hz, 1H), 7.43−7.36 (m, 3H), 7.30 (t, J = 7.6 Hz, 1H), 7.18 (d, J = 16.0 Hz, 1H), 7.15 (t, J = 7.6 Hz, 1H); 13C NMR (CDCl3, 100 MHz): 145.7, 128.4, 127.4, 125.3, 70.3, 25.1.
The mixture of 3-phenyl-2-propyn-1-ol (3c) and (Z)-cinnamyl alcohol (4c) (Table 4, entry 4) [66]. The ratio (3c/4c = 84/16) was determined by 1H NMR signals at 4.50 ppm (alkyne protons of 3c) and 4.45 ppm (olefin protons of 4c). (Z)-4c: 1H NMR (CDCl3, 400 MHz): δ 7.37−7.20 (m, 5H), 6.58 (d, J = 11.6 Hz, 1H), 5.88 (dt, J = 11.6, 6.0 Hz, 1H), 4.45 (d, J = 6.0 Hz, 2H), 1.50 (br, 1H).
The mixture of (Z/E)-Methyl cinnamate (Z-4d and E-4d) (Table 4, entry 6) [67]. The ratio (Z-4d/E-4d = 95/5) was determined by 1H NMR signals at 6.46 ppm (E-4d) and 5.96 ppm (Z-4d). (Z)-4d: 1H NMR (CDCl3, 400 MHz): δ 7.59 (d, J = 7.6 Hz, 2H), 7.40−7.37 (m, 1H), 7.34 (t, J = 7.6 Hz, 2H), 6.96 (d, J = 12.4 Hz, 1H), 5.96 (d, J = 12.4 Hz, 1H), 3.71 (s, 3H).
(Z)-3-Phenylacrylamide (4e) (Table 4, entry 8) [57]. 1H NMR (CDCl3, 400 MHz): δ 7.48 (d, J = 6.8 Hz, 2H), 7.38−7.32 (m, 3H), 6.86 (d, J = 12.4 Hz, 1H), 5.99 (d, J = 12.4 Hz, 1H), 5.47 (br, 2H); 13C NMR (CDCl3, 100 MHz): δ 169.1, 137.5, 134.8, 128.9, 128.7, 128.5, 123.8.
Styrene (11a) (Table 5, entry 1) [68]. 1H NMR (CDCl3, 400 MHz): δ 7.41 (d, J = 6.8 Hz, 2H), 7.32 (t, J = 6.8 Hz, 2H), 7.25 (t, J = 6.8 Hz, 1H), 6.72 (dd, J = 17.6, 10.8 Hz, 1H), 5.75 (d, J = 17.6 Hz, 1H), 5.24 (d, J = 10.8 Hz, 1H); 13C NMR (CDCl3, 100 MHz): δ 137.5, 136.8, 128.5, 127.8, 126.2, 113.8.
Ethylbenzene (12a) (Table 5, entry 2) [68]. 1H NMR (CDCl3, 400 MHz): δ 7.29 (t, J = 7.2 Hz, 2H), 7.21 (d, J = 7.2 Hz, 2H), 7.18 (t, J = 7.2 Hz, 1H), 2.66 (q, J = 7.6 Hz, 2H), 1.25 (t, J = 7.6 Hz, 3H); 13C NMR (CDCl3, 100 MHz): δ 144.2, 128.3, 127.8, 125.6, 28.9, 15.6.
4-Methoxystyrene (11b) (Table 5, entry 3) [69]. 1H NMR (CDCl3, 400 MHz): δ 7.35 (d, J = 8.4 Hz, 2H), 6.86 (d, J = 8.4 Hz, 2H), 6.67 (dd, J = 17.6, 11.2 Hz, 1H), 5.61 (d, J = 17.6, Hz, 1H), 5.13 (d, J = 11.2 Hz, 1H), 3.81 (s, 3H); 13C NMR (CDCl3, 100 MHz): δ 159.3, 136.2, 130.4, 127.4, 113.9, 111.6, 53.3.
4-Ethylanisole (12b) (Table 5, entry 4) [68]. 1H NMR (CDCl3, 400 MHz): δ 7.12 (d, J = 7.6 Hz, 2H), 6.84 (d, J = 7.6 Hz, 2H), 3.80 (s, 3H), 2.60 (q, J = 7.6 Hz, 2H), 1.22 (t, J = 7.6 Hz, 3H); 13C NMR (CDCl3, 100 MHz): δ 157.6, 136.4, 128.7, 113.7, 55.3, 27.9, 15.9.
4-Methylstyrene (11c) (Table 5, entry 5) [69]. 1H NMR (CDCl3, 400 MHz): δ 7.32 (d, J = 8.0 Hz, 2H), 7.14 (d, J = 8.0 Hz, 2H), 6.70 (dd, J = 17.6, 10.8 Hz, 1H), 5.76 (d, J = 17.6 Hz, 1H), 5.19 (d, J = 10.8 Hz, 1H), 2.35 (s, 3H); 13C NMR (CDCl3, 100 MHz): δ 137.6, 136.7, 134.8, 129.2, 126.1, 112.7, 21.2.
4-Ethylaniline (12d) (Table 5, entry 8) [70]. 1H NMR (CDCl3, 400 MHz): δ 6.99 (d, J = 8.4 Hz, 2H), 6.63 (d, J = 8.4 Hz, 2H), 3.55 (br, 2H), 2.54 (q, J = 7.6 Hz, 2H), 1.19 (t, J = 7.6 Hz, 3H).
2-Vinylpyridine (11e) (Table 5, entry 9) [71]. 1H NMR (CDCl3, 400 MHz): δ 8.57 (d, J = 4.0 Hz, 1H), 7.65 (t, J = 7.6 Hz, 1H), 7.35 (d, J = 7.6 Hz, 1H), 7.15 (t, J = 7.6 Hz, 1H), 6.82 (dd, J = 17.2, 10.8 Hz, 1H), 6.20 (d, J = 17.2 Hz, 1H) 5.48 (d, J = 10.8 Hz, 1H); 13C NMR (CDCl3, 100 MHz): δ 155.7, 149.4, 136.9, 136.4, 122.4, 121.1, 118.1.
Dodec-1-ene (11f) (Table 5, entry 10) [72]. 1H NMR (CDCl3, 400 MHz): δ 5.82 (m, 1H), 4.99 (d, J = 17.2 Hz, 1H), 4.93 (d, J = 9.6 Hz, 1H), 2.05−2.01 (m, 2H), 1.39−1.26 (m, 16H), 0.88 (s, J = 6.8 Hz, 3H); 13C NMR (CDCl3, 100 MHz): δ 139.7, 114.1, 33.8, 31.9, 29.6, 29.5, 29.5, 29.2, 29.0, 22.7, 14.1.
Dodecane (12f) (Table 5, entry 11) [73]. 1H NMR (CDCl3, 400 MHz): δ 1.36–1.20 (m, 20H), 0.88 (t, J = 6.8 Hz, 6H); 13C NMR (CDCl3, 100 MHz): δ 31.9, 29.7, 29.4, 22.7, 14.1.
Undec-10-en-1-ol (11g) (Table 5, entry 12) [74]. 1H NMR (CDCl3, 400 MHz): δ 5.81 (ddd, J = 17.2, 10.4, 6.8 Hz, 1H), 4.99 (dd, J = 17.2, 0.8 Hz, 1H), 4.93 (dd, J = 10.4, 0.8 Hz, 1H), 3.64 (t, J = 6.8 Hz, 2H), 2.04 (dd, J = 13.6, 6.8 Hz, 2H), 1.69−1.51 (m, 2H), 1.50−1.18 (m, 13H); 13C NMR (CDCl3, 100 MHz): δ 139.2, 114.1, 63.1, 33.8, 32.8, 29.5, 29.4, 29.1, 28.9, 25.7.
Undecan-1-ol (12g) (Table 5, entry 13) [72]. 1H NMR (CDCl3, 400 MHz): δ 3.64 (t, J = 6.8 Hz, 2H), 1.51–1.62 (m, 2H), 1.40–1.19 (m, 16H), 0.88 (t, J = 6.8 Hz, 3H); 13C NMR (CDCl3, 100 MHz): δ 63.0, 32.7, 31.9, 29.6, 29.4, 29.3, 25.7, 22.6, 14.1.

4. Conclusions

In summary, we have developed a practical and efficient in-situ-generated bis-NHC–Pd catalytic system which was applied in the transfer hydrogenation of various functionalized arenes in good to high yields with excellent chemoselectivity. The catalytic system was also applied in the semihydrogenation of internal alkynes to provide outstanding stereoselectivity. The chemoselectivity was shown in the reduction of terminal alkynes by controlling the reaction time and conditions. The simplicity of the procedure is outlined by the application of the commercially available triethylammonium formate as a hydrogen source under mild and non-inert conditions.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/11/1/8/s1, Figure S1: 1H NMR spectrum of 1-(4-methoxyphenyl)-1H-benzo[d]imidazole in CDCl3, Figure S2: 13C NMR spectrum of 1-(4-methoxyphenyl)-1H-benzo[d]imidazole in CDCl3, Figure S3: 1H NMR spectrum of 5,5′-(pentane-1,5-diyl)bis(1-(4-methoxyphenyl)-1H-benzo[d]imidazol-3-ium) bromide in CD3OD, Figure S4: 13C NMR spectrum of 5,5′-(pentane-1,5-diyl)bis(1-(4-methoxyphenyl)-1H-benzo[d]imidazol-3-ium) bromide in CD3OD, Figure S5: 1H NMR spectrum of bis-NHC–Ag complex in DMSO-d6, Figure S6: 13C NMR spectrum of bis-NHC–Ag complex in DMSO-d6, Figure S7: 1H NMR spectrum of compound 2a in CDCl3, Figure S8: 13C NMR spectrum of compound 2a in CDCl3, Figure S9: 1H NMR spectrum of compound 2b in CDCl3, Figure S10: 13C NMR spectrum of compound 2b in CDCl3, Figure S11: 1H NMR spectrum of compound 2c in CDCl3, Figure S12: 1H NMR spectrum of compound (Z)-4a in CDCl3, Figure S13: 13C NMR spectrum of compound (Z)-4a in CDCl3, Figure S14: 1H NMR spectrum of compound 6a in CDCl3, Figure S15: 13C NMR spectrum of compound 6a in CDCl3, Figure S16: 1H NMR spectrum of compound 6b in CDCl3, Figure S17: 13C NMR spectrum of compound 6b in CDCl3, Figure S18: 1H NMR spectrum of compound 8a in CDCl3, Figure S19: 13C NMR spectrum of compound 8a in CDCl3, Figure S20: 1H NMR spectrum of compound (E)-4b in CDCl3, Figure S21: 13C NMR spectrum of compound (E)-4b in CDCl3, Figure S22: 1H NMR spectrum of the mixture of (Z)-4c and 3c in CDCl3, Figure S23: 1H NMR spectrum of the mixture of (Z)-4d, (E)-4d, and 9d in CDCl3, Figure S24: 1H NMR spectrum of the mixture of (E)-4e and (Z)-4e in CDCl3, Figure S25: 1H NMR spectrum of compound (Z)-4f in CDCl3, Figure S26: 13C NMR spectrum of compound (Z)-4f in CDCl3, Figure S27: 1H NMR spectrum of compound 11a in CDCl3, Figure S28: 13C NMR spectrum of compound 11a in CDCl3, Figure S29: 1H NMR spectrum of compound 12a in CDCl3, Figure S30: 13C NMR spectrum of compound 12a in CDCl3, Figure S31: 1H NMR spectrum of compound 11b in CDCl3, Figure S32: 13C NMR spectrum of compound 11b in CDCl3, Figure S33: 1H NMR spectrum of compound 12b in CDCl3, Figure S34: 13C NMR spectrum of compound 12b in CDCl3, Figure S35: 1H NMR spectrum of compound 11c in CDCl3, Figure S36: 13C NMR spectrum of compound 11c in CDCl3, Figure S37: 1H NMR spectrum of compound 12d in CDCl3, Figure S38: 1H NMR spectrum of compound 11e in CDCl3, Figure S39: 13C NMR spectrum of compound 11e in CDCl3, Figure S40: 1H NMR spectrum of compound 11f in CDCl3, Figure S41: 13C NMR spectrum of compound 11f in CDCl3, Figure S42: 1H NMR spectrum of compound 12f in CDCl3, Figure S43: 13C NMR spectrum of compound 12f in CDCl3, Figure S44: 1H NMR spectrum of compound 11g in CDCl3, Figure S45: 13C NMR spectrum of compound 11g in CDCl3, Figure S46: 1H NMR spectrum of compound 12g in CDCl3, Figure S47: 13C NMR spectrum of compound 12g in CDCl3.

Author Contributions

Conceptualization, C.-C.C. and D.-S.L.; methodology, H.-J.C. and C.-C.C.; validation, H.-J.C., C.-C.C., and T.W.; formal analysis, H.-J.C., C.-C.C., and T.W.; investigation, H.-J.C. and C.-C.C.; resources, C.-C.C. and D.-S.L.; data curation, H.-J.C., C.-C.C., and T.W.; writing—original draft preparation, D.-S.L.; writing—review and editing, T.-J.L.; supervision, D.-S.L.; project administration, D.-S.L.; funding acquisition, D.-S.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science and Technology of the Republic of China, grant number 107WFA0510613.

Acknowledgments

We thank the National Center for High-performance Computing (NCHC) for providing computational and storage resources.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Herrmann, W.A. N-Heterocyclic Carbenes: A New Concept in Organometallic Catalysis. Angew. Chem. Int. Ed. 2002, 41, 1290–1309. [Google Scholar] [CrossRef]
  2. Fortman, G.C.; Nolan, S.P. N-Heterocyclic carbene (NHC) ligands and palladium in homogeneous cross-coupling catalysis: A perfect union. Chem. Soc. Rev. 2011, 40, 5151–5169. [Google Scholar] [CrossRef] [PubMed]
  3. Hopkinson, M.N.; Richter, C.; Schedler, M.; Glorius, F. An overview of N-heterocyclic carbenes. Nature 2014, 510, 485–496. [Google Scholar] [CrossRef] [PubMed]
  4. Froese, R.D.J.; Lombardi, C.; Pompeo, M.; Rucker, R.P.; Organ, M.G. Designing Pd-N-Heterocyclic Carbene Complexes for High Reactivity and Selectivity for Cross-Coupling Applications. Acc. Chem. Res. 2017, 50, 2244–2253. [Google Scholar] [CrossRef] [PubMed]
  5. Peris, E. Smart N-Heterocyclic Carbene Ligands in Catalysis. Chem. Rev. 2018, 118, 9988–10031. [Google Scholar] [CrossRef] [PubMed]
  6. Marion, N.; Nolan, S.P. Well-Defined N-Heterocyclic Carbenes–Palladium(II) Precatalysts for Cross-Coupling Reactions. Acc. Chem. Res. 2008, 41, 1440–1449. [Google Scholar] [CrossRef] [PubMed]
  7. Monot, J.; Brahmi, M.M.; Ueng, S.-H.; Robert, C.; Murr, M.D.; Curran, D.P.; Malacria, M.; Fensterbank, L.; Lacôte, E. Suzuki–Miyaura Coupling of NHC-Boranes: A New Addition to the C–C Coupling Toolbox. Org. Lett. 2009, 11, 4914–4917. [Google Scholar] [CrossRef]
  8. Kose, O.; Saito, S. Cross-coupling reaction of alcohols for carbon–carbon bond formation using pincer-type NHC/Palladium catalysts. Org. Biomol. Chem. 2010, 8, 896–900. [Google Scholar] [CrossRef]
  9. Yong, B.S.; Nolan, S.P. Transition Metal-Carbene Complexes in Homogeneous Catalysis. Chemtracts: Org. Chem. 2003, 16, 205–227. [Google Scholar] [CrossRef]
  10. Sprengers, J.W.; Wassenaar, J.; Clement, N.D.; Cavell, K.J.; Elsevier, C.J. Palladium–(N-Heterocyclic Carbene) Hydrogenation Catalysts. Angew. Chem. Int. Ed. 2005, 44, 2026–2029. [Google Scholar] [CrossRef]
  11. Liu, L.-J.; Wang, F.; Shi, M. Synthesis of Chiral Bis(N-heterocyclic carbene) Palladium and Rhodium Complexes with 1,1′-Biphenyl Scaffold and Their Application in Asymmetric Catalysis. Organometallics 2009, 28, 4416–4420. [Google Scholar] [CrossRef]
  12. Brieger, G.; Nestrick, T.J. Catalytic Transfer Hydrogenation. Chem. Rev. 1974, 74, 567–580. [Google Scholar] [CrossRef]
  13. Backvall, J.-E. Transition metal hydrides as active intermediates in hydrogen transfer reactions. J. Organomet. Chem. 2002, 652, 105–111. [Google Scholar] [CrossRef]
  14. Gladiali, S.; Alberico, E. Asymmetric transfer hydrogenation: Chiral ligands and applications. Chem. Soc. Rev. 2006, 35, 226–236. [Google Scholar] [CrossRef] [PubMed]
  15. Samec, J.S.M.; Backvall, J.-E.; Anderssonm, P.G.; Brandt, P. Mechanistic aspects of transition metal-catalyzed hydrogen transfer reactions. Chem. Soc. Rev. 2006, 35, 237–248. [Google Scholar] [CrossRef]
  16. Wang, D.; Astruc, D. The Golden Age of Transfer Hydrogenation. Chem. Rev. 2015, 115, 6621–6686. [Google Scholar] [CrossRef]
  17. Lorca, M.; Kuhn, D.; Kurosu, M. Selective reduction of aldehydes via BINOL–Zr complex. Tetrahedron Lett. 2001, 42, 6243–6246. [Google Scholar] [CrossRef]
  18. Selvam, P.; Sonavane, S.U.; Mohapatra, S.K.; Jayaram, R.V. Chemoselective Reduction of α,β-Unsaturated Carbonyls over Novel Mesoporous CoNMA Molecular Sieves under Hydrogen Transfer Conditions. Adv. Synth. Catal. 2004, 346, 542–544. [Google Scholar] [CrossRef]
  19. Miecznikowski, J.R.; Crabtree, R.H. Hydrogen Transfer Reduction of Aldehydes with Alkali-Metal Carbonates and Iridium NHC Complexes. Organometallics 2004, 23, 629–631. [Google Scholar] [CrossRef]
  20. Naskar, S.; Bhattacharjee, M. Ruthenium cationic species for transfer hydrogenation of aldehydes: Synthesis and catalytic properties of [(PPh3)2Ru(CH3CN)3Cl]+[A]- {A = BPh4 or ClO4} and structure of [(PPh3)2Ru(CH3CN)3Cl]+[BPh4]-. J. Organomet. Chem. 2005, 690, 5006–5010. [Google Scholar] [CrossRef]
  21. Baratta, W.; Siega, K.; Rigo, P. Fast and Chemoselective Transfer Hydrogenation of Aldehydes Catalyzed by a Terdentate CNN Ruthenium Complex [RuCl(CNN)(dppb)]. Adv. Synth. Catal. 2007, 349, 1633–1636. [Google Scholar] [CrossRef]
  22. Zweifel, T.; Naubron, J.V.; Büttner, T.; Ott, T.; Grützmacher, H. Ethanol as Hydrogen Donor: Highly Efficient Transfer Hydrogenations with Rhodium(I) Amides. Angew. Chem. Int. Ed. 2008, 47, 3245–3249. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, D.; Deraedt, C.; Ruiz, J.; Astruc, D. Sodium hydroxide-catalyzed transfer hydrogenation of carbonyl compounds and nitroarenes using ethanol or isopropanol as both solvent and hydrogen donor. J. Mol. Catal. A Chem. 2015, 400, 14–21. [Google Scholar] [CrossRef]
  24. Castellanos-Blanco, N.; Arévalo, A.; García, J.J. Nickel-Catalyzed Transfer Hydrogenation of Ketones Using Ethanol as Solvent and Hydrogen Donor. Dalton Trans. 2016, 45, 13604–13614. [Google Scholar] [CrossRef] [PubMed]
  25. Enthaler, S. Carbon Dioxide-The Hydrogen-Storage Material of the Future? ChemSusChem 2008, 1, 801–804. [Google Scholar] [CrossRef] [PubMed]
  26. Joó, F. Breakthroughs in hydrogen Storage-Formic Acid as a Sustainable Storage Material for Hydrogen. ChemSusChem 2008, 1, 805–808. [Google Scholar] [CrossRef] [PubMed]
  27. Johnson, T.C.; Morris, D.J.; Wills, M. Hydrogen generation from formic acid and alcohols using homogeneous catalysts. Chem. Soc. Rev. 2010, 39, 81–88. [Google Scholar] [CrossRef]
  28. Boddien, A.; Gartner, F.; Federsel, C.; Sponholz, P.; Mellmann, D.; Jackstell, R.; Junge, H.; Beller, M. CO2-“Neutral” Hydrogen Storage Based on Bicarbonates and Formates. Angew. Chem. Int. Ed. 2011, 50, 6411–6414. [Google Scholar] [CrossRef]
  29. Bi, Q.-Y.; Lin, J.-D.; Liu, Y.-M.; He, H.-Y.; Huang, F.-Q.; Cao, Y. Dehydrogenation of Formic Acid at Room Temperature: Boosting Palladium Nanoparticle Efficiency by Coupling with Pyridinic Nitrogen-Doped Carbon. Angew. Chem. Int. Ed. 2016, 55, 11849–11853. [Google Scholar] [CrossRef]
  30. Cavell, K.J.; McGuinness, D.S. Redox processes involving hydrocarbylmetal (N-heterocyclic carbene) complexes and associated imidazolium salts: Ramifications for catalysis. Coord. Chem. Rev. 2004, 248, 671–681. [Google Scholar] [CrossRef]
  31. McGuinness, D.S.; Green, M.J.; Cavell, K.J.; Skelton, B.W.; White, A.H. Synthesis and reaction chemistry of mixed ligand methylpalladium–carbene complexes. J. Organomet. Chem. 1998, 565, 165–178. [Google Scholar] [CrossRef]
  32. McGuinness, D.S.; Cavell, K.J.; Skelton, B.W.; White, A.H. Zerovalent Palladium and Nickel Complexes of Heterocyclic Carbenes: Oxidative Addition of Organic Halides, Carbon–Carbon Coupling Processes, and the Heck Reaction. Organometallics 1999, 18, 1596–1605. [Google Scholar] [CrossRef]
  33. Arnold, P.L.; Cloke, G.N.; Geldbach, T.; Hitchcock, P.B. Metal Vapor Synthesis as a Straightforward Rout to Group 10 Homoleptic Carbene Complexes. Organometallics 1999, 18, 3228–3233. [Google Scholar] [CrossRef]
  34. Cavell, K.J. N-Heterocyclic carbenes/imidazolium salts as substrates in catalysis: The catalytic 2-substitution and annulation of heterocyclic compounds. Dalton Trans. 2008, 6676–6685. [Google Scholar] [CrossRef]
  35. Clement, N.D.; Cavell, K.J.; Jones, C.; Elsevier, C.J. Oxidative Addition of Imidazolium Salts to Ni0 and Pd0: Synthesis and Structural Characterization of Unusually Stable Metal-Hydride Complexes. Angew. Chem. Int. Ed. 2004, 43, 1277–1279. [Google Scholar]
  36. Hauwert, P.; Maestri, G.; Sprengers, J.W.; Catellani, M.; Elsevier, C.J. Transfer Semihydrogenation of Alkynes Catalyzed by a Zero-Valent Palladium N-Heterocyclic Carbene Complex. Angew. Chem. Int. Ed. 2008, 47, 3223–3226. [Google Scholar] [CrossRef]
  37. Hauwert, P.; Boerleider, R.; Warsink, S.; Weigand, J.J.; Elsevier, C.J. Mechanism of Pd(NHC)-Catalyzed Transfer Hydrogenation of Alkynes. J. Am. Chem. Soc. 2010, 132, 16900–16910. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Warsink, S.; Bosman, S.; Weigand, J.J.; Elsevier, C.J. Rigid pyridyl substituted NHC ligands, their Pd(0) complexes and their application in selective transfer semihydrogenation of alkynes. Appl. Organometal. Chem. 2011, 25, 276–282. [Google Scholar] [CrossRef]
  39. Tromp, D.S.; Hauwert, P.; Elsevier, C.J. Synthesis of bis-N-alkyl imidazolium salts and their palladium(0)(NHC)(η2-MA)2 complexes. Appl. Organometal. Chem. 2012, 26, 335–341. [Google Scholar] [CrossRef]
  40. Hauwert, P.; Dunsford, J.J.; Tromp, D.S.; Weigand, J.J.; Lutz, M.; Cavell, K.J.; Elsevier, C.J. Zerovalent [Pd(NHC){Alkene}1,2] Complexes Bearing Expanded-Ring N-Heterocyclic Carbene Ligands in Transfer Hydrogenation of Alkynes. Organometallics 2013, 32, 131–140. [Google Scholar] [CrossRef]
  41. Drost, R.M.; Bouwens, T.; van Leest, N.P.; de Bruin, B.; Elsevier, C.J. Convenient Transfer Semihydrogenation Methodology for Alkynes Using a PdII-NHC Precatalyst. ACS Catal. 2014, 4, 1349–1357. [Google Scholar] [CrossRef]
  42. Broggi, J.; Jurčík, V.; Songis, O.; Poater, A.; Cavallo, L.; Slawin, A.M.Z.; Cazin, C.S.J. The Isolation of [Pd{OC(O)H}(H)(NHC)(PR3)] (NHC = N-Heterocyclic Carbene) and Its Role in Alene and Alynes Reductions Using Formic Acid. J. Am. Chem. Soc. 2013, 135, 4588–4591. [Google Scholar] [CrossRef] [PubMed]
  43. Sluijter, S.N.; Warsink, S.; Lutz, M.; Elsevier, C.J. Synthesis of palladium(0) and –(II) complexes with chelating bis(N-heterocyclic carbene) ligands and their application in semihydrogenation. Dalton Trans. 2013, 42, 7365–7372. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Ranganath, K.V.S.; Kloesges, J.; Schäfer, A.H.; Clorius, F. Asymmetric Nanocatalysis: N-Heterocyclic Carbenes as Chiral Modifiers of Fe3O4/Pd nanoparticles. Angew. Chem. Int. Ed. 2010, 49, 7786–7789. [Google Scholar] [CrossRef] [PubMed]
  45. Planellas, M.; Pleixats, R.; Shafir, A. Palladium Nanoparticles in Suzuki Cross-Couplings: Tapping into the Potential of Tris-Imidazolium Salts for Nanoparticle Stabilization. Adv. Synth. Catal. 2012, 354, 651–662. [Google Scholar] [CrossRef]
  46. Khazipov, O.V.; Shevchenko, M.A.; Chemenko, A.Y.; Astakhov, A.V.; Pasyukov, D.V.; Eremin, D.B.; Zubavivhus, Y.V.; Khrustalev, V.N.; Chemyshev, V.M.; Ananikov, V.P. Fast and Slow Release of Catalytically Active Species in Metal/NHC Systems Induced by Aliphatic Amines. Organometallics 2018, 37, 1483–1492. [Google Scholar] [CrossRef]
  47. Chernyshev, V.M.; Denisova, E.A.; Eremin, D.B.; Ananilov, V.P. The key role of R–NHC couplings (R = C, H, heteroatom) and M–NHC bond cleavage in the evolution of M/NHC complexes and formation of catalytically active species. Chem. Sci. 2020, 11, 6957–6977. [Google Scholar] [CrossRef]
  48. Cerezo-Navarrete, C.; Lara, P.; Martínez-Prieto, L.M. Organometallic Nanoparticles Ligated by NHCs: Synthesis, Surface Chemistry and Ligand Effects. Catalysts 2020, 10, 1144. [Google Scholar] [CrossRef]
  49. Lin, Y.-R.; Chiu, C.-C.; Chiu, H.-T.; Lee, D.-S.; Lu, T.-J. Bis-benzimidazolium-palladium system catalyzed Suzuki-Miyaura coupling reaction of aryl bromides under mild conditions. Appl. Organometal. Chem. 2018, 32, e3896. [Google Scholar] [CrossRef]
  50. Chiu, C.-C.; Chiu, H.-T.; Lee, D.-S.; Lu, T.-J. An efficient class of bis-NHC salts: Applications in Pd-catalyzed reactions under mild reaction conditions. RSC Adv. 2018, 8, 26407–26415. [Google Scholar] [CrossRef] [Green Version]
  51. Arterburn, J.B.; Pannala, M.; Gonzalez, A.M.; Chamberlin, R.M. Palladium-catalyzed transfer hydrogenation in alkaline aqueous medium. Tetrahedron Lett. 2000, 41, 7847–7849. [Google Scholar] [CrossRef]
  52. Shirakawa, E.; Otuska, H.; Hayashi, T. Reduction of alkynes into 1,2-dideuterioalkenes with hexamethyldisilane and deuterium oxide in the presence of a palladium catalyst. Chem. Commun. 2005, 2005, 5885–5886. [Google Scholar] [CrossRef]
  53. Luo, F.; Pan, C.; Wang, W.; Ye, Z.; Cheng, J. Palladium-catalyzed reduction of alkynes employing HSiEt3: Stereoselective synthesis of trans- and cis-alkenes. Tetrahedron 2010, 66, 1399–1403. [Google Scholar] [CrossRef]
  54. Xuan, Q.; Song, Q. Diboron-Assisted Palladium-Catalyzed Transfer Hydrogenation of N-Heteroaromatics with Water as Hydrogen Donor and Solvent. Org. Lett. 2016, 18, 4250–4253. [Google Scholar] [CrossRef] [PubMed]
  55. Liu, T.; Zeng, Y.; Zhang, H.; Wei, T.; Wu, X.; Li, N. Facile Pd-catalyzed chemoselective transfer hydrogenation of olefins using formic acid in water. Tetrahedron Lett. 2016, 57, 4845–4849. [Google Scholar] [CrossRef]
  56. Rao, S.; Prabhu, K.R. Stereodivergent Alkyne Reduction by using Water as the Hydrogen Source. Chem. Eur. J. 2018, 24, 13954–13962. [Google Scholar] [CrossRef]
  57. Zhao, C.-Q.; Chen, T.-G.; Giu, H.; Wei, L.; Fang, P.; Mei, T.-S. Water as a Hydrogenating Agent: Stereodivergent Pd-Catalyzed Semihydrogenation of Alkynes. Org. Lett. 2019, 21, 1412–1416. [Google Scholar] [CrossRef]
  58. Wang, W.; Gao, L.; Wei, H.; Qi, Z.-H.; Zeng, G.; Cheng, X.; Wang, G.; Ma, J. Selectivity control of Pd-(PMe3)4-catalyzed hydrogenation of internal alkynes to E-alkenes by reaction time and water content in formic acid. Dalton Trans. 2019, 48, 10033–10042. [Google Scholar] [CrossRef]
  59. De, S.; Udvardy, A.; Czégéni, C.E.; Joó, F. Poly-N-heterocyclic carbene complexes with applications in aqueous media. Coord. Chem. Rev. 2019, 400, 213038. [Google Scholar] [CrossRef]
  60. Liu, J.-Q.; Gou, X.-X.; Han, Y.-F. Chelating Bis(N-Heterocyclic Carbene) Palladium-Catalyzed Reactions. Chem. Asian J. 2018, 13, 2257–2276. [Google Scholar] [CrossRef]
  61. Enthaler, S.; Haberberger, M.; Irran, E. Highly Selective Iron-Catalyzed Synthesis of Alkenes by the Reduction of Alkynes. Chem. Asian J. 2011, 6, 1613–1623. [Google Scholar] [CrossRef] [PubMed]
  62. Iwasaki, R.; Tanaka, E.; Ichihashi, T.; Idemoto, Y.; Endo, K. Semireduction of Alkynes Using Formic Acid with Reusable Pd-Catalysts. J. Org. Chem. 2018, 83, 13574–13579. [Google Scholar] [CrossRef] [PubMed]
  63. Jia, Z.; Zhou, F.; Liu, M.; Li, X.; Chan, A.S.C.; Li, C.J. Silver-Catalyzed Hydrogenation of Aldehydes in Water. Angew. Chem. Int. Ed. 2013, 52, 11871–11874. [Google Scholar] [CrossRef]
  64. Jurčík, V.; Nolan, S.P.; Cazin, C.S.J. Hydrogenation of C–C Multiple Bonds Mediated by [Pd(NHC)(PCy)3] (NHC = N-Heterocyclic Carbene) under Mild Reaction Conditions. Chem. Eur. J. 2009, 15, 2509–2511. [Google Scholar] [CrossRef] [PubMed]
  65. Zhou, Y.; Zhou, H.; Liu, S.; Pi, D.; Shen, G. Water as a hydrogen source in palladium-catalyzed reduction and reductive amination of nitroarenes mediated by diboronic acid. Tetrahedron 2017, 73, 3898–3904. [Google Scholar] [CrossRef]
  66. Zhao, Y.; Liu, Q.; Li, J.; Liu, Z.; Zhou, B. Highly Selective Semihydrogenation of Phentlalkynes to (Z)-Styrenes Using Hantzsch Ester 1,4-Dihydropyridine Catalyzed by Pd/C. Synlett 2010, 2010, 1870–1872. [Google Scholar]
  67. Byrne, P.A.; Gilheany, D.G. Unequivical experimental evidence for a unified Li salt-free Wittig reaction mechanism for all phosphonium ylide types: Reactions with b-heteroatom substituted aldehydes are consistently selective for cis-oxaphosphetane derived products. J. Am. Chem. Soc. 2012, 134, 9225–9239. [Google Scholar] [CrossRef]
  68. Espinal-Viguri, M.; Neale, S.E.; Coles, N.T.; Macgregor, S.A.; Webster, R.L. Room Temperature Iron-Catalyzed Transfer Hydrogenation and Regioselective Deuteration of Carbon-Carbon Double Bonds. J. Am. Chem. Soc. 2019, 141, 572–582. [Google Scholar] [CrossRef]
  69. Chen, W.; Tao, H.; Huang, W.; Wang, G.; Li, S.; Cheng, X.; Li, G. Hantzsch Ester as a Photosensitizer for the Visible-Light-Induced Debromination of Vicinal Dibromo Compounds. Chem. Eur. J. 2016, 22, 9546–9550. [Google Scholar] [CrossRef]
  70. Zhou, M.; Li, T.; Xu, B. Easy-handling and Low-leaching Heterogeneous Palladium and Platinum Catalysis via Coating with a Silicone Elastomer. Tetrahedron Lett. 2019, 60, 948–952. [Google Scholar] [CrossRef]
  71. Buxaderas, E.; Volpe, M.A.; Radivoy, G. Selective Semi-hydrogenation of Terminal Alkynes Promoted by Bimetallic Cu-Pd Nanoparticles. Synthesis 2018, 51, 1466–1472. [Google Scholar]
  72. Bao, H.; Zhou, B.; Jin, H.; Liu, Y. Diboron-Assisted Copper-Catalyzed Z-Selective Semihydrogenation of Alkynes Using Ethanol as a Hydrogen Donor. J. Org. Chem. 2019, 84, 3579–3589. [Google Scholar] [CrossRef]
  73. Wang, Y.; Huang, Z.; Leng, X.; Zhu, H.; Liu, G.; Huang, Z. Transfer Hydrogenation of Alkenes Using Ethanol Catalyzed by a NCP Pincer Iridium Complex: Scope and Mechanism. J. Am. Chem. Soc. 2018, 140, 4417–4429. [Google Scholar] [CrossRef]
  74. Zhao, S.; Mankad, N.P. Cu-Catalyzed Hydroxymethylation of Unactivated Alkyl Iodides with CO to Provide One-Carbon-Extended Alcohols. Angew. Chem. Int. Ed. 2018, 57, 5867–5870. [Google Scholar] [CrossRef] [PubMed]
Catalysts 11 00008 g001 550
Figure 1. Reaction catalyzed by bis-NHC–Ag/Pd(OAc)2 catalytic system.
Figure 1. Reaction catalyzed by bis-NHC–Ag/Pd(OAc)2 catalytic system.
Catalysts 11 00008 g001
Table
Table 1. Bis-NHC–Ag/Pd(OAc)2 catalytic system catalyzed transfer hydrogenation reaction of trans-cinnamyl alcohol 1.
Table 1. Bis-NHC–Ag/Pd(OAc)2 catalytic system catalyzed transfer hydrogenation reaction of trans-cinnamyl alcohol 1.
Entrybis-NHC–Ag/Pd (mol %)TEAF (equiv)SolventConv. (%) 2
10.53.0DMF44
21.05.0tBuOH67
32.07.0PhMe42
41.03.0DMF74
51.04.0DMF>99
6 31.04.0DMF8
1 Reaction conditions: trans-cinnamyl alcohol (1.0 mmol), Pd(OAc)2 (mol % as indicated), bis-NHC–Ag (0.5 equiv to Pd), and TEAF (equiv as indicated) at 80 °C in dry solvent (5 mL) for 24 h under a N2 atmosphere. 2 Determined by 400 MHz 1H NMR (in Supplementary Materials). 3 The reaction was carried out in the absence of bis-NHC–Ag complex.
Table
Table 2. Transfer hydrogenation catalyzed by bis-NHC–Ag/Pd(OAc)2 catalytic system 1.
Table 2. Transfer hydrogenation catalyzed by bis-NHC–Ag/Pd(OAc)2 catalytic system 1.
EntrySubstrateProductYield (%) 2
1 Catalysts 11 00008 i001 Catalysts 11 00008 i00298
2 Catalysts 11 00008 i003 Catalysts 11 00008 i00499
3 Catalysts 11 00008 i005 Catalysts 11 00008 i00699
4 Catalysts 11 00008 i007 Catalysts 11 00008 i00885
5 Catalysts 11 00008 i009 Catalysts 11 00008 i01099
6 Catalysts 11 00008 i011 Catalysts 11 00008 i01299
7 Catalysts 11 00008 i013 Catalysts 11 00008 i01492
1 Reaction conditions: trans-cinnamyl alcohol (1.0 mmol), Pd(OAc)2 (1 mol %), bis-NHC–Ag (0.5 mol %), and TEAF (4 equiv) at 80 °C in dry DMF (5 mL) for 24 h under a N2 atmosphere. 2 Isolated yield.
Table

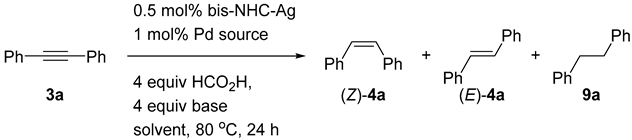

Table 3. Bis-NHC–Ag/Pd(OAc)2 catalytic system catalyzed transfer hydrogenation 1.
Table 3. Bis-NHC–Ag/Pd(OAc)2 catalytic system catalyzed transfer hydrogenation 1.
Catalysts 11 00008 i015
EntryPd SourceBaseSolvent Ratio (DMF/H2O)Conv. (%)2Z:E:9a 2
1Pd(OAc)2NEt39/110094:6:0
2Pd(OAc)2NEt35/510093:7:0
3Pd(OAc)2NEt31/98293:7:0
4Pd(OAc)2NEt30/13293:7:0
5Pd(OAc)2K2CO35/52496:4:0
6Pd(OAc)2K3PO4·H2O5/53697:3:0
7PdCl2(CH3CN)2NEt35/510093:7:0
8PdCl2NEt35/58994:6:0
9[PdCl2(C3H5)2]NEt35/58293:7:0
1 Reaction conditions: 3a (1.0 mmol), Pd source (1 mol %), bis-NHC–Ag (0.5 mol %), and HCO2H (4 equiv), and base (4 equiv) at 80 °C in solvent (5 mL) for 24 h under air. 2 Determined by GC-FID analysis and undecane was applied as an internal standard.
Table
Table 4. Stereoselectivity studies for bis-NHC–Ag/Pd(OAc)2 catalytic system catalyzed transfer hydrogenation of internal alkynes in aqueous media 1..
Table 4. Stereoselectivity studies for bis-NHC–Ag/Pd(OAc)2 catalytic system catalyzed transfer hydrogenation of internal alkynes in aqueous media 1..
Catalysts 11 00008 i016
EntrySubstrateCondition 2Time (h)Conv. (%) 3Z:E:9 3
1 Catalysts 11 00008 i017A (5/5)24100 (> 99) 493:7:0
2B (9/1)24100 (> 99) 494:6:0
3 Catalysts 11 00008 i018B (9/1)2100 (97) 530:70:0
4 Catalysts 11 00008 i019A (5/5)2447100:0:0
5B (9/1)24100 (80) 5100:0:0
6 Catalysts 11 00008 i020B (9/1)2.5100 (90) 595:5:0
7 Catalysts 11 00008 i021B (9/1)2100 (> 99) 50:0:100
8C (9/1)186 (83) 5100:0:0
1 Reaction conditions: 3 (1.0 mmol), Pd(OAc)2 (1 mol %), bis-NHC–Ag (0.5 mol %), and HCO2H/TEAF (4 equiv) at 80 °C in DMF/H2O mixed solvent (5 mL) under air atmosphere. 2 Condition A: the reaction was carried out at 80 °C in DMF/H2O (5/5); condition B: the reaction was conducted at 80 °C in DMF/H2O (9/1); condition C: the reaction was carried out at 60 °C in DMF/H2O (9/1). 3 Determined by GC or 400 MHz NMR analysis (in Supplementary Materials). 4 GC yield is reported in parentheses and undecane was applied as an internal standard. 5 Isolated yield is reported in parentheses.
Table
Table 5. Chemoselectivity studies for bis-NHC–Ag/Pd(OAc)2 catalytic system catalyzed transfer hydrogenation of terminal alkynes in aqueous media 1.
Table 5. Chemoselectivity studies for bis-NHC–Ag/Pd(OAc)2 catalytic system catalyzed transfer hydrogenation of terminal alkynes in aqueous media 1.
Catalysts 11 00008 i022
EntrySubstrateTime (h)11:12 2GC Yield (%) 3
1 Catalysts 11 00008 i0233100:089
250:10034
3 Catalysts 11 00008 i0240.5100:092
430:10063
5 Catalysts 11 00008 i0250.597:388
630:10040
7 Catalysts 11 00008 i0261100:083 4
820:100 580 4
9 Catalysts 11 00008 i0273100:072
10 Catalysts 11 00008 i0282100:099 4
11240:10097 4
12 6 Catalysts 11 00008 i02924100:078 4
13240:10072 4
1 Reaction conditions: 10 (1.0 mmol), Pd(OAc)2 (1 mol %), bis-NHC–Ag (0.5 mol %), and HCO2H/TEAF (4 equiv) at 80 °C in DMF/H2O (9/1) mixed solvent (5 mL) under air atmosphere. 2 Determined by GC analysis. 3 GC yield is reported and undecane was applied as an internal standard. 4 Isolated yield is reported. 5 The product was 4-ethylaniline. 6 The reaction temperature was 60 °C.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chen, H.-J.; Chiu, C.-C.; Wang, T.; Lee, D.-S.; Lu, T.-J. Bis-NHC–Ag/Pd(OAc)2 Catalytic System Catalyzed Transfer Hydrogenation Reaction. Catalysts 2021, 11, 8. https://doi.org/10.3390/catal11010008

AMA Style

Chen H-J, Chiu C-C, Wang T, Lee D-S, Lu T-J. Bis-NHC–Ag/Pd(OAc)2 Catalytic System Catalyzed Transfer Hydrogenation Reaction. Catalysts. 2021; 11(1):8. https://doi.org/10.3390/catal11010008

Chicago/Turabian Style

Chen, Hui-Ju, Chien-Cheng Chiu, Tsui Wang, Dong-Sheng Lee, and Ta-Jung Lu. 2021. "Bis-NHC–Ag/Pd(OAc)2 Catalytic System Catalyzed Transfer Hydrogenation Reaction" Catalysts 11, no. 1: 8. https://doi.org/10.3390/catal11010008

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
