Noble Metal Modification of CdS-Covered CuInS2 Electrodes for Improved Photoelectrochemical Activity and Stability

by
Toshihiro Takashima
1,2,*,
Yukitaka Fujishiro
2 and
Hiroshi Irie
1,2
1
Clean Energy Research Center, University of Yamanashi, 4-3-11 Takeda, Kofu, Yamanashi 400-8511, Japan
2
Integrated Graduate School of Medicine, Engineering, and Agricultural Sciences, University of Yamanashi, 4-3-11 Takeda, Kofu, Yamanashi 400-8511, Japan
*
Author to whom correspondence should be addressed.
Catalysts 2020, 10(9), 949; https://doi.org/10.3390/catal10090949
Submission received: 30 July 2020 / Revised: 18 August 2020 / Accepted: 18 August 2020 / Published: 20 August 2020
(This article belongs to the Special Issue Photocatalytic Nanocomposite Materials)
Browse Figures
Versions Notes

Abstract

:
In this paper, efficient and stable photoelectrochemical (PEC) hydrogen (H2) evolution using copper indium sulfide (CuInS2) thin film electrodes was studied. Modification with a cadmium sulfide (CdS) layer led to improved charge separation at the interface between CuInS2 and CdS; however, the photocorrosive nature of CdS induced poor stability of the photocathode. Further surface coating with an electrodeposited Pt layer over the CdS-covered CuInS2 photocathode prevented the CdS layer from making contact with the electrolyte solution, and enabled efficient PEC H2 evolution without appreciable degradation. This indicates that the Pt layer functioned not only as a reaction site for H2 evolution, but also as a protection layer. In addition, it was found that surface protection using a noble metal layer was also effective for stable PEC carbon dioxide (CO2) reduction when appropriate noble metal cocatalysts were selected. When Au or Ag was used, carbon monoxide was obtained as a product of PEC CO2 reduction.

Graphical Abstract

1. Introduction

Hydrogen (H2) is a potential clean energy carrier that could replace fossil fuels and solve the associated environmental issues. Photoelectrochemical (PEC) water splitting using sunlight is a promising approach to producing H2 without emitting carbon dioxide (CO2), providing a sustainable future energy supply [1,2]. Since the first demonstration of PEC water splitting using a titanium dioxide (TiO2) photoelectrode was reported by Fujishima and Honda [3], semiconductor materials have been extensively studied as photoelectrodes to achieve efficient solar-to-H2 conversion [4,5,6,7,8,9,10].
Copper chalcopyrite compounds, formulated as Cu(In,Ga)(S,Se)2, have recently received considerable attention as promising candidates for photocathodes, owing to their high absorption coefficients (>104 M−1 cm−1), tunable narrow bandgaps (1.5–2.4 eV), and favorable conduction band positions with respect to the hydrogen evolution reaction (HER) [11,12,13,14,15,16]. Moreover, the PEC performance of copper chalcopyrite photocathodes has been reported to improve when combined with n-type semiconductor buffer layers such as cadmium sulfide (CdS), indium sulfide (In2S3), and zinc sulfide (ZnS). This is due to the formation of a p–n junction, which facilitates charge separation at the interface [17,18,19,20]. However, to achieve efficient and stable PEC H2 evolution, further improvements will be necessary to overcome the sluggish surface redox reactions and the instability of sulfide materials in aqueous solutions.
Noble metal cocatalysts such as Pt, Au, and Ag have been widely used to catalyze redox reactions efficiently [21,22,23,24]. Their loading not only facilitates the separation of photogenerated charges, but also lowers the overpotential for desirable reactions. As such, we considered that using these cocatalysts as coatings could also be effective for improving the stability of photoelectrodes by preventing the exposure of labile electrode surfaces to the electrolyte. For example, Morikawa et al. reported that Rh deposition improved the stability of nitrogen-doped tantalum pentoxide (N-Ta2O5) photocathodes by suppressing self-reduction of Ta5+ and/or nitrogen elimination [25]. Li et al. succeeded in almost complete suppression of the degradation of cuprous oxide (Cu2O) photocathodes by depositing a thin Ag layer that prevented the self-reduction of Cu2O to Cu and the self-oxidation of Cu2O to CuO [26]. Nevertheless, there have been few reports on the use of noble metal cocatalysts to suppress the corrosion of metal sulfide photocathodes. Recently, photoelectrodes covered with a metal oxide layers have been developed, and the use of a dense metal oxide layer was demonstrated to be highly effective for improving stability [27,28,29,30]. However, the metal oxide protection layer could provide resistance for the extraction of photogenerated charges to the electrode surface, and its preparation required vacuum processes. In contrast, a metal cocatalyst layer would be conductive and could be formed using wet processes. Therefore, the stability improvement provided by metal cocatalyst layer deposition would enable the simple production of active and stable photoelectrodes.
In the present study, we synthesized copper indium sulfide (CuInS2) photocathodes modified with CdS and various amounts of electrodeposited Pt. The structural and chemical properties of these electrode surfaces were characterized, and the effect of Pt loading on the H2-generation activity and durability in PEC experiments was investigated. Covering the electrode surface with an appropriate amount of Pt cocatalyst enabled persistent PEC H2 evolution, and it was found that a similar technique was applicable to PEC CO2 reduction by selecting suitable noble metal cocatalysts. When Au or Ag was loaded on the CdS-modified CuInS2 electrode, carbon monoxide (CO) production was observed as a result of PEC CO2 reduction.

2. Results and Discussion

2.1. Characterization

The XRD pattern of the electrodeposited Cu/In bilayer film showed diffraction peaks assigned to Cu, In, and CuIn in addition to strong peaks derived from the Mo substrate (Figure S1a). After sulfurization, the electrodeposited metallic precursors were converted to chalcopyrite CuInS2 without formation of a secondary phase (Figure S1b). Figure 1 shows the XRD pattern of the Pt/CdS/CuInS2 film, where a peak corresponding to Pt was observed at around 40° in addition to those of CuInS2 and Mo (the CdS/CuInS2 electrodes modified with XXX µmol of electrodeposited Pt are denoted as Ptxxx/CdS/CuInS2). No peak assigned to CdS was observed, as the layer was too thin.
Figure 2a shows UV-vis-NIR absorption spectra of the CuInS2 and Pt0.88/CdS/CuInS2 films. As reported in the literature, the CuInS2 film showed intense absorption over a wide wavelength range from 300 to 850 nm [14,31,32]. The bandgap was calculated to be 1.46 eV using a Tauc plot (Figure 2b), and the flat band potential was determined to be approximately 0.84 V using a Mott–Schottky plot (Figure 2c), indicating that the band position of the prepared CuInS2 film (Figure 2d) was in accordance with that previously determined by photoelectron spectroscopy [13,18]. The Pt0.88/CdS/CuInS2 film showed an absorption spectrum similar to that of the CuInS2 film, with an increase in absorption being observed at wavelengths above 820 nm (Figure 2a). The origin of this increased absorption is considered to be light scattering by the deposited Pt, which has often been observed for photocatalysts modified with Pt nanoparticles [33,34].
The morphological features of the synthesized films were investigated by SEM. Top-down and cross-sectional views of the CuInS2 film (Figure S2) revealed that it consisted of a dense crystalline layer accompanied by plate-like particles on the surface, and its thickness was found to be about 1.3 μm. After modification with CdS, the surface became relatively smooth and porous (Figure 3a). In contrast, the formation of nanoparticles, with diameter of approximately 10 nm, was observed for the Pt-deposited samples (Figure S3), and higher amounts of Pt deposition resulted in a more granular surface (Figure 3b–f). Furthermore, it was observed that Pt particles not only formed on the CdS grains, but also filled the pores of the CdS, suggesting that the CdS surface was entirely covered when depositing a sufficient amount of Pt.
This suggestion was supported by the XPS results. Figure 4a,b shows the XPS spectra of CdS/CuInS2 and Pt/CdS/CuInS2 films for the Cd 3d (Figure 4a) and Pt 4f (Figure 4b) regions, respectively. As Pt loading was increased, the Cd 3d peaks significantly weakened while the Pt 4f peaks became stronger, with the Cd 3d peaks almost disappearing in the case of Pt100/CdS/CuInS2. On the basis of these results, it was anticipated that the CdS layer could be protected during PEC H2 evolution by depositing Pt onto the surface.

2.2. Photoelectrochemical Measurements

The PEC properties of the prepared electrodes were examined by linear sweep voltammetry measured under visible light irradiation. Although the bare CuInS2 electrode showed limited photoresponse (Figure S4), a distinct cathodic photocurrent was generated after modification with both CdS and Pt. This is because the CdS layer deposited on CuInS2 possessed suitable band characteristics for the formation of a p–n junction (Figure 2d and Figure S5), facilitating extraction of excited electrons from the inside of CuInS2 to the electrode surface, while Pt acted as a cocatalyst to reduce overpotential for H2 evolution. Consequently, modification with these materials enabled the extraction of photoexcited electrons from CuInS2 to the electrolyte. In contrast, the modification with only CdS made no increase in photocurrent (Figure S4). Figure 5 shows polarization curves of the Pt-modified CdS/CuInS2 electrodes with different Pt contents. As the amount of Pt was increased up to 0.88 µmol, a gradual improvement in photocurrent density and a positive shift in the onset potential were observed; in contrast, the increase in Pt loading had almost no effect on current generation under dark conditions (Figure S6). However, further increases in Pt content above 0.88 µmol were detrimental to current density, as excess Pt loading limited light absorption by CuInS2. Thus, the largest photoresponse was observed for Pt0.88/CdS/CuInS2, with its photocurrent reaching 7.5 mA cm−2 at 0 V. This value is about half of the photocurrent recorded using the Pt/CdS/(CuInS2)0.81 (ZnS)0.19 electrode which is a state-of-the-art CuInS2-based photocathode prepared by tuning the band position of the light absorber [12].
To confirm the H2 generation ability of the Pt/CdS/CuInS2 electrode, the amount of H2 evolved during photoelectrolysis was quantified. Figure 6 shows the typical time courses of H2 evolution over the Pt/CdS/CuInS2 photoelectrodes with an applied potential of 0 V and one-half of the electrons passing through the outer circuit (e–/2). Continuous H2 production was observed for all the photoelectrodes, and approximately 180 µmol of H2 generated over Pt0.88/CdS/CuInS2 after illumination for 120 min. The faradaic efficiency, defined as the ratio of the amount of H2 to that of e–/2, was calculated to be over 99% for all the Pt/CdS/CuInS2 photoelectrodes, indicating that no reduction reactions other than H2 evolution proceeded, irrespective of the amount of Pt.
Figure 7 shows typical photocurrent time profiles measured during PEC H2 evolution experiments. These results indicate that the stability of the Pt/CdS/CuInS2 photoelectrodes significantly depended on the Pt loading. Although rapid photocurrent decays were observed for Pt0.22/CdS/CuInS2 and Pt0.44/CdS/CuInS2, a significant improvement in the stability was observed at higher Pt loadings, with Pt100/CdS/CuInS2 retaining 99% of its photocurrent after photoelectrolysis. Photocurrent decay in CdS-modified photocathodes has previously been studied by several groups, and the phenomenon was attributed to the poor stability of CdS due to photocorrosion [28,35].
Figure 8a shows SEM images of CdS/CuInS2 and Pt0.88/CdS/CuInS2 photoelectrodes after stability tests. In the image of CdS/CuInS2, the disappearance of CdS and exposure of plate-like CuInS2 particles were observed in some areas, whereas the Pt088/CdS/CuInS2 electrode showed few changes other than the aggregation of Pt particles. The XPS spectra also showed evidence of the photocorrosion of CdS for the CdS/CuInS2 electrode, with an increase in the Cu 2p and In 3d peaks being observed after photoelectrolysis (Figure 8b). In contrast, the Cu 2p and In 3d spectra of the Pt0.88/CdS/CuInS2 electrode remained unchanged (Figure 8c). Therefore, Pt modification was found to be effective for both promoting PEC H2 evolution and improving the stability of the CdS/CuInS2 photocathode.

2.3. Photoelectrochemical CO2 Reduction

Finally, we examined PEC CO2 reduction using noble-metal-modified CuInS2 electrodes in CO2-saturated NaHCO3 solutions. As was the case for PEC H2 generation, the photoresponse of the bare CuInS2 film was so small that CdS and metal cocatalysts were deposited to enhance photoreactivity. For this experiment, Au and Ag were used as cocatalysts in addition to Pt because electrochemical CO2 reduction using Au and Ag has shown high activity and selectivity for CO formation [36,37]. The loadings of all the cocatalysts were adjusted to 0.88 µmol based on the PEC H2 generation results achieved using the Pt/CdS/CuInS2 photocathode. Table 1 shows the results of PEC CO2 reduction conducted at −0.11 V under visible light irradiation. By adding metal cocatalysts, the photocurrent density increased in the order of Pt > Au > Ag; however, the photocurrent of Pt0.88/CdS/CuInS2 was much smaller than that measured for PEC H2 evolution. It is notable that deactivation during PEC CO2 reduction can occur not only due to corrosion of CdS but also due to the poisoning of the cocatalyst. This photocurrent decrease was presumed to be caused by the poisoning of the Pt cocatalyst because CO molecules formed as the intermediate species occupied the active sites of Pt without being released into the solution [38]. In fact, product analysis indicated that a negligible amount of CO2 reduction products was formed and that the faradic efficiency for H2 evolution was almost 100%, although CO2 reduction by photoexcited electrons generated in Pt0.88/CdS/CuInS2 was thermodynamically favorable. Furthermore, XPS spectra measured after photoelectrolysis showed no increase in the peaks assigned to Cu and In, suggesting that CdS photocorrosion was also suppressed in this experiment (Figure S7). When Au/CdS/CuInS2 and Ag/CdS/CuInS2 were employed for PEC CO2 reduction, continuous CO production was observed, with the faradaic efficiencies for CO formation over Au/CdS/CuInS2 and Ag/CdS/CuInS2 being 6.7% and 3.5%, respectively. Although most of the photocurrent was still derived from H2 evolution, the observed faradaic efficiencies for CO formation were relatively high compared to other relevant studies reported so far [39,40,41]. In addition, the CO2 reduction photocurrent density (ca. 100 µA/cm2) observed using Au/CdS/CuInS2 was about 80-fold higher than that observed for CuGaS2, which is the only copper chalcopyrite compound reported for PEC CO2 reduction [40].
SEM observation showed that both the Au and Ag cocatalysts had dendritic structures (Figure S8), and similar-shaped electrocatalysts have been reported to convert CO2 to CO with high selectivities of over 80% when overpotentials of 0.3–0.5 V are applied [42,43]. According to the conduction band minimum (CBM) potential of CdS [14,17], photoexcited electrons in the Au/CdS/CuInS2 and Ag/CdS/CuInS2 photocathodes were considered to possess reduction potentials of around −0.3 V, corresponding to 0.19 V of overpotentials. Recently, the CBM potential of CdS was found to be tunable by forming a solid solution with ZnS, and the introduction of ZnS shifted the CBM to a more negative potential [44]. Furthermore, a thin film of CdS–ZnS solid solution can be formed by the chemical bath deposition (CBD) method [45], which was used for deposition of the CdS layer in this study. Thus, the utilization of a CdS–ZnS solid solution layers in combination with appropriate amounts of Au and Ag cocatalysts would offer the possibility to achieve PEC CO2 reduction with high selectivity and durability, and such studies are underway in our laboratory.

3. Materials and Methods

3.1. Chemicals

Copper sulfate (CuSO4), indium chloride (InCl3), citric acid, trisodium citrate, sulfur, potassium cyanide (KCN), cadmium sulfate (CdSO4), thiourea, hydrogen hexachloroplatinate (H2PtCl6), hydrochloric acid (HCl), ammonium hydroxide (NH4OH), sodium sulfate (Na2SO4), potassium dihydrogen phosphate (KH2PO4), and sodium bicarbonate (NaHCO3) were obtained from Kanto Chemical Co., Inc. (Japan). All chemicals were used without further purification.

3.2. Preparation of CuInS2 Film on Mo Foil

CuInS2 thin film electrodes were synthesized using electrodeposition and subsequent sulfurization, as reported in the literature [14,31,32]. Prior to electrodeposition, Mo foil (Nilaco, Japan, 99.95%, 0.15 mm thickness) was cleaned by sonicating for 30 min in 0.1 M HCl. Electrodeposition was conducted using an electrochemical analyzer (HZ-5000, Hokuto Denko, Japan) and a single cell with a three-electrode setup consisting of the Mo foil, a Pt wire, and a silver/silver chloride (Ag/AgCl) electrode, which functioned as the working, counter, and reference electrodes, respectively. Metallic Cu and In layers were successively deposited onto the Mo foil under potentiostatic conditions. Cu deposition was conducted at −0.2 V vs. Ag/AgCl in an aqueous solution containing 50 mM CuSO4, 242 mM citric acid, and 150 mM trisodium citrate. Subsequently, In deposition onto the Cu layer was performed at −0.76 V vs. Ag/AgCl in an aqueous solution containing 30 mM InCl3·4H2O, 36 mM citric acid, and 242 mM trisodium citrate. The amount of deposited Cu and In was controlled by adjusting the electric charge to 1042 and 1200 mC/cm2, respectively. The as-prepared Cu/In film was sealed in an evacuated Pyrex ampule with 5 mg of elemental sulfur and then sulfurized by heating at 600 °C for 10 min. Finally, the thus-obtained CuInS2 films were etched by immersion in an aqueous KCN solution (10%) for 2 min to remove excess CuxS.

3.3. Surface Modification of CuInS2 Electrode

The CuInS2 electrode was modified with CdS by the CBD method. The CuInS2 electrode was immersed in an aqueous solution containing 12.5 mM CdSO4, 0.22 M thiourea, and 11 M NH4OH for 7 min at 60 °C. After the modification, the electrode was thoroughly rinsed with distilled water and dried at room temperature. CuInS2 electrodes modified with CdS are hereafter denoted as CdS/CuInS2. The Pt cocatalyst was deposited on the CdS/CuInS2 electrode by photoelectrodeposition. The electrode was immersed in 0.1 M Na2SO4 solution (pH 4.0) containing 1 mM H2PtCl6, and the electrodeposition was carried out at −0.1 V vs. Ag/AgCl under illumination with a Xe lamp (LA-251 Xe; Hayashi Tokei). The amount of Pt was controlled to 0.22, 0.44, 0.66, 0.88, and 1.00 µmol by monitoring the electric charge passed through the electrode, and the electrode was then thoroughly rinsed with distilled water and dried at room temperature. Thus, the photoelectrode was prepared and its surface area was set to 0.7 cm2 (0.7 cm × 1.0 cm). Hereafter, the electrodes thus obtained are denoted as Ptxxx/CdS/CuInS2, where XXX corresponds to the amount of electrodeposited Pt. HAuCl4 (6 mM) and AgNO3 (5 mM) were used as the electrolytes for the preparation of the Au- and Ag-deposited samples, respectively, with these being denoted as Au/CdS/CuInS2 and Ag/CdS/CuInS2, respectively.

3.4. Characterization

XRD patterns were obtained using a PW-1700 system (PANalytical, Almelo, The Netherlands). The morphologies of the prepared films were observed by SEM (JSM-6500F, JEOL, Tokyo, Japan). Optical absorption spectra were measured in diffuse reflectance (DR) mode using a UV-vis-NIR spectrometer (UV-2600, Shimadzu, Kyoto, Japan) with barium sulfate (BaSO4) as the reflectance standard. XPS were measured using an X-ray photoelectron spectrometer (AXIS-ULTRA, KRATOS, Stretford, UK). The C 1s peak (284.6 eV) was used as an internal energy reference in all the experiments. Mott–Schottky plots were recorded using an electrochemical analyzer equipped with a frequency response analyzer. The electrode potential was scanned at a frequency of 10 Hz in a 1 M Na2SO4 aqueous solution (pH 6.0) that was purged with Ar prior to each experiment.

3.5. Photoelectrochemical Measurements

PEC measurements were performed using the same three-electrode setup as used for the preparation of the CuInS2 electrodes. The electrolyte solutions used for H2 evolution and CO2 reduction were Ar-saturated 0.2 M KH2PO4 (pH 6.0) and CO2-saturated 0.5 M NaHCO3 (pH 6.8), respectively. Prior to the measurements, Ar or CO2 gas was purged through the electrolyte for 20 min to remove dissolved oxygen. A Xe lamp with an optical filter (>420 nm, Y-44, Hoya) was used as a light source. All measured potentials were converted to the reversible hydrogen electrode (RHE) scale using the following equation: ERHE = EAg/AgCl + 0.059 × pH + 0.199.
During the measurements, Ar or CO2 gas was purged through the electrolyte at a flow rate of 20 mL min−1 and collected in a clean plastic bag (Smart Bag PA, GL Sciences) along with gaseous products. Evolved H2 was quantified using a gas chromatograph (GC-8A, Shimadzu) equipped with a thermal conductivity detector (TCD). For the quantification of CO, a gas chromatograph (GC-8A, Shimadzu) equipped with a methanizer and a flame ionization detector (FID) was used.

4. Conclusions

In this study, we investigated the effect of Pt loading on the PEC H2-evolution activity and durability of CdS/CuInS2 photocathodes. Structural and chemical characterization of the surface revealed that electrodeposited Pt covered the CdS surface, and the porous structure was filled with Pt by increasing the loading amount. This prevented the exposure of the CdS layer to the electrolyte. PEC experiments showed that the H2-evolution activity could be enhanced by Pt modification, resulting in both an increase in photocurrent density and a positive shift in the onset potential. As a result, efficient PEC H2 evolution proceeded over the Pt/CdS/CuInS2 photocathodes without appreciable degradation. In addition, the suppression of CdS corrosion using noble metals was also effective for PEC CO2 reduction experiments, and CO generation was observed when Au or Ag was electrodeposited instead of Pt.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/9/949/s1, Figure S1: XRD patterns of CuInS2 electrode measured before and after sulfurization, Figure S2: Top-down and cross-sectional views of CuInS2 film, Figure S3: Magnified SEM image of Pt0.88/CdS/CuInS2 electrode, Figure S4: Polarization curves of CuInS2, CdS/CuInS2, and Pt0.88/CdS/CuInS2 electrodes measured under irradiation of visible light, Figure S5: Band characteristics of the prepared CdS film, Figure S6: Polarization curves of CdS/CuInS2 electrodes modified with various amount of Pt, Figure S7: XPS spectra of Pt0.88/CdS/CuInS2 electrode measured before and after photoelectrochemical CO2 reduction experiment, Figure S8: SEM images of Au/CdS/CuInS2 and Ag/CdS/CuInS2 electrodes.

Author Contributions

Conceptualization, T.T.; methodology, T.T. and Y.F.; validation, T.T. and Y.F.; formal analysis, T.T. and Y.F.; investigation, Y.F.; writing—original draft preparation, T.T.; writing—review and editing, T.T. and H.I.; supervision, H.I.; project administration, T.T. and H.I. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by JSPS KAKENHI Grant-in-Aid for Early-Career Scientists (Grant#18K14315) and by JKA and its promotion funds from KEIRIN RACE (2018M-176).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sivula, K.; van de Krol, R. Semiconducting Materials for Photoelectrochemical Energy Conversion. Nat. Rev. Mater. 2016, 1, 15010. [Google Scholar] [CrossRef]
  2. Tilley, S.D. Recent Advances and Emerging Trends in Photo-Electrochemical Solar Energy Conversion. Adv. Energy Mater. 2019, 9, 1802877. [Google Scholar] [CrossRef] [Green Version]
  3. Fujishima, A.; Honda, K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef] [PubMed]
  4. Luo, Z.; Wang, T.; Gong, J. Single-Crystal Silicon-Based Electrodes for Unbiased Solar Water Splitting: Current Status and Prospects. Chem. Soc. Rev. 2019, 48, 2158–2181. [Google Scholar] [CrossRef]
  5. Varadhan, P.; Fu, H.C.; Kao, Y.C.; Horng, R.H.; He, J.H. An Efficient and Stable Photoelectrochemical System with 9% Solar-to-Hydrogen Conversion Efficiency via InGaP/GaAs Double Junction. Nat. Commun. 2019, 10, 5282. [Google Scholar] [CrossRef] [Green Version]
  6. Yang, Y.; Niu, S.; Han, D.; Liu, T.; Wang, G.; Li, Y. Progress in Developing Metal Oxide Nanomaterials for Photoelectrochemical Water Splitting. Adv. Energy Mater. 2017, 7, 1700555. [Google Scholar] [CrossRef]
  7. Lee, D.K.; Lee, D.; Lumley, M.A.; Choi, K.S. Progress on Ternary Oxide-Based Photoanodes for Use in Photoelectrochemical Cells for Solar Water Splitting. Chem. Soc. Rev. 2019, 48, 2126–2157. [Google Scholar] [CrossRef]
  8. Faraji, M.; Yousefi, M.; Yousefzadeh, S.; Zirak, M.; Naseri, N.; Jeon, T.H.; Choi, W.; Moshfegh, A.Z. Two-Dimensional Materials in Semiconductor Photoelectrocatalytic Systems for Water Splitting. Energy Environ. Sci. 2019, 12, 59–95. [Google Scholar] [CrossRef]
  9. Jang, Y.J.; Lee, J.S. Photoelectrochemical Water Splitting with p-Type Metal Oxide Semiconductor Photocathodes. ChemSusChem 2018, 12, 1835–1845. [Google Scholar] [CrossRef]
  10. Yang, W.; Moon, J. Recent Advances in Earth-Abundant Photocathodes for Photoelectrochemical Water Splitting. ChemSusChem 2018, 12, 1889–1899. [Google Scholar] [CrossRef] [Green Version]
  11. Ikeda, S.; Nakamura, T.; Lee, S.M.; Yagi, T.; Harada, T.; Minegishi, T.; Matsumura, M. Photoreduction of Water by Using Modified CuInS2 Electrodes. ChemSusChem 2010, 4, 262–268. [Google Scholar] [CrossRef] [PubMed]
  12. Zhao, J.; Minegishi, T.; Kaneko, H.; Ma, G.; Zhong, M.; Nakabayashi, M.; Hisatomi, T.; Katayama, M.; Shibata, N.; Yamada, T.; et al. Efficient Hydrogen Evolution on (CuInS2)X(ZnS)1−X Solid Solution-Based Photocathodes under Simulated Sunlight. Chem. Commun. 2019, 55, 470–473. [Google Scholar] [CrossRef] [PubMed]
  13. Kato, T.; Hakari, Y.; Ikeda, S.; Jia, Q.; Iwase, A.; Kudo, A. Utilization of Metal Sulfide Material of (CuGa)1−XZn2XS2 Solid Solution with Visible Light Response in Photocatalytic and Photoelectrochemical Solar Water Splitting Systems. J. Phys. Chem. Lett. 2015, 6, 1042–1047. [Google Scholar] [CrossRef] [PubMed]
  14. Septina, W.; Gunawan; Ikeda, S.; Harada, T.; Higashi, M.; Abe, R.; Matsumura, M. Photosplitting of Water from Wide-Gap Cu(In,Ga)S2 Thin Films Modified with a CdS Layer and Pt Nanoparticles for a High-Onset-Potential Photocathode. J. Phys. Chem. C 2015, 119, 8576–8583. [Google Scholar] [CrossRef]
  15. Guijarro, N.; Prévot, M.S.; Yu, X.; Jeanbourquin, X.A.; Bornoz, P.; Bourée, W.; Johnson, M.; Le Formal, F.; Sivula, K. A Bottom-up Approach toward All-Solution-Processed High-Efficiency Cu(In,Ga)S2 Photocathodes for Solar Water Splitting. Adv. Energy Mater. 2016, 6, 1501949–1501961. [Google Scholar] [CrossRef]
  16. Yokoyama, D.; Minegishi, T.; Maeda, K.; Katayama, M.; Kubota, J.; Yamada, A.; Konagai, M.; Domen, K. Photoelectrochemical Water Splitting Using a Cu(In,Ga)Se2 Thin Film. Electrochem. Commun. 2010, 12, 851–853. [Google Scholar] [CrossRef]
  17. Moriya, M.; Minegishi, T.; Kumagai, H.; Katayama, M.; Kubota, J.; Domen, K. Stable Hydrogen Evolution from CdS-Modified CuGaSe2 Photoelectrode under Visible-Light Irradiation. J. Am. Chem. Soc. 2013, 135, 3733–3735. [Google Scholar] [CrossRef]
  18. Septina, W.; Ikeda, S.; Harada, T.; Minegishi, T.; Domen, K.; Matsumura, M. Platinum and Indium Sulfide-Modified Cuins2 as Efficient Photocathodes for Photoelectrochemical Water Splitting. Chem. Commun. 2014, 50, 8941–8943. [Google Scholar]
  19. Septina, W.; Harada, T.; Nose, Y.; Ikeda, S. Investigation of the Electric Structures of Heterointerfaces in Pt- and In2S3-Modified CuInS2 Photocathodes Used for Sunlight-Induced Hydrogen Evolution. ACS Appl. Mater. Interfaces 2015, 7, 16086–16092. [Google Scholar]
  20. Chae, S.Y.; Park, S.J.; Han, S.G.; Jung, H.; Kim, C.W.; Jeong, C.; Joo, O.S.; Min, B.K.; Hwang, Y.J. Enhanced Photocurrents with ZnS Passivated Cu(In,Ga)(Se,S)2 Photocathodes Synthesized Using a Nonvacuum Process for Solar Water Splitting. J. Am. Chem. Soc. 2016, 138, 15673–15681. [Google Scholar] [CrossRef]
  21. Yang, J.; Wang, D.; Han, H.; Li, C. Roles of Cocatalysts in Photocatalysis and Photoelectrocatalysis. Acc. Chem. Res. 2013, 46, 1900–1909. [Google Scholar] [CrossRef] [PubMed]
  22. Yu, X.; Shavel, A.; An, X.; Luo, Z.; Ibánez, M.; Cabot, A. Cu2ZnSnS4-Pt and Cu2ZnSnS4-Au Heterostructured Nanoparticles for Photocatalytic Water Splitting and Pollutant Degradation. J. Am. Chem. Soc. 2014, 136, 9236–9239. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, X.; Ruan, Y.; Feng, S.; Chen, S.; Su, K. Ag Clusters Anchored Conducting Polyaniline as Highly Efficient Cocatalyst for Cu2ZnSnS4 Nanocrystals toward Enhanced Photocatalytic Hydrogen Generation. ACS Sustain. Chem. Eng. 2018, 6, 11424–11432. [Google Scholar] [CrossRef]
  24. Osaki, J.; Yoda, M.; Takashima, T.; Irie, H. Selective Loading of Platinum or Silver Cocatalyst onto a Hydrogen-Evolution Photocatalyst in a Silver-Mediated All Solid-State Z-Scheme System for Enhanced Overall Water Splitting. RSC Adv. 2019, 9, 41913–41917. [Google Scholar] [CrossRef] [Green Version]
  25. Suzuki, T.M.; Saeki, S.; Sekizawa, K.; Kitazumi, K.; Takahashi, N.; Morikawa, T. Photoelectrochemical Hydrogen Production by Water Splitting over Dual-Functionally Modified Oxide: P-Type N-Doped Ta2O5 Photocathode Active under Visible Light Irradiation. Appl. Catal. B 2017, 202, 597–604. [Google Scholar] [CrossRef]
  26. Li, Y.; Luo, K. Performance Improvement of p-Cu2O Nanocrystal Photocathode with Ultra-Thin Silver Protective Layer. Chem. Commun. 2019, 55, 9963–9966. [Google Scholar] [CrossRef]
  27. Paracchino, A.; Laporte, V.; Sivula, K.; Grätzel, M.; Thimsen, E. Highly Active Oxide Photocathode for Photoelectrochemical Water Reduction. Nat. Mater. 2011, 10, 456–461. [Google Scholar] [CrossRef]
  28. Zhao, J.; Minegishi, T.; Zhang, L.; Zhong, M.; Nakabayashi, M.; Ma, G.; Hisatomi, T.; Katayama, M.; Ikeda, S.; Shibata, N.; et al. Enhancement of Solar Hydrogen Evolution from Water by Surface Modification with CdS and TiO2 on Porous CuInS2 Photocathodes Prepared by an Electrodeposition—Sulfurization Method. Angew. Chem. Int. Ed. 2014, 53, 11808–11812. [Google Scholar] [CrossRef]
  29. Mali, M.G.; Yoon, H.; Joshi, B.N.; Park, H.; Al-Deyab, S.S.; Lim, D.C.; Ahn, S.; Nervi, C.; Yoon, S.S. Enhanced Photoelectrochemical Solar Water Splitting Using a Platinum-Decorated CIGS/CdS/ZnO Photocathode. ACS Appl. Mater. Interfaces 2015, 7, 21619–21625. [Google Scholar] [CrossRef]
  30. Koo, B.; Nam, S.W.; Haight, R.; Kim, S.; Oh, S.; Cho, M.; Oh, J.; Lee, J.Y.; Ahn, B.T.; Shin, B. Tailoring Photoelectrochemical Performance and Stability of Cu(In,Ga)Se2 Photocathode via TiO2-Coupled Buffer Layers. ACS Appl. Mater. Interfaces 2017, 9, 5279–5287. [Google Scholar] [CrossRef]
  31. Lee, S.M.; Ikeda, S.; Otsuka, Y.; Septina, W.; Harada, T.; Matsumura, M. Homogeneous Electrochemical Deposition of In on a Cu-Covered Mo Substrate for Fabrication of Efficient Solar Cells with a CuInS2 Photoabsorber. Electrochim. Acta 2012, 79, 189–196. [Google Scholar] [CrossRef]
  32. Matoba, K.; Matsuda, Y.; Takahashi, M.; Sakata, Y.; Zhang, J.; Higashimoto, S. Fabrication of Pt/In2S3/CuInS2 Thin Film as Stable Photoelectrode for Water Splitting under Solar Light Irradiation. Catal. Today 2020. [Google Scholar] [CrossRef]
  33. Takashima, T.; Sano, T.; Irie, H. Cocatalyst Modification of Niobium-Substituted Silver Tantalate Photocatalyst for Enhanced Solar Water-Splitting Activity. Int. J. Hydrogen Energy 2019, 44, 23600–23609. [Google Scholar] [CrossRef]
  34. Takashima, T.; Sano, T.; Irie, H. Improvement of The Photocatalytic Water Splitting Activity of Silver Tantalate by Photodeposited Platinum and Cobalt-Oxide Nanoclusters. Electrochemistry 2016, 84, 784–788. [Google Scholar] [CrossRef] [Green Version]
  35. Kaneko, H.; Minegishi, T.; Higashi, T.; Nakabayashi, M.; Shibata, N.; Domen, K. Stable Hydrogen Production from Water on an NIR-Responsive Photocathode under Harsh Conditions. Small 2018, 2, 1800018. [Google Scholar] [CrossRef]
  36. Zhu, W.; Michalsky, R.; Metin, Ö.; Lv, H.; Guo, S.; Wright, C.J.; Sun, X.; Peterson, A.A.; Sun, S. Monodisperse Au Nanoparticles for Selective Electrocatalytic Reduction of CO2 to CO. J. Am. Chem. Soc. 2013, 135, 16833–16836. [Google Scholar] [CrossRef]
  37. Gao, J.; Zhu, C.; Zhu, M.; Fu, Y.; Huang, H.; Liu, Y.; Kang, Z. Highly Selective and Efficient Electroreduction of Carbon Dioxide to Carbon Monoxide with Phosphate Silver-Derived Coral-like Silver. ACS Sustain. Chem. Eng. 2019, 7, 3536–3543. [Google Scholar] [CrossRef]
  38. Hori, Y. Electrochemical CO2 reduction on metal electrodes. In Modern Aspects of Electrochemistry; Vayenas, C.G., White, R.E., Gamboa-Aldeco, M.E., Eds.; Springer: New York, NY, USA, 2008; Volume 42, pp. 89–189. [Google Scholar]
  39. Ikeda, S.; Fujikawa, S.; Harada, T.; Nguyen, T.H.; Nakanishi, S.; Takayama, T.; Iwase, A.; Kudo, A. Photocathode Characteristics of a Spray-Deposited Cu2ZnGeS4 Thin Film for CO2 Reduction in a CO2-Saturated Aqueous Solution. ACS Appl. Energy Mater. 2019, 2, 6911–6918. [Google Scholar] [CrossRef]
  40. Ikeda, S.; Tanaka, Y.; Kawaguchi, T.; Fujikawa, S.; Harada, T.; Takayama, T.; Iwase, A.; Kudo, A. Photoelectrochemical Reduction of CO2 to CO Using a CuGaS2 Thin-film Photocathode Prepared by a Spray Pyrolysis Method. Chem. Lett. 2018, 47, 1424–1427. [Google Scholar] [CrossRef] [Green Version]
  41. Kamimura, S.; Sasaki, Y.; Kanaya, M.; Tsubota, T.; Ohno, T. Improvement of Selectivity for CO2 Reduction by Using Cu2ZnSnS4 Electrodes Modified with Different Buffer Layers (CdS and In2S3) under Visible Light Irradiation. RSC Adv. 2016, 6, 112594–112601. [Google Scholar] [CrossRef]
  42. Nesbitt, N.T.; Ma, M.; Trześniewski, B.J.; Jaszewski, S.; Tafti, F.; Burns, M.J.; Smith, W.A.; Naughton, M.J. Au Dendrite Electrocatalysts for CO2 Electrolysis. J. Phys. Chem. C 2018, 122, 10006–10016. [Google Scholar] [CrossRef]
  43. Urbain, F.; Tang, P.; Carretero, N.M.; Andreu, T.; Arbiol, J.; Morante, J.R. Tailoring Copper Foam with Silver Dendrite Catalysts for Highly Selective Carbon Dioxide Conversion into Carbon Monoxide. ACS Appl. Mater. Interfaces 2018, 10, 43650–43660. [Google Scholar] [CrossRef] [PubMed]
  44. Kaur, M.; Nagaraja, C.M. Template-Free Synthesis of Zn1-XCdXS Nanocrystals with Tunable Band Structure for Efficient Water Splitting and Reduction of Nitroaromatics in Water. ACS Sustain. Chem. Eng. 2017, 5, 4293–4303. [Google Scholar] [CrossRef]
  45. Hernández-Calderón, V.; Vigil-Galán, O.; Pulgarín-Agudelo, F.A.; Courel, M.; Arce-Plaza, A.; Cruz-Gandarilla, F.; Sánchez-Rodríguez, F.J.; Roque-De la Puente, J. Optimization of CdXZn1-XS Compound from CdS/ZnS Bi-Layers Deposited by Chemical Bath Deposition for Thin Film Solar Cells Application. Thin Solid Films 2019, 676, 100–107. [Google Scholar] [CrossRef]
Catalysts 10 00949 g001 550

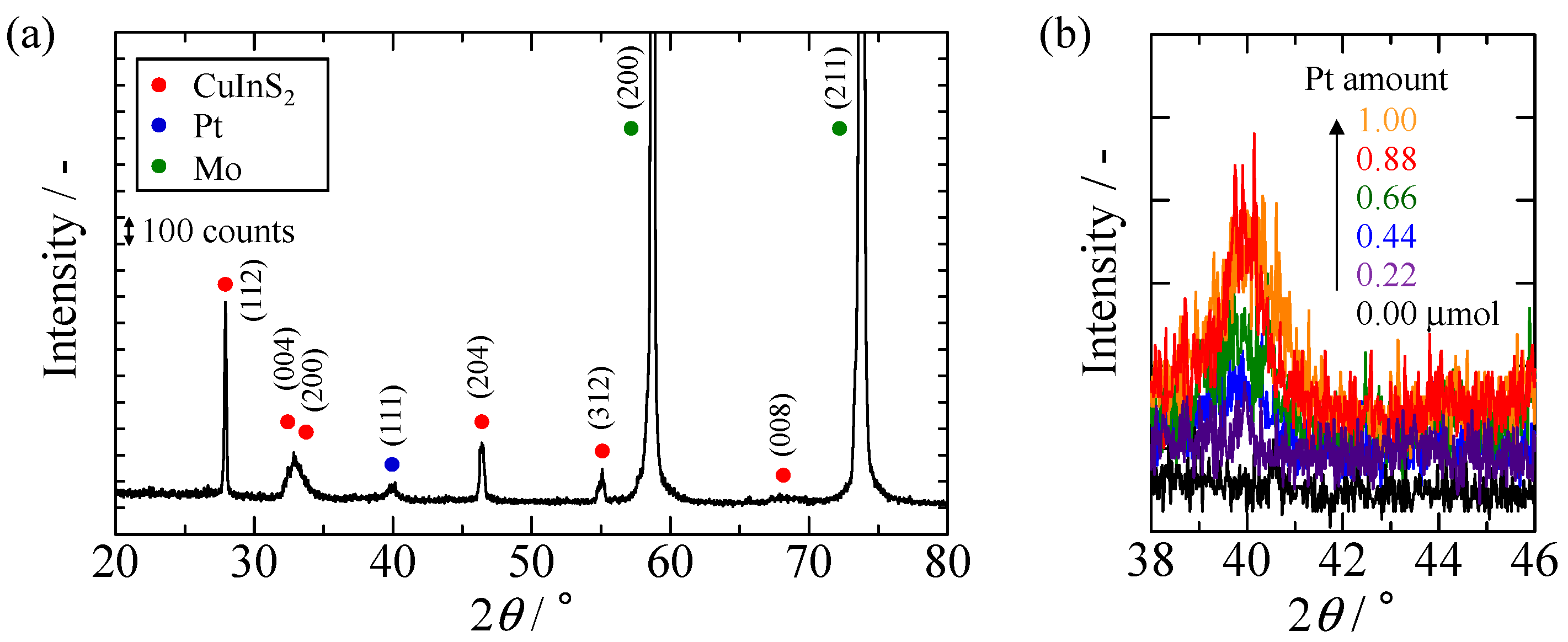

Figure 1. (a) XRD pattern of Pt0.88/CdS/CuInS2 electrode. Red, blue, and green dots indicate the positions of the peaks in the standard patterns of CuInS2 (ICDD #01-082-1702), Pt (ICDD #03-065-7442), and Mo (ICDD #01-087-0646), respectively. (b) Magnified patterns around the Pt peak for Pt/CdS/CuInS2 electrodes.
Figure 1. (a) XRD pattern of Pt0.88/CdS/CuInS2 electrode. Red, blue, and green dots indicate the positions of the peaks in the standard patterns of CuInS2 (ICDD #01-082-1702), Pt (ICDD #03-065-7442), and Mo (ICDD #01-087-0646), respectively. (b) Magnified patterns around the Pt peak for Pt/CdS/CuInS2 electrodes.
Catalysts 10 00949 g001
Catalysts 10 00949 g002 550

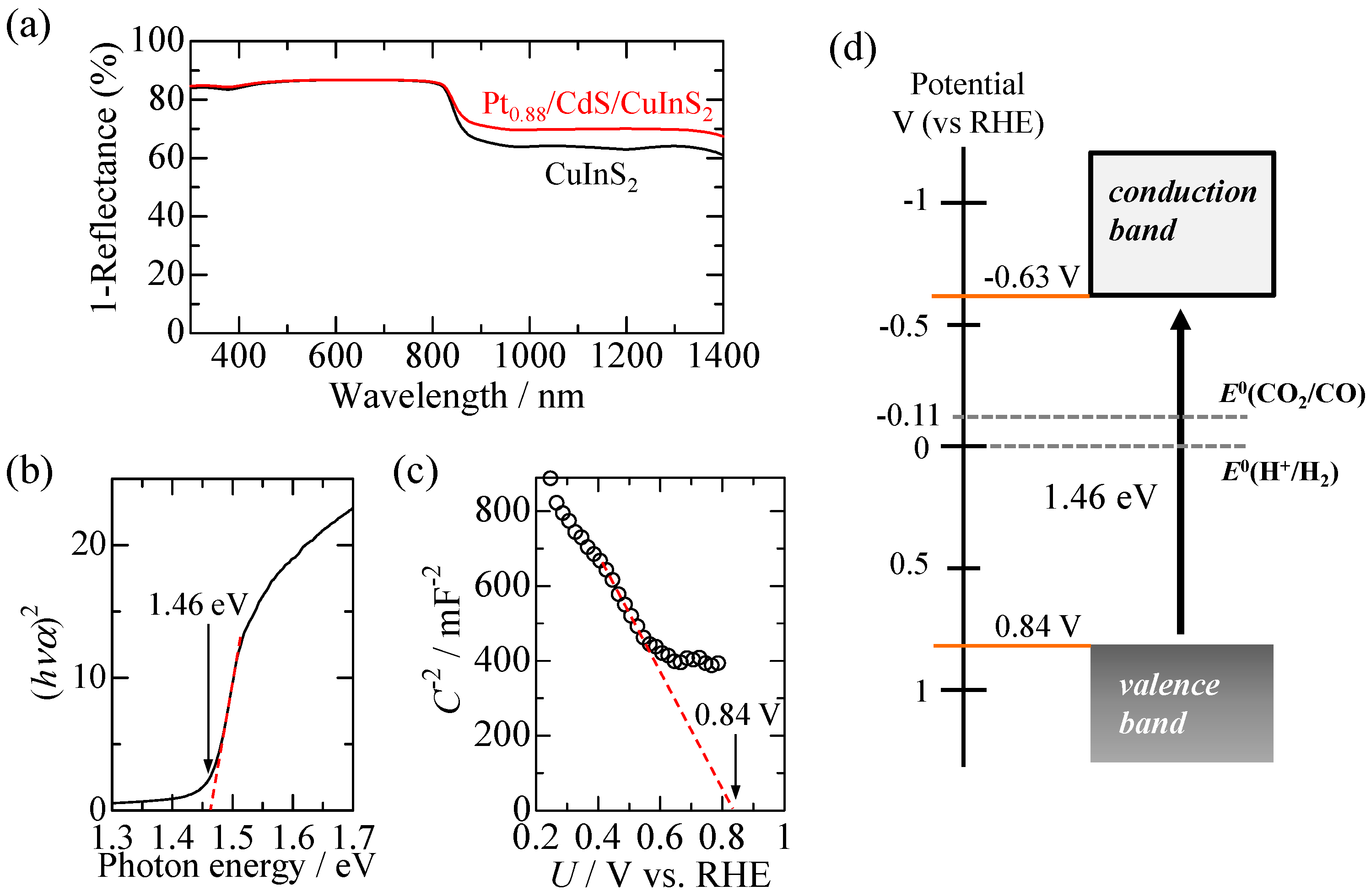

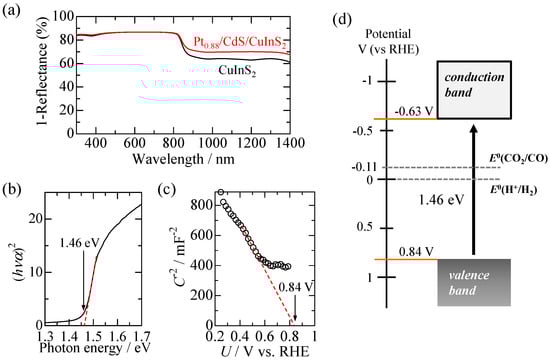

Figure 2. (a) UV-vis-NIR absorption spectra of CuInS2 and Pt0.88/CdS/CuInS2 electrodes. (b) Tauc plot and (c) Mott–Schottky plot of CuInS2 electrode. (d) Band alignment of the synthesized CuInS2 electrode deduced from the results shown in (a–c).
Figure 2. (a) UV-vis-NIR absorption spectra of CuInS2 and Pt0.88/CdS/CuInS2 electrodes. (b) Tauc plot and (c) Mott–Schottky plot of CuInS2 electrode. (d) Band alignment of the synthesized CuInS2 electrode deduced from the results shown in (a–c).
Catalysts 10 00949 g002
Catalysts 10 00949 g003 550
Figure 3. SEM images of (a) CdS/CuInS2, (b) Pt0.22/CdS/CuInS2, (c) Pt0.44/CdS/CuInS2, (d) Pt0.66/CdS/CuInS2, (e) Pt0.88/CdS/CuInS2, and (f) Pt1.00/CdS/CuInS2.
Figure 3. SEM images of (a) CdS/CuInS2, (b) Pt0.22/CdS/CuInS2, (c) Pt0.44/CdS/CuInS2, (d) Pt0.66/CdS/CuInS2, (e) Pt0.88/CdS/CuInS2, and (f) Pt1.00/CdS/CuInS2.
Catalysts 10 00949 g003
Catalysts 10 00949 g004 550

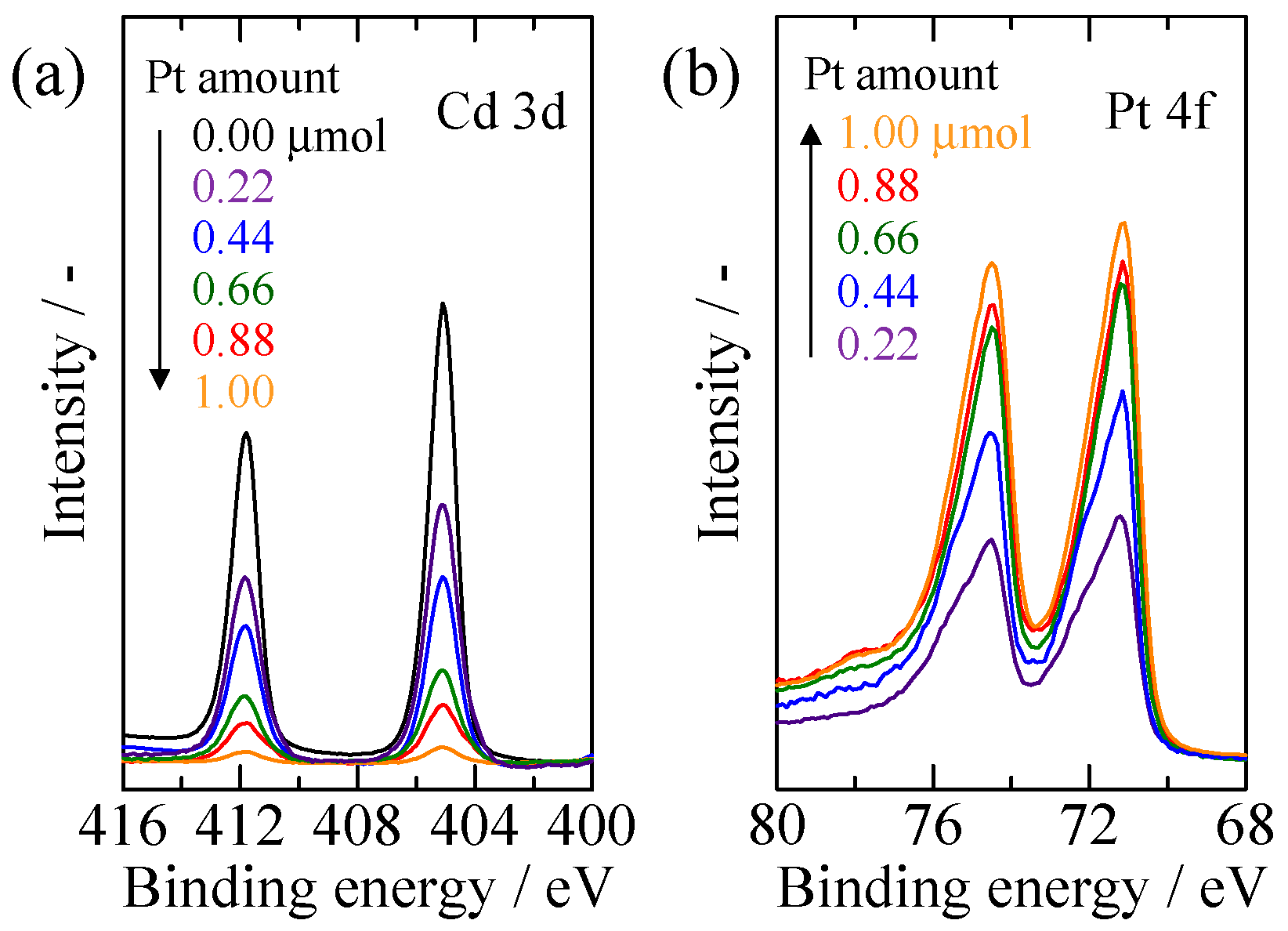

Figure 4. XPS spectra in the (a) Cd 3d and (b) Pt 4f regions of Pt/CdS/CuInS2 with various Pt loadings.
Figure 4. XPS spectra in the (a) Cd 3d and (b) Pt 4f regions of Pt/CdS/CuInS2 with various Pt loadings.
Catalysts 10 00949 g004
Catalysts 10 00949 g005 550

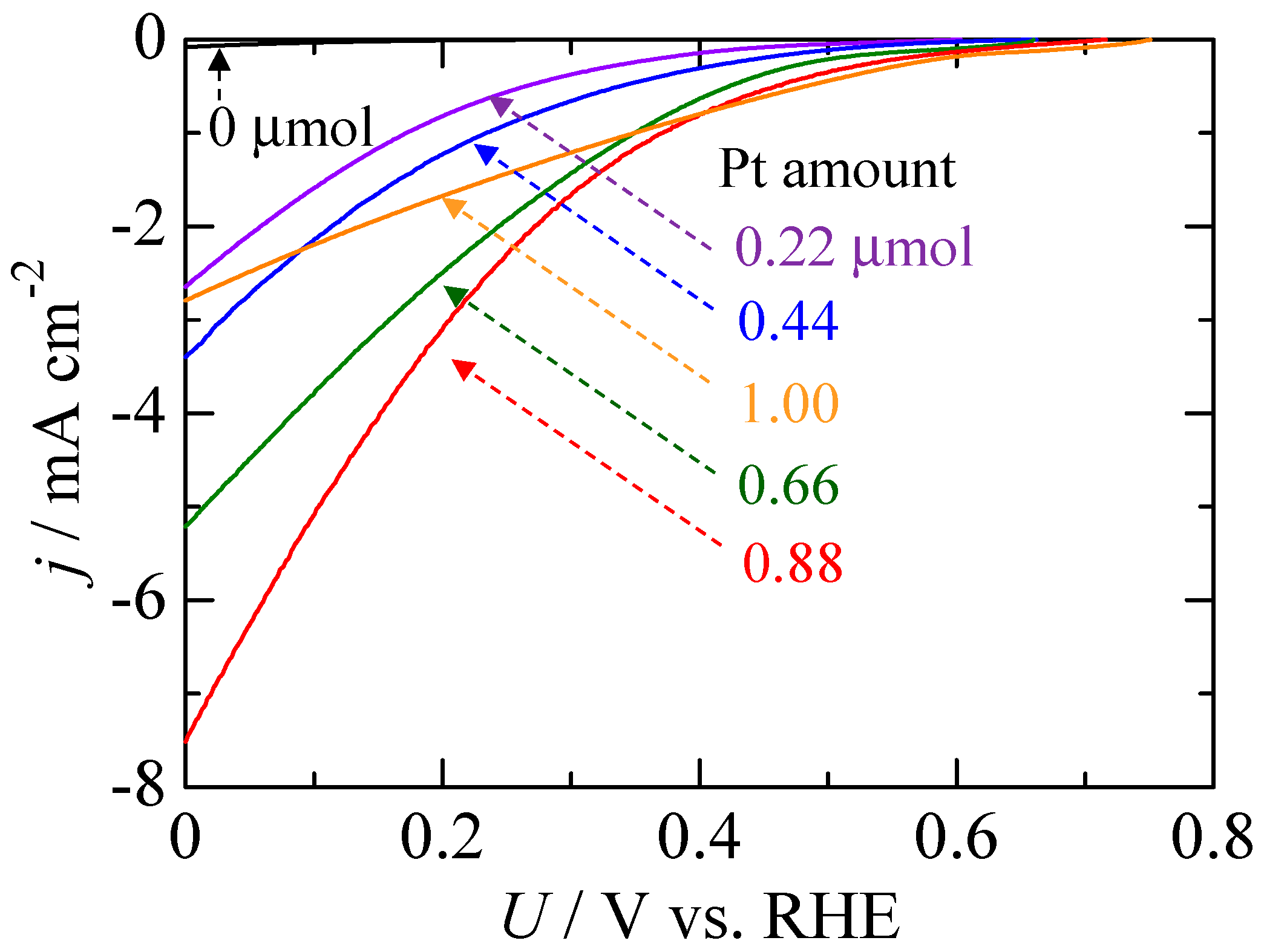

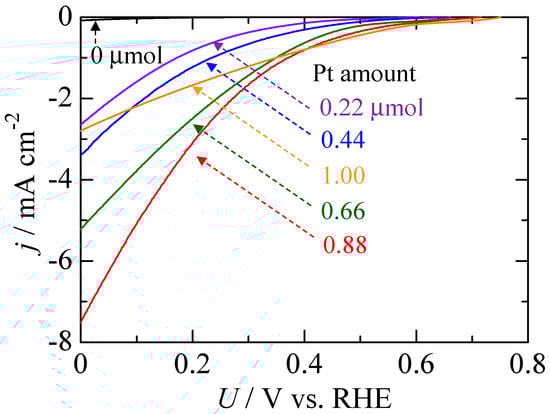

Figure 5. Polarization curves of Pt/CdS/CuInS2 photoelectrodes measured under visible light irradiation (λ > 420 nm).
Figure 5. Polarization curves of Pt/CdS/CuInS2 photoelectrodes measured under visible light irradiation (λ > 420 nm).
Catalysts 10 00949 g005
Catalysts 10 00949 g006 550

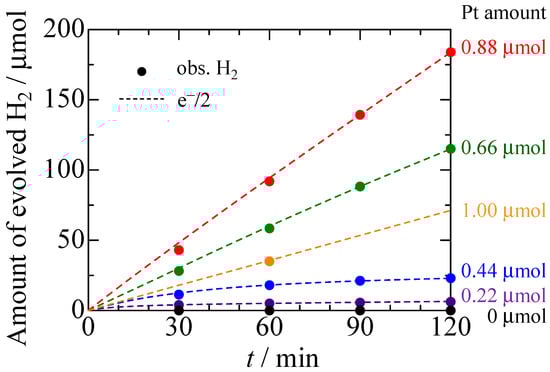

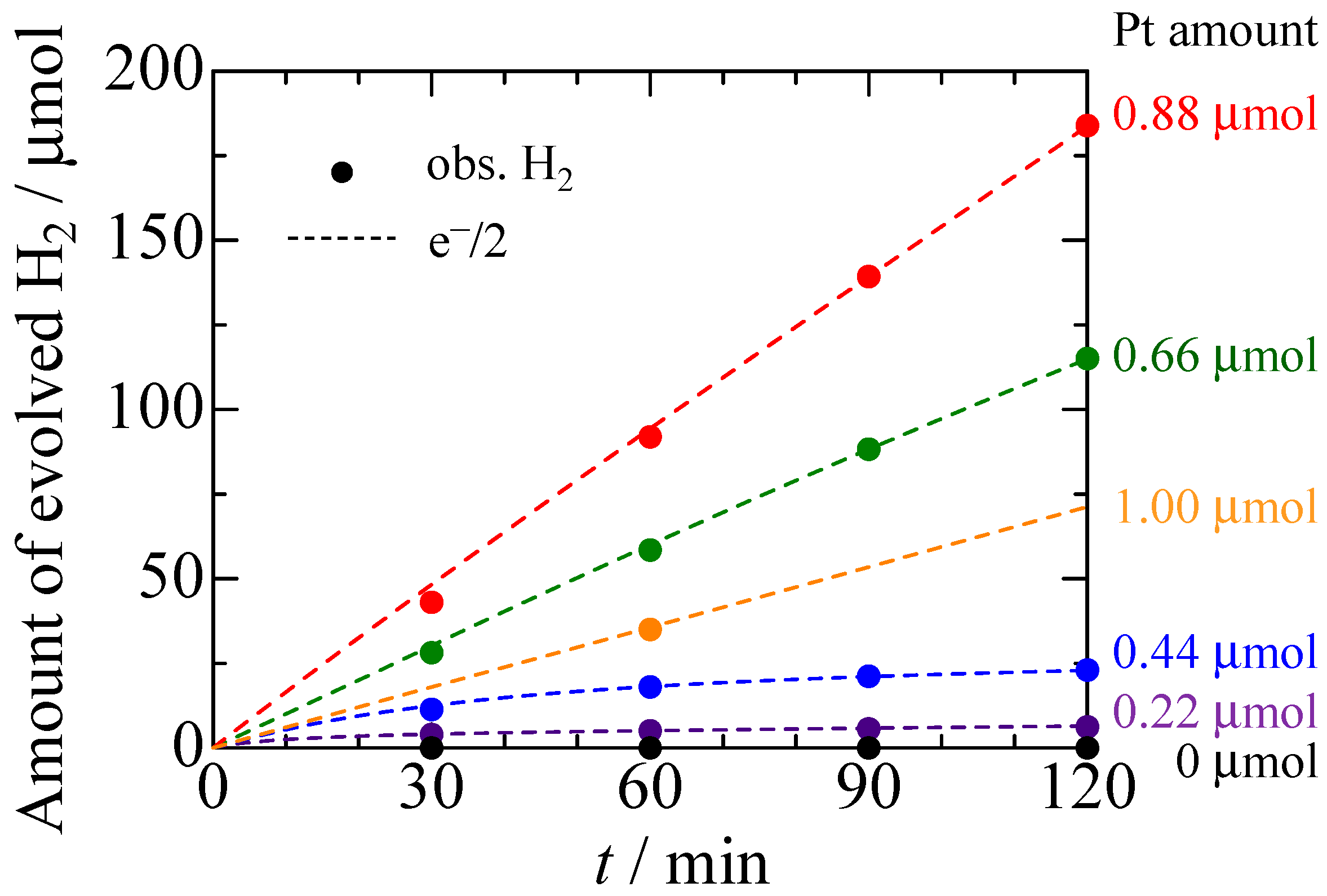

Figure 6. Time course curves of H2 evolution (closed circles) from Pt/CdS/CuInS2 electrodes measured at 0 V under irradiation with visible light (λ > 420 nm). The broken lines denote time course curves of half of the electrons passing through the outer circuit (e–/2).
Figure 6. Time course curves of H2 evolution (closed circles) from Pt/CdS/CuInS2 electrodes measured at 0 V under irradiation with visible light (λ > 420 nm). The broken lines denote time course curves of half of the electrons passing through the outer circuit (e–/2).
Catalysts 10 00949 g006
Catalysts 10 00949 g007 550

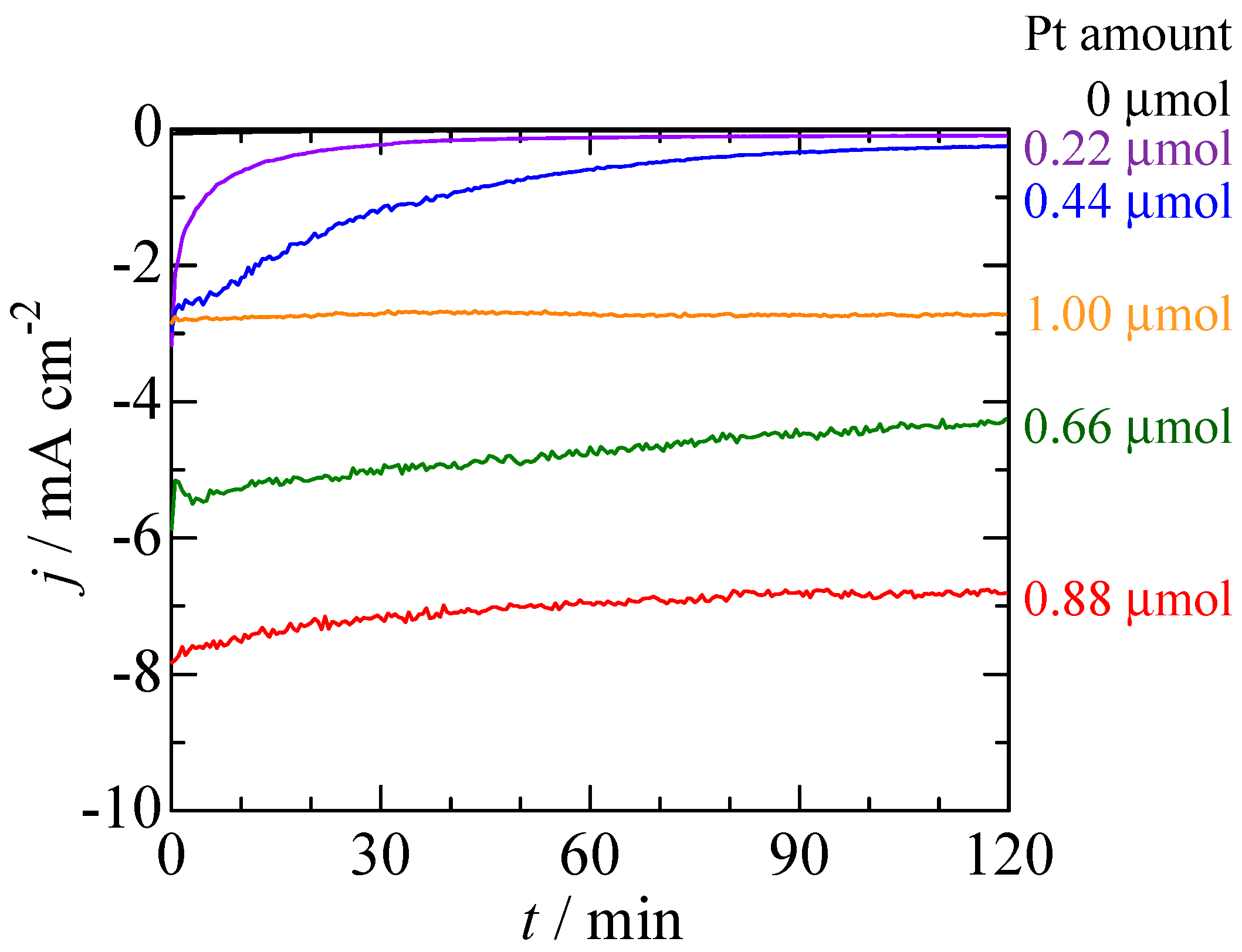

Figure 7. Current–time profiles of Pt/CdS/CuInS2 electrodes measured at 0 V under irradiation with visible light (λ > 420 nm).
Figure 7. Current–time profiles of Pt/CdS/CuInS2 electrodes measured at 0 V under irradiation with visible light (λ > 420 nm).
Catalysts 10 00949 g007
Catalysts 10 00949 g008 550

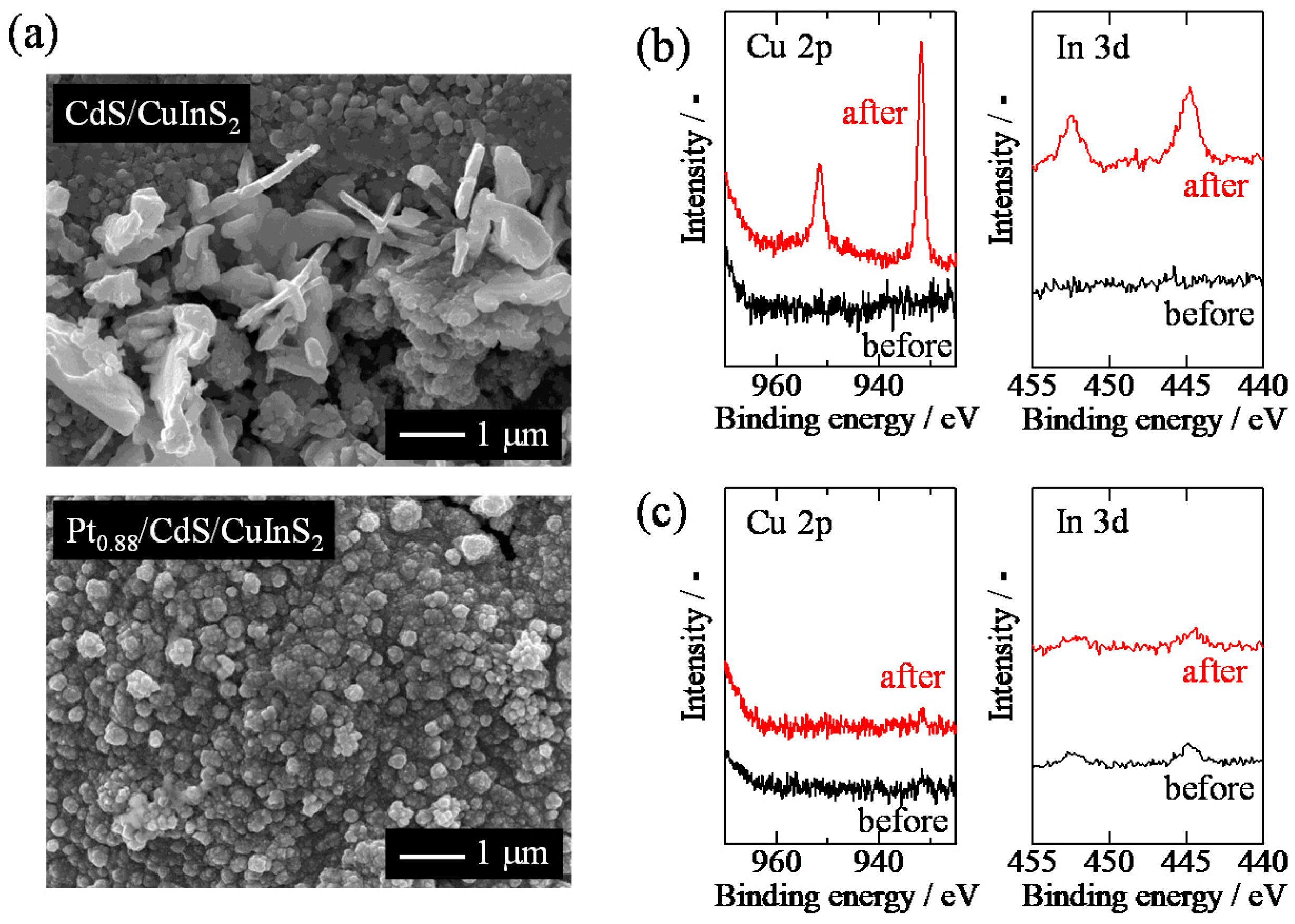

Figure 8. (a) SEM images of CdS/CuInS2 (upper) and Pt0.88/CdS/CuInS2 (lower) photoelectrodes after 120 min of photoelectrolysis. (The SEM images of CdS/CuInS2 and Pt0.88/CdS/CuInS2 photoelectrodes before the photoelectrolysis are shown in Figure 3a,e, respectively.) Comparison of XPS spectra of (b) CdS/CuInS2 and (c) Pt0.88/CdS/CuInS2 electrodes before and after 120 min of photoelectrolysis.
Figure 8. (a) SEM images of CdS/CuInS2 (upper) and Pt0.88/CdS/CuInS2 (lower) photoelectrodes after 120 min of photoelectrolysis. (The SEM images of CdS/CuInS2 and Pt0.88/CdS/CuInS2 photoelectrodes before the photoelectrolysis are shown in Figure 3a,e, respectively.) Comparison of XPS spectra of (b) CdS/CuInS2 and (c) Pt0.88/CdS/CuInS2 electrodes before and after 120 min of photoelectrolysis.
Catalysts 10 00949 g008
Table
Table 1. Photoelectrochemical CO2 reduction using CdS/CuInS2 electrodes modified with noble metal cocatalysts.
Table 1. Photoelectrochemical CO2 reduction using CdS/CuInS2 electrodes modified with noble metal cocatalysts.
Photoelectrodej (mA/cm2 at −0.11 V)Faradaic Efficiency (%)
H2CO
Pt0.88/CdS/CuInS24.0990.36
Au/CdS/CuInS21.5936.7
Ag/CdS/CuInS20.21693.5
