High Yield to 1-Propanol from Crude Glycerol Using Two Reaction Steps with Ni Catalysts

Centro de Investigación y Desarrollo en Ciencias Aplicadas (CINDECA) y Facultad de Ingeniería, Universidad Nacional de La Plata-Consejo Nacional de Investigaciones Científicas y Técnicas (UNLP-CONICET), 47 No. 257, La Plata 1900, Argentina
Author to whom correspondence should be addressed.
Catalysts 2020, 10(6), 615;
Submission received: 26 April 2020 / Revised: 20 May 2020 / Accepted: 22 May 2020 / Published: 2 June 2020
(This article belongs to the Special Issue New Glycerol Upgrading Processes)


The objective of the present work is to achieve high yield to 1-propanol (1-POH) by crude glycerol hydrogenolysis in liquid phase and find an alternative to the use of noble metals by employing Ni catalysts. Two Ni catalysts with different supports, alumina (γ-Al2O3), and a phosphorous-impregnated carbon composite (CS-P) were studied and characterized in order to determine their acid properties and metallic phases. With the Ni/γ-Al2O3 catalyst, which presented small particles of metallic Ni interacting with the acid sites of the support, it was possible to obtain a complete conversion of crude glycerol with high selectivity towards 1,2-propylene glycol (1,2 PG) (87%) at 220 °C whereas with the Ni/CS-P catalyst, the presence of AlPOx species and the Ni2P metallic phase supplied acidity to the catalyst, which promoted the C-O bond cleavage reaction of the secondary carbon of 1,2 PG to obtain 1-POH with very high selectivity (71%) at 260 °C. It was found that the employment of two consecutive reaction stages (first with Ni/ γ-Al2O3 at 220 °C and then with Ni/CS-P at 260 °C) allows reaching levels of selectivity and a yield to 1-POH (79%) comparable to noble metal-based catalysts.

Graphical Abstract

1. Introduction

Glycerol is a by-product of biodiesel synthesis and is currently considered an important biomass resource because it can be used as a raw material to synthesize other chemical compounds that, in the past, were obtained by petrochemical methods [1,2,3,4]. Particularly, glycerol hydrogenolysis leads to the formation of glycols such as 1,2-propylene glycol (1,2-PG) [5,6,7] and 1,3-propylene glycol (1,3-PG) [8,9,10], and propanols 1-propanol (1-POH) and 2-propanol (2-POH) [11,12,13].
With respect to 1,2-PG, it has been widely used as a raw material in cosmetic, pharmaceutical, food, and chemical industries [14]. No less important is 1-POH, a chemical utilized as an additive in the manufacture of printing inks, antifreezes, brake fluids, and cosmetic lotions that can also be employed as a solvent in the manufacture of rubber, lacquer and essential oils [15].
As previously reported by several authors, 1,2-PG is obtained by a first dehydration stage of C-O bond cleavage reaction from glycerol molecule and a subsequent hydrogenation stage, while 1-POH can be obtained through the subsequent hydrogenolysis of 1,2-PG [16,17,18]. However, in the literature, there are more scientific contributions focused on glycerol hydrogenolysis to produce 1,2-PG than to produce 1-POH [19,20], though the latter is also a high value-added product [21].
To obtain glycols or 1-POH, a bifunctional catalyst is required. In this reaction, the surface acid-base properties of the support play an important role. On the other hand, the choice of the metallic phase is also relevant. It has been reported that metallic phases based on noble metals such as Ru [22,23], Pt [24,25], and Pd [26,27] are very active for the hydrogenation of glycerol reaction, although they are expensive and in some cases favor undesirable C-C bond cleavage reactions.
Bhanuchander et al. [12] tested supported Pt catalysts on AlP, TiP, ZrP, and NbP. Among all the catalysts employed, Pt/TiP was found to be the most active one in vapor phase hydrogenolysis at 220°C and 0.1 MPa of H2, obtaining total glycerol conversion and high selectivity towards 1-POH (~87%) using 10 wt.% glycerol solutions and 1.02 h−1 of space velocity (WHSV). These authors attributed the results obtained to the acid strength present in the sites of the TiP support and to the high dispersion of the Pt atoms (particles of average diameter 4 nm). These same conclusions were reported by Priya et al. [11] with Pt catalysts supported over ZrO2 modified with phosphotungstic acid. These catalysts exhibited high selectivity towards propanols (~98% selectivity towards 1-POH and 2-POH) with total conversion of glycerol at 230 °C, 0.1 MPa of H2, using dilute glycerol solutions (between 5 and 10 wt.%) and 1.02 h−1 of space velocity (WHSV).
Zhu et al. [15], employing Pt catalysts supported over ZrO2 modified with HSiW, found that propanols can be obtained at 200 °C and 5 MPa of H2, with high selectivity (~80%) and total conversion of glycerol using 10 wt.% aqueous glycerol solutions and 0.045 h−1 of space velocity in a liquid phase continuous flow reactor. These authors attributed the performance of the catalyst to a good balance between acid sites and surface-active species for hydrogenation.
Samudrala et al. [28] investigated Pd/MoO3-Al2O3 catalysts for 1-POH and 2-POH production. They found that the synergic interaction between Pd and MoO3 on the Al2O3 support and the acidity of the catalyst were solely responsible for the high catalytic activity. High glycerol conversion (~88%) with high selectivity to propanols (~91%) was achieved at 210 °C, 0.1 MPa of H2, and 3 h of reaction using 10 wt.% glycerol.
Ryneveld et al. [19] studied Pd/C and Ru/C catalysts. Pd/C can reach 38% of glycerol conversion with 52% selectivity towards 1-POH, at 250 °C and 8 MPa of H2 and 24 h of reaction. Ru/C, under the same operative conditions, can reach a ~99% of glycerol conversion with low selectivity towards 1-POH (~18%), due to C-C cleavage bond reactions.
Catalysts based on Ni or Cu have become an interesting alternative due to their capacity for C-O bond cleavage and their lower cost [16]. Ryneveld et al. [20] analyzed Ni supported catalysts over SiO2 and Al2O3. They found that Ni/Al2O3 showed the best performance with ~100% conversion of glycerol and ~43% selectivity towards 1-POH at 320 °C, 6 MPa of H2, and 3 h−1 of space velocity (LHSV). The authors assigned this performance to the higher concentration of strong acid sites on the Ni/Al2O3 compared to Ni/SiO2.
In order to increase selectivity to lower alcohols, such as methanol (MeOH), ethanol (EtOH) and 1-POH, Shozi et al. modified Ni/SiO2 and Ni/Al2O3 with 1 wt.% of Re. Among the catalysts tested, Ni-Re/Al2O3 favored the formation of 1-POH, reaching 30% yield at 325 °C, 6 MPa of H2, and 24 h of reaction using 60 wt.% glycerol in a continuous-flow fixed-bed reactor [29]. In another contribution, these authors [30] studied Mo and W catalysts supported on SiO2 and γ-Al2O3. Their work showed the best results using a Mo/SiO2 catalyst, reaching 42% glycerol conversion with ~40% selectivity towards 1-POH, at 325 °C, 6 MPa of H2, 60 wt.% glycerol and 10 h−1 of space velocity (LHSV).
From the above, it is clear that 1-POH can be obtained through glycerol hydrogenolysis though the yields achieved are relatively lower than those of 1,2-PG. In order to increment the yield towards 1-POH, Lin et al. reported sequential two-layer catalysts in a continuous-flow fixed-bed reactor. An acidic H-β catalyst layer was packed before a Ni/Al2O3 catalyst layer in the reactor. These sequential two-layer catalysts provided good 1-POH selectivity (~69%) with complete glycerol conversion at 220 °C, 2 MPa of H2, and 6.05 h−1 of space velocity (WHSV) [31]
A less explored aspect is the effect that the use of crude glycerol from the biodiesel industry might have. Most scientific work has employed analytical glycerol solutions within a wide range of concentrations (10–80 wt.%). However, crude glycerol from the biodiesel industry is always found at high concentrations (70–80 wt.%) and has impurities of a different nature [32,33,34]. Among those impurities, remnants of methanol and NaOH can come from the biodiesel synthesis [32] as well as NaCl [33] or Na2SO4 [34] due to the neutralization of NaOH with inorganic acids, such as HCl or H2SO4 respectively. Matter organic non-glycerol (MONG) such as mono, di- and triglycerides may also be present in crude glycerol [33]. In the case of NaOH, it was reported that the concentration of NaOH can lead to lactic acid formation, which is a degradation product [35]. With respect to the NaCl salt, the presence of Cl- can lead to a catalyst deactivation due to the incorporation of Cl- over the metallic particles [33]. As regards the MONG content, reports indicate that glycerides (mono, di, or triglycerides) make the catalyst surface dirty, block active sites, and even act as coke precursors [33]. In this way, the use of crude glycerol would be an important variable to study a catalytic material for the glycerol hydrogenolysis reaction.
The objectives of the present work are to achieve high yield to 1-POH by crude glycerol hydrogenolysis in liquid phase and to find an alternative to the use of noble metals by employing Ni catalysts. Two Ni catalysts with different supports, alumina, and a carbon composite were studied and characterized in order to determine their acid properties and metallic phases. In this sense, the acidic properties of alumina promote the dehydration of glycerol to acetol (AcCH2OH), which is the main intermediate in the hydrogenolysis reaction. Furthermore, if there is any transformation from alumina to boehmite, due to the hydrothermal conditions of this reaction, this gives it more acidity without negatively affecting the reaction. Carbon-based supports have been widely reported in liquid phase reactions at low temperatures, with advantages associated with their hydrophobicity, stability, textural properties, as well as easy recovery of the metal phase. They can also be acidified by different techniques such as functionalization with inorganic acids [36]. In fact, in previous studies, we found that a carbon composite treated with HF generates the presence of phenolic and lactonic groups on its surface, favoring the formation of 1-POH [37].
For each catalyst, the operative reaction conditions were optimized to reach total conversion and the higher selectivity to the main product.
Taking into consideration that 1,2 PG is the intermediate compound to produce 1-POH, the possibility of employing both catalysts was analyzed, using two consecutive reaction stages.

2. Results and Discussion

2.1. Characterization of Supports and Catalysts

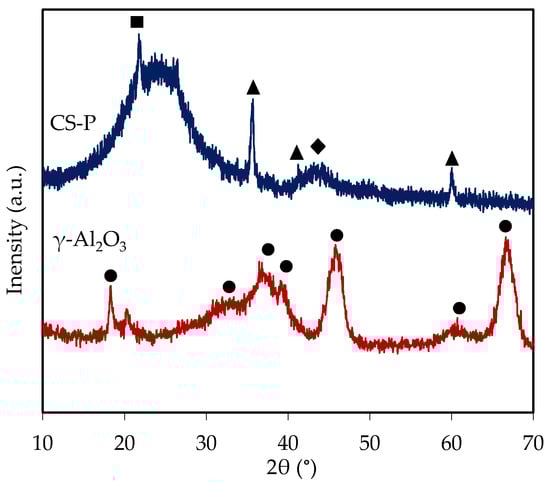

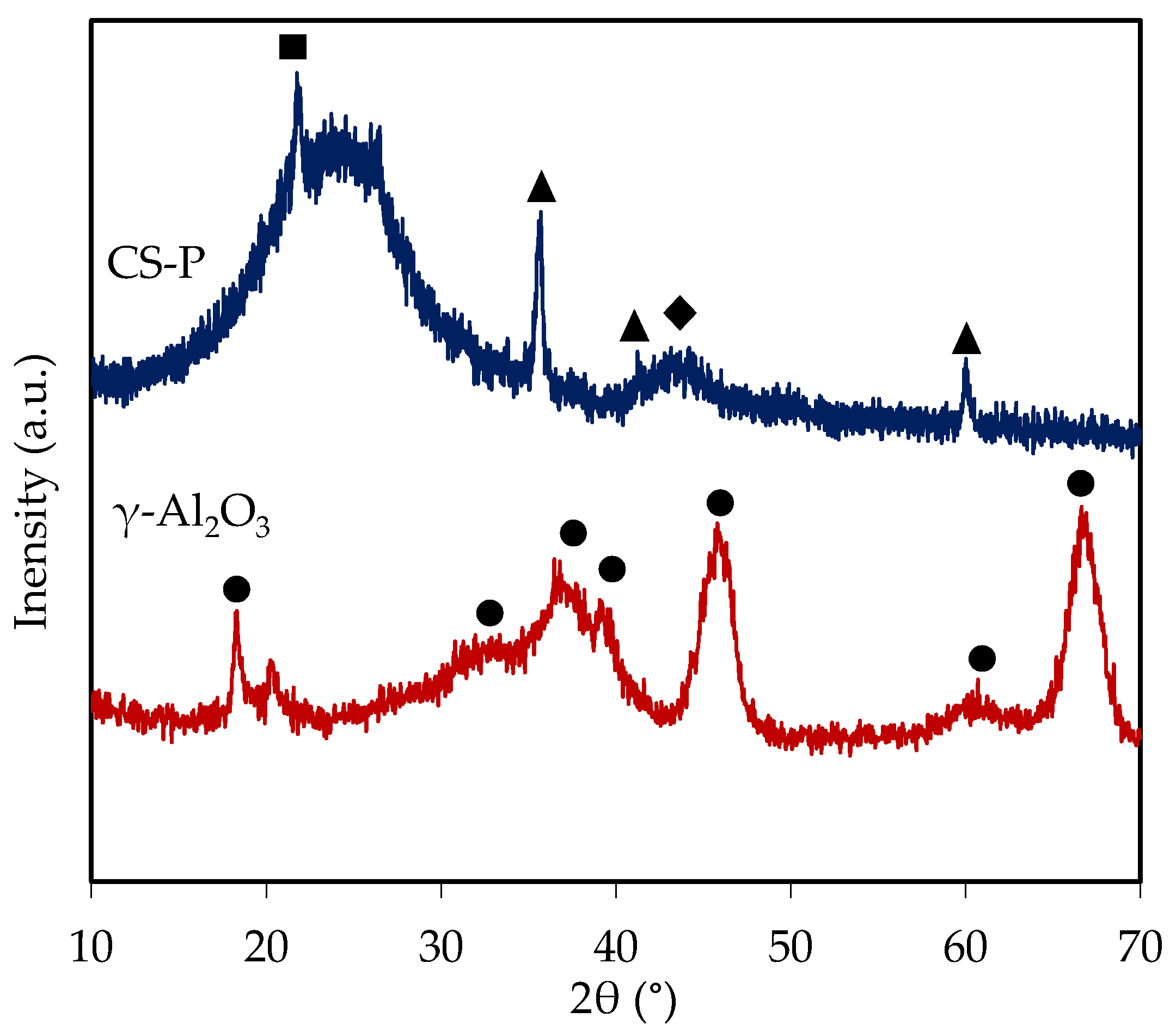

Figure 1 shows the X-ray diffractograms of the supports: γ-Al2O3 and phosphorous-impregnated carbon composite (CS-P). For the γ-Al2O3 support, the main peaks are observed at 2θ = 18.9°, 32.5°, 36.9°, 39.1°, 45.3°, 59.6° and 66.7° characteristic of this low crystallinity aluminum oxide (●) (JCPDS 04-0858).
In the CS-P composite, a peak at 2θ = 43.7° can be observed that is assigned to the hexagonal phase of graphite carbon (♦) (JCPDS 25-284). The presence of graphitic carbon is due to the pyrolysis in reducing atmosphere of the phenol-formaldehyde liquid resin employed for the synthesis of the CS support (more details in Supplementary Materials). An amorphous plateau between 2θ = 15° and 30° that is characteristic of amorphous silica is also observed, and a peak at 2θ = 21.8° that is assigned to the tridymite phase of silica (■) (JCPDS 18-1170). The presence of silica is due to the use of TEOS in the synthesis of the CS support. Besides, the peaks at 2θ = 35.7°, 41.4° and 60.0° can be assigned to silicon carbide (▲) (JCPDS 22-1316). The formation of silicon carbide is explained due to a reaction between carbon and silica during the calcination process at 1580 °C.

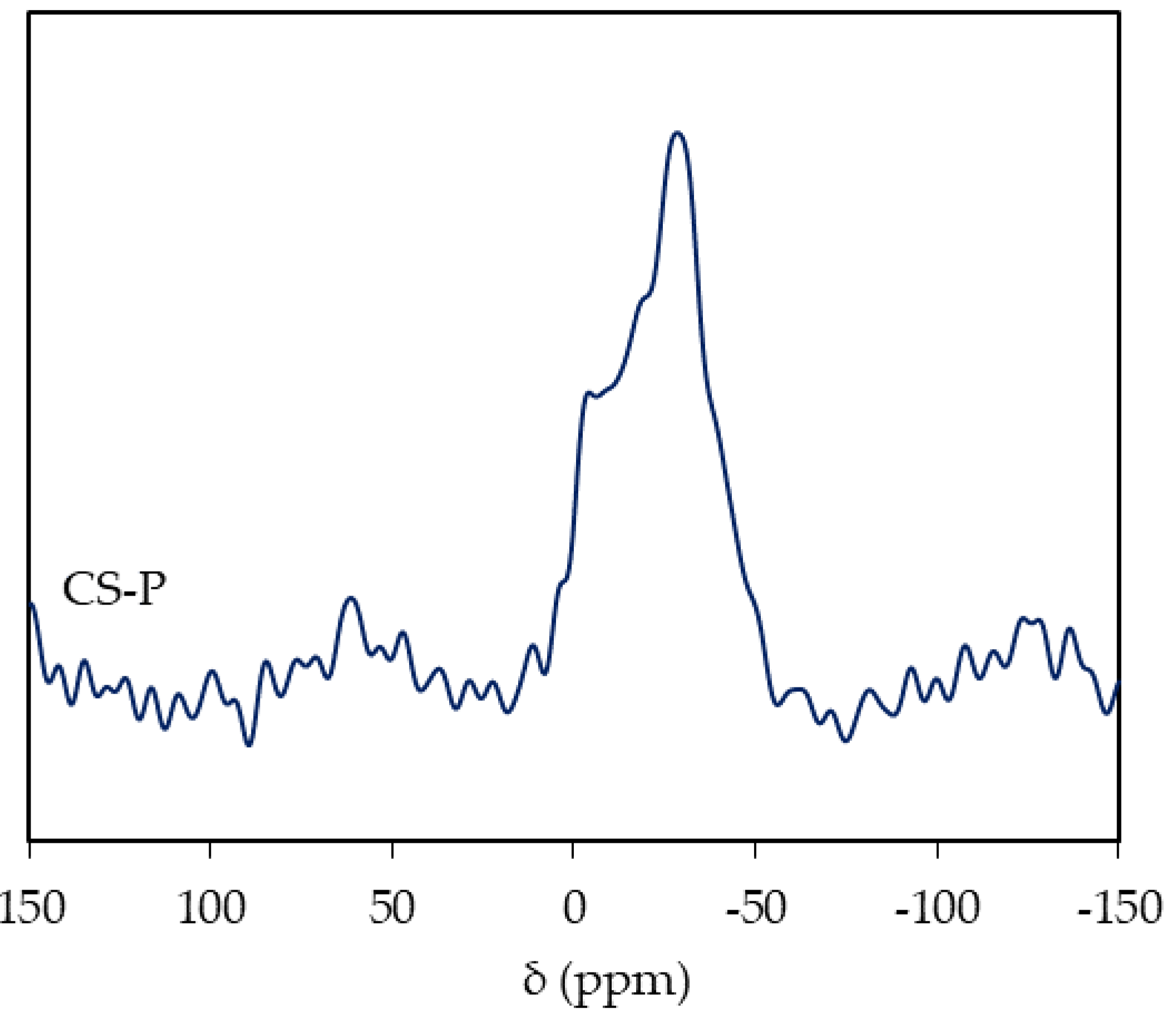

Since it was not possible to observe phosphorus phases on the CS-P support, this composite was analyzed by NMR spectroscopy. Figure 2 shows the 31P-NMR spectra for the CS-P support that presents a band at −27 ppm, which is associated with the presence of several orthophosphate species, generally denoted as AlPOx [38,39].
Table 1 shows the textural characterization of the supports by the adsorption-desorption of N2 and the surface acid properties determined by the decomposition reaction of isopropanol (IPA) and potentiometric titration.
The adsorption-desorption isotherms of N2 for γ-Al2O3 and CS-P were of type IV, characteristic of mesoporous materials with hysteresis loops H1 and H3, respectively. Isotherms and pore size distributions are shown in Supplementary Figures S1 and S2.
Although the supports have a similar porosity around 200 m2 g−1, they present greater differences in their acidic surface properties. Although carbonaceous supports generally have specific surface area (SBET) values greater than 600 m2 g−1, the lower SBET in the support impregnated with Al(H2PO4)3 (CS-P) can be ascribed to a partial blocking of pores. Araujo et al. also reported that the impregnation with phosphoric acid noticeably reduced the mesoporous volume of the support [40].
The potentiometric titration technique with n-butylamine allowed determining the strength of the acid sites and the total number of acid sites present in a given solid. While the initial potential of the titration curve (Ei) indicates the maximum strength of the acid sites, the consumption of n-butylamine is related to the total number of acid sites (NS). The γ-Al2O3 and CS-P supports present Ei values of 60 and 340 mV respectively. This indicates that the superficial acid sites are strong and very strong for γ-Al2O3 and CS-P respectively [37]. In Table 1, it can be seen that the CS-P support has a higher total number of acid sites (NS) than the γ-Al2O3 support.
The decomposition reaction of isopropanol (IPA) is known as an indirect method that allows characterizing the acid strength and type of sites of the surface of a solid. These are classified according to their ability to dehydrate and form propylene, di-isopropyl ether (DIPE) and/or acetone, or to dehydrogenize and form acetone and hydrogen.
As observed in Table 1, to achieve an IPA conversion level of 15%, the CS-P support requires a temperature of 170 °C, while γ-Al2O3 requires 200 °C. The lower the temperature to reach a certain level of conversion, the greater the number of surface active sites [41].
On the other hand, the selectivity analysis towards the different reaction products allows determining the nature of the surface active sites. As observed in Table 1, the γ-Al2O3 support has a selectivity of 73% towards propylene and 27% towards DIPE, which would indicate that this material has strong Lewis acid sites. The CS-P support exhibits 100% selectivity towards propylene, indicating the presence of strong Lewis and/or Brønsted acid sites [41]. Because NMR spectroscopy shows AlPOx species, the Lewis acidity could be assigned to cations Al+ 3 and the Brønsted acidity to the P-OH groups, as reported by Moffat et al. [42].
As regards the Ni catalysts, Table 2 shows the results of the textural and physicochemical characterization.
By the AAS technique, it was determined that in both catalysts, the Ni content was very close to the nominal value (5 wt.%).
The results of the adsorption-desorption of N2 show a drop in the value of SBET for the reduced Ni/γ-Al2O3 catalyst, which is due to the blocking of the pores due to the presence of Ni. Conversely, for the Ni/CS-P catalyst, there is an increase in SBET, which could be assigned to the loss of some AlPOx species of the support, during the thermal treatment in H2 flow, that were blocking the support pores. It has been reported in the literature that the thermal treatment of phosphoric acid species in carbon is employed to increase the specific area [43]. Isotherms and pore size distributions of the catalysts are shown in Supplementary Figures S1 and S2.
The results of the potentiometric titration (Table 2) indicate the preservation in the catalysts of the strong acid sites of the supports. Thus, the Ni/CS-P catalyst has a greater number of acid sites than Ni/γ-Al2O3 and a higher acid strength of the sites.

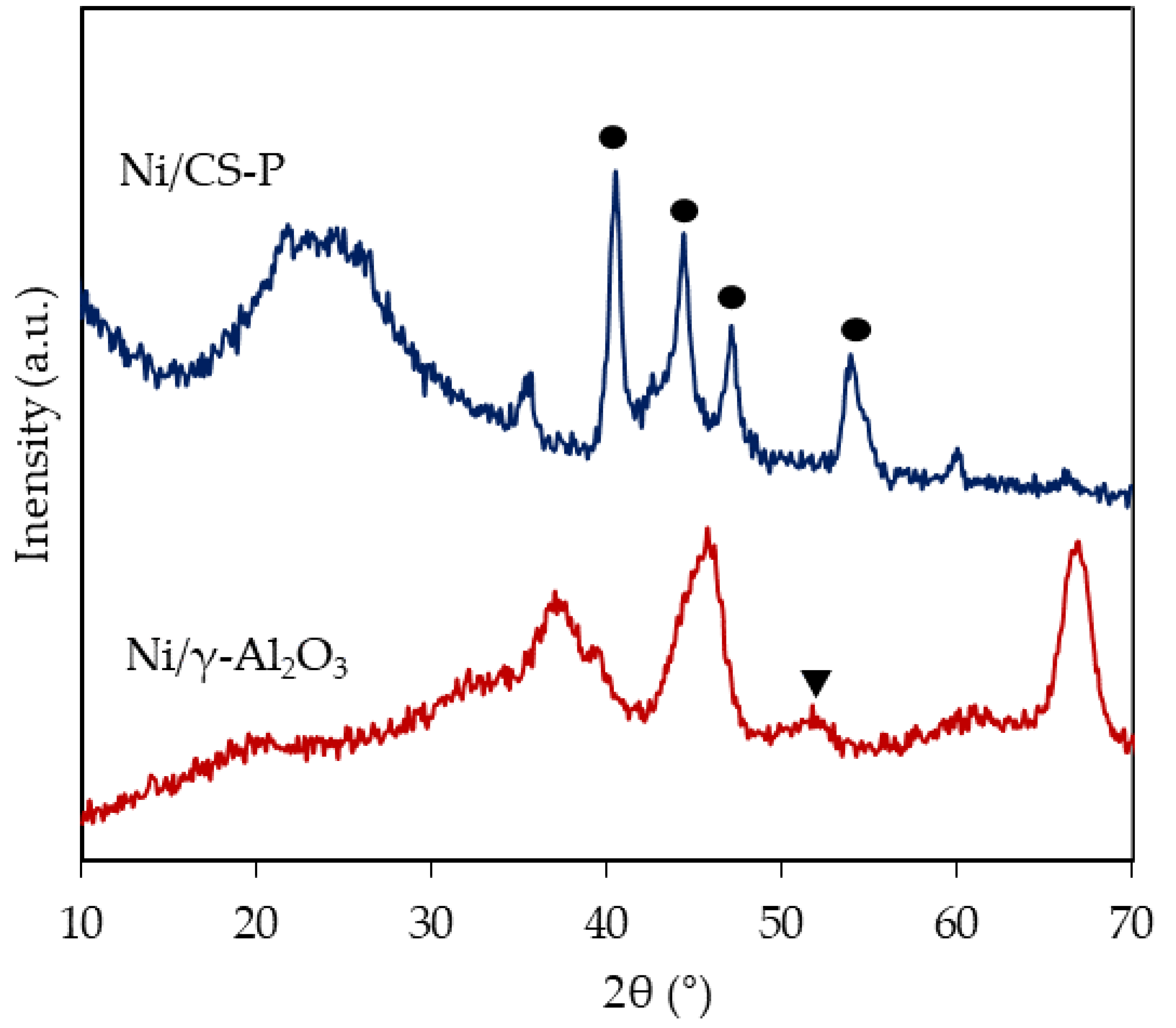

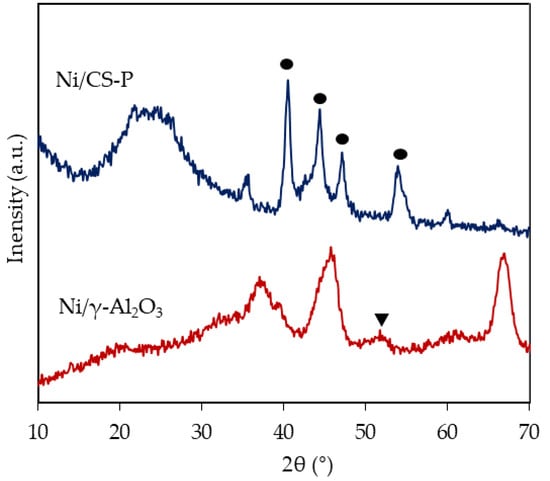

Figure 3 shows the X-ray diffractograms of the reduced catalysts. For the Ni/γ-Al2O3 catalyst, a peak at 51.7° is observed which corresponds to the Ni metal phase (▼) (JCPDS 4-850). Due to the low intensity of this peak, it was not possible to calculate an average crystallite size (using the Scherrer equation) but this would indicate that these particles are widely dispersed.
In the X-ray diffractogram of the Ni/CS-P catalyst, the peaks at 2θ° = 40.6°, 44.5°, 47.1° and 54.1° that correspond to the Ni2P phase (●) can be observed (JCPDS 74-1385). Several publications have reported that in Ni and P catalysts, the Ni/P molar ratio would determine the type of alloy formed. For Ni/P ratios greater than 1.4, the formation of the Ni12P5 and Ni3P phases has been indicated, while for Ni/P ratios less than 1, the formation of the Ni2P phase has been reported [44,45]. Since the Ni/CS-P catalyst has a Ni/P molar ratio equal to 0.36, it would be in agreement with the formation of the Ni2P phase determined by XRD. The average crystallite size of Ni2P is about 11 nm, obtained by the Scherrer equation, using the peak at 40.6 ° corresponding to plane (111) of Ni2P.
Since the moles of P with respect to Ni are greater, in the Ni/CS-P catalyst all Ni is alloyed as Ni2P and P unalloyed as AlPOx species, even though it was not possible to detect these latter species by XRD. While AlPOx species were detected in the support by NMR, it was not possible to apply this technique in the catalyst due to the magnetic properties of Ni.

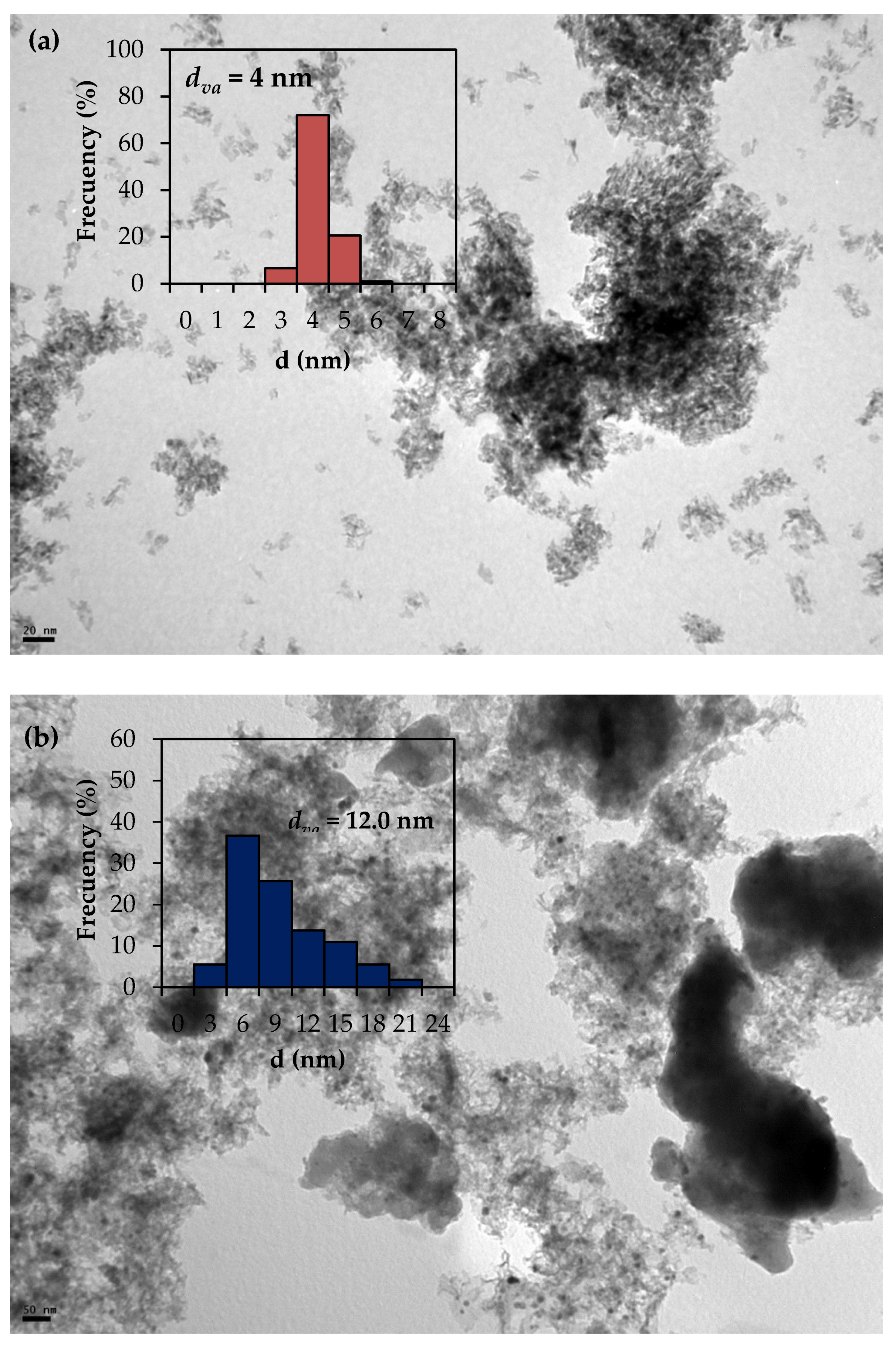

Figure 4 shows the TEM images and the particle size distribution for the reduced catalysts. For the Ni/γ-Al2O3 catalyst, the histogram shows a narrow distribution with particle sizes between 3 and 5 nm, while the Ni/CS-P catalyst has a wider distribution, with particles from 3 to 21 nm. Table 2 shows the average particle diameter values, where Ni/γ-Al2O3 catalyst has an average diameter of 4 nm. In contrast, the Ni/CS-P catalyst has an average diameter of 12 nm, which is a value very similar to the crystallite size determined by XRD.
The TPR results are summarized in Table 2. As observed, the Ni/γ-Al2O3 catalyst has three characteristic peaks. The first of them at 322 °C indicates the presence of low interaction NiO with the support. The second peak, at 532 °C, would indicate the reduction of Ni+2 ions incorporated in the octahedral vacancies of γ-Al2O3. Finally, the third peak at 625°C indicates the reduction of Ni+2 with high interaction with the support [46,47]. TPR peaks assigned to nickel oxides that are not completely integrated in the spinel structure, but have a certain degree of interaction with the support, were observed at temperatures between 500 and 600 °C [48].
As we have indicated, Ni/CS-P was directly activated in H2 flow (50 cm3 min−1) at 400 °C during 90 min, so the TPR analysis would allow to verifying the reduction of the metal phase. Indeed, no peak was observed, indicating that the activation method was effective to reduce all the Ni precursor.

2.2. Catalytic Activity

The catalytic activity tests were carried out using both technical grade glycerol (99 % Cicarelli) and crude glycerol (Oleomud). The composition of this crude glycerol (~79 wt.%) is shown in Table 3. This raw material contains MeOH and MONG from the biodiesel manufacturing process. The MONG content includes MeOH, mono-, di-, triglycerides, etc. The ash content is mainly due to the presence of Na+ salts produced during the neutralization of the NaOH catalyst with acid.
Catalytic activity results in the glycerol hydrogenolysis reaction are shown in Table 4.
The reaction products in liquid phase that were identified and quantified were the following: from C1: methanol (MeOH), from C2: ethanol (EtOH), ethylene glycol (EG), from C3: acetone (AcO), 1-propanol (1-POH), acetol (AcCH2OH), and 1,2-propylene glycol (1,2-PG). The main gaseous products identified were CO2 and CH4.
The results of Tests 1–6 were obtained by employing the Ni/γ-Al2O3 catalyst. It can be seen that with this catalyst it was not possible to obtain 1-POH as the main product. However, the results in Table 4 indicate that, when the temperature is below 260 °C, the main product of glycerol hydrogenolysis is 1,2-PG (Tests 1,2, and 4–6).
At 260 °C (Test 3), it can be observed that there is a strong increase in the products of C1 and C2 (Gases (CH4 and CO2), MeOH, EtOH and EG), which shows the greater contribution of the C-C bond cleavage reactions. The Ni/γ-Al2O3 catalyst has widely dispersed Ni0 particles with average sizes of 4 nm, and this would promote C-C bond cleavage reactions.
The selectivity towards 1,2-PG reaches its maximum value (77.6%) at the temperature of 220 °C (Test 2). Similarly, Marinoiu et al. employed a Ni/SiO2-Al2O3 catalyst in the range 170–250 °C at 1.5 MPa of H2 and found that the yield to 1,2-PG reaches a maximum at 200 °C, due to a good balance between conversion and selectivity [49]. In this sense, Menchavez et al. employed a Ni/CeO2-MgO catalyst and reported that 1,2-PG selectivity was optimal in the range 200–215 °C at 6 MPa of H2, due to a balance between dehydration and hydrogenation reactions [50].
Furthermore, Long et al. used a Ni catalyst supported on a sepiolite modified with WO3 and reported that at temperatures higher than 200 °C the selectivity to EG increases due to C-C bond cleavage reactions [51].
From Table 4, the results at 220 °C can be compared with different concentrations of glycerol (Tests 2 and 4), where it is observed that the level of conversion and selectivity improves with the lower content of water in the reaction mixture. Dasari et al. reported that with a Cu-Cr2O4 catalyst, the glycerol conversion increases from 33% to 69%, if the water content decreases from 80 wt.% to 0 wt.% (at 200 °C, 1.4 MPa of H2 and 24 h of reaction) [16]. Menchavez et al. employed a Ni/CeO2-MgO catalyst and reported an increase in glycerol conversion from 43% to 80% when the water content declined from 40 wt.% to 0 wt.% (at 215 °C, 6.9 MPa of H2 and 24 h of reaction) [50].
In addition, in Table 4 it can be seen that using a glycerol solution (99% Cicarelli) at 80 wt.% and 220 °C (Test 5), it is possible to obtain total glycerol conversion with a 1,2-PG selectivity of 83%, after 5 h of reaction, which implies a yield towards 1,2-PG of 83%. This yield is superior to the ones reported in the literature for Ni-Raney (68.8%) and Ni/NaX (69.6%) catalysts [52,53].
The results of the hydrogenolysis of crude glycerol (79 wt.% Oleomud) employing the Ni/γ-Al2O3 catalyst (Test 6) show that the total conversion of glycerol is also achieved with a selectivity towards 1,2-PG of 87%. The quality of this raw material, which contains impurities such as MeOH and Na+ salts, slightly affects the results and this presence could have a positive effect. Feng et al. [54] determined that the addition of Li, Na, and K bases to the reaction medium improves the conversion of glycerol following the order: Li+ > Na+ > K+. With respect to MeOH, its presence in the reaction medium has been reported to be beneficial due to its H2 donor capacity [55].
The second part of Table 4 (Tests 7–11) shows the results of the glycerol hydrogenolysis reaction using the Ni/CS-P catalyst. Results obtained at 220 °C with a 10 wt.% glycerol aqueous solution (Test 7) show that Ni/CS-P catalyst is much less active than Ni/γ-Al2O3 catalyst (5% vs. 22% conversion), which could be due to the greater metallic dispersion of Ni/γ-Al2O3. However, in the tests carried out at higher temperatures and higher glycerol concentrations, it is possible to observe that the Ni/CS-P catalyst does not favor C-C cleavage reactions, and the selectivity to C3 products of glycerol hydrogenolysis is very high. The results of Tests 8–10 show that, with this catalyst, it is possible to obtain 1-POH as the main product of glycerol hydrogenolysis and the main byproduct is AcO. The presence of AcO is explained precisely by the high capacity of C-O bond cleavage of this catalyst.
As reported [16,17,18], 1,2-PG is the intermediate to form 1-POH and both are the main products of glycerol hydrogenolysis. This is corroborated with the results of Test 11 (Table 4) carried out with an 1,2-PG aqueous solution at 80 wt.%, in which a selectivity towards 1-POH greater than 90% is obtained and there is a very small amount of AcO if compared to the glycerol-fed reaction.
The presence of strong acid sites in the Ni/CS-P catalyst would favor the C-O bond cleavage reactions of the secondary carbon, promoting the formation of 1-POH [37]. On the other hand, the results obtained by XRD evidenced the presence of Ni2P in the Ni/CS-P catalyst. In the literature, it has been reported that the formation of a NiP alloy provokes an increment in the electrophilicity of Ni sites due to the charge transfer from nickel to phosphorous [56,57]. This property facilitates the adsorption of the O atom of the C-O bond, subsequently promoting the C-O bond cleavage reactions. This tendency increases in the sequence Ni3P < Ni12P5 < Ni2P, indicating that for Ni2P the activity to C-O bond cleavage reactions is the highest among the different nickel phosphides [58]. With respect to the low contents of C1 and C2 reaction products, it was also found that Ni2P has a much lower activity for the C-C bond cleavage than Ni0 [58,59]. Furthermore, the Ni/CS-P catalyst has particles with an average size of 12 nm, which is also a disadvantage for C-C bond cleavage reactions.
At 260 °C and after 5 h of reaction (Test 10), a yield to 1-POH of 71% can be obtained, comparable with other catalytic systems reported in the literature such as Pt/Zr0.7Al0.3Oy [13], and this is a yield superior to that obtained with Ni/SiO2 and Ni/Al2O3 [20], Pd/MoO3-Al2O3 [28], Pt/HSiW-Al2O3 [21], and Pt/PTA-ZrO2 [11].
To combine the greater catalytic activity of both catalysts, Ni/γ-Al2O3 and Ni/CS-P, to obtain 1,2-PG and 1-POH respectively, we proposed the reaction in two consecutive steps. In this way, we sought to increase the 1-POH yield above 71% which was the maximum that could be obtained with the Ni/CS-P catalyst.
In the first reaction step, the crude glycerol hydrogenolysis reaction was carried out in order to maximize the yield to 1,2-PG, using the Ni/γ-Al2O3 catalyst (Test 6). The second stage was carried out with the reaction products obtained from the first stage this time using the Ni/CS-P catalyst (Test 12). The gaseous products (such as CH4, CO2) produced in the first stage are the only reaction products that are lost because it is necessary to open the reactor to proceed with the replacement of the catalyst.
To calculate the selectivity to gaseous products reported in Test 12, the moles of gaseous products from the first reaction step were considered (Test 6).
As observed (Table 4), after the second reaction stage a 1-POH yield of 79.3% is achieved (Test 12). Considering both reaction steps, the yield at 1-POH was comparable to that of Pd/CoO catalysts (~80%) [26].

3. Materials and Methods

3.1. Synthesis of Supports and Catalysts

Commercial γ-Al2O3 (99.99%, Dytech, Corporation Ltd., Sheffield, UK) and a carbonaceous-based composite were used as supports.
The carbonaceous-based composite was synthetized using the gelling property of TEOS (SILBOND 40-AKZO Chemicals (Buenos Aires, Argentina) in ethanol to include a phenol-formaldehyde liquid resin (RL 43003, ATANOR, Santa Fe, Argentina) in its structure. The Supplementary Materials describe the preparation method used. This material was then modified by impregnation with an Al(H2PO4)3 aqueous solution Sigma-Aldrich (St. Louis, MI, USA). The concentration of P in the solution was calculated so as to obtain 7 wt.% P in the final solid. Finally, the solid was dried at 120 °C for 12 h and calcined at 400 °C for 30 min (heating rate of 10 °C min−1). Thus, this support was denoted as CS-P.
The Ni/γ-Al2O3 catalyst was prepared by incipient wetness impregnation employing Ni(NO3)3·6H2O (Sigma-Aldrich), while the Ni/CS-P catalyst was prepared using Ni(CH3COO)2·4H2O in order to decompose this nickel precursor at a lower temperature so as to avoid the gassing of the carbonaceous support.
The concentration of Ni in the solution was calculated so as to obtain 5 wt.% Ni in the final solid. The catalysts were dried at 120 °C during 12 h. Ni/γ-Al2O3 was calcined in stagnant air at 550 °C for 90 min (heating rate of 10°C min−1) and activated in H2 flow (50 cm3 min−1) at 550 °C for 90 min (heating rate of 10°C min−1). Ni/CS-P was directly activated in H2 flow (50 cm3 min−1) at 400 °C for 90 min (heating rate of 10°C min−1) so as to prevent support gasification during the calcination process.

3.2. Characterization of Supports and Catalysts

The adsorption-desorption measurements were carried out employing N2 at –196 °C for the textural characterization. A Micromeritics ASAP 2020 equipment (Micromeritics Instrument Corporation, Norcross, GA, USA) was employed for the specific surface measurements and micro and mesoporous characterization. The samples were pretreated under vacuum in two 1-h stages at 100 °C and 300 °C, respectively.
The X-ray diffractograms were recorded on a Philips 1729 powder diffractometer, using CuKα radiation (λ = 1.5418 Å, intensity = 20 mA, and voltage = 40 kV). Spectra were collected in the range 2θ = 10–70°. The crystallite sizes (dXRD) in the reduced samples were calculated using the Scherrer equation:
d X R D = K   ×   λ B   ×   c o s ( θ )
where K was taken as 0.90 and B was the full width of the diffraction line at half maximum intensity.
The solid-state NMR experiments were performed at room temperature in a 7 T Bruker Avance II-300 spectrometer (Billerica, MA, USA) equipped with a 4-mm MAS probe. The operating frequency for 31P was 121.5. AlPO4 was used as an external reference. 31P 1D spectra were recorded using a π/2 pulse (4.8 μs) and a 30 s delay between two pulses. The spinning rate for the samples was 10 kHz.
The potentiometric titrations were performed employing 0.05 g of sample suspended in acetonitrile (Merck KGaA, Darmstadt, Germany) previously stirred for 3 h. The titrations were suspended with solutions of n-butylamine 0.05 M in acetonitrile, employing a Metrohm 794 Basic potentiometric titrator with a double junction electrode.
The acid-base properties of the supports were determined by the isopropanol (IPA) decomposition test reaction and the potentiometric titration technique. The IPA decomposition test reaction was carried out in a continuous flow reactor at atmospheric pressure between 120 and 350 °C, employing an IPA flow (4.5%) in helium (40 cm3 min−1).
The Ni content in the samples was determined by atomic absorption spectrometry (Spectrophotometer AA-6650 Shimadzu, Tokyo, Japan) employing an IL Model 457 spectrometer with single channel and single beam.
Temperature-programmed reduction experiments (TPR) were carried out using conventional equipment. Samples were heated from room temperature up to 800 °C with a heating rate of 10 °C min−1 in a mixture of H2/N2 (1/9 ratio) with a flow of 50 cm3 min−1. The H2 uptake was calculated using a thermal conductivity detector (TCD) previously calibrated.
Images were obtained by electronic transmission microscopy with a TEM JEOL 100 C instrument (JEOL Ltd., Tokyo, Japan) operating at 200 kV. The samples were suspended in 2-propanol and sonicated in an ultrasonic bath during 10 min prior to analysis. In order to estimate average diameter volume/area (dva), the particles were considered spherical and the following expression was used for the calculation:
d v a =   n i   ×   d i 3   n i   ×   d i 2
where ni is the number of particles with diameter di. The particle size distribution histograms were obtained from micrographs employing the bright field technique.

3.3. Crude Glycerol Characterization

Crude glycerol was supplied by Olemud S.A., a chemical plant situated in Buenos Aires, Argentina. The density, pH, and the contents of glycerol, methanol, water, ashes, and MONG (Matter Organic Non-Glycerol) of the crude glycerol were measured.
The pH of the sample was determined using a 1 g of crude glycerol dissolved in 50 mL of distilled water and was measured with a digital pH-meter (Oakton pH 11 series, Vernon Hills, IL, USA) at room temperature.
Density was determined using a pycnometer at room temperature (ASTM 891-95). Glycerol and methanol content were determined using a Shimadzu GCMS-QP505A gas chromatograph (Shimadzu Corporation, Tokyo, Japan) equipped with a 50-m 19091S-001 HP PONA capillary column and FID detectors. Water content was measured using a Karl-Fisher titrator (SI Analytics TitroLine Alpha 20 Plus, Xylem Analytics, Weilheim, Germany) (ISO 2098-1972). Ash content was determined by burning 1 g of crude glycerol in a muffle at 750 °C for 3 h (ISO 2098-1972). MONG content was calculated as follows (ISO 2464-1973):
MONG (wt.%) = 100 − glycerol content (wt.%) − ash content (wt.%) − water content (wt.%)

3.4. Catalytic Actitivy

The activity tests were carried out with a BR-100 (Berghof, Eningen, Germany) high-pressure stainless-steel batch reactor of 100 cm3. The magnetic stirring was fixed at 1000 rpm in order to ensure the kinetic control conditions.
The Ni/γ-Al2O3 and Ni/CS-P catalysts were reduced ex situ in H2 flow and then cooled down to room temperature under hydrogen flow and immediately transferred to the reactor containing the glycerol. Finally, the reactor was closed, purged, and pressurized with H2 (Air Liquide, 99.99%) up to the desired pressure. Afterwards, heating was started (6 °C min−1) and, when the reactor was at the desired temperature, the stirring began.
After reaction, the reactor was cooled down to ambient temperature. Gas samples were passed through a pipe with silica-gel so as to dry them and injected into a Shimadzu GC-8A gas chromatograph (Shimadzu Corporation, Tokyo, Japan) equipped with a thermal conductivity detector (TCD) and a Hayesep D 100–120 column operating isothermally at 40 °C. For the identification and quantification of gas samples, standards of CO, CO2, and CH4 were used. Response factors for gas products were obtained using a calibration curve of the standards.
Once the gas samples were analyzed, the reactor was opened under hood, the catalyst was filtered and the liquid obtained was centrifuged and diluted in water (1:40). The liquid samples were injected into a Shimadzu GCMS-QP505A gas chromatograph equipped (Shimadzu Corporation, Tokyo, Japan) with a 50-m 19091S-001 HP PONA capillary column and FID detector. The identification of liquid products was performed by injecting aqueous solutions of the standards at 4 wt.%. The following heating program was used: from 50 °C to 150 °C with a ramp of 10 °C min−1, then from 150 °C to 220 °C with a ramp of 40 °C min−1 and then isothermally at 220 °C up to the end of the analysis. The quantification was performed employing the integration of the areas of each compound multiplied by a response factor calculated according to the effective carbon number (ECAN) of each compound, as indicated by Scanlon and Willis [60].
The glycerol conversion (X) was determined as follows:
Conversion   ( % ) = moles   of   consumed   glycerol moles   of   initial   glycerol × 100 %
The selectivity to liquid products was defined as:
Selectivity   to   specific   product   ( % ) = moles   of   carbon   in   specific   product 3   ×   moles   of   consumed   glycerol ×   100 %
The yield was defined as:
Yield   to   specific   product   ( % ) = Selectivity   to   specific   product   ×   Conversion   100
The carbon balance for all the tests was in the range between 93 and 97 %.

4. Conclusions

The aim of this study was to obtain 1-POH by the hydrogenolysis of crude glycerol using two consecutive reaction stages with Ni catalysts, so as to selectively obtain 1,2 PG in the first stage, which is the intermediate compound necessary to obtain 1-POH in the second stage.
With the Ni/γ-Al2O3 catalyst, which presented small particles of metallic Ni interacting with the acid sites of the support, it was possible to obtain a complete conversion of crude glycerol with high selectivity to 1,2 PG (87%) at 220 °C, whereas with the Ni/CS-P catalyst, the presence of AlPOx species and the Ni2P metallic phase supplied acidity to the catalyst, which promoted the C-O bond cleavage reaction of the secondary carbon of 1,2-PG to obtain 1-POH with very high selectivity (71%) at 260 °C.
It was found that the employment of two consecutive reaction stages (first with Ni/ γ-Al2O3 at 220 °C and then with Ni/CS-P at 260 °C) allows reaching levels of selectivity and a yield to 1-POH (79%) comparable to noble metal-based catalysts.

Supplementary Materials

The following are available online at, Synthesis of CS support, Figure S1: N2 adsorption-desorption isotherms for (a) CS-P and Ni/CS-P (b) γ-Al2O3 and Ni/γ-Al2O3. Figure S2: Pore size distribution according to the BJH model for (a) CS-P and Ni/CS-P calculated from the adsorption branch, assuming slit-shape pore geometry (b) γ-Al2O3 and Ni/γ-Al2O3 calculated from the desorption branch, assuming cylinder-shape pore geometry.

Author Contributions

M.N.G. and J.L.C. carried out all the experimental work which was conceived and designed with G.F.S. and F.P.; N.N.N. wrote the paper. All authors read and approved the final manuscript.


This research was conducted with financial support from: “Consejo Nacional de Investigaciones Científicas y Técnicas” (CONICET-PIP 0065) and “Universidad Nacional de La Plata” (UNLP-I-248).

Conflicts of Interest

The authors declare no conflict of interest.
