Review

Enzymatic Degradation of Organophosphorus Pesticides and Nerve Agents by EC: 3.1.8.2

1
Department of Toxicology and Military Pharmacy, Faculty of Military Health Sciences, University of Defence, Trebesska 1575, 500 01 Hradec Kralove, Czech Republic
2
Biomedical Research Center, University Hospital Hradec Kralove, Sokolovska 581, 500 05 Hradec Kralove, Czech Republic
*
Author to whom correspondence should be addressed.
Catalysts 2020, 10(12), 1365; https://doi.org/10.3390/catal10121365
Received: 26 October 2020 / Revised: 18 November 2020 / Accepted: 20 November 2020 / Published: 24 November 2020

Abstract

The organophosphorus substances, including pesticides and nerve agents (NAs), represent highly toxic compounds. Standard decontamination procedures place a heavy burden on the environment. Given their continued utilization or existence, considerable efforts are being made to develop environmentally friendly methods of decontamination and medical countermeasures against their intoxication. Enzymes can offer both environmental and medical applications. One of the most promising enzymes cleaving organophosphorus compounds is the enzyme with enzyme commission number (EC): 3.1.8.2, called diisopropyl fluorophosphatase (DFPase) or organophosphorus acid anhydrolase from Loligo Vulgaris or Alteromonas sp. JD6.5, respectively. Structure, mechanisms of action and substrate profiles are described for both enzymes. Wild-type (WT) enzymes have a catalytic activity against organophosphorus compounds, including G-type nerve agents. Their stereochemical preference aims their activity towards less toxic enantiomers of the chiral phosphorus center found in most chemical warfare agents. Site-direct mutagenesis has systematically improved the active site of the enzyme. These efforts have resulted in the improvement of catalytic activity and have led to the identification of variants that are more effective at detoxifying both G-type and V-type nerve agents. Some of these variants have become part of commercially available decontamination mixtures.
Keywords: organophosphate; nerve agents; diisopropyl fluorophosphatase; organophosphorus acid anhydrolase; enzymatic decontamination organophosphate; nerve agents; diisopropyl fluorophosphatase; organophosphorus acid anhydrolase; enzymatic decontamination

1. Introduction

Biological decomposition of toxic substances has become a very attractive topic. At present, particular emphasis is placed on industrial processes and technologies that do not burden the environment but help to clean or protect it. With increasing intensity and interest in the introduction of “green” industrial technologies, world organizations pursue the reduction of environmental pollution as the result of the increasingly loud calling of society [1]. Biodegradation is a means to decrease toxicity completely without burdening the environment. Biodegradation is defined as a process of decomposing toxic compounds by living organisms without producing other hardly degradable substances. In this regard, enzymatic degradation is a subtype of biodegradation when only enzymes are employed for the degradation of toxic compounds. The utilization of whole living microorganisms poses another approach to biodegradation [2].
Organophosphorus compounds (OP), including pesticides and nerve agents (NA), represent a target for enzymatic degradation. Pesticides are still an integral part of agriculture. Tens of thousands of tons are applied all around the world every year. In the USA, more than 40 thousand tons of OP compounds, including pesticides, are land applied, and 20 thousand tons are produced for export every year [3,4]. Worldwide, OP compounds account for over 38% of the total pesticides used [4,5]. According to the World Health Organization, there are three million pesticide poisonings every year [6]. Another part of this issue is the possibility that these substances leak into the ground and enter municipal water supplies and pollute the surrounding environment.
NA and their potential misuse by a terrorist organization are another current issue. NA are 100–10,000 times more toxic than pesticides. Despite a ban on their use (Chemical Weapons Convention in 1993), there is evidence of misuse by terrorist organizations, extremists or political authoritarianism [7,8]. Sarin was recently used in Ghouta and Khan Shaykhun, Syria, in 2013 and 2017, respectively. Approximately 1400 civilians died in Ghouta [9,10]. S-[2-(diisopropylamino)ethyl]-O-ethyl-methylphosphonothioate (VX), having the abbreviation VX according to NATO designation, was utilized in the assassination of Kim Jong-nam, the half-brother of the North Korean dictator, in Kuala Lumpur, Malaysia in 2017 [11]. In Japan, the extremist group called Aum Shinrikyo applied sarin and VX for their terrorist attack. The most serious of these attacks resulted in the deaths of 19 people and at least 5500 were injured [12]. The last abuse of NA was in Salisbury, the United Kingdom, in 2018, when a Novichok agent was used in an attempted assassination [13,14]. Novichok substances were developed in the USSR. Their structures have never been published, but according to the available sources, more than three compounds were synthesised and their toxicities are presumably higher than other NA [15].
Thus, it is clear that OP are a significant health threat and environmental load. Enzymes may significantly facilitate their degradation and support the final decontamination of hot zones. Additionally, pesticide degradation would minimize their harmful effects on the environment. Last but not least, enzymes, which prove to be safe for human intravenous administration, can be utilized as protective as well as therapeutic drugs of both pesticide and NA poisonings [7,8,16,17,18].
Naturally occurring enzymes, that hydrolyse organophosphates, act 40 to 2000 times faster than chemical hydrolysis [19]. Therefore, research teams have been investigating the possibilities of biological degradation of chemical warfare agents (CWA) [6,18,20]. Several enzymes from different kinds of organisms (bacteria, protozoa, squid, clams, and mammals) have been reported to cleave and detoxify specific groups of pesticides and NA. These enzymes, with varying esterase specificities, have been designated as phosphoric triester hydrolases (EC: 3.1.8) with two subgroups, including aryldialkylphosphatase (EC: 3.1.8.1), also called phosphotriesterase (PTE) or organophosphorus hydrolase (OPH) and diisopropyl fluorophosphatase (DFPase, EC: 3.1.8.2), also called organophosphorus acid anhydrolase (OPAA), tabunase, or organophosphorus anhydrase, etc. [20,21,22,23,24]. PTE isolated from Brevundimonas diminuta GM (formerly Pseudomonas diminuta GM) and Sphingobium fuliginis ATCC 27551 (formerly Flavobacterium sp. ATCC 27551) have been widely studied. The findings are well summarized in a recent review article [25]. DFPase and OPAA will be a subject of this article.

2. History of EC: 3.1.8.2

Mazur began to explore the possibility of enzymatic degradation of NA shortly after the end of World War II. He identified an enzyme later called DFPase present in a variety of rabbit and human tissues. The enzyme was capable of hydrolysing diisopropyl fluorophosphate (DFP) [8,21,26,27,28].
During the 1950s, researchers Mounter, Aldridge and Augustinsson did much of the work in this field [8,26]. Mounter and co-workers [29,30] further investigated and characterized enzymes originally reported by Mazur. They purified the enzyme and determined the effect of metal ions (Co2+, Mn2+) and amino acids on DFPase activity. They also demonstrated the existence of various types of DFPase in up to 14 different forms originating from rats, humans, cats, guinea pigs, pigeons, and turtles [31,32]. This group was also the first one which reported on DFPase from microorganisms [33,34].
Aldridge referred to an enzyme derived from rabbit serum, which was capable of hydrolysing paraoxon. He called it A-esterase or A-serum esterase. He also investigated the stereospecificity of A-serum esterase for sarin [35,36]. Augustinsson et al. [37] followed up on Aldridge’s research and expanded the work with other enzymes that would hydrolyse CWA, such as tabun. They subsequently showed that the enzyme was more stable at neutral pH and also confirmed Aldridge’s observation that phosphoryl phosphatase isolated from pig kidney exhibits stereoselectivity against tabun [38,39,40]. Due to differences in substrate specificity and sensitivity to inhibition, they distinguished three different types of esterase activity in plasma, including arylesterase (aromatic esterase, A-esterase), aliesterase (carboxylesterase, B-esterase, “lipase”) and cholinesterase. Individual enzymes also displayed variations in their properties [38,40,41,42].
In the 1960s, many additional scientists focused their attention on the enzymatic hydrolysis of CWA, including Hoskin and his team. They purified and characterized DFPase from squids (Loligo vulgaris, Loligo pealei). The biological and chemical properties of these enzymes are different from all other types of DFPases [43,44,45]. The squid DFPases are highly stabile and possess broad substrate specificity. The molecular weight of the enzyme from Loligo pealei is approximately 30 kDa, requires Ca2+ for its activity and is found only in cephalopods. The gene from Loligo vulgaris was cloned, sequenced, expressed and further characterized [46,47,48]. Its molecular weight is 35.2 kDa. Scharff et al. [49,50] crystallized the enzyme and determined its three-dimensional structure. It has been demonstrated that one of the Ca2+ ions serves to stabilize the structure, while the second one serves the catalytic function. Industrial production (15 kg) of the recombinant DFPase was started by Roche Diagnostic (Berne, Switzerland) [8].
From the early 1980s to the present, researchers have oriented their investigations toward targeted isolation and characterization of microorganisms and their enzymes, and rather a random exploration of organisms having enzymes that hydrolyse CWA, especially nerve agents. Enzymes with DFPase activity were discovered in the ciliate protozoan Tetrahymena thermophilia by Landis et al. [51,52,53] or in the clam Rangia cuneata by Anderson et al. [54,55]. These enzymes have a different molecular weight, hydrolysis rate, substrate specificity, and metal stimulation. Attaway and co-workers [56] screened 18 g-negative bacterial isolates and observed that only cultures with parathion hydrolase activity showed significant DFPase levels.
As the nomenclature of these enzymes was unsystematic and confusing, the literature soon became filled with references to phosphorylphosphatase, fluorophosphatase, DFPase, paraoxon, parathion hydrolase, phosphotriesterase, phosphofluorase, somanase, sarinase, and tabunase. The Nomenclature Committee of the International Union of Biochemistry and Molecular Biology established a new systematic nomenclature in 1992 [8]. Currently, two main types of DFPases are used to degrade CWA. The first DFPase is isolated from squids (also known as squid-type DFPases) with a molecular weight of 30–40 kDa and the second one is from bacteria Alteromonas species (also known as Mazur-type DFPases or OPAA) with a molecular weight of 40–96 kDa. These two enzymes are the most studied [22,27,57]. A general scheme of degradation of organophosphorus compounds by DFPase and OPAA is presented in Scheme 1.

3. Squid-Type DFPase

Squid-type DFPase is the oldest known enzyme utilized for the decontamination of organophosphorus compounds. However, it is still relevant for large-scale production [22]. It is quite remarkable that an enzyme hydrolysing highly toxic OP was found in a higher organism. The discovery of DFPase is linked with the research by Nachmansohn and Hoskin. Nachmansohn’s group [58] used the squid Loligo pealei for their experiments. In one of them, they tried to block axonal conduction by irreversibly inhibiting the cholinesterases using the potent inhibitor DFP. However, the DFP concentration needed to suppress the conduction turned out to be exceptionally high. Hoskin et al. [59] tried to investigate this surprising behaviour. They concluded that the axonal envelope contains a potent hydrolytic enzyme. They continued this work and isolated this enzyme in the hepatopancreas, saliva, head ganglion, and axons [60,61]. They also demonstrated that the enzyme is able to hydrolyse sarin, soman and tabun [44,45].

3.1. Structure

The structural investigation began in parallel with studies of the chemical effect and kinetic studies [47]. The first X-ray structure was solved at a resolution of 1.8 Å (PDB—code 1E1A) [50]. Another determination of the DFPase structure was able to push the resolution to 0.85 Å (PDB—code 1PJX) [62]. This improvement caused better imaging of the enzyme structure and an understanding of its mechanism of action. There are some similarities between L. vulgaris and the other squid-type DFPases. Squid-type DFPases were found to be metal-dependent hydrolases with calcium ions (Ca2+) as the native metal, although manganese (Mn2+) can be substituted for the calcium ions [57,60,63,64,65,66,67]. DFPase isolated from the head ganglion of L. vulgaris has a monomeric structure containing 314 amino acids in the 35 kDa polypeptide chain. The enzyme has a β-propeller structure with six (propeller) blades. Each blade consists of 4-stranded antiparallel β-sheets. They are arranged in a 6-fold pseudosymmetry around a central water-filled tunnel that contains both calcium ions [22,46,47,49,50,66]. More solvent-exposed calcium ion has been identified as the “low-affinity” calcium (Ca-1). Ca-1 is located at the base of the active site, sealing the water-filled tunnel and playing a critical role in the enzymatic activity. The more buried calcium ion is known as “high-affinity” calcium (Ca-2). Ca-2 is in the center of the molecule and is responsible for the structural integrity of the enzyme [47,48,50,66,68,69]. Calcium ions are bound to the enzyme by amino acid side chains and the loss of active site-bound ion destroys the enzyme activity (Figure 1) [66,69]. The active site analysis shows that the calcium ions are coordinated by four amino acid residues at the bottom of the active site. The three remaining ligands are water molecules. Two of them are below the metal ion forming the “dead end” of the central water-filled tunnel and one is on the top of the metal ion in the active site. Biophysical and site-directed mutagenesis studies have indicated that one particular histidine residue, His287, is important but not essential for the hydrolytic reaction [22,46,50,66]. Hartleib and Rüterjans [47] replaced His287 with Asn, producing a mutant protein with only 3.7% residual enzymatic activity. According to the X-ray structure, both His287 and Ca-1 are located in a solvent-accessible surface pocket of DFPase. Structural and catalytic types are also ligated to the protein by Asp232, His274 and by Glu21, Asn120, Asn175, and Asp229 side chains, respectively [50,66,68]. Particularly, the catalytic residues have been comprehensively mutated. The studies showed that calcium coordination is dependent on the presence of Glu21 and at least two negatively charged residues in the active site [70,71]. Although calcium binding is crucial, its presence is not sufficient for enzymatic activity. The active site’s overall charge and the electrostatic topology are also critical [70], as single mutants of Asn120 and Asn175 contain calcium but display only 4% and 2% residual enzymatic activity, respectively [69].

3.2. Mechanism of Action

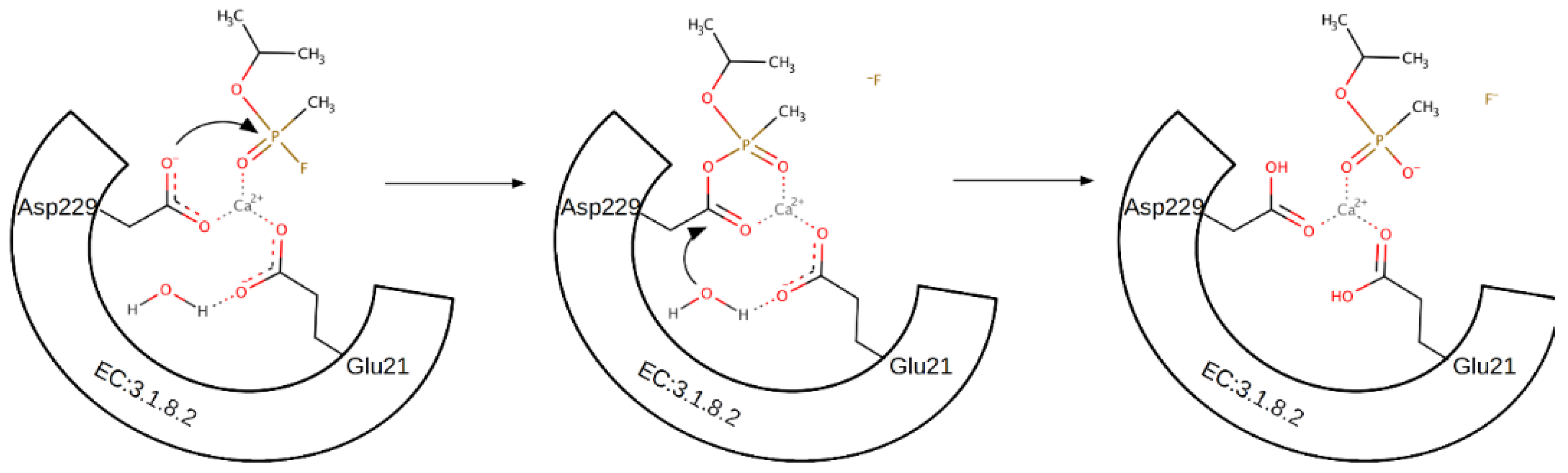

Two possible catalytic mechanisms have been described. The structure of the active site of the enzyme is shown in Figure 2. The first mechanism and X-ray structure were studied at the same time, and investigation assumes the essential role of one particular histidine residue (His287) for the hydrolytic reaction [46,50]. Based on the X-ray structure, both His287 and Ca-1 are located in a solvent-accessible surface pocket of DFPase and His287 and Trp244 are connected by a hydrogen bridge. His287 also forms another hydrogen bond with the backbone carbonyl oxygen of Ala20. This arrangement is unable to activate the hydrolytic water molecule; therefore, a structural rearrangement in the active site is necessary for the enzymatic cleavage reaction [50,62]. According to this mechanism, the incoming substrate is replaced by a calcium coordinating water molecule in the active site. It increases the partial positive charge of the phosphorus atom, which facilitates the nucleophilic attack of the hydrolytic water molecule. This water molecule may be activated via proton abstraction by His287 when the imidazole ring is disengaged from the hydrogen bond interactions with Trp244 and Ala20. At this point, the double-protonated His287 side chain interacts with the negatively charged Glu37. Metal (Ca2+ ion) has a function of electrophilic Lewis acid and it also helps the nucleophilic reaction [50,69]. All of these interactions lead to a nucleophilic attack of the subsequently released hydroxyl ion on the phosphorus atom of the bound substrate. Finally, the fluoride ion is cleaved and released in the opposite direction from the attacking water. After deprotonation of the charged His287, the hydrogen bond interaction with Trp244 can be restored to initiate a new reaction cycle (Scheme 2) [22,50,69]. The function of the central tunnel has not been revealed to date. However, this reaction mechanism was questioned when DFPase mutations (His287Phe and His287Leu) were generated and retained 65–80% activity of the wild-type enzyme [69].

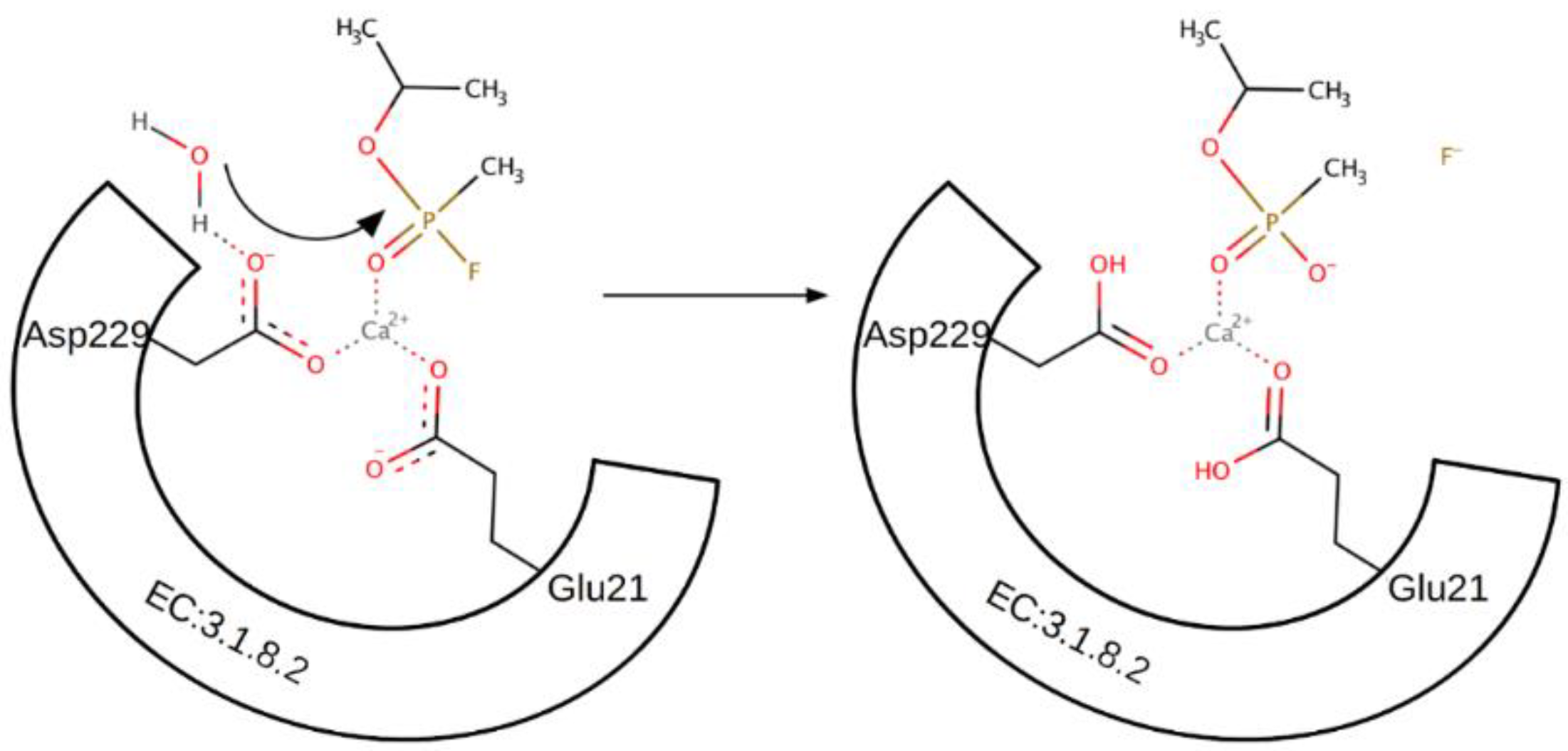

A new, and more probable mechanism, was proposed based on new experimental findings. Computational simulation studies have suggested an essential role of the Asp229 residue in the DFPase catalytic activity because of its correct orientation for performing nucleophilic attack in the hydrolysis mechanism through bimolecular nucleophilic substitution (SN2). Asp229 is also coordinated to the Ca2+ ion, together with other residues and water molecules [73,74,75]. There are two possible pathways of how the reaction can proceed. The first pathway for catalytic hydrolysis refers to Asp229 as a nucleophile, attacking the phosphorus center of the substrate coordinated to the Ca2+ ion. Pentavalent phosphoenzyme intermediate is formed and subsequently, the intermediate is hydrolysed, with the assistance of Glu21, by water attacking the carboxylated carbon atom of Asp229. This leads to the regeneration of the enzyme and the release of the product (Scheme 3) [22,63,73,74,75,76]. This mechanism is also in concordance with Blum et al. [74,77]. In one of their studies, DFPase cleaved DFP in 18O-labelled water. An excessive amount of enzyme was used to simulate single-turnover conditions, whereas an excess of the substrate was utilized for multiple-turnover reactions. Single-turnover experiments demonstrated the incorporation of 16O and thus revealed that the reaction proceeds via a phosphoenzyme intermediate with enzyme being the only source of 16O. Subsequent mass spectrometry analysis identified an oligopeptide with an altered mass, corresponding to the fragment containing Asp229 [71,74]. Another study employed neutron diffraction to show the deprotonation of Asp229, supporting its function as a potential nucleophile [71,77].
The second pathway was described based on (S)-sarin computational simulations [76]. The pathway points to the participation of a water molecule as a nucleophile with the assistance of both Asp229 and Glu21 residues. The OP substrate is also coordinated to the Ca2+ ion via phosphoryl oxygen. The water molecule is activated by proton abstraction through Asp229, and the hydroxyl ion is formed. This ion acts as a nucleophile and attacks the phosphoric center of the substrate. It leads to the pentavalent intermediate. The Glu21 participates in these proton transfers. Finally, the leaving group is released and the hydrolysed substrate is removed from the Ca2+ ion at the ionized form as the reaction product (Scheme 4) [63,73,74,75,76]. Notably, although many studies on the mechanism of action exist, there is no consensus in the literature describing the exact reaction pathway [75].

3.3. Substrate Profile

At present, the physiological role of the enzyme remains unknown and no natural substrate for DFPase has yet been identified [66]. However, the substrate profile of this enzyme is quite broad. Squid DFPases can hydrolyse organophosphorus substrates with a P-F or P-CN bond, including sarin, cyclosarin, soman and tabun [22,44,47,66,69,76,77,78,79]. However, it cannot detoxify agents with P-O or P-S bonds, such as paraoxon, VX or N,N-diethyl-2-(methyl-(2-methylpropoxy)phosphoryl)sulfanyl- ethanamine (known as Russian VX or VR according to the NATO designation) [22,66,67]. Catalytic efficiency for these NA is less than that for DFP, one-tenth for tabun and approximately one-third for the others [66]. Squid DFPases are characterized by stereoselectivity towards the less toxic Sp-enantiomer of organophosphorus compounds, yet complete detoxification by wild-type enzyme can be achieved [22]. The enzyme has some additional advantages. DFPase is a highly stable protein, displaying activity over a wide temperature and pH range. It is also compatible with large amounts of different organic solvents and microemulsions as carrier systems [22,47,61,66,79].

4. OPAA from Alteromonas

In the 1980s, OPAA enzymes were identified in halophilic bacteria called Alteromonas [8,28]. The most studied strain was Alteromonas sp. JD6.5, which will be described in more detail in this article. However, other strains, like Alteromonas haloplanktis or Alteromonas undina, produce the enzyme capable of hydrolysing organophosphorus compounds as well. All these OPAAs are structurally and functionally similar to each other. They share a molecular weight between 50–60 kDa, an optimum pH from 7.5 to 8.5, an optimum temperature range from 40 to 55 °C and all require an Mn2+ ion for maximum activity. See Table 1 for specific values [21,28,80,81,82,83,84].

4.1. Structure

Bacterial isolate from Alteromonas sp. JD6.5 was obtained from water and soil samples of salt springs near the Great Salt Lake in the state of Utah. It is a gram-negative, aerobic short rod and needs at least 2% NaCl for growing, with an optimum between 5–10% NaCl [8,22,80]. At present, there is still little knowledge of the structure and mechanism of action of this enzyme. The native enzyme’s structure was solved at 2.3 Å resolution [85]. OPAA is a single polypeptide and is composed of 517 amino acids. A very similar enzyme was isolated from Alteromonas haloplanktis containing 440 amino acids. Both enzymes have 77–80% amino acid homology. The remaining invisible 77-residue segment from Alteromonas sp. JD6.5 has high flexibility. OPAA from Alteromonas sp. JD6.5 is also classified as prolidase based on its structure and catalytic properties. OPAA was firstly identified as a monomer, but now after further experiments, it has been determined as a tetramer [21,22,80,82,84,85,86,87].

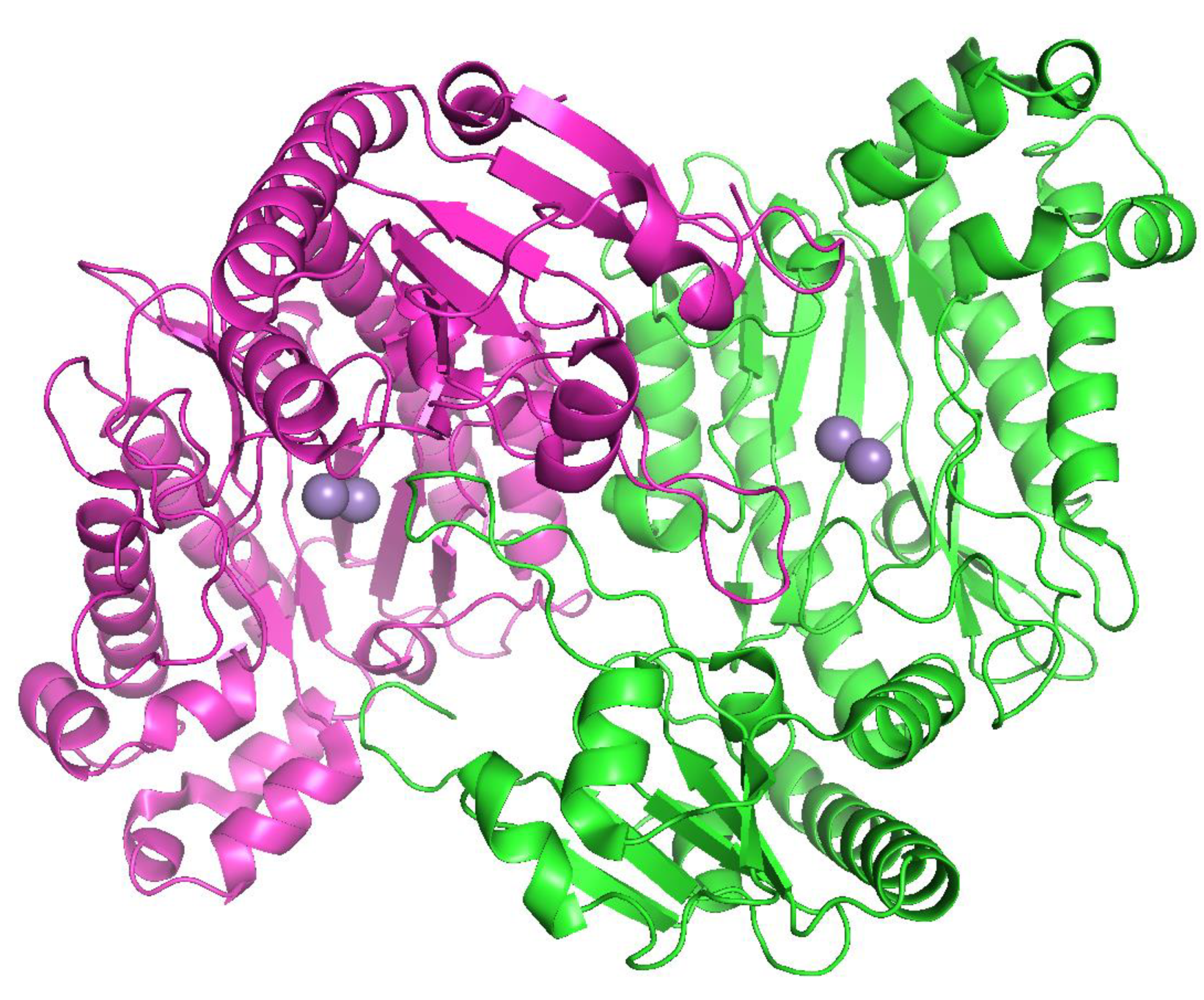

OPAA structure consists of two domains, a small N-terminal domain and a large C-terminal domain, harbouring the binuclear Mn2+ ions in the active site (Figure 3) [21,84,85,88]. Six β-sheets are present in the N-terminal domain with an antiparallel central pair of strands and parallel flanking pairs. On the other hand, all five β-strands in the C-domain are antiparallel. The β-sheet in the N-domain is twisted, whereas that in the C-domain is strongly curved with the exhibiting “pita bread” architecture [85]. There are some differences in contents and topological arrangements of α-helices in the two domains. The N-domain contains four helices, while the C-domain with the pita bread architecture contains eight helices [85]. The binuclear metal center is located in the C-terminal region, which consists of the amino acid residues Asp244, Asp255, His336, Glu381, and Glu420 [82,85]. Two bridging Mn2+ ions are needed for full catalytic activity [21]. Also, a nonproteinaceous density was found in the active site of the enzyme, however, not definitively determined. It is assumed to be a bonded glycolate whose three oxygen atoms coordinate the two Mn2+ ions [82,84,85].

4.2. Mechanism of Action

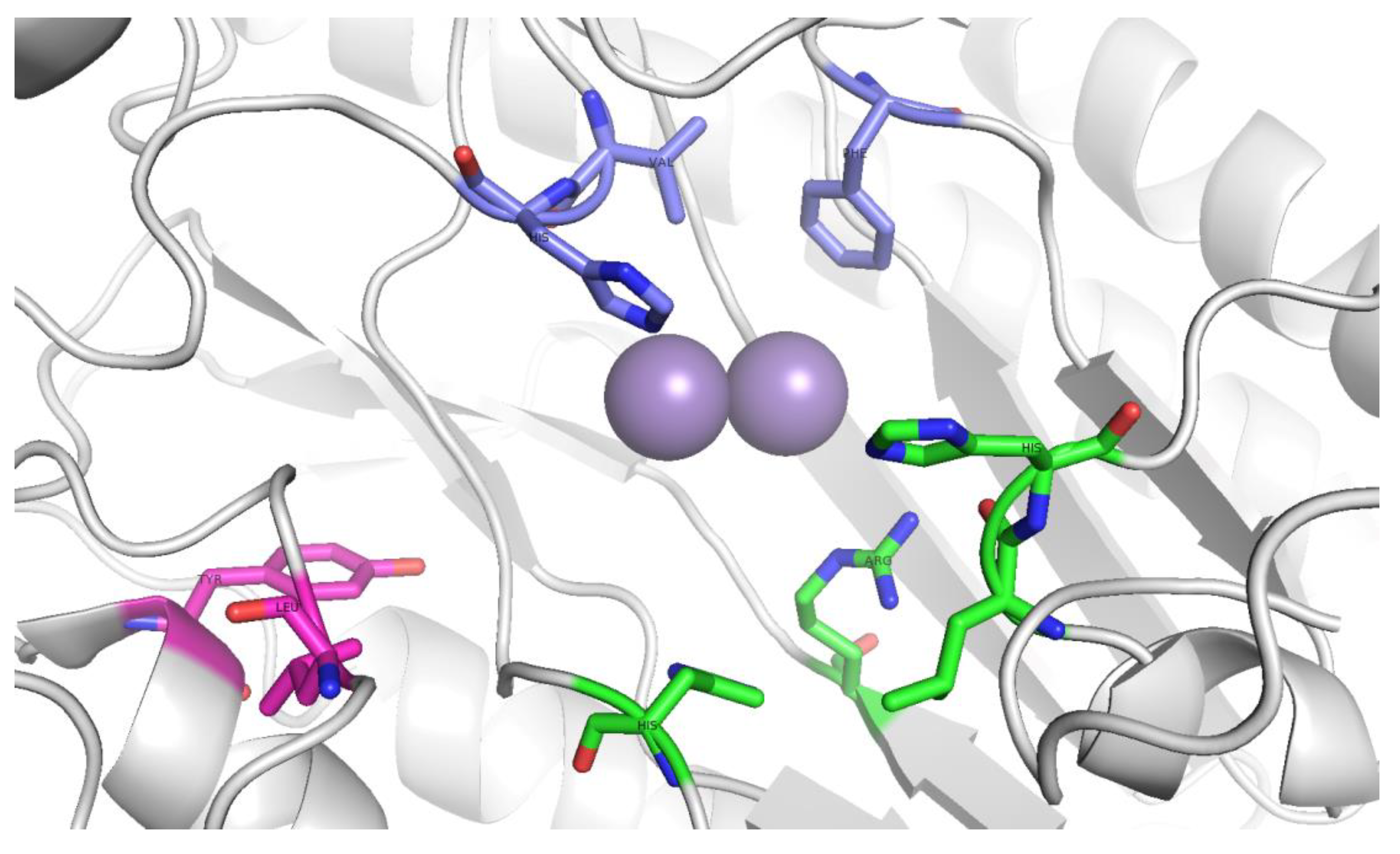

The substrate-binding site in OPAA is comprised of three pockets (large, small, and the leaving group pocket) as other similar enzymes. The large pocket is formed by Leu225, His226, His332, and Arg418. The small pocket is composed of Tyr212, Val342, His343, and Asp45 from the N-terminal domain of the opposite subunit in the dimer. The leaving group pocket is formed by residues Tyr292 and Leu366. (Figure 4) [68]. The ability of this enzyme to cleave OP compounds, including G-type NA and proline dipeptides, comes from the bridging water molecule or hydroxide ion in the metal center that helps to promote a nucleophilic attack on either the carbonyl oxygen of the scissile peptide bond of the dipeptide [Xaa-Pro] or the phosphorus center of NA [21,68,85,88].

4.3. Substrate Profile

OPAA belongs to a class of bimetalloenzymes that can hydrolyse various toxic OP compounds. It can also be classified as a prolidase cleaving dipeptides with proline in the C-terminus [76,78,79]. Due to this aspect, the enzyme’s physiological role might be associated with cellular dipeptide metabolism [89]. A high level of hydrolysis activity was observed against OP compounds with P-F bonds, but very minimal activity for P-O or P-C bonds and no activity against P-S bonds. Similar substrate activity was later identified for the OPAA from Alteromonas undina and Alteromonas haloplanktis (Table 2) [8,80,81,82,83,86,87]. The best substrate for OPAA hydrolysis is soman. However, OPAA also catalyses the hydrolysis of other NA like sarin, tabun, diisopropyl fluorophosphate, and nerve agents analogues containing a p-nitrophenol leaving group. The enzyme less effectively hydrolyses novichok substances. On the other hand, minimal catalytic activity was observed for V-type nerve agents (Table 3) [8,21,22,81,86,90,91,92] and mipafox (N,N′-diisopropyl phosphorodiamidofluoridate, DDFP), a close DFP analogue, is not a substrate under normal assay conditions but a competitive inhibitor [80,85]. In general, OPAA has a preference for the less toxic stereoisomer. The OPAA stereoselectivity is for the Rp-enantiomers of methyl phosphonates with a selectivity of higher than 7000-fold to analogues of soman [9,90].

5. Adapting Enzyme EC: 3.1.8.2 for Nerve Agent Decontamination

Bae et al. [94] have been studying the possibilities of increasing catalytic efficiency against sarin, soman and 2,2-dimethylcyclopentyl methylphosphonofluoridate (GP). They used site-direct mutagenesis in the active site of the enzyme, especially in the small pocket (Table 4).
The kinetic data with purified enzyme for sarin showed that only the genotype Tyr212Phe/Val342Leu (FL) mutant had a kcat/Km value approximately six times higher than the wild-type (WT) enzyme. The other two tested mutants, one with genotype Tyr212 Phe/Val342Tyr (FY) and the other with genotype Tyr212Phe/Val342Ile (FI) showed only marginal improvement with the kcat/Km value being approximately twice higher than that of WT. Following the encouraging results seen with FL on sarin, kinetic parameters for the degradation of soman and GP by FL and WT enzymes were determined. The catalytic efficiency for soman and GP was approximately five and ten times higher, respectively than in the WT enzyme (Table 5). Mutant FL also showed enhanced stereospecificity on sarin [94].
Daczkowski et al. [88] tried to increase catalytic efficiency and broaden the stereospecificity on VR. They optimized the small pocket within the OPAA’s substrate-binding site by using a structurally aided protein engineering approach. The optimization at only three amino acid sites resulted in a 30-fold increase in catalytic efficiency toward racemic VR. Subsequent alteration of a fourth amino acid decreased the catalytic efficiency approximately 2-fold but relaxed the stereospecificity, allowing the mutant enzyme to catalyse both enantiomers of VR with similar efficiencies (Table 6).

6. Practical Use of EC: 3.1.8.2

Enzyme-based decontamination mixtures have already been tested outside the laboratory in field conditions. Bacterial OPAA is stable and active in firefighting foams and DFPase was also utilized in emulsions. An emulsion decontamination mixture, which is currently used by the German Armed Forces, combines beneficial properties of organic solvent tetrachlorethylene (solubility agents) and buffer solution to control pH and DFPase [19]. It was shown that DFPase was active in this macroemulsion over extended periods of time and effectively decontaminated metal plates coated with polyurethane paint and contaminated with sarin according to NATO standards (10 g sarin per m2) [22].
Later research efforts utilized microemulsions as carrier systems. In contrast to classic macroemulsions, they are thermodynamically stable. They also display a much smaller droplet size (10–200 nm compared to 1–90 µm), larger interphase surface, and good solubility properties for hydrophilic and hydrophobic compounds [22,86,95]. DFPase incorporated into a polyurethane polymer retains 67% of the enzyme’s intrinsic activity [96]. Drevon et al. [97] also irreversibly attached DFPase to a water-borne polyurethane coating. The resulting enzyme-containing coating retained 39% intrinsic activity. The activity was further enhanced by using a less hydrophilic polyisocyanate.
Current research, however, has been focused on nanosized metal-organic frameworks (MOFs). MOFs are made by linking metal ions/clusters with organic units to form highly porous crystalline materials with a regular morphology [98]. Li et al. [99] developed a water-stable zirconium MOF, NU-1003, with an immobilized OPAA enzyme. This MOF has a large mesoporous aperture (4.6 nm) with the length of hexagonal cylinder-shaped crystals ranging from 300 to 10,000 nm. The smaller crystals appeared more effective in deactivating NA. Notably, the 300 nm NU-1003 crystals defluorinated GD more than three times faster than the free enzyme.
In the USA, researchers have looked at the possibility of using enzymes, including EC: 3.1.8.2, to decontaminate sources and distribution systems of drinking water, as they are considered as potential targets for terrorist attacks [8]. At the beginning of 2004, Genencor International, Inc. licensed two patents on the Alteromonas sp. JD6.5 prolidase for large-scale production [100]. However, long-term storage was problematic. One method to overcome this issue is to lyophilize the enzyme in the presence of trehalose and to store it at room temperature. In this state, it did not show any significant loss of activity. Nevertheless, this method appears expensive for large scale production, and therefore granulation has been considered [8,101]. Genencor has developed OPAA (DEFENZ 120) in a proprietary granulated form that can be added to water or a foam system. Granule technology has been widely used in industry to stabilize enzymes. In this approach, the enzyme is coated on a core substrate and then encapsulated in a coating. Genencor also offers product DEFENZ VX-G combining OPAA and OPH. According to product literature, no special storage is required and the enzymes are active in tap, hard, and saltwater [28,102].
Another possible application lies in the field of medical countermeasures. For this purpose, enzymes chemically modified with polyethylene glycol (PEG) have already been produced. The modification concomitantly eliminates disadvantageous properties or confers new molecular functions. Complexes with PEG show reduced immunoreactivity, prolonged clearance times and improved biostability. The modification can also increase the solubility and activity of enzymes in organic solvents, thus extending their potential for application in organic syntheses and biotransformation processes [28,103]. Melzer et al. [104] tested the in vitro and in vivo efficacy of PEGylated DFPase. The results of their study demonstrated that DFPase could be grafted with several PEG chains without a sharp decrease in enzymatic activity. PEGylated wild-type DFPase and a mutant selective for the more toxic stereoisomers of the agents were tested in rats challenged with a subcutaneous 3x LD50 dose of soman. While wild-type DFPase prevented death only at extremely high doses, the mutant (Glu37Ala/Tyr144Ala/Arg146Ala/Thr195Met) was able to keep the animals alive and to minimize or avoid symptoms of poisoning. This is a clear proof of principle that a DFPase mutant engineered for the preference of the more toxic stereoisomers of the NA and with an improved substrate affinity can be used as a potential in vivo bioscavenger against OP poisoning [76,104].

7. Conclusions

This review summarizes information available about DFPase and OPAA enzymes. Research in this area has indicated a considerable potential for the use of EC: 3.1.8.2 to decontaminate OP compounds, including NA. The development of models and crystal structures of both major types of the enzyme (squid DFPase and bacterial OPAA) led to a better understanding of the mechanism of action. It opened up the possibility of modifying the enzyme active site and creating mutant forms with improved potency and extended substrate specificity. Mutant forms of the enzyme are now available to specifically target the toxic (SP)-enantiomers of the chiral phosphorus centers of the CWA. The effectiveness against V-type nerve agents has been increased but only with partial success. More research will be necessary to resolve this issue. Complexes with PEG have been developed for in vivo administration. Further efforts in this area should be aimed at creating a more effective prophylactic system. Enzyme-impregnated sponges or wipes may also offer practical means for decontamination of wounds or skin.

Author Contributions

Writing the Review, M.M.; Figures and Schemes creating, T.K.; Supervision, O.S.; Editing, Conceptualization, Supervision, and Project Administration, J.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Education Youth and Sports of the Czech Republic (SV/FVZ202005) and the Ministry of Health of the Czech Republic (NV18-09-00181).

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Abbreviations

CWAchemical warfare agents
DDFPN,N′-diisopropyl phosphorodiamidofluoridate
DFPdiisopropyl fluorophosphate
DFPasediisopropyl fluorophosphatase
ECEnzyme Commission number
GP2,2-dimethylcyclopentyl methylphosphonofluoridate
NAnerve agents
OPorganophosphorus compounds
OPAAorganophosphorus anhydrolase
OPHorganophosphorus hydrolase
PEGpolyethylene glycol
PTEphosphotriesterase
VRRussian VX/N,N-diethyl-2-(methyl-(2-methylpropoxy)phosphoryl)sulfanylethanamine
VXS-[2-(Diisopropylamino)ethyl]-O-ethyl methylphosphonothioate
WTwild-type
