Review

Photocatalytic Nanocomposite Materials Based on Inorganic Polymers (Geopolymers): A Review

1
Fiber and Particle Engineering Research Unit, Faculty of Technology, University of Oulu, 90014 Oulu, Finland
2
MacDiarmid Institute for MacDiarmid Institute for Advanced Materials and Nanotechnology, School of Chemical and Physical Sciences, Victoria University of Wellington, Wellington 2820, New Zealand
*
Author to whom correspondence should be addressed.
Catalysts 2020, 10(10), 1158; https://doi.org/10.3390/catal10101158
Submission received: 13 September 2020 / Revised: 28 September 2020 / Accepted: 29 September 2020 / Published: 9 October 2020
(This article belongs to the Special Issue Photocatalytic Nanocomposite Materials)

Abstract

:
Geopolymers are ecologically-friendly inorganic materials which can be produced at low temperatures from industrial wastes such as fly ash, blast furnace slags or mining residues. Although to date their principal applications have been seen as alternatives to Portland cement building materials, their properties make them suitable for a number of more advanced applications, including as photocatalytic nanocomposites for removal of hazardous pollutants from waste water or the atmosphere. For this purpose, they can be combined with photocatalytic moieties such as metal oxides with suitable bandgaps to couple with UV or visible radiation, or with carbon nanotubes or graphene. In these composites the geopolymers act as supports for the photoactive components, but geopolymers formed from wastes containing oxides such as Fe2O3 show intrinsic photoactive behaviour. This review discusses the structure and formation chemistry of geopolymers and the principles required for their utilisation as photocatalysts. The literature on existing photocatalytic geopolymers is reviewed, suggesting that these materials have a promising potential as inexpensive, efficient and ecologically-friendly candidates for the remediation of toxic environmental pollutants and would repay further development.

1. Introduction

The development of materials to mitigate the effects of global warming and pollution generated by human activities is becoming a matter of increasing urgency. The ecological problems to which solutions are being sought are the increase in greenhouse gas emissions arising from the manufacture of ordinary Portland cement (OPC) and electricity generation by coal-fired power plants, especially in developing nations with increased demands for infrastructure. Ecologically-friendly alternatives to OPC which do not involve the high-temperature reaction of clay and limestone, generating large amounts of CO2, are inorganic polymers, otherwise known as geopolymers [1]. A further advantage of these materials over OPC is that they can be produced at temperatures from ambient to 80 °C by alkali activation of a range of aluminosilicate minerals [2,3,4,5,6], although geopolymers are now known to be less ecologically-friendly than previously claimed, given the production of the alkali activator and factors such as the energy-intensive processes by which some geopolymer precursors are produced [7]; these factors have often been overlooked or ignored by earlier proponents of geopolymers. Nevertheless, to date, the major interest in geopolymers has been as alternatives to OPC, although they have many other high-technology applications [8]. One such area of increasing interest is the mitigation of global environmental pollution problems, particularly air and water pollution. Over the past two or three decades, photocatalytic degradation of environmental pollutants by exploiting the conversion of solar to chemical energy has attracted considerable attention. Heterogeneous photocatalysts have many advantages over other photocatalysts, since they can be cost-effective, stable, non-toxic, strongly oxidising and effective at ambient temperature and pressure [9]. The combination of photocatalysts with geopolymers has been exploited in the construction industry to develop self-cleaning coatings for buildings, where the key factors are the aesthetic appearance and reasonable costs of cleaning maintenance [10]. Since geopolymers are environmentally friendly and can readily incorporate photocatalytically active materials such as ZnO, TiO2, CuO and Fe2O3, they are an excellent option for construction applications. Geopolymers incorporated with photoactive materials in the presence of UV and UV–visible radiation [11] can oxidize and decompose the surface pollutants on a building or roadway, allowing the products to be subsequently easily removed later by rain, cleaning or washing with water because of the hydrophilic surface of such a photocatalytic geopolymer and the low contact angle for water, allowing it to slide off [9,12,13].
A further ecological problem is associated with atmospheric pollution of waterways and the atmosphere resulting from manufacturing operations. A less well-researched but equally important environmental application of geopolymers has been as materials for the destruction of hazardous organic species in the atmosphere and in waterways. For this purpose, various photocatalytic species can be introduced into the geopolymer by exploiting its structure and chemistry, and the photocatalytic process can also be facilitated by the ability of the geopolymer to adsorb and immobilise the hazardous material in its structure. Thus, the combination of photocatalytic functionality with the environmental friendliness of geopolymers makes these potentially important materials for mitigation of climate change problems.
The present review outlines the important aspects of the synthesis and chemistry of aluminosilicate geopolymers, methods for the introduction of photocatalytic functionality by exploiting aspects of their structure and the applications of these photocatalysts for the remediation of ecological problems. The photocatalytic behaviour of geopolymer composites is typically investigated colorimetrically by monitoring the bleaching of a dye as a function of time. Since geopolymers can also act as adsorbents by virtue of their structure, the photocatalytic behaviour of geopolymer-based composites can only validly be determined by allowing the samples to come to equilibrium in the dark, before exposing them to UV or visible radiation. For a rigorous investigation, control experiments with the geopolymer alone should also be carried out, and attention should also be paid to the colour stability of the dye in the presence of the highly alkaline geopolymer. Unfortunately, some of the studies reported to date have not paid sufficient attention to these requirements, suggesting the necessity for a more rigorous approach in future studies. Although from a practical point of view, dye bleaching has been extensively used as a measure of photocatalytic behaviour, it would also be advisable in future studies not to rely solely on this as a measure of photocatalysis, but to augment this with an analysis of the reaction products.

2. Aluminosilicate Geopolymers: Composition, Synthesis and Structure

Although the term geopolymer has been applied to different types of material, including aluminosilicates activated with phosphoric acid, the most common class of geopolymers constitutes alkali-activated aluminosilicates, which, although having been known for many years, were first developed in their present form by Davidovits [1] by the action of alkali on dehydroxylated kaolin clay (metakaolin). These materials had the advantage of attaining strength at ambient or slightly elevated temperature and did not rely on the presence of crystalline phases for strength development. Davidovits also coined the name geopolymer by which these materials are now generally known. Alkali activation of other aluminosilicates such as coal fly ash [5] and ground blast furnace slag was soon found to produce aluminosilicate geopolymers with comparable or superior mechanical properties and these are now most commonly used as construction or engineering materials. However, although thermally pre-treated kaolin minerals are still the most commonly used aluminosilicate sources for specialised applications such as photocatalytic geopolymers, these minerals are commercially valuable, and the use of industrial wastes such as fly ash from coal-fired boilers for specialised geopolymer applications is attracting increasing attention.
Several synthetic methods for aluminosilicate geopolymers have been reported [8], but the most widely used is the reaction of a finely divided aluminosilicate source mineral or industrial waste material with an alkali metal hydroxide or a mixture of an alkali metal silicate and hydroxide. The setting characteristics of the resulting mixture can be controlled by adjusting the molar composition of the component oxides; in the case of metakaolin precursors, a molar ratio of SiO2/Al2O3 = 3, M2O/SiO2 = 0.3 and H2O/M2O = 10 was reported [2] to set well and give a product with good strength, but these ratios can vary quite widely. The resulting geopolymer mixture is cured and hardened at temperatures between ambient and <100 °C. The mechanism of geopolymer formation involves the formation of aluminate and silicate monomers by alkali attack on the solid aluminosilicate starting material; these units then condense to a metastable gel which then becomes more fully cross-linked, allowing it to set and harden [14]. Some of these reaction steps may be concurrent and overlap, and their kinetics can depend on the nature of the starting material and the activating solution. The steps of geopolymer synthesis are shown schematically in Figure 1.
Aluminosilicate geopolymers each consist of a random three-dimensional array of tetrahedral aluminate and silicate units joined through their apical oxygens. Their lack of long-range crystallographic order is reflected in their characteristic broad X-ray diffraction pattern (similar to that of a glass) [2]. The fourfold-coordinated aluminium atoms in this structure have been shown by 27Al solid-state MAS NMR spectroscopy to be formed during the alkaline reaction by conversion of Al(VI) and Al(V) of the precursor to Al(IV) [15,16], resulting in a negative charge on each Al which is balanced by a positively-charged ion, such as hydrated Na+ or K+, located in the interstices of the gel structure [2] (Figure 2).
Since these charge-balancing ions are exchangeable, as in zeolites [17], they provide an important mechanism for manipulating the properties of the geopolymer, and in particular, they can be exploited to allow the introduction of photocatalytic moieties.

3. Mechanism of Photocatalysis in Geopolymers

The photocatalysis mechanism in geopolymers is most usually extrinsic; i.e., it depends on the presence of an introduced semiconducting species such as ZnO or CuO. The action of light quanta on the semiconductor promotes a photoelectron from the filled valence band to the vacant conduction band, provided the energy of the photon is greater than or equal to the bandgap of the semiconductor. In the presence of water, the resulting photogenerated pair of the hole in the valence band and the electron in the conduction band can then react to produce HO radicals which are extremely powerful oxidising agents able to attack and destroy organic pollutants in solution. Concurrently, the holes in the valence band can react with oxygen to form anionic superoxide radicals, O2−●. These species are not only oxidising agents in their own right but are able to prevent electron–hole recombination and maintain electron neutrality in the photocatalyst. Protonation of the superoxide radical forms the hyperoxyl radical, HO2, two of which can either combine to form H2O2 + O2, or two highly reactive hydroxyl radicals OH + O2. All these oxidising species are highly reactive, and can oxidize many organic compounds to H2O and CO2, or develop functional groups which increase their solubility, allowing them to be washed away. These processes are shown schematically in Figure 3.
In greater detail, the photocatalytic process can be divided into four steps, namely:
(i) Photogeneration of hole/electron pairs by UV irradiation, promoting the photoelectron from the valence band of the semiconductor to the empty conduction band. This produces a positively-charged hole in the valence band (h+ (B) and an electron in the conduction band e (CB) (Equation (1)).
Photocatalyst   +   h ν   ( UV )   e ( CB ) + h + ( VB )
(ii) Separation of hole/electron pairs and their diffusion to the surface of the electrode. In the presence of adsorbed water the positive holes in the valence band produce hydroxyl radicals (Equation (2)).
H 2 O ( ads )   +   h + ( VB )     OH ( ads ) +   H + ( ads )
These OH radicals generated on the surface of the irradiated semiconductor are powerful oxidizing agents, able to attack adsorbed organic pollutants and destroy microorganisms.
(iii) Oxygen ion sorption. Reaction of atmospheric oxygen with the electron promoted to the conduction band generates the anionic superoxide radical (O2−•) (Equation (3)).
    O 2 +   e ( CB )   O 2   ( ads )
H 2 O 2 ( ads ) 2 OH   ( ads )
In cases where an organic compound, such as one of the dyes commonly used as model compounds in photocatalytic experiments, has sufficient conjugation to absorb visible light, the photoactive semiconductor interacts with and destroys organic compound by exciting it with a photon of visible light (λ > 400 nm) from the ground state to the triplet excited state. The triplet excited state injects an electron into the conduction band of the photocatalyst and is then converted into a semi-oxidized radial cation with the formation of superoxide radical anions (O2−•) and hydroxyl radicals (OH). These OH radicals are mainly responsible for the oxidation of the organic compound, but the positive holes photogenerated in the valence band and the photogenerated electrons in the conduction band are also respectively responsible for oxidation and reduction of the organic compound [18,19,20]. It should be noted, however, that these reactions only apply to a limited number of organic materials, such as dyes which are able to absorb visible light.
The photocatalytic efficiency of a semiconductor depends both on the ability of the photocatalyst to produce holes and electrons and on the creation of reactive free radicals. Therefore, the specific surface area (SSA), morphology and bandgap of the photocatalyst are important properties which affect its efficiency. The bandgap is the distance between the valence band and the conduction band; and semiconductors, including SnO2, MoO3, ZnO, ZnS, Fe2O3, WO3, CeO2, CdS, ZrO2, SnO2, Cu2O and TiO2, are commonly used as photocatalysts because of their unique electronic structures (occupied valence band and unoccupied conduction band) and sufficiently small bandgaps for solar excitation of an electron into the conduction band [21,22]. Ideally, a photocatalytic semiconductor for insertion into a geopolymer matrix should be capable of efficiently utilizing visible or near-UV radiation (λ > 400 nm); it should also be biologically and chemically inert, photostable, inexpensive and non-toxic [23]. One oxide commonly used for this purpose is n-type TiO2, but its bandgap of 3.03 eV is such that in normal sunlight only about 5% of the incident radiation is of suitable wavelength to photoexcite TiO2 [24]. Another photoactive semiconductor is p-type Cu2O, with a bandgap of 2.172 eV which couples well with visible radiation (λ ≤ 600 nm) [25]. The bandgaps of these and other potential photoactive materials are listed in Table 1, and photoactive geopolymers containing some of these materials are the subjects of this review.

4. Aluminosilicate Geopolymers with Photocatalytic Functionality

4.1. Geopolymer/TiO2 Photocatalysts

TiO2 is one of the more widely-used photocatalysts for environmental applications, such as water purification, air cleaning and self-cleaning surfaces, because of its good photocatalytic activity, chemical stability, low cost, long-term stability, ready availability and lack of toxicity [27,28,29]. One of the most challenging criteria for a suitable photocatalyst is that it must not rapidly recombine photogenerated electrons and holes. In the case of TiO2 its photocatalytic efficiency can be increased by incorporating it into a TiO2-based composite, thereby hindering its charge recombination [30]. In this way, TiO2 has been immobilized by incorporation into a number of different construction materials, including window glass, cement-based materials, bricks, ceramics and geopolymers, producing environmentally friendly self-cleaning and air purification products [31].
Strini et al. [32] demonstrated the use of TiO2-based photocatalytic geopolymers based on fly ash or metakaolin to decompose nitric oxide in air. The photocatalyst geopolymer was produced simply by mixing the geopolymer composition with P25 (a commercial mixture of rutile and anatase polymorphs of TiO2). The ideal amount of TiO2 was suggested to be 3 wt.% of the geopolymer paste, and the photocatalytic activity of the geopolymer composite depended on the type of binder and the curing conditions. The highest photocatalytic activity was found in a TiO2/fly ash-based geopolymer composite cured at room temperature, which resulted in twice the NO degradation rate compared with that of a TiO2/metakaolin geopolymer [32]. The photocatalytic activity was also found to depend on the curing parameters; curing at 60 °C produced a poorer photocatalyst, apparently due to segregation and depletion of the TiO2 in the catalyst surface [32].
Bravo et al. [33] synthesised metakaolin-based geopolymer spheres with photocatalytic activity by coating TiO2 nanoparticles on the surface of the spheres. These were produced by foaming an uncured geopolymer mixture with Polysorbate 80, and then dropping the mixture from a syringe into polyethylene glycol at 80 °C, which reduced the surface tension and resulted in the formation of beads 2–3 mm in diameter. After drying at room temperature for 24 h and then curing at 75 °C for 2 days, the beads were then coated with TiO2 nanocrystals by heating them with TiO2 at 1200 °C inside a quartz tube under high vacuum. SEM images confirmed the complete dispersion of TiO2 within the geopolymer spheres. The photocatalytic activity of the TiO2/geopolymer spheres in the degradation of methylene blue dye showed 90% degradation after 10 h of ultraviolet irradiation, compared with 4.5% degradation of the uncoated geopolymer spheres, but the brief experimental details of the photocatalytic experiments gave no indication as to how the processes of dye adsorption and photocatalysis were differentiated [33].
In another study, Chen et al. [31] deposited TiO2 films by a sol–gel dip-coating method on a geopolymer substrate based on 95% fly ash and 5% metakaolin cured at room temperature. The geopolymer matrix was then dip-coated in a mixture of butyl titanate in ethanol with the addition of diethanolamine to increase the stability of the sol [31,34]. The dip-coated samples were then annealed at 500, 600, 700 and 800 °C for 1 h and showed desirable photocatalytic properties for the degradation of methylene blue dye [31], especially the sample annealed at 600 °C (Figure 4C), which was shown to contain the anatase phase of TiO2 and a mesoporous morphology (Figure 4A,B). Improved photocatalytic activity of the composites could be obtained by double layer sol–gel coating, resulting in an increased specific surface area, but conversely, it may also increase the probability of electron–hole pair recombination and decrease the photocatalytic performance. A further problem observed with the sol–gel coating technique was a tendency for the films to crack upon drying, but this could be offset by the addition of 6 wt.% polyvinylpyrrolidine (PVP) [31]. Control experiments were also carried out under dark conditions to determine and correct for the degree of dye adsorption by the geopolymer alone.
Gasca- Tirado et al. [35] reported an alternative method for incorporating photoactive TiO2 into a metakaolin-based aluminosilicate inorganic polymer (geopolymer) by ion exchange with ammonium titanyl oxalate monohydrate, (NH4)2TiO(C2O4)2.H2O. The efficiency of Ti incorporation was not improved by prior conversion of the geopolymer to the NH4+ form. This ion exchange method was found to facilitate the growth of anatase-type TiO2 nanoparticles inside the geopolymer micropores, producing a photoactive geopolymer composite, demonstrated by its degradation of methylene blue (MB). Samples of the geopolymer composite, and for comparison, the geopolymer without TiO2, were equilibrated in the dark for a short time (15 min) prior to UV irradiation, and the results suggested only a small amount of dye adsorption had taken place after 80 min, whereas almost all the methylene blue was bleached by the geopolymer photocatalyst, particularly the sample cured at 90 °C prior to ion exchange [35].
Yang et al. [36] studied the degradation of MB dye by foamed fly ash-based geopolymer-TiO2 nanocomposites produced in two different ways. The use of a foamed geopolymer matrix increased its porosity, allowing the incorporation of a higher concentration of TiO2 and improved contact with the dye solution. After alkali-activation, the fly ash geopolymer was foamed by the addition of oleic acid, followed by H2O2, and then cured at 80 °C. Two methods were investigated for incorporating TiO2 in the foamed geopolymer matrix; in one case the TiO2 (P25) was directly mixed into the foamed geopolymer prior to curing, whereas in a second procedure, the cured foamed matrix was treated with a solution of TiO2 in nitric acid, and then calcined at 500 °C to crystallize the TiO2 [36]. The most efficient photocatalytic degradation of MB dye was achieved in the composite containing 5 wt.% TiO2 prepared by direct mixing, and was attained after 45 min of UV irradiation [36]. Prior to irradiation, the geopolymer photocatalyst samples for this experiment were equilibrated for 30 min in the dark to allow for adsorption effects, during which time the MB concentration was monitored, but the results show that equilibrium was not fully attained. Nevertheless, this study points to the potential of porous TiO2/geopolymer composites derived from industrial by-products such as fly ash for the treatment of industrially discharged wastewater. Table 2 compares the different synthesis methods and photodegradation applications of TiO2/geopolymer photocatalysts.

4.2. Geopolymer/Graphene Photocatalysts

Graphene Oxide (GO) is a derivative of graphene, a two-dimensional form of carbon that is attracting increasing interest as a functional material with useful properties such as high specific surface area, high electric conductance and good thermal conductivity. GO contains functional groups containing oxygen and can be synthesized by methods such as chemical oxidation and exfoliation of graphite [37] (Figure 5). The structure of GO is based on graphene and contains a number of oxygen functional groups (surface hydrophilic hydroxyl (–OH) and epoxy (C–O–C) groups and edge carboxyl (–COOH) groups). These groups allow GO to be dispersed in water and provide many active sites for linking to other functional groups and organic molecules [38]. GO has attracted attention for adsorption and catalytic applications; in particular, its photonic properties suggest its potential for enhancing the photocatalytic properties of other materials. GO is typically suitable for the removal from water of organic dyes [39], antibiotics [40] and heavy metal ions [41].
Lertcumfu et al. [37] studied the influences of GO additions on the photocatalytic properties of metakaolinite-based geopolymer composites and found that its addition can significantly improve the degradation of MB and Cr(VI) in comparison with pure geopolymer. The efficiencies of the GO/geopolymer composite for the removal of MB and Cr(VI) were 93% and 65% respectively. These authors reported that the adsorption process followed the pseudo second-order kinetic model with an R2 value > 98%. Moreover, these GO/geopolymer composites showed a potential application for waste water treatment owing to their photocatalytic activity with a poor C/C0 value of 0.6 after 2 h of UV irradiation. Zhang et al. [42] reported the photoactivity of a nanocomposite synthesized by the reaction of two- dimensional graphene with an alkali-activated granulated blast furnace slag (GBFS) geopolymer. This nanocomposite showed a high degree of methyl violet (MV) degradation under UV irradiation, especially in a composite containing 0.01 wt.% graphene, which had a degradation efficiency of 91.6% after 110 min of UV irradiation [42]. The degradation reaction of the MV dye followed a pseudo second-order kinetic model. Zhang et al. [43] reported the photocatalytic activity of a novel electroconductive graphene/fly ash-based geopolymer composite prepared by the incorporation of 1 wt.% of graphene into the alkali-activated geopolymer matrix prior to curing at room temperature. The addition of the graphene increased the electroconductivity of the composite by 348.8 times compared with that of the geopolymer without graphene, and the synergic effect of the graphene with the matrix red-shifted the maximum absorption wavelength of the composite into the visible region [43]. Furthermore, the presence of the graphene was shown by nitrogen adsorption–desorption isotherms to effectively improve the pore structure of the composite. The photoactive composite was found to degrade indigo carmine (IC) dye with an efficiency of 90.2%, three times greater than the photocatalytic efficiency of the geopolymer matrix without graphene, and this catalytic performance for the removal of organic pollutants was unchanged after five cycling runs of UV irradiation [43]. Furthermore, the graphene structure was shown to be unchanged after the dye photodegradation cycles. The proposed mechanism involves interactions of the graphene with Fe2O3 particles from the fly ash geopolymer matrix in which the photogenerated electrons from the former are rapidly transferred to the π-conjugated system of the graphene, efficiently separating the photogenerated electron–hole pairs and allowing them to oxidize the H2O molecules adsorbed on the iron oxide surfaces. The resulting hydroxyl radicals oxidize and degrade the dye molecules adsorbed on the iron oxide surfaces [43]. In experiments to further confirm this mechanism, it was found that the addition of benzoquinone, which traps hydroxyl radicals, reduced the dye degradation efficiency from 91.6% to 70.8%, whereas the addition of tertiary butyl alcohol, which traps superoxide radicals, reduced the degradation efficiency to 35.1% (Figure 6). These experiments suggest that graphene can act as an electron acceptor to enhance the oxidation degradation capacities of geopolymers.
Table 3, which summarises the reported investigations of photoactive geopolymers containing graphene or graphene oxide, highlights the varying experimental conditions used by different researchers, making a direct comparison of the photocatalytic results impossible. Although the available research data on these graphene/geopolymer photocomposites are very promising, considerably more theoretical and experimental research is required on these systems.

4.3. Geopolymer/Cu2O Photocatalysts

Cu2O, a prominent p-type semiconductor, acts as a photocatalyst under visible light irradiation (≤600 nm). Its direct bandgap energy of 2.2 eV is readily excited by wavelengths in the visible region, giving it a significant absorption coefficient (up to ≈104 cm−1) in this region. This suggests that Cu2O should act as a stable photocatalyst for the photochemical decomposition of H2O with the generation of O2 and H2 under visible light irradiation, and that it should also be a suitable candidate for the photocatalytic degradation of organic pollutants under visible light irradiation. The photocatalytic possibilities of Cu2O were investigated by Huang et al. [44] who demonstrated its photodegradation of methyl orange, but reported that it was readily deactivated by photocorrosion, especially when in the form of nanoparticles [44]. An improvement in its catalytic performance was obtained with larger microparticles which underwent photocorrosion more slowly, and its performance was also improved by the addition of 0.1 mmol/L of methanol which acted as a hole scavenger [44]. The photocatalytic behaviour of the different well-formed crystal facets of Cu2O microcrystals with well-formed facets was investigated by Zheng et al. [45]. They observed that during the photodegradation of methyl orange, the {100} and {110} faces gradually transformed into the {111} facets of nanosheets which exhibit stable photocatalytic activity. These results, and the low toxicity, low cost and environmental friendliness of Cu2O suggest its use as a possible alternative to other common photocatalysts such as TiO2 for the photocatalytic degradation of organic contaminants, particularly when combined with ecologically-friendly geopolymers. These considerations led Fallah et al. [25] to investigate a novel photoactive inorganic polymer composite containing copper(I) oxide nanoparticles. The Cu2O nanoparticles were synthesized by the solution precipitation method, producing cubic crystallites of nanometre size. Metakaolin-based Cu2O/geopolymer composites were prepared by mixing 10–30 wt.% of pre-synthesized Cu2O nanoparticles with the geopolymer paste and curing for 12 h under ambient temperature. The photocatalytic activity of the Cu2O/geopolymer composite in the degradation of methylene blue (MB) was studied under the UV irradiation [25]. In a preliminary experiment, the adsorption of MB dye by geopolymer composites of varying Cu2O content was determined in the dark (Figure 7A), indicating that at 20% Cu2O content, adsorption approached equilibrium at 30 min. With higher Cu2O content, ingress of the dye solution into the pores of the substrate became progressively impeded, although the nano-Cu2O itself did not adsorb the methylene blue dye. Under UV radiation, the composites removed the MB dye from solution with a combination of adsorption and photodegradation (Figure 7B). In the dark, photocatalysis cannot occur and the process is by adsorption alone, evidenced by essentially similar behaviour of the geopolymer matrix under dark and UV conditions. By contrast, the geopolymer containing Cu2O showed improved removal of the dye under UV irradiation without deterioration of the geopolymer structure or the photoactive Cu2O component, as shown by 63Cu NQR spectroscopy [25]. This study suggested that these geopolymer composites should function as useful new materials for the removal of organic pollutants from water or the atmosphere. The degradation of the MB dye followed a pseudo-second order kinetic model [25].

4.4. Geopolymer/Carbon Nanotube Photocatalysts

Carbon nanotubes (CNTs) are graphite sheets rolled up into cylinders with partly one-dimensional nanostructures. CNTs have diameters of a few nanometres and lengths of some millimetres. CNTs can occur as single-walled nanotubes (SWCNTs), double-walled nanotubes (DWCNTs) and multi-walled nanotubes (MWCNTs), the latter consisting of multiple layers of graphite arranged in concentric cylinders [46]. CNTs have been successfully used as catalyst-supporting materials with properties superior to those of other regular catalyst supports. CNTs have large specific surface areas and have excellent capacities for absorbing toxic materials such as nitrogen oxides and polluted waste water [47,48]. They are also useful for reinforcing geopolymers. Bi et al. [49] synthesised metakaolin-based geopolymer nanocomposites containing CNTs by ultrasonically dispersing 0.1, 0.25, and 0.5 vol.% of CNTs into a mixture of NaOH and sodium silicate solution, followed by blending with metakaolin powder, curing at 40 °C for 2 h and aging at 60 °C for 24 h. Before use, the CNTs were given a surface silica coating by treatment with a mixture of H2SO4 and HNO3, followed by a mixture of TEOS and NH4OH. The resulting good distribution of the CNTs in the geopolymer matrix and the interfacial interaction between the SiO2 coating and the geopolymer matrix (Figure 8) were found significantly to improve the mechanical properties of the geopolymer nanocomposites [49] and suggested their application as a self-sensing structural material with ultrahigh sensitivity. Although the possible use of these composites as photoactive materials has not yet been investigated, the photoactive properties of the closely-related graphene/geopolymer composites (Section 4.2) suggest an investigation of the CNT/geopolymer composites would be worthwhile.

4.5. Other Geopolymer Photocatalysts

Following their previous promising results using Cu2O for the photocatalytic degradation of methyl orange [44], Huang et al. [50] obtained an improved photocatalyst by combining TiO2 with Cu2O. Their Cu2O–TiO2 heterostructures, prepared by an alcohol-aqueous-based chemical precipitation method, showed greatly improved photocatalytic activity compared with pure TiO2 (P25), especially 50:50 Cu2O–TiO2 compositions [50]. The photocatalytic efficiencies of these for the degradation of acid orange II dye were reported to be six times greater than pure TiO2 under UV-visible light, and 27 times greater under visible light [50]. Based on these findings, Falah et al. [51] prepared novel photoactive composites of spherical Cu2O–TiO2 nanoparticles with aluminosilicate geopolymers which would act as both adsorbents and photocatalysts. The synthesis procedure of the Cu2O–TiO2 nanoparticles from copper acetate and TiO2 (P25) is shown schematically in Figure 9. After SEM characterization of the heterostructured nanoparticles, 10–30 wt.% of them were added to an uncured metakaolin-based geopolymer mixture and cured at room temperature [51]. In the absence of photodegradation, under dark conditions, neither TiO2 nor Cu2O were found to adsorb methylene blue dye, but the geopolymer photocatalyst adsorbed the dye, following first-order kinetics and Freundlich-type isotherms. The adsorption process was less efficient in geopolymer composites containing 10 wt.% of Cu2O–TiO2 than in the geopolymer matrix alone, probably due to blocking of the adsorption sites by the oxide nanoparticles. Under UV irradiation, the Cu2O–TiO2 geopolymer composite removed the methylene blue dye through a combination of adsorption and photodegradation without destroying the geopolymer structure [51], suggesting that these new geopolymer composites should be suitable for efficiently removing organic pollutants from water or the atmosphere.
The previous study by Falah et al. [51] of Cu2O–TiO2 geopolymer photocatalysts indicated that these materials can play a dual adsorption–photoactive role, but the presence of the nanoparticle oxides can hinder adsorption by blocking the pores in the geopolymer matrix. This consideration led Falah et al. [52] to modify the geopolymer matrix by exchanging the charge-balancing Na+ ions for the large tertiary ammonium ion cetyltrimethylammonium bromide, (CTAB) with the aim of facilitating access of the Cu2O–TiO2 nanoparticles to the expanded geopolymer pores. The amount of CTAB, based on the cation exchange capacity of the starting clay, was added, together with Cu2O–TiO2 nanospheres prepared as in [51], to a metakaolin-based geopolymer composition prior to curing at 40 °C. BET and TEM measurements of the CTAB-modified geopolymer composites showed that the insertion of the large ion resulted in an increase in the amount of the oxide catalyst entering the pore structure of the geopolymer. This was consistent with measurements of the removal of methylene blue from solution under UV irradiation after equilibration in the dark (Figure 10). The CTAB-modified geopolymer matrix alone showed a 9.4% increase in the removal of the MB dye compared with the unmodified matrix, compared with a 42.3% increase for the CTAB-modified Cu2O–TiO2-geopolymer (Figure 10). By contrast, much smaller differences were found between the unmodified and CTAB-modified compounds containing only Cu2O or TiO2. A further experimental advantage of the photoactive geopolymers based on a CTAB-modified matrix is their improved ability to distinguish between adsorption and photodegradation processes; CTAB modification of the pore surfaces prevents the continuous change of pH throughout the adsorption process, allowing the two dye removal mechanisms to be separated [51]. These results suggest that further experiments to modify the geopolymer matrix may prove fruitful.
Zailan et al. [53] studied the effect of ZnO nanoparticles on the photocatalytic degradation of methylene blue by F-class fly ash- based geopolymers under ultraviolet irradiation. ZnO nanoparticles (2.5–10 wt.%) were dry-mixed with the fly ash prior to activation with sodium silicate and sodium hydroxide. The ZnO/fly ash geopolymer composite showed satisfactorily efficient photocatalytic degradation of methylene blue after 150 min of exposure to sunlight, and by increasing the ZnO content, more active sites were produced on the photocatalyst’s surface, increasing the numbers of hydroxyl and superoxide radicals, thereby facilitating the photodegradation of the dye. The effect of ZnO-based geopolymer paste surfaces containing various amounts of ZnO on the photocatalytic degradation of methylene blue dye under UV light is shown in Figure 11.
A novel photocatalytic geopolymer based on ground granular blast furnace slag (GGBFS) containing ZnO and graphene has been developed by Zhang et al. [54] for applications such as solar hydrogen production and treatment of wastewater polluted with dye. The photoactive geopolymer was prepared by mixing the slag with 0.1 wt.% graphene, activating with NaOH solution and curing at 20 °C under 90% relative humidity for 24 h. This material was then ground and the charge-compensating Na+ ions of the geopolymer exchanged with NH4+ by treatment with NH4NO3 solution, followed by the introduction of zinc from a solution of (CH3COO)2Zn. At low loadings, the ZnO was amorphous, but at higher Zn contents it was in the crystalline form of zincite. The photoactive geopolymer was dried at 65 °C and calcined at 400 °C for 4 h in a nitrogen atmosphere. The resulting combination of the ZnO, graphene and slag in a geopolymer of composition 14.45% ZnO/GGBFS, designated 15ZnO/GGBFS, showed 92.7% degradation efficiency of basic violet 5BN dye in wastewater under UV irradiation (cf. degradation by the geopolymer matrix alone and ZnO alone, 9.7% and 58.2% respectively, under the same conditions). The degradation efficiency of this geopolymer composite was also relatively unchanged over five reaction cycles (Table 4) and also showed excellent photocatalytic activity for the production of hydrogen (2281.3 μmol/g) from water (Figure 12), compared with ZnO alone [54]. It was suggested that the slag-based geopolymer matrix acts as a support for the graphene and the photoactive ZnO semiconductor, which under irradiation produces photoinduced electrons in the conduction band. The proximity of the ZnO to the graphene enables the efficient transmission of these photoelectrons to the π-bond conjugate system of graphene, resulting in the efficient separation of photoinduced electron–hole pairs, producing the hydroxyl radicals responsible for the second-order kinetic photodegradation of dye-polluted waste waters [54].
Zhang et al. [55] have also reported the successful use of a GGBFS-based geopolymer containing graphene and CdO for the photodegradation of direct fast bordeaux dye in wastewater. The preparation of the photoactive geopolymer was similar to that described above for the ZnO-graphene/GGBFs geopolymer composite, substituting a solution of Cd(NO3)2.4H2O for Zn(CH3COO)2 solution. Samples containing 1–16 wt.% CdO were subjected to UV irradiation after equilibrating with the dye solution in the dark for 30 min, but no measurements were reported to confirm that complete adsorption had occurred prior to irradiation. The most efficient degradation of the dye under UV irradiation (close to 100% after 100 min) was obtained with the photocatalyst containing 8 wt.% CdO (Figure 13). In contrast with the results for the corresponding ZnO photocomposite [55], the dye photodegradation by the CdO photocomposite followed first order kinetics [55].
Saufi et al. [56] have reported an interesting geopolymer with intrinsic photoactive properties prepared from the mineral perlite, an aluminosilicate mineral containing 74.8 wt.% SiO2, 12.5 wt.% Al2O3, 4.5 wt.% Na2O, 5.42 wt.% K2O, 0.9 wt.% Fe2O3 and 0.7 wt.% CaO. After activation with NaOH and sodium silicate, the geopolymer was cured at 60 °C for 24 h. Although some of the experimental details of the photocatalytic investigation of this geopolymer are unclear, one of the experiments in which the material was not exposed to UV irradiation (i.e., possibly kept in the dark) decolourized a methylene blue dye solution by almost 89%, presumably due to adsorption alone. Under UV irradiation, 97.9% decolourization was reported, but it is unclear from the discussion whether this represents a combination of adsorption and photocatalytic dye removal. The photocatalytic function of this geopolymer composite was suggested to be associated with the Fe2O3 component of the perlite, which almost completely removed methylene blue dye under UV irradiation in 4 h in a second-order kinetic process (Figure 14) [56]. These results open up the prospect of new types of geopolymers in which the photoactive moiety is supplied by one of the components naturally occurring in the aluminosilicate precursor.
A fly ash-based geopolymer with similar intrinsic photoactivity was reported by Zhang et al. [57], in which the photoactive components were the 4.4% Fe3O3 and 1.1% TiO2 in the starting material. This geopolymer was shown to remove methylene blue dye from solution under UV irradiation with 92.8% efficiency through a combination of adsorption in the geopolymer pores following pseudo-second order kinetics, and photodegradation, following third-order kinetics [57]. The experiment was carried out by assuming the dye adsorption step had come to equilibrium after 30 min in the dark, after which the sample was subjected to UV irradiation and the fading of the dye was colourimetrically monitored as a function of time.
A control experiment in which the dye was exposed to UV irradiation in the absence of the photocatalyst indicated that under these conditions about 22.3% decolourization occurred, but adsorption accounted for a significantly greater effect (89.1%). The greatest degree of dye removal (92.8%) was found for the sample that had been equilibrated in the dark prior to UV exposure (Figure 15).
He et al. [58] reported an unusual photoactive electroconductive geopolymer prepared by alkali activation of silicomanganese slag waste. The slag was blended with carbon black, activated with NaOH, cured for 6 h at 80 °C and then powdered. The powder was converted to the NH4+ form by immersion in a solution of CH3COONH4; washed and dried; and then impregnated with a solution of (NH4)6Mo7O24.4H2O before calcining at 400 °C for 4 h to produce a geopolymer containing CaMoO4 and carbon black [58]. In addition to its electroconductive properties, the photocatalyst containing an optimum CaMoO4 content of composition of photocatalyst was found to degrade BV5 dye, achieving close to 100% degradation under UV irradiation after 80 min.

5. Conclusions

Geopolymers have been shown to be capable of forming photocatalytic nanocomposites for removal of hazardous pollutants from waste water or the atmosphere. These ecologically-friendly inorganic materials can be produced at temperatures below 100 °C from industrial wastes such as fly ash, blast furnace slags or mining residues, and their chemical and physical properties enable them to act as supports for photoactive species, including TiO2, Cu2O and Fe2O3, or carbon nanotubes and graphene. The combination of some of these species has been exploited in some cases to hinder electron–hole recombination, enhancing the performances of the photocatalysts. Geopolymers formed from industrial wastes such as fly ash or ground granulated blast furnace slag, or minerals such as perlite which contain photoactive Fe2O3 contaminants, also display intrinsic photoactivity without the need for additional components; these materials have been less widely reported, but would be worth further investigation. Apart from their ease of production, geopolymers and their photocatalytic composites, being inorganic materials, are capable of safe disposal when exhausted. Although the possibility of regenerating these composites has not specifically been addressed and would require further investigation, one study [54] has found them to be capable of several reaction cycles without significant reduction of photoactivity. In most cases the photocatalytic efficiencies of these compounds were determined by their degradation of a dye, such as methylene blue, both in the dark and under UV (solar) radiation. These studies indicated a dual mechanism of adsorption by the geopolymer matrix and photodegradation by the photoactive species present. Thus, photoactive geopolymers represent promising ecologically-friendly, cost-effective and efficient materials for the remediation of toxic environmental pollutants, but future work is required to more clearly distinguish between the adsorption and photodegradation processes and extent these applications beyond the removal of dyes from wastewater to the remediation of a wider range of hazardous environmental pollutants.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Davidovits, J. Geopolymers. J. Therm. Anal. Calorim. 1991, 37, 1633–1656. [Google Scholar] [CrossRef]
  2. Barbosa, V.F.; MacKenzie, K.J.; Thaumaturgo, C. Synthesis and characterisation of materials based on inorganic polymers of alumina and silica: Sodium polysialate polymers. Int. J. Inorg. Mater. 2000, 2, 309–317. [Google Scholar] [CrossRef]
  3. MacKenzie, K.J.D.; Komphanchai, S.; Vagana, R. Formation of inorganic polymers (geopolymers) from 2:1 layer lattice aluminosilicates. J. Eur. Ceram. Soc. 2008, 28, 177–181. [Google Scholar] [CrossRef]
  4. Lemougna, P.N.; MacKenzie, K.J.D.; Melo, U.C. Synthesis and thermal properties of inorganic polymers (geopolymers) for structural and refractory applications from volcanic ash. Ceram. Int. 2011, 37, 3011–3018. [Google Scholar] [CrossRef]
  5. Xu, G.; Shi, X. Characteristics and applications of fly ash as a sustainable construction material: A state-of-the-art review. Resour. Conserv. Recycl. 2018, 136, 95–109. [Google Scholar] [CrossRef]
  6. Temuujin, J.; Minjigmaa, A.; Bayarzul, U.; Kim, D.S.; Lee, S.-H.; Lee, H.J.; Ruescher, C.H.; MacKenzie, K.J. Properties of geopolymer binders prepared from milled pond ash. Mater. Constr. 2017, 67, 134. [Google Scholar] [CrossRef]
  7. Turner, L.K.; Collins, F. Carbon dioxide equivalent (CO2- e) emissions: A comparison between geopolymer and OPC cement concrete. Constr. Build. Mater. 2013, 43, 125–130. [Google Scholar] [CrossRef]
  8. MacKenzie, K.J.D. Inorganic Polymers (Geopolymers). In Encyclopedia of Polymer Science and Technology; Wiley: Hoboken, NJ, USA, 2017; pp. 1–31. ISBN 9780471440260. [Google Scholar] [CrossRef]
  9. Santhi, K.; Rani, C.; Karuppuchamy, S. Synthesis and characterization of a novel SnO/SnO2 hybrid photocatalyst. J. Alloys Compd. 2016, 662, 102–107. [Google Scholar] [CrossRef]
  10. Boonen, E.; Beeldens, A. Photocatalytic roads: From lab tests to real scale applications. Eur. Transp. Res. Rev. 2012, 5, 79–89. [Google Scholar] [CrossRef] [Green Version]
  11. Falah, M. Synthesis of New Composites of Inorganic Polymers (Geopolymers) with Metal Oxide Nanoparticles and Their Photodegradation of Organic Pollutants. Ph.D. Thesis, Victoria University of Wellington, Wellington, New Zealand, 2015. Available online: http://researcharchive.vuw.ac.nz/handle/10063/4847 (accessed on 8 October 2020).
  12. Shen, S.; Kronawitter, C.; Kiriakidis, G. An overview of photocatalytic materials. J. Materiomics 2017, 3, 1–2. [Google Scholar] [CrossRef]
  13. Karthikeyan, C.; Arunachalam, P.; Ramachandran, K.; Al-Mayouf, A.M.; Karuppuchamy, S. Recent advances in semiconductor metal oxides with enhanced methods for solar photocatalytic applications. J. Alloys Compd. 2020, 828, 154281. [Google Scholar] [CrossRef]
  14. Provis, J.L.; Van Deventer, J. Geopolymerisation kinetics. Reaction kinetic modelling. Chem. Eng. Sci. 2007, 62, 2318–2329. [Google Scholar] [CrossRef]
  15. Rowles, M.R.; Hanna, J.V.; Pike, K.J.; Smith, M.E.; O’Connor, B.H. 29 Si, 27 Al, 1 H and 23 Na MAS NMR study of the bonding character in aluminosilicate inorganic polymers. Appl. Magn. Reson. 2007, 32, 663–689. [Google Scholar] [CrossRef]
  16. MacKenzie, K.J.D.; Smith, M.E. Multinuclear Solid State NMR of Inorganic Materials, Pergamon Materials Series; Pergamon/Elsevier: Oxford, UK, 2002; Volume 6, p. 304. [Google Scholar]
  17. O’Connor, S.J.; MacKenzie, K.J.D.; Smith, M.E.; Hanna, J.V. Ion exchange in the charge-balancing sites of aluminosilicate inorganic polymers. J. Mater. Chem. 2010, 20, 10234. [Google Scholar] [CrossRef]
  18. Ajmal, A.; Majeed, I.; Malik, R.N.; Idriss, H.; Nadeem, M.A. Principles and mechanisms of photocatalytic dye degradation on TiO2based photocatalysts: A comparative overview. RSC Adv. 2014, 4, 37003–37026. [Google Scholar] [CrossRef]
  19. Galindo, C.; Jacques, P.; Kalt, A. Photodegradation of the aminoazobenzene acid orange 52 by three advanced oxidation processes: UV/H2O2, UV/TiO2 and VIS/TiO2. J. Photochem. Photobiol. A Chem. 2000, 130, 35–47. [Google Scholar] [CrossRef]
  20. Zhao, J.; Chen, C.; Ma, W. Photocatalytic degradation of organic pollutants under visible light irradiation. Top. Catal. 2005, 35, 269–278. [Google Scholar] [CrossRef]
  21. Maragatha, J.; Jothivenkatachalam, K.; Karuppuchamy, S. Synthesis and characterization of visible light-responsive carbon doped Ti4O7 photocatalyst. J. Mater. Sci. Mater. Electron. 2016, 27, 9233–9239. [Google Scholar] [CrossRef]
  22. Nagalakshmi, M.; Karthikeyan, C.; Anusuya, N.; Brundha, C.; Basu, M.J.; Karuppuchamy, S. Synthesis of TiO2 nanofiber for photocatalytic and antibacterial applications. J. Mater. Sci. Mater. Electron. 2017, 28, 15915–15920. [Google Scholar] [CrossRef]
  23. Mills, A.; Davies, R.H.; Worsley, D. Water purification by semiconductor photocatalysis. Chem. Soc. Rev. 1993, 22, 417. [Google Scholar] [CrossRef]
  24. Wilke, K.; Breuer, H. The influence of transition metal doping on the physical and photocatalytic properties of titania. J. Photochem. Photobiol. A Chem. 1999, 121, 49–53. [Google Scholar] [CrossRef]
  25. Falah, M.; MacKenzie, K.J.D.; Hanna, J.V.; Page, S.J. Novel photoactive inorganic polymer composites of inorganic polymers with copper (I) oxide nanoparticles. J. Mater. Sci. 2015, 50, 7374–7383. [Google Scholar] [CrossRef]
  26. Kabra, K.; Chaudhary, R.; Sawhney, R.L. Treatment of hazardous organic and inorganic compounds through aqueous-phase photocatalysis: A review. Ind. Eng. Chem. Res. 2004, 43, 7683–7696. [Google Scholar] [CrossRef]
  27. Hanus, M.J.; Harris, A.T. Nanotechnology innovations for the construction industry. Prog. Mater. Sci. 2013, 58, 1056–1102. [Google Scholar] [CrossRef]
  28. Pacheco-Torgal, F.; Jalali, S. Nanotechnology: Advantages and drawbacks in the field of construction and building materials. Constr. Build. Mater. 2011, 25, 582–590. [Google Scholar] [CrossRef] [Green Version]
  29. Zheng, K.; Chen, L.; Gbozee, M. Thermal stability of geopolymers used as supporting materials for TiO2 film coating through sol-gel process: Feasibility and improvement. Constr. Build. Mater. 2016, 125, 1114–1126. [Google Scholar] [CrossRef]
  30. Fan, W.; Lai, Q.; Zhang, Q.; Wang, Y. Nanocomposites of TiO2 and reduced graphene oxide as efficient photocatalysts for hydrogen evolution. J. Phys. Chem. C 2011, 115, 10694–10701. [Google Scholar] [CrossRef]
  31. Chen, L.; Zheng, K.; Liu, Y. Geopolymer-supported photocatalytic TiO2 film: Preparation and characterization. Constr. Build. Mater. 2017, 151, 63–70. [Google Scholar] [CrossRef]
  32. Strini, A.; Roviello, G.; Ricciotti, L.; Ferone, C.; Messina, F.; Schiavi, L.; Corsaro, D.; Cioffi, R. TiO2-based photocatalytic geopolymers for nitric oxide degradation. Materials 2016, 9, 513. [Google Scholar] [CrossRef]
  33. Bravo, P.I.; Malenab, R.A.; Shimizu, E.; Yu, D.E.; Promentilla, M.A. Synthesis of geopolymer spheres with photocatalytic activity. MATEC Web Conf. 2019, 268, 04007. [Google Scholar] [CrossRef]
  34. Samuneva, B.; Kozhukharov, V.; Trapalis, C.; Kranold, R. Sol-gel processing of titanium- containing thin coatings-Part I. Preparation and structure. J. Mater. Sci. 1993, 28, 2353–2360. [Google Scholar] [CrossRef]
  35. Gasca-Tirado, J.; Manzano-Ramírez, A.; Villaseñor-Mora, C.; Muñiz-Villarreal, M.; Zaldivar-Cadena, A.; Rubio-Avalos, J.; Borrás, V.A.; Mendoza, R.N. Incorporation of photoactive TiO2 in an aluminosilicate inorganic polymer by ion exchange. Microporous Mesoporous Mater. 2012, 153, 282–287. [Google Scholar] [CrossRef]
  36. Yang, X.; Liu, Y.; Yan, C.; Peng, R.; Wang, H. Geopolymer-TiO2 nanocomposites for photocsatalysis: Synthesis by one-step adding treatment versus two-step acidification calcination. Minerals 2019, 9, 658. [Google Scholar] [CrossRef] [Green Version]
  37. Lertcumfu, N.; Jaita, P.; Thammarong, S.; Lamkhao, S.; Tandorn, S.; Randorn, C.; Tunkasiri, T.; Rujijanagul, G. Influence of graphene oxide additive on physical, microstructure, adsorption, and photocatalytic properties of calcined kaolinite-based geopolymer ceramic composites. Colloids Surf. A: Physicochem. Eng. Asp. 2020, 602, 125080. [Google Scholar] [CrossRef]
  38. Gupta, K.; Khatri, O.P. Reduced graphene oxide as an effective adsorbent for removal of malachite green dye: Plausible adsorption pathways. J. Colloid Interface Sci. 2017, 501, 11–21. [Google Scholar] [CrossRef] [PubMed]
  39. Gao, Y.; Wu, J.-C.; Chen, C.; Tan, X.; Hayat, T.; Alsaedi, A.; Cheng, C.; Chen, C. Impact of graphene oxide on the antibacterial activity of antibiotics against bacteria. Environ. Sci. Nano 2017, 4, 1016–1024. [Google Scholar] [CrossRef]
  40. Gopalakrishnan, A.; Krishnan, R.; Thangavel, S.; Venugopal, G.; Kim, S.-J.; Arthi, G.; Rajasekar, K.; Sakthivel, T.; Gunasekaran, V. Removal of heavy metal ions from pharma-effluents using graphene-oxide nanosorbents and study of their adsorption kinetics. J. Ind. Eng. Chem. 2015, 30, 14–19. [Google Scholar] [CrossRef]
  41. Shamsaei, E.; De Souza, F.B.; Yao, X.; Benhelal, E.; Akbari, A.; Zhuang, J. Graphene-based nanosheets for stronger and more durable concrete: A review. Constr. Build. Mater. 2018, 183, 642–660. [Google Scholar] [CrossRef]
  42. Zhang, Y.J.; Yang, M.Y.; Zhang, L.; Zhang, K.; Kang, L. A new graphene/geopolymer nanocomposite for degradation of dye wastewater. Integr. Ferroelectr. 2016, 171, 38–45. [Google Scholar] [CrossRef]
  43. Zhang, Y.J.; He, P.Y.; Zhang, Y.X.; Chen, H. A novel electroconductive graphene/fly ash-based geopolymer composite and its photocatalytic performance. Chem. Eng. J. 2018, 334, 2459–2466. [Google Scholar] [CrossRef]
  44. Huang, L.; Peng, F.; Yu, H.; Wang, H. Preparation of cuprous oxides with different sizes and their behaviors of adsorption, visible-light driven photocatalysis and photocorrosion. Solid State Sci. 2009, 11, 129–138. [Google Scholar] [CrossRef]
  45. Zheng, Z.; Huang, B.; Wang, Z.; Guo, M.; Qin, X.; Zhang, X.; Wang, P.; Dai, Y. Crystal Faces of Cu2O and Their stabilities in photocatalytic reactions. J. Phys. Chem. C 2009, 113, 14448–14453. [Google Scholar] [CrossRef]
  46. Saleh, T.A. Syntheses and Applications of Carbon Nanotubes and Their Composites; InTech Open: London, UK, 2013. [Google Scholar] [CrossRef]
  47. Kumar, M. Effect of Nanomaterials on the Properties of Geopolymer Mortars and Concrete; Elsevier BV: Amsterdam, The Netherlands, 2018; Volume 5, pp. 9035–9040. [Google Scholar]
  48. Mahmoodi, N.M. Synthesis of magnetic carbon nanotube and photocatalytic dye degradation ability. Environ. Monit. Assess. 2014, 186, 5595–5604. [Google Scholar] [CrossRef]
  49. Bi, S.; Liu, M.; Shen, J.; Hu, X.; Zhang, L. Ultrahigh self-sensing performance of geopolymer nanocomposites via unique interface engineering. ACS Appl. Mater. Interfaces 2017, 9, 12851–12858. [Google Scholar] [CrossRef]
  50. Huang, L.; Peng, F.; Wang, H.; Yu, H.; Li, Z. Preparation and characterization of Cu2O/TiO2 nano-nano heterostructure photocatalysts. Catal. Commun. 2009, 10, 1839–1843. [Google Scholar] [CrossRef]
  51. Falah, M.; MacKenzie, K.J.D. Synthesis and properties of novel photoactive composites of P25 titanium dioxide and copper (I) oxide with inorganic polymers. Ceram. Int. 2015, 41, 13702–13708. [Google Scholar] [CrossRef]
  52. Falah, M.; MacKenzie, K.J.D.; Knibbe, R.; Page, S.J.; Hanna, J.V. New composites of nanoparticle Cu (I) oxide and titania in a novel inorganic polymer (geopolymer) matrix for destruction of dyes and hazardous organic pollutants. J. Hazard. Mater. 2016, 318, 772–782. [Google Scholar] [CrossRef]
  53. Zailan, S.N.; Bouaissi, A.; Mahmed, N.; Abdullah, M.M.A.B. Influence of ZnO Nanoparticles on Mechanical Properties and Photocatalytic Activity of Self-cleaning ZnO-Based Geopolymer Paste. J. Inorg. Organomet. Polym. Mater. 2019, 30, 2007–2016. [Google Scholar] [CrossRef]
  54. Zhang, Y.J.; He, P.Y.; Yang, M.Y.; Chen, H.; Liu, L.C. Renewable conversion of slag to graphene geopolymer for H2 production and wastewater treatment. Catal. Today 2019. [Google Scholar] [CrossRef]
  55. Zhang, Y.J.; He, P.Y.; Chen, H. A novel CdO/graphene alkali-activated steel slag nanocomposite for photocatalytic degradation of dye wastewater. Ferroelectrics 2018, 522, 1–8. [Google Scholar] [CrossRef]
  56. Saufi, H.; El Alouani, M.; Alehyen, S.; El Achouri, M.; Aride, J.; Taibi, M. Photocatalytic degradation of methylene blue from aqueous medium onto perlite-based geopolymer. Int. J. Chem. Eng. 2020, 2020, 1–7. [Google Scholar] [CrossRef] [Green Version]
  57. Zhang, Y.; Liu, L. Fly ash-based geopolymer as a novel photocatalyst for degradation of dye from wastewater. Particuology 2013, 11, 353–358. [Google Scholar] [CrossRef]
  58. He, P.Y.; Zhang, Y.J.; Chen, H.; Liu, L.C. Development of an eco-efficient CaMoO4/electroconductive geopolymer composite for recycling silicomanganese slag and degradation of dye wastewater. J. Clean. Prod. 2019, 208, 1476–1487. [Google Scholar] [CrossRef]

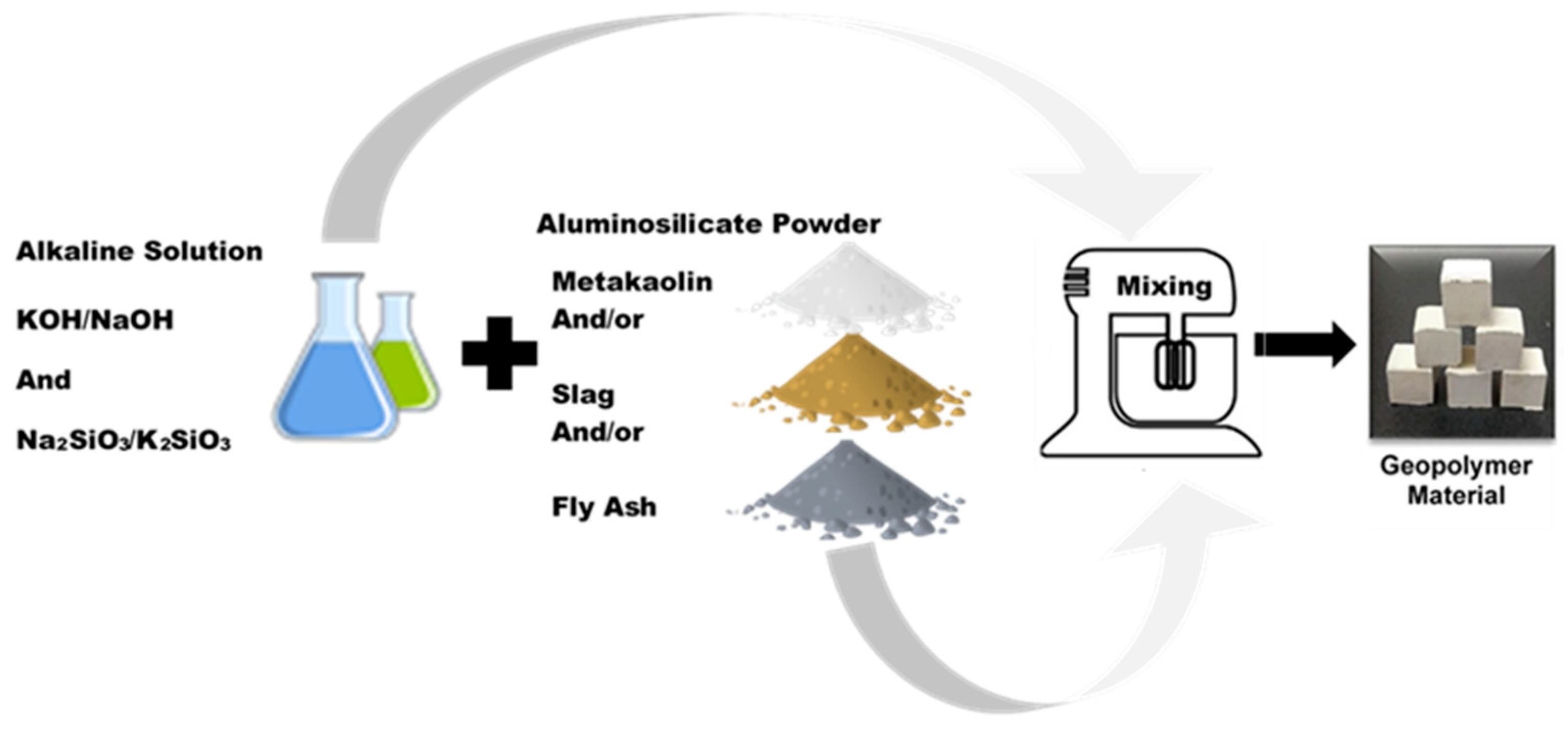

Figure 1. Schematic representation of the geopolymer synthesis procedure.
Figure 1. Schematic representation of the geopolymer synthesis procedure.
Catalysts 10 01158 g001
Figure 2. Semi-schematic structure for a Na-geopolymer.
Figure 2. Semi-schematic structure for a Na-geopolymer.
Catalysts 10 01158 g002
Figure 3. Schematic illustration of the photoactivation of a photocatalyst in water and air.
Figure 3. Schematic illustration of the photoactivation of a photocatalyst in water and air.
Catalysts 10 01158 g003
Figure 4. (A) SEM images of a dip-coated TiO2 film annealed at 600 °C for 1 h. (B) Surface morphology of a typical multilayer-coated TiO2 film. (C) Residual dye concentration (C/C0) of methylene blue under UV irradiation by TiO2 films coated on a geopolymer, annealed at (a) 500 °C, (b) 800 °C, (c) 700 °C, (d) 600 °C, based on the data of Chen et al. [31].
Figure 4. (A) SEM images of a dip-coated TiO2 film annealed at 600 °C for 1 h. (B) Surface morphology of a typical multilayer-coated TiO2 film. (C) Residual dye concentration (C/C0) of methylene blue under UV irradiation by TiO2 films coated on a geopolymer, annealed at (a) 500 °C, (b) 800 °C, (c) 700 °C, (d) 600 °C, based on the data of Chen et al. [31].
Catalysts 10 01158 g004

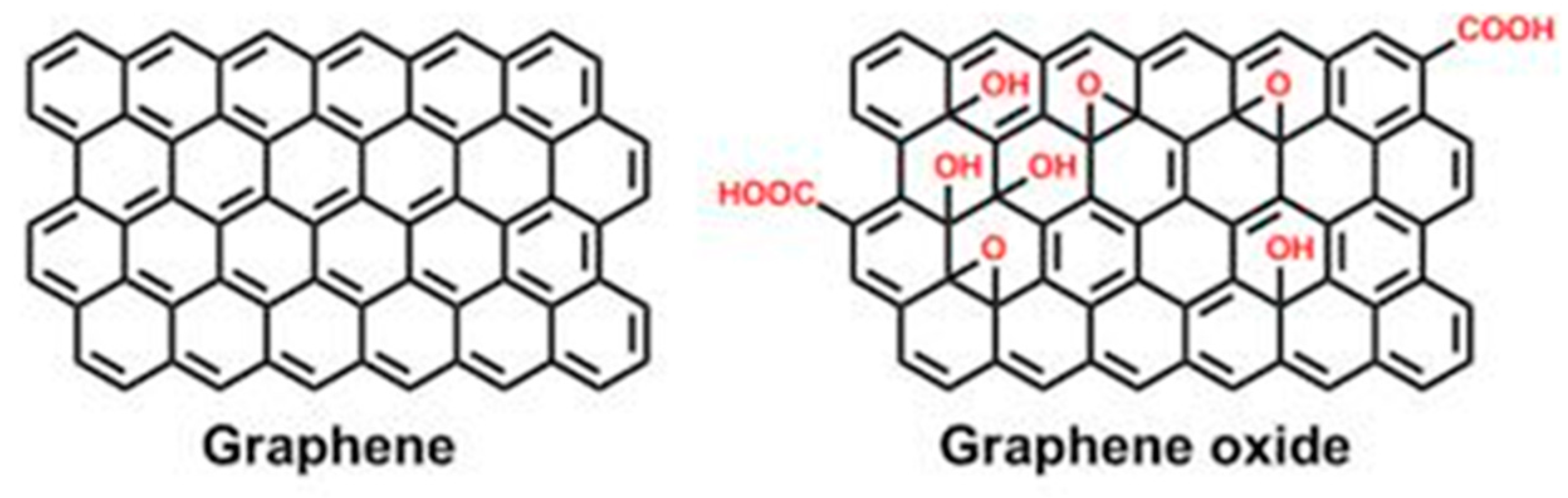

Figure 5. Structure of graphene and graphene oxide.
Figure 5. Structure of graphene and graphene oxide.
Catalysts 10 01158 g005
Figure 6. The effects of tertiary butyl alcohol (TBA) and benzoquinone (BQ) radical scavengers on the residual dye concentration (C/C0) of indigo carmine dye, based on the data of Zhang et al. [43].
Figure 6. The effects of tertiary butyl alcohol (TBA) and benzoquinone (BQ) radical scavengers on the residual dye concentration (C/C0) of indigo carmine dye, based on the data of Zhang et al. [43].
Catalysts 10 01158 g006

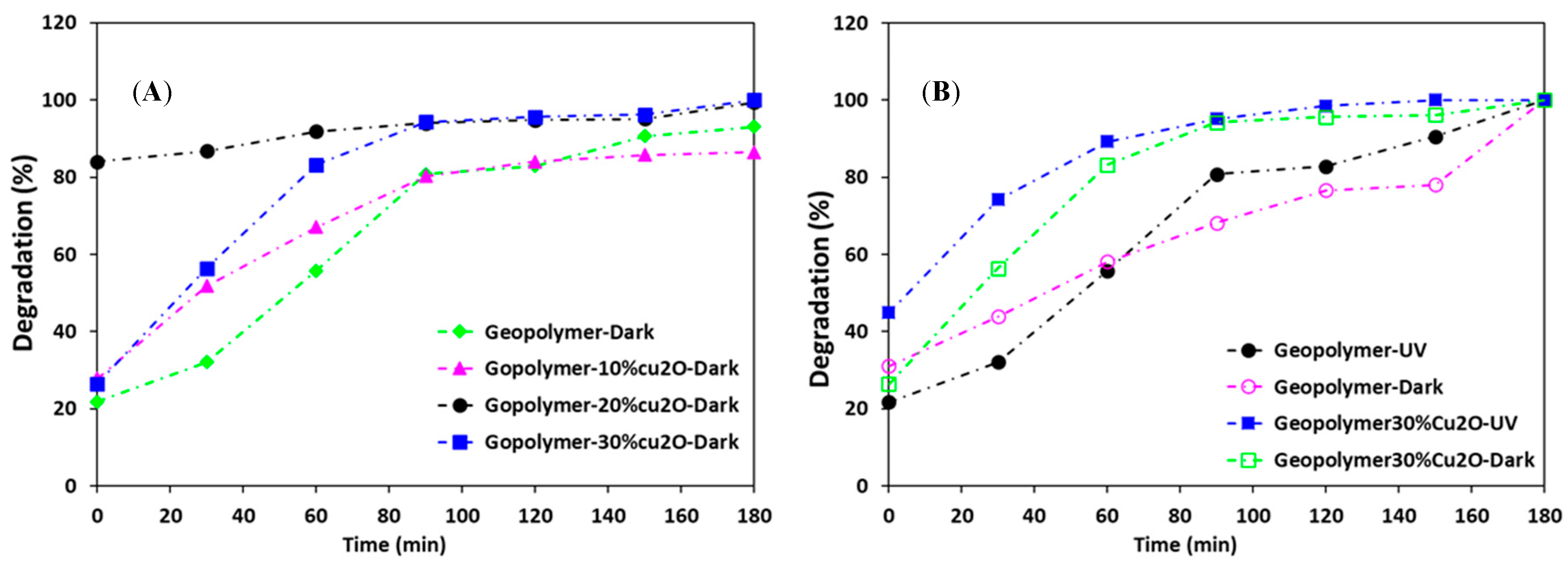

Figure 7. (A) Removal of methylene blue dye upon exposure to the geopolymer matrix (GP) and the Cu2O-geopolymer composites of various compositions versus time in the dark; (B) comparison of the removal of methylene blue dye by the geopolymer matrix and the 30 wt.% Cu2O-geopolymer composite in the dark and under UV illumination. Based on the data of Falah et al [25].
Figure 7. (A) Removal of methylene blue dye upon exposure to the geopolymer matrix (GP) and the Cu2O-geopolymer composites of various compositions versus time in the dark; (B) comparison of the removal of methylene blue dye by the geopolymer matrix and the 30 wt.% Cu2O-geopolymer composite in the dark and under UV illumination. Based on the data of Falah et al [25].
Catalysts 10 01158 g007
Figure 8. Schematic representation of the interface between a SiO2-treated carbon nanotube surface and a geopolymer matrix.
Figure 8. Schematic representation of the interface between a SiO2-treated carbon nanotube surface and a geopolymer matrix.
Catalysts 10 01158 g008

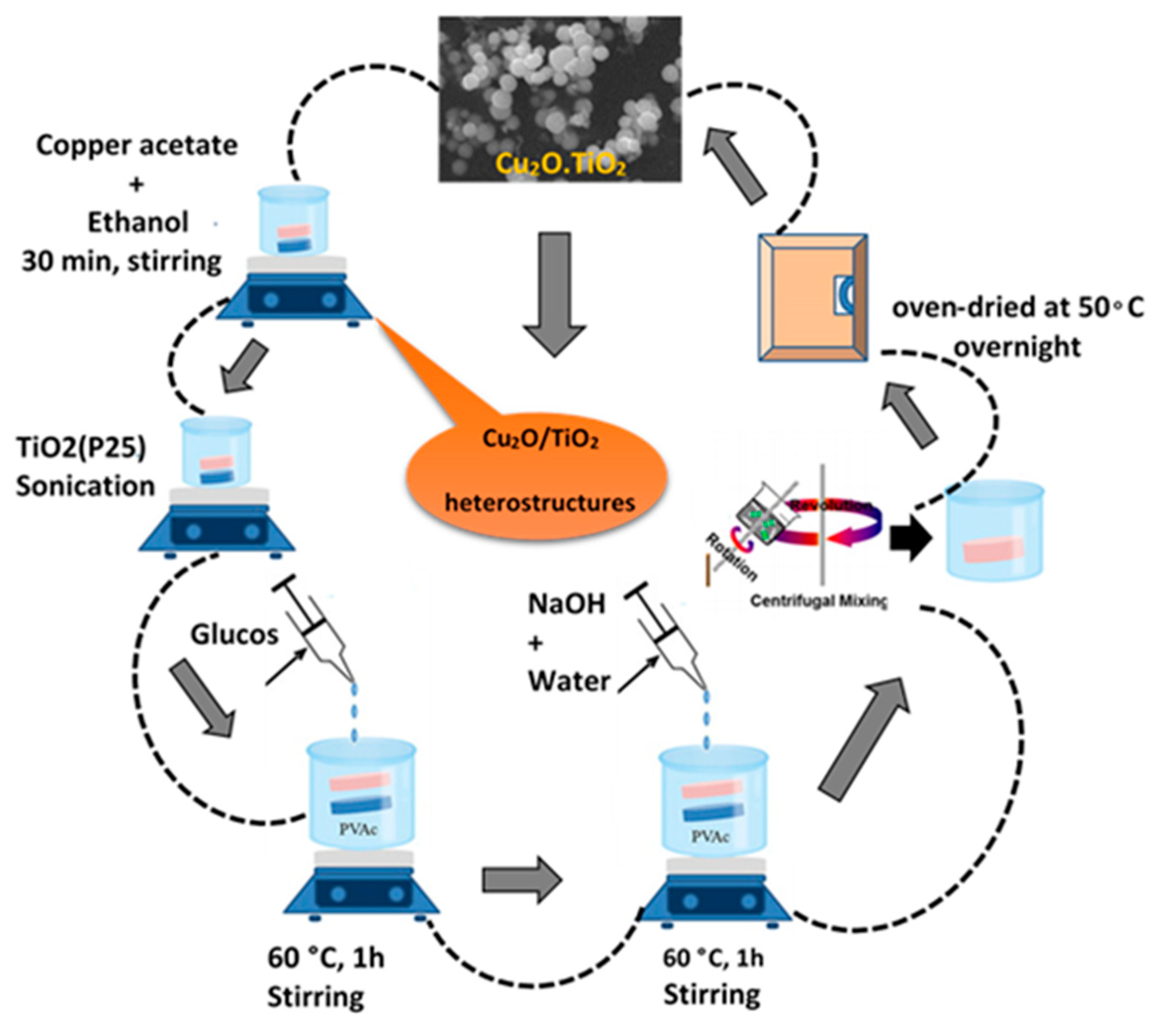

Figure 9. Schematic diagram of the synthesis of Cu2O–TiO2 nanoparticles by an alcohol-aqueous—based chemical precipitation method.
Figure 9. Schematic diagram of the synthesis of Cu2O–TiO2 nanoparticles by an alcohol-aqueous—based chemical precipitation method.
Catalysts 10 01158 g009

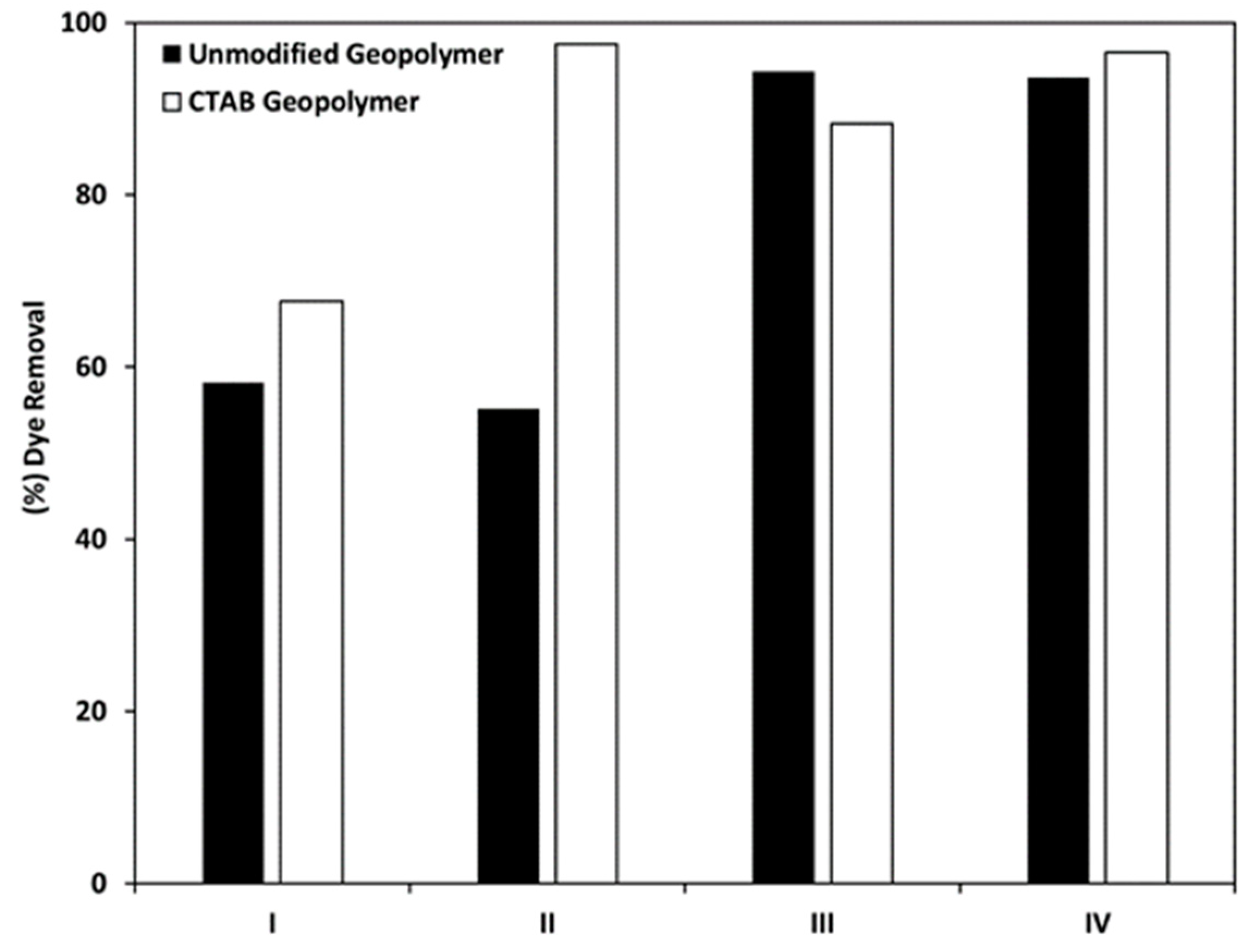

Figure 10. Removal of methylene blue dye from solution after equilibration in the dark, followed by 90 min of UV irradiation of composites based on CTAB-modified geopolymer matrices compared with geopolymers based on unmodified matrices. (I) geopolymer matrix alone, (II) 10 wt.% Cu2O–TiO2-geopolmer, (III) 10 wt.% Cu2O/geopolymer, (IV) 10 wt.% TiO2/geopolymer. Based on data from Falah et al. [51,52].
Figure 10. Removal of methylene blue dye from solution after equilibration in the dark, followed by 90 min of UV irradiation of composites based on CTAB-modified geopolymer matrices compared with geopolymers based on unmodified matrices. (I) geopolymer matrix alone, (II) 10 wt.% Cu2O–TiO2-geopolmer, (III) 10 wt.% Cu2O/geopolymer, (IV) 10 wt.% TiO2/geopolymer. Based on data from Falah et al. [51,52].
Catalysts 10 01158 g010
Figure 11. Degradation of methylene blue dye under UV irradiation by ZnO-based geopolymers containing different amounts of ZnO nanoparticles, based on the data of Zailan et al. [53].
Figure 11. Degradation of methylene blue dye under UV irradiation by ZnO-based geopolymers containing different amounts of ZnO nanoparticles, based on the data of Zailan et al. [53].
Catalysts 10 01158 g011

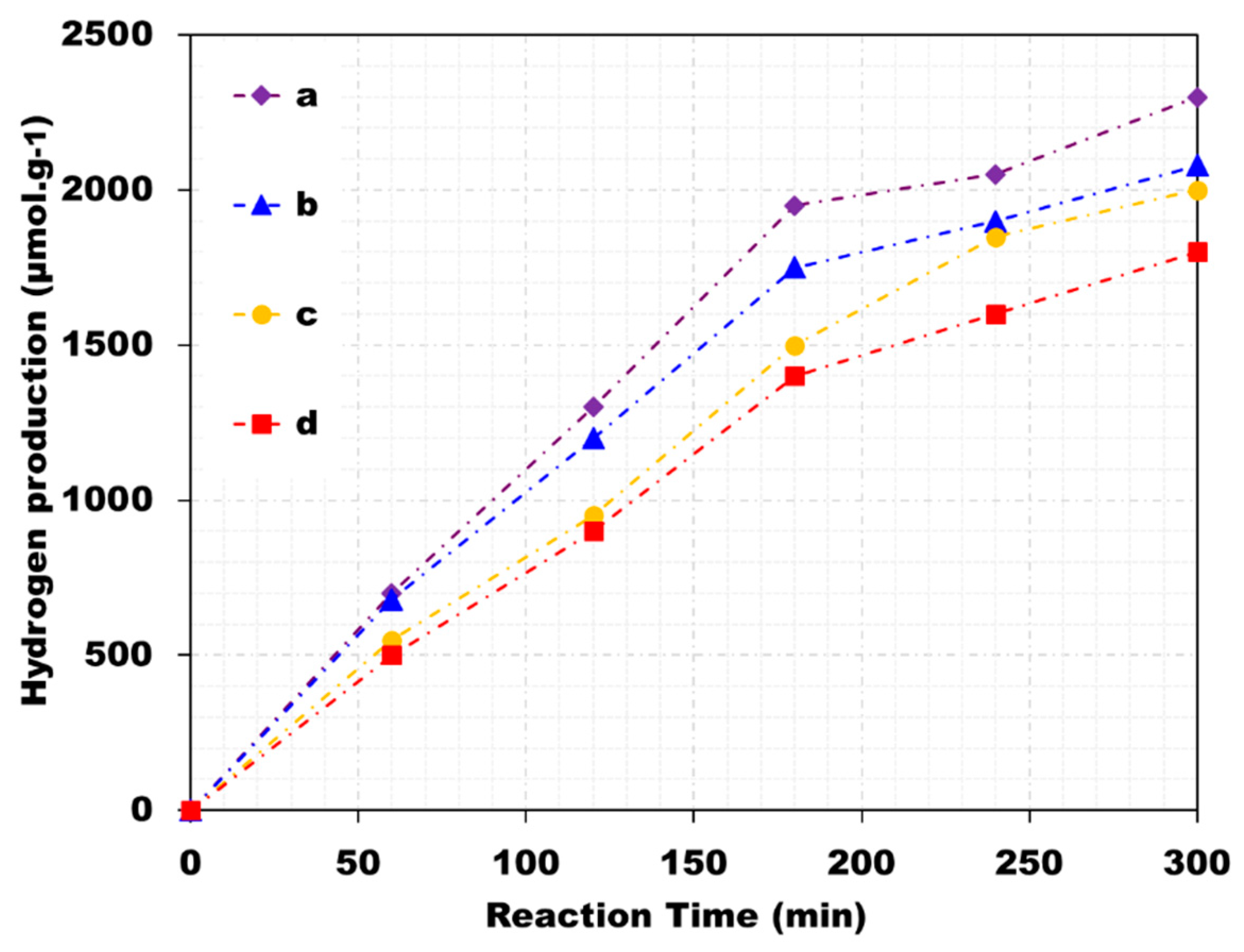

Figure 12. UV photocatalytic hydrogen production from water by ZnO/graphene GGBFS-based photocatalysts containing 0.01 wt.% graphene, as a function of ZnO content. (a) 15ZnO, (b) 10ZnO, (c) 20ZnO, (d) 2ZnO. Based on the data of Zhang et al. [54].
Figure 12. UV photocatalytic hydrogen production from water by ZnO/graphene GGBFS-based photocatalysts containing 0.01 wt.% graphene, as a function of ZnO content. (a) 15ZnO, (b) 10ZnO, (c) 20ZnO, (d) 2ZnO. Based on the data of Zhang et al. [54].
Catalysts 10 01158 g012

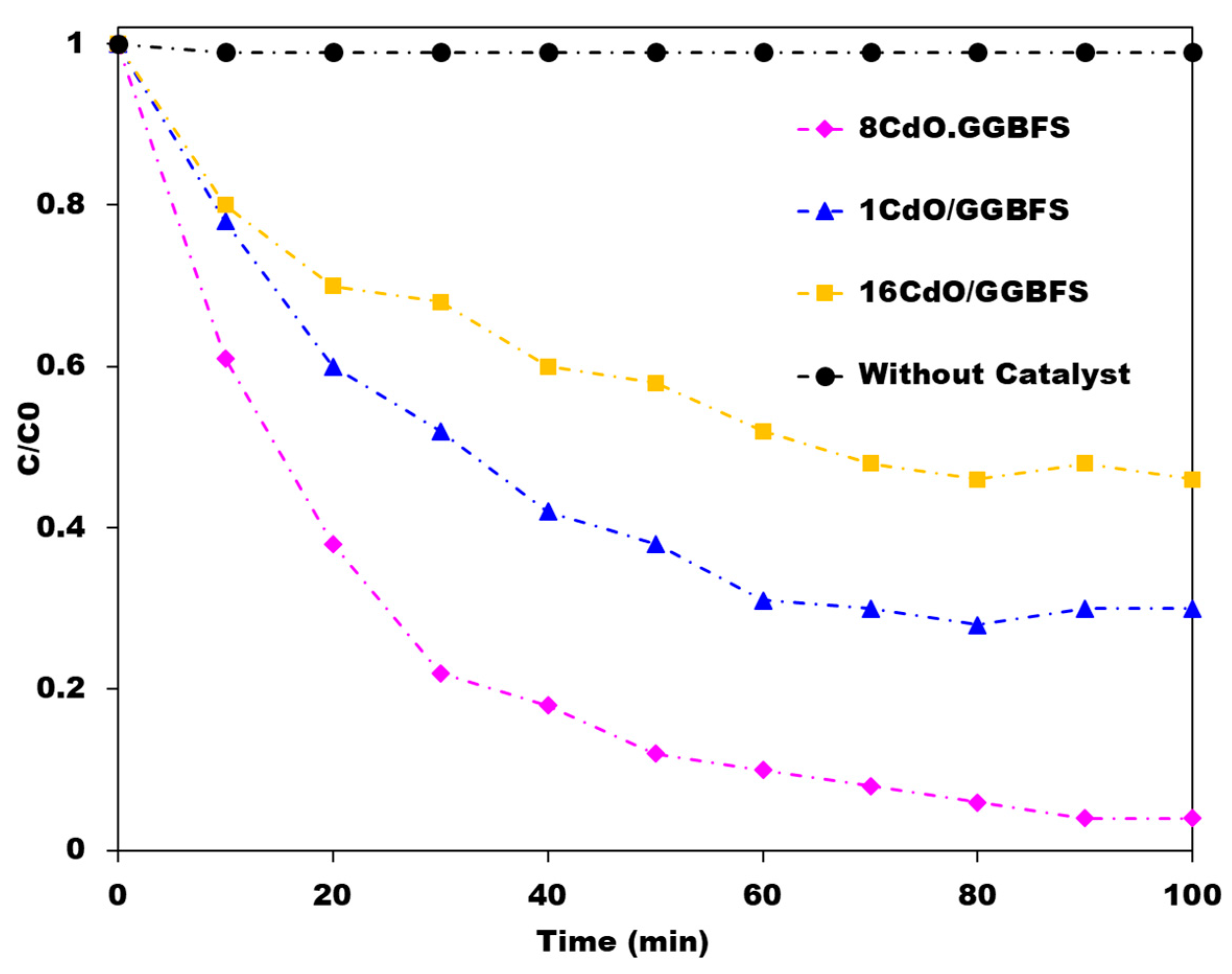

Figure 13. Residual concentration (C/C0) of direct fast Bordeaux dye under UV irradiation of by CdO/graphene GGBFS-based geopolymer photocatalysts as a function of CdO content, based on the data of Zhang et al. [55].
Figure 13. Residual concentration (C/C0) of direct fast Bordeaux dye under UV irradiation of by CdO/graphene GGBFS-based geopolymer photocatalysts as a function of CdO content, based on the data of Zhang et al. [55].
Catalysts 10 01158 g013

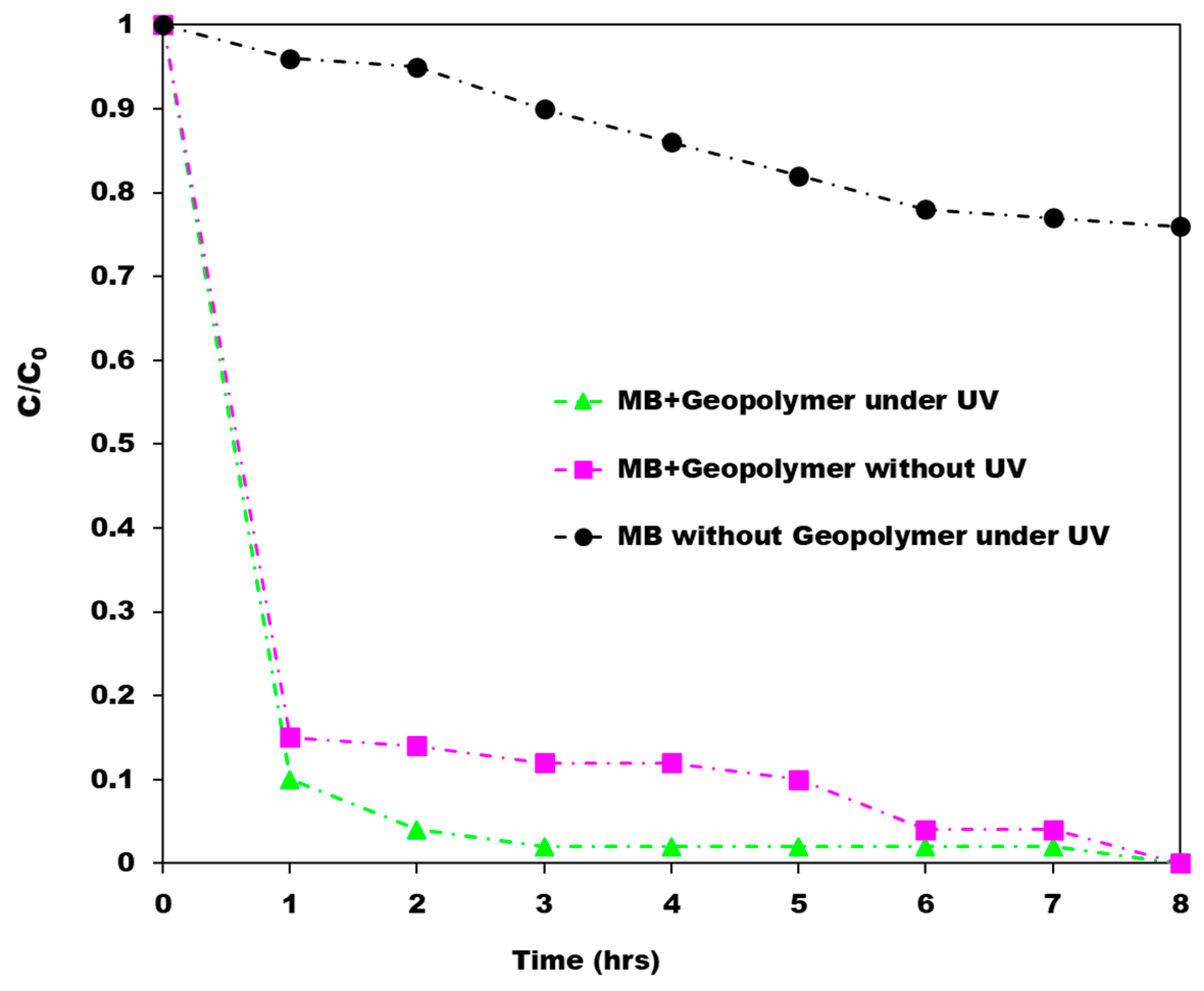

Figure 14. Change in the residual concentration (C/C0) of methylene blue dye upon exposure to a perlite-based geopolymer in the dark and under UV radiation, based on the data of Saufi et al. [56].
Figure 14. Change in the residual concentration (C/C0) of methylene blue dye upon exposure to a perlite-based geopolymer in the dark and under UV radiation, based on the data of Saufi et al. [56].
Catalysts 10 01158 g014

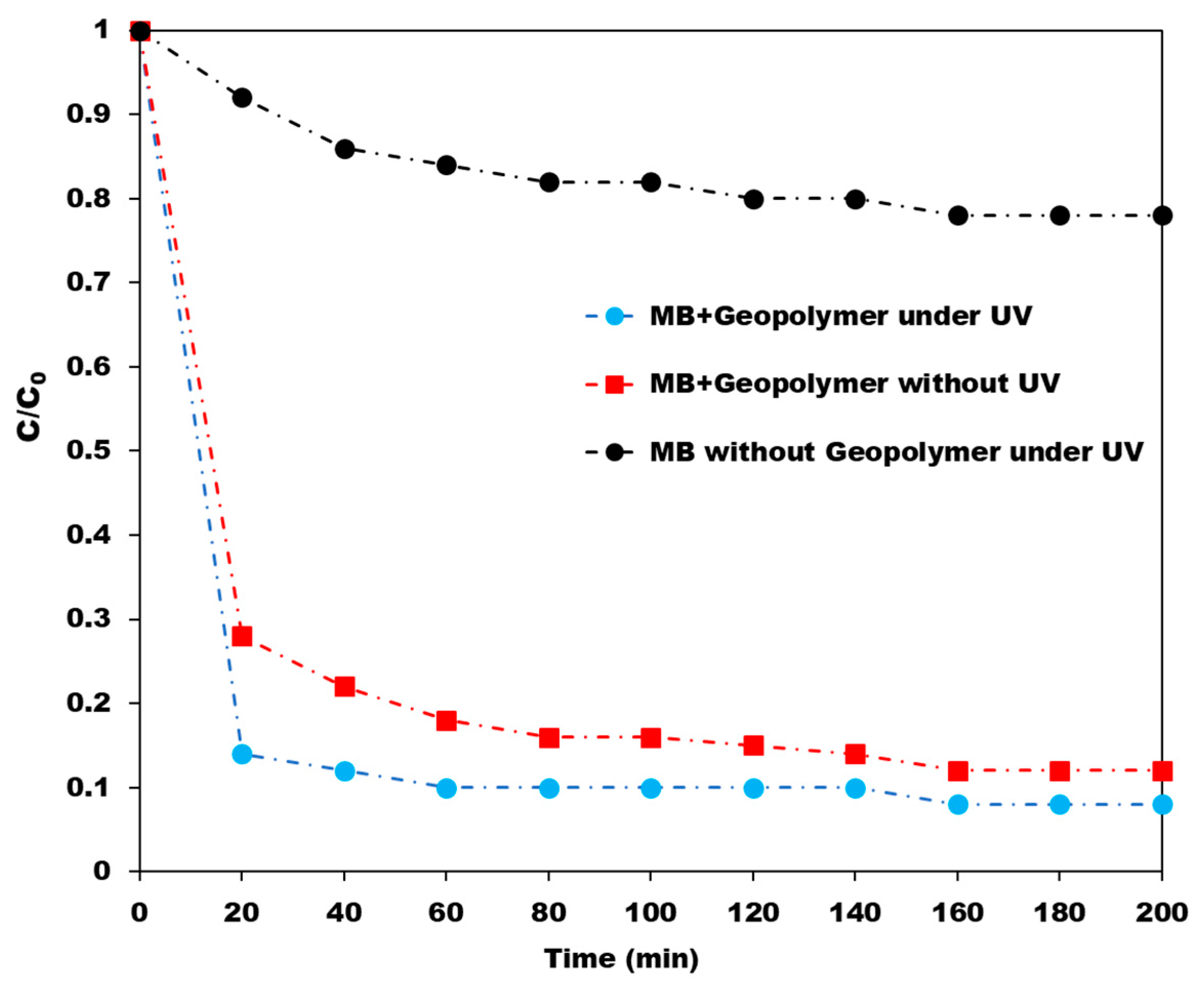

Figure 15. Change in the residual concentration (C/C0) of methylene blue dye upon exposure to a fly ash-based geopolymer in the dark and under UV radiation, based on the data of Zhang et al. [57].
Figure 15. Change in the residual concentration (C/C0) of methylene blue dye upon exposure to a fly ash-based geopolymer in the dark and under UV radiation, based on the data of Zhang et al. [57].
Catalysts 10 01158 g015
Table 1. Band gap energies of various photocatalysts [26].
Table 1. Band gap energies of various photocatalysts [26].
PhotocatalystBandgap (eV)PhotocatalystBandgap (eV)
Diamond5.4SnO23.8
Cubic ZnS3.6SrTiO33.4
ZnO3.3TiO2 (anatase)3.2
α-Fe2O33.1TiO2 (rutile)3.0
WO32.8CdS2.4
Fe2O32.2Cu2O2.1
CdSe1.7CdTe1.4
WSe21.2Si1.1
Table 2. Comparison of the different synthetic methods and TiO2/geopolymer photocatalysts.
Table 2. Comparison of the different synthetic methods and TiO2/geopolymer photocatalysts.
AdsorbentPreparation MethodTiO2 TypeTiO2 ContentAdsorbateReference
TiO2/fly ash or metakaolin geopolymerMixingP253%NO and NOxStrini 2016 [32]
TiO2/metakaolin geopolymerIon-ExchangeAnatase28%MBGasca-Tirado 2012 [35]
TiO2/fly ash-metakaolin geopolymerSol-Gel dip coatingAnatase, RutileNAMBChen 2017 [31]
TiO2/fly ash geopolymerMixingP2510%MBYang 2019 [36]
TiO2/metakaolin geopolymer spheresInside quartz tube at high temperatureP2510 mgMBBravo 2019 [33]
Table 3. Summary of the different studies on graphene and graphene oxide geopolymer photocatalysts.
Table 3. Summary of the different studies on graphene and graphene oxide geopolymer photocatalysts.
MatrixPreparation MethodGraphene Content (%)AdsorbateReference
graphene/fly ash-based geopolymerMixing0.1, 0.4, 0.7 and 1Indigo carmineZhang 2018 [43]
graphene oxide/calcined kaolinite-based geopolymerMixing0, 2.5, 5, and 10 Methylene blueLertcumfu 2020 [37]
graphene/blast furnace slag-based geopolymerMixing0.01Methyl violetZhang 2016 [42]
Table 4. Degradation efficiency of basic violet 5BN dye by a slag-based geopolymer containing 0.1 wt.% graphene and 15ZnO under UV irradiation over five reaction cycles [54].
Table 4. Degradation efficiency of basic violet 5BN dye by a slag-based geopolymer containing 0.1 wt.% graphene and 15ZnO under UV irradiation over five reaction cycles [54].
Cycle NumberDegradation (%)
192.7
290.6
389.7
488.5
587.8

Share and Cite

MDPI and ACS Style

Falah, M.; MacKenzie, K.J.D. Photocatalytic Nanocomposite Materials Based on Inorganic Polymers (Geopolymers): A Review. Catalysts 2020, 10, 1158. https://doi.org/10.3390/catal10101158

AMA Style

Falah M, MacKenzie KJD. Photocatalytic Nanocomposite Materials Based on Inorganic Polymers (Geopolymers): A Review. Catalysts. 2020; 10(10):1158. https://doi.org/10.3390/catal10101158

Chicago/Turabian Style

Falah, Mahroo, and Kenneth J. D. MacKenzie. 2020. "Photocatalytic Nanocomposite Materials Based on Inorganic Polymers (Geopolymers): A Review" Catalysts 10, no. 10: 1158. https://doi.org/10.3390/catal10101158

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
