Potential Cycling Effects on Activities of Nickel-Mediated Benzyl Alcohol and Glycine Electrooxidation in Alkaline Solutions
College of Chemistry and Bioengineering, Yichun University, Yichun 336000, China
*
Author to whom correspondence should be addressed.
Received: 21 December 2019 / Accepted: 12 January 2020 / Published: 15 January 2020

Abstract

:
Nickel electrodes under continuous potential cycling were applied for the electrooxidation of benzyl alcohol and glycine in KOH solutions, and their activities were measured and compared by cyclic voltammetry. It is shown that intrinsic activities of both reactions decrease with the increasing catalyst loadings, and a more significant decreasing trend was observed in glycine electrooxidation when compared to benzyl alcohol electrooxidation. These phenomena may be explained by an increasing of mass loading induced a decrease of the catalyst surface conductivity, structure changes of Ni(OH)2 from α-phase to β-phase, and the intercalation of glycine molecules into nickel hydroxide interlayers.
Keywords:
nickel hydroxide; benzyl alcohol; glycine; potential cycling; electrocatalytic activity

1. Introduction

Nickel hydroxide-based materials have been extensively used in the electrooxidation of several small molecules [1,2]. Ni-(oxy) hydroxide-based materials such as nickel−iron oxyhydroxide (NiFeOOH) are promising earth-abundant catalysts for electrochemical water oxidation in basic media [3,4,5]. It was discovered in early 1971 that a series of amines and alcohols can be electrooxidized by nickel hydroxide [6,7]; for example, several electrooxidation reactions of benzyl alcohol in an alkaline medium were accomplished on different types of nickel hydroxide electrodes [8,9]. Glycine, as a biosynthetic intermediate of all purines and porphyrins, can be electrooxidized by Ni(OH)2 as well [10]. High-catalytic activity has been obtained in nickel manganese oxide with spinel nanostructure-mediated electrooxidation reaction toward glycine in alkaline electrolytes [11]. Due to its potential applications in wastewater treatment, fuel cells, hydrogen production, and urea electrolysis, using nickel hydroxide-based materials as electrocatalysts has attracted much attention [12,13,14]. Besides the above-mentioned, nickel hydroxide-based catalysts have been used in electrocatalytic reactions related to formaldehyde [15] and sulfide [16].
In order to optimize both intrinsic activity and the number of active sites for particular electrolysis applications, how intrinsic activity changes as a function of the catalyst loading should be understood thoroughly. It was observed that specific electrooxidation activity related to glycerol decreases with increasing Au loading [17], and this finding can be explained by the increasing gold oxide inhibition, which is caused by the accumulation of oxidation products within the electrocatalytic layers. When nickel hydroxide was used as a cocatalyst for bismuth vanadate and iron vanadate photoanodes for water oxidation, the large loadings of Ni(OH)2 induce a drastic decrease in the photoelectrocatalytic activity because of the charge recombination at the semiconductor/Ni(OH)2 interface [18,19,20].
Boettcher et al. discovered that in studies of oxygen-evolution reactions [21], turnover frequency of pulse-deposited Ni–Fe (oxy)hydroxide films increase with increasing loadings, whereas continuously electrochemically deposited films show the opposite relationship. It is generally accepted that Ni(OH)2 forms electrochemically on Ni electrodes in alkaline media [22,23]. Potential cycling is one of the most versatile and convenient techniques that can be used to generate hydrous oxides with a real-time determination of active centers and subsequent electrocatalytic activities. Changes of structure, amount, and other properties of nickel hydroxide induced by potential cycling have been addressed by atomic-force microscopy (AFM), Raman spectroscopy, X-Ray Photoelectron Spectroscopy (XPS), ellipsometry, and gravimetry with an electrochemical quartz-crystal microbalance [23,24,25,26,27,28,29]. For example, in situ AFM with the tip fixed has been used to monitor the changes of nickel hydroxide-film thickness during the potential cycling process [21]; in situ Raman spectroscopy observations indicate that aging of γ-NiOOH film in KOH electrolyte by electrochemical cycling produces a β-NiOOH film [25].
To the best of our knowledge, the influence of potential cycling on the activity of nickel-based electrocatalytic reactions is still obscure, and the relationship between the intrinsic activity and catalyst loading needs to be addressed. Herein, electrooxidation reactions of benzyl alcohol and glycine were performed by an electrodeposited nickel electrode in 1 mol L−1 KOH. The effects of increased nickel hydroxide loadings and other changes induced by potential cycling on electrocatalytic activities were investigated by cyclic voltammetry. It should be noted that the reason for choice of these two substrates was because of their chemical structural simplicity, and conclusions from them can be easily applied to other alcohols or amino acids.

2. Results and Discussion

Cyclic voltammograms recorded during the growth of Ni(OH)2 film on electrodeposited Ni particles in 1.0 mol L−1 KOH are presented in Figure 1; the amount of electrodeposited Ni measured by chronoamperometry is 2.6 × 10−7 mol cm−2. It is calculated using the equation ΓNi = QNi/2FA, in which QNi can be calculated from the integration of current–time curve, F is the Faraday’s constant, and A is the geometric surface area of the copper electrode. The growth of the film is evident from the anodic- and cathodic-peak current density, which becomes more developed with an increasing number of potential cycles. It can be assumed that the reduction peak represents the conversion from nickel hydroxide to nickel oxyhydroxide, and the oxidation peak is caused by the oxidation of Ni (0) to Ni(OH)2 and the oxidation of Ni(OH)2 to NiOOH. Since the cathodic charge is almost equal to the anodic charge, a conclusion could be drawn that peak current contributed by the generation of Ni(OH)2 from Ni (0) in the oxidation-peak current is negligible. Here, cathodic charge was used to calculate the amount of Ni(OH)2. The variation of ΓNi(OH)2 with the number of potential cycles is presented in the inset of Figure 1. It is obvious that nickel hydroxide loadings on the copper electrode increase with the potential cycling, and the surface amount of nickel hydroxide increases to around 9 × 10−8 mol cm−2 within 80 cycles at a scan rate of 10 mV/s.
Different loadings of nickel hydroxide were generated by potential cycling of a nickel-film-modified electrode in 1 mol L−1 KOH. Nickel hydroxide loadings were calculated by integrating the Ni(OH)2/NiOOH oxidation wave, assuming one electron per Ni oxidized, the corresponding equation is ΓNi(OH)2 = QNi(OH)2/FA, where QNi(OH)2 is the cathodic-voltammetric charge corresponding to the oxidation process. The electrochemical activity of the catalyst upon different potential cycles was investigated for the benzyl alcohol electrooxidation in 1 mol L−1 KOH/0.02 mol L−1 benzyl alcohol solution at 298 K by cyclic voltammetry, with the addition of benzyl alcohol, the height of the anodic peak increases with the cathodic peak decreasing, the characteristic of a classical electrocatalytic mechanism (EC’) was observed in Figure 2a. A general mechanism for the oxidation of benzyl alcohol was proposed and shown in Scheme 1, based on previous work [7]. Meanwhile, an increasing anodic/cathodic current density was discovered with the increasing potential cycling number, when the anodic-peak current density was 3 mA cm−2 and with a catalyst loading of ~3 × 10−8 mol cm−2, while it was 5.5 mA cm−2 when the loading increased to ~1 × 10−7 mol cm−2 (Figure 2b inset). It is reasonable to conclude that more benzyl alcohol molecules can be electrochemically oxidized with the increasing concentration of nickel hydroxide. To evaluate whether intrinsic activity was independent of catalyst loading or not, the relative anodic-peak current densities jc/jb (jc and jb represent the anodic-peak current density in the presence or absence of benzyl alcohol, respectively) as a function of nickel hydroxide loadings was demonstrated in Figure 2b. It is obvious that intrinsic activity (the catalytic ability of per nickel hydroxide molecule) relative to benzyl alcohol decreases with the increasing total nickel hydroxide amount during potential cycling.
Nickel hydroxides formed by potential cycling and continuously precipitated on the outer surface of the film, based on Tucceri’s work [30], might result in a reduced conductivity of the electrode with the increasing cycling numbers. It should also be noted that the potential cycling approach involves a slow conversion of α-Ni(OH)2 to a more thermodynamically favored β-phase of Ni(OH)2 [22,23,24]. Compared to α-Ni(OH)2/γ-NiOOH, a more ordered β-Ni(OH)2/β-NiOOH displays a less accessible ion–solvent intercalation during electrocatalysis. Moreover, according to the studies of Nocera et al. in the nickel-based, oxygen-evolving catalyst γ-NiOOH [27], including a higher oxidation state of Ni than β-NiOOH, can favor the formation of hydroperoxy (OOH) species (key intermediates in the alcohol electrooxidation [22]), which make it more effective as a catalyst in the electrooxidation reaction toward benzyl alcohol.
Opposite behavior of electrocatalytic-peak current densities as a function of potential cycle numbers (loadings of nickel hydroxide) was observed in the study of glycine electrooxidation (Figure 3a,b inset). A more significant decrease of intrinsic activities dependent on nickel hydroxide loadings was discovered in glycine electrooxidation when compared with benzyl alcohol electrooxidation. If these two relationships can be treated approximately as linear relations, for the case of glycine electrooxidation, the slope is around −0.98 nmol−1 cm2, while it is around −0.011 nmol−1 cm2 for benzyl alcohol electrooxidation. Based on the studies of Fleischmann et al. [7], a possible reaction mechanism for Ni(OH)2-mediated glycine electrooxidation has been shown in Scheme 2.
Yodhida et al. discovered that a glycine molecule could combine with the NiO6 clusters by binding with NH2 and COOH groups, leading to the formation of NiOOH–glycine complex [31], therefore, it is reasonable to postulate that upon potential cycling, glycine molecules will transport into interlayers of NiOOH, resulting in the formation of a similar NiOOH–glycine complex with the diminishing of glycine-surface amount. It can be suggested that besides the electronic conductivity decreasing and structure changes, incorporation of glycine into the catalyst should also be responsible for the reduction of the catalytic activity in glycine electrooxidation.

3. Materials and Methods

Copper-electrode (d = 3.0 mm) modification with nickel films was achieved by electrodeposition in 1 mol L−1 NiSO4 + 0.5 mol L−1 H3BO3 electrolyte under constant potential −1.25 V (vs. Ag/AgCl, sat. KCl) for 60 s. Ninety-nine and nine-tenths percent nickel sulfate hexahydrate, 99% benzyl alcohol, 99% nickel nitrate hexahydrate, 99.99% potassium hydroxide, and 99.5% boric acid were purchased from Aladdin, and biotechnology-grade glycine was obtained from Macklin. All chemicals were used as received without further purification, and all solutions were prepared using ultrapure water (18.2 MΩ cm), which was made from a purifier ultrapure water system. Cyclic voltammetry was performed using an CHI440C electrochemical workstation (Chenhua, China), and the scan rate used was 10 mV/s. An electrochemical cell with a three-electrode configuration was used here, a platinum plate and an Ag/AgCl/KCl (sat.) were employed as counter and reference electrodes, respectively. All electrodes were obtained from Gaossunion (Wuhan, China).

4. Conclusions

In order to investigate the influence of potential cycling on catalytic abilities of nickel hydroxide-mediated small-molecule electrooxidation reactions, benzyl alcohol and glycine electrooxidation was achieved and characterized by cyclic voltammetry; different loadings of nickel hydroxide onto nickel films were obtained by using potential cycling as a simple approach. It was shown that for benzyl alcohol electrooxidation, intrinsic activities decrease with the increased loadings, this decreasing trend may be caused by the increase of surface resistance and structure variation of the catalyst. A more evident decreasing trend was discovered in glycine electrooxidation, and besides the two reasons noted above, this is also caused by the intercalation of glycine to interlayer with nickel oxyhydroxide. Further explanations for the observed phenomena are still under investigation. This work is a reminder that when looking into nickel-mediated, small-molecule electrocatalytic reactions in alkaline solutions, the potential cycling effect should not be overlooked.

Author Contributions

Y.W. performed the experiments; W.Z. contributed to the conceptualization and Writing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China under grant number 21962020.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vij, V.; Sultan, S.; Harzandi, A.M.; Meena, A.; Tiwari, J.N.; Lee, W.-G.; Yoon, T.; Kim, K.S. Nickel-Based Electrocatalysts for Energy-Related Applications: Oxygen Reduction, Oxygen Evolution, and Hydrogen Evolution Reactions. ACS Catal. 2017, 7, 7196–7225. [Google Scholar] [CrossRef]
  2. Miao, Y.; Ouyang, L.; Zhou, S.; Xu, L.; Yang, Z.; Xiao, M.; Ouyang, R. Electrocatalysis and electroanalysis of nickel, its oxides, hydroxides and oxyhydroxides toward small molecules. Biosens. Bioelectron. 2014, 53, 428–439. [Google Scholar] [CrossRef] [PubMed]
  3. Gong, M.; Dai, H. A mini review of NiFe-based materials as highly active oxygen evolution reaction electrocatalysts. Nano Res. 2015, 8, 23–39. [Google Scholar] [CrossRef]
  4. Louie, M.W.; Bell, A.T. An investigation of thin-film Ni-Fe oxide catalysts for the electrochemical evolution of oxygen. J. Am. Chem. Soc. 2013, 135, 12329–12337. [Google Scholar] [CrossRef] [PubMed]
  5. Goerlin, M.; Araújo, J.; Schmies, H.; Bernsmeier, D.; Dresp, S.; Gliech, M.; Jusys, Z.; Chernev, P.; Kraehnert, R.; Dau, H.; et al. Tracking catalyst redox states and reaction dynamics in Ni-Fe oxyhydroxide oxygen evolution reaction (OER) electrocatalysts: The role of catalyst support and electrolyte pH. J. Am. Chem. Soc. 2017, 139, 2070–2082. [Google Scholar] [CrossRef] [PubMed]
  6. Fleischmann, M.; Korinek, K.; Pletcher, D. The oxidation of organic compounds at a nickel anode in alkaline solution. J. Electroanal. Chem. Interfacial Electrochem. 1971, 31, 39–49. [Google Scholar] [CrossRef]
  7. Fleischmann, M.; Korinek, K.; Pletcher, D. The kinetics and mechanism of the oxidation of amines and alcohols at oxide-covered nickel, silver, copper, and cobalt electrodes. J. Chem. Soc. Perkin Trans. 1972, 2, 1396–1403. [Google Scholar] [CrossRef]
  8. Motheo, A.J.; Tremiliosi-filho, G.; Gonzalez, E.R.; Kokoh, K.B.; Le’ger, J.M.; Lamy, C. Electrooxidation of benzyl alcohol and benzaldehyde on a nickel oxy-hydroxide electrode in a filter-press type cell. J. Appl. Electrochem. 2006, 36, 1035–1061. [Google Scholar] [CrossRef]
  9. Ureta-Zañartu, M.S.; González, T.; Fernández, F.; Báez, D.; Berríos, C.; Gutiérrez, C. Electro-Oxidation of Benzyl and Aliphatic Alcohols on polyNiTSPc- and Ni(OH)2-Modified Glassy-Carbon and Gold Electrodes. Int. J. Electrochem. Sci. 2012, 7, 8794–8812. [Google Scholar]
  10. Vidotti, M.; Córdoba deTorresi, S.I.; Kubota, L.T. Electrochemical oxidation of glycine by doped nickel hydroxide modified electrode. Sens. Actuators B Chem. 2008, 135, 245–249. [Google Scholar] [CrossRef]
  11. Mohan, R.; Modak, A.; Schechter, A.; Cahan, R.; Gedanken, A.; Subramanian, P.; Sivakumar, P. Electrochemical oxidation of glycine by bimetallic nickel-manganese oxide catalysts. ChemElectroChem 2019. [Google Scholar] [CrossRef]
  12. Zhu, X.; Dou, X.; Dai, J.; An, X.; Guo, Y.; Zhang, L.; Tao, S.; Zhao, J.Y.; Chu, W.S.; Cheng, Z.; et al. Metallic Nickel Hydroxide Nanosheets Give Superior Electrocatalytic Oxidation of Urea for Fuel Cells. Angew. Chem. Int. Ed. 2016, 55, 12465–12469. [Google Scholar] [CrossRef] [PubMed]
  13. Boggs, B.K.; King, R.L.; Botte, G.G. Urea electrolysis: Direct hydrogen production from urine. Chem. Commun. 2009, 32, 4859–4861. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, D.; Yan, W.; Vijapur, S.H.; Botte, G.G. Enhanced electrocatalytic oxidation of urea based on nickel hydroxide nanoribbons. J. Power Sources 2012, 217, 498–502. [Google Scholar] [CrossRef]
  15. Raoof, J.B.; Ojani, R.; Abdi, S.; Hosseini, S.R. Highly improved electrooxidation of formaldehyde on nickel/poly (o-toluidine)/Triton X-100 film modified carbon nanotube paste electrode. Int. J. Hydrogen Energy 2012, 37, 2137–2146. [Google Scholar] [CrossRef]
  16. Giovanelli, D.; Lawrence, N.S.; Jiang, L.; Jones, T.; Compton, R.G. Electrochemical determination of sulphide at nickel electrodes in alkaline media: A new electrochemical sensor. Sens. Actuators B Chem. 2003, 88, 320–328. [Google Scholar] [CrossRef]
  17. Marshall, A.T.; Golovko, V.; Padayachee, D. Influence of gold nanoparticle loading in Au/C on the activity towards electrocatalytic glycerol oxidation. Electrochim. Acta 2015, 153, 370–378. [Google Scholar] [CrossRef]
  18. Quiñonero, J.; Gómez, R. Controlling the amount of co-catalyst as a critical factor in determining the efficiency of photoelectrodes: The case of nickel (II) hydroxide on vanadate photoanodes. Appl. Catal. B Environ. 2017, 217, 437–447. [Google Scholar] [CrossRef]
  19. Chen, Z.; Jaramillo, T.F.; Deutsch, T.G.; Kleiman-Shwarsctein, A.; Forman, A.; Gaillard, N.; Garland, R.; Takanabe, K.; Heske, C.; Sunkara, M.; et al. Accelerating materials development for photoelectrochemical hydrogen production: Standards for methods, definitions, and reporting protocols. J. Mater. Res. 2010, 25, 3–16. [Google Scholar] [CrossRef]
  20. Hoque, M.A.; Guzman, M.I. Photocatalytic Activity: Experimental Features to Report in Heterogeneous Photocatalysis. Materials 2018, 11, 1990. [Google Scholar] [CrossRef]
  21. Batchellor, A.S.; Boettcher, S.W. Pulse-Electrodeposited Ni-Fe (Oxy)hydroxide Oxygen Evolution Electrocatalysts with High Geometric and Intrinsic Activities at Large Mass Loadings. ACS Catal. 2015, 5, 6680–9668. [Google Scholar] [CrossRef]
  22. Hall, D.S.; Lockwood, D.J.; Bock, C.; MacDougall, B.R. Nickel hydroxides and related materials: A review of their structures, synthesis and properties. Proc. Math Phys. Eng. Sci. 2015, 471, 20140792. [Google Scholar] [CrossRef] [PubMed]
  23. Kowal, A.; Niewiara, R.; Perończyk, B.; Haber, J. In Situ Atomic Force Microscopy Observation of Change in Thickness of Nickel Hydroxide Layer on Ni Electrode. Langmuir 1996, 12, 2332–2333. [Google Scholar] [CrossRef]
  24. Delahaye-Vidal, A.; Beaudoin, B.; Sac-Epée, N.; Tekaia-Elhsissen, K.; Audemer, A.; Figlarz, M. Structural and textural investigations of the nickel hydroxide electrode. Solid State Ion. 1996, 84, 239–248. [Google Scholar] [CrossRef]
  25. Yeo, B.S.; Bell, A.T. In Situ Raman Study of Nickel Oxide and Gold-Supported Nickel Oxide Catalysts for the Electrochemical Evolution of Oxygen. J. Phys. Chem. C 2012, 116, 8394–8400. [Google Scholar] [CrossRef]
  26. Sharel, P.E.; Liu, D.; Lazenby, R.A.; Sloan, J.; Vidotti, M.; Patrick, P.R.; Macpherson, J.V. Electrodeposition of Nickel Hydroxide Nanoparticles on Carbon Nanotube Electrodes: Correlation of Particle Crystallography with Electrocatalytic Properties. J. Phys. Chem. C 2016, 120, 16059–16068. [Google Scholar]
  27. de Souza, L.M.M.; Kong, F.P.; McLarnon, F.R.; Muller, R.H. Spectroscopic Ellipsometry Study of Nickel Oxidation in Alkaline Solution. Electrochim. Acta 1997, 42, 1253–1267. [Google Scholar] [CrossRef]
  28. Casella, I.G.; Guascito, M.R.; Sannazzaro, M.G. Voltammetric and XPS investigations of nickel hydroxide electrochemically dispersed on gold surface electrodes. J. Electroanal. Chem. 1999, 462, 202–210. [Google Scholar] [CrossRef]
  29. Grdeñ, M.; Klimek, K. EQCM studies on oxidation of metallic nickel electrode in basic solutions. J. Electroanal. Chem. 2005, 581, 122–131. [Google Scholar] [CrossRef]
  30. Tucceri, R. Surface resistance change during nickel hydroxide phase transformations. J. Electroanal. Chem. 2017, 792, 104–109. [Google Scholar] [CrossRef]
  31. Yoshida, M.; Onishi, S.; Mitsutomi, Y.; Yamamoto, F.; Nagasaka, M.; Yuzawa, H.; Kosugi, N.; Kondoh, H. Integration of Active Nickel Oxide Clusters by Amino Acids for Water Oxidation. J. Phys. Chem. C 2017, 121, 255–260. [Google Scholar] [CrossRef]

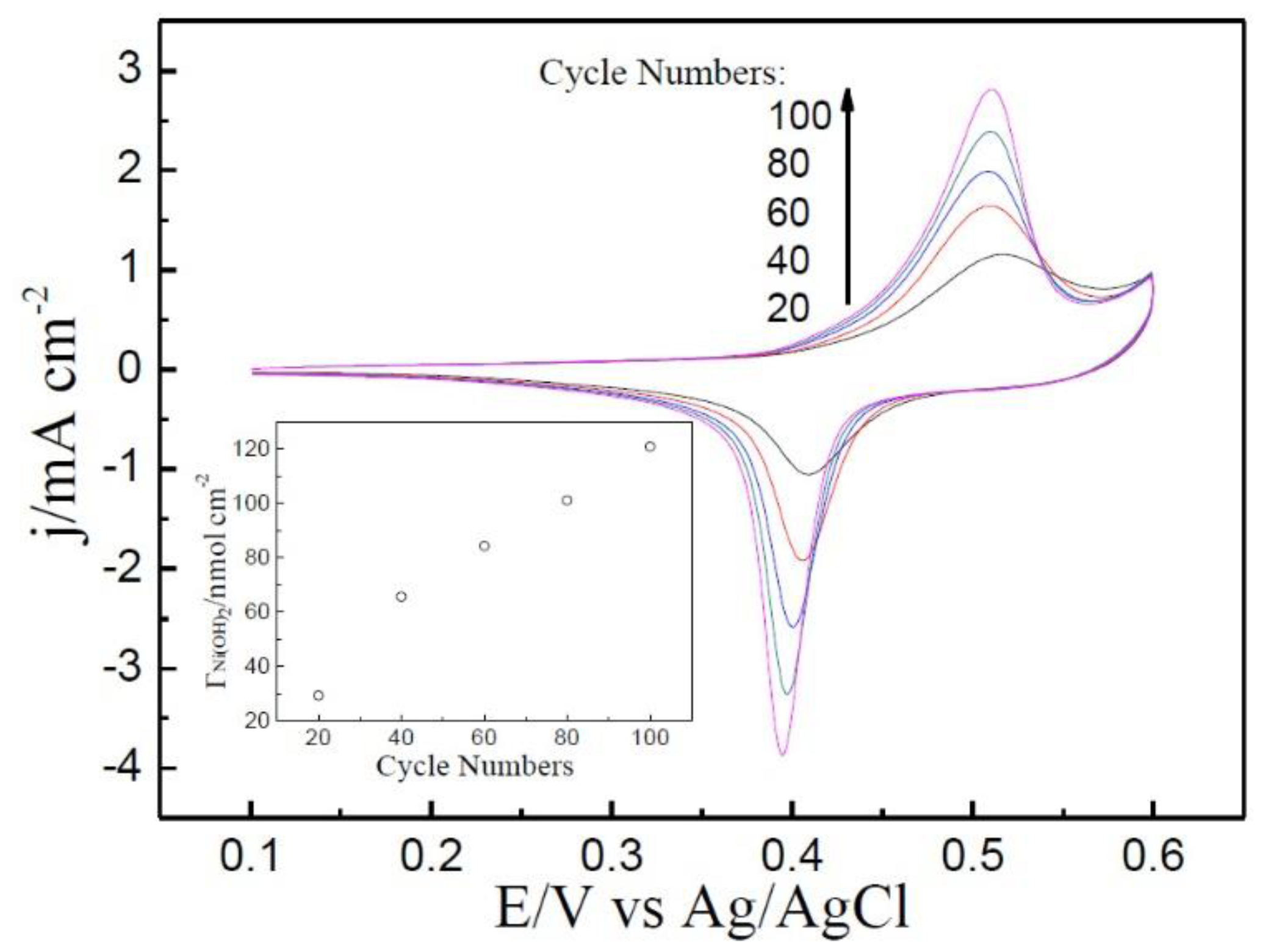

Figure 1. Cyclic voltammograms of the Ni electrode in 1 mol L−1 KOH under different potential cycles, inset: loadings of nickel hydroxide as a function of oxide-growth-cycle numbers.
Figure 1. Cyclic voltammograms of the Ni electrode in 1 mol L−1 KOH under different potential cycles, inset: loadings of nickel hydroxide as a function of oxide-growth-cycle numbers.
Catalysts 10 00119 g001

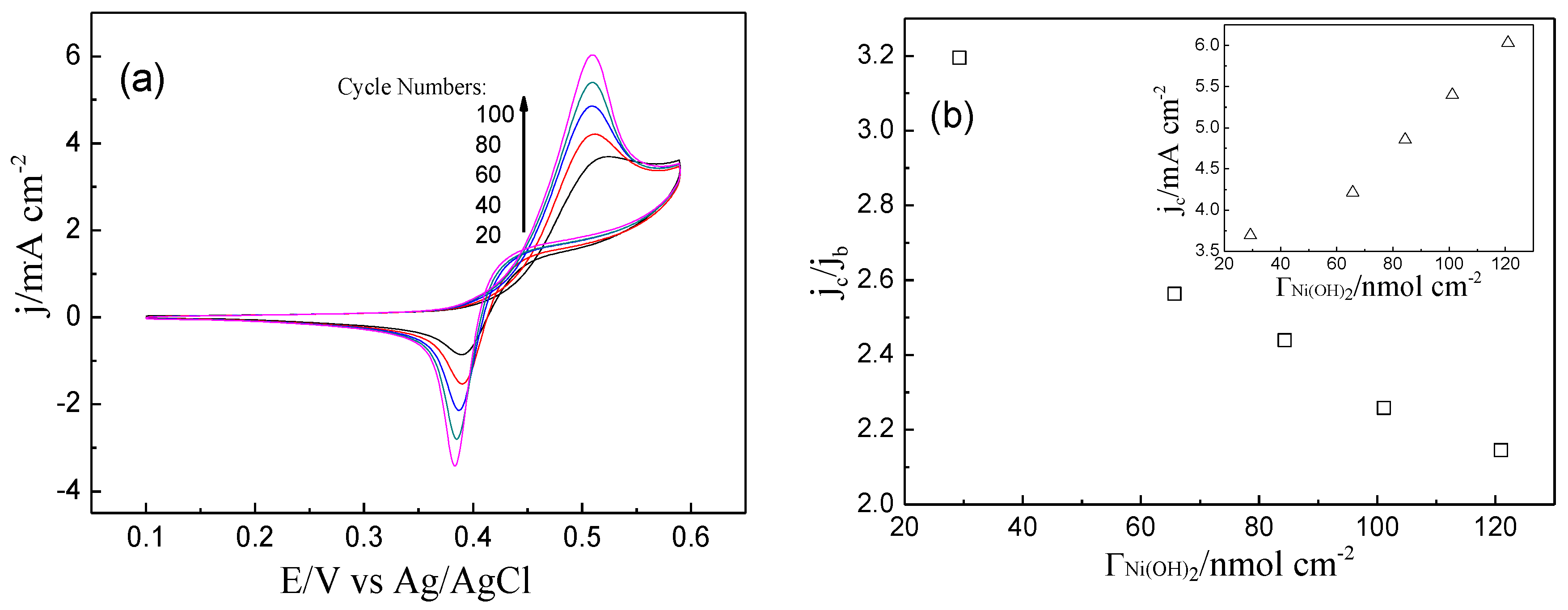

Figure 2. (a) Cyclic voltammograms of Ni in 1 mol L−1 KOH/20 mmol L−1 benzyl alcohol after submitting to 1 mol L−1 KOH upon different numbers of potential cycling, (b) relative anodic-peak current density and anodic-peak current density (inset) as a function of nickel hydroxide loadings for benzyl alcohol electrooxidation.
Figure 2. (a) Cyclic voltammograms of Ni in 1 mol L−1 KOH/20 mmol L−1 benzyl alcohol after submitting to 1 mol L−1 KOH upon different numbers of potential cycling, (b) relative anodic-peak current density and anodic-peak current density (inset) as a function of nickel hydroxide loadings for benzyl alcohol electrooxidation.
Catalysts 10 00119 g002
Scheme 1. Reaction mechanism of benzyl alcohol electrooxidation mediated by Ni(OH)2.
Scheme 1. Reaction mechanism of benzyl alcohol electrooxidation mediated by Ni(OH)2.
Catalysts 10 00119 sch001

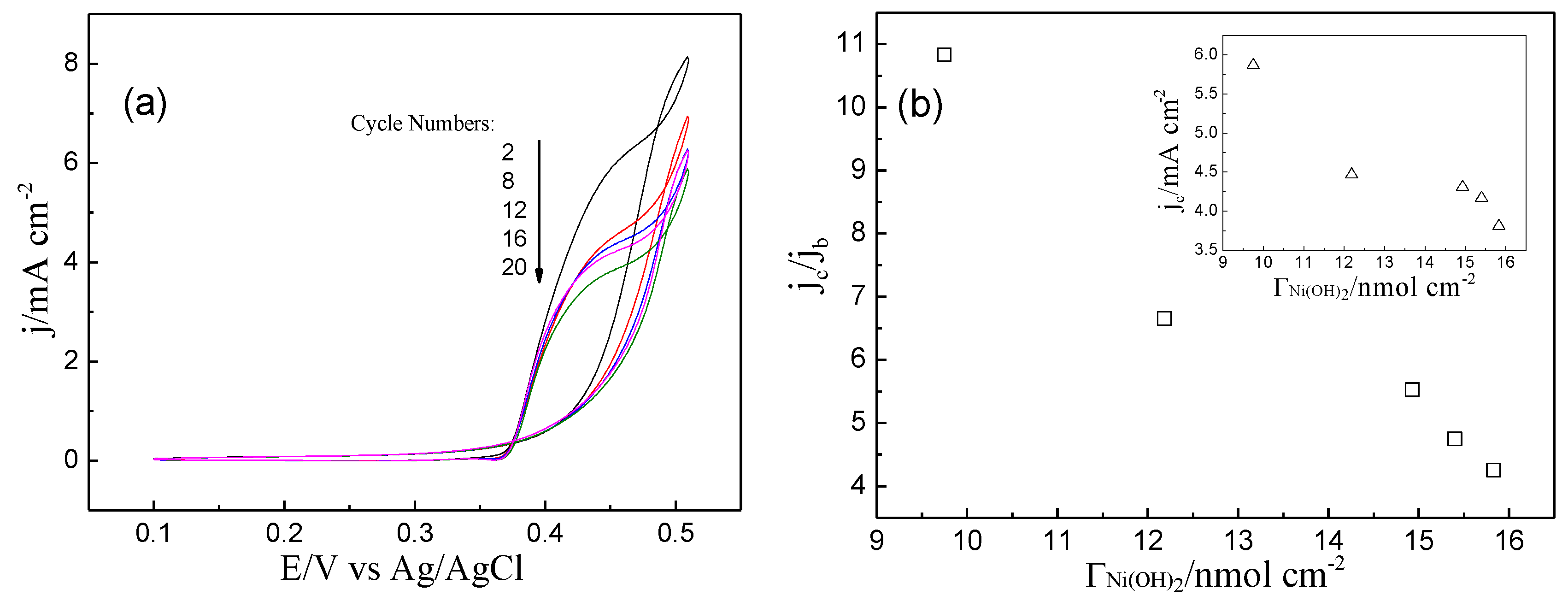

Figure 3. (a) Cyclic voltammograms of Ni in 1 mol L−1 KOH in the presence of 20 mmol L−1 glycine under different cycle numbers, (b) relative anodic-peak current density and anodic-peak current density (inset) as a function of nickel hydroxide loadings for glycine electrooxidation.
Figure 3. (a) Cyclic voltammograms of Ni in 1 mol L−1 KOH in the presence of 20 mmol L−1 glycine under different cycle numbers, (b) relative anodic-peak current density and anodic-peak current density (inset) as a function of nickel hydroxide loadings for glycine electrooxidation.
Catalysts 10 00119 g003

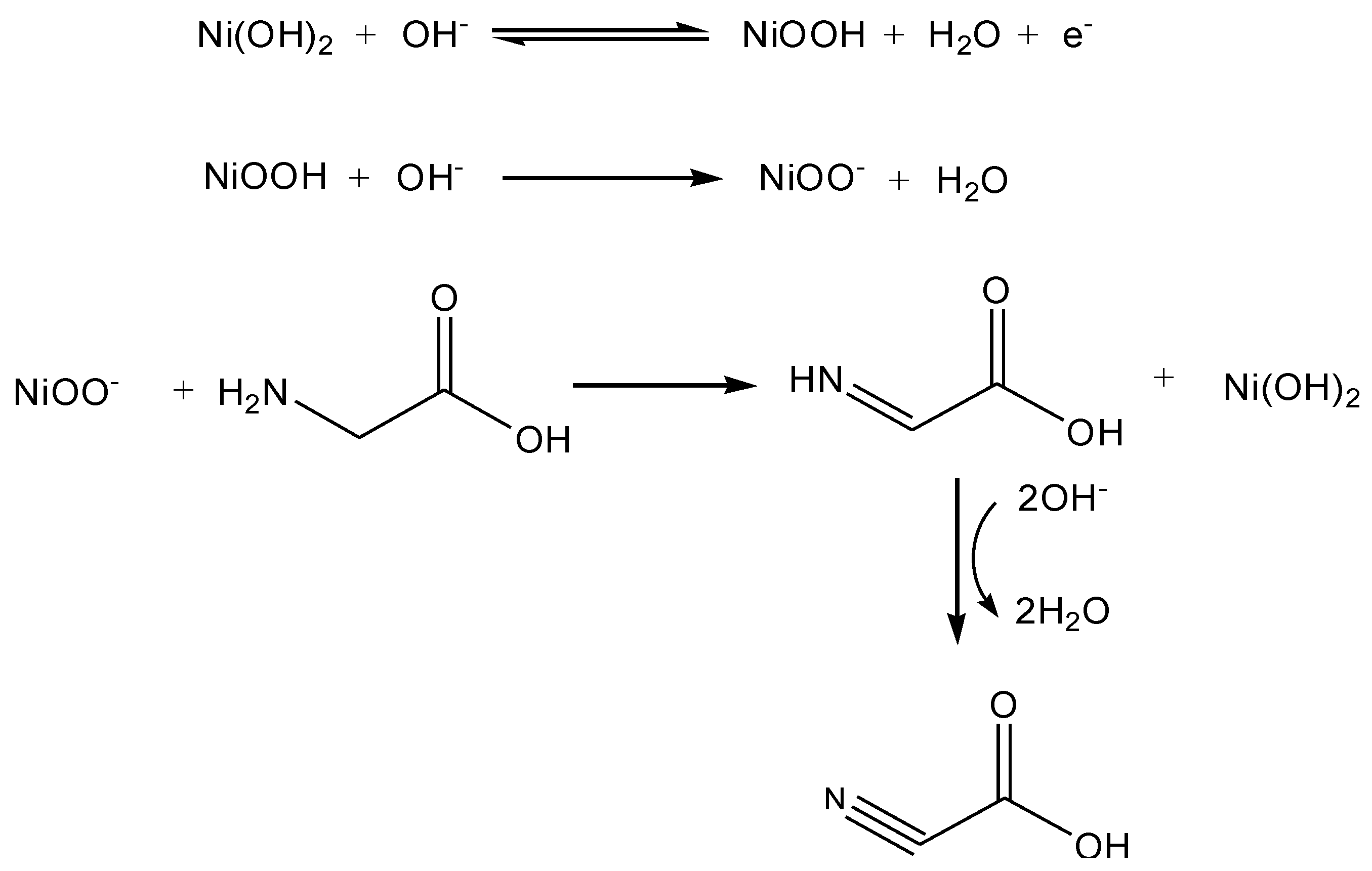

Scheme 2. Possible reaction scheme for the catalytic oxidation of glycine by Ni(OH)2.
