Sonographic Signatures of Immune Checkpoint Inhibitor-Associated Musculoskeletal Adverse Events
by
, , ,
Hans Vitzthum von Eckstaedt
1,
Kevin Weng
2,
Ingeborg Sacksen
1,
Rachael Stovall
1,
Petros Grivas
3,
Shailender Bhatia
3,
Evan Hall
3,
Scott Pollock
1 and
Namrata Singh
1,4,* 1
Division of Rheumatology, University of Washington, Seattle, WA 98195, USA
2
School of Public Health, University of Washington, Seattle, WA 98195, USA
3
Division of Hematology-Oncology, University of Washington, Seattle, WA 98109, USA
4
Department of Epidemiology, University of Washington, Seattle, WA 98195, USA
*
Author to whom correspondence should be addressed.
Cancers 2025, 17(14), 2344; https://doi.org/10.3390/cancers17142344
Submission received: 22 May 2025
/
Revised: 30 June 2025
/
Accepted: 4 July 2025
/
Published: 15 July 2025
(This article belongs to the Special Issue Cancer-Therapy-Related Adverse Events)
Simple Summary
Immune checkpoint inhibitors (ICIs), though effective for cancer treatment, can cause immune-related side effects such as inflammatory arthritis (IA) and polymyalgia rheumatica (PMR). This study examined musculoskeletal ultrasound (MSKUS) findings in patients with these ICI-related joint symptoms (MSK-irAEs). Among the 23 patients studied, 83% were diagnosed with MSK-irAEs, and 74% had ultrasound evidence of inflammation. Ultrasound findings led to treatment changes in 70% of cases and helped detect chronic inflammation, which had sometimes been missed for years. Additionally, MSKUS identified other causes of symptoms, supporting ICI continuation in some patients. This study concludes that MSKUS is valuable for both diagnosing and managing ICI-related musculoskeletal issues.
Abstract
Background: Immune checkpoint inhibitors (ICIs) transformed cancer treatment, producing significant survival benefits. However, ICIs can trigger toxicities called immune-related adverse events (irAEs), including inflammatory arthritis (IA) and polymyalgia rheumatica (PMR)-like syndromes. Our study aimed to systematically further characterize musculoskeletal ultrasound (MSKUS) findings in patients with ICI-IA and ICI-PMR, collectively referred to as “MSK-irAEs”, and explore the role of US in guiding treatment. Methods: The authors conducted a comprehensive chart review for patients receiving ICIs undergoing MSKUS at our center’s rheumatology clinics. US examinations were performed and reviewed by two MSKUS-certified rheumatologists. Descriptive statistics were performed to summarize demographic, clinical, and treatment-related variables. US findings were categorized with a novel scoring system: 0—no signs of inflammatory arthropathy or tendinopathy, 1—potential signs of inflammation (grayscale ≥ 2, effusion without power Doppler, synovial hypertrophy in the joint), and 2—active inflammation in joints and/or tendons (characterized by power Doppler) and signs of inflammation. Results: Twenty-three patients were included. The median age was 63 years, 52% were male, and 87% were White. Melanoma was the most common cancer (48%). MSK-irAEs were diagnosed in nineteen (83%), with MSKUS showing inflammation in seventeen (74%). Sixteen (70%) received escalation in MSK-irAE treatment after MSKUS. Four (17%) had erosive disease due to MSK-irAEs, while one had erosive osteoarthritis. Individuals with inflammatory erosive changes experienced prolonged intervals between symptom onset and MSKUS, ranging from 17 to 82 months, suggesting that erosions may reflect chronic, under-recognized inflammation. On MSK-irAE therapy, nine (47%) experienced symptomatic improvement, five (26%) achieved resolution, and in four (21%) cases, it was too early to assess the response. MSKUS detected other causes of MSK symptoms besides MSK-irAEs in several patients, allowing ICI resumption in one. Conclusions: Our study highlights the clinical utility of MSKUS not only as a diagnostic tool but also to guide therapeutic decision-making.
1. Introduction
Immune checkpoint inhibitors (ICIs) are immunomodulatory therapies that have transformed cancer treatment, resulting in significant survival benefits across numerous malignancies [1,2]. ICIs were first introduced in 2011 with the development of ipilimumab, an anti-cytotoxic T-lymphocyte-associated antigen-4 (CTLA-4) monoclonal antibody for melanoma [3]. Over the years, the number of available ICIs and their indications has expanded substantially, now including renal, gastric, esophageal, colorectal, lung, and breast cancers, amongst others [4,5,6].
ICIs function by targeting the key regulatory pathways of cytotoxic T-cells, such as CTLA-4, the programmed cell death protein-1 (PD-1)/programmed death ligand-1 (PD-L1) axis, and more recently, lymphocyte activation gene 3 (LAG3), effectively releasing the “brakes” on T-cells and enhancing their ability to eliminate tumor cells [7,8]. However, this non-specific immune activation can trigger a broad range of toxicities known as immune-related adverse events (irAEs) [9,10]. IrAEs can affect nearly any organ system, including multiple at the same time, ranging from the skin to the lungs, and include toxicities resembling rheumatologic diseases [11,12]. Among rheumatologic irAEs, inflammatory arthritis (ICI-IA) and polymyalgia rheumatica-like syndromes (ICI-PMR) are among the most common and persistent manifestations [13,14]. ICI-IA exhibits a wide range of clinical phenotypes, including self-limited oligoarthritis, a spondyloarthritis-like disease, and chronic, erosive arthritis resembling rheumatoid arthritis (RA) [15,16]. While enthesitis and tenosynovitis are distinct from arthritis, most of the literature has grouped the three conditions, when related to ICIs, under the same term of “ICI arthritis”. These manifestations may develop during or after ICI therapy and often persist for months or even years after treatment cessation [15,17].
Despite the increasing recognition of ICI-IA and ICI-PMR, these conditions remain under-characterized, particularly with respect to imaging. Musculoskeletal ultrasound (MSKUS) has become a widely adopted tool for evaluating inflammatory arthritis due to its ability to detect active synovitis, tenosynovitis, enthesitis, and erosions, even in subclinical disease states [18,19,20]. Several small observational studies have begun to explore the role of MSKUS in ICI-IA, providing early insights into disease patterns and burden. For example, Albayda et al. identified MSKUS evidence of synovitis and tenosynovitis in nine patients with new-onset arthritis after ICI therapy, with findings resembling RA in several cases [21]. More recently, Nasrallah et al. examined MSKUS findings in 34 patients with definite ICI-IA, concluding that point-of-care MSKUS is a valuable tool for evaluating potential musculoskeletal irAEs [22]. However, distinct ultrasonographic ICI-IA phenotypes remain under-characterized. Furthermore, the utility of MSKUS in monitoring disease progression or informing treatment decisions, such as corticosteroid tapering, disease-modifying anti-rheumatic drug (DMARD) initiation, or other therapy escalation, has not been fully established.
As more patients live longer with both cancer and chronic ICI-related inflammation, there is an urgent need to better define the imaging features of ICI-IA and ICI-PMR. In this study, we aimed to systematically characterize musculoskeletal US findings in patients with ICI-IA and ICI-PMR and explore their potential role in clinical phenotyping and treatment guidance. For simplicity, we refer to ICI-induced arthritis, enthesitis, tenosynovitis, and PMR collectively as “musculoskeletal irAEs” (MSK-irAEs) throughout this paper.
2. Methods
2.1. Patient Identification
Eligible patients were identified using Epic’s SlicerDicer tool (https://health.ucdavis.edu/data/epic-slicer-dicer.html). The initial query included all patients with cancer who received ICI therapy between 25 March 2011—the date of ipilimumab’s FDA approval—and 1 April 2025. This cohort was then narrowed to include only those who underwent MSKUS evaluations in the rheumatology clinics at our tertiary care center.
The initial filtering process yielded 187 patients. Study authors conducted comprehensive chart reviews to identify all patients referred specifically for evaluations of inflammatory musculoskeletal diseases potentially related to ICI-based therapy. From this group, a cohort of twenty-two patients was identified as having been referred for MSKUS for suspected MSK-irAEs. An additional patient was captured after the initial query as they underwent MSKUS to evaluate for an MSK-irAE in late April 2025, bringing the final cohort of patients to twenty-three. Demographics, related treatment, and relevant clinical data were extracted from these patients for further descriptive analysis.
This study was approved by the institutional review board at the University of Washington (#00016111).
2.2. Patient Classification
Patients were diagnosed with MSK-irAEs based on a combination of MSKUS results, the presence of inflammatory synovial fluid (when available), and a chart review of each patient’s primary rheumatologist’s clinical assessment. The response to therapy was determined by reviewing notes from each patient’s primary rheumatologist while on the therapy. These were categorized into patients with resolved disease, those with improved disease, those in whom it was too early to assess the response to therapy, and patients who were deceased prior to starting therapy following MSKUS. Those deemed “too early to assess response” had either not been followed up with yet after a therapy change or had not had an adequate amount of time with which to assess the response.
2.3. Musculoskeletal Ultrasound Evaluation
All patients were referred for an MSKUS examination by their consulting rheumatologist at the University of Washington Medical Center. The MSKUS investigations were requested to further clarify the etiology of the patient’s musculoskeletal pains. All patients were clinically suspected of or previously diagnosed as having an MSK-irAE. Depending on the clinical presentation, one of the following US exams was performed: the standard European League Against Rheumatism/American College of Rheumatology (EULAR/ACR) protocol on symptomatic and contralateral joints for comparison, the ARCTIC (modified) synovitis examination of involved joints, or enthesitis examinations (Madrid Sonographic Enthesitis Index (MASEI) protocol) [23,24,25]. When clinically appropriate, joint aspirations or steroid injections were performed.
MSKUS studies were performed on a GE LOGIQ P9 US machine with the grayscale setting optimized for each joint, using the highest frequency to optimize the joints being evaluated. The L 4–12 MHz linear phased array transducer (General Electric, Boston, MA, USA) was used for deeper joints, and the L8-18i MHz hockey stick transducer was used for more superficial joints [26]. Power Doppler settings were adjusted to accurately evaluate low flow vascularity, with a pulse repletion frequency (PRF) of 0.6mHz and gain adjusted per ACR/EULAR recommendations [27].
All MSKUS examinations were performed by one of two rheumatologists certified in MSKUS (Examiner 1—American Registry for Diagnostic Medical Sonography (ARDMS)-certified with 20 years of experience or Examiner 2—Musculoskeletal Ultrasound Certification in Rheumatology (RhMSUS)-certified with 12 years of experience). Individual joints were scanned in 2 orthogonal planes (long and short axis) following the standard scanning protocols recommended by ACR/EULAR [26]. The findings were defined according to published Outcome Measures in Rheumatoid Arthritis Clinical Trials (OMERACT) definitions, while a semiquantitative scoring system was used for synovial hypertrophy and power Doppler according to EULAR/OMERACT systems [28]. The joints were assessed for the presence of synovial hypertrophy, effusion, and power Doppler, the tendons were assessed for edema, calcifications, enthesopathy, and power Doppler, and the bone cortical surfaces were assessed for erosions and osteophytes.
The patients’ MSKUS findings were categorized with the following novel scoring system: 0—no signs of inflammatory arthropathy or tendinopathy, 1—potential signs of inflammation (grayscale ≥ 2, effusion without power Doppler, synovial hypertrophy in the joint), and 2—active inflammation in joints and/or tendons (characterized by power Doppler) and signs of inflammation. MSKUS images were reviewed independently by both certified examiners with 100% inter-examiner reliability.
2.4. Statistical Analysis
Descriptive statistics were performed and calculated in Microsoft Excel for the entire patient cohort to summarize demographic, clinical, and treatment-related variables. Measures of central tendency and dispersion (e.g., means, medians, and standard deviations) were used for continuous variables, while categorical variables were summarized using frequencies and percentages.
3. Results
3.1. Demographic and Clinical Characteristics
Demographic and clinical data of the 23 included patients are presented in Table 1. The mean age of patients was 61 years while the median was 62 years, with most patients being male (n = 12, 52%). Most patients (n = 20) were White, while the remainder were Asian (n = 3). Melanoma was the most common malignancy, accounting for 48% (n = 11) of cases, with three cases each of renal-cell carcinoma and breast cancer, two cases each of lung cancer and urothelial carcinoma, and a single case each of endometrial carcinoma and neuroendocrine carcinoma. PD-1 inhibitors were the most common ICI used, with fifteen patients (65%) receiving them. Other patients received either combination therapy with CTLA-4 and PD-1 or PD-1 and LAG3, or monotherapy with PDL-1 ICIs. Additional immune-related adverse events (irAEs) were identified in 48% of patients (n = 11).
Most patients (n = 15) developed symptoms concerning MSK-irAEs while actively receiving an ICI, and the remainder (n = 8) developed them following therapy cessation or completion. The mean (SD) number of ICI cycles prior to symptom onset was 7.7 months (6.92), with a wide range observed. The mean (SD) time from symptom onset to MSKUS was 12.74 (17.9) months, while the median (IQR) time was 5 (14.5) months. Median follow-up from MSKUS in those diagnosed with an MSK-irAE was 7 months, with a range of 1–20 months.
Nine patients underwent MSKUS while still actively receiving ICI therapy. Seventeen patients received treatment for MSK-irAE prior to their US, though only eleven remained on MSK-irAE-directed therapy at the time of imaging. Oral steroids were the most common treatment prior to US (n = 17). Three patients received intra-articular steroid injections, seven received csDMARDs, and two received biologics. At the time of US, eight patients were on steroid monotherapy, two were on a combination of csDMARDs and steroids, and one was receiving a biologic. Twelve patients were on no therapy at the time of their US.
3.2. Diagnosis and Ultrasound Findings
Representative US findings are depicted in Figure 1, while the results of patients’ US are expressed in Table 2. In total, 83% of patients (n = 19) were diagnosed with an MSK-irAE. Seventeen patients had signs of inflammation on their ultrasound, with scores of either 1 or 2, while two patients scored a 0. Fourteen patients exhibited active joint inflammation, most frequently affecting the knees (n = 9), followed by the hands, including metacarpophalangeal joints (MCP), proximal interphalangeal joints (PIP), and distal interphalangeal joints (DIP), as well as ankles, wrists, and elbows.
US findings are categorized with the following scoring system: 0—no signs of inflammatory arthropathy or tendinopathy, 1—potential signs of inflammation (grayscale ≥ 2, effusion without power Doppler, synovial hypertrophy in the joint), and 2—active inflammation in joints and/or tendons (characterized by power Doppler) and signs of inflammation.
Tendon involvement (tenosynovitis or enthesitis) secondary to an MSK-irAE was present in eight patients. An additional patient had DeQuervain’s tenosynovitis that was deemed to be unrelated to their MSK-irAE. This patient was diagnosed with an MSK-irAE primarily based on their clinical course. Inflammatory tendon findings occurred at the patellar tendon, distal quadriceps tendon, posterior tibial tendon, wrist extensors, biceps tendon, distal interphalangeal (DIP) extensor, metacarpophalangeal (MCP) extensor, Achilles tendon, plantar aponeurosis, extensor pollicis brevis, abductor pollicis longus, and triceps tendon.
Five patients had evidence of inflammation in both joints and tendon structures. Effusions were identified most commonly in knees and were also seen in ankles, wrists, and hands. Synovial fluid analysis was available for six patients with MSK-irAEs, all of which were inflammatory and from the knee joints. MSKUS-detected erosions were present in four patients with MSK-irAEs and one patient with erosive osteoarthritis (OA). Enthesophytes were detected in a single patient with an MSK-irAE, as well as in one patient with non-inflammatory pain.
3.3. Therapeutic Changes Following Ultrasound
Information on therapeutic changes is shown in Table 1. Following MSKUS, sixteen patients had therapy escalations, including oral steroids (n = 5), intra-articular steroid injections (n = 7), csDMARDs (n = 7), and biologic therapy (n = 1), while one patient remained undecided between csDMARDs or biologic therapy at the time of data collection (Table 3). A patient who was found to have diffuse enthesitis was switched from rituximab to adalimumab, with no response to the former; an assessment of response to the latter is ongoing. Another patient had inflammation upon MSKUS; however, she elected to enter hospice care and passed away prior to initiating any new therapy for her MSK-irAE. Four patients required additional therapeutic alterations beyond their initial post-US treatment.
Regarding outcomes following therapy changes, five patients achieved the complete resolution of MSK-irAE symptoms, and nine patients demonstrated clinical improvements at follow-up. Three patients had only recently initiated new therapies and had not yet been assessed for their response, while one patient passed away prior to evaluation. One patient was still deciding on the therapy with which to address their MSK-irAE. Three patients had their ICI halted due to concerns of an MSK-irAE prior to US. One of these patients resumed their ICI after their MSKUS findings revealed carpal tunnel syndrome rather than an MSK-irAE, while two patients remained off therapy.
4. Discussion
In our small cohort of 23 patients who underwent MSKUS for evaluation of MSK complaints following ICI treatment initiation, MSKUS confirmed MSK-irAEs in 83% of patients (n = 17), most commonly showing joint and tendon inflammation, effusions, and erosions. Following imaging, sixteen (74%) patients received therapy escalation (steroids, csDMARDs, or biologics), with most achieving symptom improvement. Immune checkpoint inhibitor (ICI) therapy had been discontinued in three cases prior to MSKUS, although one patient later resumed treatment after re-evaluation.
With the expanding use of ICIs in cancer treatment, rheumatic irAEs are being reported with greater frequency. Among these, ICI-IA and ICI-PMR are among the most prevalent. ICI-IA presents with significant heterogeneity in terms of anatomical involvement, disease burden, and chronicity. A critical clinical task is to distinguish true MSK-irAEs from non-inflammatory causes of musculoskeletal pain. This differentiation is essential for several reasons: it enables the timely initiation of appropriate treatments to minimize patient pain and disability, prevents the unnecessary use of immunosuppressive agents, and helps avoid the premature discontinuation of ICIs, which may otherwise compromise oncologic outcomes.
Importantly, our study highlights the clinical utility of MSKUS not only as a diagnostic tool but also to help guide therapeutic decision-making. Nearly all patients with active inflammation on their MSKUS underwent changes in management, except for one individual who transitioned to hospice care. One notable case involved a patient with diffuse enthesitis on imaging and refractory symptoms despite the prior use of steroids, methotrexate, and rituximab. The MSKUS findings suggested a peripheral spondyloarthritis-like phenotype, prompting the initiation of adalimumab. Overall, most patients who received MSK-irAE treatment modifications based on MSKUS findings experienced symptomatic improvement or resolution, suggesting a role for MSKUS in facilitating targeted, individualized care. MSKUS also helped unearth other pathologies of pain and/or rule out MSK-irAEs in several of our patients, preventing the initiation of unneeded immunosuppressive medications, as well as allowing for ICI resumption in one patient. These findings suggest the integration of MSKUS into the diagnostic and therapeutic algorithm for patients with suspected MSK-irAEs, with the potential to improve outcomes through earlier interventions and more precise treatment selection.
Our findings are consistent with prior studies reporting the broad spectrum of MSKUS findings in these pathologies, which can include synovitis, tenosynovitis, enthesitis, and erosive disease [21,22]. Within our cohort, the knee was the most frequently affected joint and the most aspirated site for inflammatory synovial fluid. Tendinous involvement, including tenosynovitis and enthesitis, was also commonly observed. Structural changes, such as erosions and enthesophytes, were present in several patients. Notably, individuals with erosive changes often experienced prolonged intervals between symptom onset and MSKUS evaluation—ranging from 17 to 82 months—suggesting that such findings may reflect chronic, under-recognized inflammation. In RA, for comparison, erosive damage starts within and is the most rapid during the first five years of diagnosis, with undertreated or untreated disease leading to often permanent harm [29,30]. These observations underscore the need for early recognition and monitoring of MSK-irAEs to prevent irreversible joint damage.
Despite the valuable insights provided by our study, several limitations should be acknowledged. First, the retrospective design and reliance on chart review inherently introduce several potential biases, including variability in documentation and missing clinical details. Our sample may not be fully representative of the MSK-irAE population as a whole, as rheumatology providers may also differ in how likely they are to refer a patient for MSKUS. MSKUS also follows specific protocols (i.e., ARCTIC or MASEI) depending on the presumed affected joints and may miss inflamed but clinically silent joints or entheses. Additionally, numerous patients had already been initiated on therapy prior to undergoing MSKUS, which may have influenced the imaging findings, clinical outcomes, and subsequent clinical decisions. Finally, the relatively small sample size in a single tertiary center significantly limits the generalizability of our conclusions and reduces the statistical power to pursue further analyses. Therefore, our findings are hypothesis-generating and require further external validation in larger studies.
Looking into the future, additional research is needed to clarify the role of MSKUS in the clinical phenotyping of MSK-irAEs, such as rheumatoid arthritis-like versus spondyloarthritis-like disease, and determine how specific imaging patterns, such as tendon vs. joint involvement, may inform personalized treatment strategies. Such work could support more nuanced therapeutic algorithms based on imaging-guided classification. In parallel, broader access to MSKUS remains an important goal, as its availability is currently constrained by the small supply of providers with specialized training in this modality, their lack of administrative support, and their limited time to perform such tests [31]. Expanding training opportunities and incorporating MSKUS into routine rheumatologic evaluation may enhance diagnostic precision and optimize patient care.
5. Conclusions
Our study highlights the clinical utility of MSKUS not only as a diagnostic tool but also to guide therapeutic decision-making.
Author Contributions
H.V.v.E.: data acquisition, analysis, draft writing, and final approvals; K.W.: data acquisition, draft writing, and approval; I.S. and S.P.: data gathering, including performance of MSKUS; P.G., S.B., R.S. and E.H.: approval of manuscript and data gathering; N.S.: study conception, data gathering, and draft approvals. All authors have read and agreed to the published version of the manuscript.
Funding
Dr Singh is supported by the NIAMS under Award Number K23AR079588 and by the NIA under Award Number R03AG082857. Dr. Stovall is supported by the Spondyloarthritis Research & Treatment Network’s Early Career Investigator Award and the Spondylitis Association of America Jane Bruckel Early Career Investigator Award.
Institutional Review Board Statement
This study was approved by the institutional review board of the University of Washington (#00016111 and #00023197, approved on 19 October 2022).
Informed Consent Statement
Verbal informed consent was obtained from the participants. The rationale for utilizing verbal consent is that care was being provided for their clinical care.
Data Availability Statement
The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.
Conflicts of Interest
NS: Consultant for MustangBio. RS: None. IS: None. PG: In the last 2 years (unrelated to this manuscript): consulting with MSD, Bristol Myers Squibb, AstraZeneca, EMD Serono, Pfizer, Janssen, Roche, Astellas Pharma, Gilead Sciences, Fresenius Kabi, Strata Oncology, AbbVie, Bicycle Therapeutics, Replimune, Daiichi Sankyo, Foundation Medicine, and Eli Lilly; research funding from Bristol-Myers Squibb, MSD, QED Therapeutics, EMD Serono, Gilead Sciences, Acrivon Therapeutics, ALX Oncology, and Genentech (paid to institution). HVvE: None. KW: None. SP: None.
References
- Rotte, A.; Jin, J.Y.; Lemaire, V. Mechanistic Overview of Immune Checkpoints to Support the Rational Design of Their Combinations in Cancer Immunotherapy. Ann. Oncol. 2018, 29, 71–83. [Google Scholar] [CrossRef] [PubMed]
- Brown, L.J.; da Silva, I.P.; Moujaber, T.; Gao, B.; Hui, R.; Gurney, H.; Carlino, M.; Nagrial, A. Five-year Survival and Clinical Correlates among Patients with Advanced Non-small Cell Lung Cancer, Melanoma and Renal Cell Carcinoma Treated with Immune Check-point Inhibitors in Australian Tertiary Oncology Centres. Cancer Med. 2022, 12, 6788–6801. [Google Scholar] [CrossRef] [PubMed]
- Hodi, F.S.; O’Day, S.J.; McDermott, D.F.; Weber, R.W.; Sosman, J.A.; Haanen, J.B.; Gonzalez, R.; Robert, C.; Schadendorf, D.; Hassel, J.C.; et al. Improved Survival with Ipilimumab in Patients with Metastatic Melanoma. N. Engl. J. Med. 2010, 363, 711–723. [Google Scholar] [CrossRef] [PubMed]
- The CRI Timeline. 2023. Available online: https://www.cancerresearch.org/timeline (accessed on 24 April 2025).
- Scott, E.C.; Baines, A.C.; Gong, Y.; Moore, R., Jr.; Pamuk, G.E.; Saber, H.; Subedee, A.; Thompson, M.D.; Xiao, W.; Pazdur, R.; et al. Trends in the Approval of Cancer Therapies by the FDA in the Twenty-First Century. Nat. Rev. Drug Discov. 2023, 22, 625–640. [Google Scholar] [CrossRef] [PubMed]
- Korman, A.J.; Garrett-Thomson, S.C.; Lonberg, N. The Foundations of Immune Checkpoint Blockade and the Ipilimumab Approval Decennial. Nat. Rev. Drug Discov. 2021, 21, 509–528. [Google Scholar] [CrossRef] [PubMed]
- Sadeghi Rad, H.; Monkman, J.; Warkiani, M.E.; Ladwa, R.; O’Byrne, K.; Rezaei, N.; Kulasinghe, A. Understanding the Tumor Microenvironment for Effective Immunotherapy. Med. Res. Rev. 2020, 41, 1474–1498. [Google Scholar] [CrossRef] [PubMed]
- Kuske, M.; Haist, M.; Jung, T.; Grabbe, S.; Bros, M. Immunomodulatory Properties of Immune Checkpoint Inhibitors—More than Boosting T-Cell Responses? Cancers 2022, 14, 1710. [Google Scholar] [CrossRef] [PubMed]
- Naidoo, J.; Page, D.B.; Li, B.T.; Connell, L.C.; Schindler, K.; Lacouture, M.E.; Postow, M.A.; Wolchok, J.D. Toxicities of the Anti-PD-1 and Anti-PD-L1 Immune Checkpoint Antibodies. Ann. Oncol. 2015, 26, 2375–2391. [Google Scholar] [CrossRef] [PubMed]
- Yan, T.; Yu, L.; Zhang, J.; Chen, Y.; Fu, Y.; Tang, J.; Liao, D. Achilles’ Heel of Currently Approved Immune Checkpoint Inhibitors: Immune Related Adverse Events. Front. Immunol. 2024, 15, 1292122. [Google Scholar] [CrossRef] [PubMed]
- Wan, G.; Chen, W.; Khattab, S.; Roster, K.; Nguyen, N.; Yan, B.; Rajeh, A.; Seo, J.; Rashdan, H.; Zubiri, L.; et al. Multi-Organ Immune-Related Adverse Events from Immune Checkpoint Inhibitors and Their Downstream Implications: A Retrospective Multicohort Study. Lancet Oncol. 2024, 25, 1053–1069. [Google Scholar] [CrossRef] [PubMed]
- Michot, J.M.; Bigenwald, C.; Champiat, S.; Collins, M.; Carbonnel, F.; Postel-Vinay, S.; Berdelou, A.; Varga, A.; Bahleda, R.; Hollebecque, A.; et al. Immune-Related Adverse Events with Immune Checkpoint Blockade: A Comprehensive Review. Eur. J. Cancer 2016, 54, 139–148. [Google Scholar] [CrossRef] [PubMed]
- Roberts, J.; Ennis, D.; Hudson, M.; Ye, C.; Saltman, A.; Himmel, M.; Rottapel, R.; Pope, J.; Hoa, S.; Tisseverasinghe, A.; et al. Rheumatic Immune-Related Adverse Events Associated with Cancer Immunotherapy: A Nationwide Multi-Center Cohort. Autoimmun. Rev. 2020, 19, 102595. [Google Scholar] [CrossRef] [PubMed]
- Cho, L.K.; Jamal, S. De Novo Connective Tissue Disorders as Immune-Related Adverse Events. Rheum. Dis. Clin. N. Am. 2024, 50, 301–312. [Google Scholar] [CrossRef] [PubMed]
- Gómez-Puerta, J.A.; Lobo-Prat, D.; Perez-García, C.; Ponce, A.; Frade-Sosa, B.; Millán Arciniegas, A.M.; Ojeda, F.; Ruiz-Esquide, V.; Corominas, H. Clinical Patterns and Follow-Up of Inflammatory Arthritis and Other Immune-Related Adverse Events Induced by Checkpoint Inhibitors. A Multicenter Study. Front. Med. 2022, 9, 888377. [Google Scholar] [CrossRef] [PubMed]
- Cappelli, L.C.; Gutierrez, A.K.; Baer, A.N.; Albayda, J.; Manno, R.L.; Haque, U.; Lipson, E.J.; Bleich, K.B.; Shah, A.A.; Naidoo, J.; et al. Inflammatory Arthritis and Sicca Syndrome Induced by Nivolumab and Ipilimumab. Ann. Rheum. Dis. 2017, 76, 43–50. [Google Scholar] [CrossRef] [PubMed]
- Jamal, S.; Hudson, M.; Fifi-Mah, A.; Ye, C. Immune-Related Adverse Events Associated with Cancer Immunotherapy: A Review for the Practicing Rheumatologist. J. Rheumatol. 2019, 47, 166–175. [Google Scholar] [CrossRef] [PubMed]
- Takase-Minegishi, K.; Horita, N.; Kobayashi, K.; Yoshimi, R.; Kirino, Y.; Ohno, S.; Kaneko, T.; Nakajima, H.; Wakefield, R.J.; Emery, P. Diagnostic Test Accuracy of Ultrasound for Synovitis in Rheumatoid Arthritis: Systematic Review and Meta-Analysis. Rheumatology 2017, 57, 49–58. [Google Scholar] [CrossRef] [PubMed]
- Rezaei, H.; Torp-Pedersen, S.; af Klint, E.; Backheden, M.; Kisten, Y.; Györi, N.; van Vollenhoven, R.F. Diagnostic Utility of Musculoskeletal Ultrasound in Patients with Suspected Arthritis—A Probabilistic Approach. Arthritis Res. Ther. 2014, 16, 448. [Google Scholar] [CrossRef] [PubMed]
- Bibas, N.; Pignon, C.; Lopez-Medina, C.; Gandjbakhch, F.; Fautrel, B.; Gossec, L. Ultrasonography for the Assessment of Enthesitis in Psoriatic Arthritis: Systematic Review with Meta-Analysis. Rheumatology 2024, 64, 2377–2384. [Google Scholar] [CrossRef] [PubMed]
- Albayda, J.; Dein, E.; Shah, A.A.; Bingham, C.O., III; Cappelli, L. Sonographic Findings in Inflammatory Arthritis Secondary to Immune Checkpoint Inhibition: A Case Series. ACR Open Rheumatol. 2019, 1, 303–307. [Google Scholar] [CrossRef] [PubMed]
- Nasrallah, M.; Challener, G.; Schoenfeld, S.; Matza, M.; Lawrence, D.; Mooradian, M.J.; Reynolds, K.L.; Sullivan, R.J.; Kohler, M.J. Musculoskeletal Ultrasound Characteristics of Checkpoint Inhibitor-Associated Inflammatory Arthritis. Semin. Arthritis Rheum. 2024, 69, 152573. [Google Scholar] [CrossRef] [PubMed]
- Aga, A.-B.; Berner Hammer, H.; Christoffer Olsen, I.; Uhlig, T.; Kvien, T.K.; van der Heijde, D.; Fremstad, H.; Madland, T.M.; Lexberg, Å.S.; Haukeland, H.; et al. Development of a Feasible and Responsive Ultrasound Inflammation Score for Rheumatoid Arthritis through a Data-Driven Approach. RMD Open 2016, 2, e000325. [Google Scholar] [CrossRef] [PubMed]
- de Miguel, E.; Cobo, T.; Muñoz-Fernández, S.; Naredo, E.; Usón, J.; Acebes, J.C.; Andréu, J.L.; Martín-Mola, E. Validity of Enthesis Ultrasound Assessment in Spondyloarthropathy. Ann. Rheum. Dis. 2009, 68, 169–174. [Google Scholar] [CrossRef] [PubMed]
- Yinh, J.; Torralba, K.D.; Choi, K.S.; Fairchild, R.M.; Cannella, A.; Salto, L.; Kissin, E.Y.; Thiele, R.; Oberle, E.J.; Marston, B.; et al. North American Musculoskeletal Ultrasound Scanning Protocol of the Hip, Knee, Ankle, and Foot: Update of a Delphi Consensus Study. Clin. Rheumatol. 2021, 40, 4233–4242. [Google Scholar] [CrossRef] [PubMed]
- Möller, I.; Janta, I.; Backhaus, M.; Ohrndorf, S.; Bong, D.A.; Martinoli, C.; Filippucci, E.; Sconfienza, L.M.; Terslev, L.; Damjanov, N.; et al. The 2017 EULAR Standardised Procedures for Ultrasound Imaging in Rheumatology. Ann. Rheum. Dis. 2017, 76, 1974–1979. [Google Scholar] [CrossRef] [PubMed]
- Torp-Pedersen, S.T.; Terslev, L. Settings and Artefacts Relevant in Colour/Power Doppler Ultrasound in Rheumatology. Ann. Rheum. Dis. 2008, 67, 143–149. [Google Scholar] [CrossRef] [PubMed]
- D’Agostino, M.-A.; Terslev, L.; Aegerter, P.; Backhaus, M.; Balint, P.; Bruyn, G.A.; Filippucci, E.; Grassi, W.; Iagnocco, A.; Jousse-Joulin, S.; et al. Scoring Ultrasound Synovitis in Rheumatoid Arthritis: A EULAR-OMERACT Ultrasound Taskforce—Part 1: Definition and Development of a Standardised, Consensus-Based Scoring System. RMD Open 2017, 3, e000428. [Google Scholar] [CrossRef] [PubMed]
- Lindqvist, E.; Jonsson, K.; Saxne, T.; Eberhardt, K. Course of Radiographic Damage over 10 Years in a Cohort with Early Rheumatoid Arthritis. Ann. Rheum. Dis. 2003, 62, 611–616. [Google Scholar] [CrossRef] [PubMed]
- Shim, J.; Stavre, Z.; Gravallese, E.M. Bone Loss in Rheumatoid Arthritis: Basic Mechanisms and Clinical Implications. Calcif. Tissue Int. 2017, 102, 533–546. [Google Scholar] [CrossRef] [PubMed]
- Nishio, M.; Torralba, K.D.; Ziniel, S.I.; Kissin, E.; Aslam, F. Musculoskeletal Ultrasound Practices of Graduates of a Blended-Learning Program: A Survey of Rheumatologists From the United States. Arthritis Care Res. 2025, 77, 658–665. [Google Scholar] [CrossRef] [PubMed]

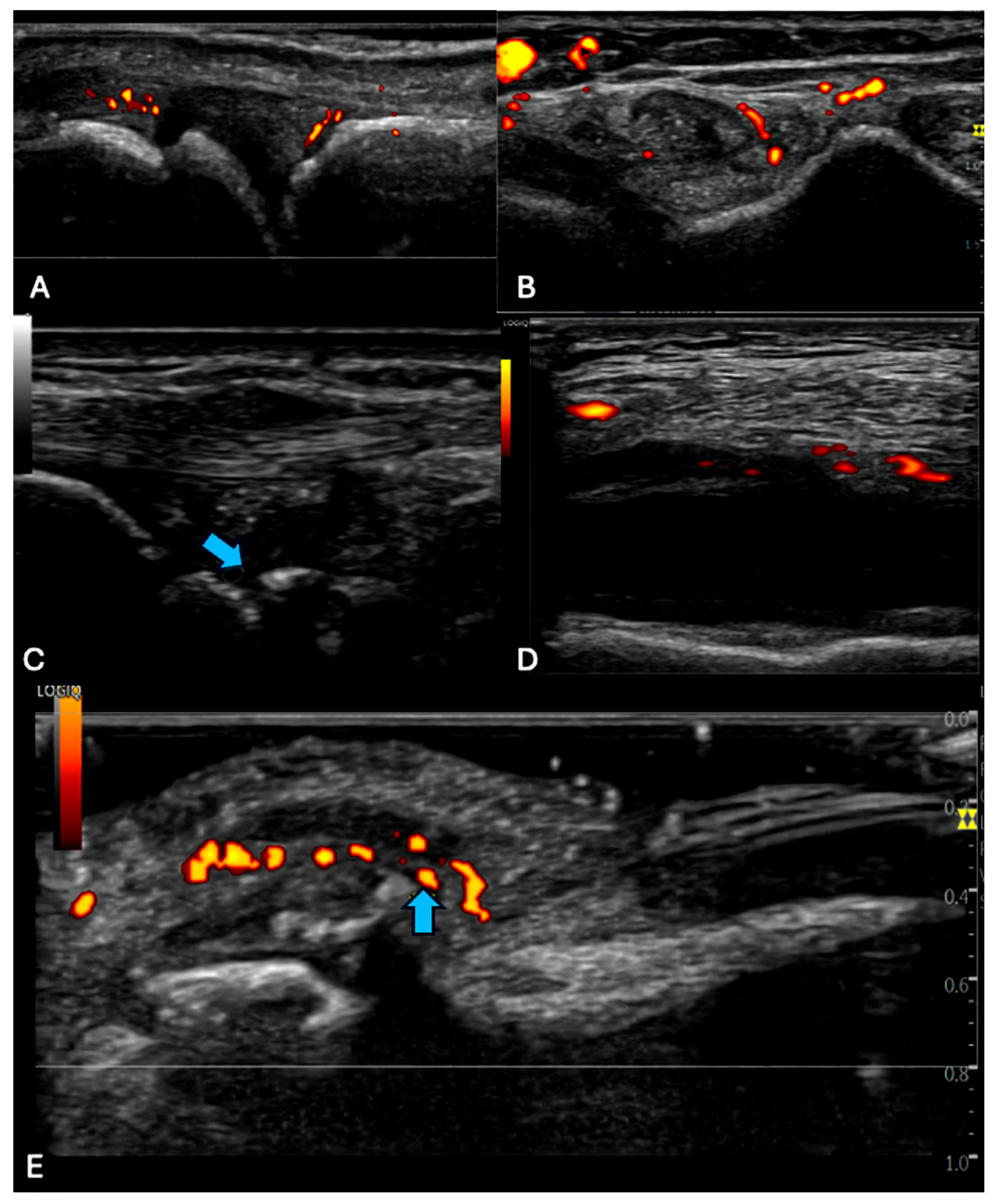

Figure 1.
Representative ultrasound images showing (A) MCP synovitis, long axis, (B) tenosynovitis of the wrist, short axis, (C) erosion of the lunate, wrist, long axis (arrow), (D) transverse suprapatellar recess with effusion, synovial hypertrophy, and power Doppler, short axis, and (E) enthesitis DIP extensor tendon, long axis (arrow).
Figure 1.
Representative ultrasound images showing (A) MCP synovitis, long axis, (B) tenosynovitis of the wrist, short axis, (C) erosion of the lunate, wrist, long axis (arrow), (D) transverse suprapatellar recess with effusion, synovial hypertrophy, and power Doppler, short axis, and (E) enthesitis DIP extensor tendon, long axis (arrow).
Table 1.
Demographic and clinical features of the cohort undergoing MSKUS at our center.
| Category | Variable | Value (Percentage) |
|---|---|---|
| Patients | Number of Patients | n = 23 |
| Age | Median | 62 |
| Sex | Male | 12 (52.2%) |
| Female | 11 (47.8%) | |
| Race | White | 20 (87%) |
| Asian | 3 (13%) | |
| Malignancy type | Melanoma | 11 (47.8%) |
| RCC | 3 (13%) | |
| Lung Cancers | 2 (8.7%) | |
| Breast Cancers | 3 (13%) | |
| Urothelial Carcinoma | 2 (8.7%) | |
| Endometrial Carcinoma | 1 (4.3%) | |
| Neuroendocrine carcinoma | 1 (4.3%) | |
| ICI Type | PD-1 | 15 (65.2%) |
| PDL-1 | 1 (4.3%) | |
| PD-1 + CTLA-4 | 4 (17.4%) | |
| PD-1 + LAG3 | 3 (13%) | |
| Additional irAEs | Mean | 1.1 |
| Median | 1 | |
| Number of Patients with other irAEs | 11 (47.8%) | |
| Number of Patients without other irAEs | 12 (52.2%) | |
| Symptom Timing | On ICI | 15 (65.2%) |
| Post-ICI | 8 (34.8%) | |
| ICI Cycles prior to Symptoms | Mean | 7.7 |
| Median | 7 | |
| Duration of Time between Symptoms and MSKUS | Mean Months | 12.74 |
| Median Months | 5 | |
| MSKUS Timing in Relation to ICI | On ICI | 9 (39.1%) |
| Post-ICI | 14 (60.9%) | |
| MSK-irAE Therapy Initiation | On Therapy Prior to MSKUS | 17 (73.9%) |
| No Therapy Prior to MSKUS | 6 (26.1%) | |
| MSK-irAE Therapy at Time of MSKUS | On Therapy | 11 (47.8%) |
| Not on Therapy | 12 (52.2%) | |
| MSK-irAE Therapies Prior to MSKUS | Steroid (PO) | 17 (73.9%) |
| CSI | 3 (13%) | |
| csDMARD | 7 (30.4%) | |
| Biologic | 2 (8.7%) | |
| None | 6 (26.1%) | |
| MSK-irAE Therapy Type at MSKUS | Steroid (PO) Monotherapy | 8 (34.8%) |
| csDMARD + Steroid (PO) | 2 (8.7%) | |
| Biologic | 1 (4.3%) | |
| None | 12 (52.2%) | |
| Final Diagnosis | MSK-irAE | 19 (82.6%) |
| No MSK-irAE | 4 (17.4%) | |
| Escalation in MSK-irAE Therapy Post-MSKUS | Therapy Escalation | 16 (69.6%) |
| No Therapy Change | 7 (30.4%) | |
| Additional Therapy Type (n = 16) | Steroid (PO) | 5 (31.3%) |
| CSI | 7 (43.8%) | |
| csDMARD | 7 (43.8%) | |
| Biologic | 1 (6.3%%) | |
| Patient Deciding | 1 (6.3%%) | |
| Future MSK-irAE therapy Changes (in those with MSK-irAEs, n = 19) | Further Therapies | 4 (21.1%) |
| No Further Therapies | 15 (78.9%) | |
| Response to Therapy in those with MSK-irAEs (n = 19) | Resolved MSK-irAE | 5 (26.3%) |
| Improved MSK-irAE | 9 (47.4%) | |
| Too early to evaluate | 4 (21.1%) | |
| Patient deceased prior to Evaluation | 1 (5.3%) | |
| Follow-up from MSKUS in those with MSK-irAEs (months) | Median | 7 |
| ICI Halted due to concern for MSK-irAE | Yes | 3 (13%) |
| No | 20 (87%) | |
| Changes in ICI Following MSKUS (for those on ICI at time of MSK-irAE, occurrence n = 15) | Halted | 2 (13.3%) |
| Resumed | 1 (6.7%) | |
| No Change | 12 (80%) |
Abbreviations: CSI: corticosteroid injection; PO: per os; csDMARD: conventional synthetic disease-modifying anti-rheumatic drug; RCC: renal-cell carcinoma; ICI: immune checkpoint inhibitor; CTLA-4: cytotoxic T-lymphocyte-associated protein 4; PD-1: programmed cell death protein 1; PDL-1: programmed death ligand 1; MSKUS: musculoskeletal ultrasound; irAE: immune-related adverse event; MSK-irAE: musculoskeletal immune-related adverse event.
Table 2.
Ultrasound features.
| Pt | Scoring | Location | Joint(s) | Bone | Tendon Involvement | Inflammatory Synovial Fluid (1: Yes; 2: No; -: No Fluid) | Final Diagnosis | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GS | PD | Effusion | Erosions | TS | En | Enp | |||||
| UW1 | 1 | Knee | 2 | - | + | - | - | - | - | 1 | MSK-irAE |
| Ankle | 1 | - | + | - | - | - | - | - | |||
| UW2 | 0 | Hand | 2 | 1 | - | + | - | - | - | - | Severe OA |
| UW3 | 1 | Knee | 2 | - | + | - | - | - | - | 1 | MSK-irAE |
| UW4 | 2 | Knee | 2 | 1 | + | - | - | + (patellar tendon) | - | - | MSK-irAE |
| Ankle | 2 | 1 | + | - | + (posterior tibial tendon) | - | - | - | |||
| UW5 | 2 | Knee | 2 | 2 | + | - | + (quadriceps tendon) | - | - | 1 | MSK-irAE |
| UW6 | 0 | Knee | - | - | + | - | - | - | - | - | Non-inflammatory pain |
| UW7 | 0 | Hand | 1 | - | - | - | - | - | - | - | MSK-irAE |
| UW8 | 2 | Knee | 2 | - | + | - | - | - | - | - | MSK-irAE |
| R Wrist | 1 | 1 | - | - | + (extensor tendons) | - | - | - | |||
| L Wrist | - | 1 | - | - | - | - | - | - | |||
| L 3rd MCP | - | 1 | - | - | - | - | - | - | |||
| Ankle | 1 | - | + | - | - | - | - | - | |||
| UW9 | 1 | Knee | 2 | - | + | - | - | - | - | 1 | MSK-irAE |
| UW10 | 2 | Knee | 2 | 1 | + | - | - | - | - | 1 | MSK-irAE |
| UW11 | 2 | R Wrist | 2 | 1 | - | + | - | + (extensor tendons) | - | - | MSK-irAE |
| L Wrist | 2 | 2 | - | - | + (extensor tendons) | - | - | ||||
| R 2nd MCP | 1 | - | - | - | - | - | - | ||||
| L 2nd MCP | 1 | - | - | - | - | - | - | ||||
| UW12 | 2 | Hand | - | 1 | - | - | - | + (DIP extensor tendon enthesitis) | - | - | MSK-irAE |
| UW13 | 0 | Ankle | - | - | - | - | - | - | + | - | Non-inflammatory pain |
| Foot | - | - | + | - | - | - | + | - | |||
| UW14 | 1 | Shoulder | - | - | - | - | + (L biceps tendon) | - | - | - | MSK-irAE |
| UW15 | 2 | Knee | 2 | 1 | + | - | - | - | - | - | MSK-irAE |
| UW16 | 2 | Knee | - | - | - | + | - | + (quadriceps tendon enthesitis, patellar tendon enthesitis) | + | - | MSK-irAE |
| Ankle | - | - | - | - | + (Achilles tendon enthesitis) | + | - | ||||
| Foot | - | - | - | - | + (plantar aponeurosis enthesitis) | - | - | ||||
| Elbow | - | - | - | - | + (triceps enthesitis) | + | - | ||||
| UW17 | 2 | R Hand | 1 | 1 | + | + | + (2nd and 3rd MCP extensor tendons) | - | - | - | MSK-irAE |
| L Hand | 1 | - | + | - | - | - | - | - | |||
| UW18 | 2 | R Hand | 1 | 1 | - | - | - | - | - | - | MSK-irAE |
| L Hand | 1 | 1 | - | - | - | - | - | - | |||
| UW19 | 0 | Wrist | - | - | - | - | + (R extensor pollicis brevis and abductor pollicis longus) | - | - | - | MSK-irAE |
| UW20 | 0 | Hand | 1 | - | - | - | - | - | - | - | Carpal Tunnel Syndrome |
| UW21 | 2 | R Wrist | 2 | 1 | + | + | + (extensor tendons) | - | - | - | MSK-irAE |
| L Wrist | 2 | 1 | + | + (extensor tendons) | - | - | - | ||||
| UW22 | 2 | R Knee | 2 | 1 | + | - | - | - | - | 1 | MSK-irAE |
| UW23 | 2 | Hand | 2 | 2 | + | - | - | - | - | - | MSK-irAE |
Abbreviations: GS: grayscale; PD: power Doppler; TS: tenosynovitis; En: enthesopathy; Enp: enthesophyte; R: right; L: left; MCP: metacarpal; DIP: distal interphalangeal joint; Pt: patient.
Table 3.
irAE-targeted therapies in our patient cohort.
| Pt | Anti-Inflammatory Therapy at Time of MSKUS | Past Treatments for MSK-irAEs | Change in MSK-irAE Therapy Following US? | Change | Additional MSK-irAE Treatments (Outside of Immediate Changes) |
|---|---|---|---|---|---|
| UW1 | None | None | Yes | CSI | Prednisone, Tocilizumab |
| UW2 | None | Prednisone, MTX, HCQ | No | NA | NA |
| UW3 | Prednisone, MTX | Prednisone | Yes | CSI, MTX increase | NA |
| UW4 | Prednisone | Prednisone | Yes | Prednisone increase | NA |
| UW5 | Prednisone | Prednisone | Yes | CSI, Prednisone increase | MTX |
| UW6 | None | None | No | NA | Prednisone, HCQ, SSZ |
| UW7 | None | Prednisone, SSZ | Yes | Remained off treatment | Prednisone, HCQ |
| UW8 | Prednisone | Prednisone | Yes | MTX | NA |
| UW9 | None | None | Yes | CSI | None |
| UW10 | Prednisone | Prednisone, HCQ, CSIs, MTX, Tocilizumab | Yes | CSI | Tocilizumab, CSIs, Prednisone |
| UW11 | None | None | Yes | Prednisone, MTX | None |
| UW12 | None | None | Yes | Prednisone | None |
| UW13 | None | Prednisone | No | NA | None |
| UW14 | Prednisone | Prednisone | No | NA | None |
| UW15 | Prednisone | Prednisone | Yes | MTX | None |
| UW16 | Rituximab | Prednisone, MTX, Rituximab | Yes | Adalimumab | None |
| UW17 | None | Prednisone | Yes | HCQ | None |
| UW18 | Prednisone | Prednisone, MTX | No | NA | None |
| UW19 | Prednisone, MTX | Prednisone, MTX | No | NA | None |
| UW20 | None | None | No | NA | None |
| UW21 | None | Prednisone, CSIs | Yes | CSI, prednisone, MTX | None |
| UW22 | Prednisone | Prednisone, CSI | Yes | CSI, MTX | None |
| UW23 | None | Prednisone | Yes | Deciding | None |
Abbreviations: CSI: corticosteroid injection; MSKUS: musculoskeletal ultrasound; irAE: immune-related adverse event; MSK-irAE: musculoskeletal immune-related adverse event; MTX: methotrexate; HCQ: hydroxychloroquine; SSZ: sulfasalazine; NA: not applicable.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
von Eckstaedt, H.V.; Weng, K.; Sacksen, I.; Stovall, R.; Grivas, P.; Bhatia, S.; Hall, E.; Pollock, S.; Singh, N. Sonographic Signatures of Immune Checkpoint Inhibitor-Associated Musculoskeletal Adverse Events. Cancers 2025, 17, 2344. https://doi.org/10.3390/cancers17142344
AMA Style
von Eckstaedt HV, Weng K, Sacksen I, Stovall R, Grivas P, Bhatia S, Hall E, Pollock S, Singh N. Sonographic Signatures of Immune Checkpoint Inhibitor-Associated Musculoskeletal Adverse Events. Cancers. 2025; 17(14):2344. https://doi.org/10.3390/cancers17142344
Chicago/Turabian Stylevon Eckstaedt, Hans Vitzthum, Kevin Weng, Ingeborg Sacksen, Rachael Stovall, Petros Grivas, Shailender Bhatia, Evan Hall, Scott Pollock, and Namrata Singh. 2025. "Sonographic Signatures of Immune Checkpoint Inhibitor-Associated Musculoskeletal Adverse Events" Cancers 17, no. 14: 2344. https://doi.org/10.3390/cancers17142344
APA Stylevon Eckstaedt, H. V., Weng, K., Sacksen, I., Stovall, R., Grivas, P., Bhatia, S., Hall, E., Pollock, S., & Singh, N. (2025). Sonographic Signatures of Immune Checkpoint Inhibitor-Associated Musculoskeletal Adverse Events. Cancers, 17(14), 2344. https://doi.org/10.3390/cancers17142344
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
