Article

Examination of the Functional Relationship between PD-L1 DNA Methylation and mRNA Expression in Non-Small-Cell Lung Cancer

by
Trine V. Larsen
1,
Nina Dybdal
1,
Tina F. Daugaard
1,
Johanne Lade-Keller
2,
Lin Lin
1,
Boe S. Sorensen
3,4 and
Anders L. Nielsen
1,*
1
Department of Biomedicine, Aarhus University, 8000 Aarhus, Denmark
2
Department of Pathology, Aarhus University Hospital, 8200 Aarhus, Denmark
3
Department of Clinical Biochemistry, Aarhus University Hospital, 8200 Aarhus, Denmark
4
Department of Clinical Medicine, Aarhus University, 8000 Aarhus, Denmark
*
Author to whom correspondence should be addressed.
Cancers 2023, 15(6), 1909; https://doi.org/10.3390/cancers15061909
Submission received: 6 February 2023 / Revised: 4 March 2023 / Accepted: 20 March 2023 / Published: 22 March 2023
(This article belongs to the Special Issue Cancer Epigenetic Biomarkers)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

For non-small-cell lung cancer (NSCLC) patients undergoing immunotherapy blocking the PD-1/PD-L1 interaction, the cancer cell PD-L1 expression level is a determinant of treatment efficiency. This study was conducted to determine whether PD-L1 DNA methylation regulates and can predict PD-L1 expression in NSCLC. Tumor biopsies and cell lines were analyzed for PD-L1 DNA methylation, mRNA expression, and protein expression. CRISPR-Cas9 and dCas9 fusions with TET1 and DNMT3A were used to change the PD-L1 DNA methylation levels. In this study, we found that the PD-L1 DNA methylation status functionally influences its expression. However, although methylation can be inversely correlated with the expression of PD-L1 in NSCLC lines, this association is not strong in NSCLC tumor samples. The fact that PD-L1 DNA methylation status does not inevitably mirror the expression level is important for future attempts to improve the effectiveness of PD-1/PD-L1 immunotherapy in NSCLC.

Abstract

Immunotherapy targeting the interaction between programmed cell death protein 1 (PD-1) and programmed death-ligand 1 (PD-L1) is a treatment option for patients with non-small-cell lung cancer (NSCLC). The expression of PD-L1 by the NSCLC cells determines treatment effectiveness, but the relationship between PD-L1 DNA methylation and expression has not been clearly described. We investigated PD-L1 DNA methylation, mRNA expression, and protein expression in NSCLC cell lines and tumor biopsies. We used clustered regularly interspaced short palindromic repeats-associated protein 9 (CRISPR-Cas9) to modify PD-L1 genetic contexts and endonuclease deficient Cas9 (dCas9) fusions with ten-eleven translocation methylcytosine dioxygenase 1 (TET1) and DNA (cytosine-5)-methyltransferase 3A (DNMT3A) to manipulate PD-L1 DNA methylation. In NSCLC cell lines, we identified specific PD-L1 CpG sites with methylation levels inversely correlated with PD-L1 mRNA expression. However, inducing PD-L1 mRNA expression with interferon-γ did not decrease the methylation level for these CpG sites, and using CRISPR-Cas9, we found that the CpG sites did not directly confer a negative regulation. dCas9-TET1 and dCas9-DNMT3A could induce PD-L1 hypo- and hyper-methylation, respectively, with the latter conferring a decrease in expression showing the functional impact of methylation. In NSCLC biopsies, the inverse correlation between the methylation and expression of PD-L1 was weak. We conclude that there is a regulatory link between PD-L1 DNA methylation and expression. However, since these measures are weakly associated, this study highlights the need for further research before PD-L1 DNA methylation can be implemented as a biomarker and drug target for measures to improve the effectiveness of PD-1/PD-L1 immunotherapy in NSCLC.

1. Introduction

Programmed cell death protein 1 (PD-1) is a co-inhibitory surface receptor expressed on a wide range of immune cells, including antigen-stimulated T cells [1,2]. Programmed death-ligands 1 and 2 (PD-L1 and PD-L2) are ligands for PD-1, and the PD-1/PD-ligand axis is involved in maintaining peripheral and central immune cell tolerance [3]. Cancer and stromal cells can express PD-L1 [4]. PD-L1 expression can be induced by oncogenic driver mutations, e.g., epidermal growth factor receptor (EGFR) and Kirsten rat sarcoma virus (KRAS) mutations and anaplastic lymphoma kinase (ALK) chromosomal rearrangements [5,6,7,8]. Several immune-cell-produced pro-inflammatory molecules, such as the type I and II interferons (IFNs), IFN-α/β, and IFN-γ, also induce cancer cell PD-L1 expression [9]. Engagement of the PD-1 receptor with PD-L1 alters T cell activity, including the inhibition of T cell proliferation, survival, and cytokine production, as well as other T cell effector functions [4]. Thus, PD-L1 expression by cancer cells creates an immunosuppressive tumor microenvironment beneficial for the proliferation and survival of tumor cells.
Non-small-cell lung cancer (NSCLC) is a heterogeneous disease and, in approximately 20% of cases, characterized by oncogenic driver mutations in, e.g., EGFR, KRAS, and ALK [10]. Chemotherapy and target therapies addressing specific oncogenic drivers are treatment options. The latter is exemplified by EGFR-targeted therapy using several generations of tyrosine kinase inhibitors (TKI) to achieve control of NSCLC progression [11]. Despite an initial clinical significance, treatment resistance inevitably arises. EGFR TKI resistance mechanisms are pleiotropic and involve secondary EGFR mutations, amplification of the mesenchymal–epithelial transition factor proto-oncogene (c-MET), and epithelial–mesenchymal transition (EMT) [12]. Immunotherapy blocking PD-1 interaction with PD-L1 has changed the treatment pattern of NSCLC [13,14]. PD-1/PD-L1 immunotherapy with nivolumab (anti-PD-1), pembrolizumab (anti-PD-1), and atezolizumab (anti-PD-L1) are approved by the USA Food and Drug Administration for the treatment of advanced NSCLC [15,16,17,18,19,20]. PD-1/PD-L1 immunotherapy resistance in NSCLC is described, e.g., as being attributed to the loss-of-function of IFN signaling and the resulting decrease in IFN-γ-induced PD-L1 expression in cancer cells [21]. The PD-L1 tumor proportion score (TPS) determined by immunohistochemistry (IHC) is used as a predictive biomarker for successful immunotherapy in NSCLC [18,19,20,22,23,24,25]. However, up to 15% of patients scoring with PD-L1-negative tumors will respond to immunotherapy, and many patients with tumors scoring with a positive PD-L1 TPS do not benefit from the treatment [14,20,26]. Given the lack of a secure PD-L1-expression-based clinical stratification of patients as responders versus non-responders, NSCLC patients can be offered PD-1/PD-L1 immunotherapy irrespective of their PD-L1 TPS.
DNA methylation, the addition of a methyl group to the fifth position of cytosine in cytosine-phosphate-guanine (CpG) sites, regulates transcription without altering the genomic sequence. DNA (cytosine-5)-methyltransferases (DNMTs) establish (DNMT1) and maintain (DNMT3A/3B) DNA methylation, whereas ten-eleven translocation methylcytosine dioxygenase (TET) proteins, together with DNA repair pathways, inhibit DNA methylation [27,28,29,30]. In addition, methylated cytosine can be converted into thymine through spontaneous deamination. Regions called CpG islands with higher CpG contents than expected exist in the genome, indicating a selective pressure for maintenance. CpG islands can be flanked by shore and shelve regions with more diluted CpG contents. CpG islands have transcriptional regulatory potential, particularly if they are located in promoter regions. In general, promoter CpG islands have a bimodal methylation pattern, with a hypo-methylated status being the most commonly observed. Hyper-methylated CpG islands are potentially associated with transcriptional silencing of the corresponding gene, as exemplified by developmentally expressed genes [31]. CpG island shore and shelve regions have more dynamic methylation ranges, and the methylation of these regions can often be associated with transcriptional fine-tuning of the underlying gene. Open-sea CpG sites, which are individual CpG sites located in intragenic and intergenic regions, are mostly methylated, which, e.g., prevents spurious transcriptional initiation from intragenic regions and represses the transcription of repetitive and transposable elements [32]. Moreover, genome stability is supported by a CpG-methylated state, and, accordingly, global hypo-methylation is a hallmark of genome instability associated with carcinogenesis [33]. In NSCLC, global hypo-methylation can result in oncogene activation, and in addition, gene-specific hyper-methylation can result in tumor-suppressor gene inactivation.
The methylation status of CpG sites in the PD-L1 CpG island shores is inversely correlated with PD-L1 expression in acute myeloid leukemia and colorectal, melanoma, bladder, and prostate cancer [34,35,36,37,38]. In the case of NSCLC, this inverse correlation has also been described [39,40,41,42]. Concerning specific-shore CpG sites, the methylation of cg15837913 and cg19724470 in the CpG island north and south shores, respectively, is inversely correlated with PD-L1 mRNA expression [34,37,38,43,44]. The prognostic value of PD-L1 methylation has shown conflicting results, as both high and low PD-L1 promoter methylation have been associated with shorter overall survival [34,35,36,37]. Hypomethylating agents of the azacytidine (AZA) family are cytosine analogs that can be incorporated into DNA and, as a consequence of an irreversible interaction with DNMTs, this results in genome-wide demethylation [45]. AZA can upregulate PD-L1 mRNA and protein expression, at least in some NSCLC cells [42]. NSCLC patients having developed resistance to anti-PD-1 therapy showed increased PD-L1 methylation and reduced mRNA and protein expression in the recurred tumor tissue [39]. However, AZA treatment resulted in the demethylation of the PD-L1 promoter, increased PD-L1 mRNA expression, and induced sensitization to anti-PD-1 therapy in a mouse model of immunotherapy resistance [39]. The IFN regulatory factors (IRFs) IRF1 and IRF7 can bind the PD-L1 upstream promoter and mediate transcriptional activation [9]. In NSCLC, IRF1 and IRF7 expression can be repressed by a mechanism involving DNA methylation, and the methylation status is inversely correlated with PD-L1 expression [21,42]. The restoration of IRF1 and IRF7 expression with AZA-analogous decitabine reactivated PD-L1 expression, and in a mouse model, a concomitant enhanced efficiency of anti-PD-1 therapy was observed [21]. In line with these results, clinical trials are testing the anti-PD-1 antibody pembrolizumab combined with demethylation agents to further examine the potential of sensitizing NSCLC patients to PD-1/PD-L1 axis immunotherapy [46].
In the ongoing process of improving PD-1/PD-L1 NSCLC immunotherapy, it will be beneficial to decipher the mechanisms regulating PD-L1 expression to identify new treatment options and biomarkers for the identification of actual immunotherapy responders among NSCLC patients. It is not well understood whether an increase in PD-L1 CpG island shore methylation directly inhibits PD-L1 expression or is a consequence of inhibited PD-L1 expression. In this study, we examined the interplay between PD-L1 DNA methylation and expression in NSCLC.

2. Material and Methods

2.1. Cell Culture

Details concerning the applied NSCLC cell lines, including the place of purchase, are described in Table S1. HEK293T was purchased from the American Type Culture Collection (ATCC). Cell lines were grown in RPMI-1640, except for HEK293T, Calu-3, and A427, which were grown in Dulbecco’s Modified Eagle’s Medium supplemented with glutamine. For all cells, the culture medium was supplemented with 10% fetal calf serum, 1% penicillin-streptomycin, 10 mM HEPES, and 1 mM sodium pyruvate. The cells were grown at 37 °C with 5% CO2. Erlotinib TKI-resistant HCC827 cell clones (HCC827ER) were grown in the presence of 5 μM erlotinib [47]. For IFN-γ induction, the cells were seeded in triplicate at a cell density resulting in 50–80% confluent cells at the time of harvest. The cells were stimulated with the culture medium containing IFN-γ (10 ng/mL) (PeproTech, London, UK, 300-02) for 24 h, 48 h, and 72 h. For cell stimulation with IFN-γ (10 ng/mL) for 7 days, the cell culture medium was replaced with a new culture medium, +IFN-γ, every third day. The control cells received culture medium with an equivalent volume of PBS + 0.01% bovine serum albumin (Sigma-Aldrich, Saint Louis, MO, USA, A2153). For treatment with AZA HCC827 (100,000 cells/well), A427 (125,000 cells/well), and HEK293T (150,000–300,000 cells/well), the cells were seeded in triplicate. On the following day, the seeding cells were treated with 1 μM AZA (Sigma-Aldrich, A2385). The cell culture medium was replaced with a fresh medium containing AZA every day. The control cells received a culture medium with an equivalent volume of DMSO.

2.2. Lung Tissue from NSCLC Patients

DNA methylation and PD-L1 mRNA expression were examined in tissues from lung adenocarcinoma tumors (n = 31) without EGFR mutations or ALK translocations or normal adjacent tissue (n = 12) removed by resection or lobectomy at Aarhus University Hospital during the treatment and diagnostics of the tumors. The material was formalin-fixed for a minimum of 24 h and a maximum of 72 h, and the selected sections were paraffin-embedded according to routine diagnostic procedures. After routine diagnostics had been performed and the material had been archived, paraffin blocks with obvious invasive tumor areas were selected based on the hematoxylin-and-eosin-stained slides that were created during the routine diagnostics. Immunohistochemistry was performed on tissue sections (3–4 μm) using the 22C3 PharmDx assay (Agilent, Santa Clara, CA, USA), according to the manufacturer’s instructions. The PD-L1 TPS was assessed by a trained pathologist as the proportion of neoplastic cells with complete or partly membranous staining. The tumors were subsequently categorized into three groups (PD-L1 TPS < 1%, 1–49%, and ≥50%). The use of anonymized formalin-fixed paraffin-embedded (FFPE) lung tissue sections with NSCLC was requested and approved based on Danish and EU ethical guidelines. The project was evaluated as a methodological (non-health-science-research) study by the local ethical committee and was therefore exempt from additional approval by the national ethical committee (235/2018).

2.3. RNA Expression Analyses

mRNA expression analyses were performed in silico using data extracted from the DepMap Portal (https://depmap.org/portal/interactive/) (accessed on 2 August 2022) for NSCLC cell lines. cDNA synthesis of the RNA from the NSCLC cell lines was performed with an iScript cDNA synthesis kit (Bio-Rad, Hercules, CA, USA, 170-8890). First-strand cDNA synthesis of RNA from the FFPE tumor tissue was performed using 1 μg RNA with a SuperScript II Reverse Transcriptase kit (Invitrogen, Carlsbad, CA, USA, 18064). RT-qPCR was performed using the LightCycler 480 platform (Roche, Basel, Switzerland). The primer sequences are available in the Supplementary Materials and Methods. Analysis of data was conducted using the X0 method with TBP or ACTB mRNA expression as a reference gene [48].

2.4. DNA Methylation Analyses

Infinium MethylationEPIC 850K Array (Illumina, San Diego, CA, USA) analyses were performed for the HCC827 parental and erlotinib-resistant cell clones as previously described [49]. For bisulfite-pyrosequencing, genomic DNA was processed with the EpiTect Bisulfite kit (Qiagen, Venlo, Netherlands). The genomic regions were amplified using a PyroMark PCR kit and by pyrosequencing using a PyroMark Q24 station (Qiagen, Venlo, The Netherlands) (details in Supplementary Materials and Methods). The data were analyzed with PyroMark Q24 Advanced software (Qiagen, Venlo, The Netherlands), with all samples PCR-amplified and pyrosequenced in duplicate at the least.

2.5. CRISPR-Cas9-Mediated Deletions

A427 and HCC827 cells with a stable expression of clustered regularly interspaced short palindromic repeats-associated protein 9 (Cas9) were generated using lentiviral transduction with pLentiCas9-blast (Addgene, Watertown, MA, USA, 52962), as previously described [50]. Short guide RNAs (sgRNA) were designed using the UCSC Genome Browser (Supplementary Table S2 includes the sgRNA sequences). Annealed oligonucleotides containing the sgRNA sequence were cloned into the pLentiGuide-puro vector (Addgene, 52963) or the pLentiGuide-hygro vector (Addgene, 139462). A pLentiGuide-pyro vector expressing scrambled sgRNA was used as a control. After 14 days of blasticidin selection, the HCC827-Cas9 and A427-Cas9 cells were transduced with sgRNA expressing lentivirus. After 14 days of antibiotic selection, DNA was extracted. The genomic region was amplified, Sanger-sequenced, and analyzed with Synthego Inference of CRISPR Edits software (https://labs.synthego.com/) (accessed on 3 January 2022 (A427 cells) and 7 January 2022 (HCC827 cells)).

2.6. dSaCas9-TET1 and dSpCas9-DNMT3A Fusions

Doxycycline-inducible TRE3G expression cassettes [51,52] encoding Streptococcus aureus (Sa) fusions with endonuclease-deficient Cas9 (dCas9) [53], together with TET1 (PB-TRE-dSaCas9-TET1-Puro and PB-TRE-dSaCas9-dTET1-Puro), and Streptococcus pyogenes (Sp) fusions with dCas9 [54], together with DNMT3A (PB-TRE-dSpCas9-DNMT3A-Hygro and PB-TRE-dSpCas9-dDNMT3A-Hygro) were generated in this study. These fusion proteins are composed of the inactive dSaCas9 or dSpCas9 protein (D10A and N580A or D10A and H840A, respectively) C-terminally fused with the active catalytic domains of TET1 or DNMT3A or the corresponding inactive catalytic domains denoted as dTET1 (H1672Y and D1674A) or dDNMT3A (E752A) [55,56]. The expression cassettes were stably introduced into HEK293T cells using the piggyBac transposon system [57]. sgRNAs (Supplementary Table S2) were cloned into Lenti-sgRNA(SaCas9)-eGFP-Puro or Lenti-sgRNA(SpCas9)-eGFP-Puro. Expression of the dCas9 fusions was induced by 1 μg/mL doxycycline hyclate (Dox) (Sigma-Aldrich, Saint Louis, MO, USA, D9891). For the protein expression analysis, the cells were treated with Dox for 24 h before cell harvest for Western blot. For the targeted editing of DNA methylation, the cells were treated with Dox for 0.5 h–1 h before lipofectamine transfection using 2 μg sgRNA vector/well and cultured for 48 h. The Dox-containing medium was renewed after 1 day.

2.7. Statistical Analyses

Statistical analyses were performed using GraphPad Prism version 9. Data concerning the cell lines are presented as the mean with error bars as the standard deviation. Data concerning the NSCLC patients are presented as the median. The differences in means between groups were analyzed using the unpaired t-test and one-way ANOVA, and differences in medians between groups were analyzed using the Mann–Whitney t-test and the Kruskal–Wallis test. Correlation analysis was performed using Spearman’s correlation coefficient analysis. Data were considered significant when the p-value/adjusted p-value < 0.05.

3. Results

3.1. Inverse Correlation between PD-L1 Methylation and mRNA Expression in NSCLC Cell Lines

Cancer-based studies have described an inverse correlation between PD-L1 mRNA expression and methylation of cg19724470 in the CpG island south shore, situated 434 bp downstream of the PD-L1 transcriptional start site (Figure S1A) [34,35,38,58]. We envisaged exploring this association between cg19724470 DNA methylation and PD-L1 mRNA expression in NSCLC cells. For this purpose, we used bisulfite-pyrosequencing. Most existing PD-L1 methylation data are affected by constraints related to the implementation of the array-based methodology, which does not account for potentially informative CpG sites in the vicinity of cg19724470. To examine whether a CpG site located near cg19724470 also displays an association with PD-L1 expression, we included a methylation analysis of an as-yet unannotated CpG site located 15 bases downstream of cg19724470 in the genomic position chr9:5,450,951 (hereafter abbreviated as cg(chr9:5450951)). To mimic the oncogenic spectrum observed in NSCLC patients, we analyzed 14 NSCLC cell lines with different oncogenic mutations, including hotspot mutations in EGFR, KRAS, tumor protein P53 (TP53), and phosphatidylinositol 4,5-bisphosphate 3-kinase catalytic subunit alpha isoform (PIK3CA). cg19724470 and cg(chr9:5450951) displayed variable DNA methylation levels in the NSCLC cell lines (Figure 1A). Furthermore, the methylation of cg19724470 was strongly correlated with the methylation of cg(chr9:5450951) (Spearman r = 0.91, p < 0.0001) (Figure S1B). PD-L1 mRNA expression in the NSCLC cell lines was first calculated using data from the DepMap Portal. The NSCLC cell lines displayed PD-L1 mRNA expression to different degrees (Figure 1B). PD-L1 mRNA expression was inversely correlated with the DNA methylation of cg19724470 (Spearman r = −0.88, p = 0.0002) and cg(chr9:5450951) (Spearman r = −0.78, p = 0.0025) (Figure 1C). The validation of PD-L1 mRNA expression by RT-qPCR showed a similar trend of inverse correlation between PD-L1 mRNA expression and DNA methylation (Figure S1C,D). Altogether, the analyses showed that across the NSCLC cell lines, the DNA methylation levels of both cg19724470 and cg(chr9:5450951) have an inverse correlation with PD-L1 mRNA expression.
To address the eventual existence of additional PD-L1 CpG sites with methylation levels correlating with the mRNA expression observed in NSCLC, we screened a previously generated dataset including genome-wide information on DNA methylation (Infinium MethylationEPIC 850K array) and mRNA expression (RNA-sequencing) from a group of five isogenic HCC827 cell clones [49]. These included parental HCC827 cells, as well as erlotinib TKI-resistant cell clones, with the amplification of c-MET (HCC827ER2 and HCC827ER3) and EMT (HCC827ER4 and HCC827ER10) [47]. HCC827ER2 and HCC827ER3 have higher PD-L1 mRNA expression relative to parental HCC827 cells, whereas HCC827ER4 and HCC827ER10 have lower PD-L1 mRNA expression (Figure S2A) [59]. Across the HCC827 cell clones, the PD-L1 CpG sites in the CpG island in the promoter region were unmethylated, whereas CpG sites located within the south shore corresponding to the gene body were hypermethylated (Figures S2B). Notably, we did not observe the differential methylation of cg19724470 among the HCC827 cell clones, whereas, for cg(chr9:5450951), a tendency of inverse correlation between methylation and PD-L1 mRNA expression was noted (Figure S2A,C). In the region corresponding to the 3′-end of intron 1, three of the four CpG sites showed methylation levels displaying variability (ranging from approximately 10% to 50% methylation) (Figure S2B). However, a correlation between PD-L1 mRNA expression and the methylation levels was not apparent (Figure S2A,B). To substantiate this negative result, we further explored two of these CpG sites, cg04478497 and cg00975815, located at 4561 bp and 4569 bp, respectively, downstream of the PD-L1 transcriptional start site. We designed a bisulfite-pyrosequencing assay for methylation quantification covering both sites. For neither the HCC827 cell clones nor a group of 13 additional NSCLC cell lines did we identify a significant correlation between the DNA methylation of these CpG sites and mRNA expression (Figure S2D–F). Altogether, the above analyses did not reveal the presence of CpG sites that presented DNA methylation levels correlating with a PD-L1 mRNA expression that was more pronounced than that observed for cg19724470 and cg(chr9:5450951).

3.2. IFN-γ-Mediated Induction of PD-L1 mRNA Expression Does Not Drive Concomitant DNA Methylation Changes

The tumor milieu operates through the production of cytokines and IFNs, e.g., T-cell-produced IFN-γ, determining the PD-L1 expression level, in addition to the effects of oncogenic signaling pathways [9,60,61]. To further examine the association between PD-L1 mRNA expression and DNA methylation in NSCLC cells, we examined the impact of IFN-γ. Stimulation with IFN-γ for 48 h and 72 h induced PD-L1 mRNA expression in A427 and HCC827 cells (Figure 2A,B). Short-term stimulation (24 h) induced PD-L1 mRNA expression in HCC827 cells (Figure 2B). However, stimulation with IFN-γ for these periods had no significant effect on methylation for either cg19724470 and cg(chr9:5450951) or cg04478497 and cg00975815 (Figure 2A,B and Figure S3). Induction with IFN-γ for a longer period could, in principle, be required for changes in DNA methylation to manifest. Thus, we performed stimulation with IFN-γ for 7 days. This resulted in increased PD-L1 mRNA expression in both the A427 and HCC827 cells (Figure 2A,B). However, even the long-term stimulation with IFN-γ did not influence the DNA methylation levels (Figure 2A,B). Altogether, the results indicate that PD-L1 CpG island south shore methylation levels do not mirror the PD-L1 mRNA expression induced upon IFN-γ stimulation. Thus, PD-L1 methylation is not an invariable corresponding to mRNA expression. In an immunotherapy context, the results could support the notion that, for a tumor in which an increase in cancer cell PD-L1 expression is mediated through T-cell-secreted IFN-γ, the PD-L1 methylation level will not be a marker of actual PD-L1 expression.

3.3. The Differentially Methylated Region including cg19724470 and cg(chr9:5450951) Does Not Actively Regulate PD-L1 mRNA Expression

With the above results showing that the methylation status of cg19724470 and cg(chr9:5450951) is inversely correlated with PD-L1 mRNA expression in the absence of IFN-γ, we questioned whether the particular part of the PD-L1 gene harboring these CpG sites and its methylation status are directly involved in the regulation of expression. We note that this region of the PD-L1 gene contains no characterized IFN response elements or other described cis-elements. To create PD-L1 deletions, we utilized CRISPR-Cas9 to generate indels in A427 cells with relatively high DNA methylation and low PD-L1 mRNA expression and in HCC827 cells with relatively low DNA methylation and high PD-L1 mRNA expression. Following the testing of various single and combined sgRNAs, we found a pair of sgRNAs resulting in a high fraction of cells harboring a deletion of both cg19724470 and cg(chr9:5450951) (Figure 3A and Figure S4A). The mRNA expression analysis of the effect of these deletions showed a significant but negligible upregulation of PD-L1 mRNA expression in the HCC827 cells and no significant alteration in PD-L1 mRNA expression in the A427 cells (Figure 3B and Figure S4A). We conclude that the genomic region containing cg19724470 and cg(chr9:5450951), presenting either with or without DNA methylation, does not play an important, direct role in the regulation of PD-L1 mRNA expression.
The treatment of cells with AZA results in genome-wide demethylation and, accordingly, is used one approach used to determine whether decreased PD-L1 DNA methylation results in increased mRNA expression. PD-L1 expression was previously shown to respond diversely to AZA treatment in different NSCLC cells [42]. In line with the expected genome-wide decreasing effect on DNA methylation levels mediated by AZA, we observed a reduced methylation level for the examined PD-L1 CpG sites in A427 cells (Figure 3C and Figure S4B). However, PD-L1 mRNA expression was not concomitantly increased (Figure 3C). HCC827 possesses a low baseline PD-L1 DNA methylation level, particularly in the case of the cg197724470 and cg(chr9:5450951) of the examined CpG sites, eventually complicating further demethylation (Figure 3D and Figure S4C). Indeed, AZA had no significant effect on cg197724470 and cg(chr9:5450951) methylation, whereas some demethylation was observed for cg04478497 and cg00975815 (Figure 3D and Figure S4C). No increase in PD-L1 mRNA expression was observed following treatment of the HCC827 cells with AZA; instead, a minor decrease in expression was observed (Figure 3D). In conclusion, the AZA experiments did not support the notion that a genome-wide-mediated decrease in DNA methylation, which also includes minor decreases in methylation for PD-L1, is sufficient to confer an increase in PD-L1 mRNA expression.

3.4. Targeted Methylation with dSpCas9-DNMT3A Decreases PD-L1 mRNA Expression

As AZA is a non-specific drug, it is not clear whether the above-observed lack of effect on PD-L1 expression is an indirect outcome of genome-wide demethylation. To explore the impact of direct recruitment of enzymatic activities involved in methylation and demethylation specifically in regard to the PD-L1 gene, we examined a series of fusions with enzymatically dead Sa and Sp Cas9 (dSaCas9 and dSpCas9, respectively). First, we examined the catalytic domain of DNA demethylase TET1 fused to dSaCas9 (dSaCas9-TET1) in the Dox-inducible HEK293T cell model. For the control, we also included dSaCas9 fused to a catalytically dead TET1 domain (H1672Y and D1674A) (dSaCas9-dTET1). The HEK293T cell model was selected since this non-cancer cellular background could enable the delineation of the impact of methylation on PD-L1 mRNA expression without interference from specific oncogenic driver mutations and pathways activated in the collection of the NSCLC cell lines. HEK293T cells resemble A427 cells in that they possess low PD-L1 mRNA expression and high baseline DNA methylation, an AZA-resistant PD-L1 mRNA expression level, and no change in PD-L1 methylation following IFN-γ-mediated induction of mRNA expression. We validated the Dox-inducible expression of dSaCas9 fusions by Western blotting (Figure S5A). dSaCas9-TET1 cells were transiently transfected with expression vectors for with a pool of five Sa sgRNAs (Sa sgRNA pool) targeting the genomic regions upstream and downstream of cg19724470 and cg(chr9:5450951). cg19724470 and cg(chr9:5450951) were significantly demethylated 48 h after transfection with the sgRNAs (Figure 4A). We note that the methylation assay does not discriminate between 5-methylcytosine and 5-hydroxymethylcytosine and, accordingly, the determined methylation level is potentially overestimated. In the dSaCas9-dTET1 cells, demethylation was not observed (Figure S5B). PD-L1 mRNA expression could be impeded by the tethering of the dSaCas9 fusions with the DNA, independent of a demethylation effect of dSaCas9-TET1 [62]. Adjustment for this factor by comparing the effect of dSaCas9-TET1 relative to dSaCas9-dTET1 revealed a non-significant trend of increased PD-L1 mRNA expression (Figure 4B). We conclude that inducing a gene-specific decrease in PD-L1 methylation is insufficient to drive a significant increase in mRNA expression, which is in line with the above observations following AZA treatment.
Next, we determined whether a gene-specific increase in PD-L1 methylation could result in a decrease in expression. For this purpose, we used Sp dCas9 fused with the catalytic domain of methyltransferase DNMT3A (dSpCas9-DNMT3A) or as a control fused with a catalytically inactive DNMT3A domain as a result of the E752A mutation (dSpCas9-dDNMT3A). We validated the Dox-inducible expression of the dCas9 fusions by Western blotting (Figure S5A). The transfection of the HEK293T dSpCas9-DNMT3A cells with a pool of Sp sgRNAs targeting the north and south shores of the PD-L1 CpG island (Sp sgRNA pool) significantly increased cg19724470 but not cg(chr9:5450951) methylation (Figure 4C). We note the high baseline methylation status of these two CpGs, eventually complicating the conferral of further methylation (Figure 4C). An additional analysis of the 3′ end of the PD-L1 CpG island and its associated shore region further supported the fact that there was a gain in targeted PD-L1 methylation due to the presence of the Sp sgRNA pool and that this methylation spread into the otherwise unmethylated CpG island (Figure 4D and Figure S5C). Adjustment for the eventual presence of PD-L1 transcriptional blocking from the genome tethering of the dSpCas9-fusions revealed that the recruitment of the catalytically active DNMT3A domain decreased PD-L1 mRNA expression (Figure 4E). Thus, increasing the methylation status of the PD-L1 gene corresponding to the region containing the CpG island at the promoter can directly decrease PD-L1 mRNA expression. Hence, this supports the notion that PD-L1 DNA methylation can functionally confer a decrease in mRNA expression.

3.5. Methylation of cg19724470 Is Correlated with PD-L1 TPS in NSCLC Patients

Finally, we examined whether there was an inverse correlation between PD-L1 methylation and mRNA expression in NSCLC tumor biopsies. DNA methylation was determined by pyrosequencing, and mRNA expression was determined by RT-qPCR. The DNA methylation of cg19724470 and cg(chr9:5450951) was not significantly correlated with PD-L1 mRNA expression, although there was a trend of inverse correlation between cg19724470 and PD-L1 mRNA expression (spearman r = −0.33, p = 0.0906) (Figure 5A). Despite the fact that the cg04478497 and cg00975815 methylation levels were not correlated with PD-L1 mRNA expression in the NSCLC cell lines, we questioned whether a correlation was present in the NSCLC tumor tissue. However, no significant correlations were present (Figure S6A). Next, we revealed PD-L1 protein expression in the tumor biopsies based on immunohistochemistry (Figure S7), and the PD-L1 TPS was determined. A significant inverse correlation was observed between the methylation of cg19724470 and PD-L1 TPS (Figure 5B). This was not observed for the other examined CpG sites (Figure 5B and Figure S6B). Division of the tumors into groups according to their PD-L1 TPS (<1%, 1–49%, and ≥50%) did not result in a significant difference between the methylation medians of the groups for any of the examined CpG sites (Figure S6C). However, a trend of higher and more diverse methylation of cg19724470 was observed in the PD-L1 TPS < 1% group compared to the 1–49% and ≥50% groups (Figure S6C). A similar trend was observed for cg(chr9:5450951) (Figure S6C). We note the expected positive correlation between PD-L1 mRNA expression and PD-L1 TPS (r = 0.64, p = 0.0003) (Figure S6D). In conclusion, we only observed a negligible inverse correlation between PD-L1 methylation and expression, which indicates that in samples representing a complex tumor milieu harboring various cell types and cytokines/IFNs, the PD-L1 methylation level does not strongly inverse correlate with the PD-L1 expression level.
We also examined the relation between PD-L1 methylation and mRNA expression in tumor tissues relative to adjacent normal lung tissues. We observed no significant differences in the median methylation of any of the four examined CpG sites (Figure S6E), nor did we identify a significant difference in median PD-L1 mRNA expression between the normal adjacent tissues and tumor tissues (Figure S6F). A greater variation in PD-L1 mRNA expression was present in the tumor relative to the normal tissues (Figure S6F). Examination of the paired normal and tumor tissues for PD-L1 methylation and mRNA expression revealed both increases and decreases, highlighting differences between the tumor and normal tissues that are not systematically present in NSCLC tumor samples (Figure 5C and Figure S6G). We conclude that in the analyzed sample set, neither PD-L1 DNA methylation nor mRNA expression significantly differs between paired normal and tumor tissues.

4. Discussion

Here, we describe different aspects of the interplay between PD-L1 DNA methylation and mRNA expression. We identified that in NSCLC cells, the methylation of cg19724470, located in the south shore of the CpG island, is inversely correlated with PD-L1 mRNA expression. We also identified an inverse correlation for cg(chr9:5450951), located downstream of cg19724470. This is in line with other studies showing an inverse relationship between PD-L1 DNA methylation and mRNA expression [34,35,36,37,38,39,40,41,42,43,44]. The inverse correlation between PD-L1 mRNA expression and DNA methylation could reflect an active function of the methylation of these positions in driving the transcriptional repression of PD-L1 and/or the fact that methylation is a passenger event for a given PD-L1 expression level. Deletion of the PD-L1 gene sequences containing cg19724470 and cg(chr9:5450951) did not alter PD-L1 mRNA expression in the A427 and HCC827 cells. This indicates that this region of the PD-L1 gene does not include important transcriptional regulatory cis-elements whose DNA methylation status directly regulates PD-L1 expression. Moreover, the growth of the cells in the presence of the DNA-demethylating reagent AZA did not, per se, induce PD-L1 mRNA expression. Altogether, these results lead us to question the impact of PD-L1 methylation in driving the repression of PD-L1 mRNA expression. The best direct evidence for an at least modest impact of PD-L1 methylation status in driving mRNA expression was derived from the dCas9 fusion analyses, showing that gene-targeted methylation with DNMT3A decreased PD-L1 expression, whereas gene-targeted demethylation with TET1 showed a tendency towards increased expression. In light of this, it is important to note that these data were gathered from a cell line with a genetic background absent of oncogenic driver mutations, HEK293T, whereas the NSCLC cell lines HCC827 and A4427 harbor activating oncogenic driver mutations in EGFR and KRAS, respectively. In NSCLC, EGFR and KRAS mutations regulate PD-L1 expression through different cell signal transduction pathways [6,63,64]. Thus, despite the fact that our analyses do not support the notion that PD-L1 methylation plays a major role in dictating PD-L1 expression, it might have a regulatory function in concert with specific cancer-cell-intrinsic signaling pathways or external stimuli generated in the tumor microenvironment, i.e., pro-inflammatory cytokines, which are known inducers of PD-L1 mRNA expression. A study conducted by Asgarova et al. supports this argument [41]. In KRAS-mutated NSCLC cells, the addition of transforming growth factor-β1 (TGF-β1) decreased DNMT1 activity, with resulting PD-L1 promoter hypo-methylation. The addition of tumor necrosis factor-α (TNF-α) activated nuclear factor kappa B (NFκB) signaling. Neither TGF-β1 nor TNF-α could, by themselves, activate PD-L1 expression [41]. However, when added simultaneously, the TGF-β1-mediated PD-L1 promoter hypo-methylation allowed for the recruitment of the TNF-α-activated NFκB transcriptional activator complex, resulting in increased PD-L1 expression [41]. Along the same lines, Wrangle et al. showed that AZA, in general, has a minor impact on PD-L1 mRNA expression in NSCLC cell lines, but at the same time, the effect size depended on the precise oncogenic signal pathways activated in the given NSCLC cells [42].
IFNs, e.g., IFN-γ, secreted by cytotoxic T cells in the tumor microenvironment, can induce cancer cell PD-L1 expression [9]. In this study, as expected, we found that stimulating NSCLC cell lines with IFN-γ induced PD-L1 mRNA expression. However, IFN-γ stimulation, even when implanted for up to seven days, did not affect PD-L1 methylation. Thus, the external induction of PD-L1 expression in cancer cells, e.g., in the tumor microenvironment, may have the ability to bypass concordant changes in PD-L1 promoter methylation. Furthermore, we found that in individual patient tumor samples, the PD-L1 mRNA expression levels were not invariably associated with concordant DNA methylation levels, further indicating the significance of factors beyond PD-L1 methylation in regulating PD-L1 expression. NSCLC tumors with 1–49% and ≥50% PD-L1-positive tumor cells did not display PD-L1 methylation patterns which could explain their different degrees of PD-L1 expression. The methylation level of cg19724470 in the NSCLC tumors more closely resembled an on-off switch for PD-L1 expression, as cg19724470 methylation of the tumors with PD-L1 TPS ≥ 1%, in general, was lower compared to the methylation observed in tumors with PD-L1 TPS < 1%. Thus, the difference in PD-L1 expression between tumors with PD-L1 TPS ≥ 1% must be explained by factors other than the methylation of CpG sites, at least in the case of those examined here. Notably, PD-L1 is also regulated on the post-transcriptional and post-translational levels, as exemplified by miRNAs regulating PD-L1 mRNA stability; chemokine-like-factor (CKLF)-like MARVEL transmembrane domain-containing proteins 4 and 6 (CMTM4 and CMTM6), regulating PD-L1 protein translocation at the cancer cell membrane; and various modifications regulating PD-L1 localization and stability [65,66,67,68]. However, one should not ignore the fact that the regulation of PD-L1 on the transcriptional level can impact the amount of cell-surface-located PD-L1 [8,69]. In line with this, we found that PD-L1 TPS and PD-L1 mRNA expression were significantly correlated in NSCLC tumors (Spearman’s r = 0.64, p = 0.0003).

5. Conclusions

The presented results highlight that in NSCLC cells, a negative correlation can exist between PD-L1 DNA methylation and expression and that a gain in PD-L1 DNA methylation can be functionally involved in mediating a decrease in expression. However, the results also show that in the context of NSCLC tumors, the negative correlation between PD-L1 DNA methylation and expression is weak, and this could reflect the fact that, e.g., the IFN-γ-mediated induction of PD-L1 expression does not result in DNA methylation level changes. Since PD-L1 DNA methylation and mRNA expression levels appear to be only weakly associated, our findings highlight the need for further research before PD-L1 DNA methylation can be implemented as a biomarker and drug target for measures to improve the effectiveness of PD-1/PD-L1 immunotherapy in NSCLC.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cancers15061909/s1, Supplementary Materials and Methods; Figure S1: PD-L1 gene methylation and mRNA expression data; Figure S2: Methylation array-based analysis of PD-L1 methylation in HCC827 cell clones; Figure S3: PD-L1 stimulation with IFNγ; Figure S4: Characterization of PD-L1 regulation by DNA methylation; Figure S5: Additional dCAS-fusion-mediated methylation data; Figure S6: PD-L1 methylation, mRNA expression, and TPS; Figure S7: Immunohistochemical staining of lung tumor tissues; Table S1: cell line information; Table S2: sgRNA sequences.

Author Contributions

Conceptualization, T.V.L., N.D., L.L., B.S.S. and A.L.N.; methodology, T.V.L., N.D., L.L., B.S.S. and A.L.N.; software, T.V.L., N.D. and A.L.N.; validation, formal analysis, investigation, data curation, and visualization, J.L.-K., N.D., T.V.L., T.F.D. and A.L.N.; resources J.L.-K., B.S.S. and A.L.N.; writing—original draft preparation, T.V.L.; writing—review and editing, all authors; supervision, B.S.S., L.L. and A.L.N.; project administration, T.F.D. and A.L.N.; funding acquisition, A.L.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Vilhelm Pedersen and Hustrus Legat, Dagmar Marshalls Mindelegat, Fabrikant Einar Willumsens Mindelegat, Marie og Børge Kroghs Fond, P. A. Messerschmidt og Hustrus Fond, Thora og Viggo Grove’s Mindelegat, Familien Erichsens Familiefond, and Kræftfonden.

Informed Consent Statement

The use of anonymized, formalin-fixed, paraffin-embedded lung tissues from NSCLC patients was requested and approved following Danish and EU ethical guidelines, waiving patient consent.

Data Availability Statement

All data will be shared upon reasonable request to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ishida, Y.; Agata, Y.; Shibahara, K.; Honjo, T. Induced expression of PD-1, a novel member of the immunoglobulin gene superfamily, upon programmed cell death. EMBO J. 1992, 11, 3887–3895. [Google Scholar] [CrossRef]
  2. Keir, M.E.; Butte, M.J.; Freeman, G.J.; Sharpe, A.H. PD-1 and its ligands in tolerance and immunity. Annu. Rev. Immunol. 2008, 26, 677–704. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Boussiotis, V.A. Molecular and Biochemical Aspects of the PD-1 Checkpoint Pathway. N. Engl. J. Med. 2016, 375, 1767–1778. [Google Scholar] [CrossRef] [Green Version]
  4. Sun, C.; Mezzadra, R.; Schumacher, T.N. Regulation and Function of the PD-L1 Checkpoint. Immunity 2018, 48, 434–452. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Azuma, K.; Ota, K.; Kawahara, A.; Hattori, S.; Iwama, E.; Harada, T.; Matsumoto, K.; Takayama, K.; Takamori, S.; Kage, M.; et al. Association of PD-L1 overexpression with activating EGFR mutations in surgically resected nonsmall-cell lung cancer. Ann. Oncol. 2014, 25, 1935–1940. [Google Scholar] [CrossRef] [PubMed]
  6. Akbay, E.A.; Koyama, S.; Carretero, J.; Altabef, A.; Tchaicha, J.H.; Christensen, C.L.; Mikse, O.R.; Cherniack, A.D.; Beauchamp, E.M.; Pugh, T.J.; et al. Activation of the PD-1 pathway contributes to immune escape in EGFR-driven lung tumors. Cancer Discov. 2013, 3, 1355–1363. [Google Scholar] [CrossRef] [Green Version]
  7. Ota, K.; Azuma, K.; Kawahara, A.; Hattori, S.; Iwama, E.; Tanizaki, J.; Harada, T.; Matsumoto, K.; Takayama, K.; Takamori, S.; et al. Induction of PD-L1 Expression by the EML4-ALK Oncoprotein and Downstream Signaling Pathways in Non-Small Cell Lung Cancer. Clin. Cancer Res. 2015, 21, 4014–4021. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Sumimoto, H.; Takano, A.; Teramoto, K.; Daigo, Y. RAS-Mitogen-Activated Protein Kinase Signal Is Required for Enhanced PD-L1 Expression in Human Lung Cancers. PLoS ONE 2016, 11, e0166626. [Google Scholar] [CrossRef] [Green Version]
  9. Garcia-Diaz, A.; Shin, D.S.; Moreno, B.H.; Saco, J.; Escuin-Ordinas, H.; Rodriguez, G.A.; Zaretsky, J.M.; Sun, L.; Hugo, W.; Wang, X.; et al. Interferon Receptor Signaling Pathways Regulating PD-L1 and PD-L2 Expression. Cell. Rep. 2019, 29, 3766. [Google Scholar] [CrossRef]
  10. Tabchi, S.; Kourie, H.R.; Klastersky, J. Concurrent driver mutations/rearrangements in non-small-cell lung cancer. Curr. Opin. Oncol. 2017, 29, 118–122. [Google Scholar] [CrossRef]
  11. Tan, C.S.; Kumarakulasinghe, N.B.; Huang, Y.Q.; Ang, Y.L.E.; Choo, J.R.; Goh, B.C.; Soo, R.A. Third generation EGFR TKIs: Current data and future directions. Mol. Cancer 2018, 17, 29. [Google Scholar] [CrossRef]
  12. Chhouri, H.; Alexandre, D.; Grumolato, L. Mechanisms of Acquired Resistance and Tolerance to EGFR Targeted Therapy in Non-Small Cell Lung Cancer. Cancers 2023, 15, 504. [Google Scholar] [CrossRef] [PubMed]
  13. Niu, M.; Yi, M.; Li, N.; Luo, S.; Wu, K. Predictive biomarkers of anti-PD-1/PD-L1 therapy in NSCLC. Exp. Hematol. Oncol. 2021, 10, 18. [Google Scholar] [CrossRef]
  14. Doroshow, D.B.; Sanmamed, M.F.; Hastings, K.; Politi, K.; Rimm, D.L.; Chen, L.; Melero, I.; Schalper, K.A.; Herbst, R.S. Immunotherapy in Non-Small Cell Lung Cancer: Facts and Hopes. Clin. Cancer Res. 2019, 25, 4592–4602. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Brahmer, J.; Reckamp, K.L.; Baas, P.; Crino, L.; Eberhardt, W.E.; Poddubskaya, E.; Antonia, S.; Pluzanski, A.; Vokes, E.E.; Holgado, E.; et al. Nivolumab versus Docetaxel in Advanced Squamous-Cell Non-Small-Cell Lung Cancer. N. Engl. J. Med. 2015, 373, 123–135. [Google Scholar] [CrossRef] [Green Version]
  16. Borghaei, H.; Paz-Ares, L.; Horn, L.; Spigel, D.R.; Steins, M.; Ready, N.E.; Chow, L.Q.; Vokes, E.E.; Felip, E.; Holgado, E.; et al. Nivolumab versus Docetaxel in Advanced Nonsquamous Non-Small-Cell Lung Cancer. N. Engl. J. Med. 2015, 373, 1627–1639. [Google Scholar] [CrossRef]
  17. Kazandjian, D.; Suzman, D.L.; Blumenthal, G.; Mushti, S.; He, K.; Libeg, M.; Keegan, P.; Pazdur, R. FDA Approval Summary: Nivolumab for the Treatment of Metastatic Non-Small Cell Lung Cancer With Progression On or After Platinum-Based Chemotherapy. Oncologist 2016, 21, 634–642. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Garon, E.B.; Rizvi, N.A.; Hui, R.; Leighl, N.; Balmanoukian, A.S.; Eder, J.P.; Patnaik, A.; Aggarwal, C.; Gubens, M.; Horn, L.; et al. Pembrolizumab for the treatment of non-small-cell lung cancer. N. Engl. J. Med. 2015, 372, 2018–2028. [Google Scholar] [CrossRef] [PubMed]
  19. Fehrenbacher, L.; Spira, A.; Ballinger, M.; Kowanetz, M.; Vansteenkiste, J.; Mazieres, J.; Park, K.; Smith, D.; Artal-Cortes, A.; Lewanski, C.; et al. Atezolizumab versus docetaxel for patients with previously treated non-small-cell lung cancer (POPLAR): A multicentre, open-label, phase 2 randomised controlled trial. Lancet 2016, 387, 1837–1846. [Google Scholar] [CrossRef]
  20. Rittmeyer, A.; Barlesi, F.; Waterkamp, D.; Park, K.; Ciardiello, F.; von Pawel, J.; Gadgeel, S.M.; Hida, T.; Kowalski, D.M.; Dols, M.C.; et al. Atezolizumab versus docetaxel in patients with previously treated non-small-cell lung cancer (OAK): A phase 3, open-label, multicentre randomised controlled trial. Lancet 2017, 389, 255–265. [Google Scholar] [CrossRef]
  21. Lai, Q.; Wang, H.; Li, A.; Xu, Y.; Tang, L.; Chen, Q.; Zhang, C.; Gao, Y.; Song, J.; Du, Z. Decitibine improve the efficiency of anti-PD-1 therapy via activating the response to IFN/PD-L1 signal of lung cancer cells. Oncogene 2018, 37, 2302–2312. [Google Scholar] [CrossRef] [PubMed]
  22. Herbst, R.S.; Baas, P.; Kim, D.W.; Felip, E.; Perez-Gracia, J.L.; Han, J.Y.; Molina, J.; Kim, J.H.; Arvis, C.D.; Ahn, M.J.; et al. Pembrolizumab versus docetaxel for previously treated, PD-L1-positive, advanced non-small-cell lung cancer (KEYNOTE-010): A randomised controlled trial. Lancet 2016, 387, 1540–1550. [Google Scholar] [CrossRef] [PubMed]
  23. Mok, T.S.K.; Wu, Y.L.; Kudaba, I.; Kowalski, D.M.; Cho, B.C.; Turna, H.Z.; Castro, G., Jr.; Srimuninnimit, V.; Laktionov, K.K.; Bondarenko, I.; et al. Pembrolizumab versus chemotherapy for previously untreated, PD-L1-expressing, locally advanced or metastatic non-small-cell lung cancer (KEYNOTE-042): A randomised, open-label, controlled, phase 3 trial. Lancet 2019, 393, 1819–1830. [Google Scholar] [CrossRef] [PubMed]
  24. Reck, M.; Rodriguez-Abreu, D.; Robinson, A.G.; Hui, R.; Csoszi, T.; Fulop, A.; Gottfried, M.; Peled, N.; Tafreshi, A.; Cuffe, S.; et al. Pembrolizumab versus Chemotherapy for PD-L1-Positive Non-Small-Cell Lung Cancer. N. Engl. J. Med. 2016, 375, 1823–1833. [Google Scholar] [CrossRef] [Green Version]
  25. Pai-Scherf, L.; Blumenthal, G.M.; Li, H.; Subramaniam, S.; Mishra-Kalyani, P.S.; He, K.; Zhao, H.; Yu, J.; Paciga, M.; Goldberg, K.B.; et al. FDA Approval Summary: Pembrolizumab for Treatment of Metastatic Non-Small Cell Lung Cancer: First-Line Therapy and Beyond. Oncologist 2017, 22, 1392–1399. [Google Scholar] [CrossRef] [Green Version]
  26. Patel, S.P.; Kurzrock, R. PD-L1 Expression as a Predictive Biomarker in Cancer Immunotherapy. Mol. Cancer Ther. 2015, 14, 847–856. [Google Scholar] [CrossRef] [Green Version]
  27. Hermann, A.; Goyal, R.; Jeltsch, A. The Dnmt1 DNA-(cytosine-C5)-methyltransferase methylates DNA processively with high preference for hemimethylated target sites. J. Biol. Chem. 2004, 279, 48350–48359. [Google Scholar] [CrossRef] [Green Version]
  28. Okano, M.; Bell, D.W.; Haber, D.A.; Li, E. DNA methyltransferases Dnmt3a and Dnmt3b are essential for de novo methylation and mammalian development. Cell 1999, 99, 247–257. [Google Scholar] [CrossRef] [Green Version]
  29. Niehrs, C.; Schafer, A. Active DNA demethylation by Gadd45 and DNA repair. Trends Cell. Biol. 2012, 22, 220–227. [Google Scholar] [CrossRef]
  30. Wu, X.; Zhang, Y. TET-mediated active DNA demethylation: Mechanism, function and beyond. Nat. Rev. Genet. 2017, 18, 517–534. [Google Scholar] [CrossRef]
  31. Pfeifer, G.P. Defining Driver DNA Methylation Changes in Human Cancer. Int. J. Mol. Sci. 2018, 19, 1166. [Google Scholar] [CrossRef] [Green Version]
  32. Jones, P.A. Functions of DNA methylation: Islands, start sites, gene bodies and beyond. Nat. Rev. Genet. 2012, 13, 484–492. [Google Scholar] [CrossRef] [PubMed]
  33. Van Tongelen, A.; Loriot, A.; De Smet, C. Oncogenic roles of DNA hypomethylation through the activation of cancer-germline genes. Cancer Lett. 2017, 396, 130–137. [Google Scholar] [CrossRef] [PubMed]
  34. Goltz, D.; Gevensleben, H.; Dietrich, J.; Dietrich, D. PD-L1 (CD274) promoter methylation predicts survival in colorectal cancer patients. Oncoimmunology 2017, 6, e1257454. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Micevic, G.; Thakral, D.; McGeary, M.; Bosenberg, M.W. PD-L1 methylation regulates PD-L1 expression and is associated with melanoma survival. Pigment. Cell. Melanoma Res. 2019, 32, 435–440. [Google Scholar] [CrossRef]
  36. Xu, J.; Wei, L.; Liu, H.; Lei, Y.; Zhu, Y.; Liang, C.; Sun, G. CD274 (PD-L1) Methylation is an Independent Predictor for Bladder Cancer Patients’ Survival. Cancer Investig. 2022, 40, 228–233. [Google Scholar] [CrossRef]
  37. Goltz, D.; Gevensleben, H.; Grunen, S.; Dietrich, J.; Kristiansen, G.; Landsberg, J.; Dietrich, D. PD-L1 (CD274) promoter methylation predicts survival in patients with acute myeloid leukemia. Leukemia 2017, 31, 738–743. [Google Scholar] [CrossRef]
  38. Gevensleben, H.; Holmes, E.E.; Goltz, D.; Dietrich, J.; Sailer, V.; Ellinger, J.; Dietrich, D.; Kristiansen, G. PD-L1 promoter methylation is a prognostic biomarker for biochemical recurrence-free survival in prostate cancer patients following radical prostatectomy. Oncotarget 2016, 7, 79943–79955. [Google Scholar] [CrossRef] [PubMed]
  39. Zhang, Y.; Xiang, C.; Wang, Y.; Duan, Y.; Liu, C.; Zhang, Y. PD-L1 promoter methylation mediates the resistance response to anti-PD-1 therapy in NSCLC patients with EGFR-TKI resistance. Oncotarget 2017, 8, 101535–101544. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Kowanetz, M.; Zou, W.; Gettinger, S.N.; Koeppen, H.; Kockx, M.; Schmid, P.; Kadel, E.E., 3rd; Wistuba, I.; Chaft, J.; Rizvi, N.A.; et al. Differential regulation of PD-L1 expression by immune and tumor cells in NSCLC and the response to treatment with atezolizumab (anti-PD-L1). Proc. Natl. Acad. Sci. USA 2018, 115, E10119–E10126. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Asgarova, A.; Asgarov, K.; Godet, Y.; Peixoto, P.; Nadaradjane, A.; Boyer-Guittaut, M.; Galaine, J.; Guenat, D.; Mougey, V.; Perrard, J.; et al. PD-L1 expression is regulated by both DNA methylation and NF-kB during EMT signaling in non-small cell lung carcinoma. Oncoimmunology 2018, 7, e1423170. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Wrangle, J.; Wang, W.; Koch, A.; Easwaran, H.; Mohammad, H.P.; Vendetti, F.; Vancriekinge, W.; Demeyer, T.; Du, Z.; Parsana, P.; et al. Alterations of immune response of Non-Small Cell Lung Cancer with Azacytidine. Oncotarget 2013, 4, 2067–2079. [Google Scholar] [CrossRef] [Green Version]
  43. Franzen, A.; Vogt, T.J.; Muller, T.; Dietrich, J.; Schrock, A.; Golletz, C.; Brossart, P.; Bootz, F.; Landsberg, J.; Kristiansen, G.; et al. PD-L1 (CD274) and PD-L2 (PDCD1LG2) promoter methylation is associated with HPV infection and transcriptional repression in head and neck squamous cell carcinomas. Oncotarget 2018, 9, 641–650. [Google Scholar] [CrossRef] [Green Version]
  44. Conway, K.; Tsai, Y.S.; Edmiston, S.N.; Parker, J.S.; Parrish, E.A.; Hao, H.; Kuan, P.F.; Scott, G.A.; Frank, J.S.; Googe, P.; et al. Characterization of the CpG Island Hypermethylated Phenotype Subclass in Primary Melanomas. J. Investig. Dermatol. 2022, 142, 1869–1881. [Google Scholar] [CrossRef]
  45. Stresemann, C.; Lyko, F. Modes of action of the DNA methyltransferase inhibitors azacytidine and decitabine. Int. J. Cancer 2008, 123, 8–13. [Google Scholar] [CrossRef] [PubMed]
  46. Xu, Y.; Li, P.; Liu, Y.; Xin, D.; Lei, W.; Liang, A.; Han, W.; Qian, W. Epi-immunotherapy for cancers: Rationales of epi-drugs in combination with immunotherapy and advances in clinical trials. Cancer Commun. 2022, 42, 493–516. [Google Scholar] [CrossRef] [PubMed]
  47. Jakobsen, K.R.; Demuth, C.; Madsen, A.T.; Hussmann, D.; Vad-Nielsen, J.; Nielsen, A.L.; Sorensen, B.S. MET amplification and epithelial-to-mesenchymal transition exist as parallel resistance mechanisms in erlotinib-resistant, EGFR-mutated, NSCLC HCC827 cells. Oncogenesis 2017, 6, e307. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Thomsen, R.; Solvsten, C.A.; Linnet, T.E.; Blechingberg, J.; Nielsen, A.L. Analysis of qPCR data by converting exponentially related Ct values into linearly related X0 values. J. Bioinform. Comput. Biol. 2010, 8, 885–900. [Google Scholar] [CrossRef]
  49. Vad-Nielsen, J.; Staunstrup, N.H.; Kjeldsen, M.L.; Dybdal, N.; Flandin, G.; De Stradis, C.; Daugaard, T.F.; Vilsboll-Larsen, T.; Maansson, C.T.; Doktor, T.K.; et al. Genome-wide epigenetic and mRNA-expression profiling followed by CRISPR/Cas9-mediated gene-disruptions corroborate the MIR141/MIR200C-ZEB1/ZEB2-FGFR1 axis in acquired EMT-associated EGFR TKI-resistance in NSCLC cells. Transl. Lung Cancer Res. 2023, 12, 42–65. [Google Scholar] [CrossRef]
  50. Dietz, L.L.; Furman, N.T.; Larsen, T.V.; Daugaard, T.F.; Thomsen, E.A.; Keller, J.L.; Aagaard, L.; Sorensen, B.S.; Nielsen, A.L. An Extended PD-L2 Cytoplasmic Domain Results From Alternative Splicing in NSCLC Cells. J. Immunother. 2022, 45, 379–388. [Google Scholar] [CrossRef]
  51. Liu, Z.; Chen, O.; Wall, J.B.J.; Zheng, M.; Zhou, Y.; Wang, L.; Vaseghi, H.R.; Qian, L.; Liu, J. Systematic comparison of 2A peptides for cloning multi-genes in a polycistronic vector. Sci. Rep. 2017, 7, 2193. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Zhou, X.; Vink, M.; Klaver, B.; Berkhout, B.; Das, A.T. Optimization of the Tet-On system for regulated gene expression through viral evolution. Gene Ther. 2006, 13, 1382–1390. [Google Scholar] [CrossRef] [PubMed]
  53. Friedland, A.E.; Baral, R.; Singhal, P.; Loveluck, K.; Shen, S.; Sanchez, M.; Marco, E.; Gotta, G.M.; Maeder, M.L.; Kennedy, E.M.; et al. Characterization of Staphylococcus aureus Cas9: A smaller Cas9 for all-in-one adeno-associated virus delivery and paired nickase applications. Genome Biol. 2015, 16, 257. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Qi, L.S.; Larson, M.H.; Gilbert, L.A.; Doudna, J.A.; Weissman, J.S.; Arkin, A.P.; Lim, W.A. Repurposing CRISPR as an RNA-guided platform for sequence-specific control of gene expression. Cell 2013, 152, 1173–1183. [Google Scholar] [CrossRef] [Green Version]
  55. Liu, X.S.; Wu, H.; Ji, X.; Stelzer, Y.; Wu, X.; Czauderna, S.; Shu, J.; Dadon, D.; Young, R.A.; Jaenisch, R. Editing DNA Methylation in the Mammalian Genome. Cell 2016, 167, 233–247.e17. [Google Scholar] [CrossRef] [Green Version]
  56. Lin, L.; Liu, Y.; Xu, F.; Huang, J.; Daugaard, T.F.; Petersen, T.S.; Hansen, B.; Ye, L.; Zhou, Q.; Fang, F.; et al. Genome-wide determination of on-target and off-target characteristics for RNA-guided DNA methylation by dCas9 methyltransferases. Gigascience 2018, 7, 1–19. [Google Scholar] [CrossRef]
  57. Yusa, K.; Zhou, L.; Li, M.A.; Bradley, A.; Craig, N.L. A hyperactive piggyBac transposase for mammalian applications. Proc. Natl. Acad. Sci. USA 2011, 108, 1531–1536. [Google Scholar] [CrossRef] [Green Version]
  58. Amini, M.; Hejazi, M.; Ghorban, K.; Mokhtarzadeh, A.; Baradaran, B. Identification of functional methylated CpG loci in PD-L1 promoter as the novel epigenetic biomarkers for primary gastric cancer. Gene 2021, 772, 145376. [Google Scholar] [CrossRef] [PubMed]
  59. Demuth, C.; Andersen, M.N.; Jakobsen, K.R.; Madsen, A.T.; Sorensen, B.S. Increased PD-L1 expression in erlotinib-resistant NSCLC cells with MET gene amplification is reversed upon MET-TKI treatment. Oncotarget 2017, 8, 68221–68229. [Google Scholar] [CrossRef] [Green Version]
  60. Larsen, T.V.; Hussmann, D.; Nielsen, A.L. PD-L1 and PD-L2 expression correlated genes in non-small-cell lung cancer. Cancer Commun. 2019, 39, 30. [Google Scholar] [CrossRef] [Green Version]
  61. Gao, Y.; Yang, J.; Cai, Y.; Fu, S.; Zhang, N.; Fu, X.; Li, L. IFN-gamma-mediated inhibition of lung cancer correlates with PD-L1 expression and is regulated by PI3K-AKT signaling. Int. J. Cancer 2018, 143, 931–943. [Google Scholar] [CrossRef] [Green Version]
  62. Sapozhnikov, D.M.; Szyf, M. Unraveling the functional role of DNA demethylation at specific promoters by targeted steric blockage of DNA methyltransferase with CRISPR/dCas9. Nat. Commun. 2021, 12, 5711. [Google Scholar] [CrossRef]
  63. Coelho, M.A.; de Carne Trecesson, S.; Rana, S.; Zecchin, D.; Moore, C.; Molina-Arcas, M.; East, P.; Spencer-Dene, B.; Nye, E.; Barnouin, K.; et al. Oncogenic RAS Signaling Promotes Tumor Immunoresistance by Stabilizing PD-L1 mRNA. Immunity 2017, 47, 1083–1099.e6. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Liu, C.; Zheng, S.; Wang, Z.; Wang, S.; Wang, X.; Yang, L.; Xu, H.; Cao, Z.; Feng, X.; Xue, Q.; et al. KRAS-G12D mutation drives immune suppression and the primary resistance of anti-PD-1/PD-L1 immunotherapy in non-small cell lung cancer. Cancer Commun. 2022, 42, 828–847. [Google Scholar] [CrossRef] [PubMed]
  65. Hu, X.; Lin, Z.; Wang, Z.; Zhou, Q. Emerging role of PD-L1 modification in cancer immunotherapy. Am. J. Cancer Res. 2021, 11, 3832–3840. [Google Scholar] [PubMed]
  66. Burr, M.L.; Sparbier, C.E.; Chan, Y.C.; Williamson, J.C.; Woods, K.; Beavis, P.A.; Lam, E.Y.N.; Henderson, M.A.; Bell, C.C.; Stolzenburg, S.; et al. CMTM6 maintains the expression of PD-L1 and regulates anti-tumour immunity. Nature 2017, 549, 101–105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Mezzadra, R.; Sun, C.; Jae, L.T.; Gomez-Eerland, R.; de Vries, E.; Wu, W.; Logtenberg, M.E.W.; Slagter, M.; Rozeman, E.A.; Hofland, I.; et al. Identification of CMTM6 and CMTM4 as PD-L1 protein regulators. Nature 2017, 549, 106–110. [Google Scholar] [CrossRef]
  68. Skafi, N.; Fayyad-Kazan, M.; Badran, B. Immunomodulatory role for MicroRNAs: Regulation of PD-1/PD-L1 and CTLA-4 immune checkpoints expression. Gene 2020, 754, 144888. [Google Scholar] [CrossRef] [PubMed]
  69. Pauken, K.E.; Torchia, J.A.; Chaudhri, A.; Sharpe, A.H.; Freeman, G.J. Emerging concepts in PD-1 checkpoint biology. Semin. Immunol. 2021, 52, 101480. [Google Scholar] [CrossRef]
Cancers 15 01909 g001 550

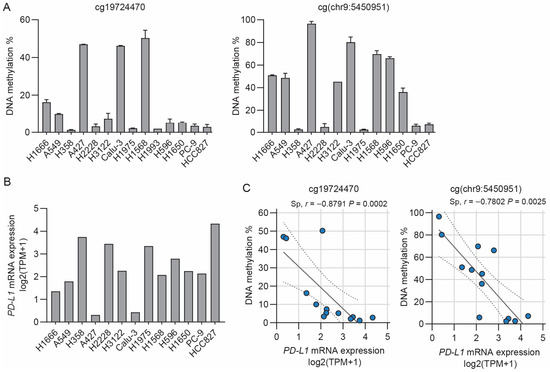

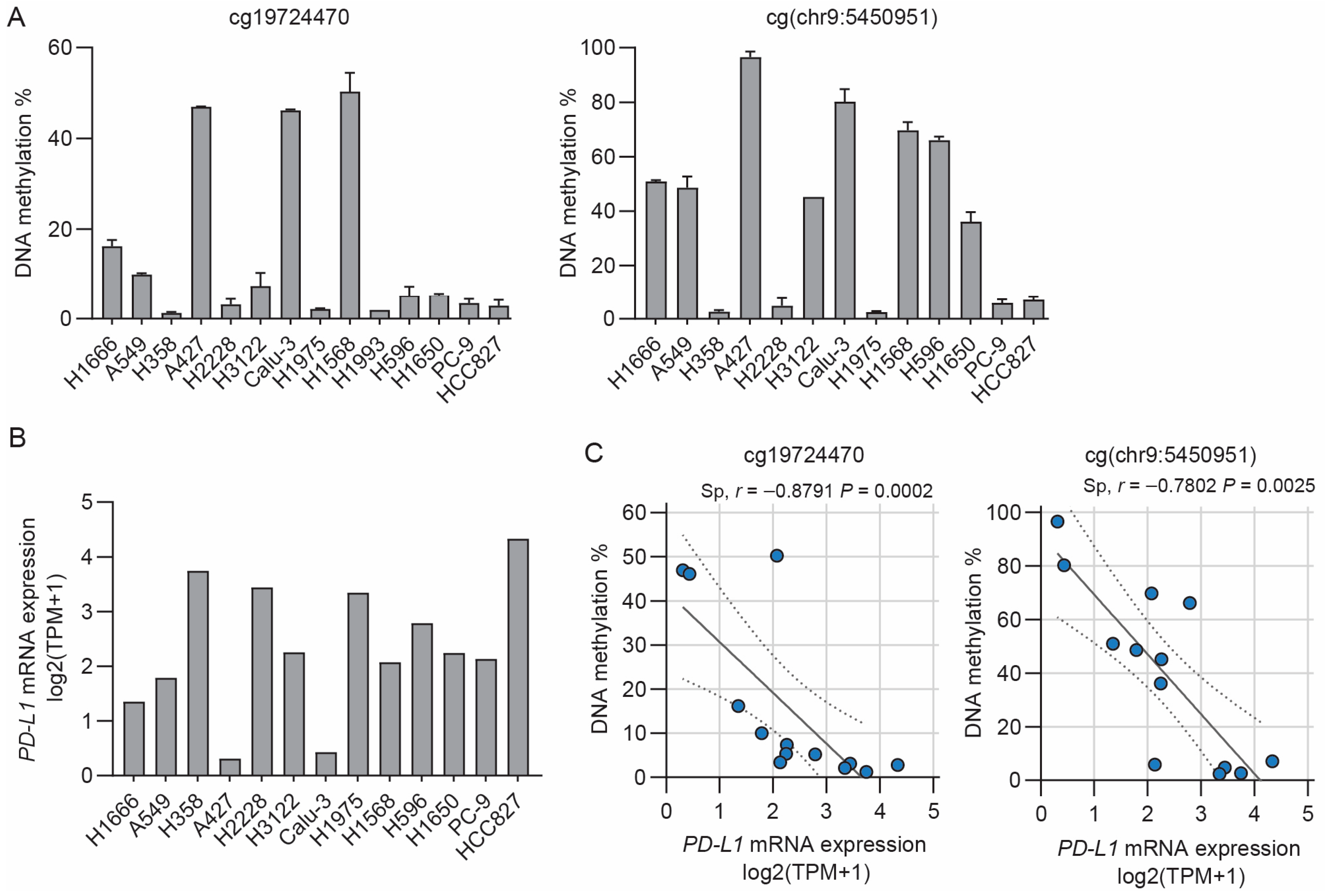

Figure 1. PD-L1 methylation and mRNA expression in NSCLC cell lines. (A) DNA methylation of cg19724470 (left panel) and cg(chr9:5450951) (right panel) in NSCLC cell lines. Mean ± SD of at least two PCR-pyrosequencing runs. For cg(chr9:5450951), H1993 is not included, as we could not successfully quantify the DNA methylation at this site. (B) PD-L1 mRNA expression in NSCLC cell lines from the Expression 22Q2 Public dataset derived from DepMap Portal. The DepMap Portal contained no information on the H1993 cell line at the time of the analyses. Transcripts per million (TPM). (C) Correlation analysis of PD-L1 mRNA expression from the DepMap Portal and DNA methylation of cg19724470 (left panel) and cg(chr9:5450951) (right panel) in NSCLC cell lines. Spearman’s correlation coefficients (r) and the p-values are depicted above the graphs. Linear best fit (solid line) and 95% confidence intervals (dotted lines) are depicted.
Figure 1. PD-L1 methylation and mRNA expression in NSCLC cell lines. (A) DNA methylation of cg19724470 (left panel) and cg(chr9:5450951) (right panel) in NSCLC cell lines. Mean ± SD of at least two PCR-pyrosequencing runs. For cg(chr9:5450951), H1993 is not included, as we could not successfully quantify the DNA methylation at this site. (B) PD-L1 mRNA expression in NSCLC cell lines from the Expression 22Q2 Public dataset derived from DepMap Portal. The DepMap Portal contained no information on the H1993 cell line at the time of the analyses. Transcripts per million (TPM). (C) Correlation analysis of PD-L1 mRNA expression from the DepMap Portal and DNA methylation of cg19724470 (left panel) and cg(chr9:5450951) (right panel) in NSCLC cell lines. Spearman’s correlation coefficients (r) and the p-values are depicted above the graphs. Linear best fit (solid line) and 95% confidence intervals (dotted lines) are depicted.
Cancers 15 01909 g001
Cancers 15 01909 g002 550

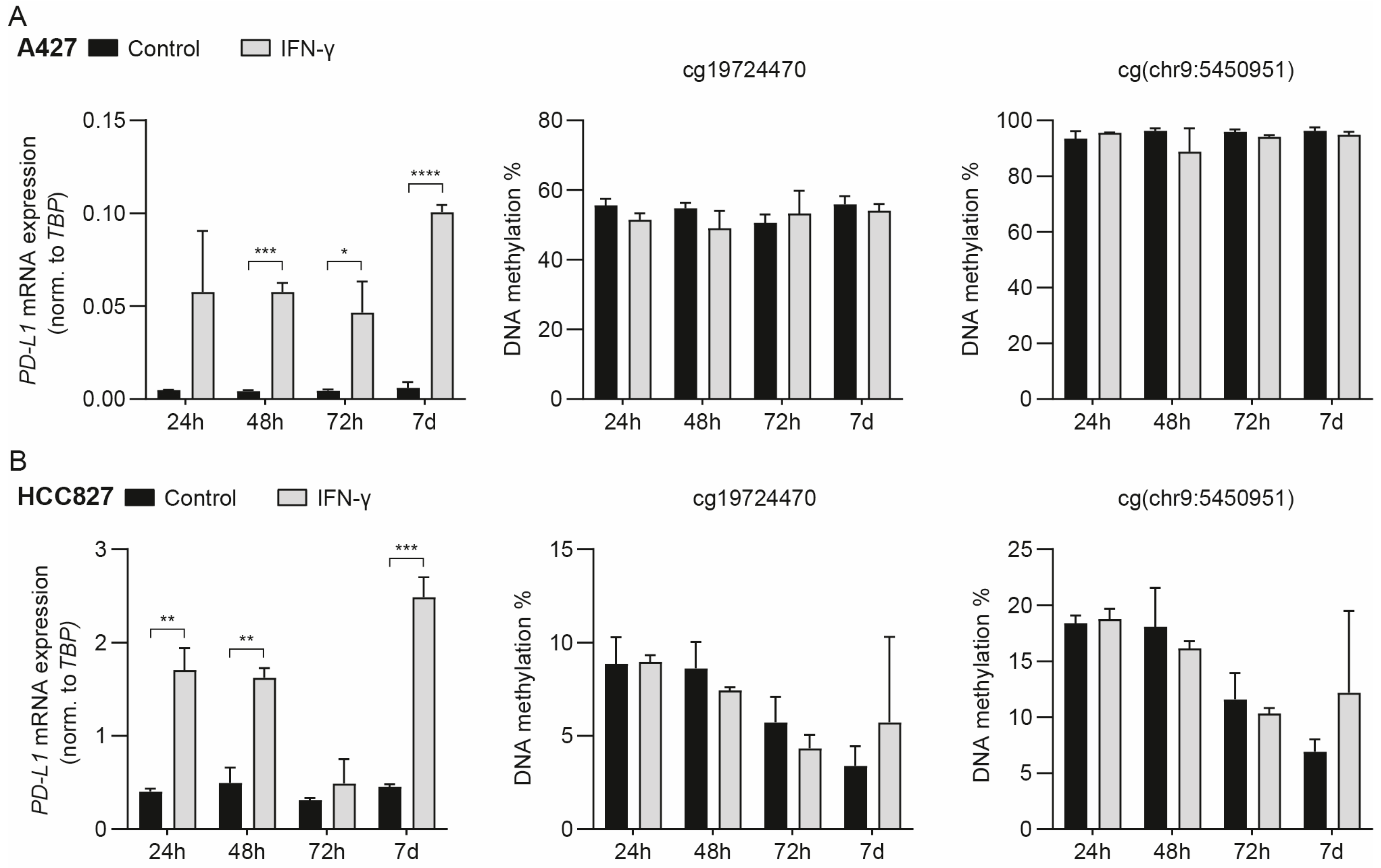

Figure 2. PD-L1 methylation and mRNA expression following interferon-γ (IFN-γ) induction. (A) A427 cells and (B) HCC827 cells were stimulated with 10 ng/mL IFN-γ for 24 h, 48 h, 72 h, or 7 days. PD-L1 mRNA expression was normalized to TBP. DNA methylation of cg19724470 and cg(chr9:5450951). Mean ± SD. n = 3 (except for the A427 control and IFN-γ at 24 h, where n = 2). Differences between the control and IFN-γ treatment were tested through an unpaired t-test with correction for multiple comparisons using the Holm–Šidák method. Adjusted p-value * < 0.05; ** < 0.01; *** < 0.001; **** < 0.0001.
Figure 2. PD-L1 methylation and mRNA expression following interferon-γ (IFN-γ) induction. (A) A427 cells and (B) HCC827 cells were stimulated with 10 ng/mL IFN-γ for 24 h, 48 h, 72 h, or 7 days. PD-L1 mRNA expression was normalized to TBP. DNA methylation of cg19724470 and cg(chr9:5450951). Mean ± SD. n = 3 (except for the A427 control and IFN-γ at 24 h, where n = 2). Differences between the control and IFN-γ treatment were tested through an unpaired t-test with correction for multiple comparisons using the Holm–Šidák method. Adjusted p-value * < 0.05; ** < 0.01; *** < 0.001; **** < 0.0001.
Cancers 15 01909 g002
Cancers 15 01909 g003 550

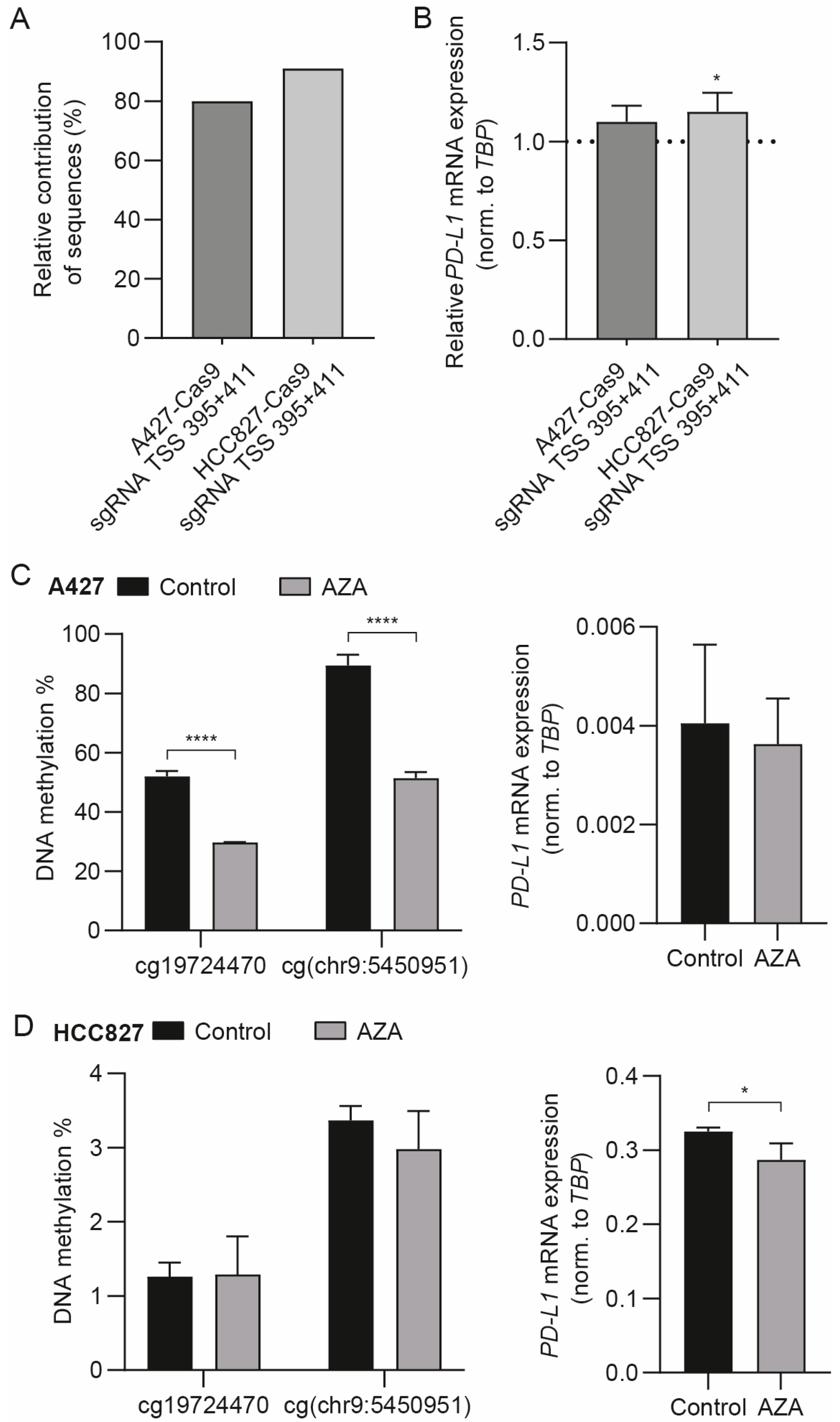

Figure 3. PD-L1 mRNA expression following alteration in genome-wide DNA methylation by azacytidine (AZA). (A,B) The consequence of a PD-L1 deletion harboring cg19724470 and cg(chr9:5450951). (A) The relative contributions of sequences with the deletion of both cg19724470 and cg(chr9:5450951). (B) PD-L1 mRNA expression normalized to TBP followed by normalization to cells transduced with the control sgRNA. The dotted line represents normalized expression with the control sgRNA. Mean ± SD of technical triplicates. (C,D) Effect of 48 h of AZA treatment on PD-L1 mRNA expression and methylation in (C) A427 cells and (D) HCC827 cells. Mean ± SD of technical triplicates. Differences in PD-L1 mRNA expression between the control and AZA treatment were tested through an unpaired t-test. Differences in DNA methylation between the control and AZA treatment were tested through an unpaired t-test with correction for multiple comparisons using the Holm–Šidák method. Ordinary one-way ANOVA with Holm–Šidák’s multiple comparisons test was used to test for differences in PD-L1 expression. Adjusted p-value * < 0.05; **** < 0.0001.
Figure 3. PD-L1 mRNA expression following alteration in genome-wide DNA methylation by azacytidine (AZA). (A,B) The consequence of a PD-L1 deletion harboring cg19724470 and cg(chr9:5450951). (A) The relative contributions of sequences with the deletion of both cg19724470 and cg(chr9:5450951). (B) PD-L1 mRNA expression normalized to TBP followed by normalization to cells transduced with the control sgRNA. The dotted line represents normalized expression with the control sgRNA. Mean ± SD of technical triplicates. (C,D) Effect of 48 h of AZA treatment on PD-L1 mRNA expression and methylation in (C) A427 cells and (D) HCC827 cells. Mean ± SD of technical triplicates. Differences in PD-L1 mRNA expression between the control and AZA treatment were tested through an unpaired t-test. Differences in DNA methylation between the control and AZA treatment were tested through an unpaired t-test with correction for multiple comparisons using the Holm–Šidák method. Ordinary one-way ANOVA with Holm–Šidák’s multiple comparisons test was used to test for differences in PD-L1 expression. Adjusted p-value * < 0.05; **** < 0.0001.
Cancers 15 01909 g003
Cancers 15 01909 g004 550

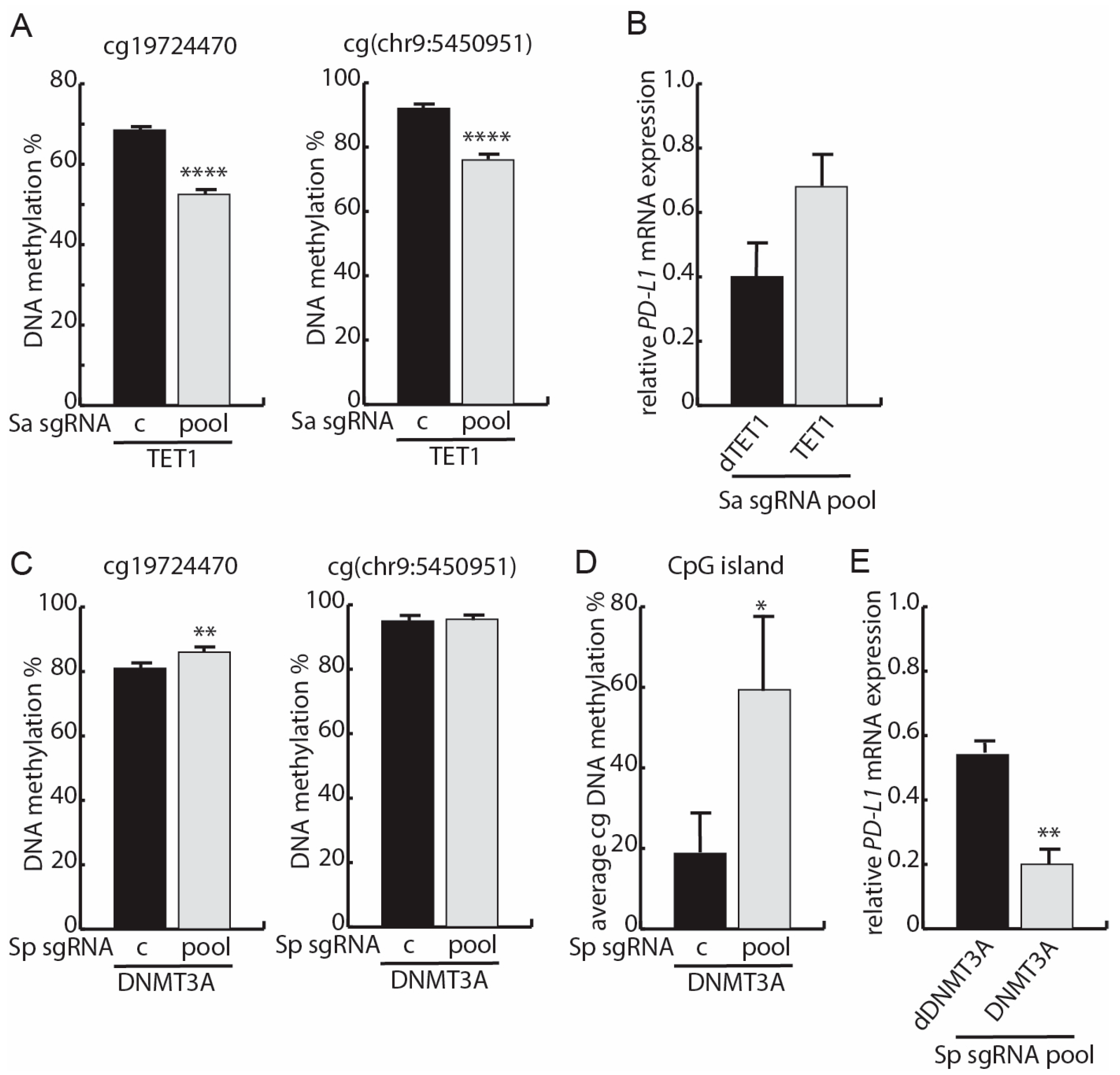

Figure 4. Effects of dCas9-fusion-mediated specific targeting of PD-L1 methylation and demethylation. (A) HEK293T-dSaCas9-TET1 cells were induced with doxycycline and transfected with Streptococcus aureus (Sa) control sgRNA (c) or a pool of Sa sgRNAs (pool) targeting the south shore of the PD-L1 CpG island. Next, 48 h after transfection, DNA methylation was analyzed and presented as mean ± SD. n = 3. One-way ANOVA with Holm–Šidák’s multiple comparisons test was used to test for significant differences in DNA methylation. (B) Relative PD-L1 mRNA expression in dSaCas9-TET1 and dSaCas9-dTET1 cells transfected with the Sa sgRNA pool. The expression is shown relative to the values obtained with the Sp sgRNA control and normalized to TBP expression. An unpaired t-test was used to test for significance. (C) As in (A) but for HEK293T-dSpCas9-DNMT3A cells transfected with Streptococcus pyogenes (Sp) control sgRNA or a pool of Sp sgRNAs targeting the north and south shores of the PD-L1 CpG island. n = 2. An unpaired t-test was used to test for significance. (D) Average CpG site methylation percentage calculated by clonal bisulfate sequencing of the 24 CpGs in the 3′ end of the CpG island and its associated shore in HEK293T dSpCas9-DNMT3A cells transfected with Sp control sgRNA or a pool of Sp sgRNAs targeting the north and south shores of the PD-L1 CpG island. n = 4 sequences for each transfection. An unpaired t-test was used to examine for significance. p-value * < 0.01. (E) Relative PD-L1 mRNA expression in dSpCas9-DNMT3A and dSpCas9-dDNMT3A cells transfected with the sgRNA pool. The expression is shown relative to the values obtained with the Sp sgRNA control and normalized to TBP expression. An unpaired t-test was used to examine for significance. n = 2 for DNMT3A and n = 3 for dDNMT3A. p-value or adjusted p-value ** < 0.01; **** < 0.0001.
Figure 4. Effects of dCas9-fusion-mediated specific targeting of PD-L1 methylation and demethylation. (A) HEK293T-dSaCas9-TET1 cells were induced with doxycycline and transfected with Streptococcus aureus (Sa) control sgRNA (c) or a pool of Sa sgRNAs (pool) targeting the south shore of the PD-L1 CpG island. Next, 48 h after transfection, DNA methylation was analyzed and presented as mean ± SD. n = 3. One-way ANOVA with Holm–Šidák’s multiple comparisons test was used to test for significant differences in DNA methylation. (B) Relative PD-L1 mRNA expression in dSaCas9-TET1 and dSaCas9-dTET1 cells transfected with the Sa sgRNA pool. The expression is shown relative to the values obtained with the Sp sgRNA control and normalized to TBP expression. An unpaired t-test was used to test for significance. (C) As in (A) but for HEK293T-dSpCas9-DNMT3A cells transfected with Streptococcus pyogenes (Sp) control sgRNA or a pool of Sp sgRNAs targeting the north and south shores of the PD-L1 CpG island. n = 2. An unpaired t-test was used to test for significance. (D) Average CpG site methylation percentage calculated by clonal bisulfate sequencing of the 24 CpGs in the 3′ end of the CpG island and its associated shore in HEK293T dSpCas9-DNMT3A cells transfected with Sp control sgRNA or a pool of Sp sgRNAs targeting the north and south shores of the PD-L1 CpG island. n = 4 sequences for each transfection. An unpaired t-test was used to examine for significance. p-value * < 0.01. (E) Relative PD-L1 mRNA expression in dSpCas9-DNMT3A and dSpCas9-dDNMT3A cells transfected with the sgRNA pool. The expression is shown relative to the values obtained with the Sp sgRNA control and normalized to TBP expression. An unpaired t-test was used to examine for significance. n = 2 for DNMT3A and n = 3 for dDNMT3A. p-value or adjusted p-value ** < 0.01; **** < 0.0001.
Cancers 15 01909 g004
Cancers 15 01909 g005 550

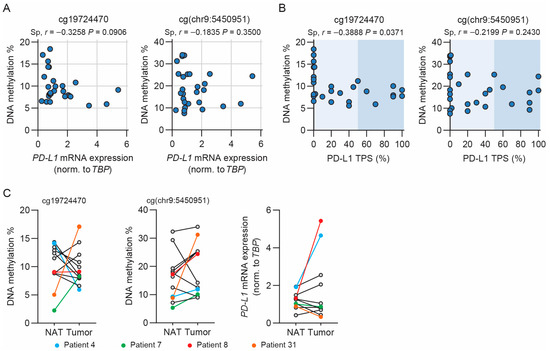

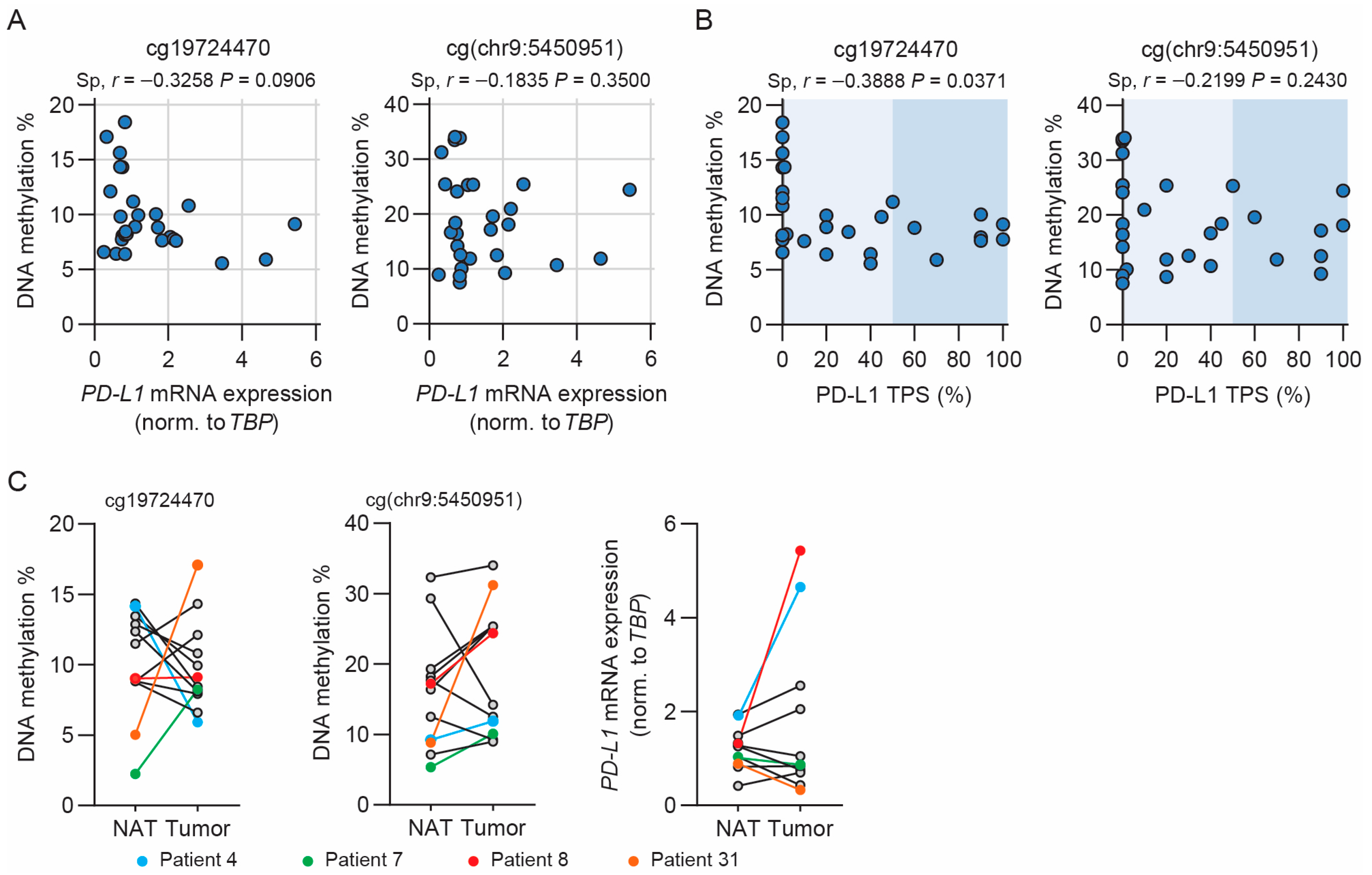

Figure 5. PD-L1 methylation and mRNA expression in NSCLC tumor biopsies. (A) Spearman’s correlation analysis of PD-L1 mRNA expression and DNA methylation of cg19724470 and cg(chr9:5450951), respectively, in NSCLC tumor tissue (n = 28). Spearman’s correlation coefficients (r) and the p-values are depicted above the graph. (B) Correlation analysis of PD-L1 TPS and DNA methylation of cg19724470 (n = 29) and cg(chr9:5450951) (n = 30), respectively, in NSCLC tumor tissue. Spearman’s correlation coefficients (r) and the p-values are depicted above the graph. Shading represents clinically used PD-L1 TPS subdivisions (<1%, 1–49%, and ≥50%). (C) DNA methylation of cg19724470 (n = 12) and cg(chr9:5450951) (n = 12) and PD-L1 mRNA expression normalized to TBP (n = 11) in normal adjacent tissue (NAT) and tumor tissue, connected by a line for each patient. The selected patients are marked by color.
Figure 5. PD-L1 methylation and mRNA expression in NSCLC tumor biopsies. (A) Spearman’s correlation analysis of PD-L1 mRNA expression and DNA methylation of cg19724470 and cg(chr9:5450951), respectively, in NSCLC tumor tissue (n = 28). Spearman’s correlation coefficients (r) and the p-values are depicted above the graph. (B) Correlation analysis of PD-L1 TPS and DNA methylation of cg19724470 (n = 29) and cg(chr9:5450951) (n = 30), respectively, in NSCLC tumor tissue. Spearman’s correlation coefficients (r) and the p-values are depicted above the graph. Shading represents clinically used PD-L1 TPS subdivisions (<1%, 1–49%, and ≥50%). (C) DNA methylation of cg19724470 (n = 12) and cg(chr9:5450951) (n = 12) and PD-L1 mRNA expression normalized to TBP (n = 11) in normal adjacent tissue (NAT) and tumor tissue, connected by a line for each patient. The selected patients are marked by color.
Cancers 15 01909 g005
