Prediction of Primary Tumour and Axillary Lymph Node Response to Neoadjuvant Chemo(Targeted) Therapy with Dedicated Breast [18F]FDG PET/MRI in Breast Cancer

by
Cornelis M. de Mooij
1,2,3,*,
Thiemo J. A. van Nijnatten
1,3,
Briete Goorts
1,2,3,
Loes F. S. Kooreman
3,4,
Isabel W. M. Raymakers
2,
Silke P. L. van Meijl
1,
Maaike de Boer
5,
Kristien B. M. I. Keymeulen
2,
Joachim E. Wildberger
1,
Felix M. Mottaghy
1,6,
Marc B. I. Lobbes
1,3,7 and
Marjolein L. Smidt
2,3
1
Department of Radiology and Nuclear Medicine, Maastricht University Medical Centre, P. Debyelaan 25, 6229 HX Maastricht, The Netherlands
2
Department of Surgery, Maastricht University Medical Centre, P. Debyelaan 25, 6229 HX Maastricht, The Netherlands
3
GROW—School for Oncology and Reproduction, Maastricht University, Universiteitssingel 40, 6229 ER Maastricht, The Netherlands
4
Department of Pathology, Maastricht University Medical Centre, P. Debyelaan 25, 6229 HX Maastricht, The Netherlands
5
Department of Medical Oncology, Maastricht University Medical Centre, P. Debyelaan 25, 6229 HX Maastricht, The Netherlands
6
Department of Nuclear Medicine, RWTH Aachen University Hospital, Pauwelstraße 30, 52074 Aachen, Germany
7
Department of Medical Imaging, Zuyderland Medical Centre, Dr. H. van der Hoffplein 1, 6162 BG Sittard-Geleen, The Netherlands
*
Author to whom correspondence should be addressed.
Cancers 2023, 15(2), 401; https://doi.org/10.3390/cancers15020401
Submission received: 19 November 2022 / Revised: 3 January 2023 / Accepted: 4 January 2023 / Published: 7 January 2023
(This article belongs to the Special Issue MRI in Breast Cancer)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Neoadjuvant chemo(targeted) therapy (NCT) can downstage disease burden in breast cancer, allowing less invasive surgery. The ability of sequential hybrid [18F]FDG PET/MRI to predict the final pathologic primary tumour response to NCT in breast cancer was investigated. In addition, the value of sequential hybrid [18F]FDG PET/MRI in predicting axillary response was investigated separately in clinically node-positive breast cancer patients. In this study, final pathologic primary tumour and axillary lymph node response prediction with qualitative or quantitative [18F]FDG PET/MRI after NCT is not reliable. However, combining the relative decrease in [18F]FDG PET and MR imaging variables halfway through NCT improved diagnostic performance, especially in predicting the final pathologic axillary lymph node response. These findings suggest that sequential hybrid [18F]FDG PET/MRI could have complementary value in the early prediction of the final pathologic response to NCT in breast cancer.

Abstract

Background: The aim of this study was to investigate whether sequential hybrid [18F]FDG PET/MRI can predict the final pathologic response to neoadjuvant chemo(targeted) therapy (NCT) in breast cancer. Methods: Sequential [18F]FDG PET/MRI was performed before, halfway through and after NCT, followed by surgery. Qualitative response evaluation was assessed after NCT. Quantitatively, the SUVmax obtained by [18F]FDG PET and signal enhancement ratio (SER) obtained by MRI were determined sequentially on the primary tumour. For the response of axillary lymph node metastases (ALNMs), SUVmax was determined sequentially on the most [18F]FDG-avid ALN. ROC curves were generated to determine the optimal cut-off values for the absolute and percentage change in quantitative variables in predicting response. Diagnostic performance in predicting primary tumour response was assessed with AUC. Similar analyses were performed in clinically node-positive (cN+) patients for ALNM response. Results: Forty-one breast cancer patients with forty-two primary tumours and twenty-six cases of pathologically proven cN+ disease were prospectively included. Pathologic complete response (pCR) of the primary tumour occurred in 16 patients and pCR of the ALNMs in 14 cN+ patients. The AUC of the qualitative evaluation after NCT was 0.71 for primary tumours and 0.54 for ALNM responses. For primary tumour response, combining the percentage decrease in SUVmax and SER halfway through NCT achieved an AUC of 0.78. The AUC for ALNM response prediction increased to 0.92 by combining the absolute and the percentage decrease in SUVmax halfway through NCT. Conclusions: Qualitative PET/MRI after NCT can predict the final pathologic primary tumour response, but not the ALNM response. Combining quantitative variables halfway through NCT can improve the diagnostic accuracy for final pathologic ALNM response prediction.

1. Introduction

Neoadjuvant chemo(targeted) therapy (NCT) has acquired a well-established role in the treatment of invasive breast cancer [1,2,3,4]. NCT can downstage disease burden in the breast and the axillary lymph nodes (ALNs) [5,6,7]. On average, 22% of breast cancer patients achieve a pathologic complete response (pCR) of the primary tumour (i.e., ypT0/is) and 36% of pathologically proven clinically node-positive (cN+) breast cancer patients achieve a pCR of ALN metastases (ALNM) [7,8]. Accurate prediction of disease progression during NCT or pCR after NCT provides the opportunity for response-guided treatment [9].
Concerning the primary tumour, the accuracy of non-invasive imaging in determining the response to NCT has been investigated extensively. Magnetic resonance imaging (MRI) provides high sensitivity in detecting residual disease (RD), while positron emission tomography with computed tomography (PET/CT) using [18F]-fluorodeoxyglucose ([18F]FDG) has high specificity for the detection of pCR [10,11]. Hybrid [18F]FDG PET/MRI demonstrates complementary performance with the important advantage of combining quantitative [18F]FDG PET and MR imaging variables in a single examination [12].
Concerning ALNMs in cN+ breast cancer patients, the advent of less invasive axillary surgical procedures after NCT has increased the importance of accurate non-invasive axillary response assessment [13,14]. Thus far, non-invasive imaging has not been able to reliably determine axillary response after NCT in pathologically proven cN+ breast cancer patients [15]. The diagnostic performance of sequential hybrid [18F]FDG PET/MRI in axillary response prediction in pathologically proven cN+ breast cancer patients has not yet been investigated.
Therefore, the primary aim of this study was to investigate whether sequential dedicated breast hybrid [18F]FDG PET/MRI could accurately predict pathologic primary tumour response to NCT in breast cancer patients. As a secondary aim, pathologic axillary response prediction in pathologically proven cN+ patients was investigated.

2. Materials and Methods

This prospective, single-centre study was approved by the local medical research ethics committee. Requirement for informed consent was waived, since sequential [18F]FDG PET/MRI was clinically evaluated for response during NCT.

2.1. Patients

Female patients with histopathologically confirmed primary invasive breast cancer with a primary tumour larger than 2 centimetres and/or ALNM confirmed by tissue sampling, who completed NCT and were planned to undergo breast and axillary surgery, were eligible for inclusion. Exclusion criteria were pregnancy, neoadjuvant hormone monotherapy, presence of distant metastasis at diagnosis, and contraindications for MRI. Consecutive eligible patients were offered [18F]FDG PET/MRI for response evaluation to NCT, in case baseline imaging with MRI or [18F]FDG PET/CT was not yet performed.

2.2. Neoadjuvant Chemo(targeted) Therapy Regimens

NCT consisted of 4 cycles of 3-weekly doses of doxorubicin and cyclophosphamide, followed by 4 cycles of 3-weekly doses of docetaxel in cases of oestrogen receptor (ER)-positive and/or human epidermal growth factor receptor 2 (HER2)-positive breast cancer, or 12 cycles of weekly doses of paclitaxel in cases of triple negative (TN) breast cancer (Table S1). In cases of HER2-positive breast cancer, targeted therapy (trastuzumab with/without pertuzumab) was added to the neoadjuvant treatment regimen.

2.3. [18F]FDG PET/MRI

Dedicated breast hybrid [18F]FDG PET/MRI was performed at baseline before NCT (PETMRI-1), halfway through NCT after the first 4 cycles (PETMRI-2), and/or after NCT (PETMRI-3) prior to surgery. All scans were acquired using a 3.0 Tesla integrated PET/MRI system (Biograph mMR; Siemens Healthineers, Erlangen, Germany), following a resting period of 45–60 min after [18F]FDG administration. Prior to an intravenous injection of 2 MBq/kg body weight of [18F]FDG, patients fasted for at least four hours and blood glucose was checked to ensure their levels were below 11 mmol/L. Images were acquired from the diaphragm to the top of the humeral head using a dedicated bilateral 16-channel breast radiofrequency coil (Rapid Biomedical, Rimpar, Germany), while patients were placed in prone position with both arms elevated. A detailed description of the protocol has been described previously and is provided in Table S2 [16].

2.4. Image Evaluation

All PET images were evaluated by a final-year resident radiology and nuclear medicine physician (T.N.) with four years of clinical experience in PET imaging, using dedicated software (Syngo.via 6.4, Siemens-Healthcare, Erlangen, Germany). For the quantitative analysis of the primary tumour and ALNM on [18F]FDG PET, a volume of interest (VOI) was placed over the most [18F]FDG-avid component of the primary tumour in the breast or the most [18F]FDG-avid ALN, respectively. Maximum and peak standardised uptake values (SUVmax and SUVpeak, respectively) were automatically measured [17]. Additionally, an isoactivity contour was automatically drawn in the VOI using pre-set margin thresholds and the SUVmean, metabolic tumour volume (MTV) and total lesion glycolysis (TLG) were calculated. Lastly, the nodal-to-tumour ratio (NT ratio) was calculated by dividing the SUVmax of the most [18F]FDG-avid ALN by the SUVmax of the primary tumour [18]. In cases of low [18F]FDG avidity, VOI placement was performed with the use of MR images. For the qualitative evaluation of primary tumour response, the complete response of the primary tumour was defined as [18F]FDG uptake that was indistinguishable from the surrounding tissue [17]. For the qualitative evaluation of axillary response, axillary complete response was defined as no ALN with moderately or very intense [18F]FDG uptake [19].
All MR images were evaluated by a dedicated breast radiologist (M.L.) with thirteen years’ experience in breast imaging, using dedicated software (PACS System Sectra Workstation IDS7, version 23.1.10, Sectra Group, Linköping, Sweden). For the quantitative analysis of the primary tumour, the longest diameter (LD) was defined as the maximal diameter of an enhancing lesion measured at peak enhancement in any plane, including intervening areas of non-enhancing tissue. Additionally, a researcher (C.M.) dedicated to breast imaging determined the signal enhancement ratio (SER) and apparent diffusion coefficient (ADC) values. For SER measurements, a circular region of interest (ROI) of 5 mm in diameter was placed on the most enhancing part of the primary tumour at peak enhancement. SER was calculated using the following equation: SER = (S1 – S0)/(S2 – S0), where S0, S1 and S2 represent the signal intensities on pre-contrast, early post-contrast, and late post-contrast images, respectively [20]. For the ADC measurements, a single ROI was manually drawn on the DW images at b = 1000 s/mm2 on a region with hyperintensity and relatively low ADC to include the entire tumour in the axial slice where the tumour was the largest, avoiding normal breast parenchyma, fat and regions of high T2 signal (e.g., seroma and necrosis) [21]. In primary tumours without residual enhancement on T1W or hyperintensity on DW images halfway through or after NCT, ROIs were placed in the same tissue region as the prior examination. For the qualitative evaluation of primary tumour response, complete response was defined as the absence of residual enhancing tissue. For the qualitative evaluation of axillary response, all the visible ALNs were evaluated using characteristics of suspicious ALNs, including irregular margins, inhomogeneous cortex, perifocal edema, and absence of fatty hilum or chemical shift artifact [22,23]. Axillary complete response was defined as the absence of ALNs with suspicious characteristics.

2.5. Pathologic Response Reference Standard

Pre-treatment core needle biopsies of the primary tumour were used for histological subtyping and grading. Tumours were considered positive for ER or progesterone receptor (PR) if at least 10% of cells showed nuclear staining. HER2 positivity was defined as either a score of 3+ following immunohistochemical (IHC) staining or HER2 gene amplification by fluorescent in situ hybridisation. Grading was performed according to the modified Bloom–Richardson system.
Post-treatment surgical specimens of the breast and the axilla were used to evaluate the response. Histopathological measurement of residual tumour size was performed during grossing and was later correlated microscopically. Primary tumour pCR was defined as the absence of residual invasive cancer in the breast after NCT (ypT0/is). Axillary pCR was defined as the absence of tumour cells or isolated tumour cells (≤0.2 mm or less than 200 cells). Residual axillary disease was defined as the presence of micrometastases (>0.2 and ≤2.0 mm) and/or macrometastases (>2.0 mm).
Histopathological analyses were performed in accordance with the Dutch national breast cancer guideline at the time of diagnosis [24].

2.6. Statistical Analysis

The absolute values of all quantitative [18F]FDG PET/MR imaging variables at each time point, as well as the percentage decrease halfway through and after NCT, were compared between patients with a primary tumour and axillary pCR and RD separately by means of the Mann–Whitney U test. For all the significant quantitative variables, receiver operating characteristic (ROC) curves were generated to determine the cut-off value with optimal sensitivity and specificity. Diagnostic performance, expressed as sensitivity, specificity, positive predictive value (PPV), negative predictive value (NPV) and area under the curve (AUC) with 95% confidence intervals (95% CIs), was calculated for each significant quantitative imaging variable at the optimal cut-off, both separately and combined. Lastly, the diagnostic performance of qualitative [18F]FDG PET, MRI, and [18F]FDG PET/MRI after NCT were calculated. For all analyses, the detection of residual disease via imaging or pathology analysis was considered as positive and pCR via imaging or pathology analysis was considered as negative. A two-sided p-value of <0.05 was considered to be statistically significant. R project software (version 4.2.0, R Foundation for Statistical Computing, Vienna, Austria) was used to perform the statistical analyses.

3. Results

3.1. Clinicopathologic Characteristics

Between February 2015 and July 2017, 41 breast cancer patients with 42 primary tumours and 26 cN+ axillae were included in this prospective study (Table 1). Primary tumour response evaluation halfway through and after completion of NCT was performed in 38 and 37 patients, and axillary response evaluation in 22 and 21 patients, respectively (Figure 1).

3.2. Quantitative Imaging Variables in Relation to Response

In primary tumour pCR, the percentage decrease in SUVmax (−82.6 vs. −40.7, p = 0.017) and SER (−30.1 vs. −13.0, p = 0.044) halfway through NCT was significantly higher than in primary tumour RD (Table 2, Figure 2). After NCT, in primary tumour pCR, the median LD was significantly lower (0.0 vs. 15.0, p = 0.018) and the percentage decrease in LD (−100.0 vs. −40.9, p = 0.012) and SER (−54.3 vs. −38.4, p = 0.013) were significantly higher than in primary tumour RD. No differences were reported for MTV and TLG at any of the thresholds, neither in the absolute values nor in the percentages decrease at any time point (Table S3).
In axillary pCR, the median SUVmax of the most [18F]FDG-avid ALN (0.5 vs. 0.9, p = 0.030) and NT ratio (0.4 vs. 0.6, p = 0.041) halfway through NCT was significantly lower than in axillary RD. The percentage decrease in SUVmax (−88.0 vs. −59.8, p = 0.010) and NT ratio (−59.7 vs. −35.7, p = 0.018) halfway through NCT was significantly higher in axillary pCR than in axillary RD (Table 3, Figure 3). After NCT, in axillary pCR, the median primary tumour LD was significantly lower (0.0 vs. 15.0, p = 0.047) and its percentage decrease (−100.0 vs. −53.8, p = 0.026) was significantly higher than in axillary RD (Table S4).

3.3. Response Prediction

The diagnostic performance for the prediction of pathologic primary tumour response is summarised in Table 3. After NCT, the result of the qualitative response evaluation was very similar to [18F]FDG PET and MRI with an AUC of 0.67 (95% CI 0.49–0.85), which only marginally improved by means of [18F]FDG PET/MRI consensus to 0.71 (95% CI 0.53–0.89). Combining the percentage decrease in SER and SUVmax of the primary tumour halfway through NCT achieved an AUC of 0.78 (95% CI 0.63–0.93).
Table 4 depicts the diagnostic performance for prediction of axillary response. After NCT, the result of the qualitative response evaluation for [18F]FDG PET, MRI and [18F]FDG PET/MRI consensus was poor, with AUCs of 0.50 (95% CI 0.23–0.77), 0.54 (95% CI 0.27–0.80), and 0.54 (95% CI 0.27–0.80), respectively. Combining the absolute SUVmax of the most [18F]FDG-avid ALN halfway through NCT with its percentage decrease achieved an AUC of 0.92 (95% CI 0.79–1.00).

4. Discussion

The aim of this study was to investigate the diagnostic accuracy of sequential [18F]FDG PET/MRI in predicting primary tumour and ALNM response to NCT. For final pathologic primary tumour response prediction, combining the decrease in SUVmax and SER of the primary tumour halfway through NCT can improve the value of [18F]FDG PET/MRI, compared to the qualitative evaluation after NCT. In addition, we found that combining [18F]FDG PET and MRI does not improve the diagnostic accuracy of qualitative primary tumour response evaluation after NCT. For final pathologic ALNM response prediction in cN+ breast cancer patients, combining the absolute SUVmax measured on the most [18F]FDG-avid ALN halfway through NCT with its relative decrease can accurately predict axillary response. Based on the findings of this study, predicting axillary response with [18F]FDG PET/MRI after NCT is inadequate and does not justify its use.
The diagnostic performance of qualitative primary tumour response evaluation with [18F]FDG PET/MRI was similar to the separate evaluation of [18F]FDG PET and MRI, as indicated by similar AUCs, but displayed improved sensitivity and NPV when combining modalities. This complementary effect can be explained by RD that is either morphologically normalised with residual metabolic activity or has morphological abnormalities without residual metabolic activity. The diagnostic performance of separate qualitative [18F]FDG PET and MRI in detecting primary tumour response after NCT in this study is slightly lower compared to the pooled estimates of [18F]FDG PET/CT and MRI reported in several meta-analyses [25,26]. Similar to our results, the specificity of [18F]FDG PET/CT and MRI after NCT is often low and previous studies have reported that this inability to detect pCR could be explained by NCT-induced inflammation, sclerosis, necrosis, perilesional edema and the presence of ductal carcinoma in situ (DCIS) [27].
Sekine et al. previously investigated the diagnostic performance of [18F]FDG PET/MRI in detecting primary tumour response after NCT in breast cancer patients [28]. In a cohort of 74 patients, their similar qualitative approach achieved a sensitivity and specificity for primary tumour response of 72.2% and 78.6%, respectively. The diagnostic performance heavily depended on MRI, since the majority of the patients demonstrated metabolic activity normalised to background on [18F]FDG PET, regardless of response. This is contrary to our results, since we report similar performances for qualitative [18F]FDG PET and MRI. Lastly, Sekine et al. only investigated a qualitative approach and did not include quantitative [18F]FDG PET or MR imaging variables. Interestingly, Sekine et al. found striking differences in diagnostic performance between different breast cancer subtypes.
Increasing evidence indicates that breast cancer subtypes present differently on 18F-FDG PET and MRI, indicated by the significant differences between subtypes in qualitative and quantitative imaging variables [29,30]. These significant differences between subtypes are not limited to baseline, but extend to different patterns of response in non-invasive imaging, which impacts the accuracy of detecting or predicting pathological primary tumour or axillary response [31,32,33]. Consequently, the prediction of pathological primary tumour or axillary response to NCT with non-invasive imaging could benefit from subtype-specific cut-off values for quantitative imaging variables. In addition, differences in the response patterns on MRI also seem to differ between different breast cancer subtypes [34]. Unfortunately, the small sample size in this preliminary study did not permit an analysis per subtype.
Our results suggest that the diagnostic performance in predicting primary tumour response can be improved with quantitative [18F]FDG PET/MR imaging variables. Similar to previous results, the percentage decrease in SUVmax halfway through NCT strongly improves sensitivity [10,26]. Interestingly, using a cut-off for the quantitative MR imaging variable LD improved specificity and PPV compared to the qualitative evaluation, possibly by correctly identifying residual enhancement caused by inflammation that is reactive to NCT or DCIS as pCR [10,27]. ADC was not predictive of response to NCT in our cohort of patients and a recent systematic review reports high heterogeneity regarding the clinical and technical aspects of DWI for response prediction [35]. The complementary value of [18F]FDG PET/MRI is mainly established by combining the percentage decrease in SER and SUVmax halfway through NCT, which strongly improved specificity and PPV. This is in line with studies that combine quantitative imaging variables from separate [18F]FDG PET/CT and MRI, as well as from [18F]FDG PET/MRI [12,36,37].
Similar to our results, two studies reported improved early primary tumour response prediction using quantitative [18F]FDG PET/MRI. Cho et al. achieved maximum sensitivity by combining the [18F]FDG PET/MR imaging variables SER and TLG30% [36]. In contrast, none of the volumetric [18F]FDG PET parameters in this study were found to be associated with response, possible due to inaccurate delineation in cases of response, since a decrease in SUVmax paradoxically increases the volume when using automatic isoactivity contouring. Cho et al. performed a second examination after one cycle of NCT and defined pCR as the absence of invasive cancer and DCIS in both the breast and ALNs. Additionally, Cho et al. did not find the percentage decrease in SUVmax to be predictive of response, possibly due to their small sample size. In a cohort of 14 patients, Wang et al. found the combination of percentage decrease in ADCmin after one or two cycles of NCT with either SUVmax or TLG40% to be best predictive of response [37]. However, Wang et al. included proton magnetic resonance spectroscopy after DCE-MRI for VOI placement and defined pCR as less than 10% residual cellularity of invasive cells, indicating potential residual cancer in cases with pCR.
The qualitative assessment of axillary response after NCT with dedicated breast [18F]FDG PET/MRI in this study is poor, due to the normalisation of the majority of ALNs on imaging. Sensitivity and PPV of the separate evaluation of [18F]FDG PET are considerably worse compared to the pooled estimates of three primary studies in a recent meta-analysis [15]. However, two of these studies evaluated morphologic criteria for CT and only a decrease in tumour deposit in the ALN was found to be predictive of response in a study by You et al. [38,39]. Similar to our methods, Garcia Vicente et al. evaluated [18F]FDG PET and achieved a sensitivity and PPV of 37% and 68%, respectively [40]. In their study, SUVmax measured on the most [18F]FDG-avid ALN ranged up to 13.2, which is considerably higher than the maximum SUVmax of 1.3 in our study, possibly explaining the low sensitivity. Regarding the separate evaluation of MRI in this study, the poor sensitivity and PPV cannot be entirely explained. However, Hieken et al. reports metastasis with diameters as large as 12 mm among their false-negative cases, with extranodal extension present in half of these patients [38].
While none of the patients with axillary RD were correctly identified by the qualitative assessment after NCT, the prediction of response halfway through NCT with quantitative [18F]FDG PET imaging variables resulted in sensitivities ranging from 83 to 100%. Combining the absolute decrease with the percentage decrease in SUVmax measured on the most [18F]FDG-avid ALN halfway through NCT, a maximum sensitivity or specificity, and thus PPV and NPV, can be achieved. This is in line with the results of two previous studies in which axillary response prediction based on the percentage decrease in SUVmax was more accurate early during NCT after one to three courses, compared to after NCT [41,42]. The association of primary tumour LD with axillary response can most likely be attributed to the established correlation between primary tumour and axillary response [43]. Similarly, Eun et al. also found the decrease in primary tumour size to be predictive of axillary response during, as well as after, NCT [44].
Our study has some limitations. The number of included patients was relatively small, especially the cN+ subgroup of patients. As a consequence, we report wide 95% CIs for the diagnostic performance, which should be interpreted with this limitation in mind. Second, the small sample size hindered the separate evaluation of breast cancer subtypes with regard to qualitative and quantitative response evaluation, while it is known to influence diagnostic performance. Third, the interobserver variability of quantitative [18F]FDG PET and MR imaging variables is not assessed in this study. However, Cho et al. has previously reported reliable reproducibility for similar variables [36]. Lastly, we included DCIS as a primary tumour pCR, which could influence the diagnostic performance.

5. Conclusions

The complementary value of hybrid dedicated breast [18F]FDG PET/MRI in primary tumour response detection is mainly established by combining quantitative imaging variables. For axillary response prediction in cN+ breast cancer patients, combining the absolute SUVmax of the most [18F]FDG-avid ALN halfway through NCT with its percentage decrease strongly improved the diagnostic performance of [18F]FDG PET/MRI. Based on the findings of this study, the diagnostic performance in predicting axillary response with [18F]FDG PET/MRI after NCT is insufficient and does not justify its use at this time-point.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cancers15020401/s1, Table S1. Administered NST regimens per breast cancer subtype with primary tumour and axillary pCR rates per regimen and subtype; Table S2. [18F]FDG PET/MRI protocol; Table S3. Quantitative [18F]FDG PET/MR imaging variables in relation to pathological primary tumour response; Table S4. Quantitative [18F]FDG PET/MR imaging variables determined on the primary tumour as well as on the most FDG-avid axillary lymph node in relation to pathological axillary response.

Author Contributions

Conceptualisation, C.M.d.M., T.J.A.v.N., M.B.I.L. and M.L.S.; Data curation, C.M.d.M.; Formal analysis, C.M.d.M.; Funding acquisition, T.J.A.v.N. and M.L.S.; Investigation, C.M.d.M., T.J.A.v.N., B.G., L.F.S.K., I.W.M.R., S.P.L.v.M., M.d.B., K.B.M.I.K., J.E.W., F.M.M., M.B.I.L. and M.L.S.; Methodology, C.M.d.M., T.J.A.v.N., B.G., M.B.I.L. and M.L.S.; Project administration, C.M.d.M. and M.L.S.; Resources, J.E.W., F.M.M. and M.L.S.; Supervision, T.J.A.v.N. and M.L.S.; Writing—original draft, C.M.d.M.; Writing—review and editing, C.M.d.M., T.J.A.v.N., B.G., L.F.S.K., I.W.M.R., S.P.L.v.M., M.d.B., K.B.M.I.K., J.E.W., F.M.M., M.B.I.L. and M.L.S. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by an academic incentive from the Maastricht University Medical Centre.

Institutional Review Board Statement

All procedures performed in this study were in accordance with the ethical standards of the institutional research committee and with the 1964 Declaration of Helsinki and its later amendments.

Informed Consent Statement

Informed consent was waived by the institutional research committee.

Data Availability Statement

Raw data were generated at the Maastricht University Medical Centre. The authors confirm that the data and the code for data cleaning and analysis of this study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare that they have no conflict of interest that is relevant to the content of this article. J.E. Wildberger receives institutional funding that is not related to this study from Agfa, Bard, Bayer, Cook, GE, Philips, Optimed, Radiomics, and Siemens. M.L. Smidt receives institutional funding that is not related to this study from Servier Pharma and Nutricia.

Abbreviations

[18F]FDG: [18F]-fluorodeoxyglucose; ADC: apparent diffusion; ALNM: axillary lymph node metastasis; AUC: area under the curve; cN+: clinically node-positive; CI: confidence interval; CT: computed tomography; DCE: dynamic contrast enhanced; DWI: diffusion weighted imaging; ER: oestrogen receptor; HER2: human epidermal growth factor receptor 2; MRI: magnetic resonance imaging: MTV: metabolic tumour volume; NCT: neoadjuvant chemo(targeted) therapy; NPV: negative predictive value; NT ratio: modal-to-tumour ratio; pCR: pathologic complete response; PET: positron emission tomography; PPV: positive predictive value; PR: progesterone receptor; RD: residual disease; ROC: receiver operating characteristic; ROI: region of interest; SER: signal enhancement ratio; SUV: standardised uptake value; TLG: total lesion glycolysis; TN: triple negative; VOI: volume of interest.

References

  1. Cardoso, F.; Kyriakides, S.; Ohno, S.; Penault-Llorca, F.; Poortmans, P.; Rubio, I.T.; Zackrisson, S.; Senkus, E.; ESMO Guidelines Committee. Early breast cancer: ESMO Clinical Practice Guidelines for diagnosis, treatment and follow-up. Ann. Oncol. 2019, 30, 1194–1220. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Korde, L.A.; Somerfield, M.R.; Carey, L.A.; Crews, J.R.; Denduluri, N.; Hwang, E.S.; Khan, S.A.; Loibl, S.; Morris, E.A.; Perez, A.; et al. Neoadjuvant Chemotherapy, Endocrine Therapy, and Targeted Therapy for Breast Cancer: ASCO Guideline. J. Clin. Oncol. 2021, 39, 1485–1505. [Google Scholar] [CrossRef] [PubMed]
  3. Cardoso, F.; Paluch-Shimon, S.; Senkus, E.; Curigliano, G.; Aapro, M.S.; André, F.; Barrios, C.H.; Bergh, J.; Bhattacharyya, G.S.; Biganzoli, L.; et al. 5th ESO-ESMO international consensus guidelines for advanced breast cancer (ABC 5). Ann. Oncol. 2020, 31, 1623–1649. [Google Scholar] [CrossRef] [PubMed]
  4. Cardoso, F.; Senkus, E.; Costa, A.; Papadopoulos, E.; Aapro, M.; André, F.; Harbeck, N.; Aguilar Lopez, B.; Barrios, C.H.; Bergh, J.; et al. 4th ESO–ESMO International Consensus Guidelines for Advanced Breast Cancer (ABC 4). Ann. Oncol. 2018, 29, 1634–1657. [Google Scholar] [CrossRef]
  5. Asselain, B.; Barlow, W.; Bartlett, J.; Bergh, J.; Bergsten-Nordström, E.; Bliss, J.; Boccardo, F.; Boddington, C.; Bogaerts, J.; Bonadonna, G.; et al. Long-term outcomes for neoadjuvant versus adjuvant chemotherapy in early breast cancer: Meta-analysis of individual patient data from ten randomised trials. Lancet Oncol. 2017, 19, 27–39. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Mougalian, S.S.; Hernandez, M.; Lei, X.; Lynch, S.; Kuerer, H.M.; Symmans, W.F.; Theriault, R.L.; Fornage, B.D.; Hsu, L.; Buchholz, T.A.; et al. Ten-Year Outcomes of Patients With Breast Cancer With Cytologically Confirmed Axillary Lymph Node Metastases and Pathologic Complete Response After Primary Systemic Chemotherapy. JAMA Oncol. 2016, 2, 508–516. [Google Scholar] [CrossRef]
  7. Cortazar, P.; Zhang, L.; Untch, M.; Mehta, K.; Costantino, J.P.; Wolmark, N.; Bonnefoi, H.; Cameron, D.; Gianni, L.; Valagussa, P.; et al. Pathological complete response and long-term clinical benefit in breast cancer: The CTNeoBC pooled analysis. Lancet 2014, 384, 164–172. [Google Scholar] [CrossRef] [Green Version]
  8. Samiei, S.; Simons, J.M.; Engelen, S.M.E.; Beets-Tan, R.G.H.; Classe, J.-M.; Smidt, M.L.; EUBREAST Group. Axillary Pathologic Complete Response After Neoadjuvant Systemic Therapy by Breast Cancer Subtype in Patients With Initially Clinically Node-Positive Disease. JAMA Surg. 2021, 156, e210891. [Google Scholar] [CrossRef]
  9. von Minckwitz, G.; Blohmer, J.U.; Costa, S.D.; Denkert, C.; Eidtmann, H.; Eiermann, W.; Gerber, B.; Hanusch, C.; Hilfrich, J.; Huober, J.; et al. Response-guided neoadjuvant chemotherapy for breast cancer. J. Clin. Oncol. 2013, 31, 3623–3630. [Google Scholar] [CrossRef]
  10. Sheikhbahaei, S.; Trahan, T.J.; Xiao, J.; Taghipour, M.; Mena, E.; Connolly, R.M.; Subramaniam, R.M. FDG-PET/CT and MRI for Evaluation of Pathologic Response to Neoadjuvant Chemotherapy in Patients with Breast Cancer: A Meta-Analysis of Diagnostic Accuracy Studies. Oncologist 2016, 21, 931–939. [Google Scholar] [CrossRef]
  11. Li, H.; Yao, L.; Jin, P.; Hu, L.; Li, X.; Guo, T.; Yang, K. MRI and PET/CT for evaluation of the pathological response to neoadjuvant chemotherapy in breast cancer: A systematic review and meta-analysis. Breast 2018, 40, 106–115. [Google Scholar] [CrossRef] [PubMed]
  12. Tateishi, U.; Miyake, M.; Nagaoka, T.; Terauchi, T.; Kubota, K.; Kinoshita, T.; Daisaki, H.; Macapinlac, H.A. Neoadjuvant Chemotherapy in Breast Cancer: Prediction of Pathologic Response with PET/CT and Dynamic Contrast-enhanced MR Imaging—Prospective Assessment. Radiology 2012, 263, 53–63. [Google Scholar] [CrossRef] [Green Version]
  13. Simons, J.M.; Koppert, L.B.; Luiten, E.J.T.; van der Pol, C.C.; Samiei, S.; de Wilt, J.H.W.; Siesling, S.; Smidt, M.L. De-escalation of axillary surgery in breast cancer patients treated in the neoadjuvant setting: A Dutch population-based study. Breast Cancer Res. Treat. 2020, 180, 725–733. [Google Scholar] [CrossRef] [Green Version]
  14. Wong, S.M.; Weiss, A.; Mittendorf, E.A.; King, T.A.; Golshan, M. Surgical Management of the Axilla in Clinically Node-Positive Patients Receiving Neoadjuvant Chemotherapy: A National Cancer Database Analysis. Ann. Surg. Oncol. 2019, 26, 3517–3525. [Google Scholar] [CrossRef]
  15. Samiei, S.; de Mooij, C.M.; Lobbes, M.B.I.; Keymeulen, K.B.M.I.; van Nijnatten, T.J.A.; Smidt, M.L. Diagnostic Performance of Noninvasive Imaging for Assessment of Axillary Response After Neoadjuvant Systemic Therapy in Clinically Node-positive Breast Cancer. Ann. Surg. 2020, 273, 694–700. [Google Scholar] [CrossRef]
  16. Goorts, B.; Vöö, S.; van Nijnatten, T.J.A.; Kooreman, L.F.S.; de Boer, M.; Keymeulen, K.B.M.I.; Aarnoutse, R.; Wildberger, J.E.; Mottaghy, F.M.; Lobbes, M.B.I.; et al. Hybrid 18F–FDG PET/MRI might improve locoregional staging of breast cancer patients prior to neoadjuvant chemotherapy. Eur. J. Nucl. Med. Mol. Imaging 2017, 44, 1796–1805. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Joo Hyun, O.; Lodge, M.A.; Wahl, R.L. Practical PERCIST: A Simplified Guide to PET Response Criteria in Solid Tumors 1.0. Radiology 2016, 280, 576–584. [Google Scholar] [CrossRef] [Green Version]
  18. Futamura, M.; Asano, T.; Kobayashi, K.; Morimitsu, K.; Nawa, M.; Kanematsu, M.; Morikawa, A.; Mori, R.; Yoshida, K. Prediction of macrometastasis in axillary lymph nodes of patients with invasive breast cancer and the utility of the SUV lymph node/tumor ratio using FDG-PET/CT. World J. Surg. Oncol. 2015, 13, 49. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Aukema, T.S.; Straver, M.E.; Vrancken Peeters, M.-J.T.F.D.; Russell, N.S.; Gilhuijs, K.G.A.; Vogel, W.V.; Rutgers, E.J.T.; Olmos, R.A.V. Detection of extra-axillary lymph node involvement with FDG PET/CT in patients with stage II–III breast cancer. Eur. J. Cancer 2010, 46, 3205–3210. [Google Scholar] [CrossRef]
  20. Hylton, N.M.; Blume, J.D.; Bernreuter, W.K.; Pisano, E.D.; Rosen, M.A.; Morris, E.A.; Weatherall, P.T.; Lehman, C.D.; Newstead, G.M.; Polin, S.; et al. Locally advanced breast cancer: MR imaging for prediction of response to neoadjuvant chemotherapy—Results from ACRIN 6657/I-SPY TRIAL. Radiology 2012, 263, 663–672. [Google Scholar] [CrossRef] [PubMed]
  21. Partridge, S.C.; Zhang, Z.; Newitt, D.C.; Gibbs, J.E.; Chenevert, T.L.; Rosen, M.A.; Bolan, P.; Marques, H.S.; Romanoff, J.; Cimino, L.; et al. Diffusion-weighted MRI Findings Predict Pathologic Response in Neoadjuvant Treatment of Breast Cancer: The ACRIN 6698 Multicenter Trial. Radiology 2018, 289, 618–627. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Baltzer, P.A.T.; Dietzel, M.; Burmeister, H.P.; Zoubi, R.; Gajda, M.; Camara, O.; Kaiser, W.A. Application of MR Mammography Beyond Local Staging: Is There a Potential to Accurately Assess Axillary Lymph Nodes? Evaluation of an Extended Protocol in an Initial Prospective Study. Am. J. Roentgenol. 2011, 196, W641–W647. [Google Scholar] [CrossRef]
  23. Farshchian, N.; Tamari, S.; Farshchian, N.; Madani, H.; Rezaie, M.; Mohammadi-Motlagh, H.-R. Diagnostic value of chemical shift artifact in distinguishing benign lymphadenopathy. Eur. J. Radiol. 2011, 80, 594–597. [Google Scholar] [CrossRef]
  24. NABON Breast Cancer Audit. National Breast Cancer Guideline. Available online: https://richtlijnendatabase.nl/richtlijn/borstkanker/algemeen.html (accessed on 26 April 2022).
  25. Li, Z.; Li, J.; Lu, X.; Qu, M.; Tian, J.; Lei, J. The diagnostic performance of diffusion-weighted imaging and dynamic contrast-enhanced magnetic resonance imaging in evaluating the pathological response of breast cancer to neoadjuvant chemotherapy: A meta-analysis. Eur. J. Radiol. 2021, 143, 109931. [Google Scholar] [CrossRef]
  26. Tian, F.; Shen, G.; Deng, Y.; Diao, W.; Jia, Z. The accuracy of 18F-FDG PET/CT in predicting the pathological response to neoadjuvant chemotherapy in patients with breast cancer: A meta-analysis and systematic review. Eur. Radiol. 2017, 27, 4786–4796. [Google Scholar] [CrossRef]
  27. Gu, Y.-L.; Pan, S.-M.; Ren, J.; Yang, Z.-X.; Jiang, G.-Q. Role of Magnetic Resonance Imaging in Detection of Pathologic Complete Remission in Breast Cancer Patients Treated With Neoadjuvant Chemotherapy: A Meta-analysis. Clin. Breast Cancer 2017, 17, 245–255. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Sekine, C.; Uchiyama, N.; Watase, C.; Murata, T.; Shiino, S.; Jimbo, K.; Iwamoto, E.; Takayama, S.; Kurihara, H.; Satomi, K.; et al. Preliminary experiences of PET/MRI in predicting complete response in patients with breast cancer treated with neoadjuvant chemotherapy. Mol. Clin. Oncol. 2021, 16, 50. [Google Scholar] [CrossRef] [PubMed]
  29. Orsaria, P.; Chiaravalloti, A.; Caredda, E.; Marchese, P.V.; Titka, B.; Anemona, L.; Portarena, I.; Schillaci, O.; Petrella, G.; Palombi, L.; et al. Evaluation of the Usefulness of FDG-PET/CT for Nodal Staging of Breast Cancer. Anticancer Res. 2018, 38, 6639–6652. [Google Scholar] [CrossRef]
  30. Chen, H.; Li, W.; Wan, C.; Zhang, J. Correlation of dynamic contrast-enhanced MRI and diffusion-weighted MR imaging with prognostic factors and subtypes of breast cancers. Front. Oncol. 2022, 12, 942943. [Google Scholar] [CrossRef]
  31. Groheux, D.; Majdoub, M.; Sanna, A.; De Cremoux, P.; Hindié, E.; Giacchetti, S.; Martineau, A.; De Roquancourt, A.; Merlet, P.; Visvikis, D.; et al. Early Metabolic Response to Neoadjuvant Treatment: FDG PET/CT Criteria according to Breast Cancer Subtype. Radiology 2015, 277, 358–371. [Google Scholar] [CrossRef]
  32. Janssen, L.M.; den Dekker, B.M.; Gilhuijs, K.G.A.; van Diest, P.J.; van der Wall, E.; Elias, S.G. MRI to assess response after neoadjuvant chemotherapy in breast cancer subtypes: A systematic review and meta-analysis. NPJ Breast Cancer 2022, 8, 107. [Google Scholar] [CrossRef] [PubMed]
  33. de Mooij, C.M.; Mitea, C.; Mottaghy, F.M.; Smidt, M.L.; van Nijnatten, T.J.A. Value of 18F-FDG PET/CT for predicting axillary pathologic complete response following neoadjuvant systemic therapy in breast cancer patients: Emphasis on breast cancer subtype. EJNMMI Res. 2021, 11, 116. [Google Scholar] [CrossRef]
  34. Loo, C.E.; Straver, M.E.; Rodenhuis, S.; Muller, S.H.; Wesseling, J.; Vrancken Peeters, M.-J.T.F.D.; Gilhuijs, K.G.A. Magnetic resonance imaging response monitoring of breast cancer during neoadjuvant chemotherapy: Relevance of breast cancer subtype. J. Clin. Oncol. 2011, 29, 660–666. [Google Scholar] [CrossRef] [PubMed]
  35. van der Hoogt, K.J.J.; Schipper, R.J.; Winter-Warnars, G.A.; ter Beek, L.C.; Loo, C.E.; Mann, R.M.; Beets-Tan, R.G.H. Factors affecting the value of diffusion-weighted imaging for identifying breast cancer patients with pathological complete response on neoadjuvant systemic therapy: A systematic review. Insights Into Imaging 2021, 12, 187. [Google Scholar] [CrossRef] [PubMed]
  36. Cho, N.; Im, S.-A.; Cheon, G.J.; Park, I.-A.; Lee, K.-H.; Kim, T.-Y.; Kim, Y.S.; Kwon, B.R.; Lee, J.M.; Suh, H.Y.; et al. Integrated 18F-FDG PET/MRI in breast cancer: Early prediction of response to neoadjuvant chemotherapy. Eur. J. Nucl. Med. 2017, 45, 328–339. [Google Scholar] [CrossRef]
  37. Wang, J.; Shih, T.T.-F.; Yen, R.-F. Multiparametric Evaluation of Treatment Response to Neoadjuvant Chemotherapy in Breast Cancer Using Integrated PET/MR. Clin. Nucl. Med. 2017, 42, 506–513. [Google Scholar] [CrossRef] [PubMed]
  38. Hieken, T.J.; Boughey, J.C.; Jones, K.N.; Shah, S.S.; Glazebrook, K.N. Imaging response and residual metastatic axillary lymph node disease after neoadjuvant chemotherapy for primary breast cancer. Ann. Surg. Oncol. 2013, 20, 3199–3204. [Google Scholar] [CrossRef]
  39. You, S.; Kang, D.K.; Jung, Y.S.; An, Y.-S.; Jeon, G.S.; Kim, T.H. Evaluation of lymph node status after neoadjuvant chemotherapy in breast cancer patients: Comparison of diagnostic performance of ultrasound, MRI and 18F-FDG PET/CT. Br. J. Radiol. 2015, 88, 20150143. [Google Scholar] [CrossRef]
  40. Vicente, A.M.G.; Amo-Salas, M.; Calatayud, F.R.; Del Mar Munoz Sánchez, M.; Pardo, F.J.P.; Londoño, G.A.J.; Cabellos, R.; Aunión, R.E.; Castrejón, S. Prognostic role of early and end-of-neoadjuvant treatment 18F-FDG PET/CT in patients with breast cancer. Clin. Nucl. Med. 2016, 41, e313–e322. [Google Scholar] [CrossRef]
  41. Rousseau, C.; Devillers, A.; Campone, M.; Campion, L.; Ferrer, L.; Sagan, C.; Ricaud, M.; Bridji, B.; Kraeber-Bodéré, F. FDG PET evaluation of early axillary lymph node response to neoadjuvant chemotherapy in stage II and III breast cancer patients. Eur. J. Pediatr. 2011, 38, 1029–1036. [Google Scholar] [CrossRef]
  42. Koolen, B.B.; Valdés Olmos, R.A.; Wesseling, J.; Vogel, W.V.; Vincent, A.D.; Gilhuijs, K.G.A.; Rodenhuis, S.; Rutgers, E.J.T.; Vrancken Peeters, M.-J.T.F.D. Early assessment of axillary response with 18F-FDG PET/CT during neoadjuvant chemotherapy in stage II-III breast cancer: Implications for surgical management of the axilla. Ann. Surg. Oncol. 2013, 20, 2227–2235. [Google Scholar] [CrossRef] [PubMed]
  43. Samiei, S.; van Nijnatten, T.J.A.; de Munck, L.; Keymeulen, K.B.M.I.; Simons, J.M.; Kooreman, L.F.S.; Siesling, S.; Lobbes, M.B.I.; Smidt, M.L. Correlation Between Pathologic Complete Response in the Breast and Absence of Axillary Lymph Node Metastases After Neoadjuvant Systemic Therapy. Ann. Surg. 2020, 271, 574–580. [Google Scholar] [CrossRef] [PubMed]
  44. Eun, N.L.; Son, E.J.; Gweon, H.M.; Kim, J.-A.; Youk, J.H. Prediction of axillary response by monitoring with ultrasound and MRI during and after neoadjuvant chemotherapy in breast cancer patients. Eur. Radiol. 2020, 30, 1460–1469. [Google Scholar] [CrossRef] [PubMed]
Cancers 15 00401 g001 550

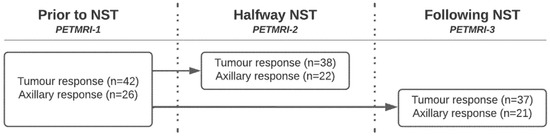

Figure 1. Number of patients per [18F]FDG PET/MRI timepoint included in primary tumour and axillary response evaluation.
Figure 1. Number of patients per [18F]FDG PET/MRI timepoint included in primary tumour and axillary response evaluation.
Cancers 15 00401 g001
Cancers 15 00401 g002 550

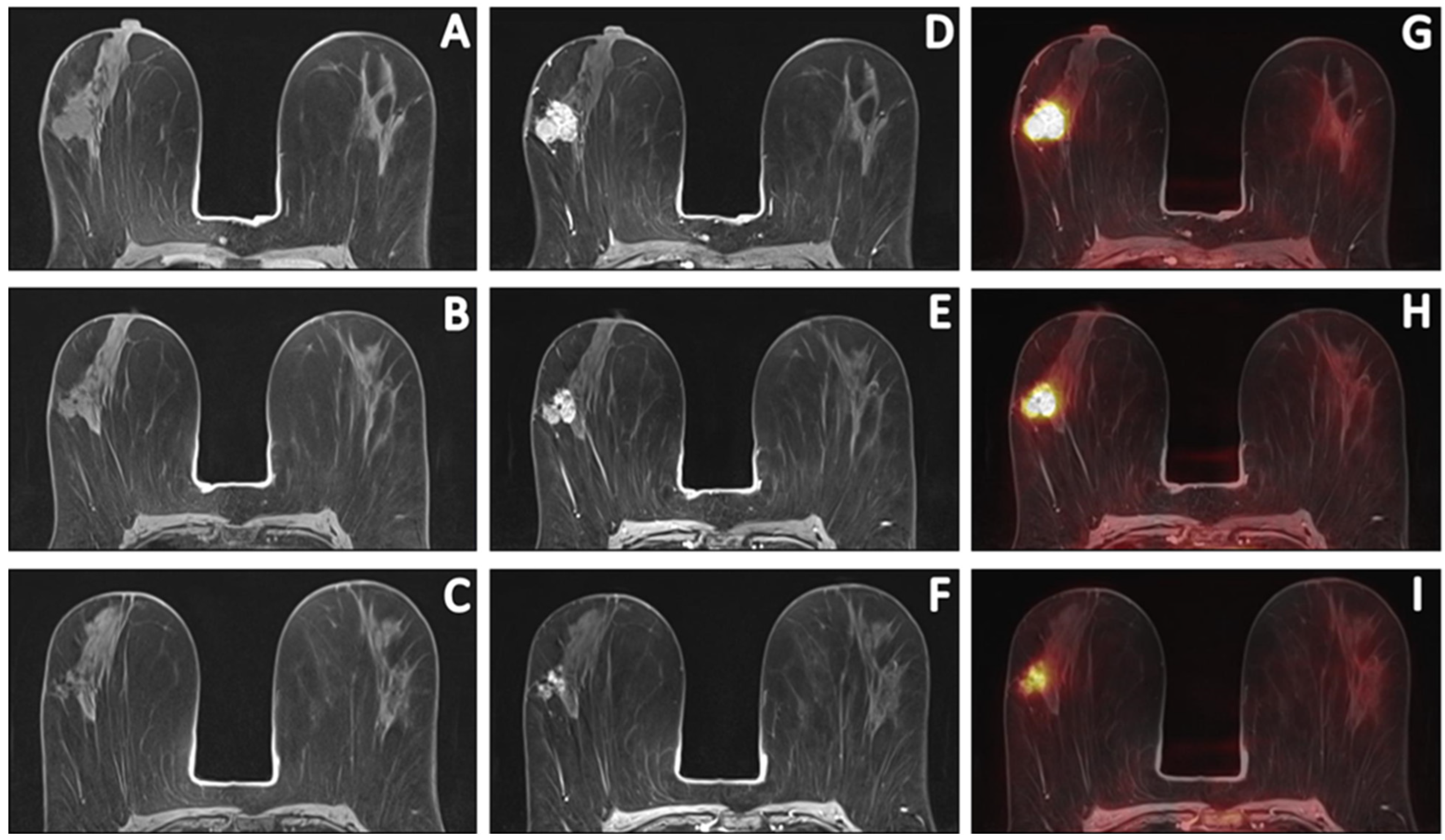

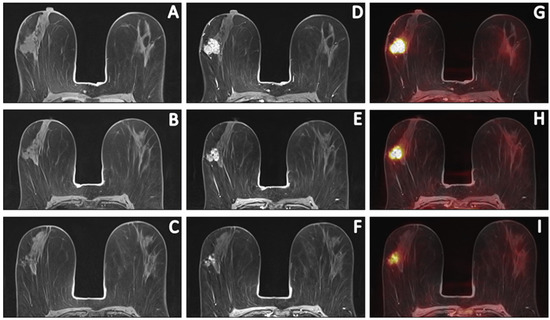

Figure 2. Sequential [18F]FDG PET/MR images of a 58-year-old patient with invasive carcinoma of no specific type (ER+/HER2−, grade 2) who had persistent RD (ypT1c; 16 mm) after completion of NCT. Pre-contrast T1W (A–C), post-contrast T1W at peak enhancement (D–F) and fusion of post-contrast images with PET (G–I) images depict the primary tumour response prior to, halfway through and after NCT. Comparing pre- and post-contrast T1W images revealed a primary tumour with an LD of 29 mm and evaluation of PET images depicted an [18F]FDG-avid tumor with an SUVmax of 13.59. Halfway through NCT, the LD and SUVmax decreased to 28 mm and 8.05, respectively. After NCT, the LD and SUVmax decreased to 25 mm and 4.70, respectively. This patient was considered a true-positive case.
Figure 2. Sequential [18F]FDG PET/MR images of a 58-year-old patient with invasive carcinoma of no specific type (ER+/HER2−, grade 2) who had persistent RD (ypT1c; 16 mm) after completion of NCT. Pre-contrast T1W (A–C), post-contrast T1W at peak enhancement (D–F) and fusion of post-contrast images with PET (G–I) images depict the primary tumour response prior to, halfway through and after NCT. Comparing pre- and post-contrast T1W images revealed a primary tumour with an LD of 29 mm and evaluation of PET images depicted an [18F]FDG-avid tumor with an SUVmax of 13.59. Halfway through NCT, the LD and SUVmax decreased to 28 mm and 8.05, respectively. After NCT, the LD and SUVmax decreased to 25 mm and 4.70, respectively. This patient was considered a true-positive case.
Cancers 15 00401 g002
Cancers 15 00401 g003 550

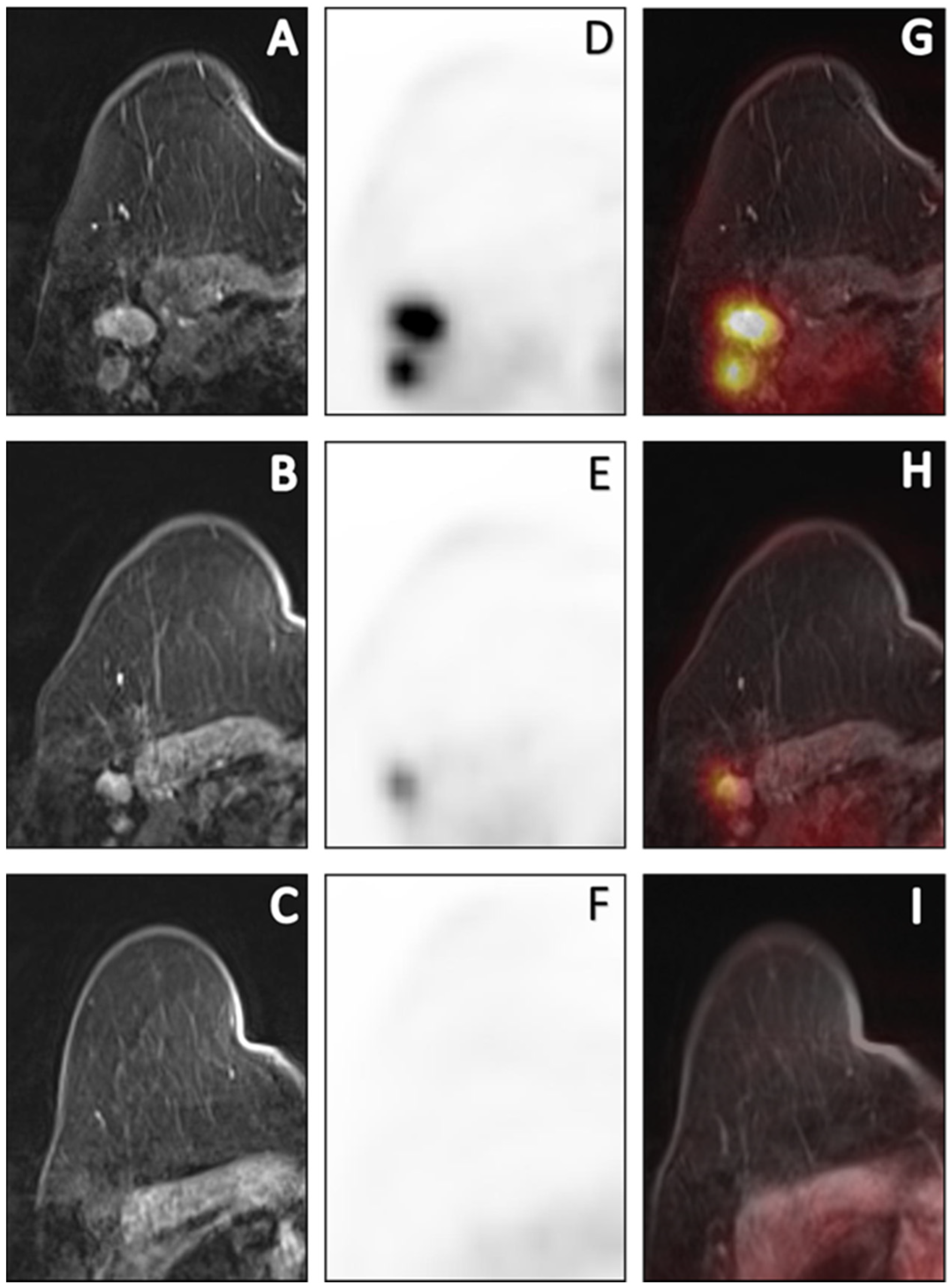

Figure 3. Sequential [18F]FDG PET/MR images of a 69-year-old cN+ patient with invasive carcinoma of no specific type (ER+/HER2-, grade 2) who had persistent axillary disease (ypN1, 3 macrometastases) after completion of NCT. Post-contrast T1W at peak enhancement (A–C), PET (D–F) and fusion of post-contrast images with PET (G–I) images depict the axillary response prior to, halfway through and after NCT. Prior to NCT, a total of 3 PET-positive nodes reaching a maximum SUVmax of 7.35 were depicted. Halfway through NCT, SUVmax decreased by 61% to 1.78. After completion of NCT, metabolic dissolution in the entire axillary region without any suspicious nodes on MRI was found. Based on the qualitative evaluation after NCT, this was a false-negative case. Using quantitative imaging variables halfway through NCT, this patient was correctly predicted to have residual axillary disease.
Figure 3. Sequential [18F]FDG PET/MR images of a 69-year-old cN+ patient with invasive carcinoma of no specific type (ER+/HER2-, grade 2) who had persistent axillary disease (ypN1, 3 macrometastases) after completion of NCT. Post-contrast T1W at peak enhancement (A–C), PET (D–F) and fusion of post-contrast images with PET (G–I) images depict the axillary response prior to, halfway through and after NCT. Prior to NCT, a total of 3 PET-positive nodes reaching a maximum SUVmax of 7.35 were depicted. Halfway through NCT, SUVmax decreased by 61% to 1.78. After completion of NCT, metabolic dissolution in the entire axillary region without any suspicious nodes on MRI was found. Based on the qualitative evaluation after NCT, this was a false-negative case. Using quantitative imaging variables halfway through NCT, this patient was correctly predicted to have residual axillary disease.
Cancers 15 00401 g003
Table
Table 1. Clinicopathologic and operative characteristics in relation to final pathologic response of all included patients.
Table 1. Clinicopathologic and operative characteristics in relation to final pathologic response of all included patients.
Primary Tumour Response in All PatientsAxillary Response in cN+ Patients
CharacteristicsTotalpCRRDTotal pCR RD
(n = 42)(n = 16)(n = 26)(n = 26)(n = 14)(n = 12)
Age (years)
Median, range50 (32–69)48 (36–59)51 (32–69)49 (32–69)48 (32–69)52 (37–69)
Clinical tumour size (mm)
Median, range34 (13–78)46 (13–78)31 (13–77)38 (13–78)38 (13–78)36 (16–70)
Clinical T status
cT15 (11.9)2 (12.5)3 (11.5)4 (15.4)2 (14.3)2 (16.7)
cT227 (64.3)8 (50.0)19 (73.1)15 (57.7)7 (50.0)8 (66.7)
cT39 (21.4)6 (37.5)3 (11.5)7 (26.9)5 (35.7)2 (16.7)
cT41 (2.4)0 (0.0)1 (3.8)0 (0.0)0 (0.0)0 (0.0)
Clinical N status
cN015 (35.7)6 (37.5)9 (34.6)0 (0.0)0 (0.0)0 (0.0)
cN124 (57.1)8 (50.0)16 (61.5)24 (92.3)13 (92.9)11 (91.7)
cN21 (2.4)0 (0.0)1 (3.8)0 (0.0)0 (0.0)0 (0.0)
cN32 (4.8)2 (12.5)0 (0.0)2 (7.7)1 (7.1)1 (8.3)
Focality
Unifocal26 (61.9)9 (56.3)17 (65.4)13 (50.0)6 (42.9)7 (58.3)
Multifocal2 (4.8)1 (6.3)1 (3.8)1 (3.8)1 (7.1)0 (0.0)
Multicentric4 (9.5)4 (25.0)0 (0.0)3 (11.5)2 (14.3)1 (8.3)
Multicentric/multifocal10 (23.8)2 (12.5)8 (30.8)9 (34.6)5 (35.7)4 (33.3)
ER status
Negative16 (38.1)8 (50.0)8 (30.8)10 (38.5)6 (42.9)4 (33.3)
Positive26 (61.9)8 (50.0)18 (69.2)16 (61.5)8 (57.1)8 (66.7)
PR status
Negative26 (61.9)12 (75.0)14 (53.8)17 (65.4)9 (64.3)8 (66.7)
Positive16 (38.1)4 (25.0)12 (46.2)9 (34.6)5 (35.7)4 (33.3)
HER2 status
Negative29 (69.0)6 (37.5)23 (88.5)20 (76.9)8 (57.1)12 (100.0)
Positive13 (31.0)10 (62.5)3 (11.5)6 (23.1)6 (42.9)0 (0.0)
Subtype
ER+/HER2−19 (45.2)2 (12.5)17 (65.4)13 (50.0)5 (35.7)8 (66.7)
ER+/HER2+7 (16.7)6 (37.5)1 (3.8)3 (11.5)3 (21.4)0 (0.0)
ER−/HER2+6 (14.3)4 (25.0)2 (7.7)3 (11.5)3 (21.4)0 (0.0)
TNBC10 (23.8)4 (25.0)6 (23.1)7 (26.9)3 (21.4)4 (33.3)
Tumour grade (mBR)
Grade 14 (9.5)1 (6.3)3 (11.5)4 (15.4)1 (7.1)3 (25.0)
Grade 222 (52.4)8 (50.0)14 (53.8)13 (50.0)6 (42.9)7 (58.3)
Grade 316 (38.1)7 (43.8)9 (34.6)9 (34.6)7 (50.0)2 (16.7)
Type of breast surgery
BCS25 (59.5)10 (62.5)15 (57.7)15 (57.7)10 (71.4)5 (41.7)
Ablatio17 (40.5)6 (37.5)11 (42.3)11 (42.3)4 (28.6)7 (58.3)
Type of axillary surgery
SLNB17 (40.5)7 (43.8)10 (38.5)1 (3.8)1 (7.1)0 (0.0)
RISAS3 (7.1)0 (0.0)3 (11.5)22 (84.6)11 (78.6)11 (91.7)
ALND22 (52.4)9 (56.3)13 (50.0)3 (11.5)2 (14.3)1 (8.3)
Abbreviations: ALND, axillary lymph node dissection; BCS, breast-conserving surgery; cN+, clinically node-positive; ER, oestrogen receptor; HER2, human epidermal growth factor receptor 2; mBR, modified Bloom–Richardson; pCR, pathologic complete response; PR, progesterone receptor; RD, residual disease; RISAS, radioactive iodine seed localisation in the axilla with the sentinel node procedure; SLNB, sentinel lymph node biopsy; TNBC, triple-negative breast cancer.
Table
Table 2. Significant imaging variables in relation to final pathologic response.
Table 2. Significant imaging variables in relation to final pathologic response.
pCRRDp-ValueOptimal
Cut-Off
Primary tumour response
SUVmax *
Δ2-1 (%)−82.6(−94.1 to −9.2)−40.7(−87.7 to 8.9)0.017−75.0
LD
PETMRI-3 (mm)0(0.0 to 37.0)15(0.0 to 38.0)0.01811
Δ3-1 (%)−100.0(−100.0 to −19.57)−40.9(−100.0 to 0.0)0.012−68.4
SER
Δ2-1 (%)−30.1(−68.0 to 8.0)−13.0(−69.5 to 46.5)0.044−23.9
Δ3-1 (%)−54.3(−75.4 to −14.5)−38.4(−65.3 to 0.6)0.013−52.6
Axillary response
SUVmax †
PETMRI-20.5(0.4 to 2.7)0.9(0.6 to 5.5)0.030.58
Δ2-1 (%)−88.0(−96.1 to −37.3)−59.8(−93.6 to −7.3)0.01−75.5
NT ratio
PETMRI-20.4(0.2 to 1.5)0.6(0.2 to 3.8)0.0410.42
Δ2-1 (%)−59.7(−92.6 to 42.3)−35.7(−66.0 to 78.1)0.018−46.8
LD
PETMRI-3 (mm)0(0.0 to 38.0)15(0.0 to 30.0)0.04711
Δ3-1 (%)−100.0(−100.0 to −28.3)−53.8(−100.0 to 0.0)0.026−71.1
Quantitative imaging variables are shown as the median and range. Comparison between response groups using Mann–Whitney U test. Symbols: *, similar cut-off values and diagnostic performance for SUVpeak, SUV30%, SUV40%, and SUV50%; †, similar cut-off value and diagnostic performance for SUVpeak. Abbreviations: LD, longest diameter; NT ratio, nodal-to-tumour ratio; pCR, pathologic complete response; RD, residual disease; SER, signal enhancement ratio; SUVmax, maximum standardised uptake value.
Table
Table 3. Diagnostic performance in the prediction of pathologic primary tumour.
Table 3. Diagnostic performance in the prediction of pathologic primary tumour.
SensitivitySpecificityPPVNPVAUC
Qualitative response evaluation
PET-371 (15/21) [48–89]62 (10/16) [35–85]71 (15/21) [48–89]62 (10/16) [35–85]0.67 [0.49–0.85]
MRI-371 (15/21) [48–89]62 (10/16) [35–85]71 (15/21) [48–89]62 (10/16) [35–85]0.67 [0.49–0.85]
PETMRI-386 (18/21) [64–97]56 (9/16) [30–80]72 (18/25) [51–88]75 (9/12) [43–95]0.71 [0.53–0.89]
Quantitative response evaluation
SUVmax
Δ2-1 (%)92 (23/25) [74–99]62 (8/13) [32–86]82 (23/28) [63–94]80 (8/10) [44–97]0.74 [0.53–0.94]
LD
PETMRI-3 (mm)62 (13/21) [38–82]81 (13/16) [54–96]81 (13/16) [54–96]62 (13/21) [38–82]0.72 [0.55–0.89]
Δ3-1 (%)67 (14/21) [43–85]88 (14/16) [62–98]88 (14/16) [62–98]67 (14/21) [43–85]0.74 [0.57–0.90]
SER
Δ2-1 (%)64 (16/25) [43–82]69 (9/13) [39–91]80 (16/20) [56–94]50 (9/18) [26–74]0.70 [0.52–0.88]
Δ3-1 (%)76 (16/21) [53–92]62 (10/16) [35–85]73 (16/22) [50–89]67 (10/15) [38–88]0.74 [0.58–0.90]
Combined variables
SUVmax or SER (Δ2-1)96 (24/25) [80–100]38 (5/13) [14–68]75 (24/32) [57–89]83 (5/6) [36–100]0.67 [0.48–0.87]
SUVmax and SER (Δ2-1)64 (16/25) [43–82]92 (12/13) [64–100]94 (16/17) [71–100]57 (12/21) [34–78]0.78 [0.63–0.93]
LD or SER (Δ3-1)81 (17/21) [58–95]63 (10/16) [35–85]74 (17/23) [52–90]71 (10/14) [42–92]0.72 [0.54–0.89]
LD and SER (Δ3-1)62 (13/21) [38–82]88 (14/16) [62–98]87 (13/15) [60–98]64 (14/22) [41–83]0.75 [0.59–0.91]
Abbreviations: AUC, area under the receiver operating characteristic curve; LD, longest diameter; NPV, negative predictive value; NT ratio, nodal-to-tumour ratio; PPV, positive predictive value; SER, signal enhancement ratio; SUVmax, maximum standardised uptake value.
Table
Table 4. Diagnostic performance in the prediction of pathologic axillary response.
Table 4. Diagnostic performance in the prediction of pathologic axillary response.
SensitivitySpecificityPPVNPVAUC
Qualitative response evaluation
PET-30 (0/7) [0–14] 100 (14/14) [77–100]0 (0/0) [0–0]67 (14/21) [43–85]0.50 [0.23–0.77]
MRI-30 (0/7) [0–41]93 (13/14) [66–100]0 (0/1) [0–97]65 (13/20) [41–85]0.54 [0.27–0.80]
PETMRI-30 (0/7) [0–41]93 (13/14) [66–100]0 (0/1) [0–97]65 (13/20) [41–85]0.54 [0.27–0.80]
Quantitative response evaluation
SUVmax
PETMRI-2100 (12/12) [74–100]60 (6/10) [26–88]75 (12/16) [48–93]100 (6/6) [54–100]0.78 [0.57–0.98]
Δ2-1 (%)83 (10/12) [52–98]80 (8/10) [44–97]83 (10/12) [52–98]80 (8/10) [44–97]0.83 [0.64–1.00]
NT ratio
PETMRI-292 (11/12) [62–100]60 (6/10) [26–88]73 (11/15) [45–92]86 (6/7) [42–100]0.80 [0.60–1.00]
Δ2-1 (%)83 (10/12) [52–98]80 (8/10) [44–97]83 (10/12) [52–98]80 (8/10) [44–97]0.76 [0.55–0.97]
LD (mm)
PETMRI-371 (5/7) [29–96]86 (12/14) [57–98]71 (5/7) [29–96]86 (12/14) [57–98]0.75 [0.50–0.99]
Δ3-1 (%)71 (5/7) [29–96]86 (12/14) [57–98]71 (5/7) [29–96]86 (12/14) [57–98]0.78 [0.54–1.00]
Combined variables
SUVmax (2) or SUVmax (Δ2-1)100 (12/12) [74–100]40 (4/10) [12–74]67 (12/18) [41–87]100 (4/4) [40–100]0.70 [0.47–0.93]
SUVmax (2) and SUVmax (Δ2-1)83 (10/12) [52–98]100 (10/10) [69–100]100 (10/10) [69–100]83 (10/12) [52–98]0.92 [0.79–1.00]
Abbreviations: AUC, area under the receiver operating characteristic curve; LD, longest diameter; NPV, negative predictive value; NT ratio, nodal-to-tumour ratio; PPV, positive predictive value; SER, signal enhancement ratio; SUVmax, maximum standardised uptake value.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

de Mooij, C.M.; van Nijnatten, T.J.A.; Goorts, B.; Kooreman, L.F.S.; Raymakers, I.W.M.; van Meijl, S.P.L.; de Boer, M.; Keymeulen, K.B.M.I.; Wildberger, J.E.; Mottaghy, F.M.; et al. Prediction of Primary Tumour and Axillary Lymph Node Response to Neoadjuvant Chemo(Targeted) Therapy with Dedicated Breast [18F]FDG PET/MRI in Breast Cancer. Cancers 2023, 15, 401. https://doi.org/10.3390/cancers15020401

AMA Style

de Mooij CM, van Nijnatten TJA, Goorts B, Kooreman LFS, Raymakers IWM, van Meijl SPL, de Boer M, Keymeulen KBMI, Wildberger JE, Mottaghy FM, et al. Prediction of Primary Tumour and Axillary Lymph Node Response to Neoadjuvant Chemo(Targeted) Therapy with Dedicated Breast [18F]FDG PET/MRI in Breast Cancer. Cancers. 2023; 15(2):401. https://doi.org/10.3390/cancers15020401

Chicago/Turabian Style

de Mooij, Cornelis M., Thiemo J. A. van Nijnatten, Briete Goorts, Loes F. S. Kooreman, Isabel W. M. Raymakers, Silke P. L. van Meijl, Maaike de Boer, Kristien B. M. I. Keymeulen, Joachim E. Wildberger, Felix M. Mottaghy, and et al. 2023. "Prediction of Primary Tumour and Axillary Lymph Node Response to Neoadjuvant Chemo(Targeted) Therapy with Dedicated Breast [18F]FDG PET/MRI in Breast Cancer" Cancers 15, no. 2: 401. https://doi.org/10.3390/cancers15020401

APA Style

de Mooij, C. M., van Nijnatten, T. J. A., Goorts, B., Kooreman, L. F. S., Raymakers, I. W. M., van Meijl, S. P. L., de Boer, M., Keymeulen, K. B. M. I., Wildberger, J. E., Mottaghy, F. M., Lobbes, M. B. I., & Smidt, M. L. (2023). Prediction of Primary Tumour and Axillary Lymph Node Response to Neoadjuvant Chemo(Targeted) Therapy with Dedicated Breast [18F]FDG PET/MRI in Breast Cancer. Cancers, 15(2), 401. https://doi.org/10.3390/cancers15020401

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
