Systematic Review

Diagnostic Performance of ACR and Kwak TI-RADS for Benign and Malignant Thyroid Nodules: An Update Systematic Review and Meta-Analysis

by
Yun Jin Kang
1,
Gulnaz Stybayeya
2,
Ju Eun Lee
3 and
Se Hwan Hwang
3,*
1
Department of Otolaryngology-Head and Neck Surgery, Yeouido St. Mary’s Hospital, College of Medicine, The Catholic University of Korea, Seoul 07345, Republic of Korea
2
Department of Physiology and Biomedical Engineering, Mayo Clinic, Rochester, MN 55902, USA
3
Department of Otolaryngology-Head and Neck Surgery, Bucheon Saint Mary’s Hospital, College of Medicine, The Catholic University of Korea, Seoul 14647, Republic of Korea
*
Author to whom correspondence should be addressed.
Cancers 2022, 14(23), 5961; https://doi.org/10.3390/cancers14235961
Submission received: 24 October 2022 / Revised: 29 November 2022 / Accepted: 30 November 2022 / Published: 2 December 2022
(This article belongs to the Section Cancer Therapy)
Browse Figure
Review Reports Versions Notes

Abstract

:

Simple Summary

This meta-analysis determined the optimal cut-off value for differentiating benign and malignant thyroid nodules in two risk stratification systems (ACR and Kwak TI-RADS) and compared their diagnostic performance. Both systems showed good diagnostic performance. TR4 and 4B were estimated as optimal cut-off values for ACR and Kwak TI-RADS, respectively, but the cut-off values can be adjusted in consideration of changes in sensitivity and specificity.

Abstract

(1) Background: To determine the optimal cut-off values of two risk stratification systems to discriminate malignant thyroid nodules and to compare the diagnostic performance; (2) Methods: True and false positive and negative data were collected, and methodological quality was assessed for forty-six studies involving 39,085 patients; (3) Results: The highest area under the receiver operating characteristic (ROC) curve (AUC) of ACR and Kwak TI-RADS were 0.875 and 0.884. Based on the optimal sensitivity and specificity, the highest accuracy values of ROC curves or diagnostic odds ratios (DOR) were taken as the cut-off values for TR4 (moderate suspicious) and 4B. The sensitivity, specificity, DOR, and AUC by ACR (TR4) and Kwak TI-RADS (4B) for malignancy risk stratification of thyroid nodules were 94.3% and 96.4%; 52.2% and 53.7%; 17.5185 and 31.8051; 0.786 and 0.884, respectively. There were no significant differences in diagnostic accuracy in any of the direction comparisons of the two systems; (4) Conclusions: ACR and Kwak TI-RADS had good diagnostic performances (AUCs > 85%). Although we determined the best cut-off values in individual risk stratification systems based on statistical assessment, clinicians can adjust the optimal cut-off value according to the clinical purpose of the ultrasonography because raising or lowering cut-points leads to reciprocal changes in sensitivity and specificity.

1. Introduction

Thyroid nodules are relatively common in the general population, and about 10% of thyroid nodules have a risk of malignancy with increasing prevalence [1,2]. Since malignant and benign thyroid nodules differ in treatment and prognosis, early differentiation between benign and malignant thyroid nodules is important [3].
Currently, ultrasound stratification of thyroid nodules is a fast, primary, and easy-to-use diagnostic tool for thyroid nodule; it is also non-invasive and inexpensive [3]. The characteristics of benign and malignant nodules on ultrasound are different, which can be interpreted and misunderstood differently depending on the experience of the examiner or the image obtained [4]. In most ultrasound examinations, fine needle aspiration (FNA) is recommended to differentiate malignancies [5,6]. However, excessive FNA is not recommended [6] if the thyroid nodule is too small or too large, because it may be difficult to diagnose [6]. Therefore, it is important to confirm the recommended thyroid nodule size for FNA, and comparative studies on its diagnostic value are needed.
The thyroid imaging reporting and data system (TI-RADS) is used to objectively classify thyroid nodules and recommend treatment [7]. The five classification systems currently used most often are: (1) TI-RADS from the American College of Radiology (ACR TI-RADS), (2) Kwak (Kwak TI-RADS), (3) the Korean Thyroid Association or the Korean Society of Thyroid Radiology guidelines, (4) the European Thyroid Association guidelines, and (5) the American Thyroid Association guidelines [3,4,8,9,10,11,12]. Although these guidelines are effective for diagnosing thyroid nodules, it is not clear which is the best diagnostic tool [13]. Furthermore, to the best of our knowledge, there are no meta-analyses comparing two stratification systems for diagnostic efficiency including cut-off values.
In this study, we compared the diagnostic efficiency of ACR TI-RADS and Kwak TI-RADS for diagnosing thyroid nodules and we estimated the optimal cut-off values for each ultrasound stratification system.

2. Materials and Methods

2.1. Study Protocol and Registration

This systematic review and meta-analysis was conducted in accordance with the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines; it also followed the recommendations provided for optimal literature search for systematic reviews in surgery. The study protocol was prospectively registered on the Open Science Framework (https://osf.io/fykwr/ (accessed on 2 October 2022)).

2.2. Literature Search Strategy

All clinical studies retrieved up to August 2022 from the databases of PubMed, SCOPUS, Embase, Web of Science, and the Cochrane Central Register of Controlled Trials were analyzed. The search terms were: thyroid, thyroid nodule, thyroid neoplasm, malignancy, thyroid cancer, diagnostic imaging, diagnostic performance, diagnostic value, ultrasonography, diagnosis, ultrasound, diagnostic value, ultrasonography, ultrasound risk stratification system, imaging, reporting systems, thyroid imaging reporting and data system, TI-RADS, TIRADS, indeterminate, American College of Radiology guideline, ACR TI-RADS, European Thyroid Association guideline, EU TI-RADS, American Thyroid Association (ATA) guidelines, thyroid, ultrasound classifications, Korean Thyroid Association guideline (K TI-RADS), and Kwak TI-RADS. The references of the studies extracted through the search were also considered to ensure that there were no missing studies except duplicates. Two authors (YJK and SHH) evaluated the title, abstract and, if necessary, the full manuscript. Studies not related to risk stratification system for thyroid nodule using ultrasonography were excluded.

2.3. Selection Criteria

The inclusion criteria were studies with: patients undergoing ultrasound studies of thyroid nodules, prospective or retrospective studies, comparison of ultrasound studies with cytologic or histologic findings, and data from sensitivity and specificity analyses. Exclusion criteria were: review articles, case reports, studies of other neck diseases (e.g., lymphadenitis or neck mass), articles not written in English, and articles without adequate data to determine the diagnostic value of imaging studies.

2.4. Data Extraction and Risk of Bias Assessment

The articles included in this study were subjected to data extraction, wherein data were organized into a standardized form [14]. Analysis results were diagnostic accuracy (diagnostic odds ratio (DOR)), summary receiver operating characteristic (SROC) curve, and area under the curve (AUC). DOR was calculated using the following parameters: true positive, false positive, false negative, and true negative, and it was used to assess diagnostic accuracy with a 95% confidence interval from random-effects models, considering both within- and between-study variation. Higher DOR values (ranging from 0 to infinity) indicated better diagnostic performance. The SROC approach is considered the best method for meta-analysis and generates paired sensitivity and specificity estimates [6,11,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55]. As the discriminatory power of a test increases, the SROC curve more closely approaches the top left corner of the receiver operating characteristic curve (ROC) space (i.e., the point where sensitivity and specificity both equal 1 (100%)) [56]. AUC is a value between 0 and 1, and the higher AUC value means better diagnostic performance. An AUC of >0.9~1.0 is considered excellent diagnostic accuracy, >0.8~0.9 is good diagnostic accuracy, >0.7~0.8 is fair diagnostic accuracy, >0.6~0.7 is poor diagnostic accuracy, and ≤0.6 is interpreted as a failed diagnosis [57].
We extracted the following data from the included studies: number of patients, correlations of scores measured in endoscopy and CT, true positive values, true negative values, false positive values, and false negative values. The Quality Assessment of Diagnostic Accuracy Studies version 2 tool (QADAS-2) was used to evaluate methodological quality (e.g., risk of bias) [58]. For the definition of true positive and negative, guideline category < cut-off value was regarded as “test negative” and guideline category ≥ cut-off value as “test positive”. Therefore, “benign” lesions classified as <cut-off were regarded as true negatives and “non-benign” lesions classified as ≥cut-off value were regarded as true positives. Accordingly, the sensitivity, specificity, and DOR were calculated with reference to the final results based on pathological examination, FNA cytology, and follow-up. ROC curve analyses and AUC were used to assess the effectiveness of guidelines in differentiating benign from malignant thyroid nodules [59].

2.5. Statistical Analyses and Outcome Measurements

We used R statistical software version 3.6.1 (R Foundation for Statistical Computing, Vienna, Austria) for meta-analysis. Q statistic was used for homogeneity analysis to evaluate heterogeneity. TI-RADS categories were proposed by Kwak et al. to classify thyroid nodules as 2 (benign lesions), 3 (no suspicious ultrasound features), 4a (one suspicious ultrasound feature), 4b (two suspicious ultrasound features), 4c (three or four suspicious ultrasound features), or 5 (five suspicious ultrasound features) according to the risk estimates of malignancy [4]. Ultrasound features in the ACR TI-RADS are categorized as benign (TR1, 0 point), not suspicious (TR2, 2 points), mildly suspicious (TR3, 3 points), moderately suspicious (TR4, 4–6 points), or highly suspicious (TR5, ≥7 points) for malignancy [12]. Diagnostics accuracy in individual risk stratification systems (ACR TI-RADS and Kwak TI-RADS) was assessed based on the use of different cut-off values. Forest plots show sensitivity, specificity, and SROC curves.

3. Results

3.1. Search and Study Selection

Forty-six studies with 39,085 participants were included in the analyses (Figure 1). Study characteristics are shown in Supplementary Table S1, and the results for bias assessment are presented in Supplementary Table S2.

3.2. Diagnostic Accuracy in Various Ultrasound Risk Stratification Systems

Diagnostic efficacy and ROC curves for the two guidelines according to the various cut-off values are shown in Table 1 and Table 2, respectively.
In Kwak TI-RADS categories, sensitivity changed from 14–99% (highest in 4a) and specificity showed the inverse association (99–27%; highest in 5) according to the different cut-off values (categories). ROC analysis and DOR showed that the best diagnostic cut-off values of Kwak TI-RADS had 4b in common. A cut-off in the screening test was chosen to minimize the rate of false negatives rather than reducing false positives because this would be appropriate for conditions in which misdiagnosing and treating someone as sick is better than missing truly sick individuals [60]. Based on the statistical considerations, the best cut-off value of Kwak TI-RADS was category 4b with 96.4% sensitivity and 53.7% specificity. However, in practical considerations, if the sensitivity or specificity of a screening test were considered to be either too high or too low, they could be adjusted by raising or lowering cut-off values [61]. It has also been suggested that a more appropriate sensitivity and specificity value would have been approximately 73% for both, and therefore, incidentally, similar to the values obtained by other researchers [62,63]. Therefore, 4c could be also be a good cut-off value for Kwak TI-RADS because balanced sensitivity and specificity could be more suitable for screening tests.
In ACR TI-RADS categories, sensitivity changed to 71.0–98.8% (highest in TR3), and specificity showed the inverse association (86.9–23.7%; highest in TR5) according to the different cut-off values (categories). ROC analysis and DOR showed that the best diagnostic cut-off values of ACR TI-RADS were TR5 and TR4, respectively. Although a test with high AUC is statistically considered “better” than one with lower AUC, AUC lacks clinical interpretability because it does not reflect the practical gains and losses to individual patients by diagnostic tests [64]. A cut-off in the screening test has been chosen to minimize the rate of false negatives rather than reducing false positives [1]. Accordingly, the best cut-off value for ACR TI-RADS was category TR4 with 94.3% sensitivity and 52.2% specificity. However, TR5 would also be a good cut-off value for ACR TI-RADS because balanced sensitivity and specificity could be more suitable for screening tests.

3.3. Direct Comparison of Diagnostic Performance for Predicting Thyroid Malignancy with the Two TIRADS

Only 11 studies that evaluated the diagnostic accuracy of the two guidelines in the same lesions or patients were included for direct comparison. The ROC curves of the cut-off values for Kwak (4b) and ACR TI-RADS (TR4) indicated that there was no significant difference between the two guidelines (Kwak TI-RADS (AUC 0.842) and ACR TI-RADS (AUC 0.846)) in diagnostic performance for thyroid malignancy (Table 3). Additionally, they both had the statistically similar and high diagnostic performances for sensitivity (Kwak 0.9727, ACR 0.9760, p value 0.7572), specificity (Kwak 0.5641, ACR 0.5025, p value 0.1916), and DOR (Kwak 44.0619, ACR 38.2503, p value 0.6896). Another analysis of a different set of cut-off values for Kwak (4c) and ACR TI-RADS (TR5) also showed no significant difference between the two guidelines (Kwak TI-RADS (AUC 0.89) and ACR TI-RADS (AUC 0.892)) (Table 4). Both studies reported statistically similar high diagnostic performance by sensitivity (Kwak 0.7517, ACR 0.7824, p-value 0.6537), specificity (Kwak 0.8754, ACR 0.8544, p-value 0.4122), and DOR estimates (Kwak 20.9770, ACR 21.3275, p-value 0.9597).

4. Discussion

Nodule number, size, calcification, and echo pattern from ultrasound images are considered when classifying thyroid nodules according to TI-RADS [3,7] to differentiate benign and malignant thyroid nodule to determine whether FNA is required [3,13]. The ultrasound stratification systems help to avoid unnecessary FNA in cases when the thyroid nodule is too small, too large, or when benign versus malignant status is ambiguous. However, the FNA recommendation threshold is different for each system, and the results of the studies analyzing the diagnostic effect are not consistent [3,4].
Many meta-analyses have compared different ultrasound risk stratification systems for thyroid nodules [3,4,65,66,67,68], but our study analyzed the diagnostic effect in more detail including cut-off values for two risk stratification systems. In addition to identifying the optimal cut-off value, we directly compared two stratification systems at different cut-off values with an AUC > 0.8 for high specificity and sensitivity.
Other meta-analysis results related to Kwak TI-RAD showed high overall sensitivity and low specificity [65,68], which was associated with a high cut-off of 4a and 4b [65]. In our study, as the cut-off value increased, sensitivity decreases and specificity tended to increase. In other words, if the cut-off is high, it is better to rule out an increase in the number of benign thyroid nodule diagnoses and to reduce unnecessary surgeries. However, there was no significant difference in direct comparison between the best cut-offs in Kwak TI-RADS (4b) and ACR TI-RADS (TR4). From a direct comparison of Kwak TI-RADS (4b and 4c) and ACR TI-RADS (TR4 and TR5), all have an AUC greater than 0.8, which is a theoretically effective diagnostic tool [69].
In our study, both Kwak TI-RADS (4b and 4c) and ACR TI-RADS (TR4 and TR5) had high diagnostic performance, with no significant difference between them. However, although both are point-based systems that have high accuracy and may require complex analysis and calculations, they are internally different [70]. Because TI-RADS should be able to reduce the subjective effect of ultrasound and provide a standard for diagnosis and treatment, further research is needed for the best diagnostic performance with the best cut-off value. For FNA recommendation, further studies on the size threshold are needed. ACR TI-RADS has good diagnostic performance at the cut-off value of TR4 and TR5, but the nodule size threshold for FNA was also clinically important in our study. Thresholds of categories 3, 4, and 5 in ACR TI-RADS were 2.5, 1.5, and 1 cm, which was reported as an effective criterion to reduce unnecessary FNA [71].
There are several limitations and factors explaining the high heterogeneity. First, a selection bias for patients may have occurred. Among the included studies, there were studies that included more malignant thyroid nodules than benign. Second, because thyroid nodule diagnosis is ultimately determined by pathologic or cytologic results, bias may occur depending on clinicians or diagnostic tools. Third, the various experience of radiologists as commonly described in included studies can induce high heterogeneity. However, difficult cases may be accompanied by the supervision of more experienced radiologists [72]. Additionally, intermediate categories were not tested in ACR TI-RADS, and low agreement in cytologic pathology may be expected [65]. Fourth, most included studies were retrospective studies. Prospective and multicenter studies need to be included to reduce bias. Lastly, papillary thyroid cancer is related to BRAF V600 mutation. However, correlation with the ultrasound stratification system and mutation was not considered. The possibility of mutation is low in intermediate nodules, but should be considered.

5. Conclusions

ACR TI-RADS and Kwak TI-RADS are both effective for differential diagnosis of benign and malignant thyroid nodules with an AUC of 85% or higher. However, since the change in statistically confirmed optimal cut-off value is related to the change in sensitivity and specificity, it is necessary to select the cut-off value depending on the clinical situation.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cancers14235961/s1, Table S1: Study characteristics.; Table S2: Methodological quality of the included studies. References [73,74,75,76,77] are cited in the supplementary materials.

Author Contributions

Conceptualization, Y.J.K. and S.H.H.; methodology, S.H.H. and J.E.L.; software, G.S.; validation, Y.J.K. and S.H.H.; formal analysis, S.H.H.; data curation, Y.J.K.; writing—original draft preparation, Y.J.K.; writing—review and editing, Y.J.K., J.E.L. and S.H.H.; visualization, S.H.H.; supervision, G.S. and S.H.H.; project administration, S.H.H.; All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIT) (2022R1F1A1066232). The sponsors had no role in the study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Malvagia, S.; Forni, G.; Ombrone, D.; la Marca, G. Development of Strategies to Decrease False Positive Results in Newborn Screening. Int. J. Neonatal Screen 2020, 6, 84. [Google Scholar] [CrossRef]
  2. Miller, K.D.; Siegel, R.L.; Lin, C.C.; Mariotto, A.B.; Kramer, J.L.; Rowland, J.H.; Stein, K.D.; Alteri, R.; Jemal, A. Cancer treatment and survivorship statistics, 2016. CA Cancer J. Clin. 2016, 66, 271–289. [Google Scholar] [CrossRef] [Green Version]
  3. Yang, R.; Zou, X.; Zeng, H.; Zhao, Y.; Ma, X. Comparison of Diagnostic Performance of Five Different Ultrasound TI-RADS Classification Guidelines for Thyroid Nodules. Front. Oncol. 2020, 10, 598225. [Google Scholar] [CrossRef]
  4. Kwak, J.Y.; Han, K.H.; Yoon, J.H.; Moon, H.J.; Son, E.J.; Park, S.H.; Jung, H.K.; Choi, J.S.; Kim, B.M.; Kim, E.K. Thyroid imaging reporting and data system for US features of nodules: A step in establishing better stratification of cancer risk. Radiology 2011, 260, 892–899. [Google Scholar] [CrossRef] [Green Version]
  5. Ozdemir, D.; Bestepe, N.; Faki, S.; Kilicarslan, A.; Parlak, O.; Ersoy, R.; Cakir, B. Comparison of thyroid fine needle aspiration biopsy results before and after implementation of Bethesda classification. Cytopathology 2017, 28, 400–406. [Google Scholar] [CrossRef] [PubMed]
  6. Qi, T.Y.; Chen, X.; Liu, H.; Mao, L.; Chen, J.; He, B.L.; Zhang, W.B. Comparison of thyroid nodule FNA rates recommended by ACR TI-RADS, Kwak TI-RADS and ATA guidelines. Eur. J. Radiol. 2022, 148, 110152. [Google Scholar] [CrossRef]
  7. An, J.Y.; Unsdorfer, K.M.L.; Weinreb, J.C. BI-RADS, C-RADS, CAD-RADS, LI-RADS, Lung-RADS, NI-RADS, O-RADS, PI-RADS, TI-RADS: Reporting and Data Systems. Radiographics 2019, 39, 1435–1436. [Google Scholar] [CrossRef]
  8. Haugen, B.R.; Alexander, E.K.; Bible, K.C.; Doherty, G.M.; Mandel, S.J.; Nikiforov, Y.E.; Pacini, F.; Randolph, G.W.; Sawka, A.M.; Schlumberger, M.; et al. 2015 American Thyroid Association Management Guidelines for Adult Patients with Thyroid Nodules and Differentiated Thyroid Cancer: The American Thyroid Association Guidelines Task Force on Thyroid Nodules and Differentiated Thyroid Cancer. Thyroid 2016, 26, 1–133. [Google Scholar] [CrossRef] [Green Version]
  9. Shin, J.H.; Baek, J.H.; Chung, J.; Ha, E.J.; Kim, J.H.; Lee, Y.H.; Lim, H.K.; Moon, W.J.; Na, D.G.; Park, J.S.; et al. Ultrasonography Diagnosis and Imaging-Based Management of Thyroid Nodules: Revised Korean Society of Thyroid Radiology Consensus Statement and Recommendations. Korean J. Radiol. 2016, 17, 370–395. [Google Scholar] [CrossRef] [Green Version]
  10. Russ, G.; Bonnema, S.J.; Erdogan, M.F.; Durante, C.; Ngu, R.; Leenhardt, L. European Thyroid Association Guidelines for Ultrasound Malignancy Risk Stratification of Thyroid Nodules in Adults: The EU-TIRADS. Eur. Thyroid J. 2017, 6, 225–237. [Google Scholar] [CrossRef]
  11. Ha, E.J.; Na, D.G.; Moon, W.J.; Lee, Y.H.; Choi, N. Diagnostic Performance of Ultrasound-Based Risk-Stratification Systems for Thyroid Nodules: Comparison of the 2015 American Thyroid Association Guidelines with the 2016 Korean Thyroid Association/Korean Society of Thyroid Radiology and 2017 American College of Radiology Guidelines. Thyroid 2018, 28, 1532–1537. [Google Scholar] [CrossRef] [PubMed]
  12. Tessler, F.N.; Middleton, W.D.; Grant, E.G.; Hoang, J.K.; Berland, L.L.; Teefey, S.A.; Cronan, J.J.; Beland, M.D.; Desser, T.S.; Frates, M.C.; et al. ACR Thyroid Imaging, Reporting and Data System (TI-RADS): White Paper of the ACR TI-RADS Committee. J. Am. Coll. Radiol. 2017, 14, 587–595. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Ha, S.M.; Ahn, H.S.; Baek, J.H.; Ahn, H.Y.; Chung, Y.J.; Cho, B.Y.; Park, S.B. Validation of Three Scoring Risk-Stratification Models for Thyroid Nodules. Thyroid 2017, 27, 1550–1557. [Google Scholar] [CrossRef] [PubMed]
  14. Kim, D.H.; Kim, S.W.; Basurrah, M.A.; Hwang, S.H. Clinical and Laboratory Features of Various Criteria of Eosinophilic Chronic Rhinosinusitis: A Systematic Review and Meta-Analysis. Clin. Exp. Otorhinolaryngol. 2022, 15, 230–246. [Google Scholar] [CrossRef] [PubMed]
  15. Yoon, J.H.; Lee, H.S.; Kim, E.K.; Moon, H.J.; Kwak, J.Y. Malignancy Risk Stratification of Thyroid Nodules: Comparison between the Thyroid Imaging Reporting and Data System and the 2014 American Thyroid Association Management Guidelines. Radiology 2016, 278, 917–924. [Google Scholar] [CrossRef] [Green Version]
  16. Chng, C.L.; Tan, H.C.; Too, C.W.; Lim, W.Y.; Chiam, P.P.S.; Zhu, L.; Nadkarni, N.V.; Lim, A.Y.Y. Diagnostic performance of ATA, BTA and TIRADS sonographic patterns in the prediction of malignancy in histologically proven thyroid nodules. Singap. Med. J. 2018, 59, 578–583. [Google Scholar] [CrossRef] [Green Version]
  17. Ahmadi, S.; Herbst, R.; Oyekunle, T.; Jiang, X.; Strickland, K.; Roman, S.; Sosa, J.A. Using the ata and acr ti-rads sonographic classifications as adjunctive predictors of malignancy for indeterminate thyroid nodules. Endocr. Pract. 2019, 25, 908–917. [Google Scholar] [CrossRef] [PubMed]
  18. Barbosa, T.L.M.; Junior, C.O.M.; Graf, H.; Cavalvanti, T.; Trippia, M.A.; da Silveira Ugino, R.T.; de Oliveira, G.L.; Granella, V.H.; de Carvalho, G.A. ACR TI-RADS and ATA US scores are helpful for the management of thyroid nodules with indeterminate cytology. BMC Endocr. Disord. 2019, 19, 112. [Google Scholar] [CrossRef]
  19. Gao, L.; Xi, X.; Jiang, Y.; Yang, X.; Wang, Y.; Zhu, S.; Lai, X.; Zhang, X.; Zhao, R.; Zhang, B. Comparison among TIRADS (ACR TI-RADS and KWAK- TI-RADS) and 2015 ATA Guidelines in the diagnostic efficiency of thyroid nodules. Endocrine 2019, 64, 90–96. [Google Scholar] [CrossRef]
  20. Li, J.; Li, H.; Yang, Y.; Zhang, X.; Qian, L. The KWAK TI-RADS and 2015 ATA guidelines for medullary thyroid carcinoma: Combined with cell block-assisted ultrasound-guided thyroid fine-needle aspiration. Clin. Endocrinol. 2020, 92, 450–460. [Google Scholar] [CrossRef]
  21. Phuttharak, W.; Boonrod, A.; Klungboonkrong, V.; Witsawapaisan, T. Interrater Reliability of Various Thyroid Imaging Reporting and Data System (TIRADS) Classifications for Differentiating Benign from Malignant Thyroid Nodules. Asian Pac. J. Cancer Prev. 2019, 20, 1283–1288. [Google Scholar] [CrossRef] [Green Version]
  22. Ruan, J.L.; Yang, H.Y.; Liu, R.B.; Liang, M.; Han, P.; Xu, X.L.; Luo, B.M. Fine needle aspiration biopsy indications for thyroid nodules: Compare a point-based risk stratification system with a pattern-based risk stratification system. Eur. Radiol. 2019, 29, 4871–4878. [Google Scholar] [CrossRef]
  23. Shen, Y.; Liu, M.; He, J.; Wu, S.; Chen, M.; Wan, Y.; Gao, L.; Cai, X.; Ding, J.; Fu, X. Comparison of Different Risk-Stratification Systems for the Diagnosis of Benign and Malignant Thyroid Nodules. Front. Oncol. 2019, 9, 378. [Google Scholar] [CrossRef]
  24. Huang, B.L.; Ebner, S.A.; Makkar, J.S.; Bentley-Hibbert, S.; McConnell, R.J.; Lee, J.A.; Hecht, E.M.; Kuo, J.H. A Multidisciplinary Head-to-Head Comparison of American College of Radiology Thyroid Imaging and Reporting Data System and American Thyroid Association Ultrasound Risk Stratification Systems. Oncologist 2020, 25, 398–403. [Google Scholar] [CrossRef] [Green Version]
  25. Koc, A.M.; Adıbelli, Z.H.; Erkul, Z.; Sahin, Y.; Dilek, I. Comparison of diagnostic accuracy of ACR-TIRADS, American Thyroid Association (ATA), and EU-TIRADS guidelines in detecting thyroid malignancy. Eur. J. Radiol. 2020, 133, 109390. [Google Scholar] [CrossRef]
  26. Peng, J.Y.; Pan, F.S.; Wang, W.; Wang, Z.; Shan, Q.Y.; Lin, J.H.; Luo, J.; Zheng, Y.L.; Hu, H.T.; Ruan, S.M.; et al. Malignancy risk stratification and FNA recommendations for thyroid nodules: A comparison of ACR TI-RADS, AACE/ACE/AME and ATA guidelines. Am. J. Otolaryngol. 2020, 41, 102625. [Google Scholar] [CrossRef] [PubMed]
  27. Watkins, L.; O’Neill, G.; Young, D.; McArthur, C. Comparison of British Thyroid Association, American College of Radiology TIRADS and Artificial Intelligence TIRADS with histological correlation: Diagnostic performance for predicting thyroid malignancy and unnecessary fine needle aspiration rate. Br. J. Radiol. 2021, 94, 20201444. [Google Scholar] [CrossRef] [PubMed]
  28. Xiao, J.; Xiao, Q.; Cong, W.; Li, T.; Ding, S.; Shao, C.; Zhang, Y.; Liu, J.; Wu, M.; Jia, H. Discriminating Malignancy in Thyroid Nodules: The Nomogram Versus the Kwak and ACR TI-RADS. Otolaryngol. Head Neck Surg. 2020, 163, 1156–1165. [Google Scholar] [CrossRef] [PubMed]
  29. Yang, W.; Fananapazir, G.; LaRoy, J.; Wilson, M.; Campbell, M.J. Can the American Thyroid Association, K-Tirads, and Acr-Tirads Ultrasound Classification Systems Be Used to Predict Malignancy in Bethesda Category IV Nodules? Endocr. Pract. 2020, 26, 945–952. [Google Scholar] [CrossRef] [PubMed]
  30. Yoon, J.H.; Lee, H.S.; Kim, E.K.; Moon, H.J.; Park, V.Y.; Kwak, J.Y. Pattern-based vs. score-based guidelines using ultrasound features have different strengths in risk stratification of thyroid nodules. Eur. Radiol. 2020, 30, 3793–3802. [Google Scholar] [CrossRef]
  31. Zhang, W.B.; Li, J.J.; Chen, X.Y.; He, B.L.; Shen, R.H.; Liu, H.; Chen, J.; He, X.F. SWE combined with ACR TI-RADS categories for malignancy risk stratification of thyroid nodules with indeterminate FNA cytology. Clin. Hemorheol. Microcirc. 2020, 76, 381–390. [Google Scholar] [CrossRef]
  32. Chen, X.; Kutaiba, N.; Pearce, S.; Digby, S.; Van Gelderen, D. Application of Thyroid Imaging Reporting and Data System (TIRADS) guidelines to thyroid nodules with cytopathological correlation and impact on healthcare costs. Intern. Med. J. 2022, 52, 1366–1373. [Google Scholar] [CrossRef] [PubMed]
  33. Freire da Silva, P.; Corrêa de Araújo Arcoverde, L.; de Siqueira Barbosa Arcoverde, L.; Tenório Wanderley Fernandes Lima, G.; Paes de Medeiros Lima, T.; José do Amaral, F.; Bandeira, F. Agreement Between American and European Thyroid Imaging, Reporting, and Data System (TIRADS) in the Diagnosis of 473 Thyroid Nodules From a Single Center in Brazil. Endocr. Pract. 2021, 27, 1108–1113. [Google Scholar] [CrossRef] [PubMed]
  34. Ha, E.J.; Shin, J.H.; Na, D.G.; Jung, S.L.; Lee, Y.H.; Paik, W.; Hong, M.J.; Kim, Y.K.; Lee, C.Y. Comparison of the diagnostic performance of the modified Korean Thyroid Imaging Reporting and Data System for thyroid malignancy with three international guidelines. Ultrasonography 2021, 40, 594–601. [Google Scholar] [CrossRef] [PubMed]
  35. Han, M.; Ha, E.J.; Park, J.H. Computer-Aided Diagnostic System for Thyroid Nodules on Ultrasonography: Diagnostic Performance Based on the Thyroid Imaging Reporting and Data System Classification and Dichotomous Outcomes. AJNR Am. J. Neuroradiol. 2021, 42, 559–565. [Google Scholar] [CrossRef]
  36. Hekimsoy, İ.; Öztürk, E.; Ertan, Y.; Orman, M.N.; Kavukçu, G.; Özgen, A.G.; Özdemir, M.; Özbek, S.S. Diagnostic performance rates of the ACR-TIRADS and EU-TIRADS based on histopathological evidence. Diagn. Interv. Radiol. 2021, 27, 511–518. [Google Scholar] [CrossRef]
  37. Huh, S.; Lee, H.S.; Yoon, J.; Kim, E.K.; Moon, H.J.; Yoon, J.H.; Park, V.Y.; Kwak, J.Y. Diagnostic performances and unnecessary US-FNA rates of various TIRADS after application of equal size thresholds. Sci. Rep. 2020, 10, 10632. [Google Scholar] [CrossRef]
  38. Kang, S.; Kwon, S.K.; Choi, H.S.; Kim, M.J.; Park, Y.J.; Park, D.J.; Cho, S.W. Comparison of Korean vs. American Thyroid Imaging Reporting and Data System in Malignancy Risk Assessment of Indeterminate Thyroid Nodules. Endocrinol. Metab. 2021, 36, 1111–1120. [Google Scholar] [CrossRef]
  39. Na, D.G.; Paik, W.; Cha, J.; Gwon, H.Y.; Kim, S.Y.; Yoo, R.E. Diagnostic performance of the modified Korean Thyroid Imaging Reporting and Data System for thyroid malignancy according to nodule size: A comparison with five society guidelines. Ultrasonography 2021, 40, 474–485. [Google Scholar] [CrossRef]
  40. Qi, Q.; Zhou, A.; Guo, S.; Huang, X.; Chen, S.; Li, Y.; Xu, P. Explore the Diagnostic Efficiency of Chinese Thyroid Imaging Reporting and Data Systems by Comparing With the Other Four Systems (ACR TI-RADS, Kwak-TIRADS, KSThR-TIRADS, and EU-TIRADS): A Single-Center Study. Front. Endocrinol. 2021, 12, 763897. [Google Scholar] [CrossRef]
  41. Scappaticcio, L.; Maiorino, M.I.; Iorio, S.; Docimo, G.; Longo, M.; Grandone, A.; Luongo, C.; Cozzolino, I.; Piccardo, A.; Trimboli, P.; et al. Exploring the Performance of Ultrasound Risk Stratification Systems in Thyroid Nodules of Pediatric Patients. Cancers 2021, 13, 5304. [Google Scholar] [CrossRef]
  42. Seifert, P.; Schenke, S.; Zimny, M.; Stahl, A.; Grunert, M.; Klemenz, B.; Freesmeyer, M.; Kreissl, M.C.; Herrmann, K.; Görges, R. Diagnostic Performance of Kwak, EU, ACR, and Korean TIRADS as Well as ATA Guidelines for the Ultrasound Risk Stratification of Non-Autonomously Functioning Thyroid Nodules in a Region with Long History of Iodine Deficiency: A German Multicenter Trial. Cancers 2021, 13, 4467. [Google Scholar] [CrossRef]
  43. Seminati, D.; Capitoli, G.; Leni, D.; Fior, D.; Vacirca, F.; Di Bella, C.; Galimberti, S.; L’Imperio, V.; Pagni, F. Use of Diagnostic Criteria from ACR and EU-TIRADS Systems to Improve the Performance of Cytology in Thyroid Nodule Triage. Cancers 2021, 13, 5439. [Google Scholar] [CrossRef]
  44. Shi, Y.X.; Chen, L.; Liu, Y.C.; Zhan, J.; Diao, X.H.; Fang, L.; Chen, Y. Differences among the Thyroid Imaging Reporting and Data System proposed by Korean, the American College of Radiology and the European Thyroid Association in the diagnostic performance of thyroid nodules. Transl. Cancer Res. 2020, 9, 4958–4967. [Google Scholar] [CrossRef]
  45. Zhang, W.B.; Xu, W.; Fu, W.J.; He, B.L.; Liu, H.; Deng, W.F. Comparison of ACR TI-RADS, Kwak TI-RADS, ATA guidelines and KTA/KSThR guidelines in combination with SWE in the diagnosis of thyroid nodules. Clin. Hemorheol. Microcirc. 2021, 78, 163–174. [Google Scholar] [CrossRef]
  46. Zhu, H.; Yang, Y.; Wu, S.; Chen, K.; Luo, H.; Huang, J. Diagnostic performance of US-based FNAB criteria of the 2020 Chinese guideline for malignant thyroid nodules: Comparison with the 2017 American College of Radiology guideline, the 2015 American Thyroid Association guideline, and the 2016 Korean Thyroid Association guideline. Quant. Imaging Med. Surg. 2021, 11, 3604–3618. [Google Scholar] [CrossRef]
  47. Chen, Q.; Lin, M.; Wu, S. Validating and Comparing C-TIRADS, K-TIRADS and ACR-TIRADS in Stratifying the Malignancy Risk of Thyroid Nodules. Front. Endocrinol. (Lausanne) 2022, 13, 899575. [Google Scholar] [CrossRef]
  48. Ko, S.Y.; Kim, E.K.; Moon, H.J.; Yoon, J.H.; Kim, H.Y.; Kwak, J.Y. Application of Thyroid Imaging Reporting and Data System in the Ultrasound Assessment of Thyroid Nodules According to Physician Experience. Ultrasound Q. 2016, 32, 126–131. [Google Scholar] [CrossRef]
  49. Park, V.Y.; Kim, E.K.; Kwak, J.Y.; Yoon, J.H.; Kim, M.J.; Moon, H.J. Thyroid Imaging Reporting and Data System and Ultrasound Elastography: Diagnostic Accuracy as a Tool in Recommending Repeat Fine-Needle Aspiration for Solid Thyroid Nodules with Non-Diagnostic Fine-Needle Aspiration Cytology. Ultrasound Med. Biol. 2016, 42, 399–406. [Google Scholar] [CrossRef]
  50. Yoon, J.H.; Cho, A.; Lee, H.S.; Kim, E.K.; Moon, H.J.; Kwak, J.Y. Thyroid incidentalomas detected on 18F-fluorodeoxyglucose-positron emission tomography/computed tomography: Thyroid Imaging Reporting and Data System (TIRADS) in the diagnosis and management of patients. Surgery 2015, 158, 1314–1322. [Google Scholar] [CrossRef]
  51. Grani, G.; Lamartina, L.; Ascoli, V.; Bosco, D.; Nardi, F.; D’Ambrosio, F.; Rubini, A.; Giacomelli, L.; Biffoni, M.; Filetti, S.; et al. Ultrasonography scoring systems can rule out malignancy in cytologically indeterminate thyroid nodules. Endocrine 2017, 57, 256–261. [Google Scholar] [CrossRef] [PubMed]
  52. Zhao, H.; Liu, X.; Lei, B.; Cheng, P.; Li, J.; Wu, Y.; Ma, Z.; Wei, F.; Su, H. Advantages of the Korean Thyroid Imaging Reporting and Data System Combined with Contrast-Enhanced Ultrasound in Diagnosing Papillary Thyroid Microcarcinoma. Iran. J. Radiol. 2019, 16, e83460. [Google Scholar]
  53. Kim, G.R.; Lee, E.; Kim, H.R.; Yoon, J.H.; Park, V.Y.; Kwak, J.Y. Convolutional Neural Network to Stratify the Malignancy Risk of Thyroid Nodules: Diagnostic Performance Compared with the American College of Radiology Thyroid Imaging Reporting and Data System Implemented by Experienced Radiologists. AJNR Am. J. Neuroradiol. 2021, 42, 1513–1519. [Google Scholar] [CrossRef] [PubMed]
  54. Liu, J.; Guo, Y.; Xiao, J.; Chen, L.; Liang, Z. Comparison of the Efficacy and Safety of the American Thyroid Association Guidelines and American College of Radiology TI-RADS. Endocr. Pract. 2021, 27, 661–667. [Google Scholar] [CrossRef]
  55. Sharma, P.; Elfatairy, K.; Gandhi, D.; Sawhney, H.; Osman, M.; Kochar, P.S.; Cohen, S. Diagnostic Performance of ACR-TIRADS in Differentiating Benign From Malignant Thyroid Nodules in Patients Undergoing Fine-Needle Aspiration Biopsy: Comparative Study Based on Five International Guidelines for Management of Thyroid Nodules. J. Endocrinol. Metab. 2021, 11, 69–75. [Google Scholar] [CrossRef]
  56. Reitsma, J.B.; Glas, A.S.; Rutjes, A.W.; Scholten, R.J.; Bossuyt, P.M.; Zwinderman, A.H. Bivariate analysis of sensitivity and specificity produces informative summary measures in diagnostic reviews. J. Clin. Epidemiol. 2005, 58, 982–990. [Google Scholar] [CrossRef]
  57. Hoeboer, S.H.; van der Geest, P.J.; Nieboer, D.; Groeneveld, A.B. The diagnostic accuracy of procalcitonin for bacteraemia: A systematic review and meta-analysis. Clin. Microbiol. Infect. 2015, 21, 474–481. [Google Scholar] [CrossRef] [Green Version]
  58. Whiting, P.F.; Rutjes, A.W.; Westwood, M.E.; Mallett, S.; Deeks, J.J.; Reitsma, J.B.; Leeflang, M.M.; Sterne, J.A.; Bossuyt, P.M. QUADAS-2: A revised tool for the quality assessment of diagnostic accuracy studies. Ann. Intern. Med. 2011, 155, 529–536. [Google Scholar] [CrossRef]
  59. Zhang, J.; Liu, B.J.; Xu, H.X.; Xu, J.M.; Zhang, Y.F.; Liu, C.; Wu, J.; Sun, L.P.; Guo, L.H.; Liu, L.N.; et al. Prospective validation of an ultrasound-based thyroid imaging reporting and data system (TI-RADS) on 3980 thyroid nodules. Int. J. Clin. Exp. Med. 2015, 8, 5911–5917. [Google Scholar]
  60. Labrique, A.B.; Pan, W.K. Diagnostic tests: Understanding results, assessing utility, and predicting performance. Am. J. Ophthalmol. 2010, 149, 878–881.e872. [Google Scholar] [CrossRef]
  61. Trevethan, R. Sensitivity, Specificity, and Predictive Values: Foundations, Pliabilities, and Pitfalls in Research and Practice. Front. Public Health 2017, 5, 307. [Google Scholar] [CrossRef] [PubMed]
  62. Tehan, P.; Bray, A.; Keech, R.; Rounsley, R.; Carruthers, A.; Chuter, V.H. Sensitivity and Specificity of the Toe-Brachial Index for Detecting Peripheral Arterial Disease: Initial Findings. J. Ultrasound Med. 2015, 34, 1737–1743. [Google Scholar] [CrossRef] [PubMed]
  63. Sonter, J.; Tehan, P.; Chuter, V. Toe brachial index measured by automated device compared to duplex ultrasonography for detecting peripheral arterial disease in older people. Vascular 2017, 25, 612–617. [Google Scholar] [CrossRef] [PubMed]
  64. Halligan, S.; Altman, D.G.; Mallett, S. Disadvantages of using the area under the receiver operating characteristic curve to assess imaging tests: A discussion and proposal for an alternative approach. Eur. Radiol. 2015, 25, 932–939. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Migda, B.; Migda, M.; Migda, M.S. A systematic review and meta-analysis of the Kwak TIRADS for the diagnostic assessment of indeterminate thyroid nodules. Clin. Radiol. 2019, 74, 123–130. [Google Scholar] [CrossRef] [PubMed]
  66. Migda, B.; Migda, M.; Migda, M.S.; Slapa, R.Z. Use of the Kwak Thyroid Image Reporting and Data System (K-TIRADS) in differential diagnosis of thyroid nodules: Systematic review and meta-analysis. Eur. Radiol. 2018, 28, 2380–2388. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Castellana, M.; Castellana, C.; Treglia, G.; Giorgino, F.; Giovanella, L.; Russ, G.; Trimboli, P. Performance of Five Ultrasound Risk Stratification Systems in Selecting Thyroid Nodules for FNA. J. Clin. Endocrinol. Metab. 2020, 105, 1659–1669. [Google Scholar] [CrossRef]
  68. Wei, X.; Li, Y.; Zhang, S.; Gao, M. Meta-analysis of thyroid imaging reporting and data system in the ultrasonographic diagnosis of 10,437 thyroid nodules. Head Neck 2016, 38, 309–315. [Google Scholar] [CrossRef]
  69. Metz, C.E. Basic principles of ROC analysis. Semin. Nucl. Med. 1978, 8, 283–298. [Google Scholar] [CrossRef]
  70. Choi, Y.J.; Baek, J.H.; Baek, S.H.; Shim, W.H.; Lee, K.D.; Lee, H.S.; Shong, Y.K.; Ha, E.J.; Lee, J.H. Web-Based Malignancy Risk Estimation for Thyroid Nodules Using Ultrasonography Characteristics: Development and Validation of a Predictive Model. Thyroid 2015, 25, 1306–1312. [Google Scholar] [CrossRef]
  71. Ha, E.J.; Na, D.G.; Baek, J.H.; Sung, J.Y.; Kim, J.H.; Kang, S.Y. US Fine-Needle Aspiration Biopsy for Thyroid Malignancy: Diagnostic Performance of Seven Society Guidelines Applied to 2000 Thyroid Nodules. Radiology 2018, 287, 893–900. [Google Scholar] [CrossRef] [PubMed]
  72. He, Y.P.; Xu, H.X.; Zhao, C.K.; Sun, L.P.; Li, X.L.; Yue, W.W.; Guo, L.H.; Wang, D.; Ren, W.W.; Wang, Q.; et al. Cytologically indeterminate thyroid nodules: Increased diagnostic performance with combination of US TI-RADS and a new scoring system. Sci. Rep. 2017, 7, 6906. [Google Scholar] [CrossRef] [PubMed]
  73. Wu, X.-L.; Du, J.-R.; Wang, H.; Jin, C.-X.; Sui, G.-Q.; Yang, D.-Y.; Lin, Y.-Q.; Luo, Q.; Fu, P.; Li, H.-Q.; et al. Comparison and preliminary discussion of the reasons for the differences in diagnostic performance and unnecessary FNA biopsies between the ACR TIRADS and 2015 ATA guidelines. Endocrine 2019, 65, 121–131. [Google Scholar] [CrossRef] [PubMed]
  74. Wu, H.; Zhang, B.; Cai, G.; Li, J.; Gu, X. American College of Radiology thyroid imaging report and data system combined with K-RAS mutation improves the management of cytologically indeterminate thyroid nodules. PLoS ONE 2019, 14, e0219383. [Google Scholar] [CrossRef] [Green Version]
  75. Zhang, W.-B.; Xu, H.-X.; Zhang, Y.-F.; Guo, L.-H.; Xu, S.-H.; Zhao, C.-K.; Liu, B.-J. Comparisons of ACR TI-RADS, ATA guidelines, Kwak TI-RADS, and KTA/KSThR guidelines in malignancy risk stratification of thyroid nodules. Clin. Hemorheol. Microcirc. 2020, 75, 219–232. [Google Scholar] [CrossRef]
  76. Thedinger, W.; Raman, E.; Dhingra, J.K. Comparative Study of ACR TI-RADS and ATA 2015 for Ultrasound Risk Stratification of Thyroid Nodules. Otolaryngol. Neck Surg. 2021, 167, 35–40. [Google Scholar] [CrossRef]
  77. Zhang, Z.; Lin, N. Clinical diagnostic value of American College of Radiology thyroid imaging report and data system in different kinds of thyroid nodules. BMC Endocr. Disord. 2022, 22, 1–15. [Google Scholar] [CrossRef]
Cancers 14 05961 g001 550

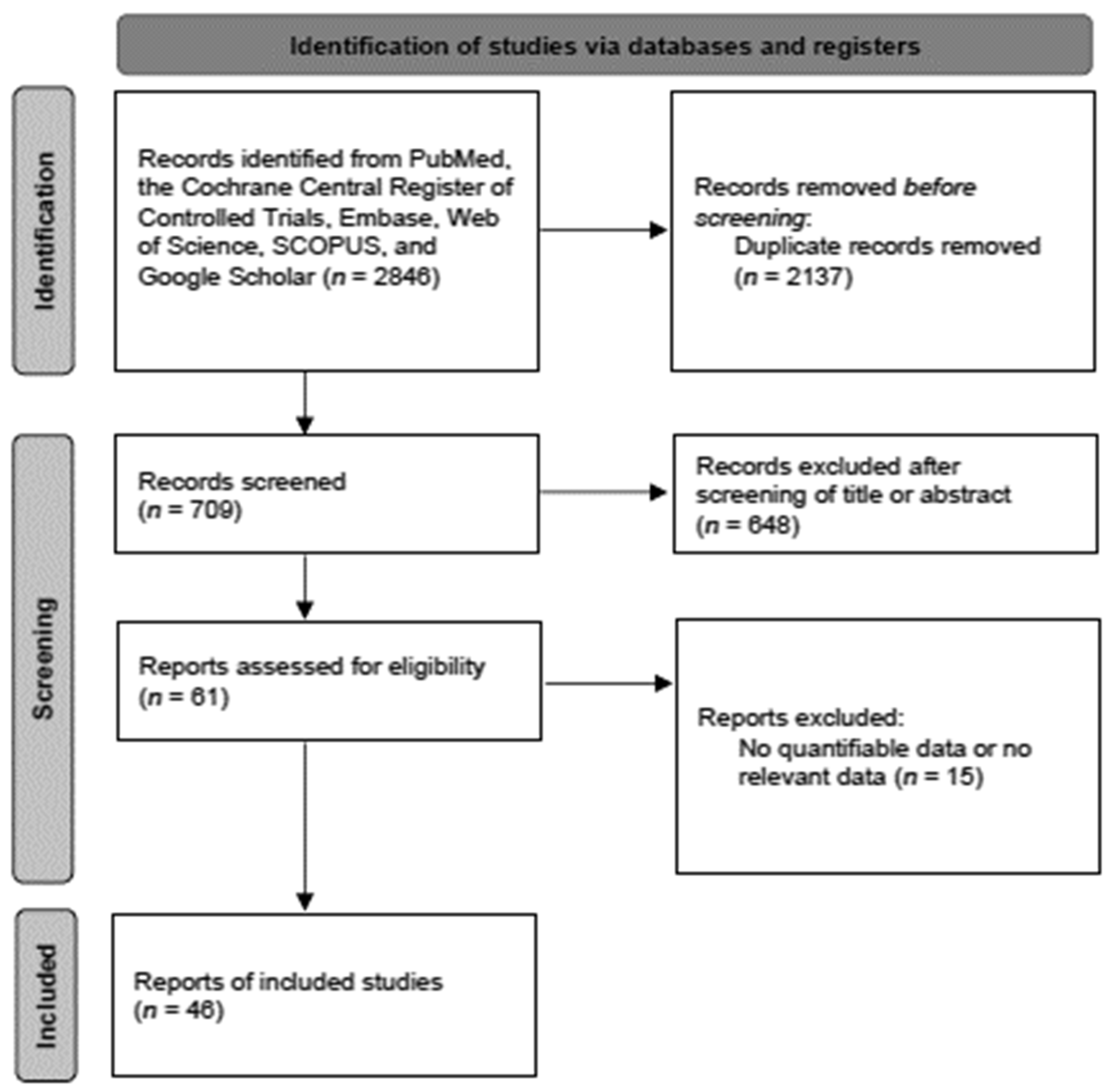

Figure 1. Diagram of selection of studies.
Figure 1. Diagram of selection of studies.
Cancers 14 05961 g001
Table
Table 1. Diagnostic efficacy and the ROC curves of Kwak TI-RADS categories.
Table 1. Diagnostic efficacy and the ROC curves of Kwak TI-RADS categories.
SensitivitySpecificityDORAUC
50.1408, 95% CI [0.1118; 0.1759]; I2 = 93.4%0.9910, 95% CI [0.9842; 0.9949]; I2 = 88.0%15.4646, 95% CI [8.2029; 29.1549]; I2 = 88.3%0.586
4c0.7729, 95% CI [0.6786; 0.8458]; I2 = 98.2%0.8277, 95% CI [0.7679; 0.8747]; I2 = 98.4%16.8454, 95% CI [11.1916; 25.3553]; I2 = 95.7%0.871
4b0.9640, 95% CI [0.9436; 0.9773]; I2 = 92.7%0.5373, 95% CI [0.4511; 0.6213]; I2 = 98.8%31.8051, 95% CI [21.3155; 47.4568]; I2 = 88.2%0.884
4a0.9918, 95% CI [0.9817; 0.9964]; I2 = 95.0%0.2784, 95% CI [0.2040; 0.3675]; I2 = 99.1%31.1766, 95% CI [19.4820; 49.8914]; I2 = 81.2%0.808
ROC; receiver operating characteristic, TI-RADS; thyroid imaging reporting and data system, CI; confidence index, DOR; diagnostic odds ratio, AUC; area under the receiver operating characteristic curve.
Table
Table 2. Diagnostic efficacy and the ROC curves of ACR TI-RADS categories.
Table 2. Diagnostic efficacy and the ROC curves of ACR TI-RADS categories.
SensitivitySpecificityDORAUC
TR50.7102, 95% CI [0.6156; 0.7895]; I2 = 99.0%0.8696, 95% CI [0.8257; 0.9038]; I2 = 98.8%17.3134, 95% CI [13.3192; 22.5054]; I2 = 94.1%0.875
TR40.9437, 95% CI [0.9033; 0.9679]; I2 = 97.9%0.5224, 95% CI [0.4507; 0.5931]; I2 = 99.2%17.5185, 95% CI [12.5652; 24.4244]; I2 = 91.7%0.786
TR30.9886, 95% CI [0.9729; 0.9953]; I2 = 97.7%0.2372, 95% CI [0.1680; 0.3239]; I2 = 99.5%15.2758, 95% CI [9.9838; 23.3729]; I2 = 86.6%0.765
ROC; receiver operating characteristic, TI-RADS; thyroid imaging reporting and data system, CI; confidence index, DOR; diagnostic odds ratio, AUC; area under the receiver operating characteristic curve.
Table
Table 3. Direct comparison of Kwak (4b) and ACR TI-RADS (TR4) categories.
Table 3. Direct comparison of Kwak (4b) and ACR TI-RADS (TR4) categories.
SensitivitySpecificityDORAUC
Kwak TI-RAD (4b)0.9727, 95% CI [0.9516; 0.9848]; I2 = 94.0%0.5641, 95% CI [0.5009; 0.6253]; I2 = 97.1%44.0619, 95% CI [26.1278; 74.3060]; I2 = 91.2%0.842
ACR TI-RAD (TR4)0.9760, 95% CI [0.9587; 0.9861]; I2 = 92.3%0.5025, 95% CI [0.4350; 0.5700]; I2 = 97.5%38.2503, 95% CI [24.2254; 60.3949]; I2 = 87.0%0.846
p value0.75720.19160.68960.913
TI-RADS; thyroid imaging reporting and data system, DOR; diagnostic odds ratio, CI; confidence index, AUC; area under the receiver operating characteristic curve.
Table
Table 4. Direct comparison of Kwak (4c) and ACR TI-RADS (TR5) categories.
Table 4. Direct comparison of Kwak (4c) and ACR TI-RADS (TR5) categories.
SensitivitySpecificityDORAUC
Kwak TI-RADS (4c)0.7517, 95% CI [0.6875; 0.8064]; I2 = 97.0%0.8754, 95% CI [0.8408; 0.9034]; I2 = 96.2%20.9770, 95% CI [14.4931; 30.3617]; I2 = 95.1%0.89
ACR TI-RADS (TR5)0.7824, 95% CI [0.6455; 0.8766]; I2 = 99.0%0.8544, 95% CI [0.8096; 0.8901]; I2 = 97.1%21.3275, 95% CI [12.6104; 36.0705]; I2 = 97.0%0.892
p value0.65370.41220.95970.962
TI-RADS; thyroid imaging reporting and data system, DOR; diagnostic odds ratio, CI; confidence index, AUC; area under the receiver operating characteristic curve.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kang, Y.J.; Stybayeya, G.; Lee, J.E.; Hwang, S.H. Diagnostic Performance of ACR and Kwak TI-RADS for Benign and Malignant Thyroid Nodules: An Update Systematic Review and Meta-Analysis. Cancers 2022, 14, 5961. https://doi.org/10.3390/cancers14235961

AMA Style

Kang YJ, Stybayeya G, Lee JE, Hwang SH. Diagnostic Performance of ACR and Kwak TI-RADS for Benign and Malignant Thyroid Nodules: An Update Systematic Review and Meta-Analysis. Cancers. 2022; 14(23):5961. https://doi.org/10.3390/cancers14235961

Chicago/Turabian Style

Kang, Yun Jin, Gulnaz Stybayeya, Ju Eun Lee, and Se Hwan Hwang. 2022. "Diagnostic Performance of ACR and Kwak TI-RADS for Benign and Malignant Thyroid Nodules: An Update Systematic Review and Meta-Analysis" Cancers 14, no. 23: 5961. https://doi.org/10.3390/cancers14235961

APA Style

Kang, Y. J., Stybayeya, G., Lee, J. E., & Hwang, S. H. (2022). Diagnostic Performance of ACR and Kwak TI-RADS for Benign and Malignant Thyroid Nodules: An Update Systematic Review and Meta-Analysis. Cancers, 14(23), 5961. https://doi.org/10.3390/cancers14235961

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
