Modeling Therapy-Driven Evolution of Glioblastoma with Patient-Derived Xenografts

by
Matthew McCord
1,*,
Elizabeth Bartom
2,
Kirsten Burdett
3,
Aneta Baran
4,
Frank D. Eckerdt
4,
Irina V. Balyasnikova
4,5,6,
Kathleen McCortney
6,
Thomas Sears
6,
Shi-Yuan Cheng
4,5,7,
Jann N. Sarkaria
8,
Roger Stupp
4,5,7,
Amy B. Heimberger
4,5,6,
Atique Ahmed
4,5,6,
Charles David James
4,5,6 and
Craig Horbinski
1,4,5,6
1
Department of Pathology, Northwestern University Feinberg School of Medicine, Chicago, IL 60611, USA
2
Department of Biochemistry and Molecular Genetics, Northwestern University Feinberg School of Medicine, Chicago, IL 60611, USA
3
Department of Preventive Medicine, Northwestern University Feinberg School of Medicine, Chicago, IL 60611, USA
4
Robert H. Lurie Comprehensive Cancer Center, Northwestern University Feinberg School of Medicine, Chicago, IL 60611, USA
5
Lou and Jean Malnati Brain Tumor Institute of Northwestern Medicine, Chicago, IL 60611, USA
6
Department of Neurological Surgery, Northwestern University Feinberg School of Medicine, Chicago, IL 60611, USA
7
Department of Neurology, Northwestern University Feinberg School of Medicine, Chicago, IL 60611, USA
8
Department of Radiation Oncology, Mayo Clinic, Rochester Minnesota, Rochester, MN 55905, USA
*
Author to whom correspondence should be addressed.
Cancers 2022, 14(22), 5494; https://doi.org/10.3390/cancers14225494
Submission received: 18 September 2022 / Revised: 3 November 2022 / Accepted: 7 November 2022 / Published: 9 November 2022
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Glioblastoma (GBM) is the most common and aggressive adult-type diffusely infiltrating glioma. These tumors invariably develop resistance to standard treatment with radiation and temozolomide, leading to recurrence and almost always fatal outcomes. In vivo models of such recurrences are limited, and new therapies for recurrent GBM are usually tested on therapy-naïve preclinical models, which do not accurately predict outcomes in clinical trials. Experimental therapies which are effective against therapy-naïve tumor models in mice often fail to achieve survival benefit in patients with recurrent, therapy-resistant GBMs. In this study, we developed multiple treatment-resistant GBM models by exposing patient-derived xenografts (PDX) of GBM to radiation and temozolomide. These therapy-resistant PDX reflect key genetic and phenotypic features of recurrent GBM in patients. These PDX models are stable and expandable, and can serve as a valuable tool for testing new therapies in a setting that more accurately models GBM that recurs after front-line therapy.

Abstract

Adult-type diffusely infiltrating gliomas, of which glioblastoma is the most common and aggressive, almost always recur after treatment and are fatal. Improved understanding of therapy-driven tumor evolution and acquired therapy resistance in gliomas is essential for improving patient outcomes, yet the majority of the models currently used in preclinical research are of therapy-naïve tumors. Here, we describe the development of therapy-resistant IDH-wildtype glioblastoma patient-derived xenografts (PDX) through orthotopic engraftment of therapy naïve PDX in athymic nude mice, and repeated in vivo exposure to the therapeutic modalities most often used in treating glioblastoma patients: radiotherapy and temozolomide chemotherapy. Post-temozolomide PDX became enriched for C>T transition mutations, acquired inactivating mutations in DNA mismatch repair genes (especially MSH6), and developed hypermutation. Such post-temozolomide PDX were resistant to additional temozolomide (median survival decrease from 80 days in parental PDX to 42 days in a temozolomide-resistant derivative). However, temozolomide-resistant PDX were sensitive to lomustine (also known as CCNU), a nitrosourea which induces tumor cell apoptosis by a different mechanism than temozolomide. These PDX models mimic changes observed in recurrent GBM in patients, including critical features of therapy-driven tumor evolution. These models can therefore serve as valuable tools for improving our understanding and treatment of recurrent glioma.

1. Introduction

Adult-type diffuse gliomas affect more than 20,000 patients annually in the US and are nearly always incurable [1,2]. IDH wildtype glioblastoma (GBM), the most common and aggressive form of adult-type diffuse glioma, has a median survival of only 15 months, with less than 5% of patients surviving five years, even when treated with aggressive multi-modal therapy [3,4]. The DNA alkylating chemotherapeutic agent temozolomide (TMZ) provides some limited survival benefit [3,5], but tumors invariably develop resistance to TMZ and recur [6,7]. TMZ-induced cytotoxicity depends on tumor cell DNA mismatch repair (MMR) enzymes: MSH2, MSH6, MLH1, and PMS2. When the enzyme complexes cannot repair base mismatches between thiamine and TMZ-alkylated guanine, the MMR enzymes help initiate cellular apoptosis [8,9].
Because MMR enzymes not only repair TMZ-induced DNA damage but also trigger apoptosis when that damage cannot be repaired, a common mechanism of TMZ resistance is inactivating mutations in those DNA MMR genes, especially MSH6, resulting in defective DNA mismatch repair, increased cellular tolerance of base mismatches, and lower sensitivity to TMZ [10,11,12,13,14,15]. Post-TMZ treatment, recurrent gliomas develop a distinct mutation profile, designated “Signature 11,” which is enriched for cytosine to thymine (C>T) transitions due to accumulation of thymine residues mismatched with TMZ-alkylated guanine [16]. When TMZ-induced MMR deficiency develops, tumors often develop elevated tumor mutation burden (TMB). Such hypermutated gliomas are often defined as having ≥10 mutations per megabase (Mb) of DNA, as compared to non-hypermutated gliomas that typically have ~1 mutation/Mb [10,13,17,18,19]. Clinically this suggests that subsequent treatment with TMZ, or other DNA-damaging alkylating agents, would be unsuccessful. However, hypermutated tumors might be more amenable to immunotherapy [20,21,22,23,24,25], although this is controversial in gliomas [26,27,28].
Because TMZ is used in the post-surgical treatment of most GBM patients, models of acquired TMZ resistance can improve our understanding of how to best treat recurrent GBM. However, most of the in vitro and in vivo models used in preclinical research are treatment-naïve GBM. Accurate models of post-therapy, recurrent tumors are therefore needed. Here, we describe the development and evaluation of post-therapy GBM PDX models that have been characterized for TMB and whole exome mutation profiles, including MMR mutations.

2. Materials and Methods

2.1. Cell Lines and Cell Culture

Patient-derived GBM xenografts were established from treatment-naïve, IDH-wildtype GBM: GBM6 (MGMT promoter unmethylated), GBM12 (MGMT promoter methylated), and GBM43 (MGMT promoter unmethylated). These cell lines were obtained from the laboratory of Dr. Jann N. Sarkaria. Xenografts propagated as subcutaneous tumors were used as cell sources for establishing intracranial tumors, as previously described [29,30,31].

2.2. Intracranial Engraftment of PDX Cells

The overall process for developing treated derivative PDX from treatment-naïve PDX is summarized in Figure 1A. PDX, whose cells had been stably modified with a luciferase reporter for use with bioluminescence imaging (BLI) [30,31] were grown subcutaneously in adult athymic nude mice, and resected after animals were euthanized. Parental PDX were originally developed in athymic nude mice, and the same host species was used in developing and testing the derivative PDX. Cell suspensions were prepared from resected tumors as previously described [29]. A total of 3 × 105 cells from cell suspensions were injected intracranially into athymic nude mice, using injection coordinates previously indicated [31]. Successful tumor engraftment and progressive growth was confirmed by serial BLI (IVIS Spectrum, Perkin Elmer), as illustrated in Figure 1B,C, and as described previously [30].

2.3. In Vivo Treatment of Parental PDX

Seven days following intracranial injection of tumor cells and confirmation of progressive tumor growth, cohorts of mice received one of the following treatment regimens: radiotherapy (RT) only (2 Gy/day for 5 consecutive days), TMZ only (10 mg/kg/day via oral gavage for 5 consecutive days), or concurrent RT and TMZ therapy using the indicated monotherapy regimens. Some of the TMZ-treated mice received additional TMZ treatment on indication of tumor re-growth from initial therapy as indicated by twice weekly BLI. Treatment regimens are summarized in Table 1. Additional details, including time points of all TMZ cycles, are available in Table S1.

2.4. Propagation of Derivative PDX

Mice with intracranial tumors were euthanized upon becoming symptomatic. Brains were immediately resected and visible tumor dissected. Dissected tumors were converted to a cell suspension, with 200 μL of suspended cells (105 cells/μL) injected subcutaneously into a new host mouse. After growth to a volume of 2 cm3, the mouse bearing subcutaneous tumor was euthanized, with tumor immediately resected and again converted to a cell suspension which was subcutaneously injected into a new host mouse. The cycle of subcutaneous propagation was repeated once more (three subcutaneous passages in total). Third passage subcutaneous tumors were harvested, with portions of each snap frozen for molecular analysis and cryopreserved for subsequent use for in vitro and in vivo experiments. Unique parental PDX (3 total) and treatments for derivative PDX (21 total) are summarized in Table 1.

2.5. Cell Viability Assays

Cell viability was assessed using the MTT assay. Cells were plated at 3000 cells per well in a 96-well plate with four replicates plated for each condition. After 24 h, media was changed to media supplemented with TMZ (50, 100, 250, 500, and 1000 μM). Media supplemented with DMSO was used as vehicle control. After 72 h of incubation, cells were washed with phosphate-buffered saline (PBS) and incubated with MTT reagent (Thermo Fisher Scientific, Waltham, MA, USA) diluted 10% in regular culture media. Cells were then maintained for 4 h at 37 °C, after which MTT reagent was removed and samples resuspended in DMSO, with sample absorbance of each determined using a plate reader (BioTek, Winooski, VT, USA, Synergy 2), and results tabulated per standard protocols [32].

2.6. Testing Parental and Derivative PDX for Response to Therapy

To establish subcutaneous tumors, 5 × 106 cryopreserved cells from either parental or derivative PDX were injected into the flanks of adult athymic nude mice. Mice bearing subcutaneous tumors were euthanized, with tumors resected and used to prepare cell suspensions for intracranial injection as previously described [29]. Intracranial tumor engraftment and growth were monitored via BLI. One week following intracranial injection of tumor cells, cohorts of mice received either a single cycle of TMZ or RT. In one experiment, a cohort of mice with recurrent post-treatment tumor received a single dose of 1-(2-Chloroethyl)3-cyclohexyl-1-nitrosourea (CCNU, also known as lomustine) (50 mg/kg via oral gavage). Mice were assigned randomly to treatment or vehicle control groups.

2.7. Whole Exome Sequencing

Prior to library preparation, genomic DNA (gDNA) was quantified by Qubit and assessed for quality on an Agilent Bioanalyzer. For library construction, Illumina TruSeq Exome Library Prep Kit was employed for all steps of the library prep process. The gDNA was fragmented to 150 base pair (bp) insert size using Covaris shearing, followed by end repair, library size selection, and 3′ end adenylation. Multiple indexing adapters were then ligated to the ends of the DNA fragments. A limited-cycle-number PCR was used to selectively enrich for DNA fragments with ligated adapters for library development. After being validated with Qubit and Agilent Bioanalyzer, DNA libraries carrying unique barcoding indexes were pooled and hybridized to exome oligo probes to capture the exonic regions of the genome. This capture process was conducted twice to ensure high exome specificity. Captured libraries were amplified with an 8-cycle PCR. After post-PCR purification, enriched libraries were validated with Qubit quantification and Bioanalyzer quality check using a High Sensitivity DNA chip. The sequencing of the libraries was conducted on Illumina NextSeq 500 (PE75) and HiSeq 4000 (PE100) sequencers with dual indexing.

2.8. Bioinformatics and Biostatistics Analyses

FastQ files were first assessed for quality with FastQC, available at https://bioinformatics.babraham.ac.uk/projects/fastqc (accessed on 31 August 2015), and validated with FastQ_screen and NGS checkmate to ensure accuracy of sample metadata. Paired-end reads were then trimmed with Trimmomatic v0.33 to remove low-quality or adapter sequence and aligned to human genome reference assembly hg38 with bwa mem. PCR duplicates were marked with SAMBLASTER. GATKv3.6 was used to realign reads and recalibrate quality scores in the aligned BAM files. Variant calls were made using GATK’s Mutect2 to identify variants in each treated PDX relative to its untreated parental PDX.
Differences between mean values of groups were compared using unpaired t-test, one way ANOVA (two groups) or two-way ANOVA with Tukey’s multiple comparisons (multiple groups). Kaplan–Meier curves were used to illustrate differences in overall survival (OS), while comparison between groups was performed using log-rank tests. Differences between observed and expected outcomes were compared with Fisher’s exact test. Simple linear regression was performed comparing coding sequence (CDS) length to number of mutations. For all statistical tests, p values less than 0.05 were considered significant. Figures were generated, and statistical analyses were performed with GraphPad PRISM 5 software and the R statistical environment version 4.0.2 along with extension packages VariantAnnotation (v 1.36.0), VennDiagram (v 1.6.20), and MutationalPatterns (v 3.0.1) [33,34,35].

3. Results

3.1. Establishment, Growth, and Primary Treatment of Parental PDX

Representative bioluminescence (BLI) studies of engraftment and treatment of GBM6 PDX in 5 mice are shown in Figure 1B,C. A mouse engrafted with parental GBM6 and treated with vehicle control showed rapid tumor growth beginning at day 40. Treatment of engrafted GBM6 with RT monotherapy (days 27–31 post-engraftment) delayed tumor growth until days 55–60. Monotherapy with a cycle of TMZ (days 27–31 post-engraftment) delayed tumor growth until days 85–90 (Figure 1B). Combined therapies delayed tumor growth even more effectively, as RT with a concomitant cycle of TMZ (days 27–31 post-engraftment) delayed tumor growth until day 110 (Figure 1C). Tracking of BLI on a mouse receiving therapy with RT and multiple cycles of TMZ showed gradual development of resistance with each successive TMZ cycle. The mouse received concomitant RT and TMZ (days 27–31 post-engraftment) which delayed tumor growth until day 90. A second cycle of TMZ was given (days 99–103) and BLI showed tumor regression. BLI showed tumor re-growth beginning at day 148, and a third cycle of TMZ was given (days 155–159). Regression did not occur after the third cycle. Rather, tumor growth accelerated from days 159–167. This tumor was harvested and became PDX derivative m3378.
This experimental approach was used in developing additional treated derivative PDX from parental GBM6, GBM12, and GBM43 PDX, with specific treatment regimens for each derivative PDX summarized in Table 1 (further details in Table S1).

3.2. TMZ Treatment Results in Marked Increase in Tumor Mutation Burden (TMB) and a Distinct Mutation Profile

After three consecutive passages as subcutaneous tumors, to ensure the stability of acquired mutations, whole exome sequencing (WES) was done on PDX from each treatment group, including parental untreated PDX (Table 1, Table S2 and Figure S1). A single cycle of TMZ completely eliminated GBM43 PDX, so most subsequent analyses focused on GBM6 and GBM12. There was no overlap in genes mutated among the three GBM6 PDX treated with RT alone (Figure 2A), and only 1–3 common genes were mutated among all GBM6 PDX after at least one cycle of TMZ (Figure 2B,C). As has been demonstrated in GBM patients [10,16], C>T transitions in GBM6 PDX were greatly enriched after treatment with TMZ alone or RT+TMZ, but not RT alone (Figure 2D and Figure S2).
GBM12 had 53 common genes mutated after RT alone (Figure 3A), and 13–20 common genes mutated after various exposures to either TMZ monotherapy or RT+TMZ (Figure 3B,C). Like GBM6, GBM12 PDX showed much higher rates of C>T transitions associated with TMZ exposure, but not RT alone (Figure 3D and Figure S3). Like GBM6 and GBM12, GBM43 PDX treated with RT alone did not show substantial enrichment of C>T mutations (Figure S4).
Among all PDX, TMB increased with increasing cycles of TMZ. GBM6 gained up to 65.98 mutations per megabase (Mb) after 3 cycles of TMZ, and GBM12 gained up to 151.85 after 4 TMZ cycles. Along with that increase in TMB, DNA MMR mutations gradually emerged, most often involving MSH6 but also including MSH2, MLH1, and PMS2 after repeated exposures to TMZ (Table 1). Derivative PDX with at least one DNA MMR gene mutation showed average TMB gain of 55.45/Mb, compared to 9.54 for derivatives with intact DNA MMR genes (p = 0.0053, Figure 4A). Derivative PDX with mutations in 2 or more DNA MMR genes showed average TMB gain of 107.9/Mb, compared to 16.13 for derivatives with mutation in only one gene, and 9.54 for MMR-intact derivatives (p < 0.0001 for both comparisons, Figure 4B). Overall, 7 out of the 14 derivative PDX treated with TMZ developed MMR mutations, while none of the 7 treated only with RT developed MMR mutations (p = 0.047).
The most frequently mutated gene in TMZ-treated PDX was TTN, encoding a muscle protein called titin (Figure 4C and Figure S1). TTN also has the longest coding sequence of any human gene: 283,000 bp [36], meaning that any mutation-inducing agent would statistically be expected to alter longer genes like TTN more frequently. Indeed, longer coding sequence length strongly correlated with the likelihood of mutation (slope = 8.51 × 10−6, R2 = 0.4666, p < 0.0001, Figure 4D), even when the TTN outlier was eliminated (slope =1.71 × 10−4, R2 = 0.3030, p = 0.0007, Figure 4E). In contrast, MSH6 is only the 1458th longest gene at 4083 bp, yet was the eighth-most frequently mutated gene in TMZ-treated PDX (MACF1 was another outlier, 22,779 bp, encoding microtubule actin crosslinking factor 1). As expected, PDX treated only with RT showed no preferential mutation of genes with long CDS (Figure 4F,G).

3.3. Patterns of Therapy Response in Post-Treatment GBM PDX

Derivative PDX were tested for response to the same treatment regimens used in their initial development. Within GBM6 PDX, mice engrafted with the post-RT+TMZ m3378 derivative (MSH6 and PMS2 mutant, TMB gain of 65.98) experienced the shortest median overall survival in response to additional TMZ (42 days), followed by m4051 at 49 days (MSH6 mutant, TMB gain of 20.62/Mb), m4082 at 74 days (MMR intact, TMB gain of 5.98), and parental GBM6 at 80 days (MMR intact) (Figure 5A). A similar pattern held in vitro, wherein the MSH6-mutant m3378 and m4051 derivatives showed lower sensitivity to TMZ than parental GBM6 (Figure 5B,C). Maximal effect for parental GBM6 resulted in a 73.7% reduction in relative cell viability at 1000 µM, whereas maximal effect for m3378 resulted in only 51.1% reduction, and m4051 only in 38.1% reduction at the same concentration. Post-TMZ GBM12 m2671 PDX (MSH6 mutant, TMB gain of 22.36) also showed a weaker response to in vivo TMZ than its treatment-naïve, MMR-intact parental counterpart, as indicated by shorter median survival of engrafted mice treated with additional TMZ (54 versus 61 days, p = 0.002, Figure 5D).
While post-TMZ, MMR-mutant GBM6 m3378 and m4051 PDX were resistant to additional TMZ, both became slightly more sensitive to RT than parental GBM6 (median survival 50–51 days versus 42.5 days, p < 0.01, Figure 5E). The m4056 derivative, which had previously been exposed to only one round of TMZ and was MMR-intact, was the most responsive to RT (median survival 64 days, p < 0.01 versus all other groups).
CCNU is a DNA-crosslinking nitrosourea that has been used in treating GBM, especially in the setting of recurrent tumor [37,38]. To determine whether acquired TMZ resistance also confers resistance to CCNU, mice engrafted with GBM6 PDX derivative m3378 were treated with CCNU. All m3378-engrafted mice treated with CCNU experienced complete tumor regression, with 100% survival; in contrast, all vehicle- or TMZ-treated m3378 mice died within 52 days after engraftment (p < 0.01, Figure 5F). Postmortem microscopic analysis of CCNU-treated mice showed no evidence of residual GBM (not shown).

4. Discussion

Primary brain cancers like IDH wild-type GBM account for more years of life lost, on average, than any other form of cancer, highlighting the need for new and improved therapies [39]. GBM recurrence following TMZ therapy represents a major barrier to survival improvement, and is a topic of ongoing investigation [40]. Representative models of recurrent GBM are needed for improved understanding and treatment of these tumors. Experimental therapies for GBM that show promise in therapy-naïve PDX models in preclinical studies (e.g., Cediranib, Bevacizumab), have usually failed to improve overall survival for patients with recurrent GBM in clinical trials [41,42,43,44].
Through repeated in vivo TMZ exposure, we developed GBM PDX models which display key genotypes and phenotypes associated with recurrent GBM in patients. These models mimic many of the key aspects of post-TMZ GBM in patients, including C>T transition enrichment, DNA MMR mutations (especially in MSH6), increased TMB, and TMZ resistance, that have been reported in other experimental and patient-based studies [10,11,12,13,14,16,45]. Consequently, they should prove valuable for research aimed at treating TMZ-resistant GBM. Previous work has successfully established PDX from post-therapy, recurrent GBM, on a more limited basis than primary GBM PDX [46]. Our approach involving serial in vivo treatment of therapy-naïve PDX has the advantage of giving investigators complete control over treatment modality and intensity.
Early data from these post-TMZ GBM PDX models not only show that they mimic patient GBM responses to front-line TMZ, but that they can also accurately model responses to second-line therapies when GBMs recur. First, we found that treatment of GBM PDX with TMZ can enhance subsequent RT response, even when several passages occur between when a PDX is treated with TMZ and RT. Others had previously shown that TMZ treatment increases glioma cell radiosensitivity [47,48]. Second, TMZ-treated PDX that developed TMZ-resistance, MMR mutations, and hypermutation remained highly sensitive to CCNU in vivo. Unlike TMZ, CCNU can induce apoptosis in tumor cells with defective DNA MMR [49], and has been suggested as therapy for patients with hypermutated, MMR-deficient gliomas [50]. Our findings match prior data by others, in which GBM cells derived from post-TMZ, MMR-mutant patient tumors were TMZ resistant but sensitive to CCNU, and TMZ-naïve GBM cells with artificial MMR gene inactivation acquired TMZ resistance while remaining sensitive to CCNU [10]. Our findings also match the observation that hypermutation rarely develops in gliomas post-CCNU therapy [10,51], and that CCNU might even be useful in conjunction with TMZ as front-line therapy in GBM [37].
Our work suggests a PDX application that has been underutilized—the longitudinal study of tumor evolution during therapy. This concept has gained traction with the Glioma Longitudinal AnalySiS (GLASS) consortium [52,53,54], and highlights another advantage of our approach to developing therapy-resistant PDX. By engrafting several mice with a single tumor cell source, one can harvest the same tumor at different stages of treatment in order to identify temporal aspects of therapy-driven tumor evolution, including changes in tumor microenvironment [55]. The results from such studies could prove informative with regard to the length of time a specific treatment remains effective, as well as potential therapeutics to use once the initial therapy has become ineffective. Because our post-treatment PDX derivatives retained their molecular and phenotypic characteristics even after several passages without any additional treatment, they appear to be stable, and are therefore amenable to expansion and distribution among numerous laboratories.

5. Conclusions

The post-therapy PDX described here show key features known to arise in treated patient GBMs, and are therefore useful models for developing better ways of managing recurrent GBM. This approach could also serve as a paradigm for developing and studying mechanisms of therapy resistance in other tumor types.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cancers14225494/s1, Table S1: Therapy Regimens for Derivative PDX. Table S2: Most common mutated genes, by number of PDX with mutations. Figure S1: Heat map of the 48 most frequently mutated genes in the entire cohort of PDX derivatives (* RT-only, ** TMZ ×1, *** RT+TMZ ×1, † RT+TMZ ×2, ‡ RT+TMZ ×3, ‡‡ TMZ ×4). Figure S2: Relative frequency of mutations affecting C and T sites in all 10 GBM6 derivatives treated with indicated combinations of radiation (RT) and/or temozolomide (TMZ). Figure S3: Relative frequency of mutations affecting C and T sites in all 9 GBM12 derivatives treated with indicated combinations of radiation (RT) and/or temozolomide (TMZ). Figure S4: Relative frequency of mutations affecting C and T sites in the 2 GBM43 derivatives treated with radiation (RT).

Author Contributions

Conceptualization, F.D.E., I.V.B., J.N.S., R.S., A.A., C.D.J. and C.H.; Data curation, M.M. and E.B.; Formal analysis, M.M., E.B., K.B., T.S., S.-Y.C. and C.H.; Funding acquisition, E.B., I.V.B., S.-Y.C., J.N.S., C.D.J. and C.H.; Investigation, E.B., K.B., A.B., K.M., S.-Y.C., A.A. and C.D.J.; Methodology, E.B., K.B., A.B., F.D.E., K.M., S.-Y.C. and J.N.S.; Project administration, E.B., K.B., I.V.B., R.S., A.B.H., A.A., C.D.J. and C.H.; Resources, F.D.E., I.V.B., K.M., J.N.S., A.A., C.D.J. and C.H.; Supervision, I.V.B., A.B.H., A.A., C.D.J. and C.H.; Visualization, M.M., E.B., K.B., T.S., S.-Y.C. and C.H.; Writing—original draft, M.M., T.S., C.D.J. and C.H.; Writing—review and editing, M.M., E.B., K.B., I.V.B., K.M., T.S., S.-Y.C., J.N.S., R.S., A.B.H., A.A., C.D.J. and C.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by NIH grants R01NS095642 (C.D.J.); U01CA227954, R24NS092940 (J.N.S.); R01NS115403, R01NS125318, R21NS126810, R21NS122375 (S.-Y.C.); R01NS102669, R01NS117104, R01NS118039 (C.H.); R50CA221848 (E.B.); R01NS122395, R01NS106379 (I.V.B.); and the Northwestern University SPORE in Brain Cancer P50CA221747.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Institutional Review Board of Northwestern University (protocol code STU00216209, date of approval: 19 November 21).

Informed Consent Statement

The human glioblastoma cell lines used in this study were obtained with informed consent from each patient prior to resection.

Data Availability Statement

All sequencing data included in this manuscript have been submitted to Sequence Read Archive (SRA): https://www.ncbi.nlm.nih.gov/sra/, accession no. PRJNA873104 (accessed on 25 August 2022).

Acknowledgments

We thank Xinkun Wang and the Northwestern University Sequencing Core (NUSeq) staff for generating WES data and assisting with data processing.

Conflicts of Interest

Unrelated to the content of this manuscript, co-author A.B.H. wishes to makes the following disclosure: A.B.H. serves on the advisory board of Caris Life Sciences and WCG Oncology Advisory Board, receives royalty and milestone payments from DNAtrix for the licensing of “Biomarkers and combination therapies using oncolytic virus and immunomodulation” (11,065,285), and is supported by research grants from Celularity, Alnylam, and AbbVie. These sponsors had no direct role in study design; collection, analysis, or interpretation of data; writing of the report; or the decision to submit this work for publication.

References

  1. Ostrom, Q.T.; Cioffi, G.; Waite, K.; Kruchko, C.; Barnholtz-Sloan, J.S. CBTRUS Statistical Report: Primary Brain and Other Central Nervous System Tumors Diagnosed in the United States in 2014–2018. Neuro-Oncology 2021, 23, iii1–iii105. [Google Scholar] [CrossRef] [PubMed]
  2. Louis, D.N.; Perry, A.; Wesseling, P.; Brat, D.J.; Cree, I.A.; Figarella-Branger, D.; Hawkins, C.; Ng, H.K.; Pfister, S.M.; Reifenberger, G.; et al. The 2021 WHO Classification of Tumors of the Central Nervous System: A summary. Neuro-Oncology 2021, 23, 1231–1251. [Google Scholar] [CrossRef] [PubMed]
  3. Hegi, M.E.; Diserens, A.C.; Gorlia, T.; Hamou, M.F.; de Tribolet, N.; Weller, M.; Kros, J.M.; Hainfellner, J.A.; Mason, W.; Mariani, L.; et al. MGMT gene silencing and benefit from temozolomide in glioblastoma. N. Engl. J. Med. 2005, 352, 997–1003. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Poon, M.T.C.; Sudlow, C.L.M.; Figueroa, J.D.; Brennan, P.M. Longer-term (≥2 years) survival in patients with glioblastoma in population-based studies pre- and post-2005: A systematic review and meta-analysis. Sci. Rep. 2020, 10, 11622. [Google Scholar] [CrossRef]
  5. Stupp, R.; Mason, W.P.; van den Bent, M.J.; Weller, M.; Fisher, B.; Taphoorn, M.J.; Belanger, K.; Brandes, A.A.; Marosi, C.; Bogdahn, U.; et al. Radiotherapy plus concomitant and adjuvant temozolomide for glioblastoma. N. Engl. J. Med. 2005, 352, 987–996. [Google Scholar] [CrossRef] [Green Version]
  6. Stupp, R.; Hegi, M.E.; Mason, W.P.; van den Bent, M.J.; Taphoorn, M.J.; Janzer, R.C.; Ludwin, S.K.; Allgeier, A.; Fisher, B.; Belanger, K.; et al. Effects of radiotherapy with concomitant and adjuvant temozolomide versus radiotherapy alone on survival in glioblastoma in a randomised phase III study: 5-year analysis of the EORTC-NCIC trial. Lancet Oncol. 2009, 10, 459–466. [Google Scholar] [CrossRef]
  7. Xie, Q.; Mittal, S.; Berens, M.E. Targeting adaptive glioblastoma: An overview of proliferation and invasion. Neuro-Oncology 2014, 16, 1575–1584. [Google Scholar] [CrossRef] [Green Version]
  8. Friedman, H.S.; Kerby, T.; Calvert, H. Temozolomide and treatment of malignant glioma. Clin. Cancer Res. 2000, 6, 2585–2597. [Google Scholar]
  9. Lee, S.Y. Temozolomide resistance in glioblastoma multiforme. Genes Dis. 2016, 3, 198–210. [Google Scholar] [CrossRef] [Green Version]
  10. Touat, M.; Li, Y.Y.; Boynton, A.N.; Spurr, L.F.; Iorgulescu, J.B.; Bohrson, C.L.; Cortes-Ciriano, I.; Birzu, C.; Geduldig, J.E.; Pelton, K.; et al. Mechanisms and therapeutic implications of hypermutation in gliomas. Nature 2020, 580, 517–523. [Google Scholar] [CrossRef]
  11. Yip, S.; Miao, J.; Cahill, D.P.; Iafrate, A.J.; Aldape, K.; Nutt, C.L.; Louis, D.N. MSH6 mutations arise in glioblastomas during temozolomide therapy and mediate temozolomide resistance. Clin. Cancer Res. 2009, 15, 4622–4629. [Google Scholar] [CrossRef] [PubMed]
  12. Cahill, D.P.; Levine, K.K.; Betensky, R.A.; Codd, P.J.; Romany, C.A.; Reavie, L.B.; Batchelor, T.T.; Futreal, P.A.; Stratton, M.R.; Curry, W.T.; et al. Loss of the mismatch repair protein MSH6 in human glioblastomas is associated with tumor progression during temozolomide treatment. Clin. Cancer Res. 2007, 13, 2038–2045. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Hunter, C.; Smith, R.; Cahill, D.P.; Stephens, P.; Stevens, C.; Teague, J.; Greenman, C.; Edkins, S.; Bignell, G.; Davies, H.; et al. A hypermutation phenotype and somatic MSH6 mutations in recurrent human malignant gliomas after alkylator chemotherapy. Cancer Res. 2006, 66, 3987–3991. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. McCord, M.; Steffens, A.; Javier, R.; Kam, K.L.; McCortney, K.; Horbinski, C. The efficacy of DNA mismatch repair enzyme immunohistochemistry as a screening test for hypermutated gliomas. Acta Neuropathol. Commun. 2020, 8, 15. [Google Scholar] [CrossRef] [Green Version]
  15. Leelatian, N.; Hong, C.S.; Bindra, R.S. The Role of Mismatch Repair in Glioblastoma Multiforme Treatment Response and Resistance. Neurosurg. Clin. N. Am. 2021, 32, 171–180. [Google Scholar] [CrossRef]
  16. Poon, S.L.; McPherson, J.R.; Tan, P.; Teh, B.T.; Rozen, S.G. Mutation signatures of carcinogen exposure: Genome-wide detection and new opportunities for cancer prevention. Genome Med. 2014, 6, 24. [Google Scholar] [CrossRef] [Green Version]
  17. Hodges, T.R.; Ott, M.; Xiu, J.; Gatalica, Z.; Swensen, J.; Zhou, S.; Huse, J.T.; de Groot, J.; Li, S.; Overwijk, W.W.; et al. Mutational burden, immune checkpoint expression, and mismatch repair in glioma: Implications for immune checkpoint immunotherapy. Neuro-Oncology 2017, 19, 1047–1057. [Google Scholar] [CrossRef] [Green Version]
  18. Wang, J.; Cazzato, E.; Ladewig, E.; Frattini, V.; Rosenbloom, D.I.; Zairis, S.; Abate, F.; Liu, Z.; Elliott, O.; Shin, Y.J.; et al. Clonal evolution of glioblastoma under therapy. Nat. Genet. 2016, 48, 768–776. [Google Scholar] [CrossRef] [Green Version]
  19. Daniel, P.; Sabri, S.; Chaddad, A.; Meehan, B.; Jean-Claude, B.; Rak, J.; Abdulkarim, B.S. Temozolomide Induced Hypermutation in Glioma: Evolutionary Mechanisms and Therapeutic Opportunities. Front. Oncol. 2019, 9, 41. [Google Scholar] [CrossRef] [Green Version]
  20. Cloughesy, T.F.; Mochizuki, A.Y.; Orpilla, J.R.; Hugo, W.; Lee, A.H.; Davidson, T.B.; Wang, A.C.; Ellingson, B.M.; Rytlewski, J.A.; Sanders, C.M.; et al. Neoadjuvant anti-PD-1 immunotherapy promotes a survival benefit with intratumoral and systemic immune responses in recurrent glioblastoma. Nat. Med. 2019, 25, 477–486. [Google Scholar] [CrossRef]
  21. Lukas, R.V.; Rodon, J.; Becker, K.; Wong, E.T.; Shih, K.; Touat, M.; Fasso, M.; Osborne, S.; Molinero, L.; O’Hear, C.; et al. Clinical activity and safety of atezolizumab in patients with recurrent glioblastoma. J. Neurooncol. 2018, 140, 317–328. [Google Scholar] [CrossRef] [PubMed]
  22. McCord, M.; Lukas, R.V.; Amidei, C.; Demars, N.; Gelb, A.; Buck, J.; Sachdev, S.; Feldman, A.; Tate, M.; Dixit, K.; et al. Disappearance of MMR-deficient subclones after controlled IL-12 and PD-1 inhibition in a glioma patient. Neurooncol. Adv. 2021, 3, vdab045. [Google Scholar] [CrossRef] [PubMed]
  23. Daniel, P.; Meehan, B.; Sabri, S.; Jamali, F.; Sarkaria, J.N.; Choi, D.; Garnier, D.; Kitange, G.; Glennon, K.I.; Paccard, A.; et al. Detection of temozolomide-induced hypermutation and response to PD-1 checkpoint inhibitor in recurrent glioblastoma. Neurooncol. Adv. 2022, 4, vdac076. [Google Scholar] [CrossRef] [PubMed]
  24. Bouffet, E.; Larouche, V.; Campbell, B.B.; Merico, D.; de Borja, R.; Aronson, M.; Durno, C.; Krueger, J.; Cabric, V.; Ramaswamy, V.; et al. Immune Checkpoint Inhibition for Hypermutant Glioblastoma Multiforme Resulting From Germline Biallelic Mismatch Repair Deficiency. J. Clin. Oncol. 2016, 34, 2206–2211. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Mandal, R.; Samstein, R.M.; Lee, K.W.; Havel, J.J.; Wang, H.; Krishna, C.; Sabio, E.Y.; Makarov, V.; Kuo, F.; Blecua, P.; et al. Genetic diversity of tumors with mismatch repair deficiency influences anti-PD-1 immunotherapy response. Science 2019, 364, 485–491. [Google Scholar] [CrossRef]
  26. Reardon, D.A.; Brandes, A.A.; Omuro, A.; Mulholland, P.; Lim, M.; Wick, A.; Baehring, J.; Ahluwalia, M.S.; Roth, P.; Bahr, O.; et al. Effect of Nivolumab vs Bevacizumab in Patients With Recurrent Glioblastoma: The CheckMate 143 Phase 3 Randomized Clinical Trial. JAMA Oncol. 2020, 6, 1003–1010. [Google Scholar] [CrossRef]
  27. Kurz, S.C.; Cabrera, L.P.; Hastie, D.; Huang, R.; Unadkat, P.; Rinne, M.; Nayak, L.; Lee, E.Q.; Reardon, D.A.; Wen, P.Y. PD-1 inhibition has only limited clinical benefit in patients with recurrent high-grade glioma. Neurology 2018, 91, e1355–e1359. [Google Scholar] [CrossRef]
  28. McGrail, D.J.; Pilie, P.G.; Rashid, N.U.; Voorwerk, L.; Slagter, M.; Kok, M.; Jonasch, E.; Khasraw, M.; Heimberger, A.B.; Ueno, N.T.; et al. Validation of cancer-type dependent benefit from immune checkpoint blockade in TMB-H tumors identified by the FoundationOne CDx assay. Ann. Oncol. 2022, 33, 1204–1206. [Google Scholar] [CrossRef]
  29. Giannini, C.; Sarkaria, J.N.; Saito, A.; Uhm, J.H.; Galanis, E.; Carlson, B.L.; Schroeder, M.A.; James, C.D. Patient tumor EGFR and PDGFRA gene amplifications retained in an invasive intracranial xenograft model of glioblastoma multiforme. Neuro-Oncology 2005, 7, 164–176. [Google Scholar] [CrossRef] [Green Version]
  30. Sarkaria, J.N.; Yang, L.; Grogan, P.T.; Kitange, G.J.; Carlson, B.L.; Schroeder, M.A.; Galanis, E.; Giannini, C.; Wu, W.; Dinca, E.B.; et al. Identification of molecular characteristics correlated with glioblastoma sensitivity to EGFR kinase inhibition through use of an intracranial xenograft test panel. Mol. Cancer Ther. 2007, 6, 1167–1174. [Google Scholar] [CrossRef] [Green Version]
  31. Michaud, K.; Solomon, D.A.; Oermann, E.; Kim, J.S.; Zhong, W.Z.; Prados, M.D.; Ozawa, T.; James, C.D.; Waldman, T. Pharmacologic inhibition of cyclin-dependent kinases 4 and 6 arrests the growth of glioblastoma multiforme intracranial xenografts. Cancer Res. 2010, 70, 3228–3238. [Google Scholar] [CrossRef] [PubMed]
  32. Supino, R. MTT assays. In In Vitro Toxicity Testing Protocols; O’Hare, S.A.C., Ed.; Methods in Molecular Biology; Humana Press: Totowa, NJ, USA, 1995; Volume 43, pp. 137–149. [Google Scholar]
  33. Obenchain, V.; Lawrence, M.; Carey, V.; Gogarten, S.; Shannon, P.; Morgan, M. VariantAnnotation: A Bioconductor package for exploration and annotation of genetic variants. Bioinformatics 2014, 30, 2076–2078. [Google Scholar] [CrossRef] [Green Version]
  34. Chen, H.; Boutros, P.C. VennDiagram: A package for the generation of highly-customizable Venn and Euler diagrams in R. BMC Bioinform. 2011, 12, 35. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Blokzijl, F.; Janssen, R.; van Boxtel, R.; Cuppen, E. MutationalPatterns: Comprehensive genome-wide analysis of mutational processes. Genome Med. 2018, 10, 33. [Google Scholar] [CrossRef] [PubMed]
  36. Bang, M.L.; Centner, T.; Fornoff, F.; Geach, A.J.; Gotthardt, M.; McNabb, M.; Witt, C.C.; Labeit, D.; Gregorio, C.C.; Granzier, H.; et al. The complete gene sequence of titin, expression of an unusual approximately 700-kDa titin isoform, and its interaction with obscurin identify a novel Z-line to I-band linking system. Circ. Res. 2001, 89, 1065–1072. [Google Scholar] [CrossRef] [Green Version]
  37. Herrlinger, U.; Tzaridis, T.; Mack, F.; Steinbach, J.P.; Schlegel, U.; Sabel, M.; Hau, P.; Kortmann, R.D.; Krex, D.; Grauer, O.; et al. Lomustine-temozolomide combination therapy versus standard temozolomide therapy in patients with newly diagnosed glioblastoma with methylated MGMT promoter (CeTeG/NOA-09): A randomised, open-label, phase 3 trial. Lancet 2019, 393, 678–688. [Google Scholar] [CrossRef]
  38. Taal, W.; Oosterkamp, H.M.; Walenkamp, A.M.; Dubbink, H.J.; Beerepoot, L.V.; Hanse, M.C.; Buter, J.; Honkoop, A.H.; Boerman, D.; de Vos, F.Y.; et al. Single-agent bevacizumab or lomustine versus a combination of bevacizumab plus lomustine in patients with recurrent glioblastoma (BELOB trial): A randomised controlled phase 2 trial. Lancet Oncol. 2014, 15, 943–953. [Google Scholar] [CrossRef]
  39. Burnet, N.G.; Jefferies, S.J.; Benson, R.J.; Hunt, D.P.; Treasure, F.P. Years of life lost (YLL) from cancer is an important measure of population burden—And should be considered when allocating research funds. Br. J. Cancer 2005, 92, 241–245. [Google Scholar] [CrossRef]
  40. Higuchi, F.; Nagashima, H.; Ning, J.; Koerner, M.V.A.; Wakimoto, H.; Cahill, D.P. Restoration of Temozolomide Sensitivity by PARP Inhibitors in Mismatch Repair Deficient Glioblastoma is Independent of Base Excision Repair. Clin. Cancer Res. 2020, 26, 1690–1699. [Google Scholar] [CrossRef]
  41. Kamoun, W.S.; Ley, C.D.; Farrar, C.T.; Duyverman, A.M.; Lahdenranta, J.; Lacorre, D.A.; Batchelor, T.T.; di Tomaso, E.; Duda, D.G.; Munn, L.L.; et al. Edema control by cediranib, a vascular endothelial growth factor receptor-targeted kinase inhibitor, prolongs survival despite persistent brain tumor growth in mice. J. Clin. Oncol. 2009, 27, 2542–2552. [Google Scholar] [CrossRef]
  42. Batchelor, T.T.; Mulholland, P.; Neyns, B.; Nabors, L.B.; Campone, M.; Wick, A.; Mason, W.; Mikkelsen, T.; Phuphanich, S.; Ashby, L.S.; et al. Phase III randomized trial comparing the efficacy of cediranib as monotherapy, and in combination with lomustine, versus lomustine alone in patients with recurrent glioblastoma. J. Clin. Oncol. 2013, 31, 3212–3218. [Google Scholar] [CrossRef] [PubMed]
  43. Stefanik, D.F.; Fellows, W.K.; Rizkalla, L.R.; Rizkalla, W.M.; Stefanik, P.P.; Deleo, A.B.; Welch, W.C. Monoclonal antibodies to vascular endothelial growth factor (VEGF) and the VEGF receptor, FLT-1, inhibit the growth of C6 glioma in a mouse xenograft. J. Neurooncol. 2001, 55, 91–100. [Google Scholar] [CrossRef] [PubMed]
  44. Wick, W.; Gorlia, T.; Bendszus, M.; Taphoorn, M.; Sahm, F.; Harting, I.; Brandes, A.A.; Taal, W.; Domont, J.; Idbaih, A.; et al. Lomustine and Bevacizumab in Progressive Glioblastoma. N. Engl. J. Med. 2017, 377, 1954–1963. [Google Scholar] [CrossRef] [PubMed]
  45. Cahill, D.P.; Codd, P.J.; Batchelor, T.T.; Curry, W.T.; Louis, D.N. MSH6 inactivation and emergent temozolomide resistance in human glioblastomas. Clin. Neurosurg. 2008, 55, 165–171. [Google Scholar]
  46. Vaubel, R.A.; Tian, S.; Remonde, D.; Schroeder, M.A.; Mladek, A.C.; Kitange, G.J.; Caron, A.; Kollmeyer, T.M.; Grove, R.; Peng, S.; et al. Genomic and Phenotypic Characterization of a Broad Panel of Patient-Derived Xenografts Reflects the Diversity of Glioblastoma. Clin. Cancer Res. 2020, 26, 1094–1104. [Google Scholar] [CrossRef]
  47. Chakravarti, A.; Erkkinen, M.G.; Nestler, U.; Stupp, R.; Mehta, M.; Aldape, K.; Gilbert, M.R.; Black, P.M.; Loeffler, J.S. Temozolomide-mediated radiation enhancement in glioblastoma: A report on underlying mechanisms. Clin. Cancer Res. 2006, 12, 4738–4746. [Google Scholar] [CrossRef] [Green Version]
  48. Kil, W.J.; Cerna, D.; Burgan, W.E.; Beam, K.; Carter, D.; Steeg, P.S.; Tofilon, P.J.; Camphausen, K. In vitro and in vivo radiosensitization induced by the DNA methylating agent temozolomide. Clin. Cancer Res. 2008, 14, 931–938. [Google Scholar] [CrossRef] [Green Version]
  49. Aquilina, G.; Ceccotti, S.; Martinelli, S.; Hampson, R.; Bignami, M. N-(2-chloroethyl)-N′-cyclohexyl-N-nitrosourea sensitivity in mismatch repair-defective human cells. Cancer Res. 1998, 58, 135–141. [Google Scholar]
  50. Alnahhas, I.; Rayi, A.; Ong, S.; Giglio, P.; Puduvalli, V. Management of gliomas in patients with Lynch syndrome. Neuro-Oncology 2021, 23, 167–168. [Google Scholar] [CrossRef]
  51. Ollier, E.; Mazzocco, P.; Ricard, D.; Kaloshi, G.; Idbaih, A.; Alentorn, A.; Psimaras, D.; Honnorat, J.; Delattre, J.Y.; Grenier, E.; et al. Analysis of temozolomide resistance in low-grade gliomas using a mechanistic mathematical model. Fundam. Clin. Pharmacol. 2017, 31, 347–358. [Google Scholar] [CrossRef] [Green Version]
  52. Barthel, F.P.; Johnson, K.C.; Varn, F.S.; Moskalik, A.D.; Tanner, G.; Kocakavuk, E.; Anderson, K.J.; Abiola, O.; Aldape, K.; Alfaro, K.D.; et al. Longitudinal molecular trajectories of diffuse glioma in adults. Nature 2019, 576, 112–120. [Google Scholar] [CrossRef] [PubMed]
  53. Consortium, G. Glioma through the looking GLASS: Molecular evolution of diffuse gliomas and the Glioma Longitudinal Analysis Consortium. Neuro-Oncology 2018, 20, 873–884. [Google Scholar] [CrossRef] [PubMed]
  54. Varn, F.S.; Johnson, K.C.; Martinek, J.; Huse, J.T.; Nasrallah, M.P.; Wesseling, P.; Cooper, L.A.D.; Malta, T.M.; Wade, T.E.; Sabedot, T.S.; et al. Glioma progression is shaped by genetic evolution and microenvironment interactions. Cell 2022, 185, 2184–2199.e2116. [Google Scholar] [CrossRef] [PubMed]
  55. Yeo, A.T.; Rawal, S.; Delcuze, B.; Christofides, A.; Atayde, A.; Strauss, L.; Balaj, L.; Rogers, V.A.; Uhlmann, E.J.; Varma, H.; et al. Single-cell RNA sequencing reveals evolution of immune landscape during glioblastoma progression. Nat. Immunol. 2022, 23, 971–984. [Google Scholar] [CrossRef] [PubMed]
Cancers 14 05494 g001 550

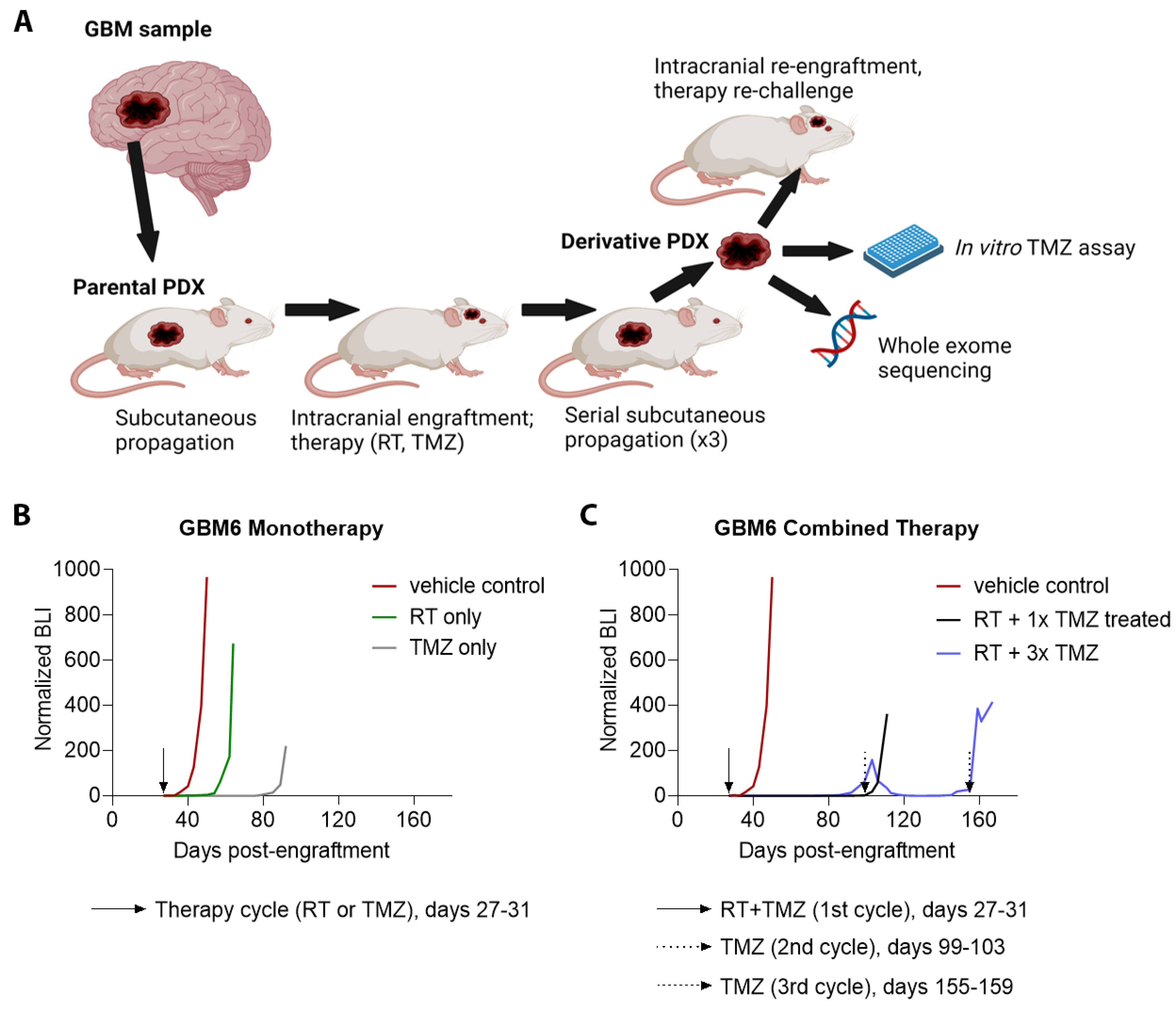

Figure 1. Establishment and primary treatment of parental PDX. (A) Illustration of workflow. Patient-derived tumor cell lines were propagated subcutaneously in athymic nude mice, then engrafted intracranially and treated with radiation (RT) and temozolomide (TMZ). Post-therapy PDX were serially passaged subcutaneously through 3 mice. After therapy and propagation, derivative PDX cells were tested for in vitro and in vivo therapy resistance and underwent whole-exome sequencing (WES). (B) Bioluminescence (BLI) monitoring of intracranial engraftment of parental GBM6 with vehicle treatment versus treatment with RT monotherapy, and versus TMZ monotherapy. (C) BLI monitoring of intracranial engraftment of parental GBM6 with vehicle treatment versus treatment with one concomitant cycle of RT and TMZ, and versus treatment with a concomitant cycle of RT and TMZ followed by two additional cycles of TMZ at the indicated time points (n = 5 mice total for (B,C)).
Figure 1. Establishment and primary treatment of parental PDX. (A) Illustration of workflow. Patient-derived tumor cell lines were propagated subcutaneously in athymic nude mice, then engrafted intracranially and treated with radiation (RT) and temozolomide (TMZ). Post-therapy PDX were serially passaged subcutaneously through 3 mice. After therapy and propagation, derivative PDX cells were tested for in vitro and in vivo therapy resistance and underwent whole-exome sequencing (WES). (B) Bioluminescence (BLI) monitoring of intracranial engraftment of parental GBM6 with vehicle treatment versus treatment with RT monotherapy, and versus TMZ monotherapy. (C) BLI monitoring of intracranial engraftment of parental GBM6 with vehicle treatment versus treatment with one concomitant cycle of RT and TMZ, and versus treatment with a concomitant cycle of RT and TMZ followed by two additional cycles of TMZ at the indicated time points (n = 5 mice total for (B,C)).
Cancers 14 05494 g001
Cancers 14 05494 g002 550

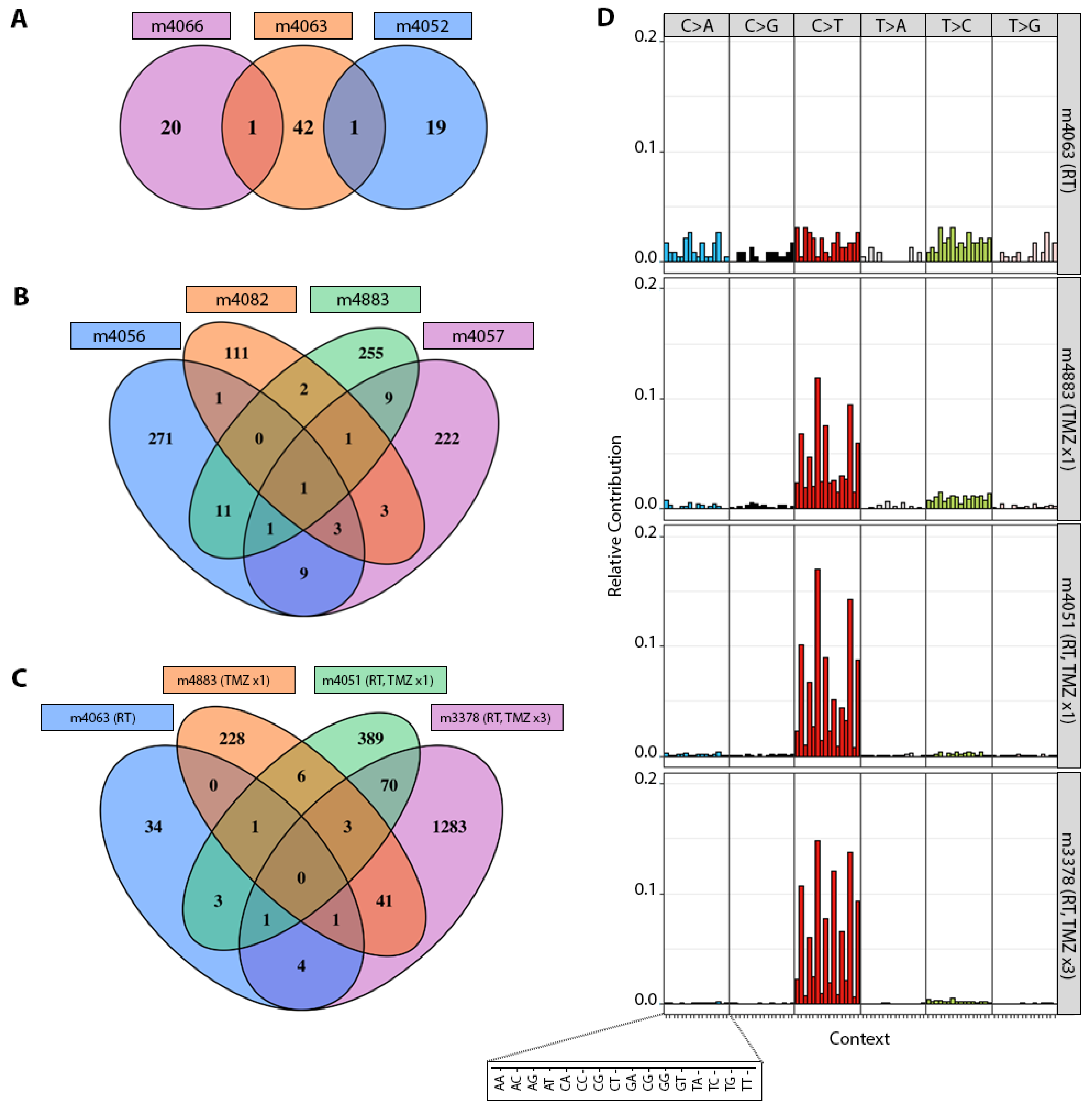

Figure 2. Mutations in GBM6 derivative PDX. (A) Venn diagram illustrating numbers of mutated genes in PDX derivatives treated with radiation therapy (m4066, m4063, m4052). (B) Numbers of mutated genes in PDX derivatives treated with a single cycle of TMZ (m4056, m4082, m4883, m4057). (C) Comparison of numbers of mutated genes in PDX derivatives treated with indicated combinations of RT and TMZ. (D) Illustration and comparison of the relative frequency of mutations affecting C and T sites in select GBM6 derivatives treated with the indicated combinations of RT and TMZ.
Figure 2. Mutations in GBM6 derivative PDX. (A) Venn diagram illustrating numbers of mutated genes in PDX derivatives treated with radiation therapy (m4066, m4063, m4052). (B) Numbers of mutated genes in PDX derivatives treated with a single cycle of TMZ (m4056, m4082, m4883, m4057). (C) Comparison of numbers of mutated genes in PDX derivatives treated with indicated combinations of RT and TMZ. (D) Illustration and comparison of the relative frequency of mutations affecting C and T sites in select GBM6 derivatives treated with the indicated combinations of RT and TMZ.
Cancers 14 05494 g002
Cancers 14 05494 g003 550

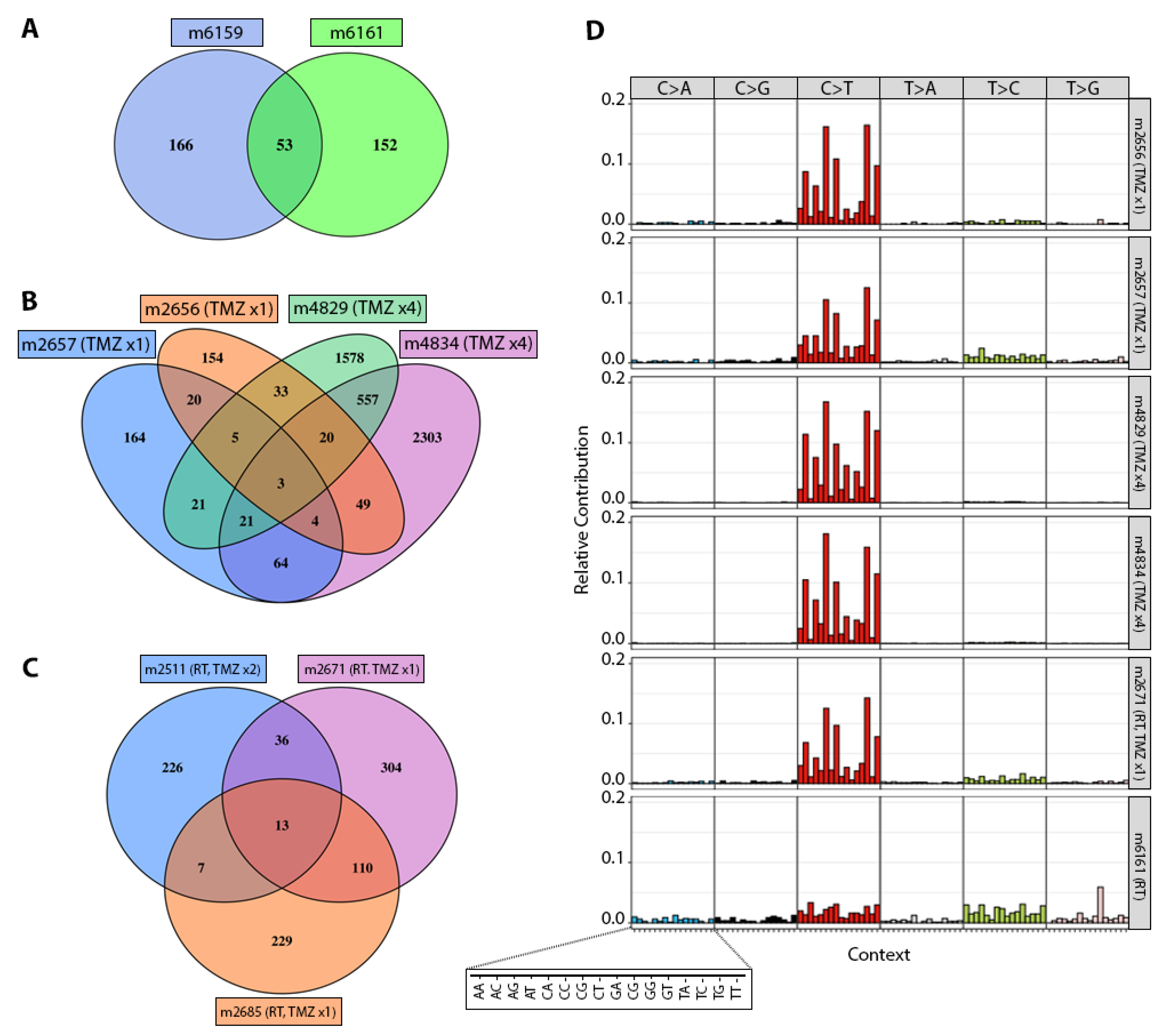

Figure 3. Mutations in GBM12 derivative PDX. (A) Venn diagram illustrating numbers of mutated genes in PDX derivatives treated with RT (m6159, m6161). (B) Numbers of mutated genes in PDX derivatives treated with a single cycle of TMZ (m2657, m2656) versus four cycles of TMZ (m4829, m4834). (C) Numbers of mutated genes in PDX derivatives treated with RT plus a single cycle of TMZ (m2671, m2685) versus RT and 2 cycles of TMZ (m2511). (D) Relative frequency of mutations affecting C and T sites in select GBM12 derivatives treated with indicated combinations of RT and TMZ.
Figure 3. Mutations in GBM12 derivative PDX. (A) Venn diagram illustrating numbers of mutated genes in PDX derivatives treated with RT (m6159, m6161). (B) Numbers of mutated genes in PDX derivatives treated with a single cycle of TMZ (m2657, m2656) versus four cycles of TMZ (m4829, m4834). (C) Numbers of mutated genes in PDX derivatives treated with RT plus a single cycle of TMZ (m2671, m2685) versus RT and 2 cycles of TMZ (m2511). (D) Relative frequency of mutations affecting C and T sites in select GBM12 derivatives treated with indicated combinations of RT and TMZ.
Cancers 14 05494 g003
Cancers 14 05494 g004 550

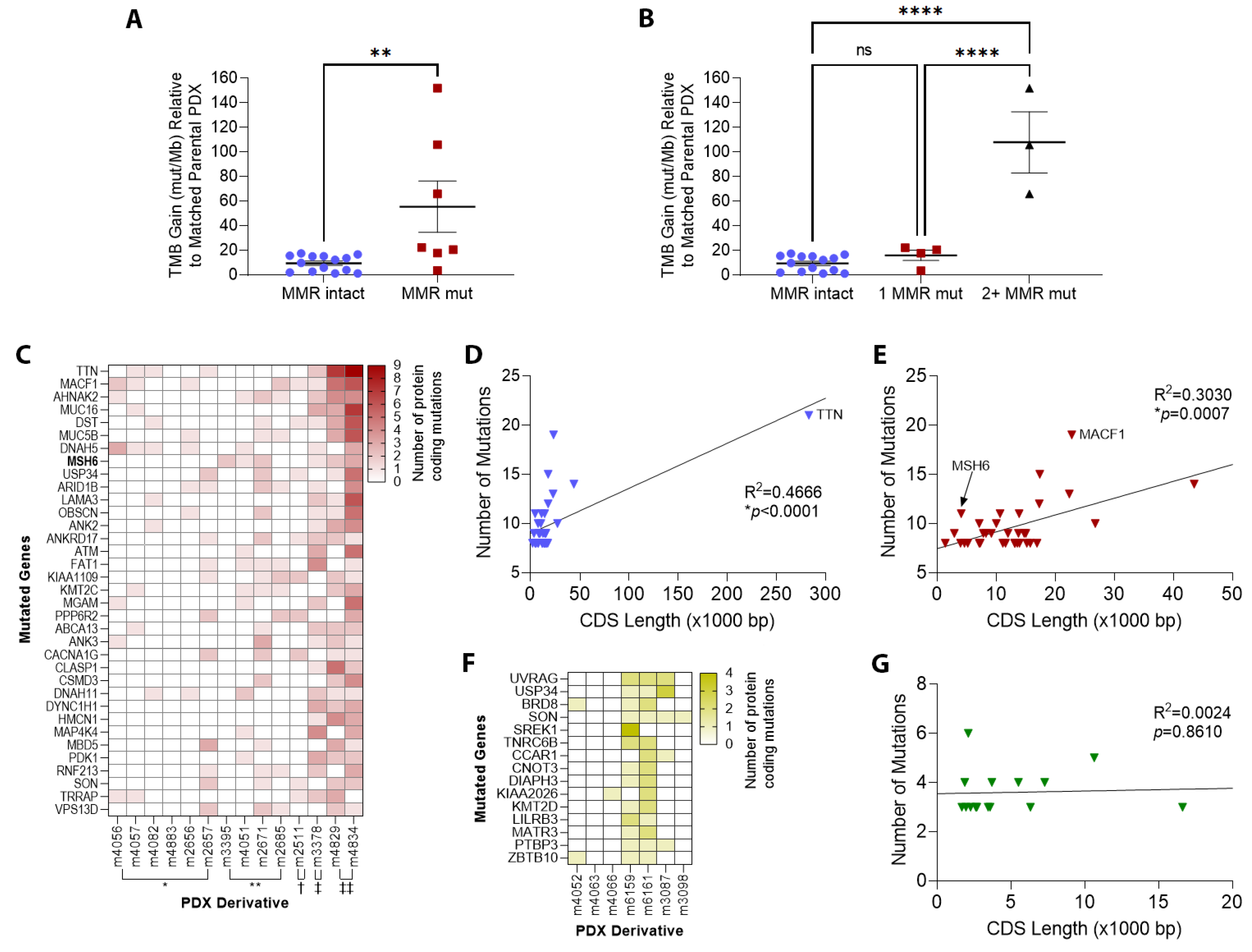

Figure 4. Tumor mutation burden (TMB) and individual gene mutations in derivative PDX. (A) TMB gain (relative to matched parental PDX) in derivative PDX with intact DNA mismatch repair (MMR) genes compared to derivative PDX with DNA MMR gene mutations (mut/Mb = mutations per megabase, ** p < 0.05). (B) TMB gain in derivative PDX with intact DNA MMR genes compared to derivative PDX with a single MMR gene mutation and two or more MMR gene mutations (**** p < 0.0001). (C) Heat map of the 35 most frequently mutated genes in PDX derivatives treated with TMZ (* TMZ ×1, ** RT+TMZ ×1, † RT+TMZ ×2, ‡ RT+TMZ ×3, ‡‡ TMZ ×4). (D) Scatterplot illustrating the frequency of protein-coding mutations in genes as a function of gene coding sequence (CDS) length in base pairs (bp). TTN has the longest CDS among human genes and was the most frequently mutated in post-TMZ PDX (* p < 0.05). (E) Frequency of protein-coding mutations as a function of CDS length, with TTN eliminated (* p < 0.05). (F) Heat map of the 15 most frequently mutated genes in PDX derivatives treated with only radiation therapy (RT). (G) Frequency of protein-coding mutations as a function of CDS length in PDX derivatives treated with only RT.
Figure 4. Tumor mutation burden (TMB) and individual gene mutations in derivative PDX. (A) TMB gain (relative to matched parental PDX) in derivative PDX with intact DNA mismatch repair (MMR) genes compared to derivative PDX with DNA MMR gene mutations (mut/Mb = mutations per megabase, ** p < 0.05). (B) TMB gain in derivative PDX with intact DNA MMR genes compared to derivative PDX with a single MMR gene mutation and two or more MMR gene mutations (**** p < 0.0001). (C) Heat map of the 35 most frequently mutated genes in PDX derivatives treated with TMZ (* TMZ ×1, ** RT+TMZ ×1, † RT+TMZ ×2, ‡ RT+TMZ ×3, ‡‡ TMZ ×4). (D) Scatterplot illustrating the frequency of protein-coding mutations in genes as a function of gene coding sequence (CDS) length in base pairs (bp). TTN has the longest CDS among human genes and was the most frequently mutated in post-TMZ PDX (* p < 0.05). (E) Frequency of protein-coding mutations as a function of CDS length, with TTN eliminated (* p < 0.05). (F) Heat map of the 15 most frequently mutated genes in PDX derivatives treated with only radiation therapy (RT). (G) Frequency of protein-coding mutations as a function of CDS length in PDX derivatives treated with only RT.
Cancers 14 05494 g004
Cancers 14 05494 g005 550

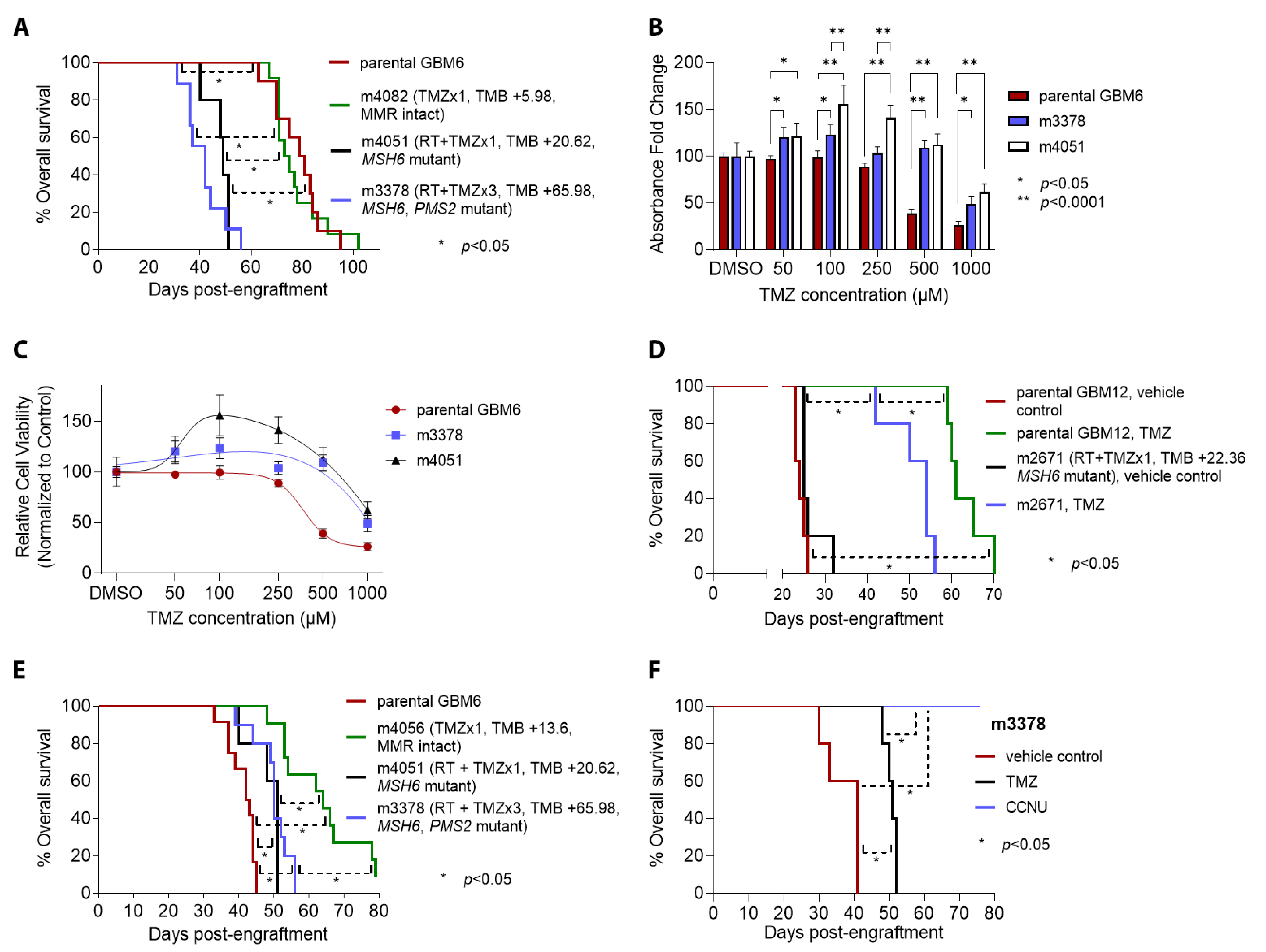

Figure 5. Sensitivity to chemotherapy and radiation in derivative PDX. (A) Survival analysis after a single dose of TMZ for mice (n = 10 per group) engrafted with parental GBM6 versus derivatives m4082 (post-TMZ ×1, MMR genes intact, low TMB gain), m4051 (post-RT and TMZ ×1, acquired MSH6 mutation, higher TMB gain), and m3378 (post-RT and TMZ ×3, acquired MSH6 and PMS2 mutations, high TMB gain). (B) In vitro TMZ sensitivity assays with MTT for parental GBM6 versus derivatives m3378 and m4051 across multiple concentrations of TMZ, with DMSO as vehicle control. (C) Best fit dose–response curves to TMZ for parental GBM6 versus m3378 and m4051. (D) Survival analysis after a single dose of TMZ (compared to vehicle control) for mice (n = 5 per group) engrafted with parental GBM12 versus derivative m2671 (post-RT and TMZ ×1, with acquired MSH6 mutation). (E) Survival analysis after a cycle of RT for mice engrafted with parental GBM6 (n = 12), MMR-intact derivative m4056 (n = 10), and MMR-deficient derivatives m4051 (n = 5) and m3378 (n = 10). (F) Survival analysis for mice (n = 5 per group) engrafted with GBM6 derivative m3378 and treated with a single cycle of TMZ versus a single cycle of CCNU (lomustine), compared to vehicle control (For (A,B,D–F), * p < 0.05, ** p < 0.0001).
Figure 5. Sensitivity to chemotherapy and radiation in derivative PDX. (A) Survival analysis after a single dose of TMZ for mice (n = 10 per group) engrafted with parental GBM6 versus derivatives m4082 (post-TMZ ×1, MMR genes intact, low TMB gain), m4051 (post-RT and TMZ ×1, acquired MSH6 mutation, higher TMB gain), and m3378 (post-RT and TMZ ×3, acquired MSH6 and PMS2 mutations, high TMB gain). (B) In vitro TMZ sensitivity assays with MTT for parental GBM6 versus derivatives m3378 and m4051 across multiple concentrations of TMZ, with DMSO as vehicle control. (C) Best fit dose–response curves to TMZ for parental GBM6 versus m3378 and m4051. (D) Survival analysis after a single dose of TMZ (compared to vehicle control) for mice (n = 5 per group) engrafted with parental GBM12 versus derivative m2671 (post-RT and TMZ ×1, with acquired MSH6 mutation). (E) Survival analysis after a cycle of RT for mice engrafted with parental GBM6 (n = 12), MMR-intact derivative m4056 (n = 10), and MMR-deficient derivatives m4051 (n = 5) and m3378 (n = 10). (F) Survival analysis for mice (n = 5 per group) engrafted with GBM6 derivative m3378 and treated with a single cycle of TMZ versus a single cycle of CCNU (lomustine), compared to vehicle control (For (A,B,D–F), * p < 0.05, ** p < 0.0001).
Cancers 14 05494 g005
Table
Table 1. Summary of Parental PDX and Derivative PDX Therapy and Mutations.
Table 1. Summary of Parental PDX and Derivative PDX Therapy and Mutations.
Parental
PDX		ID *Therapy **Genes MutatedTMB Gain ***MSH6 †MSH2 †MLH1 †PMS2 †
GBM6m4052RT202.100000
m4063442.780000
m4066211.240000
GBM12m615921915.120000
m616120515.630000
GBM43m3087484.020000
m3098271.300000
GBM6m4056TMZ ×129713.600000
m40572499.800000
m40821225.980000
m488328017.590000
GBM12m265628812.380000
m265730216.670000
GBM6m3395RT+TMZ ×1783.692000
m405147320.621000
GBM12m267146322.362000
m268535915.280000
m2511RT+TMZ ×228217.860010
GBM6m3378RT+TMZ ×3140365.981001
GBM12m4829TMZ ×42238105.782100
m48343021151.853101
* Identification number of individual derivative PDX. ** Therapy regimen for initial intracranial engraftment of PDX (see Figure 1A). *** Increase in tumor mutation burden (TMB), relative to matched parental PDX, measured in mutations per megabase (Mb) of DNA. † Number of mutations in each DNA mismatch repair (MMR) gene in each derivative PDX. RT = radiation therapy, TMZ = temozolomide cycle.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

McCord, M.; Bartom, E.; Burdett, K.; Baran, A.; Eckerdt, F.D.; Balyasnikova, I.V.; McCortney, K.; Sears, T.; Cheng, S.-Y.; Sarkaria, J.N.; et al. Modeling Therapy-Driven Evolution of Glioblastoma with Patient-Derived Xenografts. Cancers 2022, 14, 5494. https://doi.org/10.3390/cancers14225494

AMA Style

McCord M, Bartom E, Burdett K, Baran A, Eckerdt FD, Balyasnikova IV, McCortney K, Sears T, Cheng S-Y, Sarkaria JN, et al. Modeling Therapy-Driven Evolution of Glioblastoma with Patient-Derived Xenografts. Cancers. 2022; 14(22):5494. https://doi.org/10.3390/cancers14225494

Chicago/Turabian Style

McCord, Matthew, Elizabeth Bartom, Kirsten Burdett, Aneta Baran, Frank D. Eckerdt, Irina V. Balyasnikova, Kathleen McCortney, Thomas Sears, Shi-Yuan Cheng, Jann N. Sarkaria, and et al. 2022. "Modeling Therapy-Driven Evolution of Glioblastoma with Patient-Derived Xenografts" Cancers 14, no. 22: 5494. https://doi.org/10.3390/cancers14225494

APA Style

McCord, M., Bartom, E., Burdett, K., Baran, A., Eckerdt, F. D., Balyasnikova, I. V., McCortney, K., Sears, T., Cheng, S. -Y., Sarkaria, J. N., Stupp, R., Heimberger, A. B., Ahmed, A., James, C. D., & Horbinski, C. (2022). Modeling Therapy-Driven Evolution of Glioblastoma with Patient-Derived Xenografts. Cancers, 14(22), 5494. https://doi.org/10.3390/cancers14225494

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
