Article

Tumor-Associated Regulatory T Cell Expression of LAIR2 Is Prognostic in Lung Adenocarcinoma

by
Dalam Ly
1,2,†,
Quan Li
3,†,
Roya Navab
3,
Cédric Zeltz
3,
Linan Fang
1,
Michael Cabanero
3,
Chang-Qi Zhu
3,
Ming-Sound Tsao
3,4,*,‡ and
Li Zhang
1,2,4,*,‡
1
Toronto General Hospital Research Institute, University Health Network, Toronto, ON M5G 1L7, Canada
2
Department of Immunology, University of Toronto, Toronto, ON M5G 1X8, Canada
3
Princess Margaret Cancer Centre, University Health Network, Toronto, ON M5G 1L7, Canada
4
Department of Laboratory Medicine and Pathobiology, University of Toronto, Toronto, ON M5G 1X8, Canada
*
Authors to whom correspondence should be addressed.
†
Contributed equally to this work.
‡
Co-senior authors.
Cancers 2022, 14(1), 205; https://doi.org/10.3390/cancers14010205
Submission received: 18 November 2021 / Revised: 27 December 2021 / Accepted: 28 December 2021 / Published: 31 December 2021
(This article belongs to the Special Issue The Role of Tumor Microenvironment in Solid Tumors: The New Frontier of Cancer Research)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Understanding how the immune system navigate the tumor microenvironment is vital to developing effective drugs to treat cancer. Using gene and functional studies, we found that the collagen receptor LAIR2 is an important component of cancer regulation. When expressed in regulatory T cells, a LAIR2 containing gene signature is adversely prognostic in lung cancer. This study highlights the importance of microenvironment regulation of immune cells and provides a unique target for future therapeutic development.

Abstract

Cancer development requires a permissive microenvironment that is shaped by interactions between tumor cells, stroma, and the surrounding matrix. As collagen receptors, the leukocyte-associated immunoglobulin-like receptor (LAIR) family allows the immune system to interact with the extracellular matrix. However, little is known about their role in regulating tumor immunity and cancer progression. Methods: Genetic analysis of resected human lung adenocarcinoma was correlated to clinical-pathological characteristics, gene ontologies, and single cell RNA sequencing (scRNASeq). LAIR2 production was determined in subsets of immune cells isolated from blood leukocytes and lung adenocarcinoma tumor. Functional assays were used to determine the role of LAIR2 in tumorigenesis. Results: LAIR2 expression was adversely prognostic in lung adenocarcinoma. LAIR2 was preferentially produced by activated CD4+ T cells and enhanced in vitro tumor invasion into collagen. scRNASeq analysis of tumor infiltrating T cells revealed that LAIR2 expression co-localized with FOXP3 expressing cells and shared a transcriptional signature with tumor-associated regulatory T (Treg) cells. A CD4+ LAIR2+ Treg gene signature was prognostically significant in the TCGA dataset (n = 439; hazard ratio (HR) = 1.37; 95% confidence interval (CI), 1.05–1.77, p = 0.018) and validated in NCI Director’s Challenge lung adenocarcinoma dataset (n = 488; HR = 1.54; 95% CI, 1.14–2.09, p = 0.0045). Conclusions: Our data support a role for LAIR2 in lung adenocarcinoma tumorigenesis and identify a CD4+ LAIR2+ Treg gene signature in lung adenocarcinoma prognosis. LAIR2 provides a novel target for development of immunotherapies.

1. Introduction

Lung cancer is the leading cause of cancer-related deaths world-wide, and 85% of patients belong to non-small cell lung cancer (NSCLC), of which lung adenocarcinoma (LUAD) and lung squamous cell carcinoma (LUSC) are the most common subtypes [1]. Immunotherapies targeting immune checkpoint PD-1/PD-L1 interaction have now become standard of care in the treatment of advanced stage NSCLC patients. However, only subsets of patients respond. Even among patients who have high expression of PD-L1, more than 50% of patients do not respond [1,2,3]. This may be partially due to our incomplete understanding of the tumor microenvironment (TME) and its relation to lung cancer biology [4,5].
TME has a significant role in shaping cancer development, tumor progression and patient prognosis. Cancer growth requires the presence of a permissive TME that is shaped by interactions between tumor cells and the stroma, which consist of immune cells, fibroblasts, endothelial cells, and stromal matrices [6,7]. Several groups have described tumor stromal immune signatures and histologically defined immune cell subsets associated with NSCLC prognosis [8,9,10]. CD4+ regulatory T (Treg) cells that express the transcription factor Foxp3 are an important T cell subset that are recruited to sites of inflammation and facilitate tumor progression and metastasis in most cancers [11,12,13]. Though Treg cells have been associated with unfavorable prognosis in NSCLC, meta-analysis suggests that Treg cells represent a highly heterogeneous population which are shaped by their microenvironment [14,15,16]. A growing body of evidence indicates that tumor-associated Treg cells have unique transcriptional signatures relative to their peripheral blood counterparts [17,18,19,20,21,22].
Amongst immune expressed genes, the leukocyte-associated immunoglobulin-like receptor (LAIR) family allow the immune system to interact with the extracellular matrix, due to its ability to bind collagen and collagen-motif containing proteins [23,24,25,26]. The LAIR family comprise of two members, LAIR1 and LAIR2. LAIR1 (CD305) is a known receptor for collagen type I with inhibitory activity on multiple types of immune cells [27,28,29]. In contrast, LAIR2 (CD306), which shares ~84% homology to LAIR1, lacks transmembrane and signaling domains and is a secreted receptor that could serve as a competitive inhibitor of LAIR1 [24,25]. LAIR2 is elevated in the serum and synovial fluid of patients with rheumatoid arthritis [25,30] and in the serum of patients with autoimmune thyroid disease [31], suggesting a role for LAIR2 at sites of inflammation. In addition, LAIR2 has been implicated in rescuing CD8+ T cells response towards anti-PD-1 therapy in murine models of cancer [23]. However, the role of LAIR2 in human cancer progression and immunity is unknown. In this study, we demonstrated a prognostic role for tumor infiltrating CD4+ LAIR2+ Treg cells in lung adenocarcinoma.

2. Materials and Methods

2.1. Patient and Gene Expression Data Analyses

Microarray gene expression data of 181 stage I–II NSCLC patients (UHN181) (GSE50081) were analyzed for potentially prognostic immune-related genes [32]. The immune-related genes were those in the National Institute of Allergy and Infectious Diseases (NIAID) gene list (ImmPort Comprehensive List of Immune-Related Genes, version 2011_08_01). Cox proportional regression model was used to assess their association with 5 year survival and identified LAIR2 as prognostically significant.

2.2. Pathway Enrichment, Gene Set Enrichment Analysis and Immune Estimation

To determine biological pathways associated with LAIR2 expression, ClueGO and CluePedia applications were used within network visualization platform Cytoscape, as previously described [33,34]. The top 500 JetSet v1.6 selected probes from correlating with LAIR2 expression (Pearson’s correlation co-efficient r > 0.37; p < 0.00001) were used for Gene Ontology (GO) analysis within ClueGO. GO analysis was performed using the GO BiologicalProcess-EBI version 20.11.2017 dataset. Terms found in the 3–8 GO interval, with at least 3 genes from the initial list representing minimum 4% were selected with a kappa score of 0.68, with p < 0.05 significance. GO Fusion was applied to reduce the redundancy. Gene set enrichment analysis (GSEA) [35] was performed using the javaGSEA with a priori defined gene signatures [36]. Gene signatures were mapped to Affymetrix HG_U133_Plus2 microarray probes and significantly enriched signatures were determined using a Pearson metric after generating a continuous phenotype using LAIR2 (207509_s_at) expression within the University Health Network (UHN) dataset. Immune deconvolution analysis xCell [37] was used to estimate immune cell subset enrichment scores within the top and bottom quartile of LAIR2 expressing patients with UHN LUAD and enrichment scores were correlated to LAIR2 expression.

2.3. Cell Isolation, Expansion and ELISA

Peripheral blood mononuclear cells (PBMCs) from healthy donors and tumor-infiltrating lymphocytes from LUAD patients were obtained with consent and a protocol approved by the UHN Research Ethics Board (#05–0221). For selection of CD4+, CD8+, CD3−CD56+ natural killer (NK), and CD3−CD56− cells, PBMCs were sequentially enriched for each subset by first selecting for NK cells with CD56 microbeads. To select for CD8+ T cells, CD8 microbeads were used against the CD56-negative flow through cells. To select for CD4+ T cells, CD4 microbeads were used against the CD56-CD8-negative flow through cells, with the remaining flow through collected as the CD3−CD56− negative fraction. Enriched populations were each cultured at 1 × 106 cells/mL in the presence of 1× phorbol myristate acetate (PMA)/ionomycin (eBioscience Cell Stimulation Cocktail (500×), ThermoFisher, Waltham, MA, USA) for 4 d and supernatants collected for ELISA analysis [25]. To expand tumor-infiltrating T cells (TILs), fresh lung resection was dissociated in Liberase solution (0.5 mg/mL, Sigma Aldrich, St. Louis, MO, USA) for 45 min at 37 °C, followed by treatment for 5 min with red blood cell lysis buffer (0.15 M NH4Cl, 0.01 M KHCO3, 0.1 mM Na2EDTA). The resulting cell suspension was filtered through a 70 µm filter to remove debris. Dissociated cells were plated overnight with IL-2 (2000 U/mL) and on day 3, expanded with irradiated K562 artificial antigen-presenting cells (aAPC) expressing mOKT3, CD86, and 41BBL (kindly provided by Dr. Naoto Hirano, Princess Margaret Cancer Centre, UHN, Toronto, Canada) at 2:1 aAPC:T cell ratio in the presence of IL-2 (100 U/mL), IL-15 (10 ng/mL), and IL-21 (10 ng/mL). Expanding TILs were restimulated with aAPC and cytokines every 4–7 d. After 15 d of expansion, TILs were sequentially selected for CD8, with negative flow through selected for CD4 using positive selection microbeads and 1 × 106 cells/mL were restimulated in the presence of 1× PMA/ionomycin (eBioscience Cell Stimulation Cocktail) for 4 d and supernatants collected for analysis. LAIR2 was detected in supernatants from various cell cultures using LAIR2 ELISA kit (SinoBiological US Inc., Wayne, PA, USA).

2.4. Cell Adhesion and Invasion Assay

NCI-H661, HCC4006, and HCC827 lung cancer cell lines were obtained from the American Type Culture Collection (ATCC) and were cultured in Roswell Park Memorial Institute (RPMI) 1640 media (ThermoFisher, catalogue: 11875093) supplemented with 10% fetal bovine serum (FBS) (Sigma Aldrich, catalogue: F1051). To determine adhesion of cell lines towards immobilized protein, 96-well plates were incubated with 2% BSA, 10 µg/mL rat collagen I or 10 µg/mL rhLAIR2 for 1 h at 37 °C (R & D Systems, Minneapolis, MN, USA). The next day, plates were washed and blocked with 2% BSA prior to addition of tumor cells. Tumor cells were trypsinized and washed twice with RPMI. The 105 cells/well were seeded on the plate and incubated for 40 min at 37 °C. Following incubation, non-adherent cells were washed away and cell adhesion was quantified using crystal violet, absorbance 595 nm. To inhibit collagen mediated binding, rhLAIR2 (10 µg/mL) was added to cell culture media during 40 min period. For 3D migration assays, tumor cells were cultured as homospheroid using the Nunclon Sphera plate (VWR, Mississauga, ON, USA) in co-culture with HuT78 T cells (ATCC) previously transduced using lentivirus to express GFP or LAIR2 (GeneCopoeia, Rockville, MD, USA). Briefly, confluent monolayers were trypsinized, resuspended as single cells in RPMI + 10% FBS and 8000 cells were plated in drop of 40 µL per well of 96-well Sphera-plate. After 48 h, spheroids were flushed in 160 µL/well of collagen solution comprising of 50,000 Hut78 T cells suspended in 9 volumes of rat tail collagen I (3.8 mg/mL; Advanced BioMAtrix; San Diego, CA, USA), 1 volume of neutralization solution (Advanced BioMatrix), and 8.5 volumes of 2× RPMI medium. After 10 d, the 3D-matrix invasion areas were analyzed using texture analysis available as a plugin for the freeware ImageJ analysis software (http://imagej.nih.gov/ij/index.html, accessed on 16 April 2019) to evaluate the pixels in different directions around the spheroid, which is a measure of invading area. All images were taken on an EVOS 700 cell imaging system (ThermoFisher).

2.5. Single Cell RNASeq Analysis

Single cell RNASeq dataset GSE99254 was obtained from Gene Expression Omnibus (GEO) and normalized to log2 transcripts per kilobase million (TPM) + 1. 2D analysis of individual features extracted from datasets was generated and displayed as density plots in FlowJo v10. t-distributed stochastic neighbor embedding (t-SNE) plots were generated from online resource of dataset GSE99254 available at (http://lung.cancer-pku.cn/, accessed on 3 March 2019). To generate the CD4+ LAIR2+ Treg gene signature, a t-test was used on the GSE99254 scRNASeq dataset to identify genes that are differentially expressed between CD4+ LAIR2+ and CD4+ LAIR2− T cell clusters. We identified 231 genes highly expressed in the CD4+ LAIR2+ cluster (Benjamini–Hochberg-adjusted p-value < 0.001 and fold change ≥ 1.55). This set of 231 genes were defined as CD4+ LAIR2+ high TILs signature. The LAIR2 signature scores were calculated as the average of the across-sample normalized log2 median-centered expression levels of these 231 signature genes. The samples in each cohort were split into high- and low-survival risk groups based on LAIR2 signature score using median as the cut-off. The CD4+ LAIR2+ signature was validated using LUAD specimens from the TCGA Research Network (https://www.cancer.gov/tcga, accessed on 10 March 2020) and NCI Director’s Challenge lung adenocarcinoma dataset (ca00182) [38] of resected tumors with available clinical and survival data.

2.6. Statistical Analysis

The R package survival and survminer were used for the survival analysis. The primary endpoint was overall survival (OS), and survival time was measured from the date of diagnosis until the date of death or date last seen alive. Kaplan–Meier plots with log-rank test to determine significance of OS and Cox proportional hazards regression to determine relative risk of death were used to analyze the survival data. The R package metaphor [39] was used to calculate the overall HR.

3. Results

3.1. High LAIR2 Expression Is Associated with Poor LUAD Patient Survival

To identify immune-related genes that are significantly prognostic, we separately explored the gene expression profiles of LUAD (n = 128) and lung squamous cell carcinoma (LUSC, n = 53) patients [32]. High LAIR2 expression was univariately associated with poorer OS (Figure 1A; HR = 2.08, 95% CI 1.20–3.64, p = 0.0071) in LUAD, but was not prognostic among LUSC patients (Figure 1B; HR = 1.01, 95% CI 0.39–2.61; p = 0.97). Furthermore, LAIR1, the most closely related gene family member of LAIR2, was also not prognostic (Figure S1). LAIR2 expression was independent of known pathologic-clinical correlations including age, sex, smoking history, histological pattern or stage (Table S1) and after adjusting for these factors, multivariable analyses showed that LAIR2 expression and stage remained significantly prognostic (Table 1).

3.2. CD4+ T Cells Are a Major Source of Soluble LAIR2

To understand the role of LAIR2 in lung cancer, we performed GO analysis, querying biological processes within our bulk transcriptomic dataset and found that the most significant gene ontologies associated with LAIR2 expression were involved in immune-related functions. The largest network of genes concerns the regulation of immune system processes (76 genes, p = 2.69 × 10−9) (Figure 2A), suggesting that LAIR2 expression was associated with immune, rather than epithelial, compartment regulation. Furthermore, gene set enrichment analysis (GSEA) using curated gene sets with biologically defined functions in lung cancer immunity [36] showed that a high expression of LAIR2 was associated with “T cell signatures of lung cancer” and “exhaustion”, but not resident memory T cells (Figure S2). These data suggest that LAIR2 expression may regulate tumor infiltrating populations rather than tissue resident cells.
To determine which subset of immune cells might secrete LAIR2, purified CD4+, CD8+, CD3−CD56+ NK, and CD3−CD56− cells, together with unsorted healthy donor, PBMCs were stimulated in vitro and their production of LAIR2 was measured. We found that NK cells and CD3−CD56− cells produced minimal level of LAIR2 whereas CD8+ T cells and unsorted PBMC secreted low levels of LAIR2. Interestingly, the predominant source of LAIR2 was derived from CD4+ T cells where CD4+ T cells produced a 4-fold greater amount of LAIR2 than CD8+ T cells (p < 0.0001, Figure 2B). Collectively, these data indicate that LAIR2 expression was associated with immune processes and that LAIR2 was predominantly secreted by CD4+ T cells.

3.3. T Cell Derived LAIR2 Enhances Tumor Cell Invasion

With the finding that T cells were a source of LAIR2 secretion, we sought to determine if LAIR2 may have an effect on tumor cell adhesion and invasion. Using cellular adhesion assays, we first found that recombinant human LAIR2 (rhLAIR2), immobilized onto a plate, was capable of increasing cellular adhesion of human NSCLC cell lines HCC4006 and HCC827, relative to the BSA negative controls (Figure 3A,B). Additionally, we observed that the addition of soluble rhLAIR2 significantly reduced the adherence of NSCLC cell lines HCC4006 and HCC827 (p = 0.0022) towards plate-bound collagen I (Figure 3A,B), collectively suggesting that LAIR2 and collagen I may interact with similar receptors on tumor cells.
With rhLAIR2 having the ability to alter cancer cell binding to collagen, we modeled its presence within the TME by overexpressing LAIR2 in Hut78 T cells and determined if paracrine expression may alter tumor invasion into extracellular matrix. HCC4006 and HCC827 spheroids were embedded in rat type I collagen matrix (the type of collagen that can get cross-linked) containing T cells secreting LAIR2. Consistent with the oncogenic role of LAIR2, matrix embedded with T cells secreting LAIR2, but not control (GFP), were capable of increasing invasion of both HCC4006 and HCC827 into matrix. This led to ~3- or 10-fold increase in the number of invasive foci entering matrix, respectively (Figure 3C,D), indicating that LAIR2-producing T cells may alter tumor cell migration.

3.4. LAIR2 Is Expressed by Tumor-Associated Treg Cells

Though peripheral T cells, particularly CD4+ T cells can secrete LAIR2, it is important to know the origin of LAIR2 within tumor tissue T cells. We took advantage of single cell RNASeq (scRNASeq) dataset of TILs derived from 14 surgically resected treatment naïve NSCLC patients that contained expression data from ~9000 sorted CD4+ and CD8+ T cells derived from TILs [17]. Consistent with observed biased secretion of LAIR2 by peripheral CD4+ T cells, the majority of LAIR2 expressing TILs co-localized with CD4+ T cell expression (Figure 4A). Further, LAIR2 expression could be defined within T cells as either being LAIR2+ or LAIR2− at a defined cut-off of log2(TPM + 1) > 4 or <4. When segregating cells this way, 11.3% of all TILs co-expressed LAIR2 and CD4, while only 2.4% of TILs co-expressed LAIR2 and CD8A at log2(TPM + 1) > 4 (Figure 4B), indicating differences in LAIR2+ expression between different T cell compartments of the tumor samples. This was in contrast to LAIR1 expression, which was found to be distributed amongst all clusters of T cells (Figure S3A), consistent with its known ubiquitous distribution [24]. To confirm that CD4+ T cells were the major source of LAIR2 in TILs, we expanded three NSCLC patient TILs samples and analyzed LAIR2 secretion. Though not reaching statistical significance, we observed a trend consistent with biased expression of LAIR2 as seen in scRNASeq data and found a 2-fold higher secretion of LAIR2 by tumor infiltrating CD4+ T cells than CD8+ T cells (Figure 4C).
Since the majority of LAIR2+ cells within TILs derived from CD4+ T cells, we queried the scRNASeq dataset by comparing the expression profile of CD4+ LAIR2+ cells with that of CD4+ LAIR2− cells within the tumor-infiltrating fraction. Analyzing this way we found that CD4+ LAIR2+ cells highly expressed the Treg cell lineage marker FOXP3 with t-SNE plots showing co-localization of FOXP3 and LAIR2 expression (Figure 4D). By gating specifically on CD4+ LAIR2+ TILs, we found that more than 70% of cells expressed the Treg transcription factor FOXP3 at log2 (TPM + 1) > 4 (Figure 4D, lower panel). CD4+ LAIR2+ cells highly expressed Treg cell lineage markers, including IL2RA, CTLA4, TNFRSF18, ICOS, TIGIT, and tumor-associated Treg cell marker CCR8 [18] (Figure 4D, right panel; Figure S3B), consistent with CD4+ LAIR2+ cells being of Treg lineage and not recently activated T cells. Additionally, as dropout events are known to occur in scRNASeq platforms, we confirmed the association of LAIR2 with Treg cell gene signature within bulk genomic dataset using gene expression deconvolution algorithm xCell (Figure S4A). We found that LAIR2 expression was negatively associated with mast, endothelial and epithelial cell enrichment scores (Spearman’s rank correlation rs = −0.402; p = 0.001), but positively associated with Treg cell enrichment score (rs = 0.482; p < 1.00 × 10−5) (Figure S4B). Collectively, our results support the notion that LAIR2 expression marks the presence of tumor-associated Treg cells.

3.5. CD4+ LAIR2+ Tumor-Associated Treg Gene Signature Is Prognostic in LUAD

Having initially found LAIR2 to be adversely prognostic, we sought to validate the prognostic association of LAIR2 in additional LUAD patient cohorts. Using TCGA (n = 439) and the NCI Director’s Challenge Consortium (DCC) LUAD (n = 488) datasets, we found that the gene signature associated with CD4+ LAIR2+ TILs (Figure 4D and Table S3) was significantly prognostic in both TCGA (HR = 1.38; p = 0.032, Figure 5A) and DCC (HR = 1.34; p = 0.028, Figure 5B) datasets and was predictive of adverse patient outcomes, validating our initial discovery. Notably, the CD4+ LAIR2+ TILs cell signature is significant across both RNA sequencing (TCGA) and microarray (DCC) datasets. Additionally, when the presence of CD4+ T cells was taken into consideration, the CD4+ LAIR2+ TILs signature gained greater significance within each dataset, TCGA (HR = 1.54; p = 0.0045, Figure S5A) and DCC (HR = 1.37; p = 0.018, Figure S5C), which was not observed when normalized to CD8+ T cells (Figure S5B,D), confirming the association between LAIR2 expression and presence of CD4+ tumor-associated Treg cells. Overall, these results demonstrate that LAIR2 expression may define subsets of adversely prognostic Foxp3 Treg cells.

4. Discussion

Using patient derived datasets, we found that the presence of the soluble collagen receptor LAIR2 was associated with poorer prognosis in early stage LUAD patients. LAIR2 expression was correlated with gene ontologies involving negative immune regulations. From single-cell transcriptomics of TILs, LAIR2 was found to be predominantly expressed by tumor-associated CD4 Treg cells, to which a LAIR2-Treg cell derived signature was adversely prognostic in LUAD. In addition, we found that T cell derived LAIR2 was capable of increasing tumor cell invasion into extracellular collagen matrix.
Amongst tumor microenvironmental factors, receptors that interact with extracellular matrix components, such as collagen, play important roles in regulating tumor progression. Alterations to the biophysical property of collagen, such as the stiffening of collagen within the TME can lead to increased tumor migration and metastasis [40,41,42,43,44]. The LAIR family of proteins are immune expressed collagen receptors that link the extracellular matrix to the immune system [24]. LAIR1, an inhibitory receptor expressed basally on the majority of immune cells has been shown to bind collagen and inhibit CD8+ T cells [23,24]. In contrast, LAIR2 which lacks a transmembrane domain and is known to be secreted, has been postulated to compete with LAIR1 and thus alleviate collagen-induced immune inhibition [25]. Indeed, in a murine model of lung cancer, the overexpression of LAIR2 within tumor cells was found to rescue collagen-induced inhibition of anti-tumor CD8+ T cells and response to anti-PD1 therapy, resulting in tumor reduction [23]. Paradoxically, from our transcriptomic analysis of human LUAD, we found that LAIR2 expression was associated with adverse patient outcomes and signatures of negative immune regulation rather than conditions associated with favorable tumor immunity. Interestingly, this was not observed in our LUSC discovery dataset, which shows no statistical role for LAIR2 in prognosis (Figure 1B). This is likely due to differences in the immunologic signatures observed between LUAD and LUSC, which influence the composition of immune infiltrates that contribute to prognosis [10,45,46]. Whereas LUAD prognosis is strongly associated with the presence of B cells, LUSC prognosis is associated with a lack of myeloid dendritic cells and neutrophil signatures, highlighting major differences in the immune regulation of theses NSCLC subtypes [46].
Although experimental models provide evidence that LAIR2 can abrogate collagen-induced LAIR1-mediated inhibition, given the ubiquitous presence of LAIR1 on most immune cells, it remained unclear which cells may be regulated from the presence of LAIR2 in situ. We show that CD4+ T cells derived by PBMCs or TILs were the major producers of LAIR2 (Figure 2B), highlighting differences observed between patient tissue and experimental systems [23]. Using scRNASeq of TILs from LUAD, we found that LAIR2 was predominantly expressed by tumor-associated CD4+ FoxP3+ Treg cells (Figure 4), the presence of which have widely been associated with negative outcomes in a variety of cancers [11,12,13]. Though we found ex vivo expanded CD4+ and CD8+ T cells derived from PBMCs or TILs capable of LAIR2 secretion (Figure 2B and Figure 4C), selective expression by tumor-associated Treg cells in situ suggests that the tumor microenvironment may have a role in regulating LAIR2 expression. Although LAIR2 was found to be associated with global signatures of T cell exhaustion (Figure S2), we show for the first time that LAIR2 was co-expressed with markers found on highly activated tumor-associated Treg cells (Figure 4D). This collectively formed a CD4+ LAIR2+ TILs signature that was prognostically validated across NSCLC microarray and RNA sequencing datasets (Figure 5). It was unclear why LAIR2 was selectively expressed by tumor-associated Treg cells and not other T subsets within TILs. However, given the highly collagenous nature of the TME, autocrine expression of LAIR2 may provide Treg cells with a survival benefit, as high collagen density has been associated with reduced T cell activation and expression of cytotoxicity markers [23,47,48].
Consistent with its adversely prognostic role in adenocarcinoma NSCLC, we found that LAIR2 could act in trans to regulate tumor cell adhesion and invasion. Using an in vitro model of tumor migration into type 1 collagen, we observed an increase in tumor cell invasion in the presence of LAIR2 secreting T cells (Figure 3). These results suggested that LAIR2 may have roles beyond alleviating collagen-induced immune inhibition [23,25] and may function to regulate tumor migration through an unknown mechanism that likely involve its function as a collagen receptor (Figure 5C). Though our study did not explore the role that LAIR2 may have in checkpoint blockade immunotherapies, several studies have highlighted a predictive role for tumor-infiltrating Treg cells in response to PD-1/PD-L1 blockade. The presence of PD-1+ or PD-L1+ Treg cells was predictive of response to checkpoint inhibitors, indicating a dependency on this pathway, to which blockade increased CD8+ T cell responses [49,50,51]. Given this observation, it is likely that LAIR2 have an adverse role in immunity induced by checkpoint inhibition. Taken together, our data support a role for LAIR2 expression in tumor-associated Foxp3+ Treg cells. LAIR2, which defines a subset of adversely prognostic Treg cells in lung adenocarcinoma, therefore provides a potential target for immunotherapeutic development.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/cancers14010205/s1, Table S1. Patient demographics, Tables S2 and S3. Gene lists for LAIR2 associated genes and signatures, Figure S1. LAIR1 expression is not prognostic in LUAD, Figure S2. GSEA analysis of indicated gene sets correlating to LAIR2 expression. GSEA analysis shows that LAIR2 expression is correlated to signatures of T cell exhaustion. GSEA plots are presented as described in [35], where the green line represents the enrichment score for the gene set, the black bar-code represents members of the gene set contributing most to the enrichment score and their location along the ranked list, and the gray bar represents the value of the ranking metric. See https://www.gsea-msigdb.org/gsea/doc/GSEAUserGuideFrame.html?Interpreting_GSEA (accessed on 13 December 2021) for detailed description of GSEA analysis and interpretation. Normalized enrichment score (NES), FDR q-value (q) and ranked list method (Metric) are shown, Figure S3. scRNASeq analysis indicates that LAIR2 is pre-dominantly expressed by tumor-associated Treg cells. A, LAIR2, and LAIR1 expressing cells rarely co-localize. Left, t-SNE plot of LUAD TILs showing indicated genes. Right, dot plot of indicated genes gated using (TPM + 1) > 4 as cut-off for expression. B, t-SNE analysis of Treg associated genes. Displayed are t-SNE dimensions 1 and 2, with each data point representing a single cell, colored by the intensity of expression log2(TPM + 1) of indicated gene, (see https://marissafahlberg.com/a-basic-overview-of-using-t-sne-to-analyze-flow-cytometry-data/, accessed on 13 December 2021, for detailed primer), Figure S4. LAIR2 expression correlates with immune subset signatures. A, Left, immune cell estimates were performed on the upper and lower quartiles of LAIR2 expressing patients (UHN181 LUAD) and immune subset enrichment was clustered by high or low LAIR2 expression. Each row represents the normalized enrichment score of immune cell population as estimated by xCell. Each column represents a tumor sample classified as either having high or low LAIR2 expression. Right, immune enrichment score as classified by xCell for patients with high or low LAIR2 expression. Each dot represents a patient, p-value was determined by two-tailed, pairwise Mann–Whitney test. B, Spearman rank correlation of immune enrichment score with LAIR2 expression. T central memory (Tcm), T helper 1 (Th1), T effector memory (Tem), natural killer T (NKT), gamma delta T (Tgd), natural killer (NK), plasmacytoid dendritic cells (pDC), T helper 1 (Th2), dendritic cells (DC), conventional dendritic cells (cDC), immature dendritic cells (iDC), and other subset signatures are shown, as described in [37], Figure S5. CD4+ LAIR2+ gene signature is prognostic in NSCLC validation. Kaplan–Meier plots showing OS of LUAD patients in indicated datasets when normalized to A and C, CD4+ T cells or B and D, CD8+ T cells. Patients were divided into two risk groups based on the median value of the gene signature risk scores. Number at risk indicates the number of participants who were event free at indicated times.

Author Contributions

Conceptualization, D.L., M.-S.T. and L.Z.; Methodology, D.L., Q.L., R.N., C.Z., L.F. and C.-Q.Z.; Formal analysis, D.L., Q.L., R.N., C.Z., L.F., M.C. and C.-Q.Z.; Data curation, Q.L. and C.-Q.Z.; Funding acquisition, M.-S.T. and L.Z.; Supervision, M.-S.T. and L.Z.; Writing—original draft, D.L.; Writing—review and editing, D.L., Q.L., R.N., C.Z., L.F., M.C., M.-S.T. and L.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Canadian Institutes of Health Research grant (#142199 to L.Z.), CIHR Foundation grant FDN-148395 (to M.-S.T.), Canadian Cancer Society IMPACT grants (#704121 to L.Z. and #701595 to M.-S.T.), and Terry Fox Foundation Special Training Initiative in Health Research in Molecular Pathology of Cancer at CIHR (STP 53912; to M.-S.T.). M.-S.T. is the M. Qasim Choksi Chair in Lung Cancer Translational Research.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Review Ethics Board of the University Health Network (protocol: 05–0221 and 25-May-2021).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Datasets available in publicly accessible repositories as indicated in Section 2.

Acknowledgments

We would like to thank Sebastiao Martins Filho (Princess Margaret Cancer Centre, UHN, Toronto, Canada) and Nadeem Moghal (Princess Margaret Cancer Centre, UHN, Toronto, Canada) for helpful discussions and suggestions for this study.

Conflicts of Interest

The authors have no potential conflicts of interest to disclose.

Abbreviations

NSCLC: non-small cell lung cancer; LUAD: lung adenocarcinoma; LUSC: lung squamous cell carcinoma; TILs: tumor infiltrating T lymphocytes; TME: tumor microenvironment; scRNASeq: single cell RNASeq; Treg: regulatory T cells.

References

  1. Herbst, R.S.; Morgensztern, D.; Boshoff, C. The Biology and Management of Non-Small Cell Lung Cancer. Nature 2018, 553, 446–454. [Google Scholar] [CrossRef] [PubMed]
  2. Reck, M.; Rodríguez-Abreu, D.; Robinson, A.G.; Hui, R.; Csőszi, T.; Fülöp, A.; Gottfried, M.; Peled, N.; Tafreshi, A.; Cuffe, S.; et al. Pembrolizumab versus Chemotherapy for PD-L1-Positive Non-Small-Cell Lung Cancer. N. Engl. J. Med. 2016, 375, 1823–1833. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Herbst, R.S.; Baas, P.; Kim, D.-W.; Felip, E.; Pérez-Gracia, J.L.; Han, J.-Y.; Molina, J.; Kim, J.-H.; Arvis, C.D.; Ahn, M.-J.; et al. Pembrolizumab versus Docetaxel for Previously Treated, PD-L1-Positive, Advanced Non-Small-Cell Lung Cancer (KEYNOTE-010): A Randomised Controlled Trial. Lancet 2016, 387, 1540–1550. [Google Scholar] [CrossRef]
  4. Binnewies, M.; Roberts, E.W.; Kersten, K.; Chan, V.; Fearon, D.F.; Merad, M.; Coussens, L.M.; Gabrilovich, D.I.; Ostrand-Rosenberg, S.; Hedrick, C.C.; et al. Understanding the Tumor Immune Microenvironment (TIME) for Effective Therapy. Nat. Med. 2018, 24, 541. [Google Scholar] [CrossRef]
  5. Wei, S.C.; Duffy, C.R.; Allison, J.P. Fundamental Mechanisms of Immune Checkpoint Blockade Therapy. Cancer Discov. 2018, 8, 1069–1086. [Google Scholar] [CrossRef] [Green Version]
  6. Chen, X.; Song, E. Turning Foes to Friends: Targeting Cancer-Associated Fibroblasts. Nat. Rev. Drug. Discov. 2019, 18, 99–115. [Google Scholar] [CrossRef]
  7. Joyce, J.A.; Pollard, J.W. Microenvironmental Regulation of Metastasis. Nat. Rev. Cancer 2009, 9, 239–252. [Google Scholar] [CrossRef]
  8. Bremnes, R.M.; Busund, L.-T.; Kilvær, T.L.; Andersen, S.; Richardsen, E.; Paulsen, E.E.; Hald, S.; Khanehkenari, M.R.; Cooper, W.A.; Kao, S.C.; et al. The Role of Tumor-Infiltrating Lymphocytes in Development, Progression, and Prognosis of Non-Small Cell Lung Cancer. J. Thorac. Oncol. 2016, 11, 789–800. [Google Scholar] [CrossRef] [Green Version]
  9. Remark, R.; Becker, C.; Gomez, J.E.; Damotte, D.; Dieu-Nosjean, M.-C.; Sautès-Fridman, C.; Fridman, W.-H.; Powell, C.A.; Altorki, N.K.; Merad, M.; et al. The Non-Small Cell Lung Cancer Immune Contexture. A Major Determinant of Tumor Characteristics and Patient Outcome. Am. J. Respir. Crit. Care Med. 2015, 191, 377–390. [Google Scholar] [CrossRef]
  10. Thorsson, V.; Gibbs, D.L.; Brown, S.D.; Wolf, D.; Bortone, D.S.; Ou Yang, T.-H.; Porta-Pardo, E.; Gao, G.F.; Plaisier, C.L.; Eddy, J.A.; et al. The Immune Landscape of Cancer. Immunity 2018, 48, 812–830.e14. [Google Scholar] [CrossRef] [Green Version]
  11. Tanaka, A.; Sakaguchi, S. Regulatory T Cells in Cancer Immunotherapy. Cell Res. 2017, 27, 109–118. [Google Scholar] [CrossRef] [Green Version]
  12. Chao, J.L.; Savage, P.A. Unlocking the Complexities of Tumor-Associated Regulatory T Cells. J. Immunol. 2018, 200, 415–421. [Google Scholar] [CrossRef] [Green Version]
  13. Scott, E.N.; Gocher, A.M.; Workman, C.J.; Vignali, D.A.A. Regulatory T Cells: Barriers of Immune Infiltration Into the Tumor Microenvironment. Front. Immunol. 2021, 12, 702726. [Google Scholar] [CrossRef]
  14. Shang, B.; Liu, Y.; Jiang, S.; Liu, Y. Prognostic Value of Tumor-Infiltrating FoxP3+ Regulatory T Cells in Cancers: A Systematic Review and Meta-Analysis. Sci. Rep. 2015, 5, 15179. [Google Scholar] [CrossRef] [Green Version]
  15. De Leeuw, R.J.; Kost, S.E.; Kakal, J.A.; Nelson, B.H. The Prognostic Value of FoxP3+ Tumor-Infiltrating Lymphocytes in Cancer: A Critical Review of the Literature. Clin. Cancer Res. 2012, 18, 3022–3029. [Google Scholar] [CrossRef] [Green Version]
  16. Saleh, R.; Elkord, E. FoxP3+ T Regulatory Cells in Cancer: Prognostic Biomarkers and Therapeutic Targets. Cancer Lett. 2020, 490, 174–185. [Google Scholar] [CrossRef]
  17. Guo, X.; Zhang, Y.; Zheng, L.; Zheng, C.; Song, J.; Zhang, Q.; Kang, B.; Liu, Z.; Jin, L.; Xing, R.; et al. Global Characterization of T Cells in Non-Small-Cell Lung Cancer by Single-Cell Sequencing. Nat. Med. 2018, 24, 978–985. [Google Scholar] [CrossRef]
  18. Plitas, G.; Konopacki, C.; Wu, K.; Bos, P.D.; Morrow, M.; Putintseva, E.V.; Chudakov, D.M.; Rudensky, A.Y. Regulatory T Cells Exhibit Distinct Features in Human Breast Cancer. Immunity 2016, 45, 1122–1134. [Google Scholar] [CrossRef] [Green Version]
  19. Zheng, C.; Zheng, L.; Yoo, J.-K.; Guo, H.; Zhang, Y.; Guo, X.; Kang, B.; Hu, R.; Huang, J.Y.; Zhang, Q.; et al. Landscape of Infiltrating T Cells in Liver Cancer Revealed by Single-Cell Sequencing. Cell 2017, 169, 1342–1356.e16. [Google Scholar] [CrossRef] [Green Version]
  20. Miragaia, R.J.; Gomes, T.; Chomka, A.; Jardine, L.; Riedel, A.; Hegazy, A.N.; Whibley, N.; Tucci, A.; Chen, X.; Lindeman, I.; et al. Single-Cell Transcriptomics of Regulatory T Cells Reveals Trajectories of Tissue Adaptation. Immunity 2019, 50, 493–504.e7. [Google Scholar] [CrossRef] [Green Version]
  21. De Simone, M.; Arrigoni, A.; Rossetti, G.; Gruarin, P.; Ranzani, V.; Politano, C.; Bonnal, R.J.P.; Provasi, E.; Sarnicola, M.L.; Panzeri, I.; et al. Transcriptional Landscape of Human Tissue Lymphocytes Unveils Uniqueness of Tumor-Infiltrating T Regulatory Cells. Immunity 2016, 45, 1135–1147. [Google Scholar] [CrossRef] [Green Version]
  22. Zhang, L.; Yu, X.; Zheng, L.; Zhang, Y.; Li, Y.; Fang, Q.; Gao, R.; Kang, B.; Zhang, Q.; Huang, J.Y.; et al. Lineage Tracking Reveals Dynamic Relationships of T Cells in Colorectal Cancer. Nature 2018, 564, 268–272. [Google Scholar] [CrossRef]
  23. Peng, D.H.; Rodriguez, B.L.; Diao, L.; Chen, L.; Wang, J.; Byers, L.A.; Wei, Y.; Chapman, H.A.; Yamauchi, M.; Behrens, C.; et al. Collagen Promotes Anti-PD-1/PD-L1 Resistance in Cancer through LAIR1-Dependent CD8+ T Cell Exhaustion. Nat. Commun. 2020, 11, 4520. [Google Scholar] [CrossRef]
  24. Meyaard, L. The Inhibitory Collagen Receptor LAIR-1 (CD305). J. Leukoc. Biol. 2008, 83, 799–803. [Google Scholar] [CrossRef]
  25. Lebbink, R.J.; van den Berg, M.C.; de Ruiter, T.; Raynal, N.; van Roon, J.A.; Lenting, P.J.; Jin, B.; Meyaard, L. The Soluble Leukocyte-Associated Ig-like Receptor (LAIR)-2 Antagonizes the Collagen/LAIR-1 Inhibitory Immune Interaction. J. Immunol. 2008, 180, 1662–1669. [Google Scholar] [CrossRef] [Green Version]
  26. Lebbink, R.J.; Raynal, N.; de Ruiter, T.; Bihan, D.G.; Farndale, R.W.; Meyaard, L. Identification of Multiple Potent Binding Sites for Human Leukocyte Associated Ig-like Receptor LAIR on Collagens II and III. Matrix Biol. 2009, 28, 202–210. [Google Scholar] [CrossRef]
  27. Meyaard, L.; Adema, G.J.; Chang, C.; Woollatt, E.; Sutherland, G.R.; Lanier, L.L.; Phillips, J.H. LAIR-1, a Novel Inhibitory Receptor Expressed on Human Mononuclear Leukocytes. Immunity 1997, 7, 283–290. [Google Scholar] [CrossRef]
  28. Son, M.; Santiago-Schwarz, F.; Al-Abed, Y.; Diamond, B. C1q Limits Dendritic Cell Differentiation and Activation by Engaging LAIR-1. Proc. Natl. Acad. Sci. USA 2012, 109, E3160–E3167. [Google Scholar] [CrossRef] [Green Version]
  29. Olde Nordkamp, M.J.; Boross, P.; Yildiz, C.; Jansen, J.H.; Leusen, J.H.; Wouters, D.; Urbanus, R.T.; Hack, C.E.; Meyaard, L. Inhibition of the Classical and Lectin Pathway of the Complement System by Recombinant LAIR-2. J. Innate Immun. 2014, 6, 284–292. [Google Scholar] [CrossRef]
  30. Olde Nordkamp, M.J.; van Roon, J.A.; Douwes, M.; de Ruiter, T.; Urbanus, R.T.; Meyaard, L. Enhanced Secretion of Leukocyte-Associated Immunoglobulin-like Receptor 2 (LAIR-2) and Soluble LAIR-1 in Rheumatoid Arthritis: LAIR-2 Is a More Efficient Antagonist of the LAIR-1-Collagen Inhibitory Interaction than Is Soluble LAIR-1. Arthritis Rheum. 2011, 63, 3749–3757. [Google Scholar] [CrossRef]
  31. Simone, R.; Pesce, G.; Antola, P.; Merlo, D.F.; Bagnasco, M.; Saverino, D. Serum LAIR-2 Is Increased in Autoimmune Thyroid Diseases. PLoS ONE 2013, 8, e63282. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Der, S.D.; Sykes, J.; Pintilie, M.; Zhu, C.Q.; Strumpf, D.; Liu, N.; Jurisica, I.; Shepherd, F.A.; Tsao, M.S. Validation of a Histology-Independent Prognostic Gene Signature for Early-Stage, Non-Small-Cell Lung Cancer Including Stage IA Patients. J. Thorac. Oncol. 2014, 9, 59–64. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Bindea, G.; Mlecnik, B.; Hackl, H.; Charoentong, P.; Tosolini, M.; Kirilovsky, A.; Fridman, W.-H.; Pagès, F.; Trajanoski, Z.; Galon, J. ClueGO: A Cytoscape Plug-in to Decipher Functionally Grouped Gene Ontology and Pathway Annotation Networks. Bioinformatics 2009, 25, 1091–1093. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Mlecnik, B.; Bindea, G.; Angell, H.K.; Maby, P.; Angelova, M.; Tougeron, D.; Church, S.E.; Lafontaine, L.; Fischer, M.; Fredriksen, T.; et al. Integrative Analyses of Colorectal Cancer Show Immunoscore Is a Stronger Predictor of Patient Survival Than Microsatellite Instability. Immunity 2016, 44, 698–711. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Subramanian, A.; Tamayo, P.; Mootha, V.K.; Mukherjee, S.; Ebert, B.L.; Gillette, M.A.; Paulovich, A.; Pomeroy, S.L.; Golub, T.R.; Lander, E.S.; et al. Gene Set Enrichment Analysis: A Knowledge-Based Approach for Interpreting Genome-Wide Expression Profiles. Proc. Natl. Acad. Sci. USA 2005, 102, 15545–15550. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Ganesan, A.-P.; Clarke, J.; Wood, O.; Garrido-Martin, E.M.; Chee, S.J.; Mellows, T.; Samaniego-Castruita, D.; Singh, D.; Seumois, G.; Alzetani, A.; et al. Tissue-Resident Memory Features Are Linked to the Magnitude of Cytotoxic T Cell Responses in Human Lung Cancer. Nat. Immunol. 2017, 18, 940–950. [Google Scholar] [CrossRef] [PubMed]
  37. Aran, D.; Hu, Z.; Butte, A.J. XCell: Digitally Portraying the Tissue Cellular Heterogeneity Landscape. Genome Biol. 2017, 18, 220. [Google Scholar] [CrossRef] [Green Version]
  38. Director’s Challenge Consortium for the Molecular Classification of Lung Adenocarcicoma; Shedden, K.; Taylor, J.M.; Enkemann, S.A.; Tsao, M.S.; Yeatman, T.J.; Gerald, W.L.; Eschrich, S.; Jurisica, I.; Giordano, T.J.; et al. Gene Expression-Based Survival Prediction in Lung Adenocarcinoma: A Multi-Site, Blinded Validation Study. Nat. Med. 2008, 14, 822–827. [Google Scholar] [CrossRef]
  39. Viechtbauer, W. Conducting Meta-Analyses in R with the Metafor Package. J. Stat. Softw. 2010, 36, 48. [Google Scholar] [CrossRef] [Green Version]
  40. Fang, M.; Yuan, J.; Peng, C.; Li, Y. Collagen as a Double-Edged Sword in Tumor Progression. Tumour Biol. 2014, 35, 2871–2882. [Google Scholar] [CrossRef] [Green Version]
  41. Walker, C.; Mojares, E.; Del Río Hernández, A. Role of Extracellular Matrix in Development and Cancer Progression. Int. J. Mol. Sci. 2018, 19, 3028. [Google Scholar] [CrossRef] [Green Version]
  42. Egeblad, M.; Rasch, M.G.; Weaver, V.M. Dynamic Interplay between the Collagen Scaffold and Tumor Evolution. Curr. Opin. Cell Biol. 2010, 22, 697–706. [Google Scholar] [CrossRef] [Green Version]
  43. Elgundi, Z.; Papanicolaou, M.; Major, G.; Cox, T.R.; Melrose, J.; Whitelock, J.M.; Farrugia, B.L. Cancer Metastasis: The Role of the Extracellular Matrix and the Heparan Sulfate Proteoglycan Perlecan. Front. Oncol. 2020, 9, 1482. [Google Scholar] [CrossRef] [Green Version]
  44. Levental, K.R.; Yu, H.; Kass, L.; Lakins, J.N.; Egeblad, M.; Erler, J.T.; Fong, S.F.T.; Csiszar, K.; Giaccia, A.; Weninger, W.; et al. Matrix Crosslinking Forces Tumor Progression by Enhancing Integrin Signaling. Cell 2009, 139, 891–906. [Google Scholar] [CrossRef] [Green Version]
  45. Wu, F.; Fan, J.; He, Y.; Xiong, A.; Yu, J.; Li, Y.; Zhang, Y.; Zhao, W.; Zhou, F.; Li, W.; et al. Single-Cell Profiling of Tumor Heterogeneity and the Microenvironment in Advanced Non-Small Cell Lung Cancer. Nat. Commun. 2021, 12, 2540. [Google Scholar] [CrossRef]
  46. Liu, X.; Shang, X.; Li, J.; Zhang, S. The Prognosis and Immune Checkpoint Blockade Efficacy Prediction of Tumor-Infiltrating Immune Cells in Lung Cancer. Front. Cell Dev. Biol. 2021, 9, 707143. [Google Scholar] [CrossRef]
  47. Kaur, A.; Ecker, B.L.; Douglass, S.M.; Kugel, C.H.; Webster, M.R.; Almeida, F.V.; Somasundaram, R.; Hayden, J.; Ban, E.; Ahmadzadeh, H.; et al. Remodeling of the Collagen Matrix in Aging Skin Promotes Melanoma Metastasis and Affects Immune Cell Motility. Cancer Discov. 2019, 9, 64–81. [Google Scholar] [CrossRef] [Green Version]
  48. Kuczek, D.E.; Larsen, A.M.H.; Thorseth, M.-L.; Carretta, M.; Kalvisa, A.; Siersbæk, M.S.; Simões, A.M.C.; Roslind, A.; Engelholm, L.H.; Noessner, E.; et al. Collagen Density Regulates the Activity of Tumor-Infiltrating T Cells. J. Immunother. Cancer 2019, 7, 68. [Google Scholar] [CrossRef] [Green Version]
  49. Principe, D.R.; Chiec, L.; Mohindra, N.A.; Munshi, H.G. Regulatory T-Cells as an Emerging Barrier to Immune Checkpoint Inhibition in Lung Cancer. Front. Oncol. 2021, 11, 684098. [Google Scholar] [CrossRef]
  50. Kumagai, S.; Togashi, Y.; Kamada, T.; Sugiyama, E.; Nishinakamura, H.; Takeuchi, Y.; Vitaly, K.; Itahashi, K.; Maeda, Y.; Matsui, S.; et al. The PD-1 Expression Balance between Effector and Regulatory T Cells Predicts the Clinical Efficacy of PD-1 Blockade Therapies. Nat. Immunol. 2020, 21, 1346–1358. [Google Scholar] [CrossRef]
  51. Wu, S.-P.; Liao, R.-Q.; Tu, H.-Y.; Wang, W.-J.; Dong, Z.-Y.; Huang, S.-M.; Guo, W.-B.; Gou, L.-Y.; Sun, H.-W.; Zhang, Q.; et al. Stromal PD-L1-Positive Regulatory T Cells and PD-1-Positive CD8-Positive T Cells Define the Response of Different Subsets of Non-Small Cell Lung Cancer to PD-1/PD-L1 Blockade Immunotherapy. J. Thorac. Oncol. 2018, 13, 521–532. [Google Scholar] [CrossRef] [Green Version]
Cancers 14 00205 g001 550

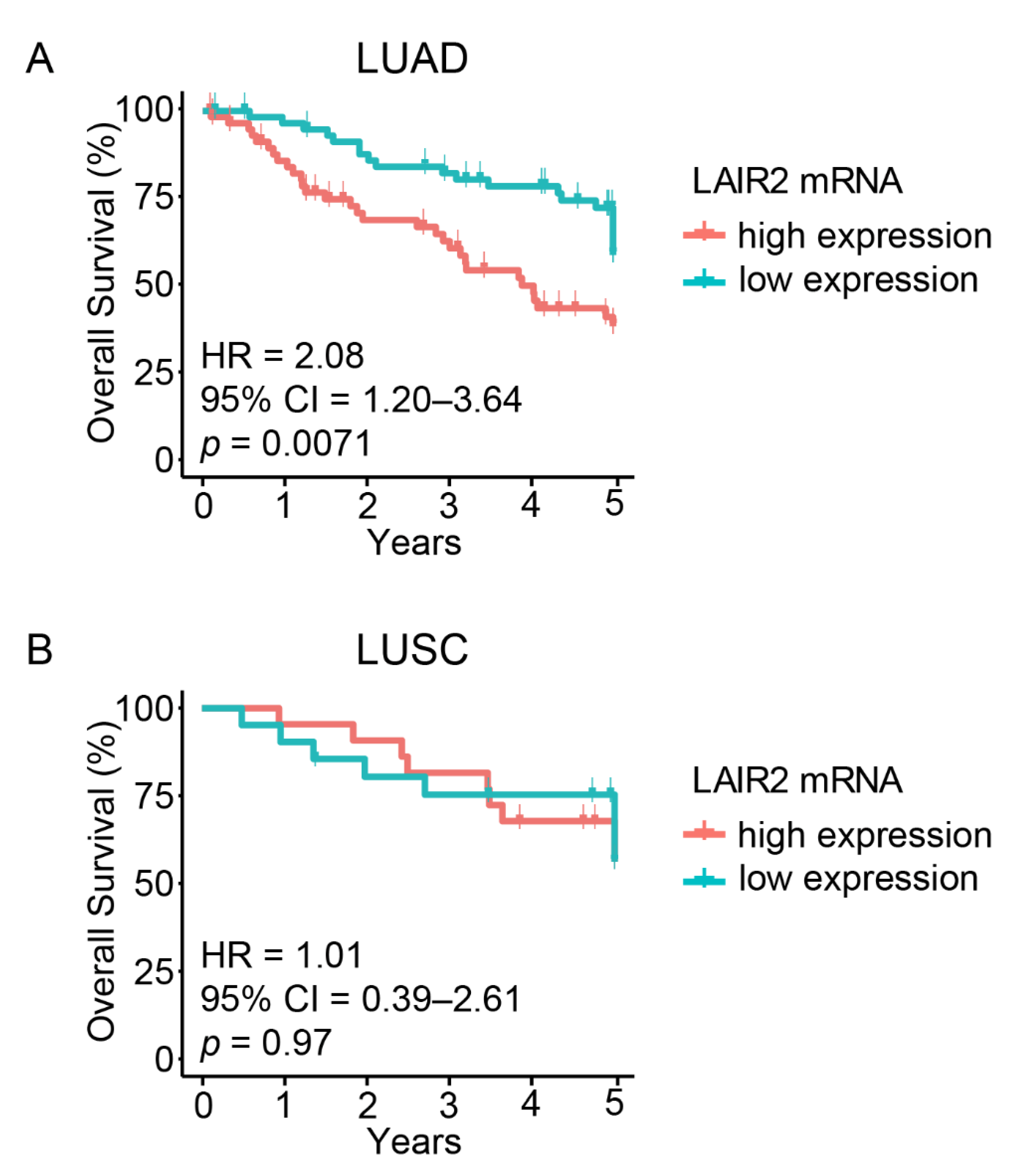

Figure 1. LAIR2 expression is associated with negative prognosis in LUAD. (A), Univariate Kaplan–Meier plots showing OS of LUAD patients or (B), LUSC patients within the UHN181.
Figure 1. LAIR2 expression is associated with negative prognosis in LUAD. (A), Univariate Kaplan–Meier plots showing OS of LUAD patients or (B), LUSC patients within the UHN181.
Cancers 14 00205 g001
Cancers 14 00205 g002 550

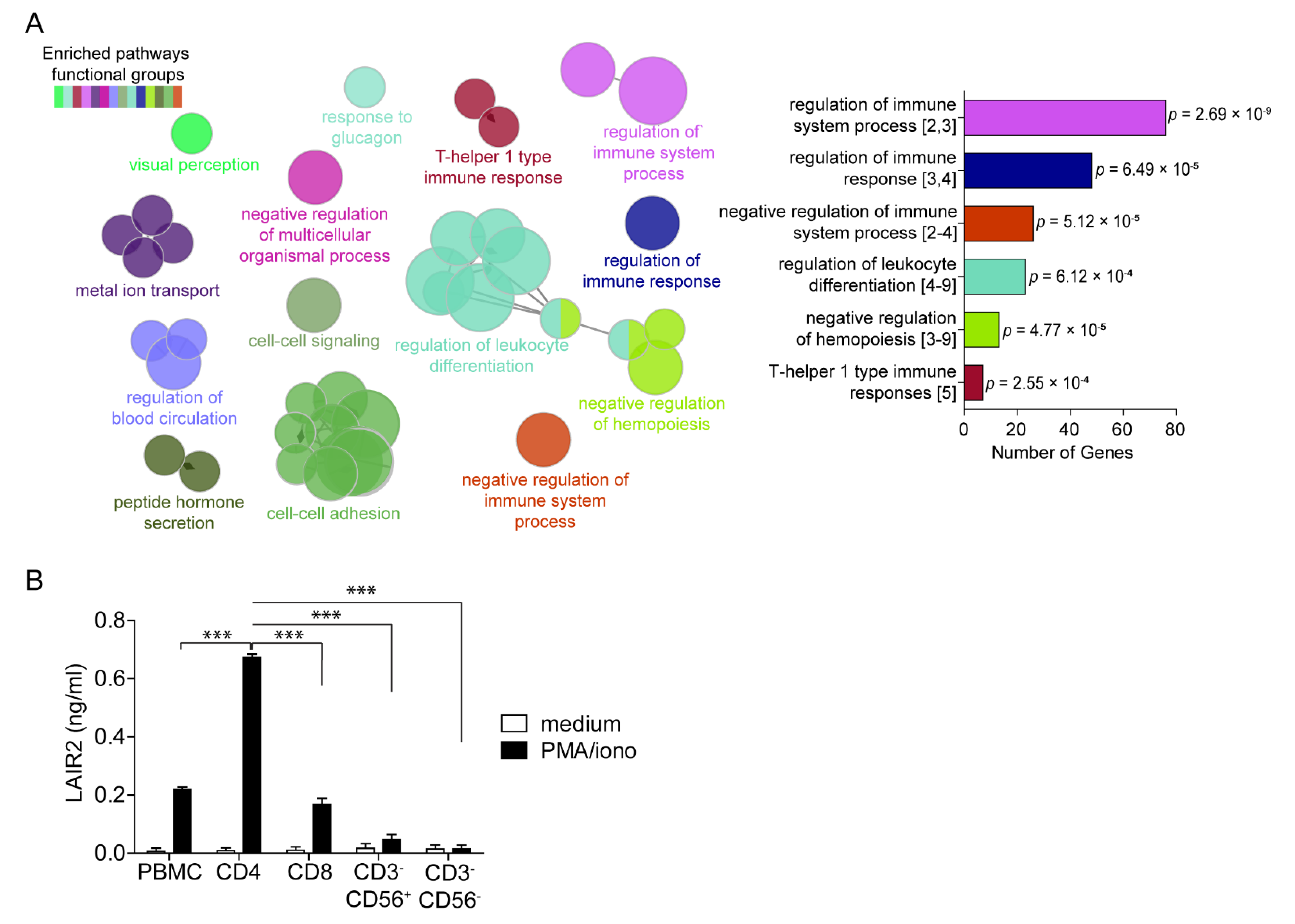

Figure 2. LAIR2 expression is associated with immune cells and secreted by CD4+ T cells. (A), Left, ontological networks formed using ClueGO/CluePedia from genes co-expressed with LAIR2 (Table S2). Right, bar graph shows number of genes and significance of GO. Square brackets denote GO level hierarchy with terms on the lower levels (greater number) being more specific, while terms on higher levels being more general in their biological definition. (B), LAIR2 secretion by sorted PBMCs stimulated with PMA/ionomycin for 4 d or left unstimulated, data are representative of two healthy donors. *** p < 0.0001 as indicated, determined by two-way ANOVA test.
Figure 2. LAIR2 expression is associated with immune cells and secreted by CD4+ T cells. (A), Left, ontological networks formed using ClueGO/CluePedia from genes co-expressed with LAIR2 (Table S2). Right, bar graph shows number of genes and significance of GO. Square brackets denote GO level hierarchy with terms on the lower levels (greater number) being more specific, while terms on higher levels being more general in their biological definition. (B), LAIR2 secretion by sorted PBMCs stimulated with PMA/ionomycin for 4 d or left unstimulated, data are representative of two healthy donors. *** p < 0.0001 as indicated, determined by two-way ANOVA test.
Cancers 14 00205 g002
Cancers 14 00205 g003 550

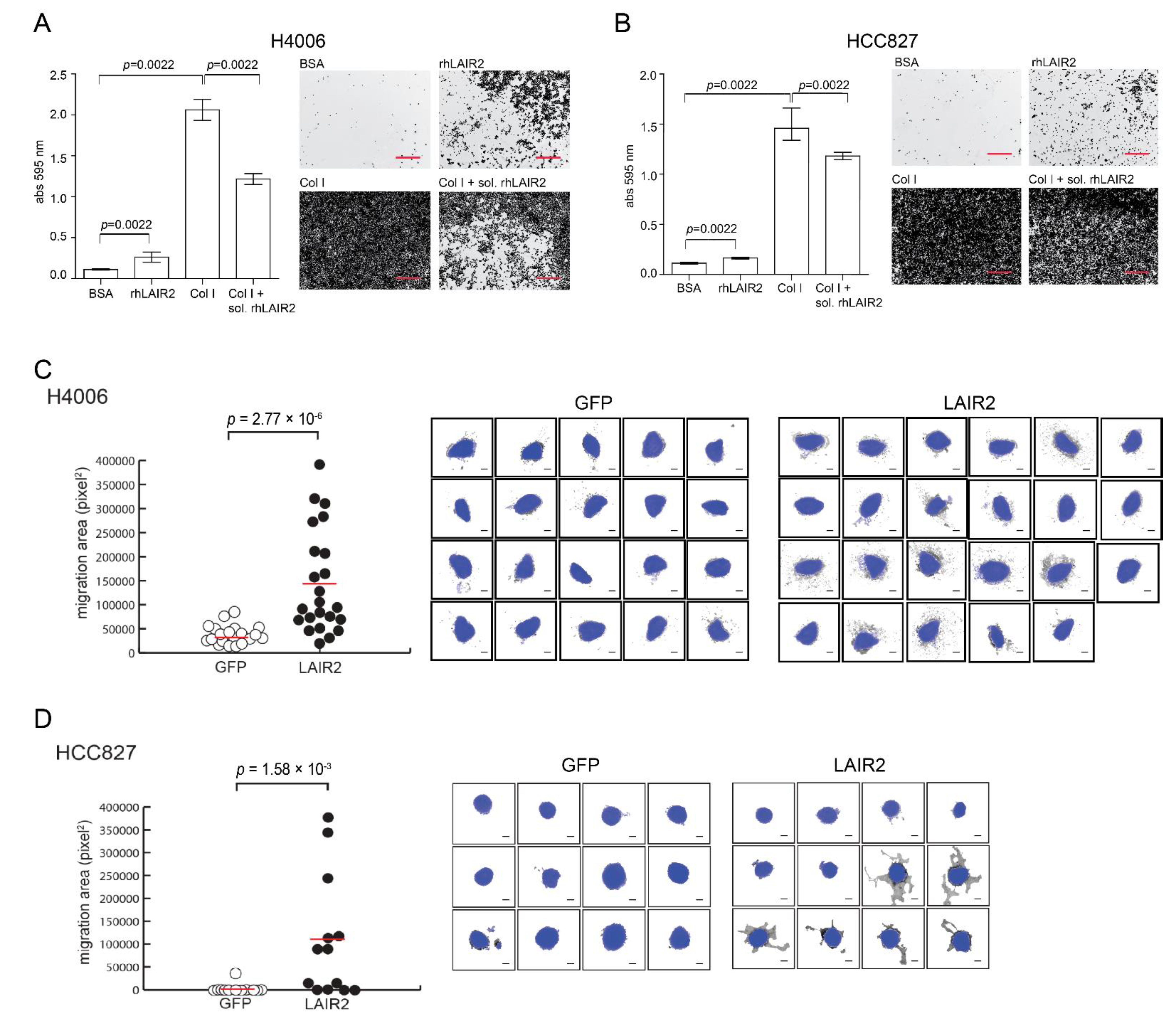

Figure 3. LAIR2 expression enhances NSCLC tumor invasion into collagen matrix. (A,B), HCC4006 and HCC827 NSCLC adherence was measured towards indicated immobilized proteins, or in the presence of soluble rhLAIR2. Non-adherent cells were removed after 40 min and adherent cells were quantified using crystal violet absorption and measured by spectrophotometry. Images taken at 4× magnification. Red scale bars = 500 µm (C,D), HCC4006 and HCC827 tumor invasion into collagen was measured in the presence of paracrine LAIR2. HCC4006 and HCC827 spheroids were embedded in type 1 collagen containing T cell line Hut78 transduced to express LAIR2 or mock (GFP) vector. Migration area from initial spheroid (in blue) was determined after 8 d of co-culture using texture analysis. Black scale bars = 200 µm. Data are representative of two independent experiments. p-values were determined by Mann–Whitney test.
Figure 3. LAIR2 expression enhances NSCLC tumor invasion into collagen matrix. (A,B), HCC4006 and HCC827 NSCLC adherence was measured towards indicated immobilized proteins, or in the presence of soluble rhLAIR2. Non-adherent cells were removed after 40 min and adherent cells were quantified using crystal violet absorption and measured by spectrophotometry. Images taken at 4× magnification. Red scale bars = 500 µm (C,D), HCC4006 and HCC827 tumor invasion into collagen was measured in the presence of paracrine LAIR2. HCC4006 and HCC827 spheroids were embedded in type 1 collagen containing T cell line Hut78 transduced to express LAIR2 or mock (GFP) vector. Migration area from initial spheroid (in blue) was determined after 8 d of co-culture using texture analysis. Black scale bars = 200 µm. Data are representative of two independent experiments. p-values were determined by Mann–Whitney test.
Cancers 14 00205 g003
Cancers 14 00205 g004 550

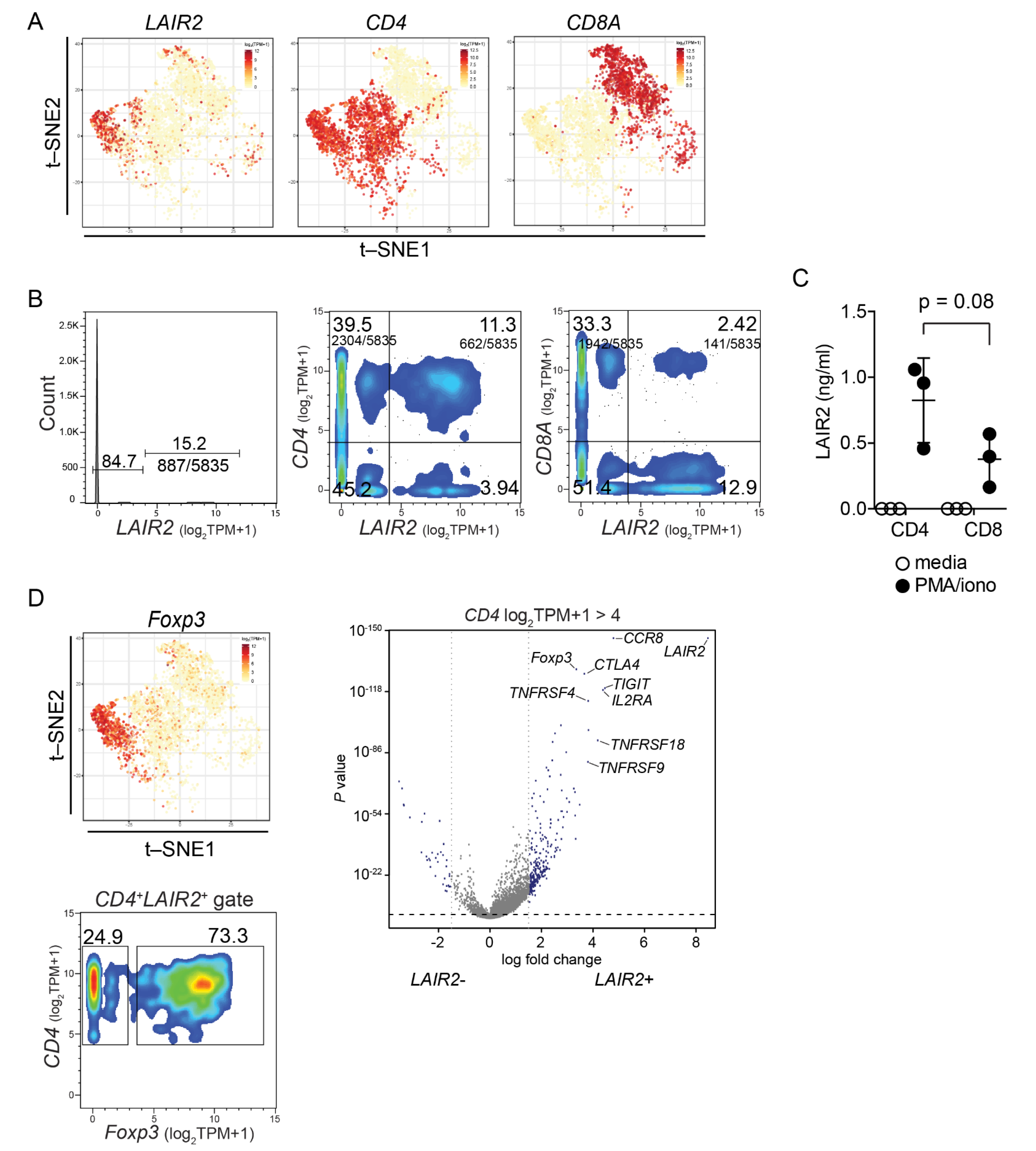

Figure 4. LAIR2 is a marker of tumor-associated Foxp3+ Treg cells. (A), t-SNE plots of LAIR2 and T cell co-receptors from scRNASeq dataset of NSCLC patient tumors. (B), scRNASeq dataset displayed as histogram of LAIR2 expression and as pseudocolor density plots of individual cells with frequency and number of events for indicated genes within quadrants and gates. (C), LAIR2 secretion by expanded TILs stimulated with PMA/ionomycin for 4 d. Dots represent individual patient TILs expansions. p-value was determined using one-way ANOVA with Turkey’s post-test. (D), t-SNE plot of Foxp3 and volcano plot of genes expressed by CD4+ T cells with high or low expression of LAIR2 at cut-off of ≥4 log2 (TPM + 1) expression. Displayed are t-SNE dimensions 1 and 2, with each data point representing a single cell, colored by the intensity of expression log2 (TPM + 1) of indicated gene. scRNASeq displayed as pseudocolor density plot of individual cells with frequency of events for indicated gates.
Figure 4. LAIR2 is a marker of tumor-associated Foxp3+ Treg cells. (A), t-SNE plots of LAIR2 and T cell co-receptors from scRNASeq dataset of NSCLC patient tumors. (B), scRNASeq dataset displayed as histogram of LAIR2 expression and as pseudocolor density plots of individual cells with frequency and number of events for indicated genes within quadrants and gates. (C), LAIR2 secretion by expanded TILs stimulated with PMA/ionomycin for 4 d. Dots represent individual patient TILs expansions. p-value was determined using one-way ANOVA with Turkey’s post-test. (D), t-SNE plot of Foxp3 and volcano plot of genes expressed by CD4+ T cells with high or low expression of LAIR2 at cut-off of ≥4 log2 (TPM + 1) expression. Displayed are t-SNE dimensions 1 and 2, with each data point representing a single cell, colored by the intensity of expression log2 (TPM + 1) of indicated gene. scRNASeq displayed as pseudocolor density plot of individual cells with frequency of events for indicated gates.
Cancers 14 00205 g004
Cancers 14 00205 g005 550

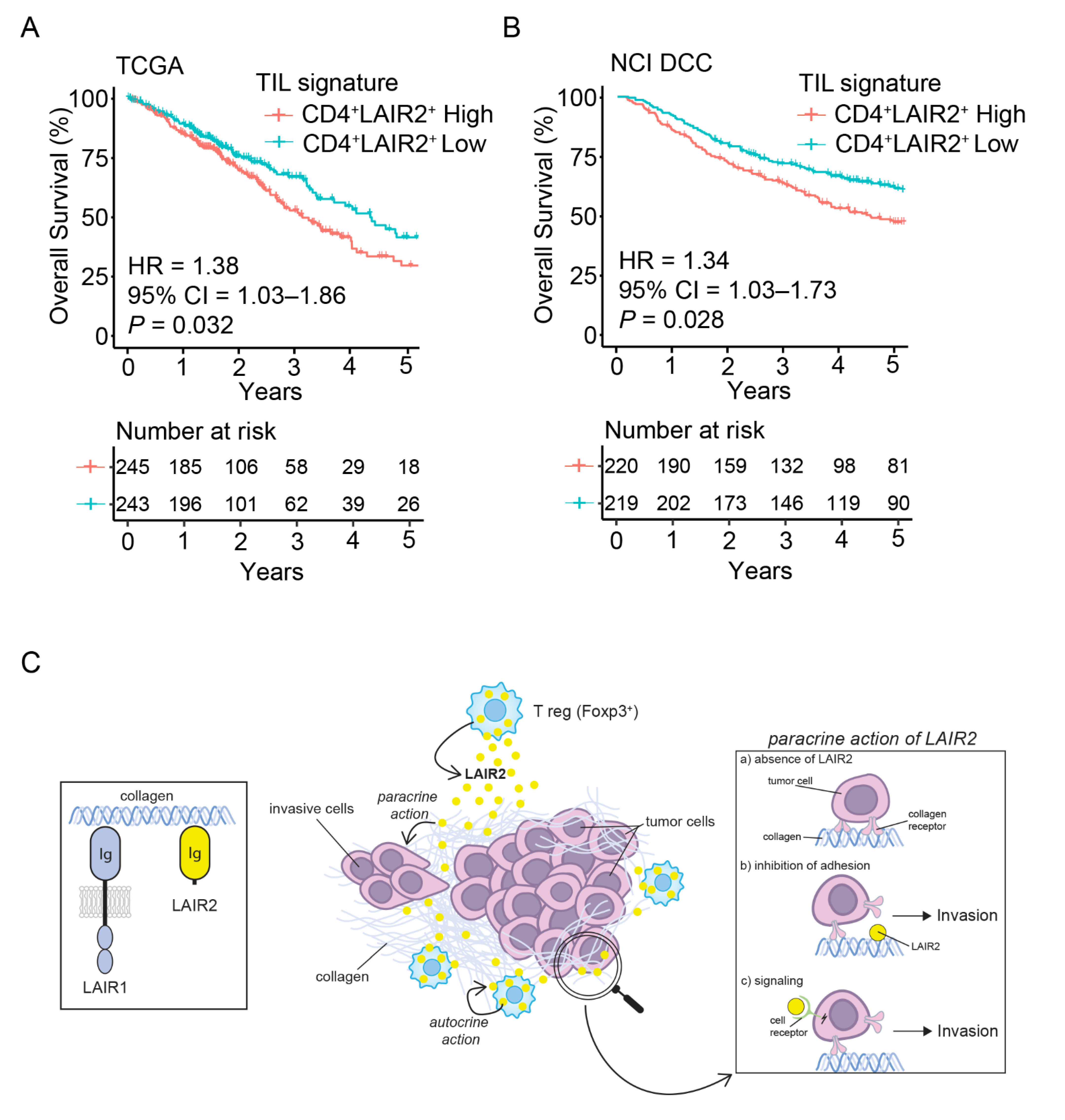

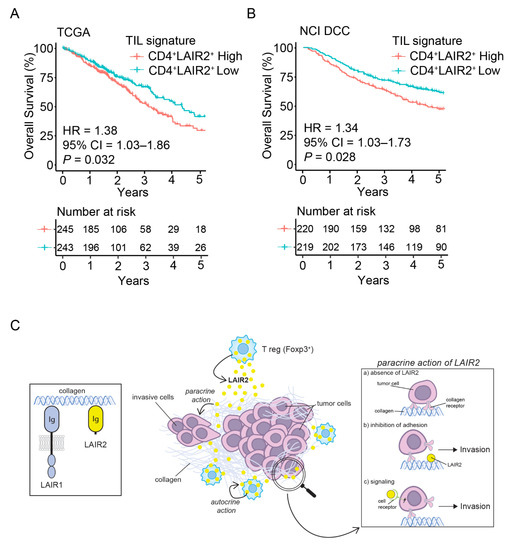

Figure 5. Tumor-associated CD4+ LAIR2+ gene signature is prognostic in NSCLC validation. Kaplan–Meier plots showing OS of LUAD patients in (A), TCGA, (B), NCI Director’s Challenge Consortium datasets, patients were divided into two risk groups based on the median value of the gene signature risk scores. Number at risk indicates the number of participants who are event free at indicated times. (C), Schematic of LAIR2 activity. LAIR2 is a secreted protein that interacts with collagen through its Ig domain. In contrast to LAIR1, LAIR2 lacks transmembrane and signaling domains. Amongst tumor infiltrating T cells, LAIR2 was found to be predominately expressed by tumor-associated Foxp3+ Treg cells by scRNASeq. As a ligand for collagen, autocrine LAIR2 may help Treg cells function in a collagen dense environment. In addition, LAIR2 was found to act in a paracrine fashion by increasing tumor migration and invasion into collagen matrix. As a mechanism, LAIR2 inhibits tumor cell adhesion on collagen that could initiate tumor migration and invasion. Along with inhibition of adhesion, interaction of LAIR2 with a cell receptor that mediates signaling leading to cell invasion cannot be excluded.
Figure 5. Tumor-associated CD4+ LAIR2+ gene signature is prognostic in NSCLC validation. Kaplan–Meier plots showing OS of LUAD patients in (A), TCGA, (B), NCI Director’s Challenge Consortium datasets, patients were divided into two risk groups based on the median value of the gene signature risk scores. Number at risk indicates the number of participants who are event free at indicated times. (C), Schematic of LAIR2 activity. LAIR2 is a secreted protein that interacts with collagen through its Ig domain. In contrast to LAIR1, LAIR2 lacks transmembrane and signaling domains. Amongst tumor infiltrating T cells, LAIR2 was found to be predominately expressed by tumor-associated Foxp3+ Treg cells by scRNASeq. As a ligand for collagen, autocrine LAIR2 may help Treg cells function in a collagen dense environment. In addition, LAIR2 was found to act in a paracrine fashion by increasing tumor migration and invasion into collagen matrix. As a mechanism, LAIR2 inhibits tumor cell adhesion on collagen that could initiate tumor migration and invasion. Along with inhibition of adhesion, interaction of LAIR2 with a cell receptor that mediates signaling leading to cell invasion cannot be excluded.
Cancers 14 00205 g005
Table
Table 1. Univariate and multivariate analysis of LAIR2 expression.
Table 1. Univariate and multivariate analysis of LAIR2 expression.
ParameterUnivariate AnalysisMultivariate Analysis
HR95% CIp-ValueHR95% CIp-Value
LAIR2 (high vs. low)2.081.20–3.640.00711.961.05–3.660.03
LAIR1 (high vs. low)1.620.94–2.800.0831.160.62–2.150.64
Age (older vs. younger)1.000.99–1.10.121.020.99–1.050.13
Sex (female vs. male)0.760.44–1.30.330.750.42–1.360.35
Smoking (no vs. yes)0.960.62–1.50.870.990.62–1.590.97
Stage (Stage II vs. I)2.41.4–4.20.0022.211.22–3.980.008
Histological Pattern (micropapillary/solid vs. acinar/papillar/lepidic)0.950.63–1.40.790.920.61–1.40.71
p-value, determined by log rank test.
