Cancers 2020, 12(2), 446; https://doi.org/10.3390/cancers12020446

Article
Accelerated Partial Breast Irradiation: Macrophage Polarisation Shift Classification Identifies High-Risk Tumours in Early Hormone Receptor-Positive Breast Cancer
1
Department of Radiation Oncology, Universitätsklinikum Erlangen, Friedrich-Alexander-Universität Erlangen-Nürnberg, Universitätsstraße 27, D-91054 Erlangen, Germany
2
Institute of Pathology, Universitätsklinikum Erlangen, Comprehensive Cancer Center Erlangen-EMN, Friedrich-Alexander-Universität Erlangen-Nürnberg, Krankenhausstraße 8-10, D-91054 Erlangen, Germany
3
Department of Nephropathology, Institute of Pathology, Universitätsklinikum Erlangen, Friedrich-Alexander-Universität Erlangen-Nürnberg, Krankenhausstraße 8-10, D-91054 Erlangen, Germany
4
Department of Gynecology and Obstetrics, Universitätsklinikum Erlangen, Comprehensive Cancer Center Erlangen-EMN, Friedrich-Alexander-Universität Erlangen-Nürnberg, Universitätsstraße 21, D-91054 Erlangen, Germany
5
Intensive Care Unit, Redcliffe Hospital; University of Queensland, 4072 Brisbane, Queensland, Australia
*
Author to whom correspondence should be addressed.
Received: 14 January 2020 / Accepted: 9 February 2020 / Published: 14 February 2020

Abstract

:
Studies have demonstrated correlations between accumulations of tumour-associated macrophages (TAMs), especially of M2-like phenotype, and increased mortality in advanced breast cancer. We investigated the prognostic potential of both main macrophage phenotypes in early hormone receptor-positive (HR+) breast cancer. The studied cohort of 136 patients participated in an institutional APBI phase II trial. Patient selection was characterized by HR+, small tumour size and no metastasis. Tissue microarrays from pre-RT resection samples were double stained for CD68/CD163 using immunohistochemistry. CD68+/CD163− cells were considered M1-like macrophages and CD68+/CD163+ was representative of M2-like macrophages. M1 and M2 macrophage densities were analysed semi-automatically in the stromal and intraepithelial tumour compartment. Low M1 and high M2 densities were strongly associated with decreased disease-free survival (DFS). Combined TAM phenotype densities were studied after defining a macrophage shift classification: M1-shifted (M1 high, M2 low) and non-shifted (M1 low, M2 low; M1 high, M2 high) tumours entailed a favourable outcome. In contrast, M2-shifted (M1 low, M2 high) TAM populations were associated with extremely reduced DFS. Thus, the full predictive potential of TAMs was revealed in a combined analysis of both phenotypes. The M2-shifted subgroup of tumours is classified as high-risk and probably not suitable for partial breast irradiation.
Keywords:
tumour associated macrophages; CD68; CD163; prognosis; early breast cancer; hormone receptor-positive; accelerated partial breast irradiation

1. Introduction

Breast cancer is the most commonly diagnosed malignancy in women [1]. Medical advances and increased public awareness have enabled earlier diagnosis and treatment of breast cancer in developed countries [2,3]. Early breast cancer diagnosis is generally associated with a good prognosis; however, given its high incidence there is still a significant number of relapses [4,5,6]. Thus, the development of new prognostic tools for early cases is equally as important as for those with unfavourable prognosis.
A promising subset of prognostic biomarkers are tumour-associated macrophages (TAMs). According to a commonly utilised model there are two main phenotypes of macrophages, M1 and M2. M1 polarised macrophages primarily engulf and destroy pathogens with reactive oxygen and nitrogen species. In contrast, M2 macrophages remove cell debris and initiate repairs in their surroundings through the release of growth factors like EGF, VEGF and TGF-β. M1 and M2 macrophages cooperate in the control and execution of local immune responses [7,8]. Malignant tumours can modulate this balance by influencing macrophage subsets through a variety of mechanisms. Tumour cells can release chemokines like CSF-1 and IL-4, which induce macrophage transformation into M2-like polarised TAMs [9,10]. M2-like TAMs use their healing and growth inducing properties to promote tumour progression, angiogenesis and metastasis [11,12,13,14]. Simultaneously they suppress the initiation of an antitumoural immune response by the host [15,16,17]. With this in mind, it is not surprising that high numbers of TAMs are associated with a less favourable outcome in many forms of cancer, including breast cancer [18]. M1 macrophages on the other hand are considered to be a cytotoxic “anti-tumour” phenotype in the tumour microenvironment [19].
Our understanding of the association of TAMs and survival is currently limited and incomplete. A number of studies have demonstrated the unfavourable prognostic influence of M2-like TAMs [20,21], while more recent works have begun to emphasise the positive impact of M1-like TAMs on survival [22,23]. So far, there have been no reports on the combined influence of both macrophage phenotypes and long-term breast cancer progression.
To explore the effects of the two main macrophage phenotypes on breast cancer prognosis, we studied a carefully preselected and therefore homogenous cohort of patients whom participated in the accelerated partial breast irradiation (APBI) phase II trial at the University Hospital Erlangen [24]. M1 and M2 macrophage densities from pre-radiation therapy (RT) tumour resection samples were analysed and compared to disease-free survival (DFS) and in-breast recurrence-free survival (IBRFS). For the first time, we were able to create a prognostic model that combined cell densities of both macrophage phenotypes. This revealed new information on the use of TAMs as prognostic biomarkers for early breast cancer.

2. Results

In the early stage breast cancer cohort of 136 patients (Table 1) DFS was 85% while IBRFS was 92% after a 12 year follow up period (Figure 1A). Double immunostainings for CD68 and CD163 antigens were applied to pre-RT tissue samples from four locations: central tumour (CT), invasive front (IF), normal tissue taken from tumour proximity (prox) and normal tissue that was sampled distant from the tumour (dist). Numbers of infiltrating macrophages as well as the size of the intraepithelial and stromal compartments were quantified in each TMA core (Figure 1B). Subsequently in the stromal and intraepithelial compartments, cell densities for M1 and M2 polarised macrophages were calculated separately from four independent locations (Figure 1C). M1 macrophages were represented by cells that were exclusively positive for CD68. Cells that were positive for both CD68 and CD163 were considered to be M2 polarised (Figure 1D).

2.1. Cell Densities

Cell densities for M1 macrophages were relatively low, with the highest median values being 5.6 (standard deviation (SD): ±15 cells/mm2) and 3.7 cells/mm2 (SD: ±29.2 cells/mm2) in the intraepithelial compartment for CT and IF, respectively. Clear differences existed only between these two locations and normal tissue (dist) (p = 0.015 and p = 0.025) (Figure 1E). The CD163+ cell count in the tumour region revealed much higher cell densities in both the stromal (CT: Median/SD 83.6/±421.5 cells/mm2; IF: 100.4/±462.9 cells/mm2) and intraepithelial compartments (CT: Median/SD 121/±172.1 cells/mm2; IF: 148.6/±208.6 cells/mm2). In comparison, M2 macrophage densities in normal tissue were distinctly lower with stromal median values of 65.9 cells/mm2 (prox) and 45.6 cells/mm2 (dist) (both p < 0.05) (Figure 1F).
There was a moderate, positive monotonic correlation between M1 and M2 macrophage densities in normal tissue (dist: r = 0.478, n = 106, p < 0.001; prox: r = 0.409, n = 72, p < 0.001). In tumour samples from IF no strong correlations of this kind were found. Both macrophage phenotypes in CT were only weakly associated (r = 0.202, n = 119, p = 0.028) (Table 2).

2.2. Influence on Survival

High densities of M1 macrophages in IF (Figure 2A,B) and CT (Supplementary Figure S1) correlated with improved DFS and IBRFS (Supplementary Figure S2A,B) (p < 0.038). For M2 macrophages, the opposite was the case: high densities of CD163+ cells in the stromal and intraepithelial compartment of IF were associated with decreased DFS (Figure 2C,D) (p < 0.035) and IBRFS (Supplementary Figure S2A,B). M2 densities in both compartments of CT samples had similar associations with DFS (stromal: p = 0.02, intraepithelial: p = 0.122) (Supplementary Figure S1).

2.3. M-Shift Model

The individual M1 and M2 macrophage densities of each compartment and each tumour location were combined into three new subgroups. The subgroup allocations were based on whether samples belonged to the high or low cell density cohorts in the previously shown Kaplan–Meier plots (Figure 2A–D). Samples with low M2 and high M1 macrophage densities were classified as “M1-shifted”. “M2-shifted” was defined by high M2 and low M1 macrophage densities. If both phenotypes were classified as “high” or “low”, the sample was assigned to the “non-shifted” group.

2.4. Influence of M-Shifts on Survival

The stromal M-shift model at IF (Figure 2E) did not show a distinction between “M1-shifted” and “non-shifted” cases. Both groups exhibited a 12 yr DFS of over 90%. In comparison, the “M2-shifted” cohort showed an unfavourable prognosis with a dramatically reduced 12yr DFS of 68%. The M-shift model was a significantly better predictor of DFS than the respective macrophage phenotypes used as single markers (M1 and M2 showed a 12yr DFS of 77% and 80%, respectively). The intraepithelial model resulted in three survival groups (Figure 2F). The “M1-shifted” group had a 12 yr DFS of 100%, while the “M2-shifted” cohort had a 12 yr DFS of only 68%. “Non-shifted” cases settled in between those two groups and had a 12 yr DFS of 85%. The M-shift model was again better than macrophage counts alone at predicting recurrence or metastasis (M1: 12 yr DFS 80%; M2: 12 yr DFS: 74%). Samples from CT had comparable prognostic power (Figure 3A,C) but overall macrophage shifts at IF correlated more strongly with DFS.
To make this combined model more comparable to other parameters, it was simplified into two prognostic groups. “M2-shifted” remained while “M1-shifted” and “non-shifted” were merged (Figure 3B,D; Supplementary Figure S3A,B). Table 3 summarises group sizes, 12 yr DFS and IBRFS and p-values. A model that was based on M1/M2 cell density ratios was also explored, but not included as it was less accurate at predicting DFS. Comparing the IF intraepithelial M-shift model subgroups, statistically significant differences in M1 and M2 macrophage cell densities were observed (p < 0.05) (Figure 3E). M2 densities were at the lowest in “M1-shifted” and this value rose from “non-shifted” to “M2-shifted”. For M1 macrophages the opposite was the case, with “M1-shifted” registering the highest cell densities. Stromal cell distributions did not differ (Supplementary Figure S3C,D). Multivariate analyses revealed the stromal (p = 0.01) and intraepithelial TAM shift classification at IF (p = 0.039) to be independent risk factors for DFS (Table 4).
The proliferation index Ki67 was the strongest conventional prognostic parameter in this study population. In a direct comparison, the M-shift model was superior at predicting DFS and IBRFS. (Figure 4A–F). No statistically significant correlations between macrophage shift classifications and clinicopathological characteristics were discovered (Table 5).

3. Discussion

Previous studies have shown a direct association between macrophage infiltration in breast cancer and increased mortality [20,22,23,25,26]. Whereas these studies looked at patients with various stages of breast cancer, our objective was to explore the value of macrophage densities as an independent prognostic biomarker in early stage hormone receptor-positive (HR+) breast cancer. We analysed tissue from 136 patients who participated in a prospective APBI phase II trial at the Universitätsklinikum Erlangen [24,27]. This trial had strict inclusion criteria and only recruited patients with early stage HR+ breast cancer, thus resulted in a very uniform set of clinicopathological characteristics. Thereby, providing us with the opportunity to study the influence of macrophage densities on survival with minimal confounding factors.
Samples from these patients’ tumours were double stained for CD68 and CD163. CD68 is regarded as a pan-macrophage marker which is expressed by both M1 and M2 macrophages [28]. CD163 is a scavenger receptor, predominantly found in M2 or M2-like macrophages [29]. Immunostaining of CD68 highlighted all macrophages. These macrophages were simultaneously subjected to CD163 immunostaining. Hence, macrophages that were CD68 positive and CD163 negative were considered M1 polarised and ones that were positive for both markers represented M2 and M2-like polarised TAMs. This is an important distinction from previous studies that only marked for CD68 or applied CD68 and CD163 immunostainings separately.
Scans of stained samples were analysed with the help of an image analysis software. We assessed the size of the stromal and intraepithelial compartments as well as the number of CD68+ and CD163+ cells. As expected, we found higher numbers of macrophages in tumour vicinity than in normal breast tissue. This can be seen as evidence of local inflammation at the tumour site. Intratumorally, we found that high numbers of M2 macrophages in the stromal and intraepithelial compartment had a negative association with IBRFS and DFS. In contrast, high cell densities of M1 macrophages were associated with improved IBRFS and DFS. These results are consistent with the outcome of multiple studies. In ovarian and non-small cell lung cancer cytotoxic M1 macrophages are associated with a favourable prognosis [30,31]. In pancreatic and gastric cancer, immunosuppressant M2 polarised macrophages promote tumour growth and decrease survival [32,33]. Specifically for breast cancer, Honkanen et al., and Jeong et al. have recently published similar findings in study populations with more advanced disease stages [22,23].
Throughout this study, it has come to light that it is insufficient to view macrophage phenotypes as isolated factors influencing survival in breast cancer, as it is well established that they represent opposite ends of a transformative spectrum of the same cell type [34]. In healthy tissue, a delicate balance is upheld between the pro-inflammatory functions of M1 macrophages and the repair and maintenance functions of M2 macrophages [8]. Malignant tumours break this balance by recruiting macrophages through chemokines like M-CSF and IL-4, leading to a transformation into M2-like polarised TAMs [9,10]. Results of this study support this theory with distinct correlations between the two macrophage phenotype densities found in normal breast tissue. Concurrently these correlations were mostly absent in tumour samples, showing that the physiological balance is altered in neoplastic tissue.
Based on this hypothesis, we created three tumour classifying subgroups including the combined information on M1 and M2 TAM densities. Instead of using total numbers, the focus of this classification was on the polarisation status of the TAM population as a whole. Changes in the ratio of TAM phenotypes were described as shifts. A shift is defined by high densities of one TAM type with simultaneous low densities of its counterpart. A fitting analogy for this process would be a scale losing its balance and tipping over to one side.
Hypothetically, “M1-shifted” represents a cytotoxic immune response. The tumour is not able to recruit a sufficient number of M2-like TAMs and is instead recognized and attacked by high numbers of M1 macrophages. This disruption of balance into the direction of cytotoxicity is the best-case scenario for patient survival and entails a very good prognosis. “Non-shifted” describes tumours which do not change the normal ratio of macrophage phenotypes. They are characterized by high or low densities of both macrophage activation states. Our results showed that these two constellations have an almost identically favourable prognosis and can therefore be classified as one prognostic group (Supplementary Figure S3E,F). One might presume that “non-shifted” tumours can neither recruit enough macrophages for an M2 shift nor do they get targeted by an M1 response. It is unclear why TAM populations in these cases do not perform a shift. A possible explanation could be a lack of chemokine release for TAM recruitment. Our most significant finding concerning DFS was in the “M2-shifted” group. These tumours have taken full control of the TAM population and educated them towards M2 polarisation. Almost no cytotoxic M1 macrophages remain and high numbers of M2-like TAMs suppress the immune system, promote tumour growth, angiogenesis and metastasis [12,13,14,15]. The macrophage polarisation shift classification could identify high-risk patients more accurately than any conventional biomarker or prognostic parameter available to us in this study (Figure 4).
Potential implications of these findings for macrophages as a predictive marker are immense. The sole use of one macrophage phenotype should be avoided as results will be weakened by the “non-shifted” group. TAM densities of one type only show their full potential as predictors of significantly reduced DFS if they occur in the right combination with their counterparts. If such a combined classification results in an “M2-shifted” TAM population, the tumour belongs to a high-risk group and might be a candidate to receive extended therapy. Additional non-radiation based treatment might be appropriate, as there is evidence of macrophage induced radio-resistance after TAM cancer cell fusion [35,36]. Waks et al. also reported a possible role for M2-like macrophages in chemo-resistance in HR+ breast cancer [37]. These results demonstrate that macrophage polarisation targeting therapies like CSF inhibitors might become valuable therapeutic options for breast cancer treatment [38,39].
Another finding of this study was that data from IF samples generally had the highest prognostic value. Nonetheless, the M-shift model consistently predicted DFS and IBRFS in both tumour locations and compartments. This indicates that the M-shift model is reliable and reproducible.
In the face of these results, it needs to be emphasized that this study was performed on a very uniform low-risk breast cancer cohort that was characterized by HR positivity, small tumour size and no metastasis. Until studies with a comparable setup and method are performed on a larger number and wider range of breast cancer types, we cannot conclude whether the observed very strong association between macrophage shifts and DFS is restricted to early breast cancer.

4. Materials and Methods

4.1. Breast Cancer Patients and Clinical Data

A total of 136 patients were treated for early stage breast cancer at the Universitätsklinikum Erlangen between 2000 and 2005 as part of a prospective APBI phase II trial. APBI was performed with interstitial multicatheter brachytherapy. Inclusion criteria of this study were histopathologically assured invasive breast carcinoma of any histology of ≤3 cm in diameter, unifocal and unicentric breast cancer, clear resection margins of at least 2 mm in any direction, hormone sensitivity (ER+/PR+, ER+/PR−, ER−/PR+), histologic grading of 1 or 2, no lymph vessel and no blood vessel invasion, pN0/pNmi, no distant metastases and age ≥35 years [24,27]. All patients received breast conserving surgery and brachytherapy. Additionally, 115 patients (84.6%) were treated with hormonal therapy, two (1.5%) with chemotherapy and seven (5.1%) received both treatments. Clinical data and pathological characteristics that were prospectively collected during the APBI study can be found in Table 1. Tissue samples were obtained from tumour resections prior to RT. After a 12 year follow up period, breast cancer specific survival was 99%. Disease-free survival (DFS), which was defined as survival without local recurrence or distant metastasis, was 85% while the in-breast recurrence-free survival rate was 92% (Figure 1A). Two out of a total of 12 in-breast recurrences were exclusively classified as in-field recurrences. The remaining 10 recurrences were characterized by diffuse infiltration of the whole breast or in-field/out-of-field classification was not possible.
Written informed consent was obtained “front door” from all patients for collection of their tissue and clinical data. The use of formalin fixed paraffin-embedded material from the Archive of the Institute of Pathology was approved by the Ethics Committee of the Friedrich-Alexander-University of Erlangen-Nuremberg on 24 January 2005 (21_ 19 B), waiving the need for consent for using the existing archived material.

4.2. TMA Construction and Immunohistochemistry

Four tissue microarrays (TMAs) each with a diameter of 2mm per core were processed from 136 paraffin-embedded tumour resections (Figure 1B). Samples were taken from the central tumour (CT), the invasive front (IF), normal tissue in tumour proximity (prox) and normal tissue distant from the tumour (dist). Then, 2 µm tissue sections were de-paraffinised in xylene and rehydrated with graded ethanol. Double staining for CD68 and CD163 was performed using the Alkaline phosphatase detection kit (POLAP-100, Zytomed Systems GmbH, Berlin, Germany) with Fast red (Sigma-Aldrich, Deisenhofen, Germany) as chromogen for CD163 and Fast blue (Sigma-Aldrich) as chromogen for CD68 detection [40].
Stained TMAs were scanned with a high throughput scanner (Mirax Scan, Zeiss, Göttingen, Germany). The software Pannoramic Viewer (3D Histech, Budapest, Hungary) was used for further processing of the scans. In 132 out of 136 IF samples, stromal tissue could be identified (97%) while 127 contained epithelium (93%). For biopsies from CT, these numbers were 123 (90%) and 119 (88%), respectively. The majority of these discrepancies can be explained by samples which only consisted of stromal or epithelial tissue. Another factor to account for this discrepancy was loss of material during the staining process.
Biopsies of normal breast tissue often contained very little tissue or mostly fat. In normal tissue (prox) samples, cells could be counted in the stromal compartment in 93 (68%) cases while 72 (53%) contained epithelium. For normal tissue (dist) these numbers were 116 (85%) and 96 (71%), respectively. Intrinsic breast cancer subtypes were classified according to the definitions released by the St Gallen International Expert Consensus on the Primary Therapy of Early Breast Cancer [41]. The cut-off point for Ki67 was based on results by Fasching et al., which described Ki67 expression levels ≥20% as an unfavourable prognostic factor in early breast cancer [42].

4.3. Quantification of Macrophages

Image processing software (Biomas, Erlangen, Germany) was used to quantify cell densities. Stromal and intraepithelial compartments were marked (Figure 1C) and their respective areas registered. Macrophage numbers were counted semi-automatically. Inclusion criteria were size, morphology and colour (Figure 1D). Cell densities were calculated for both compartments separately.

4.4. Statistical Analyses

SPSS version 26 (IBM Inc., Chicago, IL, USA) was used for all statistical analyses. Spearman’s Rho and Fisher’s exact test were used to find correlations. Mean values of cell densities in different tumour locations and subgroups were compared using Student’s t-test for independent samples and Welch’s test. Optimal cut-off points for macrophage density groups (low vs high) were determined for disease-free survival (DFS) and in-breast recurrence-free survival (IBRFS) through receiver operating characteristic (ROC) curve analysis. Survival curves for DFS and IBRFS were plotted using the Kaplan–Meier method and compared with the log-rank test. Cox proportional hazards model was used to calculate hazard ratios of macrophage cell densities and clinicopathological characteristics. Covariates with p < 0.25 in univariate analysis were included in multivariate Cox regression. The proportional hazards assumption was tested by visual inspection of log minus log curves and was found to be satisfactory for all multivariate covariates. p-values < 0.05 were considered to be statistically significant.

5. Conclusions

In early breast cancers, high densities of M2 macrophages and low densities of M1 macrophages in the tumour epithelium and stroma are strongly associated with reduced DFS. Our findings revealed the importance of examining both macrophage phenotypes together and in context of their relative frequencies. A proposed classification based on TAM polarisation shifts identified a high-risk group of “M2-shifted” tumours that are unlikely to fully respond to accelerated partial breast irradiation. The M-shift model might aid clinicians in selecting breast cancer patients in need of extended therapy.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-6694/12/2/446/s1, Figure S1: Disease-free survival analysed with the Kaplan–Meier method and log-rank test according to macrophage densities in central tumour samples. Macrophage phenotype and compartment are indicated by descriptions next to the black bars. Figure S2: (A) In-breast recurrence-free survival analysed with the Kaplan–Meier method and log-rank test according to macrophage densities in invasive front samples. (B) In-breast recurrence-free survival according to macrophage densities in central tumour samples. Macrophage phenotype and compartment are indicated by descriptions next to the black bars. Figure S3: In-breast recurrence-free survival analysed with the Kaplan–Meier method and log-rank test according to (A) stromal and (B) intraepithelial TAM shift classifications in central tumour samples. (C,D) Stromal and intraepithelial macrophage density distributions in invasive front samples according to the intraepithelial TAM polarisation shift classification. The central line represents median values while the box is indicative of the interquartile range (IQR). Whiskers represent 1.5× IQR or minimum/maximum. Outliers are indicated by points (up to 3× IQR) or asterisks (>3 IQR). Black bars signify p < 0.05 in Student’s t-test. (E,F) Disease-free survival according to non-shifted groups of the TAM shift classification applied to invasive front samples. The tables below the survival plots give a detailed explanation of group compositions.

Author Contributions

Conceptualization, L.D., R.F., M.B.-H.; methodology, S.S., L.D.; software, L.D.; validation, S.S., L.D.; formal analysis, S.S., L.D.; investigation, S.S., O.J.O., V.S., M.-C.R.; resources, O.J.O., V.S., A.H., R.E., M.B.-H., M.-C.R., M.W.B., R.F., L.D.; data curation, S.S., L.D. M.-C.R.; writing—original draft preparation, S.S.; L.D., L.K. writing—review and editing, L.K., S.S., L.D., R.E., M.W.B., O.J.O., M.B.-H.; visualization, S.S., L.D.; supervision, L.D., R.F., A.H., M.W.B.; M.B.-H.; project administration, R.F., L.D.; All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We thank the Tumour Centre at the Friedrich-Alexander University Erlangen-Nürnberg, Erlangen, Germany for providing us with patient data. The present work was performed in fulfilment of the requirements for obtaining the degree “Dr. med.”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. International Agency for Research on Cancer, World Health Organization. Latest Global Cancer Data: Cancer Burden Rises to 18.1 Million New Cases and 9.6 Million Cancer Deaths in 2018; IARC: Lyon, France, 2018; Volume 263. [Google Scholar]
  2. Iqbal, J.; Ginsburg, O.; Rochon, P.A.; Sun, P.; Narod, S.A. Differences in breast cancer stage at diagnosis and cancer-specific survival by race and ethnicity in the united states. JAMA 2015, 313, 165–173. [Google Scholar] [CrossRef] [PubMed]
  3. McPhail, S.; Johnson, S.; Greenberg, D.; Peake, M.; Rous, B. Stage at diagnosis and early mortality from cancer in England. Br. J. Cancer 2015, 112, S108–S115. [Google Scholar] [CrossRef] [PubMed]
  4. Grover, S.; Nurkic, S.; Diener-West, M.; Showalter, S.L. Survival after breast-conserving surgery with whole breast or partial breast irradiation in women with early stage breast cancer: A seer data-base analysis. Breast J. 2017, 23, 292–298. [Google Scholar] [CrossRef] [PubMed]
  5. Abo-Madyan, Y.; Welzel, G.; Sperk, E.; Neumaier, C.; Keller, A.; Clausen, S.; Schneider, F.; Ehmann, M.; Sutterlin, M.; Wenz, F. Single-center long-term results from the randomized phase-3 targit-a trial comparing intraoperative and whole-breast radiation therapy for early breast cancer. Strahlenther. Onkol. 2019, 195, 640–647. [Google Scholar] [CrossRef] [PubMed]
  6. Duma, M.N. Association of circulating tumor cell status with benefit of radiotherapy and survival in early-stage breast cancer. Strahlenther. Onkol. 2018, 194, 1069–1071. [Google Scholar] [CrossRef] [PubMed]
  7. Mills, C.D.; Kincaid, K.; Alt, J.M.; Heilman, M.J.; Hill, A.M. M-1/m-2 macrophages and the th1/th2 paradigm. J. Immunol. 2000, 164, 6166–6173. [Google Scholar] [CrossRef]
  8. Mills, C.D.; Ley, K. M1 and m2 macrophages: The chicken and the egg of immunity. J. Innate Immun. 2014, 6, 716–726. [Google Scholar] [CrossRef]
  9. Tang, R.; Beuvon, F.; Ojeda, M.; Mosseri, V.; Pouillart, P.; Scholl, S. M-csf (monocyte colony stimulating factor) and m-csf receptor expression by breast tumour cells: M-csf mediated recruitment of tumour infiltrating monocytes? J. Cell. Biochem. 1992, 50, 350–356. [Google Scholar] [CrossRef]
  10. Zhao, P.; Gao, D.; Wang, Q.; Song, B.; Shao, Q.; Sun, J.; Ji, C.; Li, X.; Li, P.; Qu, X. Response gene to complement 32 (rgc-32) expression on m2-polarized and tumor-associated macrophages is m-csf-dependent and enhanced by tumor-derived il-4. Cell. Mol. Immunol. 2015, 12, 692–699. [Google Scholar] [CrossRef]
  11. Mantovani, A.; Sozzani, S.; Locati, M.; Allavena, P.; Sica, A. Macrophage polarization: Tumor-associated macrophages as a paradigm for polarized m2 mononuclear phagocytes. Trends Immunol. 2002, 23, 549–555. [Google Scholar] [CrossRef]
  12. Kong, L.; Zhou, Y.; Bu, H.; Lv, T.; Shi, Y.; Yang, J. Deletion of interleukin-6 in monocytes/macrophages suppresses the initiation of hepatocellular carcinoma in mice. J. Exp. Clin. Cancer Res. 2016, 35, 131. [Google Scholar] [CrossRef] [PubMed]
  13. Grivennikov, S.I.; Wang, K.; Mucida, D.; Stewart, C.A.; Schnabl, B.; Jauch, D.; Taniguchi, K.; Yu, G.Y.; Osterreicher, C.H.; Hung, K.E.; et al. Adenoma-linked barrier defects and microbial products drive il-23/il-17-mediated tumour growth. Nature 2012, 491, 254–258. [Google Scholar] [CrossRef] [PubMed]
  14. Chen, J.; Yao, Y.; Gong, C.; Yu, F.; Su, S.; Chen, J.; Liu, B.; Deng, H.; Wang, F.; Lin, L.; et al. Ccl18 from tumor-associated macrophages promotes breast cancer metastasis via pitpnm3. Cancer Cell 2011, 19, 541–555. [Google Scholar] [CrossRef]
  15. Lu, T.; Ramakrishnan, R.; Altiok, S.; Youn, J.I.; Cheng, P.; Celis, E.; Pisarev, V.; Sherman, S.; Sporn, M.B.; Gabrilovich, D. Tumor-infiltrating myeloid cells induce tumor cell resistance to cytotoxic t cells in mice. J. Clin. Investig. 2011, 121, 4015–4029. [Google Scholar] [CrossRef] [PubMed]
  16. Yang, L.; Zhang, Y. Tumor-associated macrophages: From basic research to clinical application. J. Hematol. Oncol. 2017, 10, 58. [Google Scholar] [CrossRef] [PubMed]
  17. Bingle, L.; Brown, N.J.; Lewis, C.E. The role of tumour-associated macrophages in tumour progression: Implications for new anticancer therapies. J. Pathol. 2002, 196, 254–265. [Google Scholar] [CrossRef]
  18. Zhang, Q.W.; Liu, L.; Gong, C.Y.; Shi, H.S.; Zeng, Y.H.; Wang, X.Z.; Zhao, Y.W.; Wei, Y.Q. Prognostic significance of tumor-associated macrophages in solid tumor: A meta-analysis of the literature. PLoS ONE 2012, 7, e50946. [Google Scholar] [CrossRef]
  19. Shi, X.; Shiao, S.L. The role of macrophage phenotype in regulating the response to radiation therapy. Transl. Res. 2018, 191, 64–80. [Google Scholar] [CrossRef] [PubMed]
  20. Medrek, C.; Ponten, F.; Jirstrom, K.; Leandersson, K. The presence of tumor associated macrophages in tumor stroma as a prognostic marker for breast cancer patients. BMC Cancer 2012, 12, 306. [Google Scholar] [CrossRef] [PubMed]
  21. Tiainen, S.; Tumelius, R.; Rilla, K.; Hamalainen, K.; Tammi, M.; Tammi, R.; Kosma, V.M.; Oikari, S.; Auvinen, P. High numbers of macrophages, especially m2-like (cd163-positive), correlate with hyaluronan accumulation and poor outcome in breast cancer. Histopathology 2015, 66, 873–883. [Google Scholar] [CrossRef]
  22. Honkanen, T.J.; Tikkanen, A.; Karihtala, P.; Makinen, M.; Vayrynen, J.P.; Koivunen, J.P. Prognostic and predictive role of tumour-associated macrophages in her2 positive breast cancer. Sci. Rep. 2019, 9, 10961. [Google Scholar] [CrossRef] [PubMed]
  23. Jeong, H.; Hwang, I.; Kang, S.H.; Shin, H.C.; Kwon, S.Y. Tumor-associated macrophages as potential prognostic biomarkers of invasive breast cancer. J. Breast Cancer 2019, 22, 38–51. [Google Scholar] [CrossRef] [PubMed]
  24. Ott, O.J.; Hildebrandt, G.; Potter, R.; Hammer, J.; Lotter, M.; Resch, A.; Sauer, R.; Strnad, V. Accelerated partial breast irradiation with multi-catheter brachytherapy: Local control, side effects and cosmetic outcome for 274 patients. Results of the german-austrian multi-centre trial. Radiother. Oncol. 2007, 82, 281–286. [Google Scholar] [CrossRef] [PubMed]
  25. Leek, R.D.; Lewis, C.E.; Whitehouse, R.; Greenall, M.; Clarke, J.; Harris, A.L. Association of macrophage infiltration with angiogenesis and prognosis in invasive breast carcinoma. Cancer Res. 1996, 56, 4625–4629. [Google Scholar]
  26. Gwak, J.M.; Jang, M.H.; Kim, D.I.; Seo, A.N.; Park, S.Y. Prognostic value of tumor-associated macrophages according to histologic locations and hormone receptor status in breast cancer. PLoS ONE 2015, 10, e0125728. [Google Scholar] [CrossRef]
  27. Strnad, V.; Hildebrandt, G.; Potter, R.; Hammer, J.; Hindemith, M.; Resch, A.; Spiegl, K.; Lotter, M.; Uter, W.; Bani, M.; et al. Accelerated partial breast irradiation: 5-year results of the german-austrian multicenter phase ii trial using interstitial multicatheter brachytherapy alone after breast-conserving surgery. Int. J. Radiat. Oncol. Biol. Phys. 2011, 80, 17–24. [Google Scholar] [CrossRef]
  28. Holness, C.L.; Simmons, D.L. Molecular cloning of cd68, a human macrophage marker related to lysosomal glycoproteins. Blood 1993, 81, 1607–1613. [Google Scholar] [CrossRef]
  29. Lau, S.K.; Chu, P.G.; Weiss, L.M. Cd163: A specific marker of macrophages in paraffin-embedded tissue samples. Am. J. Clin. Pathol. 2004, 122, 794–801. [Google Scholar] [CrossRef]
  30. Zhang, M.; He, Y.; Sun, X.; Li, Q.; Wang, W.; Zhao, A.; Di, W. A high m1/m2 ratio of tumor-associated macrophages is associated with extended survival in ovarian cancer patients. J. Ovarian Res. 2014, 7, 19. [Google Scholar] [CrossRef]
  31. Jackute, J.; Zemaitis, M.; Pranys, D.; Sitkauskiene, B.; Miliauskas, S.; Vaitkiene, S.; Sakalauskas, R. Distribution of m1 and m2 macrophages in tumor islets and stroma in relation to prognosis of non-small cell lung cancer. BMC Immunol. 2018, 19, 3. [Google Scholar] [CrossRef]
  32. Hu, H.; Hang, J.J.; Han, T.; Zhuo, M.; Jiao, F.; Wang, L.W. The m2 phenotype of tumor-associated macrophages in the stroma confers a poor prognosis in pancreatic cancer. Tumor Biol. 2016, 37, 8657–8664. [Google Scholar] [CrossRef] [PubMed]
  33. Yamaguchi, T.; Fushida, S.; Yamamoto, Y.; Tsukada, T.; Kinoshita, J.; Oyama, K.; Miyashita, T.; Tajima, H.; Ninomiya, I.; Munesue, S.; et al. Tumor-associated macrophages of the m2 phenotype contribute to progression in gastric cancer with peritoneal dissemination. Gastric Cancer 2016, 19, 1052–1065. [Google Scholar] [CrossRef] [PubMed]
  34. Xu, W.; Zhao, X.; Daha, M.R.; van Kooten, C. Reversible differentiation of pro- and anti-inflammatory macrophages. Mol. Immunol. 2013, 53, 179–186. [Google Scholar] [CrossRef] [PubMed]
  35. Ding, J.; Jin, W.; Chen, C.; Shao, Z.; Wu, J. Tumor associated macrophage x cancer cell hybrids may acquire cancer stem cell properties in breast cancer. PLoS ONE 2012, 7, e41942. [Google Scholar] [CrossRef] [PubMed]
  36. Garvin, S.; Vikhe Patil, E.; Arnesson, L.G.; Oda, H.; Hedayati, E.; Lindstrom, A.; Shabo, I. Differences in intra-tumoral macrophage infiltration and radiotherapy response among intrinsic subtypes in pt1-t2 breast cancers treated with breast-conserving surgery. Virchows Arch. 2019, 475, 151–162. [Google Scholar] [CrossRef]
  37. Waks, A.G.; Stover, D.G.; Guerriero, J.L.; Dillon, D.; Barry, W.T.; Gjini, E.; Hartl, C.; Lo, W.; Savoie, J.; Brock, J.; et al. The immune microenvironment in hormone receptor-positive breast cancer before and after preoperative chemotherapy. Clin. Cancer Res. 2019, 25, 4644–4655. [Google Scholar] [CrossRef]
  38. Pyonteck, S.M.; Akkari, L.; Schuhmacher, A.J.; Bowman, R.L.; Sevenich, L.; Quail, D.F.; Olson, O.C.; Quick, M.L.; Huse, J.T.; Teijeiro, V.; et al. Csf-1r inhibition alters macrophage polarization and blocks glioma progression. Nat. Med. 2013, 19, 1264–1272. [Google Scholar] [CrossRef]
  39. Paulus, P.; Stanley, E.R.; Schafer, R.; Abraham, D.; Aharinejad, S. Colony-stimulating factor-1 antibody reverses chemoresistance in human mcf-7 breast cancer xenografts. Cancer Res. 2006, 66, 4349–4356. [Google Scholar] [CrossRef]
  40. Echarti, A.; Hecht, M.; Buttner-Herold, M.; Haderlein, M.; Hartmann, A.; Fietkau, R.; Distel, L. Cd8+ and regulatory t cells differentiate tumor immune phenotypes and predict survival in locally advanced head and neck cancer. Cancers 2019, 11, 1398. [Google Scholar] [CrossRef]
  41. Goldhirsch, A.; Winer, E.P.; Coates, A.S.; Gelber, R.D.; Piccart-Gebhart, M.; Thurlimann, B.; Senn, H.J.; Panel, M. Personalizing the treatment of women with early breast cancer: Highlights of the st gallen international expert consensus on the primary therapy of early breast cancer 2013. Ann. Oncol. 2013, 24, 2206–2223. [Google Scholar] [CrossRef]
  42. Fasching, P.A.; Gass, P.; Haberle, L.; Volz, B.; Hein, A.; Hack, C.C.; Lux, M.P.; Jud, S.M.; Hartmann, A.; Beckmann, M.W.; et al. Prognostic effect of ki-67 in common clinical subgroups of patients with her2-negative, hormone receptor-positive early breast cancer. Breast Cancer Res. Treat. 2019, 175, 617–625. [Google Scholar] [CrossRef] [PubMed]

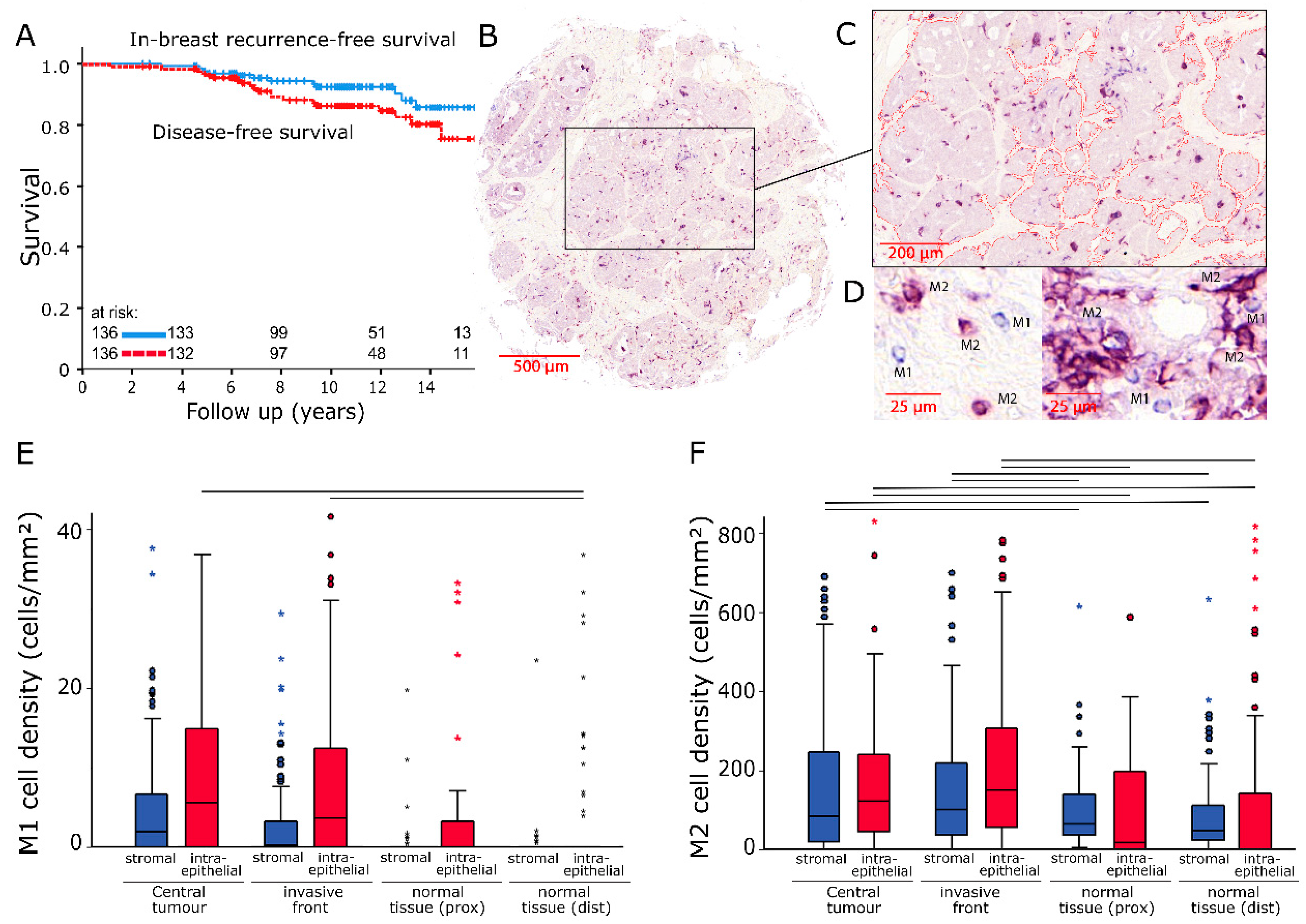

Figure 1. (A) In-breast recurrence-free survival and disease-free survival of the studied patient cohort analysed with the Kaplan–Meier method and log-rank test. (B) Scanned image of a representative breast cancer tissue microarray core (200× magnification). (C) Epithelial tumour compartment marked with an image analysis software. (D) Representative examples of M1 (IHC CD68+; blue) and M2 (IHC CD68+/CD163+; violet) tumour associated macrophages (TAMs). (E,F) Stromal and intraepithelial cell density distributions of M1 and M2 TAMs in samples from four different locations. The central line represents median values while the box is indicative of the interquartile range (IQR). Whiskers represent 1.5× IQR or minimum/maximum. Outliers are indicated by points (up to 3× IQR) or asterisks (>3 IQR). Black bars signify p < 0.05 in Student’s t-test.
Figure 1. (A) In-breast recurrence-free survival and disease-free survival of the studied patient cohort analysed with the Kaplan–Meier method and log-rank test. (B) Scanned image of a representative breast cancer tissue microarray core (200× magnification). (C) Epithelial tumour compartment marked with an image analysis software. (D) Representative examples of M1 (IHC CD68+; blue) and M2 (IHC CD68+/CD163+; violet) tumour associated macrophages (TAMs). (E,F) Stromal and intraepithelial cell density distributions of M1 and M2 TAMs in samples from four different locations. The central line represents median values while the box is indicative of the interquartile range (IQR). Whiskers represent 1.5× IQR or minimum/maximum. Outliers are indicated by points (up to 3× IQR) or asterisks (>3 IQR). Black bars signify p < 0.05 in Student’s t-test.
Cancers 12 00446 g001
Figure 2. Disease-free survival analysed with the Kaplan–Meier method and log-rank test according to macrophage densities in invasive front samples: (A,B) M1 macrophage densities in the stromal and intraepithelial compartment. (C,D) M2 macrophage densities in the stromal and intraepithelial compartment. (E,F) Disease-free survival according to TAM polarisation shift classifications applied to the stromal and intraepithelial compartment of invasive front samples. The table located in the lower right section explains how results from (AD) were combined to create the TAM shift classification.
Figure 2. Disease-free survival analysed with the Kaplan–Meier method and log-rank test according to macrophage densities in invasive front samples: (A,B) M1 macrophage densities in the stromal and intraepithelial compartment. (C,D) M2 macrophage densities in the stromal and intraepithelial compartment. (E,F) Disease-free survival according to TAM polarisation shift classifications applied to the stromal and intraepithelial compartment of invasive front samples. The table located in the lower right section explains how results from (AD) were combined to create the TAM shift classification.
Cancers 12 00446 g002

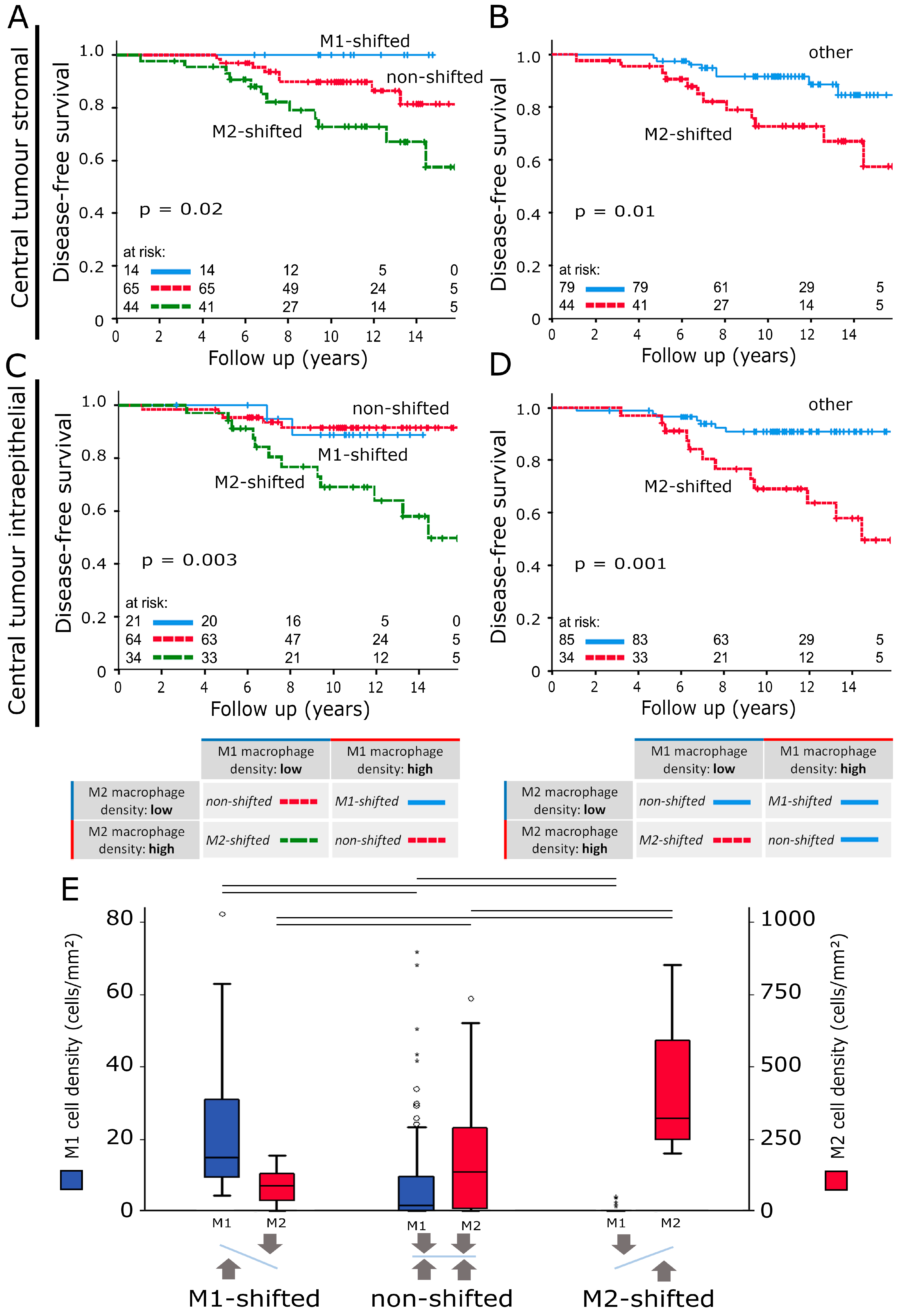

Figure 3. (A,C) Disease-free survival analysed with the Kaplan–Meier method and log-rank test according to TAM polarisation shift classifications based on stromal and intraepithelial macrophage densities in central tumour samples. (B,D) Versions of (A) and (C) that compare disease-free survival of the M2-shifted group to the remaining two groups. The tables below the survival plots give a detailed explanation of group compositions. (E) Intraepithelial macrophage density distributions in invasive front samples according to the TAM polarisation shift classification. The scale on the left indicates M1 macrophage densities (blue) while M2 cell densities can be found on the right (red). The central line represents median values while the box is indicative of the interquartile range (IQR). Whiskers represent 1.5× IQR or minimum/maximum. Outliers are indicated by points (up to 3× IQR) or asterisks (>3 IQR). Black bars signify p < 0.05 in Student’s t-test.
Figure 3. (A,C) Disease-free survival analysed with the Kaplan–Meier method and log-rank test according to TAM polarisation shift classifications based on stromal and intraepithelial macrophage densities in central tumour samples. (B,D) Versions of (A) and (C) that compare disease-free survival of the M2-shifted group to the remaining two groups. The tables below the survival plots give a detailed explanation of group compositions. (E) Intraepithelial macrophage density distributions in invasive front samples according to the TAM polarisation shift classification. The scale on the left indicates M1 macrophage densities (blue) while M2 cell densities can be found on the right (red). The central line represents median values while the box is indicative of the interquartile range (IQR). Whiskers represent 1.5× IQR or minimum/maximum. Outliers are indicated by points (up to 3× IQR) or asterisks (>3 IQR). Black bars signify p < 0.05 in Student’s t-test.
Cancers 12 00446 g003

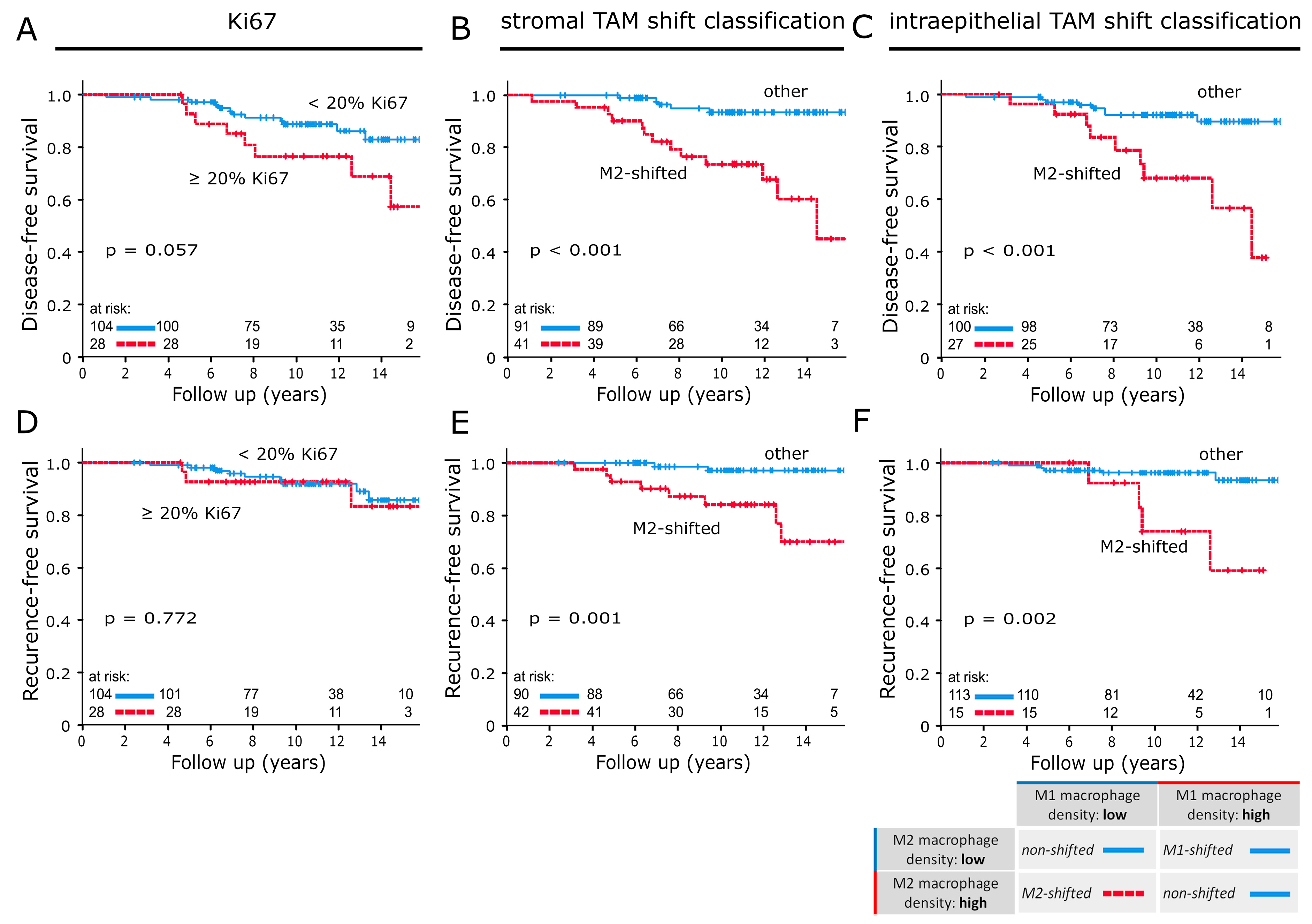

Figure 4. Disease-free survival analysed with the Kaplan–Meier method and log-rank test according to (A) Ki67 and (B,C) the TAM shift classification applied to invasive front samples. In-breast recurrence-free survival analysed with the Kaplan–Meier method and log-rank test according to (D) Ki67 and (E,F) the TAM shift classification applied to invasive front samples. In (B,C,E,F), M2-shifted was compared to the remaining two groups of the TAM shift classification. The table below the survival plots gives a detailed explanation of group compositions.
Figure 4. Disease-free survival analysed with the Kaplan–Meier method and log-rank test according to (A) Ki67 and (B,C) the TAM shift classification applied to invasive front samples. In-breast recurrence-free survival analysed with the Kaplan–Meier method and log-rank test according to (D) Ki67 and (E,F) the TAM shift classification applied to invasive front samples. In (B,C,E,F), M2-shifted was compared to the remaining two groups of the TAM shift classification. The table below the survival plots gives a detailed explanation of group compositions.
Cancers 12 00446 g004
Table 1. Clinical characteristics.
Table 1. Clinical characteristics.
VariablesGroups
Age (years)Mean: 59.1;<50: 27 (19.9%);≥50: 109 (80.1%)
T categorypT1mic: 6 (4.4%)pT1a: 8 (5.9%)pT1b: 33 (24.3%)pT1c: 79 (58.1%)pT2: 10 (7.4%)
N categoryN0: 133 (97.8%)N1: 3 (2.2%)
StageUICC I: 124 (91.2%)UICC II: 12 (8.8%)
Tumour size (mm)<10: 34 (25%);10–20: 92 (67.6%);>20: 10 (7.4%)
Histological gradingG1: 36 (26.5%)G2: 93 (68.4%)G3: 4 (2.9%)n.a. 3 (2.2%)
Histological typingLobular: 20 (14.7%)No special type: 95 (69.9%)other: 21 (15.4%)
Ki67<20: 104 (76.5%)≥20: 28 (20.6%)n.a. 4 (2.9%)
Oestrogen receptor statusPositive: 131 (96.3%)Negative: 1 (0.7%)n.a. 4 (2.9%)
Progesterone receptor statusPositive: 122 (89.7%)Negative: 11 (8.1%)n.a. 3 (2.2%)
Her2 statusPositive: 8 (5.9%)Negative: 124 (91.2%)n.a. 4 (2.9%)
SubtypeLuminal A: 89 (65.4%)Luminal B: 41 (30.1%)n.a. 6 (4.4%)
Hormone therapyYes: 122 (89.7%)No: 14 (10.3%)
ChemotherapyYes: 9 (6.6%)No: 127 (93.4%)
n.a. = not available.
Table 2. Correlations between macrophage phenotypes in different tumour compartments.
Table 2. Correlations between macrophage phenotypes in different tumour compartments.
M1 GroupsIndicatorsM2 Cell Densities Central TumourM2 Cell Densities Invasive FrontM2 Cell Densities Normal Tissue (Prox)M2 Cell Densities Normal Tissue (Dist)
M1 cell densities central tumourCorrelation coefficient0.202 *0.095−0.0200.090
p0.0280.3220.8720.412
n1191116886
M1 cell densities invasive frontCorrelation coefficient0.1210.1000.1330.110
p0.2050.2620.2730.296
n1111277092
M1 cell densities normal tissue (prox)Correlation coefficient−0.0970.1000.409 **0.399 **
p0.4290.409<0.0010.001
n68707265
M1 cell densities normal tissue (dist)Correlation coefficient−0.0310.1370.263 *0.478 **
p0.7780.1930.034<0.001
n869265106
* p ≤ 0.05, ** p ≤ 0.001.
Table 3. Summary of 12-year survival according to Ki67, macrophage densities and macrophage shift classifications. Cut-off points for low vs. high macrophage densities for disease-free survival and in-breast recurrence-free survival can be found in the respective Kaplan–Meier plots.
Table 3. Summary of 12-year survival according to Ki67, macrophage densities and macrophage shift classifications. Cut-off points for low vs. high macrophage densities for disease-free survival and in-breast recurrence-free survival can be found in the respective Kaplan–Meier plots.
Breast CancerDisease-Free SurvivalIn-Breast Recurrence-Free Survival
Variables N12 yr DFS (%)p (Log Rank)N12 yr IBRFS (%)p (Log Rank)
Ki67
<20%104860.057104920.772
≥20%28772893
Central tumour stromal
M1 low53780.09551880.241
vs. M1 high70877294
M2 low231000.02311000.033
vs. M2 high100799289
M1-shifted + non-shifted79890.0185950.033
vs. M2-shifted44733884
Central tumour intraepithelial
M1 low63750.03561860.094
vs. M1 high56905896
M2 low50900.12254960.132
vs. M2 high69786588
M1-shifted + non-shifted85910.00187960.004
vs. M2-shifted34643277
Invasive front stromal
M1 low68770.01170880.011
vs. M1 high64936298
M2 low48950.03548970.101
vs. M2 high84808491
M1-shifted + non-shifted9193<0.00190970.001
vs. M2-shifted41684284
Invasive front intraepithelial
M1 low69800.03857860.025
vs. M1 high58907099
M2 low72940.00395960.004
vs. M2 high55743285
M1-shifted + non-shifted10090<0.001113960.002
Vs. M2-shifted27681574
Table 4. Univariate and multivariate analysis of disease-free survival according to Cox’s proportional hazards model. Parameters marked with an asterisk were not included in calculations because group sizes were not comparable.
Table 4. Univariate and multivariate analysis of disease-free survival according to Cox’s proportional hazards model. Parameters marked with an asterisk were not included in calculations because group sizes were not comparable.
Breast CancerUnivariate AnalysisMultivariate Analysis
VariableHazard Ratio95% C.I.pHazard Ratio95% C.I.p
Age (yr) (<50 (n = 26) vs. ≥50 (n = 91))1.7570.352–8.7650.492---------
pT category (pT1 (n = 108)
vs. pT2 (n = 9))
1.3460.312–5.8090.691---------
Stage (UICC I (n = 107)
vs. UICC II (n = 10))
1.8920.553–6.470.309---------
Tumour size (mm) (<20 (n = 102)
vs. ≥20 (n = 15))
1.1090.044–27.8890.950---------
Histological grading (G1 (n = 33)
vs. G2-3 (n = 84))
1.4920.304–7.3180.622---------
Histological typing (non-lobular
(n = 101) vs. lobular (n = 16))
0.5360.089–3.220.495---------
ER status (negative (n = 1)
vs. positive (n = 116))
***---------
PR status (negative (n = 11)
vs. positive (n = 106))
1.1520.065–20.3120.923---------
Her2 status (negative (n = 110)
vs. positive (n = 7))
1.3570.137–13.4240.794---------
Ki67 (<20 (n = 104) vs. ≥20 (n = 28))2.3320.95–5.7250.0651.9630.712–5.410.193
Hormone therapy (No (n = 12)
vs. Yes (n = 105))
2.0420.166–25.0480.577---------
Chemotherapy (No (n = 109)
vs. Yes (n = 8))
3.8310.374–39.2070.258---------
TAM shift classification intraepithelial (other (n = 93) vs. M2-shifted (n = 24))4.7961.846–12.4610.0012.8901.058–7.8960.039
TAM shift classification stromal (other (n = 81) vs. M2-shifted (n = 36))9.3592.399–36.5090.0014.2231.408–12.6670.010
ER = oestrogen receptor; PR = progesterone receptor.
Table 5. Correlations between clinicopathological characteristics and macrophage shifts in both tumour compartments of invasive front samples.
Table 5. Correlations between clinicopathological characteristics and macrophage shifts in both tumour compartments of invasive front samples.
Breast CancerStromal TAM Shift Classification (n = 132)Intraepithelial TAM Shift Classification (n = 127)
CharacteristicsGroupn (total)M1-Shifted + Non-ShiftedM2-ShiftedpM1-Shifted + Non-ShiftedM2-Shiftedp
Age (yr)<502721 (23%)6 (15%)0.35321 (21%)6 (22%)1.00
≥5010970 (77%)35 (85%)79 (79%)21 (78%)
T CategorypT112686 (95%)36 (88%)0.28494 (94%)24 (89%)0.399
pT2105 (5%)5 (12%)6 (6%)3 (11%)
StageUICC I12486 (95%)35 (85%)0.09593 (93%)24 (89%)0.442
UICC II125 (5%)6 (15%)7 (7%)3 (3%)
Tumour size (mm)<2012082 (90%)34 (83%)0.25990 (90%)22 (82%)0.31
≥2069 (10%)7 (17%)10 (10%)5 (18%)
Histological gradingG13627 (31%)9 (24%)0.5230 (31%)4 (17%)0.208
G2+G39360 (69%)29 (76%)66 (69%)20 (83%)
n.a.7
Histological typingNon lobular11678 (86%)35 (85%)1.0087 (87%)23 (85%)0.758
Lobular2013 (14%)6 (15%)13 (13%)4 (15%)
DCISNo6844 (54%)21 (55%)1.0047 (52%)16 (67%)0.25
Yes5638 (46%)17 (45%)44 (48%)8 (33%)
n.a.12
Ki67<2010071 (82%)29 (71%)0.17678 (81%)19 (70%)0.285
≥202816 (18%)12 (29%)18 (19%)8 (30%)
n.a.4
ER statusNeg11 (1%)01.001 (1%)01.00
Pos13186 (99%)41 (100%)95 (99%)27 (100%)
n.a.4
PR statusNeg119 (10%)2 (5%)0.5017 (7%)4 (15%)0.253
Pos12279 (90%)39 (95%)90 (93%)23 (85%)
n.a.3
Her2 statusNeg12482 (94%)38 (93%)0.7189 (92%)26 (100%)0.201
Pos85 (6%)3 (7%)8 (8%)0
n.a.4
SubtypeLuminal A8959 (68%)26 (65%)0.68865 (69%)17 (63%)0.641
Luminal B4127 (31%)14 (35%)29 (31%)10 (37%)
n.a.6
n.a. = not available; ER = oestrogen receptor; PR = progesterone receptor.
Back to TopTop
