Wide Range Simulation Study of Taylor Bubbles in Circular Milli and Microchannels

Centro de Estudos de Fenómenos de Transporte, Departamento de Engenharia Química, Faculdade de Engenharia da Universidade do Porto, Rua Dr. Roberto Frias, 4200-465 Porto, Portugal

^{*}

Author to whom correspondence should be addressed.

Academic Editor:
Joost Lötters

Received: 6 March 2017 / Accepted: 8 May 2017 / Published: 12 May 2017

## Abstract

**:**

A deep knowledge of the hydrodynamics of two-phase flow in millichannels and microchannels is relevant to the design and control of micro structured equipment. While there is plenty of work published in this area, there is a lack of studies over a wide range of dimensionless numbers and some factors have not been properly addressed, such as the role of the Reynolds number, the features of recirculation regions in the liquid slug and the liquid film development length. Therefore, a wide range parametric study of isolated gas Taylor bubbles flowing in co-current with liquid in circular milli- and microchannels is presented, in a wide range of Capillary (Ca

_{B}) (0.01–2) and Reynolds numbers (Re_{B}) (0.01–700). The shape and velocity of the bubbles are, together with the flow patterns in the flowing liquid, analyzed and compared with numerical and experimental correlations available in the literature. For low values of Ca_{B}, the streamlines (moving reference frame (MRF)) in the liquid slug show semi-infinite recirculations occupying a large portion of the cross-section of the channel. The mean velocity of the fluid moving inside the external envelope of the semi-infinite streamlines is equal to the bubble velocity. For high values of Ca_{B}, there are no recirculations and the bubble is moving faster or at least at the velocity of the liquid in the center of the tube; this flow pattern is often called bypass flow. The results also indicate that the liquid film surrounding the bubbles is for low Ca_{B}and Re_{B}numbers almost stagnant, and its thickness accurately estimated with existing correlations. The stagnant film hypothesis developed provides an accurate approach to estimate the velocity of the bubble, in particular for low values of Ca_{B}. The asymptotic behavior of the studied parameters enables the extrapolation of data for Ca_{B}lower than 0.01. In addition to the simulations of isolated bubbles, simulations with two consecutive bubbles were also carried out; coalescence was only observed in very specific conditions. The results obtained in this study are directly applicable to co-current slug flow in milli- and microchannels for 0.1 < Re_{B}< 1000 and 0.02 < Ca_{B}< 2.Keywords:

Taylor bubble; gas-liquid slug flow; microchannels; millichannels; Newtonian liquids## 1. Introduction

A rigorous understanding of the hydrodynamic features of milli- and micro-scale two-phase flow is of great importance to the design and control of several equipment; one example are structured reactors [1,2]. These reactors allow enhanced heat and mass transfer due to their larger surface-to-volume ratio. In two-phase flows, the most important and commonly observed flow pattern is slug flow [3]. This regime is typified by a sequence of bullet shaped gas bubbles separated by liquid slugs, with the bubbles occupying the entire channel cross-section or being at most separated from the channel wall by a thin liquid film. This liquid film contributes to the reduction of the axial mixing along the liquid flow [4,5]. In addition, the recirculation vortices, which can appear in the liquid slugs, can improve the heat and mass transfer between the liquid and the wall as well as the interfacial mass transfer from the gas to the liquid [6]. The vortices observed in the liquid slugs have also a role in the flow promoted by gas embolisms. In vitro studies show that the vortices promote complex spatio-temporal variations of the red blood cell distribution along the vessel with implications for local rheology and transport processes [7].

The dynamics of milli- and micro-scale two-phase flows are significantly different from the dynamics at the macro scale, because of the fact that the interfacial forces become more prominent than the gravitational forces, which tend to be negligible. The dimensionless number relating these two forces is the Eötvös number (often also called Bond number), defined as follows:
where ${\rho}_{\mathrm{G}}$ and
${\rho}_{\mathrm{L}}$ are the gas and liquid densities, respectively, g the acceleration due to gravity, D the tube diameter and γ the surface tension.

$$\mathrm{Eo}=\frac{({\rho}_{\mathrm{L}}-{\rho}_{\mathrm{G}})g{D}^{2}}{\gamma}$$

Several different values have been suggested as the limit for Eo under which a channel can be considered “small” and interfacial forces dominate over gravitational forces: (2π)

^{2}by Suo and Griffith [8] and 3.37 by Bretherton [9], estimated differently. In channels with dimensions until a few hundred microns, the Eötvös number is far below both of these limits, regardless the properties of the fluids. Therefore, the simulations carried out in the present work neglect the gravity effect.The main dimensionless numbers that govern two-phase co-current flow in small channels are the Reynolds number and the Capillary number based either on the bubble velocity or on the mean liquid velocity. The Reynolds number compares the inertial forces with the viscous forces and is defined through the bubble velocity as follows:
where V

$${\mathrm{Re}}_{\mathrm{B}}=\frac{{\rho}_{\mathrm{L}}{V}_{\mathrm{B}}D}{{\mu}_{\mathrm{L}}}$$

_{B}is the velocity of the bubble and μ_{L}the viscosity of the liquid.The Capillary number relates the viscous forces with the interfacial forces, and is defined as follows:

$${\mathrm{Ca}}_{\mathrm{B}}=\frac{{\mu}_{\mathrm{L}}{V}_{\mathrm{B}}}{\gamma}or{\mathrm{Ca}}_{\mathrm{L}}=\frac{{\mu}_{\mathrm{L}}{V}_{\mathrm{L}}}{\gamma}$$

Two other dimensionless numbers can be pertinent when studying two-phase flows: the Weber number, which compares inertial and interfacial forces, and the Laplace number, which is independent of external dynamics parameters such as velocity and includes only the properties of the fluids and geometric characteristics of the channel. Laplace and Weber numbers can be expressed as functions of Re

_{B}and Ca_{B}:
$${\mathrm{We}}_{\mathrm{B}}={\mathrm{Re}}_{\mathrm{B}}\times {\mathrm{Ca}}_{\mathrm{B}}=\frac{{\rho}_{\mathrm{L}}{V}_{\mathrm{B}}^{2}D}{\gamma}$$

$$\mathrm{La}=\frac{{\mathrm{Re}}_{\mathrm{B}}}{{\mathrm{Ca}}_{\mathrm{B}}}=\frac{{\rho}_{\mathrm{L}}\gamma D}{{\mu}_{\mathrm{L}}^{2}}$$

The ratio between the length of the bubble and the tube radius is another dimensionless group to have in consideration. However, this group is important only when the length of the bubble is not long enough to have a stabilized liquid film flowing between the bubble and the tube wall. In the present study, only bubbles with a sufficient length to have this film stabilized will be analyzed.

In this work, an attempt is made to clarify, through numerical simulations, the shape and velocity of isolated Taylor bubbles as well as the thickness of the liquid film flowing between the bubble and the wall in milli- and microchannels, for a wide range of Reynolds and Capillary numbers. The paper first presents a review of literature concerning the state of the art. The subsequent section outlines the computational fluid dynamics (CFD) model used to carry out the simulations. In the Results and Discussion Section, the simulation data are presented and are validated through correlations based on experiments from the literature.

## 2. State of the Art

A review of literature concerning the main parameters studied in this paper is presented in this section. More in depth article reviews about this topic are also available [2,10].

#### 2.1. Liquid Film around the Taylor Bubble

Aussillous and Quere [11] carried out experiments in capillary tubes utilizing low viscosity liquids at high velocities in order to investigate the liquid film thickness around a Taylor bubble flowing in co-current. The results were compared with data from the experiments of Taylor [12] and Bretherton [9], obtained in capillaries under negligible inertial effects. An empirical fit equation expressing the film thickness as a function of Ca
where δ is the film thickness and R the radius of the capillary.

_{B}was proposed:
$$\frac{\delta}{R}=\frac{1.34{\mathrm{Ca}}_{\mathrm{B}}^{2/3}}{1+2.5(1.34{\mathrm{Ca}}_{\mathrm{B}}^{2/3})}$$

Aussillous and Quere noted that above a certain liquid mean velocity, the film was thicker than the data presented by Taylor, this deviation being attributed to the inertia forces involved.

Serizawa et al. [13] visualized air-water flow in circular tubes of 20, 25 and 100 μm through a microscope. During slug flow at low velocities, the authors noted that small liquid droplets were sticking on the tube wall around the gas slug and this occurrence was regarded as evidence that no liquid film exists between the gas slug and the tube wall. The effect of surface wettability was then investigated and a thin liquid film appeared at high gas velocities under carefully treated clean surface conditions.

Warnier et al. [14] described the gas hold-up and its relation to the liquid film thickness around a Taylor bubble under conditions where inertial effects are significant. In addition, a mass balance based model for Taylor bubbles with a quiescent liquid film was developed. Applying the model to experimental data, they obtained the gas hold-up, which follows Armand’s correlation [15] for significant inertial effects. This conclusion points towards a liquid film thickness independent of the bubble velocity and equal to a fixed fraction of the channel cross-section whatever the channel diameter. This conclusion is in agreement with the qualitative analysis of Aussillous and Quere [11].

Gupta et al. [16] reviewed the occurrence of wall dry-out during experimental studies and suggested a criterion to have a sufficiently fine mesh to capture film flow in numerical simulations. The study concluded that Taylor bubbles are most of the times surrounded by liquid and dry-out at the walls is only observed under very particular conditions, such as during transient mixing of gas and liquid from separate streams, flow in noncircular geometries or at very high homogeneous void fraction. Additionally, wall adhesion properties play a role only when gas and liquid are both in contact with the wall. The authors also stressed the importance of near-wall mesh resolution in numerical studies.

Han and Shikazono [17] used a laser focus displacement meter to measure the thickness of the thin liquid film in slug flow and studied the parameters that affect its formation and development. The study presents the effects of the Capillary number, Reynolds number, gas and liquid slug lengths and gravity on the liquid film thickness. They concluded that at small Capillary numbers, the inertial effects are negligible. As Capillary number increases, the inertial effects can no longer be neglected and for Reynolds numbers above 2000, liquid film thickness becomes nearly constant. According to Han and Shikazono, liquid slug length has a weak effect on the liquid film thickness, whereas it becomes undeveloped and thicker for short gas bubbles. The gravity is only important in tubes of large diameter. Finally, they proposed an empirical correlation based on Ca

_{B}, Re_{B}and We_{B}to predict liquid film thickness within ±15% of accuracy:
$$\frac{\delta}{D}=\frac{0.670{\mathrm{Ca}}_{\mathrm{B}}^{2/3}}{1+3.13{\mathrm{Ca}}_{\mathrm{B}}^{2/3}+0.504{\mathrm{Ca}}_{\mathrm{B}}^{0.672}{\mathrm{Re}}_{\mathrm{B}}^{0.589}-0.352{\mathrm{We}}_{\mathrm{B}}^{0.629}}$$

For multiphase flows in non-circular channels, several studies have reported the occurrence of partial dry-out at the walls, with the liquid flowing only on the edges of the channel [18,19,20]. This phenomenon was observed mostly at low gas flow rates and depending on the affinity between the liquid and the wall.

According to the literature, the dry-out between the bubble and the wall only happens under certain conditions. In circular geometries, this phenomenon is reported under very low gas velocities while in noncircular geometries, this effect is more common and the wettability plays an important role together with the gas velocity. In respect to the thickness of the liquid film, it depends on the interfacial and inertial forces. If inertial forces are negligible, the film thickness should depend exclusively on the Capillary number. However, if inertial forces cannot be neglected, the Capillary number no longer affects the film flow and its thickness becomes a constant fraction of the tube diameter.

#### 2.2. Taylor Bubble Velocity

Liu et al. [21] studied experimentally slug flow hydrodynamics in vertical capillaries of circular and square cross sections. The authors studied the parameters affecting the bubble rise velocity with a high-speed video camera. In order to overcome the limitations of the existing models, such as the estimation of parameters that are difficult to measure, the authors presented the following correlation, which allows the calculation of the bubble velocity through the two-phase velocity and the Capillary number based on that velocity, Ca
where V

_{TP}:
$$\frac{{V}_{\mathrm{B}}}{{V}_{\mathrm{TP}}}=\frac{1}{1-0.61{\mathrm{Ca}}_{\mathrm{TP}}^{0.33}}$$

_{TP}is the two-phase velocity, defined as the sum of the gas and liquid superficial velocities.This equation is valid for Capillary numbers in the range between 0.0002 and 0.39. The work also concluded that geometry and hydraulic diameter have little influence on the bubble rise velocity.

Abiev and Lavretsov [22] studied the hydrodynamics of slug flow in horizontal capillaries with an inner diameter of 0.92 mm. The systems studied were water–air and glycerol–air. They compared the experimental data obtained with results from existing mathematical models and presented a new equation, based on an earlier model [23], to estimate the bubble velocity as a function of Capillary number. The approach is as follows:
where d is a constant. F(Ca
where b, c, g and h are constants.

$$\frac{{V}_{\mathrm{B}}}{{V}_{\mathrm{TP}}}=1+d[1-\mathrm{exp}(-\mathrm{F}({\mathrm{Ca}}_{\mathrm{B}}))]$$

_{B}) can be one of three different functions, with increasing accuracy but also with increasing complexity, presented below:
$${\mathrm{F}}_{1}({\mathrm{Ca}}_{\mathrm{B}})=\mathrm{exp}[b+c\mathrm{ln}({\mathrm{Ca}}_{\mathrm{B}})]$$

$${\mathrm{F}}_{2}({\mathrm{Ca}}_{\mathrm{B}})=\mathrm{exp}[b+c\mathrm{ln}({\mathrm{Ca}}_{\mathrm{B}})+g\mathrm{ln}{({\mathrm{Ca}}_{\mathrm{B}})}^{2}]$$

$${\mathrm{F}}_{3}({\mathrm{Ca}}_{\mathrm{B}})=\mathrm{exp}[b+c\mathrm{ln}({\mathrm{Ca}}_{\mathrm{B}})+g\mathrm{ln}{({\mathrm{Ca}}_{\mathrm{B}})}^{2}+h\mathrm{ln}{({\mathrm{Ca}}_{\mathrm{B}})}^{3}]$$

Another approach to estimate the bubble velocity is to assume motionless liquid film between the bubble and the channel. Under this assumption, an expression relating the bubble velocity to the mean liquid velocity is obtained from a simple mass balance:
where A

$${V}_{\mathrm{B}}{A}_{\mathrm{B}}+{V}_{\mathrm{film}}{A}_{\mathrm{film}}={V}_{\mathrm{L}}{A}_{\mathrm{MC}}$$

$${V}_{\mathrm{B}}=\frac{{A}_{\mathrm{MC}}}{{A}_{\mathrm{B}}}{V}_{\mathrm{L}}-\frac{{V}_{\mathrm{film}}{A}_{\mathrm{film}}}{{A}_{\mathrm{B}}}$$

_{B}, A_{film}and A_{MC}are the cross section areas of the bubble, film and microchannel, respectively, and V_{film}is the average velocity in the film. If V_{film}is zero, then the equation is simplified:
$${V}_{\mathrm{B}}=\frac{{A}_{\mathrm{MC}}}{{A}_{\mathrm{B}}}{V}_{\mathrm{L}}$$

Since the radius of the bubble is
${R}_{\mathrm{B}}={R}_{\mathrm{MC}}-\delta $, the velocity of the bubble can be determined through the thickness of the liquid film:

$${V}_{\mathrm{B}}=\frac{1}{{(1-\frac{\delta}{R})}^{2}}{V}_{\mathrm{L}}$$

According to this approach, the bubble velocity is always higher than the mean liquid velocity. This approach has already been described in the literature [8,24,25].

The literature shows that the liquid velocity is the most important parameter affecting the velocity of gas slug bubble flowing in milli- and microchannels. Other parameters, such as fluid properties and geometry have also been shown to influence bubble velocity, but with a less important contribution. Various correlations and models have been proposed to predict the bubble velocity. Usually, they are based on the two-phase velocity, with some parameters depending on dimensionless numbers such as the Capillary number.

#### 2.3. Flow in Liquid Slugs

Thulasidas et al. [26] studied the flow patterns in the liquid slugs during bubble-train flow inside capillaries, in a moving reference frame (MRF). High-speed video imaging and particle image velocimetry (PIV) techniques were applied to characterize the liquid flow patterns and to determine the velocity profiles along the liquid slugs. The authors found that semi-infinite vortices or a complete bypass flow are observed, depending on the Capillary number. They presented a theoretical model to predict the position and size of the vortices and the velocity profiles inside. Three important parameters that characterize the flow in a MRF were determined: the radial position of the center of the vortex, the radial position of the streamline envelope separating the vortex from the downwards flowing liquid film and the recirculating time of a particle trapped in the vortex.

Taha and Cui [27] carried out numerical simulations with the VOF method to study the hydrodynamics of slug flow in capillaries. Velocity and bubble shape were obtained as a function of the Capillary number together with a detailed description of the velocity field around the bubble. The simulations, in MRF, presented a strong vortex in the liquid slug ahead of the bubble. With increasing Capillary number, the vortex becomes narrower, radial direction, and the radial coordinate of the center shifts towards the capillary axis. The transition to bypass flow occurs, according to the authors, above Ca = 0.5. These numerical results are in agreement with previously published experimental results.

Zaloha et al. [28] studied the hydrodynamics of liquid slugs in gas-liquid Taylor flow in straight and meandering microchannels using micro particle image velocimetry (µPIV). The results are in agreement with previous studies, confirming a recirculation motion in the liquid slug (MRF), which is symmetrical about the centerline of the channel for the straight geometry and more complex and three dimensional in the meandering channel. This study also quantified the recirculation motion by evaluating the recirculation rate, velocity and time. Zaloha et al. found that the recirculation velocity increases linearly with the two-phase superficial velocity V

_{TP}and is independent of the superficial velocity ratio V_{G}/V_{L}for the studied conditions.Experimental and numerical studies have shown that the differences reported between the flow in circular and square capillaries are because as the Capillary number approaches zero, the liquid film thickness tends to zero in circular capillaries, but the flow in the corners remains in square capillaries.

The purpose of this work is to provide a wide range study of isolated gas bubbles flowing in liquids in capillaries and in microchannels, through a complementary analysis of the shape and velocity of the bubbles and of the flow pattern in the liquid. In spite of the array of studies in this area, there is no systematic and inclusive study enclosing so wide range of scales. In addition, the effects of the Reynolds number are not always considered and the features of the recirculation regions in the liquid slugs reported in the literature are not well defined. These objectives will be reached through numerical simulations based on a dimensionless analysis of the phenomena in study. In addition, the dynamics of two consecutive Taylor bubbles are also analyzed to investigate the occurrence of coalescence, a topic not found in literature.

#### 2.4. CFD Model

The commercial software ANSYS Fluent (Release 16.2.0, ANSYS, Inc., Canonsburg, PA, USA) was used in this study to perform the numerical simulations, following a similar approach to that used in other multiphase numerical studies [27,29]. Computational Fluid Dynamics requires a differential description of the fluid flow. The momentum equation is given by
where p is the pressure and
$\overrightarrow{f}$ represents the surface tension contribution, added as a source term to the equation. The continuity equation is the following,

$$\frac{\partial}{\partial t}\left(\rho \overrightarrow{v}\right)+\nabla \bullet \left(\rho \overrightarrow{v}\overrightarrow{v}\right)=-\nabla p+\nabla \bullet \left[\mu \right(\nabla \overrightarrow{v}+\nabla {\overrightarrow{v}}^{T}\left)\right]-\rho g+\overrightarrow{f}$$

$$\frac{\partial \rho}{\partial t}+\nabla \bullet \left(\rho \overrightarrow{v}\right)=0$$

In order to model two-phase flow, the VOF method was applied, which uses a variable α

_{i}to track the position of the interface. This variable is 1 at any point exclusively occupied by fluid i and 0 if i is not present. In the interface between both fluids, the variable assumes a value between 1 and 0. Therefore,
$${\alpha}_{\mathrm{C}}+{\alpha}_{\mathrm{D}}=1$$

The tracking of the interface is computed with the following equation,
together with the geometric reconstruction scheme which assumes a piecewise-linear approach to represent the interface between phases [30,31].

$$\frac{\partial {\alpha}_{i}}{\partial t}+({\overrightarrow{v}}_{i}\bullet \nabla ){\alpha}_{i}=0$$

Surface tension is modeled with the continuum surface force (CSF) model [32],
where k refers to the curvature of the interface, given by

$${\overrightarrow{f}}_{\sigma}=\gamma k\frac{\rho \nabla {\alpha}_{\mathrm{D}}}{0.5({\rho}_{\mathrm{C}}+{\rho}_{\mathrm{D}})}$$

$$k=-\nabla \bullet \frac{\nabla {\alpha}_{\mathrm{D}}}{\left|\overrightarrow{\nabla}{\alpha}_{\mathrm{D}}\right|}$$

The density and viscosity depend on the phase composition and on the properties of each cell and are calculated by

$$\rho ={\rho}_{\mathrm{C}}{\alpha}_{\mathrm{C}}+{\rho}_{\mathrm{D}}{\alpha}_{\mathrm{D}}$$

$$\mu ={\mu}_{\mathrm{C}}{\alpha}_{\mathrm{C}}+{\mu}_{\mathrm{D}}{\alpha}_{\mathrm{D}}$$

As the bubble Capillary number decreases below 0.03, spurious currents tend to appear around the interface of the bubble, inducing fictitious recirculations in the liquid slug and making it difficult to apply to the flow of low viscous liquids flowing in microchannels. In order to minimize these spurious currents, the coupled VOF-level-set method with Heaviside correction was used. The simulations were carried out in a two-dimensional and axisymmetric coordinate system. The flow can be assumed to be symmetrical since the liquid flow in the cylindrical tube is laminar and asymmetries, in such conditions, have never been reported in the literature. The reference domain therefore consists of a rectangle with a length of 700 µm and a width of 50 µm, corresponding to a circular microchannel with a diameter of 100 µm. The critical factor is the number of mesh elements in the liquid film. Gupta et al. [16] demonstrated that simulations of bubbles in microchannels require at least five elements in the film region in the radial direction, otherwise the film may not be captured at all. Three different meshes were thus used depending on the thickness of the liquid film. Mesh sensitivity tests showed that the meshes selected assure an accurate solution with minimal computational effort. In Table 1, the characteristics of the used meshes, as well as the ranges for which they are applied, are presented. All meshes are uniform.

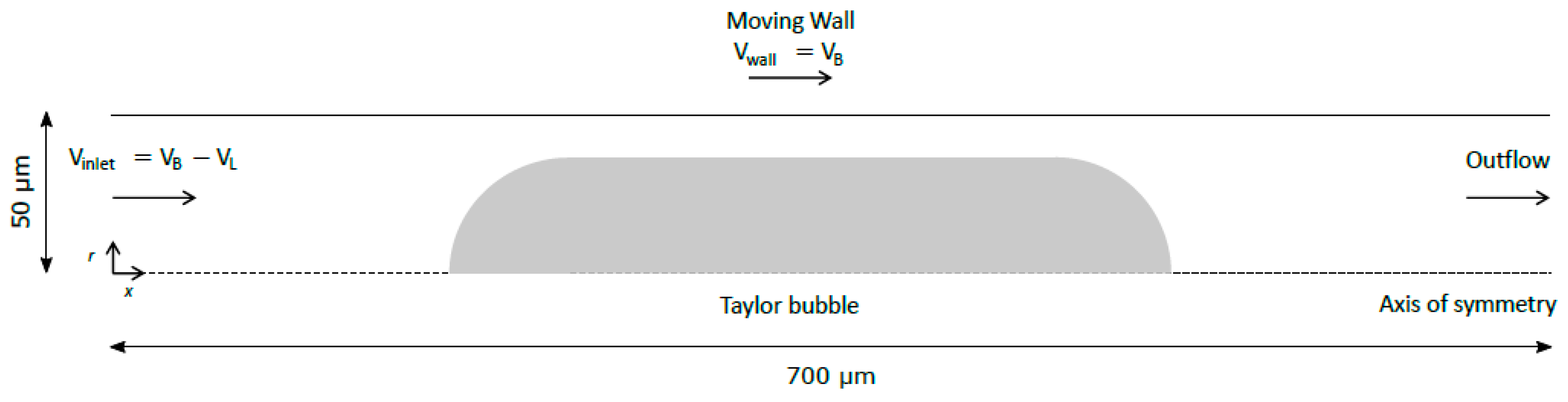

The initial bubble shape was made from a rectangle and two semicircles on each side of the rectangle, with a radius equal to the width of the rectangle. This is the most similar shape to the bubble final form that it is possible to create in ANSYS Fluent as an initial condition. The closer the initial shape is to the correct one, the faster the simulation will be. The width of the rectangle was estimated by calculating the thickness of the liquid film taking the correlation of Han and Shikazono [17]. The length of the rectangle was always fixed as 200 µm. Numerical simulations were also carried out to study the hydrodynamics of two consecutive Taylor bubbles. The CFD methodology was identical to the one used in the analysis of isolated Taylor bubbles, with the only difference being the use of a twice as long simulation domain, with two bubbles placed at a certain distance of each other at the beginning of the simulation.

Every simulation was done in a frame of reference moving with the bubble (MRF), i.e., imposing to the wall the velocity of the bubble. Since the liquid is flowing in co-current, a fully developed laminar velocity profile was imposed through a user-defined function at the inlet of the domain. At the outlet, a pressure outlet boundary condition was assumed. The velocity and pressure initial conditions were set to zero. As the simulation progressed, the velocity of the wall was iterated until the bubble nose remained stationary. As a result, the velocity of the bubble is one of the outputs of the simulation. A schematic representation of the simulated domain is present in Figure 1.

To solve the equations, the pressure-based solver was chosen which uses a finite volume approach to discretize the equations. The pressure-velocity coupling scheme used was pressure implicit with splitting of operators (PISO) and the pressure staggering option (PRESTO!) method was used for the pressure interpolations. The quadratic upstream interpolation for convective kinematics (QUICK) scheme was chosen to solve the momentum equation. The gradients of the scalars were computed with the Green–Gauss node based method.

The simulations were carried out with two cores from an Intel i5 processor, in a computer with 8 GB of random-access memory (RAM). The computational time of each simulation is dependent on the number of elements of the mesh, but most simulations were completed after 24 h.

## 3. Results and Discussion

The two main dimensionless numbers that affect gas-liquid flows in capillaries and microchannels are the Capillary number (Ca

_{B}or Ca_{L}) and the Reynolds number (Re_{B}). Therefore, a series of simulations were carried out in the range of 0.01–2 for Ca_{B}and 0.01–700 for Re_{B}. The limits of the studied Ca_{B}/Re_{B}map were imposed by several restrictive factors. Below Ca_{B}= 0.01, spurious currents affect significantly the numerical solution while Ca_{B}> 2 is unrealistic for flows in milli- or microchannels. In addition, for Re_{B}higher than 700, the flow becomes 3D.The different dimensionless numbers were generated by varying the input parameters of the numerical simulations. Regarding the properties of the fluids, the density and surface tension values were maintained for all studied cases, and only the viscosity of the liquid was changed, i.e., the common property of the dimensionless numbers. The different conditions analyzed are presented in a Re

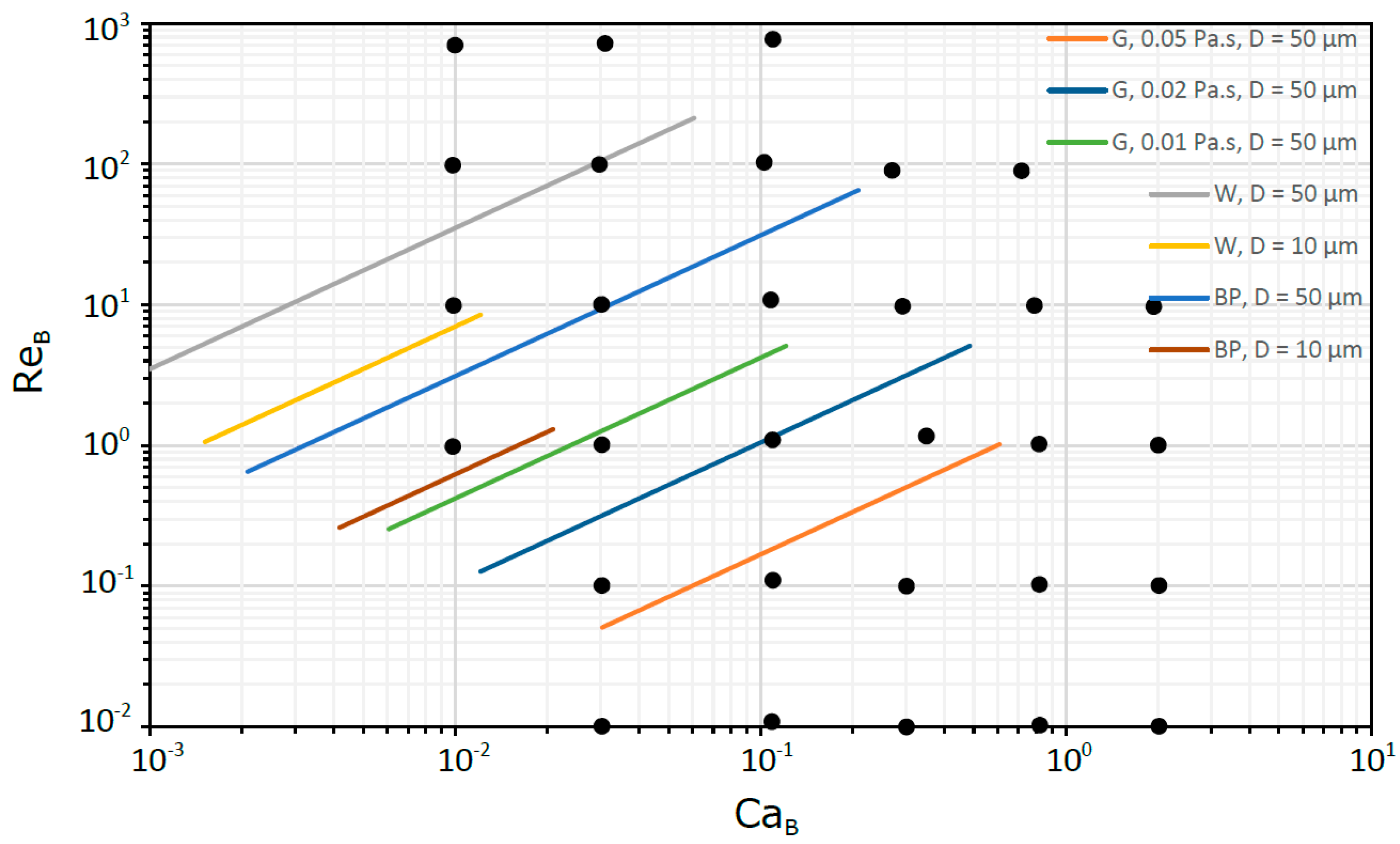

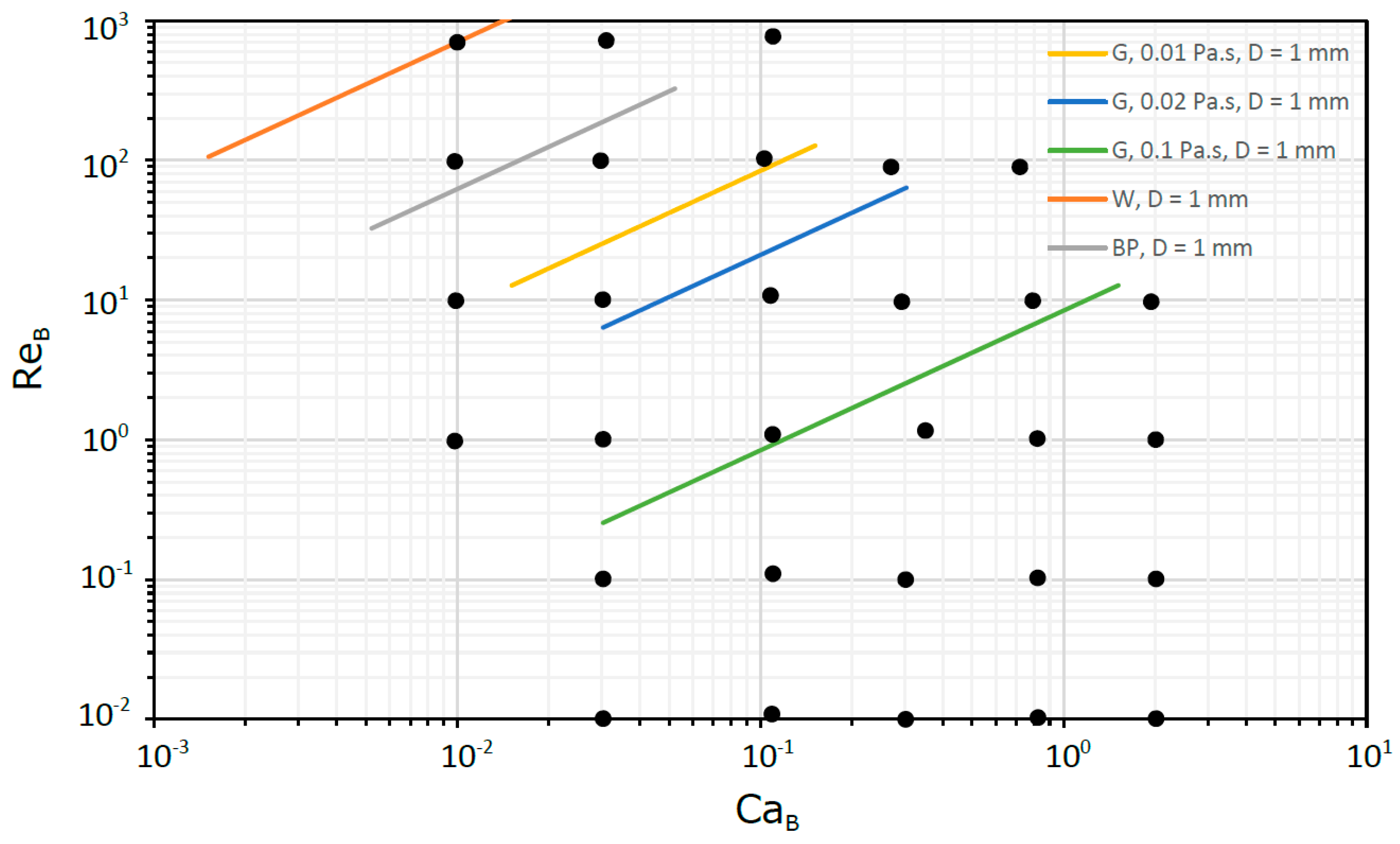

_{B}versus Ca_{B}plot in Figure 2.It is important to note that, as shown in Table 2, the dimensionless numbers that define each simulation are not always round numbers, and in some cases within a certain Ca

_{B}or Re_{B}group they can have slightly different values. This is due to the CFD methodology described above, which involved iterating the bubble velocity. However, as a matter of convenience, the results presented in the next sections will neglect these differences.This approach, based on dimensionless numbers, allows us to get knowledge in a wide range of practical situations ranging from milli to micro scale. In Figure 3 and Figure 4, for milli and micro scales, respectively, are located some flows in circular tubes to which the dimensionless study is suitable. The fluids selected were water (W), blood plasma (BP) and glycerol solutions (G). For the capillary tubes, the pressure drop was always less than 10

^{5}Pa in 100 mm of tube length, while for the micro tubes was less than 4 × 10^{5}Pa in 1 mm of tube length.In the micro scale domain, the region for low Ca

_{B}(<0.01) was not covered due to numerical shortcomings already mentioned (spurious currents). However, as shown later, the main features of the hydrodynamic parameters in this region are easily extrapolated due to their asymptotic behavior.#### 3.1. Bubble Shape

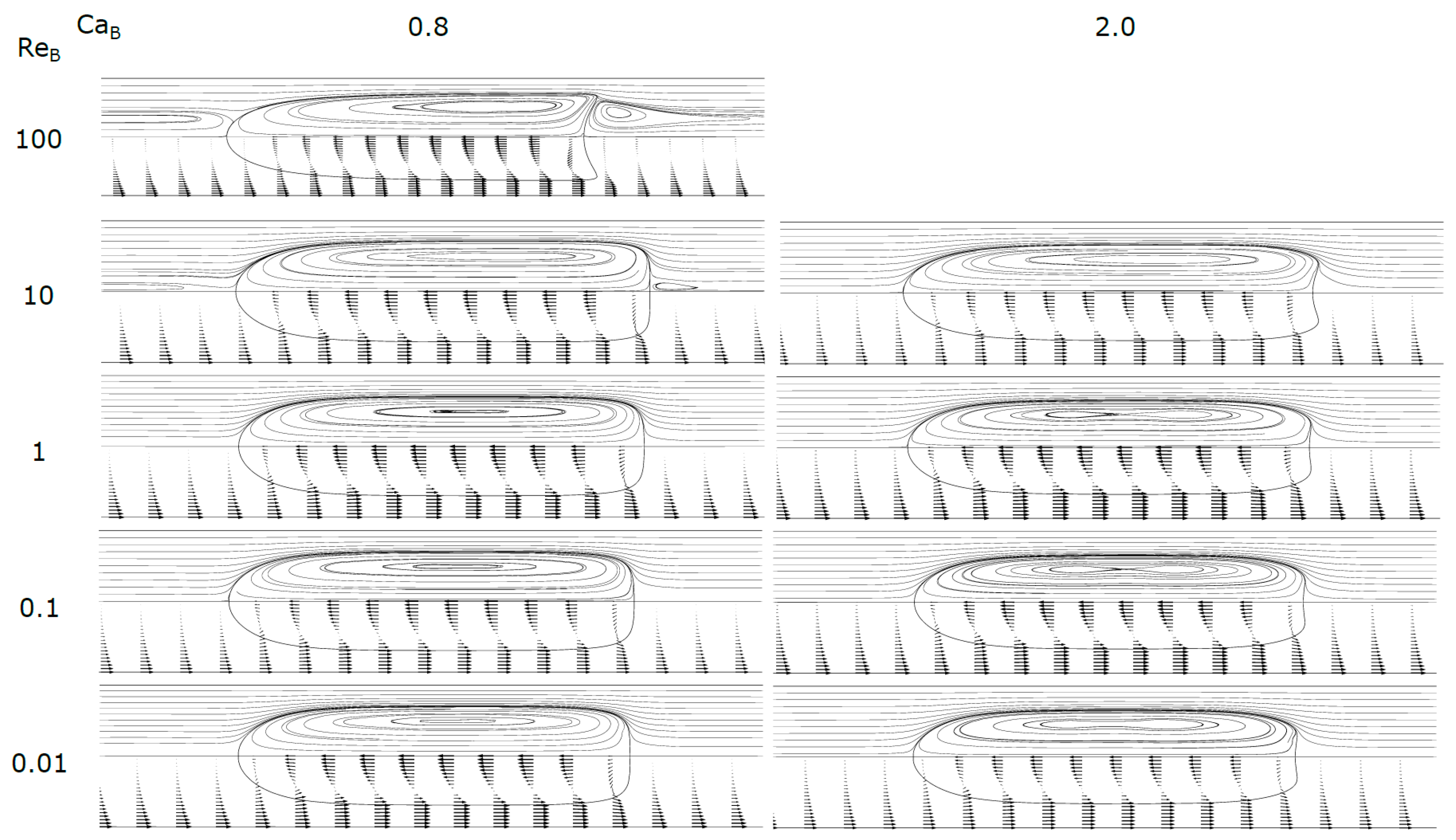

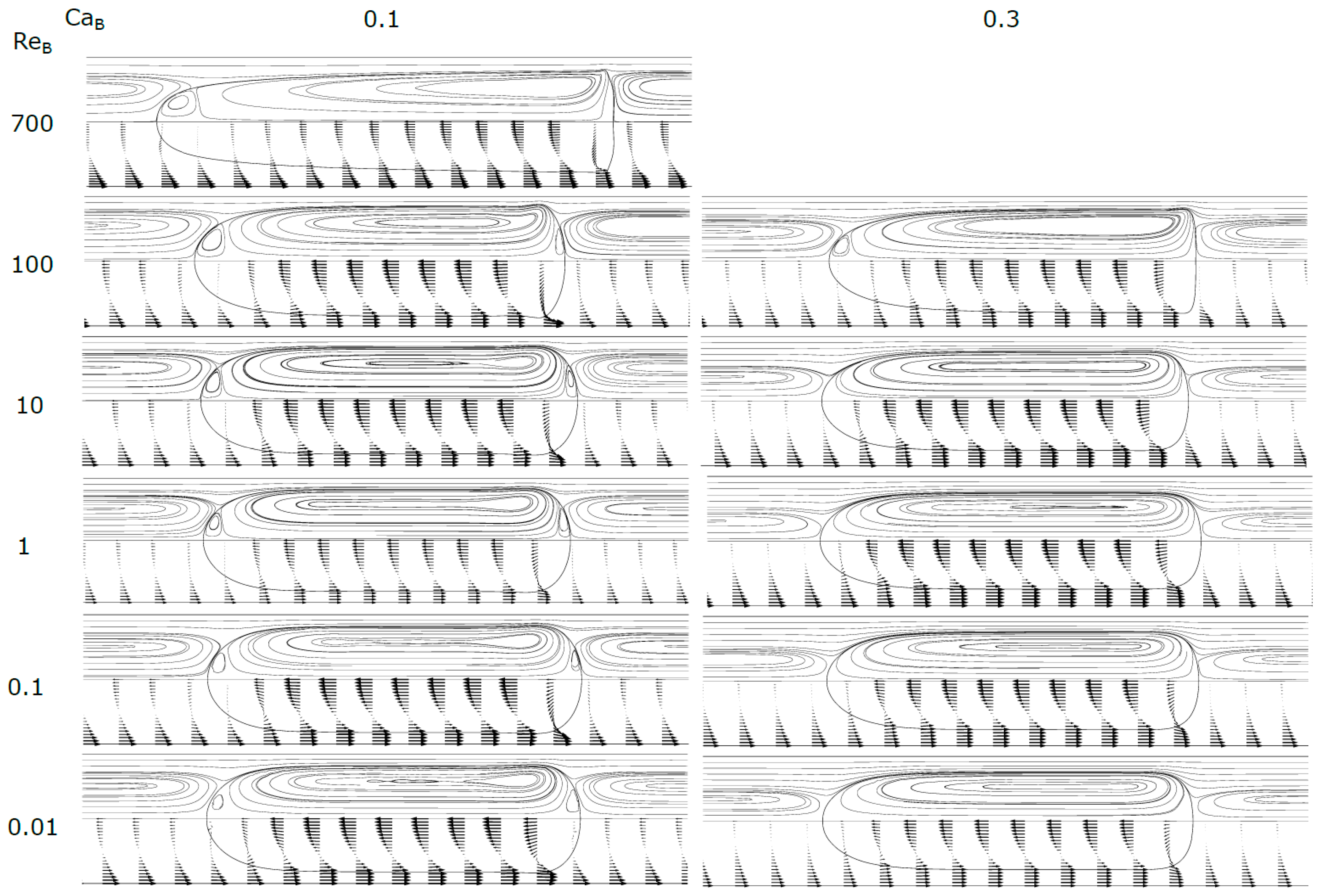

Figure 5, Figure 6 and Figure 7 show the shape of the bubble, together with the streamlines and the velocity vectors in a MRF. An increase in Ca

_{B}causes the front of the bubble to become slenderer for the whole range of Re_{B}studied. The rear of the bubble tends to become more concave for higher Ca_{B}, being this effect more accentuated for high Re_{B}. Additionally, for high Re_{B}, appear some stationary wavy patterns near the back of the bubble. Figure 8 shows the contours of the bubble for each Re_{B}studied.For values of Ca

_{B}< 0.3, the streamlines (MRF) in the liquid slug show semi-infinite recirculations, occupying a larger part of the cross-section of the channel. The extent of the cross-section occupied increases as Ca_{B}decreases. The mean velocity of the fluid moving inside the external envelope of these streamlines is equal to the bubble velocity. The fluid placed ahead the bubble, between the external envelope and the tube wall, moves at a lower velocity than the bubble and will be surpassed by the bubble. As Ca_{B}decreases, the thickness of the film also decreases, and according to the stagnant film hypothesis (Equation (14)) the bubble velocity also decreases. The center of the recirculation vortex moves away from the center of the channel into the wall direction. Previous studies found in literature report similar recirculations in MRF [27], with many of them focused on the flow pattern in liquid slugs between two bubbles [26,28,33]. This topic will be developed later in the text. For Ca_{B}= 0.8, there are no recirculations and the bubble is moving faster or at the velocity of the liquid in the center of the tube; this flow pattern is often called bypass flow.At Ca

_{B}= 0.8 and Re_{B}= 100 appears, at the rear of the bubble, a recirculation region similar to that observed in vertical macro studies, significant gravity and inertial effects, in laminar regime, the so called wake region where the fluid circulates in a toroidal vortex [34]. The appearance of this region is a consequence of the expansion of the liquid film at the rear of the bubble.#### 3.2. Liquid Film

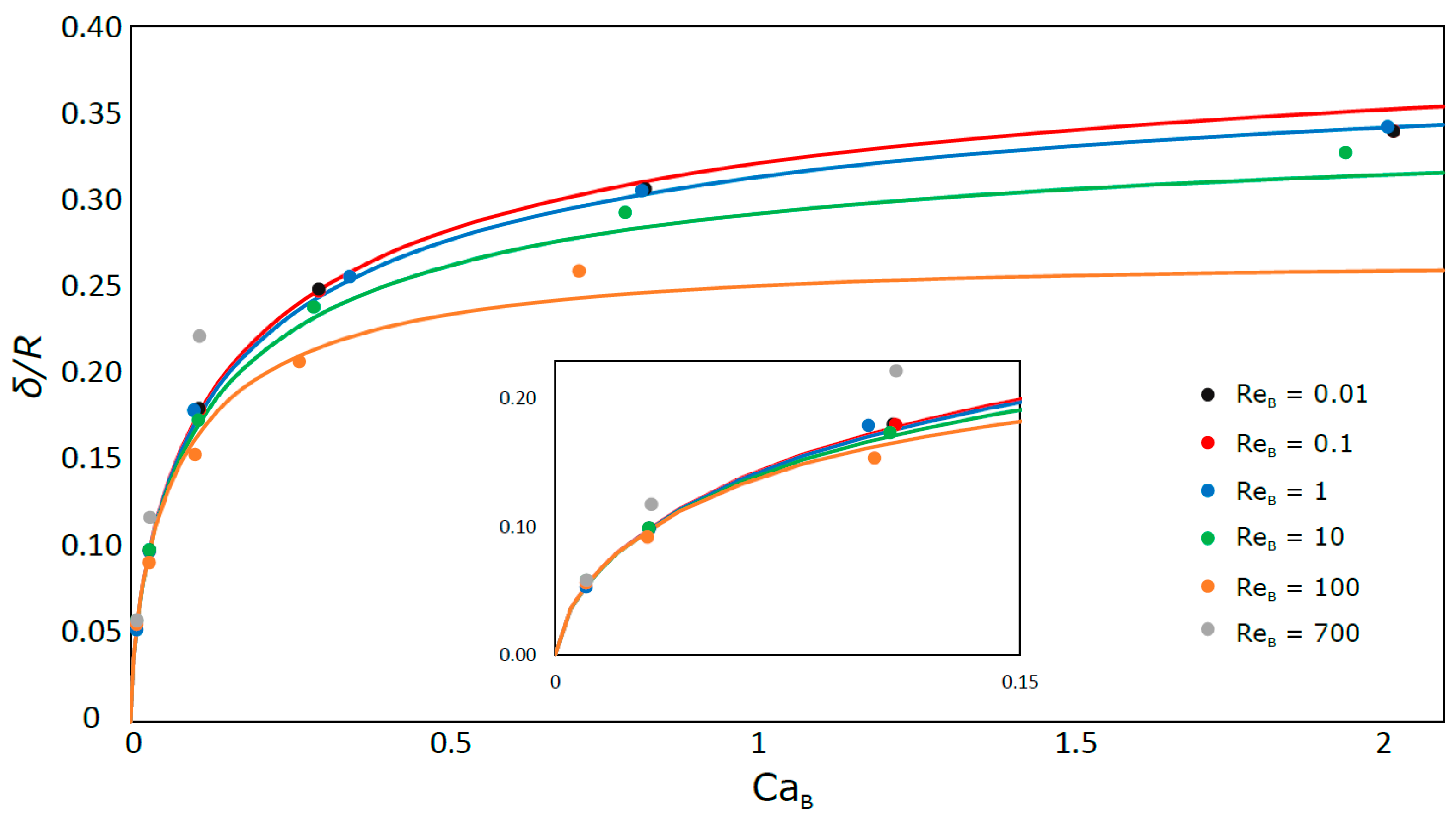

Figure 9 shows the liquid film thickness as a function of Re

_{B}and Ca_{B}. The close symbols refer to the simulated cases and the solid lines represent the correlation of Han and Shikazono [17], which predicts the liquid film thickness with ±15% accuracy. As previously referred the film thickness decreases for decreasing Ca_{B}. According to the figure, for values of Ca_{B}lower than 0.2 the liquid film thickness is independent of Re_{B}. For values of Ca_{B}lower than 0.01, region not covered in the simulations, the liquid film thickness tends asymptotically to zero, i.e., the bubble tends to flow occupying all the cross-section of the tube like a two-phase plug flow.The simulation data are in quite good agreement with the experimental correlation results. The deviation is usually below 5%, surpassing that error in three occasions: 8% in two simulations at the lowest Ca

_{B}, where it is harder to simulate the liquid film; for the highest bubble velocity (Ca_{B}= 0.110; Re_{B}= 772.7) where the error is about 23%. This large deviation is probably because under those conditions the liquid film is not yet fully stabilized for that bubble length.The development length of the liquid film is defined as the distance from the bubble nose after which the film assumes a constant thickness and the velocity profile in the liquid becomes constant. This characteristic of Taylor bubbles has been studied at the macro scale [35,36], where the effects of gravity are significant, but no information was found in literature for bubbles in capillaries and microchannels. To determine this length, the derivative of the contour of the bubble was determined as a function of the distance from the front of the bubble. According to the criteria stated, the development length is reached when the average of five consecutive points of the derivative function is below 0.01. The results obtained are presented in Figure 10.

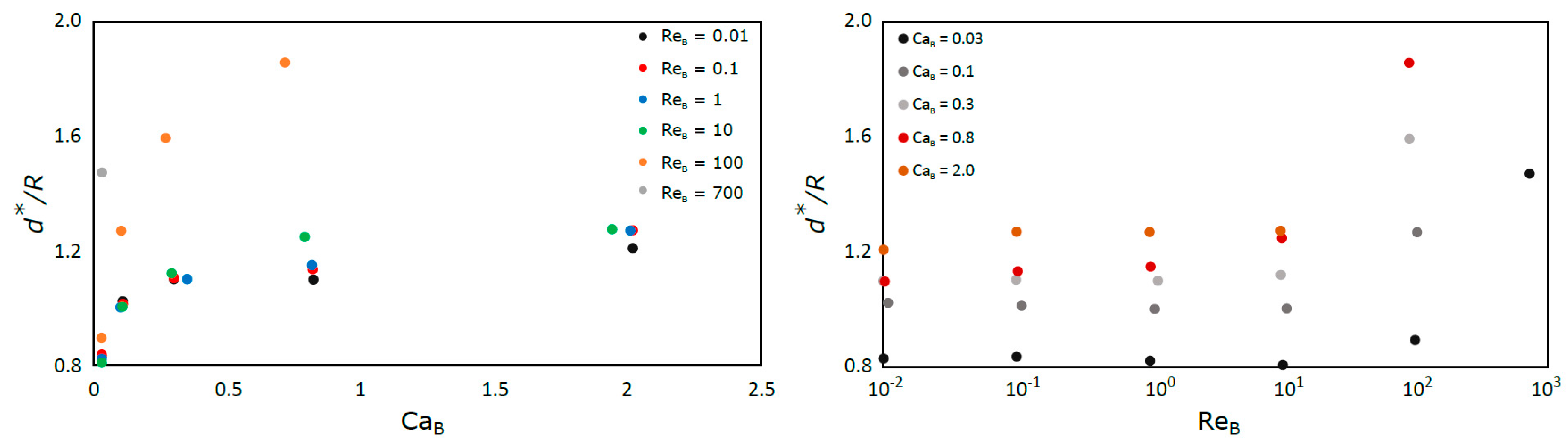

The results show that the normalized development length (d*/R) increases with the Capillary number, but until Re

_{B}= 10 it is almost independent of Reynolds number. For Re_{B}= 100 there is a notable increase of this length for all the Capillary numbers.The results for Ca

_{B}= 0.01 are not presented in Figure 10 since these conditions were simulated with the coupled VOF-level-set method with Heaviside correction to reduce spurious currents. While the solutions obtained with this method are still in agreement with the presented correlations for bubble velocity and liquid film thickness, the method causes the nose and back of the bubbles to have a higher radius of curvature than expected, (this effect is particularly evident in Figure 8). Consequently, the parameter d* is abnormally high in those cases.For low values of Ca

_{B}the values of the development length tend to be very small since the liquid film tends to disappear. Further work is necessary to have a better understanding of the behavior of this parameter for Re_{B}higher than 10#### 3.3. Bubble Velocity

In Figure 11, the simulation results for the ratio between the bubble velocity and the liquid velocity and their comparison with existing correlations are presented. It is observed that the correlation of Liu et al. [21] is in very good agreement with the simulation data for high Reynolds numbers. However, an increase of the deviation is observed with decreasing Re

_{B}, up to a maximum around 12% for the lowest Re_{B}. This is mainly because this correlation is based on experiments performed with a range of higher Reynolds numbers than the ones used in this work. It is important to note that this correlation is a function of Ca_{L}and not Ca_{B}like the others.The data from Abiev and Lavretsov [22] are closer to the simulation results for lower Re

_{B}, with the deviation increasing for increasing Re_{B}until a maximum of 10%. This behavior is due to the fact that the model equation is based on the correlation of Aussillous and Quere [11], valid mostly for low Ca_{B}and Re_{B}, to estimate the thickness of the liquid film [23].The ratio between the bubble velocity and the liquid velocity was also compared with the stagnant film correlation (Equation (16)). The solid lines (Figure 11c) correspond to the ratio calculated under that hypothesis, with the thickness of the film determined with the correlation of Han and Shikazono [17] (Equation (7)). The velocity of the bubble is shown to be in very good agreement with the stagnant film hypothesis, in particular for low values of Ca

_{B}.In the low Ca

_{B}region, not covered in the numerical simulations, the bubble velocity tend to the mean liquid velocity and, as already referred, the bubble tend to flow as a plug integrated inside the liquid.These results also illustrate the fact that the bubble always travels faster than the average velocity of the liquid and can even flow faster than the maximum velocity in the liquid. Assuming the stagnant film hypothesis and relating the liquid film thickness to Ca

_{B}number through the correlation of Aussillous and Quere [11], it is possible to roughly estimate the value of the Capillary number above which the bubble moves faster than the liquid in the center of the channel. Since for laminar flow the liquid in the center of the channel is flowing twice as fast as the average liquid velocity, the intended Capillary number, according to Figure 9, is around 0.74. This value should only serve as a rough estimate, mostly valid for low Re_{B}(until Re_{B}= 1).In Figure 12, the ratio between the liquid flow rate that is not bypassed by the bubble (Q

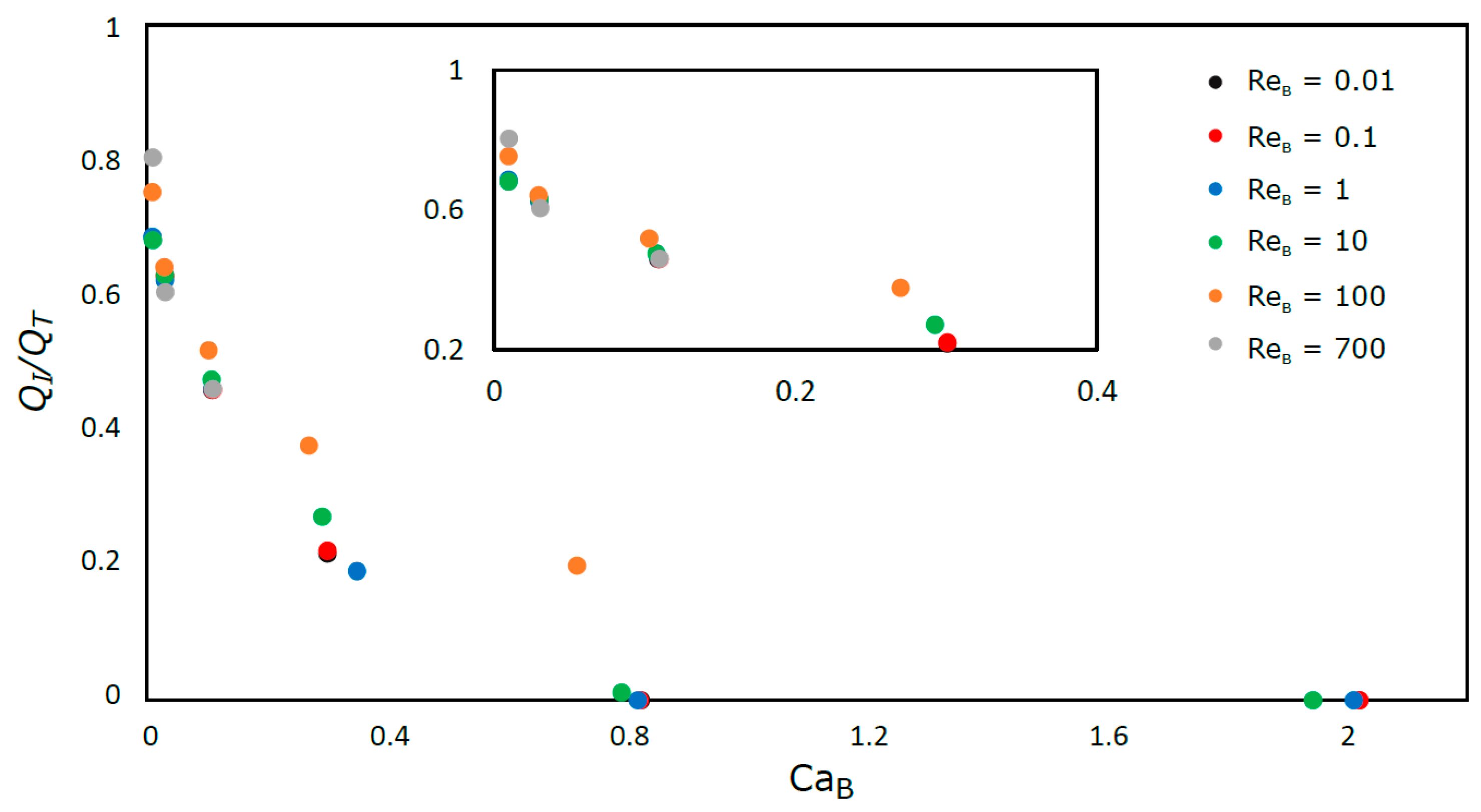

_{I}), i.e., with a mean velocity equal to the bubble, and the total liquid flow rate (Q_{T}) is plotted versus Ca_{B}.For Re

_{B}≤ 10, whatever the Ca_{B}number, the curve is unique. All the fluid moves slower than the bubble for Ca_{B}≥ 0.8. For Re_{B}= 100 and Ca_{B}= 0.8, the appearance of a toroidal closed recirculation region at the rear of the bubble (Figure 7) changes this behavior. This wake region travels at the bubble velocity and slows down the expansion of the liquid film at the rear of the bubble. This slow deceleration implies an acceleration of the liquid, in the flow direction, in front of the bubble.The results in Figure 12 also illustrate the fact that, for very low Capillary numbers, the bubble does not bypass any liquid, moving as a plug.

#### 3.4. Simulations with Two Consecutive Bubbles

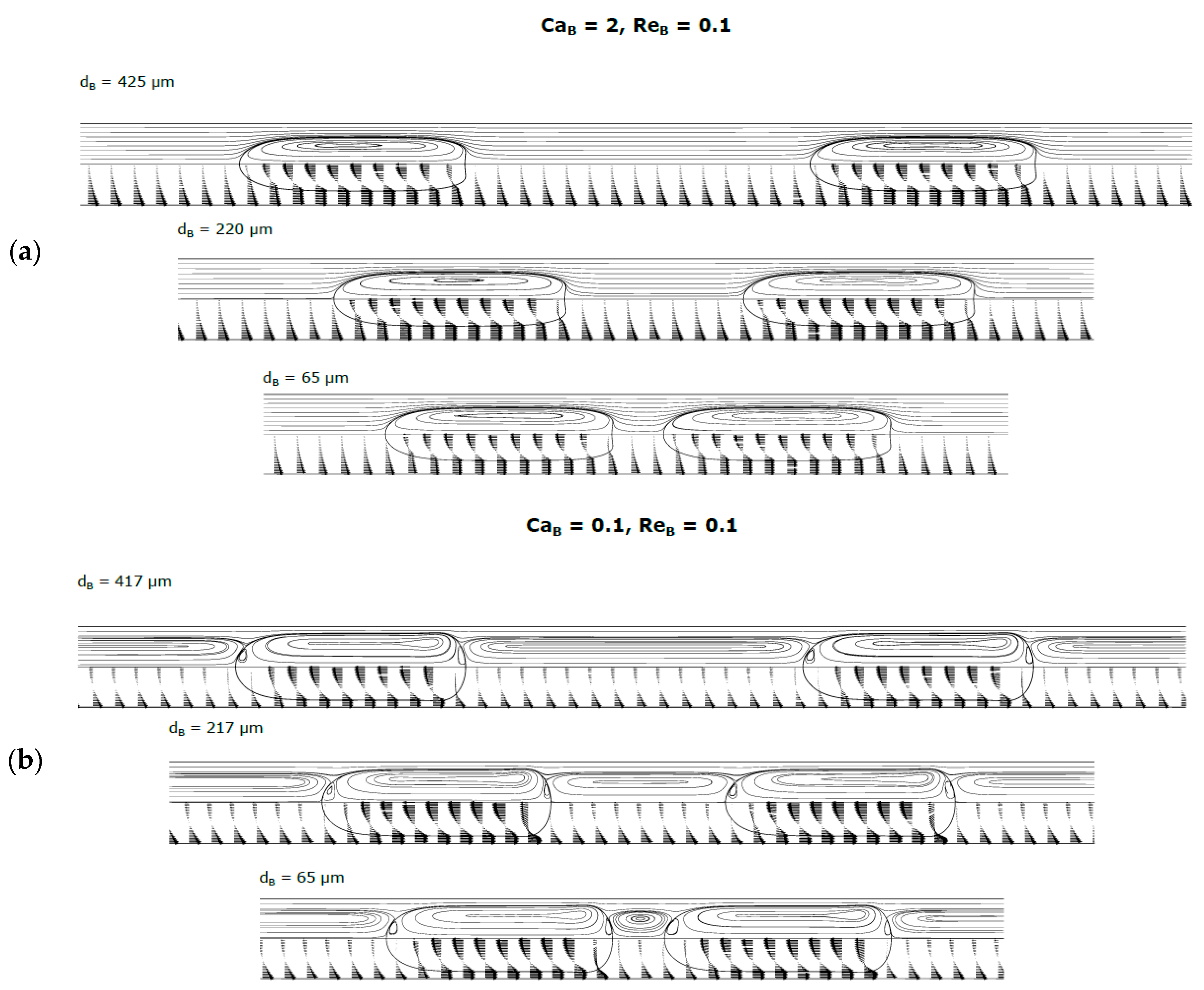

When a bubble is flowing ahead or behind another bubble, the simulations showed that the main flow characteristics remain generally unchanged when compared to those of isolated bubbles flowing under the same dimensionless numbers. For the range of Re

_{B}and Ca_{B}studied, coalescence was only observed once, when Reynolds and Capillary numbers are simultaneously high (Ca_{B}= 0.8; Re_{B}= 100). The coalescence only happened for the shortest distance tested ( ${d}_{\mathrm{B}}$ = 61 μm). This pair of Re_{B}and Ca_{B}corresponds to the appearance of the closed recirculation wake at the rear of the bubble (Figure 7). This wake influences the reattachment of the velocity profile at the rear of the bubble and induces, near the center of the tube, regions with increased velocity. These regions are responsible by the accelerating of the following bubble.Two illustrative cases without coalescence are presented in Figure 13: one where recirculation vortices are observed in the liquid in front of the bubble (Ca

_{B}= 0.1; Re_{B}= 0.1) and another where no recirculation vortices are present (Ca_{B}= 2; Re_{B}= 0.1). The shape, thickness of the liquid film and velocity of the bubbles are identical to those for isolated bubbles, whatever the distance between the bubbles. As for the flow of an isolated bubble, the liquid for high Ca_{B}is under “bypass flow” while for low Ca_{B}the recirculation vortices between the bubbles are, as expected, no longer semi-infinite, forming a closed vortex.## 4. Conclusions

In this work, 2D numerical simulations of isolated and consecutive bubbles in circular milli- and microchannels were performed to study their shape, velocity, liquid film around the bubble and flow patterns in the liquid. The simulations were carried out in the range of 0.01–2 for Ca

_{B}and of 0.01–700 for Re_{B}and the results are in good agreement with correlations and experimental results found in the literature. Outside of this range, a different approach is necessary, as spurious currents become more important for Ca_{B}< 0.01 and 3D effects start to appear at higher Re_{B}. However, for Ca_{B}< 0.01, the results are easily extrapolated. For high Reynolds numbers and Ca_{B}> 0.8, a recirculation region at the rear of the bubble appears, as in vertical slug macro studies.The front and rear of the bubbles are rounder at lower Capillary numbers, with the front of the bubble becoming slenderer and the rear more concave with increasing Ca

_{B}and Re_{B}. The velocity of the bubble, for low values of Ca_{B}, is consistent with the stagnant film hypothesis, implicating that the bubble travels in the limit at the mean velocity of the liquid.In a moving reference frame, the fact that some parts of the liquid are moving faster than the bubble cause the appearance of semi-infinite recirculation regions in the liquid in front and behind the bubble. At higher Ca

_{B}, the bubble moves at a velocity higher than the highest velocity on the liquid, and no recirculation regions appear.The thickness of the liquid film around the bubble is accurately predicted with existing correlations, but there is still a lack of information regarding the development length of the film for high Reynolds number. The results suggest that d* increases with Ca

_{B}until a plateau is reached, with its value being higher for higher Re_{B}.Regarding the velocity of the bubble, the stagnant film hypothesis was shown to be an accurate approach for low values of Ca

_{B}. If the thickness of the liquid film is unknown, other correlations are available, but these do not account with the effects of the Reynolds number. The correlations of Liu et al. [21] and Abiev and Lavretsov [22] were found to be more accurate for higher and lower Re_{B}, respectively.The main parameters studied remained generally unchanged when analyzed in consecutive bubbles, and coalescence was only observed in particular conditions of Re

_{B}and Ca_{B}(Ca_{B}= 0.8; Re_{B}= 100).The results obtained in this study are directly applicable to co-current slug flow in milli- and microchannels for 0.1 < Re

_{B}< 1000 and 0.02 < Ca_{B}< 2.## Acknowledgments

This work was funded by FEDER funds through COMPETE2020—Operational Programme for Competitiveness Factors (POCI) and National Funds (PIDDAC) through FCT (Fundação para a Ciência e a Tecnologia) under projects PEst-OE/EME/UI0532 and POCI-01-0145-FEDER-016861 (associated reference PTDC/QEQ-FTT/4287/2014).

## Author Contributions

Luis A. M. Rocha performed the simulations, reviewed the state of the art and wrote the paper. João M. Miranda reviewed the paper and advised on the numerical procedure. Joao B. L. M. Campos conceived and designed the simulations, coordinated the research team and reviewed the paper. All authors analyzed the data.

## Conflicts of Interest

The authors declare no conflict of interest.

## Nomenclature

${A}_{B}$ | Cross section area of the bubble | m^{2} |

${A}_{\mathrm{film}}$ | Cross section area of the liquid film | m^{2} |

${A}_{\mathrm{MC}}$ | Cross section area of the microchannel | m^{2} |

D | Internal diameter of the tube | m |

${d}^{*}$ | Liquid film development length | m |

${d}_{B}$ | Distance between two consecutive bubbles | m |

$\overrightarrow{f}$ | Surface tension contribution | Pa·m^{−1} |

g | Acceleration due to gravity | m·s^{−2} |

k | Curvature of the interface | m^{−1} |

${L}_{\mathrm{s}}$ | Bubble length | m |

p | Pressure | Pa |

${Q}_{\mathrm{I}}$ | Volumetric flow rate of the liquid moving faster than the bubble | m^{3}·s^{−1} |

${Q}_{\mathrm{T}}$ | Volumetric flow rate of the liquid flowing in the tube | m^{3}·s^{−1} |

R | Internal radius of the tube | m |

$\overrightarrow{v}$ | Velocity vector | m·s^{−1} |

${V}_{B}$ | Taylor bubble velocity | m·s^{−1} |

${V}_{\mathrm{film}}$ | Mean velocity in the liquid film | m·s^{−1} |

${V}_{\mathrm{inlet}}$ | Mean velocity at the inlet | m·s^{−1} |

${V}_{\mathrm{L}}$ | Mean velocity in the liquid | m·s^{−1} |

${V}_{\mathrm{TP}}$ | Two-phase velocity | m·s^{−1} |

${V}_{\mathrm{wall}}$ | Velocity of the wall in the CFD model | m·s^{−1} |

x,r | Coordinates in the 2D simulation domain | m |

## Greek Letters

${\alpha}_{i}$ | Phase indicator (phase i) | |

${\alpha}_{\mathrm{C}}$ | Phase indicator (continuous phase) | |

${\alpha}_{\mathrm{D}}$ | Phase indicator (dispersed phase) | |

γ | Surface tension | N·m^{−1} |

δ | Annular liquid film thickness | m |

μ | Viscosity | Pa·s |

${\mu}_{\mathrm{C}}$ | Viscosity of the continuous phase | Pa·s |

${\mu}_{\mathrm{D}}$ | Viscosity of the dispersed phase | Pa·s |

${\mu}_{\mathrm{L}}$ | Viscosity of the liquid | Pa·s |

ρ | Density | kg·m^{3} |

${\rho}_{\mathrm{C}}$ | Density of the continuous phase | kg·m^{3} |

${\rho}_{\mathrm{D}}$ | Density of the dispersed phase | kg·m^{3} |

${\rho}_{\mathrm{L}}$ | Density of the liquid | kg·m^{3} |

${\rho}_{\mathrm{G}}$ | Density of the gas | kg·m^{3} |

## Dimensionless Groups

${\mathrm{Ca}}_{B}$ | Capillary number based on the velocity of the Taylor bubble |

${\mathrm{Ca}}_{\mathrm{L}}$ | Capillary number based on the mean velocity of the liquid |

$\mathrm{Eo}$ | Eötvös number |

$\mathrm{La}$ | Laplace number |

${\mathrm{Re}}_{B}$ | Reynolds number based on the velocity of the Taylor bubble |

${\mathrm{Re}}_{\mathrm{L}}$ | Reynolds number based on the mean velocity of the liquid |

${\mathrm{We}}_{B}$ | Weber number based on the velocity of the Taylor bubble |

## List of Acronyms

CFD | Computational fluid dynamics |

FFR | Fixed frame of reference |

MFR | Moving frame of reference |

PIV | Particle image velocimetry |

VOF | Volume-of-fluid |

## References

- Kreutzer, M.T.; Kapteijn, F.; Moulijn, J.A.; Heiszwolf, J.J. Multiphase monolith reactors: Chemical reaction engineering of segmented flow in microchannels. Chem. Eng. Sci.
**2005**, 60, 5895–5916. [Google Scholar] [CrossRef] - Angeli, P.; Gavriilidis, A. Hydrodynamics of Taylor flow in small channels: A review. J. Mech. Eng. Sci.
**2008**, 222, 737–751. [Google Scholar] [CrossRef] - Triplett, K.A.; Ghiaasiaan, S.M.; Abdel-Khalik, S.I.; Sadowski, D.L. Gas-liquid two-phase flow in microchannels Part I: Two-phase flow patterns. Int. J. Multiph. Flow
**1999**, 25, 377–394. [Google Scholar] [CrossRef] - Thulasidas, T.C.; Abraham, M.A.; Cerro, R.L. Dispersion during bubble-train flow in capillaries. Chem. Eng. Sci.
**1999**, 54, 61–76. [Google Scholar] [CrossRef] - Salman, W.; Gavriilidis, A.; Angeli, P. A model for predicting axial mixing during gas-liquid Taylor flow in microchannels at low Bodenstein numbers. Chem. Eng. J.
**2004**, 101, 391–396. [Google Scholar] [CrossRef] - Berčič, G.; Pintar, A. The role of gas bubbles and liquid slug lengths on mass transport in the Taylor flow through capillaries. Chem. Eng. Sci.
**1997**, 52, 3709–3719. [Google Scholar] - Bento, D.; Sousa, L.; Yaginuma, T.; Garcia, V.; Lima, R.; Miranda, J.M. Microbubble moving in blood flow in microchannels: Effect on the cell-free layer and cell local concentration. Biomed. Microdevices
**2017**, 19, 6. [Google Scholar] [CrossRef] [PubMed] - Suo, M.; Griffith, P. Two-phase flow in capillary tubes. J. Basic Eng.
**1964**, 86, 576–582. [Google Scholar] [CrossRef] - Bretherton, F.P. The motion of long bubbles in tubes. J. Fluid Mech.
**1961**, 10, 166–188. [Google Scholar] [CrossRef] - Gupta, R.; Fletcher, D.F.; Haynes, B.S. Taylor Flow in Microchannels: A Review of Experimental and Computational Work. J. Comput. Multiph. Flows
**2010**, 2, 1–32. [Google Scholar] [CrossRef] - Aussillous, P.; Quere, D. Quick deposition of a fluid on the wall of a tube. Phys. Fluids
**2000**, 12, 2367–2371. [Google Scholar] [CrossRef] - Taylor, G.I. Deposition of a viscous fluid on the wall of a tube. J. Fluid Mech.
**1961**, 10, 161–165. [Google Scholar] [CrossRef] - Serizawa, A.; Feng, Z.; Kawara, Z. Two-phase flow in microchannels. Exp. Therm. Fluid Sci.
**2002**, 26, 703–714. [Google Scholar] [CrossRef] - Warnier, M.J.F.; Rebrov, E.V.; de Croon, M.H.J.M.; Hessel, V.; Schouten, J.C. Gas hold-up and liquid film thickness in Taylor flow in rectangular microchannels. Chem. Eng. J.
**2007**, 135, 153–158. [Google Scholar] [CrossRef] - Armand, A.A. The resistance during the movement of a two-phase system in horizontal pipes. Izv. Vsesojuznogo Tepl. Inst.
**1946**, 1, 16–23. [Google Scholar] - Gupta, R.; Fletcher, D.F.; Haynes, B.S. On the CFD modelling of Taylor flow in microchannels. Chem. Eng. Sci.
**2009**, 64, 2941–2950. [Google Scholar] [CrossRef] - Han, Y.; Shikazono, N. Measurement of the liquid film thickness in micro tube slug flow. Int. J. Heat Fluid Flow
**2009**, 30, 842–853. [Google Scholar] [CrossRef] - Zhao, T.S.; Bi, Q.C. Co-current air-water two-phase flow patterns in vertical triangular microchannels. Int. J. Multiph. Flow
**2001**, 27, 765–782. [Google Scholar] [CrossRef] - Han, Y.; Shikazono, N. Measurement of liquid film thickness in micro square channel. Int. J. Multiph. Flow
**2009**, 35, 896–903. [Google Scholar] [CrossRef] - Cubaud, T.; Ho, C.M. Transport of bubbles in square microchannels. Phys. Fluids
**2004**, 16, 4575–4585. [Google Scholar] [CrossRef] - Liu, H.; Vandu, C.O.; Krishna, R. Hydrodynamics of taylor flow in vertical capillaries: Flow regimes, bubble rise velocity, liquid slug length, and pressure drop. Ind. Eng. Chem. Res.
**2005**, 44, 4884–4897. [Google Scholar] [CrossRef] - Abiev, R.S.; Lavretsov, I.V. Intensification of mass transfer from liquid to capillary wall by Taylor vortices in minichannels, bubble velocity and pressure drop. Chem. Eng. Sci.
**2012**, 74, 59–68. [Google Scholar] [CrossRef] - Abiev, R.S. Simulation of the Slug Flow of a Gas-Liquid System in Capillaries. Theor. Found. Chem. Eng.
**2008**, 42, 105–117. [Google Scholar] [CrossRef] - Abadie, T.; Aubin, J.; Legendre, D.; Xuereb, C. Hydrodynamics of gas-liquid Taylor flow in rectangular microchannels. Microfluid. Nanofluid.
**2012**, 12, 355–369. [Google Scholar] [CrossRef] - Chaoqun, Y.; Yuchao, Z.; Chunbo, Y.; Minhui, D.; Zhengya, D.; Guangwen, C. Characteristics of slug flow with inertial effects in a rectangular microchannel. Chem. Eng. Sci.
**2013**, 95, 246–256. [Google Scholar] [CrossRef] - Thulasidas, T.C.; Abraham, M.A.; Cerro, R.L. Flow patterns in liquid slugs during bubble train flow inside capillaries. Chem. Eng. Sci.
**1997**, 52, 2947–2962. [Google Scholar] [CrossRef] - Taha, T.; Cui, Z.F. Hydrodynamics of slug flow inside capillaries. Chem. Eng. Sci.
**2004**, 59, 1181–1190. [Google Scholar] [CrossRef] - Zaloha, P.; Kristal, J.; Jiricny, V.; Völkel, N.; Xuereb, C.; Aubin, J. Characteristics of liquid slugs in gas-liquid Taylor flow in microchannels. Chem. Eng. Sci.
**2012**, 68, 640–649. [Google Scholar] [CrossRef] - Araújo, J.D.P.; Miranda, J.M.; Pinto, A.M.F.R.; Campos, J.B.L.M. Wide-ranging survey on the laminar flow of individual Taylor bubbles rising through stagnant Newtonian liquids. Int. J. Multiph. Flow
**2012**, 43, 131–148. [Google Scholar] [CrossRef] - Hirt, C.W.; Nichols, B.D. Volume of fluid (VOF) method for the dynamics of free boundaries. J. Comput. Phys.
**1981**, 39, 201–225. [Google Scholar] [CrossRef] - Youngs, D.L. Time-dependent multi-material flow with large fluid distortion. In Numerical Methods for Fluid Mechanics; Morton, K.W., Baines, M.J., Eds.; Academic Press: New York, NY, USA, 1982; pp. 273–285. [Google Scholar]
- Brackbill, J.U.; Kothe, D.B.; Zemach, C. A continuum method for modeling surface tension. J. Comput. Phys.
**1992**, 100, 335–354. [Google Scholar] [CrossRef] - Günther, A.; Khan, S.A.; Thalmann, M.; Trachsel, F.; Jensen, K.F. Transport and reaction in microscale segmented gas-liquid flow. Lab Chip
**2004**, 4, 278–286. [Google Scholar] [CrossRef] [PubMed] - Campos, J.; De Carvalho, J.R.F.G. An experimental study of the wake of gas slugs rising in liquids. J. Fluid Mech.
**1988**, 196, 27–37. [Google Scholar] [CrossRef] - Nicklin, D.; Wilkes, J.; Davidson, J. Two-phase flow in vertical tubes. Trans. Inst. Chem. Eng.
**1962**, 40, 61–68. [Google Scholar] - Batchelor, G. An Introduction to Fluid Dynamics; Cambridge University Press: Cambridge, UK, 1967. [Google Scholar]

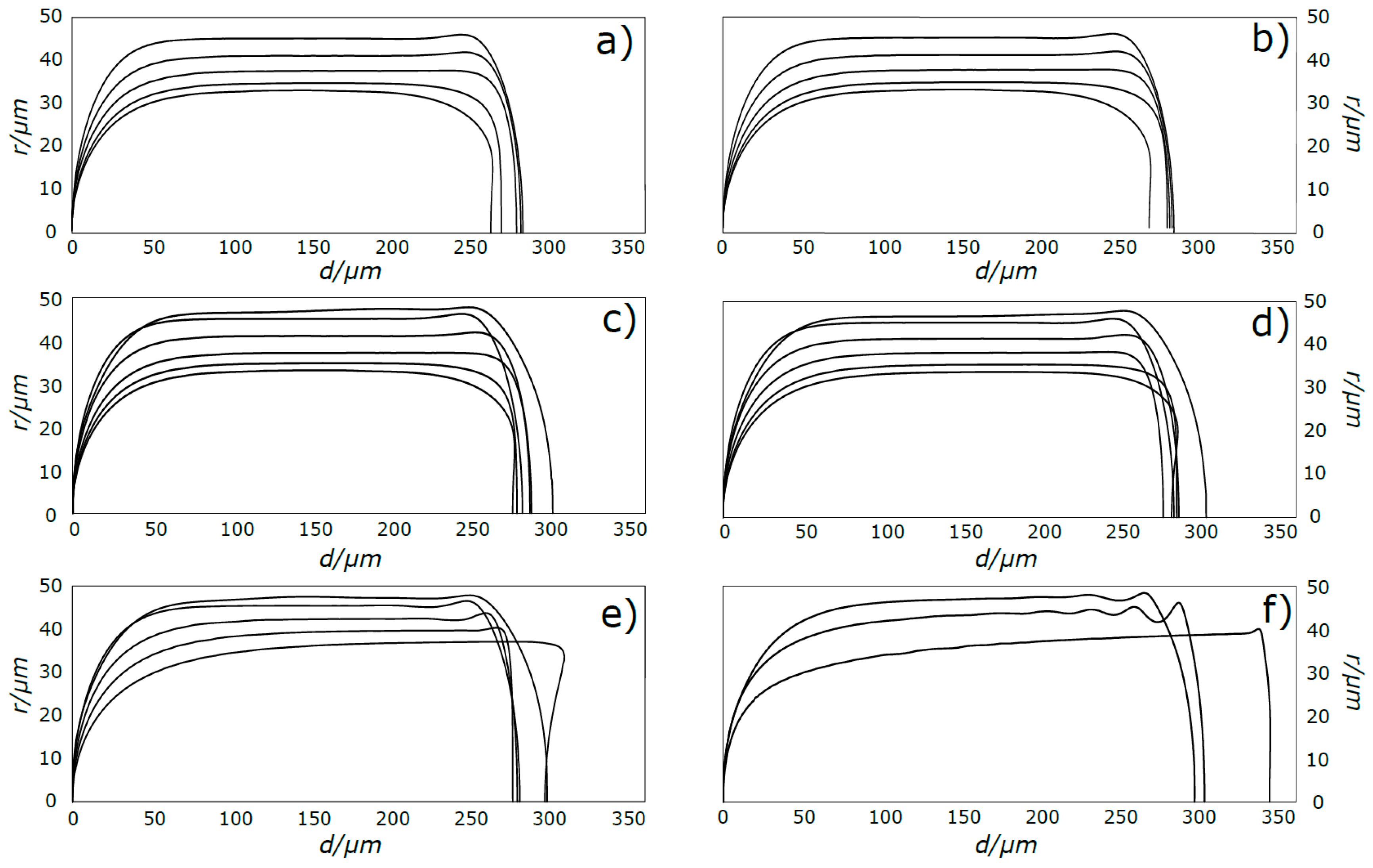

**Figure 8.**Contours of the bubble: (

**a**) Re

_{B}= 0.01; (

**b**) Re

_{B}= 0.1; (

**c**) Re

_{B}= 1; (

**d**) Re

_{B}= 10; (

**e**) Re

_{B}= 100; and (

**f**) Re

_{B}= 700. Thinner bubbles correspond to higher Ca.

**Figure 9.**Liquid film thickness as a function of Ca

_{B}. The solid lines represent the correlation of Han and Shikazono [17].

**Figure 12.**Ratio between the flow of liquid moving faster than the bubble and the total liquid flow against Ca

_{B}.

**Figure 13.**Contours of the bubbles, streamlines and velocity vectors for two consecutive bubbles. (

**a**) Ca

_{B}= 2; Re

_{B}= 0.1; (

**b**) Ca

_{B}= 0.1; Re

_{B}= 0.1

Mesh | Ca Range | Number of Elements | Size of the Elements |
---|---|---|---|

1 | ≥0.1 | 35,000 | 1 × 1 µm^{2} |

2 | >0.01 | 140,000 | 0.5 × 0.5 µm^{2} |

3 | =0.01 | 140,000 | 0.25 × 1 µm^{2} |

Ca_{B} | Re_{B} | V_{L} (m/s) | V_{B} (m/s) | V_{B}/V_{L} | δ/R |
---|---|---|---|---|---|

0.00983 | 0.982 | 0.0730 | 0.0822 | 1.13 | 0.0532 |

0.00990 | 9.90 | 0.231 | 0.262 | 1.14 | 0.0582 |

0.00983 | 98.2 | 0.730 | 0.822 | 1.13 | 0.0564 |

0.0100 | 699 | 1.93 | 2.21 | 1.14 | 0.0584 |

0.0303 | 0.0101 | 0.0119 | 0.0146 | 1.23 | 0.0988 |

0.0303 | 0.101 | 0.0376 | 0.0462 | 1.23 | 0.0984 |

0.0303 | 1.02 | 0.119 | 0.147 | 1.24 | 0.0982 |

0.0302 | 10.1 | 0.376 | 0.462 | 1.23 | 0.0988 |

0.0297 | 99.2 | 1.19 | 1.44 | 1.21 | 0.0918 |

0.0310 | 721 | 3.15 | 3.96 | 1.26 | 0.118 |

0.109 | 0.0109 | 0.0195 | 0.0290 | 1.48 | 0.180 |

0.110 | 0.110 | 0.0620 | 0.0919 | 1.48 | 0.180 |

0.101 | 1.10 | 0.196 | 0.290 | 1.48 | 0.179 |

0.108 | 10.8 | 0.620 | 0.904 | 1.46 | 0.174 |

0.103 | 103 | 1.96 | 2.73 | 1.39 | 0.154 |

0.110 | 773 | 5.19 | 7.73 | 1.49 | 0.222 |

0.301 | 0.0100 | 0.0260 | 0.0460 | 1.77 | 0.249 |

0.301 | 0.100 | 0.0823 | 0.145 | 1.77 | 0.248 |

0.350 | 1.17 | 0.296 | 0.534 | 1.81 | 0.256 |

0.293 | 9.76 | 0.824 | 1.41 | 1.72 | 0.238 |

0.270 | 89.9 | 2.61 | 4.12 | 1.58 | 0.207 |

0.823 | 0.0103 | 0.0372 | 0.0770 | 2.07 | 0.306 |

0.821 | 0.103 | 0.118 | 0.243 | 2.07 | 0.307 |

0.818 | 1.02 | 0.372 | 0.766 | 2.06 | 0.305 |

0.791 | 9.89 | 1.18 | 2.34 | 1.99 | 0.293 |

0.717 | 89.6 | 3.72 | 6.70 | 1.80 | 0.259 |

2.02 | 0.0101 | 0.0524 | 0.120 | 2.28 | 0.340 |

2.02 | 0.101 | 0.166 | 0.378 | 2.28 | 0.340 |

2.01 | 1.01 | 0.524 | 1.19 | 2.27 | 0.342 |

1.94 | 9.71 | 1.66 | 3.63 | 2.19 | 0.327 |

© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
