Next Article in Journal / Special Issue
Large-Area Piezoelectric PVDF Fibers Fabricated by Near-Field Electrospinning with Multi-Spinneret Structures
Previous Article in Journal
Two-Dimensional Magnetic Field Sensor Based on Silicon Magnetic Sensitive Transistors with Differential Structure
Previous Article in Special Issue
Investigation of Adhesive Resistance of Aluminum Alloy by Sandblasting and Electrochemical Machining
Article Menu
Issue 4 (April) cover image

Export Article

Open AccessArticle
Micromachines 2017, 8(4), 96;

Effects of Doping Elements on the Friction and Wear of SUJ2 Steel Sliding against Aluminum Alloys

Department of Mechanical Engineering, Kun Shan University, Tainan 710, Taiwan
Author to whom correspondence should be addressed.
Received: 7 February 2017 / Revised: 14 March 2017 / Accepted: 17 March 2017 / Published: 23 March 2017
(This article belongs to the Special Issue Microtribology, Adhesion and Surface Engineering)
Full-Text   |   PDF [4764 KB, uploaded 24 March 2017]   |

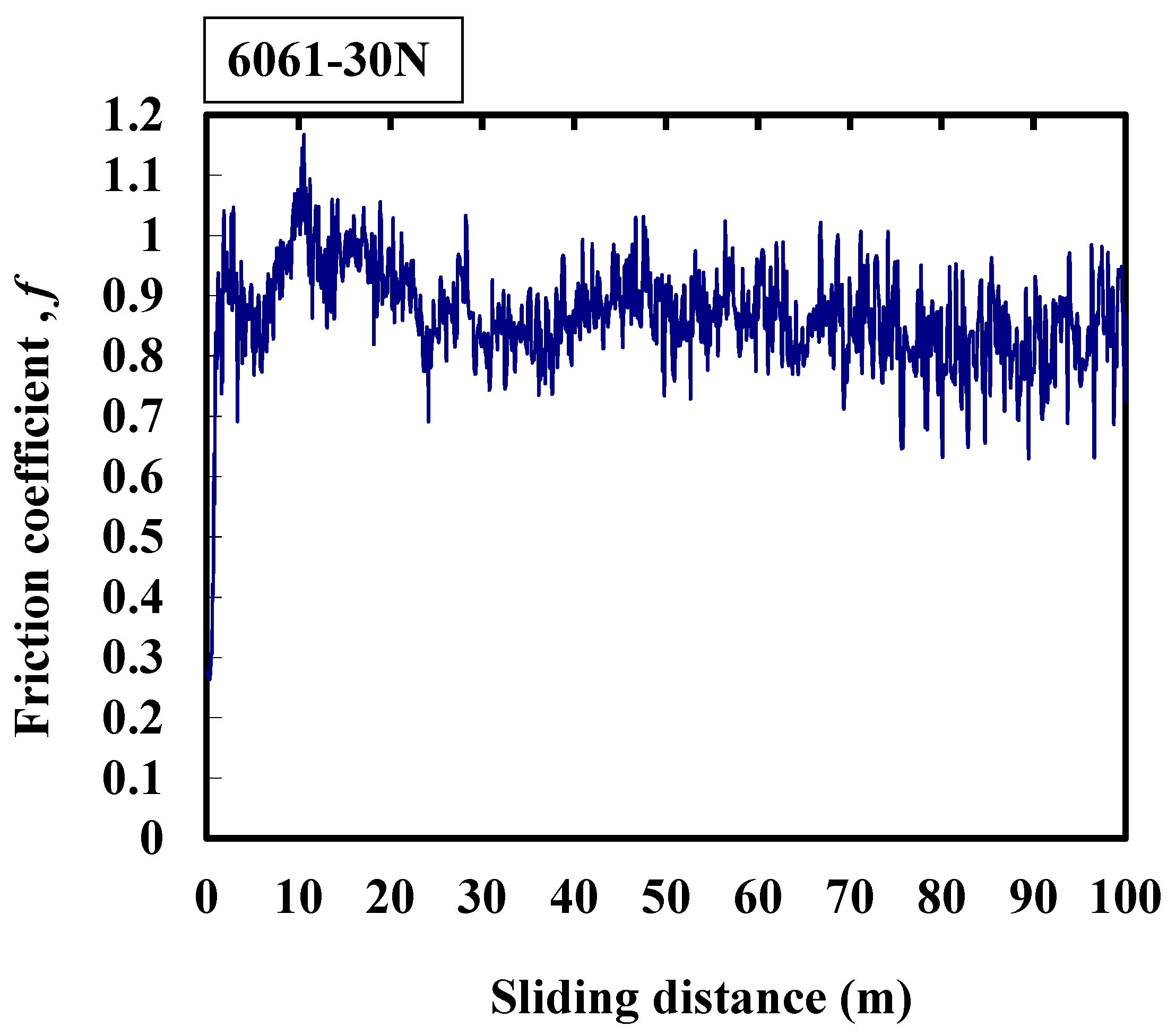

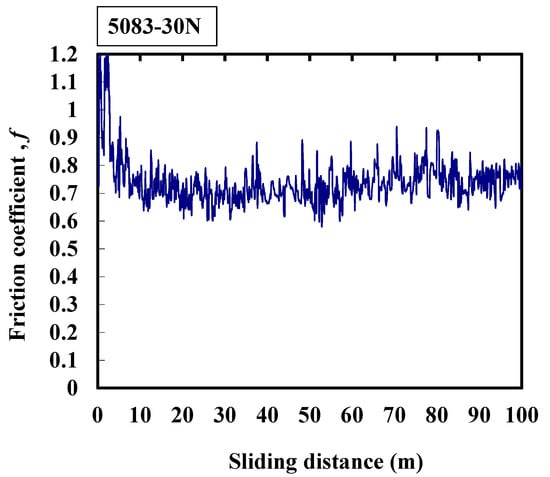

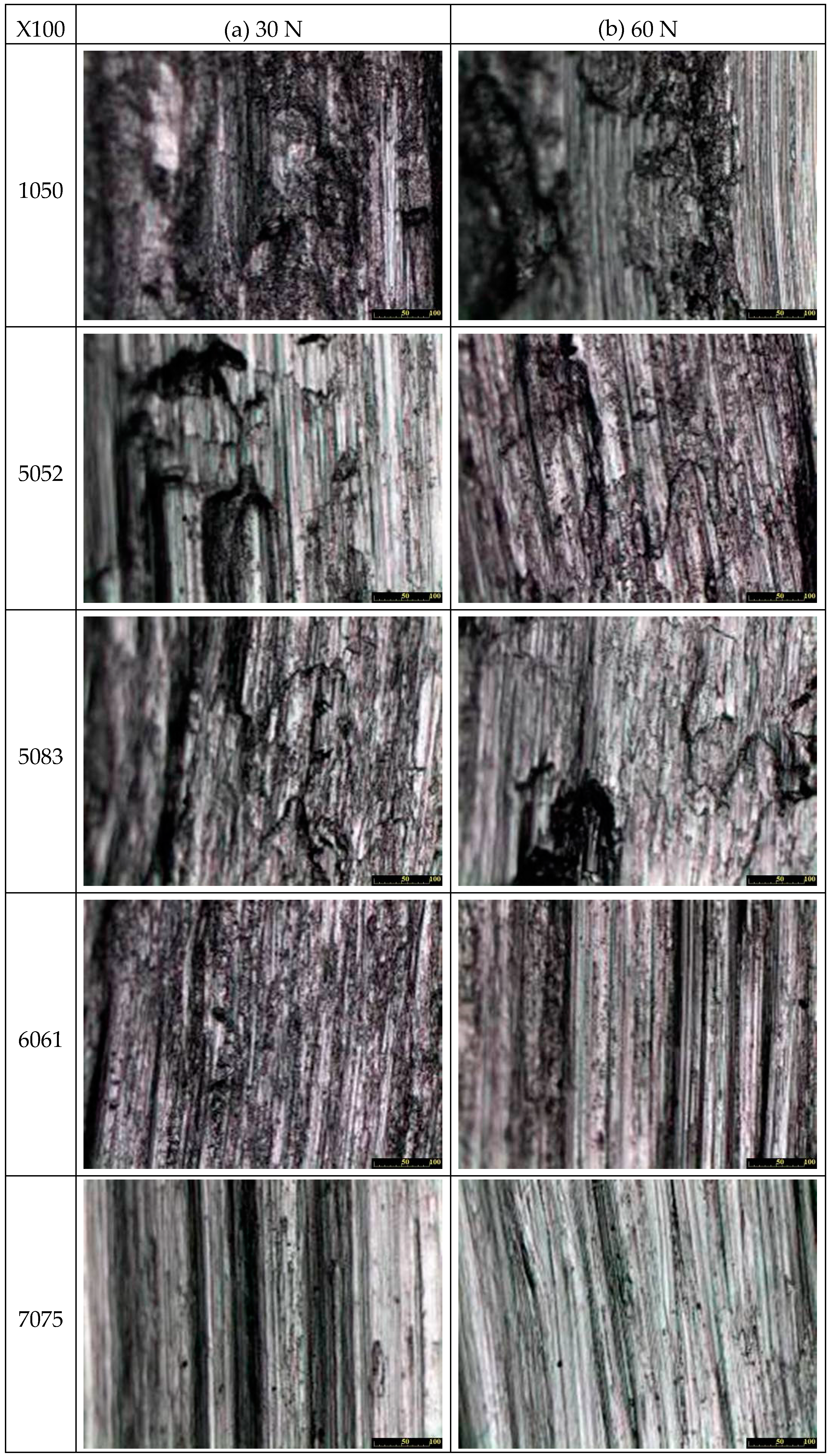

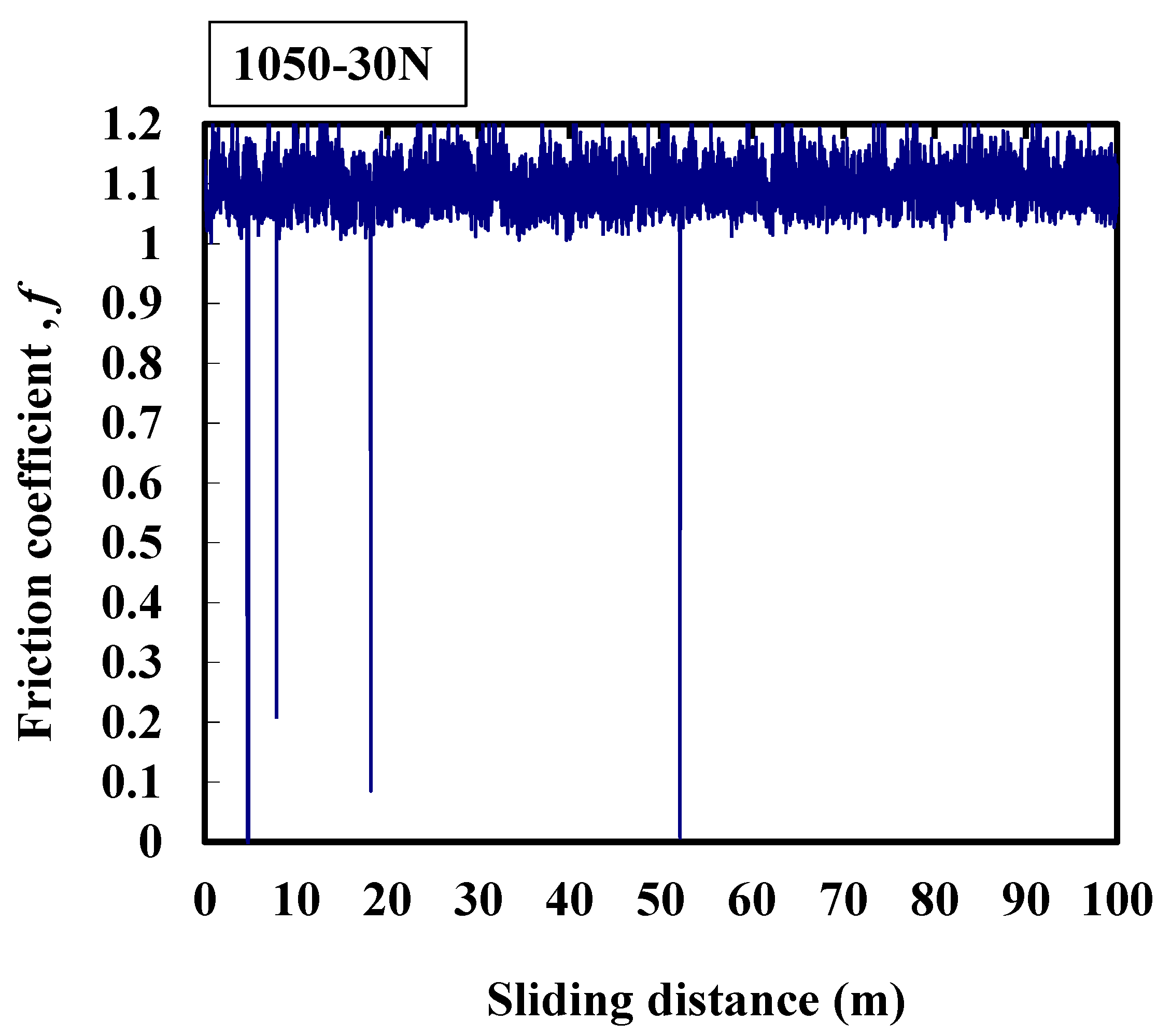

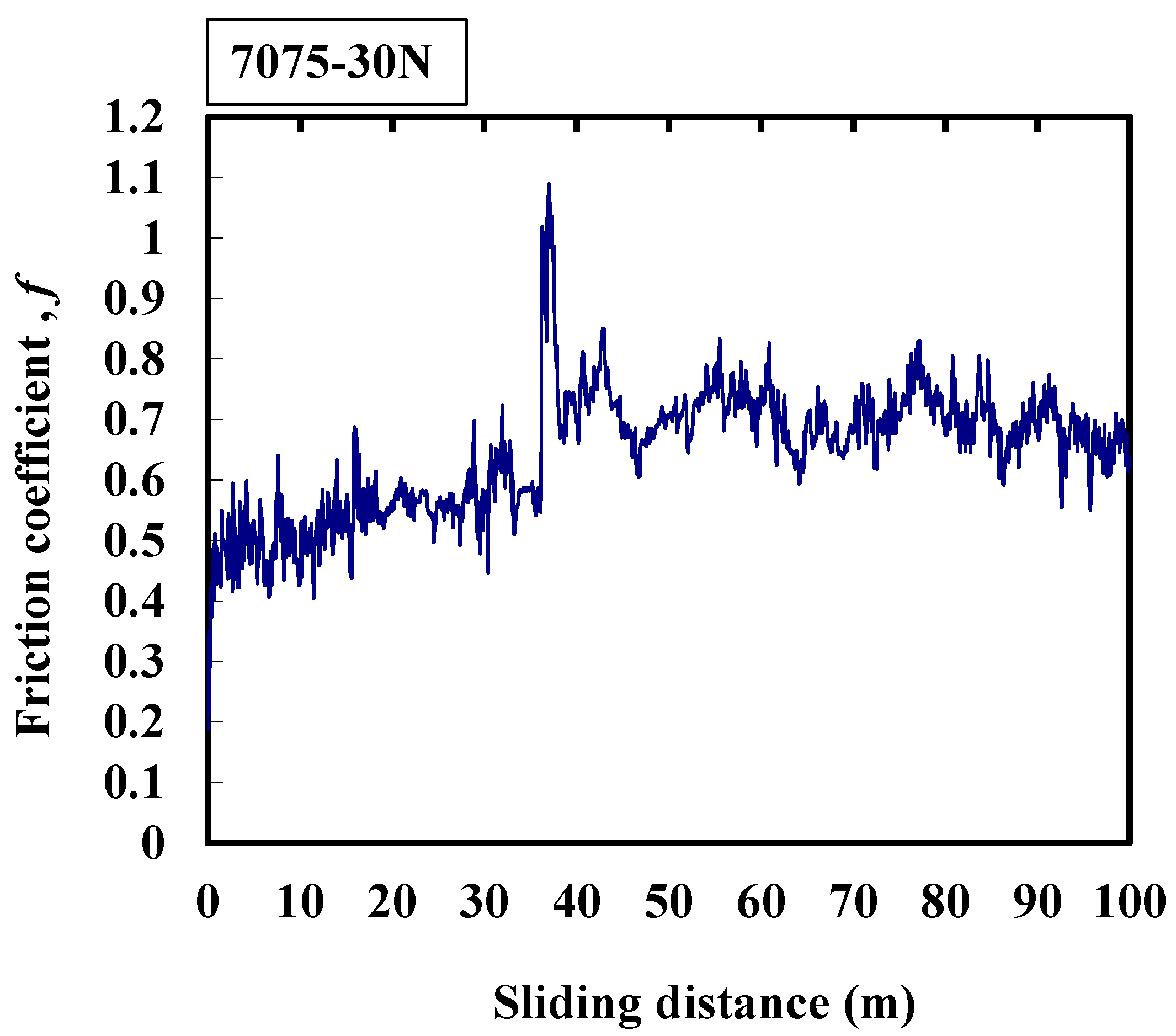

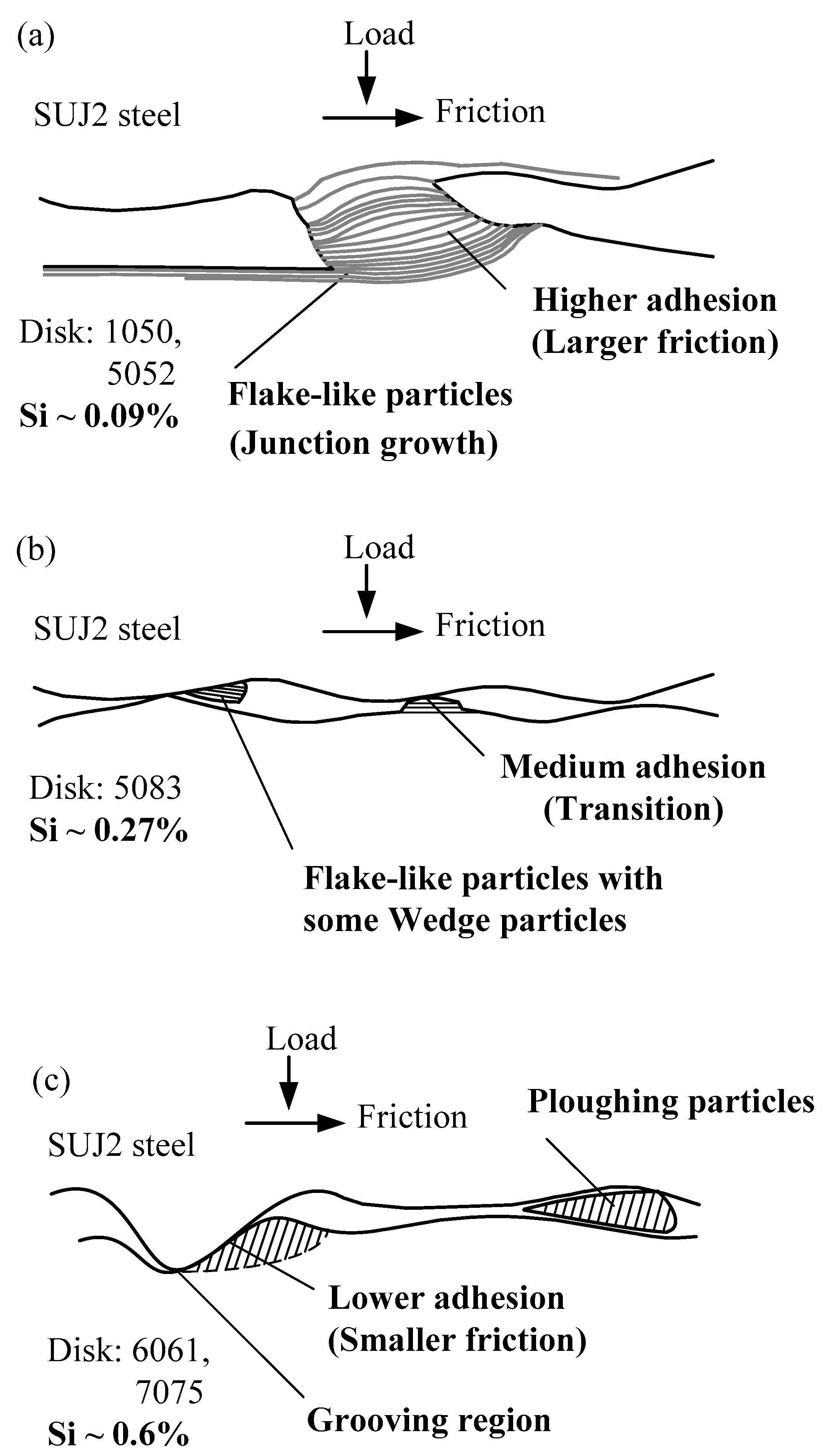

Damage to mechanical components caused by wear is considered to be an important issue for mechanical engineers. For the purpose of wear resistance, it is necessary to improve the material properties of the mechanical elements. Furthermore, low friction plays an important role in saving energy. Hence, it is important to establish a key technology for wear resistance and low friction through appropriate materials science for related industries. In general, the tribological properties of aluminum alloys are very different from those of steels. Hence, aluminum alloys should be specially considered and clarified for their tribological properties before being applied industrially. This paper therefore aims to further investigate the effects of the content of doping elements on the friction and wear of the selected aluminum alloys. From the experimental results, it can be concluded that the higher the Si content, the smaller the friction coefficient, and the milder the variation. The higher the content of iron and copper, the more materials are removed, showing better machinability. Moreover, three frictional models and wear mechanisms that describe the effects of the content of doping elements on the friction and wear are proposed. The wear mechanisms change as the silicon content increases, from the junction growth to the wedge and the ploughing particles. As a result, better choices of aluminum alloys with regards to friction and wear can then be made. These results have great practical importance. View Full-Text
Keywords: aluminum alloy; silicon; friction; wear aluminum alloy; silicon; friction; wear

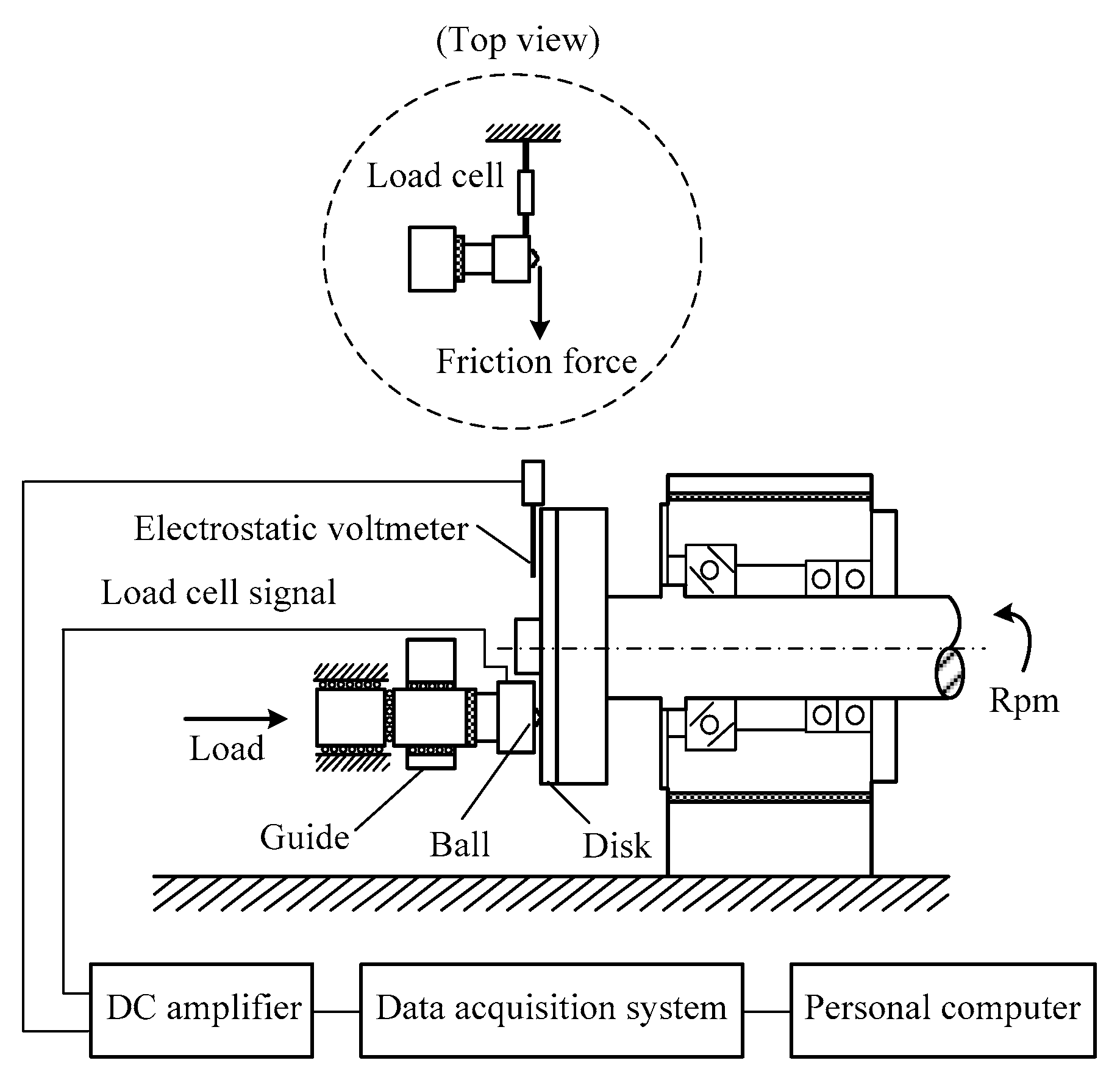

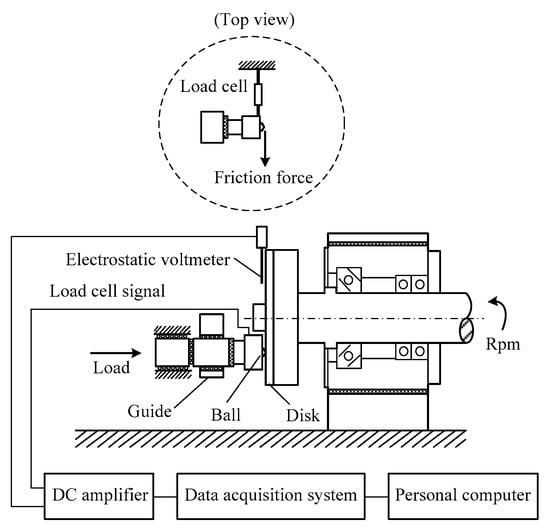

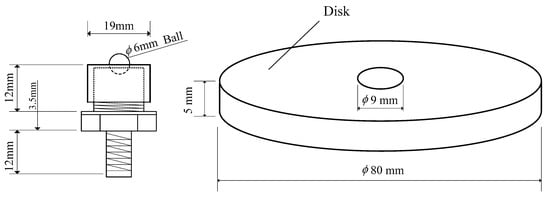

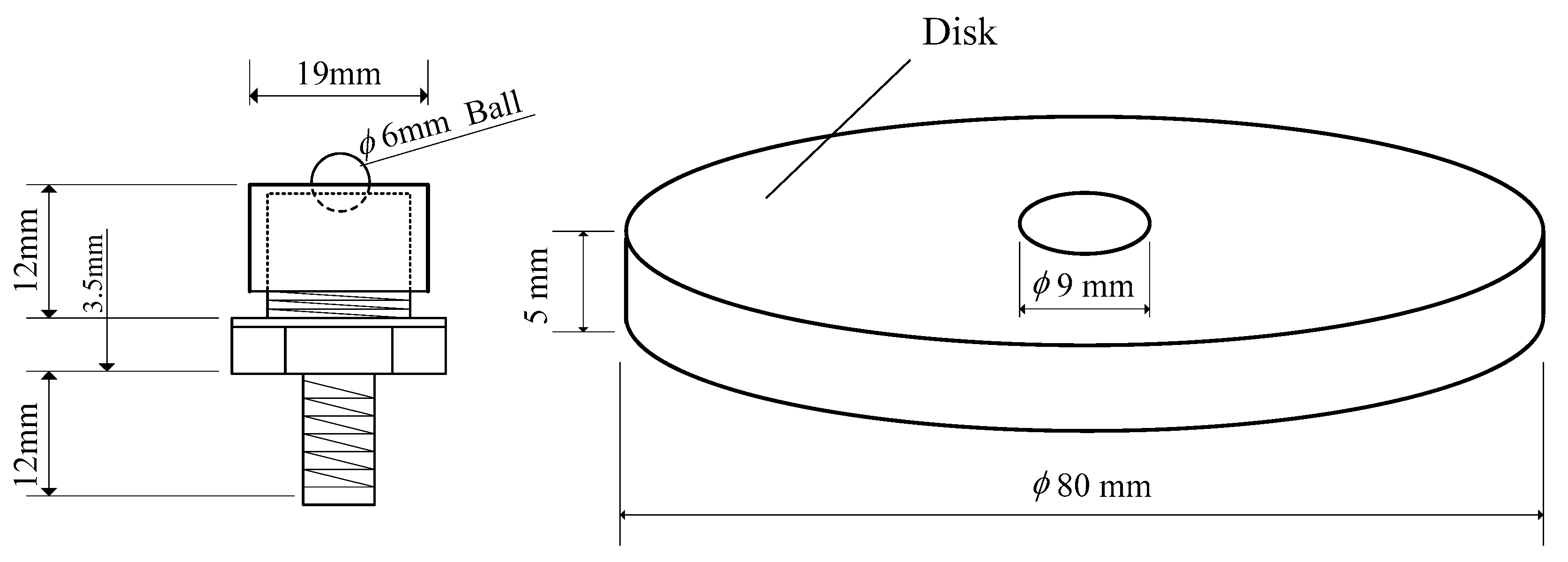

Figure 1

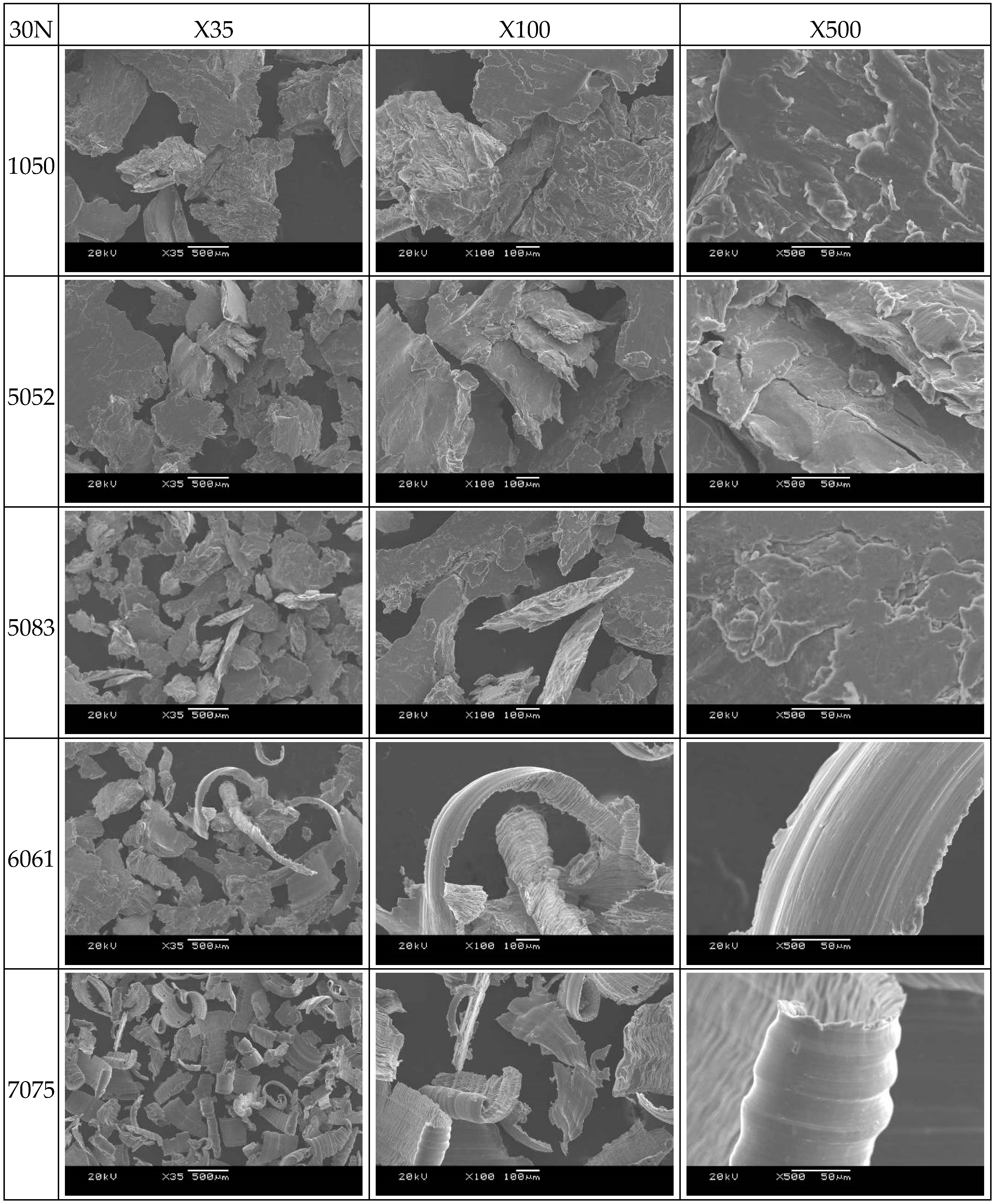

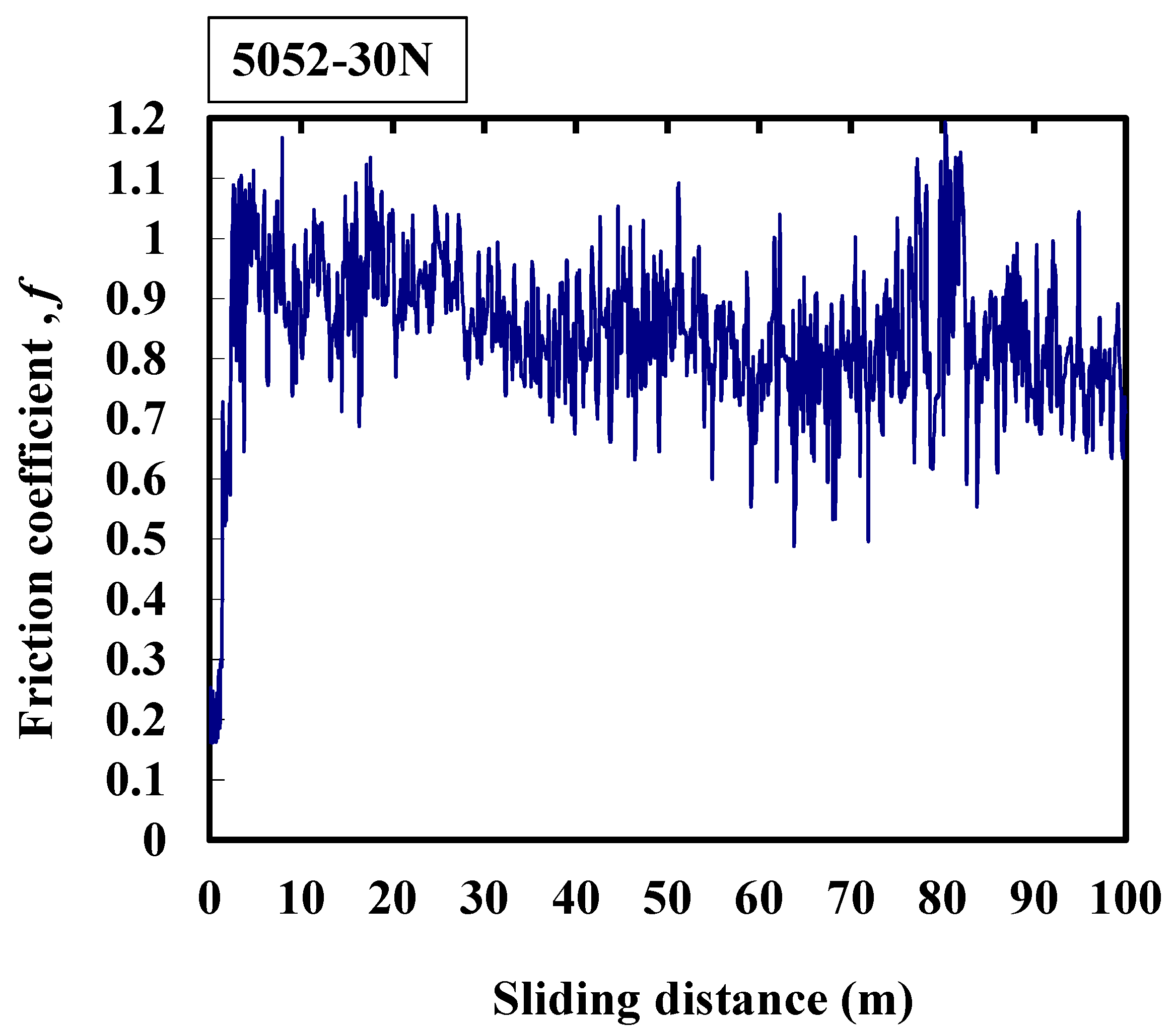

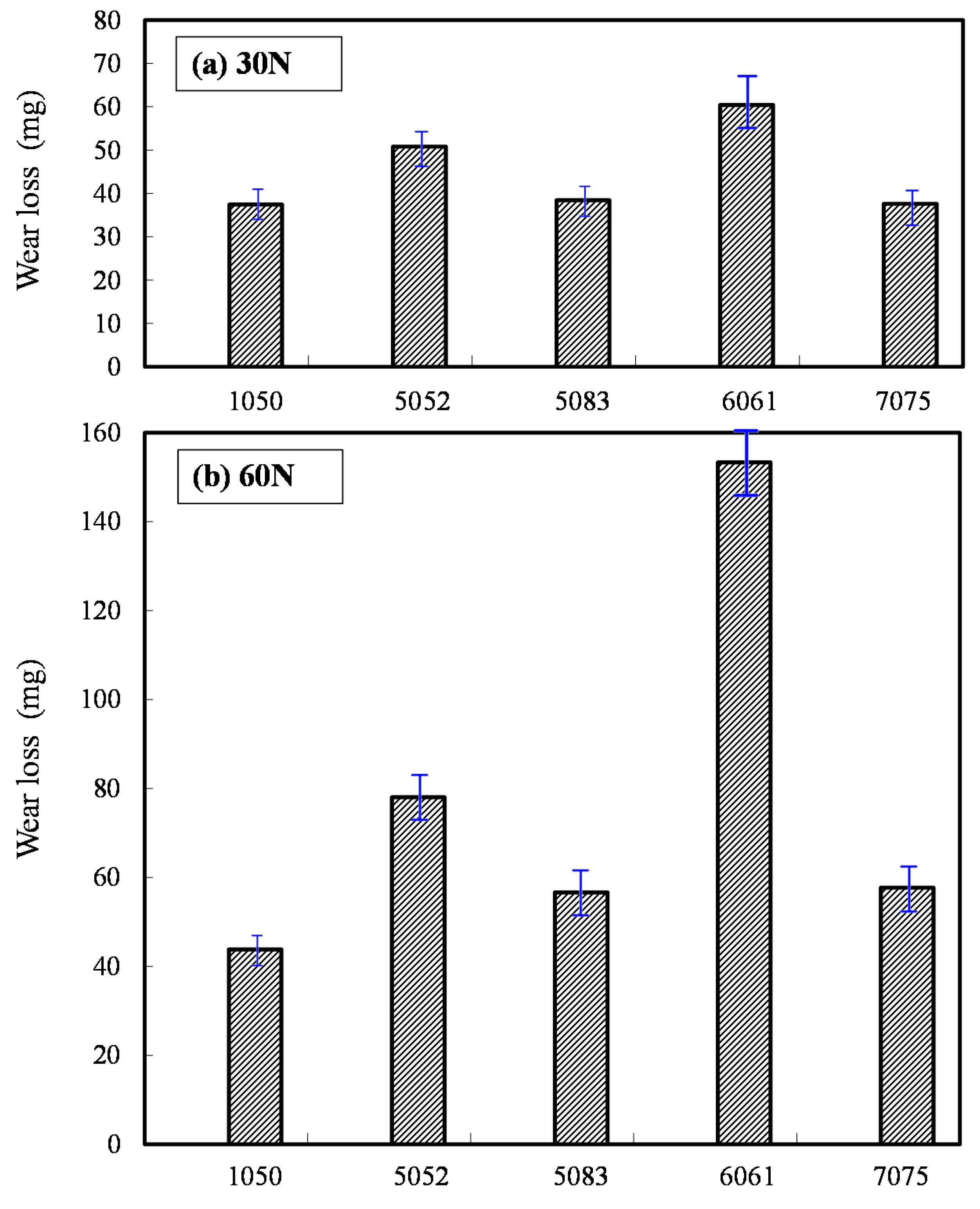

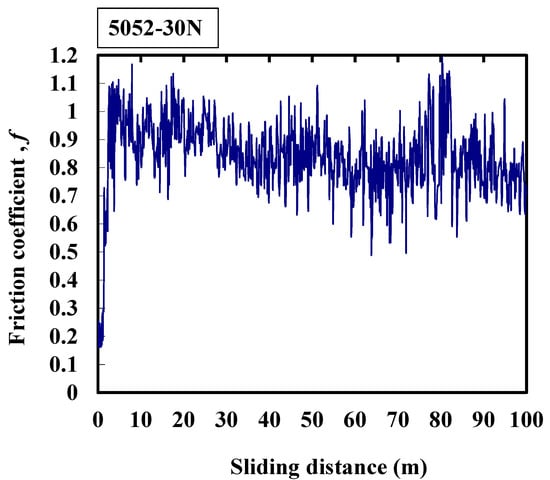

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Chang, Y.-P.; Huang, Z.-W.; Chou, H.-M. Effects of Doping Elements on the Friction and Wear of SUJ2 Steel Sliding against Aluminum Alloys. Micromachines 2017, 8, 96.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Micromachines EISSN 2072-666X Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
