ELID Polishing of Glass Substrates Using a Grainless Iron-Bonded Wheel with Free Abrasive Particles

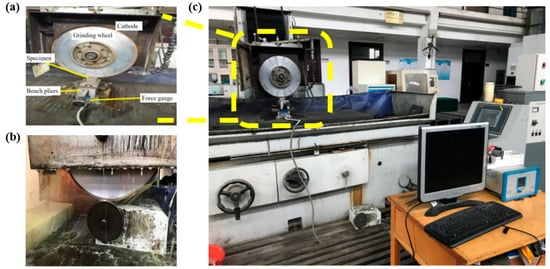

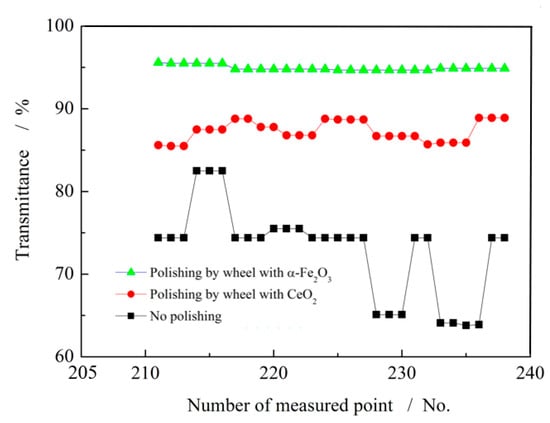

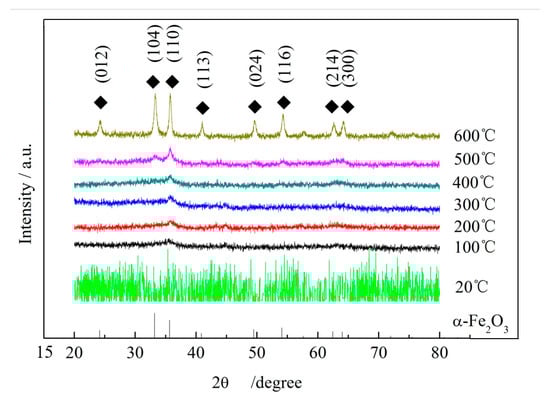

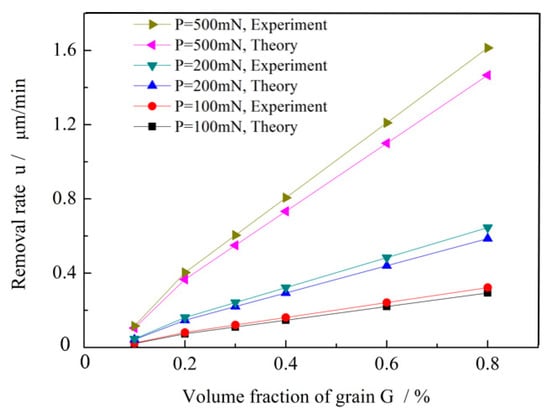

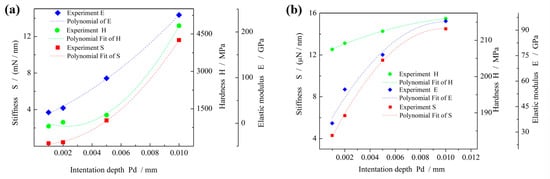

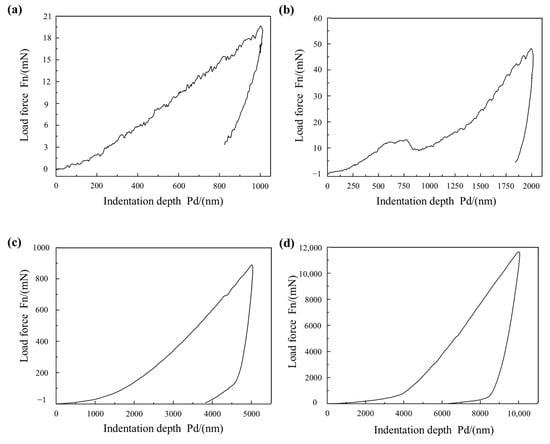

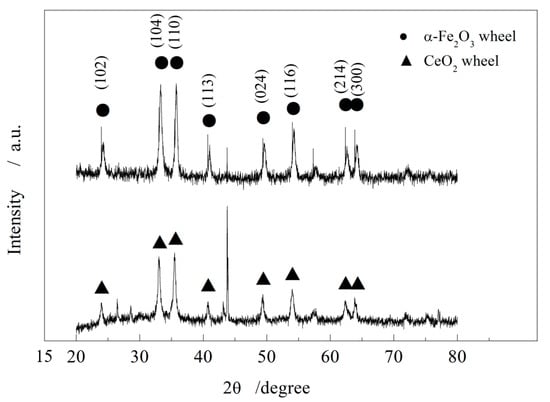

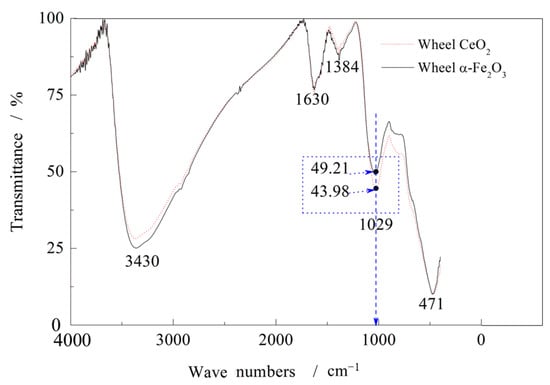

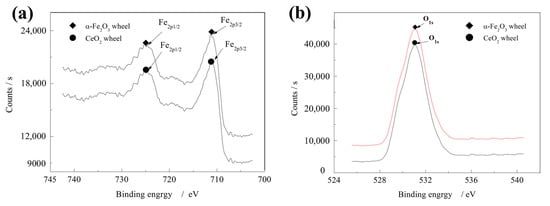

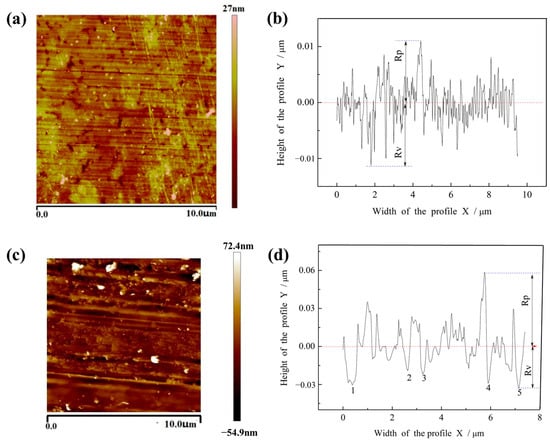

Conventional polishing of glass substrates often results in surface scratches caused by passivated abrasive particles, leading to defects and reduced yield. To overcome this limitation, an iron-bonded wheel with free abrasive grains was proposed in ELID (Electrolytic In-process Dressing) grinding. The polishing mechanisms were investigated using X-ray diffraction (XRD), Fourier transform infrared spectroscopy (FTIR), X-ray photoelectron spectroscopy (XPS), and micro-indentation. Polishing efficiency was assessed via mass loss measurements, surface quality was characterized by atomic force microscopy (AFM), and optical transmittance was evaluated using a transmittance meter. Results indicate that the proposed wheel does not contain fixed abrasive particles but generates α-Fe₂O₃ particles during polishing, effectively preventing surface scratches and achieving superior surface quality. The polishing efficiency ranged from 0.02 to 1.6 μm/min, with a resulting surface roughness of 2.1 nm. Furthermore, the glass substrates exhibited higher transmittance compared to those polished using conventional methods, contributing to improved display performance and brightness. This polishing technology demonstrates significant potential for applications in the display industry.
