Article

ZnO Hollow Quasi-Spheres Modified Screen-Printed Graphite Electrode for Determination of Carmoisine

by
Sayed Zia Mohammadi
1,
Somayeh Tajik
2,*,
Farideh Mousazadeh
1,
Elaheh Baghadam-Narouei
1 and
Fariba Garkani Nejad
2
1
Department of Chemistry, Payame Noor University, Tehran P.O. Box 19395-3697, Iran
2
Research Center of Tropical and Infectious Diseases, Kerman University of Medical Sciences, Kerman P.O. Box 76169-13555, Iran
*
Author to whom correspondence should be addressed.
Micromachines 2023, 14(7), 1433; https://doi.org/10.3390/mi14071433
Submission received: 12 May 2023 / Revised: 5 July 2023 / Accepted: 8 July 2023 / Published: 16 July 2023
(This article belongs to the Special Issue Application of Electrochemical Devices in Food Analysis)
Browse Figures
Versions Notes

Abstract

:
Food colorants are important in food selection because they improve the gastronomic appeal of foods by improving their aesthetic appeal. However, after prolonged use, many colorants turn toxic and cause medical problems. A synthetic azo-class dye called carmoisine gives meals a red color. Therefore, the carmoisine determination in food samples is of great importance from the human health control. The current work was developed to synthesis ZnO hollow quasi-spheres (ZnO HQSs) to prepare a new electrochemical carmoisine sensor that is sensitive. Field emission-scanning electron microscopy (FE-SEM) and X-ray diffraction (XRD) have been used to analyze the properties of prepared ZnO HQSs. A screen-printed graphite electrode (SPGE) surface was modified with ZnO HQSs to prepare the ZnO HQSs-SPGE sensor. For carmoisine detection, the ZnO HQSs-SPGE demonstrated an appropriate response and notable electrocatalytic activities. The carmoisine electro-oxidation signal was significantly stronger on the ZnO HQSs-SPGE surface compared to the bare SPGE. Cyclic voltammetry (CV), linear sweep voltammetry (LSV), chronoamperometry (CHA), and differential pulse voltammetry (DPV) have been utilized to investigate the suggested protocol. The DPV results revealed an extensive linear association between variable carmoisine concentrations and peak current that ranged from 0.08 to 190.0 µM, with a limit of detection (LOD) as narrow as 0.02 µM. The ZnO HQSs-SPGE’s ability to detect carmoisine in real samples proved the sensor’s practical application.

1. Introduction

Food colorants are substances added to foods and drinks to enhance visual appeal. Therefore, the food processing industry uses a variety of edible colorants, including both natural and synthetic ones [1]. Food colorants are used to make food more visually appealing, and also to restore the original appearance of food whose color has been altered by processing, storage, packing, and distribution [2]. In the food industry, synthetic colorants, especially azo dyes, have been employed extensively to enhance food appearance and color due to their attractive color homogeneity, great water solubility, cheap production costs, low microbial contamination, and strong stability to light, oxygen, and pH [1]. Additionally, synthetic dyes are now widely applied in different industries, including those that deal with plastic, textiles, leather, detergents, and cosmetics. In addition, they are favored to enhance the organoleptic qualities of foodstuffs [3,4].
Griess originally discovered azo dyes, the most significant class of synthetic dyes, in 1865 [5,6]. Azo dyes have a strong water solubility due to their general chemical structure, which is made up of aromatic groups and an azo chromophore. Due to the presence of a double bond between two nitrogen atoms, this dye has an active functional group. Depending on how many azo functional groups they include, they can be mono-azo, di-azo, or poly-azo dyes [7]. The majority of these commercial dyes are mono-azo dyes [5]. Half of all dyestuffs that can be sold commercially contain azo dyes [5]. In other words, the most abundant family of synthetic dyes—azo dyes—are organic materials with the highest levels of production and consumption globally [8]. A lot of azo dyes are employed in the cosmetic, pharmaceutical, and leather sectors, particularly in the textile industry, because of their distinct physical and chemical qualities [5]. In addition, they are actively exploited as food colorings, medicine transporters, and have biological applications in addition to industrial uses [5]. The chromophore azo groups in azo dyes’ structures are transformed into extremely poisonous aromatic amines even though they have biological properties, such as being antibacterial and antiviral [5]. As a result, azo dyes and their metabolites are harmful to human health. In addition, excessive consumption of these substances is not recommended for both human health and food safety [3]. Some azo dyes are known to have negative effects, such as asthma and contact hypersensitivity. Also, azo dyes can cause food bigotry, hypersensitivity, and hyperactivity [3]. The European Union Regulation (EC) 1907/2006 forbids the use of some azo dyes due to the considerable risk they pose to the environment and human health [9]. Finally, it is crucial to use accurate and sensitive analytical techniques to control the determination of such significant substances. In common uses, such as food and beverages, carmoisine, a synthetic red dye with an azo bond in its molecular structure, provides a red to maroon shade [10].
Carmoisine was used as a coloring agent for jams and preserves for a long time, but most developed countries eventually outlawed it since it included the well-known carcinogen beta-naphthylamine [11]. In addition, reductive cleavage of azo groups produces an aromatic amine that is carcinogenic, like many azo dyes [12,13]. Many people also experience nettle rash, water retention, asthma, or drug intolerance as a result of the dye. In addition to increasing behavioral issues in children, such as hyperactivity, tantrums, and insomnia, large dosages of the dye can also cause coma, convulsions, somnolence, and even death [14]. Therefore, the amount of carmoisine in foods must be strictly managed, and it is crucial for both human health and the safety of food that carmoisine be detected quickly, sensitively, simply, and affordably.
A number of methodologies for quantifying synthetic food colors have been developed, including solid-phase extraction (SPE) [15], high-performance liquid chromatography (HPLC) [16], thin-layer chromatography (TLC) [17], spectrophotometry [18], capillary electrophoresis [19], solid-phase spectrophotometry [20], and fluorescence emission spectroscopy [21]. However, these methods have several drawbacks, including the need for specialized equipment, a laborious preparation/measurement procedure, as well as requiring a skilled operator for exact analysis [22,23]. Because electrochemical methods are capable of direct detection and do not require pretreatment procedures, they have recently received a lot of attention [24,25,26,27,28,29,30,31]. Furthermore, electrochemical methods are quick analytical methods that have the advantages of simplicity, great portability, and on-site detection ease [32,33,34,35,36,37].
Due to their reproducibility, reliability, affordability, and mass production, screen-printed electrodes (SPEs) became widely used in electrochemical sensing technology [38,39,40]. In electrochemical sensing technology, the selection of modified materials is crucial to achieve highly sensitive working electrodes for the detection of various chemicals [41,42,43,44,45]. Due to their new features, applications of nanoparticles have drawn a lot of attention recently and are now the subject of in-depth research in the disciplines of compound degradation and removal, catalysts, sensing, etc. [46,47,48,49,50,51,52,53,54,55]. Due to their enhanced electrochemical activities, surface modification employing nanomaterials has generated a great deal of interest to enhance the analytical performances of electrochemical sensors [56,57,58,59,60,61,62].
ZnO is a substance of substantial economic significance and is an essential semiconductor material. It has a high binding energy (60 meV), a bandgap of 3.37 eV, and is near in the ultraviolet spectral range [63]. Due to the numerous applications of nanoparticles based on their morphology, the shape and size control study of metal oxide nanoparticles (such as ZnO) has generated a great deal of scientific attention [63]. In recent years, ZnO hollow nanostructures are receiving a great deal of attention due to their unique electrical, optical, and surface properties, high surface-to-volume ratio, and lower density with good permeation [64,65,66,67].
The aim of this work was the synthesis of ZnO HQSs and the investigation of their application for modification of an SPGE as a sensing platform for the determination of carmoisine. The ZnO HQSs/SPGE sensor exhibited low LOD and high sensitivity for a wide linear range of carmoisine concentrations. In addition, good recovery values were obtained for the analysis of carmoisine in real samples.

2. Experimental

2.1. Chemicals and Solutions

All of the solutions utilized in the studies were prepared by utilizing ultra-pure water that had been purified by a Milli-Q® system (Millipore, Burlington, MA, USA) with a resistivity of more than 18.2 MΩ cm. All of the chemicals have been purchased from Merck (Darmstadt, Germany) or Sigma-Aldrich (Steinheim, Germany). The phosphate buffer (0.1 M) was prepared by diluting the H3PO4 into ultra-pure water and adjusted to the desired pH with NaOH.

2.2. Equipments

A scanning electron microscope (MIRA3 SEM (Tescan, Brno, Czech Republic)) was utilized to analyze the surface morphology and structure of prepared ZnO HQSs. Cu Kα radiation (wavelength = 1.5406 Å) has been utilized for the XRD study with the Panalytical X’Pert Pro X-ray diffractometer (The Netherlands). Voltammetric measurements have been performed by using a potentiostat/galvanostat (PGSTAT (302N), Autolab, Eco-Chemie, Utrecht, The Netherlands). SPGEs (DropSens (DRP-110) Spain), consisting of a three-electrode system (WE = graphite working electrode, AE = graphite auxiliary electrode, and RE = silver pseudo-reference electrode, have been utilized. By utilizing a pH meter (model 827; Metrohm; Herisau; Switzerland), the pH values have been determined.

2.3. Synthesis of ZnO HQSs

With slight modifications, the ZnO HQSs were prepared in accordance with the previous work [68]. In the first step, 100 mL of polyethylene glycol (PEG) was used to dissolve 10 mmol (2.973 g) of Zn(NO3)2·6H2O under magnetic stirring (30 min) and ultrasonication (20 min) processes. After that, the mixed solution was added into a flask, and it was gradually heated to 160 °C. The process of refluxing was maintained at 160 °C with stirring for 6 h. The produced material was gathered by centrifugation, washed (several times) with ethanol and water, and then dried for 12 h at 60 °C. In the end, the white ZnO HQSs were prepared by calcining the dried material for four hours at 500 °C in a muffle furnace.

2.4. Preparation of ZnO HQSs/SPGE

For this purpose, 1 mg ZnO HQSs was dispersed (25 min) in 1 mL ultra-pure water. Following that, the working electrode was cast using 5 μL of ZnO HQSs suspension. To obtain the modified electrode, the solvent was evaporated. The ZnO HQSs/SPGE was prepared after the solvent was evaporated.

2.5. Preparation of Real Samples

To prepare the lemon juice sample, 10.0 mL of lemon juice was filtered using filter paper. Then, 2.0 mL of the filtered sample was diluted with 10.0 mL of phosphate buffer (0.1 M, pH = 0.7).
To prepare the powdered juice sample, 5 g of powdered juice was dissolved in 50 mL of deionized water (50 °C), and the solution was allowed to cool at room temperature. Then, the solution was diluted using 10 mL of phosphate buffer (0.1 M, pH = 0.7). In the next step, the diluted solution was filtered with a membrane filter (0.45 μm).

3. Results and Discussions

3.1. Characterization of ZnO HQSs

FE-SEM was applied to study the structure and morphology of the as-prepared ZnO HQSs (Figure 1). In the low-magnification FE-SEM image in Figure 1a, the hollow structure cannot be detected, which shows that the ZnO quasi-sphere structures are prepared. The hollow structure of the ZnO HQSs, which have a mean diameter distribution of less than 200 nm, is clearly visible in the high-magnification FE-SEM image (Figure 1b).
The phase purity and crystallinity of ZnO HQSs were verified by XRD analysis. In Figure 2, the XRD pattern is displayed. The diffraction peaks located at 31.9°, 34.4°, 36.4°, 47.6°, 56.7°, 62.9°, and 68.1° correspond to diffraction from the (100); (002); (101); (102); (110); (103); and (112) planes of ZnO, respectively. All the peaks are indexed to the hexagonal ZnO with a wurtzite structure (JCPD No. 36-1451) [69,70].

3.2. Performance of the ZnO HQSs/SPGE Sensor for Carmoisine Determination

Investigating the electrocatalytic reaction of carmoisine at the ZnO HQSs/SPGE require adjusting the pH of the solution. As such, it also evaluated the effect of the aqueous solution’s pH value on the electrochemical activity of carmoisine. Due to this reason, the DPV was applied to examine the electrochemical reaction of carmoisine in 0.1 M phosphate buffer at various pH levels (3.0 < pH < 9.0) at the ZnO HQSs/SPGE surface. The results demonstrated that neutral conditions are preferable to acidic or alkaline conditions for the electrochemical oxidation of carmoisine. Thus, a pH of 7.0 (optimum pH) was considered for electrochemical investigations and measurements of carmoisine. The mechanism for oxidation of carmoisine on ZnO HQSs/SPGE is shown in Scheme 1.
Figure 3 depicts the cyclic voltammograms of 100.0 µM carmoisine at unmodified SPGE (voltammogram a) and at ZnO HQSs/SPGE (voltammogram b). As can be seen, there was just one oxidation peak visible, indicating that the electrochemical reaction of carmoisine is an irreversible process. Also, the SPGE surface modification with ZnO HQSs had a significant effect on the Ep and Ip values. The Ep for carmoisine oxidation at the ZnO HQSs/SPGE was seen at 540 mV, which is roughly 130 mV more negative than that of unmodified SPGE, as can be seen. This shows that carmoisine oxidation happens more easily on the surface of the ZnO HQSs/SPGE. Additionally, a roughly threefold increase in Ip value at the surface of ZnO HQSs/SPGE is seen compared with the unmodified electrode. This result is attributed to the ZnO HQSs’ properties, such as their large surface areas, which boost electrocatalytic activity and raise Ip, which, in turn, increases the sensitivity of the sensor.

3.3. Effects of Scan Rate

The following stage involved determining how the scan rates affected the oxidation peak current of carmoisine (Figure 4). The recorded LSVs show that the oxidation peak current of carmoisine increased with the increase of scan rate. After recording the voltammograms at different scan rates, the plot of the current intensity (Ip) versus the square root of the scan rate (υ1/2) was drawn (Figure 4 (Inset)). According to the linearity of the resulting plot (regression equation: y = 0.9389x + 1.2802 with R2 = 0.9989), it was determined that the electrochemical reaction of carmoisine on the ZnO HQSs/SPGE is controlled through the diffusion phenomenon.
Then, a Tafel plot (Inset of Figure 5) has been drawn using data from the ascent of the I-E curve recorded at 10 mV s−1 (scan rate). The kinetic of electron transport between carmoisine and the ZnO HQSs/SPGE would have an impact on the Tafel area. Using Equation (1), the anodic transfer coefficient (α) can be obtained from the Tafel plot’s slope [71], as follows:
Ƞ = 2.3RT/(1 − α) nF log I + constant
where: Ƞ (overpotential (V)), R (gas constant (J mol−1 K−1)), T (absolute temperature (K)), F (Faraday constant (C)), I (current (µA)), and n (number of electrons involved in the rate control step that is regarded as being 1). The value of α for carmoisine was determined as 0.72 using the Tafel slope (0.2128).

3.4. Chronoamperometric Measurements

The potential of working electrode has been set at 590 mV in the following (Figure 6), to carry out the carmoisine chronoamperometric experiments on the ZnO HQSs/SPGE surface. The Cottrell equation (Equation (2)) [71] could be utilized to explain the current obtained by electrochemical reaction at the limited mass transport condition for an electroactive substance (carmoisine) that has a diffusion coefficient of D, as follows:
I = nFAD1/2 Cbπ−1/2t−1/2
Chronoamperometric measurements of carmoisine at various concentrations were carried out for this assessment. The plots of I against t−1/2 have been plotted (Figure 6A). The resulting straight lines’ slopes were then plotted against the carmoisine concentration (Figure 6B) in the following step. The Cottrell equation and final slope were used to determine the mean value of D for carmoisine, which has been determined to be 9.2 × 10−5 cm2 s−1.

3.5. Determination of Carmoisine by DPV

Given that DPV is more sensitive than other quantitative methodologies, this approach has been utilized to investigate the linear range and LOD. For DPV measurements, the following parameters have been employed: pulse amplitude (0.025 V), step potential (0.01 V), initial potential (300 mV), end potential (804 mV), and scan rate (50 mV s−1). For the purpose of this investigation, the DPVs of the ZnO HQSs were recorded for carmoisine with various concentrations. The data (Figure 7) show a linear relationship between the Ip and carmoisine concentration (in the range 0.08–190.0 µM) at the ZnO HQSs-SPGE surface. A detection limit of 0.02 µM for carmoisine has been subsequently determined. The obtained LOD value and linear range are compared with the reported data from different works (Table 1). As shown in Table 1, the performance of ZnO HQSs-SPGE is comparable to or better to that of the previously reported sensors. Moreover, the proposed sensor has some advantages including saving time, being cost effective, and the simplicity of electrode preparation, which proved that the proposed sensor has relatively good performance and can be used for the determination of carmoisine in food samples.

3.6. Repeatability, Reproducibility, and Stability

The repeatability, reproducibility, and stability of the ZnO HQSs/SPGE have been evaluated utilizing the DPV method. The reproducibility of ZnO HQSs/SPGE was remarkable, as shown by the 4.3% relative standard deviation (RSD) for the determination of 100.0 μM carmoisine on seven electrodes (ZnO HQSs/SPGE) constructed by using the same method. Seven repeated measurements of 100.0 µM carmoisine using the same electrode had an RSD of 3.5%, demonstrating the excellent repeatability of ZnO HQSs/SPGE. The modified electrode was kept for 24 days to investigate the stability of ZnO HQSs/SPGE. Findings show that the oxidation current of carmoisine reduced to 94.9% of its initial value after 24 days, confirming acceptable stability of electrode storage.

3.7. Interference Studies

The interference studies were carried out for a ZnO HQSs/SPGE sensor sensing 30.0 µM carmoisine in the presence of different species. The tolerance limit was considred as the concentration of foreign species that causes >±5% change in the peak current of target analyte. According to the findings, 50-fold of Na+, K+, Ca2+, Mg2+, NH4+, SO42−, Cl−, and Br−, and 20-fold of glucose, alanine, tryptophan, and histidine did not show interference with the determination.

3.8. Analysis of the Real Samples

By sensing carmoisine in powdered juice and lemon juice utilizing the standard addition method, the ZnO HQSs/SPGE’s applicability was evaluated. According to the data (Table 2), the recovery values were between 97.7% and 104.7%, and the RSD values (n = 5) were <3.5%, indicating that the developed ZnO HQSs/SPGE is reliable for the detection of carmoisine in real samples.

4. Conclusions

The present work was carried out to prepare a sensitive and reliable sensor (ZnO HQSs/SPGE) to detect trace amounts of carmoisine. The synthesized ZnO HQSs were characterized by XRD and FE-SEM techniques. The ZnO HQSs/SPGE was shown to have a distinctive electrochemical activity with a lower oxidation potential and higher oxidation current response to carmoisine than the unmodified electrode. The ZnO HQSs/SPGE sensor showed a linear relationship between the current and the concentration of carmoisine in a range between 0.08 and 190.0 µM and a low detection limit of 0.02 µM. Also, the ZnO HQSs/SPGE showed good repeatability, reproducibility, stability, and selectivity for the analysis of carmoisine. The effective capability of ZnO HQSs/SPGE was proven by detecting carmoisine in the real samples with satisfactory results.

Author Contributions

Formal analysis, S.Z.M.; Writing—original draft, F.M.; Writing—review & editing, E.B.-N. and F.G.N.; Supervision, S.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mohammadi, S.Z.; Baghelani, Y.M.; Mousazadeh, F.; Rahimi, S.; Mohammad-Hassani, M. Electrochemical determination of amaranth in food samples by using modified electrode. J. Electrochem. Sci. Eng. 2022, 12, 1165–1177. [Google Scholar]
  2. Rubio, L.; Sanllorente, S.; Sarabia, L.A.; Ortiz, M.C. Fluorescence determination of cochineal in strawberry jam in the presence of carmoisine as a quencher by means of four-way PARAFAC decomposition. Food Chem. 2019, 290, 178–186. [Google Scholar] [CrossRef] [PubMed]
  3. Karimi, F.; Demir, E.; Aydogdu, N.; Shojaei, M.; Taher, M.A.; Asrami, P.N.; Cheraghi, S. Advancement in electrochemical strategies for quantification of Brown HT and carmoisine (acid red 14) drom azo dyestuff class. Food Chem. Toxicol. 2022, 165, 113075. [Google Scholar] [CrossRef] [PubMed]
  4. Chebotarev, A.N.; Pliuta, K.V.; Snigur, D.V. Determination of carmoisine onto carbon-paste electrode modified by silica impregnated with cetylpyridinium chloride. ChemistrySelect 2020, 5, 3688–3693. [Google Scholar] [CrossRef]
  5. Alsantali, R.I.; Raja, Q.A.; Alzahrani, A.Y.; Sadiq, A.; Naeem, N.; Mughal, E.U.; AlRooqi, M.M.; El Guesmi, N.; Moussa, Z.; Ahmed, S.A. Miscellaneous azo dyes: A comprehensive review on recent advancements in biological and industrial Applications. Dyes Pigm. 2021, 199, 110050. [Google Scholar] [CrossRef]
  6. Griess, P. XLII.—On a new series of bodies in which nitrogen is substituted for hydrogen. J. Chem. Soc. 1865, 18, 268–272. [Google Scholar] [CrossRef] [Green Version]
  7. El Harfi, S.; El Harfi, A. Classifications, properties and applications of textile dyes: A review. Appl. J. Environ. Eng. Sci. 2017, 3, 311–320. [Google Scholar]
  8. Shi, Y.; Yang, Z.; Xing, L.; Zhang, X.; Li, X.; Zhang, D. Recent advances in the biodegradation of azo dyes. World J. Microbiol. Biotechnol. 2021, 37, 137. [Google Scholar] [CrossRef]
  9. Vineis, P.; Pirastu, R. Aromatic amines and cancer. Cancer Causes Control 1997, 8, 346–355. [Google Scholar] [CrossRef]
  10. Micheletti, L.; Coldibeli, B.; Salamanca-Neto, C.A.R.; Almeida, L.C.; Sartori, E.R. Assessment of the use of boron-doped diamond electrode for highly sensitive voltammetric determination of the azo-dye carmoisine E−122 in food and environmental matrices. Talanta 2020, 220, 121417. [Google Scholar] [CrossRef]
  11. Gupta, V.K.; Mittal, A.; Malviya, A.; Mittal, J. Adsorption of carmoisine A from wastewater using waste materials—Bottom ash and deoiled soya. J. Colloid Interface Sci. 2009, 335, 24–33. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Mohan, S.V.; Rao, N.C.; Karthikeyan, J. Adsorptive removal of direct azo dye from aqueous phase onto coal based sorbents: A kinetic and mechanistic study. J. Hazard. Mater. 2002, 90, 189–204. [Google Scholar] [CrossRef] [PubMed]
  13. Biswas, M.M.; Taylor, K.E.; Bewtra, J.K.; Biswas, N. Enzymatic treatment of sulfonated aromatic amines generated from reductive degradation of reactive azo dyes. Water Environ. Res. 2007, 79, 351–356. [Google Scholar] [CrossRef]
  14. Gaunt, I.F.; Farmer, M.; Grasso, P.; Gangolli, S.D. Acute (mouse and rat) and short-term (rat) toxicity studies on carmoisine. Food Cosmet. Toxicol. 1967, 5, 179–185. [Google Scholar] [CrossRef] [PubMed]
  15. Jangju, A.; Farhadi, K.; Hatami, M.; Amani, S.; Esma-ali, F.; Moshkabadi, A.; Hajilari, F. Application of zein-modified magnetite nanoparticles in dispersive magnetic micro-solid-phase extraction of synthetic food dyes in foodstuffs. J. Sep. Sci. 2017, 40, 1343–1352. [Google Scholar] [CrossRef] [PubMed]
  16. Wu, J.; Wan, S.; Xu, O.; Song, H.; Yang, J.; Zhu, X. Pyridine ionic liquid functionalized bimetallic MOF solid-phase extraction coupled with high performance liquid chromatography for separation/analysis sunset yellow. RSC Adv. 2022, 12, 30928–30935. [Google Scholar] [CrossRef] [PubMed]
  17. Soponar, F.; Mot¸, A.C.; Sarbu, C. Quantitative determination of some food dyes using digital processing of images obtained by thin-layer chromatography. J. Chromatogr. A 2008, 1188, 295–300. [Google Scholar] [CrossRef]
  18. Asadpour-Zeynali, K.; Manafi-Khoshmanesh, S. Simultaneous standard addition method for novel determination of components in a single step: Application in analysis of Sunset yellow and Carmoisine by a spectrophotometric technique. Anal. Methods 2014, 6, 6110–6115. [Google Scholar] [CrossRef]
  19. Del Giovine, L.; Bocca, A.P. Determination of synthetic dyes in ice-cream by capillary electrophoresis. Food Control 2003, 14, 131–135. [Google Scholar] [CrossRef]
  20. Bişgin, A.T. Simultaneous extraction and determination of allura red (E129) and brilliant blue FCF (E133) in foodstuffs by column solid-phase spectrophotometry. J. AOAC Int. 2019, 102, 181–188. [Google Scholar] [CrossRef]
  21. Xu, H.; Yang, X.; Li, G.; Zhao, C.; Liao, X. Green synthesis of fluorescent carbon dots for selective detection of tartrazine in food samples. J. Agric. Food Chem. 2015, 63, 6707–6714. [Google Scholar] [CrossRef]
  22. Rovina, K.; Siddiquee, S.; Shaarani, S.M. Highly sensitive electrochemical determination of sunset yellow in commercial food products based on CHIT/GO/ MWCNTs/AuNPs/GCE. Food Control 2017, 82, 66–73. [Google Scholar] [CrossRef]
  23. Ahmadi, S.; Hasanzadeh, M.; Ghasempour, Z. Sub-micro electrochemical recognition of carmoisine, sunset yellow, and tartrazine in fruit juices using P (β-CD/Arg)/CysA-AuNPs/AuE. Food Chem. 2023, 402, 134501. [Google Scholar] [CrossRef]
  24. Okeke, E.S.; Ezeorba, T.P.C.; Okoye, C.O.; Chen, Y.; Mao, G.; Feng, W.; Wu, X. Analytical detection methods for azo dyes: A focus on comparative limitations and prospects of bio-sensing and electrochemical nano-detection. J. Food Compos. Anal. 2022, 114, 104778. [Google Scholar] [CrossRef]
  25. Kazemipour, M.; Ansari, M.; Mohammadi, A.; Beitollahi, H.; Ahmadi, R. Use of adsorptive square-wave anodic stripping voltammetry at carbon paste electrode for the determination of amlodipine besylate in pharmaceutical preparations. J. Anal. Chem. 2009, 64, 65–70. [Google Scholar] [CrossRef]
  26. Hasanpour, F.; Taei, M.; Fouladgar, M.; Salehi, M. Au nano dendrites/composition optimized nd-dopped cobalt oxide as an efficient electrocatalyst for ethanol oxidation. J. Appl. Organomet. Chem. 2022, 2, 188–196. [Google Scholar]
  27. Ariavand, S.; Ebrahimi, M.; Foladi, E. Design and construction of a novel and an efficient potentiometric sensor for determination of sodium ion in urban water samples. Chem. Methodol. 2022, 6, 886–904. [Google Scholar]
  28. Karimi-Maleh, H.; Liu, Y.; Li, Z.; Darabi, R.; Orooji, Y.; Karaman, C.; Karimi, F.; Baghayeri, M.; Rouhi, J.; Fu, L. Calf thymus ds-DNA intercalation with pendimethalin herbicide at the surface of ZIF-8/Co/rGO/C3N4/ds-DNA/SPCE; A bio-sensing approach for pendimethalin quantification confirmed by molecular docking study. Chemosphere 2023, 332, 138815. [Google Scholar] [CrossRef]
  29. Peyman, H.; Roshanfekr, H.; Babakhanian, A.; Jafari, H. PVC membrane electrode modified by lawson as synthetic derivative ionophore for determination of cadmium in alloy and wastewater. Chem. Methodol. 2021, 5, 446–453. [Google Scholar]
  30. Mazloum-Ardakani, M.; Beitollahi, H.; Amini, M.K.; Mirkhalaf, F.; Mirjalili, B.F.; Akbari, A. Application of 2-(3, 4-dihydroxyphenyl)-1,3-dithialone self-assembled monolayer on gold electrode as a nanosensor for electrocatalytic determination of dopamine and uric acid. Analyst 2011, 136, 1965–1970. [Google Scholar] [CrossRef] [PubMed]
  31. Peyman, H. Design and fabrication of modified DNA-Gp nano-biocomposite electrode for industrial dye measurement and optical confirmation. Prog. Chem. Biochem. Res. 2022, 5, 391–405. [Google Scholar]
  32. Sun, R.; Lv, R.; Li, Y.; Du, T.; Chen, L.; Zhang, Y.; Qi, Y. Simple and sensitive electrochemical detection of sunset yellow and Sudan I in food based on AuNPs/Zr-MOF-Graphene. Food Control 2023, 145, 109491. [Google Scholar] [CrossRef]
  33. Arivazhagan, M.; Maduraiveeran, G. Hierarchical gold dispersed nickel oxide nanodendrites microarrays as a potential platform for the sensitive electrochemical detection of glucose and lactate in human serum and urine. Mater. Chem. Phys. 2023, 295, 127084. [Google Scholar] [CrossRef]
  34. Beitollahi, H.; Mahmoudi Moghaddam, H.; Tajik, S. Voltammetric determination of bisphenol A in water and juice using a lanthanum (III)-doped cobalt (II, III) nanocube modified carbon screen-printed electrode. Anal. Lett. 2019, 52, 1432–1444. [Google Scholar] [CrossRef]
  35. Mohanraj, J.; Durgalakshmi, D.; Rakkesh, R.A.; Balakumar, S.; Rajendran, S.; Karimi-Maleh, H. Facile synthesis of paper based graphene electrodes for point of care devices: A double stranded DNA (dsDNA) biosensor. J. Colloid Interface Sci. 2020, 566, 463–472. [Google Scholar] [CrossRef]
  36. Mehdizadeh, Z.; Shahidi, S.; Ghorbani-HasanSaraei, A.; Limooei, M.; Bijad, M. Monitoring of amaranth in drinking samples using voltammetric amplified electroanalytical sensor. Chem. Methodol. 2022, 6, 246–252. [Google Scholar]
  37. Zhang, Z.; Karimi-Maleh, H. Label-free electrochemical aptasensor based on gold nanoparticles/titanium carbide MXene for lead detection with its reduction peak as index signal. Adv. Compos. Hybrid Mater. 2023, 6, 68. [Google Scholar] [CrossRef]
  38. Magar, H.S.; Hassan, R.Y.; Abbas, M.N. Non-enzymatic disposable electrochemical sensors based on CuO/Co3O4@MWCNTs nanocomposite modified screen-printed electrode for the direct determination of urea. Sci. Rep. 2023, 13, 2034. [Google Scholar] [CrossRef]
  39. Moru, S.; Sunil Kumar, V.; Kummari, S.; Yugender Goud, K. A disposable screen printed electrodes with hexagonal Ni (OH)2 nanoplates embedded chitosan layer for the detection of depression biomarker. Micromachines 2023, 14, 146. [Google Scholar]
  40. Beitollahi, H.; Garkani-Nejad, F.; Dourandish, Z.; Tajik, S. A novel voltammetric amaranth sensor based on screen printed electrode modified with polypyrrole nanotubes. Environ. Res. 2022, 214, 113725. [Google Scholar] [CrossRef]
  41. Maksuk, C.; Tinala, C.; Somboot, W.; Jakmunee, J.; Marken, F.; Kanyanee, T. Rapid determination of hydrogen peroxide in milk with non-enzymatic amperometric sensor based on porous gold modified screen-printed electrode in online dialysis system. Electroanalysis 2023, 35, e202100691. [Google Scholar] [CrossRef]
  42. Hosseini Fakhrabad, A.; Sanavi Khoshnood, R.; Abedi, M.R.; Ebrahimi, M. Fabrication a composite carbon paste electrodes (CPEs) modified with Multi-Wall Carbon Nano-Tubes (MWCNTs/N, N-Bis (salicyliden)-1,3-propandiamine) for determination of lanthanum (III). Eurasian Chem. Commun. 2021, 3, 627–634. [Google Scholar]
  43. Buledi, J.A.; Mahar, N.; Mallah, A.; Solangi, A.R.; Palabiyik, I.M.; Qambrani, N.; Karimi, F.; Vasseghian, Y.; Karimi-Maleh, H. Electrochemical quantification of mancozeb through tungsten oxide/reduced graphene oxide nanocomposite: A potential method for environmental remediation. Food Chem. Toxicol. 2022, 161, 112843. [Google Scholar] [CrossRef] [PubMed]
  44. Tajik, S.; Orooji, Y.; Karimi, F.; Ghazanfari, Z.; Beitollahi, H.; Shokouhimehr, M.; Varma, R.S.; Jang, H.W. High performance of screen-printed graphite electrode modified with Ni–Mo-MOF for voltammetric determination of amaranth. J. Food Meas. Charact. 2021, 15, 4617–4622. [Google Scholar] [CrossRef]
  45. Cheraghi, S.; Taher, M.A.; Karimi-Maleh, H.; Karimi, F.; Shabani-Nooshabadi, M.; Alizadeh, M.; Al-Othman, A.; Erk, N.; Raman, P.K.Y.; Karaman, C. Novel enzymatic graphene oxide based biosensor for the detection of glutathione in biological body fluids. Chemosphere 2022, 287, 132187. [Google Scholar]
  46. Zhong, R.; Xu, M.; Fu, N.; Liu, R.; Wang, X.; Yang, Z. A flexible high-performance symmetric quasi-solid supercapacitor based on Ni-doped MnO2 nano-array@carbon cloth. Electrochim. Acta 2020, 348, 136209. [Google Scholar] [CrossRef]
  47. Alwan, L.; Al Samarrai, E.; Mahmood, M.; Ali, Q.; Al Samarrai, O. Estimation and development of some biophysical characteristics of the drug Favipiravir used in the treatment of corona-virus using green chemistry technology. Eurasian Chem. Commun. 2022, 4, 835–851. [Google Scholar]
  48. Janitabar Darzi, S.; Bastami, H. Au decorated mesoporous TiO2 as a high performance photocatalyst towards crystal violet dye. Adv. J. Chem. A 2022, 5, 22–30. [Google Scholar]
  49. Wang, F.; Hu, Z.; Mao, L.; Mao, J. Nano-silicon@soft carbon embedded in graphene scaffold: High-performance 3D free-standing anode for lithium-ion batteries. J. Power Sources 2020, 450, 227692. [Google Scholar] [CrossRef]
  50. Sheikhshoaie, I.; Rezazadeh, A.; Ramezanpour, S. Removal of Pb (II) from aqueous solution by gel combustion of a new nano sized Co3O4/ZnO composite. Asian J. Nanosci. Mater. 2022, 5, 336–345. [Google Scholar]
  51. Tallapaneni, V.; Mude, L.; Pamu, D.; Karri, V.V.S.R. Formulation, characterization and in vitro evaluation of dual-drug loaded biomimetic chitosan-collagen hybrid nanocomposite scaffolds. J. Med. Chem. Sci. 2022, 5, 1059–1074. [Google Scholar]
  52. Shete, R.; Fernandes, P.; Borhade, B.; Pawar, A.; Sonawane, M.; Warude, N. Review of cobalt oxide nanoparticles: Green synthesis, biomedical applications, and toxicity studies. J. Chem. Rev. 2022, 4, 331. [Google Scholar]
  53. Shayegan, H.; Safarifard, V.; Taherkhani, H.; Rezvani, M.A. Efficient removal of cobalt(II) ion from aqueous solution using amide-functionalized metal-organic framework. J. Appl. Organomet. Chem. 2022, 2, 109–118. [Google Scholar]
  54. Nareetsile, F.; Matshwele, J.T.; Odisitse, S. Metallo-drugs as promising antibacterial agents and their modes of action. J. Med. Chem. Sci. 2022, 5, 1109–1131. [Google Scholar]
  55. Sharma, M.; Yadav, S.; Srivastava, M.; Ganesh, N.; Srivastava, S. Promising anti-inflammatory bio-efficacy of saponin loaded silver nanoparticles prepared from the plant Madhuca longifolia. Asian J. Nanosci. Mater. 2022, 5, 313–326. [Google Scholar]
  56. Yan, R.; Lu, N.; Han, S.; Lu, Z.; Xiao, Y.; Zhao, Z.; Zhang, M. Simultaneous detection of dual biomarkers using hierarchical MoS2 nanostructuring and nano-signal amplification-based electrochemical aptasensor toward accurate diagnosis of prostate cancer. Biosens. Bioelectron. 2022, 197, 113797. [Google Scholar] [CrossRef] [PubMed]
  57. Foroughi, M.M.; Beitollahi, H.; Tajik, S.; Akbari, A.; Hosseinzadeh, R. Electrochemical determination of N-acetylcysteine and folic acid in pharmaceutical and biological samples using a modified carbon nanotube paste electrode. Int. J. Electrochem. Sci. 2014, 9, 8407. [Google Scholar] [CrossRef]
  58. Roshanfekr, H. A simple specific dopamine aptasensor based on partially reduced graphene oxide–Au NPs composite. Prog. Chem. Biochem. Res. 2023, 6, 79–88. [Google Scholar]
  59. Rajaji, U.; Ganesh, P.S.; Kim, S.Y.; Govindasamy, M.; Alshgari, R.A.; Liu, T.Y. MoS2 sphere/2D S-Ti3C2 MXene nanocatalysts on laser-induced graphene electrodes for hazardous aristolochic acid and roxarsone electrochemical detection. ACS Appl. Nano Mater. 2022, 5, 3252–3264. [Google Scholar] [CrossRef]
  60. Karimi-Maleh, H.; Fakude, C.T.; Mabuba, N.; Peleyeju, G.M.; Arotiba, O.A. The determination of 2-phenylphenol in the presence of 4-chlorophenol using nano-Fe3O4/ionic liquid paste electrode as an electrochemical sensor. J. Colloid Interface Sci. 2019, 554, 603–610. [Google Scholar] [CrossRef]
  61. Pourmadadi, M.; Nouralishahi, A.; Shalbaf, M.; Shabani Shayeh, J.; Nouralishahi, A. An electrochemical aptasensor for detection of prostate-specific antigen-based on carbon quantum dots-gold nanoparticles. Biotechnol. Appl. Biochem. 2023, 70, 175–183. [Google Scholar] [CrossRef]
  62. Zhang, Z.; Karimi-Maleh, H. In situ synthesis of label-free electrochemical aptasensor-based sandwich-like AuNPs/PPy/Ti3C2Tx for ultrasensitive detection of lead ions as hazardous pollutants in environmental fluids. Chemosphere 2023, 324, 138302. [Google Scholar] [CrossRef]
  63. Báez, R.M.; Morales, M.A.; Flores, A.L.; Serrano, R.A. Multiscale modeling of ZnO nanoparticle synthesis: Chemical kinetics and turing instability. Mater. Today Commun. 2021, 29, 102748. [Google Scholar] [CrossRef]
  64. Kar, J.P.; Das, S.N.; Choi, J.H.; Myoung, J.M. Growth and characterization of vertically aligned ZnO microtubes on silicon substrate. Mater. Lett. 2009, 63, 2327–2330. [Google Scholar] [CrossRef]
  65. Yue, S.; Zhang, L.; Lu, J.; Zhang, J. Polymer-controlled crystallization of dumbbell-like ZnO hollow architectures. Mater. Lett. 2009, 63, 1217–1220. [Google Scholar] [CrossRef]
  66. Ameen, S.; Akhtar, M.S.; Seo, H.K.; Shin, H.S. An electrochemical sensing platform based on hollow mesoporous ZnO nanoglobules modified glassy carbon electrode: Selective detection of piperidine chemical. Chem. Eng. J. 2015, 270, 564–571. [Google Scholar] [CrossRef]
  67. Zhang, J.; Lu, H.; Zhang, L.; Leng, D.; Zhang, Y.; Wang, W.; Wang, C. Metal–organic framework-derived ZnO hollow nanocages functionalized with nanoscale Ag catalysts for enhanced ethanol sensing properties. Sens. Actuators B Chem. 2019, 291, 458–469. [Google Scholar] [CrossRef]
  68. Rao, J.; Yu, A.; Shao, C.; Zhou, X. Construction of hollow and mesoporous ZnO microsphere: A facile synthesis and sensing property. ACS Appl. Mater. Interfaces 2012, 4, 5346–5352. [Google Scholar] [CrossRef]
  69. Chen, X.; Jing, X.; Wang, J.; Liu, J.; Song, D.; Liu, L. Self-assembly of ZnO nanoparticles into hollow microspheres via a facile solvothermal route and their application as gas sensor. CrystEngComm 2013, 15, 7243–7249. [Google Scholar] [CrossRef]
  70. Cho, G.R.; Kim, D.H.; Lee, D.H. A facile approach to fabrication of hollow ZnO nanoparticles. Compos. Res. 2018, 31, 94–98. [Google Scholar]
  71. Bard, A.J.; Faulkner, L.R. Electrochemical Methods: Fundamentals and Applications, 2nd ed.; Wiley: New York, NY, USA, 2001. [Google Scholar]
  72. Movaghar Nezhad, H.; Shahidi, S.A.; Bijad, M. Fabrication of a nanostructure voltammetric sensor for carmoisine analysis as a food dye additive. Anal. Bioanal. Electrochem. 2018, 10, 220–229. [Google Scholar]
  73. Bijad, M.; Karimi-Maleh, H.; Farsi, M.; Shahidi, S.A. An electrochemical-amplified-platform based on the nanostructure voltammetric sensor for the determination of carmoisine in the presence of tartrazine in dried fruit and soft drink samples. J. Food Meas. Charact. 2018, 12, 634–640. [Google Scholar] [CrossRef]
  74. Asadpour-Zeynali, K.; Mollarasouli, F. Bismuth and Bismuth-Chitosan modified electrodes for determination of two synthetic food colorants by net analyte signal standard addition method. Cent. Eur. J. Chem. 2014, 12, 711–718. [Google Scholar] [CrossRef]
  75. Sierra-Rosales, P.; Toledo-Neira, C.; Squella, J.A. Electrochemical determination of food colorants in soft drinks using MWCNT-modified GCEs. Sens. Actuators B Chem. 2017, 240, 1257–1264. [Google Scholar] [CrossRef]
Micromachines 14 01433 g001 550

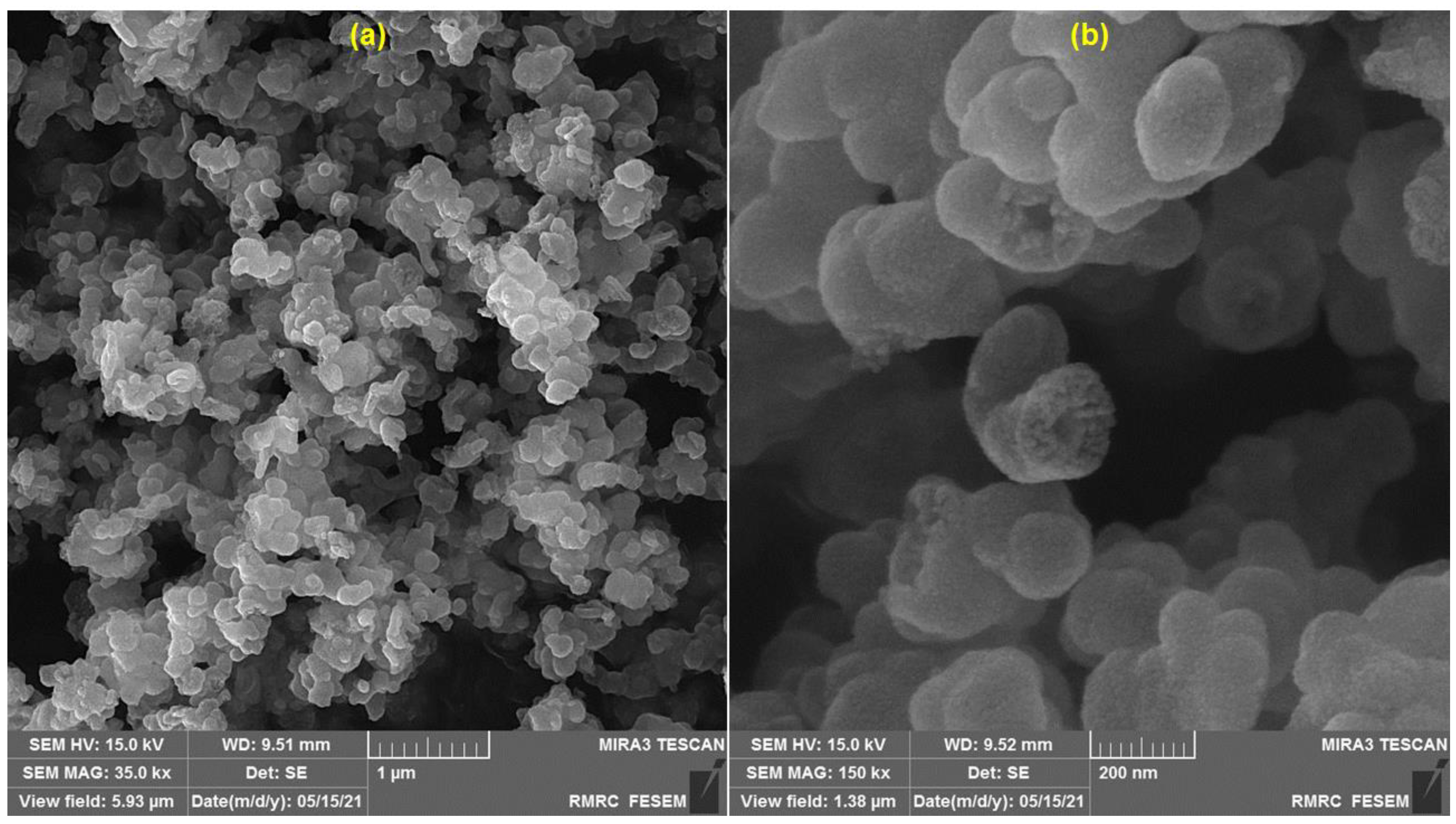

Figure 1. FE-SEM images of the as-prepared ZnO HQSs: a low-magnification FE-SEM image (1 µm) (a), and a high-magnification FE-SEM image (200 nm) (b).
Figure 1. FE-SEM images of the as-prepared ZnO HQSs: a low-magnification FE-SEM image (1 µm) (a), and a high-magnification FE-SEM image (200 nm) (b).
Micromachines 14 01433 g001
Micromachines 14 01433 g002 550

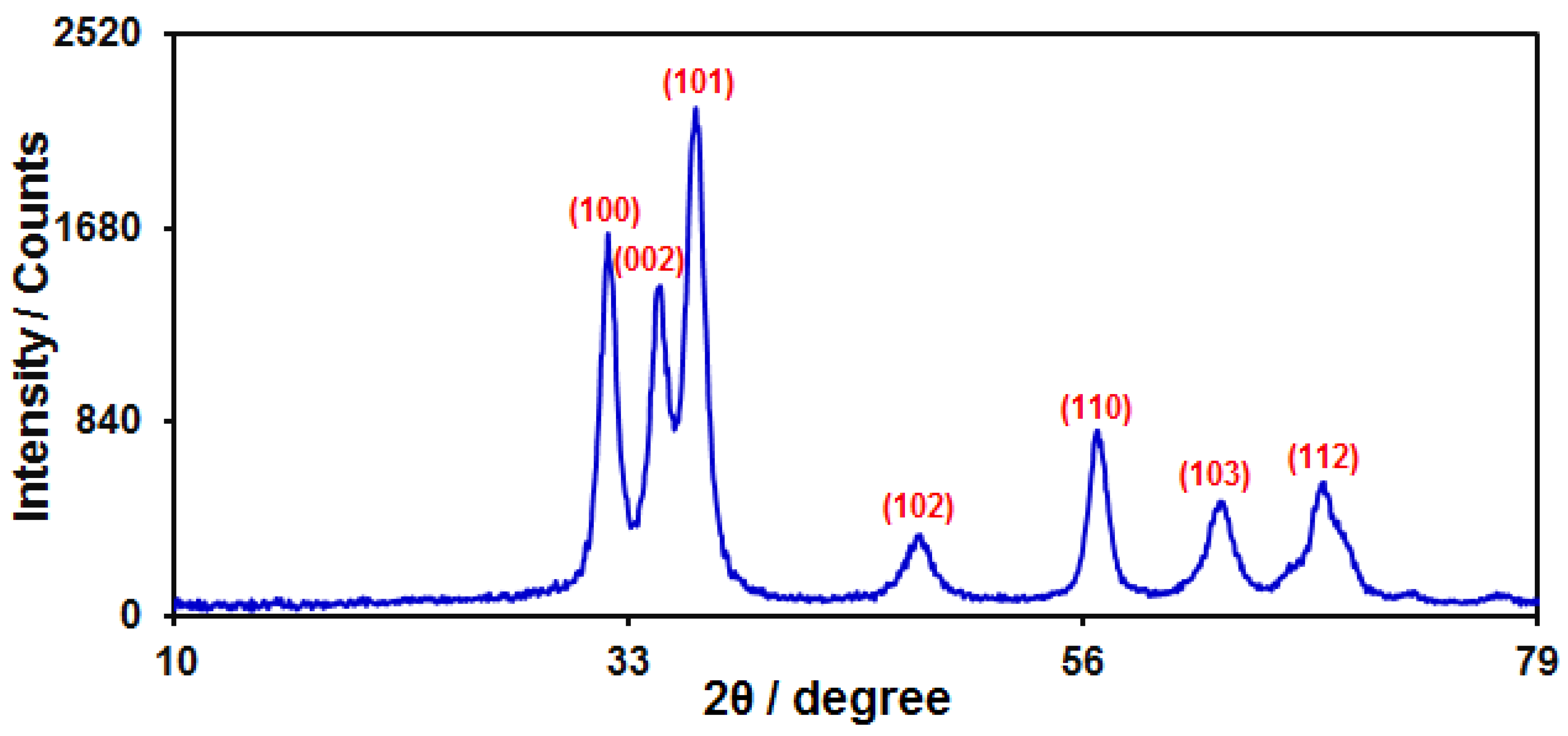

Figure 2. XRD pattern of ZnO HQSs.
Figure 2. XRD pattern of ZnO HQSs.
Micromachines 14 01433 g002
Micromachines 14 01433 sch001 550

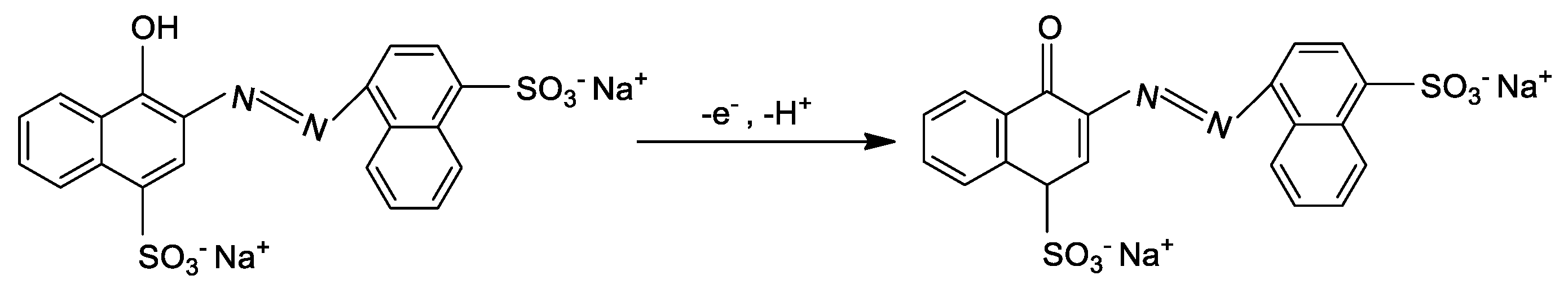

Scheme 1. Schematic representation of carmoisine oxidation reaction on ZnO HQSs/SPGE sensor.
Scheme 1. Schematic representation of carmoisine oxidation reaction on ZnO HQSs/SPGE sensor.
Micromachines 14 01433 sch001
Micromachines 14 01433 g003 550

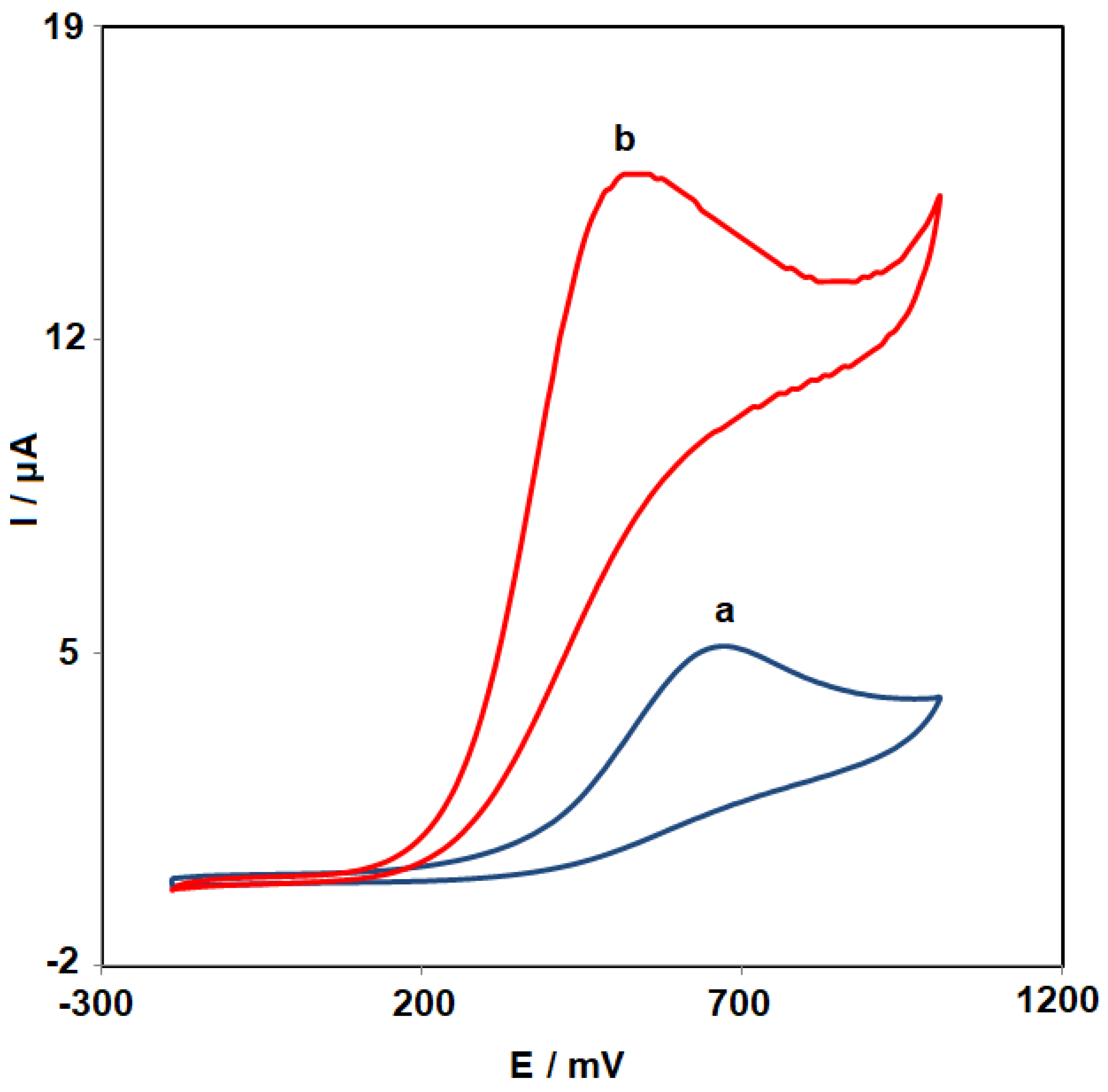

Figure 3. CVs of (a) unmodified SPGE and (b) ZnO HQSs/SPGE in the exposure to 100.0 µM carmoisine in 0.1 M phosphate buffer (pH = 7.0) at 50 mV s-1.
Figure 3. CVs of (a) unmodified SPGE and (b) ZnO HQSs/SPGE in the exposure to 100.0 µM carmoisine in 0.1 M phosphate buffer (pH = 7.0) at 50 mV s-1.
Micromachines 14 01433 g003
Micromachines 14 01433 g004 550

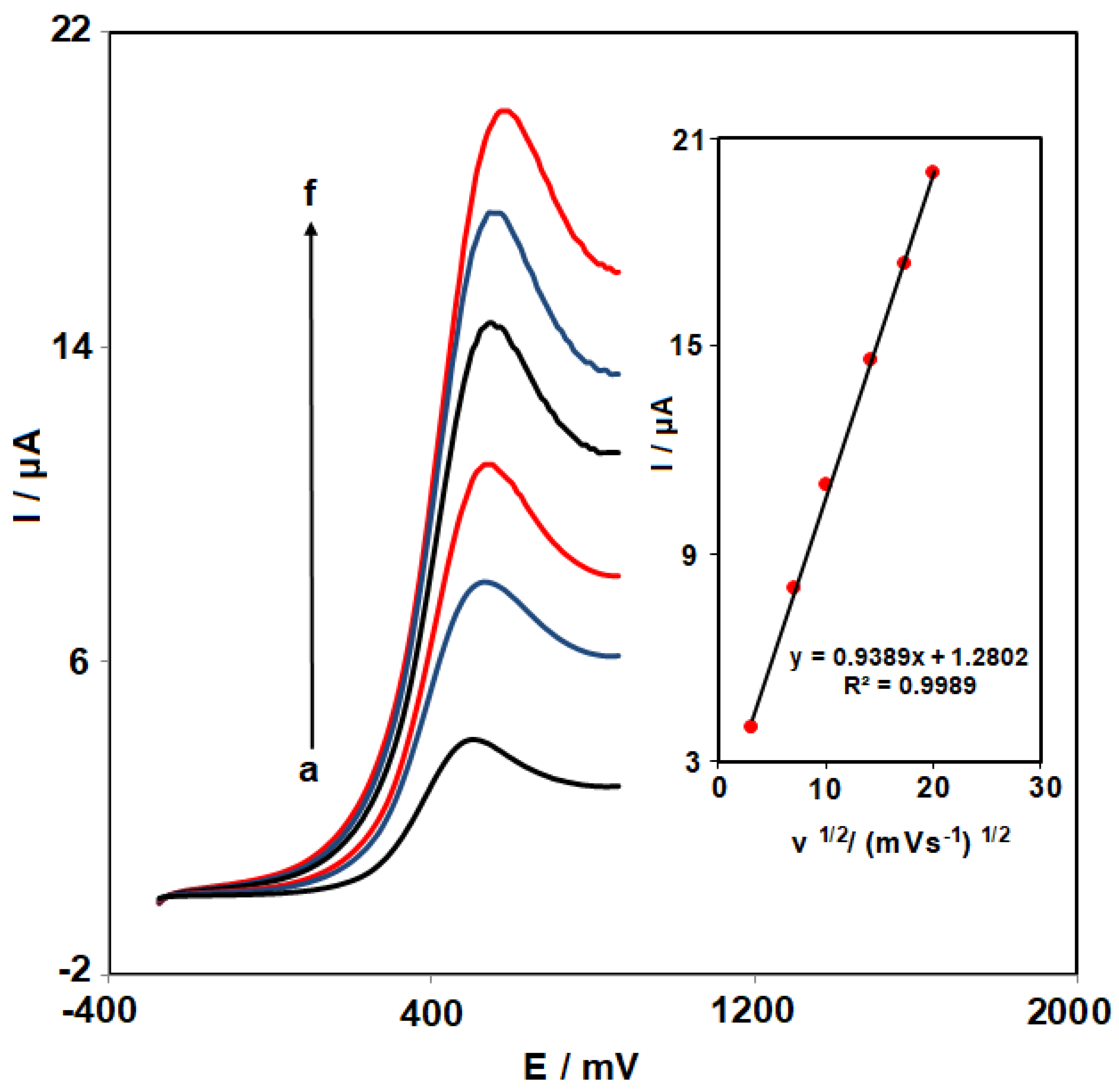

Figure 4. LSVs of ZnO HQSs/SPGE at various scan rates (a: 10; b: 50; c: 100; d: 200; e: 300; and f: 400 mV/s) in 0.1 M phosphate buffer (pH = 7.0) containing 50.0 µM carmoisine; Inset: changes in the Ip as a function of υ1/2.
Figure 4. LSVs of ZnO HQSs/SPGE at various scan rates (a: 10; b: 50; c: 100; d: 200; e: 300; and f: 400 mV/s) in 0.1 M phosphate buffer (pH = 7.0) containing 50.0 µM carmoisine; Inset: changes in the Ip as a function of υ1/2.
Micromachines 14 01433 g004
Micromachines 14 01433 g005 550

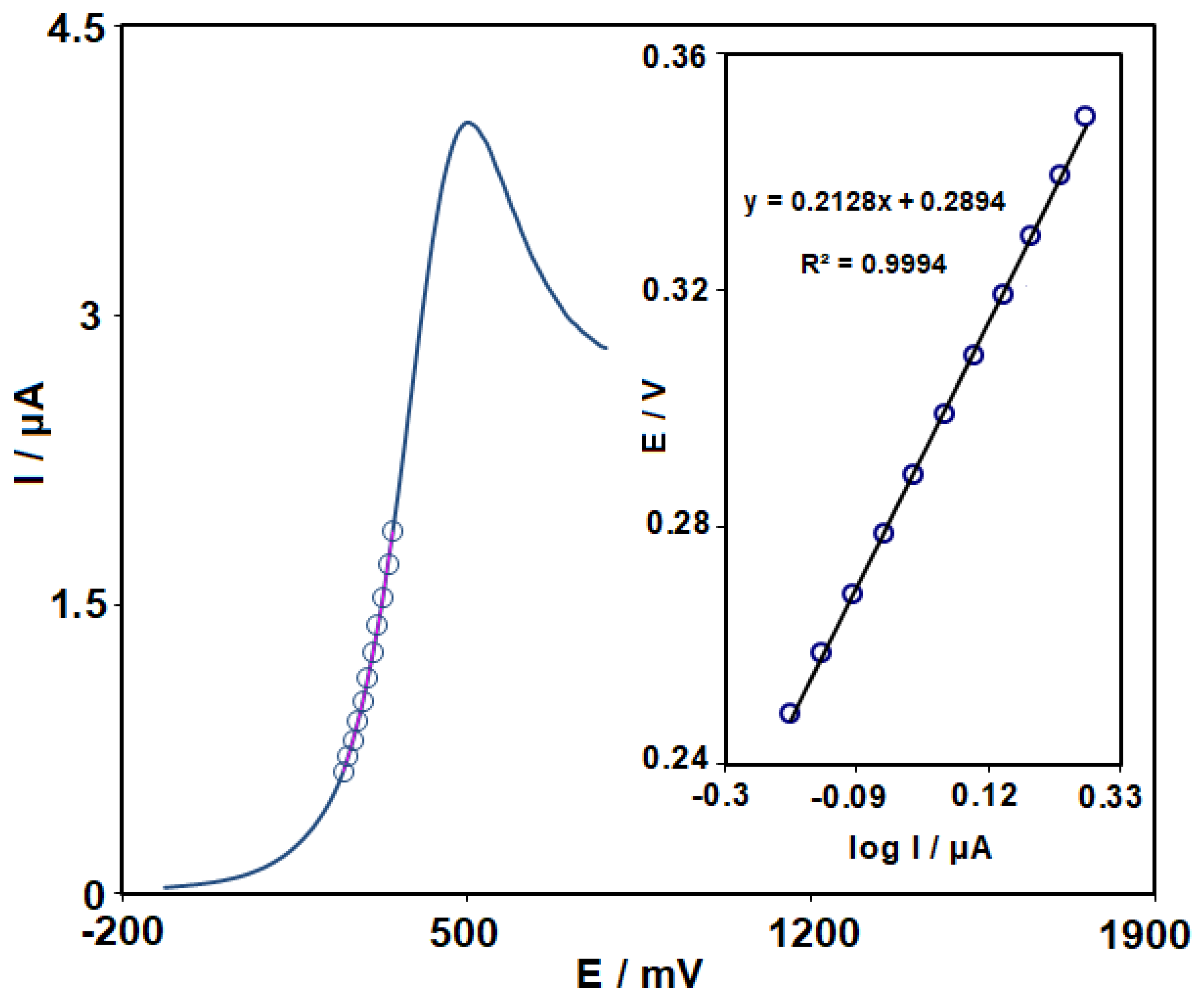

Figure 5. LSV captured for ZnO HQSs/SPGE in phosphate buffer (0.1 M; pH = 7.0) with carmoisine (50.0 µM) at the scan rate of 10 mV s-1; Inset: Tafel plot derived from LSV.
Figure 5. LSV captured for ZnO HQSs/SPGE in phosphate buffer (0.1 M; pH = 7.0) with carmoisine (50.0 µM) at the scan rate of 10 mV s-1; Inset: Tafel plot derived from LSV.
Micromachines 14 01433 g005
Micromachines 14 01433 g006 550
Figure 6. The chronoamperograms obtained for ZnO HQSs/SPGE in 0.1 M phosphate buffer (pH = 7.0; 0.1 M) containing various carmoisine concentrations (a: 0.1; b: 0.5; c: 1.1; d: 1.6; and e: 2.0 mM). I versus t−1/2 plots for recorded chronoamperograms (Inset (A)) and the slope of straight lines of graphs versus carmoisine concentrations (Inset (B)).
Figure 6. The chronoamperograms obtained for ZnO HQSs/SPGE in 0.1 M phosphate buffer (pH = 7.0; 0.1 M) containing various carmoisine concentrations (a: 0.1; b: 0.5; c: 1.1; d: 1.6; and e: 2.0 mM). I versus t−1/2 plots for recorded chronoamperograms (Inset (A)) and the slope of straight lines of graphs versus carmoisine concentrations (Inset (B)).
Micromachines 14 01433 g006
Micromachines 14 01433 g007 550

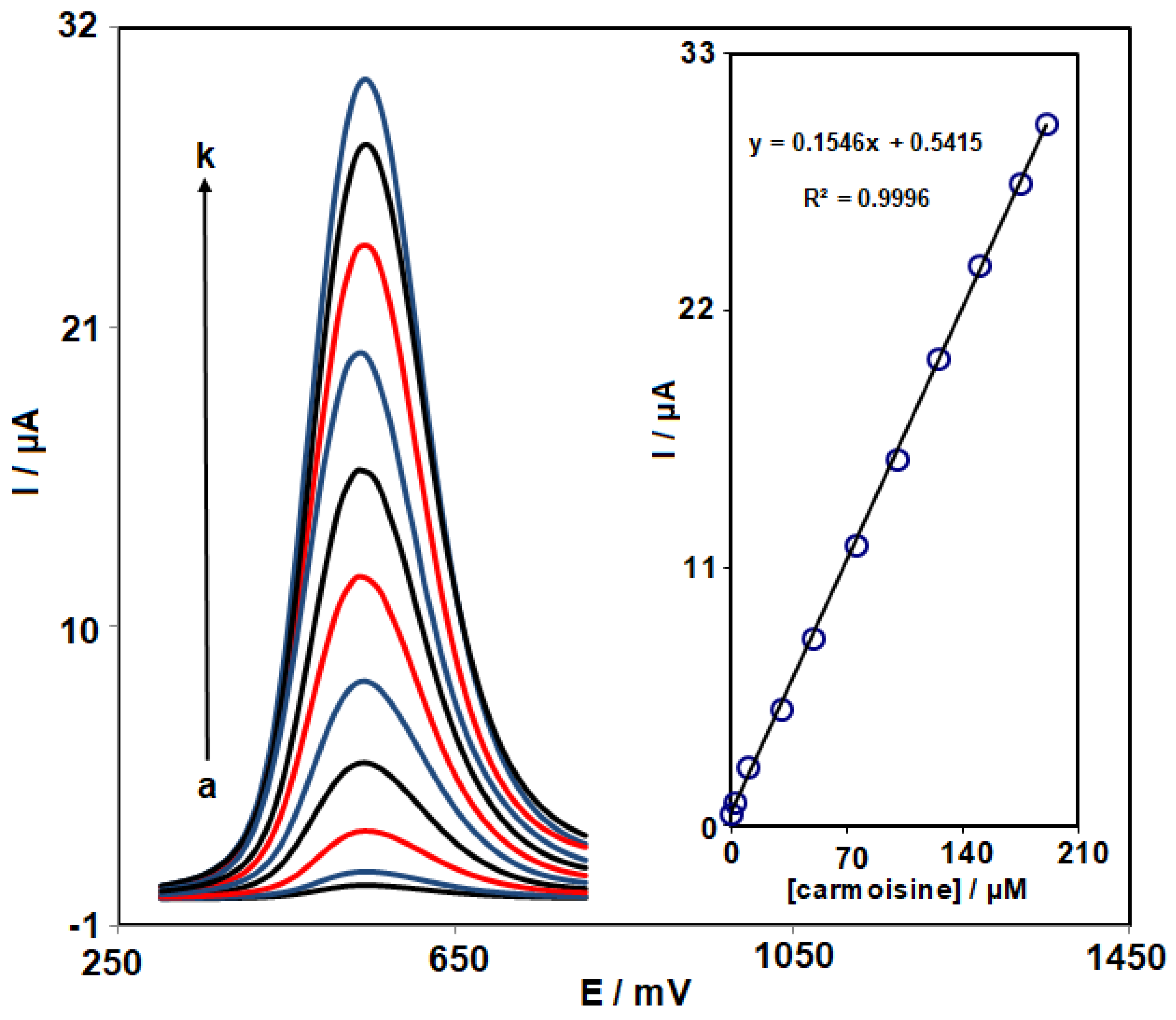

Figure 7. DPVs for ZnO HQSs/SPGE in 0.1 M phosphate buffer (pH = 7.0, 0.1 M) with various carmoisine concentrations (0.08, 2.0, 10.0, 30.0, 50.0, 75.0, 100.0, 125.0, 150.0, 175.0, and 190.0 μM); plot of peak current as a function of carmoisine concentration (Inset).
Figure 7. DPVs for ZnO HQSs/SPGE in 0.1 M phosphate buffer (pH = 7.0, 0.1 M) with various carmoisine concentrations (0.08, 2.0, 10.0, 30.0, 50.0, 75.0, 100.0, 125.0, 150.0, 175.0, and 190.0 μM); plot of peak current as a function of carmoisine concentration (Inset).
Micromachines 14 01433 g007
Table
Table 1. Comparison of LOD and linear range for carmoisine with the previously reported works.
Table 1. Comparison of LOD and linear range for carmoisine with the previously reported works.
Electrochemical SensorLinear RangeLODRef.
Silica/cetylpyridinium chloride (CPCl)/carbon paste electrode (CPE)0.08 μM to 1.0 μM0.01 μM[4]
Cathodically pretreated boron-doped diamond electrode0.0591 μM to 1.31 µM0.007 µM[10]
CdO/carbon nanotubes (CNTs)/ionic liquid (IL)/CPE0.1 μM to 700.0 μM40.0 nM[72]
NiO-CNTs/ILCPE70.0 μM to 650.0 μM20 nM[73]
Bismuth–chitosan/glassy carbon electrode (GCE)1 µM to 41 µM10 µM[74]
Multi-walled carbon nanotubes (MWCNTs)/GCE0.54 µM to 5.0 µM0.11 µM[75]
ZnO HQSs/SPGE0.08 µM to 190.0 µM0.02 µMPresent work
Table
Table 2. Application of ZnO HQSs/SPGE for the carmoisine determination in the real specimens (n = 5).
Table 2. Application of ZnO HQSs/SPGE for the carmoisine determination in the real specimens (n = 5).
SampleSpiked Concentration (μM)Found Concentration (μM)Recovery (%)RSD (%)
Powdered juice03.4-3.2
1.04.397.71.8
2.05.5101.82.3
3.06.7104.72.9
4.08.398.82.1
Lemon juice04.0-2.8
1.05.1102.03.5
2.05.998.32.7
3.07.3104.32.0
4.07.998.71.9
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mohammadi, S.Z.; Tajik, S.; Mousazadeh, F.; Baghadam-Narouei, E.; Garkani Nejad, F. ZnO Hollow Quasi-Spheres Modified Screen-Printed Graphite Electrode for Determination of Carmoisine. Micromachines 2023, 14, 1433. https://doi.org/10.3390/mi14071433

AMA Style

Mohammadi SZ, Tajik S, Mousazadeh F, Baghadam-Narouei E, Garkani Nejad F. ZnO Hollow Quasi-Spheres Modified Screen-Printed Graphite Electrode for Determination of Carmoisine. Micromachines. 2023; 14(7):1433. https://doi.org/10.3390/mi14071433

Chicago/Turabian Style

Mohammadi, Sayed Zia, Somayeh Tajik, Farideh Mousazadeh, Elaheh Baghadam-Narouei, and Fariba Garkani Nejad. 2023. "ZnO Hollow Quasi-Spheres Modified Screen-Printed Graphite Electrode for Determination of Carmoisine" Micromachines 14, no. 7: 1433. https://doi.org/10.3390/mi14071433

APA Style

Mohammadi, S. Z., Tajik, S., Mousazadeh, F., Baghadam-Narouei, E., & Garkani Nejad, F. (2023). ZnO Hollow Quasi-Spheres Modified Screen-Printed Graphite Electrode for Determination of Carmoisine. Micromachines, 14(7), 1433. https://doi.org/10.3390/mi14071433

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
