High-Performance Flexible Energy Storage Devices Based on Graphene Decorated with Flower-Shaped MoS2 Heterostructures

by
Yongteng Qian
1,2,*,
Zhiyi Lyu
2,
Qianwen Zhang
2,
Tae Hyeong Lee
2,
Tae Kyu Kang
2,
Minkyun Sohn
2,
Lin Shen
3,
Dong Hwan Kim
3,* and
Dae Joon Kang
2,*
1
College of Pharmacy, Jinhua Polytechnic, Jinhua 321007, China
2
Department of Physics, Sungkyunkwan University, 2066, Seobu-ro, Jangan-gu, Suwon-si 16419, Republic of Korea
3
School of Chemical Engineering, Sungkyunkwan University, 2066, Seobu-ro, Jangan-gu, Suwon-si 16419, Republic of Korea
*
Authors to whom correspondence should be addressed.
Micromachines 2023, 14(2), 297; https://doi.org/10.3390/mi14020297
Submission received: 30 December 2022 / Revised: 16 January 2023 / Accepted: 20 January 2023 / Published: 23 January 2023
(This article belongs to the Special Issue Advanced Functional Materials for Energy Harvesting and Storage Devices)
Browse Figures
Versions Notes

Abstract

:
MoS2, owing to its advantages of having a sheet-like structure, high electrical conductivity, and benign environmental nature, has emerged as a candidate of choice for electrodes of next-generation supercapacitors. Its widespread use is offset, however, by its low energy density and poor durability. In this study, to overcome these limitations, flower-shaped MoS2/graphene heterostructures have been deployed as electrode materials on flexible substrates. Three-electrode measurements yielded an exceptional capacitance of 853 F g−1 at 1.0 A g−1, while device measurements on an asymmetric supercapacitor yielded 208 F g−1 at 0.5 A g−1 and long-term cyclic durability. Nearly 86.5% of the electrochemical capacitance was retained after 10,000 cycles at 0.5 A g−1. Moreover, a remarkable energy density of 65 Wh kg−1 at a power density of 0.33 kW kg−1 was obtained. Our MoS2/Gr heterostructure composites have great potential for the development of advanced energy storage devices.

1. Introduction

Due to their exceptional chemical and physical properties, transition metal dichalcogenides (TMDCs) have been widely employed as active materials in supercapacitors (SCs) [1,2,3]. Of the numerous TMDCs that have been synthesized, MoS2 is a remarkable electrode material for use in SCs as it has a unique structure, high electrical conductivity, and is eco-friendly [4,5]. However, the electrochemical performance of MoS2 is significantly limited by its low energy density and poor long-term cycling stability. To address these issues, extensive efforts have been directed toward improving the electrochemical performance of MoS2 via a range of different strategies, including modification of MoS2‘s structure [6,7], doping with non-metal ions [8,9], hybridization with metal oxides [10,11], and integrating it with highly conductive materials [12,13,14]. Despite significant advances in the synthesis of MoS2, the overall electrochemical behavior of MoS2-based SCs is still far from satisfactory.
Recently, graphene (Gr), an archetypal two-dimensional (2D) material, has attracted a considerable amount of attention due to its superior properties, such as its high stability and large specific surface area, as well as high thermal and electrical conductivities [15,16,17]. Due to these excellent properties, Gr has been explored in many research fields, including nanogenerators, SCs, field-effect transistors, photodetectors, etc. [18,19,20,21]. In particular, utilizing Gr as a co-active material in combination with MoS2 to construct MoS2/Gr composites has proven to be an efficient strategy in significantly improving the electrochemical properties of MoS2, such as its electrical conductivity, structural stability, and surface area, as well as its carrier charge-transfer rate [22,23,24,25,26]. For instance, Saraf et al. prepared MoS2/rGO hybrids as an electrode material for SCs. These MoS2/rGO hybrid-based SCs exhibited an excellent electrochemical capacitance of 387.6 F g−1 at 1 A g−1 [23]. Jia et al. fabricated MoS2/Gr composites as active materials for SCs, which showed a remarkable electrochemical capacitance of 445.7 F g−1 at 0.8 A g−1 [25]. However, the synthesis of high-performance MoS2/Gr composites for SCs is still limited by their low energy density as well as their poor long-term cycling stability. Motivated by these challenges, a unique heterostructure was rationally designed by integrating flower-shaped MoS2 with Gr to take advantage of the following benefits: (i) the Gr layer enhances the electrical conductivity of the electrode; (ii) the large surface area of the Gr layer provides abundant growth sites for the subsequent growth of MoS2; (iii) flower-shaped MoS2 provides ample ion transfer channels and abundant surface active sites in the electrochemical reaction process; and (iv) the MoS2/Gr heterostructure increases the interfacial contact area, enhances the structural stability of compounds, and facilitates ion transfer between Gr and MoS2, thus improving its electrochemical performance.
In this study, a low-cost strategy is reported for fabricating flexible, high-performance MoS2/Gr heterostructure-based SCs. In a three-electrode system, the MoS2/Gr heterostructure exhibits a high specific capacitance, i.e., 853 F g−1 at 1.0 A g−1. Furthermore, a flexible asymmetric SC (ASC) device was constructed, comprising the MoS2/Gr heterostructure and activated carbon as positive and negative electrodes, respectively. The flexible ASC device exhibited an exceptionally high electrochemical capacitance of 208 F g−1 at 0.5 A g−1, as well as a superior energy density of 65 Wh kg−1 at a power density of 0.33 kW kg−1. It is worth noting that 86.5% of the electrochemical capacitance of the flexible ASC device was retained after 10,000 cycles at 0.5 A g−1, indicating its long-term cycling durability. The superior electrochemical properties of the MoS2/Gr heterostructure electrode can be ascribed to MoS2 having abundant surface reaction active sites, with Gr boosting the electrical conductivity of the electrode, in addition to the aforementioned strong synergistic effects of the MoS2 and Gr. Thus, in this approach, the drawbacks reported in the literature can be overcome, with the flexible ASC device exhibiting a high energy density, long-term cycling durability, and high flexibility. Our results indicate that the MoS2/Gr heterostructure is thus an excellent active material for use in sustainable advanced SCs.

2. Materials and Methods

2.1. Fabrication of MoS2/Gr Heterostructures

The Gr oxide was fabricated via the modified Hummers approach [27]. The MoS2/Gr heterostructures samples were synthesized via a facile hydrothermal method (Scheme 1). First, 50 mg of Gr powder was dispersed in 15 mL of distilled water through ultrasonication. Second, 121 mg of Na2MoO4·H2O and 191 mg of CS(NH2)2 were added to the above suspension, and ultrasonication was performed for 40 min. Third, 50 mg of NH2OH·HCl and 0.5 mL of ice acetate acid were added to the above suspension solution, while continuous ultrasonication was performed for 20 min. The mixed solution was then transferred to a Teflon autoclave and kept at 210 °C for 24 h. It should be noted that, after the hydrothermal reaction process, the Gr oxide was reduced to Gr under NH2OH·HCl as a reducing agent. Subsequently, the samples were collected via centrifugation and rinsed three times using distilled water and ethanol, separately. The product was then dried at 70 °C for 10 h in a vacuum oven to obtain MoS2/Gr heterostructures. The product characterizations are displayed in the Supporting Information.

2.2. Materials’ Characterizations

The structures and crystalline phases of the as-prepared powder were examined using X-ray diffraction (XRD, 40 kV × 40 mA, Rigaku Ultima III, Tokio, Japan) with Cu-Kα radiation (λ = 1.5418 Å). The measured 2θ range was from 10° to 70° with a scanning speed of 5°/min. The XRD result was corrected to an apparatus line width of 0.08. The chemical composition of the samples was analyzed via X-ray photoelectron spectroscopy (XPS, Thermo Scientific, Nottingham, UK). The XPS was carried out with a standard Al-Kα source (1486.6 eV) in an ultra-high vacuum (~8 × 10−9 Pa). The binding energies were corrected for the charging effects by considering the adventitious C 1s line at 284.6 eV. The morphology of the product was examined by scanning electron microscopy (SEM, JEOL JSM-7400E, Tokyo, Japan) with a working voltage and emission current of 10 kV and 10 μA, respectively. Energy-dispersive X-ray spectroscopy (EDS) was performed under the working voltage of 15 kV for analyzing the elemental composition of the product. The microstructure was tested by using transmission electron microscopy (TEM, FEI Tecnai G2 F20, 200 kV, Boston, MA, USA). The pore size distributions and specific surface areas of the as-prepared products were evaluated via the Brunauer–Emmett–Teller (BET, GEMINI VII 2390, Norcross, GA, USA) method at 77 K. The pore size distribution was studied via the Barrett–Joyner–Halenda approach using desorption isotherms.

2.3. Electrochemical Performance Measurements

The CHI660E electrochemical workstation was employed to assess the electrochemical performance of the as-prepared samples. Polytetrafluoroethylene, acetylene black, and Gr/MoS2 heterostructures (8 mg) at a weight ratio of 5:15:80 were deposited on a piece of Ni foam (1 cm × 1 cm), and the Ni foam was pressed down by applying a hydraulic pressure of 8.0 MPa (working electrode). Pt and Hg/HgO were employed as the counter and reference electrodes, respectively. In addition, a 3.0-M KOH solution was used as the electrolyte. Galvanostatic charge–discharge (GCD), cyclic voltammetry (CV), and long-term cycle stability tests were performed using a three-electrode measurement technique. Electrochemical impedance spectroscopy (EIS) was performed using a PARSTAT2273 electrochemical workstation.

2.4. Fabrication of the Asymmetric Supercapacitive Device

The electrochemical properties of the MoS2/Gr heterostructures were examined using a two-electrode system. The working electrode was fabricated via an approach identical to the three-electrode technique. In addition, 12 mL of distilled water, 1.65 g of polyvinyl alcohol (PVA), and 2.15 g of KOH were mixed at 80 °C for 40 min to produce a gel electrolyte. The activated materials (MoS2/Gr heterostructures (8 mg) and activated carbon (8 mg)) were then wrapped with a gel electrolyte. After 5–7 min, a layer of solid electrolyte (PVA-KOH) was formed. Finally, the two-electrode devices were fabricated by pressing the two electrodes together using a sheet out roller.

3. Results

3.1. Crystal phase, Structure, and Microstructure Properties

The crystallinity and elemental composition of the surface of the fabricated samples were assessed using XRD and XPS, respectively. Figure 1a shows the XRD pattern of the pristine MoS2 and MoS2/Gr heterostructure. In this XRD pattern, the peaks at 26.58 and 54.56° can be attributed to the (002) and (004) planes of Gr, respectively (JCPDS No. 75-1621) [18,28], while those at 14.36°, 33.75°, 39.92°, 43.66°, 49.56°, and 58.96° correspond to the (002), (100), (103), (104), (105), and (008) crystallographic planes of MoS2, respectively (JCPDS No. 77-1716) [29]. In comparison, after the combination of MoS2 with Gr, the intensity of MoS2 in MoS2/Gr was reduced, confirming that the MoS2/Gr heterostructure was successfully synthesized. The full survey XPS spectrum is displayed in Figure S1 in the Supporting Information, which reveals that the Mo, S, and C elements are present in the as-prepared sample. The high-resolution XPS spectra of the MoS2/Gr heterostructure are shown in Figure 1b–d. The Mo 3d XPS spectrum (Figure 1b) shows two prominent peaks at binding energies of 227.4 eV (Mo 3d5/2) and 230.6 eV (Mo 3d3/2), which can be assigned to the Mo4+ in MoS2 [30]. The S 2p XPS spectrum (Figure 1c) exhibits two peaks at 161.9 eV (S 2p1/2) and 160.7 eV (S 2p3/2) corresponding to the S2− in MoS2 [31]. In the C 1s XPS spectrum, the two main peaks present at 284.7 and 287.7 eV can be attributed to the sp2 and sp3 hybridized carbon in Gr, respectively [32].
Furthermore, SEM and TEM were employed to assess the surface morphology and microstructure of the as-prepared samples. Figure S2 (Supporting Information) presents the SEM image of pristine MoS2, suggesting that flower-shaped structures were formed. The low-resolution SEM images in Figure 2a,b indicate that flower-shaped MoS2 was successfully grown on the Gr layer. It is worth noting that the growth of flower-like MoS2 on the Gr layer improves the surface area of the MoS2/Gr heterostructure, providing it with abundant surface active sites, enhancing the structural stability of the electrode and further significantly improving the electrochemical performance of the material [33,34,35]. The high-resolution SEM image in Figure 2c shows that the flower-like MoS2 is made up of a large number of MoS2 nanoflakes, of 20 nm in thickness. Such thin MoS2 nanoflakes not only facilitate ion transfer between the electrolyte and electrodes, but also boost electrical conductivity. The TEM image in Figure 2d reveals that the Gr layer is decorated with flower-shaped MoS2, which is in good agreement with the SEM images shown in Figure 2a,b. The high-resolution TEM (HRTEM) and corresponding selected area electron diffraction (SAED) image is shown in Figure 2e and the inset of Figure 2e. As shown, there is a lattice spacing of the material of around 0.62 nm that can be assigned to the (002) crystallographic planes of the hexagonal lattice of MoS2. The lattices of MoS2 and Gr can be seen to be well-interfaced, indicating that the MoS2/Gr heterostructure was successfully fabricated. It should be noted that such a heterostructure significantly promotes the structural stability of the electrode, further leading to an improvement in its electrochemical cycling stability. Figure 2f and Figure S3 (Supporting Information) show the energy dispersive X-ray (EDX) mapping and spectrum of the MoS2/Gr heterostructure, in which the uniform distribution of the Mo, C, and S elements corroborates the formation of the material.

3.2. Electrochemical Performance of the MoS2/Gr Heterostructure

Figure 3a shows the CV curves of the MoS2/Gr electrode recorded at different scan rates in the range of 5–100 mV s−1, from which it can be seen that the current density gradually increases with an increase in the scan rate. The CV curve remained the same shape, even at a high scan rate of 100 mV s−1, indicating the remarkable capacitive behavior of the MoS2/Gr heterostructure [22,36]. The GCD curves (Figure 3b) of the MoS2/Gr electrode were recorded at various current densities in the range of 1–8 A g−1. Figure 3b shows the electrochemical capacitance of the MoS2/Gr electrode at various current densities (the equation used to calculate the electrochemical capacitance is provided in the Supporting Information). The electrochemical capacitance of the MoS2/Gr electrode was found to reach 853 F g−1 at 1 A g−1, as shown in Figure 3c. From the electrochemical measurements, it can be seen that as the current density was increased to 8 A g−1 and the electrochemical capacitance reached 225 F g−1. This phenomenon is due to the MoS2/Gr electrode having high electrical conductivity and a large surface area, as well as the synergistic effect of the Gr layer and flower-like MoS2 resulting in the fast diffusion and transfer of ions in the electrolyte. Moreover, the electrochemical performance of the MoS2-based electrode is shown in Figure S4 (Supporting Information); it shows an electrochemical capacitance of 227 F g−1 at 1 A g−1. In comparison, the MoS2/Gr electrode presents a higher electrochemical capacitance than that of MoS2, indicating that Gr can greatly enhance the electrochemical capacitance of MoS2. As shown in Figure S4a (Supporting Information) and Figure 3a, the CV curves of MoS2 and MoS2/Gr present a typical electrical double layer property. In general, for electrical double layer SCs, the electrochemical current is caused by the adsorption/desorption of the ions on the surface of the electrode. Therefore, for the electrode with a large surface area, more ions will be accumulated, and the reaction kinetic can be further optimized, thereby resulting in high electrochemical performance. To evaluate the surface area of the MoS2/Gr heterostructure, nitrogen (N2) adsorption-desorption isothermal analysis was performed at 77 K. The BET analysis (Figure S5 in the Supporting Information) indicates that the MoS2/Gr heterostructure has a large specific surface area of 95.2 m2/g, which significantly enhances its electrochemical performance [37,38]. Furthermore, compared with studies reported in the literature [39,40,41,42,43,44,45,46,47,48] (please see Table 1), the electrochemical capacitance of the MoS2/Gr heterostructure in this work is much higher, indicating that it is an excellent candidate for use in high-performance SCs. To investigate the electrical conductivity of the MoS2/Gr electrode, EIS measurements were performed before and after cycling stability tests were carried out over a frequency range from 0.01 Hz to 100 kHz with an alternating current voltage amplitude of 5 mV. The EIS curves and the corresponding equivalent circuit of the MoS2/Gr electrode before and after the 10,000 cycles test are shown in Figure 3e and the inset of Figure 3e. Compared with that of before cycling, the MoS2/Gr electrode exhibited a slight change in the solution resistance (Rs) and charge-transfer resistance (Rct) after 10,000 cycles, indicating its excellent electrical conductivity [49]. Figure 3f shows an SEM image of the MoS2/Gr heterostructure after long-term cycling testing. A comparison of the SEM images shown in Figure 2b,c reveals that there are no significant changes in the structure of the MoS2/Gr heterostructure observed compared to before the cycling performance testing, suggesting that the MoS2/Gr heterostructure exhibits excellent structural stability.
To assess the electrochemical capacitance performance of the MoS2/Gr heterostructure electrode for use in practical applications, a flexible ASC device was fabricated using the MoS2/Gr heterostructure and activated carbon as positive and negative electrodes, respectively. Figure S6 (Supporting Information) shows the CV curves of the positive and negative electrode materials recorded at a scan rate of 30 mV s−1. The CV curves (Figure 4a) of the flexible device were obtained at scan rates in the range of 5–100 mV s−1 over a large voltage window from 0 to 1.5 V. The CV curves exhibit no obvious distortion upon an increase in the scan rate, showing the superior charge–discharge reversibility of the device. GCD curves of the ASC device were recorded at different current densities (Figure 4b), with calculated electrochemical capacitances of 208, 185, 153, 120, and 92 F g−1 at current densities of 0.5, 1.0, 2.0, 4.0, and 8.0 A g−1, respectively (Figure 4c). The electrochemical capacitance was observed to remain at approximately 44.2% of the initial value at a current density of 8.0 A g−1, indicating that the ASC device exhibits excellent electrochemical properties. Moreover, GCD curves over different voltage windows (0–1.1 V to 0–1.5 V) were measured at 2 A g−1, with the results shown in Figure 4d. The GCD curves retained their shapes, even at potentials of as high as 1.5 V, revealing the ideal capacitance features of the electrode [50].

3.3. Stability and Flexibility Properties

It is well known that electrochemical durability is a crucial parameter of SCs. Hence, the electrochemical cycling stability of the MoS2/Gr electrode was also assessed at 1 A g−1 over 10,000 cycles, with the results shown in Figure 3d. The CV curves of before and after the 10,000 cycles test are shown in the inset of Figure 3d. It was found that 89.6% of the initial electrochemical capacitance of the MoS2/Gr electrode was retained after long-term cycling, indicating that the MoS2/Gr heterostructure exhibits excellent electrochemical cycling stability. This superior electrochemical cycling stability can be attributed to the growth of flower-shaped MoS2 on the Gr, which significantly enhances the structural stability of the electrode.
Furthermore, the ASC device was tested at various angles (0°, 30°, 60°, 90°, and 180°) to examine its flexibility. Figure 4e shows the GCD curves of the flexible ASC device twisted at different bending angles at 2 A g−1. The corresponding CV curves are presented in Figure S7 in the Supporting Information. Note that the shapes of the GCD and CV curves are almost identical after multiple bending tests, indicating the excellent flexibility of the device. Figure 4f presents the long-term cycling stability of the flexible ASC device at 0.5 A g−1, in which it can be seen that 86.5% of the electrochemical capacitance was retained after 10,000 cycles, indicating that the ASC device exhibits outstanding cycling durability. The EIS results obtained before and after cycling durability testing are shown in the inset of Figure 4f. The charge-transfer resistance (Rct) of the ASC device exhibits no appreciable changes after cycling durability testing, confirming that it exhibits good electrical conductivity.

3.4. Ragone Plot Properties

The energy and power densities (Figure 5) of the ASC device were estimated from Figure 4b. A high specific energy (65 Wh kg−1) was achieved at a specific power of 0.33 kW kg−1, and the specific energy reached 28.7 W h kg−1 at a specific power of 11.5 kW kg−1. These values are much higher than those of the results in the literature (Figure 5) [6,25,47,50,51,52,53,54,55,56,57,58], suggesting that the MoS2/Gr heterostructure composite is an outstanding candidate for use in eco-friendly, sustainable, and high-performance SCs.

4. Conclusions

A MoS2/Gr heterostructure was successfully fabricated via a cost effective and simple strategy. The SEM and TEM images indicate the successful growth of flower-like MoS2 on the Gr layer, which increases the surface area, enhances the structural stability, and boosts the electrical conductivity of the electrode. In three-electrode measurements performed on the MoS2/Gr heterostructure, the electrochemical capacitance reached 853 F g−1 at 1.0 A g−1. Furthermore, the flexible ASC device composed of the MoS2/Gr heterostructure and activated carbon exhibited a high electrochemical specific capacitance of 208 F g−1 at 0.5 A g−1, in addition to a high specific energy of 65 Wh kg−1 at a specific power of 0.33 kW kg−1. More importantly, after 10,000 cycles, 86.5% of the electrochemical capacitance was retained, indicating the long-term cycling durability of the device. These excellent electrochemical properties indicate that the MoS2/Gr heterostructure composite is a promising candidate for use in flexible, sustainable, and advanced SCs.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/mi14020297/s1. Figure S1. Full X-ray photoelectron spectrum of the Gr/MoS2 heterostructures; Figure S2. The SEM image of pure MoS2; Figure S3. The EDX spectrum results of the MoS2/Gr heterostructure; Figure S4. (a) CV curves of the MoS2 electrode at the different scan rates, (b) GCD curves of the MoS2 electrode at different current densities, (c) the specific capacitance of the MoS2 electrode at different current densities; Figure S5. (a) N2 adsorption–desorption isotherm curves and (b) pore-size distribution of the MoS2/Gr heterostructure; Figure S6. CV curves of the negative and positive electrodes, obtained at a scan rate of 30 mV s−1; Figure S7. CV curves of the flexible device with different bending angles, obtained at a scan rate of 30 mV s−1.

Author Contributions

Conceptualization, Y.Q. and D.J.K.; design of this project, Y.Q., Z.L., Q.Z. and T.H.L.; methodology, Y.Q., T.K.K., M.S. and L.S.; software, Y.Q. and D.J.K.; writing—original draft preparation, Y.Q., D.-H.K. and D.J.K.; writing—review and editing, Y.Q., D.-H.K. and D.J.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (2017R1D1A1B03034847) funded by the Korean government.

Data Availability Statement

All data needed to evaluate the conclusions in the paper are present in the paper and/or the Supplementary Materials. Additional data related to this paper may be requested from the authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, C.; Bai, Y.; Li, W.; Yang, F.; Zhang, G.; Pang, H. In-situ growth of three-dimensional MXene/metal-organic framework composites for high-performance supercapacitors. Angew. Chem. Int. Ed. 2022, 61, 202116282. [Google Scholar]
  2. Choi, W.; Choudhary, N.; Han, G.H.; Park, J.; Akinwande, D.; Lee, Y.H. Recent development of two-dimensional transition metal dichalcogenides and their applications. Mater. Today 2017, 20, 116–130. [Google Scholar] [CrossRef]
  3. Geng, P.; Zheng, S.; Tang, H.; Zhu, R.; Zhang, L.; Cao, S.; Xue, H.; Pang, H. Transition metal sulfides based on graphene for electrochemical energy storage. Adv. Energy Mater. 2018, 8, 1703259. [Google Scholar] [CrossRef]
  4. Ghasemi, F.; Jalali, M.; Abdollahi, A.; Mohammadi, S.; Sanaeeb, Z.; Mohajerzadeh, S. A high performance supercapacitor based on decoration of MoS2/reduced graphene oxide with NiO nanoparticles. RSC Adv. 2017, 7, 52772–52781. [Google Scholar] [CrossRef] [Green Version]
  5. Yu, M.; Zhao, S.; Feng, H.; Hu, L.; Zhang, X.; Zeng, Y.; Tong, Y.; Lu, X. Engineering thin MoS2 nanosheets on TiN nanorods: Advanced electrochemical capacitor electrode and hydrogen evolution electrocatalyst. ACS Energy Lett. 2017, 2, 1862–1868. [Google Scholar] [CrossRef]
  6. Tang, H.; Wang, J.; Yin, H.; Zhao, H.; Wang, D.; Tang, Z. Growth of polypyrrole ultrathin films on MoS2 monolayers as high-performance supercapacitor electrodes. Adv. Mater. 2015, 27, 1117–1123. [Google Scholar] [CrossRef]
  7. Sajjad, M.; Lu, W. Covalent organic frameworks based nanomaterials: Design, synthesis, and current status for supercapacitor applications: A review. J. Energy Storage 2021, 39, 102618. [Google Scholar] [CrossRef]
  8. Chao, J.; Yang, L.; Liu, J.; Hu, R.; Zhu, M. Oxygen-incorporated and polyaniline-intercalated 1T/2H hybrid MoS2 nanosheets arrayed on reduced graphene oxide for high-performance supercapacitors. J. Phys. Chem. C 2018, 122, 8128–8136. [Google Scholar] [CrossRef]
  9. Hu, W.; Xu, D.; Sun, X.; Xiao, Z.; Chen, X.; Zhang, Z. Template synthesis of nitrogen-doped carbon nanosheets for high-performance supercapacitors improved by redox additives. ACS Sustain. Chem. Eng. 2017, 5, 8630–8640. [Google Scholar] [CrossRef]
  10. Liao, X.; Zhao, Y.; Wang, J.; Yang, W.; Xu, L.; Tian, X.; Shuang, Y.; Owusu, K.A.; Yan, M.; Mai, L. MoS2/MnO2 heterostructured nanodevices for electrochemical energy storage. Nano Res. 2018, 11, 2083–2092. [Google Scholar] [CrossRef]
  11. Wang, K.; Yang, J.; Zhu, J.; Li, L.; Liu, Y.; Zhang, C.; Liu, T. General solution-processed formation of porous transition-metal oxides on exfoliated molybdenum disulfides for high-performance asymmetric supercapacitors. J. Mater. Chem. A 2017, 5, 11236–11245. [Google Scholar] [CrossRef]
  12. Kong, J.; Zhao, C.; Wei, Y.; Lu, X. MoS2 nanosheets hosted in polydopamine-derived mesoporous carbon nanofibers as lithium-ion battery anodes: Enhanced MoS2 capacity utilization and underlying mechanism. ACS Appl. Mater. Interfaces 2015, 7, 24279–24287. [Google Scholar] [CrossRef] [PubMed]
  13. Savjani, N.; Lewis, E.A.; Bissett, M.A.; Brent, J.R.; Dryfe, R.A.W.; Haigh, S.J.; O’Brien, P. Synthesis of lateral size-controlled monolayer 1H-MoS2@oleylamine as supercapacitor electrodes. Chem. Mater. 2016, 28, 657–664. [Google Scholar] [CrossRef]
  14. Zeng, R.; Li, Z.; Li, L.; Li, Y.; Huang, J.; Xiao, Y.; Yuan, K.; Chen, Y. Covalent connection of polyaniline with MoS2 nanosheets toward ultrahigh rate capability supercapacitors. ACS Sustain. Chem. Eng. 2019, 7, 11540–11549. [Google Scholar] [CrossRef]
  15. Raccichini, R.; Varzi, A.; Passerini, S.; Scrosati, B. The role of graphene for electrochemical energy storage. Nat. Mater. 2015, 14, 271–279. [Google Scholar] [CrossRef]
  16. Renteria, J.D.; Ramirez, S.; Malekpour, H.; Alonso, B.; Centeno, A.; Zurutuza, A.; Cocemasov, A.I.; Nika, D.L.; Balandin, A.A. Strongly anisotropic thermal conductivity of free-standing reduced graphene oxide films annealed at high temperature. Adv. Funct. Mater. 2015, 25, 4664–4672. [Google Scholar] [CrossRef]
  17. Yang, J.; Zhang, E.; Li, X.; Zhang, Y.; Qu, J.; Yu, Z. Cellulose/graphene aerogel supported phase change composites with high thermal conductivity and good shape stability for thermal energy storage. Carbon 2016, 98, 50–57. [Google Scholar] [CrossRef]
  18. Qian, Y.; Kang, D. Poly(dimethylsiloxane)/ZnO nanoflakes/three-dimensional graphene heterostructures for high-performance flexible energy harvesters with simultaneous piezoelectric and triboelectric generation. ACS Appl. Mater. Interfaces 2018, 10, 32281–32288. [Google Scholar] [CrossRef]
  19. Zhao, X.; Zheng, B.; Huang, T.; Gao, C. Graphene-based single fiber supercapacitor with a coaxial structure. Nanoscale 2015, 7, 9399–9404. [Google Scholar] [CrossRef]
  20. Zhang, F.; Wang, L.; Park, M.; Song, K.Y.; Choi, H.; Shi, H.; Lee, H.J.; Pang, H. Nickel sulfide nanorods decorated on graphene as advanced hydrogen evolution electrocatalysts in acidic and alkaline media. J. Coll. Interface Sci. 2022, 608, 2633–2640. [Google Scholar] [CrossRef]
  21. Qian, Y.; Kang, D. Large-area high-quality AB-stacked bilayer graphene on h-BN/Pt foil by chemical vapor deposition. ACS Appl. Mater. Interfaces 2018, 10, 29069–29075. [Google Scholar] [CrossRef]
  22. Li, N.; Lv, T.; Yao, Y.; Li, H.; Liu, K.; Chen, T. Compact graphene/MoS2 composite films for highly flexible and stretchable all-solid-state supercapacitors. J. Mater. Chem. A 2017, 5, 3267–3273. [Google Scholar] [CrossRef]
  23. Saraf, M.; Natarajan, K.; Mobin, S.M. Emerging robust heterostructure of MoS2-rGO for high-performance supercapacitors. ACS Appl. Mater. Interfaces 2018, 10, 16588–16595. [Google Scholar] [CrossRef]
  24. Ma, G.; Peng, H.; Mu, J.; Huang, H.; Zhou, X.; Lei, Z. In situ intercalative polymerization of pyrrole in graphene analogue of MoS2 as advanced electrode material in supercapacitor. J. Power Sources 2013, 229, 72–78. [Google Scholar] [CrossRef]
  25. Jia, Y.; Wan, H.; Chen, L.; Zhou, H.; Chen, J. Hierarchical nanosheet-based MoS2/graphene nanobelts with high electrochemical energy storage performance. J. Power Sources 2017, 354, 1–9. [Google Scholar] [CrossRef]
  26. Cheng, T.; Xu, J.; Tan, Z.; Ye, J.; Tao, Z.; Du, Z.; Wu, Y.; Wu, S.; Ji, H.; Yu, Y.; et al. A spray-freezing approach to reduced graphene oxide/MoS2 hybrids for superior energy storage. Energy Storage Mater. 2018, 10, 282–290. [Google Scholar] [CrossRef]
  27. Hummers, W.S., Jr.; Offeman, R. Preparation of graphitic oxide. J. Am. Chem. Soc. 1958, 80, 1339. [Google Scholar] [CrossRef]
  28. Han, X.; Tong, X.; Wu, G.; Yang, N.; Guo, X.Y. Carbon fibers supported NiSe nanowire arrays as efficient and flexible electrocatalysts for the oxygen evolution reaction. Carbon 2018, 129, 245–251. [Google Scholar] [CrossRef]
  29. Tian, L.; Yang, X.; Cui, X.; Liu, Q.; Tang, H. Fabrication of dual direct Z-scheme g-C3N4/MoS2/Ag3PO4 photocatalyst and its oxygen evolution performance. Appl. Sur. Sci. 2019, 463, 9–17. [Google Scholar] [CrossRef]
  30. Ma, L.; Zhao, B.; Wang, X.; Yang, J.; Zhang, X.; Zhou, Y.; Chen, J. MoS2 nanosheets vertically grown on carbonized corn stalks as lithium-ion battery anode. ACS Appl. Mater. Interfaces 2018, 10, 22067–22073. [Google Scholar] [CrossRef]
  31. Wu, H.; Qian, Y.; Cui, J.; Chai, Q.; Du, J.; Zhang, L.; Zhang, H.; Wang, W.; Kang, D.J. Enhanced interfacial charge transfer and separation rate based on Sub 10 nm MoS2 nanoflakes in situ grown on graphitic-C3N4. Adv. Mater. Interfaces 2019, 6, 1900554. [Google Scholar] [CrossRef]
  32. Cherusseri, J.; Sambath Kumar, K.; Pandey, D.; Barrios, E.; Thomas, J. Vertically aligned graphene-carbon fiber hybrid electrodes with superlong cycling stability for flexible supercapacitors. Small 2019, 15, 1902606. [Google Scholar] [CrossRef] [PubMed]
  33. Qiu, H.; Sun, X.; An, S.; Lan, D.; Cui, J.; Zhang, Y.; He, W. Microwave synthesis of histidine-functionalized graphene quantum dots/Ni-Co LDH with flower ball structure for supercapacitor. J. Coll. Interface Sci. 2020, 567, 264–273. [Google Scholar] [CrossRef]
  34. Gupta, S.; More, M.; Late, D.; Walke, P. High-rate quasi-solid-state hybrid supercapacitor of hierarchical flowers of hydrated tungsten oxide nanosheets. Electrochi. Acta 2021, 366, 137389. [Google Scholar] [CrossRef]
  35. Bulakhe, R.; Arote, S.; Kwon, B.; Park, S.; In, I. Facile synthesis of nickel cobalt sulfide nano flowers for high performance supercapacitor applications. Mater. Today Chem. 2020, 15, 100210. [Google Scholar] [CrossRef]
  36. Li, L.; Zhang, J.; Peng, Z.; Li, Y.; Gao, C.; Ji, Y.; Ye, R.; Kim, N.D.; Zhong, Q.; Yang, Y.; et al. High-performance pseudocapacitive microsupercapacitors from laser-induced graphene. Adv. Mater. 2016, 28, 838–845. [Google Scholar] [CrossRef]
  37. Tian, J.; Zhang, H.; Li, Z. Synthesis of double-layer nitrogen-doped microporous hollow carbon@MoS2/MoO2 nanospheres for supercapacitors. ACS Appl. Mater. Interfaces 2018, 10, 29511–29520. [Google Scholar] [CrossRef]
  38. Zhang, C.; Huang, Y.; Tang, S.; Deng, M.; Du, Y. High-energy all-solid-state symmetric supercapacitor based on Ni3S2 mesoporous nanosheet-decorated three-dimensional reduced graphene oxide. ACS Energy Lett. 2017, 2, 759–768. [Google Scholar] [CrossRef]
  39. Sun, T.; Li, Z.; Liu, X.; Ma, L.; Wang, J.; Yang, S. Facile construction of 3D graphene/MoS2 composites as advanced electrode materials for supercapacitors. J. Power Sources 2016, 331, 180–188. [Google Scholar] [CrossRef]
  40. Rashidi, M.; Ghasemi, F. Thermally oxidized MoS2-based hybrids as superior electrodes for supercapacitor and photoelectrochemical applications. Electrochi. Acta 2022, 435, 141379. [Google Scholar] [CrossRef]
  41. Singh, K.; Kumar, S.; Agarwal, K.; Soni, K.; Ramana Gedela, V.; Ghosh, K. Three-dimensional graphene with MoS2 nanohybrid as potential energy storage/transfer device. Sci. Rep. 2017, 7, 9458. [Google Scholar] [CrossRef]
  42. Yang, X.; Zhao, L.; Lian, J. Arrays of hierarchical nickel sulfides/MoS2 nanosheets supported on carbon nanotubes backbone as advanced anode materials for asymmetric supercapacitor. J. Power Sources 2017, 343, 373–382. [Google Scholar] [CrossRef]
  43. Zhang, S.; Hu, R.; Dai, P.; Yu, X.; Ding, Z.; Wu, M.; Li, G.; Ma, Y.; Tu, C. Synthesis of rambutan-like MoS2/mesoporous carbon spheres nanocomposites with excellent performance for supercapacitors. Appl. Sur. Sci. 2017, 396, 994–999. [Google Scholar] [CrossRef]
  44. Xiao, W.; Zhou, W.; Feng, T.; Zhang, Y.; Liu, H.; Tian, L. Simple synthesis of molybdenum disulfide/reduced graphene oxide composite hollow microspheres as supercapacitor electrode material. Materials 2016, 9, 783. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Kesavan, D.; Mariappan, V.; Pazhamalai, P.; Krishnamoorthy, K.; Kim, S. Topochemically synthesized MoS2 nanosheets: A high performance electrode for wide-temperature tolerant aqueous supercapacitors. J. Coll. Interface Sci. 2021, 584, 714–722. [Google Scholar] [CrossRef] [PubMed]
  46. Wang, L.; Ma, Y.; Yang, M.; Qi, Y. Titanium plate supported MoS2 nanosheet arrays for supercapacitor application. Appl. Surf. Sci. 2017, 396, 1466–1471. [Google Scholar] [CrossRef]
  47. Chen, Y.; Ma, W.; Cai, K.; Yang, X.; Huang, C. In situ growth of polypyrrole onto three-dimensional tubular MoS2 as an advanced negative electrode material for supercapacitor. Electrochi. Acta 2017, 246, 615–624. [Google Scholar] [CrossRef]
  48. Zhang, Y.; He, T.; Liu, G.; Zu, L.; Yang, J. One-pot mass preparation of MoS2/C aerogels for high-performance supercapacitors and lithium-ion batteries. Nanoscale 2017, 9, 10059–10066. [Google Scholar] [CrossRef]
  49. Yang, Q.; Liu, Y.; Deng, C.; Yan, M.; Shi, W. MOF-derived 3D hierarchical nanoarrays consisting of NiCoZn-S nanosheets coupled with granular NiCo2S4 nanowires for high-performance hybrid supercapacitors. J. Mater. Chem. A 2019, 7, 26131–26138. [Google Scholar] [CrossRef]
  50. Zhou, R.; Han, C.; Wang, X. Hierarchical MoS2 -coated three-dimensional graphene network for enhanced supercapacitor performances. J. Power Sources 2017, 352, 99–110. [Google Scholar] [CrossRef]
  51. Zhao, J.; Chen, J.; Xu, S.; Shao, M.; Zhang, Q.; Wei, F.; Ma, J.; Wei, M.; Evans, D.G.; Duan, X. Hierarchical NiMn layered double hydroxide/carbon nanotubes architecture with superb energy density for flexible supercapacitors. Adv. Funct. Mater. 2014, 24, 2938–2946. [Google Scholar] [CrossRef]
  52. Thangappan, R.; Kalaiselvam, S.; Elayaperumal, A.; Jayavel, R.; Arivanandhan, M.; Karthikeyan, R.; Hayakawa, Y. Graphene decorated with MoS2 nanosheets: A synergetic energy storage composite electrode for supercapacitor applications. Dalton Trans. 2016, 45, 2637–2646. [Google Scholar] [CrossRef] [PubMed]
  53. Xu, H.; Hu, X.; Yang, H.; Sun, Y.; Hu, C.; Huang, Y. Flexible asymmetric micro-supercapacitors based on Bi2O3 and MnO2 nanoflowers: Larger areal mass promises higher energy density. Adv. Energy Mater. 2015, 5, 1401882. [Google Scholar] [CrossRef]
  54. Chen, Z.; Qin, Y.; Weng, D.; Xiao, Q.; Peng, Y.; Wang, X.; Li, H.; Wei, F.; Lu, Y. Design and synthesis of hierarchical nanowire composites for electrochemical energy storage. Adv. Funct. Mater. 2009, 19, 3420–3426. [Google Scholar] [CrossRef]
  55. Long, C.; Jiang, L.; Wei, T.; Yan, J.; Fan, Z. High-performance asymmetric supercapacitors with lithium intercalation reaction using metal oxide-based composites as electrode materials. J. Mater. Chem. A 2014, 2, 16678–16686. [Google Scholar] [CrossRef]
  56. Zhang, S.; Yin, B.; Wang, Z.; Peter, F. Super long-life all solid-state asymmetric supercapacitor based on NiO nanosheets and α-Fe2O3 nanorods. Chem. Eng. J. 2016, 306, 193–203. [Google Scholar] [CrossRef]
  57. Ji, C.; Bi, J.; Wang, S.; Zhang, X.; Yang, S. Ni nanoparticle doped porous VN nanoflakes assembled into hierarchical hollow microspheres with a structural inheritance from the Ni1−xVxO2 cathode material for high performance asymmetric supercapacitors. J. Mater. Chem. A 2016, 4, 2158–2168. [Google Scholar] [CrossRef]
  58. Wang, R.; Yan, X.; Lang, J.; Zheng, Z.; Zhang, P. A hybrid supercapacitor based on flower-like Co(OH)2 and urchin-like VN electrode materials. J. Mater. Chem. A 2014, 2, 12724–12732. [Google Scholar] [CrossRef]
Micromachines 14 00297 sch001 550

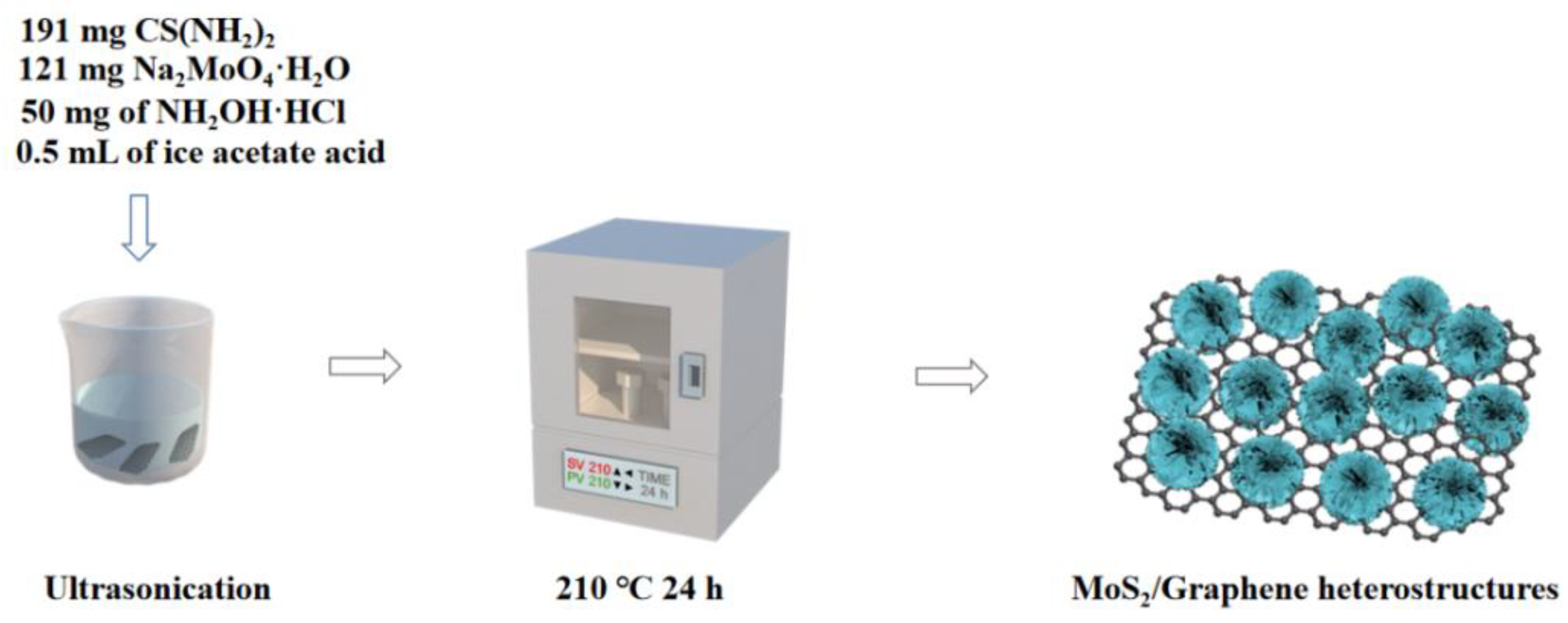

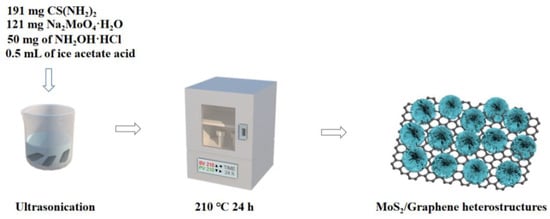

Scheme 1. Preparation procedure of the MoS2/Gr heterostructure.
Scheme 1. Preparation procedure of the MoS2/Gr heterostructure.
Micromachines 14 00297 sch001
Micromachines 14 00297 g001 550

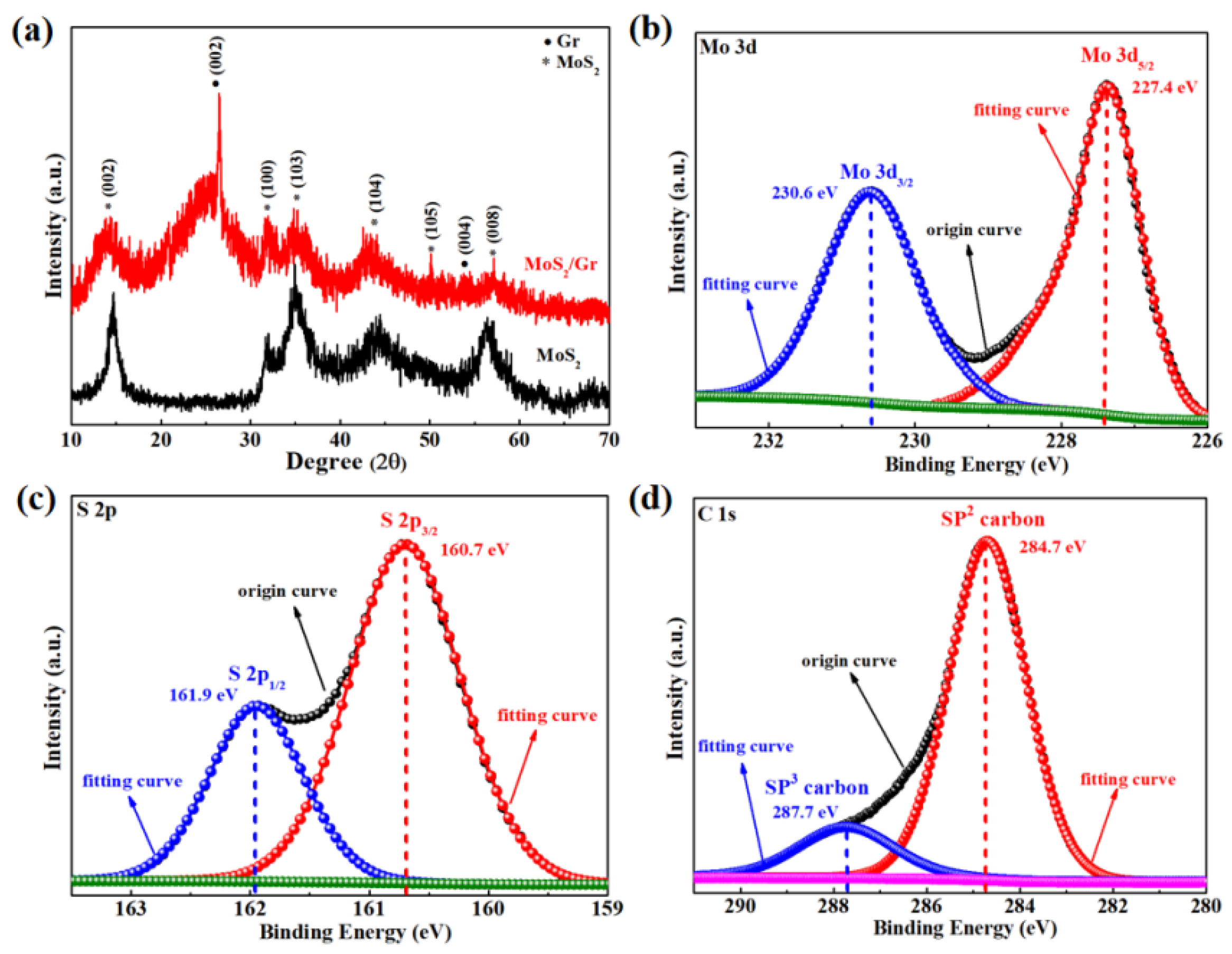

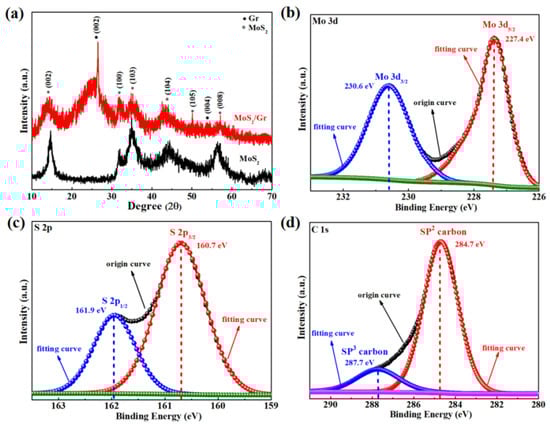

Figure 1. (a) XRD pattern of the pristine MoS2 and MoS2/Gr heterostructure. (b–d) High-resolution Mo 3d, S 2p, and C 1s XPS data, respectively.
Figure 1. (a) XRD pattern of the pristine MoS2 and MoS2/Gr heterostructure. (b–d) High-resolution Mo 3d, S 2p, and C 1s XPS data, respectively.
Micromachines 14 00297 g001
Micromachines 14 00297 g002 550

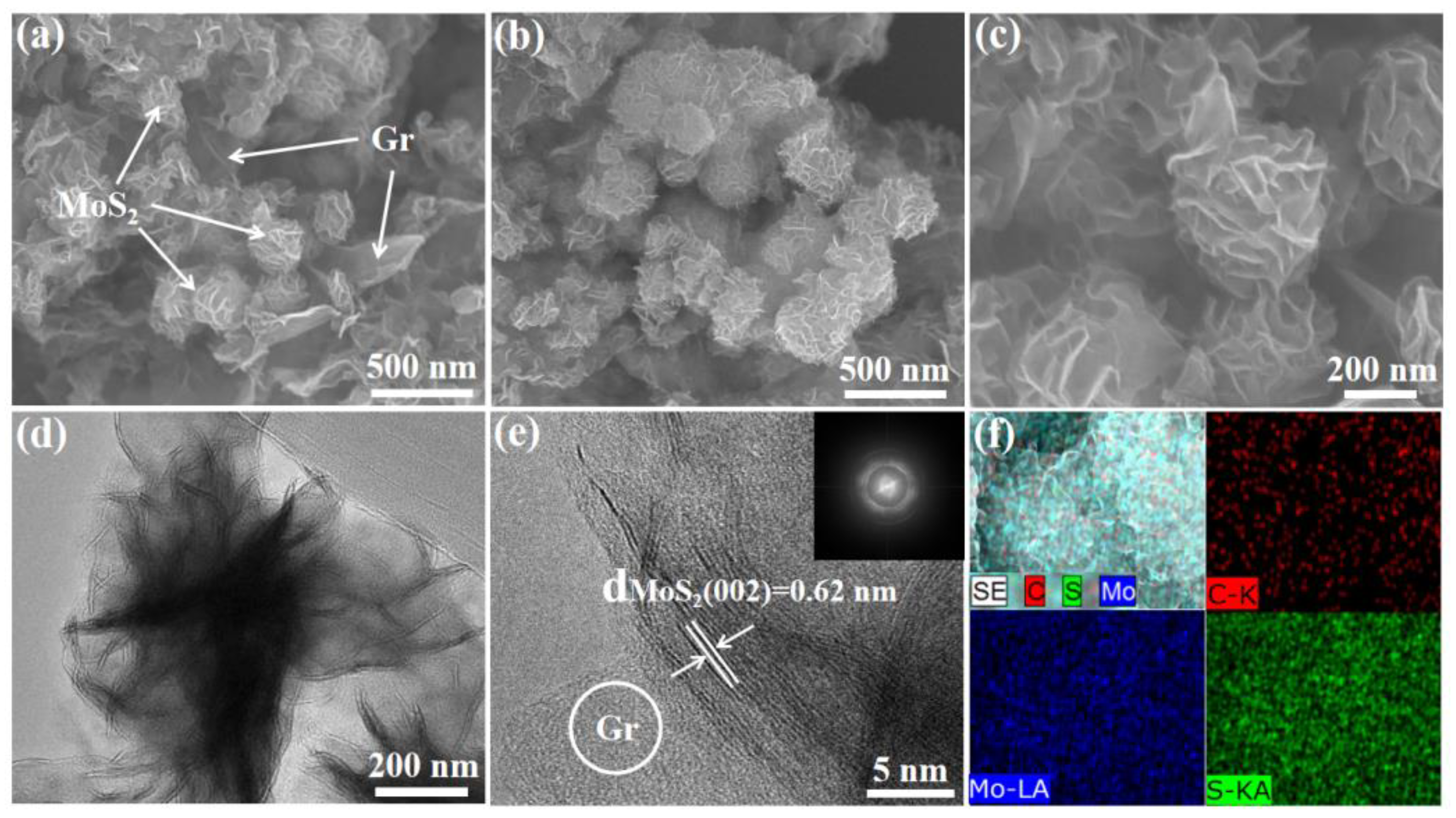

Figure 2. (a,b) Low-resolution and (c) high-resolution SEM images of the MoS2/Gr heterostructure. (d) TEM image of the MoS2/Gr heterostructure. (e) HRTEM image of the MoS2/Gr heterostructure (inset, the corresponding SAED image). (f) EDX mapping of C, Mo, and S.
Figure 2. (a,b) Low-resolution and (c) high-resolution SEM images of the MoS2/Gr heterostructure. (d) TEM image of the MoS2/Gr heterostructure. (e) HRTEM image of the MoS2/Gr heterostructure (inset, the corresponding SAED image). (f) EDX mapping of C, Mo, and S.
Micromachines 14 00297 g002
Micromachines 14 00297 g003 550

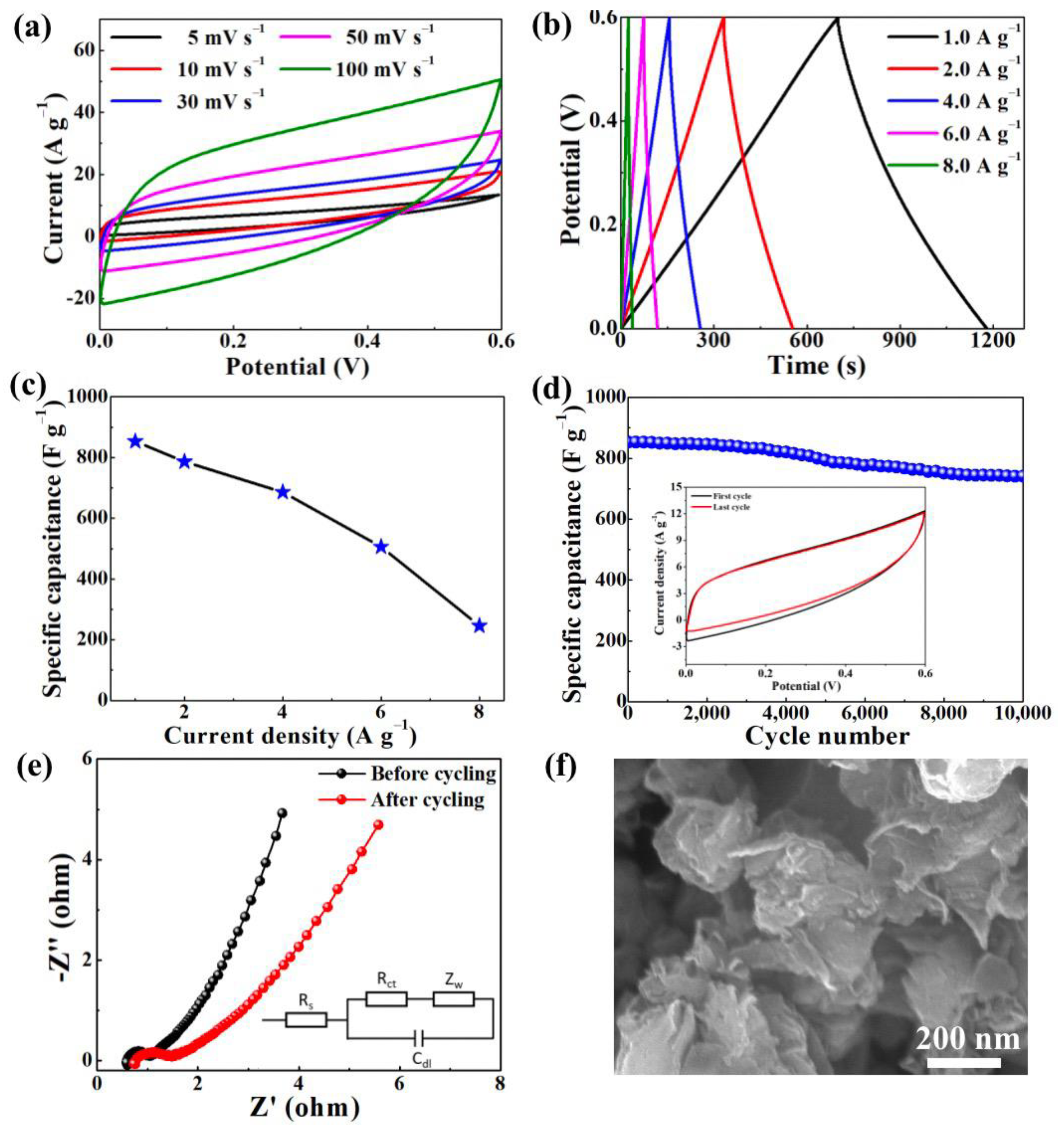

Figure 3. (a) CV curves of the MoS2/Gr electrode, recorded at different scan rates. (b) GCD curves of the MoS2/Gr electrode at different current densities. (c) Specific capacitance of the MoS2/Gr electrode at different current densities. (d) Cycling performance of the MoS2/Gr electrode at a scan rate of 30 mV s−1 (inset, the CV curves before and after cycling test). (e) EIS data of the MoS2/Gr electrode before and after 10,000 cycles (inset, the equivalent circuit of the MoS2/Gr electrode). (f) SEM image of the MoS2/Gr electrode after 10,000 cycles.
Figure 3. (a) CV curves of the MoS2/Gr electrode, recorded at different scan rates. (b) GCD curves of the MoS2/Gr electrode at different current densities. (c) Specific capacitance of the MoS2/Gr electrode at different current densities. (d) Cycling performance of the MoS2/Gr electrode at a scan rate of 30 mV s−1 (inset, the CV curves before and after cycling test). (e) EIS data of the MoS2/Gr electrode before and after 10,000 cycles (inset, the equivalent circuit of the MoS2/Gr electrode). (f) SEM image of the MoS2/Gr electrode after 10,000 cycles.
Micromachines 14 00297 g003
Micromachines 14 00297 g004a 550Micromachines 14 00297 g004b 550

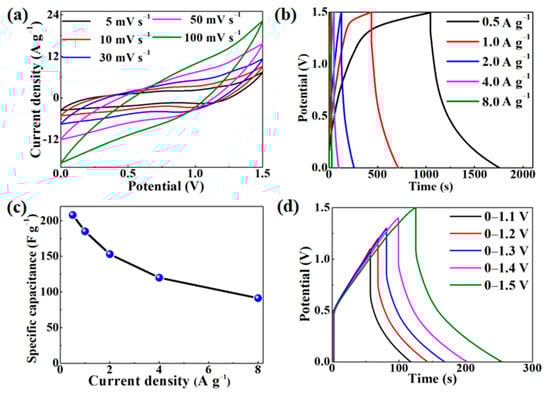

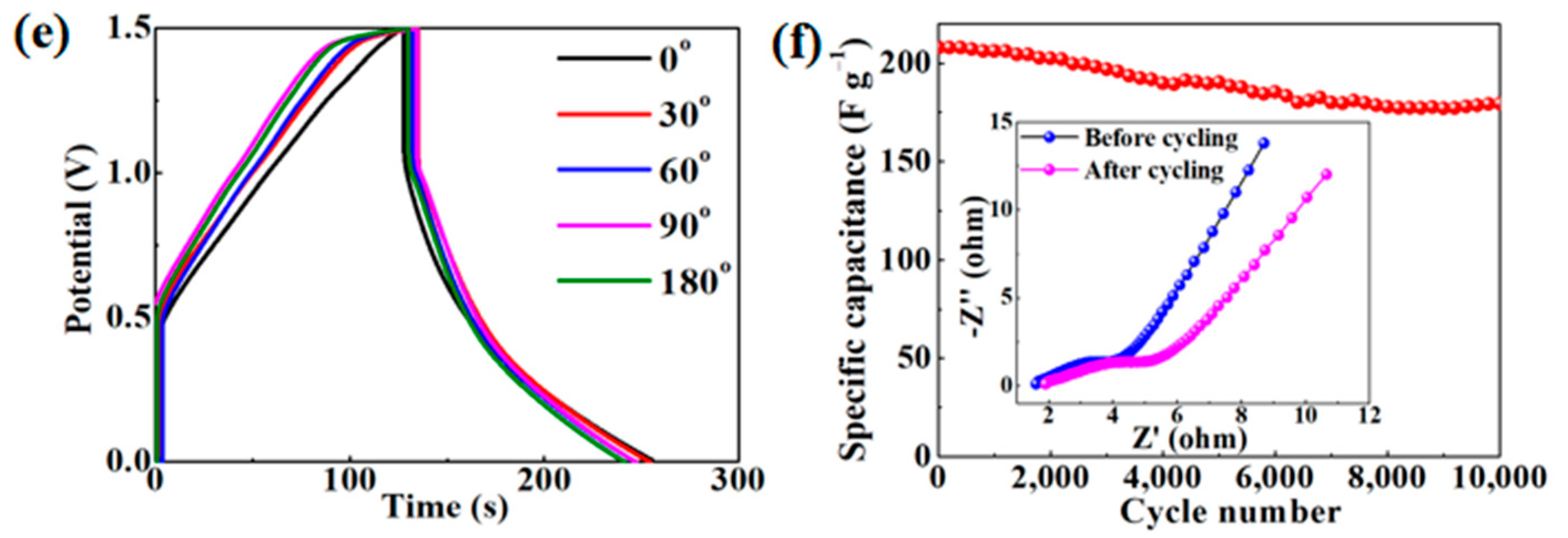

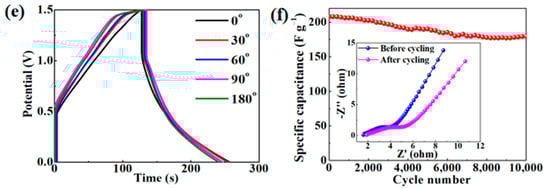

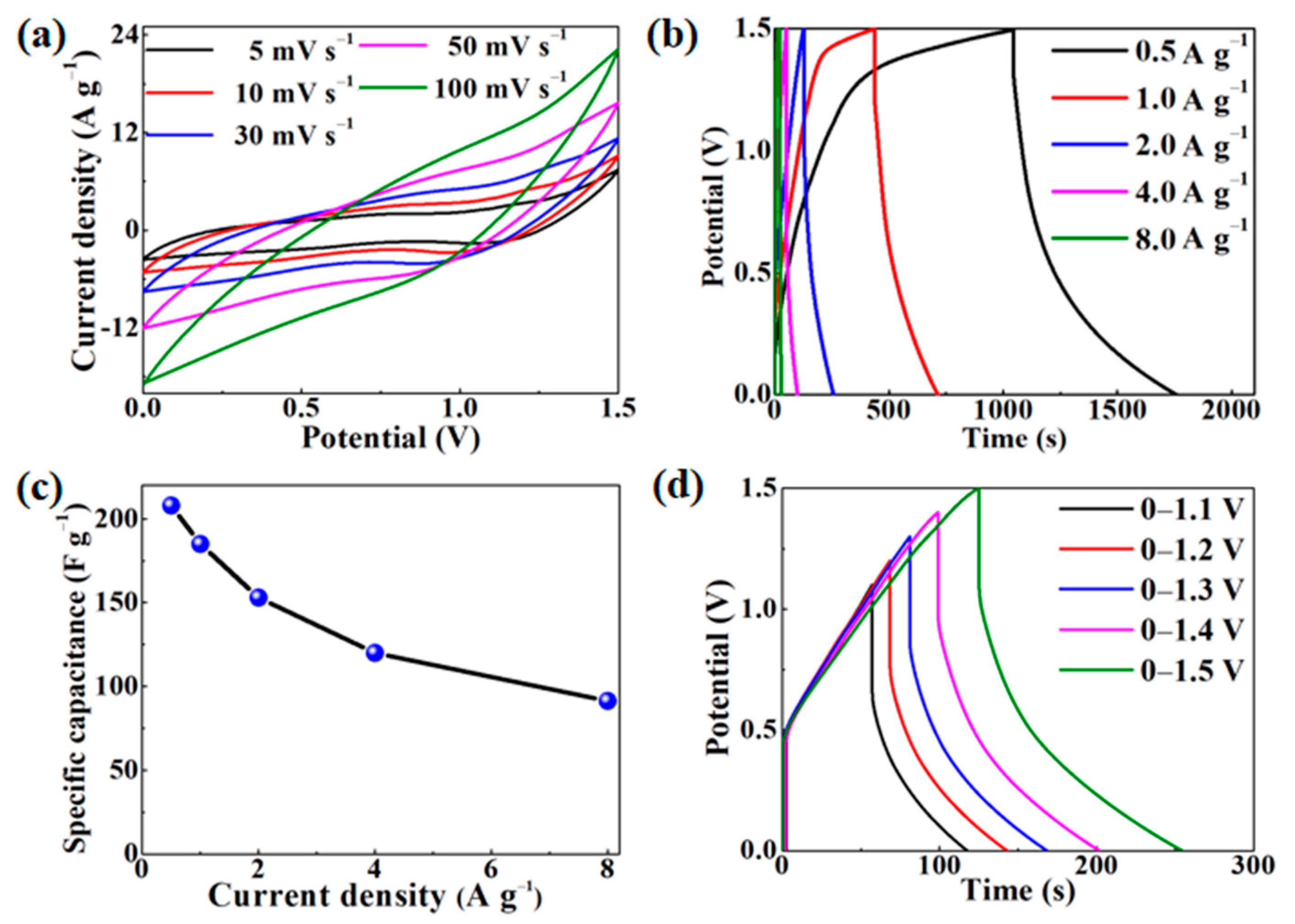

Figure 4. (a) CV curves of the flexible asymmetric device, recorded at different scan rates. (b) GCD curves of the flexible asymmetric device recorded at different current densities. (c) Specific capacitance of the flexible asymmetric device recorded at different current densities. (d) GCD curves of the flexible device recorded at a current density of 5 A g−1 over different potential ranges (0–1.1 V to 0–1.5 V). (e) GCD curves of the flexible device with different bending angles at a current density of 5 A g−1. (f) Cycling performance of the flexible asymmetric device at a current density of 1 A g−1 and EIS data of the flexible ASC device before and after 10,000 cycles (inset).
Figure 4. (a) CV curves of the flexible asymmetric device, recorded at different scan rates. (b) GCD curves of the flexible asymmetric device recorded at different current densities. (c) Specific capacitance of the flexible asymmetric device recorded at different current densities. (d) GCD curves of the flexible device recorded at a current density of 5 A g−1 over different potential ranges (0–1.1 V to 0–1.5 V). (e) GCD curves of the flexible device with different bending angles at a current density of 5 A g−1. (f) Cycling performance of the flexible asymmetric device at a current density of 1 A g−1 and EIS data of the flexible ASC device before and after 10,000 cycles (inset).
Micromachines 14 00297 g004aMicromachines 14 00297 g004b
Micromachines 14 00297 g005 550

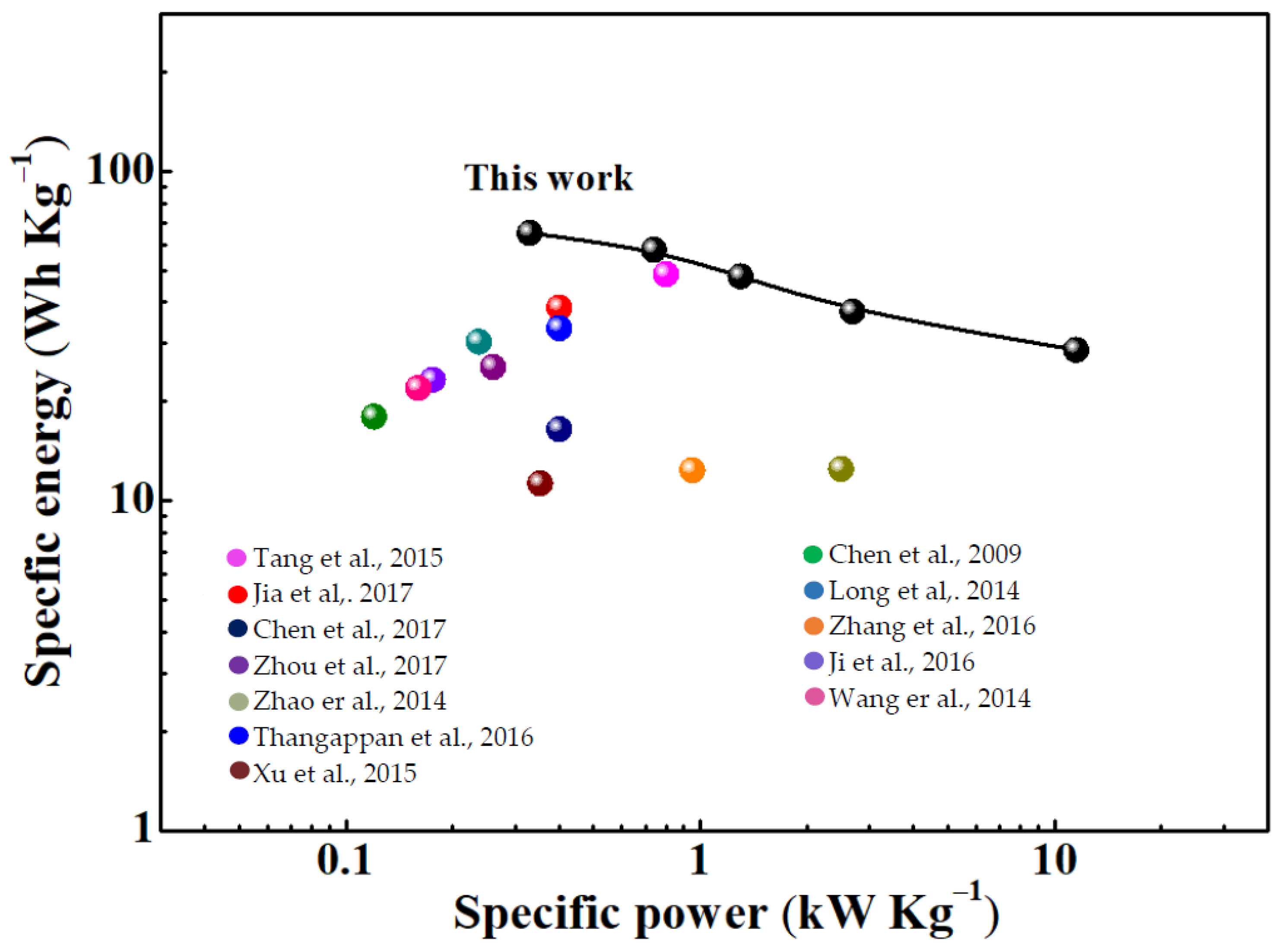

Figure 5. Ragone plots (power density vs. energy density) of the flexible ASC device [6,25,47,50,51,52,53,54,55,56,57,58].
Figure 5. Ragone plots (power density vs. energy density) of the flexible ASC device [6,25,47,50,51,52,53,54,55,56,57,58].
Micromachines 14 00297 g005
Table
Table 1. Comparison of the specific capacitance of the electrode in this work compared with those based on MoS2/Gr hybrids reported in the literature.
Table 1. Comparison of the specific capacitance of the electrode in this work compared with those based on MoS2/Gr hybrids reported in the literature.
MaterialsSpecific
Capacitance/F g−1		Current Density/
Scan Rate		Potential RangeElectrolyteReference
MoS2/Gr8531 A g−10~0.6 V3 M KOHThis work
MoS2/3D Gr4101 A g−1−0.9~−0.2 V1M Na2SO4Ref. [39]
MoS2-O@MoS22055 mV s−10~0.9 V1M Na2SO4Ref. [40]
MoS2/3D Gr169.371 A g−1−0.9~0.1 V0.1 M KOHRef. [41]
MoS2/carbon676.41 A g−10~0.55 V3 M KOHRef. [42]
MoS2/carbon spheres4111 A g−1−0.9~−0.1 V1 M Na2SO4Ref. [43]
MoS2/rGO218.31 A g−1−1.0~−0.1 V2 M KOHRef. [44]
MoS2 nanosheets119.385 mV s−1−1.0~0 V1 M Li2SO4Ref. [45]
MoS2 nanosheets1331 A g−1−0.9~−0.1 V1 M KClRef. [46]
MoS2/polypyrrole3501 A g−1−0.8~−0.2 V0.5 M Na2SO4Ref. [47]
MoS2/C712.61 A g−10~0.4 V6 M KOHRef. [48]
