# E-Spin: A Stochastic Ising Spin Based on Electrically-Controlled MTJ for Constructing Large-Scale Ising Annealing Systems

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Spin-Transfer Torque Magnetic Tunnel Junctions and E-Spin

#### 2.1. Mechanism of the Spin-Transfer Torque Magnetic Tunnel Junctions

#### 2.2. Schematic Diagram, Operation Paradigm, and Simulation of the E-Spin

#### 2.3. Advantages of the E-Spin

#### 2.4. Endurance of the E-Spin

^{15}, it can operate at the frequency of 10 MHz for 3.17 years. The endurance can be increased even more if the SOT-MRAM is included [27]. Because the current is not passed directly through the MTJ in SOT-MRAM, the MTJ is clearly protected, increasing the endurance to almost infinite levels.

## 3. Large-Scale Ising Annealing System for Solving CO Problems Using E-Spins

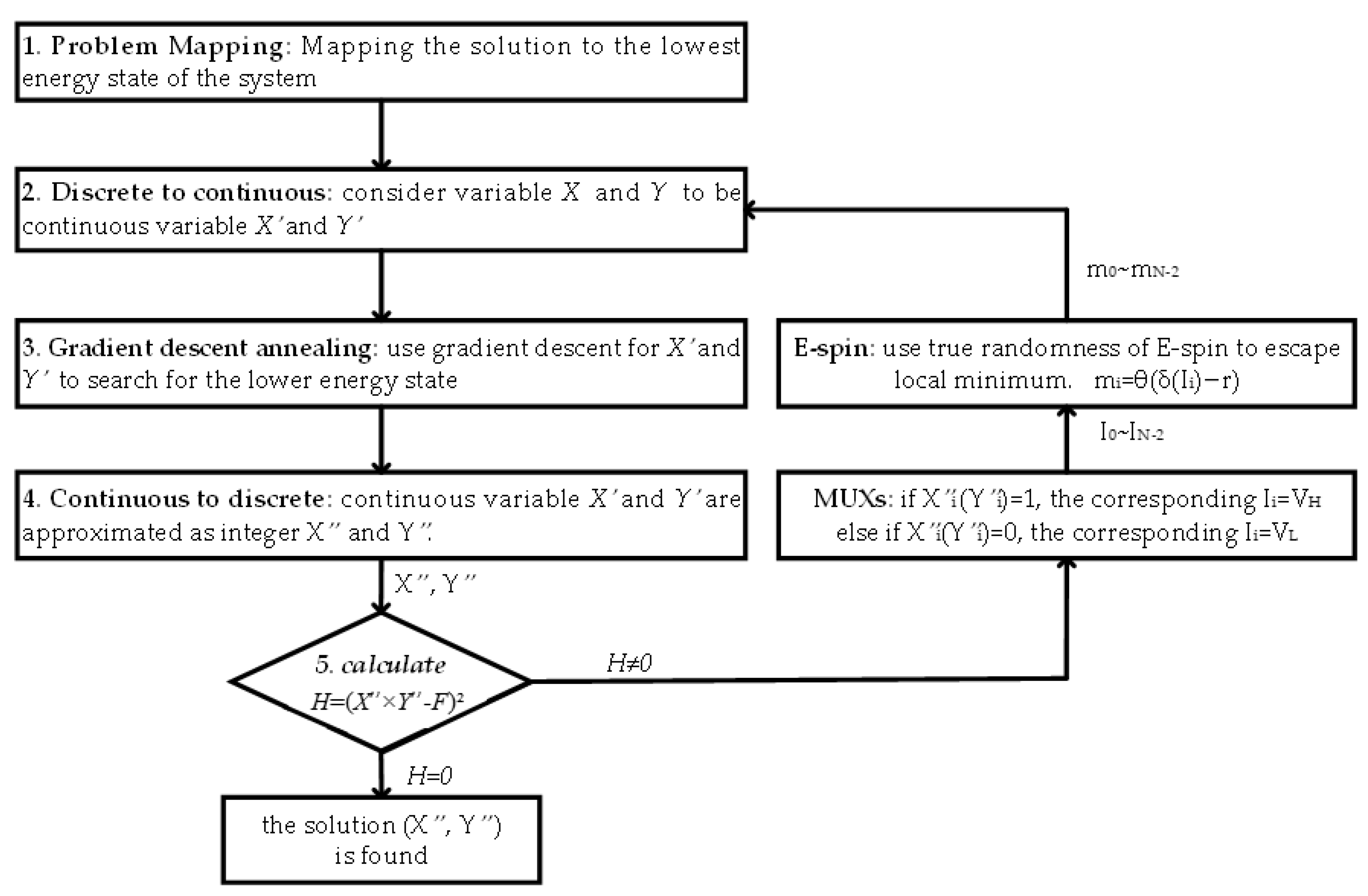

#### 3.1. Steps of Ising Annealing System Solving CO Problems

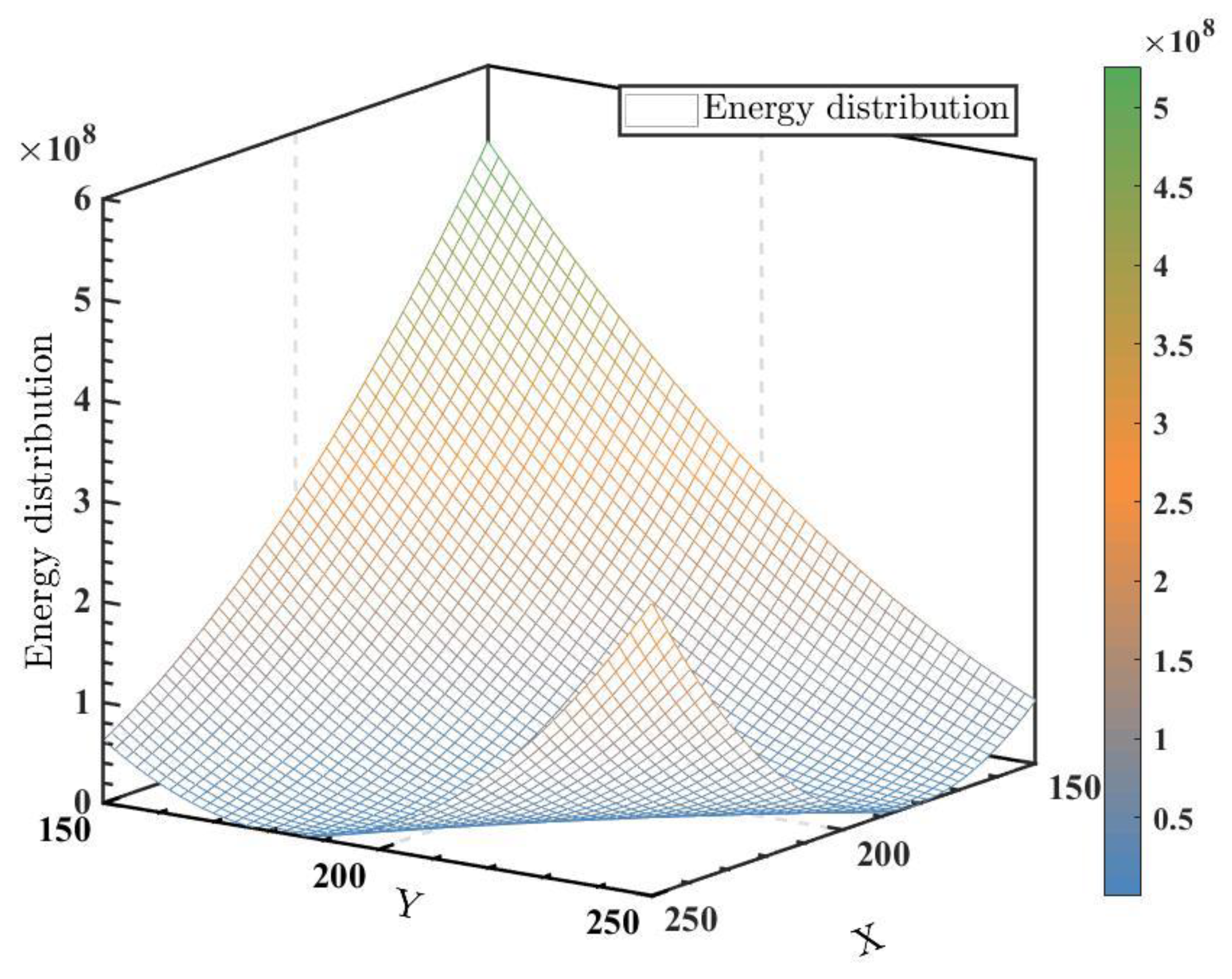

#### 3.2. Mapping Integer Factorization Problem to Ising Annealing System

#### 3.3. Stochastic Ising Annealing Algorithm Based on E-Spin

- Map $X$ and $Y$ to the corresponding spin ${x}_{i}$ and ${y}_{i}$ using Equations (7) and (8).
- If the calculated ${x}_{i}$ or ${y}_{i}$ equals value “1”, the MUX outputs ${V}_{H}$ to the corresponding ${I}_{i}$. Then, the E-spin provides a strong likelihood of an output value “1”. The ${V}_{H}$ is the parameter that can be adjusted. In this experiment, we set ${V}_{H}$ to be around 0.95 V and ${V}_{L}$ to be 0.55 V. The random flips of E-spin do not frequently occur, so the gradient descent procedure is dominant in most cases.
- Accordingly, if ${x}_{i}$ or ${y}_{i}$ equals ‘0’, the MUX outputs ${V}_{L}$ to the corresponding E-spin ${I}_{i}$. Then the E-spin provides a high probability of output value “0”.

#### 3.4. The Overall Diagram of the Proposed Ising Annealing System

## 4. Results

#### 4.1. Integer Factorization Results

#### 4.1.1. Examples of Factoring Integers

#### 4.1.2. Comparations for Simulated Annealing, Trial Division, and Ising Annealing Algorithm

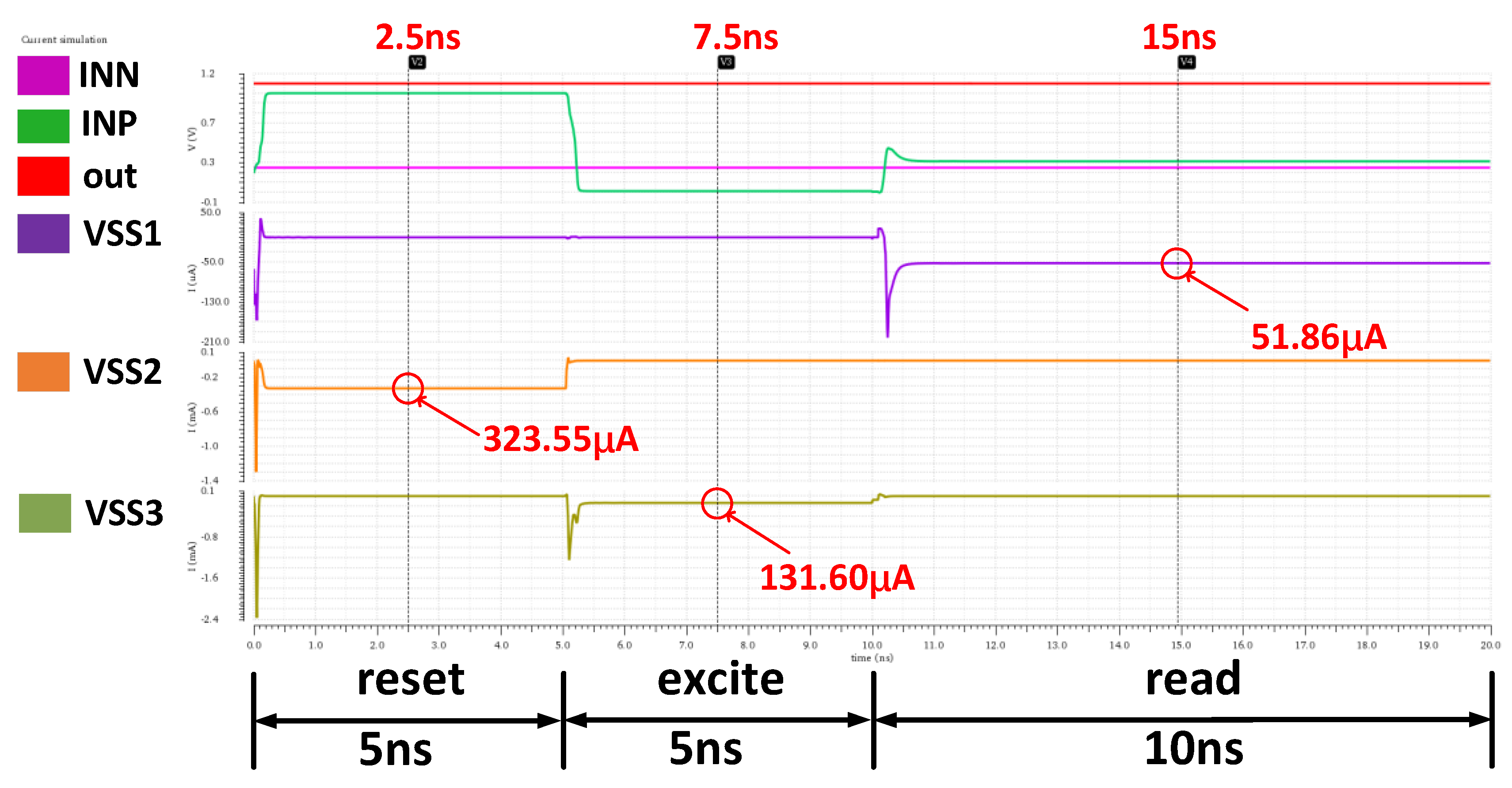

#### 4.2. Analysis Results of the E-Spin

## 5. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Arute, F.; Arya, K.; Babbush, R.; Bacon, D.; Bardin, J.C.; Barends, R.; Biswas, R.; Boixo, S.; Brandao, F.G.S.L.; Buell, D.A.; et al. Quantum supremacy using a programmable superconducting processor. Nature
**2019**, 574, 505–510. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Jiang, S.; Britt, K.A.; McCaskey, A.J.; Humble, T.S.; Kais, S. Quantum Annealing for Prime Factorization. Sci. Rep.
**2018**, 8, 17667. [Google Scholar] [CrossRef] [Green Version] - Takata, K.; Marandi, A.; Hamerly, R.; Haribara, Y.; Maruo, D.; Tamate, S.; Sakaguchi, H.; Utsunomiya, S.; Yamamoto, Y. A 16-bit Coherent Ising Machine for One-Dimensional Ring and Cubic Graph Problems. Sci. Rep.
**2016**, 6, 34089. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Böhm, F.; Verschaffelt, G.; Van Der Sande, G. A poor man’s coherent Ising machine based on opto-electronic feedback systems for solving optimization problems. Nat. Commun.
**2019**, 10, 3538. [Google Scholar] [CrossRef] [Green Version] - Chou, J.; Bramhavar, S.; Ghosh, S.; Herzog, W. Analog Coupled Oscillator Based Weighted Ising Machine. Sci. Rep.
**2019**, 9, 14786. [Google Scholar] [CrossRef] [Green Version] - Böhm, F.; Verschaffelt, G.; Sande, G.V. Solving MAXCUT Optimization Problems with a Coherent Ising Machine Based on Opto-Electronic Oscillators. In Proceedings of the 2019 Conference on Lasers and Electro-Optics Europe & European Quantum Electronics Conference (CLEO/Europe-EQEC), Munich, Germany, 23–27 June 2019; p. 1. [Google Scholar]
- Ayanzadeh, R.; Halem, M.; Finin, T. Reinforcement Quantum Annealing: A Hybrid Quantum Learning Automata. Sci. Rep.
**2020**, 10, 7592. [Google Scholar] [CrossRef] [PubMed] - Inagaki, T.; Inaba, K.; Hamerly, R.; Inoue, K.; Yamamoto, R.H.Y.; Takesue, T.I.K.I.H. Large-scale Ising spin network based on degenerate optical parametric oscillators. Nat. Photon.
**2016**, 10, 415–419. [Google Scholar] [CrossRef] - Inagaki, T.; Haribara, Y.; Igarashi, K.; Sonobe, T.; Tamate, S.; Honjo, T.; Marandi, A.; McMahon, P.L.; Umeki, T.; Enbutsu, K.; et al. A coherent Ising machine for 2000-node optimization problems. Science
**2016**, 354, 603. [Google Scholar] [CrossRef] [Green Version] - McMahon, P.L.; Marandi, A.; Haribara, Y.; Hamerly, R.; Langrock, C.; Tamate, S.; Inagaki, T.; Takesue, H.; Utsunomiya, S.; Aihara, K.; et al. A fully programmable 100-spin coherent Ising machine with all-to-all connections. Science
**2016**, 354, 614. [Google Scholar] [CrossRef] [Green Version] - Böhm, F.; Inagaki, T.; Inaba, K.; Honjo, T.; Enbutsu, K.; Umeki, T.; Kasahara, R.; Takesue, H. Understanding dynamics of coherent Ising machines through simulation of large-scale 2D Ising models. Nat. Commun.
**2018**, 9, 5020. [Google Scholar] [CrossRef] - Takemoto, T.; Hayashi, M.; Yoshimura, C.; Yamaoka, M. A 2 × 30k-Spin Multi-Chip Scalable CMOS Annealing Processor Based on a Processing-in-Memory Approach for Solving Large-Scale Combinatorial Optimization Problems. IEEE J. Solid-State Circuits
**2019**, 55, 145–156. (In English) [Google Scholar] [CrossRef] - Yamaoka, M.; Yoshimura, C.; Hayashi, M.; Okuyama, T.; Aoki, H.; Mizuno, H. A 20k-Spin Ising Chip to Solve Combinatorial Optimization Problems with CMOS Annealing. IEEE J. Solid-State Circuits
**2015**, 51, 303–309. [Google Scholar] [CrossRef] - Takemoto, T.; Yamamoto, K.; Yoshimura, C.; Hayashi, M.; Tada, M.; Saito, H.; Mashimo, M.; Yamaoka, M. 4.6 A 144Kb Annealing System Composed of 9×16Kb Annealing Processor Chips with Scalable Chip-to-Chip Connections for Large-Scale Combinatorial Optimization Problems. In Proceedings of the 2021 IEEE International Solid- State Circuits Conference (ISSCC), San Francisco, CA, USA, 13–22 February 2021. [Google Scholar]
- Dutta, S.; Khanna, A.; Gomez, J.; Ni, K.; Toroczkai, Z.; Datta, S. Experimental Demonstration of Phase Transition Nano-Oscillator Based Ising Machine. In Proceedings of the 2019 IEEE International Electron Devices Meeting (IEDM), San Francisco, CA, USA, 7–11 December 2019; pp. 37.8.1–37.8.4. [Google Scholar]
- Borders, W.A.; Pervaiz, A.Z.; Fukami, S.; Camsari, K.Y.; Ohno, H.; Datta, S. Integer factorization using stochastic magnetic tunnel junctions. Nature
**2019**, 573, 390–393. [Google Scholar] [CrossRef] [PubMed] - Alfke, P. Efficient Shift RegistersLFSR Counters and Long Pesudo-Random Sequence Generators. Xlilinx Appl. Note XAPP 052
**1996**, 1–6. [Google Scholar] - Vincent, A.F.; Larroque, J.; Locatelli, N.; Ben Romdhane, N.; Bichler, O.; Gamrat, C.; Zhao, W.S.; Klein, J.-O.; Galdin-Retailleau, S.; Querlioz, D. Spin-Transfer Torque Magnetic Memory as a Stochastic Memristive Synapse for Neuromorphic Systems. IEEE Trans. Biomed. Circuits Syst.
**2015**, 9, 166–174. [Google Scholar] [CrossRef] [Green Version] - Diao, Z.; Li, Z.; Wang, S.; Ding, Y.; Panchula, A.; Chen, E.; Wang, L.-C.; Huai, Y. Spin-transfer torque switching in magnetic tunnel junctions and spin-transfer torque random access memory. J. Phys. Condens. Matter
**2007**, 19, 165209. [Google Scholar] [CrossRef] - Zhang, Y.; Zhao, W.; Prenat, G.; Devolder, T.; Klein, J.-O.; Chappert, C.; Dieny, B.; Ravelosona, D. Electrical Modeling of Stochastic Spin Transfer Torque Writing in Magnetic Tunnel Junctions for Memory and Logic Applications. IEEE Trans. Magn.
**2013**, 49, 4375–4378. [Google Scholar] [CrossRef] - Jan, G.; Thomas, L.; Le, S.; Lee, Y.-J.; Liu, H.; Zhu, J.; Iwata-Harms, J.; Patel, S.; Tong, R.-Y.; Sundar, V.; et al. Demonstration of Ultra-Low Voltage and Ultra Low Power STT-MRAM designed for compatibility with 0x node embedded LLC applications. In Proceedings of the 2018 IEEE Symposium on VLSI Technology, Honolulu, HI, USA, 18–22 June 2018; pp. 65–66. [Google Scholar] [CrossRef]
- Thomas, L.; Jan, G.; Serrano-Guisan, S.; Liu, H.; Zhu, J.; Lee, Y.-J.; Le, S.; Iwata-Harms, J.; Tong, R.-Y.; Patel, S.; et al. STT-MRAM devices with low damping and moment optimized for LLC applications at Ox nodes. In Proceedings of the 2018 IEEE International Electron Devices Meeting (IEDM), San Francisco, CA, USA, 1–5 December 2018; pp. 27.3.1–27.3.4. [Google Scholar] [CrossRef]
- Jan, G.; Thomas, L.; Le, S.; Lee, Y.-J.; Liu, H.; Zhu, J.; Iwata-Harms, J.; Patel, S.; Tong, R.-Y.; Serrano-Guisan, S.; et al. Achieving Sub-ns switching of STT-MRAM for future embedded LLC applications through improvement of nucleation and propagation switching mechanisms. In Proceedings of the 2016 IEEE Symposium on VLSI Technology, Honolulu, HI, USA, 14–16 June 2016; pp. 1–2. [Google Scholar] [CrossRef]
- Kar, G.S.; Kim, W.; Tahmasebi, T.; Swerts, J.; Mertens, S.; Heylen, N.; Min, T. Co/Ni based p-MTJ stack for sub-20nm high density stand alone and high performance embedded memory application. In Proceedings of the 2014 IEEE International Electron Devices Meeting, San Francisco, CA, USA, 15–17 December 2014; pp. 19.1.1–19.1.4. [Google Scholar] [CrossRef]
- Miura, S.; Nishioka, K.; Naganuma, H.; Nguyen, T.V.A.; Honjo, H.; Ikeda, S.; Watanabe, T.; Inoue, H.; Niwa, M.; Tanigawa, T.; et al. Scalability of Quad Interface p-MTJ for 1X nm STT-MRAM With 10-ns Low Power Write Operation, 10 Years Retention and Endurance > 10¹¹. IEEE Trans. Electron Devices
**2020**, 67, 5368–5373. [Google Scholar] [CrossRef] - Fukushima, A.; Seki, T.; Yakushiji, K.; Kubota, H.; Imamura, H.; Yuasa, S.; Ando, K. Spin dice: A scalable truly random number generator based on spintronics. Appl. Phys. Express
**2014**, 7, 083001. [Google Scholar] [CrossRef] - Endoh, T.; Honjo, H.; Nishioka, K.; Ikeda, S. Recent Progresses in STT-MRAM and SOT-MRAM for Next Generation MRAM. In Proceedings of the 2020 IEEE Symposium on VLSI Technology, Honolulu, HI, USA, 16–19 June 2020; pp. 1–2. [Google Scholar] [CrossRef]
- Peng, X.; Liao, Z.; Xu, N.; Qin, G.; Zhou, X.; Suter, D.; Du, J. Quantum Adiabatic Algorithm for Factorization and Its Experimental Implementation. Phys. Rev. Lett.
**2008**, 101, 220405. [Google Scholar] [CrossRef] - SAHIN, M. Generalized Trial Division. Int. J. Contemp. Math. Sci.
**2011**, 6, 59–64. [Google Scholar]

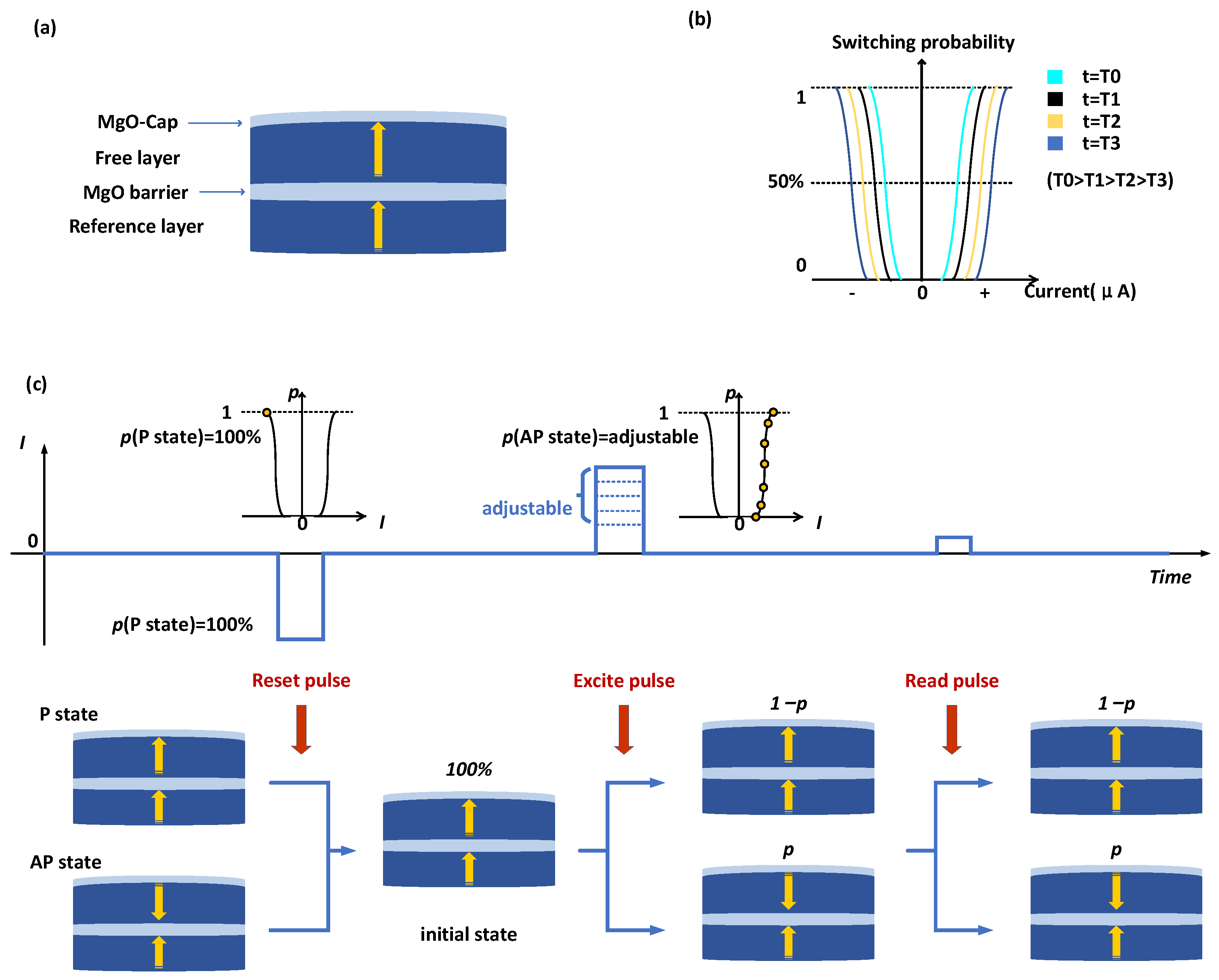

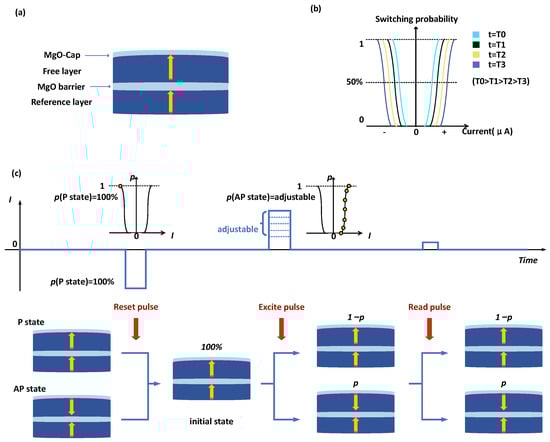

**Figure 1.**(

**a**) Diagrammatic representation of the Double-MTJ employed in this investigation. (

**b**) Switching probability of Double-MTJ under various current and pulse duration conditions. (

**c**) Process of operation. Pulses for reset, excite, and read are applied in that order.

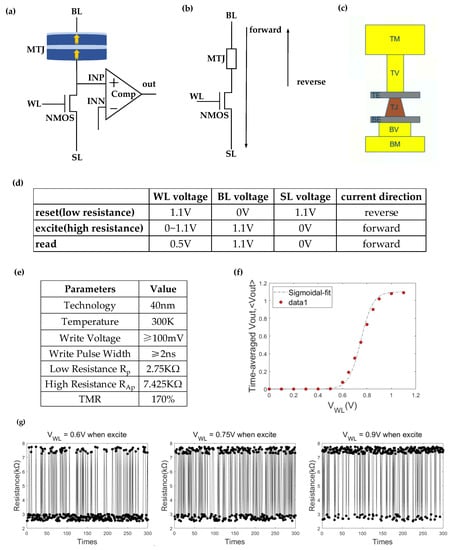

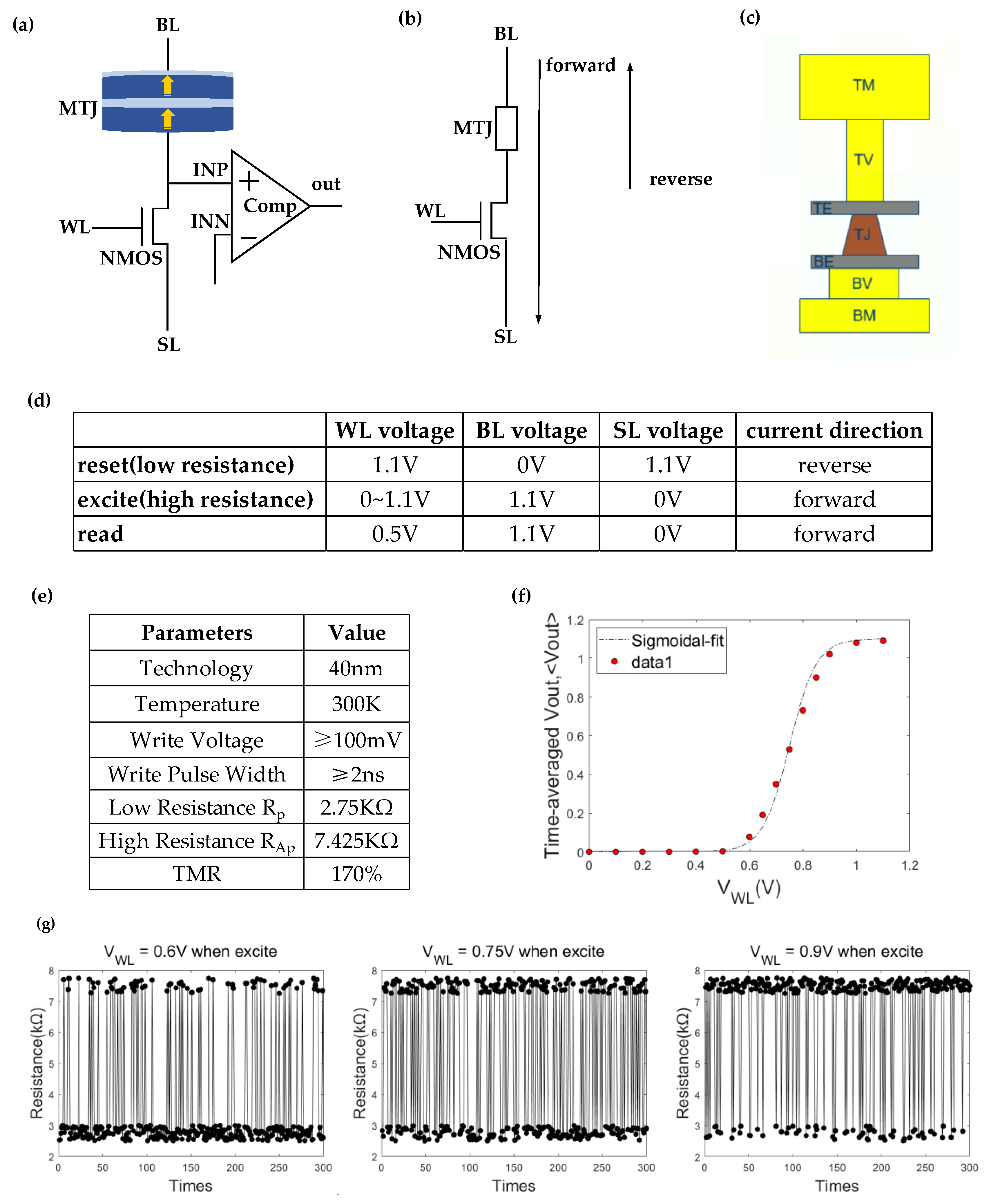

**Figure 2.**(

**a**) Schematic diagram of the E-spin. (

**b**) Operation paradigm of the E-spin. (

**c**) The layout of the MTJ’s film stack. The technology node of our logic circuit was 40 nm. The MTJ was fabricated on the top layer of the logic circuit. (

**d**) The applied voltage for the reset, excite, and read operations. (

**e**) The parameters of MTJ were measured at 300 K. The low resistance was 2.75$\mathrm{K}\mathsf{\Omega}$ and the high resistance was 7.425$\mathrm{K}\mathsf{\Omega}$. The TMR (Tunnel Magneto Resistance) was 170%. The switch error rate of the MTJ was correlated with the write voltage and pulse width. The minimum write voltage and pulse width were 100 mV and 2 ns, respectively. (

**f**) Time-averaged ${V}_{out}$, <${V}_{out}$>. <${V}_{out}$> is the function of the applied input voltage ${V}_{WL}$ and pulse width. The pulse width is 5 ns in this illustration. The function is fitted to the sigmoidal function. Each data point shown in this figure was averaged for 300 sampling points. (

**g**) Time snapshots of the MTJ’s resistance after each excite operation for various input voltage ${V}_{WL}$ (0.6 V, 0.75 V, and 0.9 V). The MTJ’s resistance was sampled 300 times for each ${V}_{WL}$.

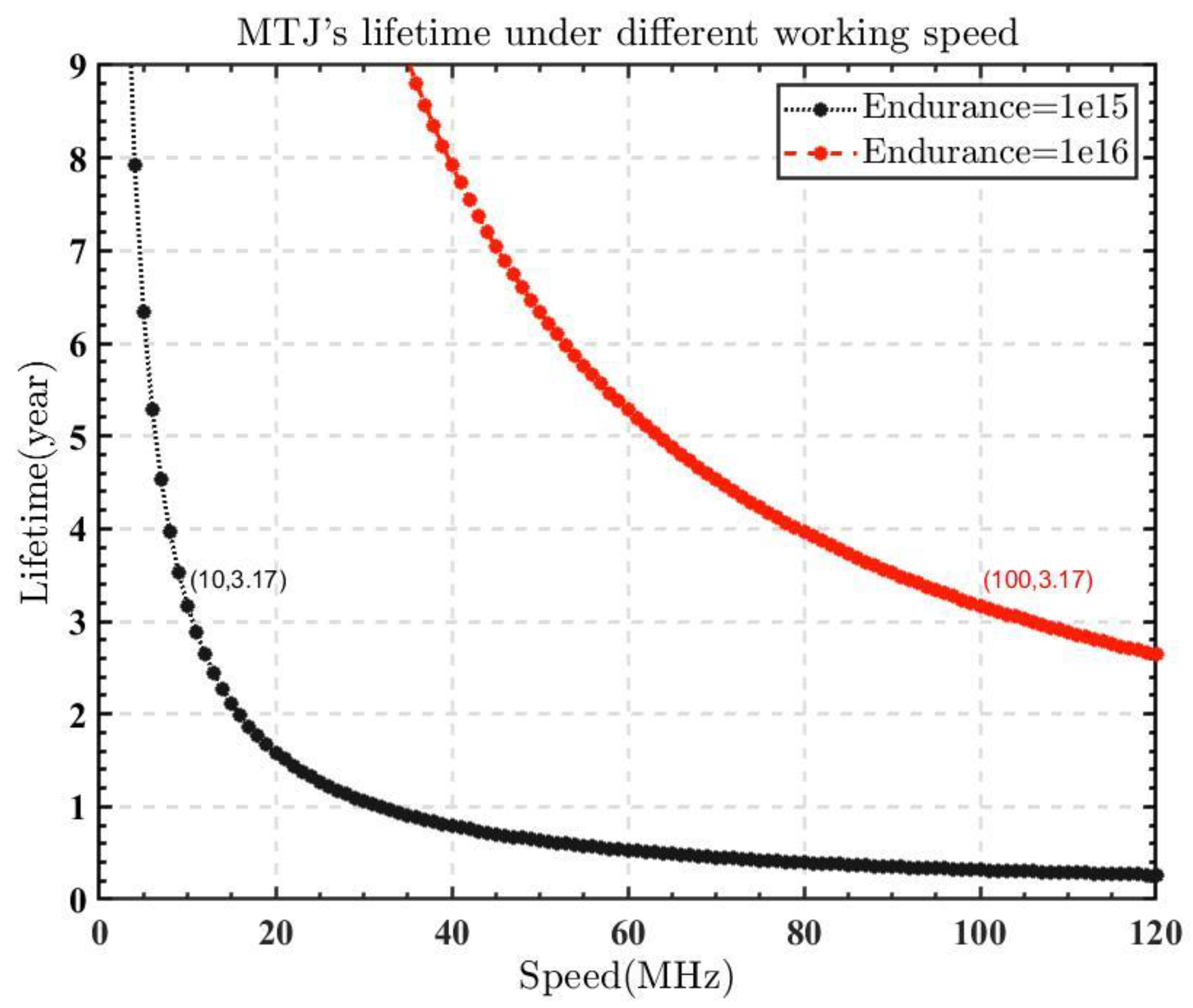

**Figure 3.**MTJ’s lifetime at various operating frequencies. Under a clock frequency of 10 MHz, MTJ with $1\times {10}^{15}$ endurance can operate for 3.17 years.

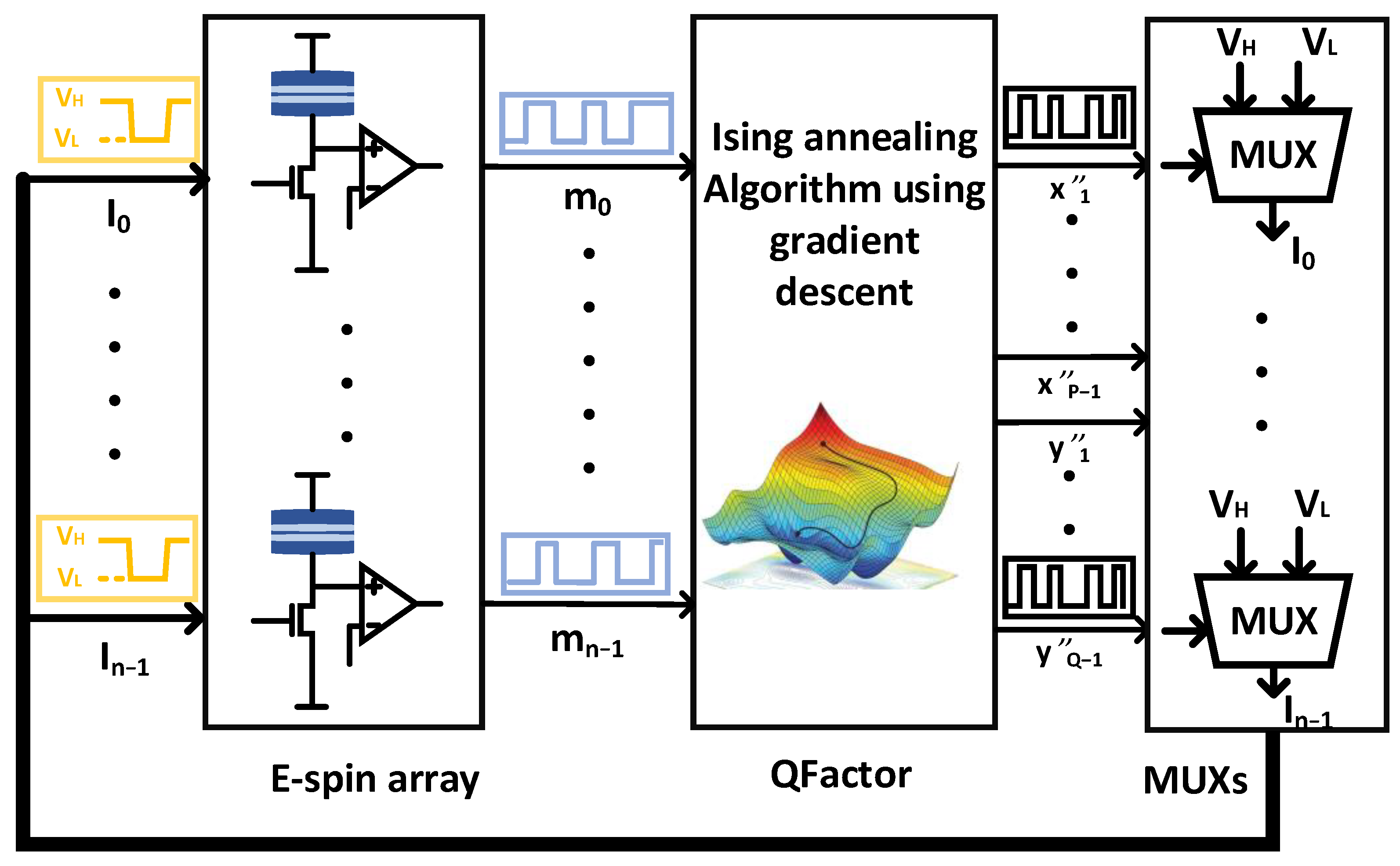

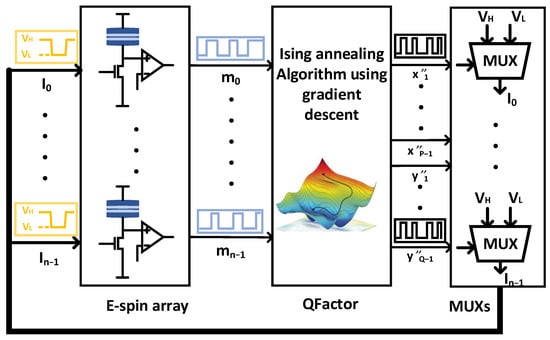

**Figure 6.**The overall diagram of the proposed Ising annealing system (QFactor). It comprises an E-spin array with 64 E-spins, a digital circuit to implement the QFactor annealing algorithm, and analog MUXs.

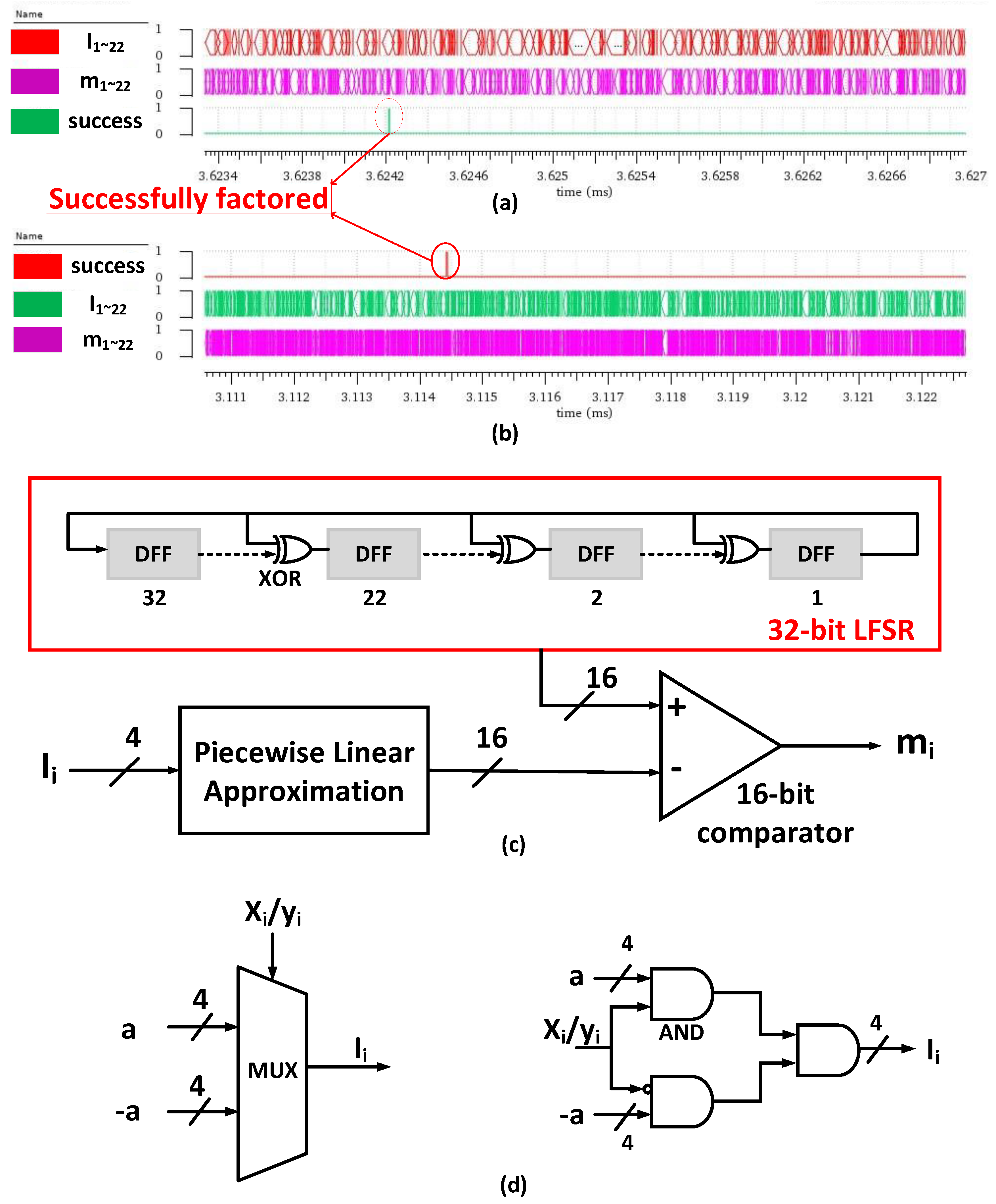

**Figure 7.**Examples of factoring 24-bit integers 14019841 (

**a**) and 14166761 (

**b**) using Vivado. ${m}_{10~1}$ and ${m}_{22~11}$ represent {${x}_{10}$,…, ${x}_{1}$} and {${\mathrm{y}}_{10}$,…, ${\mathrm{y}}_{1}$}, respectively. The clock period in this front-end circuit simulation is 500 ns. (

**c**) Schematic view of CMOS-based stochastic Ising spin. It comprises a 32-bit LFSR, a piecewise linear approximation module, and a 16-bit comparator. The behavior of the CMOS-based stochastic Ising spin is the same as described in Equation (2). (

**d**) Schematic view (left) and circuitry (right) of a digital MUX.

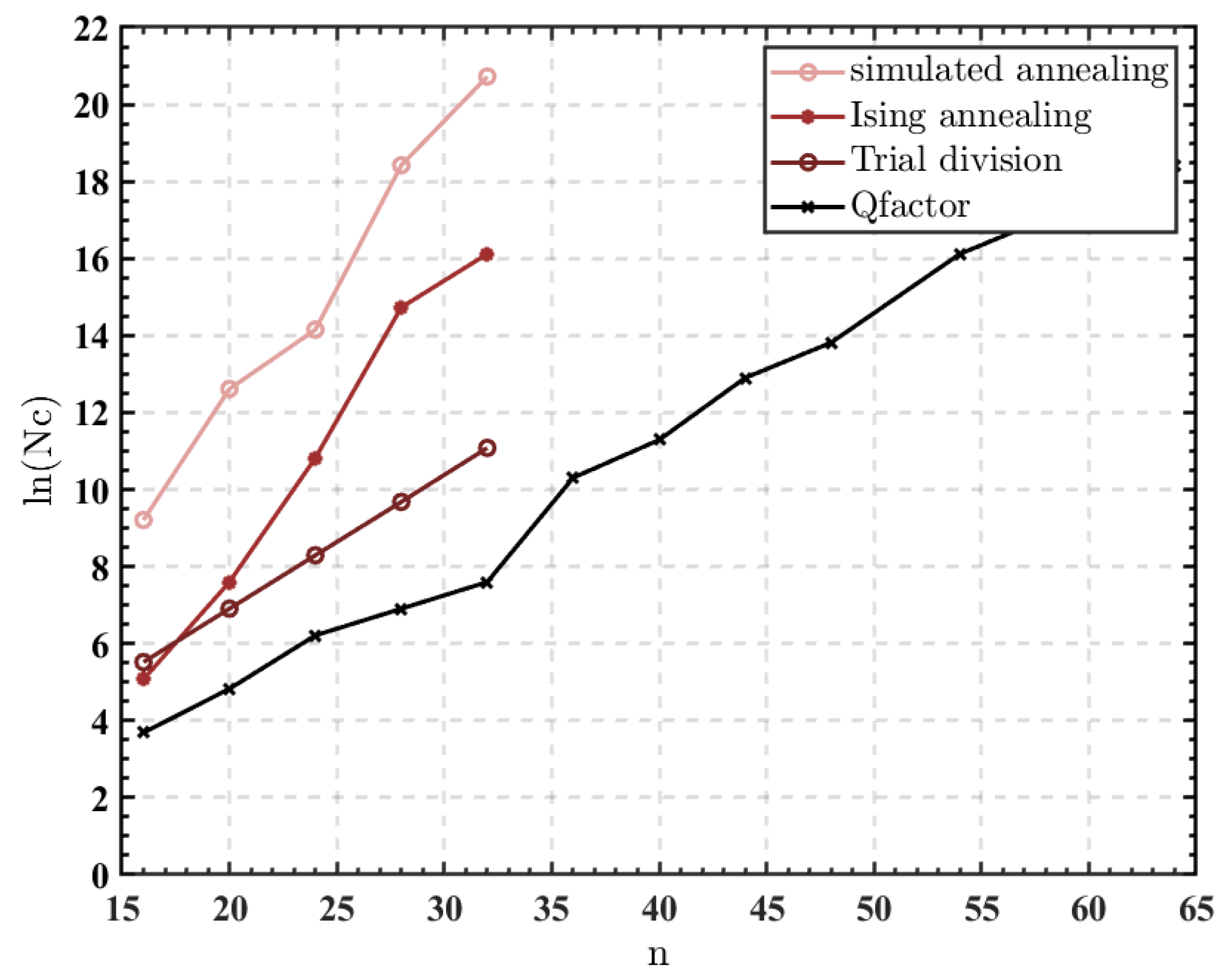

**Figure 8.**The required cycles to factor $n$-bit integers. Nc in the Y axis represents the number of required cycles. The four algorithms are simulated using MATLAB software.

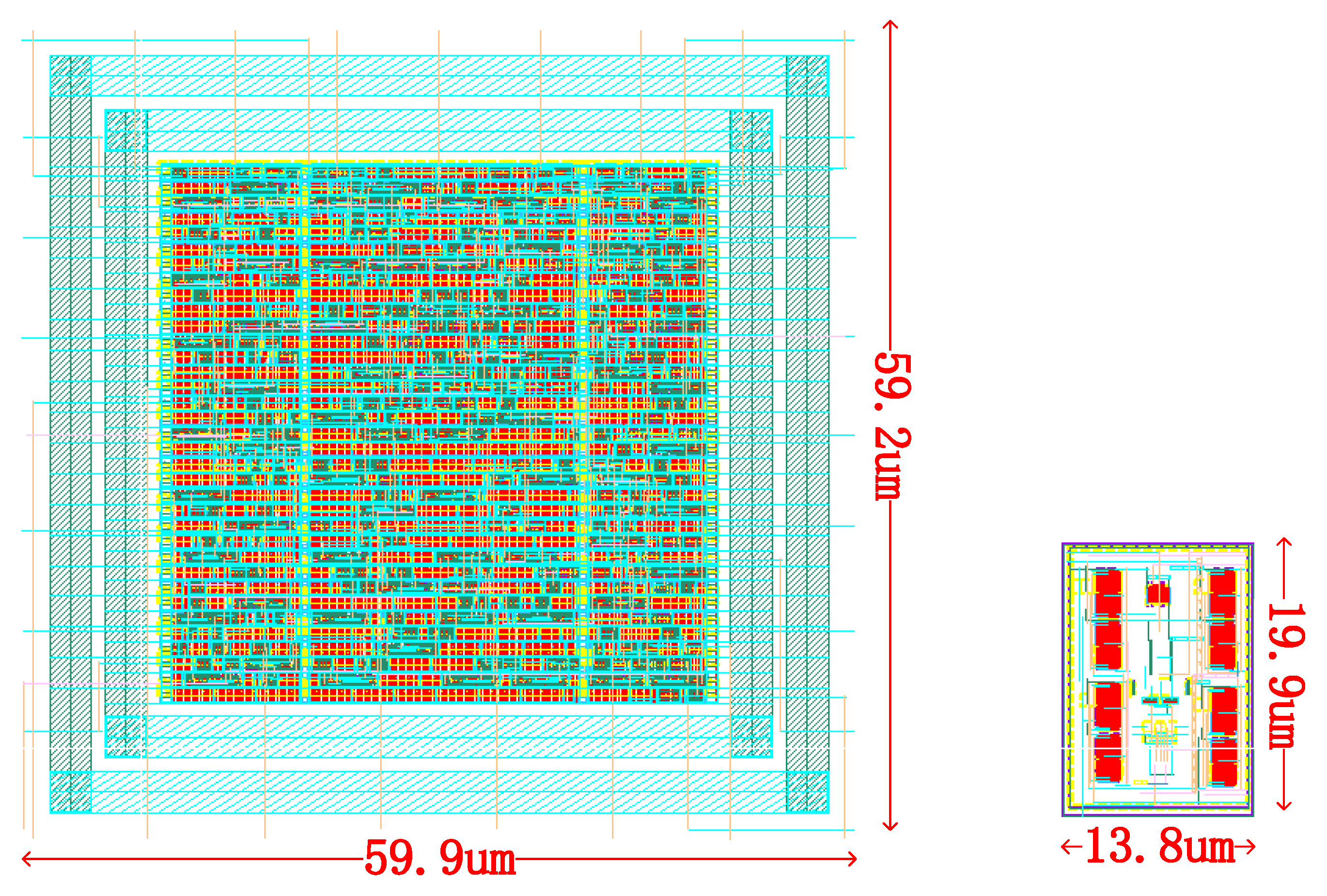

**Figure 9.**Layout view of a single CMOS-based stochastic Ising spin (left) and a single MTJ-based E-spin (right). The layout of the CMOS-based stochastic Ising spin is automatically generated by EDA (electronic design automation) software DC (Design Compiler) and ICC (IC Compiler). The layout of the MTJ-based E-spin is a customized design using Virtuoso.

Indicators | Spin Dice [26] | p-bit [16] | E-Spin (This Work) |
---|---|---|---|

probability | Fixed | adjustable | adjustable |

randomness | TRNG | TRNG | TRNG |

operation mode | electric | thermal | electric |

reliability | good | poor | good |

large-scale integration | easy | hard | easy |

**Table 2.**The relationship between the voltage drop of the MTJ and the probability of switching from a low-resistance state to a high-resistance state.

Voltage Drop (mV) ^{1} | Switching Probability |
---|---|

[0,144) | 0% |

[144,171) | 7% |

[171,212) | 20% |

[212,275) | 32% |

[275,342) | 48% |

[342,428) | 66% |

[428,584) | 81% |

[584,718) | 93% |

[718,731) | 98% |

[731,1100] | 100% |

^{1}In this table, the voltage pulse widths are 5 ns.

Indicators | CMOS-Based Stochastic Ising Spin | Thermal Disturbance MTJ-Based Spin (p-bit) [16] | E-Spin (This Work) |
---|---|---|---|

Area (μm^{2}) | 1600 | NA | 280 |

Speed (MHz) | 333 | <1 | 50 |

Power (μW) | 142.6 | 20 | 139.7 |

Technology node | 40 nm | NA (discrete) | 40 nm |

Randomness | PRNG | TRNG | TRNG |
