Multi-Scale Structure and Directional Hydrophobicity of Titanium Alloy Surface Using Electrical Discharge
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials and Characterization Methods

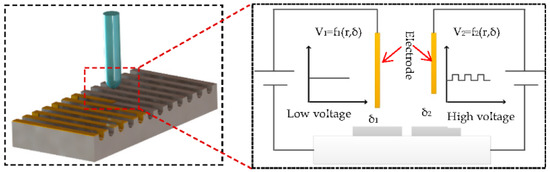

2.2. Macro-Micro Composite Structure Processing Method
3. Results and Discussion
3.1. Macrostructure Results

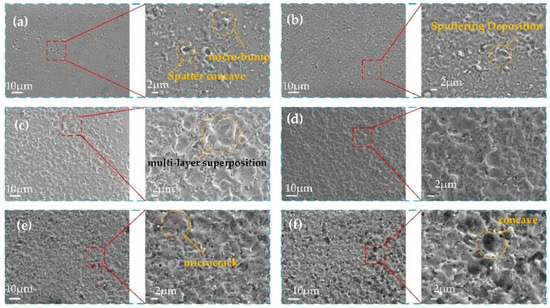

3.2. Microstructure Results
3.3. Titanium Alloy Macro-Micro Composite Surface Directional Hydrophobicity Analysis
3.3.1. Macrostructure Effects on Directional Surface

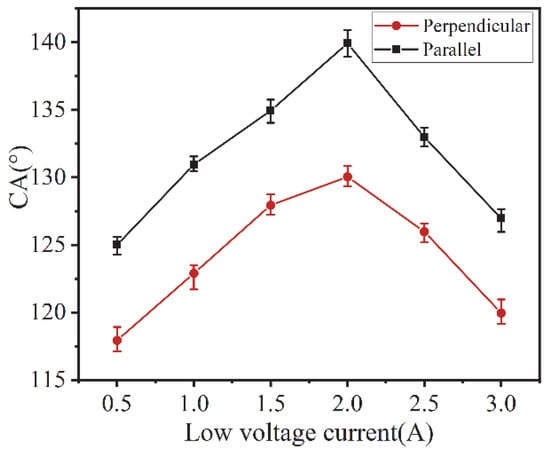

3.3.2. Effect of Microstructure on Surface Hydrophobicity

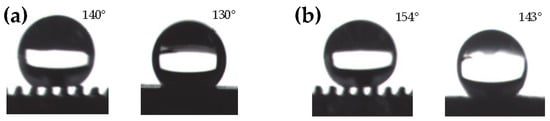

3.3.3. Surface with Macro-Micro Composite Structure by Low Surface Energy Modification
4. Conclusions

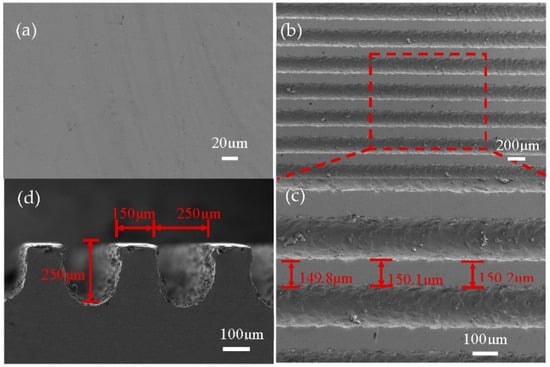

- The submillimeter grooves with the groove edge width of 150 μm, groove width of 250 μm, and groove depth of 250 μm were fabricated on the surface of titanium alloy by WEDM technology. The macroscopic structure is the reason for the directional hydrophobic surface of the titanium alloy.
- HV-μEAM technology is used to prepare microstructures on the groove edge of the macrostructure. The influence of micro-scale structure on directional contact angle is obtained by analyzing the surface morphology characteristics under different low-voltage electric current conditions. A maximum parallel contact angle of 140° and a perpendicular contact angle of 130° was achieved on the surface of the titanium macro-micro composite structure.

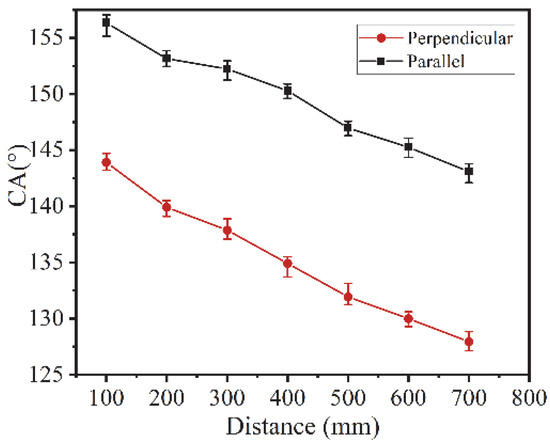

- After rubbing the directional hydrophobic titanium alloy specimens on sandpaper for 700 mm under a load of 100 g, the parallel contact angle and perpendicular contact angle still retained the directional hydrophobicity.
Author Contributions
Funding
Conflicts of Interest
References
- Allione, M.; Limongi, T.; Marini, M.; Torre, B.; Zhang, P.; Moretti, M.; Perozziello, G.; Candeloro, P.; Napione, L.; Pirri, C.F.; et al. Micro/Nanopatterned Superhydrophobic Surfaces Fabrication for Biomolecules and Biomaterials Manipulation and Analysis. Micromachines 2021, 12, 1501. [Google Scholar] [CrossRef]
- Wang, F.; Li, S.; Wang, L. Fabrication of Artificial Super-Hydrophobic Lotus-Leaf-like Bamboo Surfaces through Soft Lithography. Colloids Surf. A 2017, 513, 389–395. [Google Scholar] [CrossRef]
- Liu, P.; Gao, Y.; Wang, F.; Yang, J.; Yu, X.; Zhang, W.; Yang, L. Superhydrophobic and Self-Cleaning Behavior of Portland Cement with Lotus-Leaf-like Microstructure. J. Clean. Prod. 2017, 156, 775–785. [Google Scholar] [CrossRef]
- Zhang, Y.; Qu, S.; Cheng, X.; Gao, X.; Guo, X. Fabrication and Characterization of Gecko-Inspired Dry Adhesion, Superhydrophobicity and Wet Self-Cleaning Surfaces. J. Bionic Eng. 2016, 13, 132–142. [Google Scholar] [CrossRef]
- Kim, J.-G.; Choi, H.J.; Park, K.-C.; Cohen, R.E.; McKinley, G.H.; Barbastathis, G. Multifunctional Inverted Nanocone Arrays for Non-Wetting, S elf-Cleaning Transparent Surface with High Mechanical Robustness. Small 2014, 10, 2487–2494. [Google Scholar] [CrossRef] [Green Version]
- Ghosh, U.U.; Nair, S.; Das, A.; Mukherjee, R.; DasGupta, S. Replicating and Resolving Wetting and Adhesion Characteristics of a Rose Petal. Physicochem. Eng. Asp. 2019, 561, 9–17. [Google Scholar] [CrossRef]
- Feng, L.; Zhang, Y.; Xi, J.; Zhu, Y.; Wang, N.; Xia, F.; Jiang, L. Petal Effect: A Superhydrophobic State with High Adhesive Force. Langmuir 2008, 24, 4114–4119. [Google Scholar] [CrossRef]
- Lin, H.-P.; Chen, L.-J. Direct Observation of Wetting Behavior of Water Drops on Single Micro-Scale Roughness Surfaces of Rose Petal Effect. J. Colloid Interface Sci. 2021, 603, 539–549. [Google Scholar] [CrossRef]
- Ryu, S.; Choo, S.; Choi, H.-J.; Kim, C.-H.; Lee, H. Replication of Rose Petal Surfaces Using a Nickel Electroforming Process and UV Nanoimprint Lithography. Appl. Surf. Sci. 2014, 322, 57–63. [Google Scholar] [CrossRef]
- Lu, Y.; Yu, L.; Zhang, Z.; Wu, S.; Li, G.; Wu, P.; Hu, Y.; Li, J.; Chu, J.; Wu, D. Biomimetic Surfaces with Anisotropic Sliding Wetting by Energy-Modulation Femtosecond Laser Irradiation for Enhanced Water Collection. RSC Adv. 2017, 7, 11170–11179. [Google Scholar] [CrossRef] [Green Version]
- Bahga, S.S.; Vinogradova, O.I.; Bazant, M.Z. Anisotropic Electro-Osmotic Flow over Super-Hydrophobic Surfaces. J. Fluid Mech. 2010, 644, 245–255. [Google Scholar] [CrossRef] [Green Version]
- Liang, Y.; Shu, L.; Natsu, W.; He, F. Anisotropic Wetting Characteristics versus Roughness on Machined Surfaces of Hydrophilic and Hydrophobic Materials. Appl. Surf. Sci. 2015, 331, 41–49. [Google Scholar] [CrossRef]
- Yang, L.; Shen, X.; Yang, Q.; Liu, J.; Wu, W.; Li, D.; Du, J.; Zhang, B.; Fan, S. Fabrication of Biomimetic Anisotropic Super-Hydrophobic Surface with Rice Leaf-like Structures by Femtosecond Laser. Opt. Mater. 2021, 112, 110740. [Google Scholar] [CrossRef]
- Zheng, Y.; Gao, X.; Jiang, L. Directional Adhesion of Superhydrophobic Butterfly Wings. Soft Matter 2007, 3, 178–182. [Google Scholar] [CrossRef]
- Li, P.; Zhang, B.; Zhao, H.; Zhang, L.; Wang, Z.; Xu, X.; Fu, T.; Wang, X.; Hou, Y.; Fan, Y.; et al. Unidirectional Droplet Transport on the Biofabricated Butterfly Wing. Langmuir 2018, 34, 12482–12487. [Google Scholar] [CrossRef]
- Han, Z.; Mu, Z.; Yin, W.; Li, W.; Niu, S.; Zhang, J.; Ren, L. Biomimetic Multifunctional Surfaces Inspired from Animals. Adv. Colloid Interface Sci. 2016, 234, 27–50. [Google Scholar] [CrossRef]
- Zheng, L.; Cao, C.; Cao, L.; Chen, Z.; Huang, Q.; Song, B. Bounce Behavior and Regulation of Pesticide Solution Droplets on Rice Leaf Surfaces. J. Agric. Food Chem. 2018, 66, 11560–11568. [Google Scholar] [CrossRef]
- Zhu, Y.; Gao, Y.; Zhang, C.; Zhao, X.; Ma, Y.; Du, F. Static and Dynamic Wetting Behavior of TX-100 Solution on Super-Hydrophobic Rice (Oryza sativa.) Leaf Surfaces. Colloids Surf. A 2018, 547, 148–156. [Google Scholar] [CrossRef]
- Lian, Z.; Xu, J.; Ren, W.; Wang, Z.; Yu, H. Bouncing Dynamics of Impact Droplets on the Biomimetic Plane and Convex Superhydrophobic Surfaces with Dual-Level and Three-Level Structures. Nanomaterials 2019, 9, 1524. [Google Scholar] [CrossRef] [Green Version]
- Lian, Z.; Xu, J.; Yu, Z.; Yu, P.; Yu, H. A Simple Two-Step Approach for the Fabrication of Bio-Inspired Superhydrophobic and Anisotropic Wetting Surfaces Having Corrosion Resistance. J. Alloys Compd. 2019, 793, 326–335. [Google Scholar] [CrossRef]
- Zhang, X.; Xu, J.; Lian, Z.; Yu, Z.; Yu, H. Anisotropic Hydrophobic Surface Fabricated by Microstructuring of Aluminum Alloy Using High Speed Micro-Milling. In Proceedings of the 2015 IEEE International Conference on Mechatronics and Automation (ICMA), Beijing, China, 2–5 August 2015; IEEE: Piscataway, NJ, USA, 2015; Volume 20, pp. 1122–1126. [Google Scholar]
- Yunusa, M.; Ozturk, F.E.; Yildirim, A.; Tuvshindorj, U.; Kanik, M.; Bayindir, M. Bio-Inspired Hierarchically Structured Polymer Fibers for Anisotropic Non-Wetting Surfaces. RSC Adv. 2017, 7, 15553–15560. [Google Scholar] [CrossRef]
- Patel, D.S.; Jain, V.K.; Shrivastava, A.; Ramkumar, J. Electrochemical Micro Texturing on Flat and Curved Surfaces: Simulation and Experiments. Int. J. Adv. Manuf. Technol. 2019, 100, 1269–1286. [Google Scholar] [CrossRef]
- Wang, Z.; Ren, B. Preparation of Superhydrophobic Titanium Surface via the Combined Modification of Hierarchical Micro/Nanopatterning and Fluorination. J. Coat. Technol. Res. 2022, 1–9. [Google Scholar] [CrossRef]
- Quazi, M.M.; Ishak, M.; Fazal, M.A.; Arslan, A.; Rubaiee, S.; Qaban, A.; Aiman, M.H.; Sultan, T.; Ali, M.M.; Manladan, S.M. Current Research and Development Status of Dissimilar Materials Laser Welding of Titanium and Its Alloys. Opt. Laser Technol. 2020, 126, 106090. [Google Scholar] [CrossRef]
- Veiga, C.; Davim, J.; Loureiro, A. A Brief Review. Rev. Adv. Mater. Sci. 2012, 32, 133–148. [Google Scholar]
- Li, Y.; Li, J.; Peng, Z.; Lv, B.; Cui, N.; Yan, J.; Zhang, H.; Zhou, T.; Yu, Z. Evolution of IMC Layer and Its Reinforcing Effect in 2024/MB8 Dissimilar Joints Using a Multi-Interlayer of Cu/Zn via U-TLP Bonding. Mater. Sci. Eng. A 2022, 835, 142627. [Google Scholar] [CrossRef]
- Xie, L.; Zhou, W.; Zou, S. Pitting Behavior of Ti-15-3 Titanium Alloy with Different Surface in Salt Spray Studied Using Electrochemical Noise. J. Mater. Res. Technol. 2021, 14, 2865–2883. [Google Scholar] [CrossRef]
- Guo, A.X.Y.; Cheng, L.; Zhan, S.; Zhang, S.; Xiong, W.; Wang, Z.; Wang, G.; Cao, S.C. The Powder-Based 3D Printed Alloys on Titanium-Based Biomaterial Applications: A Review. J. Mater. Sci. Technol. 2022. [Google Scholar] [CrossRef]
- Alabort, E.; Tang, Y.T.; Barba, D.; Reed, R.C. Alloys-by-Design: A Low-Modulus Titanium Alloy for Additively Manufactured Biomedical Implants. Acta Mater. 2022, 229, 117749. [Google Scholar] [CrossRef]
- Park, J.K.; Kim, S. Three-Dimensionally Structured Flexible Fog Harvesting Surfaces Inspired by Namib Desert Beetles. Micromachines 2019, 10, 201. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Xu, C.; Feng, R.; Song, F.; Wu, J.-M.; Luo, Y.-Q.; Wang, X.-L.; Wang, Y.-Z. Continuous and Controlled Directional Water Transportation on a Hydrophobic/Superhydrophobic Patterned Surface. Chem. Eng. J. 2018, 352, 722–729. [Google Scholar] [CrossRef]
- Yao, J.; Yan, Q.; Qian, Q.; Zhang, S.; Wu, L.; Jiang, S.; Guo, L.; Fan, L.; Wu, H. Directional Droplet Transfer on Micropillar-Textured Superhydrophobic Surfaces Fabricated Using a Ps Laser. Appl. Surf. Sci. 2022, 594, 153414. [Google Scholar] [CrossRef]
- Wang, F.; Wu, Q.; Peng, Z. Processing of Heat-Treated Steel by Arc Discharge Machining. Mater. Manuf. Process. 2020, 35, 104–112. [Google Scholar] [CrossRef]
- Aspinwall, D.K.; Soo, S.L.; Berrisford, A.E.; Walder, G. Workpiece Surface Roughness and Integrity after WEDM of Ti–6Al–4V and Inconel 718 Using Minimum Damage Generator Technology. CIRP Ann. 2008, 57, 187–190. [Google Scholar] [CrossRef]
- Peng, Z.; Feng, T.; Wei, Z.; Zhang, Y.; Li, Y. Directly Writing Patterning of Conductive Material by High Voltage Induced Weak Electric Arc Machining (HV-ΜEAM). Coatings 2019, 9, 538. [Google Scholar] [CrossRef] [Green Version]
- Guo, Z.; Liu, W. Biomimic from the Superhydrophobic Plant Leaves in Nature: Binary Structure and Unitary Structure. Plant Sci. 2007, 172, 1103–1112. [Google Scholar] [CrossRef]
- Fatoba, O.S.; Akinlabi, E.T.; Akinlabi, S.A.; Erinosho, M.F. Influence of Process Parameters on the Mechanical Properties of Laser Deposited Ti-6Al-4V Alloy. Taguchi and Response Surface Model Approach. Mater. Today Proc. 2018, 5, 19181–19190. [Google Scholar] [CrossRef]
- Lian, G.; Zhao, C.; Zhang, Y.; Feng, M.; Jiang, J. Investigation into Micro-Hardness and Wear Resistance of 316L/SiC Composite Coating in Laser Cladding. Appl. Sci. 2020, 10, 3167. [Google Scholar] [CrossRef]
- Yan, Y.Y.; Gao, N.; Barthlott, W. Mimicking Natural Superhydrophobic Surfaces and Grasping the Wetting Process: A Review on Recent Progress in Preparing Superhydrophobic Surfaces. Adv. Colloid Interface Sci. 2011, 169, 80–105. [Google Scholar] [CrossRef]
- Patel, D.; Jain, V.; Ramkumar, J. Micro Texturing on Metallic Surfaces: State of the Art. Proc. Inst. Mech. Eng. Part B J. Eng. Manuf. 2018, 232, 941–964. [Google Scholar] [CrossRef]
Chemical Composition (wt%) | |||||||
---|---|---|---|---|---|---|---|
Al | V | Fe | O | C | N | H | Ti |
6.5 | 4.3 | 0.06 | 0.08 | 0.10 | 0.01 | 0.01 | Bal. |
Number | Pulse Width/μs | Pulse Interval/μs | Peak Current/A | Gap Voltage/V | Vacant Column | Edge Width /μm |
---|---|---|---|---|---|---|
1 | 16 | 30 | 3 | 5 | 1 | 112.91 |
2 | 16 | 35 | 4 | 6 | 2 | 114.54 |
3 | 16 | 40 | 5 | 7 | 3 | 93.25 |
4 | 16 | 45 | 6 | 8 | 4 | 106.95 |
5 | 24 | 30 | 4 | 7 | 4 | 145.36 |
6 | 24 | 35 | 3 | 8 | 3 | 146.21 |
7 | 24 | 40 | 6 | 5 | 2 | 100.18 |
8 | 24 | 45 | 5 | 6 | 1 | 92.33 |
9 | 32 | 30 | 5 | 8 | 2 | 89.63 |
10 | 32 | 35 | 6 | 7 | 1 | 91.25 |
11 | 32 | 40 | 3 | 6 | 4 | 93.96 |
12 | 32 | 45 | 4 | 5 | 3 | 96.12 |
13 | 40 | 30 | 6 | 6 | 3 | 90.44 |
14 | 40 | 35 | 5 | 5 | 4 | 77.44 |
15 | 40 | 40 | 4 | 8 | 1 | 115.35 |
16 | 40 | 45 | 3 | 7 | 2 | 87.46 |
Pulse Width/μs | Pulse Interval/μs | Peak Current/A | Gap Voltage/V | Vacant Column | |
---|---|---|---|---|---|
Kji | 427.65 | 438.33 | 440.54 | 386.65 | 411.84 |
484.08 | 429.43 | 471.36 | 391.26 | 391.80 | |
370.95 | 402.74 | 352.65 | 417.32 | 426.02 | |
370.68 | 382.86 | 388.82 | 458.14 | 423.71 | |
106.91 | 109.58 | 110.13 | 96.66 | 102.96 | |
121.02 | 107.36 | 117.84 | 97.81 | 97.95 | |
92.74 | 100.68 | 88.16 | 104.33 | 106.51 | |
92.67 | 95.72 | 97.20 | 114.53 | 105.93 | |
Rj | 28.35 | 13.86 | 29.68 | 17.87 | 8.56 |
Parameter | Value |
---|---|
High voltage (V) | 2000 |
High voltage current (mA) | 0.3 |
Low voltage (V) | 30 |
Low voltage current (A) | 0.5/1.0/1.5/2.0/2.5/3.0 |
Discharge medium | Ar |
Workpiece electrode (negative electrode) | TC4 |
Tool electrode (positive electrode) | Copper (ϕd: 500 μm) |
Discharge gap (μm) | 200 |
Scanning speed (μm/s) | 15 |
