Next Article in Journal
Towards Application-Driven Task Offloading in Edge Computing Based on Deep Reinforcement Learning
Next Article in Special Issue
Micromagnetic Simulation of L10-FePt-Based Exchange-Coupled-Composite-Bit-Patterned Media with Microwave-Assisted Magnetic Recording at Ultrahigh Areal Density
Previous Article in Journal
Fabrication of Needle-Like Silicon Nanowires by Using a Nanoparticles-Assisted Bosch Process for Both High Hydrophobicity and Anti-Reflection
Previous Article in Special Issue
New Possibilities for Testing the Service Life of Magnetic Contacts


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Free Layer Thickness Dependence of the Stability in Co2(Mn0.6Fe0.4)Ge Heusler Based CPP-GMR Read Sensor for Areal Density of 1 Tb/in2

by
Pirat Khunkitti
1,*,
Apirat Siritaratiwat
1 and
Kotchakorn Pituso
2
1
KKU-Seagate Cooperation Research Laboratory, Department of Electrical Engineering, Faculty of Engineering, Khon Kaen University, Khon Kaen 40002, Thailand
2
Seagate Technology (Thailand) Ltd., Muang 10270, Thailand
*
Author to whom correspondence should be addressed.
Micromachines 2021, 12(9), 1010; https://doi.org/10.3390/mi12091010
Submission received: 9 August 2021 / Revised: 22 August 2021 / Accepted: 24 August 2021 / Published: 25 August 2021
(This article belongs to the Special Issue Magnetic and Spin Devices)

Abstract

:
Current-perpendicular-to-the-plane giant magnetoresistance (CPP-GMR) read sensors based on Heusler alloys are promising candidates for ultrahigh areal densities of magnetic data storage technology. In particular, the thickness of reader structures is one of the key factors for the development of practical CPP-GMR sensors. In this research, we studied the dependence of the free layer thickness on the stability of the Co2(Mn0.6Fe0.4)Ge Heusler-based CPP-GMR read head for an areal density of 1 Tb/in2, aiming to determine the appropriate layer thickness. The evaluations were done through simulations based on micromagnetic modelling. The reader stability indicators, including the magnetoresistance (MR) ratio, readback signal, dibit response asymmetry parameter, and power spectral density profile, were characterized and discussed. Our analysis demonstrates that the reader with a free layer thickness of 3 nm indicates the best stability performance for this particular head. A reasonably large MR ratio of 26% was obtained by the reader having this suitable layer thickness. The findings can be utilized to improve the design of the CPP-GMR reader for use in ultrahigh magnetic recording densities.

1. Introduction

As is widely claimed by several studies, current-perpendicular-to-the-plane giant magnetoresistance (CPP-GMR) devices have been promising candidates as the magnetic read sensors for ultrahigh areal densities (ADs) of magnetic data storage technology [1,2,3,4,5,6]. In the past few decades, the outstanding features of the CPP-GMR reader, i.e., large magnetoresistive (MR) outputs, extremely low resistance area (RA) product, capability of transferring large amounts of data at high speeds, and low thermal fluctuation, have been extensively proved [2,7,8,9]. The very low RA product of the CPP-GMR devices is a key factor in achieving significantly higher ADs than the tunnel magnetoresistance (TMR) junctions used in the current situation [10,11,12,13]. The CPP-GMR sensors based on ferromagnetic Heusler alloys are the most capable integrations that can provide very high performance of CPP-GMR sensors nowadays [14,15,16,17,18,19]. Therefore, several studies have attempted to improve the MR output of the CPP-GMR sensors using various Heusler alloy compositions; however, recent studies indicate that using the Co2(Mn0.6Fe0.4)Ge (CMFG) Heusler alloy as the sensing layer electrodes could provide the highest MR output [20,21,22,23].
At ultrahigh ADs in which the media bits must be rapidly downsized, the physical size of the reader needs to be reduced to prevent intertrack interference while maintaining adequate resolution [1,24,25,26]. The reader shield-to-shield spacing (SSS) is one of the structural parameters directly related to the physical dimension of the head. It also has a major impact on the down-track resolution. Therefore, reducing the SSS is a crucial point for increasing the AD. At an AD of 1 Tb/in2, the SSS was expected to be less than 25 nm [26]. In particular, the thickness of reader layers is a relative sizing parameter of the SSS. A few nanometers of layers embedded in reader structures are typically desired for the development of practical CPP-GMR read sensors, especially at higher ADs. It is well-known that the thickness of the reader layers also has an influential impact on head performance, particularly the stability of head response [14,27,28]. Thus, the suitable thickness of the head layers should be precisely designed for each one.
In this work, we studied the dependence of the free layer thickness of the CPP-GMR reader on the head’s stability performance. The CPP-GMR head based on the CMFG Heusler alloy was focused, assuming that the head was targeted for AD of 1 Tb/in2. Micromagnetic simulations were based on the finite element method using the M3 code [29]. The rest of this paper is arranged as follows: CPP-GMR modelling is shown in Section 2. Section 3 describes the analysis of read head response. The simulation results, including the related discussions, are given in Section 4. Finally, the results are concluded in Section 5.

2. CPP-GMR Modelling

As shown in Figure 1a, the sensing layers of the CPP-GMR read head targeted for AD of 1 Tb/in2 are modelled, assuming that the head is sensing the magnetic stray field, Hstray, of the medium. The reader width and stripe height of the head were set at 60 and 48 nm, respectively, since this dimension was claimed as the appropriate value for the CPP-GMR reader at an AD of 1 Tb/in2 [30]. The combination of the CMFG electrodes and AgSn/InZnO spacer was performed due to their suitability for practical CPP-GMR devices [15]. The thickness of the bottom reference layer was 5 nm, while that of the spacer was 2.1 nm. The free layer thickness, tFL, was the main variable in this study, it was varied from 1 to 10 nm. The magnetization of the free layer, Mfree, was along its easy axis (+y-axis), while the magnetization of the reference layer, Mref, was fixed along the +x-axis, assuming that it is due to the exchange bias effect of the anti-ferromagnetic layer. The Hstray produced by the medium was applied to the head on the air bearing surface (x-axis) to mimic the reading situation. The hard bias field, HB, was uniformly supplied to the reader to provide a ±30° tilted angle of the free layer magnetization while receiving the Hstray. The magnetic media was assumed to be a perpendicular medium having a 10 nm hard layer, while a bit aspect ratio of 4 was set. The medium was based on FePt since it has been widely claimed as a promising material for overcoming the thermal stability limitation at high recording capacities [31,32]. The cross-track magnetic bits are shown in Figure 1b. Their sequence was generated by the 63 pseudorandom bit sequence (PRBS) using the x6 + x5 + 1 generator polynomial [33]. The gray- and white-filled bits indicate the direction of Hstray along the +x and −x axis, respectively. It is noted that there are no writing errors or intertrack interference included in the simulations, therefore there is no transition noise. The head was assumed to be operated at 1 GHz for practical reasons.
The magnetic properties of CMFG Heusler alloy are adopted from reference [15], as follows: saturation magnetization of 10 × 105 A/m, anisotropy constant of 8 × 103 J/m3, spin polarization factor of 0.76, Gilbert damping parameter of 0.01, and exchange stiffness constant of 2.25 × 10−11 J/m. The RA product of the sensing layers was 0.11 Ωµm2. The head was biased with the bias current density of 1.96 × 106 A/cm2, where its magnitude was purposely limited in order to minimize the influence of spin torque induced instabilities from this current. A positive sign of bias current is when it flows from the reference to the free layers. The device was assumed to be operated at room temperature. The time-varying magnetization was described using the Landau–Lifshitz–Gilbert–Slonczewski (LLGS) formula, as expressed in references [34,35]. A computational cell size of 2.5 × 2.5 × 2.5 nm3 and a time step of 0.1 ps were set in the simulations.

3. Analysis of Read Head Response

It is well known that a few nanometers of thickness layers typically have an influential impact on the read head performance, especially at higher ADs. Therefore, the layer thickness of Heusler alloy films embedded in the CPP-GMR structure needs to be optimally designed to achieve the desired physical dimension of practical CPP-GMR sensors. To investigate the dependence of free layer thickness on the CPP-GMR reader’s stability performance, the output characteristics of the head, including the MR ratio, readback signal, dibit response, asymmetry parameter, and power spectral density (PSD) profile, were analyzed and discussed. The MR ratio basically represents the amplitude of the sensor’s output. The readback signal typically indicates the head response. It is obtained from the magnetization dynamic of the free layer passing through the Butterworth low-pass filter [36]. Based on the readback signal pattern, the dibit response is another important parameter indicating the nonlinear behavior and distortion occurring in the readback waveform. In this work, we performed the domain dibit extraction technique to obtain the linear dibit response as well as the nonlinearities via echoes around the main pulses [37]. In addition, an asymmetry parameter can be calculated from the difference between the positive and negative readback amplitudes, as written in Equation (1) [38].
% A s y m m e t r y = ( V p V n ) ( V p + V n ) × 100
The PSD profile demonstrates the fluctuation of the time-varying magnetization, as well as indicates the frequency spectrum of the readback signal. The local PSD is firstly calculated through the time-varying magnetization, Mx,y,z(ri,tj), where ri is the magnetization position at each varying time, tj, given in Equation (2) [39].
S x , y , z ( r i , f ) = | j M x , y , z ( r i , t j ) e i 2 π f t j | 2
Then, the total PSD was computed by a summation of the local PSD at each particular frequency, Sx,y,z(ri, f), given as Equation (3). An integrated PSD can be further obtained by an integral of the overall PSD.
S ¯ x , y , z ( f ) = i S x , y , z ( r i , f )

4. Results and Discussion

In this section, the output characteristics of the CPP-GMR read head were characterized at different tFL from 1 to 10 nm. The variation range of tFL was based on the possible scale for practical devices while taking the covering trend of results into account. The focused parameters used for indicating the head stability performance, including the MR ratio, readback signal, dibit response, asymmetry parameter, and PSD profile, were analyzed and discussed.
The MR ratio of the CPP-GMR reader versus tFL is presented in Figure 2. It shows that the MR ratio increases at thicker tFL. Above a tFL of 6 nm, a change in layer thickness has less impact on the MR ratio increment than below. An enhancement of bulk spin-dependent scattering contributed to an increase in MR ratio.
To characterize the readback response of the CPP-GMR reader, we investigated the readback signal of the reader at tFL of 1 to 10 nm. Examples of readback signal waveforms for tFL of 1, 3, 5, and 8 nm are illustrated in Figure 3. The reader with a tFL of 8 nm appears to have the highest distortion in the readback signal waveform. Meanwhile, the readback signals of the readers with tFL of 3 and 5 nm are well patterned and symmetric. However, it is generally insufficient to analyze the readback response through only an investigation of the readback waveform. We therefore characterized more insights related to the readback signal behavior, which are the dibit response, asymmetry parameter, and the PSD profile. These parameters usually correspond to the stability performance of the read sensors.
The dibit response of the readback signal was obtained though the 63-bit PRBS with the polynomial x6 + x5 + 1. The main echoes related to this response are C(2)1 and C(2)2, which are located at bits 27 and 22, respectively. These echoes typically indicate the non-linear distortion of the readback waveform due to reader asymmetry [37]. It is noted that the impacts of higher orders of echoes were dominated by these main echoes and can be neglected in the evaluations. Figure 4a demonstrates the examples of dibit extraction of the reader with tFL of 1, 3, 5, and 8 nm. Each echo is magnified in the insets. The readers having a tFL of 5 and 8 nm seem to have higher echo amplitudes than others. Further details of echoes’ amplitudes were, in addition, analyzed at all possible tFL, as shown in Figure 4b. When the tFL was increased starting from 1 nm, the amplitude of the echoes decreased until it reached its lowest scale. Then, the amplitude of echoes increased continuously when the tFL increased beyond the point providing the lowest echo amplitude. A variation of tFL appears to have a minor impact on C(2)1 and C(2)2 at a tFL above 6 nm, indicating a lesser affectation on the readback signal distortion for this specific range.
The asymmetry parameter of the readback signal obtained from the CPP-GMR reader was examined at different tFL, as shown in Figure 5. Most readers, except for those with a tFL of 6 and 7 nm, were found to contain under 10% readback signal asymmetry. The readback waveforms produced by the readers with a tFL of 4 and 9 nm are the most symmetric. From analysis of the readback signal, its dibit extraction, and its asymmetry parameter, it is obviously seen that the most suitable thickness of the free layer is 3 nm. The reader with this thickness value could provide the greatest pattern of readback signal.
In addition, the PSD profile of the head response was characterized as another stability indicator for the reader. Figure 6a illustrates the integrated PSD at various tFL, while its frequency spectrum is indicated in Figure 6b. The PSD scale was found to be continuously lowered as the tFL was reduced from 10 to 3 nm. Below tFL = 3 nm, an adjustment of the tFL causes a slight change in PSD amplitude. Then, it is worth reducing the thickness of the free layer to 3 nm. The frequency spectrum of PSD of the readers with tFL of 1, 3, 5, and 8 nm is demonstrated in Figure 6b. Corresponding to Figure 6a, the amplitude of PSD becomes smaller at greater tFL. In particular, we found that the spectral peak is shifted to higher frequencies by decreasing the tFL. This frequency shifting behavior can be described by the magnetization precession which is computed by the LLGS equation [33,34]. The LLGS formula generally consists of the precession, damping, and spin torque terms. The spectral peak theoretically occurs depending mainly on the precession and damping terms of the time-varying magnetization. As the tFL is reduced, the spin torque term in which its direction is opposing the magnetization precession becomes higher. This accordingly causes an enhancement of the force pulling the magnetization towards the opposite direction to its initial state. The resulting force therefore yields the higher oscillation of the magnetization precession. Rather than the frequency shifting, the higher PSD intensity at greater tFL indicates a stronger impact on the reader stability, as this typically implies less stable magnetization precession and may further reduce the signal-to-noise ratio of the read sensors.
In summary, as the narrower physical reader gap of the read sensors is required to reach higher ADs, reducing the thickness of the free layer is therefore another approach to achieve this requirement. A very thin free layer, on the other hand, may result in an insufficient MR ratio. Then, in order to provide effective signal processing, an adequate MR ratio must be maintained. Our analysis shows that although a thinner free layer could provide a better readback response, the MR ratio is also reduced. Based on the trade-off between all characterized parameters, we believe that the appropriate tFL of this particular CPP-GMR reader is 3 nm. At this point, a reasonable MR ratio of 26% is sufficient for practical devices. The highest stability performance of the reader with a tFL of 3 nm was also confirmed through the analysis of the readback response that it is worthwhile to reduce the tFL to 3 nm.

5. Conclusions

In this work, we investigated the dependence of the tFL on the stability performance of the CMFG Heusler-based CPP-GMR sensor targeted for an areal density of 1 Tb/in2. Simulations were done based on micromagnetic modelling. It was found that the tFL has a highly influential impact on the MR ratio at tFL below 6 nm. A consideration of the readback signal of the head, including its dibit extraction and asymmetry parameter, indicates that the reader having a tFL of 3 nm could produce a greatly patterned readback waveform. The PSD profile and its frequency spectrum are, in addition, analyzed and discussed to confirm the worthiness of setting the tFL to 3 nm. Results also showed that a reasonably large MR ratio of 26% was greatly maintained at a tFL of 3 nm. Therefore, the trade-off between all evaluated parameters suggests that this particular CPP-GMR reader with a tFL of 3 nm indicates the best stability performance. Findings can be utilized to design the CPP-GMR reader for use in ultrahigh areal densities of magnetic data storage.

Author Contributions

Conceptualization, P.K.; data curation, P.K.; methodology, P.K. and A.S.; software, P.K.; formal analysis, P.K., A.S. and K.P.; investigation, P.K.; validation, P.K.; writing—original draft, P.K.; writing—Review and editing, P.K.; visualization, A.S. and K.P.; funding acquisition, P.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by Office of the Permanent Secretary, Ministry of Higher Education, Science, Research and Innovation, Thailand (Grant No. RGNS 63-058).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Takagishi, M.; Yamada, K.; Iwasaki, H.; Fuke, H.N.; Hashimoto, S. Magnetoresistance Ratio and Resistance Area Design of CPP-MR Film for 2–5 Tb/in2 Read Sensors. IEEE Trans. Magn. 2010, 46, 2086–2089. [Google Scholar] [CrossRef]
  2. Nagasaka, K. CPP-GMR technology for magnetic read heads of future high-density recording systems. J. Magn. Magn. Mater. 2009, 321, 508–511. [Google Scholar] [CrossRef]
  3. Childress, J.R.; Fontana, R.E. Magnetic recording read head sensor technology. Comptes Rendus Phys. 2005, 6, 997–1012. [Google Scholar] [CrossRef]
  4. Nakatani, T.; Gao, Z.; Hono, K. Read sensor technology for ultrahigh density magnetic recording. MRS Bull. 2018, 43, 106–111. [Google Scholar] [CrossRef]
  5. Khunkitti, P.; Siritaratiwat, A.; Kaewrawang, A.; Mewes, T.; Mewes, C.; Kruesubthaworn, A. Electromagnetic interference-induced instability in CPP-GMR read heads. J. Magn. Magn. Mater. 2016, 412, 42–48. [Google Scholar] [CrossRef]
  6. Pipathanapoompron, T.; Stankiewicz, A.; Wang, J.; Subramanian, K.; Kaewrawang, A. Magnetic reader testing for asymmetric oscillation noise. J. Magn. Magn. Mater. 2020, 514, 167064. [Google Scholar] [CrossRef]
  7. Takagishi, M.; Koi, K.; Yoshikawa, M.; Funayama, T.; Iwasaki, H.; Sahashi, M. The applicability of CPP-GMR heads for magnetic recording. IEEE Trans. Magn. 2002, 38, 2277–2282. [Google Scholar] [CrossRef]
  8. Diao, Z.; Chapline, M.; Zheng, Y.; Kaiser, C.; Roy, A.G.; Chien, C.; Shang, C.; Ding, Y.; Yang, C.; Mauri, D.; et al. Half-metal CPP GMR sensor for magnetic recording. J. Magn. Magn. Mater. 2013, 356, 73–81. [Google Scholar] [CrossRef]
  9. Childress, J.R.; Carey, M.J.; Maat, S.; Smith, N.; Fontana, R.E.; Druist, D.; Carey, K.; Katine, J.A.; Robertson, N.; Boone, T.D.; et al. All-Metal Current-Perpendicular-to-Plane Giant Magnetoresistance Sensors for Narrow-Track Magnetic Recording. IEEE Trans. Magn. 2007, 44, 90–94. [Google Scholar] [CrossRef]
  10. Surawanitkun, C.; Kaewrawang, A.; Siritaratiwat, A.; Kruesubthaworn, A.; Sivaratana, R.; Jutong, N.; Mewes, C.K.A.; Mewes, T. Magnetic Instability in Tunneling Magnetoresistive Heads Due to Temperature Increase During Electrostatic Discharge. IEEE Trans. Device Mater. Reliab. 2012, 12, 570–575. [Google Scholar] [CrossRef]
  11. Teso, B.; Kravenkit, S.; Sorn-In, K.; Kaewrawang, A.; Kruesubthaworn, A.; Siritaratiwat, A.; Mewes, T.; Mewes, C.; Surawanitkun, C. Temperature dependence of magnetic properties on switching energy in magnetic tunnel junction devices with tilted magnetization. Appl. Surf. Sci. 2019, 472, 36–39. [Google Scholar] [CrossRef]
  12. Surawanitkun, C.; Kaewrawang, A.; Siritaratiwat, A.; Kruesubthaworn, A.; Sivaratana, R.; Jutong, N.; Mewes, C.; Mewes, T. Modeling of switching energy of magnetic tunnel junction devices with tilted magnetization. J. Magn. Magn. Mater. 2015, 381, 220–225. [Google Scholar] [CrossRef]
  13. Teso, B.; Siritaratiwat, A.; Kaewrawang, A.; Kruesubthaworn, A.; Namvong, A.; Sainon, S.; Surawanitkun, C. Switching Performance Comparison with Low Switching Energy Due to Initial Temperature Increment in CoFeB/MgO-Based Single and Double Barriers. IEEE Trans. Electron Devices 2019, 66, 4062–4067. [Google Scholar] [CrossRef]
  14. Nakatani, T.M.; Hase, N.; Goripati, H.S.; Takahashi, Y.K.; Furubayashi, T.; Hono, K. Co-Based Heusler Alloys for CPP-GMR Spin-Valves with Large Magnetoresistive Outputs. IEEE Trans. Magn. 2012, 48, 1751–1757. [Google Scholar] [CrossRef]
  15. Nakatani, T.; Li, S.; Sakuraba, Y.; Furubayashi, T.; Hono, K. Advanced CPP-GMR Spin-Valve Sensors for Narrow Reader Applications. IEEE Trans. Magn. 2017, 54, 1–11. [Google Scholar] [CrossRef]
  16. Wen, Z.; Kubota, T.; Ina, Y.; Takanashi, K. Dual-spacer nanojunctions exhibiting large current-perpendicular-to-plane giant magnetoresistance for ultrahigh density magnetic recording. Appl. Phys. Lett. 2017, 110, 102401. [Google Scholar] [CrossRef]
  17. Du, Y.; Furubayashi, T.; Sasaki, T.T.; Sakuraba, Y.; Takahashi, Y.K.; Hono, K. Large magnetoresistance in current-perpendicular-to-plane pseudo spin-valves using Co2Fe(Ga0.5Ge0.5) Heusler alloy and AgZn spacer. Appl. Phys. Lett. 2015, 107, 112405. [Google Scholar] [CrossRef]
  18. Pradines, B.; Calmels, L.; Arras, R. Robustness of the Half-Metallicity at the Interfaces in Co2MnSi -Based All-Full-Heusler-Alloy Spintronic Devices. Phys. Rev. Appl. 2021, 15, 034009. [Google Scholar] [CrossRef]
  19. Kubota, T.; Wen, Z.; Takanashi, K. Current-perpendicular-to-plane giant magnetoresistance effects using Heusler alloys. J. Magn. Magn. Mater. 2019, 492, 165667. [Google Scholar] [CrossRef]
  20. Nakatani, T.; Sasaki, T.T.; Sakuraba, Y.; Hono, K. Improved current-perpendicular-to-plane giant magnetoresistance outputs by heterogeneous Ag-In:Mn-Zn-O nanocomposite spacer layer prepared from Ag-In-Zn-O precursor. J. Appl. Phys. 2019, 126, 173904. [Google Scholar] [CrossRef]
  21. Page, M.R.; Nakatani, T.M.; Stewart, D.A.; York, B.R.; Read, J.C.; Choi, Y.-S.; Childress, J.R. Temperature-dependence of current-perpendicular-to-the-plane giant magnetoresistance spin-valves using Co2(Mn1−xFex)Ge Heusler alloys. J. Appl. Phys. 2016, 119, 153903. [Google Scholar] [CrossRef] [Green Version]
  22. Li, S.; Nakatani, T.; Masuda, K.; Sakuraba, Y.; Xu, X.; Sasaki, T.; Tajiri, H.; Miura, Y.; Furubayashi, T.; Hono, K. Enhancement of current-perpendicular-to-plane giant magnetoresistive outputs by improving B2-order in polycrystalline Co2(Mn0.6Fe0.4)Ge Heusler alloy films with the insertion of amorphous CoFeBTa underlayer. Acta Mater. 2018, 142, 49–57. [Google Scholar] [CrossRef]
  23. Nakatani, T.; Sasaki, T.T.; Li, S.; Sakuraba, Y.; Furubayashi, T.; Hono, K. The microstructural origin of the enhanced current-perpendicular-to-the-plane giant magnetoresistance by Ag/In-Zn-O/Zn spacer layer. J. Appl. Phys. 2018, 124, 223904. [Google Scholar] [CrossRef]
  24. Han, G.C.; Qiu, J.J.; Wang, L.; Yeo, W.K.; Wang, C.C. Perspectives of Read Head Technology for 10 Tb/in2 Recording. IEEE Trans. Magn. 2010, 46, 709–714. [Google Scholar] [CrossRef]
  25. Stankiewicz, A.; Pipathanapoompron, T.; Subramanian, K.; Kaewrawang, A. Reader Noise Due to Thermally Driven Asymmetric Oscillations. IEEE Trans. Magn. 2018, 54, 1–5. [Google Scholar] [CrossRef]
  26. Khunkitti, P.; Kaewrawang, A.; Siritaratiwat, A.; Mewes, T.; Mewes, C.K.A.; Kruesubthaworn, A. A novel technique to detect effects of electromagnetic interference by electrostatic discharge simulator to test parameters of tunneling magnetoresistive read heads. J. Appl. Phys. 2015, 117, 17A908. [Google Scholar] [CrossRef]
  27. Kubota, T.; Ina, Y.; Wen, Z.; Narisawa, H.; Takanashi, K. Current perpendicular-to-plane giant magnetoresistance using an L12 Ag3 Mg spacer and Co2 Fe0.4 Mn0.6 Si Heusler alloy electrodes: Spacer thickness and annealing temperature dependence. Phys. Rev. Mater. 2017, 1, 4. [Google Scholar] [CrossRef]
  28. Nakatani, T.; Narayananellore, S.K.; Kumara, L.S.R.; Tajiri, H.; Sakuraba, Y.; Hono, K. Thickness dependence of degree of B2 order of polycrystalline Co2(Mn0.6Fe0.4)Ge Heusler alloy films measured by anomalous X-ray diffraction and its impacts on current-perpendicular-to-plane giant magnetoresistance properties. Scr. Mater. 2020, 189, 63–66. [Google Scholar] [CrossRef]
  29. Mewes, T.; Mewes, C.K.A. Matlab Based Micromagnetics Code M3. 2012. Available online: http://magneticslab.ua.edu/micromagnetics-code.html/ (accessed on 11 April 2021).
  30. Khunkitti, P.; Kruesubthaworn, A.; Kaewrawang, A.; Siritaratiwat, A. Unstable Playback Response of CPP-GMR Read Head Induced by Electromagnetic Interference: Structural Dependence. IEEE Trans. Magn. 2019, 55, 1–6. [Google Scholar] [CrossRef]
  31. Tipcharoen, W.; Kaewrawang, A.; Siritaratiwat, A. Design and Micromagnetic Simulation of Fe/L10-FePt/Fe Trilayer for Exchange Coupled Composite Bit Patterned Media at Ultrahigh Areal Density. Adv. Mater. Sci. Eng. 2015, 2015, 1–5. [Google Scholar] [CrossRef] [Green Version]
  32. Pituso, K.; Kaewrawang, A.; Buatong, P.; Siritaratiwat, A.; Kruesubthaworn, A. The temperature and electromagnetic field distributions of heat-assisted magnetic recording for bit-patterned media at ultrahigh areal density. J. Appl. Phys. 2015, 117, 17C501. [Google Scholar] [CrossRef]
  33. Macwilliams, F.J.; Sloane, N.J.A. Pseudo Random Sequences and Arrays. Proc. IEEE 1976, 64, 1715–1729. [Google Scholar] [CrossRef]
  34. Slonczewski, J. Current-driven excitation of magnetic multilayers. J. Magn. Magn. Mater. 1996, 159, L1–L7. [Google Scholar] [CrossRef]
  35. Berger, L. Emission of spin waves by a magnetic multilayer traversed by a current. Phys. Rev. B 1996, 54, 9353–9358. [Google Scholar] [CrossRef] [Green Version]
  36. Kovintavewat, P.; Ozgunes, I.; Kurtas, E.; Barry, J.; McLaughlin, S. Generalized partial-response targets for perpendicular recording with jitter noise. IEEE Trans. Magn. 2002, 38, 2340–2342. [Google Scholar] [CrossRef]
  37. Eppler, W.; Ozgunes, I. Channel characterization methods using dipulse extraction. IEEE Trans. Magn. 2006, 42, 176–181. [Google Scholar] [CrossRef]
  38. Van Der Heijden, P.A.A.; Karns, D.W.; Clinton, T.W.; Heinrich, S.J.; Batra, S.; Karns, D.C.; Roscamp, T.A.; Boerner, E.D.; Eppler, W.R. The effect of media background on reading and writing in perpendicular recording. J. Appl. Phys. 2002, 91, 8372. [Google Scholar] [CrossRef]
  39. McMichael, R.; Stiles, M. Magnetic normal modes of nanoelements. J. Appl. Phys. 2005, 97, 10J901. [Google Scholar] [CrossRef]

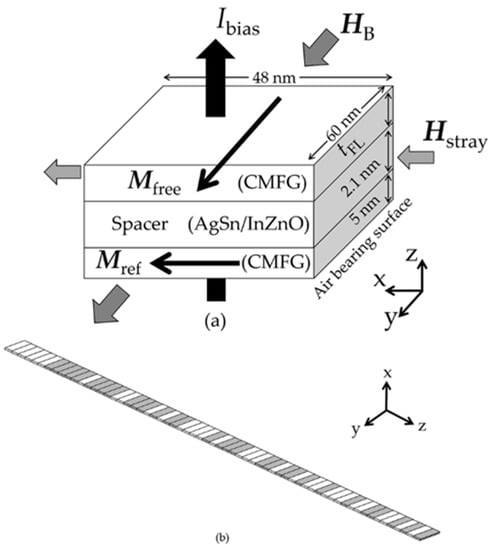

Figure 1. (a) CPP-GMR model and (b) 63 randomly generated media bits.
Figure 1. (a) CPP-GMR model and (b) 63 randomly generated media bits.
Micromachines 12 01010 g001

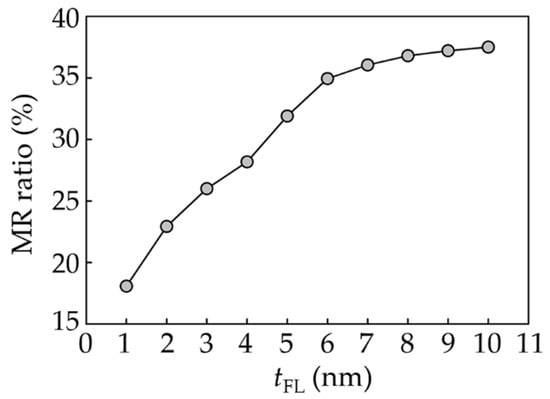

Figure 2. MR ratio of the CPP-GMR reader at various free layer thicknesses.
Figure 2. MR ratio of the CPP-GMR reader at various free layer thicknesses.
Micromachines 12 01010 g002

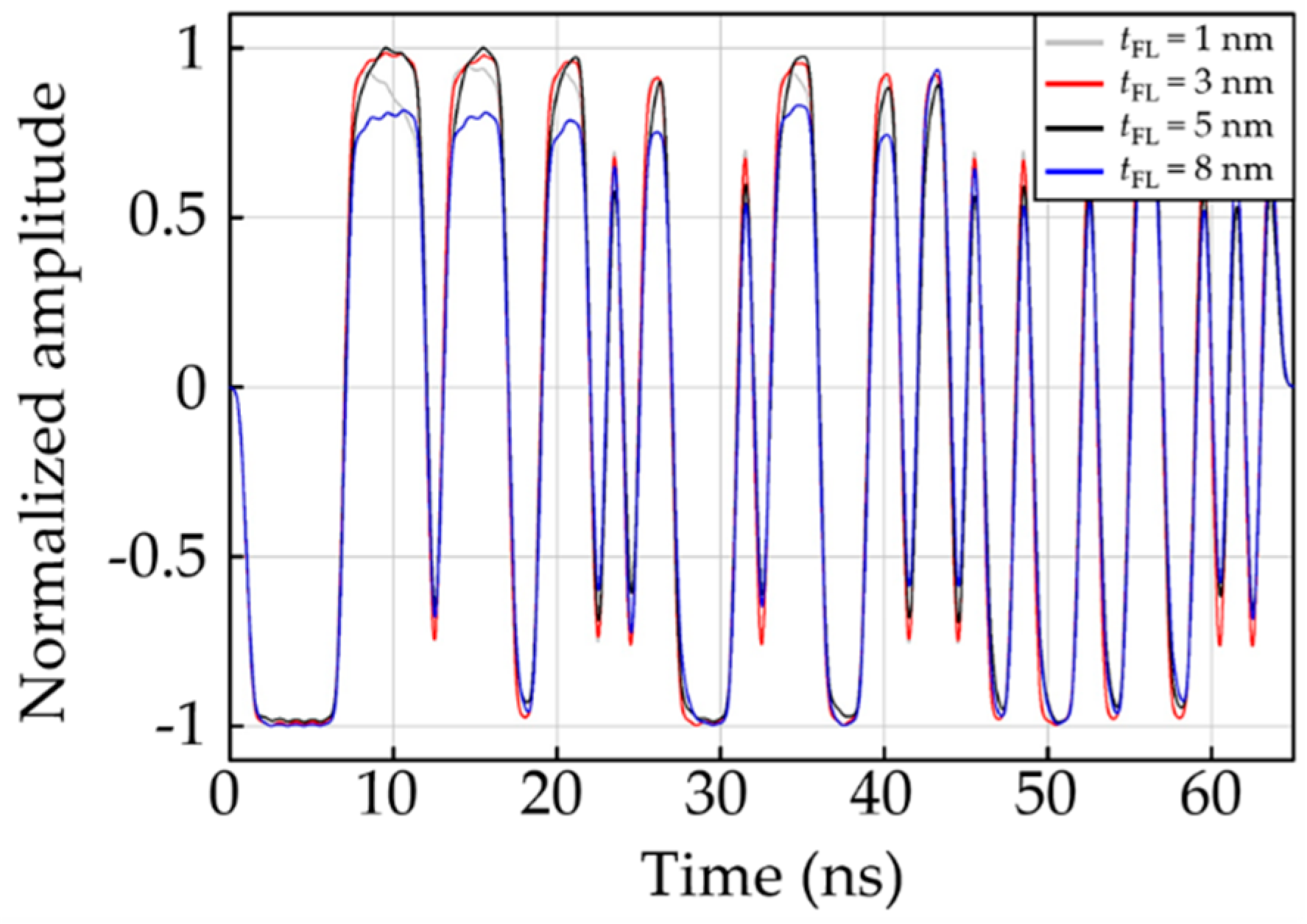

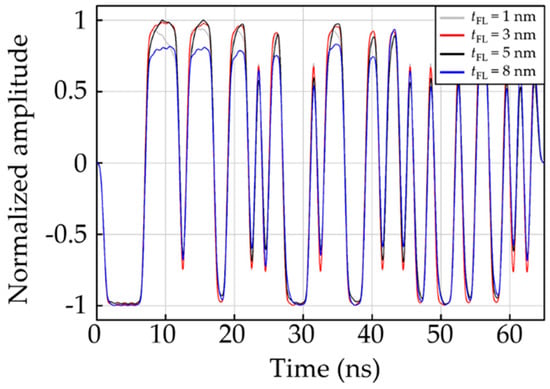

Figure 3. Examples of readback signal of the CPP-GMR reader.
Figure 3. Examples of readback signal of the CPP-GMR reader.
Micromachines 12 01010 g003

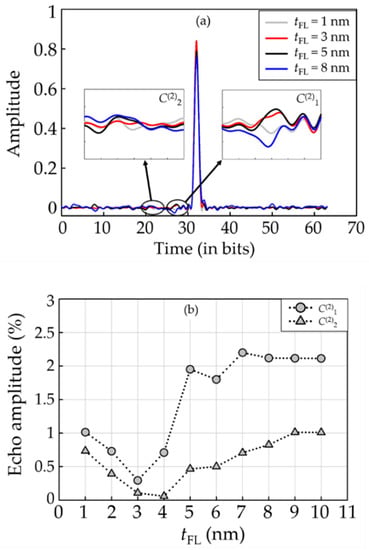

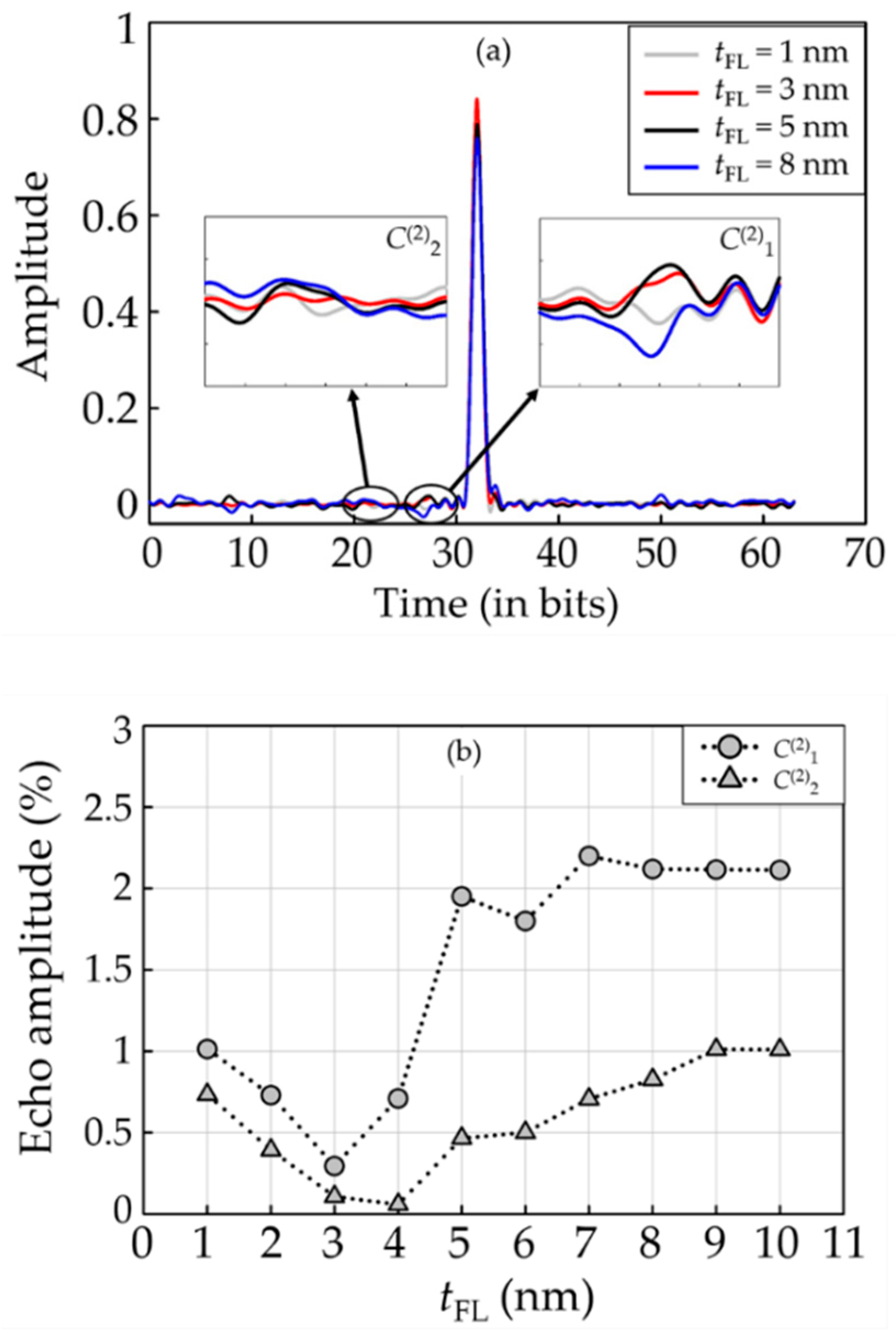

Figure 4. Dibit extraction of the CPP-GMR reader with different free layer thicknesses; (a) examples of dibit response; (b) amplitude of echoes.
Figure 4. Dibit extraction of the CPP-GMR reader with different free layer thicknesses; (a) examples of dibit response; (b) amplitude of echoes.
Micromachines 12 01010 g004

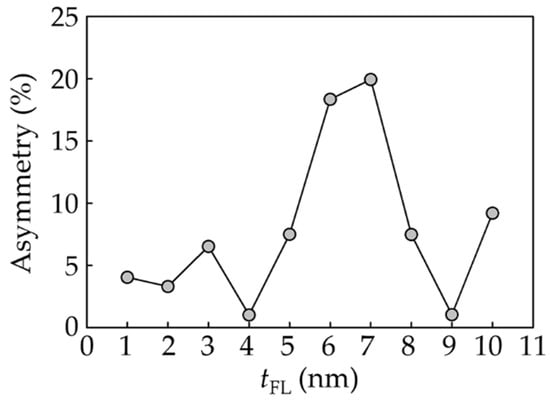

Figure 5. Asymmetry parameter obtained from the CPP-GMR reader’s response.
Figure 5. Asymmetry parameter obtained from the CPP-GMR reader’s response.
Micromachines 12 01010 g005

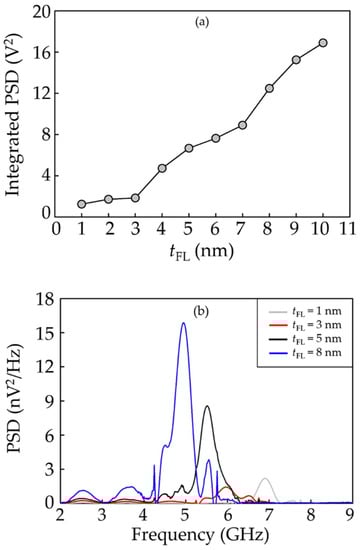

Figure 6. The PSD profile of the CPP-GMR reader at various free layer thicknesses; (a) integrated PSD; (b) frequency spectrum.
Figure 6. The PSD profile of the CPP-GMR reader at various free layer thicknesses; (a) integrated PSD; (b) frequency spectrum.
Micromachines 12 01010 g006
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Khunkitti, P.; Siritaratiwat, A.; Pituso, K. Free Layer Thickness Dependence of the Stability in Co2(Mn0.6Fe0.4)Ge Heusler Based CPP-GMR Read Sensor for Areal Density of 1 Tb/in2. Micromachines 2021, 12, 1010. https://doi.org/10.3390/mi12091010

AMA Style

Khunkitti P, Siritaratiwat A, Pituso K. Free Layer Thickness Dependence of the Stability in Co2(Mn0.6Fe0.4)Ge Heusler Based CPP-GMR Read Sensor for Areal Density of 1 Tb/in2. Micromachines. 2021; 12(9):1010. https://doi.org/10.3390/mi12091010

Chicago/Turabian Style

Khunkitti, Pirat, Apirat Siritaratiwat, and Kotchakorn Pituso. 2021. "Free Layer Thickness Dependence of the Stability in Co2(Mn0.6Fe0.4)Ge Heusler Based CPP-GMR Read Sensor for Areal Density of 1 Tb/in2" Micromachines 12, no. 9: 1010. https://doi.org/10.3390/mi12091010

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
