Article

The Effect of Diclofenac Sodium-Loaded Poly(Lactide-co-Glycolide) Rods on Bone Formation and Inflammation: A Histological and Histomorphometric Study in the Femora of Rats

by
Karoline M. Reich
1,2,
Petrus Viitanen
3,
Ehsanul Hoque Apu
4,5,
Stefan Tangl
1,2,* and
Nureddin Ashammakhi
6,7,8,9,*
1
Karl Donath Laboratory for Hard Tissue and Biomaterial Research, Division of Oral Surgery, University Clinic of Dentistry, Medical University of Vienna, 1090 Vienna, Austria
2
Austrian Cluster for Tissue Regeneration, 1200 Vienna, Austria
3
Institute of Biomaterials, Tampere University of Technology, 33101 Tampere, Finland
4
Laboratory of Developmental Biology, Faculty of Biochemistry and Molecular Medicine, University of Oulu, 90220 Oulu, Finland
5
Institute for Quantitative Health Science and Engineering, Department of Biomedical Engineering, Michigan State University, East Lansing, MI 48824, USA
6
Division of Plastic Surgery, Department of Surgery, Oulu University Hospital, 90220 Oulu, Finland
7
Center for Minimally Invasive Therapeutics (C-MIT), University of California, Los Angeles, CA 90095, USA
8
Department of Bioengineering, University of California, Los Angeles, CA 90095, USA
9
Department of Biomedical Engineering, Michigan State University, East Lansing, MI 48824, USA
*
Authors to whom correspondence should be addressed.
Micromachines 2020, 11(12), 1098; https://doi.org/10.3390/mi11121098
Submission received: 11 November 2020 / Revised: 7 December 2020 / Accepted: 10 December 2020 / Published: 12 December 2020
Browse Figures
Versions Notes

Abstract

:
Implants made of poly(lactide-co-glycolide) (PLGA) are biodegradable and frequently provoke foreign body reactions (FBR) in the host tissue. In order to modulate the inflammatory response of the host tissue, PLGA implants can be loaded with anti-inflammatory drugs. The aim of this study was to analyze the impact of PLGA 80/20 rods loaded with the diclofenac sodium (DS) on local tissue reactions in the femur of rats. Special emphasis was put on bone regeneration and the presence of multinucleated giant cells (MGCs) associated with FBR. PLGA 80/20 alone and PLGA 80/20 combined with DS was extruded into rods. PLGA rods loaded with DS (PLGA+DS) were implanted into the femora of 18 rats. Eighteen control rats received unloaded PLGA rods. The follow-up period was of 3, 6 and 12 weeks. Each group comprised of six rats. Peri-implant tissue reactions were histologically and histomorphometrically evaluated. The implantation of PLGA and PLGA+DS8 rods induced the formation of a layer of newly formed bone islands parallel to the contour of the implants. PLGA+DS rods tended to reduce the presence of multi-nucleated giant cells (MGCs) at the implant surface. Although it is known that the systemic administration of DS is associated with compromised bone healing, the local release of DS via PLGA rods did not have negative effects on bone regeneration in the femora of rats throughout 12 weeks.

Graphical Abstract

1. Introduction

Biocompatible, biostable materials such as metals have been used in traumatology and orthopedic surgery for a long time [1]. However, in certain cases, especially in pediatric surgery, the removal of such implants is required [2,3,4,5], which necessitates a second operation [6]. Therefore, biodegradable implants with good mechanical properties and biocompatibility have been developed in the last few decades [7,8,9]. The copolymers of polylactide (PLA) and polyglycolide (PGA) such as poly(lactide-co-glycolide) (PLGA), have been among the most favorable biodegradable implants because of their predictable biodegradation rate, as well as their modifiable mechanical and physicochemical properties such as stiffness, elastic modulus and viscoelastic properties [10,11,12,13]. PLGA has been utilized thus far to produce pins, rods, screws, tacks, wire, scaffolds and membranes [11,12,14,15].
In the body, PLGA is degraded via a hydrolytic scission of its ester bonds into the monomers, lactic acid (LA) and glycolic acid (GA), which are subsequently metabolized via the tricarboxylic acid (TCA) cycle to generate CO2 and H2O, and some of GA may be excreted in the urine [11,13,16,17]. However, during their degradation process, resulting particles and products lead to the stimulation of the immune system and lead to the development of local chronic inflammation [18,19,20,21].
Although acute inflammation is a natural response of the host to trauma [22] and as such an important phase in the wound and fracture healing, its extension beyond one week [21], to persist as chronic inflammation [21] is not ideal and can lead to problems such as osteolysis [20,23], fluid accumulation swelling, burst or sinus formation [18,24]. It is characterized by the infiltration of the area by inflammatory cells, namely macrophages and multinucleated giant cells, the formation of granulation tissue and later of a fibrous capsule that shuts the foreign material off from the body [18,19,20,21]. In extreme cases, surgical invention is required, adding to the risks and costs of the treatment. In general, the prevalence of foreign body reactions (FBR) to biodegradable implants ranges from 0.7% up to 7.9%, depending on the type of the polymer and its degradation rate, implantation site, fixation mode as well as patient-associated factors such as age, immune situation and chronic disease [6,19,25,26,27,28].
On this basis, approaches to immunomodulate tissue reactions to biodegradable implants are undertaken. For this purpose, multifunctional implants that locally release anti-inflammatory agents can be utilized [29]. Glucocorticoids such as dexamethasone, nonsteroidal anti-inflammatory drugs (NSAIDS), antibiotics, bone morphogenetic proteins etc. have already been used to locally control tissue reactions in the surroundings of implanted PLGA device [30,31,32,33,34,35]. Not all anti-inflammatory agents can withstand harsh conditions of implant processing methods such as high temperature, which is needed to melt the polymer. In the case of PLGA, melting temperature is 160.7 °C [36]. In addition, the selected anti-inflammatory agent should have well documented clinical safety and efficacy profile.
Although there are many such agents, it was found that among the non-cyclo-oxygenase (COX) specific inhibitor anti-inflammatory agents, diclofenac sodium (DS) is the most specific. Moreover, DS is one of the best-studied and most effective non-steroidal anti-inflammatory drugs (NSAIDs) for the clinical treatment of inflammation of various musculoskeletal conditions and injuries worldwide. DS is well-tolerated in the body. It acts by inhibiting the synthesis of prostaglandins, which are important mediators of inflammation. Since DS is characterized by a melting temperature of 296 °C [37], well above the melting temperature of PLGA, it was selected as the agent of choice to achieve immunomodulation in this study. DS loaded osteosynthesis implants have been recently developed by our team and their drug release properties have been optimized [37,38].
The aim of this study was to evaluate the potential of diclofenac sodium containing poly(lactide-co-glycolide) implants for providing an immunomodulatory response without having a negative impact on bone formation. Because the anti-inflammatory effect of DS is mediated through the inhibition of prostaglandins, which are known to play a crucial role in bone metabolism, the investigation of these implants in the bone is of significant importance.
It was thus necessary to answer two central questions that comprised the basis of this study. (1) Does the local release of DS have an effect on inflammation and FBR? (2) Since inflammation is a key prerequisite for bone healing, does the local release of DS compromise bone healing? To answer these questions, semi-automatic histomorphometry and histological analysis were used to study the effect of local DS release from PLGA rods that were implanted in the femora of rats for 3, 6 and 12 weeks.

2. Materials and Methods

2.1. Implant Material

Rod-shaped implants were prepared from a commercially available copolymer of lactide and glycolide (PLGA) 80/20 (Purasorb®, Purac Biochem B.V., Gorinchem, The Netherlands). Diclofenac sodium (DS, Sigma-Aldrich, Espoo, Finland) was compounded with the matrix polymer, and a small-scale laboratory twin-screw extruder was used to produce self-reinforced (SR) rods having a diameter of 2.0 mm and they were cut into 15-mm long implants. The fabrication method is described in greater detail elsewhere [37]. The final concentration of DS in the implants was defined to be 8% of the dry weight (8 wt.%) in the DS containing rods (SR-PLGA+DS8). DS was chosen because of its good clinical record and high melting temperature (Tm) of 296 °C [37] which allows melt processing at the required temperatures of below 200 °C. The concentration of 8 wt.% DS was chosen based on our previous studies which measured the release pattern of the PLGA (80/20) implants and where this concentration showed the best release properties [37,39].
Self-reinforced PLGA (SR-PLGA) rods having no DS were also used to serve as a control. The rods were sterilized by gamma irradiation at a minimum dose of 2.5 mrad. Packed sterile implant packages were opened in the operation room. The SR-PLGA and SR-PLGA+DS8 implants were manufactured in the Institute of Biomaterials, Tampere University of Technology, Tampere, Finland.

2.2. Surgery

Thirty-six male Sprague–Dawley rats with a mean age of 14.1 weeks (SD 3.2) and a mean weight of 378 g (SD 43) were operated on. Rats were randomly divided into two groups, 18 rats received PLGA+DS8 implants, the other 18 rats DS-free PLGA implants. Study endpoints were 3, 6 and 12 weeks, with six rats in each subgroup (Figure 1). The rats were anaesthetized by isoflurane inhalation (isoflurane 4.5% plus oxygen 1.5 lpm during induction, and isoflurane 2.5% plus oxygen 0.5 lpm for maintenance). All animals received a single dose of cefuroxime 20 mg/kg s.c. 15 min before surgery.
The right knee of the rat was shaved and cleaned with 80% alcohol. A parapatellar incision of 2 cm was made on the medial side of the knee. The patella was dislocated laterally, and the distal head of the femur was exposed. A drill hole, with a diameter of 2 mm, was made through the intercondylar space along the axis of the femur. A PLGA rod (15 mm length and 2 mm diameter) was introduced through the drill hole. The rod was tapped into the level of the articular surface of the intercondylar notch to allow free mobility of the knee joint. The wound was closed in layers with 4-0 PGA sutures (Dexon®, Davis and Geck, Gosport, UK). Analgesia was provided postoperatively using s.c. 0.3 mg/kg injections of buprenorphine (Temgesic®, Reckitt and Colman Pharmaceuticals, Inc., Richmond, England) that were administered immediately after the operations and at the first postoperative day.
Postoperatively, the animals were returned to their cages to recover from the anesthesia. Rats were given regular pelleted rat food and tap water ad libitum. After the wounds healed, rats were kept in cages in groups of 4–6 rats in an artificially illuminated room, with 12 h light/12 h darkness. The rats were euthanized after 3, 6, and 12 weeks postoperatively using carbon dioxide.
The study was approved by the Animal Research Committee of the University of Oulu, Finland, and by the Provincial Administrative Board, according to Finnish law. The guidelines of the Ethics Committee of the Oulu University Experimental Animal Centre for the care and use of experimental animals were observed.

2.3. Evaluation Methods

2.3.1. Histology

After euthanasia, the right femur was disarticulated, dissected and macroscopically checked for the correct location of the implanted rod and for the possible presence of infection.
The distal half of the femurs was cut and fixed in 4% phosphate-buffered formaldehyde. After dehydration in a series of increasing ethanol concentrations, the specimens were embedded in a light-curing resin (Technovit 7200 VCL® + BPO; Kulzer& Co., Wehrheim, Germany). Undecalcified thin ground sections were prepared according to the Cutting and Grinding Technique described by Donath [40]. The section plane was oriented in the anteroposterior direction, parallel to the longitudinal axis of the femoral shaft, thereby cutting the implanted rod lengthwise in half.
The final sections were stained with Levai Laczko dye [41], and digitized with a digital camera (DXM1200; Nikon Cooperation, Tokyo, Japan) mounted on a Microphot FXA microscope (Nikon Cooperation) at a resolution of 452 pixel/mm (1 pixel equals 2.21653 µm). Single images were assembled to create large overview pictures (Lucia G 4.71, Laboratory Imaging Ltd., Praha, Czech Republic).
In five samples the section plane did not run exactly in the mid-sagittal plane through the center of the rod. Therefore, additional thin ground sections from the second half of the embedded specimen blocks were prepared. These five new sections were scanned using an Olympus BX61VS digital virtual microscopy system (DotSlide 2.4; Olympus, Japan, Tokyo) with a 20× objective resulting in a resolution of 3125 pixel/mm (1 pixel equals 0.32 μm). The resulting differences in the scanning resolutions were taken into account in all further calculations.
A qualitative histological evaluation focusing on bone regeneration, foreign body reaction at the bone-implant interface and the degradation of the implanted rods was performed. Due to the distinct affinity of different tissue types to the staining solution, old and new bone, cartilage, soft/fibrous tissue and PLGA can reliably be distinguished.

2.3.2. Histomorphometry

For histomorphometric analysis, the digitized sections were further processed with Adobe Photoshop® (CS5, Adobe, San Jose, CA, USA). Originally, two regions of interest (ROIs) were set alongside the anterior and posterior bone-implant interface (Figure 2a). Therefore, a rectangular field with the predefined width of 332.5 µm was positioned in the longitudinal direction of the femoral shaft, adjacent to the outer anterior and posterior surface of the PLGA rod, respectively. The length of the rectangles differed depending on the actual position of the PLGA implant within each individual femur. Distally, the ROI was bounded by the cartilaginous epiphysis of the distal femur. Proximally, the endpoint of the ROI was determined as the point where no newly formed peri-implant bone layer was interspersed between the implant and the old compact bone of the femoral shaft. Proximal to this point, the implant is enclosed by the cortex of the diaphysis only. In other words, the transition of the medullary space into the cortex of the diaphysis within the 332.5 µm high rectangle represented the proximal boundary of the ROI (Figure 2a). Based on this definition, the anterior ROI was easily standardizable. However, the posterior region was too irregular and inconsistent to allow for the accurate, commensurable histomorphometric measurement. To avoid bias, only the anterior ROI was measured (and hereinafter referred to as ROI).
The morphometric software Definiens Developer®/Definiens Developer XD® (6.0.3/2.7, Definiens AG, Munich, Germany) was used to automatically segment and classify the different tissue types within the ROI. Therefore, an algorithm was developed considering the shape and color of all segments as well as the relationship to other neighboring segments. In this way, old and newly formed bone, cartilage, soft/fibrous tissue, PLGA rod and background could be identified. (Details regarding the segmentation algorithm are provided in the Supplementary material.) Falsely classified areas were manually corrected under microscopic control using Adobe Photoshop software (Adobe, San Jose, CA, USA). The investigator who performed the histomorphometric analysis was blinded to the type of implant animals received.
In order to quantify the possible immunomodulatory effect of DS containing PLGA rods on inflammatory tissue reactions and bone regeneration, the following histomorphometric parameters were calculated using Definiens Developer® (Definiens AG, Munich, Germany) and Adobe Photoshop software (Adobe, San Jose, CA, USA).
New bone volume per tissue volume (nBV/TV)
New bone volume fraction (nBV/TV) was defined as the percentage of the newly formed bone volume within the ROI, i.e., within the total tissue volume (TV) comprising new bone, old bone, cartilage and soft/fibrous tissue. nBV/TV was assessed using Definiens Developer 6.0.3®/Definiens Developer XD 2.7® (Definiens AG, Munich, Germany) (Figure 2b).
Peri-implant bone capsule (piBC)
While nBV/TV is a parameter that quantifies the volume of newly formed bone within a given ROI, it provides no information about the distribution of the new bone within the region. Based on the histological examination, the newly formed bone was found to form a layer of bone islands parallel to the contour of the PLGA rods. This peri-implant bone capsule surrounded the implants like a fenestrated envelope. This observation recalls a well-established standard parameter used in implant histomorphometry, i.e., the bone-to-implant contact (BIC). In contrast to BIC, which assesses the percentage of the implant surface that is in direct contact with newly formed bone, the observed present peri-implant bone capsule mostly runs parallel to the rod surface and is only sporadically in direct contact with it.
In order to quantify this phenomenon, a new parameter termed peri-implant bone capsule (piBC) was defined as the percentage of the rod surface that is surrounded by newly formed bone. This measurement was performed using Adobe Photoshop software (Adobe, San Jose, CA, USA). Within the ROI, a continuous line was drawn to mark the newly formed bone of this “capsule”, and interspersing soft tissue in two different colors. The fraction of the length of the “new bone lines” in relation to the total length of all line segments (“new bone lines” plus “interspersing soft tissue lines”) was calculated (Figure 2c).
Peri-implant multinucleated giant cells (piMGCs)
Multinucleated giant cells (MGCs) are a part of the chronic foreign body reaction that frequently occurs after the implantation of biomaterials. They derive from fusing macrophages and are considered as indicators of pathological chronic inflammation [42].
In order to gather quantitative information about the inflammatory processes at the implant-to-tissue interface, the presence of MGC was assessed. Using Adobe Photoshop (Adobe, San Jose, CA, USA), the ROI was overlaid with a point counting grid, a standard instrument of histomorphometry [43,44,45]. Grid nodes had a distance of 30 µm from each other. The size of MGCs was reported to vary greatly between 40 and 200 µm [46].
At each grid node, a dot was drawn either in green, where MGCs were underlying or in yellow where no MGCs were underlying. To determine the percentage of the implant surface that is surrounded by MGCs, the number of MGC-dots was divided by the total number of all dots (“MGCs dots” plus “no-MGCs dots”) and multiplied by 100 (Figure 2d).
Implant diameter (I.Dm)
PLGA degrades via a hydrolytic process over time. In addition, MGCs were reported to participate in PLGA engulfment and elimination [21,26]. To assess the dimensions of the PLGA rod in the treatment groups after 3, 6 and 12 weeks, the diameter of the implant was measured manually using the measuring tool in Adobe Photoshop (Adobe, San Jose, CA, USA). PLGA rod diameter was measured at 5 predefined, evenly distributed sites over the length of the rods and averaged per individual. (Figure 2a)

2.4. Statistics

Descriptive statistics (Mean, SD, minimum, median, maximum) are performed. Scatterplots are shown for all variables, including mean and a 95% confidence interval for the mean based on the bootstrap. For inference on all variables, we used generalized linear models with gaussian error distributions and a logarithmic link, including Treatment and Week as well as their interaction as independent variables. ANOVA-type tests by means of likelihood ratio tests for the main and the interaction effect were calculated, post-hoc tests were corrected for multiple testing using the single-step method as described by Hothorn et al. [47]. All computations were done using R version 3.6.1 [48].

3. Results

3.1. Macroscopic Results

Both the PLGA and PLGA+DS8 implant types were similar to handle, and no breaking or bending of any implant occurred. All wounds healed uneventfully, and all rats reached the planned follow-up period. When harvesting the specimens, the anatomical structure of the operated knees seemed normal. There were no microscopic or macroscopic signs of complications such as erythema, swelling, infection etc., neither during the healing period (3/6/12 weeks), nor at the end of the study.

3.2. Histological Findings

3.2.1. PLGA and PLGA+DS Implants

All PLGA and PLGA+DS8 implants were located in the correct position in the femoral shaft of all rats as they were placed originally and preserved their structural integrity in all animals. There was no apparent visible reduction in the size or shape of biodegradable implants during the treatment period of 12 weeks. Evidence of degradation was limited to slight surface alterations appearing ridged and in some cases slightly fringed. In some specimens, tiny superficial parts of the PLGA/PLGA+DS8 material appeared to have become detached or scaled off, and cells or bone filled/infiltrated the resulting interspaces in the biomaterial. In general, the degradation of rods was minimal at 3, 6 and 12 weeks postoperatively. Fissures in the rods tended to be slightly more frequently seen at 12 weeks of implantation. The surface condition of the rods seemed not to be related to the presence of DS in the implant.
In several samples, numerous cracks in the embedded implants and occasionally also at the implant-to-tissue intersection were visible. These cracks most probably originate from strain in the PLGA/PLGA+DS8 rods occurring during the specimen preparation process and did not impede the histomorphometric evaluation of the samples.

3.2.2. New Bone Formation

In all samples, a layer of new bone was formed in close vicinity to the PLGA implants lining the implant surface like a fenestrated capsule, in the medullary space (Figure 3). The distance between these newly formed “bone islands” and the implant was on average 5–50 µm. Only sporadically, bone islands were in direct contact with the rods. The thickness of these bone trabeculae tended to increase over time from 25 µm at 3 weeks up to 90 µm at 12 weeks postoperatively. Similarly, the length of the largest bone islands increased with time from 50–700 µm in the 3 weeks group up to 2.5 mm in the 12-week groups. However, large and small bone islands co-existed in all groups and the size of the gaps in-between the bone islands varied greatly. This might be indicative of a three-dimensional “net-like envelope”.
Mineralized cartilage embedded into newly formed woven bone was found in the vicinity of the epiphyses. In the 3-week groups, the peri-implant bone capsule was comprised predominantly of woven bone. Particularly in the 6- and 12-week groups, a compaction of woven bone resulting in plexiform bone and remodeling into lamellar bone was observed.

3.2.3. Cells at the Implant Surface

The surface of the PLGA rods was frequently lined by varying numbers of large MGCs. These cells being regarded as an indicator of foreign body reaction, were present in all samples of both types of treatment (PLGA with or without DS) at 3, 6 and 12 weeks. The number of the MGC nuclei countable in the two-dimensional section ranged from at least 6 up to 150 being heterogeneously distributed over the cytoplasm. The total size of MGCs ranged from approximately 30 up to 450 µm. Large MGCs seemed to be slightly more common in rats with longer treatment duration. The shape of the MGCs varied considerably ranging from elongated, flat, to oval-shaped and irregular-shaped with spiky, irregular pseudopodia. Furthermore, the staining intensity of the cytoplasm and of the nuclei was very different among the MGCs. Very light blue MGCs were mixed with dark blue MGCs of various sizes and shapes in individual samples (Figure 4a–h).
MGCs were located in direct contact with the surface of the PLGA rods. Frequently, they were found in pits of the rod surface, resembling resorption lacunae of the bone, or in fissures of the implant most probably resulting from PLGA degradation (Figure 4e–g).
Large MGCs were less commonly seen in PLGA+DS8 groups than in plain PLGA groups, irrespective of the duration of treatment. No significant differences concerning shape or staining behavior could be detected between the PLGA and PLGA+DS8 groups.

3.2.4. Inflammation

Apart from MGCs, there were no other signs of chronic inflammation in terms of a foreign body reaction to the PLGA or PLGA+DS8 implants. No evidence of tissue swelling, sinus formation, or osteolysis was found in any of the samples in either group. Whether the presence of an osseous capsule should be regarded as a type of FBR is controversially discussed [18,19,20,21,49].

3.3. Histomorphometry

3.3.1. New Bone Volume per Tissue Volume (nBV/TV)

After a healing period of 3 weeks, 17.7% (SD 5.4) of the region of interest was occupied by newly formed bone in the SR-PLGA group and 19.7% (SD 5.0) in the PLGA+DS8 group. After 6 weeks, BV/TV was 18.4% (SD 3.1) and 19.6% (SD 2.6) in the SR-PLGA group and the PLGA+DS8 group, respectively. After 12 weeks, the amount of BV/TV was higher, with 20.3% (SD 4.6) in the PLGA group and 22.7% (SD 3.8) in the PLGA+DS8 group (Figure 5).
There was a slight increase of nBV/TV over time, in both PLGA and the PLGA+DS8 groups. However, the time-dependent changes were not statistically different for the PLGA group and the PLGA+DS8 group (p = 0.196). There was no statistically significant difference in nBV/TV between the PLGA and the PLGA+DS8 groups at any time point (p = 0.167).

3.3.2. Peri-Implant Bone Capsule (piBC)

While nBV/TV quantifies the total volume of newly formed bone within the ROI, piBC measures the percentage of the rod surface that is surrounded by newly formed bone.
After a healing period of 3 weeks, piBC was 69.3% (SD 8.7) in the PLGA group and 65.1% (SD 8.8) in the PLGA+DS8 group. After 6 weeks, 83.9% (SD 3.3) of the implant surface was lined by newly formed bone in the PLGA group, but only 72.8% (SD 9.1) in the PLGA+DS8 group. After 12 weeks, piBC was 84.6% (SD 7.2) and 82.9% (SD 9.5) in the PLGA and the PLGA+DS8 group, respectively. (Figure 6)
In both the PLGA and the PLGA+DS8 groups, piBC significantly increased over time (p < 0.001). A more detailed comparison of the differences between the time points analyzed is listed in Table 1. In addition, there was a significant difference in piBC between the PLGA and the PLGA+DS8 groups (p = 0.03); however, post hoc tests revealed that no significant difference exists in concrete comparisons.

3.3.3. Peri-Implant Multinucleated Giant Cells (piMGCs)

In one specimen (of the PLGA+DS8 6 weeks group), the implant-to bone interface was difficult to assess due to massive cracks in the PLGA rod resulting in dark shadows in this region. Therefore, this specimen had to be excluded from the MGCs evaluation.

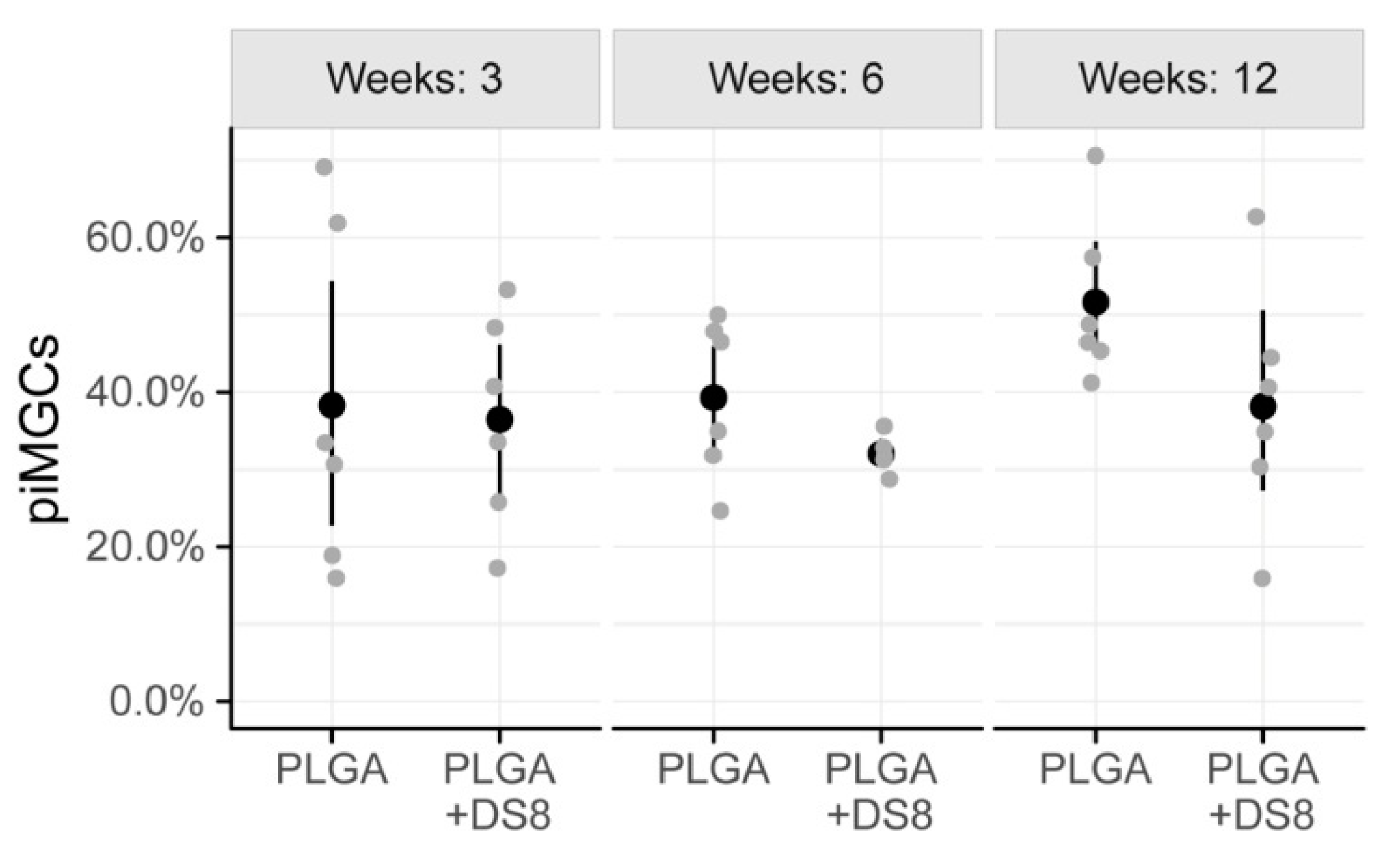

The percentage of the implant surface that was surrounded by MGCs showed high variation. After 3 weeks, 38.3% (SD 22.2) and 36.5% (SD 13.7) of the implant surface was covered by MGCs in the PLGA and PLGA+DS group, respectively. After 6 weeks, piMGCs was 39.3% (SD 10.3) in the PLGA group and 32.0% (SD 2.5) in the PLGA+DS8 group. After 12 weeks, piMGCS was 51.6% (SD 10.7) in PLGA and 38.2% (SD 15.6) in the PLGA+DS8 group (Figure 7).
In the PLGA groups, piMGCs tended to increase over time from 38.3% to 51.6%, whereas it remained rather constant around 38% in the PLGA+DS8 groups. However, this time-dependent change was not statistically significant (p = 0.212), probably due to the high variation and the low number of specimens. Likewise, the differences between the groups were not statistically significant at any time point (p = 0.097).

3.3.4. Implant Diameter (I.DM)

The mean diameter of the PLGA rods -being a measure for structural integrity or degradation- ranged from 1.89 mm to 1.97 mm. In detail, after 3 weeks I.DM was 1.90 mm (SD 0.07) in the PLGA group and 1.93 mm (SD 0.03) in the PLGA+DS8 group. After 6 weeks, I.DM was 1.93 mm (SD 0.08) and 1.96 mm (SD 0.02), and after 12 weeks, 1.92 mm (SD 0.08) and 1.89 mm (SD 0.10) in the PLGA and the PLGA+DS8 group, respectively (Figure 8).
There was no significant difference between the PLGA and the PLGA+DS8 groups at any time point (p = 0.657). No significant time-dependent change of I.DM was found either (p = 0.323). Accordingly, the degradation of the SR-PLGA implants was comparatively low in all groups independent of type and time of treatment.

4. Discussion

Inflammation is a naturally occurring response to injury [50,51,52]. The idea to modulate the immune reaction in the host bone in order to influence inflammation and bone regeneration is based on the close interplay of the immune system and bone metabolism. While the short initial acute inflammatory response is critical for bone healing and regeneration, a prolonged, unregulated chronic inflammation is detrimental and has destructive effects on bone tissue. Such chronic inflammation occurs as a reaction to implanted foreign materials [52]. The exogenous modulation of the natural immune response is intended to reduce the risk of chronic inflammation without interfering with the initial, critical acute inflammation phase of wound healing [52,53,54,55].
The aim of the present study was to evaluate the impact of DS containing poly(lactic-co-glycolide) implants on local tissue reactions in the femur of rats. The local application of the anti-inflammatory agent DS is an attempt to reduce excessive inflammation and thus, the risk of an FBR directly at the implantation site. Concurrently, the anti-inflammatory agent must not interfere with the critical initial acute inflammation phase ensuing (bone) injury in order to avoid negative effects on bone healing. Therefore, special emphasis was put on the impact of local DS releasing implants on bone regeneration.
In fact, we found MGCs characteristic for a foreign body reaction at the surface of the implanted PLGA rods of all groups. In rats treated with PLGA implants having no DS, FBR in terms of MGCs tended to increase over time, whereas in the groups treated with PLGA+DS, implants, piMGCs remained rather constant over the healing period of 12 weeks, which is indicative of an anti-inflammatory effect of DS on the tissues at the implant interface. However, the power of the statistical analysis is limited due to the small size of the experimental groups and failed to demonstrate statistical significance.
In fact, the role of MGCs present in the implantation bed of biomaterials is a controversially discussed issue in literature [56]. Although foreign body MGCs are traditionally associated with destructive inflammatory processes such as chronic inflammation, osteolysis, and disrupted bone healing, they do not necessarily have a negative effect on the healing process of the bone [57]. In contrast, these inflammatory cells appear to be critical for the degradation process of biomaterials via phagocytosis [26,58,59]. It is speculated that different subtypes of MGCs might drive the reaction to biomaterials into a rather short, inflammatory direction or in a more persistent way towards classical FBR and encapsulation [42]. There is increasing evidence that MGCs with an “M2-macrophage” phenotype are capable to promote angiogenesis and wound healing [60]. However, very fast degradation of some materials as well as the presence of a very high number of MGCs during the early phase of healing, are assumed to be detrimental and lead to fibrous encapsulation [61].
The present finding that MGCs are reduced by the presence of DS releasing PLGA rods in rat femora is in line with other studies showing suppression of inflammation through the application of DS loaded polymers. An in vitro study of Sidney et al. demonstrated that the local release of DS from PLGA scaffolds reduces cytokine-induced production of PGE2 in an osteoblast inflammation model [62]. Kim et al. investigated sutures incorporating PLGA nanoparticles, which were loaded with DS and decorated with polyethylene glycol and macrophage-targeting ligand mannose. It was shown that inflammation in macrophage culture and in an excisional wound healing model in the rat was significantly reduced compared to no-DS groups: In vitro, prostaglandin E2 synthesis was decreased when macrophages were treated with the sutures for 6 h. This effect was confirmed in vivo by showing less inflammation of the sutured tissues.
While the concept of loading polymers with DS is promising in reducing inflammation and thus, reducing the risk of foreign body reactions, the effect of DS on bone regeneration is disputed [63,64]. It is known that bone injury increases the local concentration of prostaglandins E and F [65]. DS being a non-selective COX inhibitor, however, inhibits the synthesis of prostaglandins, which may have negative affect osteoblasts and osteoclasts [66]. NSAIDs were demonstrated to reduce the proliferation, differentiation, adhesion and migration of osteoblasts and osteoclasts, matrix maturation and bone mineralization [67,68,69,70]. Particularly in the very early stage of bone healing, diclofenac decreases the number of osteoblasts at the bone defect site and bone mineral density [68].
Yet, there is evidence that the negative effect on bone regeneration might be dose-dependent and even reversible [71,72]. When NSAIDs are applied systemically, the excessive suppression of inflammation via DS is associated with delayed fracture healing and an increased risk of non-union after long-bone fractures [73,74,75]. The local administration of anti-inflammatory agents might circumvent side-effects that occur due to a systemically administered higher dosage since a lower dose of the drug is needed to achieve the desired effect at the target tissue, i.e., the site of injury [76].
Accordingly, the second focus of this study was laid on the regenerative capacity of bone when DS is released locally. In the medullary cavity of all rats’ femora, the implantation of PLGA and PLGA+DS8 rods induced the formation of a layer of newly formed bone islands parallel to the contour of the implants. This peri-implant bone capsule surrounded the implants and increased over the treatment period of 12 weeks. DS released by the PLGA rods seemed not to have a negative impact on the bone regeneration. These findings suggest that the local release of DS by biodegradable PLGA implants might be capable to reduce inflammatory reactions associated with the increased presence of MGCs without affecting bone regeneration in the femora of rats.
A critical aspect in this context is the temporal pattern of drug release which is related to the rate of hydrolytic/enzymatic degradation of the polymer. Simon and O’Connor reported time-dependent effects of NSAID in a fracture model in the rat [77]. While the administration prior to fracture or two weeks later, did not affect fracture healing negatively, NSAID administration in the initial inflammatory phase was associated with reduced callus strength and increased incidence of non-union [77]. This effect, however, seems to be reversible as demonstrated by a study in rats given a COX-2 selective inhibitor for 21 days after femoral fracture. Two weeks after drug administration was stopped the rate of non-unions dropped to a level similar to that seen in the control group [78].
The 80/20 PLGA rods used in this study showed only very slight evidence of degradation: Twelve weeks after implantation, the structural integrity of the implanted PLGA rods was maintained. The diameter of the rods did not decrease significantly within the treatment period. Microscopic pits and fissures as well as a ridged, slightly fringed surface of rods were observed in most specimens. The low degradation was expected since a ratio between PLA and PGA was 80:20. The degradation rate of PLGA implants can be controlled by varying the ratio between the glycolic and lactic acid components [79]. Glycolic acid is more hydrophilic than lactic acid which leads to more rapid water uptake and thus to faster hydrolytic degradation compared to the more hydrophobic lactic acid. Accordingly, PLGA devices rich in glycolide degrade faster than lactide rich PLGAs [11,12,79].
PLGA 80:20 miniscrews, for example, are reported to take over 18 months to degrade in the cranial bone of rabbits [80]. In the patient, 85:15 PLGA osteosyntheses implants were described to degrade within 12 months [28,81].
From a clinical point of view, polymeric implants are supposed to provide stability at the beginning and to allow gradual load transmission to healing bone while they degrade [10]. Therefore, slow degradation of polymeric implants is highly beneficial in many orthopaedic settings. The addition of DS to the PLGA production had no influence on the degradation properties of the implants.
The release of drugs from polymers is a very complex and dynamic process. Besides hydrolysis and degradation of polymers, the anatomical implant site and its microenvironment (including local pH, diffusion, osmotic pumping) are also decisive [82,83]. Unfortunately, the experimental setting of this study does not allow drawing final conclusions about the influence of polymer degradation on drug release nor identifying other factors that may affect drug release.
A limitation of this study is the small group size which results in a relatively low statistical power. Our data suggest that DS containing PLGA implants tend to reduce inflammation in terms of MGCs in their immediate proximity without impairing new bone formation. However, these results have to be taken with caution and need to be validated in a larger sample. Another drawback of this study is that the histological thin-ground technique applied here does not allow immunohistochemical characterization of cells. The histological technique used in this study is a well-established method to produce un-decalcified thin ground sections [40]. One apparent advantage over paraffin histology is that the tissue samples are not demineralized before embedding. The samples are embedded into a light-curing resin which hardens and allows being cut and ground without altering the appearance of tissues: There is no shrinkage, distortion or deformation during the production of the histological thin ground sections as it is known from paraffin sections where the implant is also often ripped out by the microtome knife. This is particularly important when quantifying tissues with histomorphometric means. We chose the non-decalcifying technique because we wanted to identify and accurately measure the effect on bone healing in the first place. Further research is needed to characterize the cells at the implant-tissue interface by means of immunohistochemistry.
In future studies, a prolonged observation period and implants with different DS release patterns would increase our understanding of the therapeutic effect of DS containing SR-PLGA implants. Many studies analyzing the degradation of polymeric implants and associated tissue regeneration focus on the histomorphometric quantification of tissues involved in the healing process. The present study complements the information gained by using histomorphometry, by having a detailed histological description of the host tissues: In the long term, FBR is commonly described to result in the infiltration of fibroblasts and the formation of granulation tissue that results in the formation of a fibrous capsule around the implant [21,22]. In this way, the implanted biomaterials become separated from the surrounding tissues [21,22]. Carnicer-Lombarte et al. (2019) reported that a mismatch between the mechanical properties of an implant and of the host tissue is a driving force for FBR and fibrotic capsulation of biomaterials. When stiff implants are coated with a thin layer of hydrogel or silicone the elastic modulus of the implant surface can be reduced to a tissue-like level. This, in turn results in decreased fibrosis and inflammation in the host tissue [84].
In the current study, we did not find a fibrous tissue encapsulation, but a layer of newly formed “bone islands” that lined the surface of the implant like a fenestrated osseous capsule. Since the bone islands were only very sporadically in direct contact with the biomaterial, new bone formation might not be interpreted as a process of “osseointegration” comparable to the osseointegration of endosseous implants. Bosshardt et al. (2011) reported that the bone debris originating from the preparation of an implant site through drilling contributes to the induction of bone formation at the surface and in the vicinity of implants [85]. It appears that the local bone trauma produced by the surgery might have triggered wound healing and bone regeneration not only in the injured intercondylar region where the drill hole was produced but also in the proximal direction, in the marrow cavity. Along with the individual immune situation and response, biomechanical factors might also determine whether a fibrous tissue encapsulation or an osseous covering will form [86]. It remains to be elucidated if and to what extent the viscoelastic properties of the implants may lead the way to either fibrous or osseous encapsulation.
As a part of FBR, numerous MGC of various sizes and shapes were identified on the surface of the implant. In contrast to newly formed bone islands, MGCs were in direct contact with the PLGA surface. Frequently, they were found in pits of the implant surface, resembling resorption lacunae of the bone. The characterization of MGCs in the rat bone, including their distribution, frequency and size provides interesting insight into tissue reactions to PLGA implantation in the rat. As demonstrated by other researchers, FBR to biodegradable biomaterials may differ significantly between different species and even between different strains of the same species [87,88,89]. Therefore, detailed characterization of FBR provides the basis for the choice of animal model and the interpretation of tissue reactions which all together contribute to a better understanding of inflammatory processes at the tissue level.

5. Conclusions

This study analysed the impact of local DS releasing PLGA rods on bone regeneration and inflammation in the direct vicinity of implanted rods. The implantation of PLGA and PLGA+DS8 rods induced the formation of a layer of newly formed bone islands parallel to the contour of the implants. PLGA+DS8 rods tended to reduce the presence of multi-nucleated giant cells (MGCs) associated with FBR at the implant surface. Although the systemic administration of DS is known to be associated with compromised bone healing, the local release of DS via PLGA rods did not have negative effects on bone regeneration in the femora of rats throughout the study that extended for 12 weeks. Future studies with a longer follow-up period are; however, needed to draw conclusions about the long-term impact on inflammation and bone healing when the degradation of the implants proceeds.

Supplementary Materials

Available online at https://www.mdpi.com/2072-666X/11/12/1098/s1.

Author Contributions

Conceptualization, N.A.; data curation, K.M.R. and E.H.A.; investigation, K.M.R., P.V. and E.H.A.; methodology, K.M.R. and S.T.; project administration, P.V. and S.T.; resources, P.V., S.T. and N.A.; supervision, S.T. and N.A.; validation, S.T.; visualization, K.M.R.; writing—original draft, K.M.R.; writing—review and editing, K.M.R., P.V., E.H.A., S.T. and N.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

Thanks are due to Seppo Korkiakoski and Satu Länsman for helping with the operation on rats at Oulu University, Oulu, Finland.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Navarro, M.; Michiardi, A.; Castaño, O.; Planell, J.A. Biomaterials in orthopaedics. J. R. Soc. Interface 2008, 5, 1137–1158. [Google Scholar] [CrossRef] [Green Version]
  2. Jago, R.D.; Hindley, C.J. The removal of metalwork in children. Injury 1998, 29, 439–441. [Google Scholar] [CrossRef]
  3. Peterson, H.A. Metallic Implant Removal in Children. J. Pediatric Orthop. 2005, 25, 107–115. [Google Scholar]
  4. Loder, R.T.; Feinberg, J.R. Orthopaedic Implants in Children: Survey Results Regarding Routine Removal by the Pediatric and Nonpediatric Specialists. J. Pediatric Orthop. 2006, 26, 510–519. [Google Scholar] [CrossRef] [PubMed]
  5. Grün, N.G.; Holweg, P.; Tangl, S.; Eichler, J.; Berger, L.; van den Beucken, J.J.J.P.; Löffler, J.F.; Klestil, T.; Weinberg, A.M. Comparison of a resorbable magnesium implant in small and large growing-animal models. Acta Biomater. 2018, 78, 378–386. [Google Scholar] [CrossRef] [PubMed]
  6. Eppley, B.L.; Morales, L.; Wood, R.; Pensler, J.; Goldstein, J.; Havlik, R.J.; Habal, M.; Losken, A.; Williams, J.K.; Burstein, F.; et al. Resorbable PLLA-PGA plate and screw fixation in pediatric craniofacial surgery: Clinical experience in 1883 patients. Plast. Reconstr. Surg. 2004, 114, 850–856, discussion 857. [Google Scholar] [CrossRef]
  7. Ashammakhi, N.; Peltoniemi, H.; Waris, E.; Suuronen, R.; Serlo, W.; Kellomäki, M.; Törmälä, P.; Waris, T. Developments in craniomaxillofacial surgery: Use of self-reinforced bioabsorbable osteofixation devices. Plast. Reconstr. Surg. 2001, 108, 167–180. [Google Scholar] [CrossRef]
  8. Ashammakhi, N.; Renier, D.; Arnaud, E.; Marchac, D.; Ninkovic, M.; Donaway, D.; Jones, B.; Serlo, W.; Laurikainen, K.; Törmälä, P.; et al. Successful Use of Biosorb Osteofixation Devices in 165 Cranial and Maxillofacial Cases: A Multicenter Report. J. Craniofacial Surg. 2004, 15, 692–701. [Google Scholar] [CrossRef]
  9. Sheikh, Z.; Najeeb, S.; Khurshid, Z.; Verma, V.; Rashid, H.; Glogauer, M. Biodegradable Materials for Bone Repair and Tissue Engineering Applications. Materials (Basel) 2015, 8, 5744–5794. [Google Scholar] [CrossRef]
  10. Middleton, J.C.; Tipton, A.J. Synthetic biodegradable polymers as orthopedic devices. Biomaterials 2000, 21, 2335–2346. [Google Scholar] [CrossRef]
  11. Félix Lanao, R.P.; Jonker, A.M.; Wolke, J.G.C.; Jansen, J.A.; van Hest, J.C.M.; Leeuwenburgh, S.C.G. Physicochemical properties and applications of poly(lactic-co-glycolic acid) for use in bone regeneration. Tissue Eng. Part B Rev. 2013, 19, 380–390. [Google Scholar] [CrossRef] [PubMed]
  12. Gentile, P.; Chiono, V.; Carmagnola, I.; Hatton, P.V. An overview of poly(lactic-co-glycolic) acid (PLGA)-based biomaterials for bone tissue engineering. Int. J. Mol. Sci. 2014, 15, 3640–3659. [Google Scholar] [CrossRef] [PubMed]
  13. Shirazi, R.N.; Aldabbagh, F.; Ronan, W.; Erxleben, A.; Rochev, Y.; McHugh, P. Effects of material thickness and processing method on poly(lactic-co-glycolic acid) degradation and mechanical performance. J. Mater. Sci. Mater. Med. 2016, 27, 154. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Ulery, B.D.; Nair, L.S.; Laurencin, C.T. Biomedical applications of biodegradable polymers. J. Polym. Sci. Part B Polym. Phys. 2011, 49, 832–864. [Google Scholar] [CrossRef] [Green Version]
  15. Nair, L.S.; Laurencin, C.T. Biodegradable polymers as biomaterials. Prog. Polym. Sci. 2007, 32, 762–798. [Google Scholar] [CrossRef]
  16. Böstman, O.; Päivärinta, U.; Partio, E.; Manninen, M.; Majola, A.; Vasenius, J.; Rokkanen, P. Absorbable polyglycolide screws in internal fixation of femoral osteotomies in rabbits. Acta Orthop. Scand. 1991, 62, 587–591. [Google Scholar] [CrossRef] [Green Version]
  17. Liu, H.; Slamovich, E.B.; Webster, T.J. Less harmful acidic degradation of poly(lacticco-glycolic acid) bone tissue engineering scaffolds through titania nanoparticle addition. Int. J. Nanomed. 2006, 1, 541–545. [Google Scholar] [CrossRef] [Green Version]
  18. Böstman, O.; Hirvensalo, E.; Mäkinen, J.; Rokkanen, P. Foreign-body reactions to fracture fixation implants of biodegradable synthetic polymers. J. Bone Jt. Surg. Br. 1990, 72, 592–596. [Google Scholar] [CrossRef]
  19. Böstman, O.M.; Pihlajamäki, H.K. Adverse tissue reactions to bioabsorbable fixation devices. Clin. Orthop. Relat. Res. 2000, 317, 216–227. [Google Scholar] [CrossRef] [Green Version]
  20. Böstman, O.M. Osteolytic changes accompanying degradation of absorbable fracture fixation implants. J. Bone Jt. Surg. Br. 1991, 73, 679–682. [Google Scholar] [CrossRef]
  21. Anderson, J.M.; Rodriguez, A.; Chang, D.T. FOREIGN BODY REACTION TO BIOMATERIALS. Semin. Immunol. 2008, 20, 86–100. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Anderson, J.M. Chapter 4 Mechanisms of inflammation and infection with implanted devices. Cardiovasc. Pathol. 1993, 2, 33–41. [Google Scholar] [CrossRef]
  23. Ashammakhi, N.; Rokkanen, P. Absorbable polyglycolide devices in trauma and bone surgery. Biomaterials 1997, 18, 3–9. [Google Scholar] [CrossRef]
  24. Böstman, O.; Pihlajamäki, H. Clinical biocompatibility of biodegradable orthopaedic implants for internal fixation: A review. Biomaterials 2000, 21, 2615–2621. [Google Scholar] [CrossRef]
  25. Rokkanen, P.U.; Böstman, O.; Hirvensalo, E.; Mäkelä, E.A.; Partio, E.K.; Pätiälä, H.; Vainionpää, S.; Vihtonen, K.; Törmälä, P. Bioabsorbable fixation in orthopaedic surgery and traumatology. Biomaterials 2000, 21, 2607–2613. [Google Scholar] [CrossRef]
  26. Anderson, J.M.; Shive, M.S. Biodegradation and biocompatibility of PLA and PLGA microspheres. Adv. Drug Deliv. Rev. 1997, 28, 5–24. [Google Scholar] [CrossRef]
  27. Chen, C.-Y.; Chang, C.-H.; Lu, Y.-C.; Chang, C.-H.; Tsai, C.-C.; Huang, C.-H. Late foreign-body reaction after treatment of distal radial fractures with poly-L-lactic acid bioabsorbable implants: A report of three cases. J. Bone Jt. Surg. Am. 2010, 92, 2719–2724. [Google Scholar] [CrossRef]
  28. Landes, C.A.; Ballon, A.; Roth, C. Maxillary and mandibular osteosyntheses with PLGA and P(L/DL)LA implants: A 5-year inpatient biocompatibility and degradation experience. Plast. Reconstr. Surg. 2006, 117, 2347–2360. [Google Scholar] [CrossRef]
  29. Ashammakhi, N.; Törmälä, P. From Past to Present and Future Is Today: From Inert to Multifunctional Biomaterials. J. Craniofacial Surg. 2004, 15, 897. [Google Scholar] [CrossRef]
  30. Hickey, T.; Kreutzer, D.; Burgess, D.J.; Moussy, F. In vivo evaluation of a dexamethasone/PLGA microsphere system designed to suppress the inflammatory tissue response to implantable medical devices. J. Biomed. Mater. Res. 2002, 61, 180–187. [Google Scholar] [CrossRef]
  31. Yoon, J.J.; Kim, J.H.; Park, T.G. Dexamethasone-releasing biodegradable polymer scaffolds fabricated by a gas-foaming/salt-leaching method. Biomaterials 2003, 24, 2323–2329. [Google Scholar] [CrossRef]
  32. Khaled, K.A.; Sarhan, H.A.; Ibrahim, M.A.; Ali, A.H.; Naguib, Y.W. Prednisolone-loaded PLGA microspheres. in vitro characterization and in vivo application in adjuvant-induced arthritis in mice. Aaps Pharmscitech 2010, 11, 859–869. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Rahman, C.V.; Ben-David, D.; Dhillon, A.; Kuhn, G.; Gould, T.W.A.; Müller, R.; Rose, F.R.A.J.; Shakesheff, K.M.; Livne, E. Controlled release of BMP-2 from a sintered polymer scaffold enhances bone repair in a mouse calvarial defect model. J. Tissue Eng. Regen. Med. 2014, 8, 59–66. [Google Scholar] [CrossRef] [PubMed]
  34. Riggin, C.N.; Qu, F.; Kim, D.H.; Huegel, J.; Steinberg, D.R.; Kuntz, A.F.; Soslowsky, L.J.; Mauck, R.L.; Bernstein, J. Electrospun PLGA Nanofiber Scaffolds Release Ibuprofen Faster and Degrade Slower After In Vivo Implantation. Ann. Biomed. Eng. 2017, 45, 2348–2359. [Google Scholar] [CrossRef] [Green Version]
  35. Chvatal, S.A.; Kim, Y.-T.; Bratt-Leal, A.M.; Lee, H.; Bellamkonda, R.V. Spatial distribution and acute anti-inflammatory effects of Methylprednisolone after sustained local delivery to the contused spinal cord. Biomaterials 2008, 29, 1967–1975. [Google Scholar] [CrossRef] [Green Version]
  36. Huolman, R.; Ashammakhi, N. New Multifunctional Anti-Osteolytic Releasing Bioabsorbable Implant. J. Craniofacial Surg. 2007, 18, 295–301. [Google Scholar] [CrossRef]
  37. Viitanen, P.; Suokas, E.; Törmälä, P.; Ashammakhi, N. Release of diclofenac sodium from polylactide-co-glycolide 80/20 rods. J. Mater. Sci. Mater. Med. 2006, 17, 1267–1274. [Google Scholar] [CrossRef]
  38. Nikkola, L.; Viitanen, P.; Ashammakhi, N. Temporal control of drug release from biodegradable polymer: Multicomponent diclofenac sodium releasing PLGA 80/20 rod. J. Biomed. Mater. Res. Part B Appl. Biomater. 2009, 89, 518–526. [Google Scholar] [CrossRef]
  39. Nikkola, L.; Morton, T.; Balmayor, E.R.; Jukola, H.; Harlin, A.; Redl, H.; van Griensven, M.; Ashammakhi, N. Fabrication of electrospun poly(D,L lactide-co-glycolide)80/20 scaffolds loaded with diclofenac sodium for tissue engineering. Eur. J. Med. Res. 2015, 20, 54. [Google Scholar] [CrossRef] [Green Version]
  40. Donath, K. Die Trenn-Dünnschliff-Technik zur Herstellung histologischer Präparate von nicht schneidbaren Geweben und Materialien. Der Präparator 1988, 34, 10. [Google Scholar]
  41. Laczko, J.; Levai, G. A simple differential staining method for semi-thin sections of ossifying cartilage and bone tissues embedded in epoxy resin. Mikroskopie 1975, 31, 1–4. [Google Scholar]
  42. Al-Maawi, S.; Orlowska, A.; Sader, R.; James Kirkpatrick, C.; Ghanaati, S. In vivo cellular reactions to different biomaterials—Physiological and pathological aspects and their consequences. Semin. Immunol. 2017, 29, 49–61. [Google Scholar] [CrossRef] [PubMed]
  43. Aherne, W.; Dunnill, M. Point counting and the estimation of volume fraction. Morphometry 1982, 33, 45. [Google Scholar]
  44. Merz, W.; Schenk, R. A quantitative histological study on bone formation in human cancellous bone. Cells Tissues Organs 1970, 76, 1–15. [Google Scholar] [CrossRef]
  45. Kimmel, D.B.; Jee, W.S.S. A quantitative histologic analysis of the growing long bone metaphysis. Calcif. Tissue Int. 1980, 32, 113–122. [Google Scholar] [CrossRef]
  46. Ranjan, V.; Chakrabarty, S.; Arora, P.; Rastogi, T. Classifying giant cell lesions: A review. J. Indian Acad. Oral Med. Radiol. 2018, 30, 297. [Google Scholar]
  47. Hothorn, T.; Bretz, F.; Westfall, P. Simultaneous inference in general parametric models. Biom. J. J. Math. Methods Biosci. 2008, 50, 346–363. [Google Scholar] [CrossRef] [Green Version]
  48. R Core Team. R: A Language and Environment for Statistical Computing (Version 3.6.1.); R Foundation for Statistical Computing: Vienna, Austria, 2019. [Google Scholar]
  49. Trindade, R.; Albrektsson, T.; Tengvall, P.; Wennerberg, A. Foreign Body Reaction to Biomaterials: On Mechanisms for Buildup and Breakdown of Osseointegration. Clin. Implant Dent. Relat. Res. 2016, 18, 192–203. [Google Scholar] [CrossRef]
  50. Kolar, P.; Schmidt-Bleek, K.; Schell, H.; Gaber, T.; Toben, D.; Schmidmaier, G.; Perka, C.; Buttgereit, F.; Duda, G.N. The Early Fracture Hematoma and Its Potential Role in Fracture Healing. Tissue Eng. Part B Rev. 2010, 16, 427–434. [Google Scholar] [CrossRef]
  51. Pape, H.-C.; Marcucio, R.; Humphrey, C.; Colnot, C.; Knobe, M.; Harvey, E.J. Trauma-Induced Inflammation and Fracture Healing. J. Orthop. Trauma 2010, 24, 522–525. [Google Scholar] [CrossRef]
  52. Mountziaris, P.M.; Spicer, P.P.; Kasper, F.K.; Mikos, A.G. Harnessing and Modulating Inflammation in Strategies for Bone Regeneration. Tissue Eng. Part B Rev. 2011, 17, 393–402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Mountziaris, P.M.; Mikos, A.G. Modulation of the Inflammatory Response for Enhanced Bone Tissue Regeneration. Tissue Eng. Part B Rev. 2008, 14, 179–186. [Google Scholar] [CrossRef] [PubMed]
  54. Boehler, R.M.; Graham, J.G.; Shea, L.D. Tissue engineering tools for modulation of the immune response. BioTechniques 2011, 51, 239–254. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Shields, C.W.; Wang, L.L.-W.; Evans, M.A.; Mitragotri, S. Materials for Immunotherapy. Adv. Mater. 2020, 32, 1901633. [Google Scholar] [CrossRef] [PubMed]
  56. Xia, Z.; Triffitt, J.T. A review on macrophage responses to biomaterials. Biomed. Mater. 2006, 1, R1–R9. [Google Scholar] [CrossRef] [PubMed]
  57. Barbeck, M.; Booms, P.; Unger, R.; Hoffmann, V.; Sader, R.; Kirkpatrick, C.J.; Ghanaati, S. Multinucleated giant cells in the implant bed of bone substitutes are foreign body giant cells—New insights into the material-mediated healing process. J. Biomed. Mater. Res. Part A 2017, 105, 1105–1111. [Google Scholar] [CrossRef]
  58. Piattelli, A.; Franco, M.; Ferronato, G.; Santello, M.T.; Martinetti, R.; Scarano, A. Resorption of composite polymer—hydroxyapatite membranes: A time-course study in rabbit. Biomaterials 1997, 18, 629–633. [Google Scholar] [CrossRef]
  59. Solheim, E.; Sudmann, B.; Bang, G.; Sudmann, E. Biocompatibility and effect on osteogenesis of poly(ortho ester) compared to poly(DL-lactic acid). J. Biomed. Mater. Res. 2000, 49, 257–263. [Google Scholar] [CrossRef]
  60. Miron, R.J.; Bosshardt, D.D. Multinucleated Giant Cells: Good Guys or Bad Guys? Tissue Eng. Part B Rev. 2017, 24, 53–65. [Google Scholar] [CrossRef]
  61. Lorenz, J.; Barbeck, M.; Sader, R.A.; Kirkpatrick, C.J.; Russe, P.; Choukroun, J.; Ghanaati, S. Foreign Body Giant Cell–Related Encapsulation of a Synthetic Material Three Years After Augmentation. J. Oral Implant. 2016, 42, 273–277. [Google Scholar] [CrossRef]
  62. Sidney, L.E.; Heathman, T.R.J.; Britchford, E.R.; Abed, A.; Rahman, C.V.; Buttery, L.D.K. Investigation of Localized Delivery of Diclofenac Sodium from Poly(D,L-Lactic Acid-co-Glycolic Acid)/Poly(Ethylene Glycol) Scaffolds Using an In Vitro Osteoblast Inflammation Model. Tissue Eng. Part A 2014, 21, 362–373. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Vuolteenaho, K.; Moilanen, T.; Moilanen, E. Non-Steroidal Anti-Inflammatory Drugs, Cyclooxygenase-2 and the Bone Healing Process. Basic Clin. Pharmacol. Toxicol. 2008, 102, 10–14. [Google Scholar] [CrossRef] [PubMed]
  64. Aspenberg, P. Drugs and fracture repair. Acta Orthop. 2005, 76, 741–748. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Lisowska, B.; Kosson, D.; Domaracka, K. Lights and shadows of NSAIDs in bone healing: The role of prostaglandins in bone metabolism. Drug Des. Dev. Ther. 2018, 12, 1753–1758. [Google Scholar] [CrossRef] [Green Version]
  66. Harder, A.T.; An, Y.H. The Mechanisms of the Inhibitory Effects of Nonsteroidal Anti-Inflammatory Drugs on Bone Healing: A Concise Review. J. Clin. Pharmacol. 2003, 43, 807–815. [Google Scholar] [CrossRef]
  67. Ho, M.-L.; Chang, J.-K.; Chuang, L.-Y.; Hsu, H.-K.; Wang, G.-J. Effects of nonsteroidal anti-inflammatory drugs and prostaglandins on osteoblastic functions. Biochem. Pharmacol. 1999, 58, 983–990. [Google Scholar] [CrossRef]
  68. Krischak, G.D.; Augat, P.; Blakytny, R.; Claes, L.; Kinzl, L.; Beck, A. The non-steroidal anti-inflammatory drug diclofenac reduces appearance of osteoblasts in bone defect healing in rats. Arch Orthop. Trauma Surg. 2007, 127, 453–458. [Google Scholar] [CrossRef]
  69. García-Martínez, O.; De Luna-Bertos, E.; Ramos-Torrecillas, J.; Manzano-Moreno, F.J.; Ruiz, C. Repercussions of NSAIDS drugs on bone tissue: The osteoblast. Life Sci. 2015, 123, 72–77. [Google Scholar] [CrossRef]
  70. Karakawa, A.; Sano, T.; Amano, H.; Yamada, S. Inhibitory Mechanism of Non-steroidal Anti-inflammatory Drugs on Osteoclast Differentiation and Activation. J. Oral Biosci. 2010, 52, 119–124. [Google Scholar] [CrossRef]
  71. Lumawig, J.M.T.; Yamazaki, A.; Watanabe, K. Dose-dependent inhibition of diclofenac sodium on posterior lumbar interbody fusion rates. Spine J. 2009, 9, 343–349. [Google Scholar] [CrossRef]
  72. Gerstenfeld, L.C.; Einhorn, T.A. COX inhibitors and their effects on bone healing. Expert Opin. Drug Saf. 2004, 3, 131–136. [Google Scholar] [CrossRef] [PubMed]
  73. Giannoudis, P.; MacDonald, D.A.; Matthews, S.J.; Smith, R.M.; Furlong, A.J.; De Boer, P. Nonunion of the femoral diaphysis|The Bone & Joint Journal. J. Bone Jt. Surg. Br. 2000, 82, 655–658. [Google Scholar]
  74. Bhattacharyya, T.; Levin, R.; Vrahas, M.S.; Solomon, D.H. Nonsteroidal antiinflammatory drugs and nonunion of humeral shaft fractures. Arthritis Care Res. Off. J. Am. Coll. Rheumatol. 2005, 53, 364–367. [Google Scholar] [CrossRef] [PubMed]
  75. Beck, A.; Krischak, G.; Sorg, T.; Augat, P.; Farker, K.; Merkel, U.; Kinzl, L.; Claes, L. Influence of diclofenac (group of nonsteroidal anti-inflammatory drugs) on fracture healing. Arch Orthop. Trauma Surg. 2003, 123, 327–332. [Google Scholar] [CrossRef]
  76. Mouriño, V.; Boccaccini, A.R. Bone tissue engineering therapeutics: Controlled drug delivery in three-dimensional scaffolds. J. R. Soc. Interface 2010, 7, 209–227. [Google Scholar] [CrossRef] [Green Version]
  77. Simon, A.M.; O’Connor, J.P. Dose and Time-Dependent Effects of Cyclooxygenase-2 Inhibition on Fracture-Healing. JBJS 2007, 89, 500–511. [Google Scholar] [CrossRef]
  78. Gerstenfeld, L.C.; Al-Ghawas, M.; Alkhiary, Y.M.; Cullinane, D.M.; Krall, E.A.; Fitch, J.L.; Webb, E.G.; Thiede, M.A.; Einhorn, T.A. Selective and Nonselective Cyclooxygenase-2 Inhibitors and Experimental Fracture-Healing: Reversibility of Effects After Short-Term Treatment. JBJS 2007, 89, 114–125. [Google Scholar] [CrossRef]
  79. Miller, R.A.; Brady, J.M.; Cutright, D.E. Degradation rates of oral resorbable implants (polylactates and polyglycolates): Rate modification with changes in PLA/PGA copolymer ratios. J. Biomed. Mater. Res. 1977, 11, 711–719. [Google Scholar] [CrossRef]
  80. Tiainen, J.; Soini, Y.; Törmälä, P.; Waris, T.; Ashammakhi, N. Self-reinforced polylactide/polyglycolide 80/20 screws take more than 1½ years to resorb in rabbit cranial bone. J. Biomed. Mater. Res. Part B Appl. Biomater. 2004, 70B, 49–55. [Google Scholar] [CrossRef]
  81. Landes, C.A.; Ballon, A.; Roth, C. In-patient versus in vitro degradation of P(L/DL)LA and PLGA. J. Biomed. Mater. Res. Part B Appl. Biomater. 2006, 76B, 403–411. [Google Scholar] [CrossRef]
  82. Weiser, J.R.; Saltzman, W.M. Controlled release for local delivery of drugs: Barriers and models. J. Control. Release 2014, 190, 664–673. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Saltzman, W.M.; Radomsky, M.L. Drugs released from polymers: Diffusion and elimination in brain tissue. Chem. Eng. Sci. 1991, 46, 2429–2444. [Google Scholar] [CrossRef]
  84. Carnicer-Lombarte, A.; Barone, D.G.; Dimov, I.B.; Hamilton, R.S.; Prater, M.; Zhao, X.; Rutz, A.L.; Malliaras, G.G.; Lacour, S.P.; Bryant, C.E.; et al. Mechanical matching of implant to host minimises foreign body reaction. bioRxiv 2019. [Google Scholar] [CrossRef] [Green Version]
  85. Bosshardt, D.D.; Salvi, G.E.; Huynh-Ba, G.; Ivanovski, S.; Donos, N.; Lang, N.P. The role of bone debris in early healing adjacent to hydrophilic and hydrophobic implant surfaces in man. Clin. Oral Implant. Res. 2011, 22, 357–364. [Google Scholar] [CrossRef] [PubMed]
  86. Donath, K.; Laaß, M.; Günzl, H.-J. The histopathology of different foreign-body reactions in oral soft tissue and bone tissue. Vichows Arch. A Pathol. Anat. 1992, 420, 131–137. [Google Scholar] [CrossRef] [PubMed]
  87. Kastellorizios, M.; Papadimitrakopoulos, F.; Burgess, D.J. Prevention of foreign body reaction in a pre-clinical large animal model. J. Control. Release 2015, 202, 101–107. [Google Scholar] [CrossRef] [PubMed]
  88. Khouw, I.M.S.L.; van Wachem, P.B.; Molema, G.; Plantinga, J.A.; de Leij, L.F.; van Luyn, M.J. The foreign body reaction to a biodegradable biomaterial differs between rats and mice. J. Biomed. Mater. Res. 2000, 52, 439–446. [Google Scholar] [CrossRef]
  89. Kidd, K.R.; Ponte, D.B.D.; Kellar, R.S.; Williams, S.K. A comparative evaluation of the tissue responses associated with polymeric implants in the rat and mouse. J. Biomed. Mater. Res. 2002, 59, 682–689. [Google Scholar] [CrossRef]
Micromachines 11 01098 g001 550
Figure 1. Experimental setup. (a) Experiments were conducted in the femur of rats: X-ray illustrating the anatomical region. (b) Poly(lactide-co-glycolide) (PLGA) and PLGA+DS8 rods were implanted in the femoral shaft via a drill hole created in the intercondylar space of the femur. Scale bar, 5 mm. (c) Magnified images of new bone formation in (b), scale bar, 300 µm. (d) illustrates the experimental setup: number of rats assigned to PLGA and PLGA+DS8 groups and respective follow-up periods.
Figure 1. Experimental setup. (a) Experiments were conducted in the femur of rats: X-ray illustrating the anatomical region. (b) Poly(lactide-co-glycolide) (PLGA) and PLGA+DS8 rods were implanted in the femoral shaft via a drill hole created in the intercondylar space of the femur. Scale bar, 5 mm. (c) Magnified images of new bone formation in (b), scale bar, 300 µm. (d) illustrates the experimental setup: number of rats assigned to PLGA and PLGA+DS8 groups and respective follow-up periods.
Micromachines 11 01098 g001
Micromachines 11 01098 g002 550

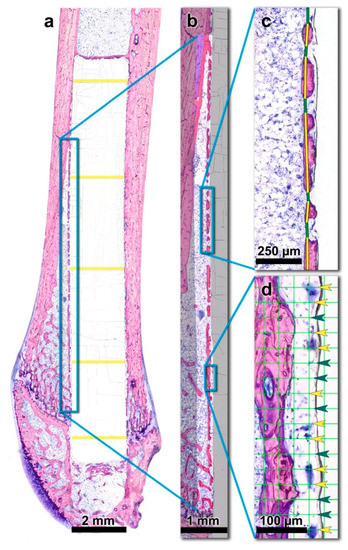

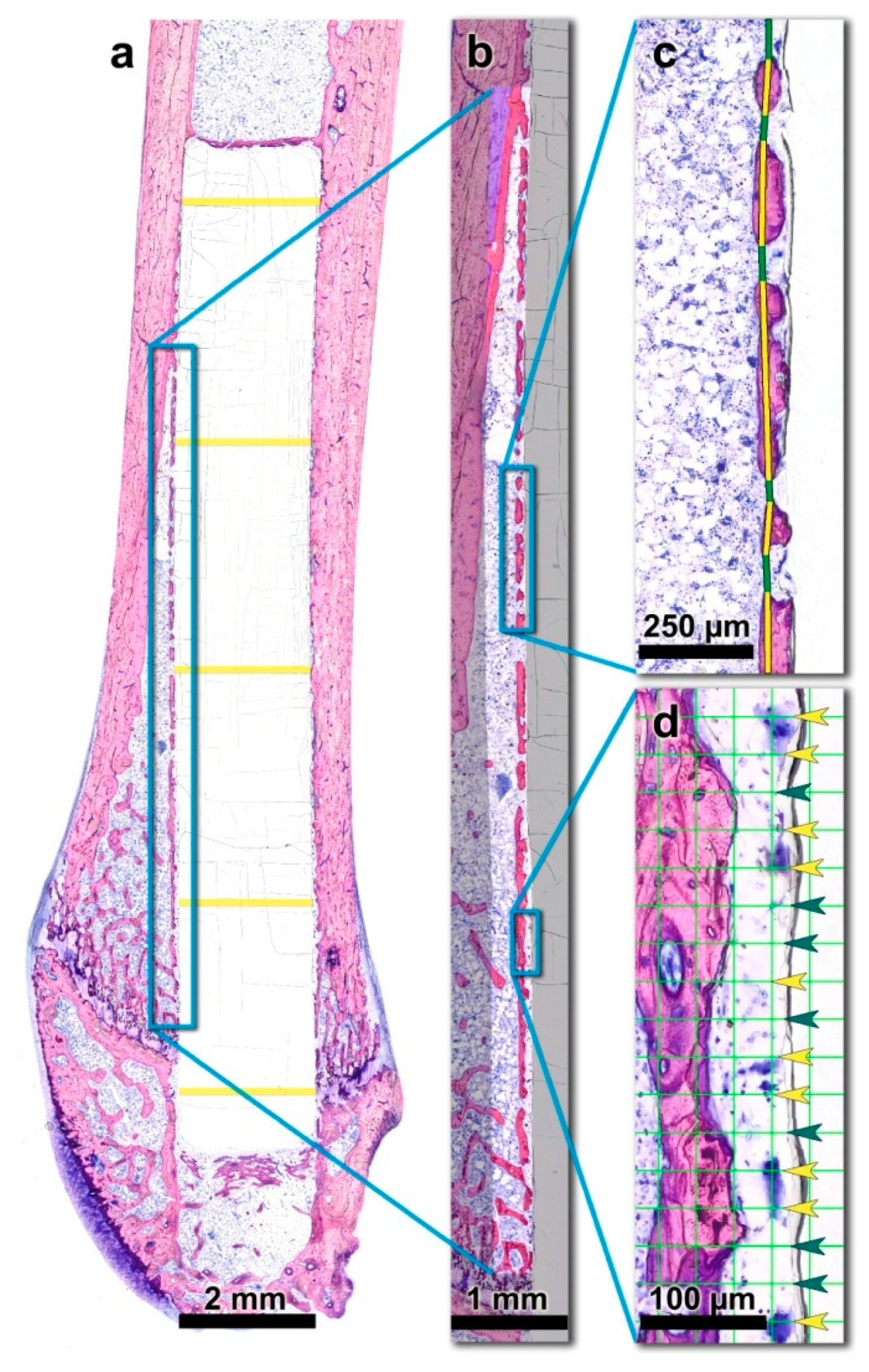

Figure 2. Histomorphometric measurements were based on the histological thin-ground sections of the right femora. (a) The region of interest (ROI) is indicated by the blue rectangle. The diameter of the PLGA implant was measured at five predefined, evenly distributed sites over the length of the rods (yellow lines) and averaged per individual. (b) New bone volume fraction (nBV/TV) was assessed within the indicated ROI which was segmented into new bone tissue (red), old bone tissue (blue) and soft tissue/medullary space. (c) Peri-implant bone capsule (piBC) was defined as the percentage of the rod’s surface that is surrounded by newly formed bone. New bone was marked with a yellow line, interspersing soft tissue with a green line. (d) The presence of peri-implant multinucleated giant cells (piMGCs) was assessed with a point counting grid (grid line distance: 30 µm) as the percentage of the rod surface that is lined by MGCs (Yellow arrowheads: grid nodes with an underlying MGC, green arrowheads: intermediate grid nodes).
Figure 2. Histomorphometric measurements were based on the histological thin-ground sections of the right femora. (a) The region of interest (ROI) is indicated by the blue rectangle. The diameter of the PLGA implant was measured at five predefined, evenly distributed sites over the length of the rods (yellow lines) and averaged per individual. (b) New bone volume fraction (nBV/TV) was assessed within the indicated ROI which was segmented into new bone tissue (red), old bone tissue (blue) and soft tissue/medullary space. (c) Peri-implant bone capsule (piBC) was defined as the percentage of the rod’s surface that is surrounded by newly formed bone. New bone was marked with a yellow line, interspersing soft tissue with a green line. (d) The presence of peri-implant multinucleated giant cells (piMGCs) was assessed with a point counting grid (grid line distance: 30 µm) as the percentage of the rod surface that is lined by MGCs (Yellow arrowheads: grid nodes with an underlying MGC, green arrowheads: intermediate grid nodes).
Micromachines 11 01098 g002
Micromachines 11 01098 g003 550

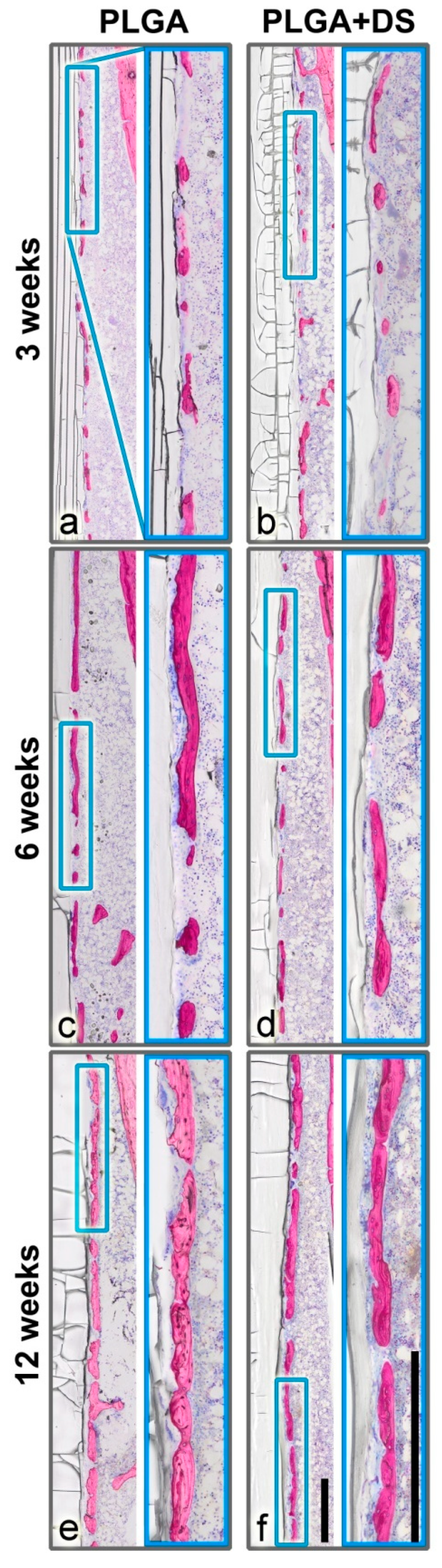

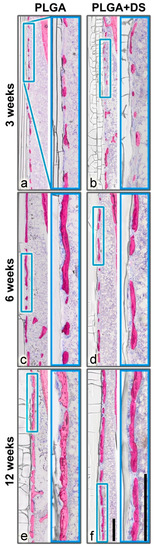

Figure 3. Peri-implant bone capsule. A layer of new bone was formed in close vicinity to the PLGA rods, in all samples. (a,b) After 3 weeks, only small islands were lining the implant surface. (c,d) After 6 weeks, the bone islands tended to increase in length and thickness. (e,f) After 12 weeks, the bone capsule covered the most part of the implant forming a fenestrated capsule in the medullary space. The piBC, i.e., the percentage of the rod surface that is surrounded by newly formed bone, tended to be higher in PLGA groups than in PLGA+DS8 groups. However, new bone volume fraction (nBV/TV) did not differ between the PLGA and PLGA+DS8 groups. Scale bar in overview and magnification images, 500 µm.
Figure 3. Peri-implant bone capsule. A layer of new bone was formed in close vicinity to the PLGA rods, in all samples. (a,b) After 3 weeks, only small islands were lining the implant surface. (c,d) After 6 weeks, the bone islands tended to increase in length and thickness. (e,f) After 12 weeks, the bone capsule covered the most part of the implant forming a fenestrated capsule in the medullary space. The piBC, i.e., the percentage of the rod surface that is surrounded by newly formed bone, tended to be higher in PLGA groups than in PLGA+DS8 groups. However, new bone volume fraction (nBV/TV) did not differ between the PLGA and PLGA+DS8 groups. Scale bar in overview and magnification images, 500 µm.
Micromachines 11 01098 g003
Micromachines 11 01098 g004 550

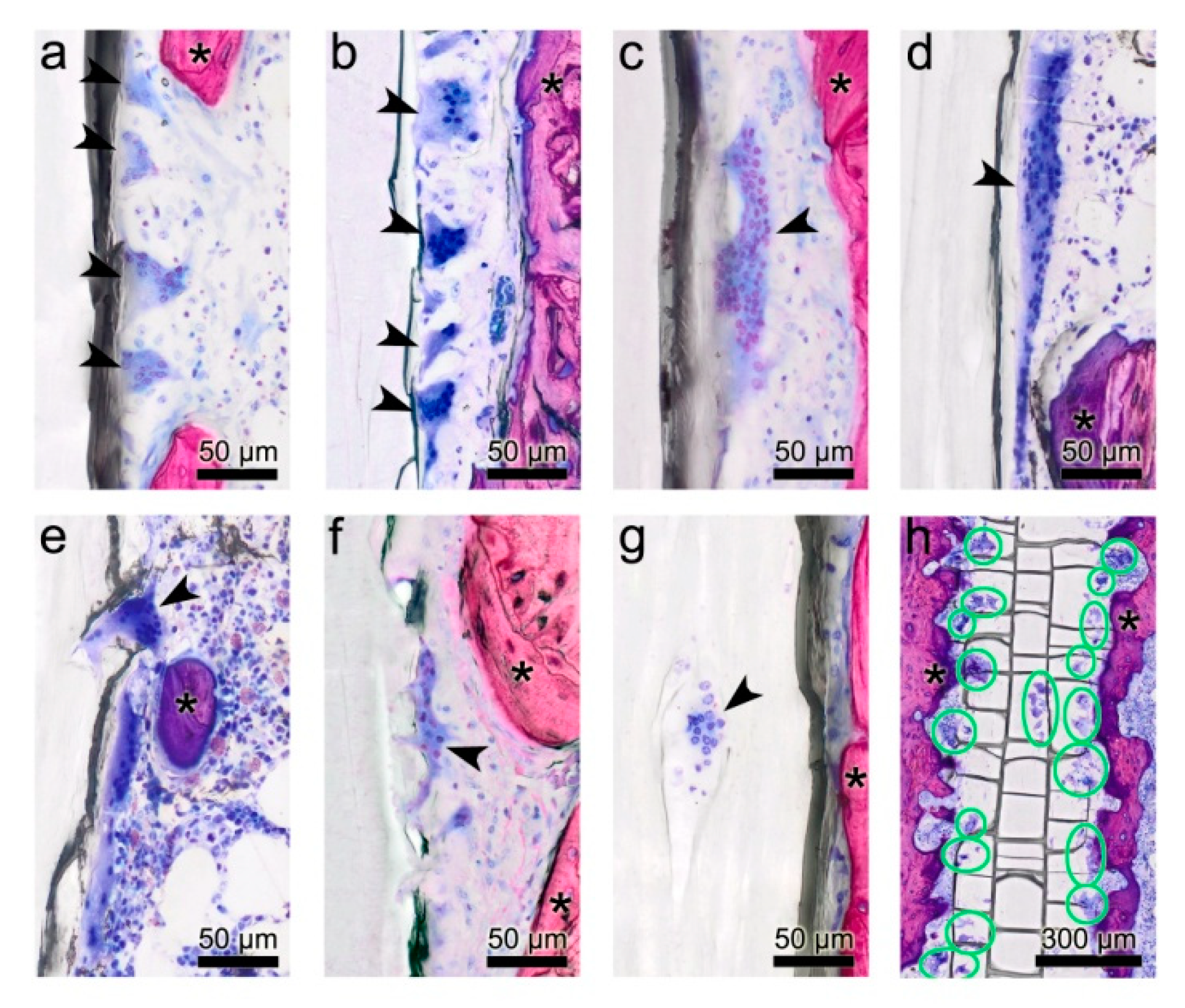

Figure 4. Morphological diversity of multinucleated giant cells (MGCs). (a–d) MGCs of various shape, size, numbers of nuclei and different staining intensities adhere to the surface of the poly(lactide-co-glycolide) (PLGA) implant in both, the PLGA and PLGA+DS8 groups. (d) Large MGC with a length of 270 µm. (e,f) MGCs submerge into the PLGA implant by extruding filopodia. (g) MGC located in a lacuna within the PLGA implant. (h) Overview section parallel to the midsagittal plane of a PLGA implant illustrating the location and activity of MGCs below the surface of a PLGA+DS8 rod 6 weeks after surgery (green circles indicate MGCS). Arrowheads point to multinucleated giant cells; Asterisks indicate bone.
Figure 4. Morphological diversity of multinucleated giant cells (MGCs). (a–d) MGCs of various shape, size, numbers of nuclei and different staining intensities adhere to the surface of the poly(lactide-co-glycolide) (PLGA) implant in both, the PLGA and PLGA+DS8 groups. (d) Large MGC with a length of 270 µm. (e,f) MGCs submerge into the PLGA implant by extruding filopodia. (g) MGC located in a lacuna within the PLGA implant. (h) Overview section parallel to the midsagittal plane of a PLGA implant illustrating the location and activity of MGCs below the surface of a PLGA+DS8 rod 6 weeks after surgery (green circles indicate MGCS). Arrowheads point to multinucleated giant cells; Asterisks indicate bone.
Micromachines 11 01098 g004
Micromachines 11 01098 g005 550

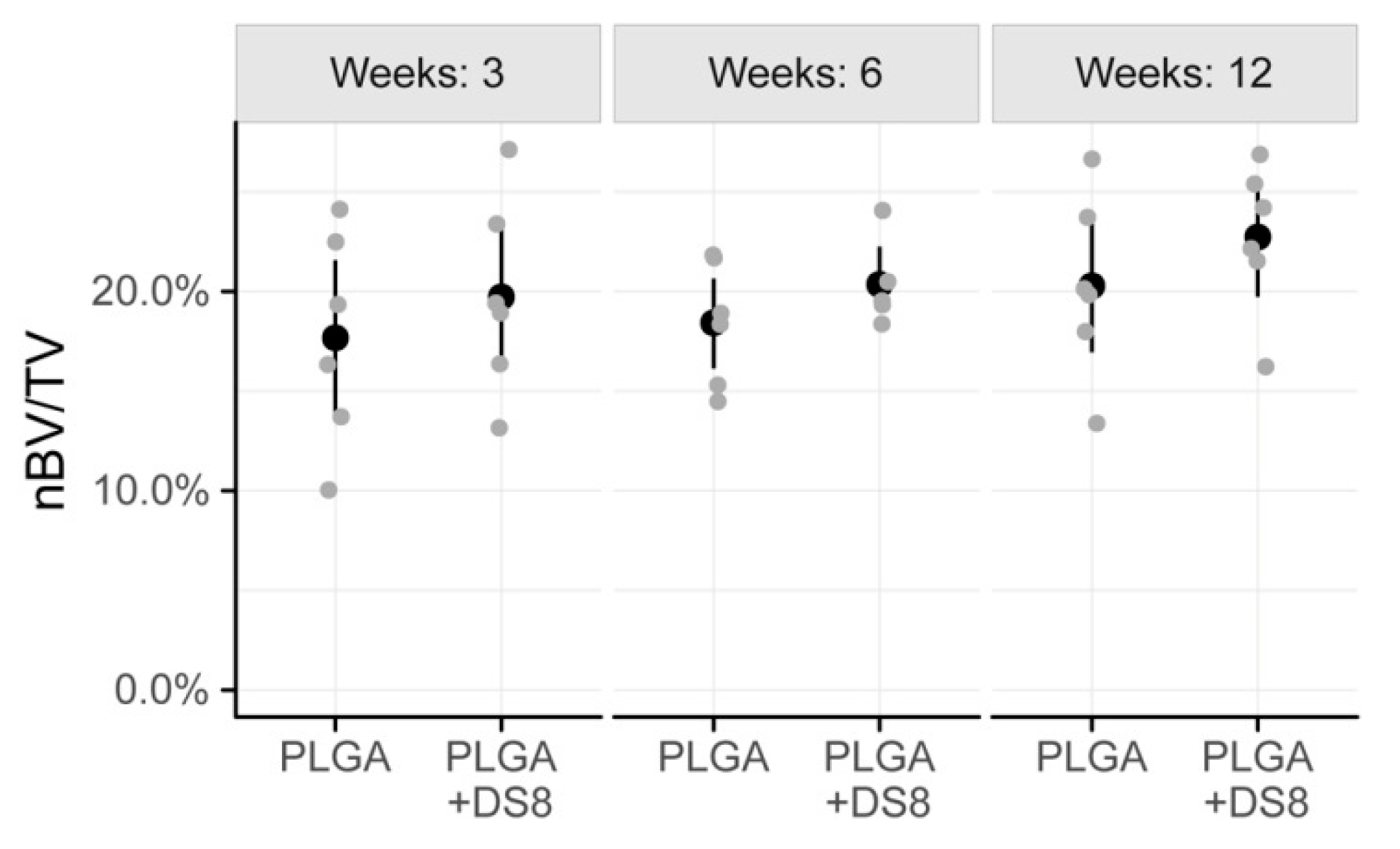

Figure 5. Scatter plot of nBV/TV, i.e., the percentage of newly formed bone volume (nBV) within the tissue volume (TV). (Black dots refer to mean values of the respective groups).
Figure 5. Scatter plot of nBV/TV, i.e., the percentage of newly formed bone volume (nBV) within the tissue volume (TV). (Black dots refer to mean values of the respective groups).
Micromachines 11 01098 g005
Micromachines 11 01098 g006 550

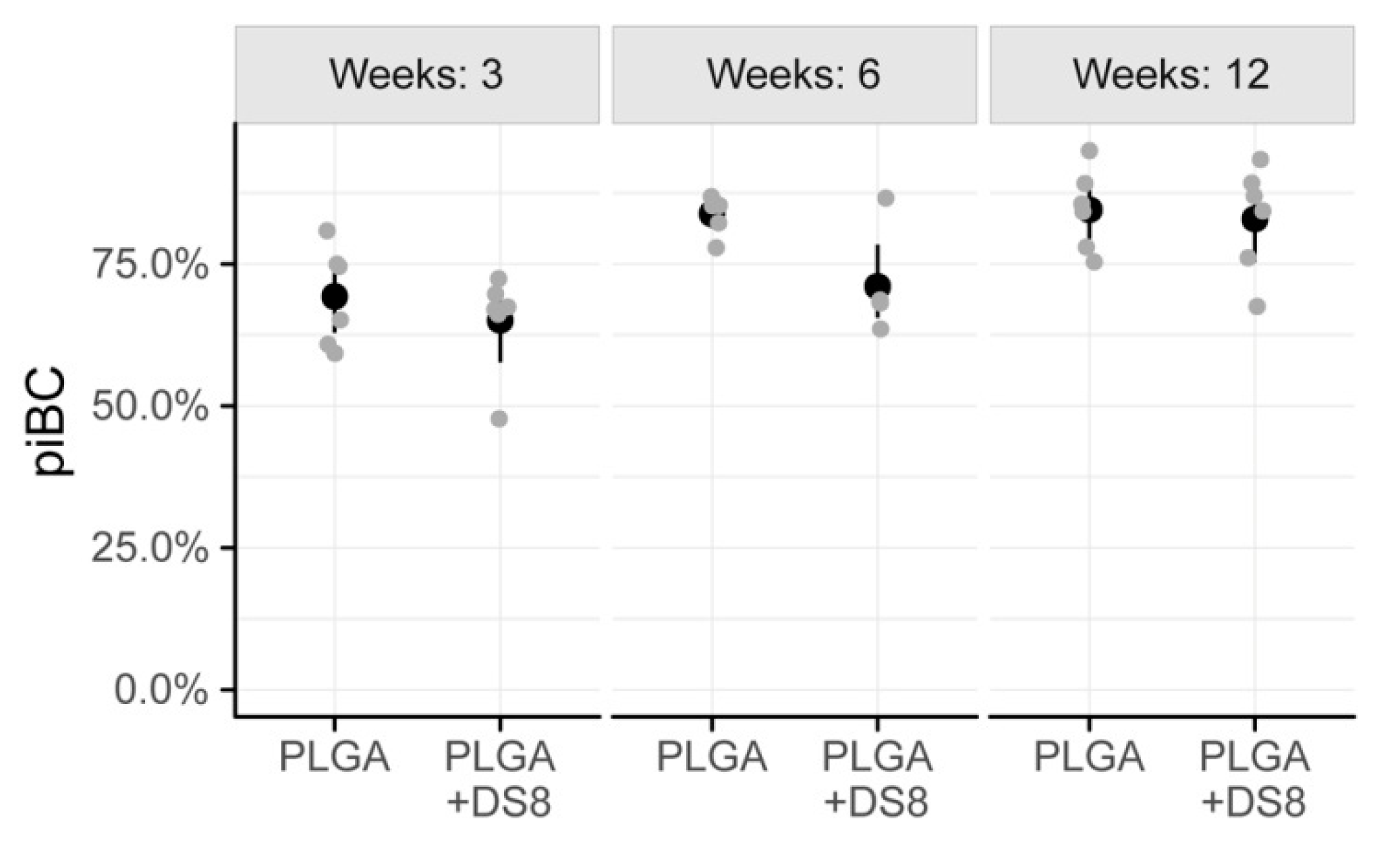

Figure 6. Scatter plot of peri-implant bone capsule (piBC), i.e., the percentage of the rod surface that is surrounded by newly formed bone. (Black dots refer to mean values of the respective groups).
Figure 6. Scatter plot of peri-implant bone capsule (piBC), i.e., the percentage of the rod surface that is surrounded by newly formed bone. (Black dots refer to mean values of the respective groups).
Micromachines 11 01098 g006
Micromachines 11 01098 g007 550
Figure 7. Scatter plot of peri-implant multi-nucleated giant cells (piMGCs), i.e., the percentage of the implant surface that is surrounded by MGCs. (Black dots refer to mean values of the respective groups.)
Figure 7. Scatter plot of peri-implant multi-nucleated giant cells (piMGCs), i.e., the percentage of the implant surface that is surrounded by MGCs. (Black dots refer to mean values of the respective groups.)
Micromachines 11 01098 g007
Micromachines 11 01098 g008 550

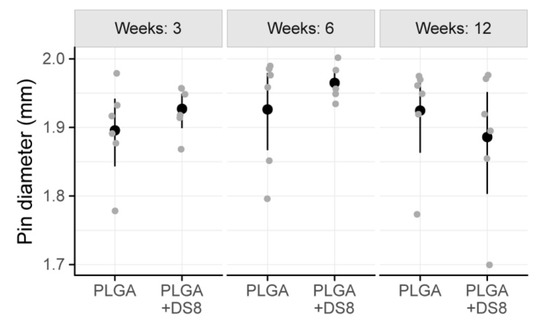

Figure 8. Scatter plot of the diameter of the implants (I.Dm). (Black dots refer to mean values of the respective groups.)
Figure 8. Scatter plot of the diameter of the implants (I.Dm). (Black dots refer to mean values of the respective groups.)
Micromachines 11 01098 g008
Table
Table 1. piBC—test for time differences within the poly(lactide-co-glycolide) (PLGA) and the PLGA+DS8 groups. (* indicates statistical significance at p < 0.05.).
Table 1. piBC—test for time differences within the poly(lactide-co-glycolide) (PLGA) and the PLGA+DS8 groups. (* indicates statistical significance at p < 0.05.).
Treatment GroupFollow-up PeriodDifferenceStd. Errorp-ValueStatistical Significance
PLGA3 weeks vs. 6 weeks−0.190.060.0110*
PLGA3 weeks vs. 12 weeks−0.200.060.0068*
PLGA6 weeks vs. 12 weeks−0.010.060.9999
PLGA+DS3 weeks vs. 6 weeks−0.110.070.3902
PLGA+DS3 weeks vs. 12 weeks−0.240.06<0.001*
PLGA+DS6 weeks vs. 12 weeks−0.130.060.1502
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Reich, K.M.; Viitanen, P.; Apu, E.H.; Tangl, S.; Ashammakhi, N. The Effect of Diclofenac Sodium-Loaded Poly(Lactide-co-Glycolide) Rods on Bone Formation and Inflammation: A Histological and Histomorphometric Study in the Femora of Rats. Micromachines 2020, 11, 1098. https://doi.org/10.3390/mi11121098

AMA Style

Reich KM, Viitanen P, Apu EH, Tangl S, Ashammakhi N. The Effect of Diclofenac Sodium-Loaded Poly(Lactide-co-Glycolide) Rods on Bone Formation and Inflammation: A Histological and Histomorphometric Study in the Femora of Rats. Micromachines. 2020; 11(12):1098. https://doi.org/10.3390/mi11121098

Chicago/Turabian Style

Reich, Karoline M., Petrus Viitanen, Ehsanul Hoque Apu, Stefan Tangl, and Nureddin Ashammakhi. 2020. "The Effect of Diclofenac Sodium-Loaded Poly(Lactide-co-Glycolide) Rods on Bone Formation and Inflammation: A Histological and Histomorphometric Study in the Femora of Rats" Micromachines 11, no. 12: 1098. https://doi.org/10.3390/mi11121098

APA Style

Reich, K. M., Viitanen, P., Apu, E. H., Tangl, S., & Ashammakhi, N. (2020). The Effect of Diclofenac Sodium-Loaded Poly(Lactide-co-Glycolide) Rods on Bone Formation and Inflammation: A Histological and Histomorphometric Study in the Femora of Rats. Micromachines, 11(12), 1098. https://doi.org/10.3390/mi11121098

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
