Article

Modification of Higher Alkanes by Nanoparticles to Control Light Propagation in Tapered Fibers

1
Institute of Applied Physics, Faculty of Advanced Technologies and Chemistry, Military University of Technology, 2 Kaliskiego St., 00-908 Warsaw, Poland
2
Department of Biotechnology and Physical Chemistry, Faculty Chemical Engineering and Technology, Cracow University of Technology, 24 Warszawska St., 31-155 Cracow, Poland
*
Author to whom correspondence should be addressed.
Micromachines 2020, 11(11), 1006; https://doi.org/10.3390/mi11111006
Received: 20 October 2020 / Revised: 6 November 2020 / Accepted: 13 November 2020 / Published: 14 November 2020
(This article belongs to the Special Issue Advanced Miniaturized Devices Based on Micro- and Nanofibers)

Abstract

:
This study presents the doping of higher alkanes, namely, pentadecane (C15) and hexadecane (C16), with ZnS:Mn nanoparticles to create new types of in-line optical fiber sensors with unique optical properties. In this research, the phenomenon of light beam leakage out of the taper and its interaction with the surrounding materials is described. The fabricated new materials are used as cladding in a tapered optical fiber to make it possible to control the optical light beam. The manufactured sensor shows high sensitivity and fast response to the change in the applied materials. Results are presented for a wide optical range of 1200–1700 nm with the use of a supercontinuum source and an optical spectrum analyzer, as well as for a single wavelength of 800 nm, corresponding to the highest transmitted power. The results present a change in the optical property dependence on the temperature in the cooling and heating process. For all materials, the measurements in a climatic chamber are provided between 0 and 40 °C, corresponding to the phase change of the alkanes from solid to liquid. The addition of nanoparticles to the volume of alkanes is equal to 1 wt%. To avoid a conglomeration of nanoparticles, the anti-agglomeration material, Brij 78 P, is used.

1. Introduction

In recent years, a rapid development in optical fiber technology has been observed [1]. Light propagation in a fiber is associated with the difference between the fiber structure, especially the properties of the core and cladding materials, corresponding in most cases with their refractive indices ncore and ncladding, and the core diameter. For all kinds of fibers, a fundamental requirement is to protect the light inside the structure. The electromagnetic field of light waves propagating inside the fiber can be derived from solving Maxwell’s equations with boundary conditions given by the material structure [1,2,3]. Two methods of light propagation are currently possible. The first method is based on Snell’s law, where the total internal reflection (TIR [3]) phenomenon is used. This method of propagation is mostly used for standard fibers with a solid core and cladding, and with an mTIR modified version for photonic crystal fibers with the structure of air holes representing the cladding and solid core. The second method of light propagation involves the phenomenon of photonic bandgap propagation [4], which is mostly used in a photonic crystal fibers with air hole cores.
In standard fibers, the difference between the value of the refractive index of the core and cladding determines the number of modes propagating in a fiber, known as the normalized frequency V, which is equal to 2405. This parameter is described by [5]:
V = a 2 π λ n c o r e 2 n c l a d d i n g 2
Additionally, this parameter is dependent on the wavelength and the core diameter. To change the propagation properties in both cases, it is necessary to change the refractive index or the core diameter.
A second method for changing the light propagation parameter is to modify the size of the fiber core. It should be noted that the propagation of a light beam in fibers, especially in a standard one, due to Snell’s law, is also connected with a reflection on the border of two materials from which the core and cladding are formed. In such a propagation, part of the power passes from the core to the cladding for a certain distance. This distance is known as the penetration depth of light from the core to the cladding and can be described by [6,7,8]:
d p = λ 2 π n c o r e 2 sin 2 θ n c l a d d i n g 2
where λ is the determined wavelength of the light, θ is the angle of the incident plane wave on the core/cladding surface and ncore and ncladding are the core and cladding refractive indices, respectively.
This parameter depends on wavelength propagation in fibers, as well as on the angle of an incident plane wave on the core and cladding border [8,9,10]. It is noteworthy that this parameter enables direct access to the light and increases the sensitivity to external changes in the environment. In the presented case, the applied alkanes with nanoparticles interact in a leaking light as double-clad materials that change their phase state.
Theoretical and experimental investigation of changing core and cladding diameters, optical beam parameters, as well as a refractive index profile along with the fiber show that with the reduction of the diameter/dimensions of the core and the clading, the diameter of the propagating beam increases, filling the entire taper structure and extending beyond it [11].
For both kinds of fibers, a technique known as tapering can be applied for changing the core and cladding diameters [6,7,8,9,10,11]. Tapering technology uses a relatively easy technique to fill the air holes and provides the possibility of the continuous monitoring of changes of the light propagation through the fiber during element manufacturing, i.e., a diameter of taper region control.
The above description of light propagation in different fibers shows its wide range of applications. The telecommunication application of fibers is widely described in the literature [12]. Nowadays, significant interest is directed to optical fiber sensors [12,13] due to their small dimensions, low weight, rapid response, and the possibility of operating in different environments. Their construction is divided into several groups. One of the groups is based on an interferometry measurement that enables very precise measurements [13] but requires an advanced system of acquisition and causes an increase in dimensions. Some sensors use fibers as elements that deliver light to the measurement places and their light beam is output from the fiber and interacts with a measurement factor [14]. The final part of sensors uses the change of light amplitude as an interaction of the external parameters of the fiber [14]. The accuracy and sensitivity of such sensors are strictly connected with the influence of the detected factors on light propagation. For these reasons, in many detectors, additional materials are introduced as media that multiply the signal level, which influences the light beam. In all the above mentioned cases, the main advantage is that the light measures the change of the surrounding environment without changing the material and geometrical properties of the investigated material.
In addition, in recent years, nanoparticles have become a significant topic of interest. Unique results for light interaction with matter can be observed in semiconducting nanoparticles. They possess interesting optical, electronic, chemical, and electrochemical properties that are useful for a wide variety of applications, including optoelectronics [15,16], catalysis [17,18] and sensing [19]. Among II-VI semiconducting nanoparticles, manganese-doped zinc sulfide (ZnS:Mn) nanocrystals have been substantially studied due to their unique properties and their diverse applications, including photovoltaics [20,21] and transparent nanocomposites [22]. Zinc sulfide is a large band-gap energy (3.6 eV) semiconductor that is well known for its photoluminescence, electroluminescence, and thermoluminescence. ZnS:Mn and its orange emission have been known since the early days of luminescence research because of its high quantum efficiency at room temperature. ZnS:Mn is non-toxic, chemically more stable, and technologically better than many other semiconducting materials based on toxic elements, such as CdSe and CdS [23,24].
In this study, threshold temperature sensors based on the use of additional materials, namely, alkanes with a nanoparticle admixture that influence light propagation in a biconical fiber taper, are presented.

2. Materials and Methods

2.1. Materials

In the research, a standard optical fiber (SMF28e) was used and built as two concentrically arranged materials to form the structure of core and cladding (Figure 1).
Table 1 presents the main parameters of the used fiber in the future technological process. As can be seen, the refractive index of the core is slightly higher than the refractive index of the cladding. Some part of the energy leaks to the cladding as an evanescence field (Figure 1) within a distance of up to several dozen nm [10], known as the penetration depth. In such a structure, there are no possibilities to directly interact with the light propagating inside the core due to the much larger dimensions of the thickness of the fiber cladding.
One of the methods used to obtain a decreasing diameter of the core and the cladding is a process in which part of the fiber is heated to the melting point and is then stretched out. This technique is called the tapering technique. Due to the wide description of tapers in literature, hence, it will not be presented in this paper [7,10].
The obtained structure can be described as a structure in which the light propagates in a dielectric structure (taper waist) corresponding to the fiber core and the air surrounding becomes the cladding. The difference in refractive indices between the core and the cladding in a standard fiber is ~1% (see Table 1). For a structure with surrounding air (refractive index of ~1003), the value is ~45% (assuming the average value of the collapse coverage made the structures 1.45). In such arrangements, there exists an opportunity to replace air with various materials. Such works have been widely used to build sensors, filters, amplifiers [27,28,29,30,31,32,33,34,35].
As base materials that act as double cladding, higher alkanes, such as n-pentadecane (C15) and n-hexadecane (C16), have been applied. Table 2 shows the main parameters of these alkanes [36,37].
The presented chemical properties of the used materials were checked in our laboratories at a temperature of 20.4 °C using a Hanna Instruments HI 968000 (Woonsocket, Rhode Island, USA) electronic refractometer in the range of 1.3330–1.5040 nD20, with a control material standard water used for the measurement of the refractive index equal to 1.3329.
These materials are very well known and have been described widely [38,39,40]. As seen from Table 2, the refractive indices are close to those of the standard cladding of the fiber.
It should be mentioned that higher alkanes change their transparency for light together with phase change in a melting point [41,42]. Analyzing the state of RI in a solid stated, the extinction ratio is high, which also causes that the real part of RI of alkanes is higher than RI of fibers which influences the light attenuation.
The innovation in this study is an admixture of the mentioned alkanes with nanoparticles of ZnS:Mn + DBSA + CYS, which means that nanoparticles consist of the material ZnS: Mn (zinc sulfide: manganese) and have a combination of dodecylbenzenesulfonic acid (DBSA) and 2-mercaptoethylamine hydrochloride (cysteaminium chloride, cys determination) on the surface. Images of the used nanoparticles are presented in Figure 2. Figure 3 shows the particle size distribution of the ZnS:Mn nanoparticles.
The size of the ZnS:Mn nanoparticles dispersed in THF (Tetrahydrofuran) was determined by DLS (dynamic light scattering). Figure 4 shows the resulting distribution, with a hydrodynamic radius of ~6 nm. According to the Scherrer equation, the calculated crystallite size of the particles is three times smaller than the diameter, as determined by dynamic light scattering. This can be explained by the intensity weighted indication of the particle diameter and the organic shell around the particle, leading to higher values for the particle diameters. Additionally, it has to be considered that crystal imperfections contribute to additional line broadening in X-ray diffraction.
The materials for the synthesis of the ZnS:Mn nanoparticles were used without additional purifications. Manganese (II) acetate tetrahydrate (~99%), zinc (II) acetate dehydrate (~98%), and tetratrahydrofuran (~99%) were purchased from Sigma Aldrich. Cysteamine chloride (~97%) and 4-dodecylbenzenesulphonic acid (~90%) were purchased from Merck and Fluka, respectively. Sodium sulfide hydrate (~60%) was pursed from Riedel-de Haan. The synthesis procedure for the ZnS:Mn nanoparticles is patented [27]. The ZnS:Mn nanoparticles were stabilised by cysteaminium chloride and 4-dodecylbenzylsulphonic acid were used in our previous work as an element of hybrid photovoltaic devices [20]. In a typical synthesis, 10.3 mmol of zinc (II) acetate dehydrate, 1.95 mmol of manganese (II) acetate tetrahydrate, and 7.40 mmol of cysteamine hydrochloride were dissolved in 125 mL of distilled water (solution I) under stirring for ~15 min. Simultaneously, 7.4 mmol 4-dodecylbenzenesulphonic acid was dissolved in 2 mL of tetrahydrofuran (solution II) and 5.80 mmol of sodium sulfide was dissolved in 50 mL of water (solution III), respectively. Solution I was placed in a 250 mL three-neck flask. Solution II was very slowly injected under stirring into solution I. To precipitate the ZnS:Mn QDs, the aqueous solution of sodium sulfide (solution III) was slowly added dropwise under stirring into the reaction mixture inside the round-bottom flask. Finally, the turbid dispersion was refluxed at 85 °C under stirring for 3.5 h. The precipitated nanoparticles were collected by centrifugation at 10,000 rpm for 15 min. Finally, the white powder of the ZnS:Mn nanoparticles was dried in a vacuum oven at 60 °C for 24 h.
From our measurements and observations, the most important information was that the agglomeration of nanoparticles occurs very often. This problem was resolved through the use of a special material known as polyethylene glycol monooctadecyl ether, Brij 78 P, with its parameters presented in Table 3 [28].
By applying the Brij 78 P material, the optical and chemical-physical parameters, especially the refractive index and melting temperature, for the used higher alkane materials in the propagated wave were maintained, as was the response for the influences on optical propagation of light inside of the created structure.
Table 4 presents the cumulative refractive indices of the mixtures of alkanes with Brij 78 P (0.5 wt%) and nanoparticles (1 wt%).

2.2. Technology

In this section, the technology of threshold sensor manufacturing based on a biconical optical fiber taper covered in higher alkanes with nanoparticles is presented. For the manufacturing of the biconical optical fiber tapers, the author’s arrangements named FOTET II (Fiber Optic Taper Element Technology) were used [34], as presented in Figure 4.
A detailed description of the manufacturing process are included in the previous articles, hence, it will not be presented in this paper [11,34]. Prepared tapers used for presented threshold sensors are characterized by low losses below α = 0.2 dB in a whole investigated range, elongation L = 20.20 ± 0.05 mm and diameter of the taper waist φ = 14.50 ± 0.50 μm.
In the next step, due to the mechanical properties of the prepared taper, the protection tube was used with a schematic and cross-section presented in Figure 5a,b, respectively, and a sample image in Figure 5c.
Measurements were performed for 1550 nm. The choice of this value was dictated by a used optical fiber with the cut off for 1260 nm—a single mode works in a third telecommunication range. Additionally, for this wavelength, all the available measurement equipment possesses the best quality and sensitivity. Furthermore, all provided works are focused on implementation for industrial use. Measurements were provided in stages. The first one was used for spectral analysis and therefore was equipped with a wide range diode type SLED from Excalos (Schlieren, Switzerland) with a range of 1550 nm ± 100 nm and an OSA-AQ6375 optical spectrum analyzer (Yokogawa, Tokyo, Japan). The second measurement system was designed to measure the hysteresis of the temperature change time response. An S3FC1550 single-mode laser source for 1550 nm from Thorlabs (Newton, NJ, USA) was used and a PM100D detector from Thorlabs with a S140C photodiode power sensor was applied. All temperature changes and their stabilization were provided by a climatic chamber VCL7010 from Votche Ltd., (Balingen, Germany).

3. Results and Discussion

The measurements were divided into a few steps, which clearly show the influence of materials that create the taper cladding with different admixtures. The first step provides the manufacturing of an optical fiber adiabatic taper with low insertion losses below 0.2 dB in the whole range. A taper secured in a glass tube was measured in the climatic chamber for a SLED light source, as well as the polarization parameters (Figure 6).
C15 and C16 were investigated in the temperature range corresponding to the two-phase state—solid and liquid. For the solid phase in both cases, optical transmission in the fiber sensor was very low. This is connected with the value of the refractive index in the solid state and, as well as with the properties of materials, they are not transparent, which causes strong scattering of light by kinds of microstructures within the solid state of all power from the optical fiber taper. At the transition temperature, sharp increases in power are observed and the power is maintained in the liquid state. The additional material Brij 78 P was applied to provide non-agglomeration of the nanoparticles. Figure 7 shows the hysteresis of power change for both pure materials and for those with the admixture of Brij 78 P.
As can be observed, there exists a hysteresis in the cooling and heating process. In all cases, it can be observed that the transmission of light in the heating process is slower than in the cooling one. Additionally, the difference in temperature in which full power is being observed to the temperature it starts to see light transmission is changed from 3 to 8 °C. For the cooling process, the change of power exhibits a step change from maximum to zero. The hysteresis relates to the volume of the materials used. The heating process starts from the outer edge and spreads to the optical taper materials. A full switching range can be observed over 5 °C (from 10 to 15 °C), which is connected with the uneven process of melting materials. In the change of power during the cooling process, levels can be described as a step change. The change from the liquid state to the solid state is 1 °C (8–7 °C). This phase transition is much faster than in the heating process.
In all cases, Brij 78 P does not influence significantly the heating process, as well as the cooling one, so it can be accepted that there is no change of the base material properties. The next part of the investigation relates to the admixture of nanoparticles from ZnS:Mn to both materials.
Figure 8 shows the hysteresis of the power change for a 1550 nm laser (S3FC1550 from Thorlabs) for C15 materials with Brij and with ZnS:Mn is presented.
For both C15 and C16, the hysteresis of a phase change from solid to liquid, and vice versa, can be observed. C15 in the heating process has a much longer time of full change of the physical state. For C16, the time of a physical state complete change is similar for the heating and cooling process. An admixture of nanoparticles for both alkanes changes the temperature of phase transition from solid to liquid one: C15 from 20 to 25 °C and C16 from 22 to 24 °C. This is related to the heating capacity of the used nanoparticles. Furthermore, for the C15 material, a reduction in the phase change from solid to liquid from 10 to 5 °C can be observed. For the C15 alkane with nanoparticles in a heating process, the maximum value very slowly reaches 40 °C.
These results were confirmed for a wide-range diode. Figure 9 and Figure 10 for C15 and Figure 11 and Figure 12 for C16 present the changes of power in a wide range for the heating and cooling processes, respectively.
In a wide range, the measurement for a single wavelength was confirmed. The presented devices can work for different wavelengths with the same level of temperature detection. Nanoparticles of ZnS:Mn introduce a new kind of nucleating agent, which absorbs some part of the temperature energy (with a higher heat capacity than alkanes) and allows for shifting of the phase state. Moreover, the nanoparticles do not interact with the light propagated inside the taper’s structure but change the properties of the cladding materials.
For checking the influence of the applied nanoparticles for light parameters, the polarization properties have been checked. As a source, the Santec TLC 210 laser was used for a wavelength of 1550 nm, which corresponds to the telecommunication range and for polarization parameters, the polarimeter PAX from Thorlabs with measurement head for IR wavelength was used. Figure 13 shows the change of ellipticity for the C15 and C16 alkanes depending on the temperature change.
As can be observed for C15, the addition of NPs does not change the polarization properties, especially ellipticity. Nanoparticles cause a situation where there is no change of the heating and cooling value in ellipticity. For C15 with and without the admixture, the change of ellipticity and azimuth is negligible.
For C16 at a lower temperature (below 20 °C), the pure material and the admixture of NP in the heating process do not propagate power that is confirmed by the results—ellipticity and, especially, azimuth are the only measurement on random noise as there is no light. In the cooling process for both types of materials to 15 °C, the state of polarization is maintained. This is strictly connected with the material properties and the value of hysteresis (for cooling process temperature in which power disappears is below 15 °C).
Figure 14 shows the change of azimuth for the C15 and C16 alkanes depending on the temperature change.
As can be noticed in a stabilized temperature value of azimuth for both alkanes and their mixtures light power does not change its value. For C15, the value of azimuth does not change during the temperature change. For C16, in the heating process, the value of azimuth increases. In this case, the admixture of nanoparticles reduces this phenomenon.
All observed fluctuation refers only to the climatic chamber properties. For all materials, the value of ellipticity is ±5°.

4. Conclusions

In the study, the influence of the admixture of ZnS:Mn nanoparticles to n-pentadecane (C15) and n-hexadecane (C16) has been presented. As can be noticed, the nanoparticles shift the temperature of the change phase state from state to liquid for 3 °C for both alkanes. For the cooling process, it can be observed that the temperature shifts by ~3 °C for C16 to a higher temperature, and for C15, the temperature stays at the same point. These shifts can be a result of the higher heat capacity of the mixture with nanoparticles compare to the pure material. It is noteworthy that it works for a wide spectral range of the propagated light. It is possible to obtain a threshold temperature sensor by admixing NP possess different materials properties. As can be noticed nanoparticles do not introduce a significant change of polarization parameters. For C15, the ellipticity with the NP admixture shows that it changes only in a very small range of less than 1% for the cooling and heating process, for pure material observed the change is over 5%. As can be observed for both alkanes and mixtures with NP, the azimuth stays at the same level independently to temperature and in this case forms a stable polarizer in a wide range. Furthermore, it should be mentioned that in C16 with nanoparticles, we observe standard or pure effects of temperature influence on an SOP parameter of light which is not observed for the second alkane with the nanoparticle, especially in a heating process. The admixture of nanoparticles reduces the change of azimuth in this process to about 10° from 40° for a pure one. For C15 with and without nanoparticles, azimuth stays at the same level. For all measurements, there is no visible fluctuation of polarization parameters during the investigation, which makes the noise ratio of these microdevices negligible.
In all cases, the presented solution can be used as a temperature sensor/detector in difficult to reach places. Additionally, by a special admixture of nanoparticles, it is possible to create sensors that give a signal that the temperature is exceeded above the allowable enabled to react and avoid the damage of equipment or infrastructure. All the proposed solutions are compact, in line, and there is a possibility of using different kinds of lasers.

Author Contributions

Conceptualization: K.A.S. and I.J.; methodology: K.A.S.; formal analysis: K.A.S.; investigation: I.J., K.A.S., J.K., K.M.-P.; resources: I.J., K.A.S., K.M.-P.; data curation: I.J., K.A.S.; writing—original draft preparation: K.A.S.; writing—review and editing: I.J., K.A.S., K.M.-P.; visualization: J.K., I.J.; supervision: K.A.S.; project administration: K.A.S.; funding acquisition, K.A.S., K.M.-P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

This work was financially supported by the Ministry of Science and Higher Education as a statutory activity of the Technical Physics Applications Department of the Military University of Technology UGB 22-756. The work concerning the synthesis of ZnS:Mn nanoparticles was financially supported by the state of North-Rhine–Westphalia in Germany and the European Union as a part of the project of the Evonik Degussa Science-to-Business Center Nanotronics. We would like to thank Michael Bredol from Fachhochschule Muenster—University of Applied Sciences, Germany and Anna Prodi-Schwab for supporting this part of work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Katsunari, O. Wave Theory of Optical Waveguides. In Fundamentals of Optical Waveguides, 2nd ed.; Academic Press: London, UK, 2006; Volume 3, pp. 32–47. [Google Scholar]
  2. Born, M.; Wolf, E. Principles of Optics; Cambridge University Press: Cambridge, UK, 2003. [Google Scholar]
  3. Tsao, C. Optical Fiber Waveguide Analysis; Oxford University Press: London, UK, 1992. [Google Scholar]
  4. Russell, P.J. Photonic crystal fibers. Science 2003, 299, 358–362. [Google Scholar] [CrossRef] [PubMed]
  5. Paschotta, R. Field Guide to Optical Fiber Technology; SPIE Press: Bellingham, WA, USA, 2010. [Google Scholar]
  6. Rajan, G. Optical Fiber Sensors: Advanced Techniques and Applications. In Optical Fiber Sensors: Advanced Techniques and Applications; CRC Press: London, UK, 2015; pp. 413–425. [Google Scholar]
  7. Tian, Y.; Wang, W.; Wu, N.; Zou, X.; Wang, X. Tapered Optical Fiber Sensor for Label-Free Detection of Biomolecules. Sensors 2011, 11, 3780–3790. [Google Scholar] [CrossRef] [PubMed][Green Version]
  8. Villatoro, J.; Monzon-Hernandez, D.; Mejıa, E. Fabrication and modeling of uniform-waist single-mode tapered optical fiber sensors. Appl. Opt. 2003, 42, 2278–2283. [Google Scholar] [CrossRef] [PubMed]
  9. Paul, P.H.; Kychakoff, G. Fiber-optic evanescent field absorption sensor. Appl. Phys. Lett. 1987, 51, 12–14. [Google Scholar] [CrossRef]
  10. Moar, P.N. Fabrication, modeling, and direct evanescent field measurement of tapered optical fiber sensors. J. Appl. Phys. 1999, 85, 3395–3398. [Google Scholar] [CrossRef]
  11. Stasiewicz, K.; Moś, J. Influence of a thin metal layer on a beam propagation in a biconical optical fibre taper. Opto-Electron. Rev. 2016, 24, 196–208. [Google Scholar] [CrossRef][Green Version]
  12. Kaminow, I. Optical Fiber Telecommunication; Academic Press: Cambridge, MA, USA, 2008. [Google Scholar]
  13. Lee, B.H.; Kim, J.H.; Park, K.S.; Eom, J.B.; Kim, M.J.; Rho, B.S.; Choi, H.Y. Interferometric Fiber Optic Sensor. Sensors 2012, 12, 2467–2480. [Google Scholar] [CrossRef][Green Version]
  14. Fang, Z. Fundamentals of Optical Fiber Sensors; Wiley: Hoboken, NJ, USA, 2012. [Google Scholar]
  15. Talapin, D.V.; Lee, J.S.; Kovalenko, M.V.; Shevchenko, E.V. Prospects of Colloidal Nanocrystals for Electronic and Optoelectronic Applications. Chem. Rev. 2010, 110, 389–458. [Google Scholar] [CrossRef]
  16. Matras-Postolek, K.; Bogdal, D. Polymer Nanocomposites for Electro-Optics: Perspectives on Processing Technologies, Material Characterization, and Future Application. Adv. Polym. Sci. 2010, 230, 221–282. [Google Scholar]
  17. Matras-Postolek, K.; Sovinska, S.; Żaba, A.; Yang, P. Microwave-assisted heating versus conventional heating in solvothermal and non-solvothermal synthesis of photocatalytic active ZnSe·0.5N2H4 and ZnSe:Mn·0.5N2H4 anisotropic colloidal quasi-two-dimensional hybrid nanoplates. Chem. Eng. Process. 2017, 122, 346–356. [Google Scholar] [CrossRef]
  18. Matras-Postołek, K.; Sovinska, S.; Węgrzynowicz, A. Synthesis and characterization of ZnSe and ZnSe:Mn nanosheets and microflowers with high photoactive properties by microwave-assisted method. Chem. Eng. Process. 2019, 135, 204–216. [Google Scholar] [CrossRef]
  19. Liu, Y.; Yang, P.; Li, J.; Matras-Postolek, K.; Yue, Y.; Huang, B. Formation of SiO2@SnO2 core–shell nanofibers and their gas sensing properties. RSC Adv. 2016, 6, 13371–13376. [Google Scholar] [CrossRef]
  20. Bredola, M.; Matras, K.; Szatkowski, A.; Sanetra, J.; Prodi-Schwab, A. P3HT/ZnS: A new hybrid bulk heterojunction photovoltaic system with very high open circuit voltage. Sol. Energy Mater. Sol. Cells 2009, 93, 662–666. [Google Scholar] [CrossRef]
  21. Matras-Postołek, K.; Żaba, A.; Nowak, E.M.; Dąbczyński, P.; Rysz, J.; Sanetra, J. Formation and characterization of one-dimensional ZnS nanowires for ZnS/P3HT hybrid polymer solar cells with improved efficiency. Appl. Surf. Sci. 2018, 451, 180–190. [Google Scholar] [CrossRef]
  22. Matras, K.; Bredol, M.; Sakhnov, O.; Stumpe, J.; Bogdal, D.; Szatkowski, A. Composites from luminescent nanosized ZnS and optical polimer. Mol. Cryst. Liq. Cryst. 2008, 485, 776–779. [Google Scholar] [CrossRef]
  23. Martínez-Castañóna, G.A.; Martínez-Mendoza, J.R.; Ruiz, F.; González-Hernández, J. Synthesis and optical characterization of ZnS, ZnS:Mn and (ZnS:Mn)_CdS core-shell nanoparticles. Inorg. Chem. Commun. 2007, 5, 531–534. [Google Scholar]
  24. Sharma, R.; Bisen, D.P. Thermoluminescence of mercaptoethanol-capped ZnS:Mn nanoparticles. Luminescence 2015, 30, 175–181. [Google Scholar] [CrossRef]
  25. Tong, L.; Sumetsky, M.I. Subwavelength and Nanometer Diameter Optical Fibers; Springer: Berlin, Germany, 2011; pp. 1–22. [Google Scholar]
  26. Moayyed, H.; Teixeira Leite, I.; Coelho, L.; Santos, J.; Viegas, D. Analysis of Phase Interrogated SPR Fiber Optic Sensors with Biometallic Layers. IEEE Sens. J. 2014, 14, 3662–3668. [Google Scholar] [CrossRef]
  27. Prodi-Schwab, A.; Adam, D.; Lüthge, T.; Bredol, M.; Matras, K.; Szatkowski, A. Lumineszente nanoskalige Partikel mit hydrophober Oberflächenausstattung, Verfahren zu ihrer Herstellung sowie ihre Verwendung. Germany Patent No. WO2009133138A1, 5 November 2009. [Google Scholar]
  28. Bumb, A.; Sarkar, S.K.; Neuman, K.C.; Brechbiel, M. Method of Preparing Silica-Coated Nanodiamonds. U.S. Patent No. US 2015/0190843 A1, 9 July 2015. [Google Scholar]
  29. Sabri, N.; Aljunid, S.A.; Salim, M.S.; Ahmad, R.B.; Kamaruddin, R. Toward Optical Sensors: Review and Applications. J. Phys. Conf. Ser. 2013, 423, 2064–2072. [Google Scholar] [CrossRef]
  30. Chen, L.; Chan, C.; Ni, K.; Hu, P.; Li, K.; Wong, W.; Leong, K. Label-free fiber-optic interferometric immunosensors based on waist-enlarged fusion taper. Sensor Actuat. B-Chem. 2013, 178, 176–184. [Google Scholar] [CrossRef]
  31. Arregui, F.J.; Matías, I.R.; López-Amo, M. Optical fiber strain gauge based on a tapered single-mode fiber. Sensor Actuat. A 2000, 79, 90–96. [Google Scholar] [CrossRef]
  32. Kieu, K.Q.; Mansuripur, M. Biconical fiber taper sensors. IEEE Photonics Technol. Lett. 2006, 18, 2239–2241. [Google Scholar] [CrossRef]
  33. Latifi, H.; Zibaii, M.I.; Hosseini, S.M.; Jorge, P. Nonadiabatic tapered optical fiber for biosensor applications. Photonic Sens. 2012, 2, 340–356. [Google Scholar] [CrossRef]
  34. Stasiewicz, K.A.; Musiał, J.E. Threshold temperature optical fibre sensors. Opt. Fiber Technol. 2016, 32, 111–118. [Google Scholar] [CrossRef]
  35. Vélez, C.; de Zárate, J.M.O.; Khayet, M. Thermal properties of n-pentadecane, n-heptadecane and n-nonadecane in the solid/liquid phase change region. Int. J. Therm. Sci. 2015, 94, 139–146. [Google Scholar] [CrossRef]
  36. Vélez, C.; Khayet, M.; de Zárate, J.M.O. Temperature-dependent thermal properties of solid/liquid phase change even-numbered n-alkanes: N-Hexadecane, n-octadecane and n-eicosane. Appl. Energ. 2015, 143, 383–394. [Google Scholar] [CrossRef]
  37. Oćwieja, M.; Matras-Postołek, K.; Maciejewska-Prończuka, J.; Morga, M.; Adamczyk, Z.; Sovinska, S.; Żaba, A.; Gajewska, M.; Król, T.; Cupiał, K.; et al. Formation and stability of manganese-doped ZnS quantum dot monolayers determined by QCM-D and streaming potential measurements. J. Colloid Interf. Sci. 2017, 503, 186–197. [Google Scholar] [CrossRef]
  38. Murugadoss, G.; Rajamannan, B.; Ramasamy, V. Synthesis, characterization and optical properties of water-soluble ZnS:Mn2+ nanoparticles. J. Lumin. 2010, 130, 2032–2039. [Google Scholar] [CrossRef]
  39. Ma, X.; Song, J.; Yu, Z. The light emission properties of ZnS:Mn nanoparticles. Thin Solid Films 2011, 519, 5043–5045. [Google Scholar] [CrossRef]
  40. Popovetskiy, P.S. Synthesis and Characterization of Silver Nanoparticles in Reverse Micelles of Nonionic Surfactants and in Their Mixed Micelles with AOT. Colloid J. 2020, 82, 144–151. [Google Scholar] [CrossRef]
  41. Marc, P.; Przybysz, N.; Molska, A.; Jaroszewicz, L.R. Photonic Crystal Fiber Transducers for an Optical Fiber Multilevel Temperature Threshold Sensor. J. Lightwave Technol. 2017, 36, 898–903. [Google Scholar] [CrossRef]
  42. Freund, M.; Csikos, R.; Keszthelyi, S.; Mozes, G.Y. Paraffin Products: Properties Technologies, Applications; Elsevier Scientific Publishing Company: New York, NY, USA, 1982; pp. 90–123. [Google Scholar]
Figure 1. Propagation of light in an optical fiber taper [25,26].
Figure 1. Propagation of light in an optical fiber taper [25,26].
Micromachines 11 01006 g001
Figure 2. Picture of applied nanoparticles of ZnS:Mn + DBSA + CYS.
Figure 2. Picture of applied nanoparticles of ZnS:Mn + DBSA + CYS.
Micromachines 11 01006 g002
Figure 3. Particle size distribution of ZnS:Mn nanoparticles stabilised by CYS and DBSA in tetrahydrofuran.
Figure 3. Particle size distribution of ZnS:Mn nanoparticles stabilised by CYS and DBSA in tetrahydrofuran.
Micromachines 11 01006 g003

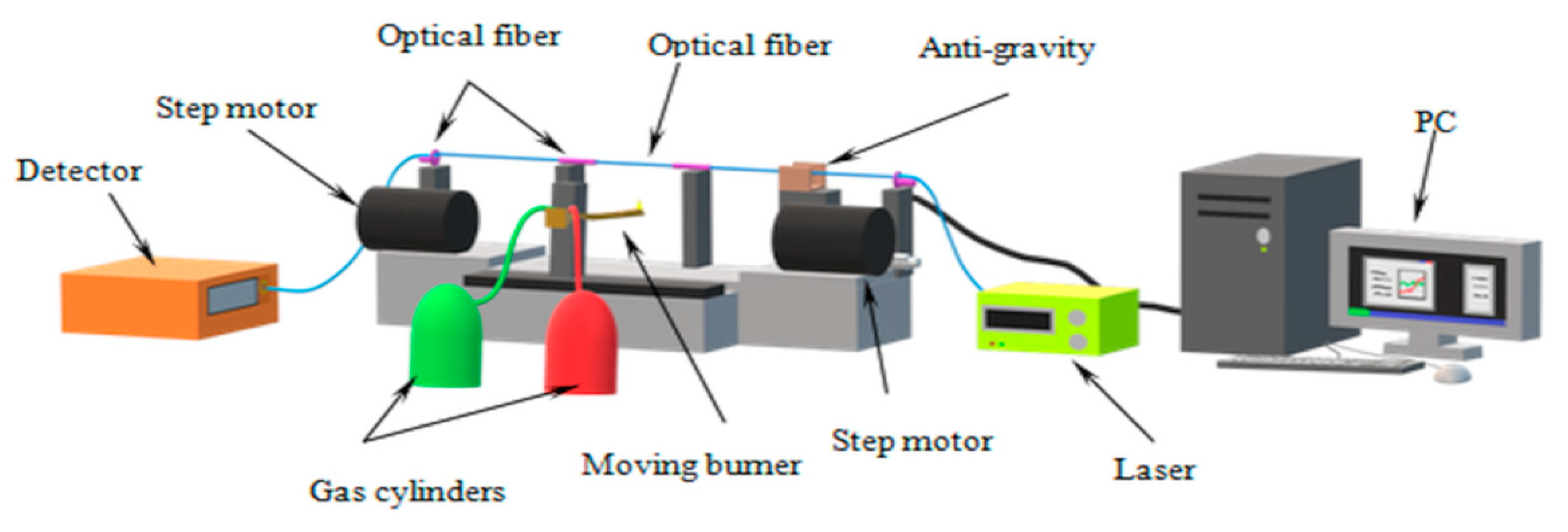

Figure 4. Schematic of FOTET system for biconical optical fiber manufacturing [34].
Figure 4. Schematic of FOTET system for biconical optical fiber manufacturing [34].
Micromachines 11 01006 g004

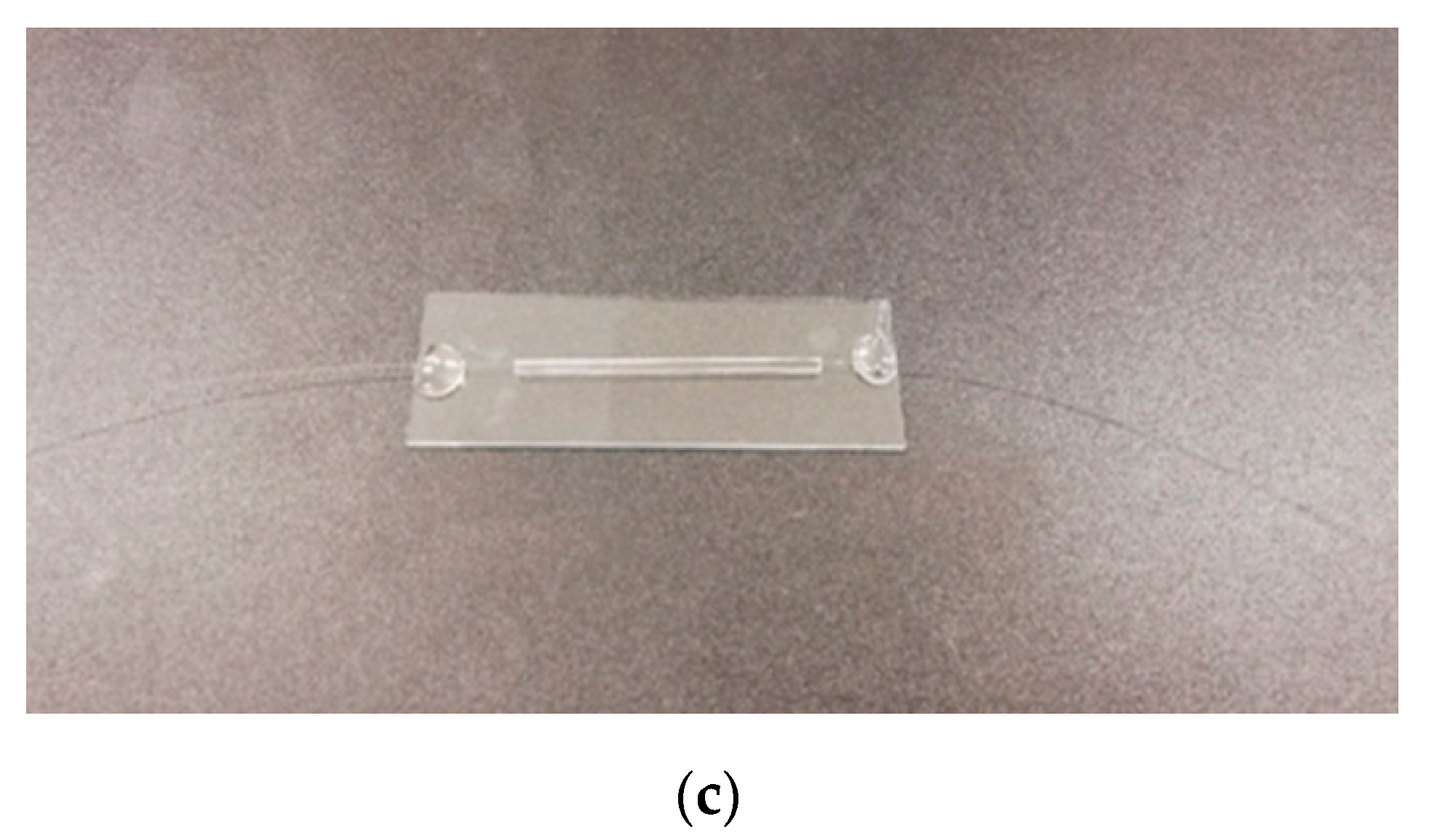

Figure 5. (a,b) Schematic of arrangements for protection taper with possibilities of alkanes and nanoparticle cladding application, and (c) cross-section of a sample.
Figure 5. (a,b) Schematic of arrangements for protection taper with possibilities of alkanes and nanoparticle cladding application, and (c) cross-section of a sample.
Micromachines 11 01006 g005aMicromachines 11 01006 g005b

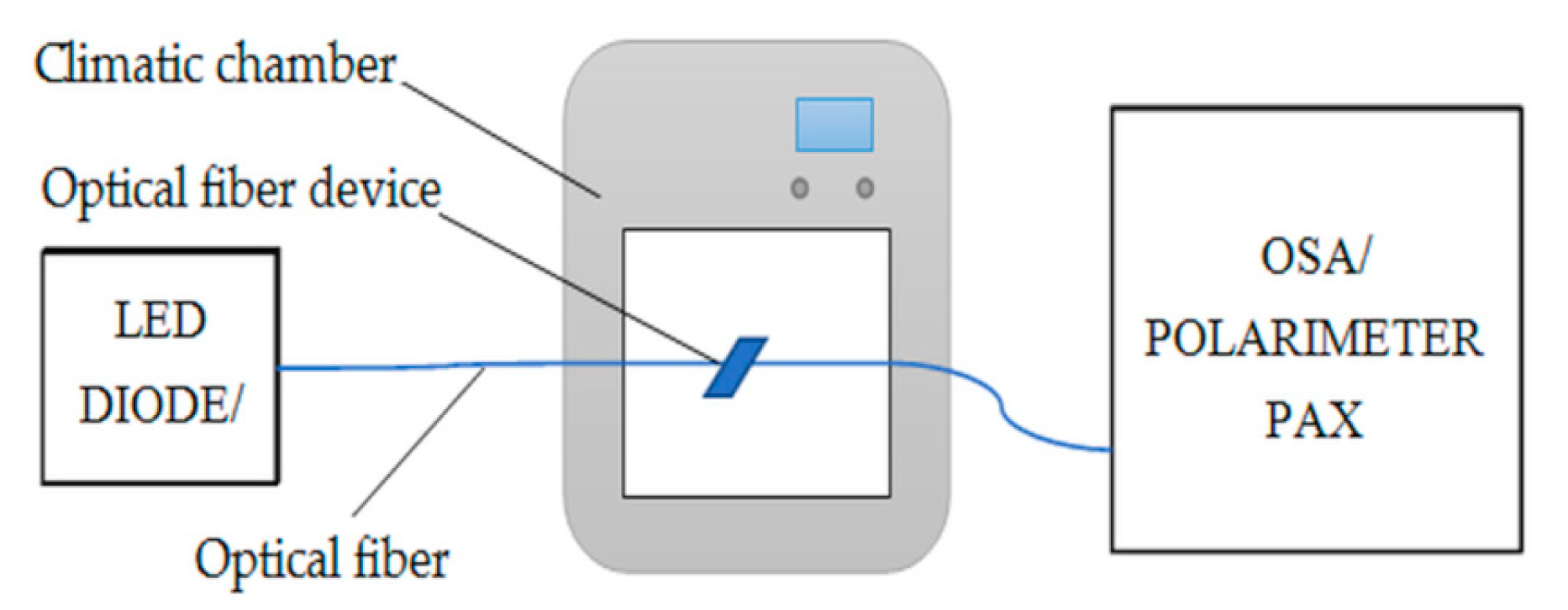

Figure 6. Setup for measurement of optical fiber devices.
Figure 6. Setup for measurement of optical fiber devices.
Micromachines 11 01006 g006

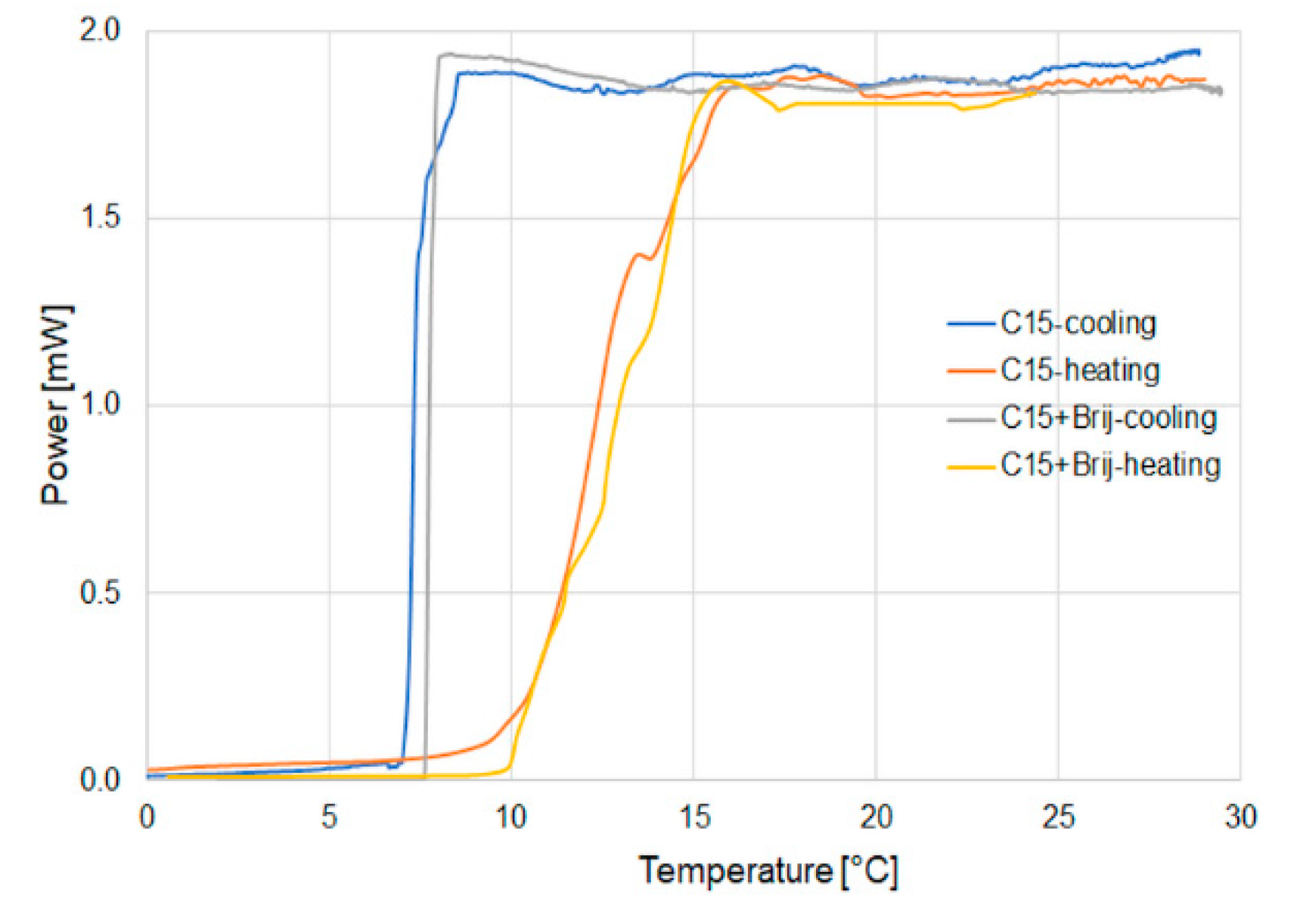

Figure 7. Hysteresis of power change for a pure material and with the Brij admixture for the example of C15 materials.
Figure 7. Hysteresis of power change for a pure material and with the Brij admixture for the example of C15 materials.
Micromachines 11 01006 g007

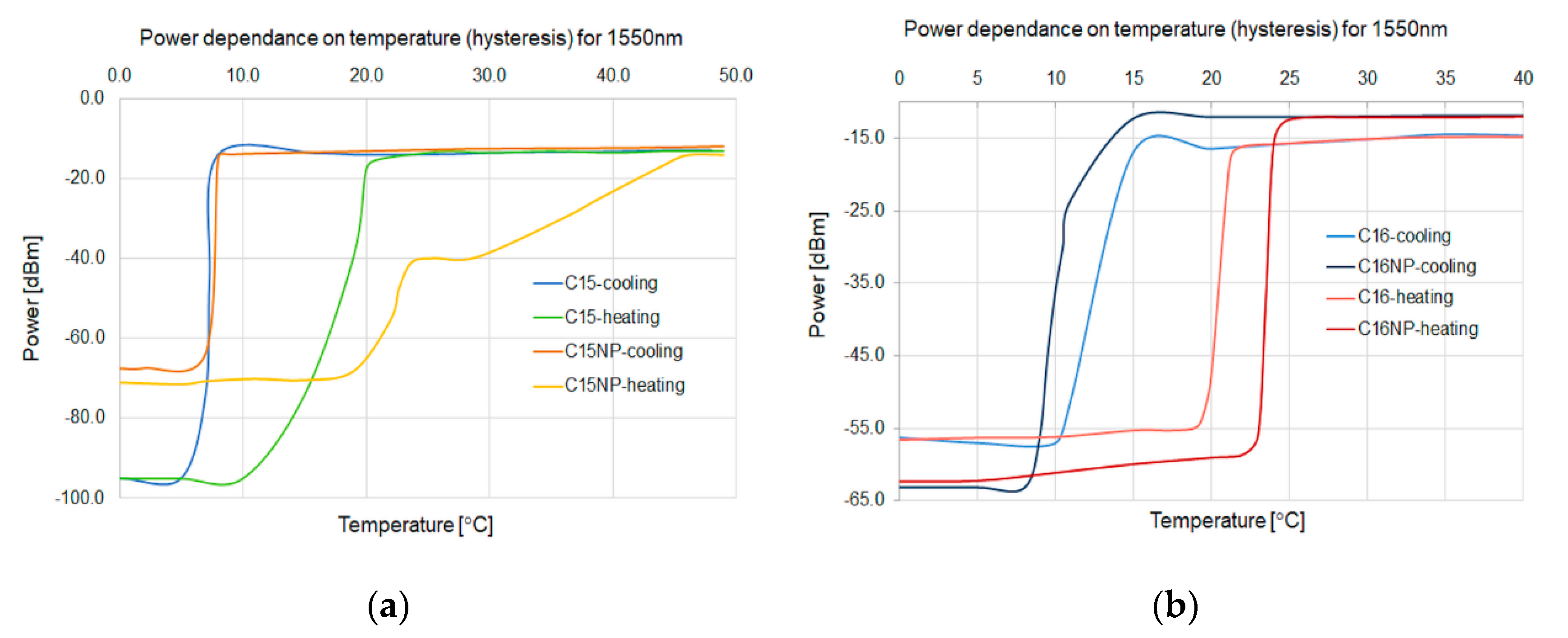

Figure 8. Temperature hysteresis of C15 (a) and C16 (b) for pure materials and with nanoparticle changes for a 1550 nm light beam.
Figure 8. Temperature hysteresis of C15 (a) and C16 (b) for pure materials and with nanoparticle changes for a 1550 nm light beam.
Micromachines 11 01006 g008

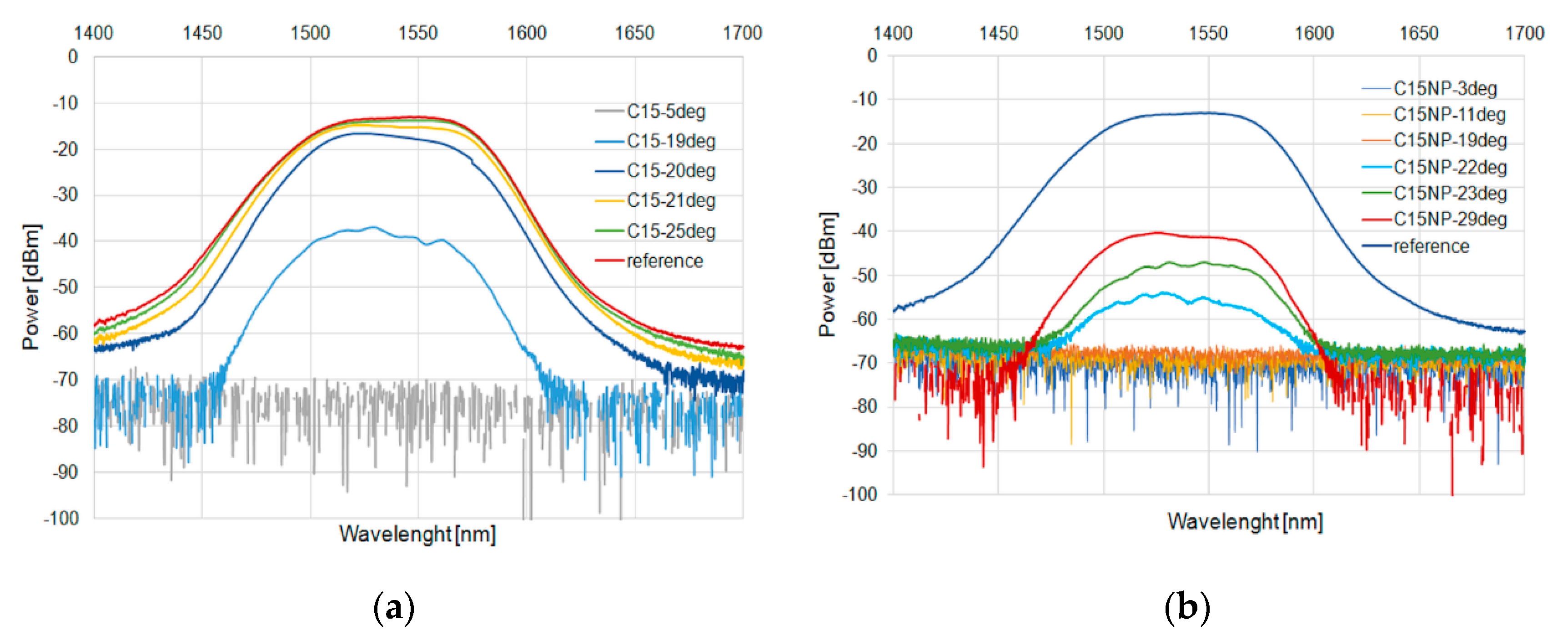

Figure 9. Heating process in C15 (a) and with an admixture of NPs (b) for SLED 1400–1700 nm.
Figure 9. Heating process in C15 (a) and with an admixture of NPs (b) for SLED 1400–1700 nm.
Micromachines 11 01006 g009
Figure 10. Cooling process in C15 (a) and with an admixture of NPs (b) for SLED 1400–1700 nm.
Figure 10. Cooling process in C15 (a) and with an admixture of NPs (b) for SLED 1400–1700 nm.
Micromachines 11 01006 g010
Figure 11. Heating process in C16 (a) and with an admixture of NPs (b) for SLED 1400–1700 nm.
Figure 11. Heating process in C16 (a) and with an admixture of NPs (b) for SLED 1400–1700 nm.
Micromachines 11 01006 g011

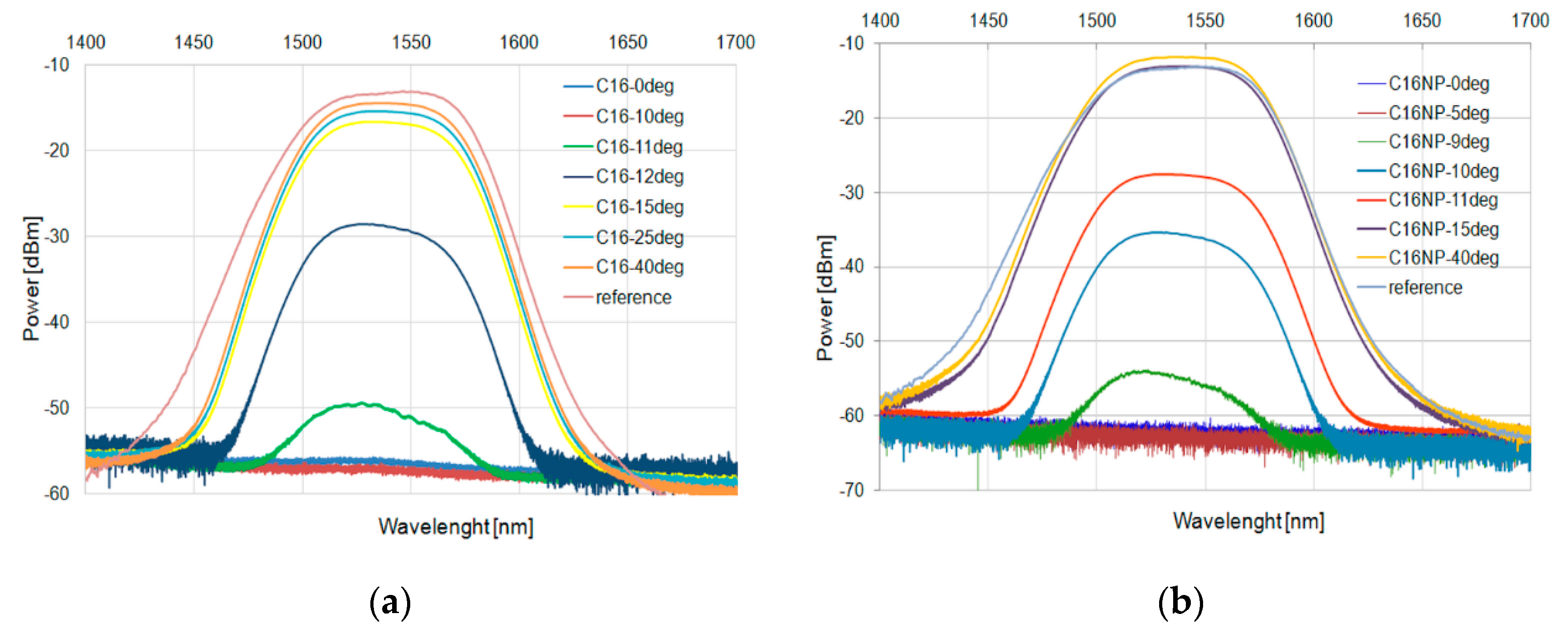

Figure 12. Cooling process in C16 (a) and with an admixture of NPs (b) for SLED 1400–1700 nm.
Figure 12. Cooling process in C16 (a) and with an admixture of NPs (b) for SLED 1400–1700 nm.
Micromachines 11 01006 g012

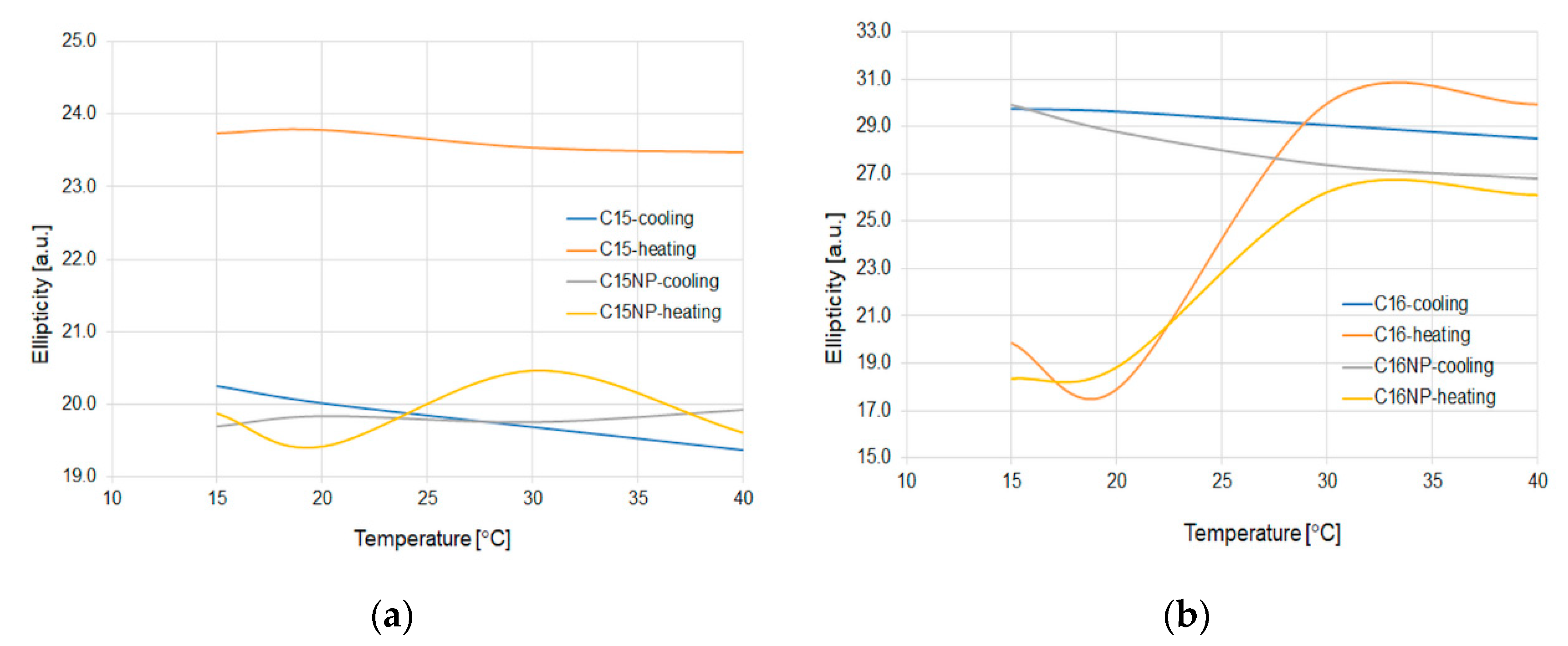

Figure 13. Fluctuation of ellipticity for C15 (a) and C16 (b) for pure and with NP mixture at 15–40 °C for all microdevices.
Figure 13. Fluctuation of ellipticity for C15 (a) and C16 (b) for pure and with NP mixture at 15–40 °C for all microdevices.
Micromachines 11 01006 g013
Figure 14. Change of level of azimuth for different temperatures for all kinds of microdevices for pure materials and with NP mixtures C15 (a) and C16 (b).
Figure 14. Change of level of azimuth for different temperatures for all kinds of microdevices for pure materials and with NP mixtures C15 (a) and C16 (b).
Micromachines 11 01006 g014
Table 1. Parameters of applied standard telecommunication fiber.
Table 1. Parameters of applied standard telecommunication fiber.
Parameter [Units]CoreCladdingMode Field
Diameter [µm]8.212510.98
Refractive index [a.u.]1.45481.443--
Table 2. Chemical parameters of n-pentadecane and n-hexadecane [36,37].
Table 2. Chemical parameters of n-pentadecane and n-hexadecane [36,37].
AlkaneFormulaMolecular Mass Melting PointBoiling PointFlash PointDensityRefractive IndexRefractive Index at 20.4 °C
n-PentadecaneCH3(CH2)13CH3212.429–10 °C269–270 °C132 °C (269 °F)0.7691.43201.4317
n-HexadecaneCH3(CH2)14CH3226.4518 °C287 °C135 °C (275 °F)0.7731.43451.4344
Table 3. Chemical parameters of applied anti-agglomeration material Brij 78 P [29,30].
Table 3. Chemical parameters of applied anti-agglomeration material Brij 78 P [29,30].
FormulaMolecular MassMelting PointSolubility
C58H118O241199.57~56–60 °CAt 20 °C in methanol, chloroform and ethanol
Table 4. Refractive indices of investigated mixtures at 20.4 °C.
Table 4. Refractive indices of investigated mixtures at 20.4 °C.
C15C15 with BrijC15 with Brij and NanoparticlesC16C16 with BrijC16 with Brij and Nanoparticles
1.43171.43191.43191.43441.43461.4346
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Stasiewicz, K.A.; Jakubowska, I.; Korec, J.; Matras-Postołek, K. Modification of Higher Alkanes by Nanoparticles to Control Light Propagation in Tapered Fibers. Micromachines 2020, 11, 1006. https://doi.org/10.3390/mi11111006

AMA Style

Stasiewicz KA, Jakubowska I, Korec J, Matras-Postołek K. Modification of Higher Alkanes by Nanoparticles to Control Light Propagation in Tapered Fibers. Micromachines. 2020; 11(11):1006. https://doi.org/10.3390/mi11111006

Chicago/Turabian Style

Stasiewicz, Karol A., Iwona Jakubowska, Joanna Korec, and Katarzyna Matras-Postołek. 2020. "Modification of Higher Alkanes by Nanoparticles to Control Light Propagation in Tapered Fibers" Micromachines 11, no. 11: 1006. https://doi.org/10.3390/mi11111006

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
