Comparative Pharmacodynamics of Three Different Botulinum Toxin Type A Preparations following Repeated Intramuscular Administration in Mice

by
Jaeyoon Byun
1,2,†,
Seongsung Kwak
1,†,
Jin-Hee Kwon
1,
Minhee Shin
1,
Dong-Kyu Lee
1,
Chang-Hoon Rhee
3,
Won-ho Kang
1,
Jae-Wook Oh
2,* and
Deu John M. Cruz
1,*
1
Medytox Gwanggyo R&D Center, 114 Central town-ro, Yeongtong-gu, Suwon-si 16506, Korea
2
Department of Stem Cell and Regenerative Biotechnology, Konkuk University, 120 Neungdong-ro, Gwangjin-gu, Seoul 05029, Korea
3
Medytox Osong R&D Center, 102 Osongsaengmyeong 4-ro, Osong-eup, Heungdeok-gu, Cheongju-si 28161, Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Toxins 2022, 14(6), 365; https://doi.org/10.3390/toxins14060365
Submission received: 4 May 2022 / Revised: 23 May 2022 / Accepted: 23 May 2022 / Published: 25 May 2022
(This article belongs to the Section Bacterial Toxins)
Browse Figures
Versions Notes

Abstract

:
Botulinum neurotoxin type A (BoNT/A) causes muscle paralysis by blocking cholinergic signaling at neuromuscular junctions and is widely used to temporarily correct spasticity-related disorders and deformities. The paralytic effects of BoNT/A are time-limited and require repeated injections at regular intervals to achieve long-term therapeutic benefits. Differences in the level and duration of effectivity among various BoNT/A products can be attributed to their unique manufacturing processes, formulation, and noninterchangeable potency units. Herein, we compared the pharmacodynamics of three BoNT/A formulations, i.e., Botox® (onabotulinumtoxinA), Xeomin® (incobotulinumtoxinA), and Coretox®, following repeated intramuscular (IM) injections in mice. Three IM injections of BoNT/A formulations (12 U/kg per dose), 12-weeks apart, were administered at the right gastrocnemius. Local paresis and chemodenervation efficacy were evaluated over 36 weeks using the digit abduction score (DAS) and compound muscle action potential (CMAP), respectively. One week after administration, all three BoNT/A formulations induced peak DAS and maximal reduction of CMAP amplitudes. Among the three BoNT/A formulations, only Coretox® afforded a significant increase in paretic effects and chemodenervation with a prolonged duration of action after repeated injections. These findings suggest that Coretox® may offer a better overall therapeutic performance in clinical settings.
Keywords:
botulinum toxin; digit abduction score; compound muscle action potential; repeated injection; duration of action
Key Contribution: This study highlights differences in the pharmacodynamics of three BoNT/A preparations following repeated intramuscular administration in mice. The results may provide better guidance for formulating a more therapeutically effective dosing regimen for each BoNT/A formulation in clinical settings.

1. Introduction

Botulinum neurotoxins (BoNT) are highly potent exotoxins produced by Clostridium botulinum, as well as a few related species, and are well-known to cause muscle paralysis by blocking the release of acetylcholine from presynaptic cholinergic nerve endings at neuromuscular junctions (NMJ) [1]. The active form of all BoNT consists of two polypeptides, a 100 kDa heavy chain (Hc) and a 50 kDa light chain (Lc), linked via a disulfide bond. The Hc facilitates BoNT binding to the synaptic vesicle protein 2 (SV2) and polysialogangliosides at the presynaptic membrane of nerve terminals, after which the holotoxin gets internalized by vesicle endocytosis [2,3]. Protonation of the vesicle unfolds the holotoxin, enabling the Hc to act as both protein-conducting channel and transmembrane chaperone that allows membrane translocation of the Lc into the cytoplasm [4]. During translocation across the endosomal membrane, the interchain disulfide bond gets reduced by the theoredoxin-theoredoxin reductase system (Trx-TrxR) facilitating the separation of the Lc from the Hc, while the chaperon protein Hsp90 mediates refolding of the Lc to its native fold [5,6,7]. After reacquiring its active state, the Lc is now able to cleave components of the SNARE protein complex (SNAP-25, syntaxin, synaptobrevin) which subsequently interrupts acetylcholine transport from the cytosol into the synaptic cleft [8,9,10].
BoNT is traditionally classified into seven antigenically distinct serotypes (A, B, C, D, E, F, and G), and different subtypes in some of these serotypes [11,12]. In recent years, new serotypes and chimeras of existing BoNTs have been identified, such as BoNT/X, BoNT/H (hybrid of BoNT/A1 and BoNT/F5), and BoNT/CD (mosaic of BoNT/C and BoNT/D) [13,14,15,16]. In addition, the discovery of “botulinum-like” toxins in non-clostridial species have intrigued scientists on the evolutionary origin of this highly potent neurotoxin [17,18]. In 1980, BoNT type A (BoNT/A) became the first BoNT approved for human use as an alternative to surgical manipulation to treat strabismus in pediatric patients [19]. Since then, clinical indications for the use of BoNT/A have expanded to a wide variety of focal hyperkinetic movement disorders, focal and segmental upper- and lower-limb spasticity, and other neurological disorders [20,21]. Moreover, BoNT/A is widely employed for facial aesthetic treatment and is a popular anti-wrinkle agent. There are eight known subtypes of BoNT/A (A1~A8), and BoNT/A1 is the most commonly used drug product for pharmaceutical purposes, owing to the extensive studies at molecular and cellular levels, as well as preclinical and clinical investigations [12,22].
BoNT/A is an effective and generally safe treatment for patients who suffer from chronic conditions associated with neuromuscular disorders such as hemiplegic cerebral palsy, cervical dystonia, hemifacial spasm, blepharospasm, among others [23,24]. However, BoNT/A treatment failure and secondary non-responsiveness following repeated administration have been reported [25,26,27,28]. Therefore, repeated BoNT/A administration should maintain the desired treatment effects while avoiding potential side effects and conditions that elicit secondary non-responsiveness [29]. Several studies have investigated the local effects and effective duration of BoNT/A in rodents, although most reported their findings performed only 1 or 2 injections of BoNT/A formulations. Moreover, reports on the effects of neutralizing antibody production following repeated BoNT/A administration are lacking [30,31,32,33,34].
Several different BoNT/A products are available in the market, including Coretox® (Medytox Inc., Cheongju-si, Korea), Xeomin® (Merz Pharmaceuticals GmbH, Frankfurt am Main, Germany), and Botox® (Allergan, Irvine, CA, USA). Botox® contains neurotoxin complexes, whereas Coretox® and Xeomin® contain a complexing protein-free neurotoxin. Although all these formulations contain the 150 kDa core neurotoxin, intrinsic, and extrinsic factors, including their unique manufacturing process, excipients, and potency units, potentially contributing to differences in the clinical effectiveness and duration of BoNT/A formulations, consequently influencing the dosage and dosage interval needed to achieve the desired therapeutic benefits [35,36].
We have previously compared the pharmacodynamics of three different BoNT/A formulations (Botox®, Xeomin®, and Coretox®) in ICR mice using a single intramuscular (IM) injection [32]. In the present study, the pharmacodynamics of these three BoNT/A formulations were compared by administering three repeated IM injections into the right gastrocnemius of ICR mice at 12-week intervals. The 12 U/kg IM dose was used in this study as it has been shown previously that this dosage induces strong paretic and chemodenervation effects without eliciting serious adverse events in the animals [32]. The pharmacological activity and duration of action of each BoNT/A formulation were evaluated over 36 weeks by grading the level of paresis over time and monitoring changes in the motor endplate potential on ipsilateral hind limbs.

2. Results

2.1. Paretic Effects following Repeated IM Injections of BoNT/A

Paresis of both hind limbs of mice was graded using the digit abduction score (DAS), a physiological model that evaluates muscle flaccidity. A DAS value of 0 indicates full digit abduction, whereas a value of 4 represents the absence of abduction and leg extension, indicating complete muscle paralysis [37]. The right (ipsilateral) hind limb of treated animals exhibited varying degrees of muscle weakening following each repeated IM injection of Coretox®, Xeomin®, or Botox® at 12 U/kg per dose (potency units based on the product label of each BoNT/A formulation) during the 36-week evaluation period, as determined by the loss of digit abduction. Conversely, the left (contralateral) hind limb of the same animals showed no signs of muscle weakening at any examined time point (data not shown), suggesting that all three BoNT/A formulations only induce local paresis at the given dosage.

2.1.1. Comparison of Local Paresis among the Three BoNT/A Formulations

Local paretic effects resulting from each repeated IM injection of Coretox®, Xeomin®, and Botox® were compared using the following parameters: peak DAS (DASmax), duration of action, and cumulative DAS over time using the area under the curve (DASAUC). The DAS profile of each BoNT/A formulation is summarized in Table 1. The average DASmax values were comparable among the three BoNT/A formulations following the first dosing cycle, ranging between 2.8 and 3.1. Following the second dosing cycle, Xeomin® induced a lower average DASmax value than that of Coretox®. Likewise, Xeomin® showed a significantly lower average DASmax value than that of Botox® and Coretox® following the third dosing cycle. Considering the effective duration and cumulative DAS over time, the three BoNT/A formulations showed no significant difference in duration of action during the first dosing cycle (35.0~45.4 days). However, Xeomin® exhibited a significantly lower DASAUC than that of Coretox®. During the second dosing cycle, Coretox® demonstrated a significantly longer duration of action and larger DASAUC than that induced by Xeomin®. Following the third dosing cycle, Coretox® elicited a significantly longer duration of action and larger DASAUC than that of both Xeomin® and Botox®.

2.1.2. Course of Paretic Effects following Repeated IM Injections of Each BoNT/A

Figure 1A presents the course of paretic effects on the ipsilateral hind limb following three repeated IM injections of Botox®, Xeomin®, and Coretox® (12 U/kg per dose). Considering all three BoNT/A formulations, peak DAS values were observed three days after each repeated injection, followed by a steady decline over time. At the start of the next dosing cycle, all animals had reached full recovery (DAS = 0). Compared with the other two BoNT/A formulations, the duration of paretic effects of Coretox® increased after successive repeated doses (Figure 1A,B). Changes in the level of local paretic effects induced by the first, second, and third IM injections with each BoNT/A formulation were evaluated by comparing the average ratio of DASmax, DASAUC, and duration of action of the second and third dosing cycles to the first dosing cycle. Botox® and Coretox® showed no significant difference in the ratio of DASmax between the three repeated injections, whereas Xeomin® presented a significantly reduced ratio of DASmax after the third injection (Figure 1C). Both Botox® and Xeomin® showed no significant changes in the duration of action and DASAUC in all three dosing cycles. Meanwhile, Coretox® displayed a significant increase in both duration of action and DASAUC value after each successive injection (Figure 1D,E).

2.2. Chemodenervation on the Ipsilateral Hind Limb following Repeated IM Injections of BoNT/A

In addition to assessing paresis using DAS, we evaluated the efficacy of the BoNT/A formulations to induce chemodenervation on the ipsilateral hind limb of mice following IM injection into the right gastrocnemius by performing a compound muscle action potential (CMAP) assay, electromyography measuring summated action potentials of stimulated motor endplates from several muscle fibers within the same area. A reduction in CMAP can be correlated with the biological activity of neuromuscular blocking agents, including BoNTs [31].

2.2.1. Comparison of Chemodenervation among the Three BoNT/A Formulations

Chemodenervation induced by Coretox®, Xeomin®, and Botox® after each repeated IM injection was compared using the following parameters: CMAP amplitude at the start of the dosing cycle (CMAPbaseline), lowest CMAP (CMAPmin), and cumulative CMAP losses over time using the area above the curve (CMAPAAC). The CMAP profile of each BoNT/A formulation is summarized in Table 2. Considering the three BoNT/A formulations, Xeomin® induced significantly weaker chemodenervation, as shown by the higher CMAPmin in all three dosing cycles. Coretox® and Botox® induced CMAPmin values ranging from 1.43~1.45 mV in the first dosing cycle, 1.46~1.61 mV in the second dosing cycle, and 0.58~1.11 mV in the third dosing cycle, whereas Xeomin® induced CMAPmin values of only 3.49 mV, 3.05 mV, and 3.19 mV in the first, second, and third dosing cycles, respectively. Additionally, Xeomin® consistently exhibited significantly lower CMAPAAC values than those of Coretox® and Botox® in all three dosing cycles. Conversely, Coretox® showed a significant increase in CMAPAAC when compared with both Botox® and Xeomin® by the third dosing cycle.

2.2.2. Course of Chemodenervation following Repeated IM Injections of Each BoNT/A

Figure 2A presents the time course of changes in the average CMAP of the ipsilateral hind limb following three repeated IM injections of Coretox®, Xeomin®, and Botox® (12 U/kg per dose). The average CMAP in the placebo control group ranged between 47.48~48.05 mV, and CMAP amplitudes measured from each mouse showed minimal variations (0.61~1.04% coefficient of variation) throughout the study period. In contrast, a significant drop in CMAP amplitudes was observed in Coretox®, Xeomin®, and Botox® treatment groups one week after each repeated IM injection, followed by a steady recovery. Maximum chemodenervation was observed 6~7 days after each repeated IM injection, with reduced CMAP amplitudes exceeding 90%. Similar to the course of paretic effects, chemodenervation effects induced by each repeated dose of BoNT/A formulations were reduced over time. At the end of the first dosing cycle, the average CMAP reverted to near pre-injection levels. However, the average CMAP at the end of the second and third dosing cycles did not approach pre-injection levels. Based on the CMAP curves, we extrapolated that the recovery period to pre-injection levels was longer in the Coretox® administered group than in Xeomin® and Botox® administered groups at the third dosing cycle.
We also compared chemodenervation resulting from repeated IM injections for each BoNT/A formulation. Unlike Xeomin® and Botox®, the estimated duration of action of Coretox® following the third repeated IM injection significantly increased, as determined by extrapolation from CMAP curves (Figure 2B). Relative to their first injection, all three BoNT/A formulations showed a significant increase in the ratio of CMAPAAC following the second and third injections. However, only Coretox® demonstrated a significant increase in the ratio of CMAPAAC between the second and third injections, largely due to the prolonged duration of action from the latter (Figure 2C). Differences in the duration of action between repeated IM injections for each BoNT/A formulation could not be accurately determined, given that the dosing interval of 12 weeks precluded the hind limbs from reaching full recovery (pre-injection CMAP amplitudes). Furthermore, if another repeated injection was administered following the same dosing interval of 84 days, the CMAPbaseline for the fourth dosing cycle, represented by the CMAP measurement at Day 252, would show that Coretox® exhibited the most persistent chemodenervation among the three BoNT/A formulations (Figure 2D).

3. Discussion

BoNT/A is a highly effective presynaptic neuromuscular blocking agent and has been approved as a first-line treatment for various indications such as strabismus, hemifacial spasm, cervical dystonia, limb spasticity, cerebral palsy, chronic migraine, axillary hyperhidrosis and overactive bladder [20,21,38,39]. However, like most drugs, the pharmacological effect of BoNT/A is temporary, and patients with chronic conditions require repeated injections at specific intervals for continuous therapeutic benefits [26,40]. Several BoNT/A products available in the market have received regulatory approval for repeated administration of therapeutic doses at approximately 10- to 12-weeks intervals. More recently, it has been proposed that a more flexible and patient-tailored dosing regimen needs to be implemented for certain indications based on differences in the potency of each BoNT/A formulation [41].
In the present study, we compared the pharmacodynamics of Coretox®, Xeomin®, and Botox® on the ipsilateral hind limbs of mice when administered to the right gastrocnemius at regular intervals (12 weeks) using the same dosage (12 U/kg per IM injection) based on the labeled potency. Following the first injection, the onset and duration of local paresis and chemodenervation were comparable among all three BoNT/A formulations. However, Xeomin® exhibited lower cumulative effects for both paresis and chemodenervation than those of Coretox®, similar to previously reported findings [32]. By the third repeated injection, Coretox® showed prolonged paretic effects coinciding with increased cumulative chemodenervation. Both Xeomin® and Botox® elicited a comparable duration of paretic effects from the first to the third injections, despite the enhanced cumulative reduction in motor endplate potential by the latter dosing cycle. Comparing DAS and CMAP profiles, Coretox® showed superior performance over Xeomin® and Botox® in paretic effects and chemodenervation following repeated IM injections in mice assessed under identical conditions.
The gradual increase in CMAPAAC observed in mice following repeated administration of the BoNT/A formulations corroborated with a previous report describing the events at the NMJ of muscle fibers from mouse epitrochleoanconeus following repeated administration of BoNT/A. The authors showed that repeated BoNT/A exposure resulted in longer recovery periods following subsequent injections and attributed this phenomenon to structural abnormalities in individual NMJs, as well as changes in NMJ distribution [34]. Similarly, a clinical study has examined BoNT/A naïve adult patients with post-stroke hemispasticity and spastic foot drop receiving repeated BoNT/A injections every three months for one year. The authors reported a significant increase in treatment benefits after repeated injections when compared with the initial treatment [42].
Conversely, secondary non-responsiveness has been reported in some patients following repeated BoNT/A injections, which may involve the production of neutralizing antibodies against the neurotoxins [43,44]. Repeated BoNT/A injections are critically important for patients with intractable muscle-related conditions. Secondary non-responsiveness can induce serious debilitating effects in patients dependent on repeated BoNT/A treatment to function normally in daily life [45]. However, in the present study, we found no conclusive evidence indicating secondary non-responsiveness attributed to anti-drug antibodies following repeated injections with all three BoNT/A formulations, as determined by a cell-based neutralization assay performed using mouse serum samples (data not shown).
The present study is the first nonclinical report comparing the pharmacodynamics of three BoNT/A formulations (Coretox®, Xeomin®, and Botox®) in ICR mice following three repeated IM injections at 12-week intervals. Coretox®, a complexing protein-free neurotoxin, was the only BoNT/A formulation that showed significantly higher efficacy and longer duration of action after repeated injections than that of Xeomin® and Botox®. Interestingly, Coretox® is the only BoNT/A formulation that lacks animal-derived components, as it uses polysorbate 20 and L-methionine as excipients, whereas Xeomin® and Botox® formulations contain human serum albumin (Table 3). Further studies are warranted to explore the correlation between formulations and the pharmacodynamics of the BoNT/A products. Furthermore, the present study only investigated the pharmacological effects using a single dosage unit (12 U/kg) and fixed dosing interval (12 weeks); hence, other dosage units and various dosing intervals need to be examined to obtain a more comprehensive comparison of therapeutic effectiveness.

4. Conclusions

All examined BoNT/A formulations presented identical pharmacological effects. However, accumulated evidence suggests that differences in formulations may impact therapeutic effectiveness and effective duration of the repeated dosing regimen. Coretox®, a complexing-protein-free BoNT/A formulation devoid of animal-derived components, demonstrates significantly higher efficacy and longer duration of action after repeated intramuscular injections compared to Xeomin® and Botox® administered under similar dosing regimen. Expanding our understanding of the physiological events that occur during repeated BoNT/A injections might help provide better guidance for formulating a more therapeutically effective dosing regimen.

5. Materials and Methods

5.1. Preparation of Botulinum Toxin Type A Formulations

Three different commercial BoNT/A products were procured. OnabotulinumtoxinA (Botox®, Allergan, Irvine, CA, USA) is formulated as a 900 kDa BoNT/A complex. The other two products are complexing protein-free 150 kDa BoNT/A, i.e., incobotulinumtoxinA (Xeomin®, Merz Pharmaceuticals GmbH, Frankfurt am Main, Germany) and Coretox® (Medytox Inc., Cheongju-si, Korea). A detailed description of each BoNT/A formation is listed in Table 3.
Each BoNT/A formulation was reconstituted to 60 U/mL solutions using preservative-free normal saline (DaiHan Pharm, Ansan-si, Korea). Unopened vials of each BoNT/A formulation were used for each scheduled administration.

5.2. Repeated Intramuscular Injection of BoNT/A Formulations

All procedures involving laboratory animals were conducted at the animal facility of Medytox (Gwanggyo, Suwon, Korea) in accordance with the guidelines provided by the Animal Care and Use Committee of Medytox, Inc. (IACUC No. A-2020-016) and in compliance with the Laboratory Animal Act of Korea (Act No. 15278). Six weeks old female ICR/CD-1 mice of approximately 21–30 g (Orient Bio, Gyeonggi-do, Korea) were used in this study. Groups of 8 mice were assigned to each test group designated to receive one of three BoNT/A formulations or normal saline (placebo). Prior to administration, each mouse was anesthetized with an intraperitoneal (IP) injection of 60 mg/kg ketamine hydrochloride (Yuhan Co, Cheongju-si, Korea) and 12 mg/kg xylazine (Bayer, Ansan-si, Korea), and the right hindlimb was shaved. At the start of injection (Day 0), a single IM injection of the BoNT/A formulations was administered to the right gastrocnemius muscle of the corresponding animals at a dose equivalent to 12 U/kg body weight using a 25-μL Hamilton syringe. The placebo control group received a single IM injection of normal saline to the right gastrocnemius at a dose of 0.2 mL/kg body weight. The same procedure was repeated for all groups on Days 84 and 168, performing three repeated injections at 12-week intervals. The animals were housed in a highly controlled environment (23 ± 3 °C, 55 ± 15% relative humidity, 12 h light/dark cycle) with free access to food and water until the end of the study (Day 252). The body weight was measured at various time points, and any animal that showed more than a 20% decrease from their initial body weight at treatment initiation, or manifested signs of moribundity, was immediately euthanized for humane reasons and censored for the rest of the study.

5.3. Digit Abduction Score (DAS)

Local paresis of the hind limbs was graded using the modified DAS method as described previously [37]. Briefly, the mouse was suspended by the tail to elicit leg extension and abduction of hind digits. The level of digit abduction on the hind paws was scored by two blinded observers using a 5-point scale from 0 (full digit abduction) to 4 (complete absence of digit abduction and leg extension), with the average of the two observations representing the final score. DAS was recorded prior to and three days after each IM administration of test formulations, as well as at various time points until the end of the study period (Day 252).

5.4. Compound Muscle Action Potential (CMAP) Assay

Changes in the motor nerve conduction on the ipsilateral (injected) hind limbs were examined by measuring the CMAP using the Nicolet® VikingQuest™ EMG/NCS/EP system (Viasys Healthcare, Madison, WI, USA) following a previously described method, with some modifications [31]. First, the mouse was anesthetized with a single IP injection of ketamine/xylazine combination as described above and fixed in the prone position after shaving the hind limb. The stimulating electrode (anode) was placed on the right psoas major while the other stimulating electrode (cathode) was placed on the left psoas major, with a grounding electrode placed on the belly of the right rectus femoris. Recording and reference electrodes were placed on the belly of the gastrocnemius and gastrocnemius tendon of the right leg, respectively. Electrical stimulation of approximately 10–20 mA was administered for 0.1 ms, and CMAP amplitude was recorded in millivolts using a filter range of the amplifier fixed to 2–10 K at 60 Hz. CMAP measurement was performed on the hind limb ipsilateral to the injected gastrocnemius before and after 6~7 days of each IM injection, administered either the placebo or BoNT/A formulation, and at various time points until the end of the study period (Day 252).

5.5. Statistical Analysis

The response over time curves for DAS and CMAP, as well as summaries for maximum paretic effects (DASmax), muscle chemodenervation (CMAPmin), and duration of action were generated using descriptive statistics. The efficacy of local paresis and chemodenervation induction, represented by DASAUC and CMAPAAC, respectively, was calculated using GraphPad Prism software (version 7.05, GraphPad Software Inc., San Diego, CA, USA). Test for normality by Kolmogorov–Smirnov and Shapiro–Wilk methods was performed using SPSS® statistical software package (version 25.0, SPSS Inc., IL, USA). Comparative analyses between injection cycles of each BoNT/A formulation and between different BoNT/A formulations were examined by one-way ANOVA followed by Tukey’s post hoc test or Mann–Whitney U test using SPSS, or with two-tailed Student’s t-test using Microsoft Excel.

Author Contributions

Conceptualization, S.K.; methodology, J.B.; formal analysis, D.J.M.C., J.B.; investigation, J.B., J.-H.K., M.S., D.-K.L.; writing—original draft preparation, J.B., S.K., D.J.M.C.; writing—review and editing, D.J.M.C., W.-h.K.; supervision, C.-H.R., J.-W.O. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

All procedures involving the use of laboratory animals have been approved by the Animal Care and Use Committee of Medytox, Inc. (IACUC No. A-2020-016), approval date 6 July 2020.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in this article.

Conflicts of Interest

The authors declare no competing interest. J.B., S.K., J.-H.K., M.S., D.-K.L., C.-H.R., W.-h.K. and D.J.M.C. are currently employed at Medytox, Inc.

References

  1. Poulain, B.; Popoff, M.R. Why Are Botulinum Neurotoxin-Producing Bacteria So Diverse and Botulinum Neurotoxins So Toxic? Toxins 2019, 11, 34. [Google Scholar] [CrossRef] [Green Version]
  2. Ayyar, B.V.; Aoki, K.R.; Atassi, M.Z. The C-terminal heavy-chain domain of botulinum neurotoxin a is not the only site that binds neurons, as the N-terminal heavy-chain domain also plays a very active role in toxin-cell binding and interactions. Infect. Immun. 2015, 83, 1465–1476. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Brunger, A.T.; Breidenbach, M.A.; Jin, R.; Fischer, A.; Santos, J.S.; Montal, M. Botulinum neurotoxin heavy chain belt as an intramolecular chaperone for the light chain. PLoS Pathog. 2007, 3, 1191–1194. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Montal, M. Translocation of botulinum neurotoxin light chain protease by the heavy chain protein-conducting channel. Toxicon 2009, 54, 565–569. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Azarnia Tehran, D.; Pirazzini, M.; Leka, O.; Mattarei, A.; Lista, F.; Binz, T.; Rossetto, O.; Montecucco, C. Hsp90 is involved in the entry of clostridial neurotoxins into the cytosol of nerve terminals. Cell Microbiol. 2017, 19, e12647. [Google Scholar] [CrossRef] [Green Version]
  6. Pirazzini, M.; Azarnia Tehran, D.; Zanetti, G.; Megighian, A.; Scorzeto, M.; Fillo, S.; Shone, C.C.; Binz, T.; Rossetto, O.; Lista, F.; et al. Thioredoxin and its reductase are present on synaptic vesicles, and their inhibition prevents the paralysis induced by botulinum neurotoxins. Cell Rep. 2014, 8, 1870–1878. [Google Scholar] [CrossRef]
  7. Pirazzini, M.; Azarnia Tehran, D.; Zanetti, G.; Rossetto, O.; Montecucco, C. Hsp90 and Thioredoxin-Thioredoxin Reductase enable the catalytic activity of Clostridial neurotoxins inside nerve terminals. Toxicon 2018, 147, 32–37. [Google Scholar] [CrossRef]
  8. Binz, T.; Sikorra, S.; Mahrhold, S. Clostridial neurotoxins: Mechanism of SNARE cleavage and outlook on potential substrate specificity reengineering. Toxins 2010, 2, 665–682. [Google Scholar] [CrossRef] [Green Version]
  9. Lu, B. The destructive effect of botulinum neurotoxins on the SNARE protein: SNAP-25 and synaptic membrane fusion. PeerJ 2015, 3, e1065. [Google Scholar] [CrossRef] [Green Version]
  10. Pirazzini, M.; Rossetto, O.; Eleopra, R.; Montecucco, C. Botulinum Neurotoxins: Biology, Pharmacology, and Toxicology. Pharmacol. Rev. 2017, 69, 200–235. [Google Scholar] [CrossRef]
  11. Franciosa, G.; Pourshaban, M.; De Luca, A.; Buccino, A.; Dallapiccola, B.; Aureli, P. Identification of type A, B, E, and F botulinum neurotoxin genes and of botulinum neurotoxigenic clostridia by denaturing high-performance liquid chromatography. Appl. Environ. Microbiol. 2004, 70, 4170–4176. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Whitemarsh, R.C.; Tepp, W.H.; Bradshaw, M.; Lin, G.; Pier, C.L.; Scherf, J.M.; Johnson, E.A.; Pellett, S. Characterization of botulinum neurotoxin A subtypes 1 through 5 by investigation of activities in mice, in neuronal cell cultures, and in vitro. Infect. Immun. 2013, 81, 3894–3902. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Wang, J.; Meng, J.; Lawrence, G.W.; Zurawski, T.H.; Sasse, A.; Bodeker, M.O.; Gilmore, M.A.; Fernandez-Salas, E.; Francis, J.; Steward, L.E.; et al. Novel chimeras of botulinum neurotoxins A and E unveil contributions from the binding, translocation, and protease domains to their functional characteristics. J. Biol. Chem. 2008, 283, 16993–17002. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Maslanka, S.E.; Luquez, C.; Dykes, J.K.; Tepp, W.H.; Pier, C.L.; Pellett, S.; Raphael, B.H.; Kalb, S.R.; Barr, J.R.; Rao, A.; et al. A Novel Botulinum Neurotoxin, Previously Reported as Serotype H, Has a Hybrid-Like Structure With Regions of Similarity to the Structures of Serotypes A and F and Is Neutralized With Serotype A Antitoxin. J. Infect. Dis. 2016, 213, 379–385. [Google Scholar] [CrossRef]
  15. Zhang, S.; Masuyer, G.; Zhang, J.; Shen, Y.; Lundin, D.; Henriksson, L.; Miyashita, S.I.; Martinez-Carranza, M.; Dong, M.; Stenmark, P. Identification and characterization of a novel botulinum neurotoxin. Nat. Commun. 2017, 8, 14130. [Google Scholar] [CrossRef]
  16. Zhang, Y.; Buchko, G.W.; Qin, L.; Robinson, H.; Varnum, S.M. Crystal structure of the receptor binding domain of the botulinum C-D mosaic neurotoxin reveals potential roles of lysines 1118 and 1136 in membrane interactions. Biochem. Biophys. Res. Commun. 2011, 404, 407–412. [Google Scholar] [CrossRef] [Green Version]
  17. Tehran, D.A.; Pirazzini, M. Novel Botulinum Neurotoxins: Exploring Underneath the Iceberg Tip. Toxins 2018, 10, 190. [Google Scholar] [CrossRef] [Green Version]
  18. Zornetta, I.; Azarnia Tehran, D.; Arrigoni, G.; Anniballi, F.; Bano, L.; Leka, O.; Zanotti, G.; Binz, T.; Montecucco, C. The first non Clostridial botulinum-like toxin cleaves VAMP within the juxtamembrane domain. Sci. Rep. 2016, 6, 30257. [Google Scholar] [CrossRef]
  19. Scott, A.B. Botulinum toxin injection into extraocular muscles as an alternative to strabismus surgery. Ophthalmology 1980, 87, 1044–1049. [Google Scholar] [CrossRef]
  20. Jankovic, J. Botulinum toxin in clinical practice. J. Neurol. Neurosurg. Psychiatry 2004, 75, 951–957. [Google Scholar] [CrossRef]
  21. Tsui, J.K. Botulinum toxin as a therapeutic agent. Pharmacol. Ther. 1996, 72, 13–24. [Google Scholar] [CrossRef]
  22. Takeuchi, T.; Okuno, T.; Miyashiro, A.; Kohda, T.; Miyamoto, R.; Izumi, Y.; Kozaki, S.; Kaji, R. Clinical Safety and Tolerability of A2NTX, a Novel Low-Molecular-Weight Neurotoxin Derived from Botulinum Neurotoxin Subtype A2, in Comparison with Subtype A1 Toxins. Toxins 2021, 13, 824. [Google Scholar] [CrossRef] [PubMed]
  23. Lowe, K.; Novak, I.; Cusick, A. Repeat injection of botulinum toxin A is safe and effective for upper limb movement and function in children with cerebral palsy. Dev. Med. Child Neurol. 2007, 49, 823–829. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Naumann, M.; Albanese, A.; Heinen, F.; Molenaers, G.; Relja, M. Safety and efficacy of botulinum toxin type A following long-term use. Eur. J. Neurol. 2006, 13 (Suppl. 4), 35–40. [Google Scholar] [CrossRef]
  25. Benecke, R. Clinical relevance of botulinum toxin immunogenicity. BioDrugs 2012, 26, e1–e9. [Google Scholar] [CrossRef] [Green Version]
  26. Gordon, M.F.; Brashear, A.; Elovic, E.; Kassicieh, D.; Marciniak, C.; Liu, J.; Turkel, C.; Group, B.P.S.S. Repeated dosing of botulinum toxin type A for upper limb spasticity following stroke. Neurology 2004, 63, 1971–1973. [Google Scholar] [CrossRef]
  27. Rzany, B.; Dill-Muller, D.; Grablowitz, D.; Heckmann, M.; Caird, D.; German-Austrian Retrospective Study, G. Repeated botulinum toxin A injections for the treatment of lines in the upper face: A retrospective study of 4,103 treatments in 945 patients. Dermatol. Surg. 2007, 33, S18–S25. [Google Scholar] [CrossRef]
  28. Wanitphakdeedecha, R.; Kantaviro, W.; Suphatsathienkul, P.; Tantrapornpong, P.; Yan, C.; Apinumtham, C.; Srinoulprasert, Y. Association Between Secondary Botulinum Toxin A Treatment Failure in Cosmetic Indication and Anti-Complexing Protein Antibody Production. Dermatol. Ther. 2020, 10, 707–720. [Google Scholar] [CrossRef]
  29. Field, M.; Splevins, A.; Picaut, P.; van der Schans, M.; Langenberg, J.; Noort, D.; Snyder, D.; Foster, K. AbobotulinumtoxinA (Dysport®), OnabotulinumtoxinA (Botox®), and IncobotulinumtoxinA (Xeomin®) Neurotoxin Content and Potential Implications for Duration of Response in Patients. Toxins 2018, 10, 535. [Google Scholar] [CrossRef] [Green Version]
  30. Fortuna, R.; Vaz, M.A.; Youssef, A.R.; Longino, D.; Herzog, W. Changes in contractile properties of muscles receiving repeat injections of botulinum toxin (Botox). J. Biomech. 2011, 44, 39–44. [Google Scholar] [CrossRef]
  31. Kim, S.H.; Kim, S.B.; Yang, G.H.; Rhee, C.H. Mouse compound muscle action potential assay: An alternative method to conduct the LD50 botulinum toxin type A potency test. Toxicon 2012, 60, 341–347. [Google Scholar] [CrossRef] [PubMed]
  32. Kwak, S.; Kang, W.H.; Rhee, C.H.; Yang, G.H.; Cruz, D.J.M. Comparative Pharmacodynamics Study of 3 Different Botulinum Toxin Type A Preparations in Mice. Dermatol. Surg. 2020, 46, e132–e138. [Google Scholar] [CrossRef] [PubMed]
  33. Matak, I.; Stracenski, I.; Lackovic, Z. Comparison of analgesic effects of single versus repeated injection of botulinum toxin in orofacial formalin test in rats. J. Neural. Transm. 2013, 120, 141–144. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Rogozhin, A.A.; Pang, K.K.; Bukharaeva, E.; Young, C.; Slater, C.R. Recovery of mouse neuromuscular junctions from single and repeated injections of botulinum neurotoxin A. J. Physiol. 2008, 586, 3163–3182. [Google Scholar] [CrossRef] [PubMed]
  35. Frevert, J. Pharmaceutical, biological, and clinical properties of botulinum neurotoxin type A products. Drugs R&D 2015, 15, 1–9. [Google Scholar] [CrossRef] [Green Version]
  36. Samizadeh, S.; De Boulle, K. Botulinum neurotoxin formulations: Overcoming the confusion. Clin. Cosmet. Investig. Dermatol. 2018, 11, 273–287. [Google Scholar] [CrossRef] [Green Version]
  37. Aoki, K.R. A comparison of the safety margins of botulinum neurotoxin serotypes A, B, and F in mice. Toxicon 2001, 39, 1815–1820. [Google Scholar] [CrossRef]
  38. Bach, K.; Simman, R. The Multispecialty Toxin: A Literature Review of Botulinum Toxin. Plast. Reconstr. Surg. Glob. Open 2022, 10, e4228. [Google Scholar] [CrossRef]
  39. Naumann, M.; Jost, W. Botulinum toxin treatment of secretory disorders. Mov. Disord. 2004, 19 (Suppl. 8), S137–S141. [Google Scholar] [CrossRef]
  40. Jankovic, J.; Esquenazi, A.; Fehlings, D.; Freitag, F.; Lang, A.M.; Naumann, M. Evidence-based review of patient-reported outcomes with botulinum toxin type A. Clin. Neuropharmacol. 2004, 27, 234–244. [Google Scholar] [CrossRef]
  41. Wissel, J. Towards flexible and tailored botulinum neurotoxin dosing regimens for focal dystonia and spasticity-Insights from recent studies. Toxicon 2018, 147, 100–106. [Google Scholar] [CrossRef] [PubMed]
  42. Hefter, H.; Nickels, W.; Rosenthal, D.; Samadzadeh, S.; Albrecht, P. Continuous Increase of Efficacy under Repetitive Injections of Botulinum Toxin Type/A beyond the First Treatment for Adult Spastic Foot Drop. Toxins 2021, 13, 466. [Google Scholar] [CrossRef] [PubMed]
  43. Bellows, S.; Jankovic, J. Immunogenicity Associated with Botulinum Toxin Treatment. Toxins 2019, 11, 491. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Naumann, M.; Boo, L.M.; Ackerman, A.H.; Gallagher, C.J. Immunogenicity of botulinum toxins. J. Neural. Transm. 2013, 120, 275–290. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Carr, W.W.; Jain, N.; Sublett, J.W. Immunogenicity of Botulinum Toxin Formulations: Potential Therapeutic Implications. Adv. Ther. 2021, 38, 5046–5064. [Google Scholar] [CrossRef] [PubMed]
Toxins 14 00365 g001 550

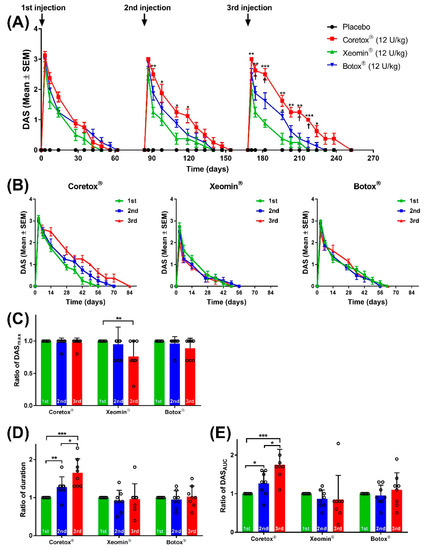

Figure 1. (A) Time course of local paresis on the ipsilateral hind limb of mice based on digit abduction score (DAS) following repeated intramuscular (IM) injections of BoNT/A formulations administered to the right gastrocnemius. (B–E) Graphs showing changes in DAS values (B); ratio of DASmax (C), duration of action (D), and DASAUC (E) of the BoNT/A formulations after each repeated IM injection (12 weeks interval) relative to the first injection. Paretic effects are graded using a modified DAS criterion (0 to 4, increasing magnitude). (A,B) Data points represent mean DAS ± SEM at different time points (n = 8 per group on the first dosing cycle; n = 7~8 per group on the second dosing cycle; n = 6~8 per group on the third dosing cycle). (C–E) Dot plot represents individual values with columns and error bars representing mean ± standard deviation. (A) * p < 0.05, ** p < 0.01, *** p < 0.001 between Xeomin® and Coreotox® or Xeomin® and Botox®, and † p < 0.05 between Coretox® and Botox® by Mann–Whitney test. (C–E) * p < 0.05, ** p < 0.01, *** p < 0.001 between repeated doses by Student’s t-test. BoNT/A, botulinum neurotoxin type A.
Figure 1. (A) Time course of local paresis on the ipsilateral hind limb of mice based on digit abduction score (DAS) following repeated intramuscular (IM) injections of BoNT/A formulations administered to the right gastrocnemius. (B–E) Graphs showing changes in DAS values (B); ratio of DASmax (C), duration of action (D), and DASAUC (E) of the BoNT/A formulations after each repeated IM injection (12 weeks interval) relative to the first injection. Paretic effects are graded using a modified DAS criterion (0 to 4, increasing magnitude). (A,B) Data points represent mean DAS ± SEM at different time points (n = 8 per group on the first dosing cycle; n = 7~8 per group on the second dosing cycle; n = 6~8 per group on the third dosing cycle). (C–E) Dot plot represents individual values with columns and error bars representing mean ± standard deviation. (A) * p < 0.05, ** p < 0.01, *** p < 0.001 between Xeomin® and Coreotox® or Xeomin® and Botox®, and † p < 0.05 between Coretox® and Botox® by Mann–Whitney test. (C–E) * p < 0.05, ** p < 0.01, *** p < 0.001 between repeated doses by Student’s t-test. BoNT/A, botulinum neurotoxin type A.
Toxins 14 00365 g001
Toxins 14 00365 g002 550

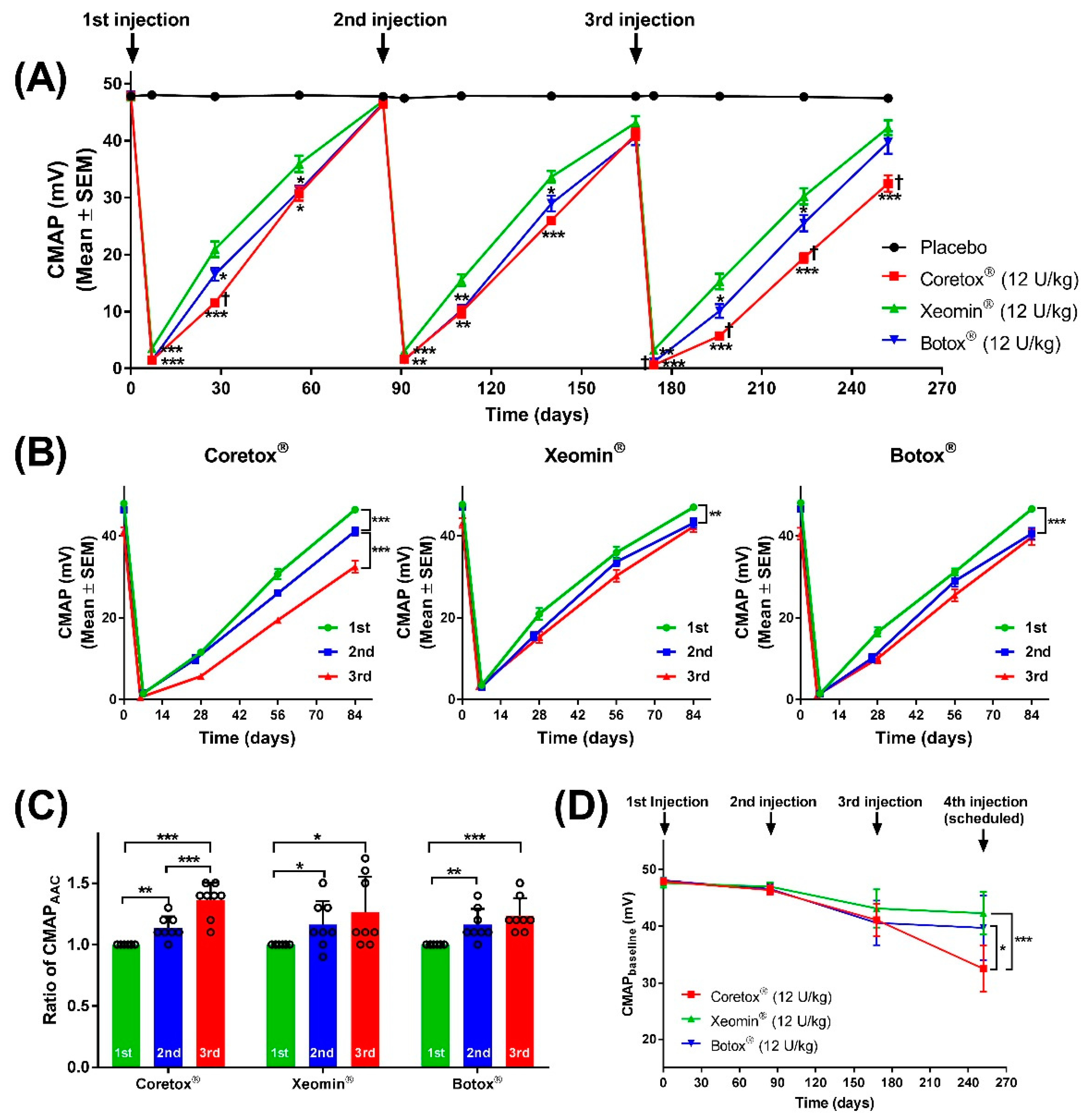

Figure 2. (A) Time course showing changes in the compound muscle action potential (CMAP) of the ipsilateral hind limb of mice following repeated intramuscular (IM) injection of BoNT/A formulations administered to the right gastrocnemius. (B–D) Graphs showing changes in CMAP (B); ratio of CMAPAAC (C), and CMAPbaseline (D) after each repeated IM injection (12 weeks interval) relative to the first injection. (A,B) Data points represent mean CMAP ± SEM in millivolts (mV) at different time points (n = 8 per group on the first dosing cycle, Days 0~84; n = 7~8 per group on the second dosing cycle, Days 84~168; n = 6~8 per group on the third dosing cycle, Days 168~252); error bars not included for clarity. (C) Dot plot represents individual values with columns and error bars representing mean ± standard deviation. (D) Data points and error bars represent mean ± standard deviation. (A) * p < 0.05, ** p < 0.01, *** p < 0.001 between Xeomin® and Coreotox® or Xeomin® and Botox®, and † p < 0.05 between Coretox® and Botox® by student’s t-test. (B–D) * p < 0.05, ** p < 0.01, *** p < 0.001 between repeated doses by Student’s t-test. BoNT/A, botulinum neurotoxin type A.
Figure 2. (A) Time course showing changes in the compound muscle action potential (CMAP) of the ipsilateral hind limb of mice following repeated intramuscular (IM) injection of BoNT/A formulations administered to the right gastrocnemius. (B–D) Graphs showing changes in CMAP (B); ratio of CMAPAAC (C), and CMAPbaseline (D) after each repeated IM injection (12 weeks interval) relative to the first injection. (A,B) Data points represent mean CMAP ± SEM in millivolts (mV) at different time points (n = 8 per group on the first dosing cycle, Days 0~84; n = 7~8 per group on the second dosing cycle, Days 84~168; n = 6~8 per group on the third dosing cycle, Days 168~252); error bars not included for clarity. (C) Dot plot represents individual values with columns and error bars representing mean ± standard deviation. (D) Data points and error bars represent mean ± standard deviation. (A) * p < 0.05, ** p < 0.01, *** p < 0.001 between Xeomin® and Coreotox® or Xeomin® and Botox®, and † p < 0.05 between Coretox® and Botox® by student’s t-test. (B–D) * p < 0.05, ** p < 0.01, *** p < 0.001 between repeated doses by Student’s t-test. BoNT/A, botulinum neurotoxin type A.
Toxins 14 00365 g002
Table
Table 1. DAS profile of the ipsilateral hind limb of mice after each repeated IM injection of the BoNT/A formulations (12 U/kg per dose) to the right gastrocnemius.
Table 1. DAS profile of the ipsilateral hind limb of mice after each repeated IM injection of the BoNT/A formulations (12 U/kg per dose) to the right gastrocnemius.
Dosing CycleParameterCoretox®Xeomin®Botox®
First IM InjectionDASmax3.1 ± 0.4 a2.8 ± 0.5 a3.0 ± 0.0 a
(Day 0)Duration (days)42.0 ± 8.4 a35.0 ± 8.4 a45.4 ± 11.0 a
DASAUC (DAS·day)59.4 ± 11.5 b40.4 ± 16.4 a55.1 ± 13.8 a,b
Second IM InjectionDASmax3.0 ± 0.0 b2.5 ± 0.5 a2.9 ± 0.4 a,b
(Day 84)Duration (days)52.5 ± 11.2 b33.1 ± 14.3 a41.8 ± 11.0 a,b
DASAUC (DAS·day)75.6 ± 27.6 b34.7 ± 17.2 a51.0 ± 17.1 a,b
Third IM InjectionDASmax3.0 ± 0.0 b2.0 ± 0.5 a2.6 ± 0.5 b
(Day 168)Duration (days)68.3 ± 13.4 b32.4 ± 11.8 a44.6 ± 10.5 a
DASAUC (DAS·day)103.4 ± 27.4 b29.9 ± 16.0 a57.1 ± 23.2 a
DASmax, maximum paresis; duration, duration of action; DASAUC, cumulative DAS per injection cycle; Data represent mean ± standard deviation. One-way ANOVA with Tukey’s HSD test was used (mean values with different superscript letter are significantly different at α = 0.05).
Table
Table 2. CMAP profile of the ipsilateral hind limb of mice after each repeated IM injection of the BoNT/A formulations (12 U/kg per dose) to the right gastrocnemius.
Table 2. CMAP profile of the ipsilateral hind limb of mice after each repeated IM injection of the BoNT/A formulations (12 U/kg per dose) to the right gastrocnemius.
Dosing CycleParameterCoretox®Xeomin®Botox®
First IM InjectionCMAPbaseline (mV)47.92 ± 0.59 a47.66 ± 0.83 a48.05 ± 0.53 a
(Day 0)CMAPmin (mV)1.45 ± 0.29 a3.49 ± 1.21 b1.43 ± 0.35 a
CMAPAAC (mV·day)2045 ± 169 b1611 ± 264 a1918 ± 109 b
Second IM InjectionCMAPbaseline (mV)46.40 ± 0.84 a47.00 ± 0.74 a46.60 ± 0.92 a
(Day 84)CMAPmin (mV)1.61 ± 0.86 a3.05 ± 0.65 b1.46 ± 0.43 a
CMAPAAC (mV·day)2271 ± 156 b1839 ± 216 a2198 ± 214 b
Third IM InjectionCMAPbaseline (mV)41.12 ± 2.87 a43.14 ± 3.37 a40.59 ± 3.94 a
(Day 168)CMAPmin (mV)0.58 ± 0.12 a3.19 ± 1.60 b1.11 ± 0.57 a
CMAPAAC (mV·day)2752 ± 108 c2009 ± 298 a2377 ± 263 b
CMAPbaseline, action potential on the ipsilateral hind limb muscles prior to each repeated BoNT/A injection; CMAPmin, lowest action potential recorded; CMAPAAC, cumulative action potential losses per injection cycle; Data represents mean ± standard deviation; One-way ANOVA with Tukey’s HSD test was used to compare values among BoNT/A formulations (mean values with different superscript letter are significantly different at α = 0.05).
Table
Table 3. Summary of botulinum toxin type A formulations used in the study.
Table 3. Summary of botulinum toxin type A formulations used in the study.
ProductBatch
(Expiry Date)		BoNT/A
Form		Dosage
Per Vial a		PreparationExcipients b
Botox®C5394C3
(Sept. 2021)		900 kDa
complex		100 UVacuum-dried0.5 mg HSA
0.9 mg NaCl
Xeomin®925559
(Sept. 2023)		150 kDa
NAP-free		100 ULyophilized1.0 mg HSA
4.7 mg sucrose
Coretox®NSA20011
(May 2023)		150 kDa
NAP-free		100 ULyophilizedL-methionine (q.s.)
Polysorbate 20 (q.s.)
3.0 mg sucrose
0.9 mg NaCl
a Dosage in units (U) based on the product information provided for each BoNT/A formulation. b Excipients comes in the same vial as the BoNT/A drug product and does not include excipients present in the reconstitution buffers that comes with their respective product.NAP, neurotoxin-associated protein; HSA, human serum albumin; NaCl, sodium chloride; q.s., quantum sufficit.
