Review

Zearalenone (ZEN) in Livestock and Poultry: Dose, Toxicokinetics, Toxicity and Estrogenicity

Department of Poultry Science, University of Georgia, Athens, GA 30602, USA
*
Author to whom correspondence should be addressed.
Toxins 2020, 12(6), 377; https://doi.org/10.3390/toxins12060377
Received: 10 May 2020 / Revised: 4 June 2020 / Accepted: 5 June 2020 / Published: 7 June 2020
(This article belongs to the Section Mycotoxins)

Abstract

One of the concerns when using grain ingredients in feed formulation for livestock and poultry diets is mycotoxin contamination. Aflatoxin, fumonisin, ochratoxin, trichothecene (deoxynivalenol, T-2 and HT-2) and zearalenone (ZEN) are mycotoxins that have been frequently reported in animal feed. ZEN, which has raised additional concern due to its estrogenic response in animals, is mainly produced by Fusarium graminearum (F. graminearum), F. culmorum, F. cerealis, F. equiseti, F. crookwellense and F. semitectums, and often co-occurs with deoxynivalenol in grains. The commonly elaborated derivatives of ZEN are α-zearalenol, β-zearalenol, zearalanone, α-zearalanol, and β-zearalanol. Other modified and masked forms of ZEN (including the extractable conjugated and non-extractable bound derivatives of ZEN) have also been quantified. In this review, common dose of ZEN in animal feed was summarized. The absorption rate, distribution (“carry-over”), major metabolites, toxicity and estrogenicity of ZEN related to poultry, swine and ruminants are discussed.
Keywords: mycotoxin; zearalenone; modified and masked forms; poultry; swine; ruminants mycotoxin; zearalenone; modified and masked forms; poultry; swine; ruminants

1. Introduction

Grains are major ingredients for farm animals raised in integration production systems, which primarily contributes energy to the diet. One of the concerns when using grain ingredients in feed formulation is mycotoxin contamination [1]. Previous publications have suggested that about 70% of cereal based feeds are contaminated with at least one mycotoxin [2].
Mycotoxins are secondary metabolites produced by different fungi and are defined as “natural products produced by fungi that evoke a toxic response when introduced in low concentration to higher vertebrates and other animals by a natural route” [3]. The term “mycotoxin” is derived from “mykes” meaning “fungi” and “toxicon” meaning “poison” [4]. Among the approximately 300 to 400 mycotoxins that have been identified, aflatoxin, fumonisin, ochratoxin, trichothecene (deoxynivalenol, T-2 and HT-2) and ZEN are frequently reported mycotoxins due to safety concerns and economic impact [4,5]. ZEN can interact with estrogen receptors in animals and has been defined as an estrogenic mycotoxin and raised additional attention because of its toxicokinetics, toxicity and estrogenicity [6,7,8].
The genus Fusarium was established over 200 years ago by Link in 1809 [9]. ZEN or ZEA/ZON (previously known as F-2 toxin), is a non-steroidal estrogenic mycotoxin biosynthesized through a polyketide pathway mainly produced by strains of Fusarium graminearum (F. graminearum) (Stob et al. [10] first isolated a uterotrophic compound from corn contaminated with fungus Gibberella zeae, also known by the anamorph/asexual name F. graminearum), F. culmorum, F. cerealis, F. equiseti, F. crookwellense and F. semitectum [11,12]. Early researchers partially characterized the toxin ZEN. The report by Urry et al. [13] determined it as an enantiomorph of 6-(10-hydroxy-6-oxo-trans-1-undecenyl)-β-resorcyclic acid lactone which they gave the name “Zearalenone”, while the earlier researchers referred to it as F-2 toxin [14,15]. ZEN is a white, crystalline, fat-soluble toxin with a relatively high melting point (164 to 165 °C) [16,17]. It is found in different grains worldwide, including corn, wheat, barley, oats, etc., which are often used as feed ingredients in farm animals [12,18,19].
In both fungi and mammals, the reduction of keto group in ZEN structure leads to two stereoisomeric metabolites α- and β-isomers, while reduction of olefinic double bond leads to the alkane zearalanone [16,20,21]. Common derivatives of ZEN include (Figure 1): α-ZEL (or α-ZEN/α-ZOL), β-ZEL (or β-ZEN/β-ZOL), ZAN, α-ZAL, and β-ZAL [21,22,23]. In feed, ZELs, ZAN and ZALs are the reduced metabolites of ZEN occurring during its phase I metabolism. Other modified and masked forms, including derivatives conjugated with glucose, sulfate and glucuronic acid, occur during its phase II metabolism [16].
Recently, the metabolites and toxicity of modified and masked forms of ZEN have been frequently discussed [16,24,25,26]. Plants can alter the chemical structure of mycotoxins as part of their defense against xenobiotics [24]. However, research data on extractable conjugated and non-extractable bound derivatives of ZEN have not been well established [16,24]. One explanation for the missing adequate number of publications is the undetectable characteristic of these masked derivatives via previous routine analytical procedures [27,28]. The calibrants and reference materials for conjugated forms are still not commercially available [16]. To date, more than 30 modified forms of ZEN have been described, including correspondent cis-forms (due to the sunlight exposure) and zearalenone-14-sulfate [16,26,27]. Masked forms derivatives have been often mentioned in literatures including: zearalenone-14-glucoside, α-zearalenol-14-glucoside, and β-zearalenol-14-glucoside [16,24,28,29]. Zearalenone-16-glucoside was another recently reported ZEN glucoside in wheat and barley [30].
ZEN also often co-occurs with other Fusarium mycotoxins, mainly deoxynivalenol [31]. After harvest, the production of deoxynivalenol is favored by grain moisture over 20% and temperatures ranges between 21 to 29 °C [32]. Because both ZEN and deoxynivalenol could be produced by F. graminearum or F. culmorum [12], which means the most suitable moisture and temperature conditions for Fusaria growth and production of ZEN are the same that favor deoxynivalenol production [32].

2. ZEN Guidance and Concentration in Animal Feed

Mycotoxin contamination in grain ingredients can happen both pre- and post-harvest. The production of mycotoxin by fungi occurs during plant growth, maturity, harvesting, and processing of grains [33]. Multiple factors influence fungal growth and mycotoxin formation, including season, geographical location, drought, harvest time, processing, storage, and distribution [4]. ZEN is mainly formed pre-harvest, however continued fungal growth and ZEN synthesis might continue during poor storage conditions [34].
The first review on the occurrence of mycotoxins dates back to 1977, when it was presented at the first FAO/WHO/UNEP conference on mycotoxins [35]. The contamination of ZEN in grain and animal feed can range from 4 to 11192 µg /kg [36,37]. The regulatory guideline for ZEN varies among different national authorities and regulatory organizations. In this review, the focus remains on the regulatory limits of ZEN in livestock feed (mainly poultry, swine and ruminants). Table 1 shows the regulatory limits for ZEN concentration in complete feed from the European Commission Guidance (EU) and US Food and Drug Administration Guidance [16,31]. Currently, modified and masked forms of ZEN are not considered in the regulations and within the EU guidance [16].
The contamination level of ZEN varies distinctly by the region, country, climate, etc. A recent publication [19] summarized mycotoxin concentrations from more than 74,000 samples from 100 countries over 10 years. Based on the survey results, ZEN is one of the top three mycotoxins in complete animal feed and feedstuffs, with occurrence in 45% of all samples and 55 μg/kg median concentration among the positive samples. ZEN contamination is specific to common feed ingredients used in livestock animal feed ingredients, occurring in corn (44%), corn-DDGS (75%), soybean meal (61%), wheat (33%) and barley (20%). Meanwhile, ZEN was the most prevalent mycotoxin in both soybean and soybean meal samples.
Furthermore, the co-occurrence of mycotoxins in grain samples (containing more than one mycotoxin) has been frequently reported [38,39,40,41]. As ZEN and deoxynivalenol are both produced by F. graminearum or F. culmorum, the co-occurrence of ZEN and deoxynivalenol was detected in 48% of finished feed, 39% in corn, and 28% in wheat samples (ZEN and deoxynivalenol was also the most frequently observed mycotoxin combination in wheat samples), respectively [19]. This underlines the importance of considering the synergistic effects of multi-mycotoxin contamination. The survey on occurrence of modified forms of ZEN in feed ingredients are less extensive [16]. The co-occurrence of ZEN and ZELs glucosides has been reported, with the sum of modified forms exceeding the ZEN concentration alone by as much as 1.5 times in barley samples and 0.5 times in oat and wheat samples [42].

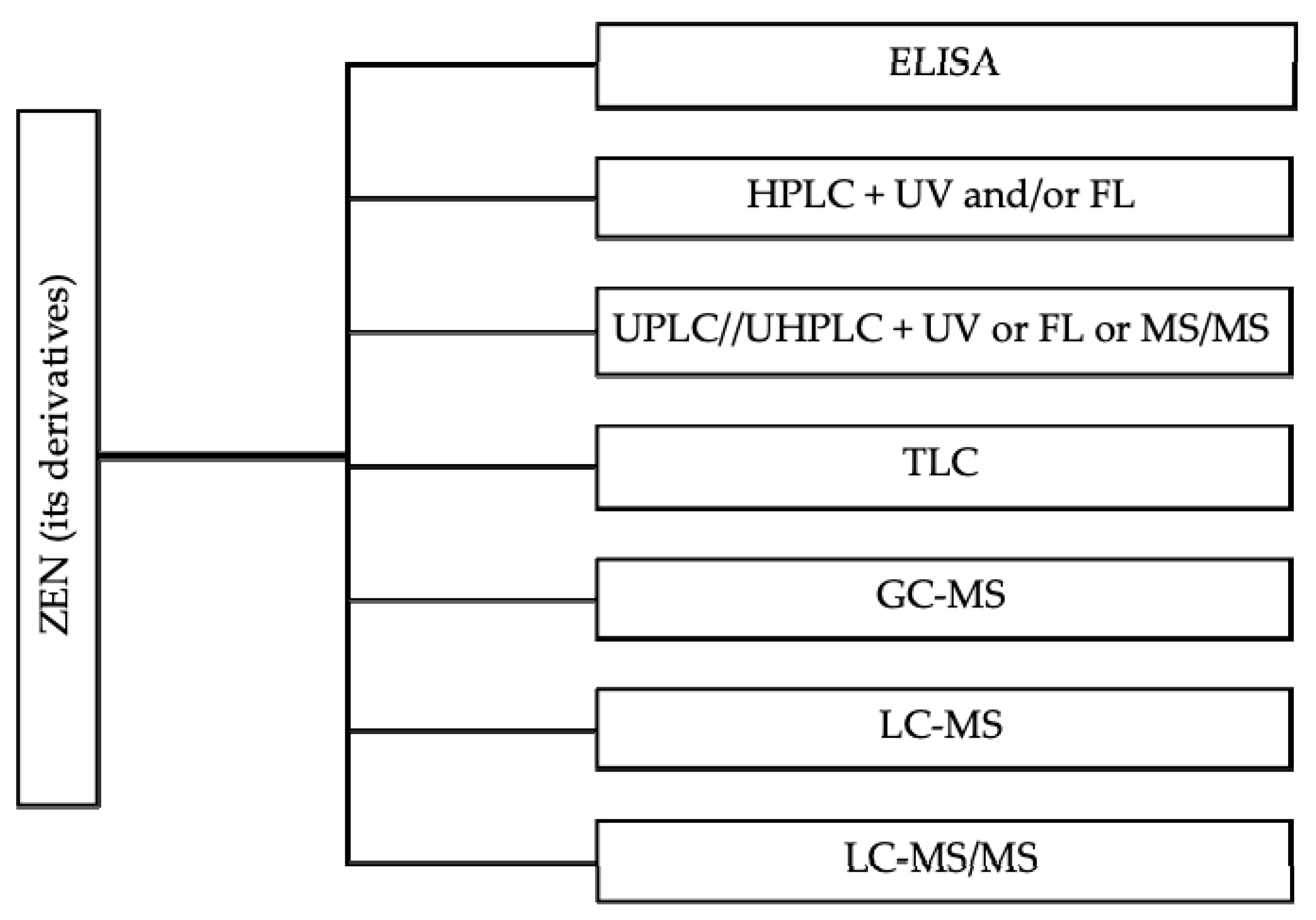

Various analytical methods have been well-established to characterize ZEN and its modified forms in feed [43,44,45], including ELISA, LC-MS/MS, HPLC, LC-MS, GC-MS (Figure 2). The common HPLC or UPLC methods are coupled to UV or FL detectors. These HPLC-UV or HPLC-FL methods are based on the use of a combination of acetonitrile, methanol and water as the extraction solvent combined with the used of specific immunoaffinity columns or solid-phase extraction cartridges as clean-up steps [46]. The LC-MS and LC-MS/MS provides information about molecular mass and structural features of components, which are considered more sensitive than other methods in terms of separation, identification and quantification of ZEN [45]. The extraction of modified forms of ZEN is based on the same protocol that have been used to extract ZEN [16,47,48]. Of note, there is a need of calibrants and reference materials for development of validated and sensitive routine methods for modified forms in feed samples, especially with the highly sensitive analytical methods for α-ZEL [16]. A practical option is to conduct quick ELISA test kit for ZEN screening in field situations and to subsequently further validate test results with LC-MS/MS within a laboratory setting.
The occurrence of ZEN has been widely reported in a variety of different countries, regions, years, etc. As mentioned previously, the current review specifically focuses on the concentrations of ZEN and its modified forms in poultry, swine and ruminant feeds. The literature search was conducted using the University Libraries Database at the University of Georgia, PubMed, and Google Scholar search engines with the key words: mycotoxin, zearalenone, feed, occurrence, livestock animal, swine, pig, sow, gilt, poultry, broiler, laying hen, ruminants, dairy, and cattle. Table 2 summarizes the ZEN concentration in selected peer-reviewed surveys, studies and review publications. To date, the research on evaluation of modified and masked forms of ZEN in poultry, swine and ruminant animals are not adequate.

3. ZEN Absorption Rate, Distribution (Carry-Over), Metabolites and Excretion in Livestock Animals

ZEN is a heat-stable compound despite its large lactone ring (ZEN in ground corn was stable at 150 °C for 44 h), and degradation was only observed at extremely high temperatures or within an alkaline environment, which makes ZEN thermostable during storage, milling, processing and distribution [16,49,50].

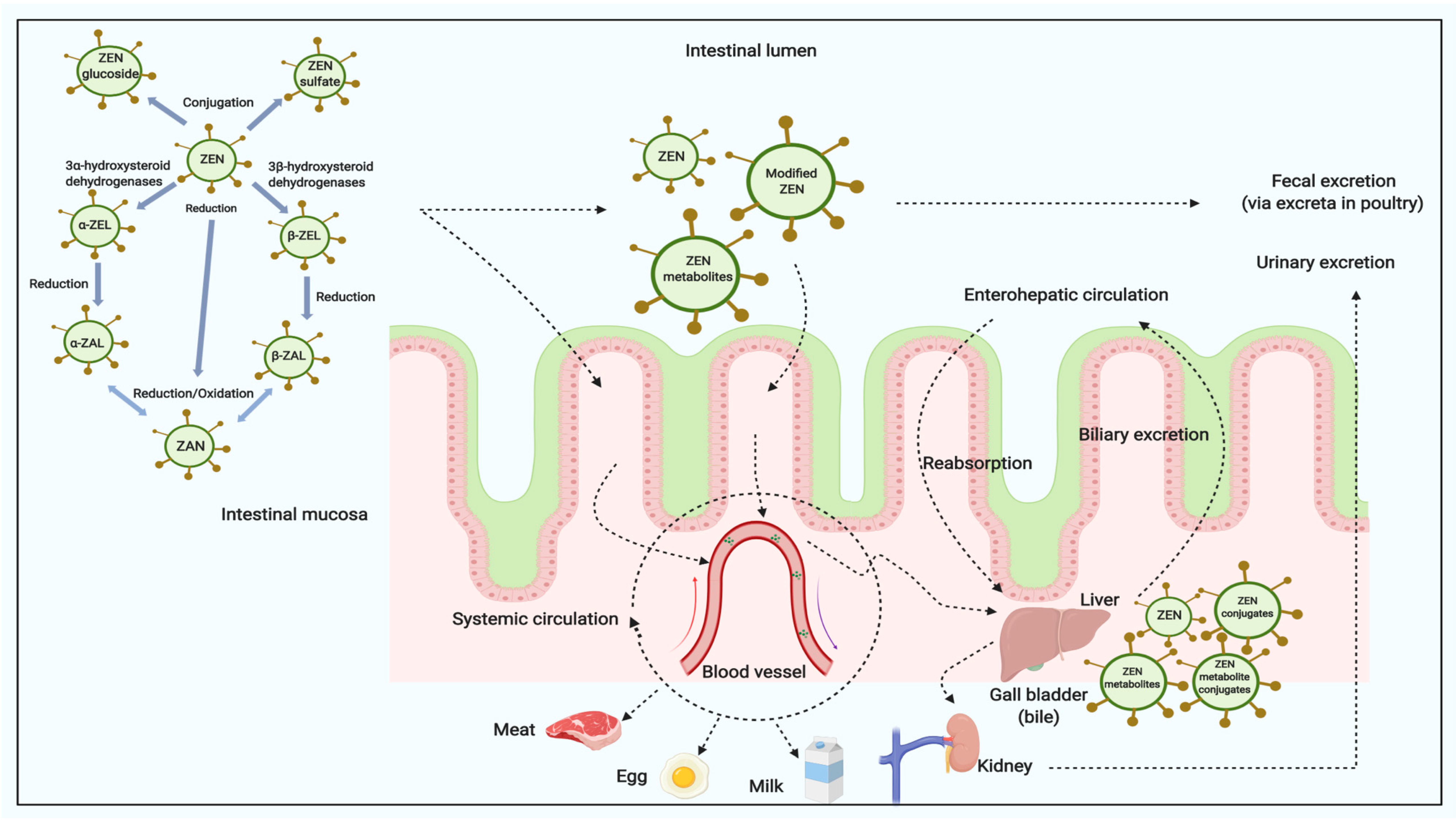

Once ingested by the animal, ZEN and/or its modified forms are rapidly and extensively absorbed by intestine and modified by liver [12,18,25]. The metabolites (Figure 3) include ZEN, ZELs, ZAN, ZALs and its corresponding conjugates [16,18,23,25,51]. In farm animals, the reductive biotransformation predominates and the resulting metabolites mainly are α-ZAL and β-ZAL, with limited amount of α-ZEL, β-ZEL and other metabolites being produced [16]. The metabolic profile in urine and feces are significantly different among species. For example, higher proportions of an administered ZEN dose were metabolized to α-ZEL in pigs than in cows, whereas ZEN was mainly found as glucuronide conjugates of ZEN and α-ZEL in pig urine [52]. The concentrations of α-ZEL in plasma in some studies may be higher than others; some studies only detected the conjugated form metabolites, while others found both free and conjugated forms of ZEN [18,53,54]. Briefly, among ZEN treated animals, the α-derivatives seem to be the most prevalent in pigs and turkeys, versus β-derivatives which appear to be the abundant metabolites in cattle, goats, broilers and laying hens based on the levels measured in plasma, urine or bile [16]. Very limited amounts of ZEN were detected in liver, kidney, and muscle in animals [25]. In general, there are potentially two major biotransformation pathways for ZEN in animals [54,55]:
(1) hydroxylation to form α-ZEL, β-ZEL, and catalyzed by 3α- and 3β-hydroxysteroid dehydrogenase;
(2) conjugation with glucuronic acid and catalyzed by uridine diphosphate glucuronyl transferase.
Additionally, there is a general consensus that sulfation presents an additional conjugation route for both ZEN and its metabolites [16]. However, limited in vitro data were reported both on the structures and the enzymology of such sulfate derivatives [56]. In the in vivo pig study, zearalenone-14-glucoside, zearalenone-16-glucoside, and zearalenone-14-sulfate were found to be completely hydrolyzed and absorbed in pigs [57].
The high degree of re-absorption in the intestinal tract influences ZEN excretion via enterohepatic circulation [25,54]. Recent publications have relayed investigations on ZEN, α-ZEL and β-ZEL binding to bovine and porcine serum albumins [58,59]. Serum albumin is the most abundant plasma protein in the circulation, which effects tissue distribution and elimination of xenobiotics [58]. The results showed that ZEN can bind to bovine serum albumin with strong intermolecular forces [59]. ZEN binds with higher affinity than α-ZEL and β-ZEL to albumins [58]. ZEN and its metabolites are mostly excreted via the fecal route as glucuronides [16,18].
Previous research demonstrate that ZEN and its reductive metabolites can be detected in both animal tissues and products (Table 3, Table 4 and Table 5). Systemic circulation (Figure 3) of ZEN and its modified metabolites in animals are essentially related to their distributions in different tissues and potential carry-over into animal products [16].
Table 2. Summary of ZEN concentration in livestock feed from selected peer-review publications.
Table 2. Summary of ZEN concentration in livestock feed from selected peer-review publications.
Article TypeFeed for SpeciesZEN Concentration (µg/kg)Analysis MethodZEN Derivatives (α-ZEL, β-ZEL, ZAN, α-ZAL, β-ZAL)Year
SurveyPoultry; swine44 to 797; 86 to 629LCN.A.1997 [60]
StudyPoultry327 to 5850TLCN.A.1998 [61]
ResearchStarter pig200, 400 and 500 (also detected with other mycotoxins)GC-MSα, β-ZEL < d.l. (set at 0.2 mg/kg)2003 [62]
StudyPoultry0.53HPLCN.A.2004 [63]
ResearchBroiler400, 500, 600 and 700 (also detected with other mycotoxins)GC-MSα, β-ZEL < d.l. (set at 0.2 mg/kg)2004 [64]
SurveyPoultry3 to 86HPLCN.A.2005 [65]
ResearchWeaned pig300 to 710 (also detected with other mycotoxins)HPLCN.A2005 [66]
ResearchDairy cows22 and 59 (µg/kg DM)HPLCMean recoveries for α-ZEL and β-ZEL were 81 and 74%; concentration N.A.2005 [67]
SurveyLaying hen7.4 to 61.4HPLCN.A2006 [68]
ResearchBroiler70, 3360 and 8280ELISAN.A2008 [69]
SurveyAnimal feed10 to 189HPLCN.A2010 [70]
ResearchPost-weaning gilt100 and 1300 (also detected with other mycotoxins)ELISAN.A2010 [43]
ResearchPost-weaning gilt100 and 1300 (also detected with other mycotoxins)ELISAN.A2010 [44]
ResearchPost-weaning gilt1100, 2000 and 3200ELISAN.A2011 [71]
SurveyAnimal feedUp to 5791ELISA+HPLCN.A2012 [72]
ResearchSow (during gestation and lactation)Appr. 200, 500 and 1000Not mentionedN.A2012 [73]
ResearchPost-weaning piglet1050 (also detected with another mycotoxin)ELISAN.A2012 [74]
ResearchGilt200, 400 and 800GC-MSN.A2012 [75]
SurveyPoultry; swine; ruminantsAppr. 12 to 109; 13 to 200; 57 to 194HPLC and LC-MS/MSN.A2014 [76]
ResearchBroilerAppr. 18 and 280ELISAN.A2014 [77]
ResearchDairy cow24.4 to 112.7 (µg/kg DM; also detected with another mycotoxin)HPLCAverage recoveries for α-ZEL and β-ZEL were 85% and 86%2014 [78]
SurveyBroiler2.22 to 263.51LC-MS/MSN.A2015 [79]
StudyLayer5.17 to 147.53HPLCN.A2016 [80]
SurveySwine36 to 219HPLCα-ZEL: <15 to 529; β-ZEL: <112016 [81]
ResearchLaying hen400 (also detected with another mycotoxin)HPLCN.A2017 [82]
Case studyPig (hay pellet)479ELISA and LC-MS/MSα-ZEL: 11.7; β-ZEL: 16.9; ZEN-sulfate: 530; ZEN-glucoside: <d.l.2018 [83]
StudyCattle88.2UPLC-MS/MS and UPLC-QTOF-MSN.A2018 [46]
StudyDuck; pig39.08 to 47.61; 124.78HPLC, and LC-MS/MSFor duck feed: α-ZEL:4.19
For pig feed: α-ZAL: 2.31 to 2.48; β-ZAL: 3.11; ZAN: 4.17 to 6.69
2018 [45]
ResearchPigAppr. 800UPLCN.A2018 [84]
ResearchTurkey470 (also detected with other mycotoxins)HPLC-MS/MSN.A2019 [85]
ResearchBroilerAppr. 2000 (also detected with other mycotoxins)ELISAN.A2019 [86]
ResearchBroiler280 to 520SIDA-UHPLC-MS/MSN.A2020 [87]

3.1. Poultry

For poultry, researchers have found both ZEN and reductive ZELs metabolites (α-ZEL and β-ZEL) can be detected in blood, liver, kidney, muscle, intestine and excreta [88,89]: ZEN administered via both intravenous injection and oral administration at a dose of 1.2 mg/kg b.w. was measurable from 5 min to 2 h in plasma and was rapidly transformed into α-ZEL and β-ZEL in plasma of broilers. Other research [90] also revealed the metabolites of ZEN in blood in different poultry species, with a higher production of β-ZEL than the α-ZEL in broilers and layers, versus turkey poults, which were more efficient at bio-transformation of ZEN to α-ZEL. ZEN was measurable up to 1 h in the liver, kidney, and small intestine. α-ZEL and β-ZEL were detectable up to 12 h in the liver, kidney and small intestine, whereas both were only detectable up to 1 h in muscle following oral administration. The concentration of α-ZEL and β-ZEL in different tissues is as follows: small intestine > liver > kidney > muscle. In poultry, bile has been reported to play an important role as an excretory route for ZEN and its metabolites [91]. Besides, ZEN, α-ZEL and β-ZEL were detected in excreta up to 12 h after oral administration, with the concentration α-ZEL > β-ZEL [89]. Another study fed birds diets contaminated with 0.4 mg/kg ZEN feed from d 29 to 84 and did not find ZEN carry-over into the liver, whereas α-ZEL was detected on the last sampling day [87]. The carry-over of α-ZEL may be possible due to the fact that ZEN is mostly and rapidly eliminated in excreta [88]. This was supported by the excreta results: when they measured the excreta ZEN concentration collected within the last two days, the ZEN concentration was 0.27 mg/kg. In a laying hen study [92], researchers found that α-ZEL was detectable in the liver, whereas ZEN was not detected in either breast meat or the liver. Dailey et el. [93] found after a single dose exposure of ZEN (10 mg/kg) in laying hens, it is possible that significant levels of ZEN lipophilic metabolites might accumulate in egg yolk if the exposure time was prolonged. Another study was conducted to assess the carry-over of ZEN into eggs [92], and researchers reported that no detectable ZEN was detected in eggs from commercial production [12]. The metabolites and carry-over effects of dietary ZEN in poultry from previous publications are shown in Table 3.

3.2. Swine

Biehl et al. [54] reported that the absorption rate of ZEN in pigs was estimated to be 80–85% following a single oral dose of 10 mg ZEN/kg b.w. The estimated biological half-life of radiolabeled ZEN was 87 h in the intact pig, whereas it was reduced to 3.3 h when the bile of the pig was removed. Additionally, 45% of the administered dose was recovered in urine and 22% in feces within the first 48 h. After absorption, ZEN and its metabolites could be detected in the liver, bile, plasma, urine, digesta and feces [94]. Earlier study showed that ZEN and its metabolites can be detected in plasma around 30 min after oral administration [54,55]. In swine, the major metabolites are glucuronide conjugates of ZEN and α-ZEL [54]. Gajęcka et al. [95] surmised that α-ZEL is the predominant metabolite of ZEN in pigs and the low dose of ZEN could alleviate inflammation in the digestive tract (especially in the proximal and distal intestinal tract), and could increase body weight gains in gilts. The ZEN was reduced to α-ZEL and β-ZEL when incubated with homogenized intestinal mucosa from sows in the presence of nicotinamide adenine dinucleotide phosphate. Additionally, the rate of glucuronic acid conjugation of ZEN was about 30-fold higher than that of reduction in the presence of UDP glucuronic acid [96]. The β-ZEL was detected only in bile of gravid sows, and when fed a high (0.42 mg/kg) concentration of ZEN in female pigs [97,98]. In addition, researchers have reported that the main route for excretion of ZEN and its metabolites in swine is through urine, which was twice as high as the amount eliminated through feces [54,57]. Research found that in gilts the cumulative recovery of ZEN and α-ZEL in duodenal digesta and urine was 35% and 70% after 72 h, respectively (as a percentage of total ZEN administrated). Additionally, 14 days after the bolus injection, both ZEN and α-ZEL were lower than the detection limit in the bile, liver and urine. The elimination half-time of ZEN in excreta was 2.63 h. This is to say that ZEN is completely eliminated from gilts within this period of time with a massive single bolus [94]. The metabolites and carry-over effects of dietary ZEN in swine from previous publications are shown in Table 4. ZEN is mainly converted to α-ZEL in pigs, and exposure risk to humans by consumption of edible product is negligible compared to direct consumption of grain-based food [99].

3.3. Ruminants

For ruminants, prior reports noted that β-ZEL was the predominant ZEN metabolite in urine, and the free and conjugated ZEN can both be detected in cows’ milk [52]. In a trial with one single cow, researchers found that 0.7% of ZEN could carry-over into the milk when feeding up to 200 mg ZEN/day in the feed for 7 days [100]. This carry-over into milk normally occurs when animal ingests a high dose of ZEN in feed. Other researchers [78] have also demonstrated that ZEN is mainly metabolized to β-ZEL, and less extensively to α-ZEL in bovine species. The authors could detect the ZEN, α-ZEL and β-ZEL in bile. The concentrations of ZEN, α-ZEL, β-ZEL, ZAN, α-ZAL and β-ZAL in serum, urine and milk were lower than 1, 1, 4, 100, 50 and 200 ng/g, respectively. The concern for ZEN carry-over in ruminants may be minor based on their endogenous ruminal detoxification [101]. In addition, the health status and blood-milk barrier would also affect the transfer of ZEN into milk [102]. Seeling et al. [67] conducted a trial and found that different feed intakes could affect the sum of all ZEN metabolites and the proportion of β-ZEL in dairy cows. In a sheep study with two adult ewes (30-35 kg), researchers noted that sheep were capable of metabolizing ZEN with further reduction of the C11-C12 double bond, which led to the α-ZEL and β-ZEL [103]. In another study with goats [104], blood plasma, urine, and feces samples were collected consecutively after intravenous injection of ZEN at doses of 2.4 mg/kg and 1.2 mg/kg b.w. The distribution half-life and elimination half-life of ZEN were 3.15 and 28.58 h, respectively. ZEN, α-ZEL, and β-ZEL were detected in both urine and feces, with β-ZEL being the predominant metabolite. Additionally, ZEN and its metabolites were largely in their glucuronide and/or sulphate conjugated forms in urine, while they were largely in free forms in feces. The metabolites and carry-over effects of dietary ZEN in ruminant animals from previous publications are shown in Table 5. ZEN and its metabolites can be detectable in liver and bile, but in most studies are not detected in the milk [67,78].
Table 3. Metabolites and carry-over of dietary ZEN in Poultry.
Table 3. Metabolites and carry-over of dietary ZEN in Poultry.
SpeciesZEN Concentration (mg/kg of Diet, Fed-Basis)Duration (Days)Metabolites and Carry-Over into Tissues (ug/kg or ug/L)RemarksReferences
Laying hen14C-ZEN: 10 mg/kg b.w.Single bolusLeg, wing, breast muscle: very low radioactivity;
Yolk: appr. 2000 ug/kg after 72 h
94% of 14C radioactivity eliminated via excreta within 72 h of dosing; ZEN was readily conjugated with glucuronic acid[93]
Broiler3H-ZEN: 5 mg/kg b.w.
(appr. 50 mg/kg diet)
Single bolusMuscle: relatively low, ZEN max. 111 at 24 h after dosing (α-ZEL, β-ZEL n.d.);
Liver: total ZEN α-ZEL and β-ZEL 17-2543 within 24 h;
Rapid clearance
Conjugated n.d.[88]
Turkey80014Liver: ZEN 282; α-ZEL 2720;
Kidney: ZEN 120, α-ZEL 480;
β-ZEL traces in liver and kidney (after incubation with β-glucuronidase and sulfatase)
ZEN and α-ZEL mainly conjugated in plasma and conjugates consisted of both glucuronides and sulfate conjugates[105]
Chicken10 mg/kg b.w.20Liver: ZEN 207; Kidney: ZEN 416; Muscle: ZEN 170Metabolites and conjugated n.d.[106]
Laying hen1.58112Liver: α-ZEL 3.5-3.8 (36% free, 28% conjugated with glucuronic acid, and 36% with sulphate); ZEN<1-3.2 (46% free, 54% conjugated with glucuronic acid, and <5% with sulfate); n.d. residues in egg yolk, albumen, breast muscle, abdominal fat, ovary and follicles, magnum [92]
Pekin duck Up to 0.0649Liver: ZEN, α-ZEL and β-ZEL<d.l. kidney (after incubation with β-glucuronidase and sulfatase)In bile, dose-response related increase in ZEN, α-ZEL and β-ZEL-concentrations; the mean proportions of ZEN, α-ZEL and β-ZEL of the sum of all three metabolites were 80, 16 and 4% respectively[91]
TurkeyUp to appr. 0.0435Plasma, liver or breast meat: ZEN or its metabolites n.d. In bile, concentrations of ZEN and α-ZEL increased with dietary ZEN concentration; the mean proportions of ZEN, α-ZEL and β-ZEL of the sum of all three metabolites were 19, 77 and 4% respectively [107]
Broiler0.3 mg/kg b.w.Single bolus (intravenously and orally)Plasma: ZEN and its metabolites n.d. [108]
Broiler (Female)1.2 mg/kg b.w.Single bolus (orally)Liver: ZEN 3.52; α-ZEL 7.84-105.2, β-ZEL 24.4-30.9;
Kidney: ZEN 3.55; α-ZEL 1.63-77.99, β-ZEL 4.8-36.6;
Muscle: α-ZEL 2.55, β-ZEL 2.40; (after incubation with glucuronidase/arylsulfatase)
Time-response decrease in ZEN, α-ZEL and β-ZEL concentration[89]
Broilers (male; slow-growing breed)0.456Liver: ZEN n.d.; α-ZAL n.d.; α-ZEL 0.4-0.8 (5 out of 8 samples) [87]
Table 4. Metabolites and carry-over of dietary ZEN in Swine.
Table 4. Metabolites and carry-over of dietary ZEN in Swine.
SpeciesZEN Concentration (mg/kg of Diet, Fed-Basis)Duration (Days)Metabolites and Carry-Over into Tissues (ug/kg or ug/L)RemarksReferences
Pig (female, 8-11 kg b.w.)4028Liver: ZEN 128; α-ZEL 94 and β-ZEL <d.l.Conjugates n.d.[109]
Piglet (appr. 18kg b.w.)0.5 mg/kg b.w.Single bolusLiver, kidney, muscle: ZEN, α-ZEL and β-ZEL<d.l. (after incubation with glucuronidase)ZEN: d.l., α-ZEL and β-ZEL: 0.8-9.2 ug/kg[110]
Pig (appr. 50 kg b.w.)1)ZEN: 0.25
2)ZEN: 0.25+OTA 0.1
901) liver, kidney, muscle, adipose tissue: ZEN and α-ZEL < d.l.
2) liver, kidney: α-ZEL-traces (max. 4 ug/kg after incubation with glucuronidase), ZEN<d.l.; muscle and adipose tissue: ZEN and ZAN<d.l.
[111]
Pig (appr. 70 kg b.w.)0.718Liver: ZEN<d.l. -3.1; α-ZEL 3.6-12; β-ZEL 1.9 -4.8; Muscle: α-ZAL up to 13.3; α-ZEL up to 14.5; traces of ZEN and β-ZAL; ZEN and ZAN <d.l. [112]
Piglet (appr. 33 kg b.w.)0.01; 0.06; 0.15; 0.22; 0.4235Liver (after incubation with β-glucuronidase and sulfatase)
1.8 ZEN + 0.3 α-ZEL;
0.2 ZEN + 0.1 α-ZEL;
2.1 ZEN + 1.1 α-ZEL;
2.9 ZEN + 1.7 α-ZEL;
5.3 ZEN + 2.8 α-ZEL
[113]
Piglet (appr. 33 kg b.w.)1 mg/kg b.w.Single bolusLiver (14 days after the bolus, after incubation with β-glucuronidase and sulfatase): ZEN, α-ZEL and β-ZEL<d.l. [94]
Pig (female and barrows)0.05684Liver: only α-ZEL was detected with mean carry-over factors (averaged over all group) of 0.0094; ZEN, α-ZEL and β-ZEL n.d. in serumResidues of ZEN + α-ZEL + β-ZEL was positively correlated in liver and bile (Liver showed 0.9% carry-over ratio)[99]
Table 5. Metabolites and carry-over of dietary ZEN in Ruminants.
Table 5. Metabolites and carry-over of dietary ZEN in Ruminants.
SpeciesZEN Concentration (mg/kg of Diet)Duration (Days)Metabolites and Carry-Over into Tissues (ug/kg or ug/L)RemarksReferences
Lactating cow0.39-1.93 mg/kg concentrate49Muscle, liver, kidney, milk: ZEN<4 [114]
Lactating cow5000 mg/animalSingle bolusMilk: ZEN and β-ZEL: traces (<1)incubation with β-glucuronidase[115]
Lactating cow1800 mg/animalSingle bolusMilk: ZEN and β-ZEL: 1-2incubation with β-glucuronidase[115]
Lactating cow257Milk: 1360 ug/l total residues of ZEN, α-ZEL, β-ZEL, free and conjugated0.7% of consumed ZEN recovered with milk[52]
Lactating cow50-165 mg/day; 545 mg/day; 1800 or 6000 mg/animal21; 21 and single bolusMilk: ZEN, α-ZEL and β-ZEL and conjugates < d.l.;
Milk: ZEN max. 2.5; α-ZEL max. 3.0 (only as conjugates, incubation with β-glucuronidase/aryl sulfatase);
Milk: ZEN max. 4.0 or 6.1; α-ZEL max. 1.5 or 4.0; β-ZEL max 4.1 or 6.64
[116]
Lactating cow25 or 100 mg/day6Milk: ZEN-equivalents max. 0.4 or 1.2 (by ELISA after incubation with β-glucuronidase) [117]
Lactating cow0.02-0.05 mg/kg dry matter63Milk: ZEN and α-ZEL<0.5 (after incubation with β-glucuronidase) [118]
Dairy cow0.05 mg/kg dry matter28Milk: ZEN, α-ZEL, β-ZEL, ZAN, α-ZAL, β-ZAL < d.l. [67]
Goat2.4 and 1.2 mg/kg b.w.Single bolus (intravenously)Liver: α-ZEL 5.2 and β-ZEL 4.5 at 48 h poste administrationThe proportion of conjugated α-ZEL and β-ZEL were appr. 29 and 41% respectively[104]
Dairy cow0.02 to 0.11 mg/kg dry matter28 wksMilk: ZEN, α-ZEL, β-ZEL, ZAN, α-ZAL, β-ZAL < d.lBile: ZEN, α-ZEL, and β-ZEL were detectable (bile can be regarded as an indicator for dietary ZEN-exposure)[78]

4. ZEN Toxicity and Estrogenic Effect in Livestock Animals

4.1. Toxicity

Generally, ZEN has low acute toxicity to animals at low concentrations. However, previous publications elaborated the sub-acute, sub-chronic, chronic immunotoxicity, genotoxicity, productive and developmental toxicity, as well as endocrine disturbance effects caused by ZEN [12,51,59]. The fate and adverse effects of ZEN are partly determined by the processes of elimination, which is closely related to the biliary excretion and enterohepatic cycling [54,119]. Based on JECFA, the safety of ZEN can be evaluated based on the dose that had no hormonal effects in pigs, which is known as the most sensitive animal species to ZEN [120].
Poultry seem to be quite tolerant to ZEN, which may be explained by the naturally high concentration of estrogen in poultry blood. Natural estrogens are considered to have higher receptor affinity compared to the Fusarium toxins [101]. ZEN had no effect on feed intake or body weight gain on young male turkey poults. In contrast, feeding ZEN-contaminated diets to turkey poults lead to strutting behavior, increased size and coloration of caruncles and dewlaps, and swollen vent tissue [105]. An additional study indicated that purified ZEN may increase oviduct development in growing female chickens and delay growth of the testes in young male chickens [121].
Feeding female pigs with 1.3 mg/kg ZEN diet can reduce platelets, haemoglobin, globulin, triglycerides and high-density lipoproteins in serum; increase enzyme activities; and lead to degeneration of the liver and kidney [43]. In addition, the difference in susceptibility to the estrogenic effects of ZEN was also not related to the circulation difference of ZEN and its metabolites [1,54].
For ruminants, ZEN may lead to lower conception rates in heifers [122]. However, the contribution of ZEN to the susceptibility difference is unknown, because most of the related research has been conducted in pigs [89]. One possible explanation for the differences related to species’ susceptibility may be related to the variation in the number and affinity of estrogen receptors. In general, pigs and sheep are more susceptible species than poultry [16].
Last but not least, the toxicity of modified and masked forms of ZEN (both extractable conjugated and non-extractable bound forms) has not been adequately evaluated [16,26,123]. These modified forms of ZEN are not detected by routine analytical procedures [16,27,28]. Toxicological data related to these undetectable forms of ZEN are scarce, which implies that analysis of samples containing these compounds leads to an underestimation [24]. Study has found zearalenone-glucoside can be hydrolyzed during digestion in 27 kg female pigs [28]. A more recent study has found that the estimated oral bioavailability of ZEN was 61 to 85%. The α-ZEL and β-ZEL were completely absorbed after the oral administration. The absorbed fraction of zearalenone-14-glucoside was estimated to be 61%, which suggested complete hydrolysis and absorption of zearalenone-14-glucoside. The authors indicated that α-ZEL, β-ZEL, zearalenone-14-glucoside, zearalenone-14-sulfate contribute to the total systemic toxicity of ZEN in pigs and should be taken into consideration for the risk assessment [124]. It is important to account for the total concentration of ZEN and its modified forms [16].

4.2. Estrogenicity

The estrogenic factor has been recognized as early as late 1920s [125]. Since then, the association between the consumption of moldy grains and hyper-estrogenism in pigs has been frequently observed and reported [126,127,128]. ZEN is constituted from phenol derivatives and passively crosses the cell membrane [16]. The special hormonal-like response can mimic the endogenous steroidal sex hormone 17-β-estradiol actions after binding to estrogen receptors and effect the estrogen signaling pathway in animals [129]. These responses could result in permanent pathologic alterations of the reproductive tract, which can cause infertility at high intake levels, particularly in prepuberal gilts, leading to pseudopregnancy, infertility, increased embryo lethal resorptions, swollen edematous vulva, vaginal/rectal prolapse, and reduced litter size (due to fetal resorption and implantation failure) [1,12,16,54,55,107,113,130]. The α-ZEL and β-ZEL are two common metabolites of ZEN that relate to the hormonal and estrogenic effects. The estrogenic activity of α-ZEL was 3 to 100 times higher than ZEN [89]. Le Guevel and Pakdel [131] found that α-ZEL was 17 times stronger versus α-ethinyl estradiol with three different bioassays using estrogen receptor gene activation. ZEN binds to estrogenic receptors and has a stronger affinity to α- than to β-estrogenic receptors [16]. Based on the “uterotrophic activity” assed in rodents, the estrogenic activity of ZEN and its modified forms are classified in order: α-ZEL > α-ZAL > ZEN ≈ ZAN ≈ β-ZAL > β-ZEL [16]. Other researchers claimed that the major metabolites known to have affinities for estrogenic receptors are in the following order: α-ZAL > α-ZEL > β-ZAL > ZEN > β-ZEL [87]. The risk of hyper-estrogenic effects for α-ZEL is underestimated, because it is neither often determined or regulated [24]. Little is known about the metabolic fate of α-ZAL, which is used legally as a growth promoter in some countries with the name zeranol [16]. Poultry only respond to the presence of ZEN at extremely high concentrations. Cattle are more resistant to the estrogenic effect of ZEN because they bio-transform ZEN more into β-ZEL than α-ZEL [16].
Recently, the estrogenic activity of metabolites hydrolyzed zearalenone and decarboxylated hydrolyzed zearalenone formed by hydrolysis of ZEN has raised attention as a potential ZEN degradation strategy in animal feed [132]. Additionally, ZEN and its reduced forms are competitive substrates for 3α-hydroxysteroid dehydrogenase and 3β-hydroxysteroid dehydrogenase enzymes, which effect the synthesis of steroids [133].
Concentrations of 1-5 mg/kg of dietary ZEN have been reported to be sufficient to cause clinical signs [134] and hyper-estrogenic clinical signs at 1 mg/kg in pigs [135]. In a preliminary trial [53], researchers reported that prepubertal female pigs fed 0.25 mg/kg of ZEN resulted in redness and swelling of the vulva, swelling of the mammaries and numerous vesicular follicles and some cystic follicles on the ovaries, versus pigs fed 0.05 mg/kg ZEN. However, after ingestion of diets with 0.05 or 0.25 mg/kg ZEN, both treatments showed higher numbers of vesicular follicles on the ovaries when compared to pigs fed the control diets without the mycotoxin. Gilts fed with 1.1 mg/kg ZEN diet showed increased vulva length, vulva width, vulva height and vulva area compared with gilts fed a control diet [71]. Similar results were found by feeding gilts with 0.2, 0.4, or 0.8 mg/kg ZEN contaminated diets and noted that dietary ZEN linearly increased vulva size (width, length and area) [75]. Patience et al. [32] demonstrated that feeding gilts with 1-3 mg/kg ZEN for 3 to 7 days, can lead to hyper-estrogenism and prolapses in prepubertal gilts; with 3 to 10 mg/kg ZEN in the middle of the estrus cycle leading to anestrus and pseudopregnancy; with 15 to 30 mg/kg during the first trimester of pregnancy leading to early embryonic death and reduced litter size. Additionally, the prevalence of ZEN may also cause infertility in boars, with atrophied testes and enlarged mammary glands [32,130]. These symptoms can normally be alleviated after the replacement with clean feed in practice.

5. Conclusions

The concern of mycotoxin ZEN in relation to livestock animals is vital:
(1)
The occurrence of ZEN and co-occurrence of ZEN with other mycotoxins in grain and complete feed is still relatively high;
(2)
The amount of ZEN that carries over into final animal products (meat, egg, milk) is very limited under normal farming systems. However, ZEN and its modified metabolites can be detected in blood, liver, gut, urine and feces;
(3)
The special structure of ZEN mimics the effects of estrogen, which closely relates to the reproductive functionality of livestock, with swine being the most sensitive species.
(4)
Modified and masked forms of ZEN should be included and taken into consideration for the risk assessment of ZEN for farm animals.
In summation, sub-clinical doses of ZEN may not significantly influence on the productive performance of livestock and poultry, however, the continuous consumption of ZEN contaminated feed could lead to a detectable amount of ZEN and/or its metabolites in the blood, liver, intestine content, urine and feces.

Author Contributions

Writing—original draft preparation, J.L.; writing—review and editing, T.A.; supervision, T.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

ZEN, zearalenone; α-ZEL, α-zearalenol; β-ZEL, β-zearalenol; ZAN, zearalanone; α-ZAL, α-zearalanol; β-ZAL, β-zearalanol; OTA, ochratoxin A; ELISA, enzyme-linked immunosorbent assay; HPLC, high-performance liquid chromatography; UV, ultraviolet; FL, fluorescence; LC, liquid chromatography; MS, mass spectrometer; UPLC, ultra-performance liquid chromatography; TLC, thin layer chromatography; QTOF, quadrupole-time-of-flight; b.w., body weight; appr., approximate; n.d., not determined; d.l., detection limit.

References

  1. Diekman, M.A.; Green, M.L. Mycotoxins and reproduction in domestic livestock. J. Anim. Sci. 1992, 70, 1615–1627. [Google Scholar] [CrossRef] [PubMed]
  2. Streit, E.; Schwab, C.; Sulyok, M.; Naehrer, K.; Krska, R.; Schatzmayr, G. Multi-mycotoxin screening reveals the occurrence of 139 different secondary metabolites in feed and feed ingredients. Toxins 2013, 5, 504–523. [Google Scholar] [CrossRef] [PubMed]
  3. Bennett, J.W. Mycotoxins, mycotoxicoses, mycotoxicology and mycopathologia. Mycopathologia 1987, 100, 3–5. [Google Scholar] [CrossRef] [PubMed]
  4. Murugesan, G.R.; Ledoux, D.R.; Naehrer, K.; Berthiller, F.; Applegate, T.J.; Grenier, B.; Phillips, T.D.; Schatzmayr, G. Prevalence and effects of mycotoxins on poultry health and performance, and recent development in mycotoxin counteracting strategies. Poult. Sci. 2015, 94, 1298–1315. [Google Scholar] [CrossRef] [PubMed]
  5. Pereira, C.S.; Cunha, S.C.; Fernandes, J.O. Prevalent Mycotoxins in Animal Feed: Occurrence and Analytical Methods. Toxins 2019, 11, 290. [Google Scholar] [CrossRef] [PubMed]
  6. Tiemann, U.; Dänicke, S. In vivo and in vitro effects of the mycotoxins zearalenone and deoxynivalenol on different non-reproductive and reproductive organs in female pigs: A review. Food Addit. Contam. 2007, 24, 306–314. [Google Scholar] [CrossRef]
  7. Hasunuma, H.; Takagi, M.; Kawamura, O.; Taniguchi, C.; Nakamura, M.; Chuma, T.; Uno, S.; Kokushi, E.; Matsumoto, D.; Tshering, C.; et al. Natural contamination of dietary rice straw with zearalenone and urinary zearalenone concentrations in a cattle herd1. J. Anim. Sci. 2012, 90, 1610–1616. [Google Scholar] [CrossRef]
  8. Marin, S.; Ramos, A.J.; Cano-Sancho, G.; Sanchis, V. Mycotoxins: Occurrence, toxicology, and exposure assessment. Food Chem. Toxicol. 2013, 60, 218–237. [Google Scholar] [CrossRef]
  9. Link, H.F. Observationes in ordines plantarum naturals, Dissetatio I. Mag. Ges. Naturf. Freunde Berlin 1809, 3, 3–42. [Google Scholar]
  10. Stob, M.; Baldwin, R.S.; Tuite, J.; Andrews, F.N.; Gillette, K.G. Isolation of an anabolic, uterotrophic compound from corn infected with Gibberella zeae. Nature 1962, 196, 1318. [Google Scholar] [CrossRef]
  11. Bennett, J.W.; Klich, M. Mycotoxins. Clin. Microbiol. Rev. 2003, 16, 497–516. [Google Scholar] [CrossRef] [PubMed]
  12. Zinedine, A.; Soriano, J.M.; Molto, J.C.; Mañes, J. Review on the toxicity, occurrence, metabolism, detoxification, regulations and intake of zearalenone: An estrogenic mycotoxin. Food Chem. Toxicol. 2007, 25, 1–18. [Google Scholar] [CrossRef]
  13. Urry, W.H.; Wehrmeister, H.L.; Hodge, E.B.; Hidy, P.H. The structure of zearalenone. Terahedron Lett. 1966, 7, 3109–3114. [Google Scholar] [CrossRef]
  14. Christensen, C.M.; Nelson, G.H.; Mirocha, C.J. Effect on the white rat uterus of a toxic substance isolated from Fusarium. Appl. Microbial. 1965, 13, 653. [Google Scholar] [CrossRef]
  15. Mirocha, C.J.; Christensen, C.M.; Nelson, G.H. Estrogenic metabolite produced by Fusarium graminearum in stored corn. Appl. Environ. Microbiol. 1967, 15, 497–503. [Google Scholar] [CrossRef]
  16. EFSA CONTAM Panel. Scientific opinion on risk for animal health related to the presence of zearalenone and its modified forms in feed. EFSA J. 2017, 15, 4851. [Google Scholar]
  17. Ji, F.; He, D.; Olaniran, A.O.; Mokoena, M.P.; Xu, J.; Shi, J. Occurrence, toxicity, production and detection of Fusarium mycotoxin: A review. Food Prod. Process. Nutr. 2019, 1, 6. [Google Scholar] [CrossRef]
  18. Kuiper-Goodman, T.; Scott, P.M.; Watanabe, H. Risk assessment of the mycotoxin zearalenone. Regul. Toxicol. Pharm. 1987, 7, 253–306. [Google Scholar] [CrossRef]
  19. Gruber-Dorninger, C.; Jenkins, T.; Schatzmayr, G. Global mycotoxin occurrence in feed: A ten-year survey. Toxins 2019, 11, 375. [Google Scholar] [CrossRef]
  20. Minervini, F.; Dell’Aquila, M.E. Zearalenone and reproductive function in farm animals. Int. J. Mol. Sci. 2008, 9, 2570–2584. [Google Scholar] [CrossRef]
  21. Zhang, G.-L.; Feng, Y.-L.; Song, J.-L.; Zhou, X.-S. Zearalenone: A mycotoxin with different toxic effect in domestic and laboratory animals’ granulosa cells. Front. Genet. 2018, 9, 667. [Google Scholar] [CrossRef] [PubMed]
  22. Bottalico, A.; Visconti, A.; Logrieco, A.; Solfrizzo, M.; Mirocha, C.J. Occurrence of zearalenols (diastereomeric mixture) in corn stalk rot and their production by associated Fusarium species. Appl. Environ. Microbiol. 1985, 49, 547–551. [Google Scholar] [CrossRef] [PubMed]
  23. Urraca, J.L.; Marazuela, M.D.; Moreno-Bondi, M.C. Analysis for zearalenone and α-zearalenol in cereals and swine feed using accelerated solvent extraction and liquid chromatography with fluorescence detection. Anal. Chim. Acta 2004, 524, 175. [Google Scholar] [CrossRef]
  24. Berthiller, F.; Crews, C.; Dall’Asta, C.; Saeger, S.D.; Haesaert, G.; Karlovsky, P.; Oswald, I.P.; Seefelder, W.; Speijers, G.; Stroka, J. Masked mycotoxins: A review. Mol. Nutr. Food Res. 2013, 57, 165–186. [Google Scholar] [CrossRef] [PubMed]
  25. Dänicke, S.; Winkler, J. Invited review: Diagnosis of zearalenone (ZEN) exposure of farm animals and transfer of its residues into edible tissues (carry over). Food Chem. Toxicol. 2015, 84, 225–249. [Google Scholar] [CrossRef] [PubMed]
  26. Lorenz, N.; Dänicke, S.; Edler, L.; Gottschalk, C.; Lassek, E.; Marko, D.; Rychlik, M.; Mally, A. A critical evaluation of health risk assessment of modified mycotoxins with a special focus on zearalenone. Mycotoxin Res. 2019, 35, 27–46. [Google Scholar] [CrossRef]
  27. Drzymala, S.S.; Binder, J.; Brodehl, A.; Penkert, M.; Rosowski, M.; Garbe, L.A.; Koch, M. Estrogenicity of novel phase I and phase II metabolites of zearalenone and cis-zearalenone. Toxicon 2015, 105, 10–12. [Google Scholar] [CrossRef]
  28. Gareis, M.; Bauer, J.; Thiem, J.; Plank, G.; Grabley, S.; Gedek, B. Cleavage of zearalenone-glycoside, a masked mycotoxin, during digestion in swine. J. Vet. Med. B 1990, 37, 236–240. [Google Scholar] [CrossRef]
  29. Plasencia, J.; Mirocha, C.J. Isolation and characterization of zearalenone sulfate produced by Fusarium spp. Appl. Environ. Microbiol. 1991, 57, 146–150. [Google Scholar] [CrossRef]
  30. Paris, M.P.K.; Schweiger, W.; Hametner, C.; Stuckler, R.; Muehlbauer, G.J.; Varga, E.; Krska, R.; Berthiller, F.; Adam, G. Zearalenone-16-O-glucoside: A new masked mycotoxin. J. Agric. Food Chem. 2014, 62, 1181–1189. [Google Scholar] [CrossRef]
  31. Grenier, B.; Applegate, T.J. Modulation of Intestinal Function Following Mycotoxin Ingestion: Meta-Analysis of Published Experiments in Animals. Toxins 2013, 5, 396–430. [Google Scholar] [CrossRef] [PubMed]
  32. Patience, J.F.; Ensley, S.M.; Hoyer, S. Mycotoxin Contamination of Corn: What It Is, What It Does to Pigs and What Can Be Done about It; Iowa Pork Industry Center Fact Sheets: Ames, IA, USA, 2010; p. 18. [Google Scholar]
  33. Martins, H.M.; Guerra, M.M.M.; Bernardo, F.M.D.A. Occurrence of aflatoxin B1 in dairy cow’s feed over 10 years in Portugal. Rev. Iberoam Micol. 2007, 24, 69–71. [Google Scholar] [CrossRef]
  34. Rohweder, D.; Valenta, H.; Sondermann, S.; Schollenberger, M.; Drochner, W.; Pahlow, G.; Döll, S.; Dänicke, S. Effect of different storage conditions on the mycotoxin contamination of Fusarium culmorum-infected and non-infected wheat straw. Mycotoxin Res. 2011, 27, 145–153. [Google Scholar] [CrossRef] [PubMed]
  35. Rodrigues, I.; Handl, J.; Binder, E.M. Mycotoxin occurrence in commodities, feeds and feed ingredients sourced in the Middle East and Africa. Food Addit. Contam. Part B 2011, 4, 168–179. [Google Scholar] [CrossRef] [PubMed]
  36. Pittet, A. Natural occurrence of mycotoxins in food and feeds: A decade in review. In Mycotoxins and Phytotoxins in Perspective at the Turn of the Millennium, Proceedings of the Xth International IUPAC Symposium on Mycotoxins and Phytotoxins, Guarujá, São Paulo, Brazil, 21–25 May 2000; De Koe, W.J., Samson, R.A., van Egmond, H.P., Gilbert, J., Sabino, M., Eds.; Ponsen & Looyen: Wageninger, The Netherlands, 2001; pp. 153–172. [Google Scholar]
  37. Kovalsky, P.; Kos, G.; Nährer, K.; Schwab, C.; Jenkins, T.; Schatzmayr, G.; Sulyok, M.; Krska, R. Co-occurrence of regulated, masked and emerging mycotoxins and secondary metabolites in finished feed and maize—An extensive survey. Toxins 2016, 8, 363. [Google Scholar] [CrossRef] [PubMed]
  38. Streit, E.; Schatzmayr, G.; Tassis, P.; Tzika, E.; Marin, D.; Taranu, I.; Tabuc, C.; Nicolau, A.; Aprodu, I.; Puel, O.; et al. Current situation of mycotoxin contamination and co-occurrencein animal feed-focus on Europe. Toxins 2012, 4, 788–809. [Google Scholar] [CrossRef]
  39. Streit, E.; Naehrer, K.; Rodrigues, I.; Schatzmayr, G. Mycotoxin occurrence in feed and feed raw materials worldwide: Long-term analysis with special focus on Europe and Asia. J. Sci. Food Agri. 2013, 93, 2892–2899. [Google Scholar] [CrossRef]
  40. Franco, L.T.; Petta, T.; Rottinghaus, G.E.; Bordin, K.; Gomes, G.A.; Oliveira, C.A. Co-occurrence of mycotoxins in maize food and maize-based feed from small-scale farms in Brazil: A pilot study. Mycotoxin Res. 2019, 35, 65–73. [Google Scholar] [CrossRef]
  41. Liu, J.D.; Doupovec, B.; Schatzmayr, D.; Murugesan, G.R.; Bortoluzzi, C.; Villegas, A.M.; Applegate, T.J. The impact of deoxynivalenol, fumonisins, and their combination on performance, nutrient, and energy digestibility in broiler chickens. Poult. Sci. 2020, 99, 272–279. [Google Scholar] [CrossRef]
  42. Nathanail, A.V.; Syvahuoko, J.; Malachova, A.; Jestoi, M.; Varga, E.; Michlmayr, H.; Adam, G.; Sievilainen, E.; Berthiller, F.; Peltonen, K. Simultaneous determination of major type A and B trichothecenes, zearalenone and certain modified metabolites in Finnish cereal grains with a novel liquid chromatography-tandem mass spectrometric method. Anal. Bioanal. Chem. 2015, 407, 4745–4755. [Google Scholar] [CrossRef]
  43. Jiang, S.Z.; Yang, Z.B.; Yang, W.R.; Gao, J.; Liu, F.X.; Chen, C.C.; Chi, F. Physiopathological effects of zearalenone in post-weaning female piglets with or without montmorillonite clay adsorbent. Livest. Sci. 2010, 131, 130–136. [Google Scholar] [CrossRef]
  44. Jiang, S.Z.; Yang, Z.B.; Yang, W.R.; Yao, B.Q.; Zhao, H.; Liu, F.X.; Chen, C.C.; Chi, F. Effects of feeding purified zearalenone contaminated diets with or without clay enterosorbent on growth, nutrient availability, and genital organs in post-weaning female pigs. Asian-Austral. J. Anim. Sci. 2010, 23, 74–81. [Google Scholar] [CrossRef]
  45. Lee, M.J.; Kim, H.J. Development of an immunoaffinity chromatography and LC-MS/MS method for the determination of 6 zearalenones in animal feed. PLoS ONE 2018, 13, e0193584. [Google Scholar] [CrossRef] [PubMed]
  46. Romera, D.; Mateo, E.M.; Mateo-Castro, R.; Gómez, J.V.; Gimeno-Adelantado, J.V.; Jiménez, M. Determination of multiple mycotoxins in feedstuffs by combined use of UPLC–MS/MS and UPLC–QTOF–MS. Food Chem. 2018, 267, 140–148. [Google Scholar] [CrossRef]
  47. EFSA CONTAM Panel. Scientific Opinion on the risks for human and animal health related to the presence of modified forms of certain mycotoxins in food and feed. EFSA J. 2014, 12, 3916. [Google Scholar]
  48. EFSA CONTAM Panel. Scientific Opinion on the appropriateness to set a group health-based guidance value for zearalenone and its modified forms. EFSA J. 2016, 14, 4425. [Google Scholar]
  49. Bennett, G.A.; Shotwell, O.L.; Hesseltine, C.W. Destruction of zearalenone in contaminated corn. J. Am. Oil Chem. Soc. 1980, 57, 245–247. [Google Scholar] [CrossRef]
  50. Ryu, D.; Hanna, M.A.; Bullerman, L.B. Stability of zearalenone during extrusion of corn grits. J. Food Protect. 1999, 62, 1482–1484. [Google Scholar] [CrossRef]
  51. Rai, A.; Das, M.; Tripathi, A. Occurrence and toxicity of a fusarium mycotoxin, zearalenone. Crit. Rev. Food Sci. Nutr. 2019, 1–20. [Google Scholar] [CrossRef]
  52. Mirocha, C.J.; Pathre, S.V.; Robison, T.S. Comparative metabolism of zearalenone and transmission into bovine milk. Food Cosmet. Toxicol. 1981, 19, 25–30. [Google Scholar] [CrossRef]
  53. Bauer, J.; Heinritzi, K.; Gareis, M.; Gedek, B. Changes in the genital tract of female swine after feeding with practice-relevant amounts of zearalenone. Tierarztl. Prax. 1987, 15, 33–36. [Google Scholar] [PubMed]
  54. Biehl, M.L.; Prelusky, D.B.; Koritz, G.D.; Hartin, K.; Buck, W.B.; Trenholm, H.L. Biliary excretion and enterohepatic cycling of zearalenone in immature pigs. Toxicol. Appl. Pharmacol. 1993, 121, 152–159. [Google Scholar] [CrossRef] [PubMed]
  55. Olsen, M. Metabolism of zearalenone in farm animals. In Fusarium Mycotoxins, Taxonomy and Pathogenicity, 1st ed.; Chelkowsi, J., Ed.; Elsevier: Amsterdam, The Netherlands, 1989; pp. 167–177. [Google Scholar]
  56. Metzler, M.; Pfeiffer, E.; Hildebrand, A.A. Zearalenone and its metabolites as endocrine disrupting chemicals. World Mycotoxin J. 2010, 3, 385–401. [Google Scholar] [CrossRef]
  57. Binder, S.B.; Schwartz-Zimmermann, H.E.; Varga, E.; Bichl, G.; Michlmayr, H.; Adam, G.; Berthiller, F. Metabolism of zearalenone and its major modified forms in pigs. Toxins 2017, 9, 56. [Google Scholar] [CrossRef] [PubMed]
  58. Faisal, Z.; Lemli, B.; Szerencsés, D.; Kunsági-Máté, S.; Bálint, M.; Hetényi, C.; Kuzma, M.; Mayer, M.; Poór, M. Interactions of zearalenone and its reduced metabolites α-zearalenol and β-zearalenol with serum albumins: Species differences, binding sites, and thermodynamics. Mycotoxin Res. 2018, 34, 269–278. [Google Scholar] [CrossRef]
  59. Ma, L.; Maragos, C.M.; Zhang, Y. Interaction of zearalenone with bovine serum albumin as determined by fluorescence quenching. Mycotoxin Res. 2018, 34, 39–48. [Google Scholar] [CrossRef]
  60. Diaz, G.J.; Cespedes, A.E. Natural occurrence of zearalenone in feeds and feedstuffs used in poultry and pig nutrition in Colombia. Mycotoxin Res. 1997, 13, 81–87. [Google Scholar] [CrossRef]
  61. Dalcero, A.; Magnoli, C.; Luna, M.; Ancasi, G.; Reynoso, M.M.; Chiacchiera, S.; Miazzo, R.; Palacio, G. Mycoflora and naturally occurring mycotoxins in poultry feeds in Argentina. Mycopathologia 1998, 141, 37–43. [Google Scholar] [CrossRef]
  62. Swamy, H.V.L.N.; Smith, T.K.; MacDonald, E.J.; Karrow, N.A.; Woodward, B.; Boermans, H.J. Effects of feeding a blend of grains naturally contaminated with Fusarium mycotoxins on growth and immunological measurements of starter pigs, and the efficacy of a polymeric glucomannan mycotoxin adsorbent. J. Anim. Sci. 2003, 81, 2792–2803. [Google Scholar] [CrossRef]
  63. Jaimez, J.; Fente, C.A.; Franco, C.M.; Cepeda, A.; Vázquez, B.I. A survey of the fungal contamination and presence of ochratoxin A and zearalenone on Spanish feed and raw materials. J. Sci. Food Agric. 2004, 84, 832–840. [Google Scholar] [CrossRef]
  64. Swamy, H.V.L.N.; Smith, T.K.; Karrow, N.A.; Boermans, H.J. Effects of feeding blends of grains naturally contaminated with Fusarium mycotoxins on growth and immunological parameters of broiler chickens. Poult. Sci. 2004, 83, 533–543. [Google Scholar] [CrossRef] [PubMed]
  65. Labuda, R.; Parich, A.; Berthiller, F.; Tančinová, D. Incidence of trichothecenes and zearalenone in poultry feed mixtures from Slovakia. Int. J. Food Microbiol. 2005, 105, 19–25. [Google Scholar] [CrossRef] [PubMed]
  66. Döll, S.; Gericke, S.; Dänicke, S.; Raila, J.; Ueberschär, K.H.; Valenta, H.; Schnurrbusch, U.; Schweigert, F.J.; Flachowsky, G. The efficacy of a modified aluminosilicate as a detoxifying agent in Fusarium toxin contaminated maize containing diets for piglets. J. Anim. Physiol. Anim. Nutr. 2005, 89, 342–358. [Google Scholar] [CrossRef] [PubMed]
  67. Seeling, K.; Dänicke, S.; Ueberschär, K.H.; Lebzien, P.; Flachowsky, G. On the effects of Fusarium toxin-contaminated wheat and the feed intake level on the metabolism and carry over of zearalenone in dairy cows. Food Addit. Contam. 2005, 22, 847–855. [Google Scholar] [CrossRef]
  68. Martins, H.M.; Guerra, M.M.; Bernardo, F. Zearalenone, deoxynivalenol and fumonisins in mixed-feed for laying hens. Mycotoxin Res. 2006, 22, 206–210. [Google Scholar] [CrossRef]
  69. Borutova, R.; Faix, S.; Placha, I.; Gresakova, L.; Cobanova, K.; Leng, L. Effects of deoxynivalenol and zearalenone on oxidative stress and blood phagocytic activity in broilers. Arch. Anim. Nutr. 2008, 62, 303–312. [Google Scholar] [CrossRef]
  70. Griessler, K.; Rodrigues, I.; Handl, J.; Hofstetter, U. Occurrence of mycotoxins in Southern Europe. World Mycotoxin J. 2010, 3, 301–309. [Google Scholar] [CrossRef]
  71. Jiang, S.Z.; Yang, Z.B.; Yang, W.R.; Gao, J.; Liu, F.X.; Broomhead, J.; Chi, F. Effects of purified zearalenone on growth performance, organ size, serum metabolites, and oxidative stress in postweaning gilts. J. Anim. Sci. 2011, 89, 3008–3015. [Google Scholar] [CrossRef]
  72. Rodrigues, I.; Naehrer, K. A three-year survey on the worldwide occurrence of mycotoxins in feedstuffs and feed. Toxins 2012, 4, 663–675. [Google Scholar] [CrossRef]
  73. Schoevers, E.J.; Santos, R.R.; Colenbrander, B.; Fink-Gremmels, J.; Roelen, B.A. Transgenerational toxicity of Zearalenone in pigs. Reprod. Toxicol. 2012, 34, 110–119. [Google Scholar] [CrossRef]
  74. Jiang, S.Z.; Yang, Z.B.; Yang, W.R.; Wang, S.J.; Wang, Y.; Broomhead, J.; Johnston, S.L.; Chi, F. Effect on hepatonephric organs, serum metabolites and oxidative stress in post-weaning piglets fed purified zearalenone-contaminated diets with or without Calibrin-Z. Anim. Physiol. Anim. Nutr. 2012, 96, 1147–1156. [Google Scholar] [CrossRef] [PubMed]
  75. Wang, J.P.; Chi, F.; Kim, I.H. Effects of montmorillonite clay on growth performance, nutrient digestibility, vulva size, faecal microflora, and oxidative stress in weaning gilts challenged with zearalenone. Anim. Feed Sci. Technol. 2012, 178, 158–166. [Google Scholar] [CrossRef]
  76. Kim, D.H.; Lee, I.H.; Do, W.H.; Nam, W.S.; Li, H.; Jang, H.S.; Lee, C. Incidence and levels of deoxynivalenol, fumonisins and zearalenone contaminants in animal feeds used in Korea in 2012. Toxins 2014, 6, 20–32. [Google Scholar] [CrossRef] [PubMed]
  77. Jiang, S.Z.; Li, Z.; Wang, G.Y.; Yang, Z.B.; Yang, W.R.; Zhang, G.G.; Wu, Y.B. Effects of Fusarium mycotoxins with yeast cell wall absorbent on hematology, serum biochemistry, and oxidative stress in broiler chickens. J. Appl. Poult. Res. 2014, 23, 165–173. [Google Scholar] [CrossRef]
  78. Dänicke, S.; Keese, C.; Meyer, U.; Starke, A.; Kinoshita, A.; Rehage, J. Zearalenone (ZEN) metabolism and residue concentrations in physiological specimens of dairy cows exposed long-term to ZEN-contaminated diets differing in concentrate feed proportions. Arch. Anim. Nutr. 2014, 68, 492–506. [Google Scholar] [CrossRef] [PubMed]
  79. Kongkapan, J.; Poapolathep, S.; Isariyodom, S.; Kumagai, S.; Poapolathep, A. Simultaneous detection of multiple mycotoxins in broiler feeds using a liquid chromatography tandem-mass spectrometry. J. Vet. Med. Sci. 2016, 78, 259–264. [Google Scholar] [CrossRef]
  80. Lee, M.; Seo, D.J.; Jeon, S.B.; Ok, H.E.; Jung, H.; Choi, C.; Chun, H.S. Detection of foodborne pathogens and mycotoxins in eggs and chicken feeds from farms to retail markets. Korean J. Food Sci. Anim. Resour. 2016, 36, 463. [Google Scholar] [CrossRef]
  81. Bernhoft, A.; Christensen, E.; Sandvik, M. The Surveillance Programme for Mycotoxins and Fungi in Feed Materials, and Complete and Complementary Feed in Norway 2015; Norwegian Veterinary Institute: Oslo, Norway, 2016. [Google Scholar]
  82. Cheng, Q.; Jiang, S.Z.; Li, S.Q.; Wang, Y.X.; Zhang, C.Y.; Yang, W.R. Effects of low-dose zearalenone-contaminated diets with or without montmorillonite clay adsorbent on nutrient metabolic rates, serum enzyme activities, and genital organs of growing-laying hens. J. Appl. Poult. Res. 2017, 26, 367–375. [Google Scholar] [CrossRef]
  83. Hennig-Pauka, I.; Koch, F.J.; Schaumberger, S.; Woechtl, B.; Novak, J.; Sulyok, M.; Nagl, V. Current challenges in the diagnosis of zearalenone toxicosis as illustrated by a field case of hyperestrogenism in suckling piglets. Porc. Health Manag. 2018, 4, 18. [Google Scholar] [CrossRef]
  84. Reddy, K.E.; young Jeong, J.; Lee, Y.; Lee, H.J.; Kim, M.S.; Kim, D.W.; Jung, H.J.; Choe, C.; Oh, Y.K.; Lee, S.D. Deoxynivalenol-and zearalenone-contaminated feeds alter gene expression profiles in the livers of piglets. Asian-Austral. J. Anim. Sci. 2018, 31, 595. [Google Scholar] [CrossRef]
  85. Travel, A.; Metayer, J.P.; Mika, A.; Bailly, J.D.; Cleva, D.; Boissieu, C.; Le Guennec, J.; Albaric, O.; Labrut, S.; Lepivert, G.; et al. Toxicity of fumonisins, deoxynivalenol, and zearalenone alone and in combination in turkeys fed with the maximum European Union–tolerated level. Avian Dis. 2019, 63, 703–712. [Google Scholar] [CrossRef] [PubMed]
  86. Chen, Y.; Cheng, Y.; Wen, C.; Wang, W.; Kang, Y.; Wang, A.; Zhou, Y. The protective effects of modified palygorskite on the broilers fed a purified zearalenone-contaminated diet. Poult. Sci. 2019, 98, 3802–3810. [Google Scholar] [CrossRef] [PubMed]
  87. Hort, V.; Nicolas, M.; Travel, A.; Jondreville, C.; Maleix, C.; Baéza, E.; Engel, E.; Guérin, T. Carry-over assessment of fumonisins and zearalenone to poultry tissues after exposure of chickens to a contaminated diet-A study implementing stable-isotope dilution assay and UHPLC-MS/MS. Food Control 2020, 107, 106789. [Google Scholar] [CrossRef]
  88. Mirocha, C.J.; Robison, T.S.; Pawlosky, R.J.; Allen, N.K. Distribution and residue determination of (3H)-zearalenone in broilers. Toxicol. Appl. Pharm. 1982, 66, 77–87. [Google Scholar] [CrossRef]
  89. Buranatragool, K.; Poapolathep, S.; Isariyodom, S.; Imsilp, K.; Klangkaew, N.; Poapolathep, A. Dispositions and tissue residue of zearalenone and its metabolites α-zearalenol and β-zearalenol in broilers. Toxicol. Rep. 2015, 2, 351–356. [Google Scholar] [CrossRef]
  90. Devreese, M.; Antonissen, G.; Broekaert, N.; De Baere, S.; Vanhaecke, L.; De Backer, P.; Croubels, S. Comparative toxicokinetics, absolute oral bioavailability, and biotransformation of zearalenone in different poultry species. J. Agric. Food Chem. 2015, 63, 5092–5098. [Google Scholar] [CrossRef]
  91. Dänicke, S.; Ueberschär, K.H.; Valenta, H.; Matthes, S.; Matthäus, K.; Halle, I. Effects of graded levels of Fusarium toxin-contaminated wheat in Pekin duck diets on performance, health and metabolism of deoxynivalenol and zearalenone. Br. Poult. Sci. 2004, 45, 264–272. [Google Scholar] [CrossRef]
  92. Dänicke, S.; Ueberschär, K.H.; Halle, I.; Matthes, S.; Valenta, H.; Flachowsky, G. Effect of addition of a detoxifying agent to laying hen diets containing uncontaminated or Fusarium toxin-contaminated maize on performance of hens and on carryover of zearalenone. Poult. Sci. 2002, 81, 1671–1680. [Google Scholar] [CrossRef]
  93. Dailey, R.E.; Reese, R.E.; Brouwer, E.A. Metabolism of (14C) zearalenone in laying hens. J. Agric. Food Chem. 1980, 28, 286–291. [Google Scholar] [CrossRef]
  94. Dänicke, S.; Swiech, E.; Buraczewska, L.; Ueberschär, K.H. Kinetics and metabolism of zearalenone in young female pigs. J. Anim. Physiol. Anim. Nutr. 2005, 89, 268–276. [Google Scholar] [CrossRef]
  95. Gajęcka, M.; Zielonka, Ł.; Gajęcki, M. Activity of zearalenone in the porcine intestinal tract. Molecules 2017, 22, 18. [Google Scholar] [CrossRef] [PubMed]
  96. Olsen, M.; Pettersson, H.; Sandholm, K.; Visconti, A.; Kiessling, K.H. Metabolism of zearalenone by sow intestinal mucosa in vitro. Food Chem. Toxicol. 1987, 25, 681–683. [Google Scholar] [CrossRef]
  97. Dänicke, S.; Brüssow, K.P.; Goyarts, T.; Valenta, H.; Ueberschär, K.H.; Tiemann, U. On the transfer of the Fusarium toxins deoxynivalenol (DON) and zearalenone (ZON) from the sow to the full-term piglet during the last third of gestation. Food Chem. Toxicol. 2007, 45, 1565–1574. [Google Scholar] [CrossRef] [PubMed]
  98. Döll, S.; Dänicke, S.; Ueberschär, K.H.; Valenta, H.; Schnurrbusch, U.; Ganter, M.; Klobasa, F.; Flachowsky, G. Effects of graded levels of Fusarium toxin contaminated maize in diets for female weaned piglets. Arch. Anim. Nutr. 2003, 57, 311–334. [Google Scholar] [CrossRef] [PubMed]
  99. Goyarts, T.; Dänicke, S.; Valenta, H.; Ueberschär, K.H. Carry-over of Fusarium toxins (deoxynivalenol and zearalenone) from naturally contaminated wheat to pigs. Food Addit. Contam. 2007, 24, 369–380. [Google Scholar] [CrossRef] [PubMed]
  100. Oldenburg, E. Mykotoxine im Grundfutter und ihre Bedeutung im Carry-over-Geschehen. In Kreisläufe erwün-schter und unerwünschter Stoffe–ihre Bedeutung in der Nahrungskette, Informationsveranstaltung der Arbeitsgruppe “Carry over unerwünschter Stoffe in Futtermitteln’’, Braunschweig, Germany, October 1998; Forsten, L., Ed.; Bundesministerium für Ernährung, Landwirtschaftsverlag: Münster, Germany, 1998; pp. 19–31. [Google Scholar]
  101. Völkel, I.; Schröer-Merker, E.; Czerny, C.P. The carry-over of mycotoxins in products of animal origin with special regard to its implications for the European food safety legislation. Food Nutr. Sci. 2011, 2, 852–867. [Google Scholar] [CrossRef]
  102. Fink-Gremmels, J. Mycotoxins in cattle feeds and carry-over to dairy milk: A review. Food Addit. Contam: Part A. Chem. Anal. Control Expo. Risk Assess. 2008, 25, 172–180. [Google Scholar]
  103. Miles, C.O.; Erasmuson, A.F.; Wilkins, A.L.; Towers, N.R.; Smith, B.L.; Garthwaite, I.; Scahill, B.G.; Hansen, R.P. Ovine metabolism of zearalenone to alpha-zearalanol (zeranol). J. Agric. Food Chem. 1996, 44, 3244–3250. [Google Scholar] [CrossRef]
  104. Dong, M.; He, X.J.; Tulayakul, P.; Li, J.Y.; Dong, K.S.; Manabe, N.; Nakayama, H.; Kumagai, S. The toxic effects and fate of intravenously administered zearalenone in goats. Toxicon 2010, 55, 523–530. [Google Scholar] [CrossRef]
  105. Olsen, M.; Mirocha, C.J.; Abbas, H.K.; Johansson, B. Metabolism of high concentrations of dietary zearalenone by young male turkey poults. Poult. Sci. 1986, 65, 1905–1910. [Google Scholar] [CrossRef]
  106. Maryamma, K.I.; Manomohan, C.B.; Nair, M.G.; Ismail, P.K.; Sreekumaran, T.; Rajan, A. Pathology of zearalenone toxicosis in chicken and evaluation of zearalenone residues in tissues. Indian J. Anim. Sci. 1992, 62, 105–107. [Google Scholar]
  107. Dänicke, S.; Valenta, H.; Ueberschär, K.H.; Matthes, S. On the interactions between Fusarium toxin-contaminated wheat and non-starch-polysaccharide hydrolysing enzymes in turkey diets on performance, health and carry-over of deoxynivalenol and zearalenone. Br. Poult. Sci. 2007, 48, 39–48. [Google Scholar] [CrossRef] [PubMed]
  108. Osselaere, A.; Devreese, M.; Goossens, J.; Vandenbroucke, V.; De Baere, S.; De Backer, P.; Croubels, S. Toxicokinetic study and absolute oral bioavailability of deoxynivalenol, T-2 toxin and zearalenone in broiler chickens. Food Chem. Toxicol. 2013, 51, 350–355. [Google Scholar] [CrossRef] [PubMed]
  109. James, L.J.; Smith, T.K. Effect of dietary alfalfa on zearalenone toxicity and metabolism in rats and swine. J. Anim. Sci. 1982, 55, 110–118. [Google Scholar] [CrossRef] [PubMed]
  110. Enders, C. Zur Analytik von Zearalenon, α- und β- Zearalenol in Material pflanzlichen und tierischen Ursprungs. Ph.D. Thesis, LMU München, München, Germany, 1984. [Google Scholar]
  111. Lusky, K.; Tesch, D.; Göbel, R.; Haider, W. Gleichzeitige Verabreichung der Mykotoxine Ochratoxin A und Zearalenon über das Futter an Schweine—Einfluss auf Tiergesundheit und Rückstandsverhalten. Tierärztl. Umschau 1997, 52, 212–221. [Google Scholar]
  112. Zöllner, P.; Jodlbauer, J.; Kleinova, M.; Kahlbacher, H.; Kuhn, T.; Hochsteiner, W.; Lindner, W. Concentration levels of zearalenone and its metabolites in urine, muscle tissue, and liver samples of pigs fed with mycotoxin-contaminated oats. J. Agric. Food Chem. 2002, 50, 2494–2501. [Google Scholar] [CrossRef] [PubMed]
  113. Döll, S.; Dänicke, S.; Schnurrbusch, U. The effect of increasing concentrations of Fusarium toxins in the diets for piglets on histological parameters of the uterus. Mycotoxin Res. 2003, 19, 73–76. [Google Scholar] [CrossRef]
  114. Shreeve, B.J.; Patterson, D.S.P.; Roberts, B.A. The ‘carry-over’of aflatoxin, ochratoxin and zearalenone from naturally contaminated feed to tissues, urine and milk of dairy cows. Food Cosmet. Toxicol. 1979, 17, 151–152. [Google Scholar] [CrossRef]
  115. Hagler, W.M.; Danko, G.; Horvath, L.; Palyusik, M.; Mirocha, C.J. Transmission of zearalenone and its metabolite into ruminant milk. Acta Vet. Acad. Sci. H. 1980, 28, 209–216. [Google Scholar]
  116. Prelusky, D.B.; Scott, P.M.; Trenholm, H.L.; Lawrence, G.A. Minimal transmission of Zearalenone to milk of dairy cows. J. Einviron. Sci. Health. B 1990, 25, 87–103. [Google Scholar] [CrossRef]
  117. Usleber, E.; Renz, V.; Märtlbauer, E.; Terplan, G. Studies on the application of enzyme immunoassays for the Fusarium mycotoxins deoxynivalenol, 3-acetyldeoxynivalenol, and zearalenone. J. Vet. Med. B. 1992, 39, 617–627. [Google Scholar] [CrossRef] [PubMed]
  118. Goll, M.; Valenta, H.; Oldenburg, E. Übergang von Zearalenon in die Milch von Kühen nach Langzeitfütterung. In Proceedings of the 17. Mykotoxin-Workshop, Braunschweig, Germany, 15–17 May 1995; FAL: Braunschweig, Germany, 1995; pp. 131–134. [Google Scholar]
  119. D’Mello, J.P.F.; Placinta, C.M.; MacDonald, A.M.C. Fusarium mycotoxins: A review of global implications for animal health, welfare and productivity. Anim. Feed Sci. Technol. 1999, 80, 183–205. [Google Scholar] [CrossRef]
  120. FAO/WHO. Zearalenone. Prepared by the fifty-third meeting of the joint FAO/WHO Expert Committee on Food Additives (JECFA). In Safety Evaluation of Certain Food Additives and Contaminants; WHO Food Additives Series 44; WHO: Geneva, Switzerland, 2000. [Google Scholar]
  121. Allen, N.K.; Mirocha, C.J.; Weaver, G.; Aakhus-Allen, S.; Bates, F. Effects of dietary zearalenone on finishing broiler chickens and young turkey poults. Poultry Sci. 1981, 60, 124–131. [Google Scholar] [CrossRef] [PubMed]
  122. Weaver, G.A.; Kurtz, H.J.; Behrens, J.C.; Robison, T.S.; Seguin, B.E.; Bates, F.Y.; Mirocha, C.J. Effects of zearalenone on the fertility of virgin dairy heifers. Am. J. Vet. Res. 1986, 47, 1395–1397. [Google Scholar]
  123. Berthiller, F.; Schuhmacher, R.; Adam, G.; Krska, R. Formation, determination and significance of masked and other conjugated mycotoxins. Anal. Bioanal. Chem. 2009, 395, 1243–1252. [Google Scholar] [CrossRef]
  124. Catteuw, A.; Broekaert, N.; De Baere, S.; Lauwers, M.; Gasthuys, E.; Huybrechts, B.; Callebaut, A.; Ivanova, L.; Uhlig, S.; De Boevre, M.; et al. Insights into in vivo absolute oral bioavailability, biotransformation, and toxicokinetics of zearalenone, α-zearalenol, β-zearalenol, zearalenone-14-glucoside, and zearalenone-14-sulfate in pigs. J. Agric. Food Chem. 2019, 67, 3448–3458. [Google Scholar] [CrossRef]
  125. McNutt, S.H.; Purwin, P.; Murray, C. Vulvovaginitis in swine. J. Am. Vet. Med. Assoc. 1928, 73, 484. [Google Scholar]
  126. Koen, J.S.; Smith, H.C. An unusual case of genital involvement in swine associated with eating moldy corn. Vet. Med. 1945, 40, 131. [Google Scholar]
  127. Ciegler, A. Mycotoxins, Occurrence, chemistry, biological activity. Lloydia 1975, 38, 21–35. [Google Scholar]
  128. da Rocha, M.E.B.; Freire, F.D.C.O.; Maia, F.E.F.; Guedes, M.I.F.; Rondina, D. Mycotoxins and their effects on human and animal health. Food Control 2014, 36, 159–165. [Google Scholar] [CrossRef]
  129. Massart, F.; Saggese, G. Oestrogenic Mycotoxin Exposures and precocious pubertal development. Int. J. Androl. 2010, 33, 369–376. [Google Scholar] [CrossRef] [PubMed]
  130. Mirocha, C.J.; Christensen, C.M.; Nelson, G.H. F-2 (zearalenone) estrogenic mycotoxin from Fusarium. Microbial toxins 2013, 7, 107–138. [Google Scholar]
  131. Le Guevel, R.; Pakdel, F. Assessment of oestrogenic potency of chemi-cals used as growth promoter by in vitro methods. Hum. Reprod. 2001, 16, 1030–1036. [Google Scholar]
  132. Fruhauf, S.; Novak, B.; Nagl, V.; Hackl, M.; Hartinger, D.; Rainer, V.; Labudova, S.; Adam, G.; Aleschko, M.; Moll, W.D.; et al. Biotransformation of the mycotoxin zearalenone to its metabolites hydrolyzed zearalenone (HZEN) and decarboxylated hydrolyzed zearaleneone (DHEN) diminishes its estrogenicity in vitro and in vivo. Toxins 2019, 11, 481. [Google Scholar] [CrossRef]
  133. Fink-Gremmels, J.; Malekinejad, H. Clinical effects and biochemical mechanisms associated with exposure to the mycoestrogen zearalenone. Anim. Feed Sci. Technol. 2007, 137, 326–341. [Google Scholar] [CrossRef]
  134. National Research Council of Canada. Mycotoxins: A Canadian Perspective; Scott, P.M., Trenholm, H.L., Sutton, M.D., Eds.; NRCC: Ottawa, QC, Canada, 1985. [Google Scholar]
  135. Marasas, W.F.O.; Nelson, P.E. Mycotoxicology-Introduction to Mycology, Plant Pathology, Chemistry, Toxicology and Pathology of Naturally Occurring Mycotoxicoses in Animals and Man; Pennsylvania State University Press: University Park, PA, USA, 1987. [Google Scholar]
Figure 1. Chemical structures of zearalenone (ZEN/ZEA/ZON) and its modified forms α-zearalenol (α-ZEL/α-ZEN/α-ZOL), β-zearalenol (β-ZEL/β-ZEN/β-ZOL), zearalanone (ZAN), α-zearalanol (α-ZAL), and β-zearalanol (β-ZAL) (modified based upon Urraca et al. [23]).
Figure 1. Chemical structures of zearalenone (ZEN/ZEA/ZON) and its modified forms α-zearalenol (α-ZEL/α-ZEN/α-ZOL), β-zearalenol (β-ZEL/β-ZEN/β-ZOL), zearalanone (ZAN), α-zearalanol (α-ZAL), and β-zearalanol (β-ZAL) (modified based upon Urraca et al. [23]).
Toxins 12 00377 g001
Figure 2. Common analytical methods for the measurement of ZEN and its modified derivatives concentration in animal feed.
Figure 2. Common analytical methods for the measurement of ZEN and its modified derivatives concentration in animal feed.
Toxins 12 00377 g002
Figure 3. The digestion and metabolism of ZEN and its modified forms in animals (modified based in part upon Dänicke and Winkler [25] and created with Biorender.com).
Figure 3. The digestion and metabolism of ZEN and its modified forms in animals (modified based in part upon Dänicke and Winkler [25] and created with Biorender.com).
Toxins 12 00377 g003
Table 1. European Commission Guidance (EU) and US Food and Drug Administration Guidance (FDA) guidance values for ZEN concentration in complete feed [16,31].
Table 1. European Commission Guidance (EU) and US Food and Drug Administration Guidance (FDA) guidance values for ZEN concentration in complete feed [16,31].
ItemSpeciesZEN (µg/kg)
EUPoultry--
SwineSows and fattening pigs250
Piglets and gilts100
Ruminants-500
FDAPoultry-No guidance levels
SwineSows and fattening pigs
Piglets and gilts
Ruminants-
Back to TopTop
