Toxins 2019, 11(9), 521;

First Report of Microcystis Strains Producing MC-FR and -WR Toxins in Japan
Department of Food Science and Technology, National Fisheries University, 2-7-1 Nagata-honmachi, Shimonoseki, Yamaguchi 759-6595, Japan
National Institute of Health Sciences, 3-25-26 Tonomachi, Kawasaki, Kanagawa 210-9501, Japan
National Institute for Environmental Studies, Onogawa 16-2, Tsukuba, Ibaraki 305-8506, Japan
Okinawa Institute for the Conservation of the Environment Co. Ltd., 7-11 Suzaki, Uruma, Okinawa 904-2234, Japan
Faculty of Sports and Health Science, Fukuoka University, Fukuoka 814-0180, Japan
Tropical Technology Plus Ltd., 5-1 Suzaki, Uruma, Okinawa 904-2234, Japan
Author to whom correspondence should be addressed.
Received: 11 August 2019 / Accepted: 6 September 2019 / Published: 9 September 2019


Microcystins (MCs) are a group of cyclic heptapeptide hepatotoxins produced by Microcystis and several other genera of cyanobacteria. Many structural variants have been characterized using various methods such as liquid chromatography–mass spectrometry (LC-MS) analysis, enzyme-linked immunosorbent assay (ELISA) and protein phosphatase 2A (PP2A) inhibition assay. The representative MC, MC-LR, and related cyanobacterial toxins strongly inhibit PP2A activity and can therefore be assayed by measuring the extent of PP2A inhibition. However, these methods require reference toxin standards for the quantification and identification of known MCs. To obtain various MC-producing cyanobacterial strains, we surveyed and collected MC-producing cyanobacteria from environmental sources of water in Okinawa, Japan. Using a dual assay (LC-MS analysis and PP2A inhibition assay), we identified and isolated Microcystis strains producing five MC variants (MC-LR, -RR, -LA, -FR and -WR). Approximately 4 mg of MC-WR and -FR toxins were purified from the laboratory culture of the Microcystis isolate NIES-4344. Pure MC-WR and -FR variants were prepared for future use as toxin standards in LC-MS analysis. Phylogenetic analysis based on ftsZ revealed that the NIES-4344 strain belongs to the identified groups in Microcystis aeruginosa. This is the first report of Microcystis strains producing mainly MC-WR and -FR toxins in Japan.
Cyanobacteria; Microcystis; microcystins; environmental water; liquid chromatography–mass spectrometry; protein phosphatase 2A inhibition assay
Key Contribution: This paper reports Microcystis strains producing MC-FR and -WR toxins in Japan. Pure MC-WR and -FR prepared from the strains will be useful as toxin standards for the LC-MS method in future monitoring studies.

1. Introduction

Worldwide blooms of toxic cyanobacteria (blue-green algae) commonly occur in fresh, brackish and marine waters. Microcystins (MCs) are a group of cyclic heptapeptide hepatotoxins produced by Microcystis and several other genera of cyanobacteria. MCs are composed of five common amino acids plus a pair of variable L-amino acids. More than 250 structural variants of MCs have been characterized in bloom samples and cultured strains of cyanobacteria to date [1,2,3]. The structural variation in MCs is based on either the two variable amino acids or chemical modifications around the molecules. All MCs are highly toxic to many life forms, including aquatic organisms, wildlife, livestock and humans, and MC-LR, the representative MC variant, is the most toxic. In 1996, MC caused the death of over 50 patients on hemodialysis in Caruaru, Brazil [4,5]. Given the toxicity of MCs, the World Health Organization (WHO) has recommended a maximum allowable level of 1 μg/L of MC-LR or its equivalent in water [6]. To monitor the level of MCs in aquatic environments, a powerful analytical tool is needed. High-performance liquid chromatography (HPLC) and liquid chromatography–mass spectrometry (LC-MS) analyses are used for quantification and identification of known MCs, while protein phosphatase 2A (PP2A) inhibition assay and enzyme-linked immunosorbent assay (ELISA) are used for the rapid detection and quantification of total MCs. Recently, fast detection strategies for cyanobacterial blooms and associated cyanotoxins were reported [7,8]. These methods require reference toxin standards for the quantification and identification of known MCs. However, commercially available MC standards are limited to a few major MC variants, such as MC-LR and MC-RR. Therefore, a stable supply of diverse MC standards is crucial for MC analysis.
MCs are known to inhibit the activity of serine/threonine protein phosphatases (PPs) such as PP1 and PP2A [9,10]. We produced a recombinant catalytic subunit of human PP2A (rhPP2Ac) via genetic engineering using the baculovirus expression system with High Five insect cells [11,12]. The highly purified rhPP2Ac was biologically active and was inhibited by MC variants [13], okadaic acid and okadaic acid analogs (OAs). Previous studies have demonstrated the suitability of rhPP2Ac in the PP2A inhibition assay, for example, for the detection of OAs in shellfish [14,15], and detection and quantification of MCs in environmental water resources [16].
Here, we report the toxin composition of Microcystis strains producing MCs isolated from environmental water resources in Okinawa locating at subtropical region in Japan. Five MC variants were identified including MC-RR, -LR, -YR, -WR, -FR and -LA. Microcystis strains (NIES-4344 and NIES-4345) producing both MC-WR and MC-FR were isolated, and the two MC variants were purified from the laboratory culture of the isolates (NIES-4344). Pure MC-WR and MC-FR were prepared for use as reference materials in LC-MS analysis. Multilocus sequence typing (MLST) with seven selected housekeeping loci (ftsZ, glnA, gltX, gyrB, pgi, recA and tpi) has revealed that Microcystis aeruginosa is divided into several groups [17,18,19]. In this study, phylogenetic analysis based on ftsZ, one of the seven loci, revealed that the NIES-4344 strain belongs to group X, while NIES-4345 belongs to none of the identified groups. Microcystis strains previously identified in Japan have been reported to produce mainly MC-RR (50%), MC-LR (30%) and MC-YR (14%) variants [20]. Thus, this is the first report of strains producing MC-WR and -FR in Japan.

2. Results

Cyanobacterial water blooms were identified in 13 out of 98 sites surveyed at Okinawa prefecture in Japan (Supplemental Figure S1). To detect and identify the MCs in these water blooms, surface water containing cyanobacteria was collected from the 13 sites and used to prepare test solutions, which were then analyzed by the PP2A assay and LC-MS analysis (Figure 1). To determine the presence of MCs, the PP2A activity was measured in the test solutions (Table 1).
The MC inhibitory activity against PP2A of samples collected from six sites (site No. 1, 7, 8, 10, 11 and 12) varied from 43.3% to 82.4%, whereas that of samples collected from the other seven sites (site No. 2, 3, 4, 5, 6, 9 and 13) was below 10% (range: 3.4% to 9.5%). These results indicated the possibility that cyanobacteria collected from six sites produced MCs. PP2A activity rate and calibration curve using net absorbance value obtained by the PP2A assay with MC-LR standard solution was shown in Supplemental Figure S2 as reference data. To determine the composition of MCs produced by these cyanobacteria, we conducted LC-MS analysis of the crude extract prepared from the cyanobacteria-containing water samples using nine reference toxins (Figure 2). Five MC variants (MC-LR, -RR, -LA, -FR and -WR) were detected in the crude extracts (Table 1, Figure 3). MC-LR was detected at all six sites (Figure 3a–f), MC-RR at five sites (Figure 3c), MC-LA at two sites (Figure 3a,c) and MC-FR and MC-WR only at one site each (Figure 3b). Additionally, unialgal strains were isolated from the same water samples (Table 1), and the representative chromatographs of the isolates are shown in Figure 4. Five MC variants (MC-RR, -LR, -FR, -WR and -LA) were detected in the isolates (Figure 4a,d). The two isolates shown in Figure 4b and 4c were derived from same sampling site (site No. 7; Table 1). One isolate mainly produced MC-RR (Figure 4b), and the other isolated mainly produced MC-LR (Figure 4c). These results indicate that the cyanobacterial water bloom consists of several MC-producing strains, and each strain produces one or more MC variants.
Furthermore, two Microcystis unialgal strains (NIES-4344 and NIES-4345) producing MC-WR and MC-FR variants were isolated from Okinawa’s artificial ponds (Site No. 14 and 15 shown in Supplemental Figure S1b), and approximately 4 mg of each variant was purified from 490 g (wet weight) of the laboratory culture of the NIES-4344 isolate. The purity of these MC variants was confirmed by lH nuclear magnetic resonance (NMR) spectrometry (Figure 5). In addition to microscopic observation of the distinguishing morphological characters of Microcystis strains, sequencing of the ftsZ gene was performed to identify the intraspecific group among Microcystis aeruginosa. Sequence data of the ftsZ gene have been deposited at the DNA Data Bank of Japan (DDBJ) under the accession numbers LC495738 and LC495739. Phylogenetic analysis of the ftsZ gene sequences revealed that the NIES-4344 strain belongs to group X, whereas NIES-4345 belongs to none of the identified groups previously reported [19] (Figure S3).

3. Discussion

Humans and animals are at risk of exposure to MCs present in drinking water or in foods. Therefore, the development of good analytical methods for the detection of MCs is important for food safety and security and public health. These methods require reference toxin standards for quantification and identification of known MCs. Although many commercial MC standards are available for analysis such as MC-LR, -RR, -YR, -LA, -LF and -LW, securing toxin standards stably is important. In this study, several MC variants were detected in surface water containing cyanobacteria in Okinawa using a dual assay, comprising LC-MS analysis and PP2A inhibition assay, with the rhPP2Ac. The major variants identified in Okinawa were MC-LR and -RR. In addition to these dominant variants, MC-WR and -FR were detected as minor variants. MC-LR, -RR and -YR have been reported as the major toxins in bloom samples in Japan [20], and MC-WR and -FR have been reported in Japan for the first time. The Okinawa prefecture is located at the far south end of Japan. It would be interesting to know if the growth conditions of cyanobacteria are responsible for the different MC variants. To test the possibility, it would be necessary to reveal toxin profile of cyanobacteria at various areas across the world. Although the MC-WR and -FR variants have been detected at or isolated as field samples from a variety of fresh water sources in the world such as USA (Illinois [21] and San Francisco [22]), Portugal [23], Taiwan [24], India [25], Morocco [26], Berlin [27] and New Zealand [28], only a few commercial MC-WR and MC-FR variants have become available to date. In this study, we prepared pure MC-WR and -FR variants for future use in LC-MS analysis as reference toxin standards. Moreover, a stable supply of MC-WR and -FR variants will be available by the culture of strains producing these MCs. Nonetheless, a stable supply of other MC variants is also needed. Previously, the inhibitory potency of 21 MC variants was determined in a PP2A inhibition assay using the rhPP2Ac, and the conversion factor, which enables the precise conversion of the amount of various MCs to MC-LR equivalents, was detected using instrumental methods [13]. This suggests that rhPP2Ac will be highly useful in future studies for the detection and quantification of MC variants as an effective and rapid method to identify various MC-producing cyanobacteria. The combination of the PP2A inhibition assay with LC-MS analysis constitutes an efficient monitoring procedure for the rapid assessment of environmental and health risk associated with the proliferation of hepatotoxic cyanobacteria [29]. The purified MC-WR and MC-FR will be useful as toxin standards for the LC-MS method in future monitoring studies. Because the isolated strain NIES-4345 did not belong to any of the known groups, according to the ftsZ gene analysis, further analyses of additional genes via MLST will be necessary for the determination of groups. We will continue the survey of toxin composition and phylogenetic analysis on MC-producing cyanobacteria strains from environmental sources of water, it would help clarify the relationship of toxin profile and genetic reason in MC-producing cyanobacteria strains and prepare the MC toxin standards for LC/MS analysis.

4. Materials and Methods

4.1. Water Sample Collection

To identify MC-producing Microcystis strains, surface water containing cyanobacterial water bloom were collected from 13 sites (Supplemental Figure S1) such as reservoirs and artificial ponds in Okinawa prefecture, Japan.

4.2. Sample Preparation

Test solutions for the PP2A assay and LC-MS analysis were prepared from water samples collected from the 13 sites. One liter of water sample from each site was sonicated for 10 s to remove aerial substances surrounding cells and then centrifuged at 15,900× g for 10 min. The supernatant (test solution) was used for the PP2A assay. The precipitate was added to an equivalent volume of methanol (MeOH) and sonicated for 5 min to extract intracellular MCs. The suspension was centrifuged at 15,900× g for 10 min, and the supernatant was filtered. The filtrate (crude extract solution) was diluted approximately 20-fold using ultra-pure water to reduce the MeOH content. The resulting sample was used for LC-MS analysis.

4.3. PP2A Inhibition Assay

The rhPP2A was synthesized in insect cells (High Five; Invitrogen, Carlsbad, CA, USA) by the infection of recombinant baculovirus encoding Hisx8-tagged human PP2Acα using a baculovirus expression system and purified, as described previously [11,12]. The PP2A inhibition assay using rhPP2Ac was performed in 96-well plates, as described previously [16]. Each well contained 50 µL of the test solution and 100 µL of p-nitrophenylphosphate (p-NPP; 3 mM final concentration). The reaction was started by adding 100 µL (0.08 units) of the rhPP2A and continued for 30 min at 36 °C. The hydrolysis of p-NPP to p-nitrophenol (p-NP) was recorded using a microplate reader at 405 nm against 492 nm as a reference in triplicate. Ultra-pure water was used as a negative control. The MC inhibitory activity against PP2A (%) was calculated using the following equation:
MC inhibitory activity against PP2A (%) = (1 − AT/AC) × 100
where AT is the absorbance of test solution, and AC is the absorbance of the negative control.

4.4. MC Standards

MC-RR and -LR standard solutions were obtained from Kanto Chemical Co., Inc. (Tokyo, Japan). MC-YR was obtained from Wako (Osaka, Japan). MC-LW and -LF were obtained from Alexis Corporation (San Diego, CA, USA), and nodularin was purchased from Calbiochem (San Diego, CA, USA). MC-FR and -WR were isolated from cultured strains and bloom samples, as reported previously [30], and a mixture of these MCs was used as the standard for LC-MS.

4.5. LC-MS Analysis

The LC/ESI/MS system consisted of a 6460 Triple Quad MS and 1200 Series systems (Agilent, Santa Clara, CA, USA). HPLC separations were performed on Eclipse XDB-C18 (50 × 2.l mm; 1.8 µm; Agilent, Santa Clara, CA, USA). Water was used as eluent A, and acetonitrile:water solution (95:5, v/v) was used as eluent B; both contained 2 mM ammonium formate and 50 mM formic acid [31]. The flow rate was 0.6 mL/min. MCs were separated using a gradient elution program: eluent B gradient from 30% to 70% for 4 min followed by hold on 70% for 0.5 min. The following parameters were used for MS: ionization, ESI; ion mode, positive; nebulizer gas, N2 35 psi.; capillary voltage. 5000 V; dry gas, 10 L/min of N2 at 300 °C. Respective ions of [M+H]+ or [M+2H]2+ of MCs were monitored by selected ion monitoring (SIM) mode.

4.6. Isolation and Culture of Cyanobacterial Strains

Cyanobacterial genera and species were identified by microscopic observation of the distinguishing morphological characteristics, as described previously [32]. Colonies of cyanobacteria collected from natural water samples were picked under a stereoscopic microscope using a capillary pipette, and cells identified as Microcystis were inoculated in a 24-well plate filled with 1 mL of TS-15 medium [33]. The isolated cells were incubated at 22 °C under 14-h day/10-h night cycle and 4000 lux light intensity using fluorescent lamps. After cultivation, the strains were transferred to a screw-capped test tube (15 mm × 150 mm) containing 9 mL of TS-15 medium as unialgal strains. A total of 61 strains were obtained. After incubation, the cells were collected by centrifugation for MC analysis (described above). The cells were extracted with 5% acetic acid (HOAc) and then with MeOH. The extracts were combined and applied to the InertSep RP-1 cartridge column (GL Science, Tokyo, Japan) pre-treated with MeOH and water. The cartridge was washed with 5% HOAc, water, and 20% MeOH. The MCs were eluted with 80% MeOH and the eluate was evaporated under reduced pressure.

4.7. Preparation of MC-FR and -WR

Cells of the Microcystis strain NIES-4344, producing MC-FR and -WR as major variants, were cultured in polycarbonate bottles containing 10 L of TS-15 medium at 25 °C under 12-h light/12-h dark cycle and 3000–5000 Lux light intensity using fluorescent lamps, with air-bubbling. Immediately after the confluent phase, cells were collected by continuous flow centrifugation (Suprema25; TOMY, Tokyo, Japan) at 9450× g for 30 min at a flow rate 10 L/60 min and then lyophilized. The lyophilized cyanobacterial sample (2.5 mg) was suspended in 300 mL of 5% HOAc, sonicated for 5 min, and then centrifuged at 2380× g for 10 min. The supernatant (5% HOAc extract) was collected. The precipitate was suspended in 300 mL of MeOH, sonicated for 5 min, and then centrifuged at 2380× g for 10 min. The supernatant (MeOH extract) was evaporated in a rotary evaporator to remove MeOH and combined with 5% HOAc extract. The combined extracts were mixed well, and the suspended mixture was centrifuged at 2380× g for 10 min. The supernatant was applied to the Inert Sep RP-1 cartridge column (GL science Inc., Tokyo, Japan) pre-treated with MeOH and water. The cartridge was washed with 5% HOAc, water, and 20% MeOH. The MCs were eluted with 80% MeOH and subjected to thin layer chromatography (TLC) and HPLC for further purification.
Structures of the isolated MCs were confirmed by extensive analyses of NMR and MS spectra. Concentrations of the isolated MCs were determined via quantitative NMR (qNMR) using caffeine as an internal standard. The NMR spectra were recorded using JNM-ECA500 spectrometer (JEOL Co.Ltd., Tokyo, Japan).

4.8. DNA Extraction, ftsZ Amplification and Next-Generation Sequencing

Phylogenetic analysis of the two Microcystis strains (NIES-4344 and NIES-4345) producing MC-FR and -WR variants was based on the ftsZ genotype. DNA was extracted from 10 mL of the culture using Agencourt ChloroPure (BECKMAN COULTER, Fullerton, CA, USA). The amount of DNA was measured using the Qubit BR Assay Kit (Thermo Fisher Scientific Inc., MA, USA). The first PCR was conducted using a set of primers, ftsF and ftsR [17], with overhang sequences of Illumina, respectively. The second PCR was conducted using NEBNext Multiplex Oligos for Illumina. Amplification of the gene was confirmed by agarose gel electrophoresis, and each single band was purified using the QIAquick Gel Extraction Kit (Qiagen, Valencia, CA, USA). The gel-extracted samples were purified twice using Agencourt AMPure XP beads (Beckman Coulter, Brea, CA, USA). The quality of the samples was verified by Agilent 2200 TapeStation (Agilent Technologies, Inc., Santa Clara, CA, USA). DNA sequencing was performed using Illumina MiSeq (Illumina, San Diego, CA, USA) using the 600-cycle MiSeq Reagent Kit v3 (Illumina, San Diego, CA, USA).

4.9. Next-Generation Sequencing Data Analysis and Phylogenetic Analysis

Quality control of the sequencing data was conducted using CLC genomics workbench ver. 12.0 (Qiagen, Valencia, CA, USA), and OTU clustering was performed using the CLC Microbial genomics module ver.4.1 (Qiagen, Valencia, CA, USA), which was provided as a plugin for the CLC genomics workbench. DNA sequences of ftsZ were aligned using MUSCLE [34] integrated into MEGA7 [35]. A maximum likelihood tree was constructed using MEGA7 [35] to identify the intraspecific groups within Microcystis aeruginosa.

Supplementary Materials

The following are available online at, Figure S1: (a) Location of Okinawa prefecture and (b) collection sites of water sample. Figure S2: PP2A activity rate and calibration curve using net absorbance value obtained by the PP2A assay with MC-LR standard solution. Figure S3: Phylogenetic tree of the ftsZ Gene of Microcystis aeruginosa. The strain name “Oshiro-1-C5C5” and “Oshiro-2-A2” in Figure S1 show NIES-4344 and NIES-4345 respectively.

Author Contributions

T.I., T.S., and N.O. conceived and designed the experiments; K.K., H.Y., Y. T., S.N., T.S., and N.O. performed the experiments and analyzed the data; K.K., N.O., M.Y., M.H., and T.S. contributed reagents/materials/analysis tools; and T.I., T.S., M.H., and N.O. wrote the paper.


This work was supported by Regional New Consortium R&D Projects (19K9501) and Regional Innovation Creation R&D Programs (20R9001) from the Ministry of Economy, Trade, and Industry of Japan.


This study was performed as part of the “Regional New Consortium R&D Projects” and “Regional Innovation Creation R&D Programs,” supported by the Ministry of Economy, Trade, and Industry.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Carmichael, W.W.; Boyer, G.L. Health impacts from cyanobacteria harmful algae blooms: Implications for the north american great lakes. Harmful Algae 2016, 54, 194–212. [Google Scholar] [CrossRef] [PubMed]
  2. Bartram, J.; Chorus, I. Toxic Cyanobacteria in Water—A Guide to their Public Health Consequences, Monitoring and Management; CRC Press: Boca Raton, FL, USA, 1999. [Google Scholar]
  3. Meriluoto, J.; Spoof, L.; Codd, G. A Handbook of Cyanobacterial Monitoring and Cyanotoxin Analysis; John Wiley & Sons: San Francisco, CA, USA, 2017; Volume 8. [Google Scholar]
  4. Jochimsen, E.M.; Carmichael, W.W.; An, J.S.; Cardo, D.M.; Cookson, S.T.; Holmes, C.E.; Antunes, M.B.; de Melo Filho, D.A.; Lyra, T.M.; Barreto, V.S.; et al. Liver failure and death after exposure to microcystins at a hemodialysis center in brazil. N. Engl. J. Med. 1998, 338, 873–878. [Google Scholar] [CrossRef] [PubMed]
  5. Pouria, S.; de Andrade, A.; Barbosa, J.; Cavalcanti, R.L.; Barreto, V.T.; Ward, C.J.; Preiser, W.; Poon, G.K.; Neild, G.H.; Codd, G.A. Fatal microcystin intoxication in haemodialysis unit in caruaru, brazil. Lancet 1998, 352, 21–26. [Google Scholar] [CrossRef]
  6. Guidelines for Drinking-Water Quality: Fourth Edition Incorporating the First Addendum; World Health Organization: Geneva, Switzerland, 2017.
  7. Teta, R.; Romano, V.; Sala, G.D.; Picchio, S.; Sterlich, C.D.; Mangoni, A.; Tullio, G.D.; Costantino, V.; Lega, M. Cyanobacteria as indicators of water quality in campania coasts, italy: A monitoring strategy combining remote/proximal sensing andin situdata. Environ. Res. Lett. 2017, 12, 024001. [Google Scholar] [CrossRef]
  8. Esposito, G.; Teta, R.; Marrone, R.; De Sterlich, C.; Casazza, M.; Anastasio, A.; Lega, M.; Costantino, V. A fast detection strategy for cyanobacterial blooms and associated cyanotoxins (fdscc) reveals the occurrence of lyngbyatoxin a in campania (south italy). Chemosphere 2019, 225, 342–351. [Google Scholar] [CrossRef] [PubMed]
  9. MacKintosh, C.; Klumpp, S. Tautomycin from the bacterium streptomyces verticillatus. Another potent and specific inhibitor of protein phosphatases 1 and 2a. FEBS Lett. 1990, 277, 137–140. [Google Scholar] [CrossRef]
  10. Honkanen, R.E.; Zwiller, J.; Moore, R.E.; Daily, S.L.; Khatra, B.S.; Dukelow, M.; Boynton, A.L. Characterization of microcystin-lr, a potent inhibitor of type 1 and type 2a protein phosphatases. J. Boil. Chem. 1990, 265, 19401–19404. [Google Scholar]
  11. Ikehara, T.; Shinjo, F.; Ikehara, S.; Imamura, S.; Yasumoto, T. Baculovirus expression, purification, and characterization of human protein phosphatase 2a catalytic subunits alpha and beta. Protein Expr. Purif. 2006, 45, 150–156. [Google Scholar] [CrossRef]
  12. Ikehara, T.; Nakashima, S.; Nakashima, J.; Kinoshita, T.; Yasumoto, T. Efficient production of recombinant pp2a at a low temperature using a baculovirus expression system. Biotechnol. Rep. 2016, 11, 86–89. [Google Scholar] [CrossRef]
  13. Ikehara, T.; Imamura, S.; Sano, T.; Nakashima, J.; Kuniyoshi, K.; Oshiro, N.; Yoshimoto, M.; Yasumoto, T. The effect of structural variation in 21 microcystins on their inhibition of pp2a and the effect of replacing cys269 with glycine. Toxicon 2009, 54, 539–544. [Google Scholar] [CrossRef]
  14. Ikehara, T.; Imamura, S.; Yoshino, A.; Yasumoto, T. Pp2a inhibition assay using recombinant enzyme for rapid detection of okadaic acid and its analogs in shellfish. Toxins 2010, 2, 195–204. [Google Scholar] [CrossRef] [PubMed]
  15. Ikehara, T.; Kinoshita, T.; Kurokawa, A.; Nakashima, S.; Maekawa, K.; Ohshiro, N.; Yasumoto, T. Evaluation of protein phosphatase 2a (pp2a) inhibition assay for rapid detection of dsp toxins in scallop. NIPPON SUISAN GAKKAISHI 2017, 83, 367–372. [Google Scholar] [CrossRef]
  16. Ikehara, T.; Imamura, S.; Oshiro, N.; Ikehara, S.; Shinjo, F.; Yasumoto, T. A protein phosphatase 2a (pp2a) inhibition assay using a recombinant enzyme for rapid detection of microcystins. Toxicon 2008, 51, 1368–1373. [Google Scholar] [CrossRef] [PubMed]
  17. Tanabe, Y.; Kasai, F.; Watanabe, M.M. Multilocus sequence typing (mlst) reveals high genetic diversity and clonal population structure of the toxic cyanobacterium microcystis aeruginosa. Microbiology 2007, 153, 3695–3703. [Google Scholar] [CrossRef] [PubMed]
  18. Tanabe, Y.; Watanabe, M.M. Local expansion of a panmictic lineage of water bloom-forming cyanobacterium microcystis aeruginosa. PLoS ONE 2011, 6, e17085. [Google Scholar] [CrossRef] [PubMed]
  19. Tanabe, Y.; Hodoki, Y.; Sano, T.; Tada, K.; Watanabe, M.M. Adaptation of the freshwater bloom-forming cyanobacterium microcystis aeruginosa to brackish water is driven by recent horizontal transfer of sucrose genes. Front. Microbiol. 2018, 9, 1150. [Google Scholar] [CrossRef] [PubMed]
  20. Kaya, K.; Watanabe, M.M. Microcystin composition of an axenic clonal strain of microcystis viridis and microcystis viridis-containing waterblooms in japanese freshwaters. J. Appl. Phycol. 1990, 2, 173–178. [Google Scholar] [CrossRef]
  21. Namikoshi, M.; Rinehart, K.L.; Sakai, R.; Stotts, R.R.; Dahlem, A.M.; Beasley, V.R.; Carmichael, W.W.; Evans, W.R. Identification of 12 hepatotoxins from a homer lake bloom of the cyanobacteria microcystis aeruginosa, microcystis viridis, and microcystis wesenbergii: Nine new microcystins. J. Org. Chem. 1992, 57, 866–872. [Google Scholar] [CrossRef]
  22. Lehman, P.; Boyer, G.; Satchwell, M.; Waller, S. The influence of environmental conditions on seasonal variation of microcystis abundance and microcystins concentration in san francisco estuary. Hydrobiologia 2008, 600, 187–204. [Google Scholar] [CrossRef]
  23. Martins, J.; Saker, M.L.; Moreira, C.; Welker, M.; Fastner, J.; Vasconcelos, V.M. Peptide diversity in strains of the cyanobacterium microcystis aeruginosa isolated from portuguese water supplies. Appl. Microbiol. Biotechnol. 2009, 82, 951–961. [Google Scholar] [CrossRef] [PubMed]
  24. Lee, T.-H.; Chou, H.-N. Isolation and identification of seven microcystins from a cultured m.Tn-2 strain of microcystis aeruginosa. Bot. Bull. Academia Sin. 2000, 41, 197–202. [Google Scholar]
  25. Bajpai, R.; Sharma, N.K.; Lawton, L.A.; Edwards, C.; Rai, A.K. Microcystin producing cyanobacterium Nostoc sp. BHU001 from a pond in India. Toxicon 2009, 53, 587–590. [Google Scholar] [CrossRef] [PubMed]
  26. Douma, M.; Ouahid Benkaddour, Y.; Del Campo, F.; Loudiki, M.; Kh, M.; Oudra, B. Identification and quantification of cyanobacterial toxins (microcystins) in two moroccan drinking-water reservoirs (mansour eddahbi, almassira). Environ. Monit. Assess. 2010, 160, 439–450. [Google Scholar] [CrossRef] [PubMed]
  27. Kurmayer, R.; Christiansen, G.; Chorus, I. The abundance of microcystin-producing genotypes correlates positively with colony size in microcystis sp. And determines its microcystin net production in lake wannsee. Appl. Environ. Microbiol. 2003, 69, 787–795. [Google Scholar] [CrossRef] [PubMed]
  28. Wood, S.A.; Briggs, L.R.; Sprosen, J.; Ruck, J.G.; Wear, R.G.; Holland, P.T.; Bloxham, M. Changes in concentrations of microcystins in rainbow trout, freshwater mussels, and cyanobacteria in lakes rotoiti and rotoehu. Environ. toxicol. 2006, 21, 205–222. [Google Scholar] [CrossRef] [PubMed]
  29. Robillot, C.; Hennion, M.-C. Issues arising when interpreting the results of the protein phosphatase 2a inhibition assay for the monitoring of microcystins. Anal. Chim. Acta 2004, 512, 339–346. [Google Scholar] [CrossRef]
  30. Sano, T.; Takagi, H.; Kaya, K. A dhb-microcystin from the filamentous cyanobacterium planktothrix rubescens. Phytochemistry 2004, 65, 2159–2162. [Google Scholar] [CrossRef]
  31. Quilliam, M.; Hess, P.; Dell’aversano, C. Recent developments in the analysis of phycotoxins by liquid chromatography-mass spectrometry. In Proceedings of the Xth International IUPAC Symposium on Mycotoxins and Phycotoxins, Guaruja, Brazil, 21–25 May 2000; pp. 383–391. [Google Scholar]
  32. Otsuka, S.; Suda, S.; Li, R.; Matsumoto, S.; Watanabe, M.M. Morphological variability of colonies of microcystis morphospecies in culture. J. Gen. Appl. Microbiol. 2000, 46, 39–50. [Google Scholar] [CrossRef]
  33. Sano, T.; Takagi, H.; Nishikawa, M.; Kaya, K. Nies certified reference material for microcystins, hepatotoxic cyclic peptide toxins from cyanobacterial blooms in eutrophic water bodies. Anal. Bioanal. Chem. 2008, 391, 2005–2010. [Google Scholar] [CrossRef]
  34. Edgar, R.C. Muscle: Multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004, 32, 1792–1797. [Google Scholar] [CrossRef]
  35. Kumar, S.; Stecher, G.; Tamura, K. Mega7: Molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol. Boil. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [PubMed]

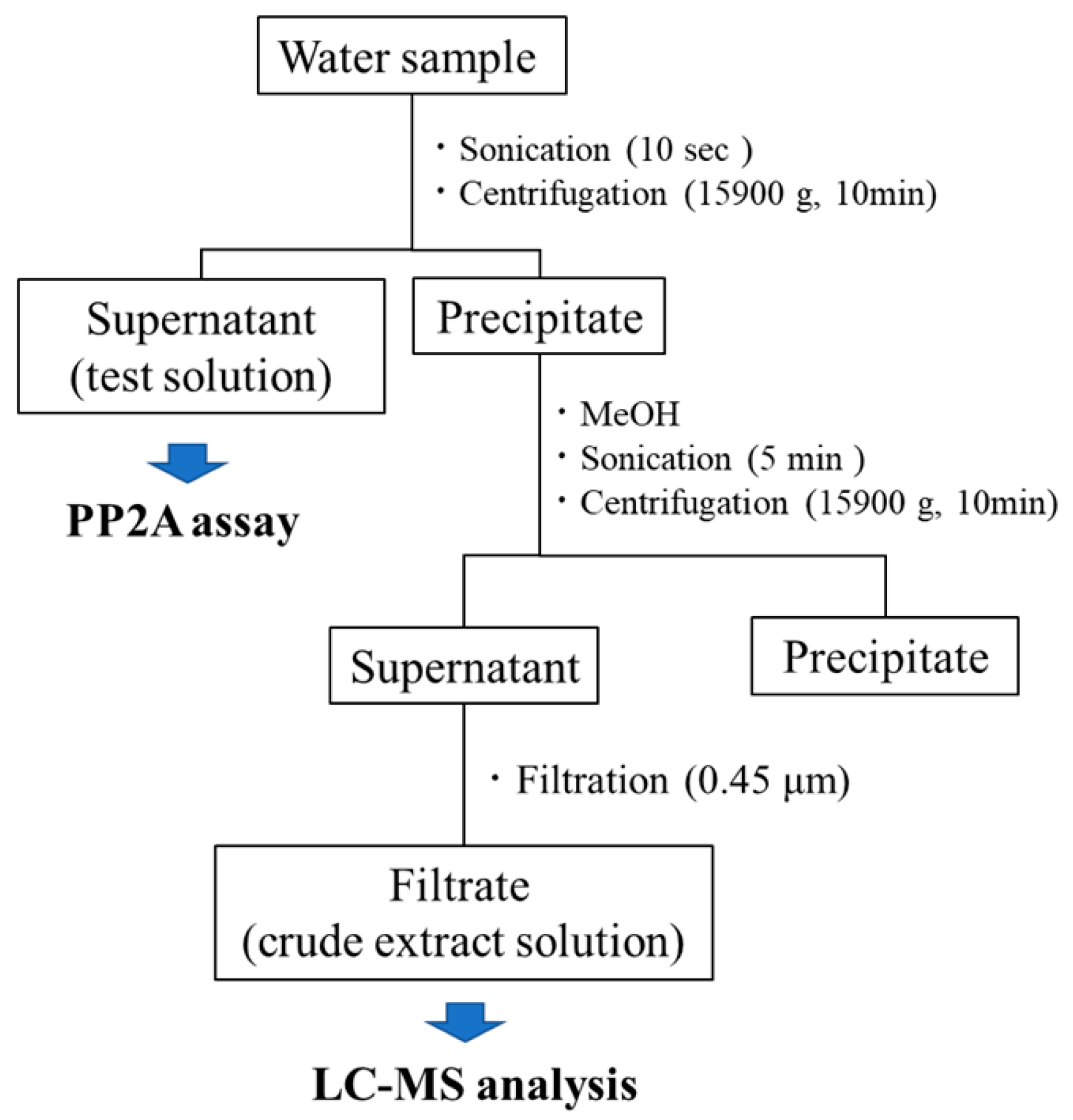

Figure 1. Preparation of test solutions for PP2A inhibition assay and LC-MS analysis.
Figure 1. Preparation of test solutions for PP2A inhibition assay and LC-MS analysis.
Toxins 11 00521 g001

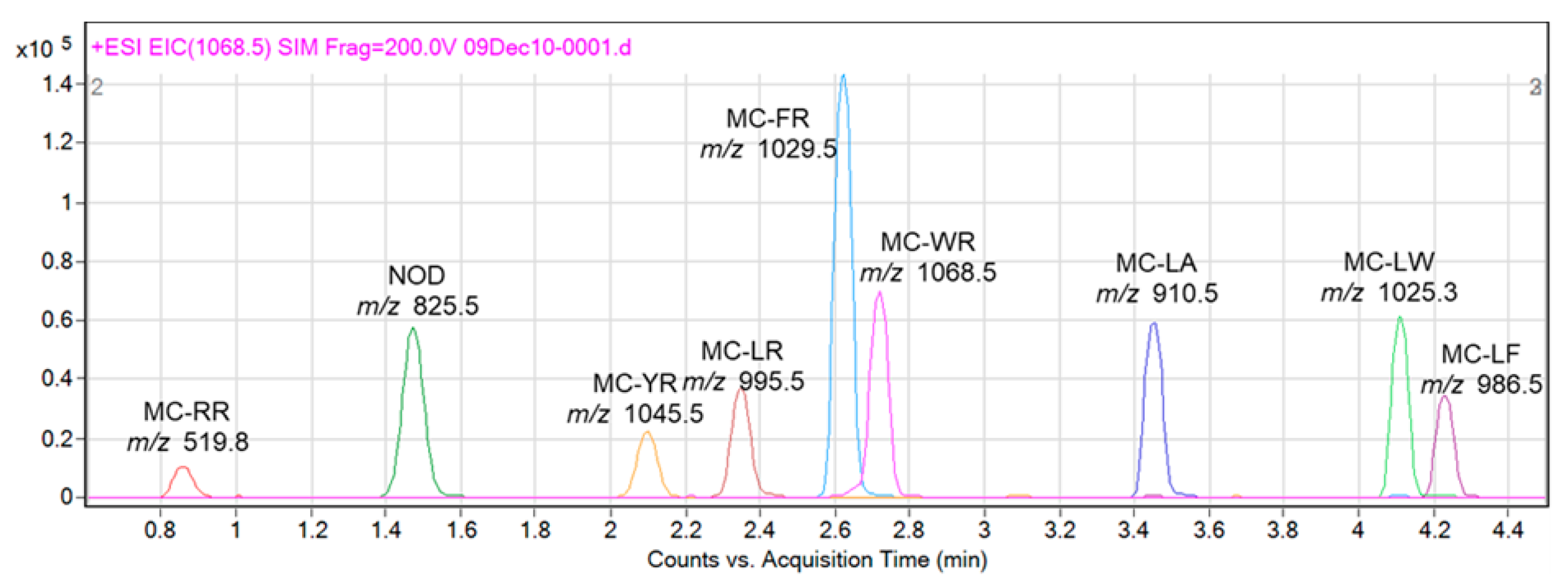

Figure 2. Chromatograms of nine standard MCs obtained via LC-MS analysis.
Figure 2. Chromatograms of nine standard MCs obtained via LC-MS analysis.
Toxins 11 00521 g002
Figure 3. Chromatograms showing the composition of MCs isolated from crude extracts prepared from water samples containing cyanobacteria at six sites. (a) Site No. 1; (b) Site No. 7; (c) Site No. 8; (d) Site No. 10; (e) Site No. 11; (f) Site No. 12.
Figure 3. Chromatograms showing the composition of MCs isolated from crude extracts prepared from water samples containing cyanobacteria at six sites. (a) Site No. 1; (b) Site No. 7; (c) Site No. 8; (d) Site No. 10; (e) Site No. 11; (f) Site No. 12.
Toxins 11 00521 g003

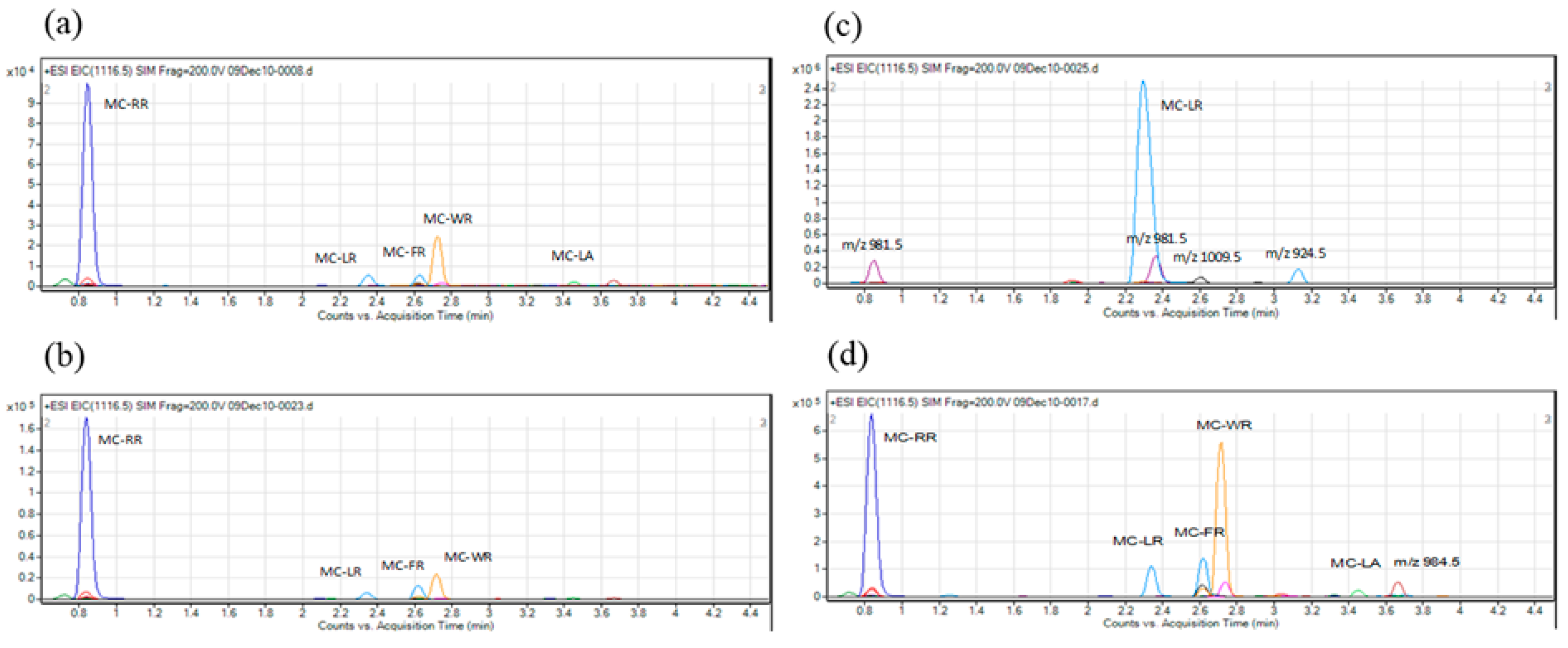

Figure 4. Chromatograms showing the composition of MCs of cyanobacterial strains isolated from different sampling sites. (a) Site No. 1; (b,c) Site No. 7; (d) Site No. 12.
Figure 4. Chromatograms showing the composition of MCs of cyanobacterial strains isolated from different sampling sites. (a) Site No. 1; (b,c) Site No. 7; (d) Site No. 12.
Toxins 11 00521 g004

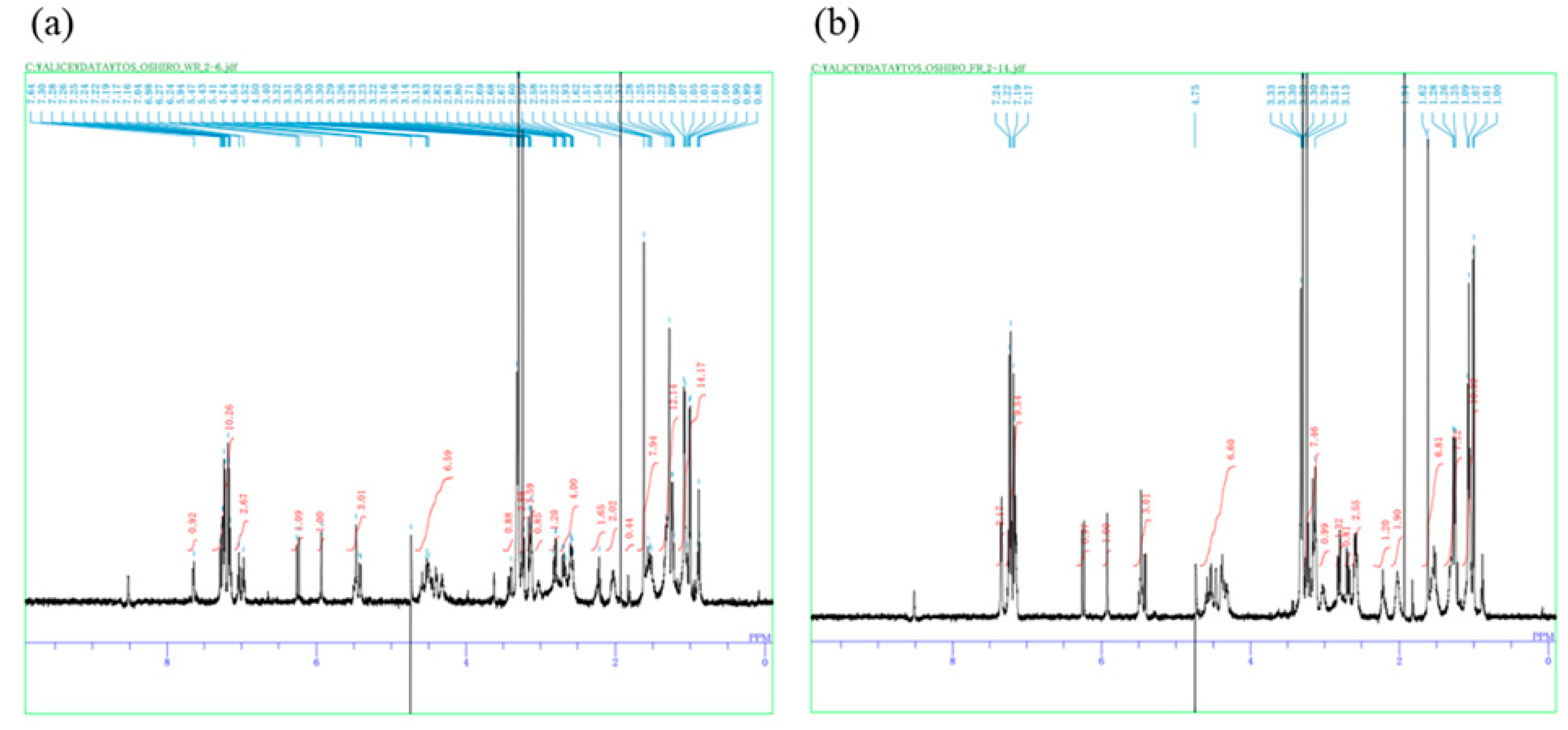

Figure 5. 1H NMR spectra of purified MC variants. (a) MC-WR; (b) MC-FR.
Figure 5. 1H NMR spectra of purified MC variants. (a) MC-WR; (b) MC-FR.
Toxins 11 00521 g005
Table 1. PP2A inhibition assay and LC-MS analysis of sampling water.
Table 1. PP2A inhibition assay and LC-MS analysis of sampling water.
Site No.
PP2A Inhibition (%), Mean ± SD
(Test Solution)
MCs Identified by LC/MS
(Crude Extract Solution)
Date of CollectionSample Origin
143.27 ± 1.12 MC-RR, -LR, -LA10/18/2008Reservoir
27.03 ± 1.39-10/21/2008Artificial pond
35.61 ± 1.43-10/21/2008Artificial pond
43.49 ± 3.31-10/21/2008Reservoir
55.66 ± 1.40-11/13/2008Reservoir
69.24 ± 0.67-11/14/2008Reservoir
782.37 ± 0.86MC-RR, -LR, -FR, -WR12/24/2008Artificial pond
872.70 ± 0.94MC-LR, -LA12/24/2008Reservoir
93.40 ± 3.12-12/24/2008Artificial pond
1080.50 ± 0.86MC-RR, -LR12/24/2008Reservoir
1178.71 ± 0.77MC-RR, -LR1/4/2009Reservoir
1271.33 ± 2.32MC-RR, -LR 3/2/2009Artificial pond
139.53 ± 0.29-10/21/2009Reservoir
