Article

A Novel Bradykinin-Related Peptide, RVA-Thr6-BK, from the Skin Secretion of the Hejiang Frog; Ordorrana hejiangensis: Effects of Mammalian Isolated Smooth Muscle

1
Natural Drug Discovery Group, School of Pharmacy, Queen’s University Belfast, Belfast BT9 7BL, Northern Ireland, UK
2
School of Government, Peking University, No 114, The Leo KoGuan Building, Beijing 100871, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Toxins 2019, 11(7), 376; https://doi.org/10.3390/toxins11070376
Submission received: 26 May 2019 / Revised: 25 June 2019 / Accepted: 25 June 2019 / Published: 28 June 2019

Abstract

:
A novel naturally-occurring bradykinin-related peptide (BRP) with an N-terminal extension, named RVA-Thr6-Bradykinin (RVA-Thr6-BK), was here isolated and identified from the cutaneous secretion of Odorrana hejiangensis (O. hejiangensis). Thereafter, in order to evaluate the difference in myotropic actions, a leucine site-substitution variant from Amolops wuyiensis skin secretion, RVA-Leu1, Thr6-BK, was chemically synthesized. Myotropic studies indicated that single-site arginine (R) replacement by leucine (L) at position-4 from the N-terminus, altered the action of RVA-Thr6-BK from an agonist to an antagonist of BK actions on rat ileum smooth muscle. Additionally, both BK N-terminal extended derivatives (RVA-Thr6-BK and RVA-Leu1, Thr6-BK) exerted identical myotropic actions to BK, such as increasing the frequency of contraction, contracting and relaxing the rat uterus, bladder and artery preparations, respectively.
Key Contribution: The full-length kininogen cDNA encoding skin kinins from O. hejiangensis was first cloned and characterized. Position-4 from the N-terminus was found as the core site for converting RVA-Thr6-BK from an agonist to an antagonist of BK receptors on rat ileum smooth muscle.

1. Introduction

Bradykinin (BK) is ubiquitous in mammals and its generation from precursor kininogens by plasma/tissue kallikreins in the human kallikrein-kinin system (KKS), has been well-researched [1,2,3]. Currently, BK has been proved to be a critical participant associated with human physiological and pathological processes, such as adjusting the functions of the cardiovascular, renal and nervous systems, smooth muscle contraction, glucose metabolism, cell proliferation, inflammation and the production of pain [3,4]. In contrast to mammalian KKS, there is no compelling evidence of the existence of KKS among anura [5,6,7]. Surprisingly, following the initial discovery mammalian BK from Rana temporaria in 1965, numerous identical BK and its structural analogues with potent smooth muscle stimulant have been found in anuran amphibian venom apparatus-skin [7,8,9,10,11,12]. Moreover, an extraordinary structural diversity was observed in anuran skin bradykinin-related peptides (BRPs). In addition to single/multiple site-substitution that frequently occurred at Arg1 and Ser6, there is some deficiency of a certain amino-acid residue, such as the deletion of arginine at N-/C- terminus (des-Arg9 and des-Arg1) [9,13,14,15]. On the other hand, hydroxylation of the proline residue often appeared among anuran BRPs, typical example like Hyp3-BK successively isolated from three species Rana temporaria, Phyllomedusa azurea and Hylarana guentheri [9,14,16]. In comparison of original BK, its structural isoforms, in general, displayed N-terminal extension and/or C-terminal extension, as well as segment insertion [9,17]. These variables regularly happened in multiples, ultimately conferring BPRs structural diversity [9,12]. However, the reasons for their diverse expression patterns and physiological roles of venom BK and BRPs in non-mammalian vertebrate, of the many the anuran skin BRPs, are not clear yet.
A naturally-occurring leucine-substituted BK analogue, RVA-Leu1, Thr6-BK, also known as amolopkinin W1, was identified in Amolops wuyiensis skin secretion and has been reported as an antagonist in inhibiting contractility of BK on rat isolated ileum [18]. In this study, a novel BK structural variant was identified from O. hejiangensis. It is the first BRP from the defensive skin secretion in this frog species. This peptide primary structure, RVA-Thr6-BK, share high sequence similarity to RVA-Leu1, Thr6-BK initially found able to antagonize the relaxant effect observed following BK application to a rat arterial smooth muscle preparation in vitro [18]. Their corresponding chemically synthesized replicate was subjected to our myotropic activity evaluation on rat isolated vascular and non-vascular smooth muscles respectively.

2. Results

2.1. Molecular Cloning of Biosynthetic Precursor-Encoding cDNA and Structural Characterization of RVA-Thr6-BK from RP-HPLC Fractions of Skin Secretion

A full-length biosynthetic BRP-precursor cDNA was consistently cloned from the cDNA library constructed from the skin secretion of O. hejiangensis (Figure 1). Similarly, in comparison of nine known BRP cDNA transcripts with the same length (Figure 2), this skin-kininogen precursor had 61 amino-acid residues encoding a single 12-mer BK-like peptide following a C-terminal extension sequence VAPEIV. The typical signal peptide consisting of 22 amino-acid residues in the translated open-reading frame was identified through NCBI-BLAST, whereas the convertase processing site, lysine, is not the most common. In accordance with the presence of a segment with 3 amino-acid residues (RVA) at the N-terminal and a threonine residue at position 6 in the BK-like sequence, the novel BK-like was named RVA-Thr6-BK. The RVA-Thr6-BK biosynthetic precursor-encoding cDNA has been deposited in the NCBI Database (accession code; MK863068).

2.2. Isolation and Structural Characterization of RVA-Thr6-BK from RP-HPLC Fractions of Skin Secretion

The average molecular mass of the putative mature peptide from the cloned precursor was calculated as 1400.64 Da. Thereafter, the presence of mature RVA-Thr6-BK with 12 amino-acids, was further confirmed by RP-HPLC isolation from within the secretion (Figure 3) and tandem mass spectrometry (MS/MS) fragmentation sequencing (Table 1), with the retention time of 89 min.

2.3. Myotropic Activities of RVA-Thr6-BK and RVA-Leu1, Thr6-BK

Myotropic activities of RVA-Thr6-BK and RVA-Leu1, Thr6-BK were investigated in four different types of rat smooth muscle preparations (Table 2). These two peptides displayed BK-like contractile effects on isolated bladder preparations (rat urinary) (Figure 4A) and were found to increase the frequency of contraction of the uterus (Figure 4B). Moreover, at a higher concentration (10 µM), RVA-Thr6-BK caused greater contraction of bladder preparations than its leucine-substituted isoform; however, it required higher threshold concentration of RVA-Thr6-BK to produce a constriction response (Table 2 and Figure 4B). Interestingly, RVA-Thr6-BK was capable of causing potent contraction of rat ileum preparations, whereas, there was no significant response from rat ileum smooth muscle with RVA-Leu1, Thr6-BK (Figure 4C). In contrast to the contractility of the non-vascular isolated smooth muscle of rat, both BK structural variants used here demonstrated relaxing action on artery preparations of the rat (Figure 4D).

2.4. Assessment of Cytotoxic Effect on Mammalian Erythrocytes

To evaluate the potential toxicity of RVA-Thr6-BK and its analogue, RVA-Leu1, Thr6-BK, the healthy mammalian red blood cells were treated with these two peptides (Figure 5). The results indicated that both peptides showed no haemolytic activity in vitro.

3. Discussion

Some efforts have been made in anuran amphibian skin research and conservation over several decades [11,12,19,20]. As a consequence of these investigations, an increasing number of biologically-active peptides (frequently anti-microorganism peptides but also neuroactive peptides and protease inhibitor peptides) with a wide range of functions have been discovered [11,12,19,20,21]. Among these, it is revealed that defensive neuroactive peptides with myotropic activity are remarkably varied in anuran skin secretions, and these small molecule peptides can evoke contractions and relaxations on smooth muscles, BK and BRPs being a typical example [7,8,9,12]. Herein, a novel BK-like peptide and its corresponding precursor-encoding cDNA were identified. It was found that RVA-Thr6-BK precursor has a highly conserved structure consisting of an N-terminal signal peptide domain followed by an acidic amino-acid-rich (spacer) domain and terminating in a single mature BK-like peptide coding domain (Figure 2). This result is similar to some of the BRP precursors in other frog species [7,14,18]. In contrast, there are only two types of BK peptides found in human (BK and Lys0-BK). Conlon and Yano proved that there are no blood-derived kinins in the frog plasma after treatment with trypsin [11]. Another convincing piece of evidence of no detectable kininogens in toad plasma was that many amphibians express BK and BRPs by processing skin-kininogens/preprobradykinins in their elaborate skin kinin system, and such a producing site differs from that of human KKS [5]. Some identical BK derivatives found in anuran skin were also identified in other non-mammalian vertebrate species, such as Arg0, Trp5, Leu8-BK and Thr6, Leu8-BK [21,22]. Therefore, it has been proposed that non-mammalian vertebrates develop similar BK and BRPs for their defensive systems, instead of having physiological roles as in mammals [7,11]. However, it is still a point of contention whether the amphibian skin-kininogens/preprobradykinins and plasma-kininogens of humans, are indeed expressed by homologous genes.
In this investigation, RVA-Thr6-BK was shown to have the opposite effect of RVA-Leu1, Thr6-BK on isolated rat ileum smooth muscle in vitro, where RVA-Leu1, Thr6-BK had no direct myotropic effects on rat ileum smooth muscle, which is consistent with our previous study [18]. Moreover, another homologous analogue RAA-Leu1, Thr6-BK also found in Amolops wuyiensis skin secretion at the same time was also reported as an inhibitor of BK-induced contraction of isolated rat ileum smooth muscle [18], indicating that the Val2 amino-acid replacement is less likely to result in the alteration of myotropic action among BRPs. The difference between of RVA-Thr6-BK and RVA-Leu1, Thr6-BK solely involves arginine/leucine site-substitution at position 4 from the N-terminus, suggesting this is the core site for converting RVA-Thr6-BK from an agonist to an antagonist of BK on rat ileum smooth muscle. Besides, BK-like vasodilator action, as well as contraction effects on bladder and uterus preparations of RVA-Leu1, Thr6-BK, are first described here. It was shown that the biological effects of BK are mediated by specific receptors, the B1 and B2 receptors which are classified as G-protein-coupled receptors having seven transmembrane domains crossing the lipid bilayer, three extracellular and intracellular loops, an exposed N-terminal domain and a cytoplasmic C-terminal domain [4,23,24,25]. Previous literature demonstrated that the conformation of BK was oriented randomly in aqueous environments, but nevertheless, a specific segment in the BK sequence from residues 2–5, PPGF, was shown to have a preference to form a β-turn conformation [26,27]. However, the unambiguous bioactive conformation for BK binding to its receptor remains inconclusive.
In the haemolytic test, the haemoglobin release in erythrocytes was not observed in both myotropic peptides. However, haemolytic activity in vitro is the initial test for evaluating toxic potential and this assay is not sufficient to completely exclude these peptides with the toxicity. Further investigation on cytotoxicity in more complex experimental models, such as cell lines [28] and insect models (e.g., Galleria mellonella larva) [29], need to be taken into account to ensure the development of safe for pharmaceutical use.
In summary, a novel BK analogue is described here which has not been reported previously and this is also the first BRP isolated from O. hejiangensis. Both arginine/leucine site-substitution in BK N-terminal extension analogues displayed similar myotropic properties to BK, except that Leu-4 site-substitution produced an antagonist of BK on the rat ileum. Our discovery and exploration of the myotropic activities of anuran skin BRPs provide unique opportunities to better understand the key role of venom BK and BRPs in non-mammalian vertebrates. Additionally, the structural diversity and BK-functional-related actions suggest that anuran amphibians BRPs are unique tools for studying structure-activity relationships as well as developing new or even more potent drugs with therapeutic potential.

4. Materials and Methods

4.1. Skin Secretion Acquisition

Specimens of O. hejiangensis (n = 8) of undetermined sex were obtained in China and were kept in a purpose-designed amphibian facility prior to secretion harvesting. The skin secretions were harvested using gentle transdermal electrical stimulation initially described by Tyler and co-workers in 1992 [30]. Briefly, following stimulation by platinum electrodes (6V, 4ms pulse-width, 50 Hz, 20s duration), the secretions from the dorsal skin of frogs were washed with deionised water, snap-frozen in liquid nitrogen and lyophilised. The lyophilised sample was stored at −20 °C before analysis. This study was performed under the UK Animal (Scientific Procedures) Act 1986, project license PPL 2694, issued by the Department of Health, Social Services and Public Safety, Northern Ireland. The procedures had been overseen by the IACUC of Queen’s University Belfast, and approved on 1 March 2011.

4.2. “Shotgun” Cloning of cDNA Encoding RVA-Thr6-BK Biosynthetic Precursor from Skin Secretion

Polyadenylated mRNA was extracted from 5 mg of lyophilised O. hejiangensis skin secretion using magnetic oligo-dT beads (Dynal Biotech, Bromborough, UK) and then subjected to 3′- and 5′-RACE procedures to obtain a full-length cDNA employing a 3′-/5′-SMART-RACE kit (Clontech, Mountain View, CA, USA) essentially as described previously [31]. Briefly, the 3′-RACE reactions utilized a Nested Universal Primer A (NUP) (provided with the kit) and a degenerate sense primer (S1: 5′-CCRVCNGGGTTYASSCCWTTY-3′) that was designed to a nucleotide sequence encoding the common internal sequence of anuran skin-derived BRPs, Pro-Pro-Gly-Phe-X-Pro-Phe, where X is either serine or threonine. Thereafter, PCR products were gel-purified, cloned using a pGEM-T vector system (Promega Corporation, Masison, WI, USA) and sequenced using an ABI 3100 automated capillary sequencer. Accordingly, the 5′-RACE reactions employed an antisense primer (S2: 5′-CATCAGATGACTGCCGATCCAA-3′), which was designed to a domain located within the 3′ non-translated region of the obtained 3′-RACE transcripts, and a Universal Primer A Mix (UPM) (supplied with the kit). Similarly, 5’-RACE PCR products were gel-purified, cloned using a pGEM-T vector system and finally sequenced.

4.3. Isolation and Structural Characterization of RVA-Thr6-BK from Skin Secretion

The isolation and structural characterization of RVA-Thr6-BK from the lyophilised O. hejiangensis skin secretion was carried out as previous study [32]. Briefly, a Cecil CE4200 Adept (Cambridge, UK) gradient reverse-phase High Performance Liquid Chromatography (RP-HPLC) system fitted with a column (Phenomenex C-5, 0.46 cm × 25 cm) was employed to isolate the skin peptides from 5 mg of lyophilise skin secretion. The fractions were collected automatically at 1 min intervals. Thereafter, each fraction was analyzed using MALDI-TOF MS (Perseptive Biosystems, Foster City, MA, USA) and an LCQ-Fleet electrospray ion-trap mass spectrometer (Thermo Fisher Scientific, San Jose, CA, USA) for MS/MS fragmentation sequencing. The primary structure of the novel peptide, RVA-Thr6-BK, was thus established.

4.4. RVA-Thr6-BK and Its Site-Substituted Analogue, RVA-Leu1, Thr6-BK: Synthesis and Purification

Here, the peptide, RVA-Leu1, Thr6-BK (RVALPPGFTPFR), was synthesized for investigating its myotropic activity directly in comparison with that of RVA-Thr6-BK (RVARPPGFTPFR). Sufficient quantities to detect the bioactivities of each peptide were obtained using the Tribute peptide synthesizer (Protein Technologies, Tucson, AZ, USA) along with standard Fmoc-chemistry according to our previous study [32].

4.5. Myotropic Activity Evaluation on Smooth Muscles

Following asphyxiation (by CO2) and cervical dislocation, healthy female Wistar rats (250–350 g) were dissected from the mid-ventral line and these procedures were performed as required by UK Animal Research guidelines. After cutting the intact isolated organs into the desired sizes (10mm-length and 5mm-width parallel muscle bundles for bladder, 5 mm-width rings for uterine horn, 5 mm-length rings for ileum and 2 mm-width rings for tail artery), each strip hooked on tail-to-head was linked with fine silk ligatures (0.2 mm), respectively, and mounted into 2 mL organ baths with transducers. Meanwhile, to mimic the internal physiological environment, organ baths were filled with Kreb’s solution at 37 °C flowing through the bath at 2 mL/min with constant bubbling (95% O2, 5% CO2). After 20 min of a resting period without drugs, tissues were incubated with drugs from 10−11 to 10−5 M and the tension changes were recorded via pressure transducers with a PowerLab System (AD Instruments Pty Ltd., Bella Vista, NSW, Australia). The retention periods for each peptide concentration were at least 5 min.

4.6. Haemolysis Assay

Haemoglobin release in the horse erythrocytes (2% solution) (TCS Biosciences Ltd., Buckingham, UK) were determined to evaluate the potential toxicity of RVA-Thr6-BK and its site-substituted analogue, which was described previously [32]. The horse erythrocytes were treated with each peptide at the intended concentrations (i.e., from 1 to 256 μM) for 2 h at 37 °C. 1% Triton X-100 and phosphate-buffered saline (PBS) were served as the negative and positive controls, respectively. The supernatant of each tube was obtained by centrifugation at 1000× g for 5 min and the OD value of supernatant was analyzed at a wavelength of 550 nm using the plate reader.

4.7. Statistical Analysis

Data were analyzed to obtain the mean and standard error of responses by Student’s test and dose–response curves were constructed using a best-fit algorithm through the data analysis package Prism 6 (GraphPad Software, La Jolla, CA, USA). EC50 values were calculated from the normalized curves.

Author Contributions

Conceived of and designed the experiments: L.W., M.Z. and T.C.; Performed the experiments: Y.W., Y.Y. and D.S.; Analyzed the data: D.S., X.C., X.X. and C.M.; Wrote the paper: Y.W. and X.C.; Edited the paper: C.S. and L.W.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mandle, R.J.; Colman, R.W.; Kaplan, A.P. Identification of prekallikrein and high-molecular-weight kininogen as a complex in human plasma. Proc. Natl. Acad. Sci. USA 1976, 73, 4179–4183. [Google Scholar] [CrossRef] [PubMed]
  2. Bhoola, K.D.; Figueroa, C.D.; Worthy, K. Bioregulation of kinins: Kallikreins, kininogens, and kininases. Pharmacol. Rev. 1992, 44, 1–80. [Google Scholar] [PubMed]
  3. Kaplan, A.P.; Joseph, K.; Silverberg, M. Pathways for bradykinin formation and inflammatory disease. J. Allergy Clin. Immunol. 2002, 109, 195–209. [Google Scholar] [CrossRef] [PubMed]
  4. Regoli, D.; Barabe, J. Pharmacology of bradykinin and related kinins. Pharmacol. Rev. 1980, 32, 1–46. [Google Scholar] [PubMed]
  5. Rabito, S.F.; Binia, A.; Segovia, R. Plasma kininogen content of toads, fowl and reptiles. Comp. Biochem. Physiol. A. 1972, 41, 281–284. [Google Scholar] [CrossRef]
  6. Seki, T.; Miwa, I.; Nakajima, T.; Erdos, E. Plasma kallikrein-kinin system in nonmammalian blood: Evolutionary aspects. Am. J. Physiol. 1973, 224, 1425–1430. [Google Scholar] [CrossRef] [PubMed]
  7. Xi, X.; Li, B.; Chen, T.; Kwok, H. A review on bradykinin-related peptides isolated from amphibian skin secretion. Toxins 2015, 7, 951–970. [Google Scholar] [CrossRef] [PubMed]
  8. Anastasi, A.; Erspamer, V.; Bertaccini, G. Occurence of bradykinin in the skin of Rana temporaria. Comp. Biochem. Physiol. 1965, 14, 43–52. [Google Scholar] [CrossRef]
  9. Conlon, J.M.; Aronsson, U. Multiple bradykinin-related peptides from the skin of the frog, rana temporaria. Peptides 1997, 18, 361–365. [Google Scholar] [CrossRef]
  10. Conlon, J.M.; Jouenne, T.; Cosette, P.; Cosquer, D.; Vaudry, H.; Taylor, C.K.; Abel, P.W. Bradykinin-related peptides and tryptophyllins in the skin secretions of the most primitive extant frog. Ascaphus truei. Gen. Comp. Endocrinol. 2005, 143, 193–199. [Google Scholar] [CrossRef] [PubMed]
  11. Conlon, J.M. Bradykinin-related peptides from frog skin. In Handbook of Biologically Active Peptides, 1st ed.; Kastin, J.A., Ed.; Academic Press: Amsterdam, The Netherlands, 2006; pp. 291–294. [Google Scholar]
  12. Samgina, T.Y.; Gorshkov, V.; Vorontsov, Y.A.; Artemenko, K.; Zubarev, R.; Lebedev, A. Mass spectrometric study of bradykinin-related peptides (BRPs) from the skin secretion of russian ranid frogs. Rapid Commun. Mass Spectrom. 2011, 25, 933–940. [Google Scholar] [CrossRef] [PubMed]
  13. Chen, T.; Shaw, C. Cloning of the (Thr6)-phyllokinin precursor from Phyllomedusa sauvagei skin confirms a non-consensus tyrosine O-sulfation motif. Peptides 2003, 24, 1123–1130. [Google Scholar] [CrossRef] [PubMed]
  14. Zhou, J.; Bjourson, A.J.; Coulter, D.J.; Chen, T.; Shaw, C.; O’rourke, M.; Hirst, D.G.; Zhang, Y.; Rao, P.; McClean, S. Bradykinin-related peptides, including a novel structural variant, (Val1)-bradykinin, from the skin secretion of guenther’s frog, Hylarana guentheri and their molecular precursors. Peptides 2007, 28, 781–789. [Google Scholar] [CrossRef] [PubMed]
  15. Rates, B.; Silva, L.P.; Ireno, I.C.; Leite, F.S.F.; Borges, M.H.; Bloch, C., Jr.; De Lima, M.E.; Pimenta, A.M. Peptidomic dissection of the skin secretion of Phasmahyla jandaia (bokermann and sazima, 1978)(Anura, Hylidae, Phyllomedusinae). Toxicon 2011, 57, 35–52. [Google Scholar] [CrossRef] [PubMed]
  16. Thompson, A.H.; Bjourson, A.J.; Shaw, C.; McClean, S. Bradykinin-related peptides from Phyllomedusa hypochondrialis azurea: Mass spectrometric structural characterisation and cloning of precursor cDNAs. Rapid Commun. Mass Spectrom. 2006, 20, 3780–3788. [Google Scholar] [CrossRef] [PubMed]
  17. Samgina, T.Y.; Artemenko, K.A.; Gorshkov, V.A.; Ogourtsov, S.V.; Zubarev, R.A.; Lebedev, A.T. De novo sequencing of peptides secreted by the skin glands of the caucasian green frog Rana ridibunda. Rapid Commun. Mass Spectrom. 2008, 22, 3517–3525. [Google Scholar] [CrossRef] [PubMed]
  18. Zhou, X.; Wang, L.; Zhou, M.; Chen, T.; Ding, A.; Rao, P.; Walker, B.; Shaw, C. Amolopkinins W1 and W2—novel bradykinin-related peptides (BRPs) from the skin of the chinese torrent frog, Amolops wuyiensis: Antagonists of bradykinin-induced smooth muscle contraction of the rat ileum. Peptides 2009, 30, 893–900. [Google Scholar] [CrossRef]
  19. Bevins, C.L.; Zasloff, M. Peptides from frog skin. Annu. Rev. Biochem. 1990, 59, 395–414. [Google Scholar] [CrossRef]
  20. König, E.; Bininda-Emonds, O.R.P.; Shaw, C. The diversity and evolution of anuran skin peptides. Peptides 2015, 63, 96–117. [Google Scholar] [CrossRef]
  21. Jensen, J.; Conlon, J.M. Effects of trout bradykinin on the motility of the trout stomach and intestine: Evidence for a receptor distinct from mammalian B1 and B2 subtypes. Br. J. Pharmacol. 1997, 121, 526–530. [Google Scholar] [CrossRef]
  22. Li, Z.; Secor, S.M.; Lance, V.A.; Masini, M.A.; Vallarino, M.; Conlon, J.M. Characterization of bradykinin-related peptides generated in the plasma of six sarcopterygian species (african lungfish, amphiuma, coachwhip, bullsnake, gila monster, and gray’s monitor). Gen. Comp. Endocrinol. 1998, 112, 108–114. [Google Scholar] [CrossRef] [PubMed]
  23. Farmer, S.G.; Burch, R.M. Biochemical and molecular pharmacology of kinin receptors. Annu. Rev. Pharmacol. Toxicol. 1992, 32, 511–536. [Google Scholar] [CrossRef] [PubMed]
  24. Marceau, F.; Hess, J.F.; Bachvarov, D.R. The B1 receptors for kinins. Pharmacol. Rev. 1998, 50, 357–386. [Google Scholar] [PubMed]
  25. Marceau, F.; Regoli, D. Bradykinin receptor ligands: Therapeutic perspectives. Nat. Rev. Drug Discov. 2004, 3, 845–852. [Google Scholar] [CrossRef] [PubMed]
  26. Lintner, K.; Fermandjian, S.; Regoli, D. Conformational features of bradykinin: A circular dichroism study of some peptide fragments and structural analogues of bradykinin. Biochimie 1979, 61, 87–92. [Google Scholar] [CrossRef]
  27. Bonechi, C.; Ristori, S.; Martini, G.; Martini, S.; Rossi, C. Study of bradykinin conformation in the presence of model membrane by nuclear magnetic resonance and molecular modelling. Biochim. Biophys. Acta Biomembr. 2009, 1788, 708–716. [Google Scholar] [CrossRef]
  28. Parasuraman, S. Toxicological screening. J. Pharmacol. Pharmacother. 2011, 2, 74. [Google Scholar] [CrossRef]
  29. Megaw, J.; Thompson, T.P.; Lafferty, R.A.; Gilmore, B.F. Galleria mellonella as a novel in vivo model for assessment of the toxicity of 1-alkyl-3-methylimidazolium chloride ionic liquids. Chemosphere 2015, 139, 197–201. [Google Scholar] [CrossRef]
  30. Tyler, M.J.; Stone, D.; Bowie, J.H. A novel method for the release and collection of dermal, glandular secretions from the skin of frogs. J. Pharmacol. Toxicol. Methods 1992, 28, 199–200. [Google Scholar] [CrossRef]
  31. Xiang, J.; Wang, H.; Ma, C.; Zhou, M.; Wu, Y.; Wang, L.; Guo, S.; Chen, T.; Shaw, C. Ex vivo smooth muscle pharmacological effects of a novel bradykinin-related peptide, and its analogue, from Chinese large odorous frog, Odorrana livida skin secretions. Toxins 2016, 8, 283. [Google Scholar] [CrossRef]
  32. Zhang, L.; Chen, X.; Wu, Y.; Zhou, M.; Ma, C.; Xi, X.; Chen, T.; Walker, B.; Shaw, C.; Wang, L. A Bowman-Birk type chymotrypsin inhibitor peptide from the amphibian, Hylarana erythraea. Sci. Rep. 2018, 8, 5851. [Google Scholar] [CrossRef] [PubMed]

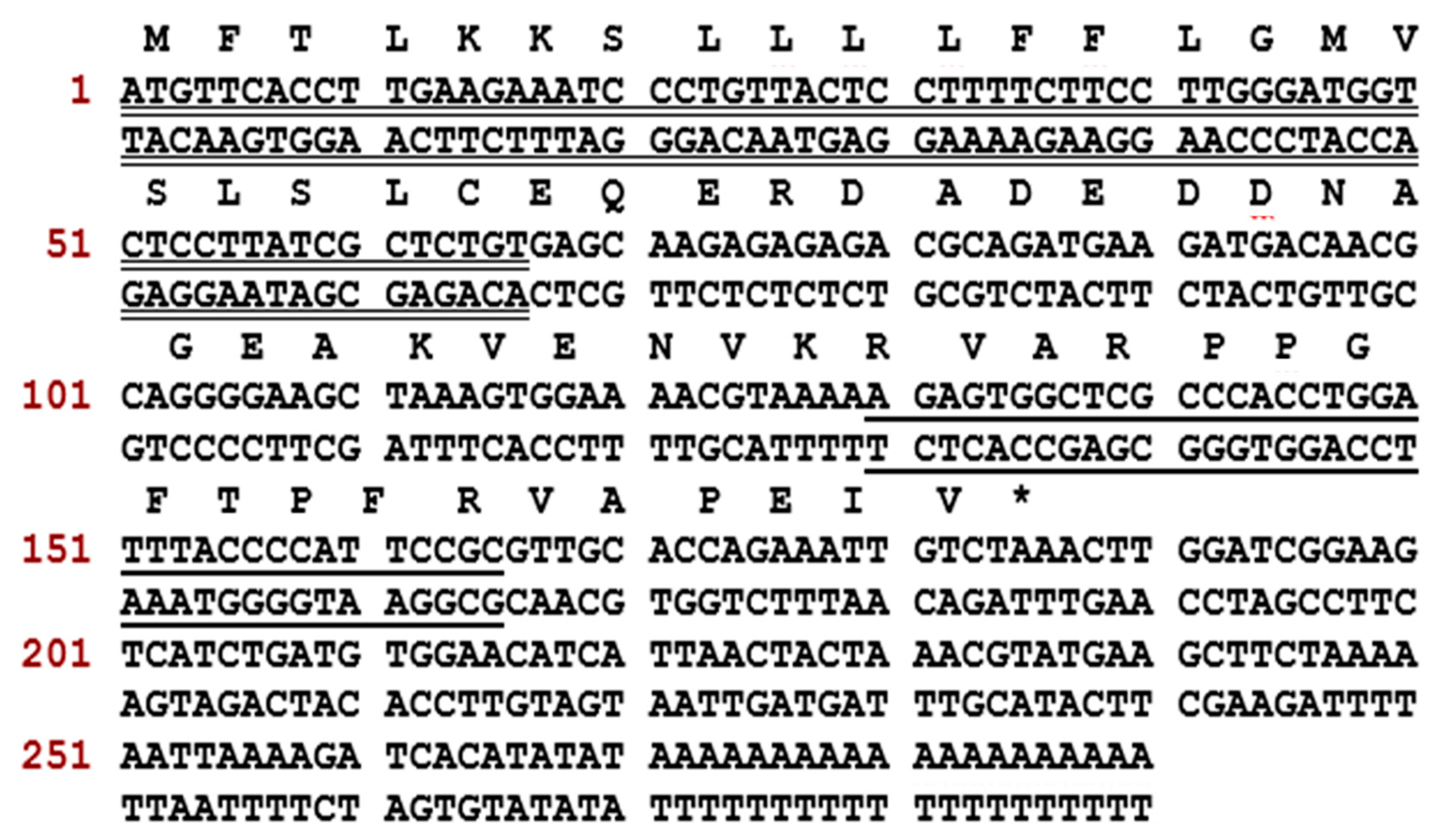

Figure 1. Nucleotide and translated open-reading frame amino-acid sequence of cDNA encoding the RVA-Thr6-BK precursor cloned from a skin secretion library of O. hejiangensis. The putative signal peptide and mature peptide are labelled by double-underlining and single-underlining, respectively. The asterisk indicates the stop codon.
Figure 1. Nucleotide and translated open-reading frame amino-acid sequence of cDNA encoding the RVA-Thr6-BK precursor cloned from a skin secretion library of O. hejiangensis. The putative signal peptide and mature peptide are labelled by double-underlining and single-underlining, respectively. The asterisk indicates the stop codon.
Toxins 11 00376 g001

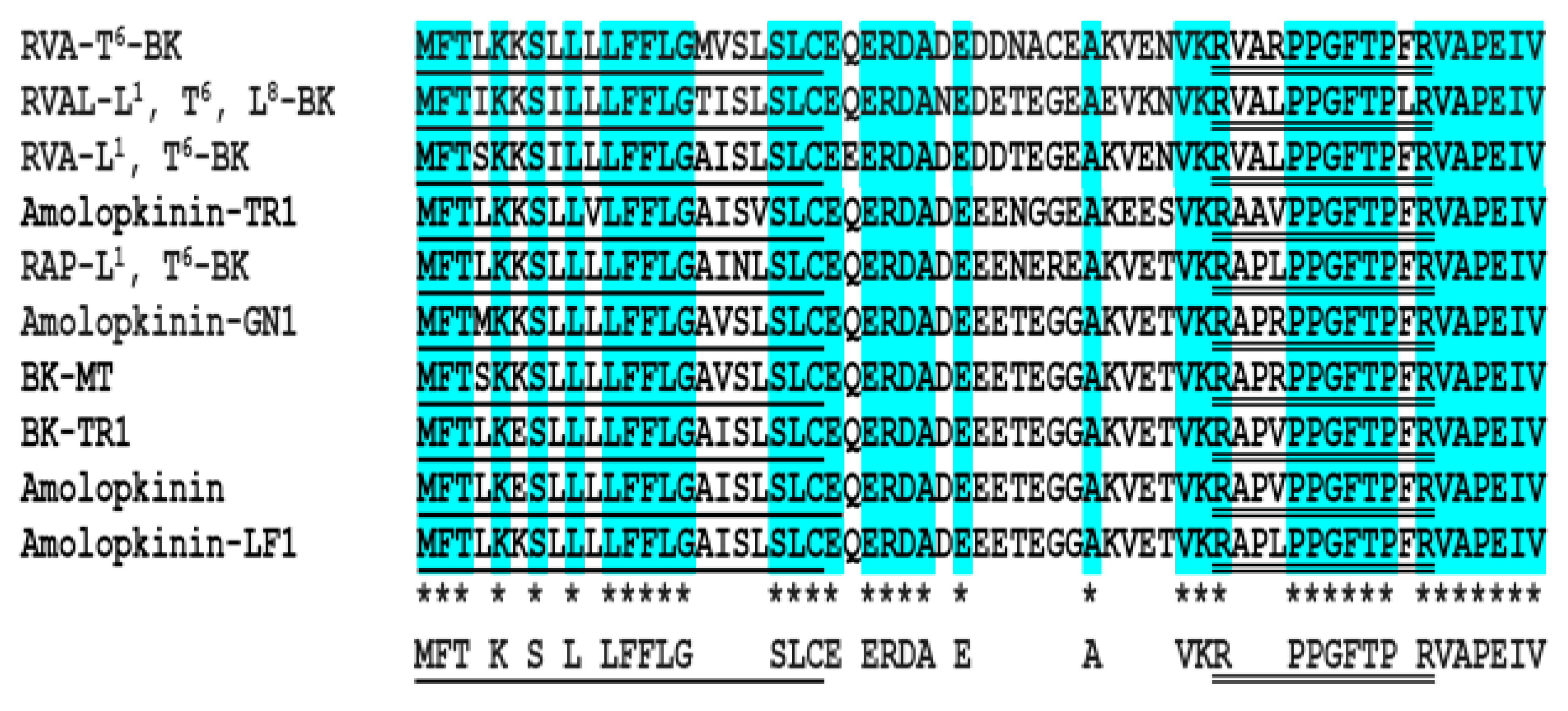

Figure 2. Amino-acid sequence alignment of RVA-Thr6-BK precursor and other BRP precursors from the skin secretion of several frog species. These data were obtained from GenBank and their corresponding accession numbers from top to bottom are CDO58214, CAR82590, ADV36199, SBN54116, ADM34221, ADM34238, ABF74734, ADV36198 and ADM34255, respectively. Single- and double-underlining represent signal and mature peptide amino-acid sequences, respectively. Asterisks indicate consensus residues.
Figure 2. Amino-acid sequence alignment of RVA-Thr6-BK precursor and other BRP precursors from the skin secretion of several frog species. These data were obtained from GenBank and their corresponding accession numbers from top to bottom are CDO58214, CAR82590, ADV36199, SBN54116, ADM34221, ADM34238, ABF74734, ADV36198 and ADM34255, respectively. Single- and double-underlining represent signal and mature peptide amino-acid sequences, respectively. Asterisks indicate consensus residues.
Toxins 11 00376 g002

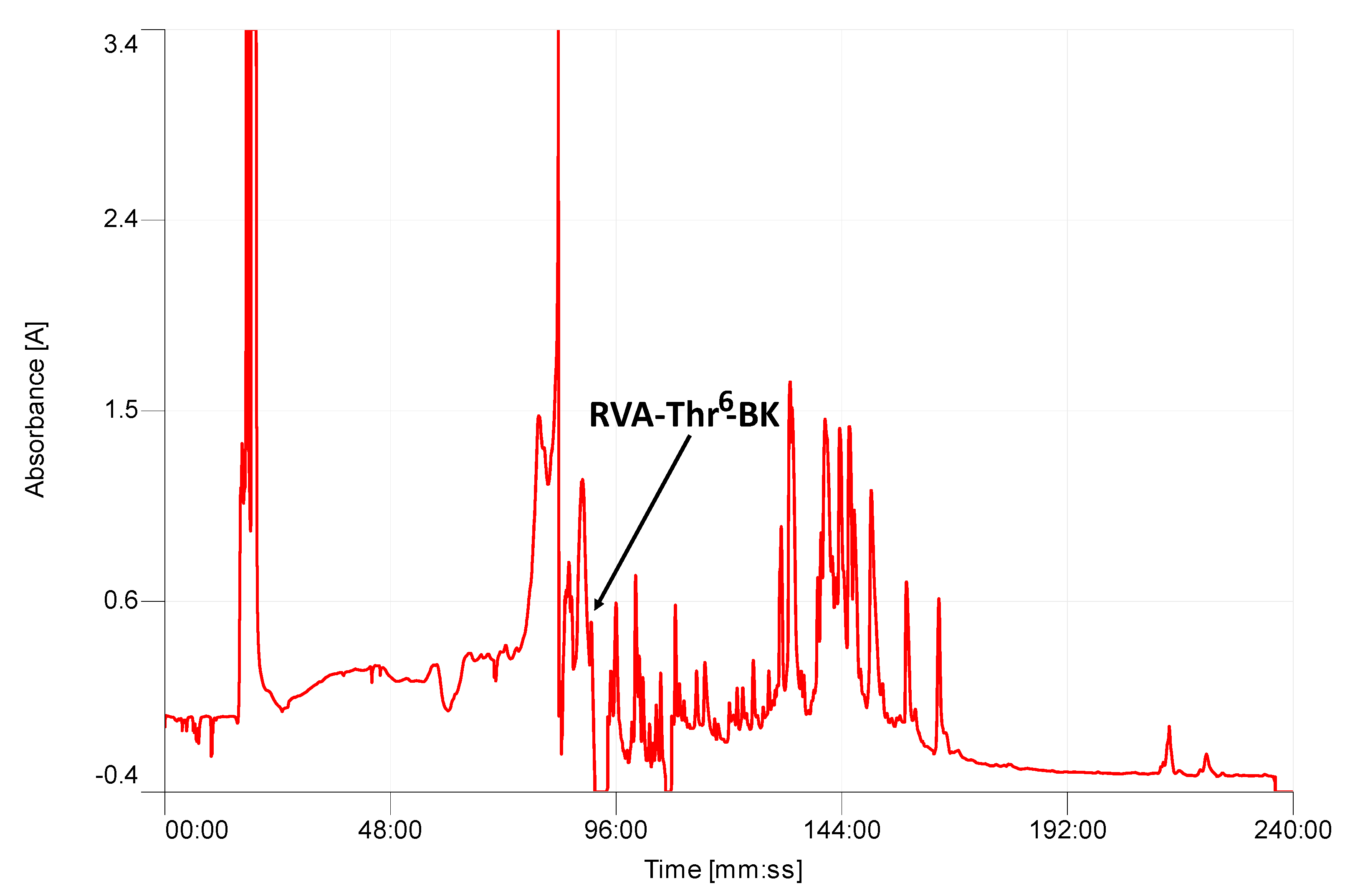

Figure 3. Region of RP-HPLC chromatogram of O. hejiangensis skin secretion indicating the retention time of RVA-Thr6-BK. Absorbance wavelength was set at 214 nm.
Figure 3. Region of RP-HPLC chromatogram of O. hejiangensis skin secretion indicating the retention time of RVA-Thr6-BK. Absorbance wavelength was set at 214 nm.
Toxins 11 00376 g003

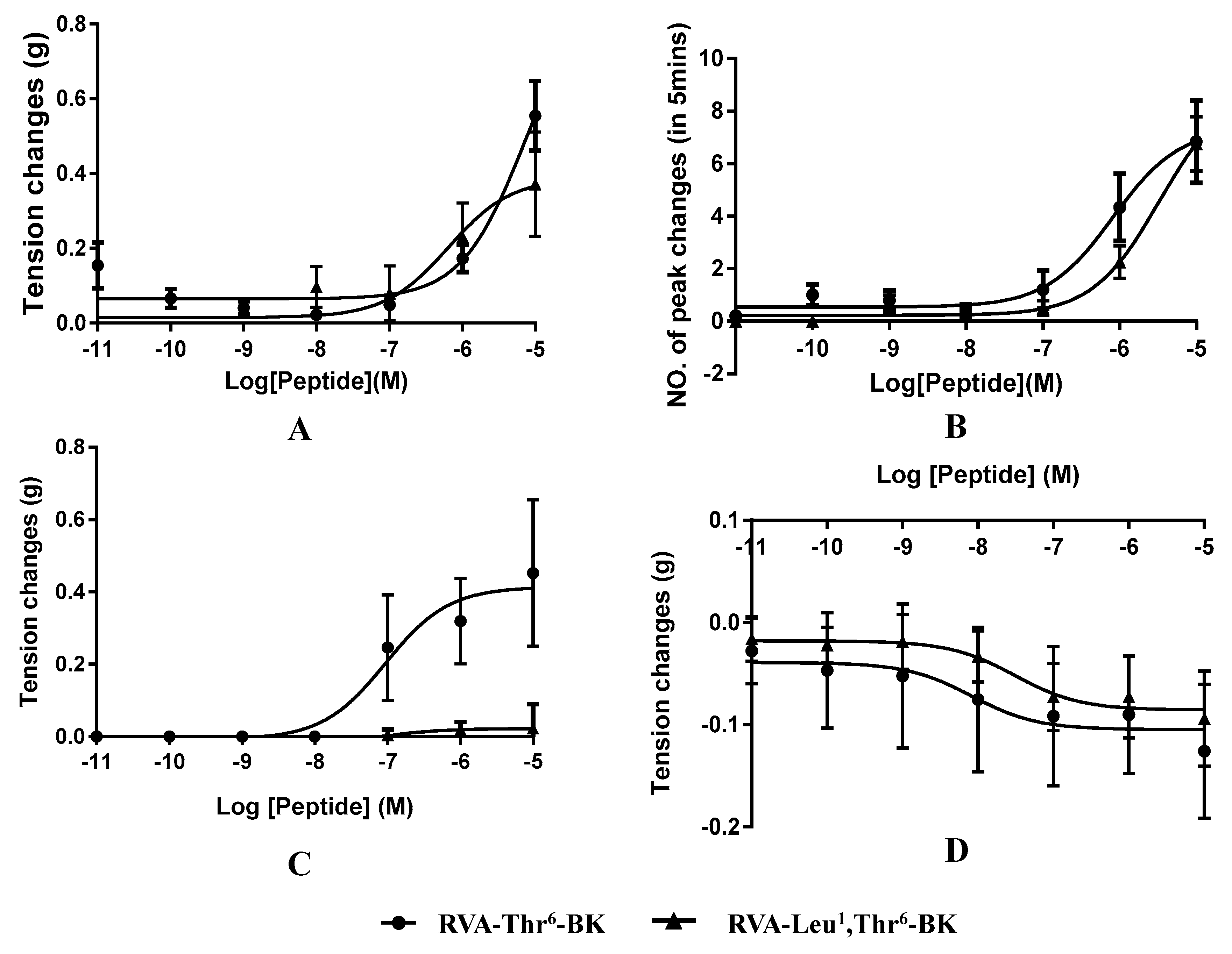

Figure 4. Dose–response curve of RVA-Thr6-BK (●) and RVA-Leu1, Thr6-BK (▴) using (A) rat bladder smooth muscle preparations (N = 4, n = 8), (N refers to the number of animals being study, n refers to the number of tests conducted), (B) rat uterus smooth muscle preparations (N = 4, n = 7), (C) rat ileum smooth muscle preparations (N = 3, n = 4) and (D) rat tail artery smooth muscle preparations (N = 4, n = 8), respectively. Data indicate tension changes compared with non-peptide exposed controls.
Figure 4. Dose–response curve of RVA-Thr6-BK (●) and RVA-Leu1, Thr6-BK (▴) using (A) rat bladder smooth muscle preparations (N = 4, n = 8), (N refers to the number of animals being study, n refers to the number of tests conducted), (B) rat uterus smooth muscle preparations (N = 4, n = 7), (C) rat ileum smooth muscle preparations (N = 3, n = 4) and (D) rat tail artery smooth muscle preparations (N = 4, n = 8), respectively. Data indicate tension changes compared with non-peptide exposed controls.
Toxins 11 00376 g004

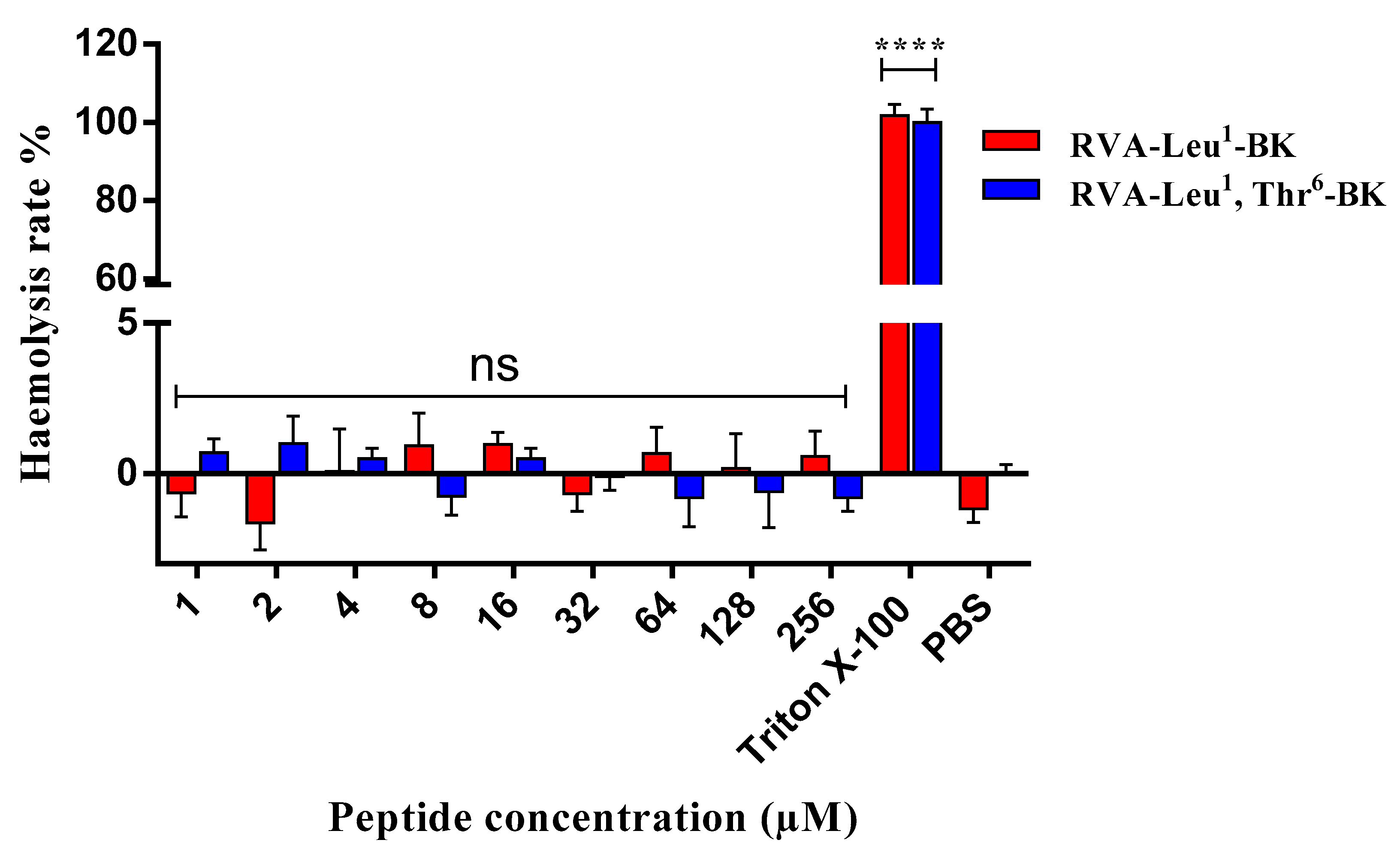

Figure 5. Haemolytic activities of RVA-Thr6-BK (red) and RVA-Leu1, Thr6-BK (blue) using mammalian erythrocytes. **** p < 0.0001; ns; no significance.
Figure 5. Haemolytic activities of RVA-Thr6-BK (red) and RVA-Leu1, Thr6-BK (blue) using mammalian erythrocytes. **** p < 0.0001; ns; no significance.
Toxins 11 00376 g005
Table 1. Calculated singly-charged and doubly-charged b-ions and y-ions produced by MS/MS fragmentation of RVA-Thr6-BK identified in skin secretion. Observed ions following MS/MS fragmentation are indicated in red and blue typefaces.
Table 1. Calculated singly-charged and doubly-charged b-ions and y-ions produced by MS/MS fragmentation of RVA-Thr6-BK identified in skin secretion. Observed ions following MS/MS fragmentation are indicated in red and blue typefaces.
#1b(1+)b(2+)b(3+)Seq.y(1+)y(2+)y(3+)#2
1157.1084079.0578453.04098R 12
2256.17682128.5920586.06379V1244.68992622.84860415.5681611
3327.21394164.11061109.74283A1145.62150573.31439382.5453510
4483.31506242.16117161.77654R1074.58438537.79583358.866319
5580.36783290.68755194.12746P918.48326459.74527306.832608
6677.42060339.21394226.47838P821.43049411.21888274.481687
7734.44207367.72467245.48554G724.37772362.69250242.130766
8881.51049441.25888294.50835F667.35625334.18176223.123605
9982.55817491.78272328.19091T520.28783260.64755174.100794
101079.61094540.30911360.54183P419.24015210.12371140.418233
111226.67936613.84332409.56464F322.18738161.59733108.067312
12 R175.1189688.0631259.044501
Table 2. Myotropic activities of RVA-Thr6-BK and RVA-Leu1, Thr6-BK in four different types of rat smooth muscle preparations. E max indicates the maximum response of isolated tissue inducing by BRPs at a peptide concentration of 10−5M. TC and EC50 represent threshold concentration and the concentration of BRPs giving the half-maximal response respectively. N means undetectable value under 10−5M of BRPs.
Table 2. Myotropic activities of RVA-Thr6-BK and RVA-Leu1, Thr6-BK in four different types of rat smooth muscle preparations. E max indicates the maximum response of isolated tissue inducing by BRPs at a peptide concentration of 10−5M. TC and EC50 represent threshold concentration and the concentration of BRPs giving the half-maximal response respectively. N means undetectable value under 10−5M of BRPs.
Isolated TissueE MaxTC (nM)EC50 (nM)
RVA-Thr6-BK/RVA-Leu1, Thr6-BK
Bladder0.56/0.38 (g)100.00/10.007102.00/636.70
Uterus7.00/7.00 (peaks/5 min)10.00/100.00817.20/3270.00
Ileum0.43/N (g)1.00/N93.70/N
Tail artery−0.13/−0.08 (g)1.00/18.28/30.91
