Survey of Deoxynivalenol Contamination in Agricultural Products in the Chinese Market Using An ELISA Kit

by
Ming Li
1,†,
Mingna Sun
2,†,
Xia Hong
1,
Jinsheng Duan
2 and
Daolin Du
1,*
1
Institute of Environmental Health and Ecological Security, School of the Environment and Safety Engineering, Jiangsu University, Xuefu Road 301, Zhenjiang 212013, China
2
Institute of Plant Protection and Agro-Product Safety, Anhui Academy of Agricultural Sciences, Key Laboratory of Agro-Product Safety Risk Evaluation (Hefei), Ministry of Agriculture, South Road of agricultural science 40, Hefei 230031, China
*
Author to whom correspondence should be addressed.
†
Both authors contributed equally to this paper.
Toxins 2019, 11(1), 6; https://doi.org/10.3390/toxins11010006
Submission received: 12 November 2018 / Revised: 16 December 2018 / Accepted: 21 December 2018 / Published: 24 December 2018
(This article belongs to the Special Issue Advanced Methods for Mycotoxins Detection)
Browse Figures
Versions Notes

Abstract

:
A total of 328 agricultural product samples highly suspected to be contaminated, from flour companies, feed companies, and livestock farms throughout China, were surveyed for deoxynivalenol (DON) contamination using a self-assembly enzyme-linked immunosorbent assay (ELISA) kit. An ELISA kit for DON was developed with a 4.9 ng mL−1 limit of detection (LOD) in working buffer and a 200 ng g−1 LOD in authentic samples. The DON contamination detection rate was 88.7%, concentrations ranged from 200.9 to 6480.6 ng g−1, and the highest DON contamination was found in distillers’ dried grains with solubles with an average of 3204.5 ng g−1. Wheat bran and wheat were found to be the most commonly contaminated samples, and the corn meal samples had the lowest average DON level. This ELISA kit is a powerful alternative method for the rapid, sensitive, specific, accurate, and high-throughput determination of DON and can meet the maximum requirement levels. This survey suggests that DON contamination in the Chinese market is serious, and the contamination risk deserves attention. Essential preventive measures should be implemented to ensure food safety and human health.
Keywords:
deoxynivalenol; contamination; survey; ELISA kit; agricultural product
Key Contribution: A total of 328 agricultural product samples highly suspected to be contaminated were surveyed for deoxynivalenol using a self-assembly ELISA kit.

Graphical Abstract

1. Introduction

Deoxynivalenol (DON), a highly toxic secondary metabolite mainly produced by Fusarium graminearum and Fusarium culmorum, may threaten the health of humans and animals, as it acts as an antifeedant and demonstrates immunotoxicity, organ toxicity, inhibition of protein synthesis, and teratogenicity [1,2,3]. DON contaminates wheat, barley, corn, and other cereal crops and food products worldwide [4,5]. Its co-toxic effect with other mycotoxins such as aflatoxin cannot be ignored [6]. Given its serious toxic effects, the European Commission (EC) published a tolerable daily intake for DON of 1 μg kg−1 of body weight per day [7], and the European Union (EU) set the DON maximum levels (MLs) at 1250 ng g−1 and 750 ng g−1 in unprocessed cereals and food, respectively [8]. In China, the ML of DON in corn, wheat, and their products was regulated at 1000 ng g−1 [9].
To monitor and control the DON contamination in cereals and other agricultural products, various analytical methods for DON are used. These mainly include thin-layer chromatography (TLC) [10], gas chromatography (GC) [11], high-performance liquid chromatography (HPLC) [12], GC tandem mass spectrometry (GC-MS) [13], and HPLC-MS [14]. These mentioned methods are standardized with high precision and sensitivity, but require technical expertise, and they are expensive, time-consuming, and unsuitable for screening of DON for large numbers of samples [15]. Immunoassays are simple, rapid, and cost-effective, with adequate sensitivity and high selectivity [16,17,18,19,20]. Series immunoassays, such as conventional colorimetric enzyme-linked immunosorbent assay (ELISA) [21,22,23], chemiluminescence enzyme immunoassay (CLEIA) [24], fluorescence polarization immunoassay (FPIA) [25], time-resolved fluoroimmunoassay (TRFIA) [26,27], and the gold immunochromatographic assay (GICA) [28], were developed to detect DON. Later, the surface plasmon resonance (SPR) immunoassay [29,30], silver staining GICA [31], nanobody-based ELISA [32], and immunosensor [33,34] for DON were introduced.
As a fundamental immunoassay, ELISA has been widely developed for detecting DON, given its simplicity, specificity, low cost, and ability to perform high-throughput screening [35,36,37]. Furthermore, rapid-detection technologies such as ELISA have received more attention; it is an alternative or complementary detection means that has been accepted by consumers and quarantine officers [38,39,40]. Due to the prevalence of mycotoxin contamination and the large number of samples that need to be analyzed, ELISA kits have been considered a suitable screening tool for the determination of mycotoxins, and their development and application has grown rapidly in recent years.
The goal of this study was to survey DON contamination in agricultural products in the Chinese market using a sensitive ELISA kit. A DON ELISA kit was assembled and debugged in our laboratory. The developed ELISA kit showed to be sensitive, specific, quantitative, and capable of screening a large number of DON-contaminated samples. The developed DON ELISA kit was applied to the analysis of 328 agricultural product samples that were highly suspected to be contaminated, including wheat flour, distillers’ dried grains with solubles (DDGS), feed, corn, wheat bran, wheat, and corn meal samples. The contamination levels of DON in these selected samples were evaluated. The accuracy of the ELISA kit was validated in comparison with HPLC.

2. Results and Discussion

2.1. Sensitivity

The standard curve of the ELISA kit for DON was constructed under optimum conditions (Figure 1). The proposed ELISA kit for DON had a limit of detection (LOD, IC15) of 4.9 ng mL−1, a half-maximal inhibition concentration (IC50) of 25.2 ng mL−1, and a linear range (IC15–IC85) of 4.9–128.9 ng mL−1.
In previous studies, DON contamination was determined using TLC methods, and the LODs were more than 40 ng g−1 [10]. The GC method has been used to detect DON in corn, and the LOD was 10 ng g−1 [11]. The LOD of the HPLC method equipped with immunoaffinity purification for DON in wheat reached 10 ng g−1 [12]. The HPLC-MS method also has been used to detect DON, and the LOD was 25 μg kg−1 [14]. The key properties of the referenced immunoassays for DON are listed in Table 1. The sensitivity of the proposed ELISA kit for DON is much higher than those of most of the above instrumental methods and referenced ELISAs [2,21,35], but is not as good as those of some novel ultrasensitive methods [24,27,34]. On the whole, the sensitivity of the proposed ELISA kit is sufficient to effectively detect DON.

2.2. Specificity

As shown in Table 2, the cross-reactivity (CR) of the ELISA kit toward related mycotoxins was negligible (5.7% for 3-acetyldeoxynivalenol and under 0.5% for others), indicating high specificity. Therefore, the negligible CRs between DON and its related mycotoxins enabled the development of an ELISA kit for the specific determination of DON.

2.3. Accuracy and Precision

In the process of immunoassays for authentic samples, matrix effects are the most common challenges. The dilution method was used to minimize the matrix effects in this study. With the increase in dilution, the matrix effects on the sensitivity were reduced. When the matrixes were 1:40 dilutions, the matrix effects of these selected samples on the sensitivity of the ELISA kit could be ignored. A 40-fold dilution was used for subsequent DON determination in agricultural product samples. Thus, the LOD of the ELISA kit was 200 ng g−1 in authentic samples. The official MLs of DON have been previously published [7,8,9]. The LOD of the ELISA kit was much lower than the lowest ML level of 750 ng g−1 in food [8], which indicated that the sensitivity of ELISA kit can meet the requirement for the analysis of DON contamination.
As demonstrated in Table 3, the recoveries of DON by the ELISA kit in spiked samples ranged from 76.3 to 114.5% with the relative standard deviations (RSDs) ranging from 3.9 to 13.2%. These results suggested that the accuracy and precision of the proposed ELISA kit was satisfactory for the survey of DON contamination in the selected samples.

2.4. Determination and Evaluation of Authentic Samples

A total of 328 samples highly suspected of being contaminated from flour companies, feed companies, and livestock farms were collected. These samples were categorized as flour, feedstuffs, and foodstuffs products. Flour included wheat flour and corn meal. Feedstuffs included DDGS, feed, and wheat bran. Foodstuffs included corn and wheat. As shown in Table 4, 291 samples (88.7% of 328 samples) were found to contain DON, having concentrations ranging from 200.9 to 6480.6 ng g−1; 37 samples (11.3% of 328 samples) had DON concentrations of less than 200 ng g−1; 146 samples (44.5% of 328 samples) had DON contamination levels ranging from 200 to 1000 ng g−1; 102 samples (31.1% of 328 samples) had DON contamination levels ranging from 1000 to 3000 ng g−1; and 43 samples (13.1% of 328 samples) had DON concentrations above 3000 ng g−1.
DON contamination was found in 91.8% of 135 wheat flour samples, 94.1% of 17 DDGS samples, 83.9% of 56 feed samples, 87.2% of 47 corn samples, and 63.0% of 27 corn meal samples. A total of 15 wheat bran samples and 31 wheat samples had detected DON contaminations above 200 ng g−1, which were the highest detection rates. The corn meal samples had the lowest average DON concentration, and 37% of 27 corn meal samples had no detected DON, which was the lowest DON detection rate of 63%. The highest DON concentrations were found in DDGS samples, ranging from 1201.3 to 6480.6 ng g−1, with an average of 3204.5 ng g−1. Wheat flour samples and wheat bran samples were heavily contaminated with DON. These observations indicated that DON contamination is a commonly occurring problem in agricultural products in the Chinese market that should be strictly monitored, and effective controls should be implemented to ensure food safety and human health.

2.5. Correlation of ELISA Kit and HPLC

The ELISA kit produced results largely consistent with the standardized HPLC method, and the results are presented in Figure 2. A good correlation of the results of HPLC (Y) and ELISA kit (X) was obtained (Y = 0.9322X + 113.78, R2 = 0.9589), which further indicated that the results of the ELISA kit were reliable.

3. Conclusions

In summary, a self-assembly ELISA kit was successfully applied to a survey of 328 agricultural product samples highly suspected of DON contamination from flour companies, feed companies, and livestock farms throughout the Chinese market. The proposed ELISA kit demonstrated sensitivity, specificity, accuracy, and the ability to be applied to large-scale screening to survey for DON contamination. Among the 328 samples, the DON detection rate was 88.7% with concentrations ranging from 200.9 to 6480.6 ng g−1. The highest DON concentrations were found in the DDGS samples with an average of 3204.5 ng g−1, and the corn meal samples had the lowest average DON level of 279.2 ng g−1 and the lowest DON detection rate. The wheat bran and wheat samples were the most commonly contaminated samples. This survey suggested that the DON contamination in the Chinese market is a serious issue. Our findings could provide valuable information for farmers and the government to implement the necessary measures to ensure the safety of agricultural products and human health.

4. Materials and Methods

4.1. Chemicals and Materials

The standards of DON, 3-acetyldeoxynivalenol (3-AC-DON), 15-acetyldeoxynivalenol (15-AC-DON), deoxynivalenol 3-glucoside (DON-3-G), T-2 toxin (T-2), ochratoxins A (OTA), zearalenone (ZEN), aflatoxin B1 (AFB1), and goat anti-mouse horseradish-peroxidase-conjugated antibody (GAM-HRP) were provided by Sigma Chemical Co. (St. Louis, MO, USA). Bovine serum albumin (BSA), ovalbumin (OVA), H2O2, polyoxyethylene sorbitan monolaurate (Tween-20), 3′,5,5′-Tetramethyl benzidine (TMB), sodium azide (NaN3), and other chemicals were provided by Aladdin Reagent Co. Ltd. (Shanghai, China).
Phosphate-buffered saline (PBS, 10 mmol L−1, pH 7.4), PBS containing 0.05% Tween-20 (PBST), and carbonate-buffered saline (CBS, 50 mmol L−1, pH 9.6) were prepared by our laboratory. The color substrate buffer contained 0.4 mmol L−1 TMB and 3 mmol L−1 H2O2 in citrate buffer (pH 5.0).
The absorbance was performed on an Infinite M1000 Pro microtiter plate reader (Tecan Group AG, Zürich, Switzerland). The washing step was performed on a Detie HBS-4009 Washer (Nanjing Detie Experimental Equipment Co. Ltd., Nanjing, China). The ELISA procedure was carried out on Jet Biofil 96-well transparent microtiter plates (Suzhou Kechuang Biotechnology Co. Ltd., Suzhou, China). The centrifugation was carried out using a Neofuge 18R Centrifuge (Heal Force Development Ltd., Hong Kong, China). The purified water was prepared using a Milli-Q purification system (Millipore Corporation, Bedford, MA, USA). The reliability of the ELISA kit was confirmed using an Aglient 1260 HPLC equipped with a diode array detector (DAD) (Agilent Technologies, Wilmington, DC, USA).

4.2. Preparation of Antigen and McAb

As reported, the chemical synthesis of the DON hapten was performed via the butyric anhydride derivative method [24]. Then, the DON hapten was coupled with BSA and OVA using the activated ester method to produce an immunogen antigen (DON-BSA) and coating antigen (DON-OVA), respectively [41]. The classic hybridoma technology was applied to prepare the anti-DON monoclonal antibody (McAb) [42]. After obtaining monoclonal hybridoma cells for DON, the anti-DON McAb was produced by ascite growth and purified by saturated ammonium sulfate precipitation, and it was then stored at −20 °C until use.

4.3. Development of the DON ELISA Kit

4.3.1. ELISA Kit Procedure

(1) Coating step. The microtiter plates were coated with DON-OVA (100 μL well−1, in CBS) overnight at 4 °C. The plates were washed five times with washing buffer.
(2) Blocking step. The plates were blocked (200 μL well−1, 1% OVA in PBS) for 30 min at 37 °C and washed.
(3) Immune reaction step. The sample or standard in working buffer (50 μL well−1) was added, followed by the addition of the diluted anti-DON McAb (25 μL well−1, in PBST) and the diluted GAM-HRP (25 μL well−1, in PBST) into each well. Then, the plates were shaken for 10 s and incubated for 30 min at 37 °C.
(4) Coloration step. After being washed again, the color substrate buffer was added and incubated for 10 min at 37 °C.
(5) Stop step. The reaction was stopped by adding stop buffer (50 μL well−1).
(6) Measurement step. The absorbance was measured at the wavelength of 450 nm.

4.3.2. Standard Curve

A series of concentrations of DON standards were prepared in working buffer. Triplicate determinations were carried out. The mean values of B/B0, where B is the absorbance value with DON and B0 is the absorbance value in the absence of DON, were plotted against the logarithm of the concentrations of DON standards to obtain the sigmoidal curve using the Origin Program 7.0 software (OriginLab Co., Northampton, MA, USA). The LOD and IC50 were obtained from a four-parameter logistic equation.

4.3.3. ELISA Kit Parameters

The key parameters of the ELISA kit (concentrations of DON-OVA, anti-DON McAb, and GAM-HRP; content of methanol; concentration of Na+; and pH value) were studied to improve the sensitivity of the ELISA kit. The highest ratio of B0/IC50 and the lowest IC50 were used as the most desirable criteria for the ELISA kit. Other key buffers, compositions, and parameters were adjusted and optimized.

4.3.4. CRs Experiment

The CRs of the ELISA kit toward other related mycotoxins were used to evaluate the specificity of the ELISA kit.

4.4. Adjustment of ELISA Kit Conditions

The optimum conditions of the ELISA kit were very important for an excellent testing technique. The components and parameters of the ELISA kit are listed in Table 5. The ELISA kit has eight components, including preprocessed plates, DON standard, antibody solution, GAM-HRP solution, color substrate buffer, stop buffer, 10 × washing buffer, and 1 × working buffer.
The 96-well transparent microplates were preprocessed using a coating step and a blocking step. For the key parameters, 0.3 ng mL−1 DON-OVA and 1.2 ng mL−1 anti-DON McAb were selected as the optimal dilution concentrations, when the value of B0 reached 2.0 (Figure 3A). The optimal dilution concentration of GAM-HRP was 25 ng mL−1. The working buffer, which could greatly affect the sensitivity of the ELISA kit, was adjusted. Finally, 5% methanol (Figure 3B), 0.2 mol L−1 Na+ (Figure 3C), and pH 7.4 (Figure 3D) in the working buffer were selected as the optimal working conditions of the ELISA kit for the determination of DON. For the washing buffer, a 10-fold concentration of 0.01 mol L−1 PBS containing Tween-20 was prepared and diluted before use. The color substrate was TMB and was oxidized by H2O2 in citrate buffer, and the stop substrate was sulfuric acid.

4.5. Instructions for the ELISA Kit

As a biochemical test product, the ELISA kit has some special instructions for its use and storage. Firstly, the ELISA kit must be stored at 2–8 °C, the effective service life is 12 months, and the kit must not be frozen. Secondly, the microplates and reagents must be placed at room temperature (20–25 °C) for 30 min to ensure better activity and sufficient mixing before use. Microplates cannot be allowed to dry during the testing process. Stability experiments for the ELISA kit were performed and are shown in Figure 4. During storage, the values of B0 and B/B0 (%) showed an acceptable reduction. This indicated that the effective service life of the ELISA kit could be at least 12 months.

4.6. Spiked Samples Analysis

The free DON agricultural product samples, including wheat flour, DDGS, feed, corn, wheat bran, wheat, and corn meal samples, were selected for the recovery and matrix effect studies. These agricultural product samples were finely ground. Then, 5 g of each agricultural product sample was spiked with DON at 200, 500, and 1000 ng g−1 and stored for 2 h at room temperature. Next, the spiked samples were added to 10 mL of working buffer containing 20% methanol, then extracted for 10 min under ultrasonic conditions and centrifuged for 10 min at 4000 rpm. The extracted solutions were filtered and diluted using the working buffer prior to ELISA kit analysis. Each analysis was performed three times. The results of the recoveries and RSDs were used to evaluate the accuracy and precision of the ELISA kit, respectively.
To analyze the matrix effects of the agricultural product samples on the sensitivity of the ELISA kit, serial dilutions of the solutions of extracted samples were obtained in the working buffer and then analyzed using the ELISA kit. The multiple dilutions of extracted solutions resulted in a curve that was close to the DON standard curve, indicating that matrix interference was negligible; thus, they could be applied for subsequent ELISA kit determination of samples.

4.7. Determination in Authentic Contaminated Samples

A total of 328 agricultural product samples which were highly suspected to be contaminated with DON were collected from flour companies, feed companies, and livestock farms throughout China. According to the ELISA kit method detailed above, various agricultural product samples, such as wheat flour, DDGS, feed, corn, wheat bran, wheat, and corn meal, were prepared and analyzed.

4.8. Confirmation of the ELISA Kit with HPLC

To confirm the effectiveness of the proposed ELISA kit, the authentic agricultural product samples were tested using the ELISA kit and HPLC. For HPLC, the samples were tested according to the method of the national standard of China [43]. Each sample was added to 20 mL of acetonitrile-H2O (84:16, v/v) and extracted by sonication for 20 min and centrifugation for 5 min at 10,000 rpm. After that, the supernatants were purified through DON immuno-affinity columns (PriboLab, Beijing). The extracted phases were collected and analyzed by HPLC. The analysis was conducted using an Aglient 1260 HPLC equipped with a DAD detector. Separation was performed on an Eclipse XDB2-C18 column (250 mm × 4.6 mm × 5 μm) at 35 °C. The mobile phase was a mixture of methanol and H2O (20:80, v/v) at a flow rate of 0.8 mL min−1. The injection volume was 50 μL, and the detection wavelength was set to 218 nm. Then, the correlation of the results of the ELISA kit and those obtained from HPLC was analyzed.

Author Contributions

M.L. conceived and designed the experiments; M.S. and X.H. executed the study and drafted the manuscript; J.D. interpreted and validated the results; and D.D. modified the manuscript.

Funding

This work was supported by the National Key Research Development Program of China (2017YFC1200100, 2016YFD0200207), the National Natural Science Foundation of China (31701687, 31570414, 31770446), the Natural Science Foundation of Jiangsu Province (BK20170537), the Project of Science and Technology Innovation team from Anhui Academy of Agricultural Sciences (14C1105), the Project Funded by the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD) and the Jiangsu Collaborative Innovation Center of Technology and Material of Water Treatment.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Pestka, J.J.; Smolinski, A.T. Deoxynivalenol: Toxicology and potential effects on humans. J. Toxicol. Environ. Health B 2005, 8, 39–69. [Google Scholar] [CrossRef] [PubMed]
  2. Ji, F.; Li, H.; Xu, J.H.; Shi, J.R. Enzyme-linked immunosorbent-assay for deoxynivalenol (DON). Toxins 2011, 3, 968–978. [Google Scholar] [CrossRef] [PubMed]
  3. Liao, Y.X.; Peng, Z.; Chen, L.K.; Nüssler, A.K.; Liu, L.G.; Yang, W. Deoxynivalenol, gut microbiota and immunotoxicity: A potential approach? Food Chem. Toxicol. 2018, 112, 342–354. [Google Scholar] [CrossRef] [PubMed]
  4. Kuzdralinski, A.; Solarska, E.; Muszynska, M. Deoxynivalenol and zearalenone occurence in beers analysed by an enzyme-linked immunosorbent assay method. Food Control 2013, 29, 22–24. [Google Scholar] [CrossRef]
  5. Righetti, L.; Galaverna, G.; Dall’Asta, C. Group detection of DON and its modified forms by an ELISA kit. Food Addit. Contam. A 2017, 34, 248–254. [Google Scholar] [CrossRef]
  6. Ji, J.; Zhu, P.; Cui, F.C.; Pi, F.W.; Zhang, Y.Z.; Li, Y.; Wang, J.S.; Sun, X.L. The antagonistic effect of mycotoxins deoxynivalenol and zearalenone on metabolic profiling in serum and liver of mice. Toxins 2017, 9, 28. [Google Scholar] [CrossRef] [PubMed]
  7. Warth, B.; Sulyok, M.; Berthiller, F.; Schuhmacher, R.; Fruhmann, P.; Hametner, C.; Adam, G.; Frohlich, J.; Krska, R. Direct quantification of deoxynivalenol glucuronide in human urine as biomarker of exposure to the Fusarium mycotoxin deoxynivalenol. Anal. Bioanal. Chem. 2011, 401, 195–200. [Google Scholar] [CrossRef] [PubMed]
  8. Hanschmann, G.; Krieg, D. Verhalten von mykotoxinen bei der ethanolerzeugung aus getreide. Mycotoxin Res. 2006, 22, 174–177. [Google Scholar] [CrossRef] [PubMed]
  9. China National Standard No. GB2761-2017; Ministry of Health of P. R. China: Beijing, China, 2017.
  10. Fernandez, C.; Stack, M.E.; Musser, S.M. Determination of deoxynivalenol in 1991 U.S. winter and spring wheat by high-performance thin-layer chromatography. J. AOAC 1994, 77, 628–630. [Google Scholar]
  11. Wang, X.Y. Determination of deoxynivalenol in maize by using gas chromatography-electron capture detector. J. Changzhi Univ. 2006, 23, 7–10. [Google Scholar]
  12. Wang, Z.P.; Wang, D.L.; Feng, Z.S.; Yang, J.; Wang, X.J.; Chen, X. Detection of deoxynivalenol in malting barley by immunoaffinity column clear up and high performance liquid chromatography. Food Ferment. Ind. 2008, 34, 137–139. [Google Scholar]
  13. Cohen, H.; Lapointe, M. Capillary gas-liquid chromatographic determination of vomitoxin in cereal grains. J. AOAC 1982, 65, 1429–1434. [Google Scholar]
  14. Li, W.C.; Shen, X.G.; Liu, R.; Zhang, J.H.; Yu, J.X.; Xie, Y.P.; Deng, X.B. Study on the determination of deoxynivalenol in edible tissues of swine by liquid chromatography coupled with electrospray ionization tandem mass spectrometry. J. South Chian Agric. Univ. 2013, 34, 101–105. [Google Scholar]
  15. Zhang, Z.; Zhu, N.F.; Huang, M.L.; Liang, Y.R.; Zeng, K.; Wu, X.Y.; Liu, Z.J.; Ma, Q.C.; Qu, G.B.; Shi, J.B. Sensitive immunoassay for simultaneous determination of tetrabromobisphenol A bis(2-hydroxyethyl) ether and tetrabromobisphenol A mono(hydroxyethyl) ether: An effective and reliable strategy to estimate the typical tetrabromobisphenol A derivative and byproduct in aquatic environments. Environ. Pollut. 2017, 229, 431–438. [Google Scholar] [PubMed]
  16. Wang, S.T.; Gui, W.J.; Guo, Y.R.; Zhu, G.N. Preparation of a multi-hapten antigen and broad specificity polyclonal antibodies for a multiple pesticide immunoassay. Anal. Chim. Acta 2007, 587, 287–292. [Google Scholar] [CrossRef] [PubMed]
  17. Lin, G.F.; Zhao, H.; Liu, T.C.; Hou, J.J.; Ren, Z.Q.; Wu, Y.S.; Dong, W.Q.; Huang, W.H. Simultaneous determination of the cytokeratin 19 fragment and carcinoembryonic antigen in human serum by magnetic nanoparticle-based dual-label time-resolved fluoroimmunoassay. RSC Adv. 2014, 4, 55229–55236. [Google Scholar] [CrossRef]
  18. Jin, M.J.; Shao, H.; Jin, F.; Gui, W.J.; Shi, X.M.; Wang, J.; Zhu, G.N. Enhanced competitive chemiluminescent enzyme immunoassay for the trace detection of insecticide triazophos. J. Food Sci. 2012, 77, T99–T104. [Google Scholar] [CrossRef] [PubMed]
  19. Li, J.H.; Li, C.S.; Wu, M.; Zhang, Y.; Ma, X.F.; Cheng, H.; Yan, J.H. Development of an ultrasensitive immunochromatographic assay (ICA) strip for the rapid detection of phenylethanolamine A in urine and pork samples. J. Food Sci. 2015, 80, T894–T899. [Google Scholar]
  20. Zhu, F.; Mao, C.M.; Du, D.L. Time-resolved immunoassay based on magnetic particles for the detection of diethyl phthalate in environmental water samples. Sci. Total Environ. 2017, 601, 723–731. [Google Scholar] [CrossRef] [PubMed]
  21. Yang, C.H.; Liu, C.; Luo, X.Y.; Ji, R.; Ran, L.; Chang, D.; Chang, J. Determination and study of deoxynivalenol (DON) in wheat using indirect competitive enzyme-linked immunosorbent assay based on monoclonal antibody. Acta Microbiol. Sin. 1994, 31, 65–70. [Google Scholar]
  22. Maragos, C.M.; McCormick, S.P. Monoclonal antibodies for the mycotoxins deoxynivalenol and 3-acetyl-deoxynivalenol. Food Agric. Immunol. 2000, 12, 181–192. [Google Scholar] [CrossRef]
  23. Santos, J.S.D.; Takabayashi, C.R.; Ono, E.Y.S.; Itano, E.N.; Mallmann, C.A.; Kawamura, O.; Hirooka, E.Y. Immunoassay based on monoclonal antibodies versus LC-MS: deoxynivalenol in wheat and flour in Southern Brazil. Food Addit. Contam. A 2011, 28, 1083–1090. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, R.S.; Zhou, Y.J.; Zhou, M.G. A sensitive chemiluminescence enzyme immunoassay for the determination of deoxynivalenol in wheat samples. Anal. Methods 2015, 7, 2196–2202. [Google Scholar] [CrossRef]
  25. Li, C.L.; Wen, K. A universal multi-wavelength fluorescence polarization immunoassay for multiplexed detection of mycotoxins in maize. Biosens. Bioelectron. 2016, 79, 258–265. [Google Scholar] [CrossRef] [PubMed]
  26. Gao, L.; Huang, B.; Li, Q.P.; Zhang, L.F.; Jin, J. Ultrasensitive time-resolved fluoroimmunoassay of deoxynivalenol. Food Sci. 2009, 3, 398–402. [Google Scholar]
  27. Zhang, J.; Gao, L.; Zhou, B. Simultaneous detection of deoxynivalenol and zearalenone by dual-label time-resolved fluorescence immunoassay. J. Sci. Food Agric. 2011, 91, 193–197. [Google Scholar] [CrossRef] [PubMed]
  28. Xu, Y.; Huang, Z.P.; He, Q.H.; Deng, S.Z.; Li, L.S.; Li, Y.P. Development of an immunochromatographic strip test for the rapid detection of deoxynivalenol in wheat and maize. Food Chem. 2010, 119, 834–839. [Google Scholar] [CrossRef]
  29. Kadota, T.; Takezawa, Y.; Hirano, S.; Tajima, O.; Maragos, C.M.; Nakajima, T.; Tanaka, T.; Kamata, Y.; Sugita-Konishi, Y. Rapid detection of nivalenol and deoxynivalenol in wheat using surface plasmon resonance immunoassay. Anal. Chim. Acta 2010, 673, 173–178. [Google Scholar] [CrossRef]
  30. Schnerr, H.; Vogel, R.; Niessen, L. A biosensor-based immunoassay for rapid screening of deoxynivalenol contamination in wheat. Food Agric. Immunol. 2002, 14, 313–321. [Google Scholar] [CrossRef]
  31. Yu, Q.; Li, H.; Li, C.L.; Zhang, S.X.; Shen, J.Z.; Wang, Z.H. Gold nanoparticles-based lateral flow immunoassay with silver staining for simultaneous detection of fumonisin B1 and deoxynivalenol. Food Control 2015, 54, 347–352. [Google Scholar] [CrossRef]
  32. Qiu, Y.L.; He, Q.H.; Xu, Y.; Bhunia, A.K.; Tu, Z.; Chen, B.; Liu, Y.Y. Deoxynivalenol-mimic nanobody isolated from a naïve phage display nanobody library and its application in immunoassay. Anal. Chim. Acta 2015, 887, 201–208. [Google Scholar] [CrossRef] [PubMed]
  33. Pagkali, V.; Petrou, P.S.; Makarona, E.; Peters, J.; Haasnoot, W.; Jobst, G.; Moser, I.; Gajos, K.; Budkowski, A.; Economou, A.; et al. Simultaneous determination of aflatoxin B1, fumonisin B1 and deoxynivalenol in beer samples with a label-free monolithically integrated optoelectronic biosensor. J. Hazard. Mater. 2018, 359, 445–453. [Google Scholar] [CrossRef] [PubMed]
  34. Zheng, H.L.; Yi, H.; Dai, H.; Fang, D.D.; Hong, Z.S.; Lin, D.M.; Zheng, X.Q.; Lin, Y.Y. Fluoro-coumarin silicon phthalocyanine sensitized integrated electrochemiluminescence bioprobe constructed on TiO2 MOFs for the sensing of deoxynivalenol. Sensor. Actuators B-Chem. 2018, 269, 27–35. [Google Scholar] [CrossRef]
  35. Li, Y.S.; Shi, W.M.; Shen, J.Z.; Zhang, S.X.; Cheng, L.L.; Wang, Z.H. Development of a rapid competitive indirect ELISA procedure for the determination of deoxynivalenol in cereals. Food Agric. Immunol. 2012, 23, 41–49. [Google Scholar] [CrossRef] [Green Version]
  36. Turner, N.W.; Subrahmanyam, S.; Piletsky, S.A. Analytical methods for determination of mycotoxins: A review. Anal. Chim. Acta 2009, 632, 168–180. [Google Scholar] [CrossRef]
  37. Lee, H.M.; Song, S.O.; Cha, S.H.; Wee, S.B.; Bischoff, K.; Park, S.W.; Son, S.W.; Kang, H.G.; Cho, M.H. Development of a monoclonal antibody against deoxynivalenol for magnetic nanoparticle-based extraction and an enzyme-linked immunosorbent assay. J. Vet. Sci. 2013, 14, 143–150. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Burmistrova, N.A.; Rusanova, T.Y.; Yurasov, N.A.; Goryacheva, I.Y.; Saeger, S.D. Multi-detection of mycotoxins by membrane based flow-through immunoassay. Food Control 2014, 46, 462–469. [Google Scholar] [CrossRef]
  39. Yuan, Y.L.; Hua, X.D.; Li, M.; Yin, W.; Shi, H.Y.; Wang, M.H. Development of a sensitive indirect competitive enzyme-linked immunosorbent assay (ic-ELISA) based on the monoclonal antibody for the detection of the benzothiostrobin. RSC Adv. 2014, 4, 24406–24411. [Google Scholar] [CrossRef]
  40. Liu, Z.J.; Zhang, B.; Sun, J.F.; Yi, Y.H.; Li, M.; Du, D.L.; Zhu, F.; Luan, J.W. Highly efficient detection of salbutamol in environmental water samples by an enzyme immunoassay. Sci. Total Environ. 2018, 613, 861–865. [Google Scholar] [CrossRef] [PubMed]
  41. Liu, Z.J.; Wei, X.; Ren, K.W.; Zhu, G.B.; Zhang, Z.; Wang, J.G.; Du, D.L. Highly efficient detection of paclobutrazol in environmental water and soil samples by time-resolved fluoroimmunoassay. Sci. Total Environ. 2016, 569, 1629–1634. [Google Scholar] [CrossRef] [PubMed]
  42. Zeng, K.; Zou, Y.M.; Liu, J.X.; Wei, W.; Zhang, M.; Zhou, J.; Zhang, Z.; Gai, Z.K. Enzyme-linked immunosorbent assay for triclocarban in aquatic environments. Water Sci. Technol. 2015, 72, 1682–1691. [Google Scholar] [CrossRef] [PubMed]
  43. China National Standard No. GB 5009.111-2016; Ministry of Health of P. R. China: Beijing, China, 2016.
Toxins 11 00006 g001 550

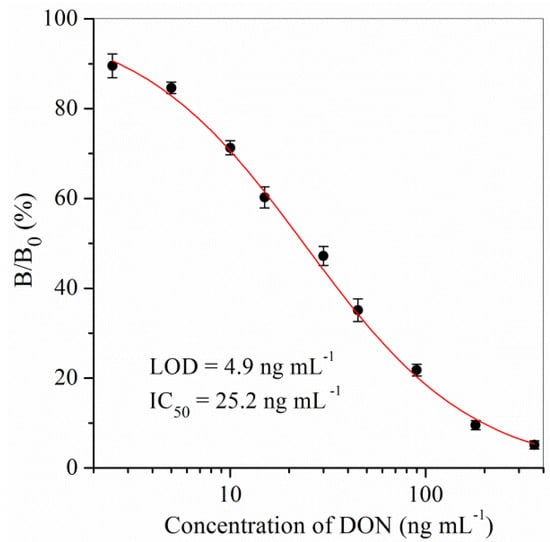

Figure 1. ELISA kit calibration curve for DON. ELISA, enzyme-linked immunosorbent assay; DON, deoxynivalenol; B/B0 (%), the ratio value of absorbance with DON and in the absence of DON; LOD, limit of detection; IC50, half-maximal inhibition concentration.
Figure 1. ELISA kit calibration curve for DON. ELISA, enzyme-linked immunosorbent assay; DON, deoxynivalenol; B/B0 (%), the ratio value of absorbance with DON and in the absence of DON; LOD, limit of detection; IC50, half-maximal inhibition concentration.
Toxins 11 00006 g001
Toxins 11 00006 g002 550

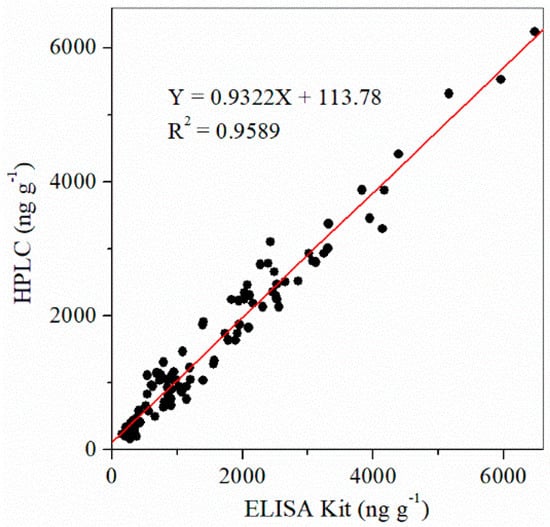

Figure 2. Correlation of the results of the ELISA kit and HPLC for DON (n = 3). HPLC, high-performance liquid chromatography.
Figure 2. Correlation of the results of the ELISA kit and HPLC for DON (n = 3). HPLC, high-performance liquid chromatography.
Toxins 11 00006 g002
Toxins 11 00006 g003 550

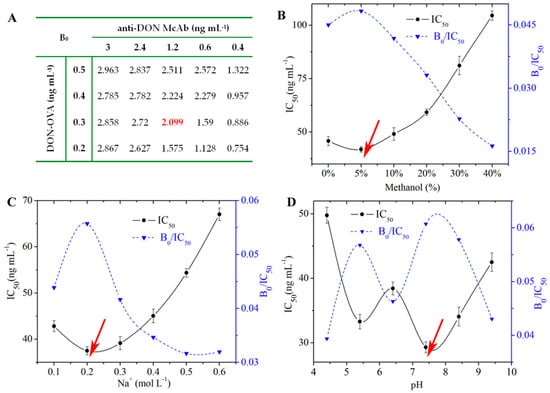

Figure 3. Optimization of the experimental parameters of the ELISA kit. (A) Optimization of the concentrations of DON-OVA and anti-DON McAb; (B) methanol content; (C) concentration of Na+; (D) pH value.
Figure 3. Optimization of the experimental parameters of the ELISA kit. (A) Optimization of the concentrations of DON-OVA and anti-DON McAb; (B) methanol content; (C) concentration of Na+; (D) pH value.
Toxins 11 00006 g003
Toxins 11 00006 g004 550

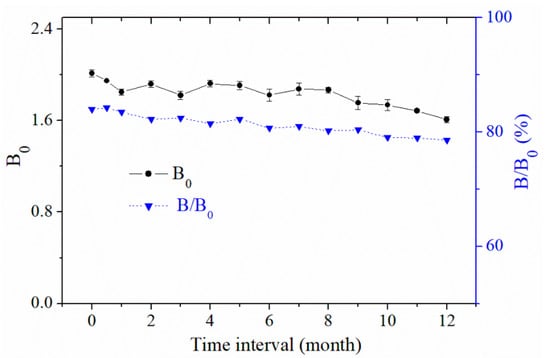

Figure 4. Stability experiments for the ELISA kit’s storage life. B0, the value of absorbance in the absence of DON; B/B0 (%), the ratio value of absorbance with 5 ng mL−1 DON and in the absence of DON.
Figure 4. Stability experiments for the ELISA kit’s storage life. B0, the value of absorbance in the absence of DON; B/B0 (%), the ratio value of absorbance with 5 ng mL−1 DON and in the absence of DON.
Toxins 11 00006 g004
Table
Table 1. Comparison of the properties of referenced and proposed immunoassays for DON.
Table 1. Comparison of the properties of referenced and proposed immunoassays for DON.
MethodsLinear Range (ng mL−1)LOD (ng mL−1)IC50 (ng mL−1)References
ELISA10–100,000203407.7[2]
ELISA5–10005.0–[21]
ELISA–0.218[22]
ELISA–6.161.1[35]
ELISA––23.4[37]
CLEIA1.7–170.00.4917[24]
FPIA447.5–3780242.01300[25]
TRFIA0.01–1000.014.84[26]
TRFIA0.0194–1000.0194–[27]
GICA––50[28]
SPR-immunoassay130–10,0002.5720[30]
Silver staining GICA––40[31]
Nanobody-based ELISA2.2–62.21.28.8[32]
Optical immunosensor2.5–1252.524[33]
Electrochemiluminescence immunosensor0.0001–200.00003–[34]
ELISA kit4.9–128.94.925.2This study
CLEIA, chemiluminescence enzyme immunoassay; FPIA, fluorescence polarization immunoassay; TRFIA, time-resolved fluoroimmunoassay; GICA, gold immunochromatographic assay; SPR, surface plasmon resonance.
Table
Table 2. Cross-reactivity of the DON ELISA kit toward related mycotoxins.
Table 2. Cross-reactivity of the DON ELISA kit toward related mycotoxins.
CompoundIC50 (ng mL−1)CR (%)
DON25.2100
3-AC-DON442.15.7
15-AC-DON>5000<0.5
DON-3-G>10,000<0.3
T-2>10,000<0.3
OTA>10,000<0.3
ZEN>10,000<0.3
AFB1>10,000<0.3
DON, deoxynivalenol; 3-AC-DON, 3-acetyldeoxynivalenol; 15-AC-DON, 15-acetyldeoxynivalenol; DON-3-G, deoxynivalenol 3-glucoside; T-2, T-2 toxin; OTA, ochratoxins A; ZEN, zearalenone; AFB1, aflatoxin B1; CR (%), cross-reactivity = (IC50 of DON/IC50 of related mycotoxin) × 100.
Table
Table 3. Accuracy and precision of DON in classified samples by the ELISA kit (n = 3, 40-fold dilution).
Table 3. Accuracy and precision of DON in classified samples by the ELISA kit (n = 3, 40-fold dilution).
SampleSpiked (ng g−1)Mean Recovery ± SD (%)RSD (%)SampleSpiked (ng g−1)Mean Recovery ± SD (%)RSD (%)
Wheat flour20087.1 ± 6.97.9Corn20088.1 ± 5.76.5
50095.0 ± 5.35.650098.4 ± 7.37.4
1000113.2 ± 9.38.2100095.2 ± 6.26.5
DDGS20079.4 ± 7.59.4Wheat200107.0 ± 7.67.1
50089.2 ± 6.27.0500106.7 ± 13.512.6
1000104.4 ± 5.85.5100096.4 ± 6.36.5
Feed20077.1 ± 9.211.9Wheat bran20076.3 ± 10.113.2
50081.7 ± 5.66.850095.0 ± 4.44.6
100089.4 ± 3.53.9100096.5 ± 4.14.2
Corn meal200114.5 ± 7.86.8
50093.3 ± 3.94.2
1000103.7 ± 4.64.4
SD, standard deviation; RSD, relative standard deviation; DDGS, distillers’ dried grains with solubles.
Table
Table 4. Detection of DON contamination distribution by the ELISA kit.
Table 4. Detection of DON contamination distribution by the ELISA kit.
SampleNumberAverage (ng g−1)Range (ng g−1)Detection Rate (%)a Less than 200 ng g−1 (%)200–1000 ng g−1 (%)1000–3000 ng g−1 (%)Above 3000 ng g−1 (%)
Wheat flour1351482.4203.3–5164.791.88.228.940.022.9
DDGS173204.51201.3–6480.694.15.9047.047.0
Feed56755.1214.9–3449.383.916.162.517.93.5
Corn47445.3200.9–2274.187.212.876.610.60
Wheat bran151849.86616.0–3123.4100026.766.76.6
Wheat311338.1204.8–5960.01000 48.448.43.2
Corn meal27279.2226.3–899.563.03763.000
a Less than 200 ng g−1 was not detected by the ELISA kit.
Table
Table 5. Components and parameters of the ELISA kit.
Table 5. Components and parameters of the ELISA kit.
NumberCompositionParameters
1Preprocessed plates96-well transparent microplates (coated with 0.3 ng mL−1 DON-OVA and blocked with 1% OVA)
2DON standard 5000 ng mL−1 in methanol (Dilute to serial standard solution using working buffer before use)
3Antibody solution6 mL (1.2 ng mL−1 anti-DON McAb in PBS with 2% BSA and 0.05% NaN3)
4GAM-HRP solution 6mL (25 ng mL−1 GAM-HRP in PBS with 2% BSA and 0.05% NaN3)
5Color substrate buffer15 mL (0.4 mmol L−1 TMB and 3 mmol L−1 H2O2 in citrate buffer, pH 5.0)
6Stop buffer7 mL (2 mol L−1 H2SO4 in H2O)
710 × Washing buffer40 mL (10 × PBST, pH 7.4)
81 × Working buffer50 mL (5% methanol, 0.2 mol L−1 Na+, pH 7.4 in PBS)
OVA, ovalbumin; McAb, monoclonal antibody; GAM-HRP, goat anti-mouse horseradish-peroxidase-conjugated antibody; TMB, 3′,5,5′-Tetramethyl benzidine; BSA, bovine serum albumin; PBS, phosphate-buffered saline.

Share and Cite

MDPI and ACS Style

Li, M.; Sun, M.; Hong, X.; Duan, J.; Du, D. Survey of Deoxynivalenol Contamination in Agricultural Products in the Chinese Market Using An ELISA Kit. Toxins 2019, 11, 6. https://doi.org/10.3390/toxins11010006

AMA Style

Li M, Sun M, Hong X, Duan J, Du D. Survey of Deoxynivalenol Contamination in Agricultural Products in the Chinese Market Using An ELISA Kit. Toxins. 2019; 11(1):6. https://doi.org/10.3390/toxins11010006

Chicago/Turabian Style

Li, Ming, Mingna Sun, Xia Hong, Jinsheng Duan, and Daolin Du. 2019. "Survey of Deoxynivalenol Contamination in Agricultural Products in the Chinese Market Using An ELISA Kit" Toxins 11, no. 1: 6. https://doi.org/10.3390/toxins11010006

APA Style

Li, M., Sun, M., Hong, X., Duan, J., & Du, D. (2019). Survey of Deoxynivalenol Contamination in Agricultural Products in the Chinese Market Using An ELISA Kit. Toxins, 11(1), 6. https://doi.org/10.3390/toxins11010006

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
