Article

Association between Protein-Bound Uremic Toxins and Asymptomatic Cardiac Dysfunction in Patients with Chronic Kidney Disease

1
Department of Nephrology, Doncaster and Bassetlaw Teaching Hospitals, Doncaster DN2 5LT, UK
2
Leeds Institute of Cardiovascular and Metabolic Medicine, University of Leeds, Leeds LS2 9DA, UK
3
Institute of Epidemiology & Preventive Medicine, College of Public Health, National University of Taiwan, Taipei 100, Taiwan
4
Department of Nephrology, Ghent University Hospital, 9000 Ghent, Belgium
5
Department of Nephrology, Leeds Teaching Hospitals NHS Trust, Leeds LS9 7TF, UK
*
Author to whom correspondence should be addressed.
Toxins 2018, 10(12), 520; https://doi.org/10.3390/toxins10120520
Submission received: 15 November 2018 / Revised: 26 November 2018 / Accepted: 1 December 2018 / Published: 5 December 2018
(This article belongs to the Special Issue Uremia and Cardiovascular Disease)

Abstract

:
Although the relationship between protein-bound uremic toxins (PBUTs) and cardiac structure and cardiac mortality in chronic kidney disease (CKD) has been studied in the past, the association between cardiac dysfunction and PBUTs has not yet been studied. We therefore evaluated the association between impaired peak cardiac performance and the serum free and total concentrations of potentially cardiotoxic PBUTs. In a cross-sectional study of 56 male CKD patients (stages 2–5 (pre-dialysis)) who were asymptomatic with no known cardiac diseases or diabetes we measured peak cardiac power (CPOmax), aerobic exercise capacity (VO2max), and echocardiographic parameters of cardiac morphology and evaluated their association with PBUTs. The serum total and free concentrations of indoxyl sulfate (IXS), p-cresyl sulfate (PCS), p-cresyl glucuronide, indole acetic acid, and hippuric acid showed significant negative correlation with CPOmax and VO2max. IXS and PCS were independently associated with CPOmax and VO2max even after controlling for eGFR. No correlation between left ventricular mass index (LVMI) and PBUTs was seen. The present study for the first time has demonstrated the association between subclinical cardiac dysfunction in CKD and serum levels of a panel of PBUTs. Further studies are required to evaluate the mechanism of cardiotoxicity of the individual uremic toxins.
Key Contribution: The study demonstrates for the first time the association between protein-bound uremic toxins and subclinical cardiac dysfunction, the precursor of symptomatic heart failure, in patients with chronic kidney disease.

1. Introduction

Cardiovascular disease (CVD) is the predominant cause of mortality and morbidity in chronic kidney disease (CKD) and end-stage renal disease (ESRD). Several pathophysiological mechanisms are being studied to understand the mechanism of CVD in CKD. Among the potentially putative agents of CVD in CKD, there is a growing interest in the role of protein-bound uremic toxins (PBUTs) [1,2]. PBUTs such as indoxyl sulfate (IXS) and p-cresyl sulfate (PCS) have been shown to elicit a wide range of toxicity such as endothelial dysfunction, vascular calcification, and induction of oxidative stress [3,4,5,6,7]. More importantly, clinical studies have shown that some of the PBUTs are associated with cardiovascular and all-cause mortality [5,8]. However, the association between cardiac dysfunction and PBUTs has not yet been studied.
In our recently published paper we demonstrated the presence of asymptomatic cardiac dysfunction in CKD patients (stages 2–5 (pre-dialysis)) with no pre-existing cardiac disease or diabetes mellitus [9]. The study also evaluated the association between asymptomatic cardiac dysfunction in CKD and the conventional renal biochemical parameters such as serum creatinine, urea, inorganic phosphate, calcium, and bicarbonate. In the present study, we evaluated the association between such subclinical cardiac dysfunction and the serum levels of a panel of potentially cardiotoxic PBUTs. In addition, we also evaluated the association between PBUTs and cardiac dimensions and aerobic exercise capacity.

2. Results

2.1. Patient Characteristics

There were 56 male CKD patients with a mean age of 46.8 ± 12.5 years covering the spectrum of CKD from stages 2 to 5 (pre-dialysis). The mean eGFR was 38.5 ± 24.1 mL/min/1.73 m2. The patient characteristics such as anthropometry, biochemistry, and parameters of central haemodynamics and exercise capacity across the CKD stages are presented in Table 1. The etiologies of CKD were as follows (number of patients in brackets): IgA nephropathy (16), polycystic kidney disease (12), reflux nephropathy and chronic pyelonephritis (13), membranoproliferative glomerulonephritis (3), Alport’s nephropathy (2), hypertensive nephropathy (1), focal segmental glomerulosclerosis (2), minimal change disease (1), and uncertain etiology (6). None of the study participants had any history of ischaemic, arrhythmic, or valvular heart diseases or diabetes mellitus. Patients were asymptomatic from a cardiac point of view (all NYHA class I). No patient had angina or ECG evidence of cardiac ischaemia or arrhythmia during cardiopulmonary exercise testing (CPX). Of the 56 patients, 62.5% were receiving angiotensin-converting enzyme inhibitors (ACE-I), 34.5% angiotensin receptor blockers, 19.6% β-blockers, and 25% statins.
The free and total concentrations of the PBUTs such as Indoxyl sulfate (IXS), p-cresyl sulfate (PCS), p-cresyl glucuronide (PCG), indole acetic acid (IAA), hippuric acid (HA), and 3-carboxy-4-methyl-5-propyl-2-furanpropionic acid (CMPF) of the full CKD cohort are presented in Table 2. Figure 1 and Figure 2 show the total and free concentrations of the PBUTs across CKD stages. Since CMPF is bound to protein for nearly 100%, only total concentrations are reported. The difference in the free concentrations of all PBUTs across the CKD stages was significant on ANOVA (all p < 0.05). On multiple comparisons, for all PBUTs, the free concentration in CKD 5 was significantly higher compared to those in CKD 2 and 3. For IXS and PCG, the free concentration in CKD 5 was significantly higher compared to those in CKD stages 2, 3, and 4.

2.2. Association between PBUTs and Peak Cardiac Performance

2.2.1. Peak Cardiac Power Output (CPOmax)

The total and free concentrations of IXS, PCS, PCG, IAA, and HA showed significant negative correlation with CPOmax. No significant correlation existed between CMPF and CPOmax. (Table 3 and Table 4).

2.2.2. Peak Cardiac Output (Peak Qt)

The total and free concentrations of IXS, PCS, PCG, IAA, and HA showed significant negative correlation with peak Qt, the volume generating capacity of the heart. No correlation was seen with CMPF (Table 3 and Table 4).

2.2.3. Peak Mean Arterial Pressure (Peak MAP)

The total and free concentrations of PCS and PCG showed significant negative correlation with peak MAP, the pressure generating capacity of the heart. No correlation was seen between IXS, IAA, HA, or CMPF and peak MAP (Table 3 and Table 4).

2.2.4. Peak Heart Rate (Peak HR)

The total concentrations of PCG, IAA, and HA and the free concentrations of PCG and IAA showed significant negative correlation with the peak HR. The other toxins did not show any significant correlations with peak HR (Table 3 and Table 4).

2.3. Association between PBUTs and Aerobic Exercise Capacity

2.3.1. Aerobic Exercise Capacity (VO2max)

The total and free concentrations of IXS, PCS, PCG, IAA, and HA showed significant negative correlation with VO2max. No significant correlation existed between CMPF and VO2max (Table 3 and Table 4).

2.3.2. Arteriovenous O2 Difference [C(a-v)O2]

The total concentrations of PCS, PCG, and IAA and free concentrations of PCS and IAA showed significant negative correlation with C(a-v)O2 (Table 3 and Table 4).

2.4. Independent Association of PBUTs with CPOmax and VO2max

In partial least squares (PLS) multiple regression analysis, serum free concentrations of IXS and PCS were independently associated with percentage predicted CPOmax for age even after controlling for eGFR. The standardised coefficients (β) were −0.35 for IXS and −0.38 for PCS. An independent association was also demonstrated between free IXS and free PCS concentration and percentage of predicted VO2max for age even after controlling for eGFR. The standardised coefficients (β) were −0.34 for IXS and −0.30 for PCS. Furthermore, an independent association was demonstrated between free PCS and C(a-v)O2 (β = −0.26). For these associations, all p are <0.05. The associations of IXS and PCS with CPOmax and VO2max are shown in Figure 3 and Figure 4. Figure 5 shows the association between PCS and C(a-v)O2.

2.5. Association between Non-Protein-Bound Uremic Toxin and Peak Cardiac Performance and Aerobic Exercise Capacity

No correlation was seen between uric acid, a representative small molecule, and the above measures of cardiac performance or the measures of aerobic exercise capacity in the study cohort.

2.6. Association between PBUTs and Cardiac Dimensions

Left ventricular hypertrophy (LVH) (LVMI > 116 g/m2) was present in 14.6% of the patients, and LV concentric remodelling was present in 37.5% of the patients. No association between PBUTs and cardiac dimensions such as left ventricular mass, left ventricular mass index, relative wall thickness, left ventricular diameter in systole or diastole, or left atrial diameter was seen. However, interventricular septal thickness showed a positive correlation with the serum free concentrations of IXS (r = 0.33, p = 0.02) and PCS (r = 0.32, p = 0.03) (Table 4). The cardiac peak power-to-mass ratio expressed as peak CPO (in watts) per 100 g of left ventricular mass showed a significant negative correlation with the serum free concentrations of IXS (r = −0.29, p = 0.04), PCS (r = −0.29, p = 0.04), and PCG (r = −0.34, p = 0.02).

2.7. Effect of Beta Blockers

Of the 11 patients who were on beta blockers, 10 of them were in CKD stages 4 or 5. Therefore, linear regression was performed, controlling for eGFR, to compare haemodynamic parameters between CKD patients who were on beta blockers and those who were not. The results showed that there were no significant differences in CPOmax (Δ −0.04 W, p = 0.87) or peak CO (Δ 0.38 L/min, p = 0.63). The mean peak HR was lower in the beta blocker group by 28.15 beats/min (p < 10−3), whereas the mean peak SV was greater in the beta blocker group by 30.65 mL (p < 10−3), offsetting the reduction in peak HR.

3. Discussion

This study demonstrated for the first time the association between protein-bound uremic toxins and subclinical cardiac dysfunction in CKD. Of the 30 or more protein-bound uremic toxins that have previously been reported [1], we tested the leading candidates that might be cardiotoxic, and we found that both free IXS and free PCS were independently and significantly associated with subclinical cardiac dysfunction in CKD.
The present study is the first instance where the association between subclinical cardiac dysfunction, the precursor of symptomatic heart failure, and PBUTs has been shown. Although previous studies demonstrated an association between IXS and the incidence of HF in CKD [10], no association was demonstrable between IXS levels and markers of cardiac dysfunction such as LV ejection fraction or serum B-type natriuretic peptides (BNP) [11]. This is probably because the studies relied on resting measures or surrogate markers of cardiac dysfunction.
The resting performance of a failing myocardium is kept as normal as possible by compensatory mechanisms; hence, measurements of the resting performance of the heart are poorly discriminatory between healthy and diseased states [12]. In our study we therefore measured the peak performance of the heart, which exposed the subclinical cardiac dysfunction in CKD and demonstrated its relationship with PBUTs. In addition, the study also demonstrated an association between individual uremic toxins and haemodynamic characteristics such as peak cardiac output (peak Qt), peak mean arterial pressure (peak MAP), and peak heart rate (peak HR), which are markers of volume generating capacity, pressure generating capacity, and chronotropic reserve of the heart, respectively.
The study has also demonstrated for the first time the independent association between PBUTs and aerobic exercise capacity. Fick’s equation states that aerobic exercise capacity is a product of cardiac output and arteriovenous O2 difference [ VO 2 = Q t × C ( a v ) O 2 ]. The study showed that the PBUTs were not only associated with impaired cardiac function but also with impaired arteriovenous O2 difference, which is a measure of peripheral O2 extraction by exercising skeletal muscles. IXS has been shown to accumulate in skeletal muscles in experimental uremia and induce metabolic alterations [13]. This could be a potential mechanism of skeletal myopathy related to PBUTs.
In the present study, in asymptomatic CKD patients, in the absence of co-morbid cardiac disease or diabetes, only 14.6% of the subjects had LVH; in addition, the study did not demonstrate any association between LVMI and PBUTs. However, there was association between PBUTs and early changes of cardiac hypertrophy such as interventricular septal thickness. More importantly, there was association between PBUTs and the LV power-to-mass ratio, a marker of cardiac pathological remodelling.
In the present study, beta blockade therapy was not shown to influence cardiac power. The reduction in peak HR associated with beta blockade was offset by the increase in SV; hence, there was no net effect on cardiac performance. Almost all CKD patients were treated with RAAS blockade, but if this has affected the results, the effect was uniform.
Mechanistic insights into the cardiotoxicity of PBUTs have been gained predominantly through the investigation of biochemical pathways using cultured cardiomyocytes or fibroblasts in the presence of PBUTs [14]. IXS and PCS have been the most studied. Studies testing other toxins and in vivo studies are rare. Nevertheless, these studies offer some significant insights into the cardiotoxicity of PBUTs. IXS was shown to induce cardiomyocyte hypertrophy through activation of the NFkB pathway and induce fibrosis through inhibition of the AMPK pathway [15,16]. Furthermore, molecular signatures of pathological remodelling, such as increased expression of mRNA for beta MHC and ANP, were seen in IXS-induced cardiotoxicity [17]. In addition, increased expression of TGF beta and IL-6, which are potent mediators of cardiac fibrosis, has also been shown [17]. Induction of oxidative stress by PBUTs is also a recurrent finding. The mechanism is implicated in the profibrotic effect of IXS and the pro-apoptotic effect of PCS [18,19].
It is pertinent to note that these pathways involved in the cardiotoxicity of PBUTs have striking similarities to the pathways seen in the pathological remodelling of the heart that leads to heart failure [20]. Several decades of heart failure research have shown that the consequences of such pathological remodelling are impaired cardiomyocyte energetics, altered expression and function of contractile proteins, impaired excitation–contraction coupling, etc., leading to impaired cardiomyocyte function and eventually myocardial dysfunction [21].
Although the current literature demonstrates the role of PBUTs in inducing cardiac ultrastructural changes such as fibrosis and hypertrophy, studies on the effects of these toxins on the cardiomyocyte function are still lacking. We believe that the relationship shown in the present study between individual PBUTs and cardiac dysfunction and the biomechanical characteristics of such dysfunction would help in the selection of candidate toxins for further in vitro and in vivo studies wherein the effects of PBUTs on cardiomyocyte physiology could be evaluated. Thus, the present work could lead to several “reverse translational” studies to further the knowledge on the cardiotoxicity of uremic toxins. Ultimately, these may reveal novel therapeutic targets.

4. Limitations

The cross-sectional nature of the study only allows for the demonstration of an association between uremic toxins and cardiac dysfunction. Further longitudinal studies of uremic-toxin-reducing strategies are required to demonstrate a causal relationship between uremic toxins and cardiac dysfunction.

5. Conclusions

This study demonstrated the association between PBUTs and early subclinical cardiac dysfunction in CKD. Although the effect of PBUTs on cardiac structure and ultrastructure has been well studied in the past, the present study for the first time has highlighted the role of PBUTs in cardiac dysfunction. We believe that the study results will open new avenues of research in exploring the mechanisms of myocardial dysfunction induced by protein-bound uremic toxins.

6. Materials and Methods

6.1. Study Subjects

Asymptomatic male CKD patients (stages 2 to 5 (pre-dialysis), n = 56) were recruited from the renal outpatient clinic of a tertiary U.K. referral center for cardiopulmonary exercise testing (CPX). The inclusion criteria were age of >18 years, male gender, and CKD stage 2 to 5 (pre-dialysis). The exclusion criteria were diabetes mellitus; any known cardiac diseases (ischaemic, arrhythmic, or valvular); limitation of exercise ability due to significant musculoskeletal, cardiovascular, pulmonary, hepatic, neurological, or other nonrenal medical disorders; and clinical hypervolemia. The present study is limited to the male gender alone to minimise confounders that arise because of gender and body composition on central haemodynamics [22,23,24]. Venous blood samples were taken prior to CPX to assay uremic toxins. Routine renal biochemistry tests were also performed. The estimated glomerular filtration rate (eGFR) was calculated using the 4-variable modification of diet in the renal disease Modification of Diet in Renal Disease (MDRD) formula [25]. The study was approved by the South Yorkshire Research Ethics Committee [Ref: 11/H1310/8, Date: 1 November 2011]. All subjects provided informed written consent before participation. These clinical investigations conformed with the Declaration of Helsinki.

6.2. Assessment of Peak Cardiac Performance

A specialised cardiopulmonary exercise test (CPX) was employed to measure peak cardiac power (CPOmax) and cardiac haemodynamics noninvasively using the CO2 rebreathing method. Full methodological details have been described in previous reports [9,26,27]. A summary of the methodology is presented here.

Cardiopulmonary Exercise Test

Resting measures: The subjects had resting measurements taken for O2 consumption and CO2 production, respiratory rate, and cardiac output using a Medgraphics CardiO2 Analytic System (Medgraphics Corp., St. Paul, MN, USA). Resting cardiac output was calculated using the Collier CO2 rebreathing method [28,29].
Determination of aerobic capacity (VO2max): Subjects then underwent an incremental exercise test on a treadmill according to a standard Bruce protocol, and every 3 min, the speed and incline of the treadmill were increased according to the protocol until the subjects reached volitional exhaustion. Throughout the treadmill test, O2 consumption, CO2 production, end-tidal partial pressure of CO2, tidal ventilation, and respiratory rate were measured using breath-to-breath analysis. The ventilatory (“anaerobic”) threshold was measured by the V-slope method [30]. A 12-lead ECG was monitored throughout, and the subject’s heart rate (HR) was obtained from this. Blood pressure (BP) was measured at rest and at 3 min intervals up to, and including, maximal exercise by auscultation and sphygmomanometry.
Determination of cardiac output: After resting at least 40 min, a second treadmill test was performed. The speed and incline of the treadmill were adjusted manually. The subjects exercised on the treadmill to 95% of their VO2 max as established in the incremental exercise test. Two or three cardiac output measurements were made using the Defare’s CO2 rebreathing method [31]. The blood pressure was measured using a sphygmomanometer after each determination of cardiac output. Peak cardiac power output is calculated using the formula C P O = ( Q t × M A P ) × K where Qt is the cardiac output, MAP is the mean arterial pressure, and K (2.22 × 10−3) is a conversion factor to convert CPO into the SI unit of power, Watt. MAP is calculated using the formula M A P = D B P + 0.412   ( S B P D B P ) where SBP and DBP are systolic and diastolic blood pressures, respectively. VO2 is calculated using Fick’s equation, V O 2 = Q t × C ( a v ) O 2 , where C(a-v)O2 is the arteriovenous O2 difference which is a measure of peripheral O2 extraction by the exercising skeletal muscles. Simultaneous measurement of Qt and VO2 in the present study enabled the estimation of C(a-v)O2 using the above equation.

6.3. Echocardiogram

A 2-dimensional study was performed in the standard parasternal long-axis and short-axis planes followed by apical 4-chamber, apical 5-chamber, and apical 2-chamber planes to evaluate the cardiac structure and left ventricular contractility. The left ventricular ejection fraction (LVEF) was calculated by Simpson’s biplane method [32] and the left ventricular mass index (LVMI) was calculated by the Devereaux method [33]. The echocardiographic parameters were also utilised to measure the left ventricular power-to-mass ratio, a marker of pathological remodelling, by expressing peak cardiac power per 100 g of left ventricular mass (W/100 g of LV mass) [34].

6.4. Protein-Bound Uremic Toxin Assays

Blood samples were obtained from study subjects prior to CPX exercise testing. After clotting for 30 min the samples were centrifuged (10 min), and the serum stored as 0.5 mL aliquots in a −80 °C freezer. Indoxyl sulfate (IXS), p-cresyl sulfate (PCS), p-cresyl glucuronide (PCG), indole acetic acid (IAA), hippuric acid (HA), and 3-carboxy-4-methyl-5-propyl-2-furanpropionic acid (CMPF) were analysed by high-performance liquid chromatography (HPLC) at the nephrology department of the Ghent University Hospital, Ghent, Belgium as described in the previously published methodological papers [35,36].
For quantification of the total fraction, serum samples were deproteinised by heat (95 °C, 30 min). After cooling (10 min on ice), samples were filtered through a Centrifree-filter (cut-off: 30 kDa; Millipore, Billerica, MA, USA). To determine the free fraction, untreated serum samples were ultrafiltered prior to heating. Indoxyl sulfate (λex: 272 nm, λem: 374 nm), p-cresyl sulfate and p-cresyl glucuronide (λex: 264 nm, λem: 290 nm), and indole-3-acetic acid (λex: 272 nm, λem: 340 nm) were detected using a Waters 2475 fluorescence detector, while uric acid, hippuric acid and CMPF were detected using a Waters 996 photodiode array detector at 300 nm, 245 nm, and 254 nm respectively (Waters Alliance 2695 device (Waters, Zellik, Belgium) connected to a Waters fluorescence detector and a UV detector).

6.5. Statistical Analysis

CPOmax was the primary outcome measure. The association between CPOmax and serum total and free concentrations of PBUTs was evaluated using Pearson’s correlation. Logarithmic transformed values of PBUT concentration were used for analysis. Similar associations with other haemodynamic parameters such as peak cardiac output (Qt), peak mean arterial pressure (MAP) and peak heart rate (HR), and aerobic exercise capacity (VO2max) and peripheral O2 extraction (C(a-v)O2) were also assessed. Furthermore, the correlation between PBUTs and measures of cardiac dimension and LV power-to-mass ratio was also assessed.
The independent association between PBUTs and CPOmax, controlling for eGFR, was assessed using partial least squares multiple regression analysis (PLS), as the use of a standard multiple regression analysis was precluded by collinearity between the independent variables. Absolute values of PBUT concentration (rather than log-transformed values) were used for such analysis. Free concentrations of PBUTs were used for analysis as only the free unbound fractions of the toxins are biologically active and, hence, clinically relevant. As CPOmax is influenced by age, percentage predicted CPOmax for age, as calculated using a previously published regression equation [22], was used as the dependent variable. Thus, in the PLS analysis, percentage predicted CPOmax was the dependent variable, and IXS, PCS, PCG, IAA, HA, and eGFR were the independent variables. Similar analyses were performed with percentage predicted VO2max as the dependent variable. Data are presented as mean ± SD or median (25th pct, 75th pct) as appropriate. p < 0.05 is considered significant.

Author Contributions

Conceptualization, S.C., A.M., G.G. and R.V.; Methodology, S.C., A.M., G.G. and R.V.; Software, not applicable; Validation, S.C. and A.M.; Formal Analysis, S.C., Y.C.Y. and Y.-K.T.; Investigation, S.C.; Resources, S.C. and A.M.; Data Curation, S.C.; Writing-Original Draft Preparation, S.C. and A.M.; Writing-Review & Editing, S.C., A.M., G.G. and R.V.; Visualization, S.C. and A.M.; Supervision, A.M., G.G. and R.V.; Project Administration, S.C. and A.M.; Funding Acquisition, S.C., A.M., G.G. and R.V.

Funding

This research project was funded by Yorkshire Kidney Research Fund (YKRF Grant August 2011) and European Renal Association—European Dialysis and Transplantation Association through ERA-EDTA Short-Term Research Fellowship (September 2012).

Acknowledgments

We thank Yorkshire Kidney Research Fund for supporting the project with a project grant. We thank ERA EDTA for the short-term research fellowship for the first author that enabled collaboration with the Nephrology Department at the Ghent University Hospital, Ghent, Belgium. We thank Prof LB Tan for reports on cardiopulmonary exercise tests. We also thank Ms Wanda McDonald for assistance with cardiopulmonary exercise testing.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Vanholder, R.; Glorieux, G.; De Smet, R.; Lameire, N. New insights in uremic toxins. Kidney Int. Suppl. 2003, 63, S6–S10. [Google Scholar] [CrossRef]
  2. Vanholder, R.; Schepers, E.; Pletinck, A.; Nagler, E.V.; Glorieux, G. The uremic toxicity of indoxyl sulfate and p-cresyl sulfate: A systematic review. J. Am. Soc. Nephrol. 2014, 25, 1897–1907. [Google Scholar] [CrossRef]
  3. Dou, L.; Jourde-Chiche, N.; Faure, V.; Cerini, C.; Berland, Y.; Dignat-George, F.; Brunet, P. The uremic solute indoxyl sulfate induces oxidative stress in endothelial cells. J. Thromb. Haemost. 2007, 5, 1302–1308. [Google Scholar] [CrossRef] [Green Version]
  4. Adijiang, A.; Goto, S.; Uramoto, S.; Nishijima, F.; Niwa, T. Indoxyl sulphate promotes aortic calcification with expression of osteoblast-specific proteins in hypertensive rats. Nephrol. Dial. Transplant. 2008, 23, 1892–1901. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Barreto, F.C.; Barreto, D.V.; Liabeuf, S.; Meert, N.; Glorieux, G.; Temmar, M.; Choukroun, G.; Vanholder, R.; Massy, Z.A.; European Uremic Toxin Work Group (EUTox). Serum indoxyl sulfate is associated with vascular disease and mortality in chronic kidney disease patients. Clin. J. Am. Soc. Nephrol. 2009, 4, 1551–1558. [Google Scholar] [CrossRef] [PubMed]
  6. Jourde-Chiche, N.; Dou, L.; Cerini, C.; Dignat-George, F.; Brunet, P. Vascular incompetence in dialysis patients-protein-bound uremic toxins and endothelial dysfunction. Semin. Dial. 2011, 24, 327–337. [Google Scholar] [CrossRef] [PubMed]
  7. Jourde-Chiche, N.; Dou, L.; Cerini, C.; Dignat-George, F.; Vanholder, R.; Brunet, P. Protein-bound toxins—Update 2009. Semin. Dial. 2009, 22, 334–339. [Google Scholar] [CrossRef]
  8. Liabeuf, S.; Barreto, D.V.; Barreto, F.C.; Meert, N.; Glorieux, G.; Schepers, E.; Temmar, M.; Choukroun, G.; Vanholder, R.; Massy, Z.A. Free p-cresylsulphate is a predictor of mortality in patients at different stages of chronic kidney disease. Nephrol. Dial. Transplant. 2009, 25, 1183–1191. [Google Scholar] [CrossRef] [Green Version]
  9. Chinnappa, S.; White, E.; Lewis, N.; Baldo, O.; Tu, Y.K.; Glorieux, G.; Vanholder, R.; El Nahas, M.; Mooney, A. Early and asymptomatic cardiac dysfunction in chronic kidney disease. Nephrol. Dial. Transplant. 2017, 33, 450–458. [Google Scholar] [CrossRef] [Green Version]
  10. Cao, X.S.; Chen, J.; Zou, J.Z.; Zhong, Y.H.; Teng, J.; Ji, J.; Chen, Z.W.; Liu, Z.H.; Shen, B.; Nie, Y.X.; et al. Association of indoxyl sulfate with heart failure among patients on hemodialysis. Clin. J. Am. Soc. Nephrol. 2015, 10, 111–119. [Google Scholar] [CrossRef]
  11. Shimazu, S.; Hirashiki, A.; Okumura, T.; Yamada, T.; Okamoto, R.; Shinoda, N.; Takeshita, K.; Kondo, T.; Niwa, T.; Murohara, T. Association between indoxyl sulfate and cardiac dysfunction and prognosis in patients with dilated cardiomyopathy. Circ. J. 2013, 77, 390–396. [Google Scholar] [CrossRef] [PubMed]
  12. Cotter, G.; Williams, S.G.; Vered, Z.; Tan, L.B. Role of cardiac power in heart failure. Curr. Opin. Cardiol. 2003, 18, 215–222. [Google Scholar] [CrossRef]
  13. Sato, E.; Mori, T.; Mishima, E.; Suzuki, A.; Sugawara, S.; Kurasawa, N.; Saigusa, D.; Miura, D.; Morikawa-Ichinose, T.; Saito, R.; et al. Metabolic alterations by indoxyl sulfate in skeletal muscle induce uremic sarcopenia in chronic kidney disease. Sci. Rep. 2016, 6, 36618. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Lekawanvijit, S. Cardiotoxicity of uremic toxins: A driver of cardiorenal syndrome. Toxins 2018, 10, 352. [Google Scholar] [CrossRef] [PubMed]
  15. Lekawanvijit, S.; Adrahtas, A.; Kelly, D.J.; Kompa, A.R.; Wang, B.H.; Krum, H. Does indoxyl sulfate, a uraemic toxin, have direct effects on cardiac fibroblasts and myocytes? Eur. Heart J. 2010, 31, 1771–1779. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Yang, K.; Xu, X.; Nie, L.; Xiao, T.; Guan, X.; He, T.; Yu, Y.; Liu, L.; Huang, Y.; Zhang, J.; et al. Indoxyl sulfate induces oxidative stress and hypertrophy in cardiomyocytes by inhibiting the AMPK/UCP2 signaling pathway. Toxicol. Lett. 2015, 234, 110–119. [Google Scholar] [CrossRef]
  17. Lekawanvijit, S.; Kompa, A.R.; Manabe, M.; Wang, B.H.; Langham, R.G.; Nishijima, F.; Kelly, D.J.; Krum, H. Chronic kidney disease-induced cardiac fibrosis is ameliorated by reducing circulating levels of a non-dialysable uremic toxin, indoxyl sulfate. PLoS ONE 2012, 7, e41281. [Google Scholar] [CrossRef] [PubMed]
  18. Fujii, H.; Nishijima, F.; Goto, S.; Sugano, M.; Yamato, H.; Kitazawa, R.; Kitazawa, S.; Fukagawa, M. Oral charcoal adsorbent (AST-120) prevents progression of cardiac damage in chronic kidney disease through suppression of oxidative stress. Nephrol. Dial. Transplant. 2009, 24, 2089–2095. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Han, H.; Zhu, J.; Zhu, Z.; Ni, J.; Du, R.; Dai, Y.; Chen, Y.; Wu, Z.; Lu, L.; Zhang, R. p-cresyl sulfate aggravates cardiac dysfunction associated with chronic kidney disease by enhancing apoptosis of cardiomyocytes. J. Am. Heart Assoc. 2015, 4, e001852. [Google Scholar] [CrossRef] [PubMed]
  20. Nakamura, M.; Sadoshima, J. Mechanisms of physiological and pathological cardiac hypertrophy. Nat. Rev. Cardiol. 2018, 15, 387–407. [Google Scholar] [CrossRef] [PubMed]
  21. Braunwald, E.; Bristow, M.R. Congestive heart failure: Fifty years of progress. Circulation 2000, 102, IV14–IV23. [Google Scholar] [CrossRef] [PubMed]
  22. Goldspink, D.F.; George, K.P.; Chantler, P.D.; Clements, R.E.; Sharp, L.; Hodges, G.; Stephenson, C.; Reilly, T.P.; Patwala, A.; Szakmany, T.; et al. A study of presbycardia, with gender differences favoring ageing women. Int. J. Cardiol. 2009, 137, 236–245. [Google Scholar] [CrossRef] [PubMed]
  23. Hothi, S.S.; Tan, D.K.; Partridge, G.; Tan, L.B. Scaling considerations in the cardiovascular pathophysiology of obese patients. Int. J. Cardiol. 2015, 191, 312–313. [Google Scholar] [CrossRef] [PubMed]
  24. Savonen, K.; Krachler, B.; Hassinen, M.; Komulainen, P.; Kiviniemi, V.; Lakka, T.A.; Rauramaa, R. The current standard measure of cardiorespiratory fitness introduces confounding by body mass: The DR’s EXTRA study. Int. J. Obes. 2012, 36, 1135–1140. [Google Scholar] [CrossRef] [PubMed]
  25. Levey, A.S.; Bosch, J.P.; Lewis, J.B.; Greene, T.; Rogers, N.; Roth, D. A more accurate method to estimate glomerular filtration rate from serum creatinine: A new prediction equation. Modification of diet in renal disease study group. Ann. Intern. Med. 1999, 130, 461–470. [Google Scholar] [CrossRef] [PubMed]
  26. Cooke, G.A.; Marshall, P.; Al-Timman, J.K.; Wright, D.J.; Riley, R.; Hainsworth, R.; Tan, L.B. Physiological cardiac reserve: Development of a non-invasive method and first estimates in man. Heart 1998, 79, 289–294. [Google Scholar] [CrossRef]
  27. Williams, S.G.; Cooke, G.A.; Wright, D.J.; Parsons, W.J.; Riley, R.L.; Marshall, P.; Tan, L.B. Peak exercise cardiac power output; a direct indicator of cardiac function strongly predictive of prognosis in chronic heart failure. Eur. Heart J. 2001, 22, 1496–1503. [Google Scholar] [CrossRef] [Green Version]
  28. Collier, C.R. Determination of mixed venous CO2 tensions by rebreathing. J. Appl. Physiol. 1956, 9, 25–29. [Google Scholar] [CrossRef]
  29. Vanhees, L.; Defoor, J.; Schepers, D.; Brusselle, S.; Reybrouck, T.; Fagard, R. Comparison of cardiac output measured by two automated methods of CO2 rebreathing. Med. Sci. Sports Exerc. 2000, 32, 1028–1034. [Google Scholar] [CrossRef]
  30. Beaver, W.L.; Wasserman, K.; Whipp, B.J. A new method for detecting anaerobic threshold by gas exchange. J. Appl. Physiol. 1986, 60, 2020–2027. [Google Scholar] [CrossRef]
  31. Defares, J.G. Determination of PvCO2 from the exponential CO2 rise during rebreathing. J. Appl. Physiol. 1958, 13, 159–164. [Google Scholar] [CrossRef] [PubMed]
  32. Otterstad, J.E.; Froeland, G.; St John Sutton, M.; Holme, I. Accuracy and reproducibility of biplane two-dimensional echocardiographic measurements of left ventricular dimensions and function. Eur. Heart J. 1997, 18, 507–513. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Devereux, R.B.; Alonso, D.R.; Lutas, E.M.; Gottlieb, G.J.; Campo, E.; Sachs, I.; Reichek, N. Echocardiographic assessment of left ventricular hypertrophy: Comparison to necropsy findings. Am. J. Cardiol. 1986, 57, 450–458. [Google Scholar] [CrossRef]
  34. Cortigiani, L.; Sorbo, S.; Miccoli, M.; Scali, M.C.; Simioniuc, A.; Morrone, D.; Bovenzi, F.; Marzilli, M.; Dini, F.L. Prognostic value of cardiac power output to left ventricular mass in patients with left ventricular dysfunction and dobutamine stress echo negative by wall motion criteria. Eur. Heart J. Cardiovasc. Imaging 2017, 18, 153–158. [Google Scholar] [CrossRef] [PubMed]
  35. Fagugli, R.M.; De Smet, R.; Buoncristiani, U.; Lameire, N.; Vanholder, R. Behavior of non-protein-bound and protein-bound uremic solutes during daily hemodialysis. Am. J. Kidney Dis. 2002, 40, 339–347. [Google Scholar] [CrossRef] [PubMed]
  36. Meert, N.; Schepers, E.; Glorieux, G.; Van Landschoot, M.; Goeman, J.L.; Waterloos, M.A.; Dhondt, A.; Van der Eycken, J.; Vanholder, R. Novel method for simultaneous determination of p-cresylsulphate and p-cresylglucuronide: Clinical data and pathophysiological implications. Nephrol. Dial. Transplant 2012, 27, 2388–2396. [Google Scholar] [CrossRef] [PubMed]

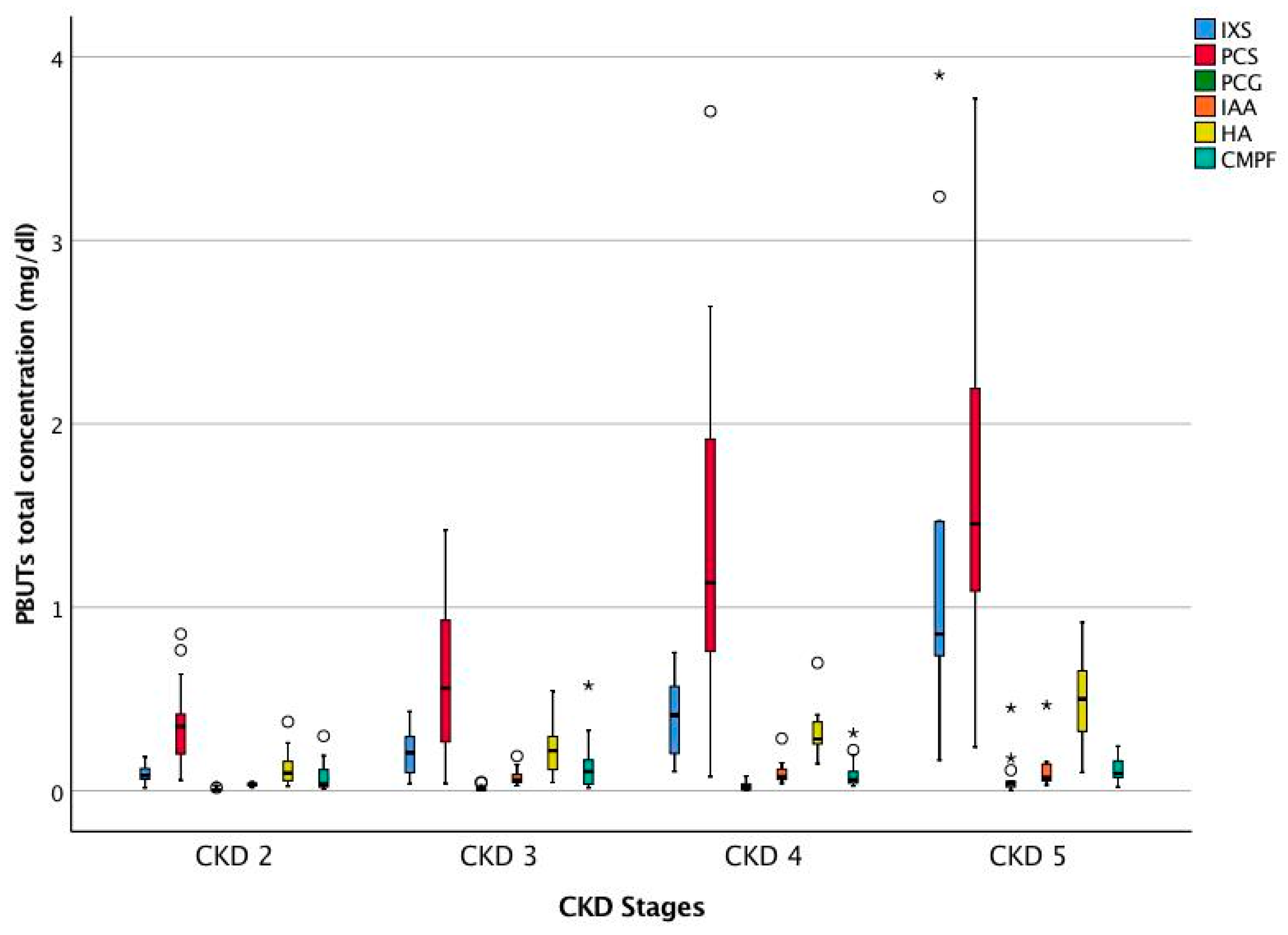

Figure 1. Serum total concentration of PBUTs across CKD stages. CKD 2 (n = 14), CKD 3 (n = 15), CKD 4 (n = 16), and CKD 5 (n = 11). Outliers: ° >1.5 × interquartile range (IQR) and * >3.0 × IQR. Indoxyl sulfate (IXS), p-cresyl sulfate (PCS), p-cresyl glucuronide (PCG), indole acetic acid (IAA), Hippuric acid (HA), and 3-carboxy-4-methyl-5-propyl-2-furanpropionic acid (CMPF).
Figure 1. Serum total concentration of PBUTs across CKD stages. CKD 2 (n = 14), CKD 3 (n = 15), CKD 4 (n = 16), and CKD 5 (n = 11). Outliers: ° >1.5 × interquartile range (IQR) and * >3.0 × IQR. Indoxyl sulfate (IXS), p-cresyl sulfate (PCS), p-cresyl glucuronide (PCG), indole acetic acid (IAA), Hippuric acid (HA), and 3-carboxy-4-methyl-5-propyl-2-furanpropionic acid (CMPF).
Toxins 10 00520 g001

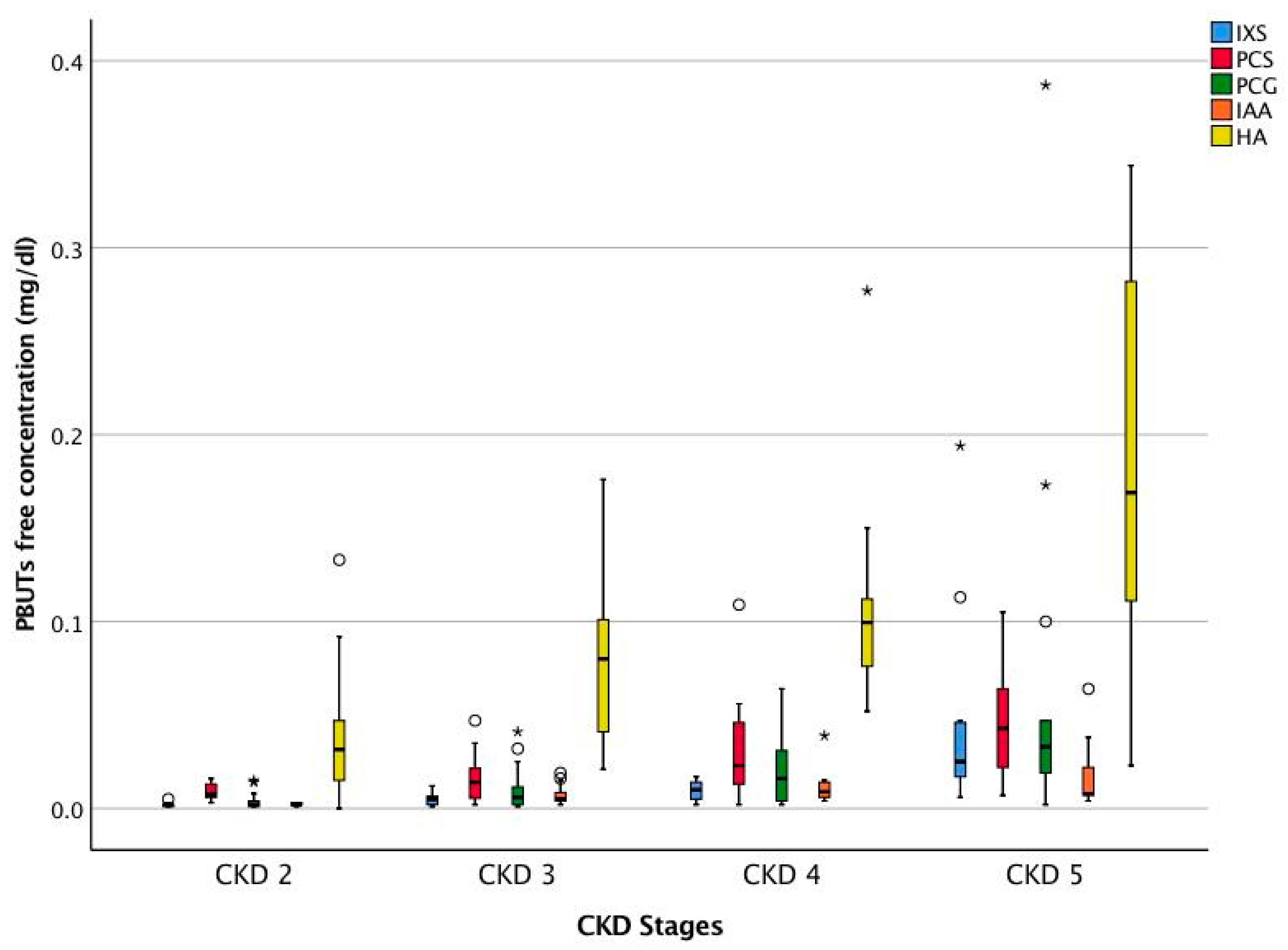

Figure 2. Serum free concentration of PBUTs across CKD stages. CKD 2 (n = 14), CKD 3 (n = 15), CKD 4 (n = 16), and CKD 5 (n = 11). Outliers: ° >1.5 × IQR and * >3.0 × IQR. Indoxyl sulfate (IXS), p-cresyl sulfate (PCS), p-cresyl glucuronide (PCG), indole acetic acid (IAA), and Hippuric acid (HA).
Figure 2. Serum free concentration of PBUTs across CKD stages. CKD 2 (n = 14), CKD 3 (n = 15), CKD 4 (n = 16), and CKD 5 (n = 11). Outliers: ° >1.5 × IQR and * >3.0 × IQR. Indoxyl sulfate (IXS), p-cresyl sulfate (PCS), p-cresyl glucuronide (PCG), indole acetic acid (IAA), and Hippuric acid (HA).
Toxins 10 00520 g002

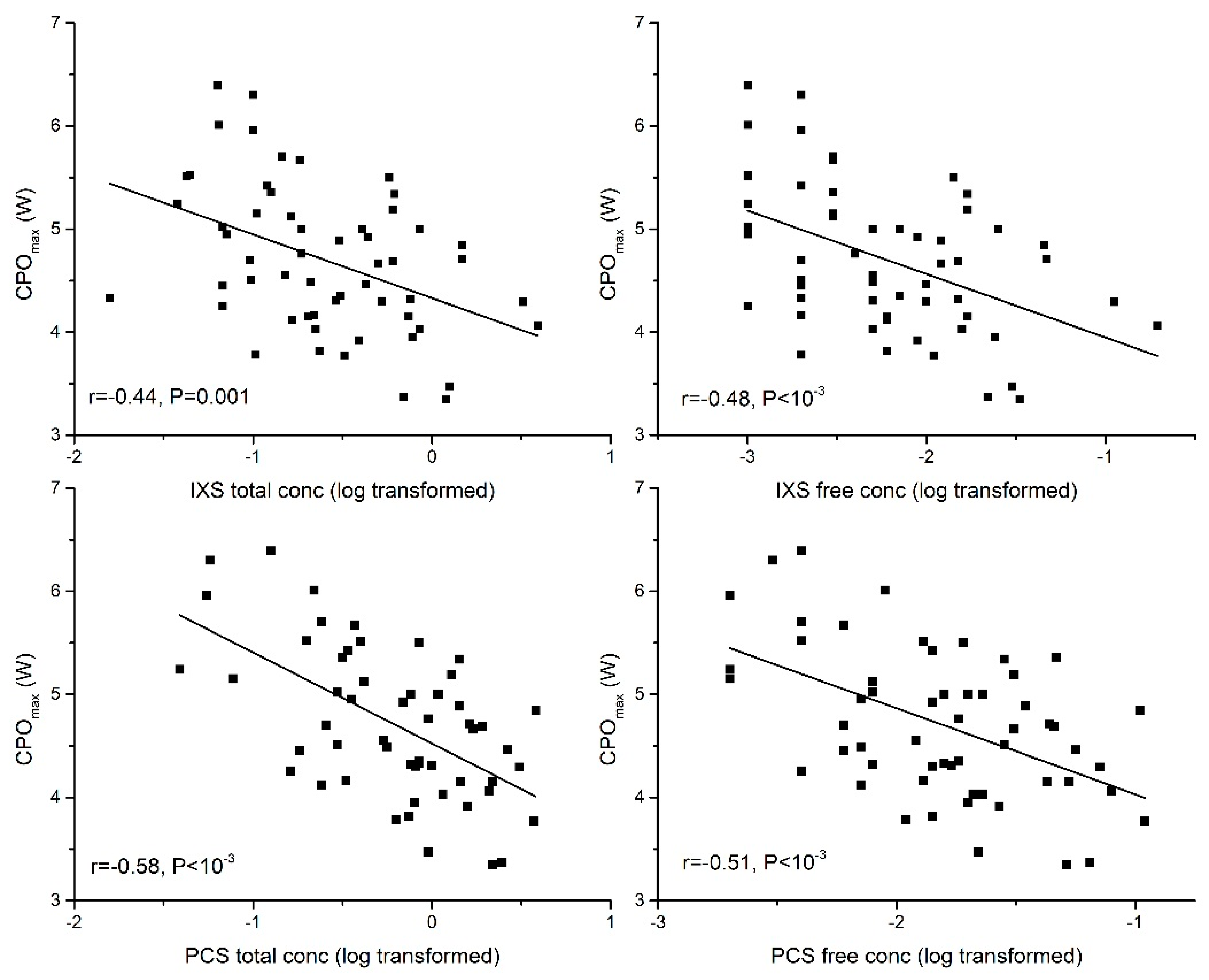

Figure 3. Association of serum total and free concentrations of indoxyl sulfate (IXS) and p-cresyl sulfate (PCS) with peak cardiac power (CPOmax).
Figure 3. Association of serum total and free concentrations of indoxyl sulfate (IXS) and p-cresyl sulfate (PCS) with peak cardiac power (CPOmax).
Toxins 10 00520 g003

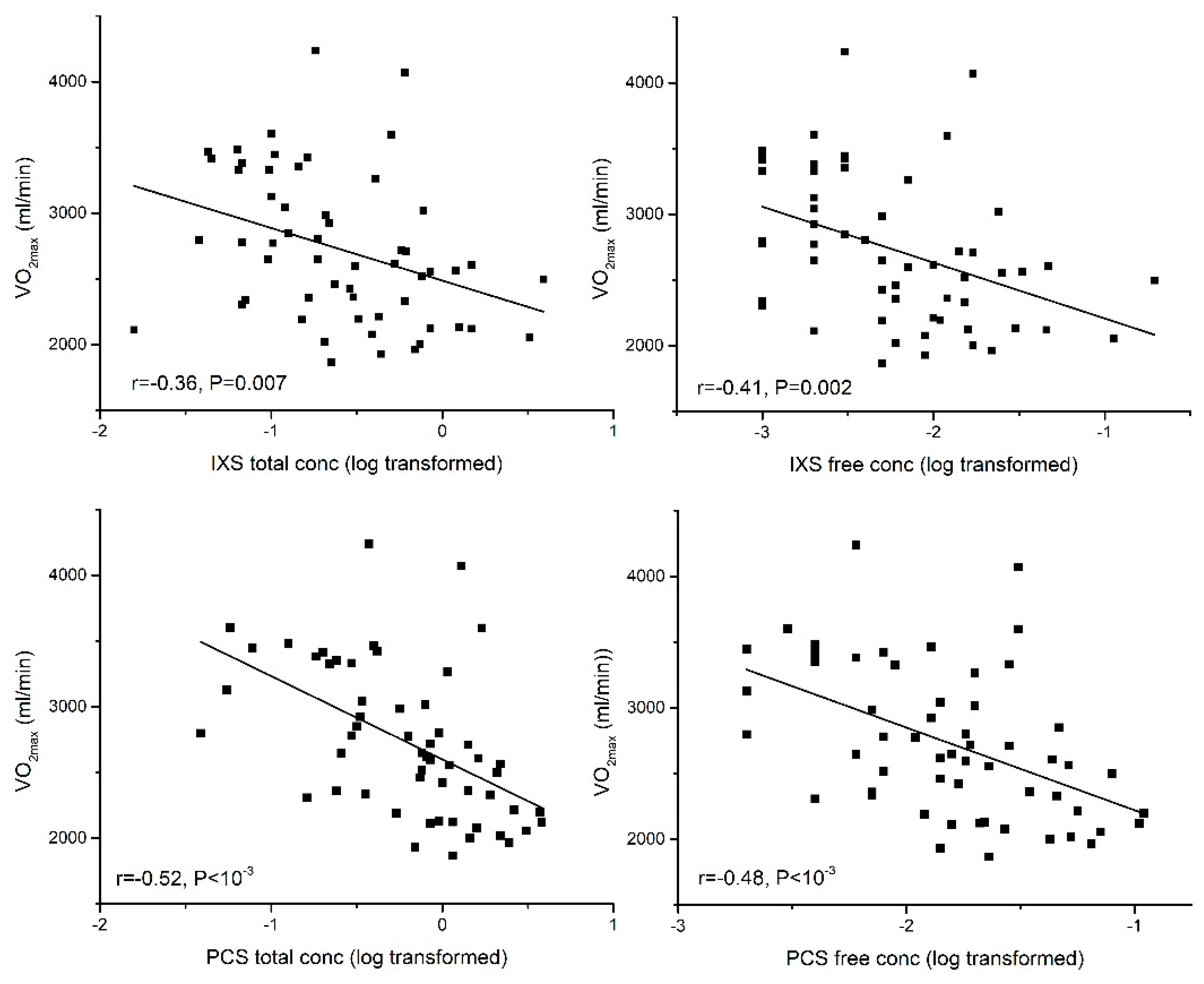

Figure 4. Association of serum total and free concentrations of indoxyl sulfate (IXS) and p-cresyl sulfate (PCS) with aerobic exercise capacity (VO2max).
Figure 4. Association of serum total and free concentrations of indoxyl sulfate (IXS) and p-cresyl sulfate (PCS) with aerobic exercise capacity (VO2max).
Toxins 10 00520 g004

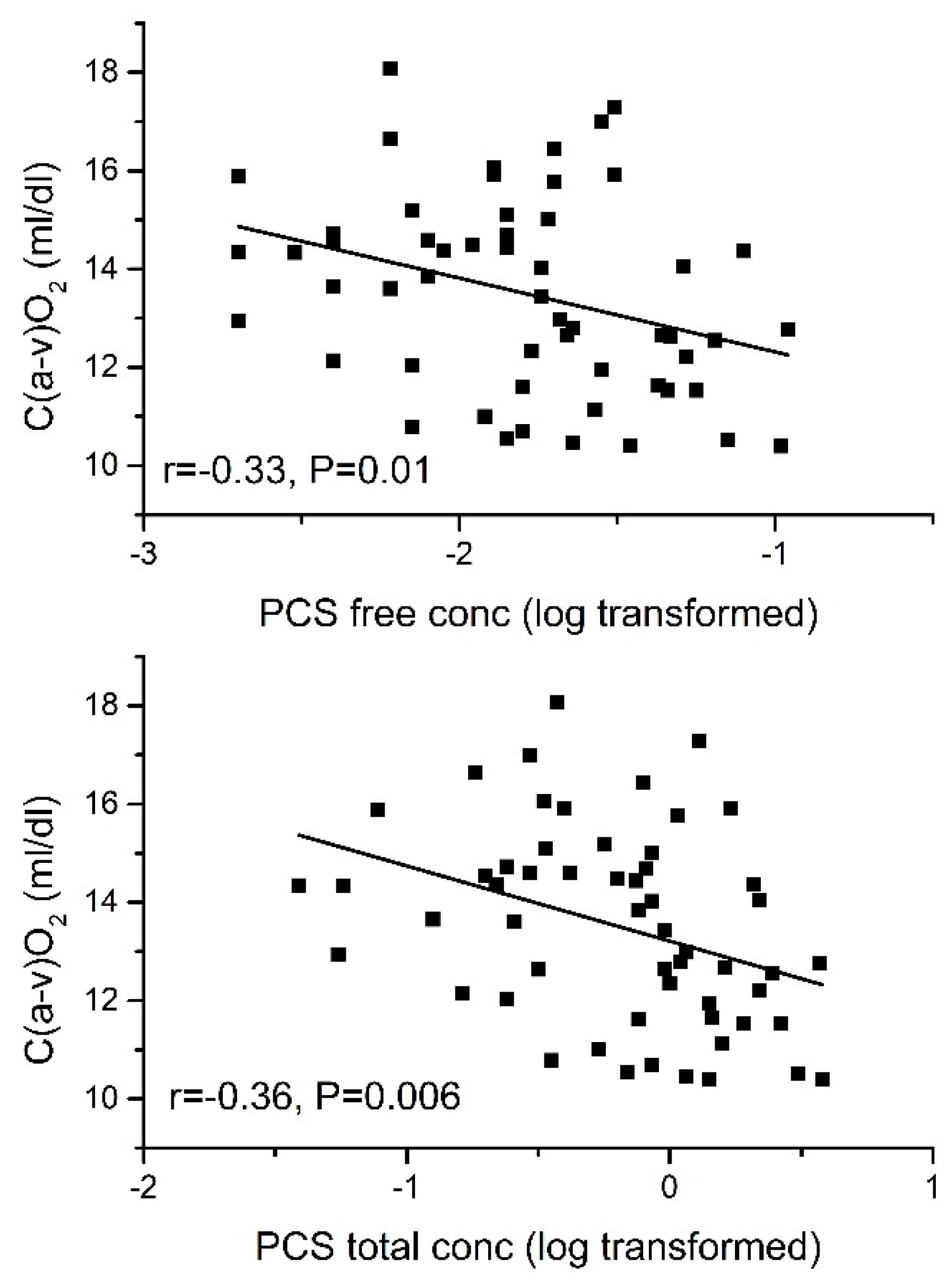

Figure 5. Association between serum total and free concentration of p-cresyl sulfate (PCS) and arterio-venous O2 difference [C(a-v)O2].
Figure 5. Association between serum total and free concentration of p-cresyl sulfate (PCS) and arterio-venous O2 difference [C(a-v)O2].
Toxins 10 00520 g005
Table 1. Patient characteristics.
Table 1. Patient characteristics.
Patient Characteristics CKD 2
(n = 14)
CKD 3
(n = 15)
CKD 4
(n = 16)
CKD 5
(n = 11)
ANOVA
(p)
Age (years)38.1 ± 8.852.2 ± 9.148.6 ± 12.747.9 ± 15.40.01 *
BMI (kg/m2)26.6 ± 3.628.6 ± 4.126.6 ± 4.229.5 ± 4.10.16
Biochemistry
eGFR (mL/min)73.5 ± 7.943.2 ± 7.921.5 ± 4.311.9 ± 2.4<10−3 *
Creatinine (μmoL/L)104.6 ± 10.9158.1 ± 2.6294.8 ± 56.7550.1 ± 227.4<10−3 *
Urea (mmoL/L)7.3 ± 1.811.5 ± 2.420.1 ± 3.627.0 ± 8.7<10−3 *
Calcium (mmoL/L)2.4 ± 0.12.4 ± 0.12.3 ± 0.12.3 ± 0.20.54
Phosphate (mmoL/L)1.1 ± 0.21.1 ± 0.11.2 ± 0.11.6 ± 0.70.001 *
Bicarbonate (mmoL/L)28 ± 2.525.9 ± 2.522.9 ± 3.321.0 ± 3.5<10−3 *
Uric acid (mg/dL)8.6 ± 2.010.9 ± 2.39.7 ± 2.210.4 ± 2.20.05
PTH (pmoL/L)6.1 ± 4.816.9 ± 25.725.4 ± 17.447.6 ± 38.90.005 *
Haemoglobin (g/dL)15.1 ± 1.214 ± 1.413.2 ± 1.612.1 ± 1.3<10−3 *
CPX parameters
Peak Qt (L/min)22.1 ± 2.120.1 ± 2.119.1 ± 2.219.1 ± 1.90.001 *
Peak MAP (mmHg)106.4 ± 8.9107.6 ± 7.9104.2 ± 10.0101.0 ± 8.90.32
Peak HR (beats/min)169.7 ± 18.1151.8 ± 12.8149.3 ± 23.7145.1 ± 18.50.007 *
CPOmax (W)5.23 ± 0.764.79 ± 0.614.44 ± 0.554.29 ± 0.630.002 *
VO2max (L/min)3.13 ± 0.572.70 ± 0.472.61 ± 0.632.43 ± 0.300.009 *
Peak C(a-v)O2 (dL/min)14.2 ± 2.113.4 ± 2.013.5 ± 2.0412.8 ± 1.70.40
BMI: body mass index, Qt: cardiac output, MAP: mean arterial pressure, HR: heart rate, CPOmax: peak cardiac power, VO2max: peak O2 consumption, C(a-v)O2: arteriovenous difference in O2 concentration.* p < 0.05 on ANOVA across chronic kidney disease (CKD) stages.
Table 2. Total and free concentrations of the assayed protein-bound uremic toxins (PBUTs).
Table 2. Total and free concentrations of the assayed protein-bound uremic toxins (PBUTs).
Uremic ToxinsSerum Concentration
Median (25th pct, 75th pct)
(n = 56)
IXS (mg/dL)Total0.222 (0.101, 0.598)
Free0.006 (0.002, 0.015)
PCS (mg/dL)Total0.782 (0.303, 1.418)
Free0.017 (0.007, 0.031)
PCG (mg/dL)Total0.013 (0.004, 0.035)
Free0.011 (0.002, 0.029)
IAA (mg/dL)Total0.057 (0.040, 0.101)
Free0.005 (0.003, 0.011)
HA (mg/dL)Total0.255 (0.119, 0.379)
Free0.084 (0.038, 0.137)
CMPF (mg/dL)Total0.071 (0.035, 0.156)
Indoxyl sulfate (IXS), p-cresyl sulfate (PCS), p-cresyl glucuronide (PCG), indole acetic acid (IAA), hippuric acid (HA), and 3-carboxy-4-methyl-5-propyl-2-furanpropionic acid (CMPF).
Table 3. Correlation coefficients (r) between serum total concentration of PBUTs and parameters of cardiac function, structure, and exercise capacity.
Table 3. Correlation coefficients (r) between serum total concentration of PBUTs and parameters of cardiac function, structure, and exercise capacity.
Study ParametersIXSPCSPCGIAACMPFHA
CPOmax−0.44 **−0.58 **−0.52 **−0.33 * −0.35 **
Peak Qt−0.41 **−0.48 **−0.45 **−0.27 * −0.42 **
Peak MAP −0.35 **−0.30 *
Peak HR −0.41 **−0.27 * −0.30 *
VO2max−0.36 **−0.53 **−0.43 **−0.37 ** −0.30 *
Peak C(a-v)O2 −0.36 **−0.26 *−0.31 *
LVMI
IVSd0.30 *
Heat map showing negative correlations in Toxins 10 00520 i001 and positive correlations in Toxins 10 00520 i002. Blank spaces represent no significant correlation. ** p < 0.01 and * p < 0.05 on Pearson correlation. Log-transformed values of serum concentrations of uremic toxins were used for analysis. CPOmax: peak cardiac power; peak Qt: peak cardiac output; MAP: mean arterial pressure; peak HR: peak heart rate; VO2max: aerobic exercise capacity; C(a-v)O2: arteriovenous O2 difference; LVMI: left ventricular mass index; IVSd: interventricular septal thickness at end diastole. Indoxyl sulfate (IXS), p-cresyl sulfate (PCS), p-cresyl glucuronide (PCG), indole acetic acid (IAA), hippuric acid, and 3-carboxy-4-methyl-5-propyl-2-furanpropionic acid (CMPF).
Table 4. Correlation coefficients (r) between serum free concentration of PBUTs and parameters of cardiac function, structure, and exercise capacity.
Table 4. Correlation coefficients (r) between serum free concentration of PBUTs and parameters of cardiac function, structure, and exercise capacity.
Study ParametersIXSPCSPCGIAAHA
CPOmax−0.48 **−0.51 **−0.52 **−0.40 **−0.29 *
Peak Qt−0.41 **−0.44 **−0.45 **−0.33 *−0.40 **
Peak MAP −0.29 *−0.29 *
Peak HR −0.41 **−0.31 *
VO2max−0.41 **−0.48 **−0.42 **−0.41 **−0.38 **
Peak C(a-v)O2 −0.332 * −0.31 *
LVMI
IVSd0.33 *0.32 *
Heat map showing negative correlations in Toxins 10 00520 i001 and positive correlations in Toxins 10 00520 i002. Blank spaces represent no significant correlation. ** p < 0.01 and * p < 0.05 on Pearson correlation. Log-transformed values of serum concentrations of uremic toxins were used for analysis. CPOmax: peak cardiac power; peak Qt: peak cardiac output; MAP: mean arterial pressure; peak HR: peak heart rate; VO2max: aerobic exercise capacity; C(a-v)O2: arteriovenous O2 difference; LVMI: left ventricular mass index; IVSd: interventricular septal thickness at end diastole. Indoxyl sulfate (IXS), p-cresyl sulfate (PCS), p-cresyl glucuronide (PCG), indole acetic acid (IAA), and hippuric acid (HA).

Share and Cite

MDPI and ACS Style

Chinnappa, S.; Tu, Y.-K.; Yeh, Y.C.; Glorieux, G.; Vanholder, R.; Mooney, A. Association between Protein-Bound Uremic Toxins and Asymptomatic Cardiac Dysfunction in Patients with Chronic Kidney Disease. Toxins 2018, 10, 520. https://doi.org/10.3390/toxins10120520

AMA Style

Chinnappa S, Tu Y-K, Yeh YC, Glorieux G, Vanholder R, Mooney A. Association between Protein-Bound Uremic Toxins and Asymptomatic Cardiac Dysfunction in Patients with Chronic Kidney Disease. Toxins. 2018; 10(12):520. https://doi.org/10.3390/toxins10120520

Chicago/Turabian Style

Chinnappa, Shanmugakumar, Yu-Kang Tu, Yi Chun Yeh, Griet Glorieux, Raymond Vanholder, and Andrew Mooney. 2018. "Association between Protein-Bound Uremic Toxins and Asymptomatic Cardiac Dysfunction in Patients with Chronic Kidney Disease" Toxins 10, no. 12: 520. https://doi.org/10.3390/toxins10120520

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
