Open AccessReview

Antiviral Properties of Flavonoids and Delivery Strategies

Department of Biomolecular Sciences, Section of Biochemistry and Biotechnologies, University of Urbino Carlo Bo, 61029 Urbino, Italy
*
Authors to whom correspondence should be addressed.
Nutrients 2020, 12(9), 2534; https://doi.org/10.3390/nu12092534
Received: 5 July 2020 / Revised: 14 August 2020 / Accepted: 18 August 2020 / Published: 21 August 2020
(This article belongs to the Section Phytochemicals and Human Health)

Abstract

This review summarizes the latest advancements in phytochemicals as functional antiviral agents. We focused on flavonoids, like apigenin, vitexin, quercetin, rutin and naringenin, which have shown a wide range of biological effects including antiviral activities. The molecular mechanisms of their antiviral effects mainly consist in the inhibition of viral neuraminidase, proteases and DNA/RNA polymerases, as well as in the modification of various viral proteins. Mixtures of different flavonoids or combination of flavonoids with antiviral synthetic drugs provide an enhancement of their antiviral effects. Recent strategies in drug delivery significantly contribute to overcoming the low bioavailability of flavonoids. Frequent viral infections worldwide have led to the need for new effective antiviral agents, which can be identified among the various phytochemicals. In this light, screening the antiviral activities of a cocktail of flavonoids would be advantageous in order to prevent viral infections and improve current antiviral therapies.
Keywords: flavonoids; antiviral properties; viral enzymes; phytochemical delivery strategies flavonoids; antiviral properties; viral enzymes; phytochemical delivery strategies

1. Introduction

In the past two decades, studies conducted in our laboratory focused on the antioxidants present in vegetable foods and on their capacity to reduce the adverse physiological effects of the oxygen free radicals [1,2]. The research was also aimed at the technologies of food transformation in order to preserve, as much as possible, the antioxidants in the final products [3]. Antioxidants are mainly represented in nature by the liposoluble vitamins E and A, β-carotene, hydro-soluble vitamin C and a wide range of amphipathic molecules, broadly termed phenolic compounds [1]. These compounds are divided into several sub-classes, including phenolic acids and analogues, stilbenes, flavonoids and their analogues. Flavonoids possess important health protective effects, including anti-inflammatory, anticancer and antiviral properties [4,5,6,7,8,9,10]. There are in nature more than 6000 flavonoids, which have been structurally identified and divided in classes: flavones (e.g., apigenin), flavanols (e.g., quercetin), flavins (e.g., epigallocatechin-3-gallate), isoflavones (e.g., genistein) and anthocyanidins (e.g., cyanidin). Flavonoids occur in their free or conjugated form or are often esterified with one or two sugars with O-glycosidic or C-glycosidic bonds [11]. In the past decade we purified and studied the biological effects of a group of the flavonoid C-glycosides derived from apigenin, namely vitexin, vitexin-2-O-rhamnoside and vitexin-2-O-xyloside (Figure 1).
The interest in the antiviral activity of natural flavonoids has increased in the last decade because of the frequency of viral infections, particularly influenza infections, which affect several million patients annually [12]. While vaccination is the primary strategy for influenza prevention, there are scenarios for which vaccination is not possible and antiviral molecules represent an important sanitary presidium. Synthetic antiviral drugs often show limited efficacy and serious adverse effects [13], whereas herbal extracts, known for their antiviral properties with no or mild side effects, may be a viable alternative for treating various viral diseases [14]. Viruses consist of nucleic acid (DNA or RNA) enclosed in a protein structure, called capsid, which can be surrounded by a lipid membrane named the envelope. The infective unit of the virus is called the virion and this parasite can replicate only inside host cells, hijacking the molecular machinery and controlling DNA replication, RNA transcription and the protein translation processes. Viruses attack the host cells through adsorption to receptors specific for each type of target cells, penetrating through the cell membrane, then the genetic material of the virus is liberated to replicate its own genome, produce new viral proteins and obtain new virions [15]. In 2017, the antiviral effects of various phytochemicals were reviewed by Kapoor et al. [15], taking into consideration many categories of compounds, ranging from flavonoids to saponins and lignans. In the same year, another group published a review focused specifically on the antiviral effects of the six classes of flavonoids [16]. In 2020, an interesting review regarding the methods for delivery of phytochemicals to increase their bioavailability in human tissues has been published [17].

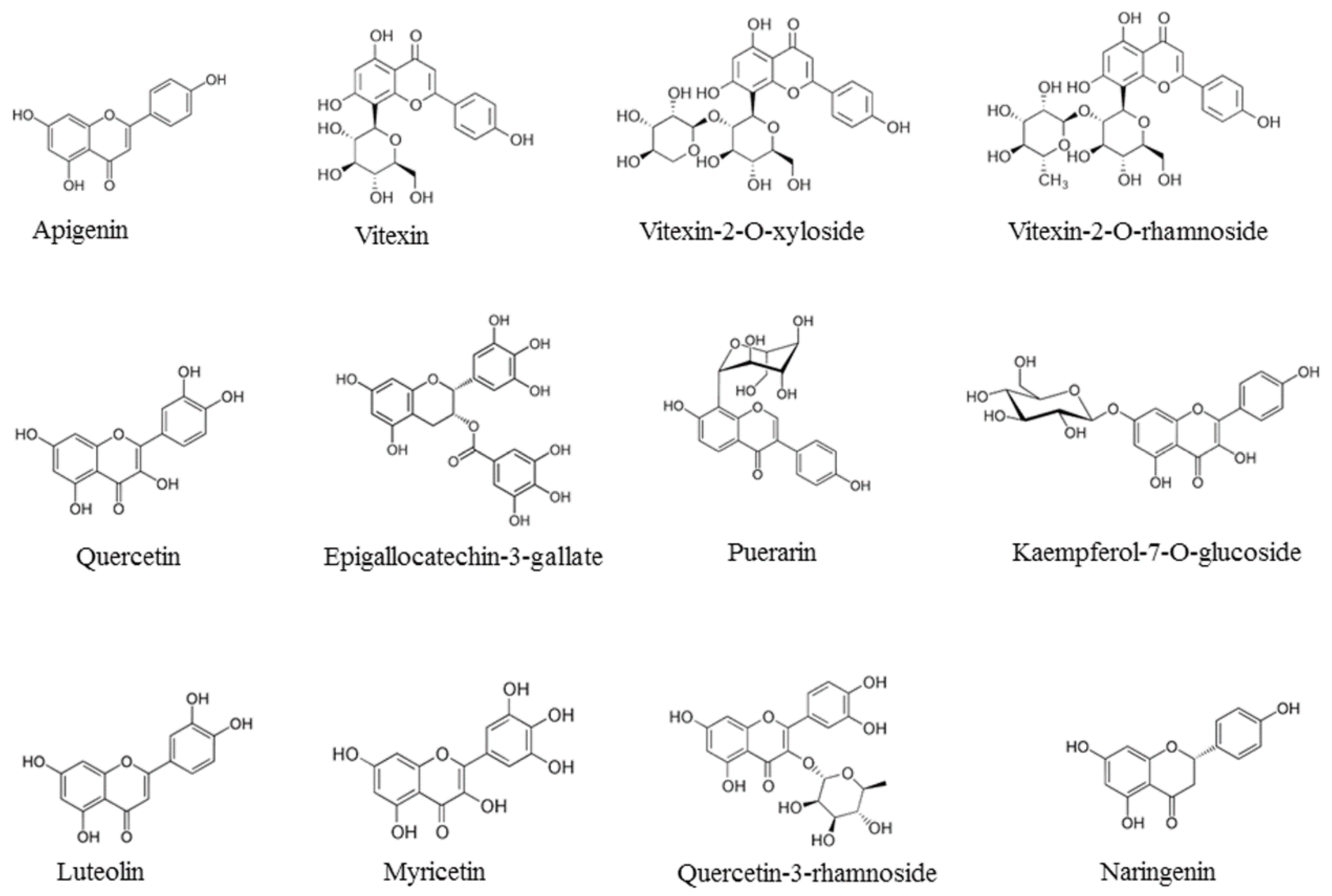

In this review, we first summarize flavonoids along with their class and plant sources, with particular attention to apigenin, vitexin and its derivatives (Table 1). We then discuss the antiviral action mechanisms of flavonoids, their combinations with conventional antiviral drugs in multi-target cocktails, and the delivery strategies used to increase their bioavailability and antiviral efficacy.

2. Antiviral Effects of Flavonoids

The most common flow chart for studies regarding the antiviral activity of phytochemicals is focused on the immediate testing of the whole natural extract, by dividing the polar from the non-polar constituents. After that, fractions with remarkable activity in in vitro antiviral assays, such as cytophatic effect, neutralization assay, hemagglutination, viral enzyme inhibition, or virion number reduction assay, are further fractionated through chromatographic techniques in order to purify the active phytochemicals. Effective compounds are then used on virus-infected animals or in human clinical trials in order to assess their effective antiviral properties [15]. The complete procedure, when interfaced with chemical libraries, represents the basis for high throughput screening assays [15]. The parameter used for assessing antiviral efficiency of drugs and phytochemicals is represented by 50% Inhibitory Concentrations (IC50) or by 50% Effective Concentration (EC50). Table 2 shows the main flavonoids studied for antiviral activity along with their investigated mechanisms of action. In the first section, we point out the studies focused on apigenin, vitexin and their derivatives, which were found active against many viruses like human Hepatitis C Virus (HCV), Herpes Simplex Virus-1 (HSV-1), human Hepatitis A and B Viruses (HAV; HBV), rhesus rotavirus (RRV) and influenza virus.

2.1. Flavonoids Targeting HCV, HBV and HAV Viruses

The natural extract of Eclipta alba (Asteraceae) was shown to be able to inhibit the HCV replicase in a cell culture system, which resulted in reduced HCV RNA titer and translation level of viral proteins [19]. Through bioassay-based fractionations of the natural extract, the authors identified two flavonoid compounds: apigenin and luteolin, which, tested individually, exhibited a dose-dependent inhibition of HCV replicase in vitro [19]. Quercetin, extracted from Embelia ribes (Mirsinaceae), exhibited antiviral effects against HCV, exerted through activity inhibition of the viral protease Non-Structural protein 3 (NS3), leading to a decrease in HCV replication [36]. Furthermore, the flavanol quercetagetin was found to inhibit HCV RNA-dependent RNA polymerase (RdRp) through inhibition of RNA binding to the viral polymerase, a mechanism associated with broad genotypic activity against several HCV strains and a high barrier to resistance mechanisms [39]. Luteolin and quercetin showed anti-HCV effects in hepatoma Huh-7 cells transfected with Non-Structural protein 5B (NS5B) cloned gene vector, that codifies for the NS5B polymerase of HCV virus [40]. Naringenin and quercetin possess antiviral activity against HCV, but naringenin showed stronger inhibition of virion assembly, whereas quercetin inhibited viral translation by blocking Non-Structural protein 5A (NS5A) and Internal Ribosome Entry Site (IRES)-mediated translation, as well as heat shock protein 70 (HSP70) induction [41]. Bioinformatics tools were also used to study the interaction of various phytochemicals with viral proteins that possess pivotal roles in the production of new virions and in the infection of the host cells. This approach may be a useful premise for deeper investigation regarding flavonoids which have provided interesting evidence of interactions with viral proteins. For instance, naringenin, diosmetin, apigenin and luteolin were all able to bind to the NS5B protein of HCV with higher affinity when compared with the antiviral drug sofosbuvir, inhibiting the activity of this viral enzyme [25].
Epigallocatechin-3-gallate (EGCG), the principal tea derived catechin, efficiently inhibited cell culture-derived HBV entry into hepatocellular cell lines, independent of the HBV genotypes, through a mechanism that involves the clathrin-dependent endocytosis of the HBV receptor sodium taurocholate co-transporting polypeptide (NTCP) from the plasma membrane, followed by its protein degradation [26].
The extract obtained from Erythrina speciosa (Fabaceae) exerted antiviral effects against HAV-H10 viruses mainly due to vitexin which, isolated from the extract, exhibited an antiviral activity against this virus with EC50 = 41.6 ± 7.6 µM [42]. The authors showed that the flavone vitexin can interact with the binding pocket of HAV 3C proteinase, inhibiting this enzyme [42].

2.2. Antiviral Effects of Flavonoids Against Influenza Viruses

Vitexin, extracted from the plant Flos Trollii, (Caryophyllaceae), exerted its anti-H1N1 influenza virus effects through partially down-regulating Toll-Like Receptor 3 (TLR3) and Toll-Like Receptor 7 (TLR7) pathways and up-regulating Toll-Like Receptor 4 (TLR4) molecular pathway [38]. TLRs are transmembrane glycoproteins, which are privileged targets of several viruses and can be activated by endogenous molecules in the context of inflammation. TLR activation produces pro-inflammatory cytokines through Nuclear factor kappa-light-chain-enhancer of activated B cells (NF-kB) signaling pathway or through Interferon regulatory factor 3 (IRF3) and Interferon regulatory factor 7 (IRF7). Some viruses enter the host cells by binding TLR3, but after their entrance the viruses are able to inhibit cytokine production, thus impairing the immune response. Phytochemicals able to decrease the binding between TLRs and virus particles can slow the infective process. Interestingly, virus infection can lead to an induction of the inflammation process, characterized by excessive production of nitric oxide (NO), Interleukin-1 (IL-1), Interleukin-6 (IL-6) and Tumor Necrosis Factor-α (TNF-α). It was shown that various flavonoids enhance the production of Interferon-β (IFN-β) in order to counteract the viral infections [38]. Baicalin, baicalein, wogonin, chrysin and oroxylin A, isolated from Scutellaria baicalensis, showed anti-H1N1 activities, with IC50 values of 7.4, 7.5, 2.1, 7.7 and 12.8 μM, respectively, and were all more potent than the conventional antiviral drug oseltamivir phosphate, which had an IC50 of 45.6 μM [22]. These flavonoids increased the transcriptional activity of Nuclear factor erythroid 2-related factor 2 (Nrf2), the master regulator of the antioxidant responses, whose activation is related to the antiviral effects of Scutellaria baicalensis [22]. The natural extract of Tetrastigma hemsleyanum (Vitaceae) contains many flavonoids, including vitexin, vitexin-2-O-rhamnoside, isorhamnetin, rutin, kaempferol, astragalin, quercitrin, quercetin and iso-quercetin, which were shown to be able to exert anti-influenza virus activity, with different efficiency, through the reduction of the number of plaques induced by the influenza virus in infected Madin-Darby Canine Kidney (MDCK) cells [21]. Similarly, the flavonoid quercetin-3-rhamnoside, extracted from Houttuynia cordata (Saururaceae), exerted anti-influenza A/WS/33 activity reducing virus-mediated cytopathic effects, directly interacting with virus particles [37]. Furthermore, the same authors showed that quercetin-3-rhamnoside exerted anti-influenza virus activity in mice, when used at 6.25 mg/Kg/day for six days after influenza virus infection [45].

2.3. Antiviral Properties of Flavonoids Against Dengue and Zika Viruses

Flavonoids Sanggenon O, EGCG and Chamaejasmin were all potentially able to inhibit Dengue virus replication by blocking the Asn-130 glycosylation site of the viral protein Non Structural protein 1 (NS1) [23]. Baicalin, a flavonoid derived from Scutellaria baicalensis (Lamiaceae), exhibited viricidal activity against Dengue Virus-2 (DENV-2) extracellular virions with IC50 = 19.6 ± 0.2 µM, exerted an anti-adsorption effect with IC50 = 40.5 ± 0.4 µM and also inhibited virus replication with IC50 = 30.2 ± 0.2 µM [44]. Studies of the antiviral effects of the flavonoids fisetin, quercetagetin, and pinocembrin showed that fisetin can inhibit the replication molecular machineries of Dengue virus and Enterovirus A71 [35]. Furthermore, other antiviral mechanisms of the pinocembrin consist in targeting the molecular machinery used by the Zika virus to replicate its own genome inside the host cells [33]. This flavanone acts on the post-entry processes of Zika virus replication cycle through the inhibition of both viral RNA production and synthesis of envelope proteins [33].

2.4. HSV, Respiratory Syncytial Virus (RSV), RRV: Antiviral Activities of Flavonoids

Interestingly, the plant Moringa oleifera Lam (Moringaceae) provides a rich and rare combination of several phytochemicals, including the flavonoids quercetin and kaempferol, and its leaves extract can be applied as a prophylactic or therapeutic anti-HSV-1 medicine [29]. The extract obtained from Moringa oleifera Lam remarkably reduced the plaque formation induced by wt HSV, thymidine kinase-deficient HSV and phosphonoacetate-resistant HSV strains [29]. Furthermore, the extract obtained from Erythrina speciosa possessed antiviral properties against the HSV-1 virus, mainly due to vitexin which exhibited an antiviral activity with EC50 = 80.9 ± 6.2 µM, exerted through the interaction of this flavone with the binding pocket of HSV-1 thymidine kinase [42].
Vitexin and luteolin from Aspalathus linearis (Fabaceae) showed antiviral activity against RRV with IC50 of 129 μM and 116 μM, respectively; interestingly, apigenin-7-O-glucoside from Melissa officinalis (Labiateae) inhibited viral growth, with an IC50 of 150 μM, through the reduction of the number of RRV-induced plaques in infected MA104 cells [20].
Tangeretin and nobiletin, two polymethoxyflavones extracted from Citrus reticulate “Chachi”, possess anti-RSV properties. Tangeretin exhibited a dose-dependent inhibition of RSV-induced plaque formation on HEp-2 cells, through inhibition of RSV entry into host cells and viral replication. Furthermore, tangeretin decreased the levels of RSV phosphoprotein (P protein), which is associated with the viral genome to form the holo-nucleocapsid. The extent of the antiviral effect of this phytochemical was comparable to the conventional antiviral drug ribavirin [32].

3. Insights into Flavonoid Molecular Targets and Antiviral Synergistic Effects

3.1. Influenza Virus Molecular Targets

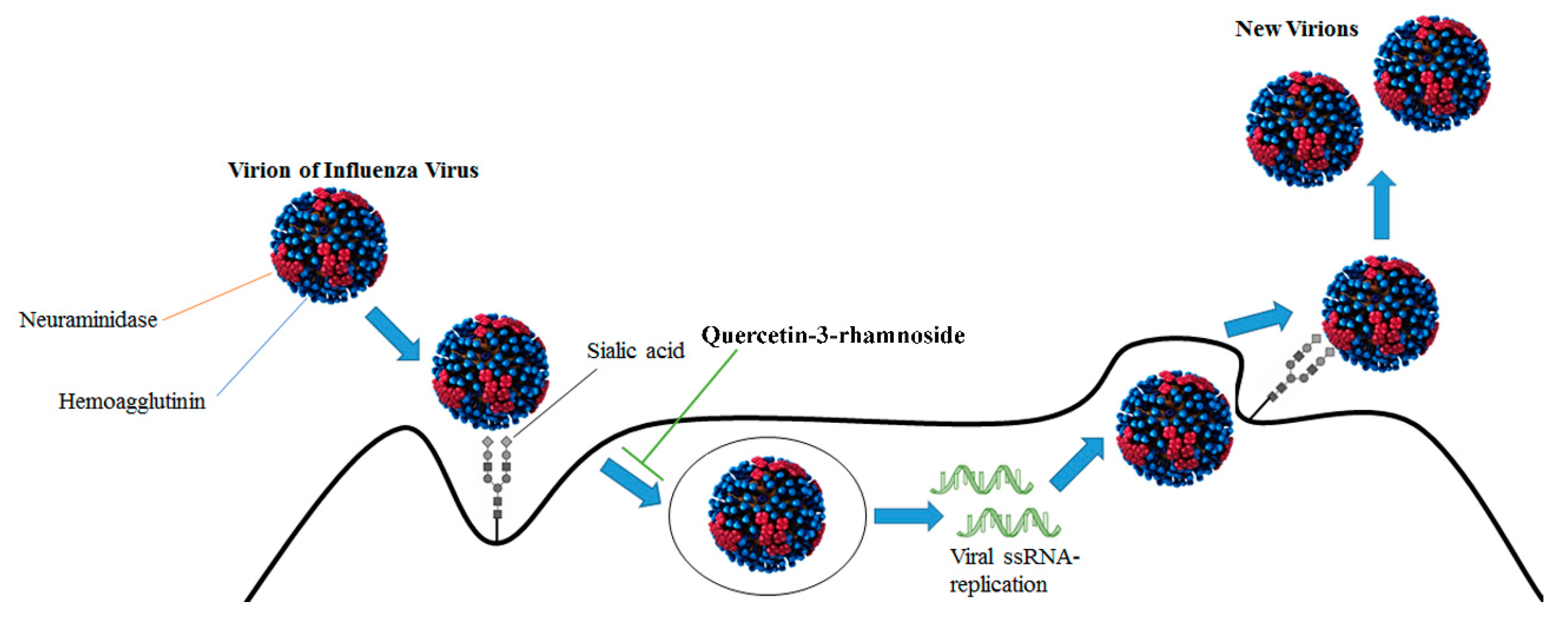

The knowledge of the molecular mechanisms of virus infection and phytochemical antiviral actions is fundamental in planning an effective therapeutic approach. The main mechanisms involved in the antiviral effects of phytochemicals are focused on the targeting of viral enzyme activities. Many natural molecules target the catalytic activity of the influenza virus neuraminidase, also called sialidase. This enzyme is a glycoside hydrolase that cleaves the glycosidic linkages of sialic acids (Figure 2).
Various phytochemicals inhibit the activity of viral sialidases, hampering the release of new virions from the infected cells and preventing new infections [47]. Another enzyme with a pivotal role in influenza A virus infection is RdRp, which is composed of three subunits: Polymerase Acidic subunit (PA), Protein Binding 1 subunit (PB1) and Protein Binding 2 subunit (PB2). The enzyme synthesizes viral mRNAs using short capped primers derived from host cellular mRNAs, which are cut by the viral endonuclease. The N-terminal domain of the PA subunit contains a typical endonuclease active site and harbors the RNA/DNA endonuclease activity, which is essential for viral growth [48].

3.2. Molecular Targets of HCV and HBV Viruses

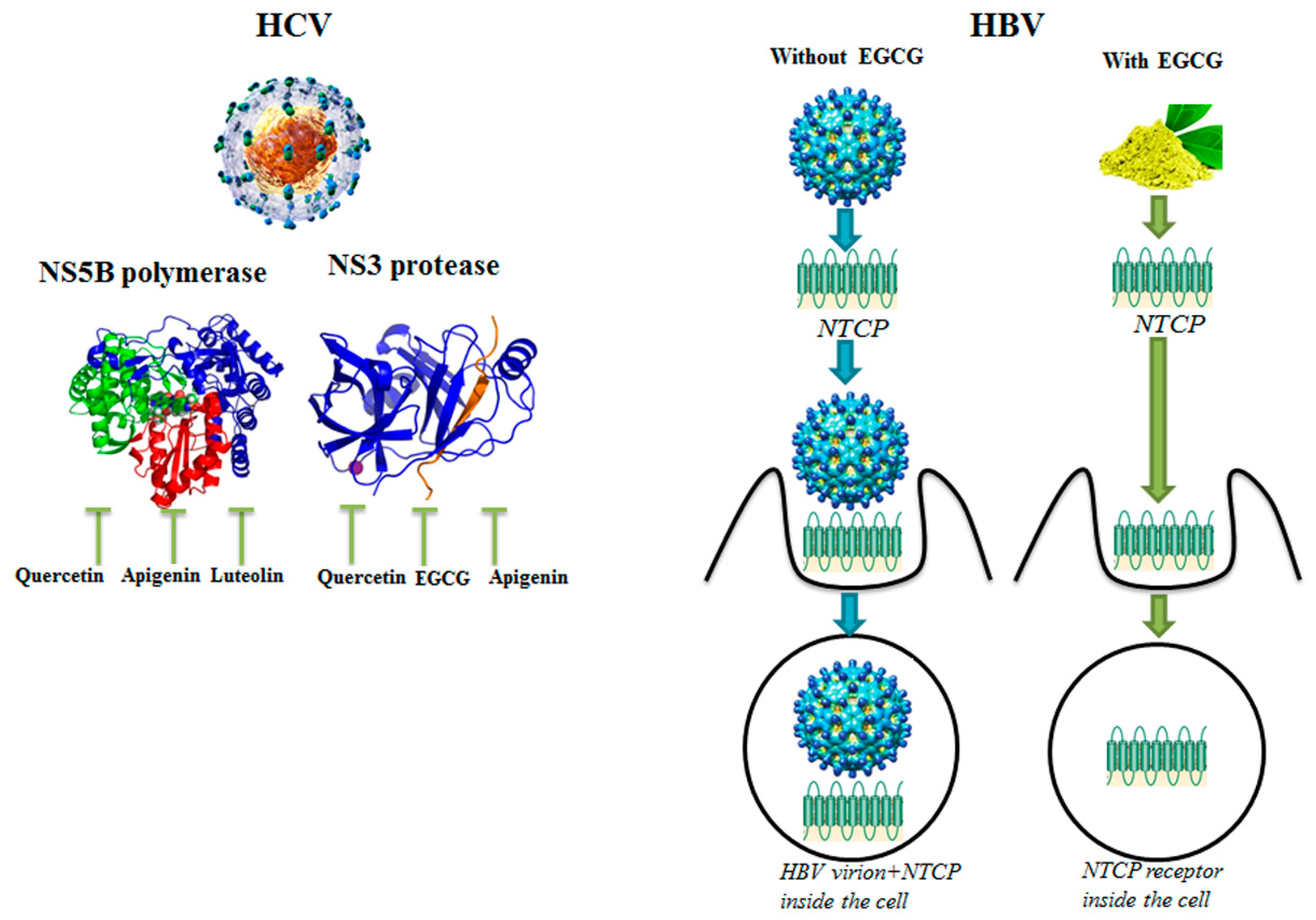

Enzymes involved in the HCV virus replication, like the protease NS3 and the polymerase NS5B can also be efficiently inhibited or modulated by phytochemicals (Figure 3). NS3 is a HCV nonstructural protein, which acts as a serine protease. Its N-terminal domain can interact with the viral Non Structural protein 2 (NS2), while the C-terminal domain acts both as helicase and nucleoside triphosphatase.
The NS5B protein is RdRp with a pivotal role in replicating HCV’s viral RNA by using the viral ssRNA+ as a template to catalyze the polymerization of ribo-nucleoside triphosphates during replication of the viral genome. Interestingly, quercetin, apigenin and luteolin effectively inhibit NS5B polymerase activity [33]. When phytochemicals have been combined among them or with synthetic antiviral drugs, synergistic therapeutic effects were often evidenced. Overall, when synergy occurred, it was often justified by the fact that the different molecules target different steps in the molecular mechanisms of viral infection, and the final antiviral effect results therefore potentiated. Naringenin is a flavanone, which exhibits anti-HCV activity by blocking the assembly of HCV particles [41]. The phytochemical quercetin exerted anti-HCV activity by reducing Internal Ribosome Entry Site- (IRES-)mediated translation and also inhibiting the viral non-structural protein NS5A as well as the protease NS3 [41]. When naringenin and quercetin were used together they suppressed HCV RNA replication and inhibited viral replication to a higher extent when compared with the phytochemicals used individually, thus demonstrating a synergistic effect [41]. Ladanein, a flavone isolated from Marrubium peregrinum L. (Lamiaceae), exploited antiviral effects through the inhibition of the post-attachment entry step of HCV virions, with an IC50 of 2.5 µM. Ladanein, in combination with cyclosporine, showed a remarkable synergistic antiviral effect against various HCV genotypes [30]. The natural extracts from Nymphaea alba L. (Nymphaeaceae), containing iso-quercetin, hyperoside, quercetin, reynoutrin, apigenin and isokaempferide, showed anti-HCV activity, suppressing HCV NS3 gene expression in the transfected Huh-7 cell line and inhibiting the viral genotype 1a replication. Furthermore, the combination of Nymphaea alba L. extract with the conventional drug boceprevir displayed synergistic effects for inhibition of HCV replication in a docking bioinformatics model [28]. An antiviral role of phytochemicals was also linked to the receptors recognized by viruses for their endocytosis, such as the membrane receptor NTCP. This protein has a mass of 56 KDa and is involved in the transport of bile salt molecules, steroid hormones, thyroid hormones and xenobiotics. NTCP is required for the entry in hepatocytes of both HBV and human Hepatitis D Virus (HDV). In fact, the virus-receptor interaction leads to the clathrin-dependent endocytosis of HBV virions, which can replicate inside the host cells [26]. EGCG, used at the dose of 50 μM, induced clathrin-dependent endocytosis of NTCP from the plasma membrane, leading to its degradation and inhibiting the entry of HBV virus into immortalized human primary hepatocytes (Figure 3).

3.3. HIV Protease and Reverse Transcriptase Are Targeted by Flavonoids

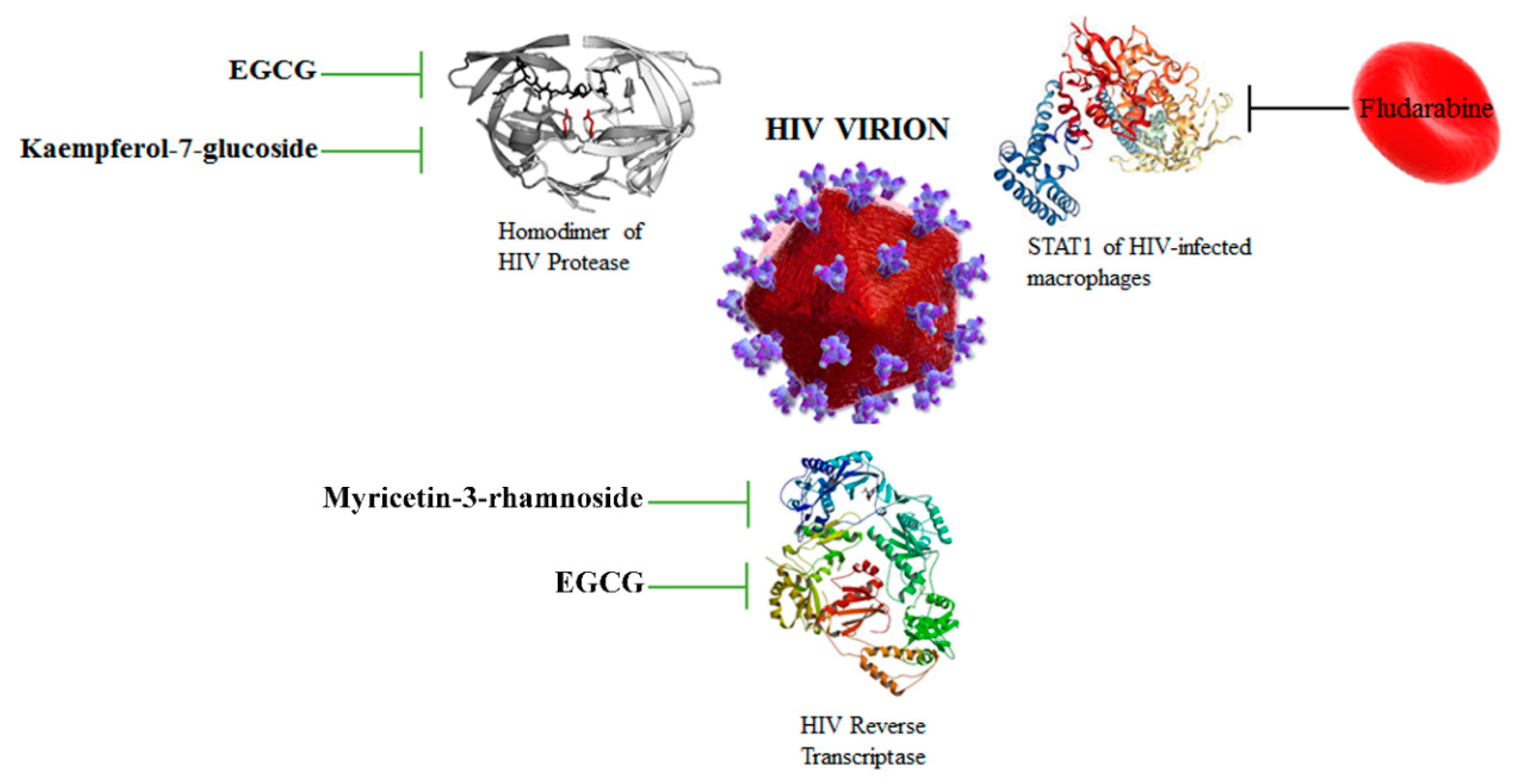

Two HIV enzymes address pivotal roles in virus replication and virion production: HIV reverse transcriptase and the homodimer of HIV protease (Figure 4). HIV reverse transcriptase is an RNA-dependent DNA polymerase (RdDp) and builds ssDNA based on an RNA template in its polymerase active site; the enzyme also cleaves the original RNA template into pieces through its nuclease active site and finally it polymerizes a second DNA strand to form the final dsDNA, which is integrated in the host cell genome. Interestingly, it was shown that EGCG suppressed HIV-1 infection in Hela-CD4-LTR-β-gal cells, with a EC50 of 1.6 µM, by acting as a non-nucleoside HIV reverse transcriptase inhibitor [43]. Furthermore, it was demonstrated that the flavonoids myricetin-3-rhamnoside and myricetin-3-(6-rhamnosylgalactoside) possessed antiviral activity in vitro against HIV with EC50 of 120 µM and 45 µM, respectively [31]. This antiviral effect was exerted through the inhibition of HIV reverse transcriptase with IC50 of 10.6 μM for myricetin-3-rhamnoside and of 13.8 µM for myricetin-3-(6-rhamnosylgalactoside) [31].
HIV protease is a retroviral aspartyl protease, which cleaves newly synthesized viral polyproteins (namely Gag-Pol) at nine cleavage sites to create the mature protein components of the virion. Mature HIV-1 protease exists as a 22 KDa homodimer, each one containing an Asp25 amino acid, which acts as the catalytic residues are able to hydrolyze peptide bonds on the Gag-Pol polyproteins into fully functional viral proteins, like reverse transcriptase and integrase. Kehinde et al. (2019) [27] showed that the phytochemicals kaempferol-7-O-glucoside and EGCG were able to interact with HIV-1 protease, showing pronounced structural evidence as potential HIV-1 protease inhibitors (Figure 4). Interestingly, phytochemicals can also be used to reduce the extrusion of antiviral drugs from infected cells. In fact, apigenin, fisetin and luteolin were able to slow down the elimination of the antiviral drugs atazanavir, lopinavir, darunavir and saquinavir, which target the viral protease of HIV-1 [27].

3.4. HSV-1 and DENV-2: Decreasing ROS to Counteract Viral Infections

Antiviral activity of flavonoids may be also due to the modulation of host cell enzymes used by the virus to take advantage for infection, such as the enzymes with a pivotal role in the production of Radical Oxygen Species (ROS), utilized to increase the number of virions. Regarding HSV-1, which persists in the host in sensory neurons in latency, the enzyme Nicotinamide Adenine Dinucleotide Phosphate (NADPH) oxidase (NOX) family is a useful source of ROS, which can be used to reactivate the viral infection under oxidative stress conditions [52,53]. Interestingly, delphinidin-3-rutinoside obtained from extracts of Solanum Melongena L. (Solanaceae), inhibited HSV-1 replication through the reduction of NOX4 protein levels, when added for 24 h after viral adsorption on Vero cells [24]. The extract obtained from Veronica Persica Poir (Plantaginaceae) possessed a dose-dependent inhibitory activity against the herpes simplex virus strains HSV-1 and HSV-2 and a prominent synergistic activity in combination with acyclovir in anti-HSV therapy, exerted through a reduction of the percentage of plaque numbers of both HSV-1 and HSV-2 in the infected cero cells [54].
The natural extract of Disticella elongata (Bignoniaceae) exhibited antiviral effects against DENV-2 virus and this effect was mainly due to Pectolinarin and acacetin-7-O-rutinoside [18]. When the two flavonoids Pectolinarin and acacetin-7-O-rutinoside were used in combination, the antiviral effect was eight times more potent against DENV-2 virus (with EC50 = 18.3 ± 2.6 µM) than the flavonoid Pectolinarin used alone (with EC50 = 138.8 ± 6.1 µM). The selectivity index of the combination (SI = 45) was remarkably higher than the SI of the isolated Pectolinarin (SI = 4.6), indicating that the phytochemical mixture specifically inhibited viral growth, with negligible effects on the vitality of the cells infected by DENV-2 virus. The ethanol extract obtained from the leaves of Disticella elongata showed antioxidant activities; therefore, it could detoxify cell damaging free radicals present in DENV-2 viral infections [18].

4. Delivery Strategies for Antiviral Drugs and Phytochemicals

The low water solubility and low bioavailability of natural flavonoids represent the major limit for their use in the nutraceutical sector. Many delivery strategies have been used by researchers for increasing flavonoid bioavailability following oral consumption [16], including: micelles, nanoparticles, microspheres, crystals, dendrimers, the Self-Micro-emulsifying Drug Delivery System (SMDDS) and the Self-Nanoemulsifying Drug Delivery systems (SNEDDS), as recently reviewed [17,55]. For instance, it was shown that the catechin and EGCG-loaded chitosan nanoparticles led to a higher rate of intestinal absorption of the two phytochemicals [56]. Interestingly, in chitosan particles the flavonoids maintain their antioxidant activity and can exploit their antioxidant effects in the blood stream [57]. The loading of myricetin into a cationic polymeric nanoparticle carrier with a cationic corona and hydrophobic core was investigated in order to improve the clinical relevance of this natural flavonoid by increasing its solubility [58]. SMDDS has been used to overcome the problem of low bioavailability of hydrophobic molecules as, in the intestinal lumen, the oil-in-water microemulsions containing phytochemicals may be efficiently formed with a consequent increase of the intestinal absorption of the flavonoid [59]. Interestingly, puerarin, an isoflavone isolated from the root of Pueraria lobata, exhibited 2.6 fold higher bioavailability when prepared using the SMDDS technique [34]. Furthermore, the synthesis of silver nanoparticles linked with phytochemicals and their use for antimicrobial and antiviral treatments have been described, highlighting the various molecular mechanisms that lead to the phytochemical-mediated inhibition of viral replication [60]. Poly (d,l-Lactide) (PLA) nanoparticles and polymeric micelles contributed to a more sustainable and efficient release of flavonoids characterized by a poor bioavailability, like quercetin and apigenin [61,62]. Quercetin was successfully encapsulated on the most uniformly distributed type of PLA-4 nanoparticle, synthesized using Lonicera japonica leaf extract, showing that these nanoparticles allowed a slow release of quercetin [63]. This nanoparticle approach paves the way for encapsulating drugs, small molecules, nutraceuticals and other bioactive ingredients to obtain safer cellular uptake, improved biodistribution, specific targeted delivery and enhancement of the therapeutic antiviral efficacy of encapsulated drugs and phytochemicals [64]. The increase in antiviral efficacy and bioavailability of flavonoids may be attained through their encapsulation into red blood cells (RBCs), as has occurred for other type of antiviral drugs and molecules, such as fludarabine (Figure 4) [65], vincristine and vinblastine [66,67]. The idea of using RBCs as delivery system for flavonoids takes its advantage from the favorable characteristics of these cells. They have a long life-span of about 120 days and have a widespread circulation throughout the body, and hence can be used as drug reservoirs, enabling them to facilitate sustained drug release. Moreover, RBCs protect encapsulated drugs and molecules from degradation; they are completely biodegradable and show no or only minor immunogenic responses. Interestingly, the RBCs were used to determine cellular antioxidant activity of some flavonoids, specifically vitexin, vitexin-2-O-xyloside and vitexin-2-O-rhamnoside, with the aim of predicting their bioavailability [68]. Moreover, it was demonstrated that flavonoids could have beneficial effects in preventing oxidative damage of erythrocyte membrane [69,70]. Some authors have also evidenced the possibility that human RBCs play a pivotal role in the distribution and bioavailability of circulating flavonoids such as quercetin [71]. Furthermore, it was shown that drug-loaded RBCs can be modified in order to increase their macrophage-mediated phagocytosis by inducing band 3 clustering and opsonization through the complementary and autologous IgGs [72].
In future perspective, this approach could be considered in order to possibly improve the antiviral activity of some flavonoids, like baicalin, that was able, like fludarabine [65], to act against HIV-1 chronic infection of human monocytes and macrophages, inhibiting the fusion of HIV virus envelope proteins with these cells [73].
Although polymeric nanoparticles, liposomes, dendrimers, micelles and inorganic nanoparticles have been widely accepted as drug delivery systems, they show toxicity and a short lifetime, thus making them relatively disadvantageous when compared with natural cell carriers, such as RBCs. For this reason, some authors in recent years have tried to mimic the erythrocyte cell membrane to produce biocompatible nanocarriers in order to decrease their toxicity and to prolong their survival in blood circulation [74,75,76]. RBCs, which are biodegradable and non-immunogenic, can be used as a valuable carrier system with a lifespan that is remarkably prolonged and controllable when compared to synthetic carriers. Several approaches have been developed to load peptides, drugs and molecules into RBCs or to attach these agents onto RBCs’ outer membrane surface by either chemical or physical methods [77] and the possibility of loading drugs into autologous RBCs prior to their transfusion into patients has been studied in small animal models and primates, as well as in clinical studies of human patients [78,79,80,81]. The topic of phytochemical encapsulation in RBCs remains open for further studies, but we believe that flavonoid derivatives and nanoparticles able to bind flavonoids could be successfully considered for this application in the near future.

5. Therapeutic Potential of Antiviral Dietary Flavonoids

Diet and life-style play important roles in the defense against the attacks of viruses. The relationship between diet and the immune system involves the microbiota, i.e., the ecological community of commensals and potentially pathogenic microbes and symbionts that live in the gut [82]. The diet modulates the microbiota composition, leading to an increase or a decrease in immune defenses [82]. The Mediterranean Diet (and in general diets rich in fruits, vegetables and herbs) maintains gut microbiota homeostasis and provides protection against microbes and viruses [83]. The cross-talk between microbiota and immunity is supported by the Aryl Hydrocarbon Receptor (AhR), which is ubiquitous, but mainly present in the cytoplasm of immune cells [84]. It was demonstrated that AhR binds different ligands, namely metabolites, pollutants and pathogenic molecules, and after this interaction it translocates into the nucleus, where it induces specific transcription programs and modulates the defensive functions of both T and B cells, dendritic cells and monocytes [84]. Interestingly, it was shown that flavonoids can bind AhR [84]. On this basis, people eating vegetables, all of which contain flavonoids to a different extent, would strengthen their immune system [83]. This strengthening is a general effect that occurs with many nutrients, but there are more specific antiviral effects attributable to the flavonoids treated in this review. Flavonoids, like apigenin, vitexin, quercetin, rutin and naringenin, show a wide range of antiviral effects (Table 2), because they are able to target different pathways of viral infections. It is therefore possible to increase the chances of blocking viral replication using mixtures of flavonoids with synergistic antiviral effects, because of the pleiotropic effects of their combination.
An important question that arises is focused on the reasonable concentration range of flavonoids that should be used for an effective antiviral therapy, which is hard to be reached by diet alone. Recent experiments performed in in vivo studies demonstrated the protective efficacy of various flavonoids, tested in the range 10–50 mg/Kg body weight per day, in newborn mice challenged with a lethal dose of the enterovirus 71 [85]. Interestingly, apigenin (50 mg/Kg), luteolin (10 mg/Kg) and quercetin (10 mg/Kg) conferred survival protection of 88.9%, 91.7% and 50.1%, respectively, from the lethal enterovirus 71 infection; moreover, isorhamnetin provided the highest survival protection of 100% at a dose of 10 mg/Kg. The authors hypothesized that the differences in concentrations are due to different times of absorption and renal clearance of these flavonoids [85]. The flavanol isorhamnetin was studied also by Dayem et al. [86], who showed that oral administration of this flavonoid at 1 mg/Kg/day for five days in mice infected with the influenza A virus significantly decreased lung virus titer by two-fold, increased the survival rate (which ranged from 70% to 80%) and decreased mice body weight loss by 25%. These authors hypothesized that the methyl group of the B ring of isorhamnetin may contribute to its strong antiviral potency against influenza A virus [86]. Guo et al. [87] focused their in vivo studies on the flavone wogonin, showing that, in human HBV-transgenic mice, this flavonoid administered once a day at 7, 14 and 28 mg/Kg reduced plasma HBsAg level and immunohistological staining of the liver confirming the HBsAg reduction exerted by wogonin [87]. The potentiality of flavonoid bioactivity in vivo depends on the extent of their absorption after ingestion and their ability for distribution in various target tissues. In this light, Liu et al. [88] developed a quercetin-loaded cationic nanostructure lipid carrier (Q-CNLC), which increased the in vivo bioavailability of this flavonoid. This quercetin-nanostructure complex benefits from its strong interactions with negatively charged intestinal mucosa, which could increase its residence in the gastrointestinal tract. Moreover, the authors showed an entrapment efficiency of quercetin of 89.3% and a slower release of this flavonoid from the Q-CLNC, when compared with the release profile of a simple quercetin solution, indicating that Q-CLNC exhibited a sustained and controlled release of this flavanol, in order to maintain its effective therapeutic concentration [88]. In addition, the same authors performed in vivo tissue distribution studies in C57BL/6J mice, comparing treatment with 25 mg/kg of orally administered quercetin solution with the administration of 25 mg/Kg of Q-CNLC, showing that the relative quercetin uptake from Q-CNLC was 1.57 fold higher in lungs, 1.51 fold higher in liver and 1.68 fold higher in kidneys. On the contrary, the relative quercetin uptake from Q-CNLC was lower in spleen, heart and brain, when compared with the quercetin solution [88]. These results indicate that the most suitable delivery strategy should be chosen in order to target a specific organ with a particular flavonoid-nanostructure complex for future clinical applications. Furthermore, the safety of the used phytochemical should also be considered, as has already been done for hydroxytyrosol, which is quickly absorbed and eliminated by the kidneys in either free or conjugated forms. Hydroxytyrosol has been considered safe at 50 mg/Kg/day by the European Food safety Authority (EFSA) panel [89]. In this light, we think that, for a 70 Kg person, a flavonoid range between 0.5–3.0 g/day should be proposed. These values are close to the daily polyphenol intake in humans, calculated in various diet surveys [90], such as the Supplementation en Vitamines et Mineraux Antioxydants (SU.VI.MAX) study, which ranked the polyphenol intake at 1.19 ± 0.51 g/day [91]. Accordingly, in another dietary intervention trial aimed at improving cognition in older adults, a total of 1.04 g/day of flavonoids was applied [92]. Indeed, based on these results, we think that 0.5–3.0 g/day of flavonoids could be a reasonable concentration range in order to start preliminary experiments, focused on assessing the in vivo antiviral effects of flavonoids.
Concerning the combination of flavonoids in an antiviral cocktail, each phytochemical may be used initially at a concentration of about 0.5 g/day with the aim of reaching an intake of 3 g/day of antiviral flavonoids. In the case of antiviral synergistic effects [5,6] or increase of the absorption of one specific flavonoid exerted by other phytochemicals [93], the individual flavonoid concentrations can be modulated, according to the extent of the effect. It should also be emphasized that a significant antiviral effect is linked to the type of flavonoid mixture, the delivery system used, the pharmacokinetic pattern, the number of targets involved and the number of required daily doses. Once these aspects have been defined, the more suitable regimen of administration consists of starting with the lowest effective concentration for a fixed time and proceeding with increasing doses of the antiviral flavonoids. Monitoring the markers of antiviral efficacy and any side effects should also be considered in order to evaluate the risks-benefits pattern.

6. Conclusions and Future Perspectives

Overall, our review shows that many flavonoids exhibit antiviral activity and could offer a promising alternative for prevention of and therapy for viral infections. Flavonoids are present in many vegetables and the first protection for the immune system resides in the ability to seek foods rich in bioactive nutrients. Education programs for a healthy diet should be implemented during the outbreaks of viral infections [94]. In fact, a diet rich in vegetables activates the AhR in the gut for maintenance of microbiota homeostasis, which in turn regulates the immune system. In the critical periods of viral infections, oral dietary supplementation with nutraceutical preparations based on combinations of flavonoids can be useful in order to inhibit different steps of the viral infective cycle. Molecular mechanisms underlying the antiviral effects of flavonoids, herein described, mainly focus on the inhibition of viral enzyme activities: neuraminidases, DNA/RNA polymerases and proteases. Therefore, a cocktail of flavonoids, selected for their efficacy in the inhibition of different viral enzymes, could be associated with elevated immune response and offer a promising option for antiviral therapies. This option acquires great importance considering that the viral genome frequently mutates, due to the lack of proof-reading activity of most of the viral polymerases. These mutations could hamper the efficacy of antiviral synthetic drugs. On the contrary, antiviral flavonoids, as well as the combination of synthetic antiviral drugs with flavonoids, would enhance therapeutic strategies by targeting the multiple signaling pathways involved in the viral infections [95]. The active concentration of the flavonoids should be investigated, considering the pharmacokinetic studies available in the literature and the synergistic effects of the specific flavonoid combinations [15,16,17].
The scarce intestinal absorption and bioavailability of flavonoids, when given through food or in pills, may be enhanced by the use of new drug delivery strategies [96]. In fact, since flavonoids have some drawbacks after oral administration such as low stability, bioavailability and bio-efficacy, researchers are developing biocompatible nanomaterial synthesis as novel delivery systems (including nanospheres, nano-capsules, micro and nano-emulsions, micelles, solid lipid nanoparticles and capsules), for overcoming the delivery challenges of flavonoids in the biomedical sector. Phytochemical-nanomaterial complexes can represent innovative drug delivery strategies (alongside those already known) for new antiviral therapies against the seven Baltimore virus classes [97].
Interestingly, three patents regarding the antiviral effects of flavonoids (US 7,998,937; EP1245230; US 6,399,654) have been already assigned to the Korea Research Institute of Bioscience and Biotechnology and Advanced Life Sciences Inc. [35].
However, an important step that must be achieved is to obtain the authorization of novel food including flavonoids with antiviral properties, following regulation EU 2015/2283 [98]. Nowadays, this authorization has been given only to hydroxytyrosol [89] and few other nutrients. If the antiviral efficacy and safety of flavonoids and their mixtures can be clearly demonstrated in vivo, it would be possible to obtain European Food Safety Authority (EFSA) authorization of novel foods, in order to provide new natural tools for preventing and facing outbreaks of viral infections. Indeed, when flavonoids are administered through nano-sized delivery systems, they show increased stability and bioavailability with an enhanced and prolonged activity. However, the in vivo behavior and the antiviral actions of these nano-delivery systems are still under experimental evaluation.

Author Contributions

Writing—original draft preparation: P.N., E.S.S.; writing—review and editing P.N.; M.M.; E.S.S.; A.A.; supervision: P.N.; M.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by University of Urbino Carlo Bo. APC: funded by University of Urbino Carlo Bo.

Acknowledgments

The authors want to thank University of Urbino Carlo Bo for financial support.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the writing of the manuscript or in the decision to publish this manuscript.

Abbreviations

AhRAryl Hydrocarbon Receptor
DENV-2Dengue Virus-2
EC5050% Effective Concentration
EFSAEuropean Food Safety Authority
EGCGEpigallocatechin-3-gallate
HAVHuman Hepatitis A Virus
HBVHuman Hepatitis B Virus
HCVHuman Hepatitis C Virus
HDVHuman Hepatitis D virus
HIVHuman Immunodeficiency Virus
HSP70Heat Shock Protein 70
HSV-1Herpes Simplex Virus type-1
IC5050% Inhibitory Concentration
IFN-βInterferon-β
IL-1Interleukin-1
IL-6Interleukin-6
IRESInternal Ribosome Entry Site
IRF3Interferon regulatory factor 3
IRF7Interferon regulatory factor 7
MDCKMadin-Darby Canine Kidney
NADPHNicotinamide Adenine Dinucleotide Phosphate
NF-kBNuclear factor kappa-light-chain-enhancer of activated B cells
NONitric Oxide
NOX4NADPH Oxidase 4
Nrf2Nuclear factor erythroid 2-related factor 2
NS1Non Structural protein 1
NS2Non Structural protein 2
NS3Non Structural protein 3
NS5ANon Structural protein 5A
NS5BNon Structural protein 5B
NTCPsodium taurocholate cotransporting polypeptide
P proteinRSV phosphoprotein
PAPolymerase Acidic subunit
PB1Protein Binding 1 subunit
PB2Protein Binding 2 subunit
PLAPoly (d,l-Lactide)
Q-CNLCQuercetin-loaded Cationic Nanostructure Lipid Carrier
RBCsRed Blood Cells
RdDpRNA-dependent DNA polymerase
RdRpRNA-dependent RNA polymerase
ROSRadical Oxygen Species
RRVRhesus rotavirus
RSVRespiratory Syncytial Virus
SMDDSSelf-Micro-emulsifying Drug Delivery System
SNEDDSSelf-Nanoemulsifying Drug Delivery System
STAT1Signal transducer and activator of transcription 1
SU.VI.MAXSupplementation en Vitamines et Mineraux Antioxydants
TLR3Toll-Like Receptor 3
TLR4Toll-Like Receptor 4
TLR7Toll-Like Receptor 7
TNF-αTumor Necrosis Factor-α
