Remote Sens. 2017, 9(7), 750;

Bathymetry of the Coral Reefs of Weizhou Island Based on Multispectral Satellite Images

1,2,3,* , 1,2,3
Coral Reef Research Centre of China, Guangxi University, Nanning 530004, China
Guangxi Laboratory on the Study of Coral Reefs in the South China Sea, Guangxi University, Nanning 530004, China
School of Marine Sciences, Guangxi University, Nanning 530004, China
Institute of Complexity Science and Big Data Technology, Guangxi University, Nanning 530004, China
Author to whom correspondence should be addressed.
Received: 26 May 2017 / Revised: 13 July 2017 / Accepted: 18 July 2017 / Published: 21 July 2017
(This article belongs to the Section Ocean Remote Sensing)
Full-Text   |   PDF [5929 KB, uploaded 21 July 2017]   |

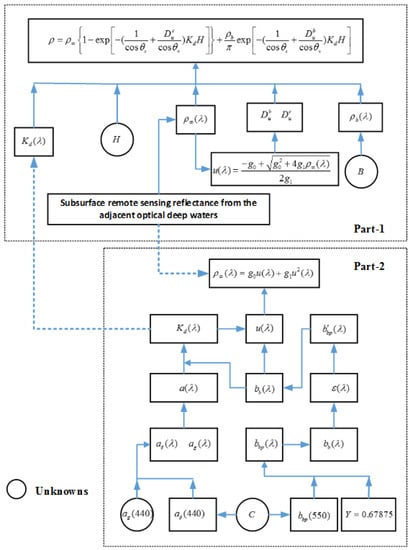

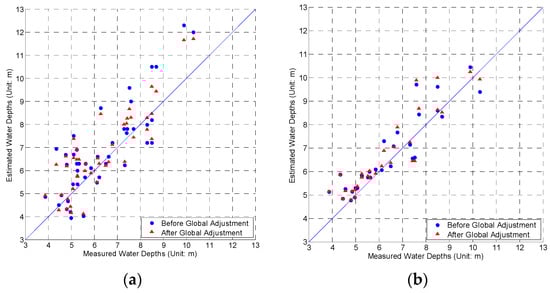

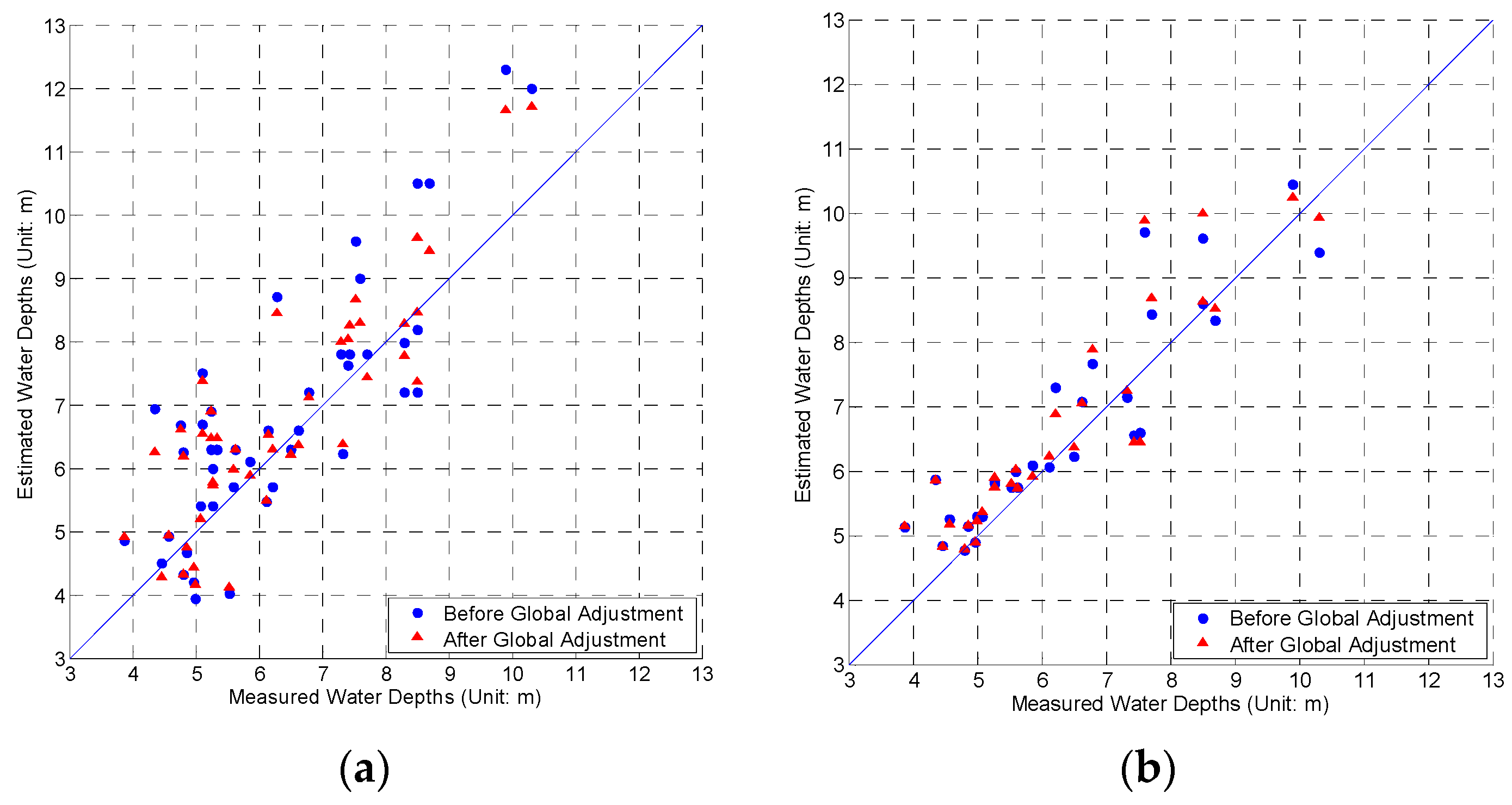

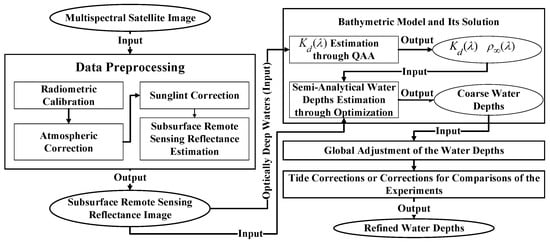

Shallow water depth measurements using multispectral images are crucial for marine surveying and mapping. At present, relevant studies either depend on the use of other auxiliary data (such as field water depths or water column data) or contain too many unknown variables, thus making these studies suitable only for images that contain enough visible wavebands. To solve this problem, a Quasi-Analytical Algorithm (QAA) approach is proposed in this paper for estimating the water depths around Weizhou Island by developing a QAA to estimate the diffuse attenuation coefficients and simplifying the parameterization of the bathymetric model. The approach contains an initialization sub-approach and a novel global adjustment sub-approach. It is not only independent of other auxiliary data but also greatly reduces the number of unknowns. Experimental results finally demonstrated that the Root Mean Square Errors (RMSEs) were 1.01 m and 0.77 m for the ZY-3 image and the WorldView-3 (WV-3) image, respectively, so the approach is competitive to other QAA bathymetric methods. Besides, the global adjustment sub-approach was also seen to be superior to common smoothing filters: if the Signal-to-Noise Ratio (SNR) is as low as 42, i.e., ZY-3, it can smooth the water depths and improve the accuracies, otherwise can avoid the over-smoothing of water depths. View Full-Text
Keywords: water depth; coral reef; multispectral image; bathymetry; adjustment water depth; coral reef; multispectral image; bathymetry; adjustment

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Huang, R.; Yu, K.; Wang, Y.; Wang, J.; Mu, L.; Wang, W. Bathymetry of the Coral Reefs of Weizhou Island Based on Multispectral Satellite Images. Remote Sens. 2017, 9, 750.
