Article

The Dynamic Analysis between Urban Nighttime Economy and Urbanization Using the DMSP/OLS Nighttime Light Data in China from 1992 to 2012

by 1,2, 1,2,*, 3 and 4
1
State Key Laboratory for Information Engineering in Surveying, Mapping and Remote Sensing, Wuhan University, Wuhan 430079, China
2
Collaborative Innovation Center of Geospatial Technology, 129 Luoyu Road, Wuhan 430079, China
3
Center for Urban and Environmental Change, Department of Earth and Environmental Systems, Indiana State University, Terre Haute, IN 47809, USA
4
School of Electronics Information and Communications, Huazhong University of Science and Technology, 1037 Luoyu Road, Wuhan 430074, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2017, 9(5), 416; https://doi.org/10.3390/rs9050416
Received: 27 March 2017 / Revised: 17 April 2017 / Accepted: 22 April 2017 / Published: 28 April 2017

Abstract

:
Along with rapid urbanization, nighttime activities from places, such as restaurants, pubs and bars, and theatres, have created enormous economic and social benefits. The nighttime economy (NTE), as a newly developed social phenomenon, has been used to describe economic activities at night. However, few studies have investigated urban nighttime economy and its relation to urbanization from nighttime light (NTL) data perspective. To fill this gap, this study proposed a nighttime light economy index (NLEI). The correlation analysis was performed between the NLEI and economic indicators at both the city and provincial levels in China from 1992 to 2012 using the DMSP/OLS (Defense Meteorological Satellite Program/Operational Linescan System) time series data. Results revealed that correlations between the NLEI and all kinds of economic indicators were statistically significant. It was observed that both the urbanization and nighttime economy levels increased greatly from 1992 to 2012 in China. Cities and provinces in east China displayed relatively higher annual growth rates of NLEI compared to those in southwest and northwest China. Based on the quadrant map of urbanization and nighttime economy levels, most of the provincial capitals and provinces in east China were in the advanced coordination pattern while those in west China in the low-level coordination pattern.

Graphical Abstract

1. Introduction

Since the reform and opening policy in 1978, the accelerated urbanization processes in China have triggered the soaring national economy. Despite the low temporal resolution, economic statistical indicators, such as the GDP (Gross Domestic Product) and demographic variables, have been mainly utilized to assess urbanization levels in previous many societal and economic studies [1]. In this context, nighttime light (NTL) data from the Defense Meteorological Satellite Program/Operational Linescan System (DMSP/OLS) provide a new avenue in mapping urbanization growth and economic activities at local, regional, and global scales from a long-term perspective. In the past decades, the DMSP/OLS NTL data have been widely utilized to analyze economic development [2,3,4,5,6,7,8,9,10,11,12,13,14,15,16], population/population density patterns [17,18,19,20,21,22,23,24], energy consumption [25,26,27,28,29,30] and urban extent/growth/expansion [31,32,33,34,35,36,37,38,39,40,41,42,43,44].
It has been shown that urban lighting constructions have increased vastly, as evidenced by the number of city streetlights growing from 2,765,984 in 1996 to 20,622,200 in 2012 according to the China Statistical Yearbook [45]. With rapid urbanization, the social life rhythm is accelerated, and social activities of citizens and leisure life are enriched gradually. As such, shopping, recreation, and entertainment have been transferred into nighttime, resulting in a brand-new growth for the nighttime economy (NTE) which refers to economic activities occurring between 6:00 p.m. and 6:00 a.m.
Initially, the term NTE was coined by Hobbs et al. [46] to specifically describe bars and clubs operating with extended licenses into the early hours of the morning. The development of night markets, such as restaurants, pubs and bars, and theatres, has been an important and diverse part of the whole economy and has potentials in generating social and economic benefits. As a key focus of urban public policy, NTE reflects economic activities pertinent to leisure, tourism and service sectors [47]. It creates thousands of jobs and brings huge economic profits for the national economy. Since the early 1990s, with the increase of national pub and bars, the “nighttime high street” has been introduced as a brand to attract customers in many cities and urban centers. Many European cities are energetically developing the urban NTE because of the economic recession. In the UK, the urban NTE has been regarded as a driver for reviving urban centers and developing a strong urban cultural economy and production system [48]. As such, recent years have witnessed rapid expansions of the NTE in the UK. Roberts [49] stated that the numbers and capacities of licensed premises more than doubled since 1997 in some major cities of England and Wales.
It should be noted, however, that NTL data were mainly used to characterize the overall economy in china rather than the nighttime economy (NTE). Nowadays, the NTE has played a significant role in the urban economy and covers a wide range of activities in Asia, especially in China. As stated from the China Statistical Yearbook 2014, the output of the primary and secondary industries declined significantly while that of the tertiary industry increased from 24.5% in 1978 to 48.1% in 2014 [50]. In other words, the percentage of the service industry in the GDP has risen to a high level. Meanwhile, urbanization levels mainly depend on the proportion of the secondary and tertiary industries to the GDP. The NTE is considered as an extension of time for the urban daytime economy and takes the tertiary industry as the main body. Thus, the increase of the NTE may contribute to the rise of urbanization levels. However, few studies have assessed urban NTE and its relation to urbanization from nighttime light (NTL) data perspective.
Thus, this paper proposed a nighttime light economy index (NLEI) to investigate the urban NTE level and its relation to economic indicators at the city and provincial scales in China from 1992 to 2012. Then, spatial variations of the compounded night light index (CNLI) and NLEI were analyzed by using the mean CNLI and NLEI values from 1992 to 2012 at the provincial capital city level and provincial level for seven geographic regions. Finally, the relationship between urbanization and NTE from 1992 to 2012 was explored by using the compounded night light index (CNLI) and NLEI. By using the DMSP/OLS NTL data, the annual growth of the NTE (NLEI) and urbanization levels (CNLI) was assessed.

2. Data and Pre-Processing

2.1. The DMSP/OLS Nighttime Light Data

The Defense Meteorological Satellite Program (DMSP) Operational Linescan System (OLS) sensor is an oscillating scan radiometer with a swath of ~3000 km. The sensor has a unique capability to detect visible and thermal-infrared emissions. The OLS has two channels, i.e., a visible and near-infrared band (VNIR) from 0.4 to 1.10 μm and a thermal infrared (TIR) band from 10.0 to 13.4 μm. There are two spatial resolution modes for the imagery acquired: 0.56 km at fine mode and 2.7 km at smooth mode.
The version 4 time series of annual night stable light (NSL) dataset between 1992 and 2012 from the NOAA (National Oceanic and Atmospheric Administration) NGDC (National Geophysical Data Center) were obtained for this study [51]. The data were acquired by six different DMSP satellites: F10 (1992–1994), F12 (1994–1999), F14 (1997–2003), F15 (2000–2007), F16 (2004–2009), and F18 (2010–2012). The annual night stable light (NSL) composite has a 0–63 digital number (DN) and covers an area from −180 to 180 degrees longitude and −65 to 75 degrees latitude. The NSL images were subset to the study area according to the Chinese administrative boundary maps, re-projected into the Albers projection system, and resampled to a spatial resolution of 1 km. Due to the lack of on-board calibrations, sensor degradations, and inter-annual and intra-annual variations, NTL data cannot be directly used for long-term temporal analysis. As such, this study followed Liu et al. [52] to correct the NTL data systematically and remove the unstable lit pixels. The method in Liu et al. [52] consists of three steps: inter-calibration, intra-annual composition, and inter-annual correction.

2.2. Ancillary Data

This study focused on Mainland China only, including 31 provinces and 27 provincial capital cities (Figure 1). Three types of data were used in this study:
(1)
The administrative boundary maps for those provinces and capital cities at a scale of 1:4,000,000 were obtained from the National Geomatics Center of China. Given the geographic differences, this paper divided Mainland China (the study area) into seven geographic parts: East (Shandong, Jiangsu, Anhui, Zhejiang, Fujian, and Shanghai), South (Guangdong, Guangxi, and Hainan), Central (Hubei, Hunan, Henan, and Jiangxi), North (Beijing, Tianjin, Hebei, Shanxi, and Inner Mongolia), Northwest (Ningxia, Xinjiang, Qinghai, Shaanxi, and Gansu), Southwest (Sichuan, Yunnan, Guizhou, Tibet, and Chongqing), and Northeast (Liaoning, Jilin, and Heilongjiang) (Table 1).
(2)
Land use/land cover data of China in 1995, 2000, 2005, and 2010 were downloaded from the Data Center for Resources and Environmental Sciences, Chinese Academy of Sciences [53]. A total of five land cover types were identified: arable land, forest lands, waters, grassland, and urban construction and rural housing. The urban land from urban construction and rural housing were used as the ancillary data to define thresholds so that built-up areas could be extracted from the NTL data between 1992 and 2012.
Economic statistics for the 27 provincial capital cities and 31 provinces were collected from national and local statistical yearbook (China Statistical Yearbook and China City Statistical Yearbook) [54,55]. In previous studies [56], five recognized statistical indicators that were used to relate to the urbanization level included the per capita GDP (C1), percentage of the secondary and tertiary industries GDP (C2), percentage of nonagricultural population (C3), percentage of built-up area (C4), and percentage of population density (C5). The seven indicators that were used to evaluate the urban NTE level included the per capita GDP (E1), per capita cultural entertainment consumption level of urban residents (E2), percentage of built-up area (E3), population density (E4), percentage of employment in the tertiary industry (E5), tertiary industry GDP (E6), and percentage of the tertiary industry GDP (E7). The selection of the per capita GDP (E1) and per capita cultural entertainment consumption level of urban residents (E2) is due to the fact that the NTE level can contribute the overall economy level and depends on expenditures on recreation and entertainment. Since nighttime economic activities occur in the urban cores and high population density areas, the percentage of built-up area (E3) and population density (E4) are selected. The proportion of employment in the tertiary industry (E5), tertiary industry GDP (E6) and the percentage of the tertiary industry GDP (E7) are selected because NTE takes the tertiary industry as the main body and creates many job opportunities.

3. Methods

In this paper, the NLEI was developed to represent the urban NTE level and was correlated to the urbanization level at both the provincial capital city and provincial levels. First, the built-up areas were extracted from 1992 to 2012 and then used to compute the compound night light index (CNLI) to reflect the urbanization level. Then, the NLEI was proposed based on the findings concluding the power function between the total nighttime light brightness and the tertiary industry and was evaluated by the composite nighttime economy level indices (CNEI) at provincial level. Finally, strong correlations between the NTE and urbanization levels were analyzed by the composite urbanization level indices (CUI) and NLEI.

3.1. Extraction of Built-Up Areas

Time series NTL data were capable of revealing urban expansions at the regional and global scales [38,43,57,58]. The empirical threshold technique is widely used for mapping urban areas from NTL data because of its simplicity and relatively high accuracy and reliability [1]. This study adopted the threshold technique to extract the urban built-up areas in China from 1992 to 2012 [52]. Figure 2 and Figure 3 show the optimal threshold, the maximum kappa coefficient and the OA (overall accuracy) for each capital city and province in the years 1995, 2000, 2005, and 2010. Figure 4 shows the dynamics of built-up areas using the optimal thresholds applied to the NSL data from 1992 to 2012. The built-up areas were extracted from NTL data with an average overall accuracy of 97.8% at the provincial capital city level and of 98.4% at the province level in 1995, 2000, 2005 and 2010. However, there was a tendency of overestimating for large cities in east region, especially shanghai city. Thus, we manually corrected the optimal threshold of shanghai city using the ancillary urban land cover data as the true data of built-up area.

3.2. The Compound Night Light Index (CNLI)

It has been proven that the CNLI was an effective and applicable index to reflect the regional urbanization level at the national, provincial, and county scales [33,56]. Here, the CNLI was calculated to reflect the urbanization level at the provincial capital city and provincial scales using the Equation (1).
CNLI = I × S
where I is the average night light brightness of all lit pixels in a region (Equation (2)), and S is the proportion of lit urban areas to the total area of a region (Equation (3)). Thus, the CNLI can be re-expressed in the Equation (4).
I = 1 N L × D N M × i = T D N M ( D N i × n i )
S = A r e a N A r e a
CNLI = I × S = i = T D N M ( D N i × n i ) N L × D N M × A r e a N A r e a = i = T D N M ( D N i × n i ) × i = T D N M D N i N L × D N M × N T = i = T D N M ( D N i × n i ) D N M × N T
where D N i is the D N value of the i th gray level; n i is the number of lit pixels at the i th gray level; T is the optimal threshold to extract the lighted urban area from the DMSP/OLS image; D N M is the maximum D N value; N L is the number of lit pixels with a DN value between T and D N M ; N is the number of total pixels of the region; A r e a N is the area of lit urban areas in a region; and Area is the total area of the region.

3.3. The Urban Night Light Economy Index (NLEI)

Nighttime economic activities usually occur in the urban center in which places, such as big shopping centers, pubs and bars, theatres, and eye-catching landmarks, are located. Previous studies showed the log–linear relationship between the nighttime light brightness and GDP [14,59,60]. Here, the urban night light economy index (NLEI) was developed based on the findings concluding the power function between the total nighttime light brightness and the tertiary industry.
TNLI = ϕ ( tertiary   GDP ) = α · ( tertiary   GDP ) β
Equation (5) can be re-expressed as Equation (6):
( TNLI α ) 1 β = tertiary   GDP
Thus, the NLEI was defined in Equation (7) by replacing the tertiary GDP with the nighttime economy and treating TNLI α as the total nighttime lights in built-up area and 1 β as A r e a N A r e a in Equation (6).
NLEI = TNLI S = ( ( i = T D N M ( D N i × n i ) ) A r e a N A r e a )
where TNLI is the total amount of night lights, S is the proportion of lit urban areas to the total area of a region, D N i is the D N value of the i th gray level, n i is the number of lit pixels belonging to the i th gray level, and T is the optimal threshold to extract the lighted urban area from the DMSP/OLS image.

3.4. Effectiveness of the NLEI

To measure availability of the CNLI to map urbanization levels, the composite urbanization level indices (CUI) was presented by Zhuo et al. [56]. Similarity, to evaluate effectiveness of the NLEI to characterize NTE levels and to explore the relationship between urbanization and NTE, we proposed the composite nighttime economy level indices (CNEI). First, the composite urbanization level indices (CUI) and the composite nighttime economy level indices (CNEI) were computed with equal weights for selected economic indicators (Equations (8) and (9)). In the calculation of the CUI, five economic indicators (C1–C5) were selected. Similarly, the CNEI was derived from seven economic indicators (E1–E5).
CUI = i = 1 N w i × C i
CNEI = i = 1 N w i × E i
where w i is the weight of the i th indicator, and C i / E i is the value of the i th indicator. Here the weight in the CUI is 1/5 and the weight in the CNEI is 1/6 for E1, E2, E3, E4 and E5; and the weight in the CNEI is 1/12 for E6 and E7.
Due to the lack of economic data at the provincial capital city level, the CNEI was only computed at the provincial level. A total of 26 provincial cities except the Lasa city were finally selected for the correlation analysis in 1995, 2000, 2005, 2008, 2010 and 2012 (156 samples in total). The correlation between the NLEI and economic indicators and CNEL were performed at the provincial levels in 1995, 2000, 2005, 2008, 2010 and 2012 (186 samples in total). Then, the regression equation was established between the CNEI and NLEI in 1995, 2000, 2008 and 2012 at the provincial levels. Finally, the regression equation was used to derive the NLEI in 2005 and 2010 which were compared against the real NLEI. Here the average of the relative error (ARE) was utilized to assess the comparisons.
ARE = i = 1 N | Y a Y e | Y a N × 100 %
where N is the number of samples, Y a is the actual value of the CNEI, and Y e is the simulated value of the CNEI.

4. Results

4.1. The Relationship between the NLEI and Economic Indicators and CUI

4.1.1. The Relationship between the NLEI and Economic Indicators

Table 2 shows the correlation coefficients between the NLEI and economic indicators and CNEI. The NLEI had significant correlation with all economic indicators. The correlation coefficients between the NLEI and economic indicators (except the tertiary industry GDP) at the provincial level were higher than those at the provincial capital city level. The lowest correlation coefficients were found between the NLEI and the tertiary industry GDP (E1) at the provincial level (0.336) and between the NLEI and the percentage of employment in the tertiary industry (E2) at the provincial capital city level (0.229). The highest correlation coefficients were observed between the NLEI and the percentage of built-up area (E3) at the two levels (>0.9). The correlation coefficient is 0.823 between the NLEI and the CNEI at the provincial level. Figure 5 shows the best regression of CNEI and NLEI at the provincial level is the logarithmic function (R2 = 0.626, p = 0.000). Comparisons of the simulated CNEI derived from the NLEI with the real CNEI yielded an ARE of 15.7%, suggesting the NLEI could represent the urban NTE level (Figure 5).

4.1.2. The Relationship between the CUI and NLEI

Significant correlation was observed between NLEI, and CUI and CNLI, as shown in Table 3. The correlation coefficients between the NLEI and CUI were 0.727 at the provincial capital city level and 0.857 at the provincial level. Figure 6 shows the best regression model between the NLEI and CUI at the provincial capital city and provincial scales. The R-square of the logarithmic regression model at the provincial level (R2 = 0.773, p = 0.000) was higher than that at the provincial capital city level (R2 = 0.579, p = 0.000). The correlation coefficients between the CNLI and NLEI were 0.968 at the provincial capital city level and 0.978 at the provincial level. Overall, it was concluded that there were strong logarithmic relationships between NTE and urbanization levels.

4.2. Spatial Variations of the CNLI and NLEI

Figure 7 and Figure 8 show the mean CNLI and NLEI values from 1992 to 2012 at the provincial capital city level and provincial level for seven geographic regions. Generally, an increase trend was observed for the NLEI and CNLI values for the seven geographic regions from 1992 to 2012.
The NLEI and CNLI values at the provincial capital city level were higher in eastern, central and southern China from 1992 to 2012 than those in the northern and northeastern China. The lowest CNLI and NLEI values were in the southwestern and northwestern China. Sharp increases of CNLI and NLEI values occurred in the northern (the CNLI value increased by 0.01, and the NLEI value increased by 0.116) and southern (the CNLI value increased by 0.037, and the NLEI value increased by 0.507) China from 1992 to 1995. The CNLI and NLEI values grew rapidly between 2000 and 2005 in the eastern (the CNLI increased from 0.024 to 0.047, and the NLEI increased from 1.280 to 1.814) and central (the CNLI increased from 0.031 to 0.049, and the NLEI value increased from 1.379 to 1.729) regions.
However, the CNLI and NLEI values at the provincial level were different from those at the provincial capital city level. Northern and eastern China had the highest CNLI and NLEI values from 1992 to 2012 among the seven geographic regions, followed by northeastern, central and southern China. The CNLI and NLEI values increased from 0.011 to 0.027 and from 1.152 to 1.515, respectively, in the northern region and increased from 0.013 to 0.024 and from 1.156 to 1.436, respectively, in the eastern region from 1992 to 1995. In addition, between 2005 and 2010, huge increases of CNLI and NLEI values were observed in the northern and eastern regions. Notably, northwest and southwest China exhibited the lowest mean CNLI and NLEI values at the provincial level. Overall, the urbanization and NTE levels in the eastern regions were much higher than those in the western regions.

4.3. The Type of the Relationship between the Nighttime Economy and Urbanization

The quadrant map presented by Chen et al. [61,62] was utilized to characterize dynamics of urbanization and economy over time. In this paper, the CNLI was used to represent the urbanization level and the NLEI to indicate the urban NTE level. The quadrant map displays four types of relationship: advanced coordination, advanced urbanization, low-level coordination, and urbanization lag. In Figure 9, the x-axis represents the nighttime economy (z-scored value) and the y-axis represents the urbanization level (z-scored value).
The upper right quadrant (I) represents the advanced coordination and indicates a high level of both the NTE and urbanization. The second quadrant (II) is the advanced urbanization, representing a high level of urbanization but a low level of the NTE. In other words, the development of the NTE cannot keep pace with the urbanization levels. The Low-level coordination is in the third quadrant (III) and represents a low level of both the NTE and urbanization. The lag of urbanization is in the fourth quadrant (IV) and shows an extremely unbalanced relationship between a high level of the NTE and a low level of urbanization. In this section, different types of the relationship between the urbanization level and the NTE was examined by using the quadrant map.

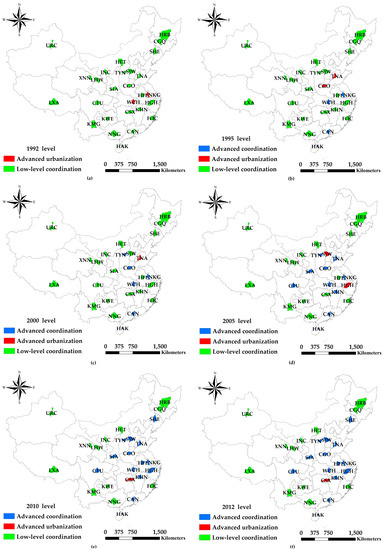

Figure 10 and Figure 11 show different types of the relationship between the urbanization level and the NTE level at the provincial capital and provincial scales from 1992 to 2012. No city had the advanced coordination (the quadrant (I)) pattern in 1992. It was not until in the year 1995 that four cities, Nanjing, Wuhan, Guangzhou, and Haikou, had both high NTE and urbanization levels (advanced coordination). Since 1995, there were an increasing number of cities that possess high levels of both NTE and urbanization and gradually progressed into quadrant I (the advanced coordination). In 2012, more than half of the provincial capital cities in Mainland China had the advanced coordination pattern. At the provincial level, Beijing and Shanghai were the only two areas with the advanced coordination pattern in 1992; followed by Tianjin and Jiangsu in 1995; and Shandong, Henan, Anhui, Zhejiang, and Guangdong in 2012. There were only a few cities or provinces possessing the type of excessive urbanization (the quadrant (II)) from 1992 to 2012, i.e., Wuhan and Nanjing in 1992; Zhengzhou and Jinan in 1995; Jinan in 2000; Shijiazhuang and Hangzhou in 2005; and Changsha in 2010 and 2012.
Many provincial capital cities in the third quadrant (low-level coordination) finally evolved into advanced coordination in 2012. However, some cities in southwest and northwest China, i.e., Kunming, Guiyang, Nanning, Lasa, Wulumuqi, Xining, Yinchuan, Huhehot, and Lanzhou, were in the low-level coordination pattern from 1992 to 2012. It was observed that many cities/provinces of high urbanization levels, for example, Tianjin in 1992, Guangdong in 1995, Henan in 2005 and 2010, and Hebei and Liaoning in 2010 and 2012, generally had low NTE levels. No provincial capitals and provinces were in the fourth quadrant (lag of urbanization).

5. Discussion

5.1. The Annual Change Rates of the NLEI and CNLI

It was shown that the mean CNLI and NLEI values in the eastern regions were much higher than those in the western regions from 1992 to 2012. To further clarify this point, the annual change rates of the CNLI and NLEI (Equations (11) and (12)) at both the provincial capital city and provincial levels were examined.
UL = CNLI t + n CNLI t n
NE = NLEI t + n NLEI t n
where UL is the annual change rate of the urbanization level, and CNLI t + n and CNLI t represent the CNLI in the (t + n)th year and tth year, respectively. NE is the annual change rate of nighttime economy, and NLEI t + n and NLEI t represent the NLEI in the (t + n)th year and tth year. n is the year.
Figure 12 shows the annual change rates of the NLEI and CNLI from 1992 to 2012 at the provincial capital city level. In the past decades, the NLEI and CNLI displayed an increase pattern. The annual increase rates of the CNLI and NLEI were higher in eastern China, especially in Nanjing where the increase rates of the CNLI and NLEI were approximately 5.0 × 10−3 and 15× 10−2. In the south and central regions, the annual change rates of the CNLI and NLEI had relative high values, especially in Guangzhou and Zhengzhou. In northwest and southwest China, the annual increase rates of the CNLI and NLEI were much lower. The highest annual increase rate of CNLI was in Chengdu in southwest China and the highest annual increase rate of the NLEI in Xian in northwest China. Among all the provincial capital cities, Lasa had the lowest annual increase rates of CNLI and NLEI.

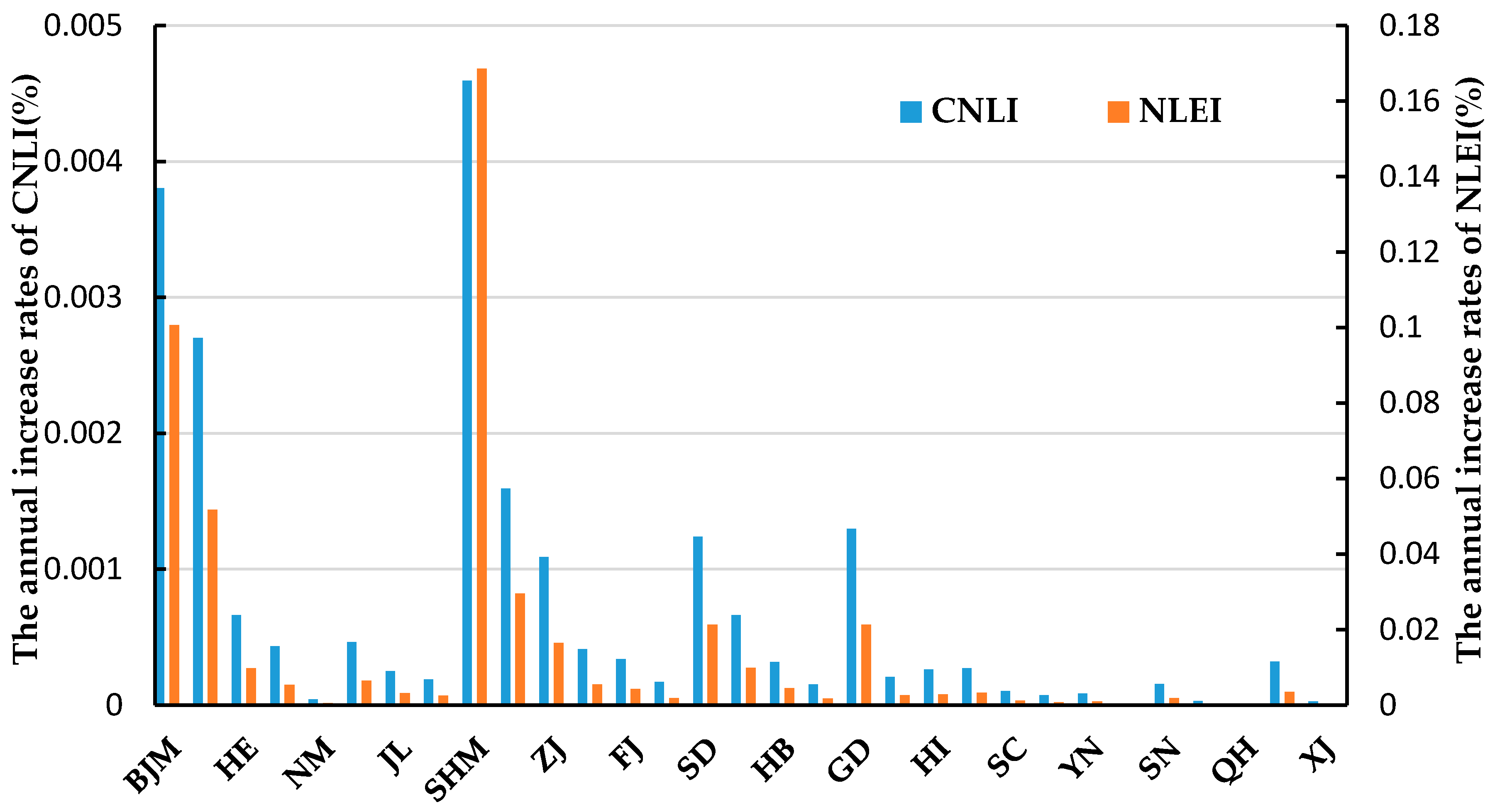

Figure 13 shows the annual increase rates of the NLEI and CNLI from 1992 to 2012 at the provincial level. Shanghai had the highest increase rates of 0.005 and 0.17 in CNLI and NLEI, respectively, among the seven economic regions. In the north region, Beijing and Tianjin had the increase rates of the CNLI at 0.004 and 0.003 and of the NLEI at 0.1 and 0.05. In northwest and southwest China, the annual increase rates of the CNLI and NLEI were much lower at the provincial level, especially in Tibet, compared to those at the provincial capital city level. The annual increase rates of CNLI derived in our study were consistent with a previous study [33], e.g., the annual increase rate of CNLI in Shanghai was the fastest (above 5.0 × 10−3), and the annual increase rate of CNLI was the slowest in Xinjiang and Tibet. However, there were subtle differences in CNLI between our study and Gao et al. [33] in some areas (e.g., Beijing and Tianjin) due to the varying thresholds for extracting urban built-up areas.

5.2. Limitation and Future Work

It should be noted that effectiveness of the NLEI was not assessed by the direct economic indicators of the urban NTE. Due to the lack of appropriate nighttime economic data, this paper selected economic variables that have contributions from the NTE level for evaluating the proposed NLEI. The observed high correlation coefficients between the TNLI (total amount of night lights) and the tertiary GDP at both the provincial capital city (0.789) and provincial levels (0.786) may indicate the close relationship between total nighttime lights and the NTE level. Results showed a power function between the tertiary industry and TNLI at both the provincial capital city level (Tertiary GDP = 0.278*(TNLI)1.118, R2 = 0.882) and provincial levels (Tertiary GDP = 0.365*(TNLI)0.992, R2 = 0.840). Thus the DMSP/OLS nighttime light images have the potential to represent the nighttime economy by capturing lights emitted from the urban center. In addition, the nighttime light from the industrial and residential areas does not contribute to the NTE but it is correlated to the economic data in the study. Thus, correlation analysis in the study may be biased. Frolking et al. [63] concluded that verticality of built-up infrastructure had a sharp increase for Chinese cities and that it was not linearly reflected by nighttime satellite imageries. Further refinements can be made by using much more detailed nighttime data (e.g., VIIRS) [64,65,66] and high resolution land cover and land use data. Although this study focuses on the benefits of NTE, NTE may also bring some negative effects, such as the increase of criminal activities, noise, and environmental pollutions.

6. Conclusions

The relationship between urban NTE level and the urbanization level was investigated by correlating a newly proposed index, NLEI, with the economic data at both the provincial and provincial capital city scales. There were high correlation coefficients between the NLEI and the economic indicators, and the correlation coefficients at the provincial level were higher than those at the provincial capital city level. It was concluded that the NLEI could effectively reflect the urban NTE level at the provincial scale with an overall accuracy of 84.3%. As such, the proposed NLEI may provide an alternative way to evaluate the NTE level in the absence of economic statistical data in China. It may also offer decision-makers and local authorities the information to reflect on the trajectories of the NTE level over time and on the impact of urbanization on the NTE level.
The logarithmic regression between the CUI and NLEL indicated a close relationship between the urban NTE and urbanization levels. Analyses of temporal dynamics of urbanization and urban NTE levels disclosed that the annual increase rates of the CNLI and NLEI were much higher in the eastern provinces of China than those in the western provinces. The quadrant map analysis showed that many provinces and provincial capital cities were in the low-level coordination pattern in 1992 and gradually evolved into the advanced coordination pattern in 2012. No provincial capitals and provinces were in the fourth quadrant (lag of urbanization), indicating that it was difficult to have a prosperous NTE with a low urbanization level. Provinces/cities of high urbanization levels were usually accompanied with high levels of the urban NTE. Regions that had a low level of the urban NTE were found in the west China due to poor traffic and hostile natural conditions. In 1992, most of the provincial capital cities had the low urbanization and NTE levels. With the urbanization development, the NTE level gradually increased, especially in central and east China. In 2012, the city of Lasa, and Xinjiang, Xizang, and Qinghai provinces still possessed low urbanization and NTE levels.

Acknowledgments

This work was supported by the National Key Technologies Research and Development Program (2016YFB0502603), Fundamental Research Funds for the Central Universities (2042016kf0179 and 2042016kf1019), Guangzhou science and technology project (201604020070), Wuhan Chen Guang Project (2016070204010114), and Special task of technical innovation in Hubei Province (2016AAA018).

Author Contributions

In this paper, Huyan Fu and Zhenfeng Shao conceived and designed the experiments; Huyan Fu performed the experiments; Zhenfeng Shao, Huyan Fu, and Qimin Chen analyzed the data; and Zhenfeng Shao, Huyan Fu, and Peng Fu wrote and revised the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Henderson, V. The urbanization process and economic growth: The so-what question. J. Econ. Growth 2003, 8, 47–71. [Google Scholar] [CrossRef]
  2. Bhandari, L.; Roychowdhury, K. Night Lights and Economic Activity in India: A study using DMSP-OLS night time images. Proc. Asia-Pac. Adv. Netw. 2011, 2011, 218–236. [Google Scholar] [CrossRef]
  3. Chen, X.; Nordhaus, W.D. Using luminosity data as a proxy for economic statistics. Proc. Natl. Acad. Sci. USA 2011, 108, 8589–8594. [Google Scholar] [CrossRef] [PubMed]
  4. Deville, P.; Linard, C.; Martin, S.; Gilbert, M.; Stevens, F.R.; Gaughan, A.E.; Blondel, V.D.; Tatem, A.J. Dynamic population mapping using mobile phone data. Proc. Natl. Acad. Sci. USA 2014, 111, 15888–15893. [Google Scholar] [CrossRef] [PubMed]
  5. Doll, C.N.H.; Muller, J.P.; Morley, J.G. Mapping regional economic activity from night-time light satellite imagery. Ecol. Econ. 2006, 57, 75–92. [Google Scholar] [CrossRef]
  6. Forbes, D.J. Multi-scale analysis of the relationship between economic statistics and DMSP-OLS night light images. GISci. Remote Sens. 2013, 50, 483–499. [Google Scholar]
  7. Ghosh, T.; Anderson, S.; Powell, R.L.; Sutton, P.C.; Elvidge, C.D. Estimation of Mexico’s informal economy and remittances using nighttime imagery. Remote Sens. 2009, 1, 418–444. [Google Scholar] [CrossRef]
  8. Henderson, J.V.; Storeygard, A.; Weil, D.N. Measuring economic growth from outer space. Am. Econ. Rev. 2012, 102, 994–1028. [Google Scholar] [CrossRef] [PubMed]
  9. Keola, S.; Andersson, M.; Hall, O. Monitoring Economic Development from Space: Using Nighttime Light and Land Cover Data to Measure Economic Growth. World Dev. 2015, 66, 322–334. [Google Scholar] [CrossRef]
  10. Li, X.; Ge, L.; Chen, X. Detecting zimbabwe’s decadal economic decline using nighttime light imagery. Remote Sens. 2013, 5, 4551–4570. [Google Scholar] [CrossRef]
  11. Li, X.; Li, D. Can night-time light images play a role in evaluating the Syrian Crisis? Int. J. Remote Sens. 2014, 35, 6648–6661. [Google Scholar] [CrossRef]
  12. Nordhaus, W.; Chen, X. A sharper image? Estimates of the precision of nighttime lights as a proxy for economic statistics. J. Econ. Geogr. 2015, 15, 217–246. [Google Scholar] [CrossRef]
  13. Sutton, P.; Elvidge, C.; Ghosh, T. Estimation of gross domestic product at sub-national scales using nighttime satellite imagery. Int. J. Ecol. Econ. Stat. 2007, 8, 5–21. [Google Scholar]
  14. Wu, J.; Wang, Z.; Li, W.; Peng, J. Exploring factors affecting the relationship between light consumption and GDP based on DMSP/OLS nighttime satellite imagery. Remote Sens. Environ. 2013, 134, 111–119. [Google Scholar] [CrossRef]
  15. Yue, W.; Gao, J.; Yang, X. Estimation of gross domestic product using multi-sensor remote sensing data: A case study in zhejiang province, east China. Remote Sens. 2014, 6, 7260–7275. [Google Scholar] [CrossRef]
  16. Xu, H.; Yang, H.; Li, X.; Jin, H.; Li, D. Multi-scale measurement of regional inequality in Mainland China during 2005–2010 using DMSP/OLS night light imagery and population density grid data. Sustainability 2015, 7, 13469–13499. [Google Scholar] [CrossRef]
  17. Amaral, S.; Monteiro, A.M.V.; Camara, G.; Quintanilha, J.A. DMSP/OLS night-time light imagery for urban population estimates in the Brazilian Amazon. Int. J. Remote Sens. 2006, 27, 855–870. [Google Scholar] [CrossRef]
  18. Anderson, S.J.; Tuttle, B.T.; Powell, R.L.; Sutton, P.C. Characterizing relationships between population density and nighttime imagery for Denver, Colorado: Issues of scale and representation. Int. J. Remote Sens. 2010, 31, 5733–5746. [Google Scholar] [CrossRef]
  19. Bagan, H.; Yamagata, Y. Analysis of urban growth and estimating population density using satellite images of nighttime lights and land-use and population data. GISci. Remote Sens. 2015, 52, 765–780. [Google Scholar] [CrossRef]
  20. Elvidge, C.D.; Baugh, K.E.; Kihn, E.A.; Kroehl, H.W.; Davis, E.R.; Davis, C.W. Relation between satellite observed visible-near infrared emissions, population, economic activity and electric power consumption. Int. J. Remote Sens. 1997, 18, 1373–1379. [Google Scholar] [CrossRef]
  21. Sutton, P.; Roberts, D.; Elvidge, C.; Baugh, K. Census from Heaven: An estimate of the global human population using night-time satellite imagery. Int. J. Remote Sens. 2001, 22, 3061–3076. [Google Scholar] [CrossRef]
  22. Sutton, P. Modeling Population Density With Night-Time Satellite Imagery and Gis. Comput. Environ. Urban Syst. 1997, 214, 227–244. [Google Scholar] [CrossRef]
  23. Sutton, P.; Roberts, D.; Elvidge, C.; Melj, H. A Comparison of Nighttime Satellite Imagery and Population Density for the Continental United States. Society 1997, 63, 1303–1313. [Google Scholar]
  24. Zhuo, L.; Ichinose, T.; Zheng, J.; Chen, J.; Shi, P.J.; Li, X. Modelling the population density of China at the pixel level based on DMSP/OLS non-radiance-calibrated night-time light images. Int. J. Remote Sens. 2009, 30, 1003–1018. [Google Scholar] [CrossRef]
  25. Cao, X.; Wang, J.; Chen, J.; Shi, F. Spatialization of electricity consumption of China using saturation-corrected DMSP-OLS data. Int. J. Appl. Earth Obs. Geoinf. 2014, 28, 193–200. [Google Scholar] [CrossRef]
  26. Chand, T.R.K.; Badarinath, K.V.S.; Elvidge, C.D.; Tuttle, B.T. Spatial characterization of electrical power consumption patterns over India using temporal DMSP-OLS night-time satellite data. Int. J. Remote Sens. 2009, 30, 647–661. [Google Scholar] [CrossRef]
  27. Liu, X.; Hu, G.; Ai, B.; Li, X.; Shi, Q. Modeling the spatiotemporal dynamics of electric power consumption in Mainland China using saturation-corrected DMSP/OLS nighttime stable light data. Remote Sens. 2015, 7, 17168–17189. [Google Scholar] [CrossRef]
  28. Shi, K.; Chen, Y.; Yu, B.; Xu, T.; Yang, C.; Li, L.; Huang, C.; Chen, Z.; Liu, R.; Wu, J. Detecting spatiotemporal dynamics of global electric power consumption using DMSP-OLS nighttime stable light data. Appl. Energy 2016, 184, 450–463. [Google Scholar] [CrossRef]
  29. Xie, Y.; Weng, Q. World energy consumption pattern as revealed by DMSP-OLS nighttime light imagery. GISci. Remote Sens. 2016, 53, 265–282. [Google Scholar] [CrossRef]
  30. Xie, Y.; Weng, Q. Detecting urban-scale dynamics of electricity consumption at Chinese cities using time-series DMSP-OLS (Defense Meteorological Satellite Program-Operational Linescan System) nighttime light imageries. Energy 2016, 100, 177–189. [Google Scholar] [CrossRef]
  31. Cao, X.; Chen, J.; Imura, H.; Higashi, O. A SVM-based method to extract urban areas from DMSP-OLS and SPOT VGT data. Remote Sens. Environ. 2009, 113, 2205–2209. [Google Scholar] [CrossRef]
  32. Elvidge, C.D.; Baugh, K.E.; Kihn, E.A.; Kroehl, H.W.; Davis, E.R. Mapping City Lights With Nighttime Data from the DMSP Operational Linescan System. Photogramm. Eng. Remote Sens. 1997, 63, 727–734. [Google Scholar]
  33. Gao, B.; Huang, Q.; He, C.; Ma, Q. Dynamics of urbanization levels in China from 1992 to 2012: Perspective from DMSP/OLS nighttime light data. Remote Sens. 2015, 7, 1721–1735. [Google Scholar] [CrossRef]
  34. Huang, Q.; He, C.; Gao, B.; Yang, Y.; Liu, Z.; Zhao, Y.; Dou, Y. Detecting the 20 year city-size dynamics in China with a rank clock approach and DMSP/OLS nighttime data. Landsc. Urban Plan. 2015, 137, 138–148. [Google Scholar] [CrossRef]
  35. Huang, X.; Schneider, A.; Friedl, M.A. Mapping sub-pixel urban expansion in China using MODIS and DMSP/OLS nighttime lights. Remote Sens. Environ. 2016, 175, 92–108. [Google Scholar] [CrossRef]
  36. Li, Q.; Lu, L.; Weng, Q.; Xie, Y.; Guo, H. Monitoring urban dynamics in the Southeast U.S.A. using time-series DMSP/OLS nightlight imagery. Remote Sens. 2016, 8, 578. [Google Scholar] [CrossRef]
  37. Liu, Y.; Delahunty, T.; Zhao, N.; Cao, G. These lit areas are undeveloped: Delimiting China’s urban extents from thresholded nighttime light imagery. Int. J. Appl. Earth Obs. Geoinf. 2016, 50, 39–50. [Google Scholar] [CrossRef]
  38. Small, C.; Pozzi, F.; Elvidge, C.D. Spatial analysis of global urban extent from DMSP-OLS night lights. Remote Sens. Environ. 2005, 96, 277–291. [Google Scholar] [CrossRef]
  39. Su, Y.; Chen, X.; Wang, C.; Zhang, H.; Liao, J.; Ye, Y.; Wang, C. A new method for extracting built-up urban areas using DMSP-OLS nighttime stable lights: A case study in the Pearl River Delta, southern China. GISci. Remote Sens. 2015, 1603, 1–21. [Google Scholar] [CrossRef]
  40. Wu, J.; Ma, L.; Li, W.; Peng, J.; Liu, H. Dynamics of urban density in china: Estimations based on DMSP/OLS nighttime light data. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2014, 7, 4266–4275. [Google Scholar] [CrossRef]
  41. Xiao, P.; Wang, X.; Feng, X.; Zhang, X.; Yang, Y. Detecting China’s urban expansion over the past three decades using nighttime light data. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2014, 7, 4095–4106. [Google Scholar] [CrossRef]
  42. Xie, Y.; Weng, Q. Updating urban extents with nighttime light imagery by using an object-based thresholding method. Remote Sens. Environ. 2016, 187, 1–13. [Google Scholar] [CrossRef]
  43. Xu, T.; Ma, T.; Zhou, C.; Zhou, Y. Characterizing spatio-temporal dynamics of urbanization in China using time series of DMSP/OLS night light data. Remote Sens. 2014, 6, 7708–7731. [Google Scholar] [CrossRef]
  44. Zhang, Q.; He, C.; Liu, Z. Studying urban development and change in the contiguous United States using two scaled measures derived from nighttime lights data and population census. GISci. Remote Sens. 2014, 51, 63–82. [Google Scholar] [CrossRef]
  45. National Bureau of Statistics of China. China Statistical Yearbook of China 1996–2012; China Statistics Press: Beijing, China, 1997–2013.
  46. Hobbs, D. Bouncers: Violence and Governance in the Night-Time Economy; Oxford University: Oxford, UK, 2003. [Google Scholar]
  47. Hadfield, P.; Newton, A. Factsheet: Alcohol, Crime and Disorder in the Night-Time Economy; Alcohol Concern: London, UK, 2010; pp. 1–16. [Google Scholar]
  48. Chatterton, P.; Hollands, R. Urban Studies Theorising Urban Playscapes: Producing, Spaces. Urban Stud. 2002, 39, 95–116. [Google Scholar] [CrossRef]
  49. Roberts, M. From “creative city” to “no-go areas”—The expansion of the night-time economy in British town and city centres. Cities 2006, 23, 331–338. [Google Scholar] [CrossRef]
  50. National Bureau of Statistics of China. China Statistical Yearbook of China 2014; China Statistics Press: Beijing, China, 2015.
  51. The Version 4 Time Series of Annual Night Stable Light (NSL) Dataset. Available online: https://www.ngdc.noaa.gov/eog/dmsp/downloadV4composites.html (accessed on 5 April 2016).
  52. Liu, Z.; He, C.; Zhang, Q.; Huang, Q.; Yang, Y. Extracting the dynamics of urban expansion in China using DMSP-OLS nighttime light data from 1992 to 2008. Landsc. Urban Plan. 2012, 106, 62–72. [Google Scholar] [CrossRef]
  53. Land Use/Land Cover Data of China in 1995, 2000, 2005, and 2010. The Data Center for Resources and Environmental Sciences, Chinese Academy of Sciences. Available online: http://www.resdc.cn/ (accessed on 12 July 2016).
  54. National Bureau of Statistics of China. Urban Statistical Yearbook of China 1992–2012; China Statistical Press: Beijing, China, 1993–2013.
  55. National Bureau of Statistics of China. China Statistical Yearbook of China 1992–2012; China Statistics Press: Beijing, China, 1993–2013.
  56. Zhuo, L.; Shi, P.; Chen, J.; Ichinose, T. Application of compound night light index derived from DMSP/OLS data to urbanization analysis in China in the 1990s. Acta Geogr. Sin. 2003, 58, 893–902. [Google Scholar]
  57. Xu, P.; Jin, P.; Yang, Y.; Wang, Q. Evaluating Urbanization and Spatial-Temporal Pattern Using the DMSP/OLS Nighttime Light Data: A Case Study in Zhejiang Province. Math. Probl. Eng. 2016, 2016, 9850890. [Google Scholar] [CrossRef]
  58. Zhang, Q.; Seto, K.C. Mapping urbanization dynamics at regional and global scales using multi-temporal DMSP/OLS nighttime light data. Remote Sens. Environ. 2011, 115, 2320–2329. [Google Scholar] [CrossRef]
  59. Doll, C.N.H.; Muller, J.; Elvidge, C.D. Night-Time Imagery as a Tool for Global Mapping of Socioeconomic Parameters and Greenhouse Gas Emissions. AMBIO J. Hum. Environ. 2000, 29, 157–162. [Google Scholar] [CrossRef]
  60. Zhou, N.; Hubacek, K.; Roberts, M. Analysis of spatial patterns of urban growth across South Asia using DMSP-OLS nighttime lights data. Appl. Geogr. 2015, 63, 292–303. [Google Scholar] [CrossRef]
  61. Chen, M.; Lu, D.; Zha, L. Urbanization and economic development in China: An international comparison based on quadrant map approach. Geogr. Res. 2009, 28, 464–474. (In Chinese) [Google Scholar]
  62. Chen, M.; Lu, D.; Liu, H. The Provincial Pattern of the Relationship between China’s Urbanization and Economic Development. Acta Geogr. Sin. 2010, 65, 1443–1453. (In Chinese) [Google Scholar]
  63. Frolking, S.; Milliman, T.; Seto, K.C.; Friedl, M.A. A global fingerprint of macro-scale changes in urban structure from 1999 to 2009. Environ. Res. Lett. 2013, 8, 24004. [Google Scholar] [CrossRef]
  64. Li, X.; Xu, H.; Chen, X.; Li, C. Potential of NPP-VIIRS nighttime light imagery for modeling the regional economy of China. Remote Sens. 2013, 5, 3057–3081. [Google Scholar] [CrossRef]
  65. Shi, K.; Yu, B.; Huang, Y.; Hu, Y.; Yin, B.; Chen, Z.; Chen, L.; Wu, J. Evaluating the ability of NPP-VIIRS nighttime light data to estimate the gross domestic product and the electric power consumption of China at multiple scales: A comparison with DMSP-OLS data. Remote Sens. 2014, 6, 1705–1724. [Google Scholar] [CrossRef]
  66. Yu, B.; Shi, K.; Hu, Y.; Huang, C.; Chen, Z.; Wu, J. Poverty Evaluation Using NPP-VIIRS Nighttime Light Composite Data at the County Level in China. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2015, 8, 1217–1229. [Google Scholar] [CrossRef]

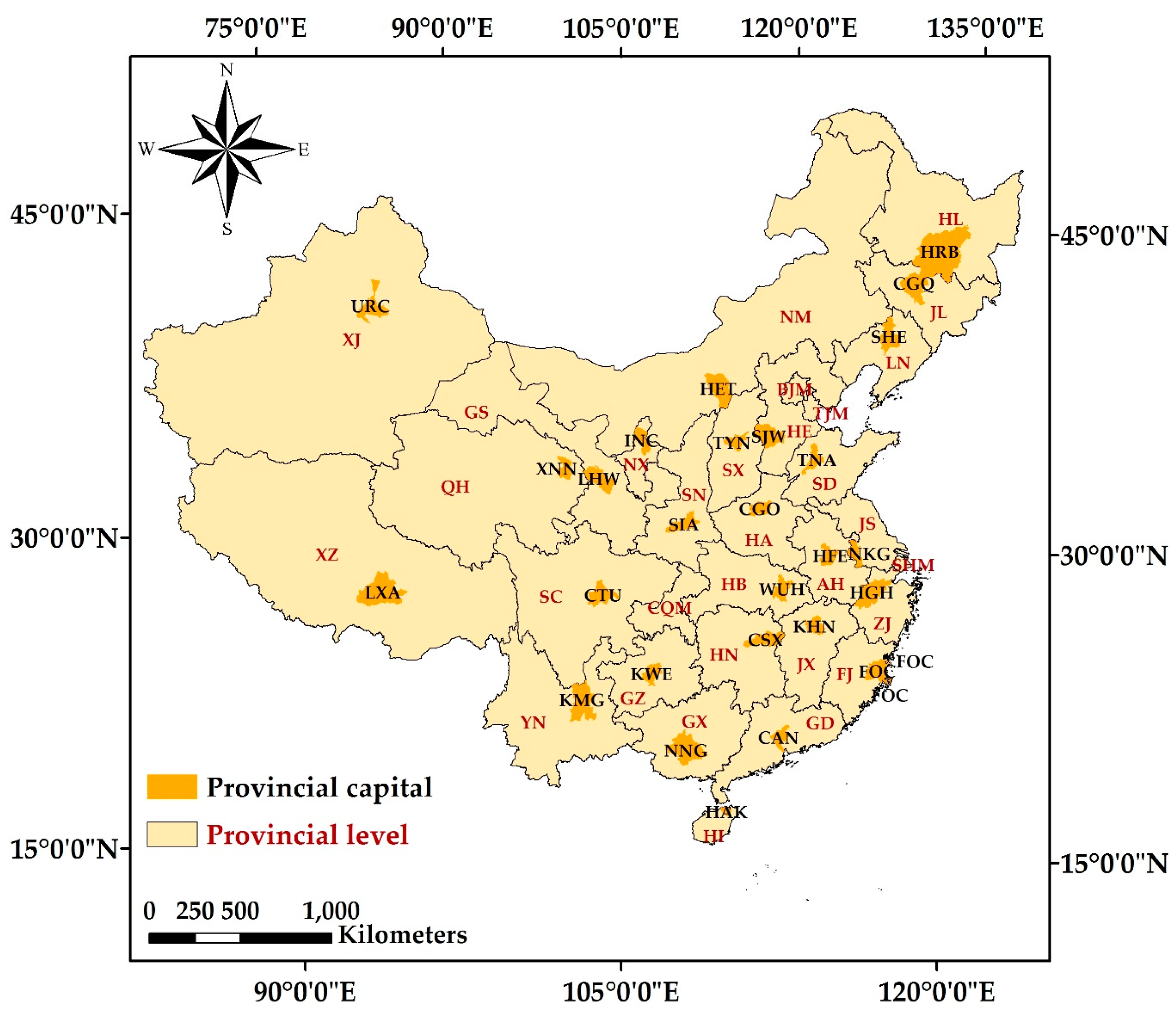

Figure 1. The study area.
Figure 1. The study area.
Remotesensing 09 00416 g001

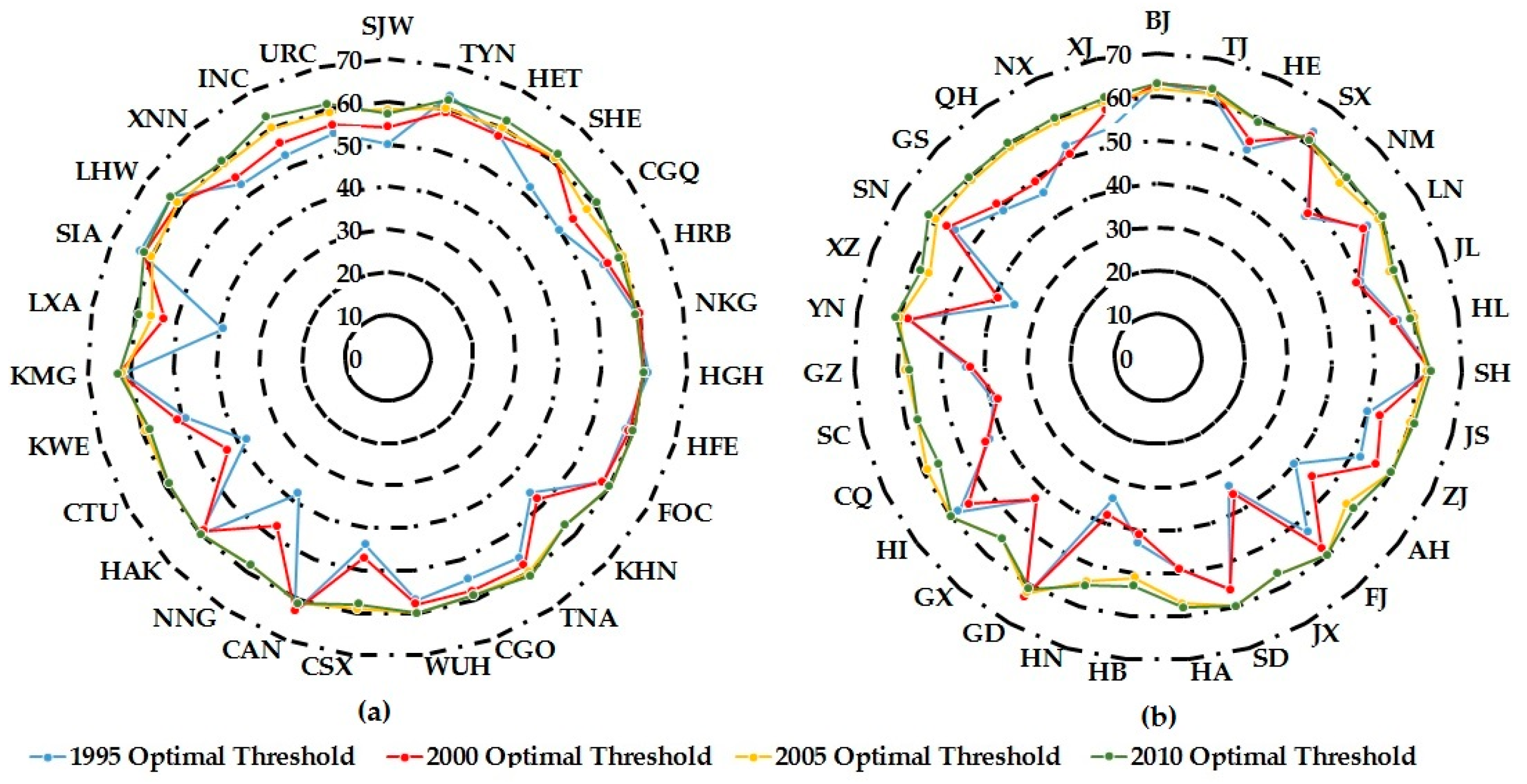

Figure 2. The optimal threshold for extracting built-up areas in each: provincial capital city (a); and province (b).
Figure 2. The optimal threshold for extracting built-up areas in each: provincial capital city (a); and province (b).
Remotesensing 09 00416 g002

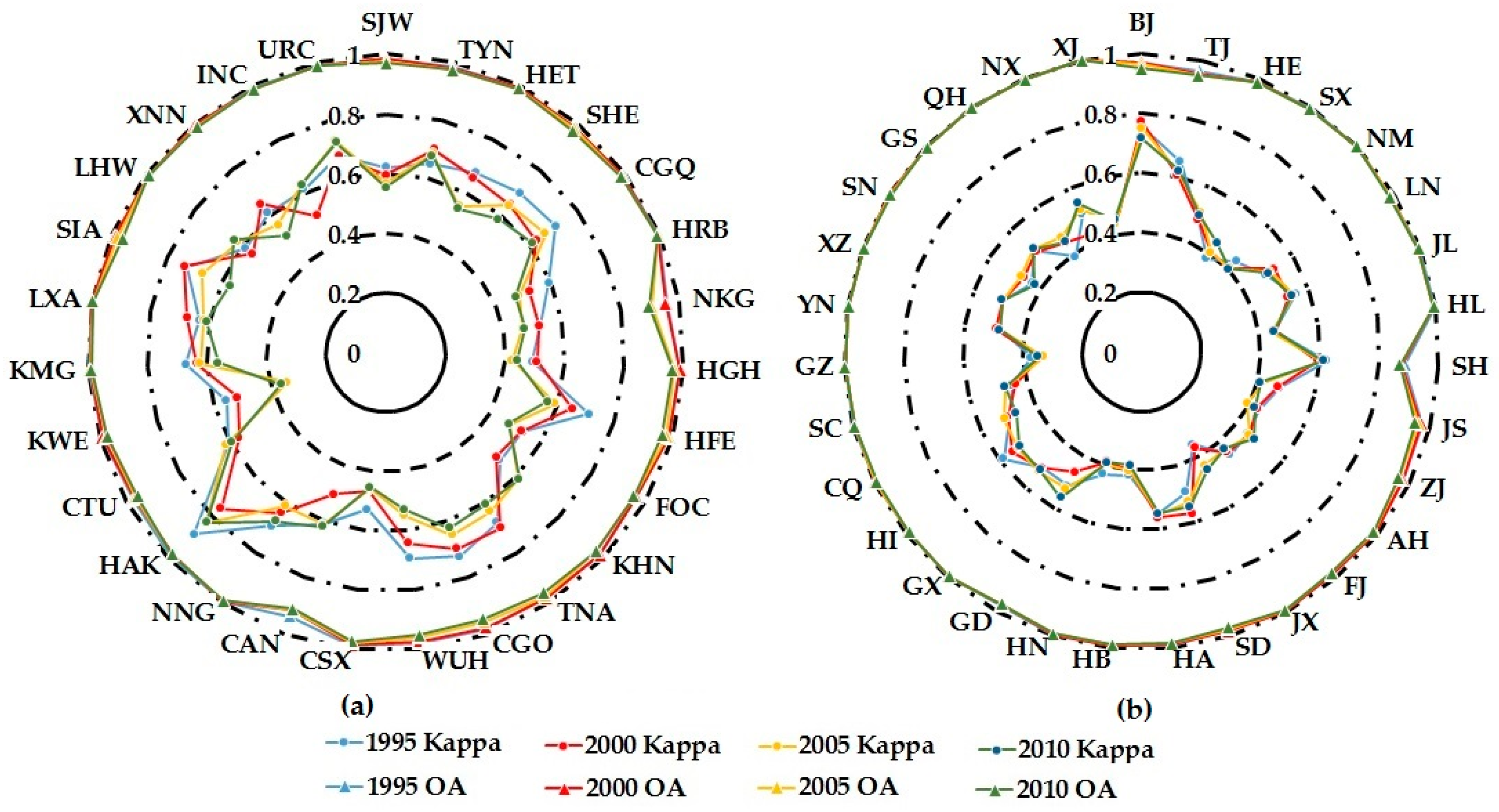

Figure 3. The maximum kappa coefficient and OA for each: capital city (a); and province (b).
Figure 3. The maximum kappa coefficient and OA for each: capital city (a); and province (b).
Remotesensing 09 00416 g003

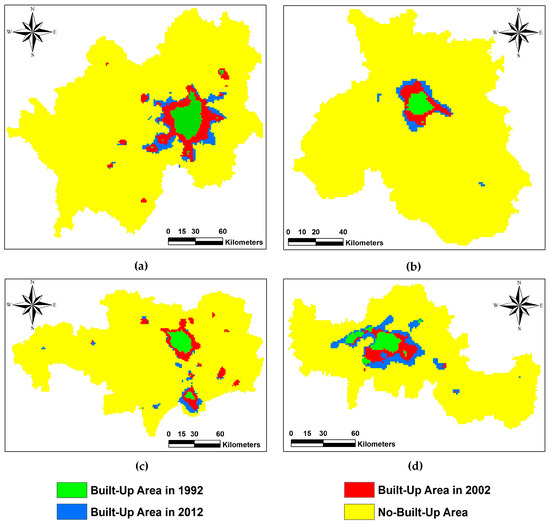

Figure 4. The dynamics of urban expansion using optimal thresholds applied to NSL data from 1992 to 2012 (Left to right and top to bottom: (a) Beijing, (b) Tianjin, (c) Nanjing, and (d) Nanchang).
Figure 4. The dynamics of urban expansion using optimal thresholds applied to NSL data from 1992 to 2012 (Left to right and top to bottom: (a) Beijing, (b) Tianjin, (c) Nanjing, and (d) Nanchang).
Remotesensing 09 00416 g004

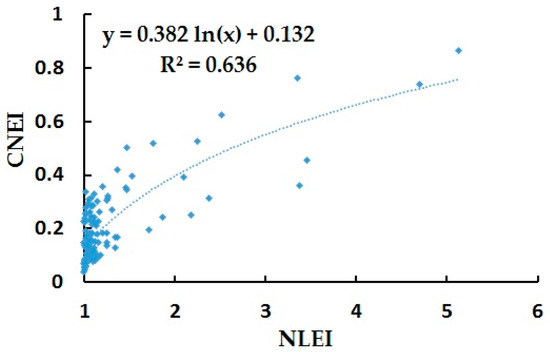

Figure 5. The regression analysis of the CNEI and NLEI at the provincial level.
Figure 5. The regression analysis of the CNEI and NLEI at the provincial level.
Remotesensing 09 00416 g005

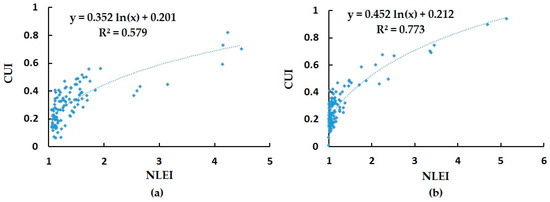

Figure 6. The regression analysis of the CUI and CNLI at the: provincial capital city level (a); and provincial level (b).
Figure 6. The regression analysis of the CUI and CNLI at the: provincial capital city level (a); and provincial level (b).
Remotesensing 09 00416 g006

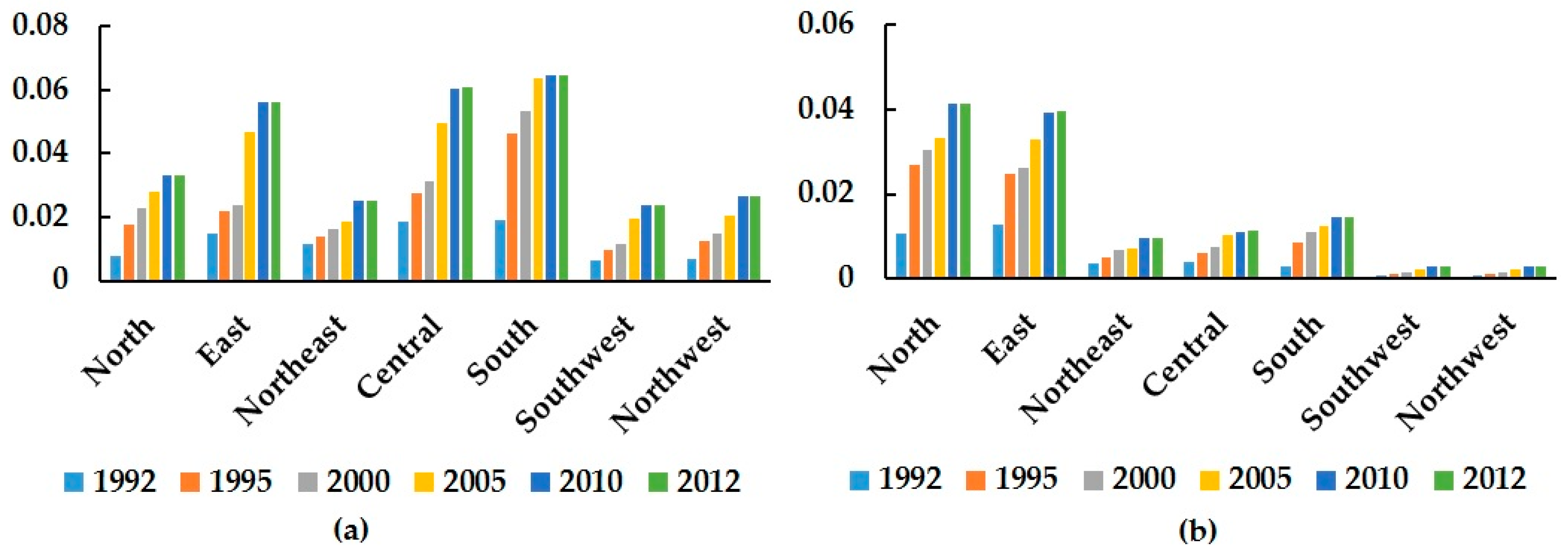

Figure 7. The mean CNLI values: at the provincial capital city level (a); and at the provincial level (b) for the seven geographic regions.
Figure 7. The mean CNLI values: at the provincial capital city level (a); and at the provincial level (b) for the seven geographic regions.
Remotesensing 09 00416 g007

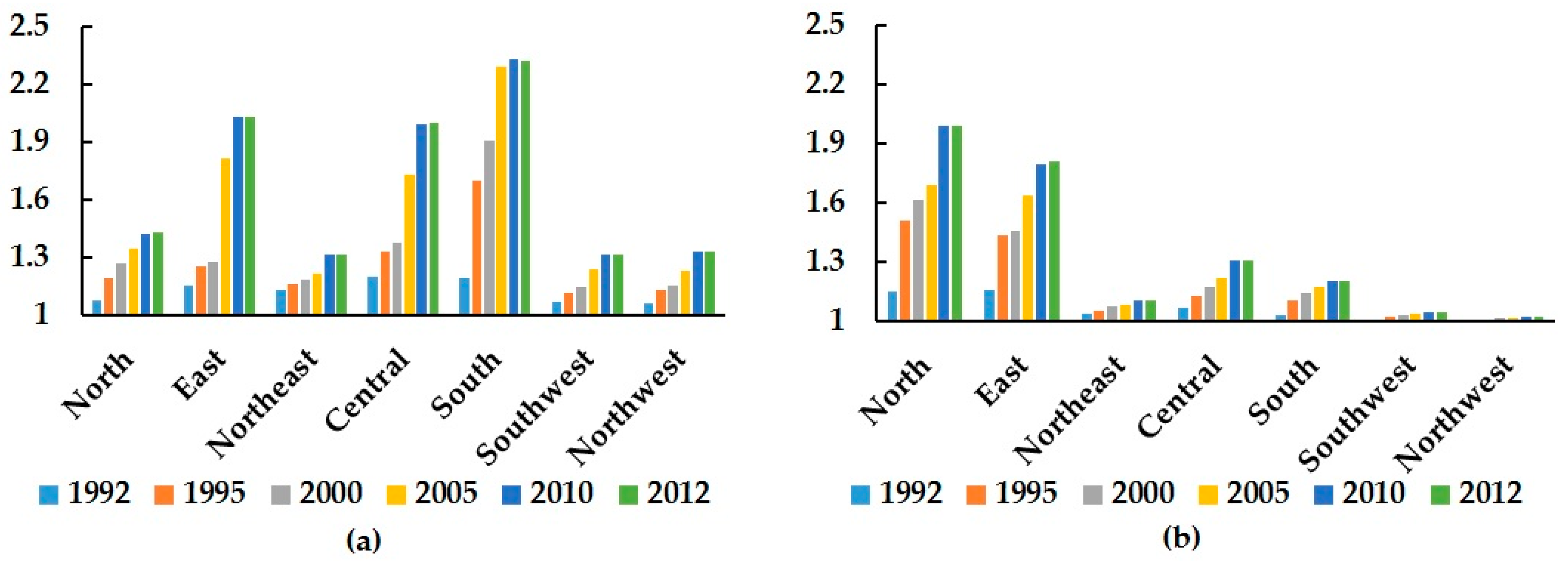

Figure 8. The mean NLEI values: at the provincial capital city level (a); and at the provincial level (b) for seven geographic regions.
Figure 8. The mean NLEI values: at the provincial capital city level (a); and at the provincial level (b) for seven geographic regions.
Remotesensing 09 00416 g008

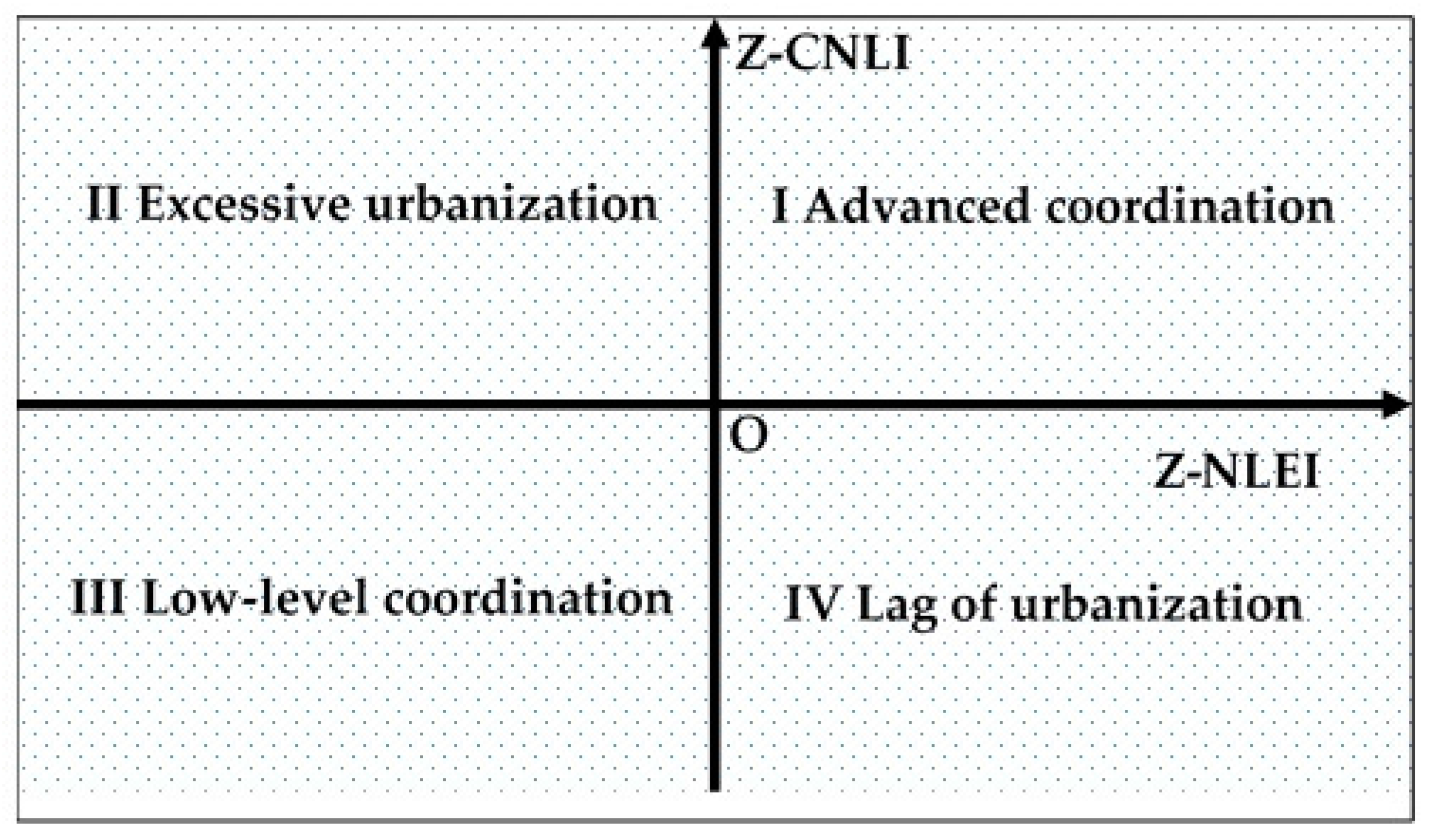

Figure 9. The quadrant map of urbanization and nighttime economy
Figure 9. The quadrant map of urbanization and nighttime economy
Remotesensing 09 00416 g009
Figure 10. The type of the relationship between NTE and urbanization levels at the provincial capital city scale from 1992 to 2012: (a) 1992; (b) 1995; (c) 2000; (d) 2005; (e) 2010; and (f) 2012.
Figure 10. The type of the relationship between NTE and urbanization levels at the provincial capital city scale from 1992 to 2012: (a) 1992; (b) 1995; (c) 2000; (d) 2005; (e) 2010; and (f) 2012.
Remotesensing 09 00416 g010
Figure 11. The type of the relationship between NTE and urbanization levels at the provincial scale from 1992 to 2012: (a) 1992; (b) 1995; (c) 2000; (d) 2005; (e) 2010; and (f) 2012.
Figure 11. The type of the relationship between NTE and urbanization levels at the provincial scale from 1992 to 2012: (a) 1992; (b) 1995; (c) 2000; (d) 2005; (e) 2010; and (f) 2012.
Remotesensing 09 00416 g011
Figure 12. The annual increase rates of NLEI and CNLI from 1992 to 2012 at the provincial capital city level.
Figure 12. The annual increase rates of NLEI and CNLI from 1992 to 2012 at the provincial capital city level.
Remotesensing 09 00416 g012
Figure 13. The annual increase rates of NLEI and CNLI from 1992 to 2012 at the provincial level.
Figure 13. The annual increase rates of NLEI and CNLI from 1992 to 2012 at the provincial level.
Remotesensing 09 00416 g013
Table 1. The 31 provinces and 27 provincial capital cities of Mainland China.
Table 1. The 31 provinces and 27 provincial capital cities of Mainland China.
Geographic RegionProvincial LevelProvincial AB.Provincial CapitalProvincial Capital AB.
NorthBeijingBJBeijing
TianjinTJTianjin
HebeiHEShijiazhuangSJW
ShanxiSXTaiyuanTYN
NiemenNMHuhehaoteHET
NortheastLiaoningLNShenyangSHE
JilinJLChangchunCGQ
HeilongjiangHLHa’erbinHRB
SouthwestChongqingCQChongqing
SichuanSCChengduCTU
GuizhouGZGuiyangKWE
YunnanYNKunmingKMG
XizangXZLasaLXA
SouthGuangdongGDGuangzhouCAN
GuangxiGXNanningNNG
HainanHIHaikouHAK
NorthwestShaanxiSNXianSIA
GansuGSLanzhouLHW
QinghaiQHXiningXNN
NingxiaNXYinchuanINC
XinjiangXJWulumuqiURC
CentralHenanHAZhengzhouCGO
HubeiHBWuhanWUH
HunanHNChangshaCSX
EastShanghaiSHShanghai
JiangsuJSNanjingNKG
ZhejiangZJHangzhouHGH
AnhuiAHHefeiHFE
FujianFJFuzhouFOC
JiangxiJXNanchangKHN
ShandongSDJinanTNA
Table 2. The correlation coefficients between the NLEI and economic indicators and CNEI at the provincial and provincial capital city levels.
Table 2. The correlation coefficients between the NLEI and economic indicators and CNEI at the provincial and provincial capital city levels.
LevelIndicatorE1E2E3E4E5E6E7CNEI
Provincial CapitalNLEI0.490 ** 0.921 **0.316 **0.229 **0.665 **0.260 **
ProvincialNLEI0.620 **0.554 **0.979 **0.893 **0.513 **0.336 **0.615 **0.823 **
Note: Economic indicators are per capita GDP (E1), per capita cultural entertainment consumption level of urban residents (E2), percentage of built-up area (E3), population density (E4), percentage of employment in the tertiary industry (E5), tertiary industry GDP (E6), and percentage of the tertiary industry GDP (E7). ** denotes statistically significant correlation coefficients with p < 0.01. The correlation between the NLEI and CNEI was missing at the provincial capital city level due to the lack of statistical data.
Table 3. The correlation coefficients between NLEI, and CUI and CNLI at the provincial and provincial capital city levels.
Table 3. The correlation coefficients between NLEI, and CUI and CNLI at the provincial and provincial capital city levels.
ScaleIndicatorCUICNLI
Provincial CapitalNLEI0.727 **0.968 **
ProvincialNLEI0.857 **0.978 **
Note: ** denotes statistically significant correlation coefficients with p < 0.01.

Share and Cite

MDPI and ACS Style

Fu, H.; Shao, Z.; Fu, P.; Cheng, Q. The Dynamic Analysis between Urban Nighttime Economy and Urbanization Using the DMSP/OLS Nighttime Light Data in China from 1992 to 2012. Remote Sens. 2017, 9, 416. https://doi.org/10.3390/rs9050416

AMA Style

Fu H, Shao Z, Fu P, Cheng Q. The Dynamic Analysis between Urban Nighttime Economy and Urbanization Using the DMSP/OLS Nighttime Light Data in China from 1992 to 2012. Remote Sensing. 2017; 9(5):416. https://doi.org/10.3390/rs9050416

Chicago/Turabian Style

Fu, Huyan, Zhenfeng Shao, Peng Fu, and Qimin Cheng. 2017. "The Dynamic Analysis between Urban Nighttime Economy and Urbanization Using the DMSP/OLS Nighttime Light Data in China from 1992 to 2012" Remote Sensing 9, no. 5: 416. https://doi.org/10.3390/rs9050416

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
