Remote Sens. 2016, 8(2), 141;

JPSS-1 VIIRS Pre-Launch Response Versus Scan Angle Testing and Performance

The Aerospace Corporation, El Segundo, CA 90245, USA
Science Systems and Applications, Inc., Lanham, MD 20706, USA
Stellar Solutions, Palo Alto, CA 90306, USA
NASA Goddard Space Flight Center, Greenbelt, MD 20771, USA
Author to whom correspondence should be addressed.
Received: 28 November 2015 / Revised: 28 January 2016 / Accepted: 4 February 2016 / Published: 12 February 2016
(This article belongs to the Collection Visible Infrared Imaging Radiometers and Applications)
Full-Text   |   PDF [6639 KB, uploaded 19 February 2016]   |

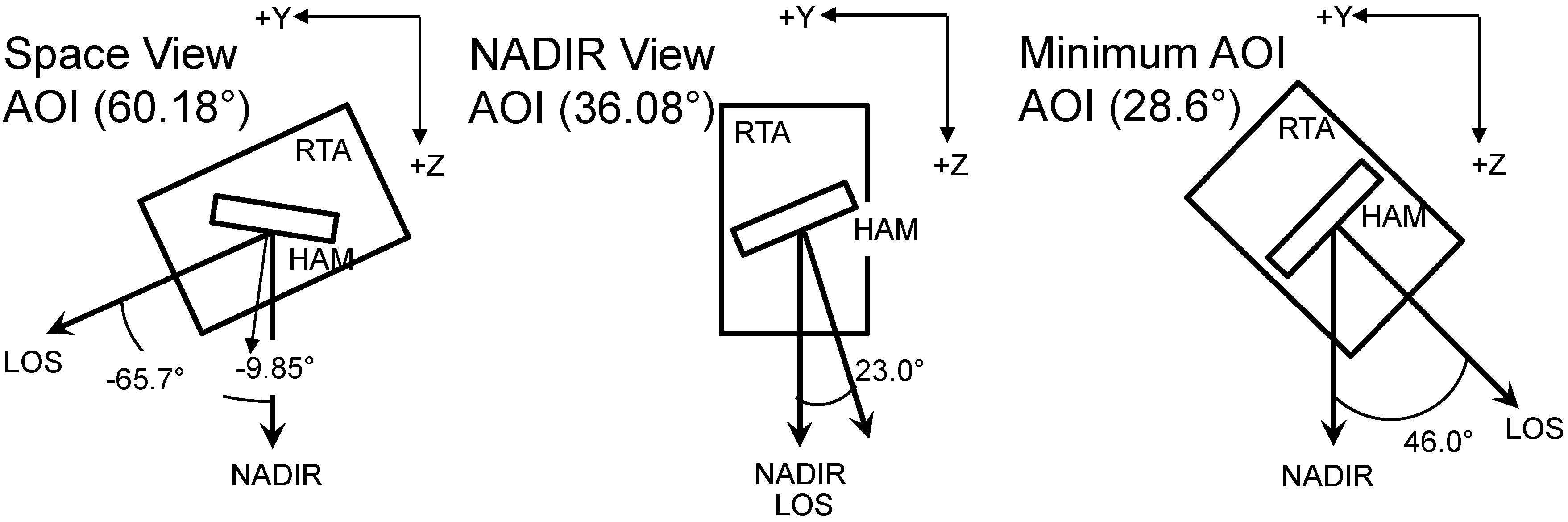

The Visible Infrared Imaging Radiometer Suite (VIIRS) instruments on-board both the Suomi National Polar-orbiting Partnership (S-NPP) and the first Joint Polar Satellite System (JPSS-1) spacecraft, with launch dates of October 2011 and December 2016 respectively, are cross-track scanners with an angular swath of ±56.06°. A four-mirror Rotating Telescope Assembly (RTA) is used for scanning combined with a Half Angle Mirror (HAM) that directs light exiting from the RTA into the aft-optics. It has 14 Reflective Solar Bands (RSBs), seven Thermal Emissive Bands (TEBs) and a panchromatic Day Night Band (DNB). There are three internal calibration targets, the Solar Diffuser, the BlackBody and the Space View, that have fixed scan angles within the internal cavity of VIIRS. VIIRS has calibration requirements of 2% on RSB reflectance and as tight as 0.4% on TEB radiance that requires the sensor’s gain change across the scan or Response Versus Scan angle (RVS) to be well quantified. A flow down of the top level calibration requirements put constraints on the characterization of the RVS to 0.2%–0.3% but there are no specified limitations on the magnitude of response change across scan. The RVS change across scan angle can vary significantly between bands with the RSBs having smaller changes of ~2% and some TEBs having ~10% variation. Within a band, the RVS has both detector and HAM side dependencies that vary across scan. Errors in the RVS characterization will contribute to image banding and striping artifacts if their magnitudes are above the noise level of the detectors. The RVS was characterized pre-launch for both S-NPP and JPSS-1 VIIRS and a comparison of the RVS curves between these two sensors will be discussed. View Full-Text
Keywords: VIIRS; calibration; thermal; emissive; reflective solar; RVS VIIRS; calibration; thermal; emissive; reflective solar; RVS

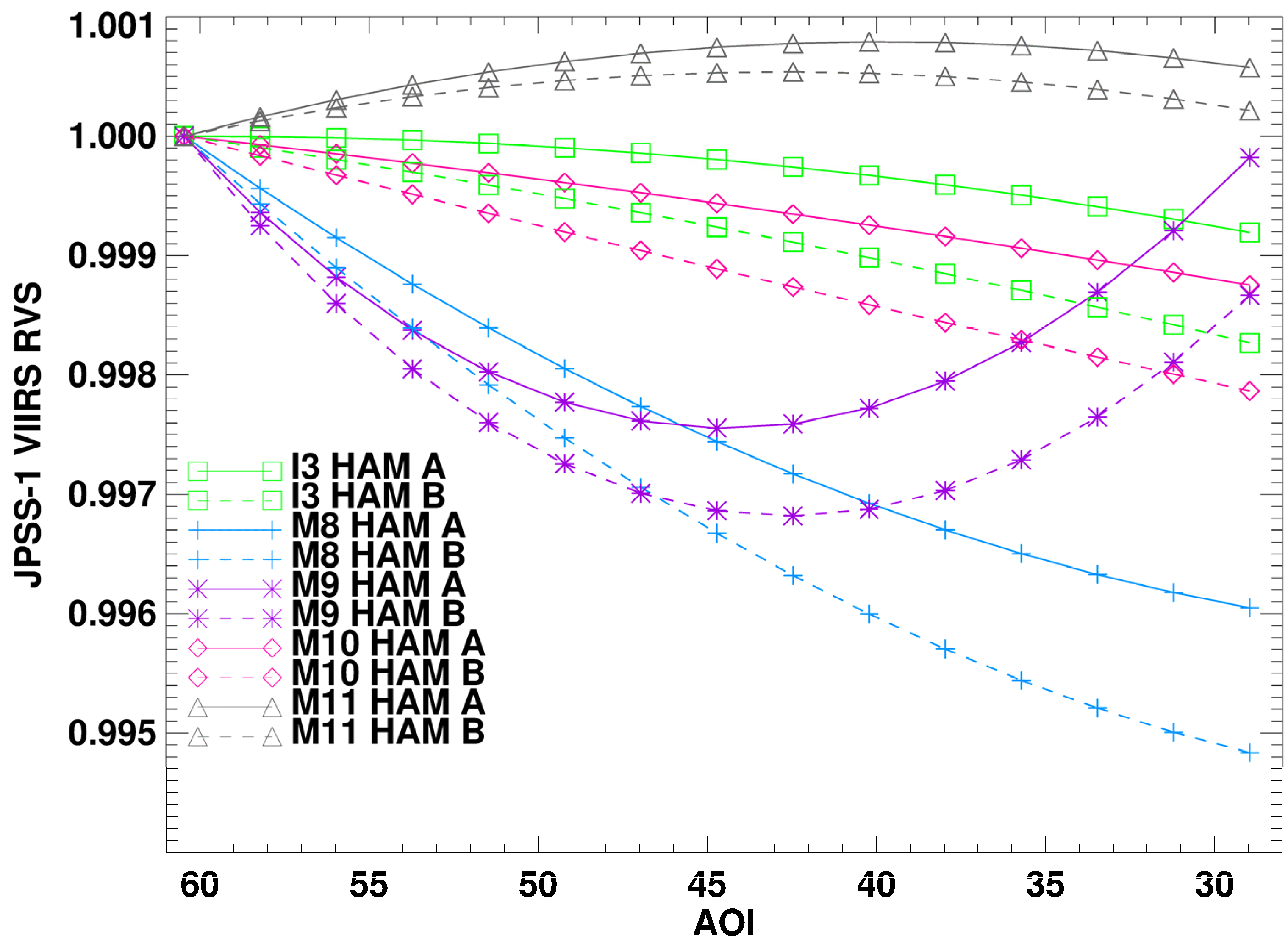

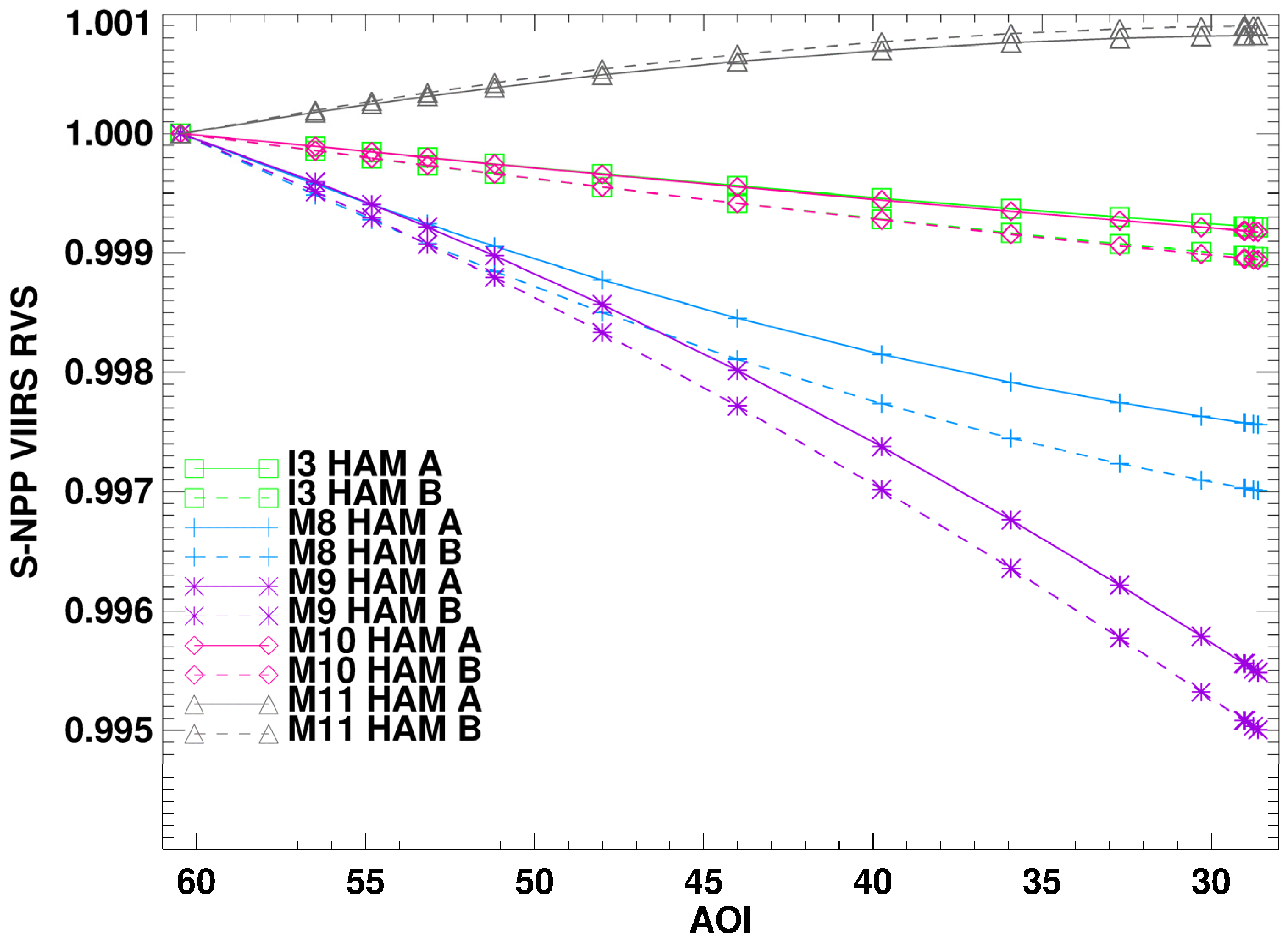

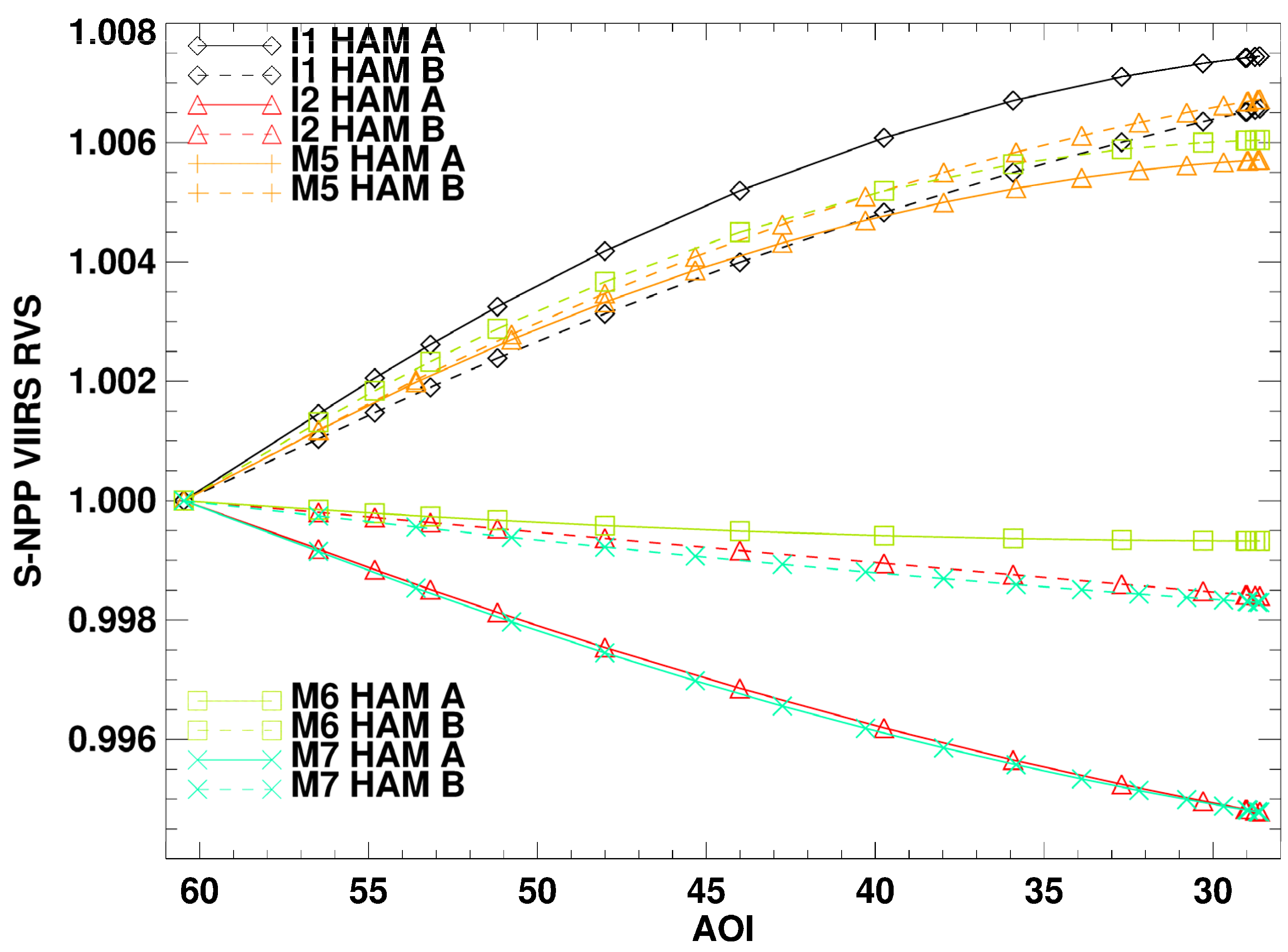

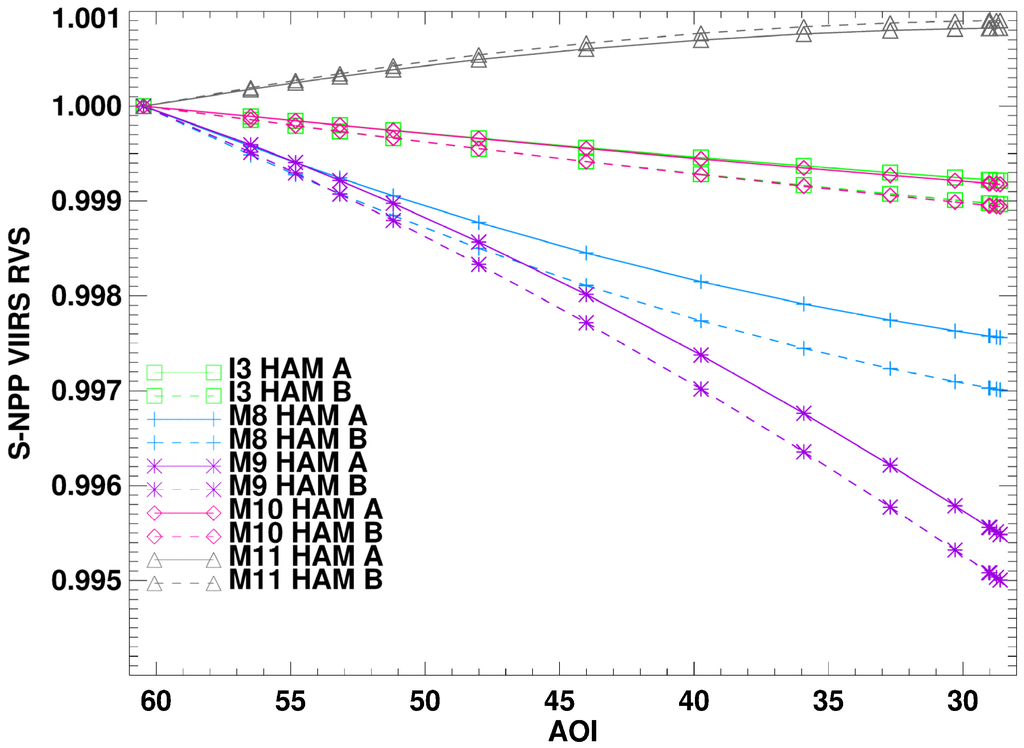

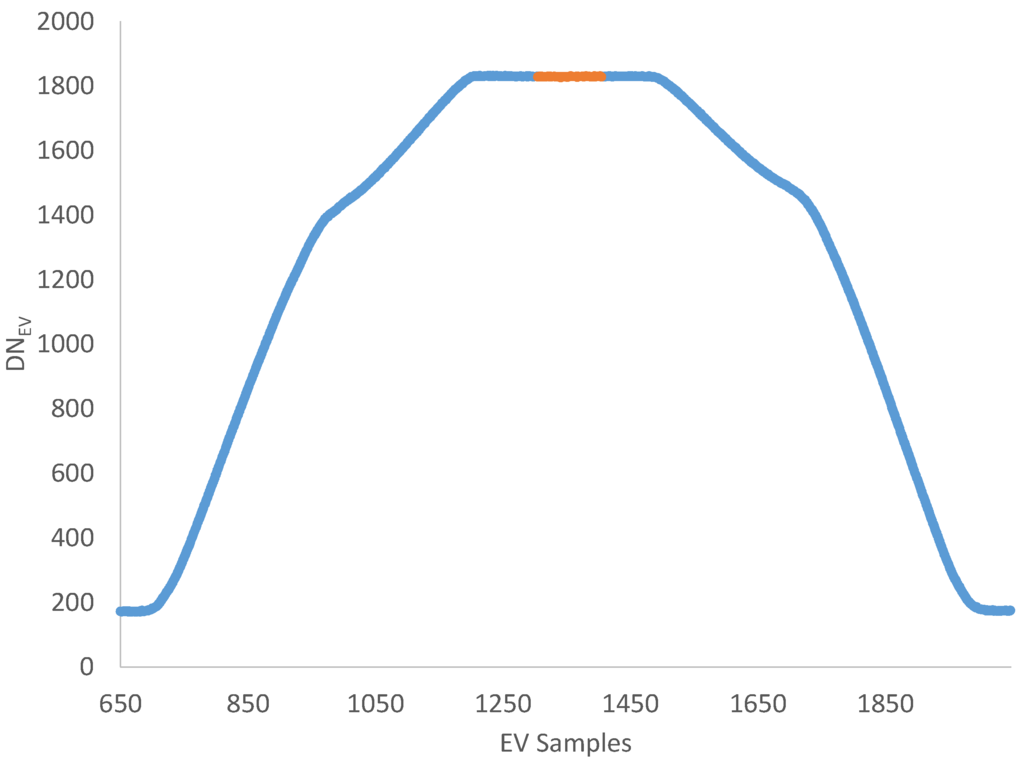

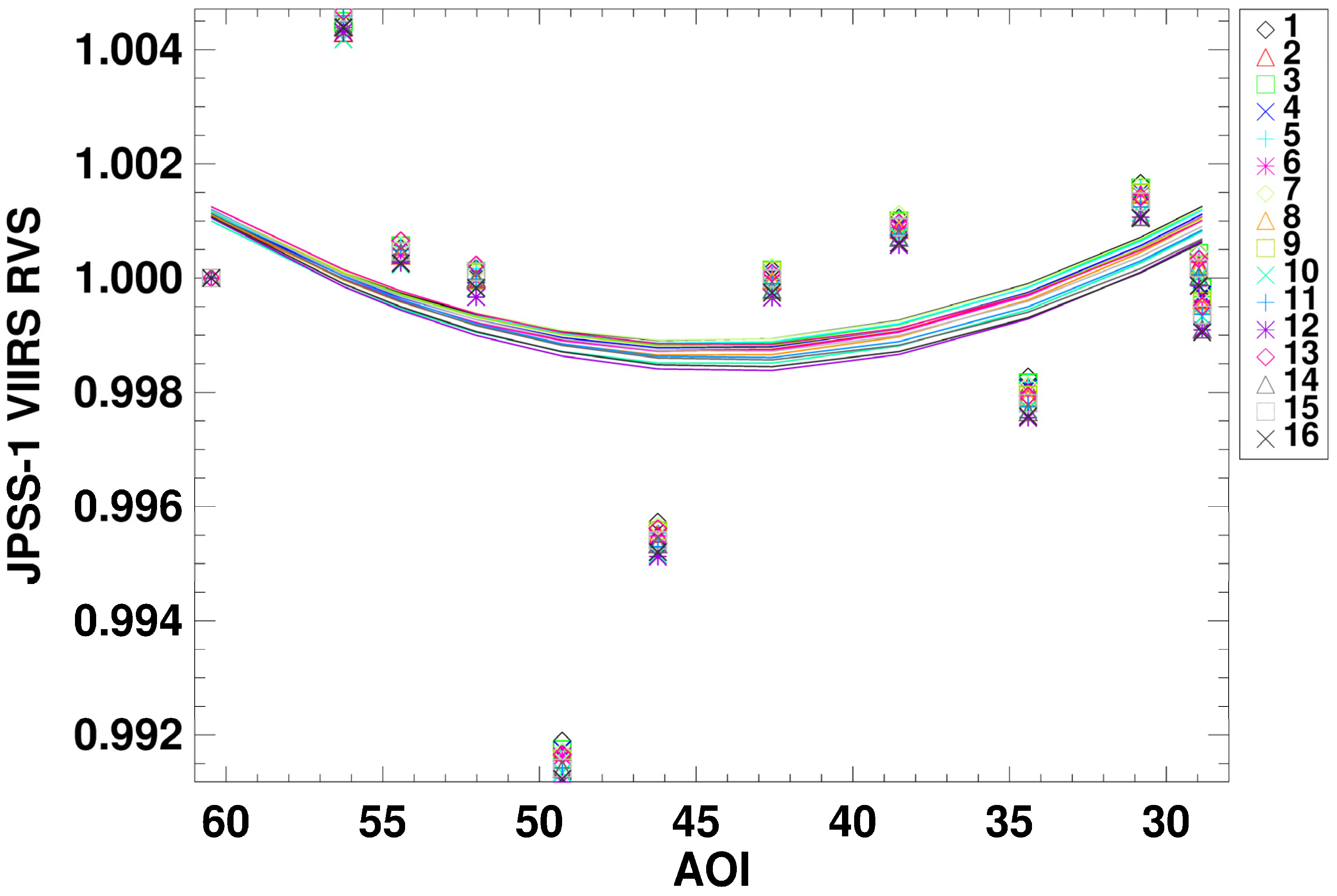

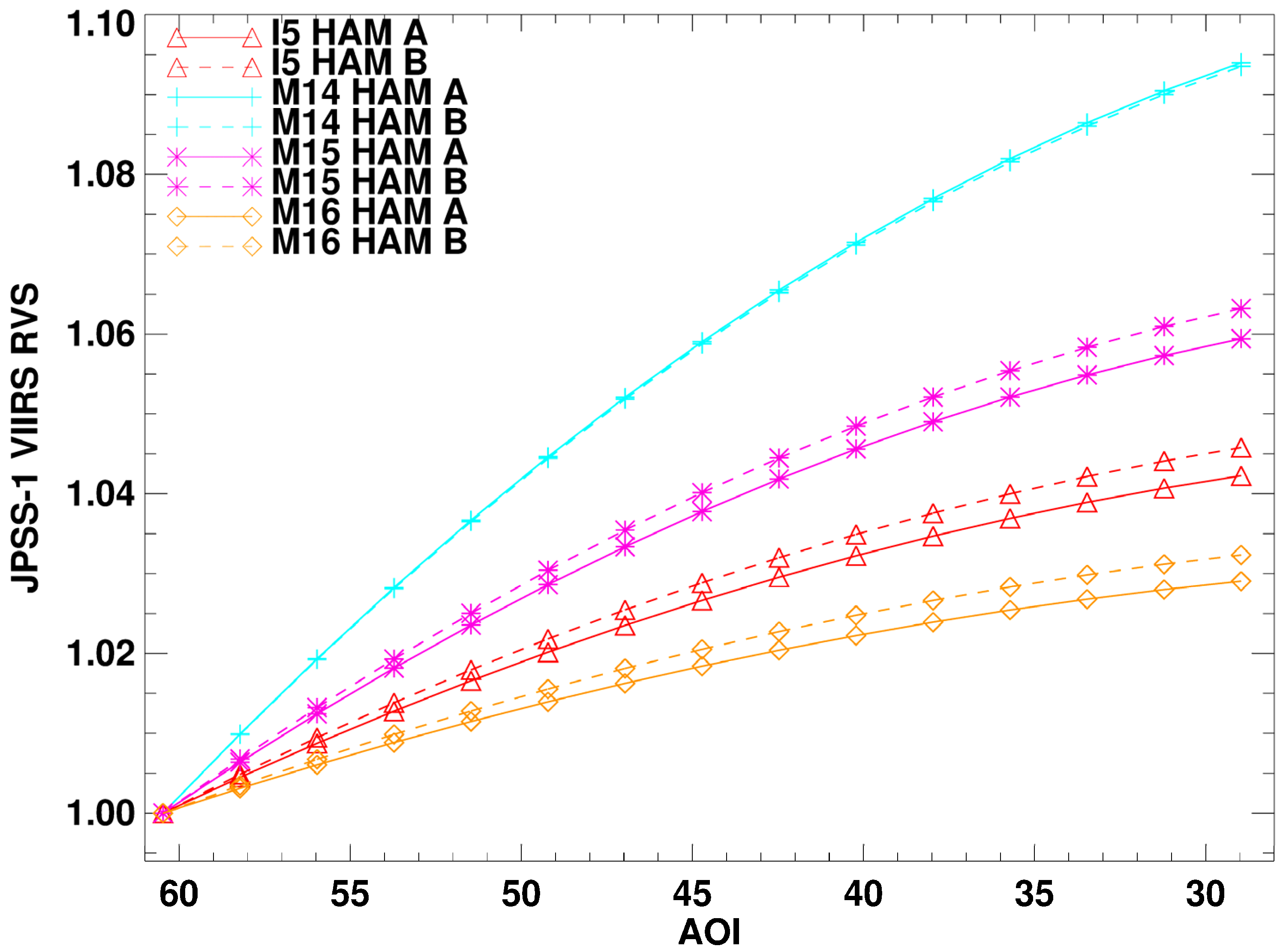

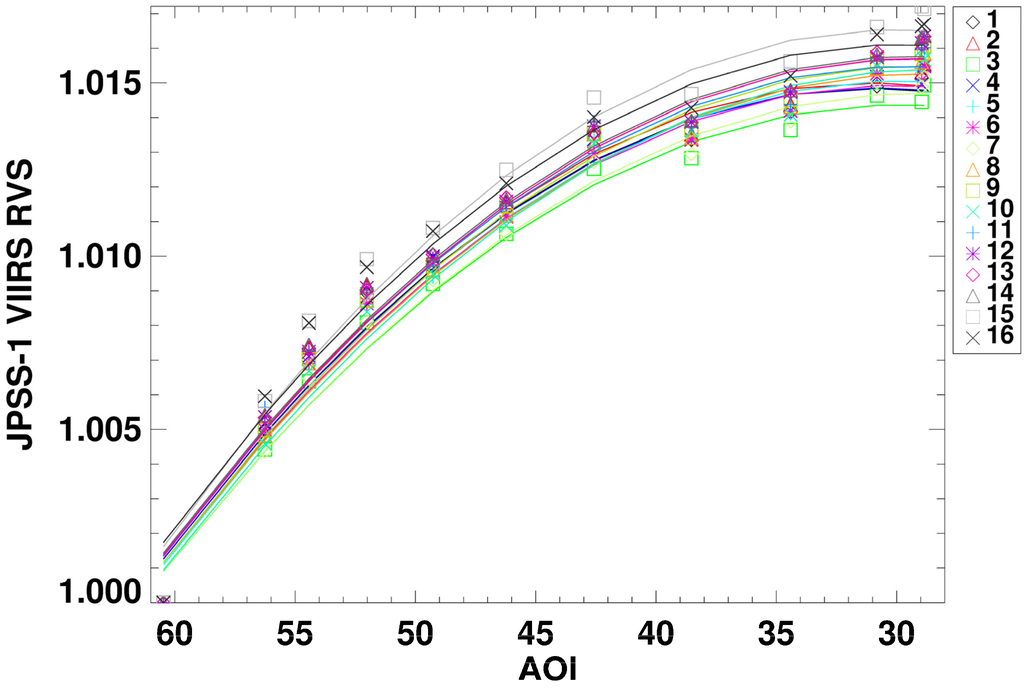

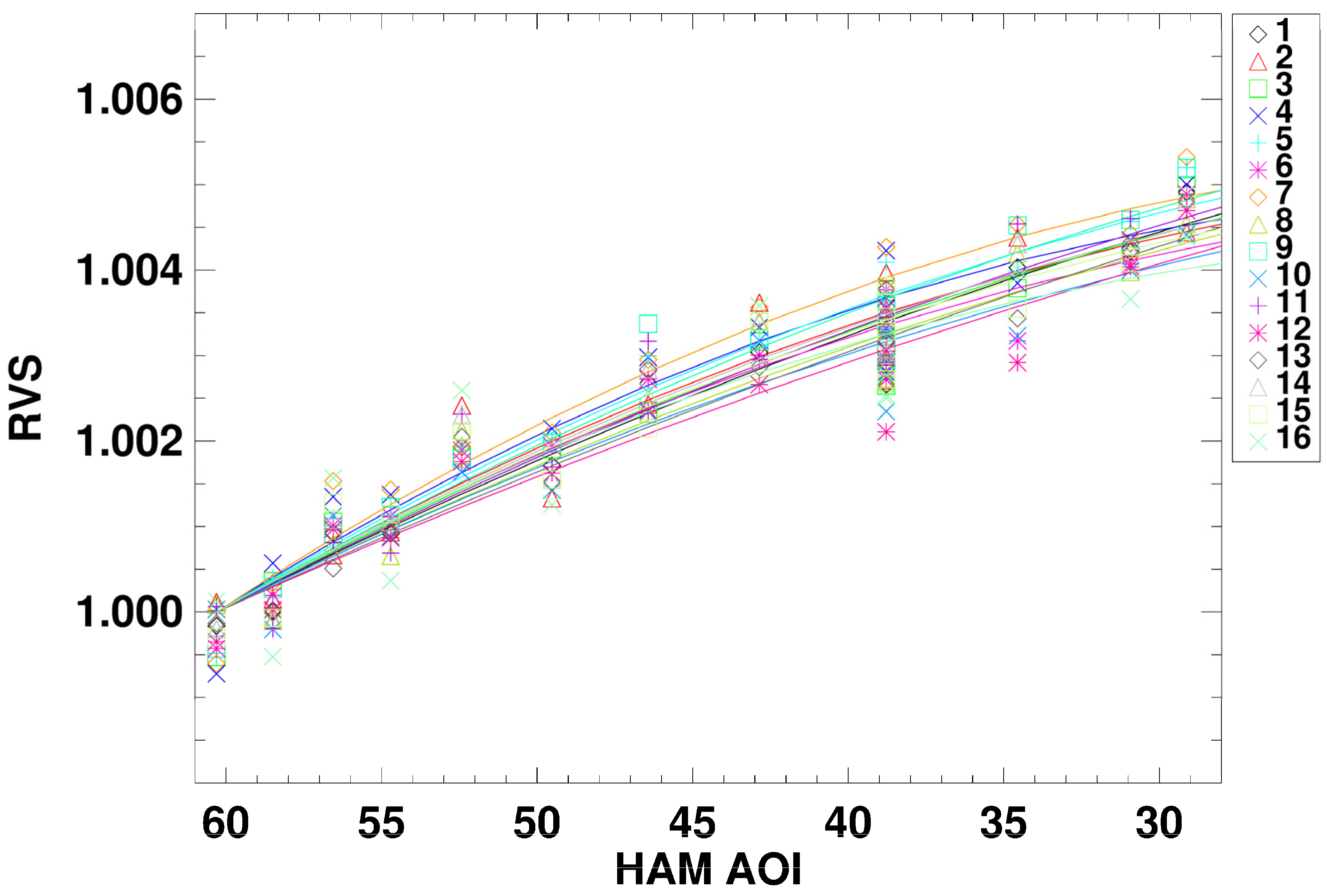

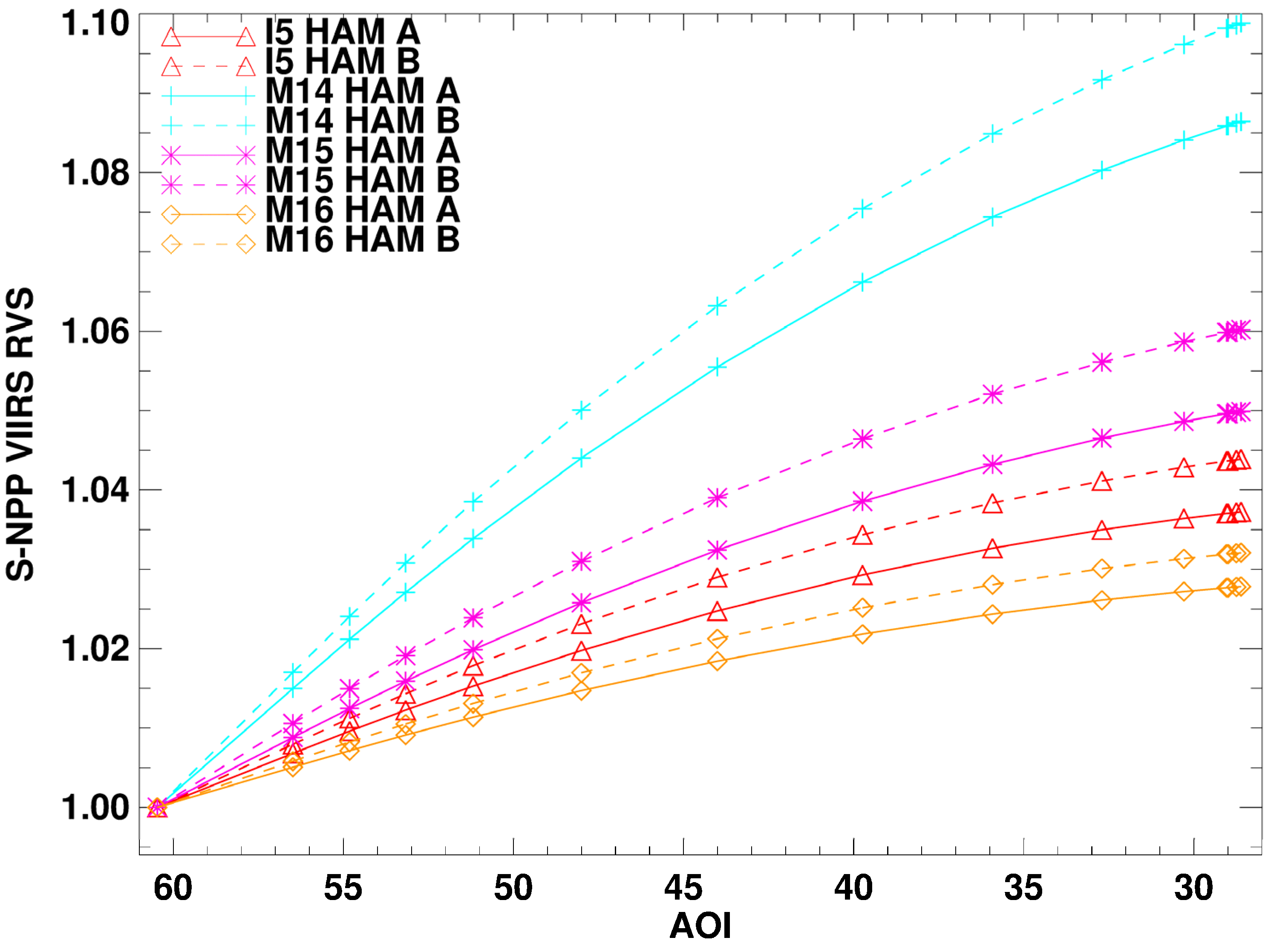

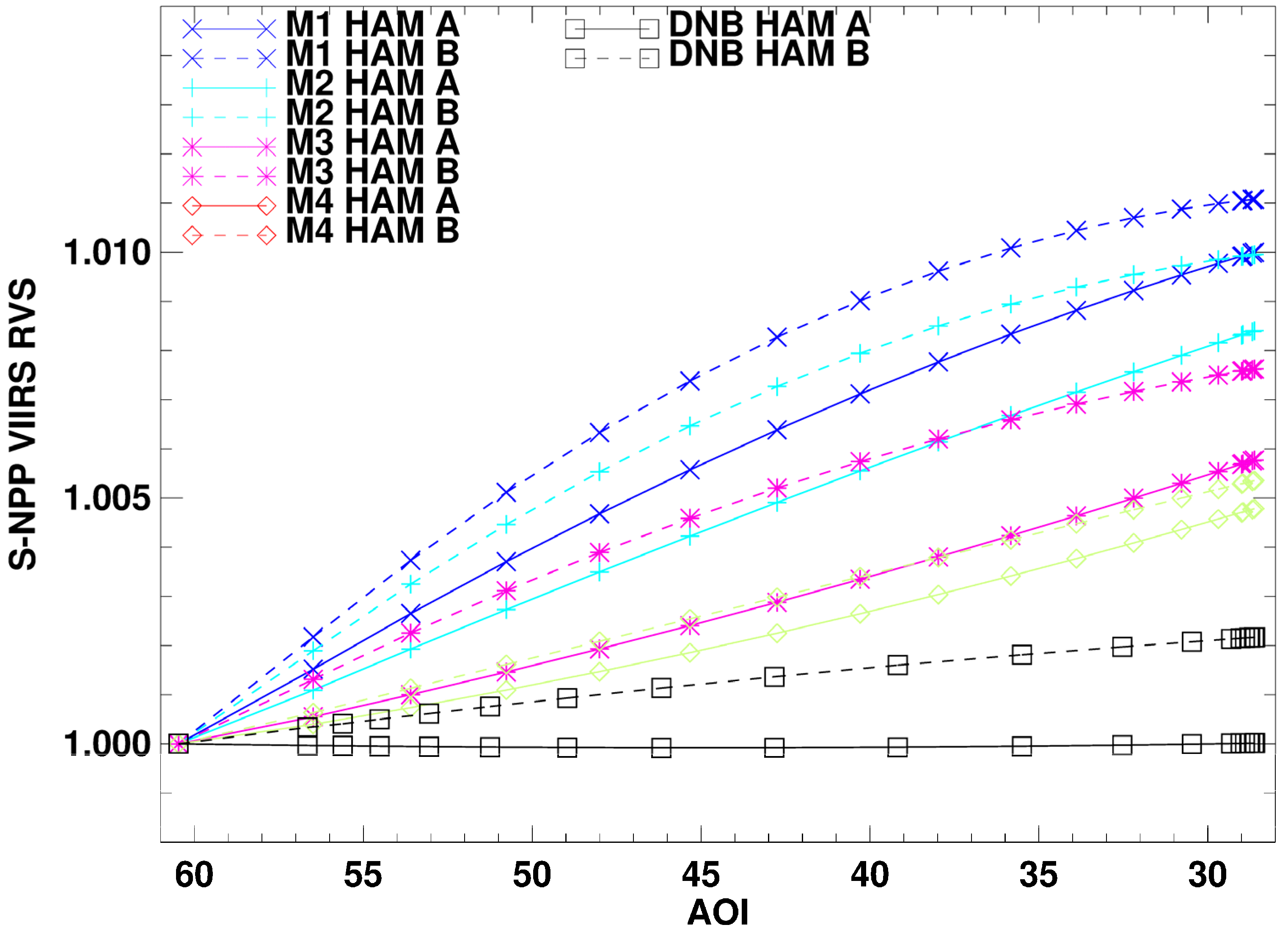

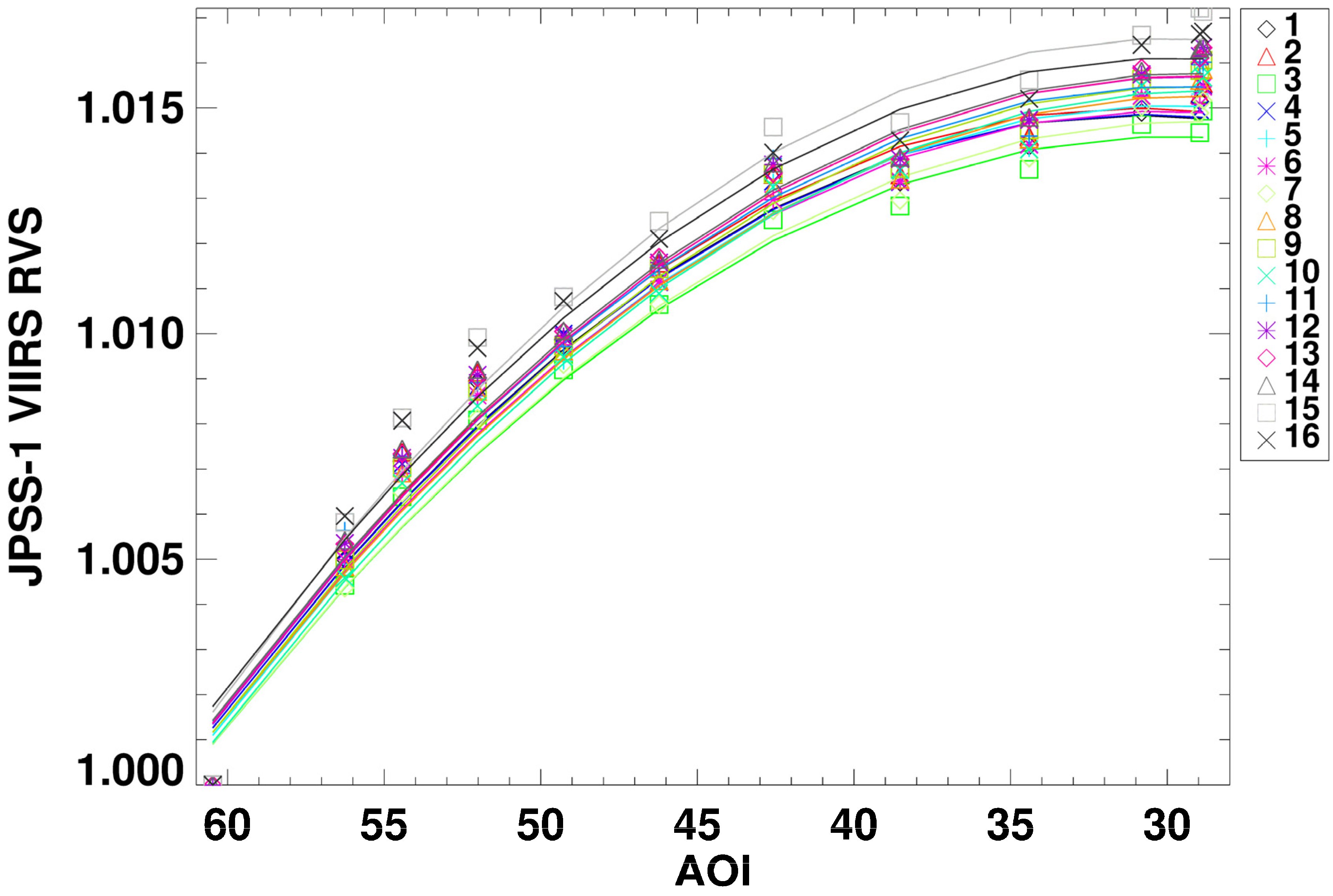

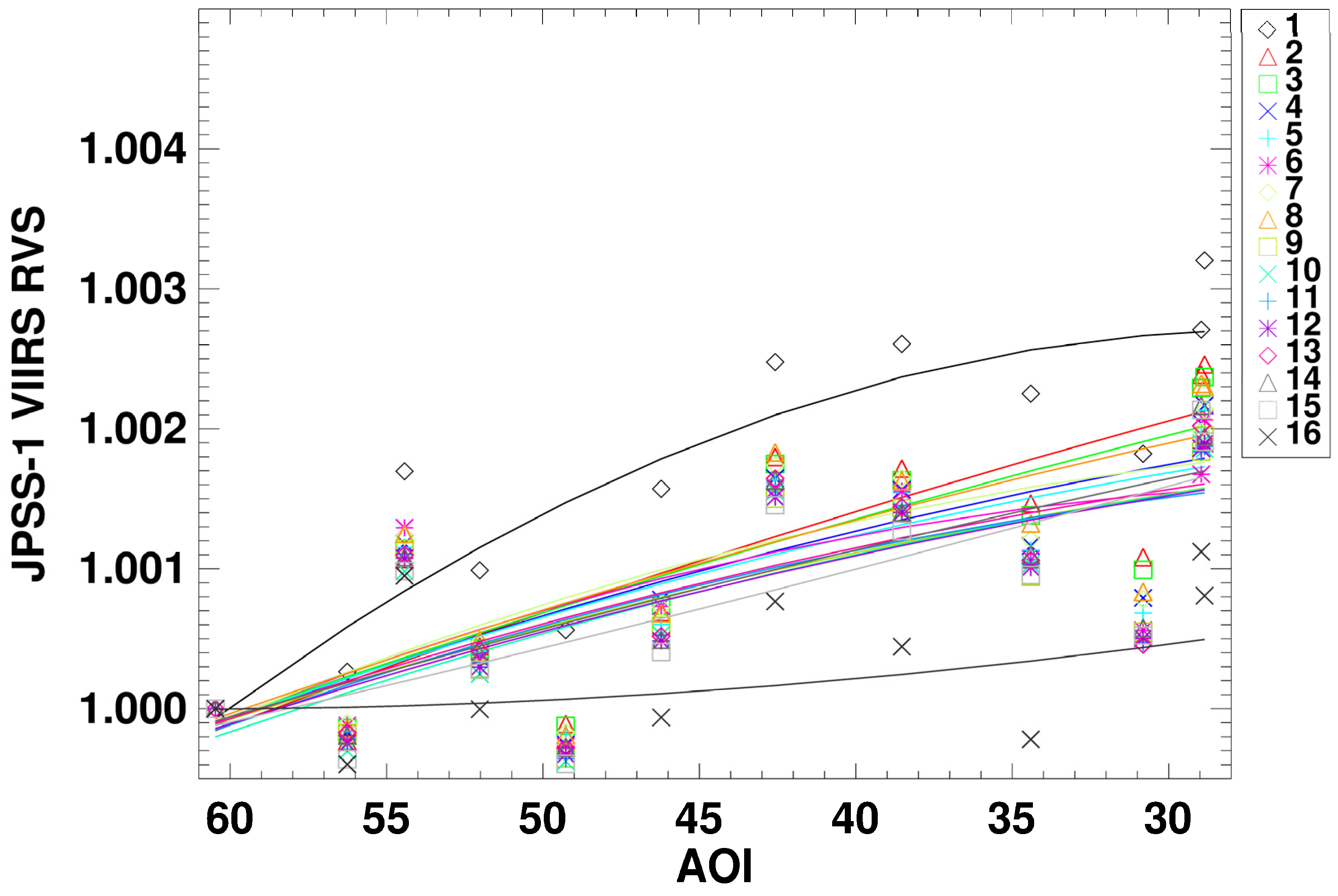

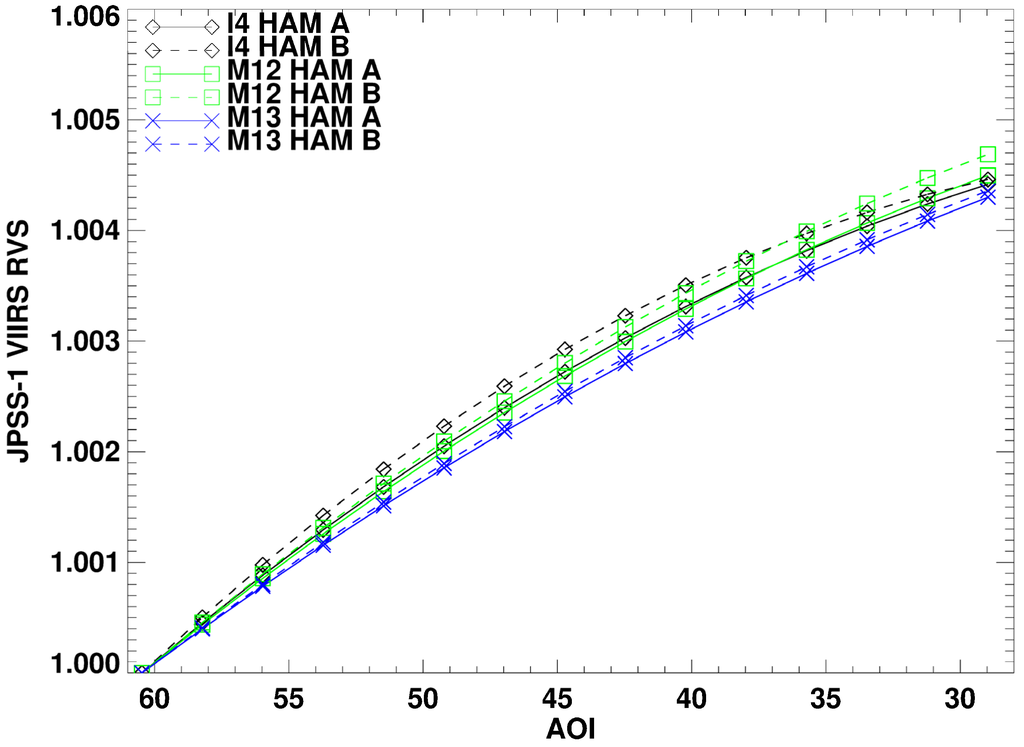

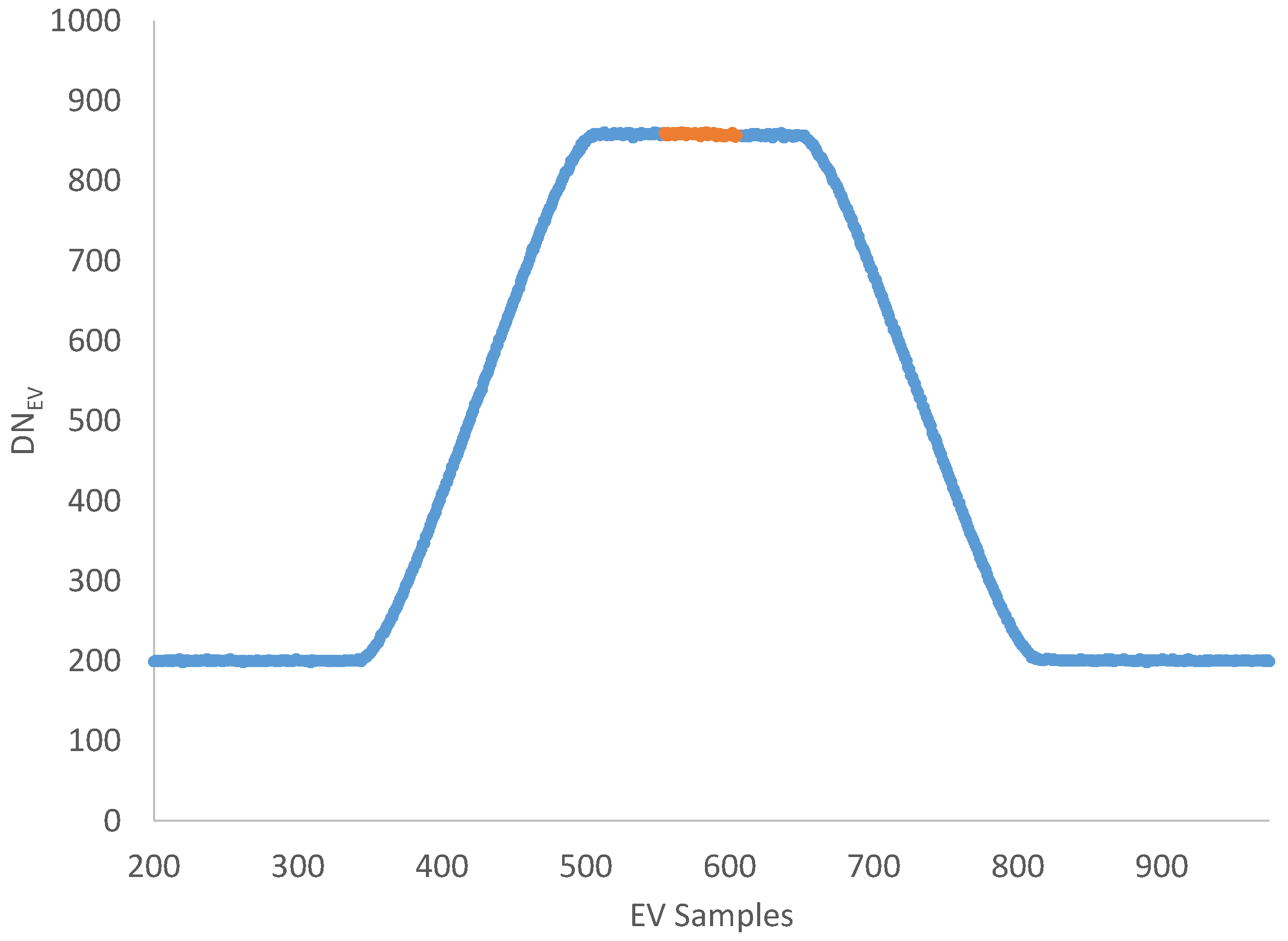

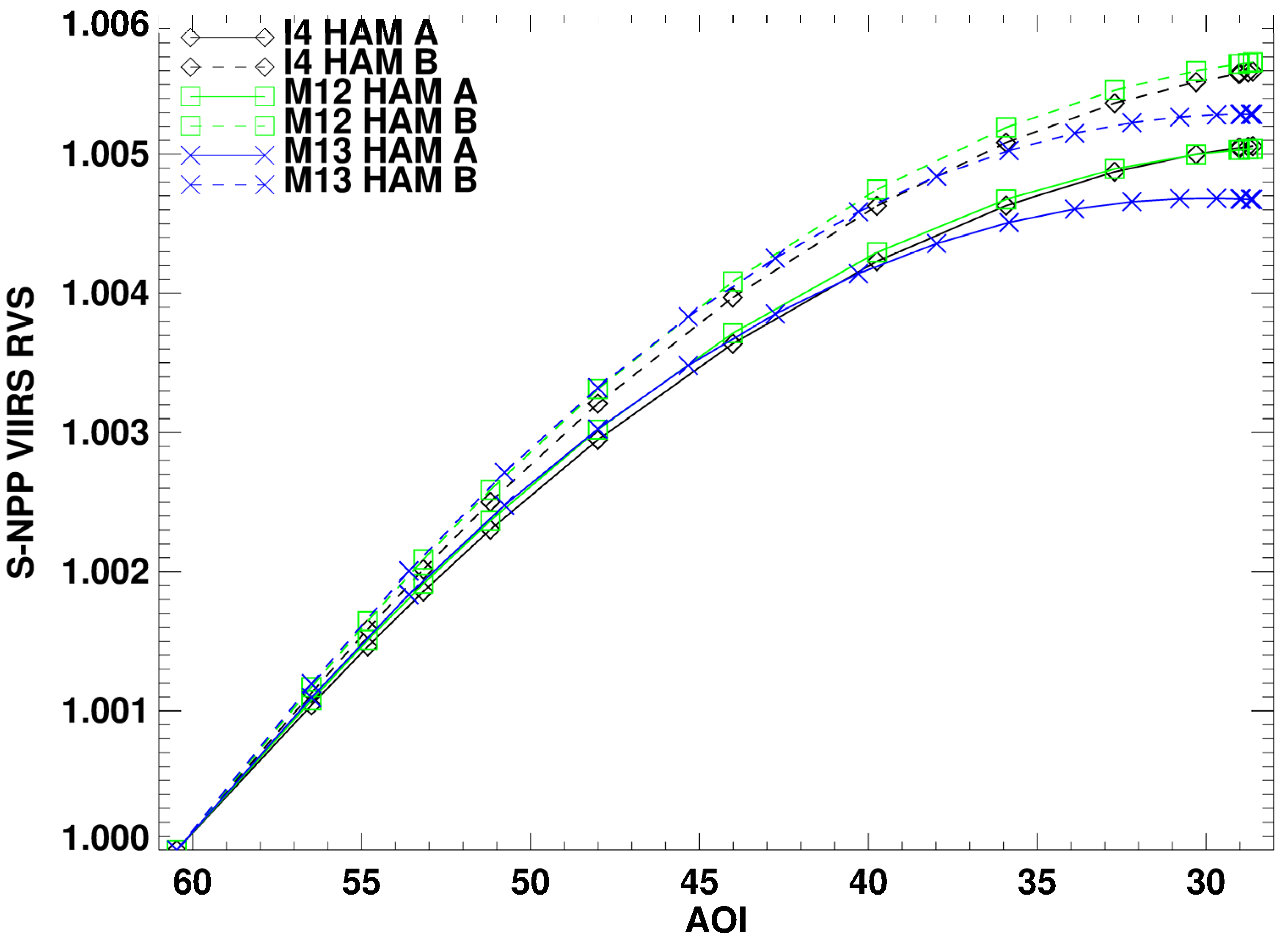

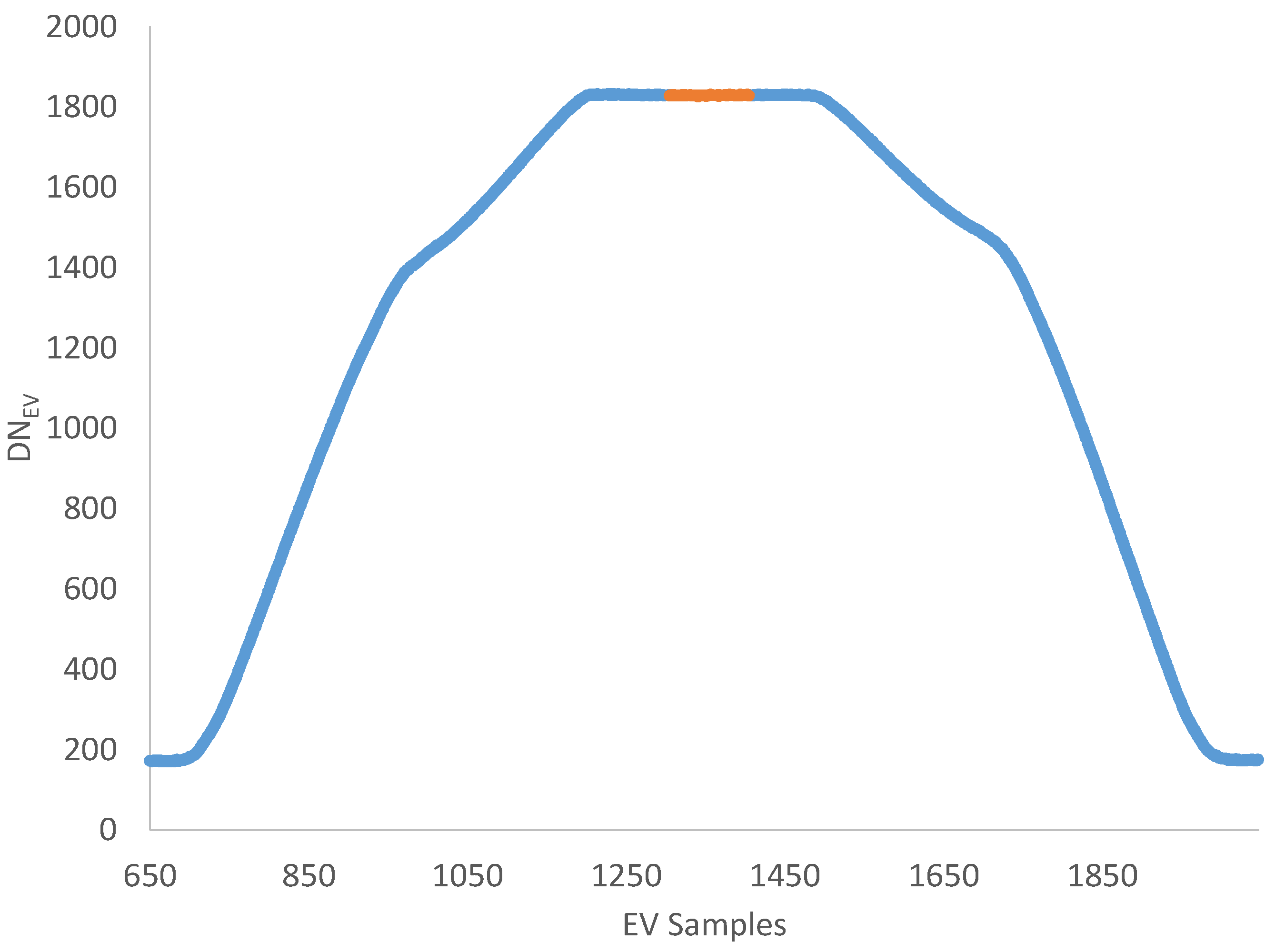

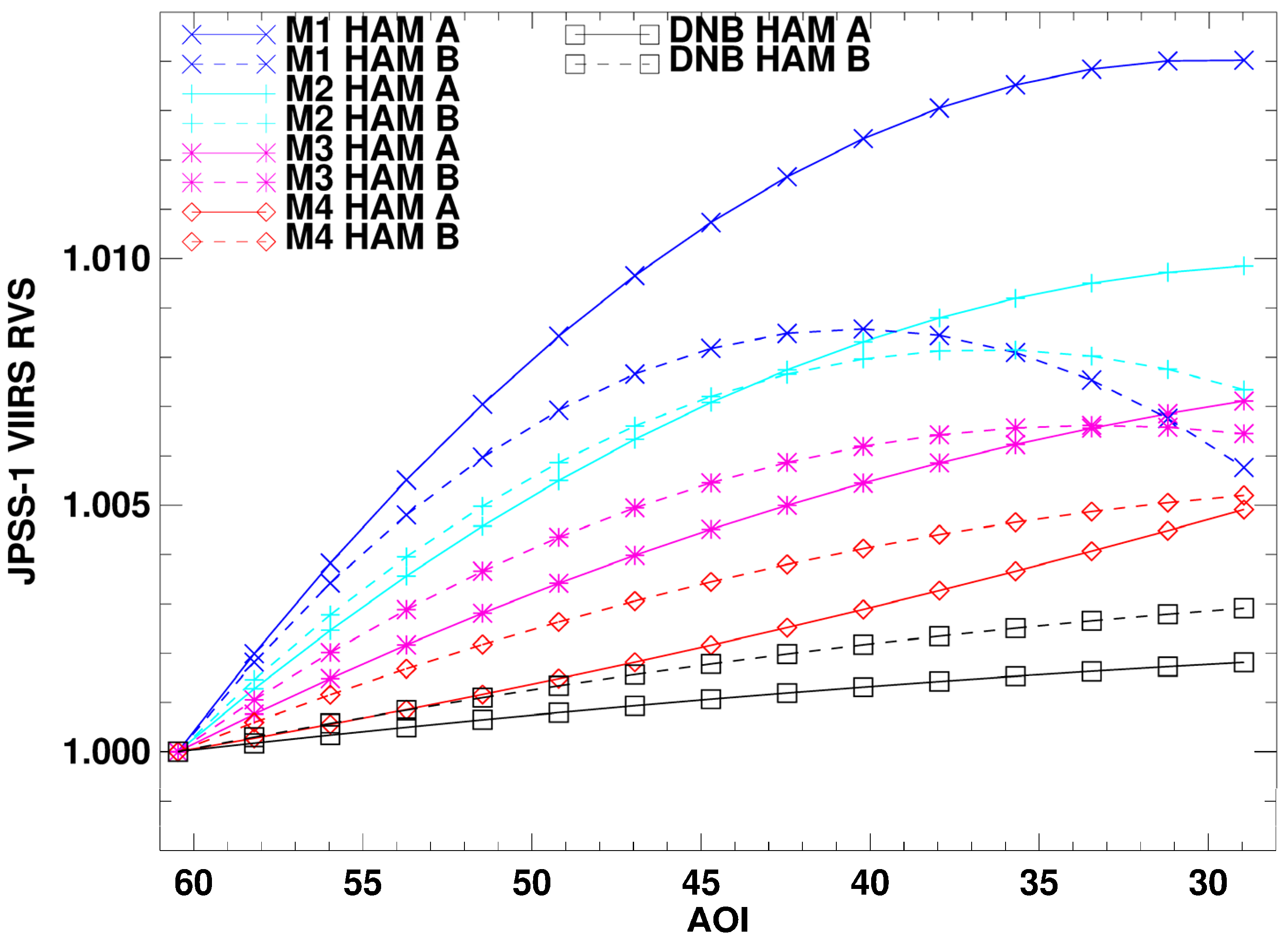

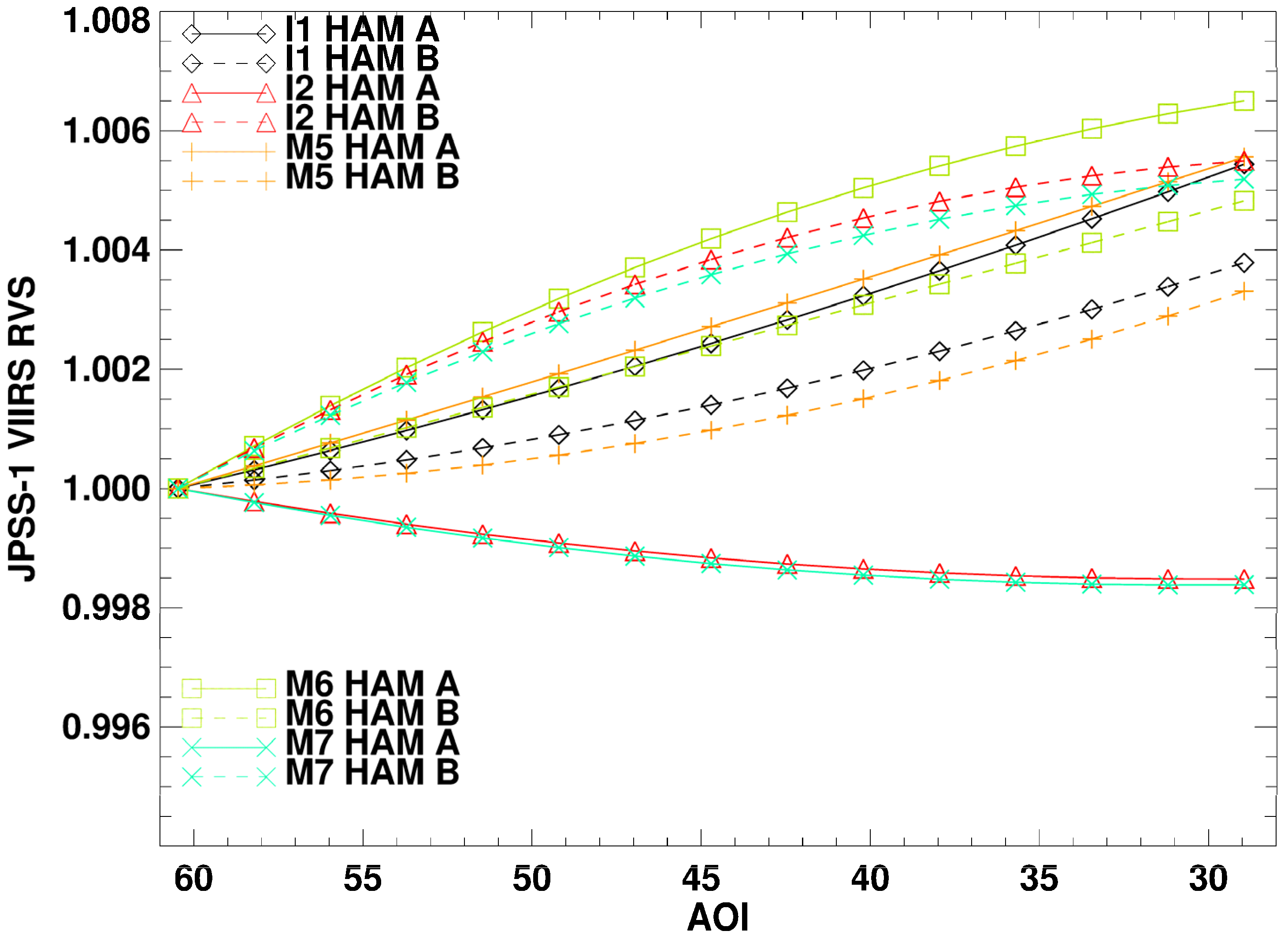

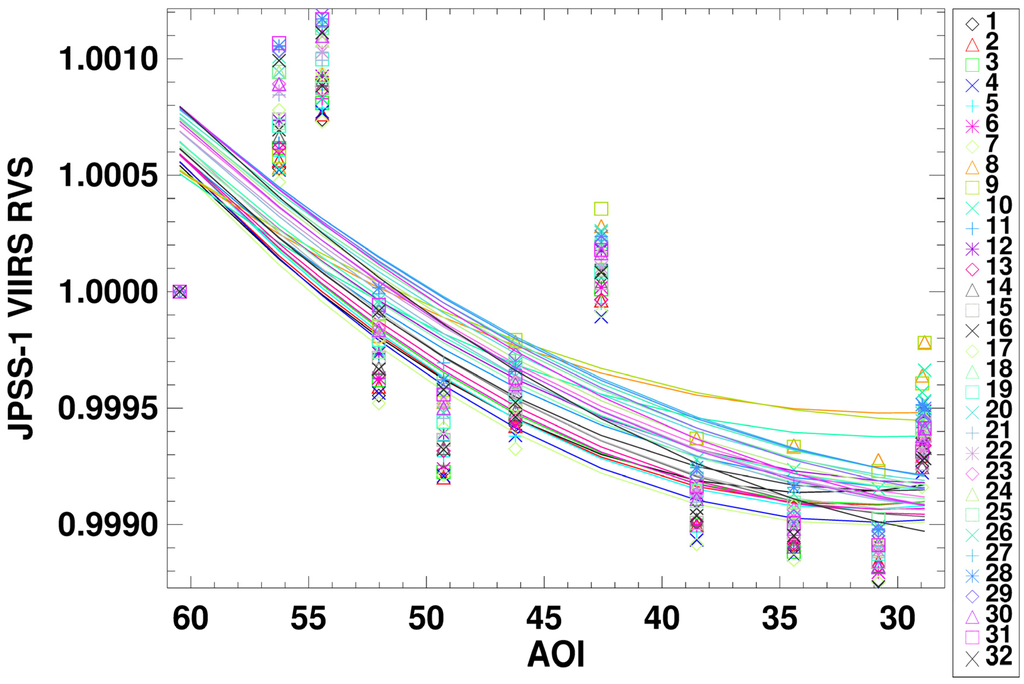

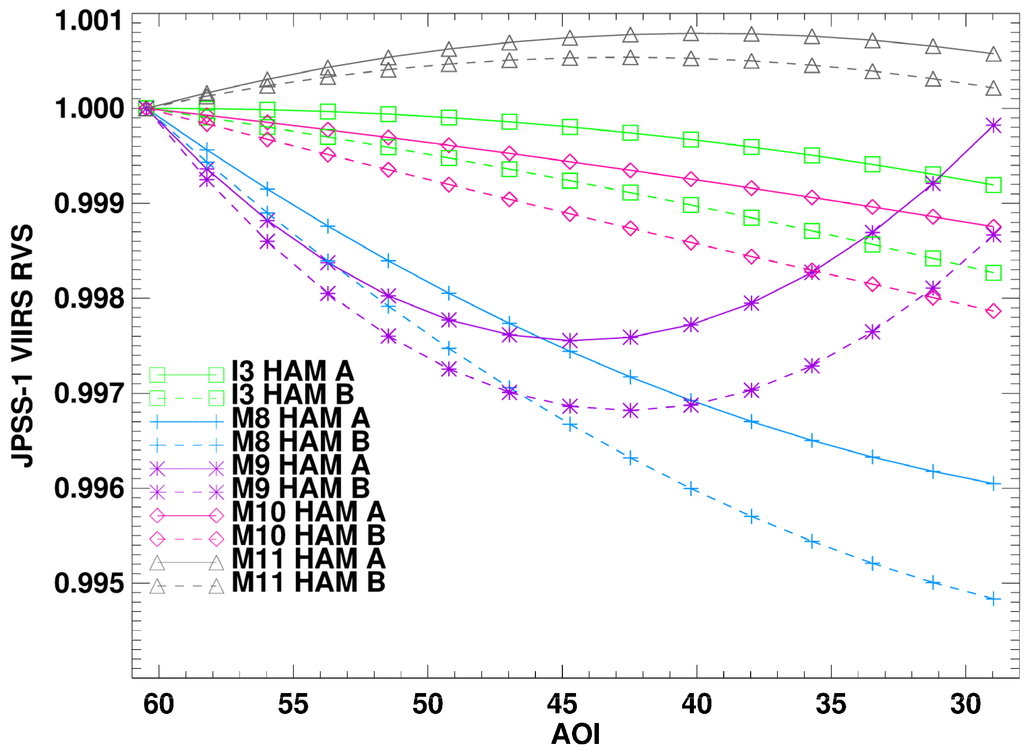

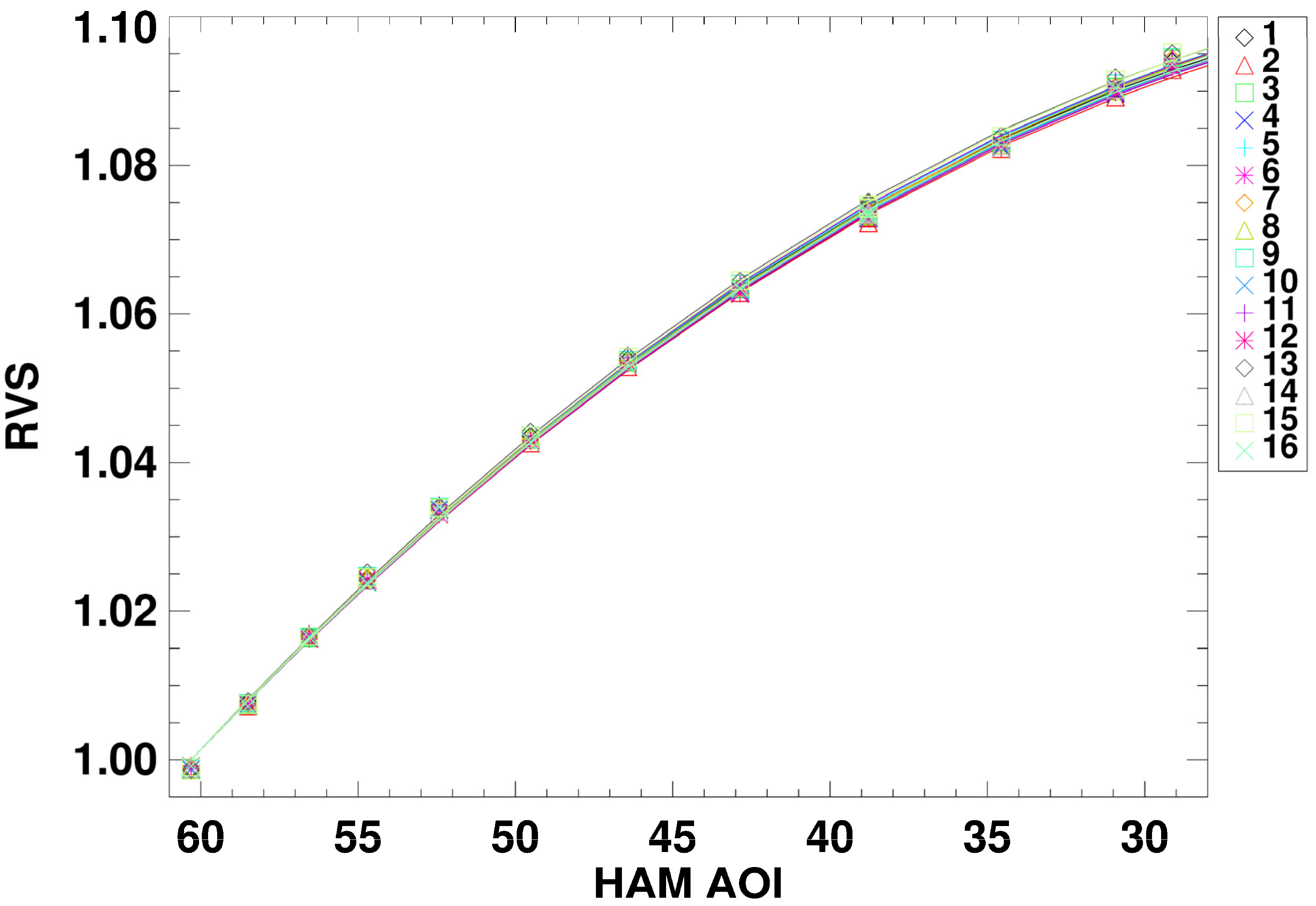

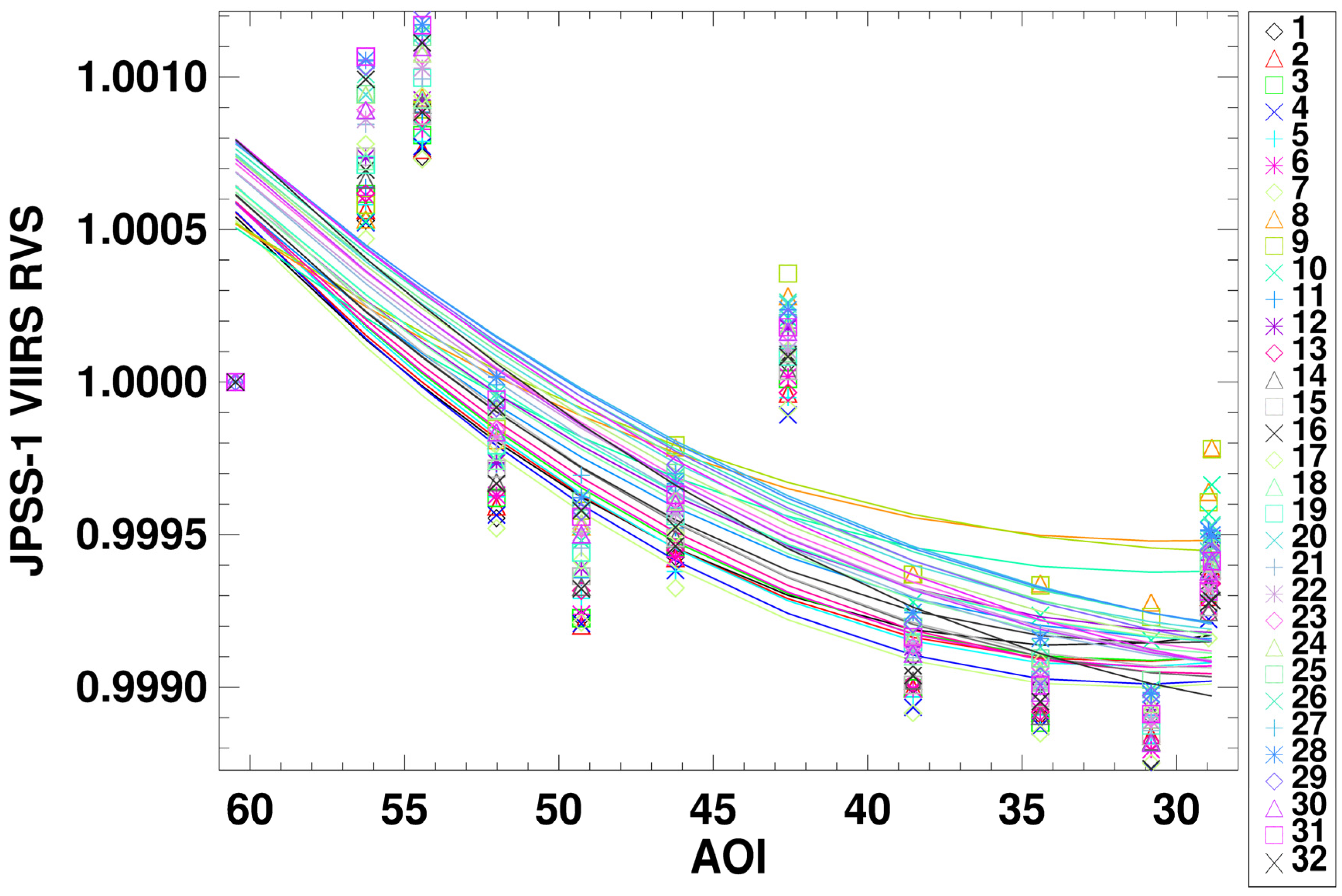

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Moyer, D.; McIntire, J.; Oudrari, H.; McCarthy, J.; Xiong, X.; De Luccia, F. JPSS-1 VIIRS Pre-Launch Response Versus Scan Angle Testing and Performance. Remote Sens. 2016, 8, 141.
