# Efficient Emulation of Radiative Transfer Codes Using Gaussian Processes and Application to Land Surface Parameter Inferences

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Gaussian Process Emulator

#### Extension to Full Spectrum Emulation

## 3. GP Emulation Examples

#### 3.1. Emulating Soil-Leaf-Canopy RT Models

**Table 1.**Parameters for PROSAIL and SEMIDISCRETE, their symbols, units, quasi-linearising transformations and boundaries (both in real and in transformed space). (${}^{*}$ Only PROSAIL, ${}^{\u2020}$ Only Semidiscrete.)

Parameter | Symbol | Units | Minimum | Maximum | Transformation | Transformed Min | Transformed Max |
---|---|---|---|---|---|---|---|

Leaf layers | xleafn | – | 0.8 | 2.5 | – | – | – |

Leaf chlorophyll
concentration | Cab | μ g·cm ${}^{-2}$ | 0.2 | 77 | $exp(-Cab/100)$ | 0.46 | 1 |

Leaf carotenoid concentration | Car | μ g·cm ${}^{-2}$ | 0 | 15 | $exp(-Ccar/100)$ | 0.95 | 1 |

Senescent fraction | Csen | – | 0 | 1 | – | – | – |

Equivalent water thickness | Cw | cm | 0.0043 | 0.0753 | $exp(-50\xb7Cw)$ | 0.028 | 0.81 |

Leaf dry matter | Cm | g·cm ${}^{-2}$ | 0.0017 | 0.0331 | $exp(-100\xb7Cm)$ | 0.037 | 0.84 |

Leaf area index | LAI | m ${}^{2}$·m${}^{-2}$ | 0 | 8 | $exp(-LAI/2)$ | 0.05 | 1 |

Average Leaf Angle | ALA | ${}^{\circ}$ | 0 | 90 | $ALA/90$ | 0.44 | 0.56 |

Soil brightness scalar ${}^{*}$ | Bs | – | 0 | 2 | – | – | – |

Soil moisture endmember ${}^{*}$ | Ps | – | 0 | 1 | – | – | – |

Weight of the first Price function ${}^{\u2020}$ | P1 | – | −0.5 | 1 | – | – | – |

Weight of the second Price function ${}^{\u2020}$ | P2 | – | −0.5 | 1 | – | – | – |

**Table 2.**Results of the validation for the SEMIDISCRETE emulator using an independent set of 1000 model realisations over the MODIS bands. The emulator was created by using 300 forward simulator model runs, selected with a Latin hypercube sampling design between the boundaries indicated in Table 1.

MODIS Band | Slope | Intercept | R | RMSE | MAE |
---|---|---|---|---|---|

1 | 1.002 | 1.222e-05 | 0.9995 | 9.774e-04 | 5.175e-03 |

2 | 0.999 | 1.562e-04 | 0.9998 | 5.602e-04 | 1.063e-02 |

3 | 1.004 | −3.362e-05 | 0.9996 | 9.181e-04 | 2.371e-03 |

4 | 1.000 | 2.784e-05 | 0.9999 | 5.255e-04 | 2.048e-03 |

5 | 0.993 | 1.591e-03 | 0.9990 | 1.437e-03 | 3.588e-02 |

6 | 0.998 | 4.182e-04 | 0.9995 | 9.490e-04 | 1.587e-02 |

7 | 1.000 | 1.183e-04 | 0.9997 | 8.194e-04 | 1.135e-02 |

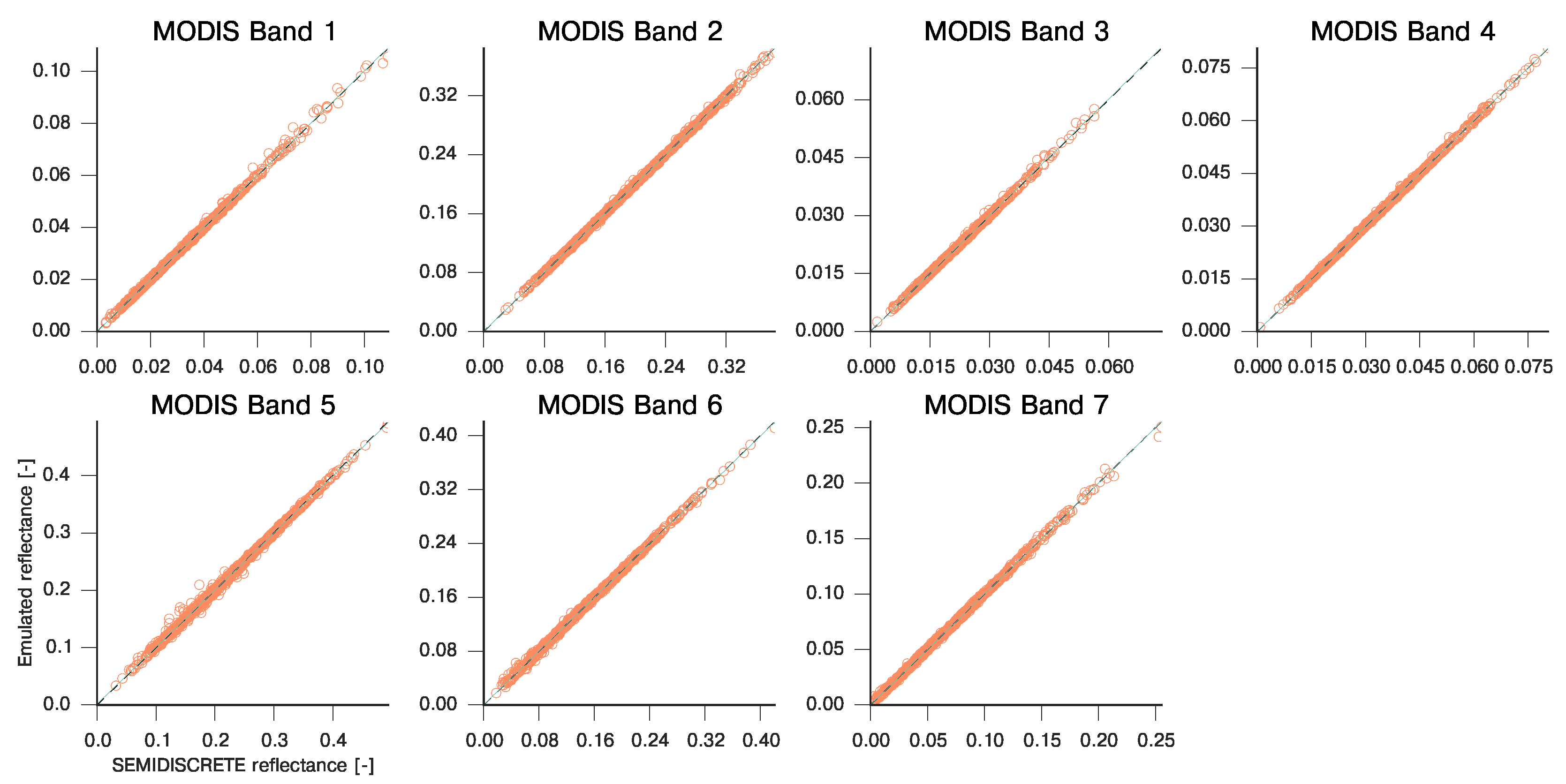

**Figure 1.**Emulation performance for SEMIDISCRETE over the seven MODIS bands. The emulator was trained with 300 forward model runs, and validated with an independently produced set of 1000 parameters. Acquisition geometry was set to nadir illumination and ${30}^{\circ}$ viewing zenith.

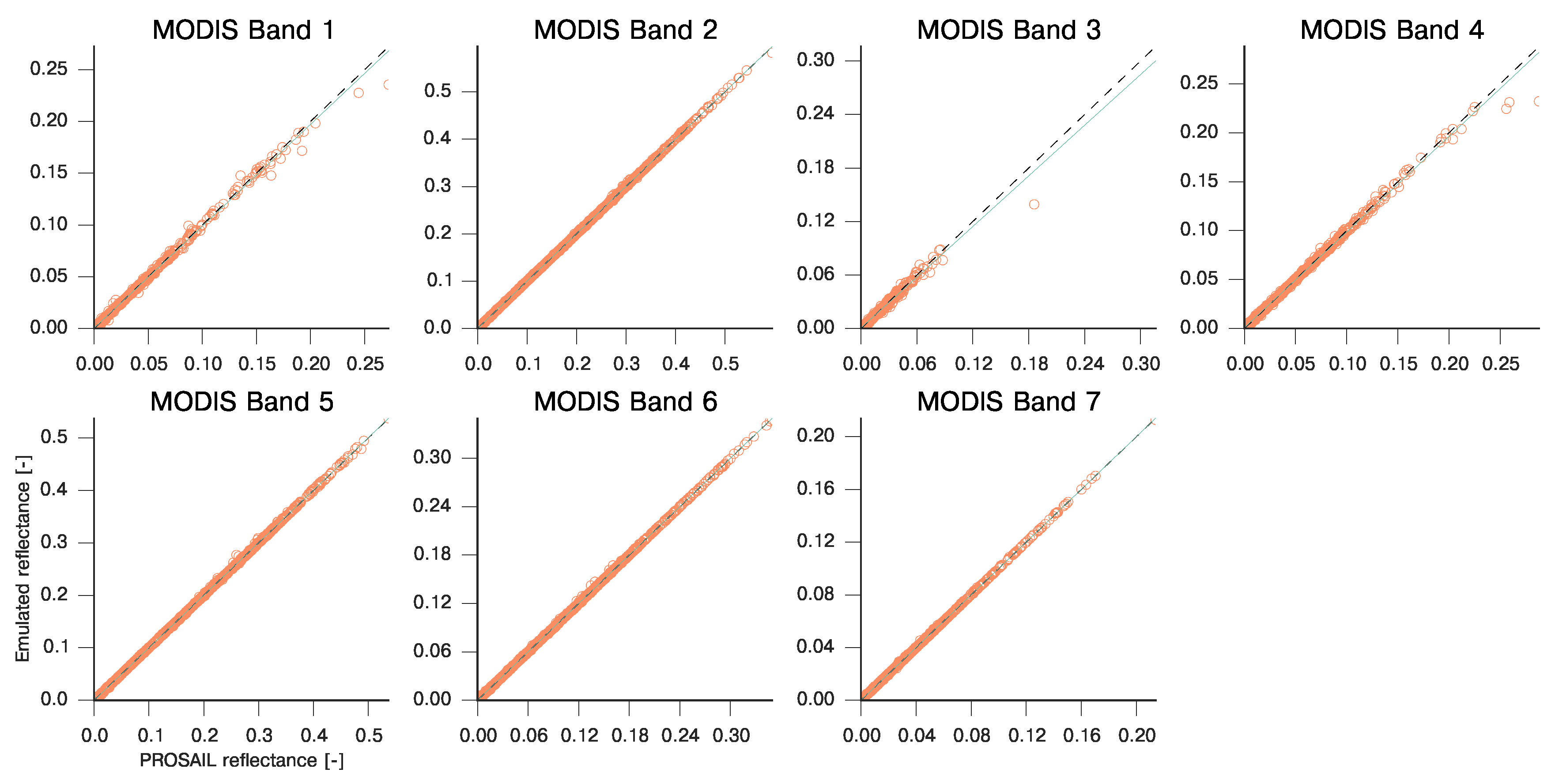

**Figure 2.**Emulation performance for PROSAIL over the seven MODIS bands. The emulator was trained with 300 forward model runs, and validated with an independently produced set of 1000 parameters. Acquisition geometry was set to nadir illumination and ${30}^{\circ}$ viewing zenith.

**Table 3.**Results of the validation for the PROSAIL emulator using an independent set of 1000 model realisations over the MODIS bands. The emulator was created by using 300 forward simulator model runs, selected with a Latin hypercube sampling design between the boundaries indicated in Table 1.

MODIS Band | Slope | Intercept | R | RMSE | MAE |
---|---|---|---|---|---|

1 | 0.984 | 0.000 | 0.999 | 1.669e-03 | 3.679e-02 |

2 | 1.000 | −0.000 | 1.000 | 2.681e-04 | 1.307e-02 |

3 | 0.947 | 0.001 | 0.990 | 4.349e-03 | 4.678e-02 |

4 | 0.977 | 0.001 | 0.998 | 1.987e-03 | 5.585e-02 |

5 | 1.001 | −0.000 | 1.000 | 3.523e-04 | 1.722e-02 |

6 | 1.000 | 0.000 | 1.000 | 3.210e-04 | 7.791e-03 |

7 | 1.000 | 0.000 | 1.000 | 2.416e-04 | 2.392e-03 |

#### 3.2. Emulation of a Coupled Soil-Leaf-Canopy-Atmosphere RT Model Combination: PROSAIL and 6S

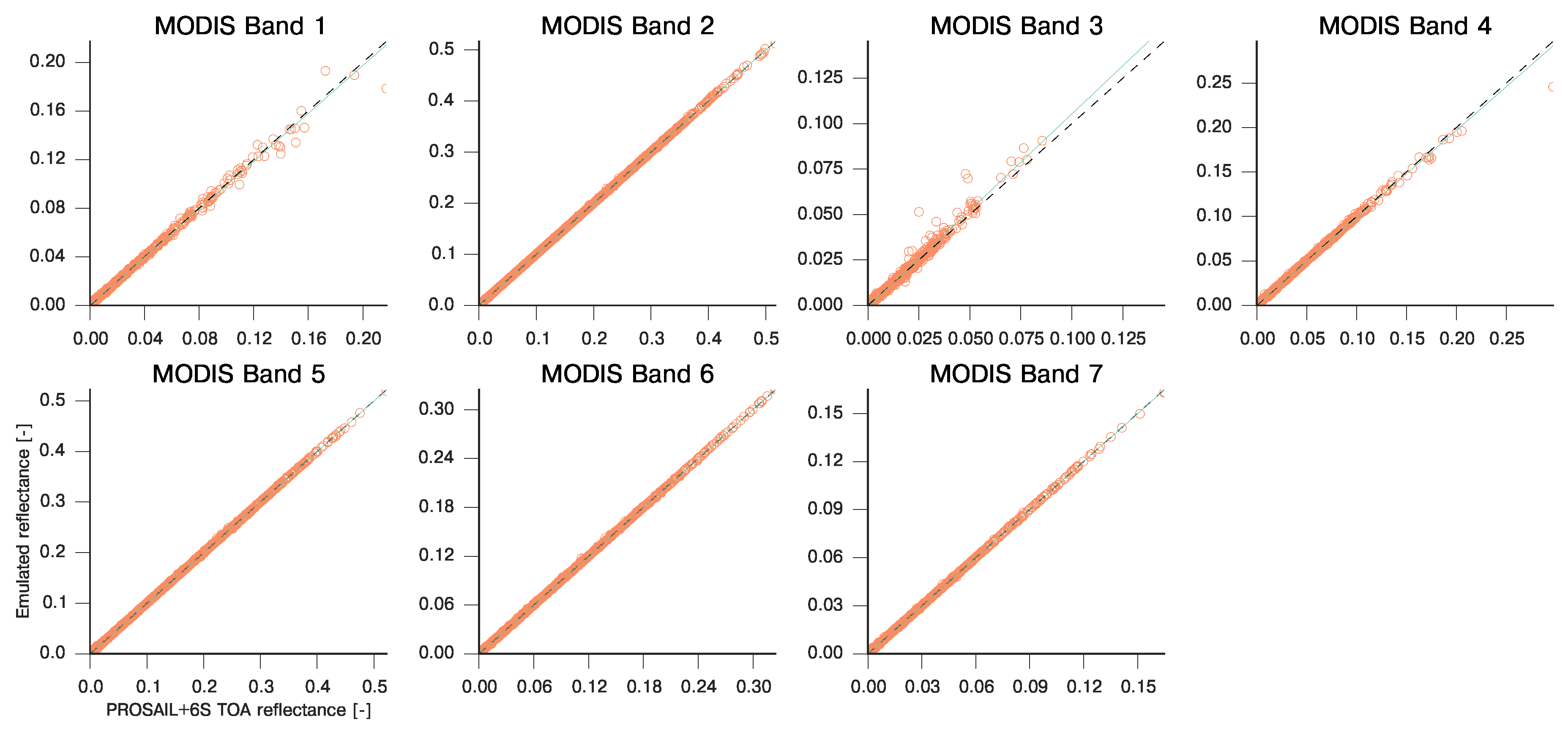

**Figure 3.**Validation result of the single band coupled PROSAIL and 6S models of top-of-atmosphere reflectance over the MODIS bands. The coupling is done under the assumption that the land surface is Lambertian, and using a continental aerosol model. The emulator uses the PROSAIL parameters as inputs, extended by aerosol optical thickness (AOT), atmospheric water vapour content (WVC) and ozone concentration (${O}_{3}$). The validation has been carried out on a set of 1000 parameter values drawn from uniform independent distribution over the parameter ranges.

**Table 4.**Results of the validation for the coupled PROSAIL + 6S emulator using an independent set of 1000 model realisations over the MODIS bands. The emulators were trained running the PROSAIL + 6S model combination 400 times over a sampling pattern determined by Latin hypercube design. The coupling between the surface and atmosphere is assumed Lambertian.

MODIS Band | Slope | Intercept | R | RMSE | MAE |
---|---|---|---|---|---|

1 | 0.985 | 0.000 | 0.998 | 2.087e-03 | 3.889e-02 |

2 | 1.001 | −0.000 | 1.000 | 1.888e-04 | 5.694e-03 |

3 | 1.061 | −0.001 | 0.989 | 4.996e-03 | 2.635e-02 |

4 | 0.981 | 0.001 | 0.998 | 1.730e-03 | 5.136e-02 |

5 | 0.999 | 0.000 | 1.000 | 2.282e-04 | 5.256e-03 |

6 | 1.000 | 0.000 | 1.000 | 2.342e-04 | 4.954e-03 |

7 | 0.999 | 0.000 | 1.000 | 2.885e-04 | 1.857e-03 |

#### 3.3. Spectral Emulation of a Coupled Soil-Leaf-Canopy RT Model Combination

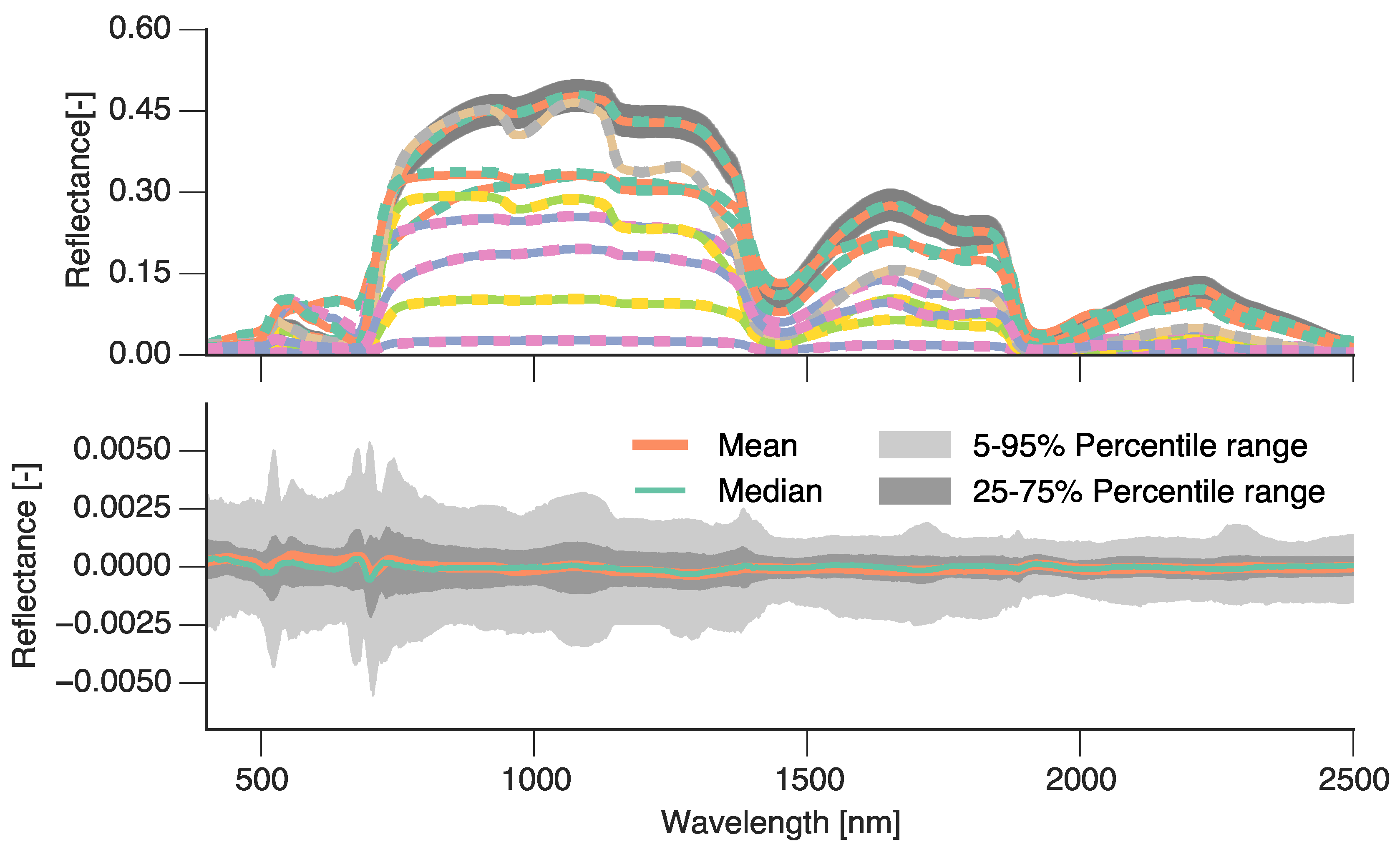

**Figure 4.**(Top panel) A set of ten simulated PROSAIL spectra (full lines) and their emulated spectra using 250 forward model runs as a training set (dashed lines). The topmost emulated spectrum has a grey area around it showing the $\pm \sigma $ emulation error. (Bottom panel) Distribution of the residuals (full model minus emulator) of the 1000 model realisations validation dataset. We show the mean (orange line), median (green line), and the 5%–95% (light grey) and 25%–75% (dark grey) percentile ranges.

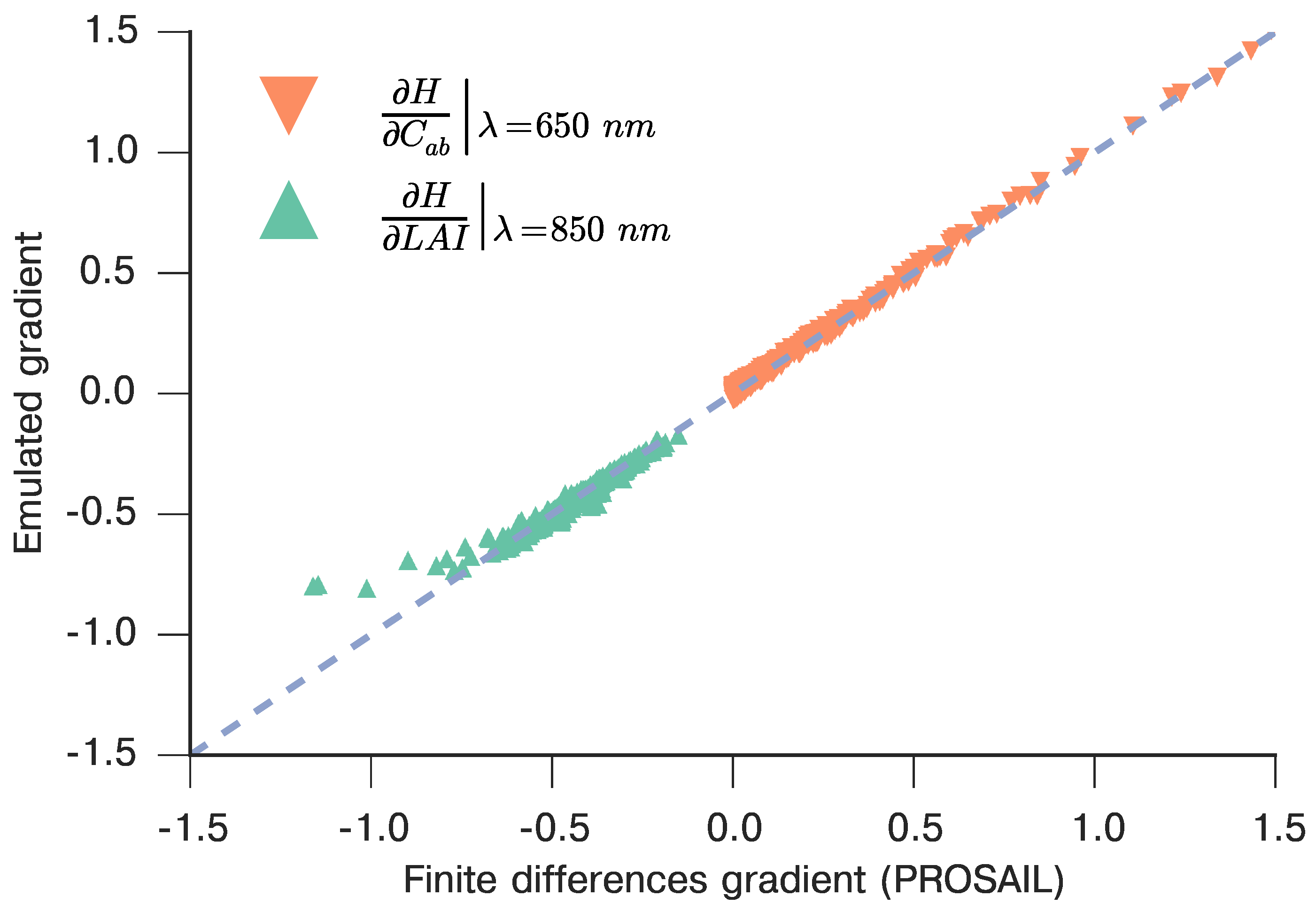

**Figure 5.**The emulated gradient of the PROSAIL RT model (estimated using a finite difference approximation with a step size of which was set to ${10}^{-5}$ of the transformed parameter range). We show the gradient with respect to leaf chlorophyll concentration at 650 nm (orange triangles) and with respect to $LAI$ at 850 nm (green triangles). The gradient is calculated around the 1000 independent samples used to validate the model in Figure 4.

#### 3.4. Spectral Emulation of Atmospheric Effects

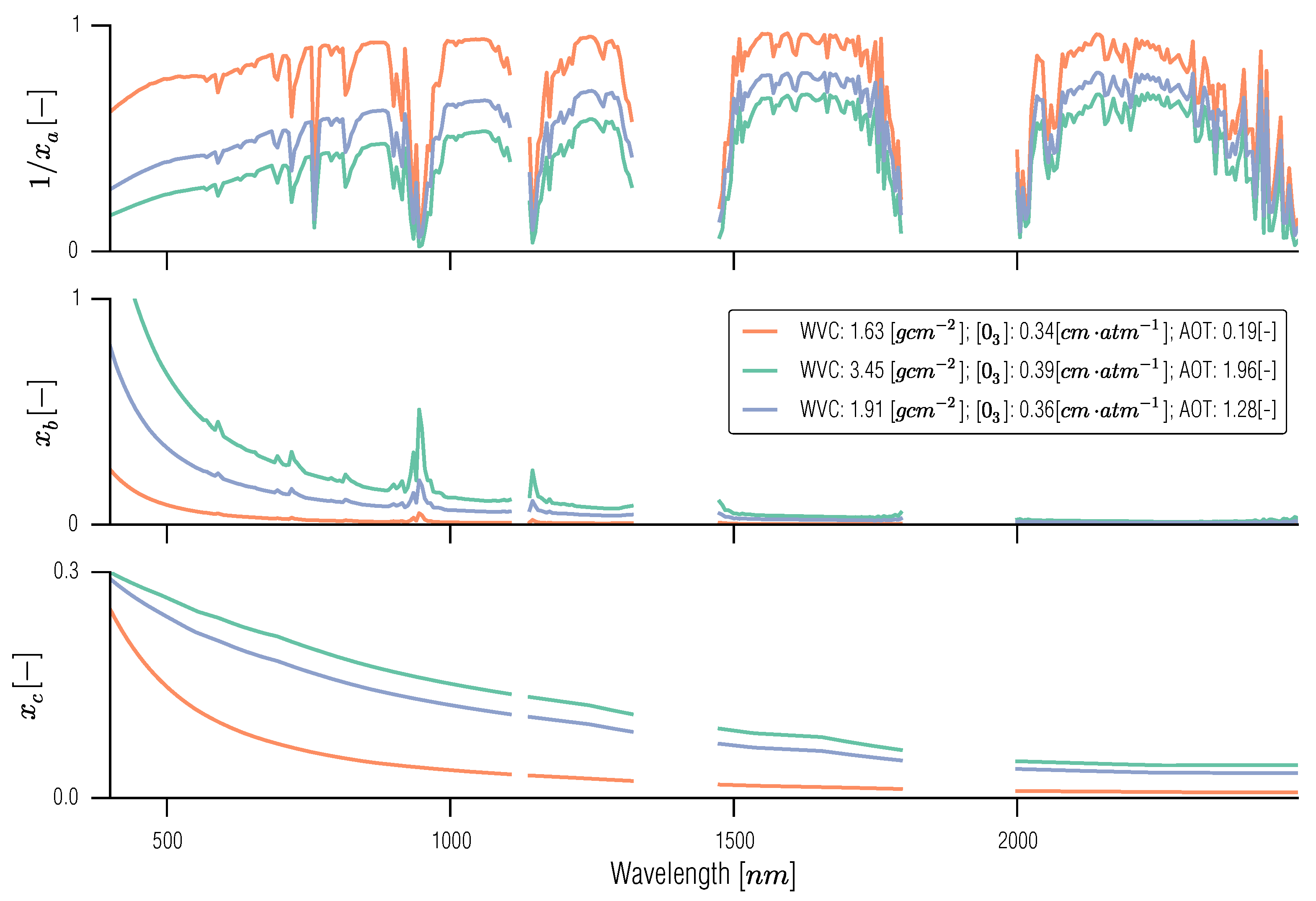

**Figure 6.**Sample spectra for $1/{x}_{a}$, ${x}_{b}$ and ${x}_{c}$ simulated with 6S, assuming “Continental” aerosol type, nadir looking illumination geometry and view zenith of ${30}^{\circ}$. The simulation was done for day of year 138 (mid-may), and shows two spectra for two different atmospheric compositions, having different water vapour, ozone and aerosol optical depths.

#### 3.5. Full BRDF Coupling of a Soil-Leaf-Canopy Model and Atmospheric Spectral RT Model

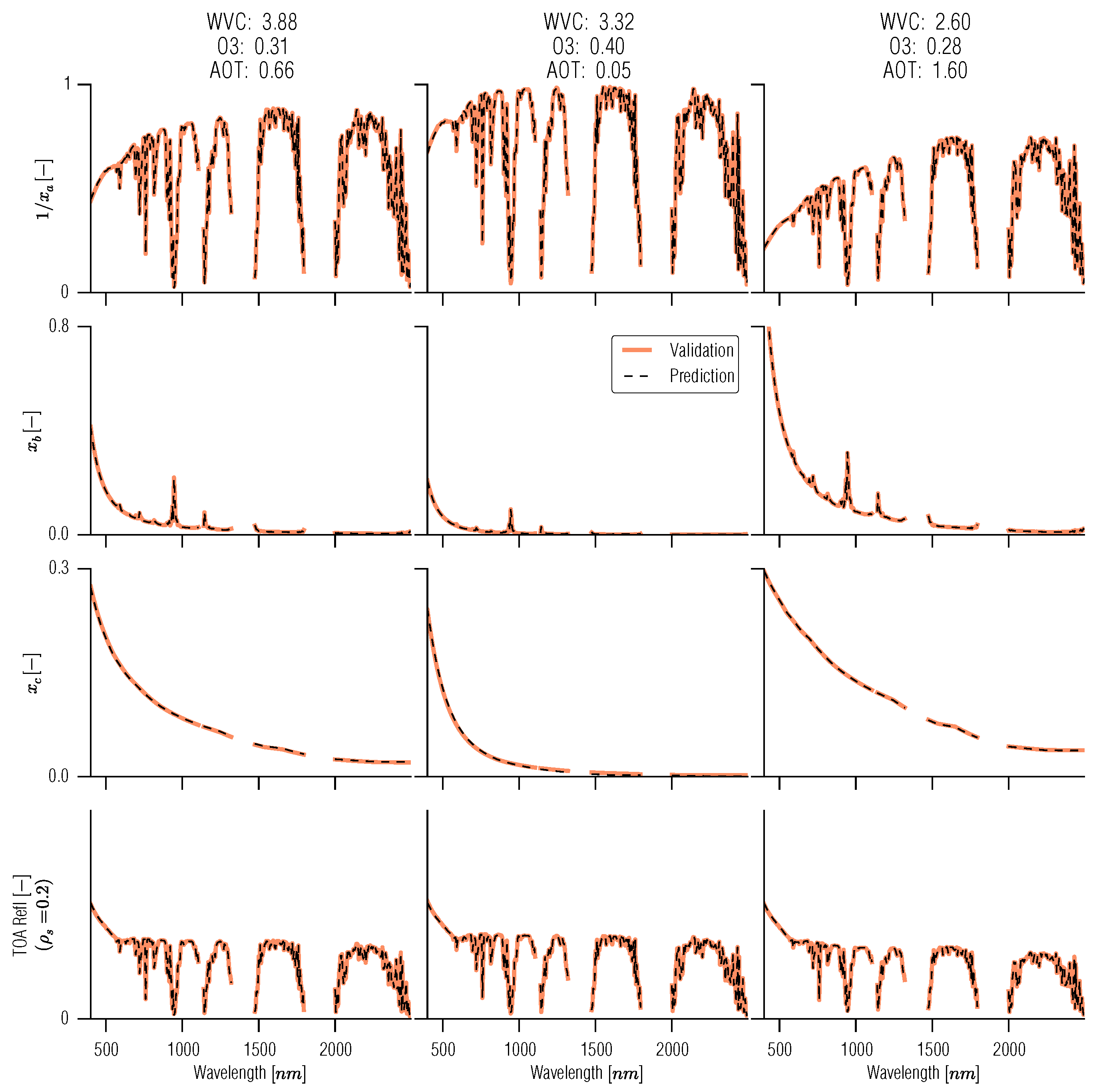

**Figure 7.**Three examples of emulation of the 6S RT model. The three columns show three different input parameter sets (indicated at the top). The set-up was for day 138 (mid-may), with nadir illumination geometry and view zenith or ${30}^{\circ}$, aerosol properties are selected as “Continental”, and we show the output spectra from the model and the emulation (note that these particular model configurations were not part of the data used to train the emulators).

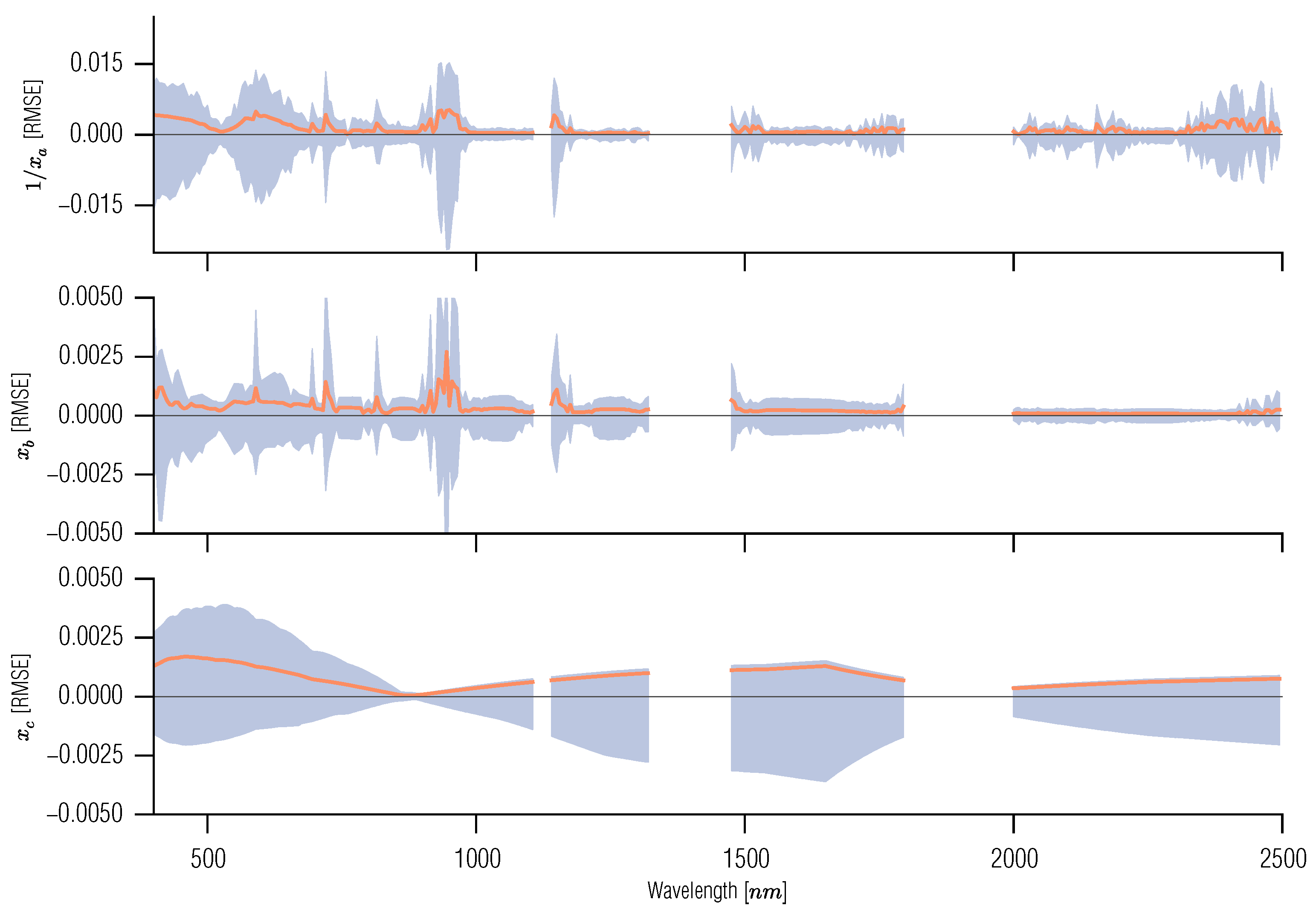

**Figure 8.**Validation of the 6S spectral emulation. The black line shows the mean difference over the 500 sample validation set, whereas the grey areas show the RMSE.

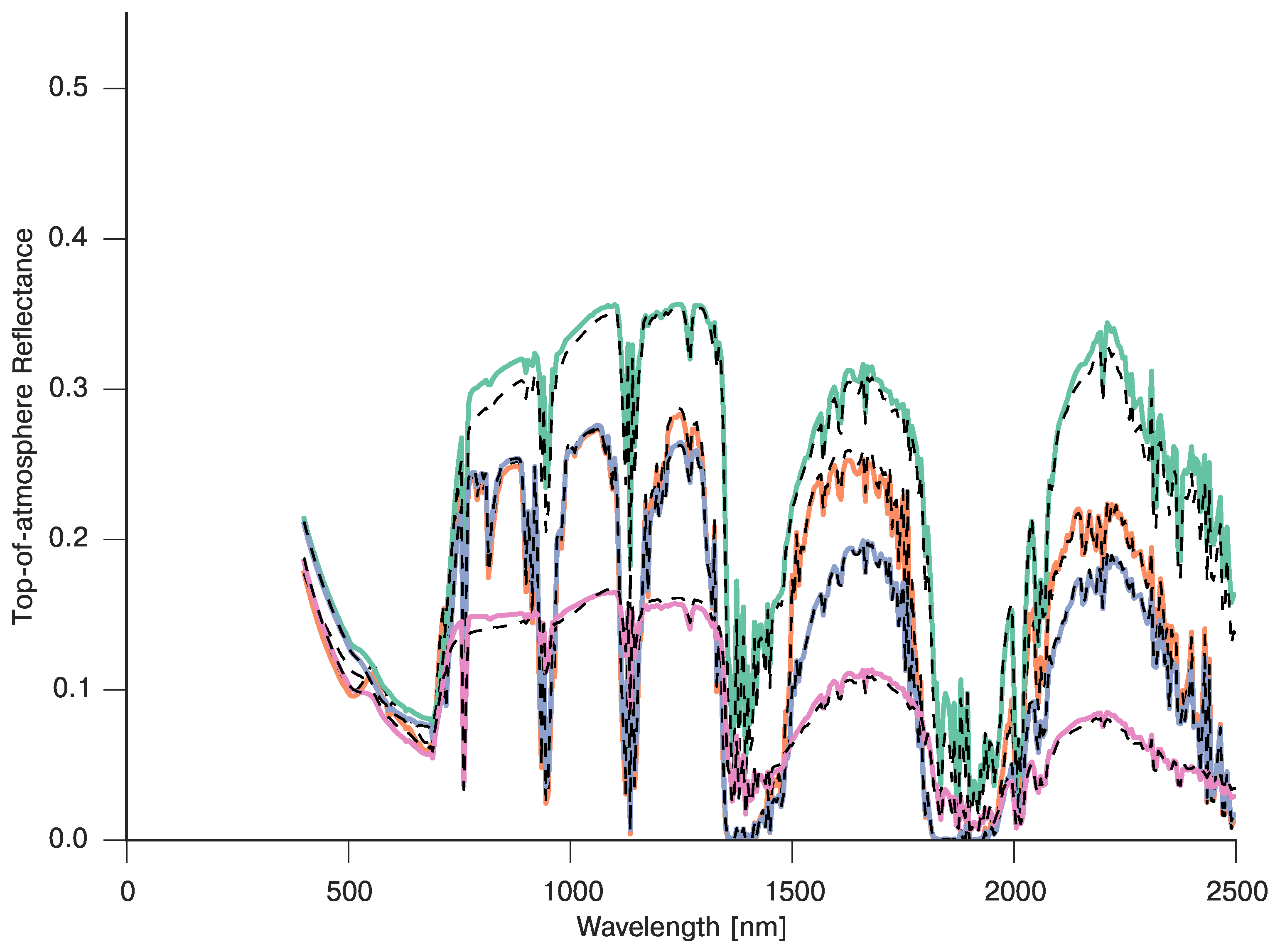

**Figure 9.**Three examples of emulation of the coupled PROSAIL and 6S RT models. The three traces show the full model (full line) for a particular set of input parameters, and the emulator prediction for the same input parameters (dashed lines). The set-up was for day 138 (mid-may), with nadir illumination geometry and view zenith or ${30}^{\circ}$, aerosol properties are selected as “Continental”.

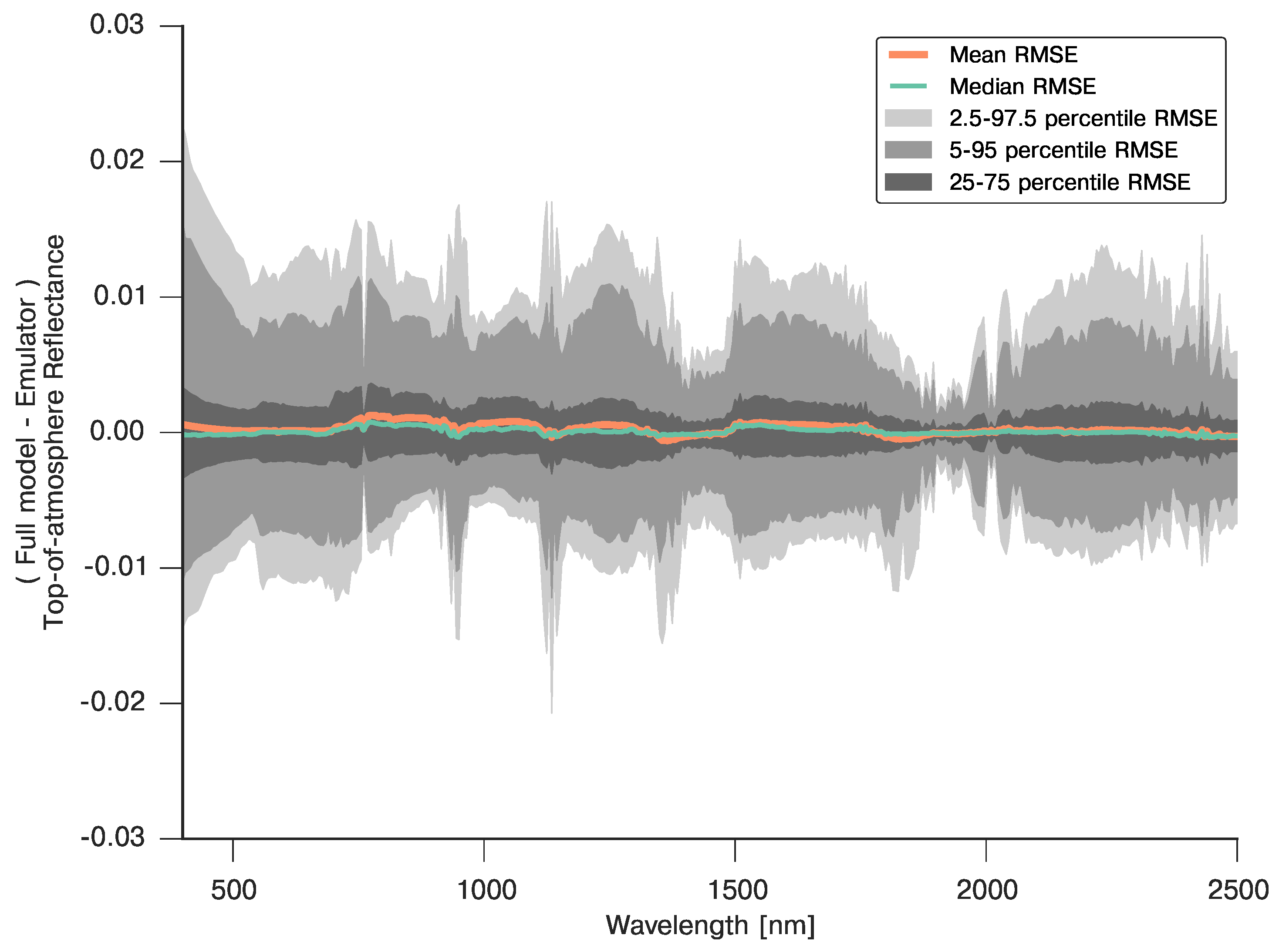

**Figure 10.**Validation of the coupled PROSAIL+6S spectral emulation. The mean RMSE (blue line) shows the mean RMSE, whereas the grey shaded areas show different quantiles (95, 90 and 50%).

## 4. Examples of the Use of GPs in Inverse Problems in Remote Sensing

#### 4.1. The Synthetic “Satellite” Observations

Parameter | Value | ${p}_{0}$ | ${p}_{1}$ | ${p}_{2}$ | ${p}_{3}$ | ${p}_{4}$ | ${p}_{5}$ |
---|---|---|---|---|---|---|---|

N | 2.1 | – | – | – | – | – | – |

${C}_{ab}$ | 60 | 5 | 55 | -0.3 | 122 | 0.1 | 240 |

${C}_{car}$ | 7 | – | – | – | – | – | – |

${C}_{sen}$ | 0.5 | – | – | – | – | – | – |

${C}_{w}$ | 0.0176 | 0.004 | 0.043 | −0.31 | 121 | 0.07 | 235 |

${C}_{m}$ | 0.002 | – | – | – | – | – | – |

$LAI$ | 2 | 0.1 | 5 | −0.29 | 120 | 0.1 | 240 |

$ALA$ | 70 | – | – | – | – | – | – |

${B}_{s}$ | 1.0 | – | – | – | – | – | – |

${P}_{s}$ | 0.3 | – | – | – | – | – | – |

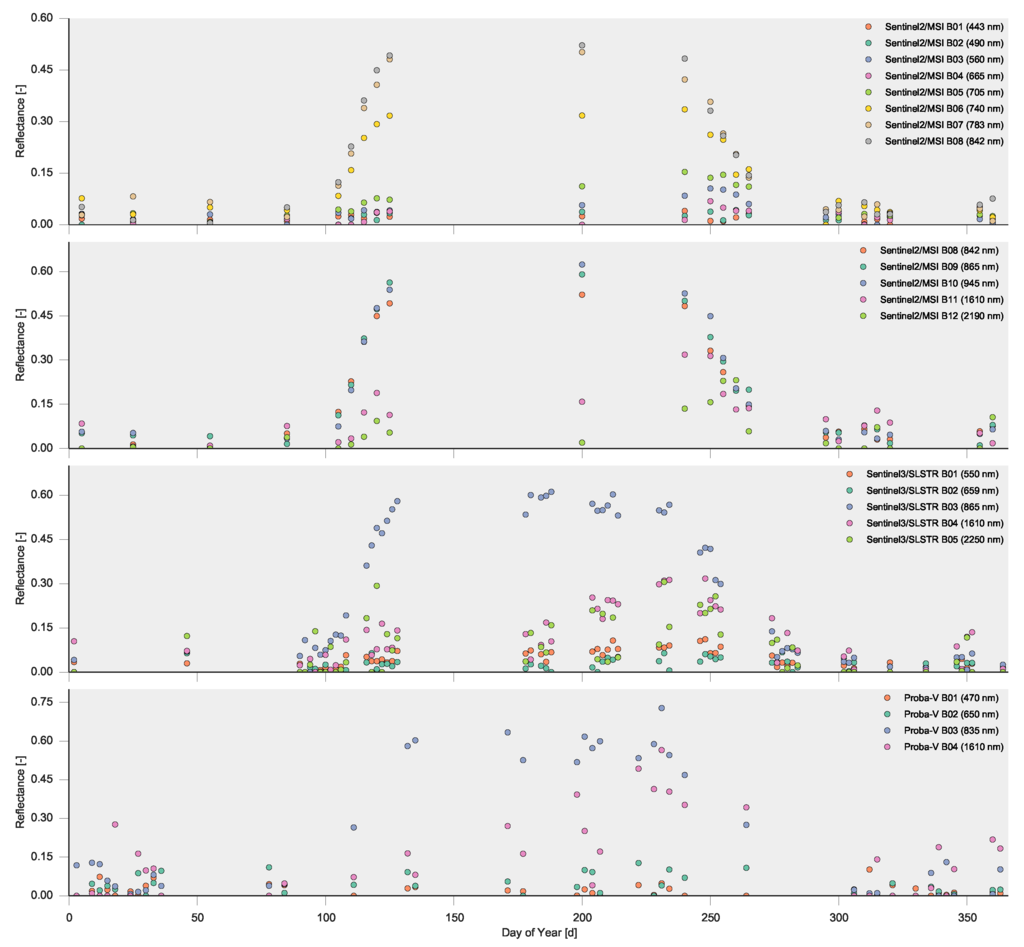

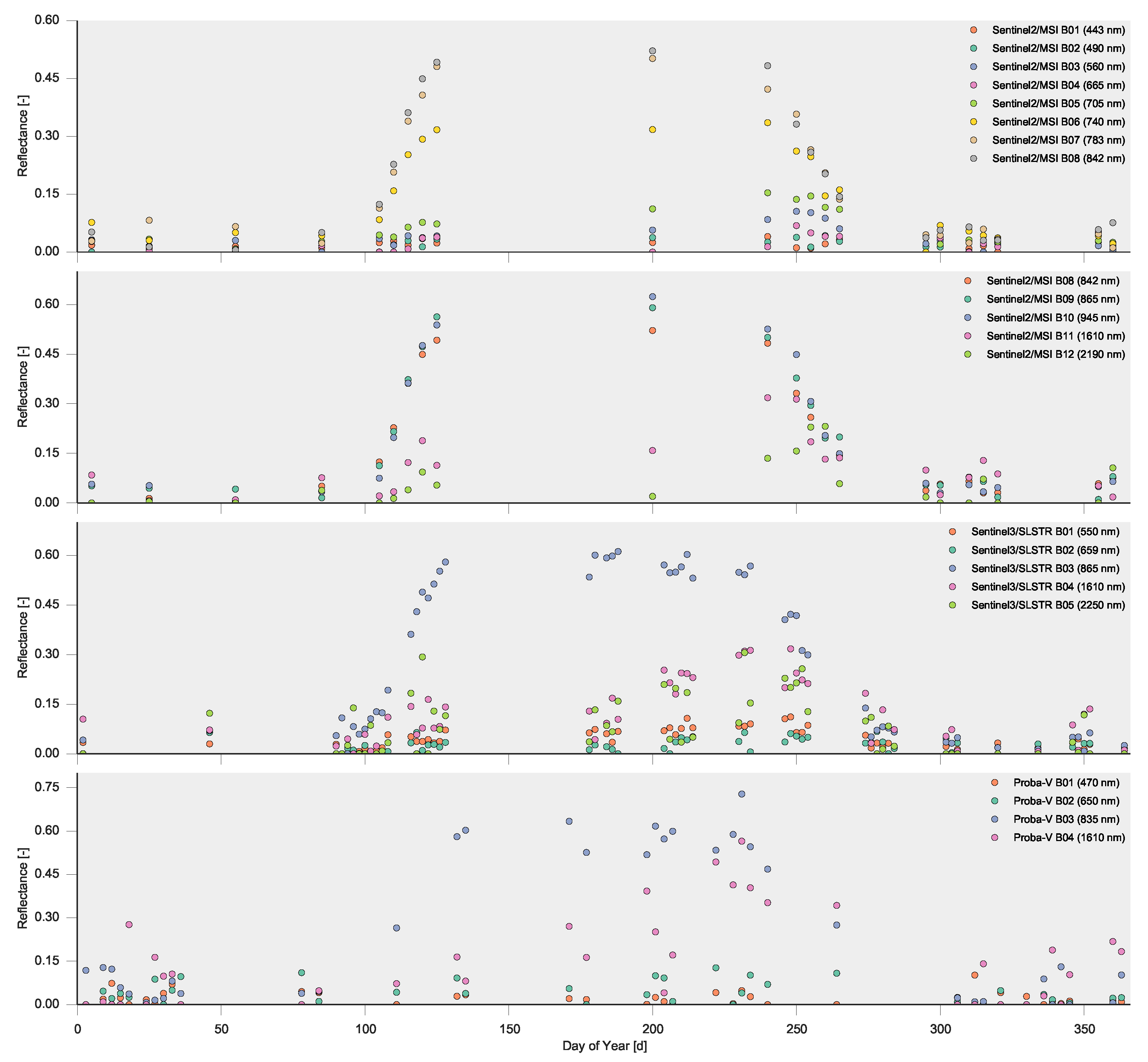

**Figure 11.**Temporal evolution of the forward modelled reflectances for the three sensors considered in this work over a year.

**Table 6.**Description of the different parameters used for simulating the different sensors in the synthetic experiments. Noise model parameters are in units of reflectance.

Parameter | Sentinel2/MSI | Sentinel3/SLSTR | Proba-V |
---|---|---|---|

Number of bands | 12 | 5 | 4 |

Revisit frequency | 5 days | 2 days | 2 days |

Overpass time | 10:30 AM | 10:00 AM | 11:00 AM |

Variation in viewing zenith angle (VZA) | ${7}^{\circ}$ | ${0}^{\circ}$ | ${50}^{\circ}$ |

Percentage valid observations | 30% | 30% | 30% |

Average temporal window | 12 days | 10 days | 11 days |

Noise model slope m | 0.0042 | 0.0075 | 0.108 |

Noise model intercept c | 0.0028 | 0.005 | 0.007 |

#### 4.2. Generic Strategy for the Inverse Problem

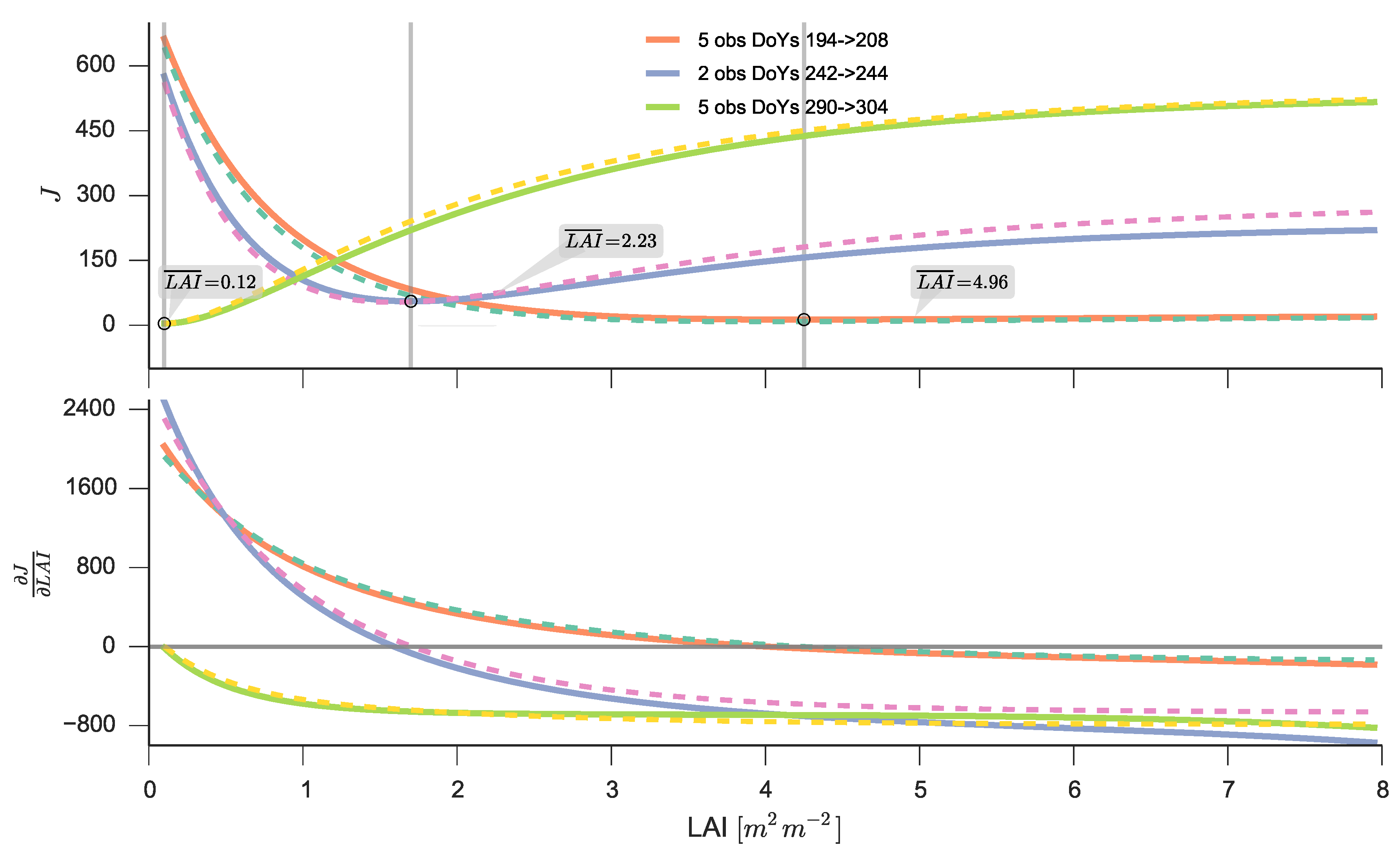

**Figure 12.**(Top) Shows the difference between the cost function for three different acquisition periods using the Sentinel3/SLSTR synthetic data. The full lines show the cost function value as a function of $LAI$ using the full PROSAIL model, whereas the dashed lines show the value of the cost function using the emulators (and using the emulator with acquisition geometry closest to the observations). The circle represents the minimum of the cost function, and the grey call out is the mean value of $LAI$ for each period. (Bottom) The difference between the gradient of the cost function calculated with the full PROSAIL model (approximated by finite differences, full line), and the gradient approximated by using the emulators (dashed line) for the same cost functions shown in the top panel.

#### Solving for the Posterior

#### 4.3. Inversion Using Markov Chain Monte Carlo (MCMC)

#### 4.4. Variational DA Solution: EO-LDAS Framework

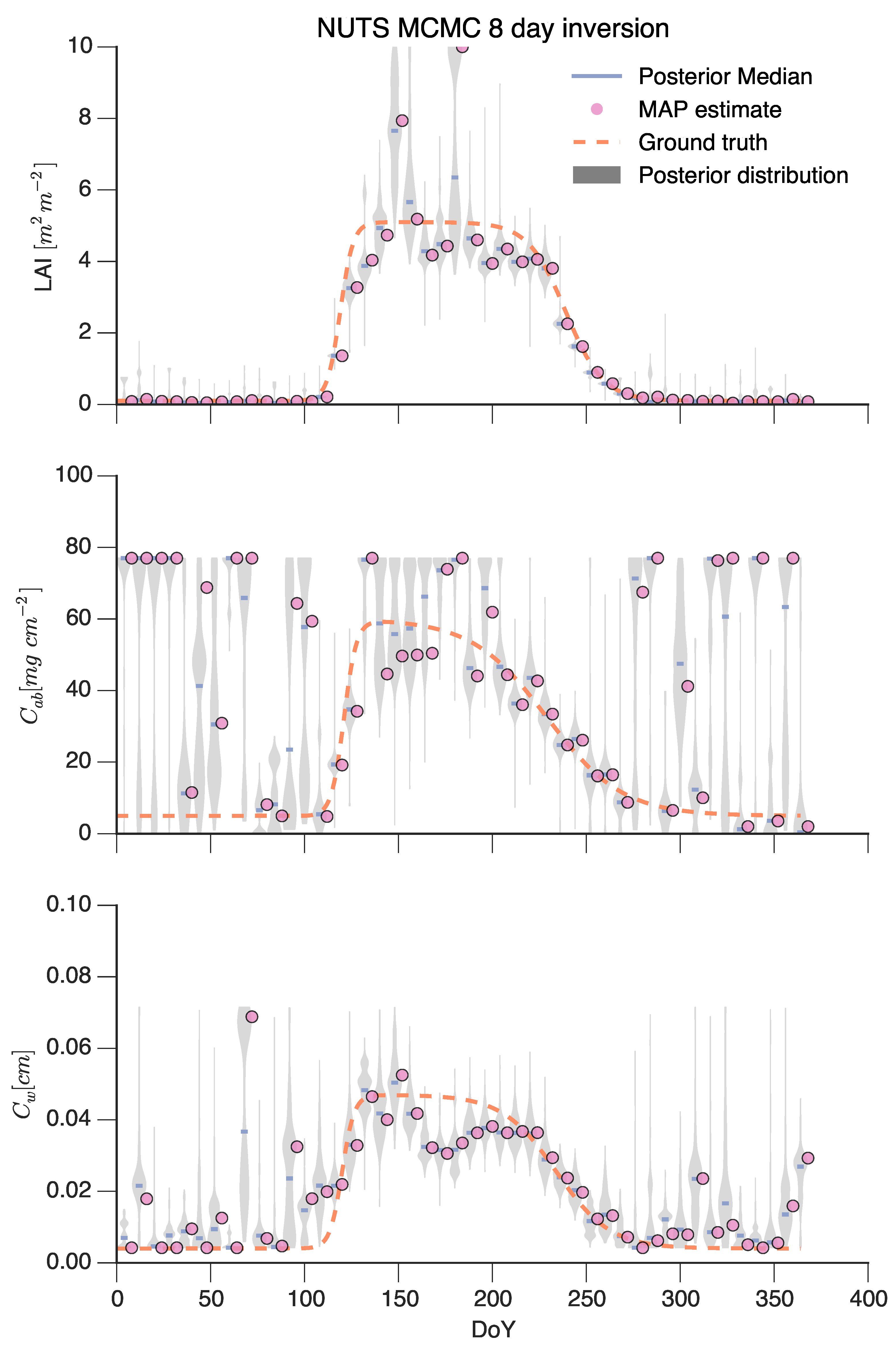

**Figure 13.**Results of inferred posterior parameter distributions for the inversion with simple gradient descent algorithm and NUTS MCMC sampler, in both cases using GP emulators in lieu of the full RT model. The observations of every eight day period have been inverted assuming that the parameters are constant within the inversion window. A Gaussian uninformative prior is used to constrain the observations. The dashed line shows the ground truth, the dots show the value of the minimisation, and the grey areas represent the posterior parameter distribution. The dash indicates the median of the posterior parameter distribution.

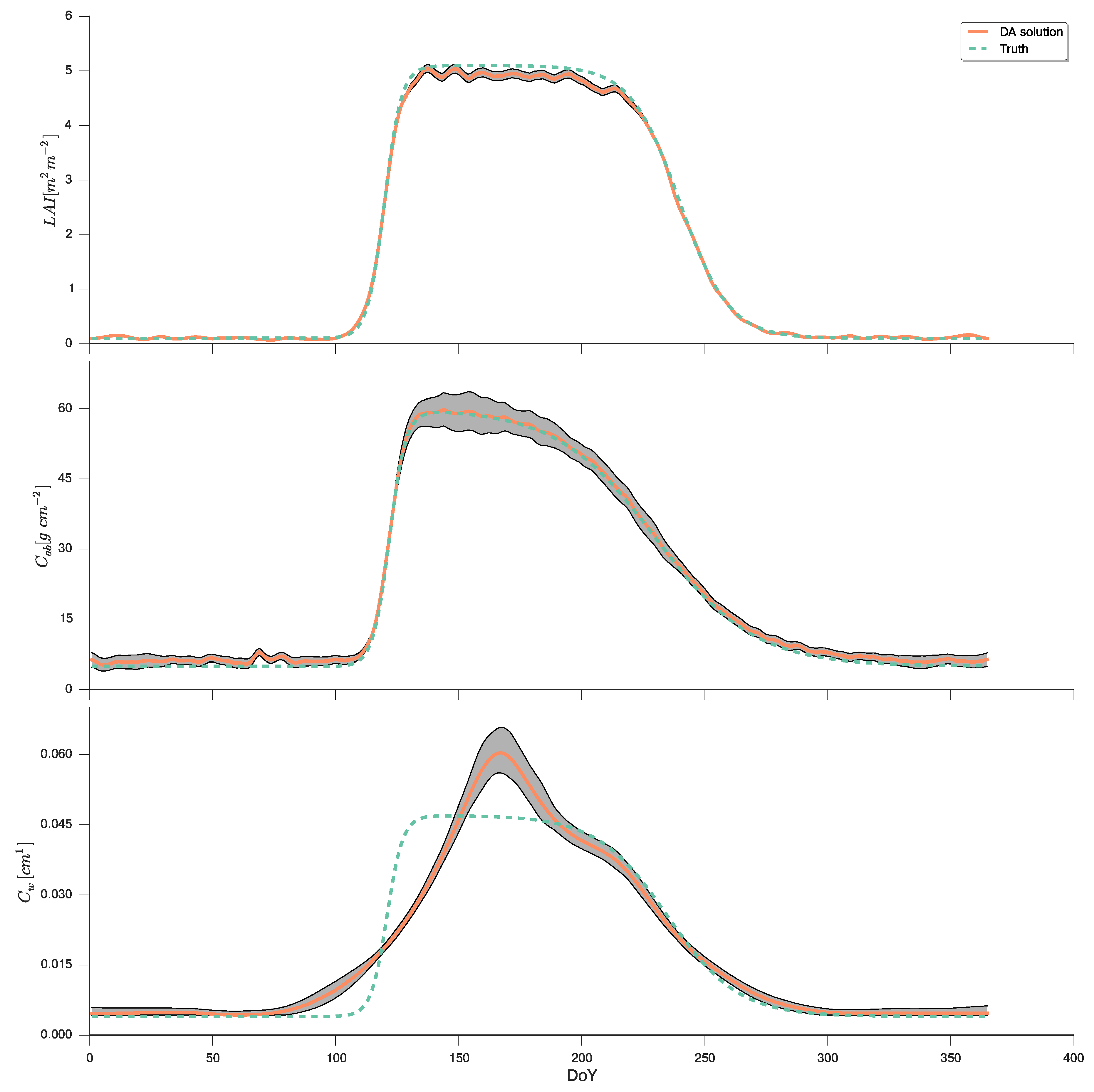

**Figure 14.**Results of inferred posterior parameter distributions using the

`eoldas_ng`package, supplementing the fit to the observations by a prior distribution and a first order regularisation model. The orange line shows the value of the maximum a posteriori (MAP) estimate, with the grey area representing the 5%–95% posterior interval. The green dashed line shows the truth.

#### 4.5. Simple Particle Filter

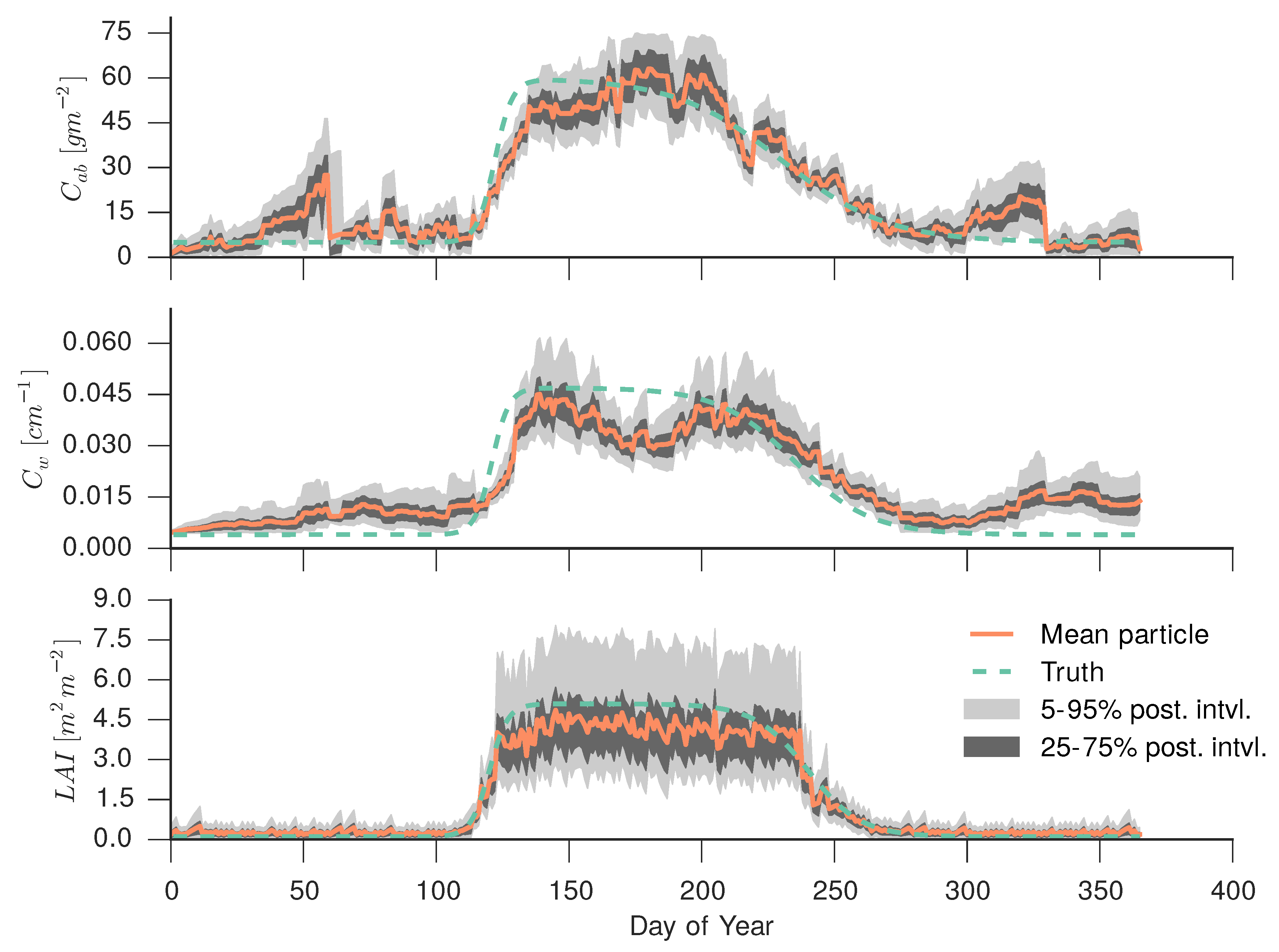

**Figure 15.**Evolution of the land surface parameters (from top to bottom: leaf chlorophyll concentration, leaf equivalent water thickness and leaf area index) derived from the synthetic observations introduced in Section 4.1. The parameters were inferred using a particle filter. The dynamic model used is a first order regularisation model, and we have used 10,000 particles. The plots show the mean particle, the 5%–95% and 25%–75 % posterior intervals, as well as the ground truth.

## 5. Discussion and Outlook

## 6. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Wulder, M.A.; Hilker, T.; White, J.C.; Coops, N.C.; Masek, J.G.; Pflugmacher, D.; Crevier, Y. Virtual constellations for global terrestrial monitoring. Remote Sens. Environ.
**2015**, 170, 62–76. [Google Scholar] [CrossRef] - Tarantola, A. Inverse Problem Theory and Methods for Model Parameter Estimation; SIAM: Philadelphia, PA, USA, 2005. [Google Scholar]
- Rodgers, C.D. Others. In Inverse Methods for Atmospheric Sounding: Theory and Practice; World Scientific: Singapore, 2000; Volume 2. [Google Scholar]
- Combal, B.; Baret, F.; Weiss, M.; Trubuil, A.; Mace, D.; Pragnere, A.; Myneni, R.; Knyazikhin, Y.; Wang, L. Retrieval of canopy biophysical variables from bidirectional reflectance: Using prior information to solve the ill-posed inverse problem. Remote Sens. Environ.
**2003**, 84, 1–15. [Google Scholar] [CrossRef] - Yuan, H.; Dai, Y.; Xiao, Z.; Ji, D.; Shangguan, W. Reprocessing the MODIS Leaf Area Index products for land surface and climate modelling. Remote Sens. Environ.
**2011**, 115, 1171–1187. [Google Scholar] [CrossRef] - Pinty, B.; Andredakis, I.; Clerici, M.; Kaminski, T.; Taberner, M.; Verstraete, M.M.; Gobron, N.; Plummer, S.; Widlowski, J.L. Exploiting the MODIS albedos with the Two-stream Inversion Package (JRC-TIP): 1. Effective leaf area index, vegetation, and soil properties. J. Geophys. Res.
**2011**, 116, D09105. [Google Scholar] [CrossRef] - Lewis, P.; Gómez-Dans, J.; Kaminski, T.; Settle, J.; Quaife, T.; Gobron, N.; Styles, J.; Berger, M. An earth observation land data assimilation system (EO-LDAS). Remote Sens. Environ.
**2012**, 120, 219–235. [Google Scholar] [CrossRef] - Giering, R.; Kaminski, T. Recipes for adjoint code construction. ACM Trans. Math. Softw.
**1998**, 24, 437–474. [Google Scholar] [CrossRef] - Laurent, V.C.E.; Verhoef, W.; Clevers, J.G.P.W.; Schaepman, M.E. Estimating forest variables from top-of-atmosphere radiance satellite measurements using coupled radiative transfer models. Remote Sens. Environ.
**2011**, 115, 1043–1052. [Google Scholar] [CrossRef] - Knyazikhin, Y.; Martonchik, J.V.; Myneni, R.B.; Diner, D.J.; Running, S.W. Synergistic algorithm for estimating vegetation canopy leaf area index and fraction of absorbed photosynthetically active radiation from MODIS and MISR data. J. Geophys. Res.
**1998**, 103, 32257–32275. [Google Scholar] [CrossRef] - Kimes, D.S.; Nelson, R.F.; Manry, M.T.; Fung, A.K. Review article: Attributes of neural networks for extracting continuous vegetation variables from optical and radar measurements. Int. J. Remote Sens.
**1998**, 19, 2639–2663. [Google Scholar] [CrossRef] - Baret, F.; Hagolle, O.; Geiger, B.; Bicheron, P.; Miras, B.; Huc, M.; Berthelot, B.; Niño, F.; Weiss, M.; Samain, O.; et al. LAI, fAPAR and fCover CYCLOPES global products derived from VEGETATION: Part 1: Principles of the algorithm. Remote Sens. Environ.
**2007**, 110, 275–286. [Google Scholar] [CrossRef] [Green Version] - Verrelst, J.; Muñoz, J.; Alonso, L.; Delegido, J.; Rivera, J.P.; Camps-Valls, G.; Moreno, J. Machine learning regression algorithms for biophysical parameter retrieval: Opportunities for Sentinel-2 and -3. Remote Sens. Environ.
**2012**, 118, 127–139. [Google Scholar] [CrossRef] - Verrelst, J.; Camps-Valls, G.; Muñoz Marí, J.; Rivera, J.P.; Veroustraete, F.; Clevers, J.G.P.W.; Moreno, J. Optical remote sensing and the retrieval of terrestrial vegetation bio-geophysical properties—A review. ISPRS J. Photogramm. Remote Sens.
**2015**, 108, 273–290. [Google Scholar] [CrossRef] - Quaife, T.; Lewis, P.; De Kauwe, M.; Williams, M.; Law, B.E.; Disney, M.; Bowyer, P. Assimilating canopy reflectance data into an ecosystem model with an Ensemble Kalman Filter. Remote Sens. Environ.
**2008**, 112, 1347–1364. [Google Scholar] [CrossRef] - Peng, C.; Guiot, J.; Wu, H.; Jiang, H.; Luo, Y. Integrating models with data in ecology and palaeoecology: advances towards a model–data fusion approach. Ecol. Lett.
**2011**, 14, 522–536. [Google Scholar] [CrossRef] [PubMed] - Luo, Y.; Ogle, K.; Tucker, C.; Fei, S.; Gao, C.; LaDeau, S.; Clark, J.S.; Schimel, D.S. Ecological forecasting and data assimilation in a data-rich era. Ecol. Appl.
**2011**, 21, 1429–1442. [Google Scholar] [CrossRef] [PubMed] - O’Hagan, A.; Kingman, J.F.C. Curve Fitting and Optimal Design for Prediction. J. R. Stat. Soc. Series B Stat. Methodol.
**1978**, 40, 1–42. [Google Scholar] - Sacks, J.; Welch, W.J.; Mitchell, T.J.; Wynn, H.P. Design and analysis of computer experiments. Stat. Sci.
**1989**, 4, 409–423. [Google Scholar] [CrossRef] - O’Hagan, A. Some Bayesian numerical analysis. Bayesian Stat.
**1992**, 4, 345–363. [Google Scholar] - Kennedy, M.C.; O’Hagan, A. Predicting the output from a complex computer code when fast approximations are available. Biometrika
**2000**, 87, 1–13. [Google Scholar] [CrossRef] - Challenor, P.G.; Hankin, R.K.S.; Marsh, R. Towards the probability of rapid climate change. In Avoiding Dangerous Climate Change; Cambridge University Press: Cambridge, UK, 2006; pp. 55–63. [Google Scholar]
- Rougier, J.; Sexton, D.M.H.; Murphy, J.M.; Stainforth, D. Analyzing the Climate Sensitivity of the HadSM3 Climate Model Using Ensembles from Different but Related Experiments. J. Climate
**2009**, 22, 3540–3557. [Google Scholar] [CrossRef] [Green Version] - Picard, G.; Woodward, F.I.; Lomas, M.R.; Pellenq, J.; Quegan, S.; Kennedy, M. Constraining the Sheffield dynamic global vegetation model using stream-flow measurements in the United Kingdom. Glob. Chang. Biol.
**2005**, 11, 2196–2210. [Google Scholar] [CrossRef] - Kennedy, M.; Anderson, C.; O’Hagan, A.; Lomas, M.; Woodward, I.; Gosling, J.P.; Heinemeyer, A. Quantifying uncertainty in the biospheric carbon flux for England and Wales. J. R. Stat. Soc. Ser. A
**2008**, 171, 109–135. [Google Scholar] [CrossRef] - Morris, R.D.; Kottas, A.; Taddy, M.; Furfaro, R.; Ganapol, B.D. A statistical framework for the sensitivity analysis of radiative transfer models. IEEE Trans. Geosci. Remote Sens.
**2008**, 46, 4062–4074. [Google Scholar] [CrossRef] - Pasolli, L.; Melgani, F.; Blanzieri, E. Gaussian process regression for estimating chlorophyll concentration in subsurface waters from remote sensing data. IEEE Geosci. Remote Sens. Lett.
**2010**, 7, 464–468. [Google Scholar] [CrossRef] - Verrelst, J.; Alonso, L.; Camps-Valls, G.; Delegido, J.; Moreno, J. Retrieval of vegetation biophysical parameters using Gaussian process techniques. IEEE Trans. Geosci. Remote Sens.
**2012**, 50, 1832–1843. [Google Scholar] [CrossRef] - Rivera Caicedo, J.P.; Verrelst, J.; Munoz-Mari, J.; Moreno, J.; Camps-Valls, G. Toward a semiautomatic machine learning retrieval of biophysical parameters. IEEE J. Sel. Top. Appl. Earth Observ. Remote Sens.
**2014**, 7, 1249–1259. [Google Scholar] [CrossRef] - Simpson, T.W.; Poplinski, J.; Koch, P.N.; Allen, J.K. Metamodels for computer-based engineering design: survey and recommendations. Eng. Comput.
**2001**, 17, 129–150. [Google Scholar] [CrossRef] - Wang, G.G.; Shan, S. Review of metamodeling techniques in support of engineering design optimization. J. Mech. Des.
**2007**, 129, 370–380. [Google Scholar] [CrossRef] - Rasmussen, C.E.; Williams, C.K.I. Gaussian Processes for Machine Learning; The MIT Press: Cambridge, MA, USA, 2006. [Google Scholar]
- MacKay, D.J.C. Gaussian Processes—A Replacement for Supervised Neural Networks? 1997. Available online: http://www.inference.eng.cam.ac.uk/mackay/gp.pdf (accessed on 28 January 2016).
- Verhoef, W. Light scattering by leaf layers with application to canopy reflectance modeling: The SAIL model. Remote Sens. Environ.
**1984**, 16, 125–141. [Google Scholar] [CrossRef] - Gobron, N.; Pinty, B.; Verstraete, M.M.; Govaerts, Y. A semidiscrete model for the scattering of light by vegetation. J. Geophys. Res.
**1997**, 102, 9431–9446. [Google Scholar] [CrossRef] - Feret, J.B.; François, C.; Asner, G.P.; Gitelson, A.A.; Martin, R.E.; Bidel, L.P.R.; Ustin, S.L.; le Maire, G.; Jacquemoud, S. PROSPECT-4 and 5: Advances in the leaf optical properties model separating photosynthetic pigments. Remote Sens. Environ.
**2008**, 112, 3030–3043. [Google Scholar] [CrossRef] - Jacquemoud, S.; Verhoef, W.; Baret, F.; Bacour, C.; Zarco-Tejadae, P.J.; Asnerf, G.P.; FranÃ§oisg, C.; Ustin, S.L. PROSPECT+ SAIL models: A review of use for vegetation characterization. Remote Sens. Environ.
**2009**, 13, 56–66. [Google Scholar] [CrossRef] - Ju, J.; Roy, D.P.; Vermote, E.; Masek, J.; Kovalskyy, V. Continental-scale validation of MODIS-based and LEDAPS Landsat ETM+ atmospheric correction methods. Remote Sens. Environ.
**2012**, 122, 175–184. [Google Scholar] [CrossRef] - Vermote, E.F.; Tanre, D.; Deuze, J.L.; Herman, M.; Morcette, J.J. Second simulation of the satellite signal in the solar spectrum, 6S: An overview. IEEE Trans. Geosci. Remote Sens.
**1997**, 35, 675–686. [Google Scholar] [CrossRef] - Tanre, D.; Herman, M.; Deschamps, P.; Leffe, A.D. Atmospheric modeling for space measurements of ground reflectances, including bidirectional properties. Appl. Opt.
**1979**, 18, 3587–3594. [Google Scholar] [CrossRef] [PubMed] - Guanter, L.; Richter, R.; Kaufmann, H. On the application of the MODTRAN4 atmospheric radiative transfer code to optical remote sensing. Int. J. Remote Sens.
**2009**, 30, 1407–1424. [Google Scholar] [CrossRef] - MODIS Moderate resolution image spectroradiometer. Available online: http://modis.gsfc.nasa.gov/about/specifications.php (accessed on 28 January 2016).
- Roy, D.P.; Jin, Y.; Lewis, P.E.; Justice, C.O. Prototyping a global algorithm for systematic fire-affected area mapping using MODIS time series data. Remote Sens. Environ.
**2005**, 97, 137–162. [Google Scholar] [CrossRef] - Wanner, W.; Li, X.; Strahler, A. On the derivation of kernels for kernel-driven models of bidirectional reflectance. J. Geophys. Res. Atmos.
**1995**, 100, 21077–21089. [Google Scholar] [CrossRef] - Zhang, X.; Friedl, M.A.; Schaaf, C.B.; Strahler, A.H.; Hodges, J.C.F.; Gao, F.; Reed, B.C.; Huete, A. Monitoring vegetation phenology using MODIS. Remote Sens. Environ.
**2003**, 84, 471–475. [Google Scholar] [CrossRef] - Koetz, B.; Baret, F.; Poilvé, H.; Hill, J. Use of coupled canopy structure dynamic and radiative transfer models to estimate biophysical canopy characteristics. Remote Sens. Environ.
**2005**, 95, 115–124. [Google Scholar] [CrossRef] - Drusch, M.; del Bello, U.; Carlier, S.; Colin, O.; Fernandeza, V.; Gasconb, F.; Hoerschb, B.; Isolaa, C.; Laberintia, P.; Martimorta, P.; et al. Sentinel-2: ESA’s optical high-resolution mission for GMES operational services. Remote Sens. Environ.
**2012**, 120, 25–36. [Google Scholar] [CrossRef] - Donlon, C.; Berruti, B.; Buongiorno, A.; Ferreira, M.H.; Féménias, P.; Frerick, J.; Goryl, P.; Klein, U.; Laur, H.; Mavrocordatos, C.; et al. The global monitoring for environment and security (GMES) sentinel-3 mission. Remote Sens. Environ.
**2012**, 120, 37–57. [Google Scholar] [CrossRef] - Dierckx, W.; Sterckx, S.; Benhadj, I.; Livens, S.; Duhoux, G.; Achteren, T.V.; Francois, M.; Mellab, K.; Saint, G. PROBA-V mission for global vegetation monitoring: Standard products and image quality. Int. J. Remote Sens.
**2014**, 35, 2589–2614. [Google Scholar] [CrossRef] - Zupanski, D. A general weak constraint applicable to operational 4DVAR data assimilation systems. Mon. Weather Rev.
**1997**, 125, 2274–2292. [Google Scholar] [CrossRef] - Quaife, T.; Lewis, P. Temporal constraints on linear BRDF model parameters. IEEE Trans. Geosci. Remote Sens.
**2010**, 48, 2445–2450. [Google Scholar] [CrossRef] - Kalman, R.E. A new approach to linear filtering and prediction problems. J. Basic Eng.
**1960**, 82, 35–45. [Google Scholar] [CrossRef] - Evensen, G. The ensemble kalman filter: Theoretical formulation and practical implementation. Ocean Dyn.
**2003**, 53, 343–367. [Google Scholar] [CrossRef] - Corporation, T.A.S.; Gelb, A. Applied Optimal Estimation; The MIT Press: Cambridge, MA, USA, 1974. [Google Scholar]
- Ristic, B.; Arulampalam, S.; Gordon, N.J. Beyond the Kalman Filter: Particle Filters for Tracking Applications; Artech House: Norwood, MA, USA, 2004. [Google Scholar]
- Van Leeuwen, P.J. Particle filtering in geophysical systems. Mon. Weather Rev.
**2009**, 137, 4089–4114. [Google Scholar] [CrossRef] - Kantas, N.; Doucet, A.; Singh, S.S.; Maciejowski, J.; Chopin, N. On particle methods for parameter estimation in State-Space models. Stat. Sci.
**2015**, 30, 328–351. [Google Scholar] [CrossRef] - Dowd, M. A sequential Monte Carlo approach for marine ecological prediction. Environmetrics
**2006**, 17, 435–455. [Google Scholar] [CrossRef] - Dowd, M. Bayesian statistical data assimilation for ecosystem models using Markov Chain Monte Carlo. J. Mar. Syst.
**2007**, 68, 439–456. [Google Scholar] [CrossRef] - Yang, W.; Tan, B.; Huang, D.; Rautiainen, M.; Shabanov, N.V.; Wang, Y.; Privette, J.L.; Huemmrich, K.F.; Fensholt, R.; Sandholt, I.; et al. MODIS leaf area index products: From validation to algorithm improvement. IEEE Trans. Geosci. Remote Sens.
**2006**, 44, 1885–1898. [Google Scholar] [CrossRef] - Homan, M.D.; Gelman, A. The No-U-turn Sampler: Adaptively setting path lengths in Hamiltonian Monte Carlo. J. Mach. Learn. Res.
**2014**, 15, 1593–1623. [Google Scholar] - The eoldas_ng library. Available online: http://github.com/jgomezdans/eoldas_ng (accessed on 28 January 2016).
- Bastos, L.S.; O’Hagan, A. Diagnostics for Gaussian process emulators. Technometrics
**2009**, 51, 425–438. [Google Scholar] [CrossRef] - Xiao, Z.; Liang, S.; Wang, J.; Xie, D.; Song, J.; Fensholt, R. A framework for consistent estimation of Leaf Area Index, fraction of absorbed photosynthetically active radiation, and surface albedo from MODIS Time-Series data. IEEE Trans. Geosci. Remote Sens.
**2015**, 53, 3178–3197. [Google Scholar] [CrossRef] - Gelfand, A.E.; Schmidt, A.M.; Banerjee, S.; Sirmans, C.F. Nonstationary multivariate process modeling through spatially varying coregionalization. Test
**2004**, 13, 263–312. [Google Scholar] [CrossRef] - Paciorek, C.J.; Schervish, M.J. Nonstationary covariance functions for Gaussian process regression. In Advances in Neural Information Processing Systems 16; Thrun, S., Saul, L.K., Schölkopf, B., Eds.; MIT Press: Cambridge, MA, USA, 2004; pp. 273–280. [Google Scholar]
- Lauvernet, C.; Baret, F.; Hascoët, L.; Buis, S.; le Dimet, F.X. Multitemporal-patch ensemble inversion of coupled surface–atmosphere radiative transfer models for land surface characterization. Remote Sens. Environ.
**2008**, 112, 851–861. [Google Scholar] [CrossRef] - Laurent, V.C.E.; Verhoef, W.; Clevers, J.G.P.W.; Schaepman, M.E. Inversion of a coupled canopy–atmosphere model using multi-angular top-of-atmosphere radiance data: A forest case study. Remote Sens. Environ.
**2011**, 115, 2603–2612. [Google Scholar] [CrossRef] - Mousivand, A.; Menenti, M.; Gorte, B.; Verhoef, W. Multi-temporal, multi-sensor retrieval of terrestrial vegetation properties from spectral–directional radiometric data. Remote Sens. Environ.
**2015**, 158, 311–330. [Google Scholar] [CrossRef] - Ma, G.; Huang, J.; Wu, W.; Fan, J.; Zou, J.; Wu, S. Assimilation of MODIS-LAI into the WOFOST model for forecasting regional winter wheat yield. Math. Comput. Model.
**2013**, 58, 634–643. [Google Scholar] [CrossRef] - Conti, S.; Gosling, J.P.; Oakley, J.E.; O’Hagan, A. Gaussian process emulation of dynamic computer codes. Biometrika
**2009**. [Google Scholar] [CrossRef] - Rougier, J. Efficient emulators for multivariate deterministic functions. J. Comput. Graph. Stat.
**2008**, 17, 827–843. [Google Scholar] [CrossRef] - Loew, A.; van Bodegom, P.M.; Widlowski, J.L.; Otto, J.; Quaife, T.; Pinty, B.; Raddatz, T. Do we (need to) care about canopy radiation schemes in DGVMs? Caveats and potential impacts. Biogeosciences
**2014**, 11, 1873–1897. [Google Scholar] [CrossRef] - Higdon, D.; Swall, J.; Kern, J. Non-stationary spatial modeling. Bayesian Stat.
**1999**, 6, 761–768. [Google Scholar] - Efremenko, D.S.; Loyola, D.G.; Doicu, A.; Spurr, R.J. Multi-core-CPU and GPU-accelerated radiative transfer models based on the discrete ordinate method. Comput. Phys. Commun.
**2014**, 185, 3079–3089. [Google Scholar] [CrossRef] - Gomez-Dans, J.L.; Lewis, P.E. Python code for Gaussian process emulation of radiative transfer models. Available online: http://jgomezdans.github.io/gp_emulator (accessed on 28 January 2016). [CrossRef]
- Wilson, R. Py6S: A Python interface to the 6S radiative transfer model. Comput. Geosci.
**2013**, 51, 166–171. [Google Scholar] [CrossRef]

© 2016 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons by Attribution (CC-BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Gómez-Dans, J.L.; Lewis, P.E.; Disney, M.
Efficient Emulation of Radiative Transfer Codes Using Gaussian Processes and Application to Land Surface Parameter Inferences. *Remote Sens.* **2016**, *8*, 119.
https://doi.org/10.3390/rs8020119

**AMA Style**

Gómez-Dans JL, Lewis PE, Disney M.
Efficient Emulation of Radiative Transfer Codes Using Gaussian Processes and Application to Land Surface Parameter Inferences. *Remote Sensing*. 2016; 8(2):119.
https://doi.org/10.3390/rs8020119

**Chicago/Turabian Style**

Gómez-Dans, José Luis, Philip Edward Lewis, and Mathias Disney.
2016. "Efficient Emulation of Radiative Transfer Codes Using Gaussian Processes and Application to Land Surface Parameter Inferences" *Remote Sensing* 8, no. 2: 119.
https://doi.org/10.3390/rs8020119
