Remote Sens. 2016, 8(11), 916;

Impacts of Temporal-Spatial Variant Background Ionosphere on Repeat-Track GEO D-InSAR System

School of Information and Electronics, Beijing Institute of Technology, Beijing 100081, China
Beijing Key Laboratory of Embedded Real-Time Information Processing Technology, Beijing 100081, China
Author to whom correspondence should be addressed.
Academic Editors: Zhong Lu, Xiaofeng Li and Prasad S. Thenkabail
Received: 25 July 2016 / Revised: 16 October 2016 / Accepted: 28 October 2016 / Published: 4 November 2016
Full-Text   |   PDF [2984 KB, uploaded 11 November 2016]   |


An L band geosynchronous synthetic aperture radar (GEO SAR) differential interferometry system (D-InSAR) will be obviously impacted by the background ionosphere, which will give rise to relative image shifts and decorrelations of the SAR interferometry (InSAR) pair, and induce the interferometric phase screen errors in interferograms. However, the background ionosphere varies within the long integration time (hundreds to thousands of seconds) and the extensive imaging scene (1000 km levels) of GEO SAR. As a result, the conventional temporal-spatial invariant background ionosphere model (i.e., frozen model) used in Low Earth Orbit (LEO) SAR is no longer valid. To address the issue, we firstly construct a temporal-spatial background ionosphere variation model, and then theoretically analyze its impacts, including relative image shifts and the decorrelation of the GEO InSAR pair, and the interferometric phase screen errors, on the repeat-track GEO D-InSAR processing. The related impacts highly depend on the background ionosphere parameters (constant total electron content (TEC) component, and the temporal first-order and the temporal second-order derivatives of TEC with respect to the azimuth time), signal bandwidth, and integration time. Finally, the background ionosphere data at Isla Guadalupe Island (29.02°N, 118.27°W) on 7–8 October 2013 is employed for validating the aforementioned analysis. Under the selected background ionosphere dataset, the temporal-spatial background ionosphere variation can give rise to a relative azimuth shift of dozens of meters at most, and even the complete decorrelation in the InSAR pair. Moreover, the produced interferometric phase screen error corresponds to a deformation measurement error of more than 0.2 m at most, even in a not severely impacted area. View Full-Text
Keywords: Geosynchronous SAR (GEO SAR); temporal-spatial variation; background ionosphere; D-InSAR Geosynchronous SAR (GEO SAR); temporal-spatial variation; background ionosphere; D-InSAR

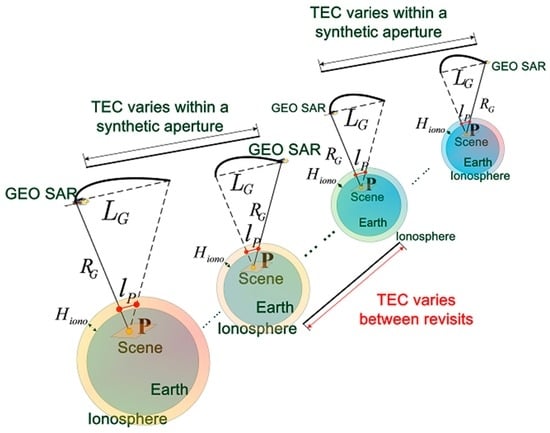

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Hu, C.; Li, Y.; Dong, X.; Cui, C.; Long, T. Impacts of Temporal-Spatial Variant Background Ionosphere on Repeat-Track GEO D-InSAR System. Remote Sens. 2016, 8, 916.
