Remote Sensing Based Simple Models of GPP in Both Disturbed and Undisturbed Piñon-Juniper Woodlands in the Southwestern U.S.

by
Dan J. Krofcheck
1,*,
Jan U. H. Eitel
2,3,†,
Christopher D. Lippitt
4,†,
Lee A. Vierling
2,3,†,
Urs Schulthess
5,† and
Marcy E. Litvak
1,†
1
Department of Biology, University of New Mexico, Albuquerque, NM 87131, USA
2
Geospatial Laboratory for Environmental Dynamics, University of Idaho, Moscow, ID 83844, USA
3
McCall Outdoor Science School, University of Idaho, McCall, ID 83638, USA
4
Department of Geography and Environmental Studies, University of New Mexico, Albuquerque, NM 87131, USA
5
CIMMYT-Bangladesh, House 10/B, Road 53, Gulshan-2, Dhaka 1213, Bangladesh
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Remote Sens. 2016, 8(1), 20; https://doi.org/10.3390/rs8010020
Submission received: 2 November 2015 / Revised: 3 December 2015 / Accepted: 17 December 2015 / Published: 30 December 2015
Browse Figures
Versions Notes

Abstract

:
Remote sensing is a key technology that enables us to scale up our empirical, in situ measurements of carbon uptake made at the site level. In low leaf area index ecosystems typical of semi-arid regions however, many assumptions of these remote sensing approaches fall short, given the complexities of the heterogeneous landscape and frequent disturbance. Here, we investigated the utility of remote sensing data for predicting gross primary production (GPP) in piñon-juniper woodlands in New Mexico (USA). We developed a simple model hierarchy using climate drivers and satellite vegetation indices (VIs) to predict GPP, which we validated against in situ estimates of GPP from eddy-covariance. We tested the influence of pixel size on model fit by comparing model performance when using VIs from RapidEye (5 m) and the VIs from Landsat ETM+ (30 m). We also tested the ability of the normalized difference wetness index (NDWI) and normalized difference red edge (NDRE) to improve model fits. The best predictor of GPP at the undisturbed PJ woodland was Landsat ETM+ derived NDVI (normalized difference vegetation index), whereas at the disturbed site, the red-edge VI performed best (R2adj of 0.92 and 0.90 respectively). The RapidEye data did improve model performance, but only after we controlled for the variability in sensor view angle, which had a significant impact on the apparent cover of vegetation in our low fractional cover experimental woodland. At both sites, model performance was best either during non-stressful growth conditions, where NDVI performed best, or during severe ecosystem stress conditions (e.g., during the girdling process), where NDRE and NDWI improved model fit, suggesting the inclusion of red-edge leveraging and moisture sensitive VI in simple, data driven models can constrain GPP estimate uncertainty during periods of high ecosystem stress or disturbance.

Graphical Abstract

1. Introduction

Semi-arid regions and drylands together cover more than 40% of the globe. In spite of the low fractional cover of vegetation and minimal annual precipitation, the contribution of semi-arid biomes to the global uptake of carbon dioxide from the atmosphere can be significant on annual time scales [1,2]. The inter-annual variability of precipitation in these ecosystems can result in both rapid carbon stock accumulation, and subsequent turnover due to frequent disturbance (e.g., drought, insect outbreak, fire), but how these relationships alter the net storage of carbon is poorly understood (e.g., [1]). The climate in the southwestern USA has recently experienced both increased regional air temperature, and decreased precipitation, both trends which are projected to continue in the coming decades [3,4,5,6,7]. The combined effects of these changes in climate have increased drought severity, exacerbated ecosystem stress, and ultimately triggered widespread forest mortality across the region [8,9,10]. Given the rapid state transitions of vegetation in these climatically sensitive biomes, and the projected changes in climate and associated mortality for this region [11], accurate monitoring of carbon uptake dynamics in these semi-arid ecosystems is an essential part of constraining uncertainties associated with regional carbon balance.
Monitoring ecosystem carbon uptake over large geographic extents requires the use of remote sensing. Typically, remote sensing driven models of ecosystem function predict Gross Primary Productivity (GPP), the total atmospheric carbon taken up via photosynthesis (e.g., [12,13]). Satellite remote sensing provides the means to predict GPP by employing light use efficiency-based algorithms [14,15] that rely on vegetation indices (VIs), such as the normalized difference vegetation index (NDVI, [16]). This approach has been used at a variety of sites and scales, both by employing empirical (e.g., [17,18]) and light use efficiency/process driven techniques (e.g., [19]), generally using high temporal resolution, coarse spatial resolution (≥250 m) remote sensing data from sensors, such as the Moderate Resolution Imaging Spectrometer (MODIS) (e.g., [12]). To this end, the success of most space borne estimates of GPP hinge on a robust relationship between satellite estimated light interception and photosynthesis, via light use efficiency models, which generally perform well relative to in situ measurements from flux tower networks [20].
However, in semi-arid regions, vegetation function is constrained by water availability for the majority of the year, with periods of drought and heat interrupted briefly by spring snow melt or episodic pulses of precipitation. Consequently, in these biomes, changes in NDVI are constrained primarily by the availability of water, rather than light or temperature [21]. This results in NDVI and GPP often being decoupled in semi-arid regions due to low soil moisture, particularly where evergreen plants are present [22]. Other characteristics unique to semi-arid ecosystems that challenge the use of NDVI for characterizing changes in GPP in these biomes are highly variable precipitation patterns which trigger high inter-annual variability in GPP due to seasonal water limitations, but low variability in LAI and/or chlorophyll concentration (subsequently low variability in NDVI). Further, the low LAI (<1.5 mean LAI across landscapes, e.g., [23]) and spatially heterogeneous plant canopies typical of these systems can result in further uncertainties due to high reflectance by the soil background, thus confounding spectral signals relating to plant function (e.g., [24,25,26]).
One of the most universal responses to leaf stress is increasing visible reflectance [27], due to a combination of stressors which ultimately reduce chloropyll a + b, and consequently reduce the absorption of incident light [27,28]. Chlorophyll a + b strongly absorb in the red portion of the visible spectrum, resulting in saturation of the red band at low Chlorophyll a + b, and reducing its potential to track initial chlorophyll loss at the onset of stress. However, the red-edge has been shown to have a more linear response to a wide range of chlorophyll concentrations, increasing its potential as a stress indicator in vegetated systems over conventional red-NIR combinations [26,29,30,31,32]. Given the increasing availability of the red-edge waveband in commercial (e.g., RapidEye, WorldView-2, WorldView-3) sensors, and freely available data (Sentinel-2, launched June 2015), testing the potential of the red-edge waveband to improve modeled estimates of GPP in semi-arid ecosystems is becoming a feasible task.
Here, we test the ability of spectral VI’s other than NDVI to model GPP in semi-arid ecosystems. We focus particularly on piñon-juniper woodlands for several reasons. First, because it is the largest biome in the Southwestern US, covering 18 million ha in New Mexico, Arizona, Colorado and Utah. Second, the changes in climate in this region have triggered a significant amount of mortality in this biome [10,33], and thus, quantifying the extent of this disturbance on productivity throughout the region is crucial to understanding how this extensive mortality has impacted both current and future carbon dynamics. Finally, we take advantage of an existing experimental manipulation in a Piñon-Juniper woodland in central New Mexico that was girdled in 2009 to simulate the widespread piñon mortality observed throughout the region. The advantage of using this experimental manipulation is that since the girdling in 2009, changes in ecosystem productivity triggered by this mortality have been continuously monitored using eddy covariance, and compared to similar measurements in a nearby intact PJ woodland that serves as a control.
Recent research [34] conducted in our experimental manipulation suggested that the red-edge employing normalized difference red-edge index (NDRE) [35] was more sensitive than NDVI to the observed initial decrease in leaf chlorophyll concentration triggered by piñon girdling in this PJ woodland, adding evidence to its potential as a stress monitoring component in GPP modeling efforts. The NDRE was determined to be more sensitive to changes in greenup of the low LAI herbaceous vegetation following mortality in this same system [22]. Based on these findings, the goal of this study was to test three specific hypotheses. The first hypothesis being that the observed variability in NDRE will allow more accurate estimation of GPP in both the disturbed and undisturbed PJ woodland in this experimental manipulation. Secondly, due to the inherent dependence of productivity on water availability in this biome, adding the normalized difference wetness index (NDWI), a VI that is sensitive to changes in foliar water content, will significantly improve the model fit by constraining the model error during the dry season. Finally, given the low vegetation cover and highly heterogeneous nature of PJ woodlands, that VIs generated from higher spatial resolution (5 m) data will provide more accurate estimates of GPP relative to traditional, moderate resolution (30 m) remote sensing data.

2. Experimental Section

2.1. Site Description

The study site includes two piñon-juniper woodlands separated by 3 km and located south of Mountainair, NM. In September of 2009, 1632 adult piñon (>7 cm diameter at breast height) in a 4 ha plot in one of the sites (hereafter referred as the girdled site; 34°26′48.54″N, 106°12′48.63″W) were mechanically girdled by severing the sapwood with a chainsaw at breast height (1.4 m) followed by the application of a 5% glyphosate solution directly applied to the cut to ensure rapid loss of conductivity and subsequent mortality of the trees. The total decoupling of the leaves with the roots following the manipulation was designed to replicate the landscape following the mortality that occurred in the response to the 1999–2002 drought [9,27]. The second PJ woodland (hereafter referred to as the control site; 34°26′18.420″N, 106°14′15.698″W) remained intact. We have continually monitored surface fluxes of carbon, water and energy at each site using tower mounted eddy covariance and associated micrometeorological sensors since 8 months prior to the girdling manipulation in February 2009.
The soil at both sites is Turkey Springs stony loam, characterized by an abundance of alluvially deposited limestone (Soil Survey Staff). The climate of the region is semi-arid, with a mean annual precipitation of 372 mm (±86.8 mm standard deviation, sd) and max, and min monthly temperatures of 19.8 °C (±0.77 °C sd) and 2.32 °C (±0.64 °C sd) respectively, over the past 20 years (PRISM Climate Group, Oregon State University). Incoming moisture to the site is largely bimodal, broken into winter snow melt from January to March and seasonal monsoon precipitation between August and October with a pronounced dry season occurring from April through July.

2.2. Data

2.2.1. Gross Primary Productivity

Data processing and instrumentation is identical at both sites. Eddy covariance (EC) derived surface fluxes of carbon, water and energy were measured at 10 Hz using a 3-axis sonic anemometer (CSAT-3, Campbell Scientific, Logan, UT, USA) and an open-path infrared gas analyzer (Li-7500, LiCor Biosciences; Lincoln, NE, USA). Continuous measures of net radiation, air temperature and relative humidity, soil temperature, photosynthetically active radiation, and soil moisture (volumetric water content) were made using a CNR1 (Kipp and Zonen, Delft, The Netherlands), HMP45C (Vaisala RH probe with aspirated radiation shield, Vantaa, Finland), TCAV (averaging thermocouple probes, 27 per site), up facing quantum sensors (Li-190SB, Licor Biosciences, Lincoln, NE, USA) and ECHO probes (TE 5 cm, Decagon Devices, Pullman, WA, USA, 27 per site) respectively. The fluxes were aggregated to 30 min intervals and were corrected for temperature and moisture variations (WPL, [36]) as well as frequency responses according to Massman [37]. Anemometer tilt due to terrain variability was corrected using a planar fit method. We used a friction velocity (u*) filter to reject data obtained when turbulence is low (u* less than a threshold value). Data gaps created by the u* filter, malfunctioning instruments, and rain were filled following Lasslop et al. [38]. We partitioned the gapfilled net ecosystem exchange (NEE) into the components of total C uptake through photosynthesis (i.e., GPP) and total carbon leaving the ecosystem through both autotrophic and heterotrophic respiration (Re). We used exponential relationships between nighttime NEE and temperature following the methods of Lasslop et al. [38] to calculate continuous ecosystem respiration during the day. GPP was then calculated as NEE—Re [39].
We used a flux source area model [40] modified for 2 dimensions by Detto et al. [41], to characterize the experimental region at both sites that are measured by the flux towers. The source area model suggested that the four hectare analysis region at each site accounted for approximately 80% recovery at the tower level. In this way we ensured that the remote sensing data and the EC measurements were representing the same patch of vegetation.

2.2.2. Landsat ETM+

We used the web enabled Landsat database (WELD) web service [42] to download time series of Landsat ETM+ data from 2009 to 2011 for 36 pixels within the four hectare area measured by each flux tower. Each pixel time series was cleaned (i.e., filtered to meet the following conditions) using the QA/QC data associated with WELD products [42]; only the pixels classified as containing no saturated bands and not cloudy (determined by the automatic cloud cover assessment algorithm, ACCA) [43] were retained. To remove effects of snow cover on the VI, the normalized difference snow index (NDSI) was used to remove snow covered pixels from the analysis. If more than 25% of the total analysis region for either the control or girdled site was covered by snow, the entire acquisition date was removed from the analysis. Hall et al. [44] suggest mapping snowy pixels as NDSI >0.4. However, we used a lower threshold of 0.2 in this study, which we validated with ground based imagery and field technician reports. The majority (82%) of the Landsat ETM+ data were acquired within ≤3 days of a RapidEye acquisition (see Section 2.2.3), with the greatest time separation being 10 days. The Landsat ETM+ pixel time series was then linearly interpolated to daily intervals for comparison with the RapidEye data. In this manner, the same number of Landsat ETM+ VI and RapidEye VI were used in each of the models tested. Geolocation error for the Landsat ETM+ imagery was generally <0.5 pixel according to the WELD documentation.

2.2.3. RapidEye

A time series of 46 images (September 2009 to October 2011) were used with a top of atmosphere, dark object subtraction (TOA-DOS) correction applied by RapidEye, Inc. (now BlackBridge Ltd. of Berlin, Germany). The RapidEye data were reasonably registered on delivery, but to minimize variability in the spectral signature due to pixel shifts between scenes, we manually co-registered each image to a master image (September 2009) using 50 ground control points and a second order polynomial transformation. A total of 15–20 check points per image resulted in each scene being co-registered to a root mean square error (RMSE) <2.5 m (0.5 pixels). Eighteen images were excluded from the time series due to snow or cloud cover. Existing site boundary shapefiles were used to clip the images to the extent of both the control and girdled sites, coincident with the pixels extracted for the Landsat ETM+ analysis (Python Software Foundation. Python Language Reference, version 2.7). Figure 1 illustrates the distribution of RapidEye images throughout the duration of this experiment for the girdle and control site.
Remotesensing 08 00020 g001 1024

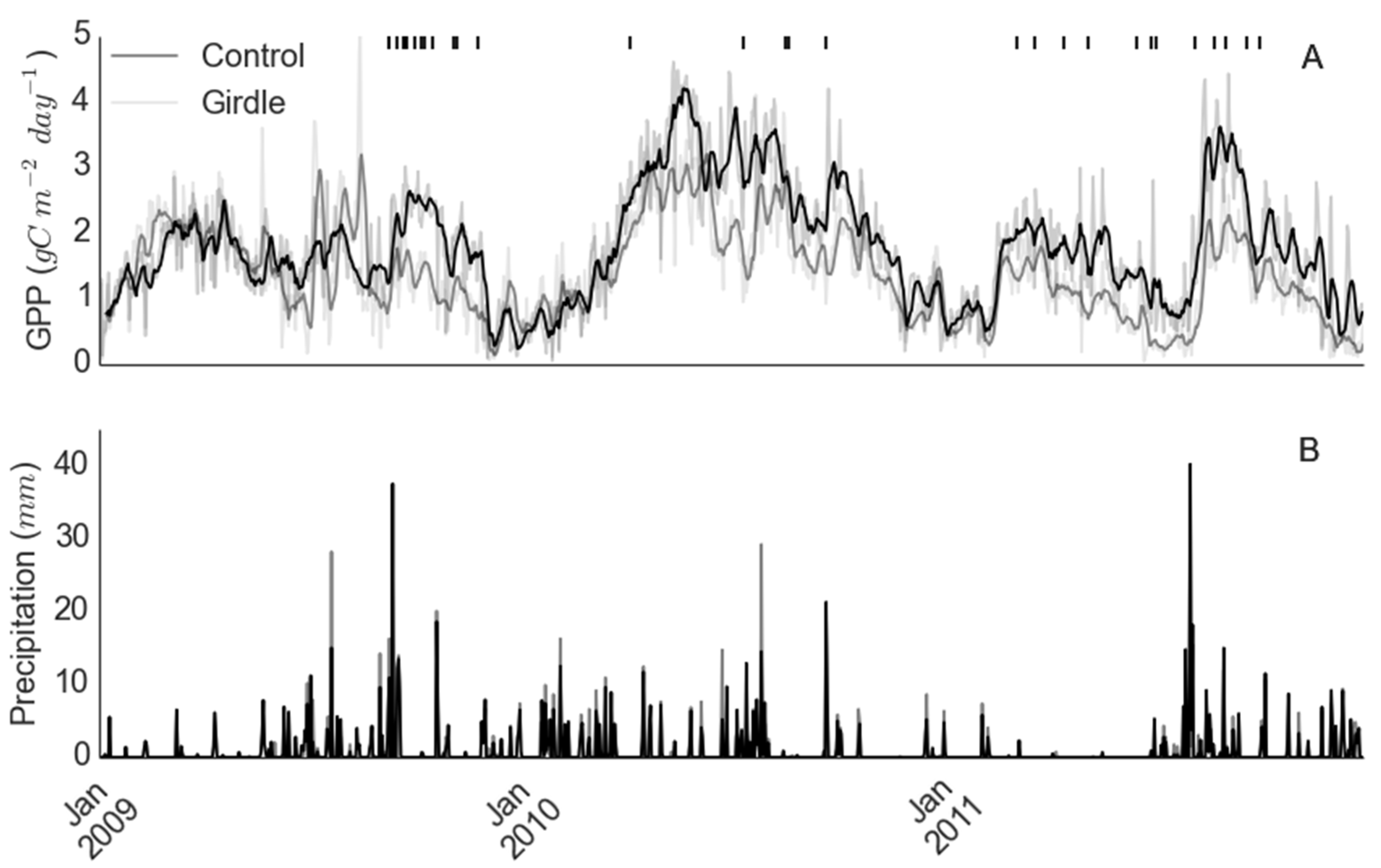

Figure 1. Time series of tower-measured gross primary production (A) and precipitation (B) at both the control (grey) and girdled (black) sites. RapidEye acquisition dates are indicated by the rug plot above the top plot.
Figure 1. Time series of tower-measured gross primary production (A) and precipitation (B) at both the control (grey) and girdled (black) sites. RapidEye acquisition dates are indicated by the rug plot above the top plot.
Remotesensing 08 00020 g001

2.2.4. Spectral Vegetation Indices

NDVI (Normalized Difference Vegetation Index), NDRE (Normalized Difference Red Edge), and NDWI (Normalized Difference Wetness Index), were calculated to inform our simple models of GPP and to test our hypotheses. NDRE and NDWI are only available using RapidEye and Landsat ETM+, respectively, and indicated by their subscripts in Table 1. The red edge here refers to a waveband on the RapidEye constellation of sensors that spans 690 to 730 nm.
N D V I = N I R − R E D N I R + R E D
N D R E = N I R − R e d   E d g e N I R + R e d   E d g e
N D W I = N I R − S W I R N I R + S W I R
Table
Table 1. Model framework description. Each model is structured as GPP ~ PAR × TA × VI where VI is represented by the corresponding Table entry above, while PAR and TA are derived from on-site instrumentation. Acronym definition: GPP (gross primary productivity), PAR (photosynthetically active radiation), TA (air temperature), VI (vegetation index), NDVI (normalized difference vegetation index), NDRE (normalized difference red-edge index), NDWI (normalized difference wetness index).
Table 1. Model framework description. Each model is structured as GPP ~ PAR × TA × VI where VI is represented by the corresponding Table entry above, while PAR and TA are derived from on-site instrumentation. Acronym definition: GPP (gross primary productivity), PAR (photosynthetically active radiation), TA (air temperature), VI (vegetation index), NDVI (normalized difference vegetation index), NDRE (normalized difference red-edge index), NDWI (normalized difference wetness index).
ModelVI CombinationScale (m)
NDVILSLandsat NDVI30
NDVILSWLandsat NDVI, NDWI30
NDVIRERapidEye NDVI5
NDVIREWRapidEye NDVI, NDWI5, 30
NDRERapidEye NDRE5
NDREWRapidEye NDRE, NDWI5, 30

2.3. Statistical Analysis

We fitted six multiple linear regression models in open-source software package R 3.0.1 (R Development Core Team, 2013). Each regression model is structured as follows:
GPP ~ PAR × TA × VI
where PAR is photosynthetic active radiation, TA is air temperature, and VI depicts one or more vegetation index that are shown in Table 1. GPP, PAR, and TA were derived from on-site instrumentation (for GPP, see Section 2.2.1). The VI were calculated as the mean of all pixels that passed the qa/qc steps mentioned in Section 2.2.2 and Section 2.2.3. Thus the spatial resolution of the driving VI was either 5 m (from RapidEye), 30 m (from Landsat ETM+), or a combination in the case of the mixed models.
Within each model group, we created a hierarchical structure of models containing all possible combinations of parameters and one first order interaction term. In this way we aimed to compare model groups by comparing the models with the best set of parameters within each group. Model performance was characterized using the root means squared error (RMSE) and the adjusted R2 (R2adj) that adds an additional penalty for increasing model complexity:
R a d j 2 = 1 − ( 1 − R 2 ) ( n − 1 ) n − k − 1
where n = the number of observations.
To identify the best model, we further calculated the Akaike information criterion (AICadj) :
A I C a d j = A I C + 2 k ( 2 k + 1 ) n − k − 1
where k = the number of parameters . We chose the AICadj to account for the relatively small number of observations and to avoid model over fitting [45]. The best model for both the control and girdle site was chosen based on the largest AICadj weight, and largest relative log likelihood, a measure of how likely a given model is actually the best.

3. Results and Discussion

3.1. Models of GPP in PJ Woodlands Had the Lowest Error at the Disturbed Site

Simple linear models driven by photosynthetically active radiation (PAR), air temperature (TA), and remotely sensed VI, summarized in Table 1, were able to explain between 80% and 90% of the variability of gross GPP in both intact and disturbed PJ woodlands (e.g., Table 2). However, the strength of this relationship was contingent on a tight coupling between the variability in VI and canopy physiological processes that affect a given index. For this reason, the model was run on individual years, as well as on all years together. Overall, the best performing model VI at the undisturbed PJ woodland was Landsat ETM+ derived NDVI, whereas at the disturbed site the red-edge VI performed best (R2adj of 0.90 and 0.92, respectively).
Table
Table 2. Model performance statistics for only year 2009 of the experiment. See Table 1 for a description of model names. R2adj is the adjusted R2, ΔAICc is the difference in model AICc (Akaike information criterion) relative to the lowest scoring model, RelLL is the relative log likelihood, or how likely it is that each model is actually the best, and Weights is a list of the AICc weights for each model.
Table 2. Model performance statistics for only year 2009 of the experiment. See Table 1 for a description of model names. R2adj is the adjusted R2, ΔAICc is the difference in model AICc (Akaike information criterion) relative to the lowest scoring model, RelLL is the relative log likelihood, or how likely it is that each model is actually the best, and Weights is a list of the AICc weights for each model.
SiteSensorModelR2adjΔAICcRelLLWeights
ControlLandsatNDVILS0.902010.997
LandsatNDVILSW0.7512.1590.0020.002
RapidEyeNDVIRE0.81314.0720.0010.001
RapidEyeNDVIREW0.05629.42700
RapidEyeNDRE0.02429.8600
RapidEyeNDREW0.13533.98300
GirdleLandsatNDVILS0.39118.42800
LandsatNDVILSW0.43917.68400
RapidEyeNDVIRE0.23841.84700
RapidEyeNDVIREW0.39239.81200
RapidEyeNDRE0.921011
RapidEyeNDREW0.36118.85100
When we drove the model hierarchy with data from all three years in the study, the collection of models performed poorly across the board (Figure 2, Table 3), with the Landsat ETM+ based models performed best (R2adj = 0.40 at control, R2adj = 0.50 at girdle). We believe this to be due to the coupling strength between changes in canopy VI and canopy function during as a function of interannual variability in climate. As an example, the fit statistics from both the Landsat ETM+ and RapidEye driven models improved significantly when a single year (e.g., 2009) was used to drive the regression (Figure 3), dramatically increasing the fit of the simple Landsat ETM+ NDVI model at the control site (R2adj from 0.40 to 0.90) and increased the fit of the RapidEye NDRE model at the girdled site (R2adj from 0.14 to 0.92) (Table 2, discussed in following sections). At the control site, Fall 2009 was very productive, with a strong monsoon bringing sufficient moisture to the ecosystem, and consequently the coupling of Landsat ETM+ NDVI, PAR, and air temperature explained almost 90% of the variability seen in GPP. In the case of girdled site during the same period, the manipulation in piñon mortality drove both the rapid decrease in VI, and the sudden decrease in canopy uptake of carbon. Both during this period of significant canopy stress and throughout the entire analysis period, the best model fits were seen at the girdled site, possibly due to the drastic decreases in LAI and subsequent increased coupling between the VI and GPP, previously documented as a potential effect of the manipulation itself [22].
Remotesensing 08 00020 g002 1024

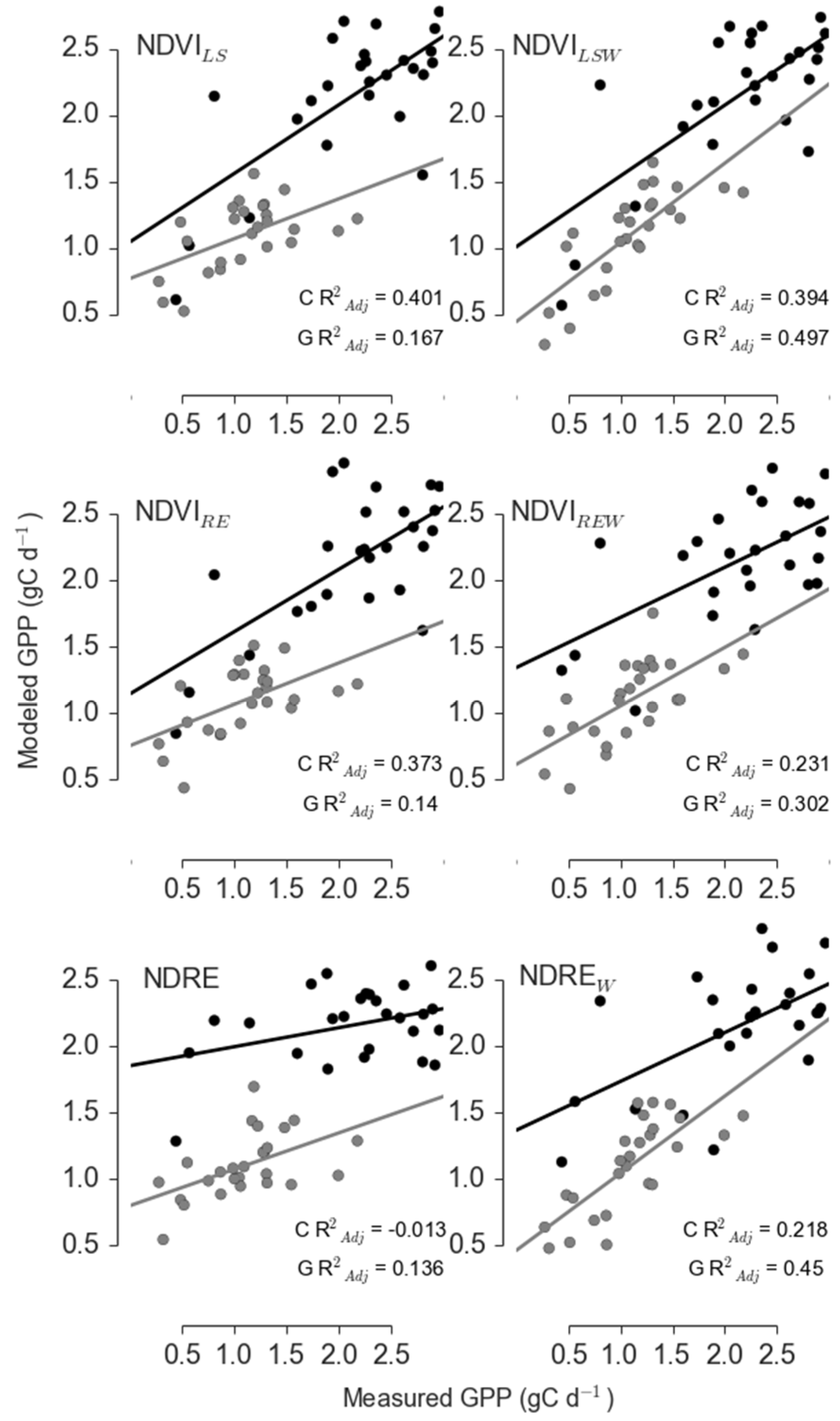

Figure 2. One to one plots of tower derived (measured) and predicted (modeled) gross primary productivity for the control (C, black) and girdled (G, grey) sites for all years of the study. See Table 1 for a description of model names.
Figure 2. One to one plots of tower derived (measured) and predicted (modeled) gross primary productivity for the control (C, black) and girdled (G, grey) sites for all years of the study. See Table 1 for a description of model names.
Remotesensing 08 00020 g002
Table
Table 3. Model performance statistics for all years of data. See Table 1 for a description of model names. R2adj is the adjusted R2, ΔAICc is the difference in model AICc relative to the lowest scoring model, RelLL is the relative log likelihood, or how likely it is that each model is actually the best, and Weights is a list of the AICc weights for each model.
Table 3. Model performance statistics for all years of data. See Table 1 for a description of model names. R2adj is the adjusted R2, ΔAICc is the difference in model AICc relative to the lowest scoring model, RelLL is the relative log likelihood, or how likely it is that each model is actually the best, and Weights is a list of the AICc weights for each model.
SiteSensorModelR2adjΔAICcRelLLWeights
ControlLandsatNDVILS0.4010.8360.6580.352
LandsatNDVILSW0.3943.5180.1720.092
RapidEyeNDVIRE0.373010.534
RapidEyeNDVIREW0.2317.6080.0220.012
RapidEyeNDRE−0.01312.9340.0020.001
RapidEyeNDREW0.2188.0420.0180.01
GirdleLandsatNDVILS0.16710.9910.0040.004
LandsatNDVILSW0.497010.899
RapidEyeNDVIRE0.1413.9790.0010.001
RapidEyeNDVIREW0.3028.5520.0140.012
RapidEyeNDRE0.13611.9450.0030.002
RapidEyeNDREW0.454.8030.0910.081
Remotesensing 08 00020 g003 1024

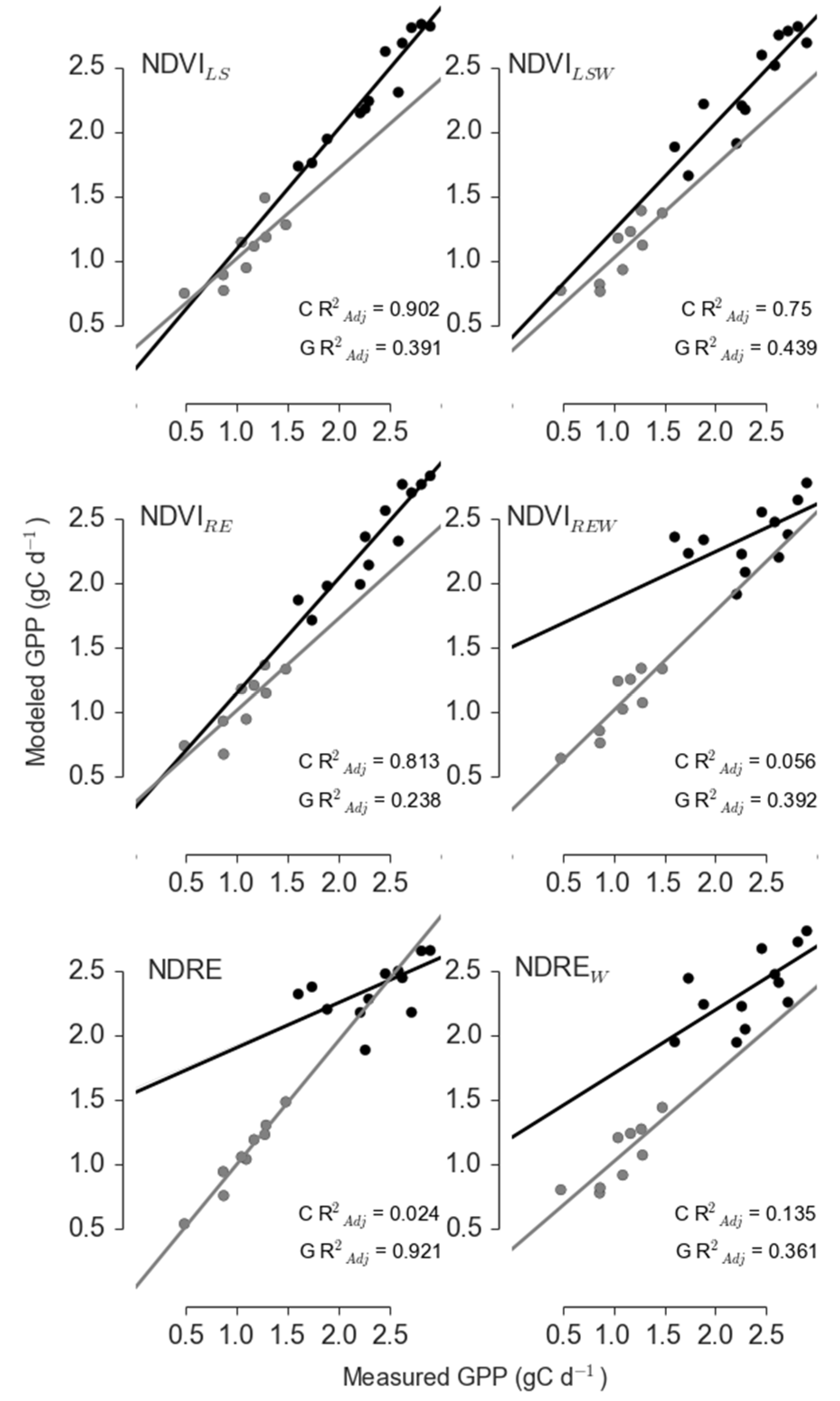

Figure 3. One to one plots of tower derived (measured) and predicted (modeled) gross primary productivity for the control (C, black) and girdled (G, grey) sites for 2009 only. See Table 1 for a description of model names.
Figure 3. One to one plots of tower derived (measured) and predicted (modeled) gross primary productivity for the control (C, black) and girdled (G, grey) sites for 2009 only. See Table 1 for a description of model names.
Remotesensing 08 00020 g003

3.2. NDRE and NDWI Reduced Model Error only during Periods of Significant Stress

In our linear model hierarchy, including NDRE did not significantly improve model performance relative to models that used only NDVI (Table 2). Previous work in this region suggests NDRE is more responsive to decreases in canopy chlorophyll concentration relative to NDVI, yet following a lag period (roughly 2 weeks), the NDVI performed equally well in quantifying foliar concentration of chlorophyll [34]. Given that our time series spanned multiple years, with rapid decreases in canopy chlorophyll occurring only at the girdled site in 2009, we ran the same model structures on only data from 2009, which captured the girdling process (Figure 3). Over this smaller time period of significant canopy stress, the NDRE dramatically improved model performance at the girdled site (R2adj from 0.136 for NDVI to 0.92 for NDRE, Table 2). However, we did not observe significant improvement in NDRE driven model fit at the control site, which is consistent with the idea that NDRE explains variability in canopy function best during early periods of rapid canopy change.
The incorporation of Landsat ETM+-derived NDWI into the model structure did not improve model fit in either Landsat ETM+ or RapidEye based models when the entire time series was used in the regression (Figure 2, Table 3). NDWI did however slightly reduce prediction error in both Landsat ETM+ and RapidEye NDVI based models at the girdled site, in 2009 alone (Figure 3, Table 2). While the inclusion of the moisture index slightly improved model performance, the added complexity was penalized fairly heavily given the small number of observations used to parameterize the model. Previous work has shown that including Landsat ETM+ moisture indices can improve estimates of productivity in some dryland ecosystems [21,46], although it appears to be less effective in sparse canopy systems [47]. Our data suggest NDWI may only improve estimates of productivity in semi-arid coniferous woodlands during rapid changes in canopy physiological status, such as during canopy mortality, yet do not provide sufficient evidence to justify increasing the complexity of the model structure in this case. Moisture sensitive VI are less effective at representing canopy water content during periods of low to moderate drought stress [48,49], suggesting that GPP predictions during periods of the year when water is less limiting may not benefit from the inclusion of a canopy moisture VI as much as during periods of drought stress. This is evident at the girdle site during 2011, a year which was characterized by significant drought across the southwestern US. Model performance improved at the girdle site with the inclusion of Landsat ETM+ NDWI. However, the increased complexity of the model and our small sample size limit the generalizability of the finding that NDWI may constrain model uncertainty in these systems during drought periods (Table 4).
Table
Table 4. Model performance statistics for only year 2011 of the experiment, a significant drought year. See Table 1 for a description of model names. R2adj is the adjusted R2, ΔAICc is the difference in model AICc relative to the lowest scoring model, RelLL is the relative log likelihood, or how likely it is that each model is actually the best, and Weights is a list of the AICc weights for each model.
Table 4. Model performance statistics for only year 2011 of the experiment, a significant drought year. See Table 1 for a description of model names. R2adj is the adjusted R2, ΔAICc is the difference in model AICc relative to the lowest scoring model, RelLL is the relative log likelihood, or how likely it is that each model is actually the best, and Weights is a list of the AICc weights for each model.
SiteSensorModelR2adjΔAICcRelLLWeights
ControlLandsatNDVILS0.815010.899
LandsatNDVILSW0.6984.4140.110.099
RapidEyeNDVIRE0.79522.32700
RapidEyeNDVIREW0.29212.080.0020.002
RapidEyeNDRE−0.04215.5600
RapidEyeNDREW0.530.35900
GirdleLandsatNDVILS0.5924.360.1130.04
LandsatNDVILSW0.6771.5750.4550.161
RapidEyeNDVIRE0.7110.2340.890.315
RapidEyeNDVIREW0.6622.0970.350.124
RapidEyeNDRE0.717010.354
RapidEyeNDREW0.6728.7090.0130.005

3.3. Inconsistency in Sensor View Imposed Significant Variability RapidEye VI Model Performance

Our results from the entire 3 year period do not support the hypothesis that VI generated from higher spatial resolution data should be a better predictor of ecosystem carbon uptake (Table 2). In fact, using higher spatial resolution data from RapidEye surprisingly decreased model performance at the control site in some cases, and did not significantly improve model performance at the girdled site. Some of this can be explained by the inconsistent scene to scene sensor view angle in our RapidEye time series, which influenced the apparent fractional cover of vegetation (Figure 4A). In an effort to test whether or not the variability in view angle was imposing noise into the RapidEye data, we binned the analysis by sensor view angles <7 °C off nadir, given the majority of our data were collected at more than 7 degrees off nadir (60%, Figure 4B). Limiting the analysis to scenes with absolute sensor view angle <7 degrees significantly improved model fits in NDVI RapidEye mods (at the girdled site (R2adj increased from 0.14 to 0.77), yet decreased model performance at the control site; Table 5, Figure 5), potentially due to the changing apparent fraction of under-story and inter-canopy vegetation as a function of sensor view angle, which has a more pronounced impact at the girdle site relative to the control due to the lower fractional cover of overstory vegetation post manipulation. The inclusion of view angle into the model hierarchy as a parameter resulted in model over-fitting given the small sample size. The high inter-annual variability in system state (e.g., monsoonal precipitation or severe drought) at these sites further confounded our ability to account for view angle effects, due to the coupling between canopy function and the remotely derived VI for some dates being much tighter than others (see Section 2.1).
Remotesensing 08 00020 g004 1024

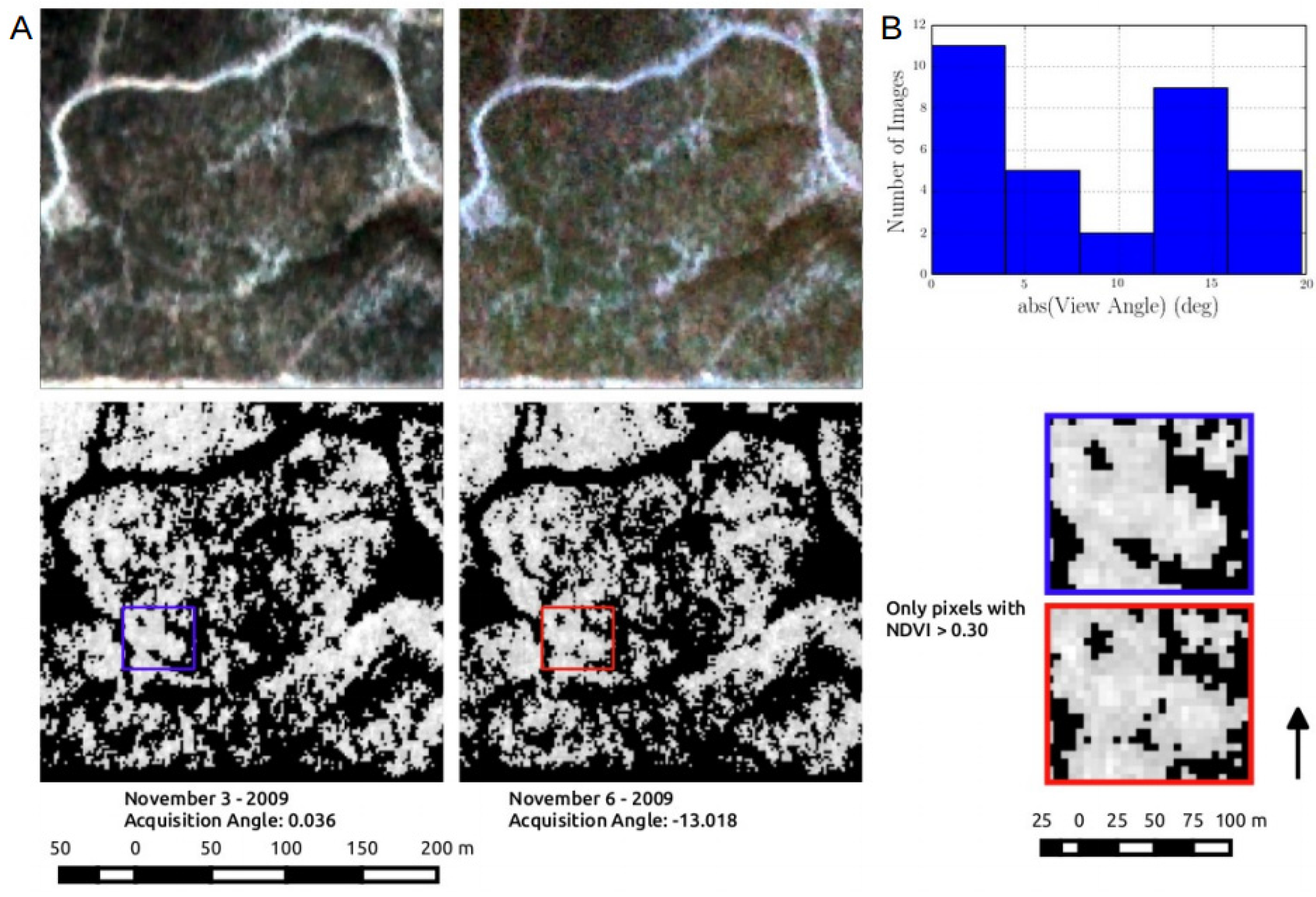

Figure 4. (A) RapidEye false color composites of the PJ control site (top) for two image dates 3 days apart in 2009, and the corresponding fraction of pixels with NDVI >0.30 (bottom), with detailed subsets on the far right; (B) Histogram of view angles that comprised the entire RapidEye time series. View angles are represented as absolute values from nadir.
Figure 4. (A) RapidEye false color composites of the PJ control site (top) for two image dates 3 days apart in 2009, and the corresponding fraction of pixels with NDVI >0.30 (bottom), with detailed subsets on the far right; (B) Histogram of view angles that comprised the entire RapidEye time series. View angles are represented as absolute values from nadir.
Remotesensing 08 00020 g004
Table
Table 5. Model performance statistics for RapidEye sensor view angles less than 7 degrees off nadir. See Table 1 for a description of model names. R2adj is the adjusted R2, ΔAICc is the difference in model AICc relative to the lowest scoring model, RelLL is the relative log likelihood, or how likely it is that each model is actually the best, and Weights is a list of the AICc weights for each model.
Table 5. Model performance statistics for RapidEye sensor view angles less than 7 degrees off nadir. See Table 1 for a description of model names. R2adj is the adjusted R2, ΔAICc is the difference in model AICc relative to the lowest scoring model, RelLL is the relative log likelihood, or how likely it is that each model is actually the best, and Weights is a list of the AICc weights for each model.
SiteSensorModelR2adjΔAICcRelLLWeights
ControlLandsatNDVILS0.1720.1340.9350.348
LandsatNDVILSW0.1035.7820.0560.021
RapidEyeNDVIRE0.0786.1130.0470.018
RapidEyeNDVIREW−0.1338.5840.0140.005
RapidEyeNDRE0.446010.372
RapidEyeNDREW0.6650.910.6340.236
GirdleLandsatNDVILS−0.2489.9640.0070.003
LandsatNDVILSW0.4750.4330.8050.317
RapidEyeNDVIRE0.777010.394
RapidEyeNDVIREW0.2064.9850.0830.033
RapidEyeNDRE0.0870.8940.640.252
RapidEyeNDREW0.43710.2090.0060.002
Remotesensing 08 00020 g005 1024

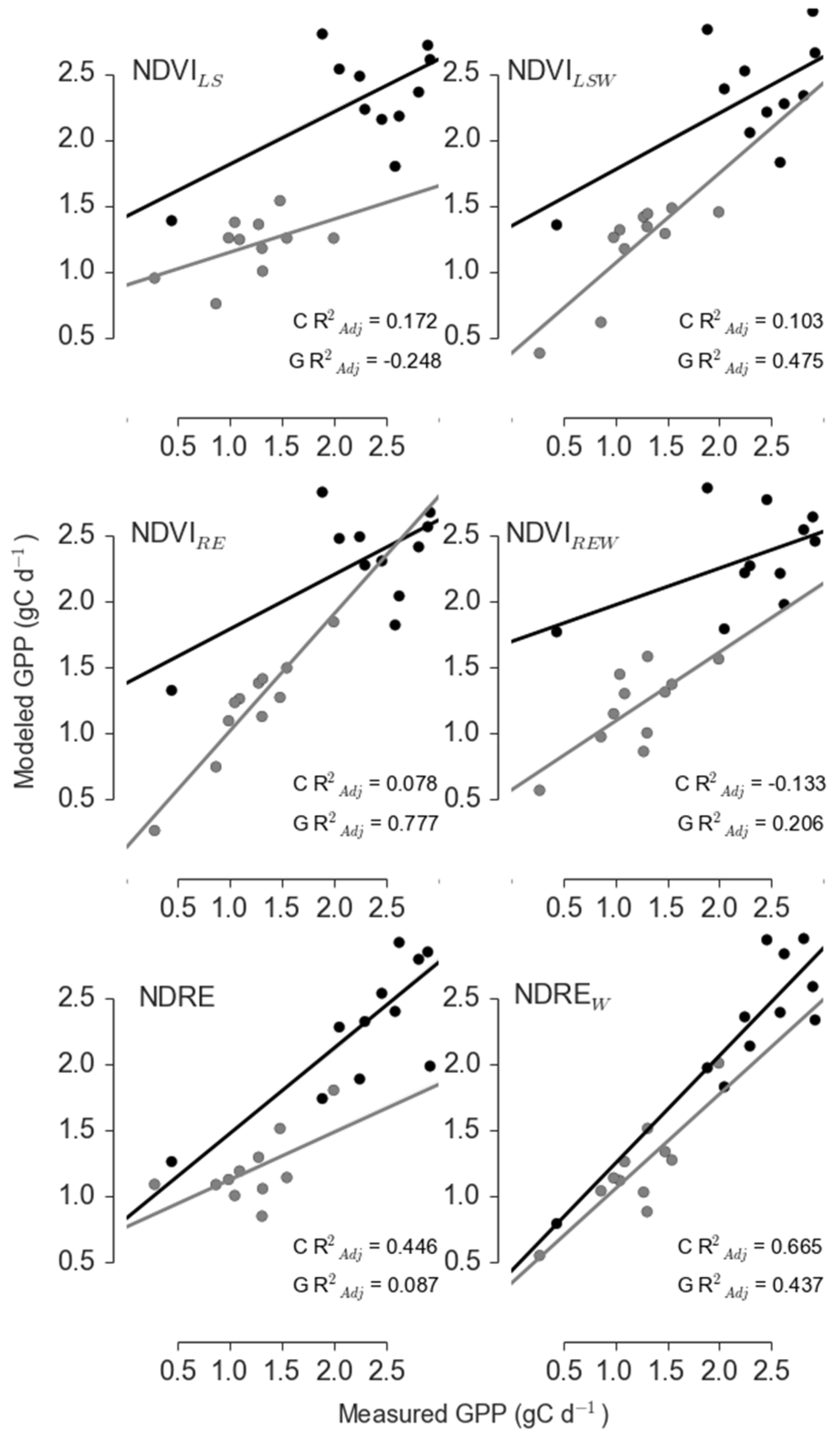

Figure 5. One to one plots of tower derived (measured) and predicted (modeled) gross primary productivity for the control (C, black) and girdled (G, grey) sites for RapidEye acquisition angles <7 degrees off nadir. See Table 1 for a description of model names.
Figure 5. One to one plots of tower derived (measured) and predicted (modeled) gross primary productivity for the control (C, black) and girdled (G, grey) sites for RapidEye acquisition angles <7 degrees off nadir. See Table 1 for a description of model names.
Remotesensing 08 00020 g005
Previous work indicates the effects of sensor view angle on the fractional cover of various feature types (e.g., [50], pertaining to composites derived from the advanced very high radiometric resolution spectrometer (AVHRR)), and generally near-nadir view angles are a selection criteria for multi-image or multi-sensor analyses (e.g., [51]). Given the increasing amount and complexity of remote sensing data at the disposal of terrestrial scientists, multi-resolution and time series data assimilation approaches to developing temporally and spatially resolved remote sensing products will need to address the confounding effects of view angle on apparent vegetation cover, especially in sparse canopy systems.

3.4. Implications for Regional Remote Sensing Based Estimations of GPP in PJ Woodlands

The results of our case study suggest that remote sensing driven, simple linear models of GPP have the potential to accurately describe patterns in regional carbon uptake, using locally measured PAR and air temperature as covariates. In this study, we chose to use Landsat ETM+ data, given its ease of access via the WELD portal. The highly heterogeneous composition of PJ woodlands, and the small scale of our manipulation experiment (200 m × 200 m), precluded the use of MODIS sized pixels (≥250 m × 250 m), and given the heterogeneous patterns of mortality and subsequent recovery typical of disturbed PJ woodlands (e.g., [9,22,27]), Landsat scale or finer resolution (≤30 m) products are of the appropriate spatial scale to resolve the patchy, heterogeneous patterns of mortality typical in disturbed PJ woodlands. In spite of the sensor view angle complications described in Section 3.3, limiting image acquisition angle variability impacted model performance in some cases, suggesting that increased spatial resolution data may have a role in constraining GPP predictions in these heterogeneous woodlands in the future, yet we were unable to fully test the hypothesis due to inadequate sample sizes when considering the variation in sensor view angle.
The inclusion of the red-edge leveraging NDRE from RapidEye only improved model performance during periods of significant stress, such as during the selective mortality of piñon pine that we imposed on the girdled site in Fall 2009, or during periods of severe drought such as in 2011 (see Section 3.2). Given the imminent transition in climate projected for the southwestern US, and the already evident impacts on piñon mortality regionally, GPP prediction efforts in PJ woodlands should benefit from the incorporation of NDRE during mortality. Given recent launch of Sentinel-2, which can leverage the red-edge and infrared wavebands required to compute NDRE and NDWI respectively, the potential to incorporate NDRE into near-future regional models of GPP as a consequence of piñon mortality may significantly constrain the current uncertainty in estimating PJ woodland ecosystem function. Further, while NDWI did not significantly contribute to model performance in this study, the measured productivity of semi-arid plant canopies is strongly a function of available water, which ultimately affects the coupling between canopy VI and GPP (e.g., [22]), and consequently the predictive power of VI driven models of GPP in these regions. Previous work has shown NDWI to correlate reasonably well with foliar water content, and water potential in piñon pine, but not juniper [52], suggesting further that the inclusion of these VI to empirical modeling attempts should be perhaps constrained to piñon dominated pixels, requiring higher resolution imagery. Remotely sensed regional estimates of surface soil water content from the soon to launch Soil Moisture Active Passive sensor (SMAP), may provide an alternative to constrain the inter-annual variability in the VI ~ GPP relationship in semi-arid PJ woodlands.

4. Conclusions

Our results are promising in that we can use simple linear models to estimate GPP in both disturbed and undisturbed PJ woodlands driven by remotely sensed datasets. While structurally sensitive, NDVI is more informative to models of GPP than NDRE except during periods of extreme stress or disturbance. Similarly, we only saw a significant improvement in model performance using NDWI at the girdled site, during the manipulation event that took place in the Fall of 2009. Finally, the use of the RapidEye data did slightly improve estimates of GPP in both the control and girdled sites relative to Landsat ETM+, however this was only true when we reduced the variability in scene to scene sensor view angle in our RapidEye time series. This apparent advantage of the RapidEye data may be due to a combination of factors, including spatial resolution (5 m pixels vs. 30 m pixels) and spectral sensitivity of the sensor. While this may not play a strong role in more homogeneous, closed canopy systems, sensor view angle in this study often imposed more variability on NDVI than natural seasonal variability. Consequently, we recommend that remote sensing efforts to model VI sensitive processes in heterogeneous, low fractional cover systems, place high constraints on acquisition angles for time series, or bin analyses by viewing angle to minimize the potential confounding effects.
We recognize that the temporally resolved RapidEye data set we utilized for this study is not a common commodity and currently carries with it a large cost. Using red-edge data added sensor and illumination geometry complexity, but did improve estimates of GPP during periods of ecosystem stress despite it. Our results suggest high resolution, red-edge employing platforms will potentially be very useful for resolving changes in canopy function during periods of rapid disturbance or recovery where LAI may be changing slowly in relation to chlorophyll content. The recently launched Sentinel-2 satellite mission will allow this to be tested on a broader scale by providing greater spatial and temporal resolution than Landsat, as well as the ability to calculate NDRE and NDWI, and be freely available. Secondly, the upcoming soil moisture active passive sensor (SMAP) may provide either direct measurements, or modeled estimates of soil moisture, providing further predictive power to estimate carbon uptake rates in semi-arid ecosystems.

Acknowledgments

This research was supported primarily by the Office of Science (BER), US Department of Energy. We also acknowledge the funding from grant/cooperative agreement number 08HQGR0157 from the United States Geological Survey (USGS) via a subaward from AmericaView, the National Science Foundation through funds to the Sevilleta LTER site and NM EPSCoR, in addition to the funding from the USFS for support of the flux towers, and from the New Mexico Space Grant Consortium (NMSGC) for the partial funding of satellite data acquisitions. Its contents are solely the responsibility of the authors and do not necessarily represent the official views of the Office of Science, US Department of Energy. Finally, many thanks to Greg Maurer for his work in processing the eddy-covariance data and sound advice throughout the project.

Author Contributions

Dan Krofcheck conducted the primary data analysis and contributed in the eddy covariance instrumentation management, as well as crafting the manuscript. Jan Eitel, Christopher Lippitt, and Lee Vierling advised on and contributed to the data analysis, as well as provided remote sensing expertice, and significant editing of the manuscript. Urs Schulthess contributed to the RapidEye data processing, initial data mining, as well as editing the manuscript. Marcy Litvak provided all of the eddy-covariance data, advised on research question generation, and reshaping of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Poulter, B.; Frank, D.; Ciais, P.; Myneni, R.B.; Andela, N.; Bi, J.; Broquet, G.; Canadell, J.G.; Chevallier, F.; Liu, Y.Y.; et al. Contribution of semi-arid ecosystems to interannual variability of the global carbon cycle. Nature 2014, 509, 600–603. [Google Scholar] [CrossRef] [PubMed]
  2. Ahlstrom, A.; Raupach, M.R.; Schurgers, G.; Smith, B.; Arneth, A.; Jung, M.; Reichstein, M.; Canadell, J.G.; Friedlingstein, P.; Jain, A.K.; et al. The dominant role of semi-arid ecosystems in the trend and variability of the land CO2 sink. Science 2015, 348, 895–899. [Google Scholar] [CrossRef] [PubMed]
  3. Intergovernmental Panel on Climate Change (IPCC). Climate Change 2007: Impacts, Adaptation, and Vulnerability; Contribution of Working Group II to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change; IPCC: Cambridge, UK, 2007. [Google Scholar]
  4. Seager, R.; Ting, M.; Held, I.; Kushnir, Y.; Lu, J.; Vecchi, G.; Huang, H.; Harnik, N.; Leetmaa, A.; Lau, N.; et al. Model projections of an imminent transition to a more arid climate in southwestern North America. Science 2007, 316, 1181–1184. [Google Scholar] [CrossRef] [PubMed]
  5. Seager, R.; Naik, N.; Vogel, L. Does global warming cause intensified interannual hydroclimate variability? J. Clim. 2012, 25, 3355–3372. [Google Scholar] [CrossRef]
  6. Intergovernmental Panel on Climate Change (IPCC). Climate Change 2014: Impacts, Adaptation, and Vulnerability. Part B: Regional Aspects. Contribution of Working Group II to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Barros, V.R., Field, C.B., Dokken, D.J., Mastrandrea, M.D., Mach, K.J., Bilir, T.E., Chatterjee, M., Ebi, K.L., Estrada, Y.O., Genova, R.C., Eds.; Cambridge University Press: Cambridge, UK, 2014; p. 688. [Google Scholar]
  7. Garfin, G.; Franco, G.; Blanco, H.; Comrie, A.; Gonzalez, P.; Piechota, T.; Smyth, R.; Waskom, R. Southwest: Climate Change Impacts in the United States: The Third National Climate Assessment; Melillo, J.M., Richmond, T.C., Yohe, G.W., Eds.; USA Global Change Research Program: Washington, DC, USA, 2014; pp. 462–486. [Google Scholar]
  8. Allen, C.D.; Macalady, A.K.; Chenchouni, H.; Bachelet, D.; McDowell, N.; Vennetier, M.; Kitzberger, T.; Rigling, A.; Breshears, D.D.; Gonzalez, P.; et al. A global overview of drought and heat-induced tree mortality reveals emerging climate change risks for forests. For. Ecol. Manag. 2010, 259, 660–684. [Google Scholar] [CrossRef]
  9. Breshears, D.D.; Cobb, N.S.; Rich, P.M.; Price, K.P.; Allen, C.D.; Balice, R.G.; Romme, W.H.; Kastens, J.H.; Floyd, M.L.; Belnap, J.; et al. Regional vegetation die-off in response to global-change-type drought. Proc. Natl. Acad. Sci. USA 2005, 102, 15144–15148. [Google Scholar] [CrossRef] [PubMed]
  10. Clifford, M.; Royer, P.; Cobb, N. Precipitation thresholds and drought-induced tree die-off: Insights from patterns of Pinus edulis mortality along an environmental stress gradient. New Phytol. 2013, 200, 413–421. [Google Scholar] [CrossRef] [PubMed]
  11. Williams, A.; Allen, C.; Macalady, A. Temperature as a potent driver of regional forest drought stress and tree mortality. Nat. Clim. 2012, 3, 8–13. [Google Scholar] [CrossRef]
  12. Running, S.W.; Baldocchi, D.D.; Turner, D.P.; Gower, S.T.; Bakwin, P.S.; Hibbard, K.A. A global terrestrial monitoring network integrating tower fluxes, flask sampling, ecosystem modeling and eos satellite data. Remote Sens. Environ. 1999, 127, 108–127. [Google Scholar] [CrossRef]
  13. Zhao, M.; Running, S.; Heinsch, F.A. MODIS-derived terrestrial primary production. In Land Remote Sensing and Global Environmental Change; Ramachandran, B., Justice, C.O., Abrams, M.J., Eds.; Springer New York: New York, NY, USA, 2011; Volume 11, pp. 635–660. [Google Scholar]
  14. Monteith, J.L. Solar radiation and productivity in tropical ecosystems. J. Appl. Ecol. 1972, 9, 747–766. [Google Scholar] [CrossRef]
  15. Monteith, J.L.; Moss, C.J. Climate and the efficiency of crop production in britain and discussion. Philos. Trans. R. Soc. B Biol. Sci. 1977, 281, 277–294. [Google Scholar] [CrossRef]
  16. Tucker, C. Red and photographic infrared linear combinations for monitoring vegetation. Remote Sens. Environ. 1979, 8, 127–150. [Google Scholar] [CrossRef]
  17. Sims, D.; Rahman, A.; Cordova, V.; Elmasri, B.; Baldocchi, D.; Bolstad, P.; Flanagan, L.; Goldstein, A.; Hollinger, D.; Misson, L. A new model of gross primary productivity for North American ecosystems based solely on the enhanced vegetation index and land surface temperature from MODIS. Remote Sens. Environ. 2008, 112, 1633–1646. [Google Scholar] [CrossRef]
  18. Sims, D.A.; Brzostek, E.R.; Rahman, A.F.; Dragoni, D.; Phillips, R.P. An improved approach for remotely sensing water stress impacts on forest C uptake. Glob. Chang. Biol. 2014, 20, 2856–2866. [Google Scholar] [CrossRef] [PubMed]
  19. Yuan, W.; Liu, S.; Yu, G.; Bonnefond, J.-M.; Chen, J.; Davis, K.; Desai, R.R.; Goldstein, A.H.; Gianelle, D.; Rossi, F.; et al. Global estimates of evapotranspiration and gross primary production based on MODIS and global meteorology data. Remote Sens. Environ. 2010, 114, 1416–1431. [Google Scholar] [CrossRef]
  20. Verma, M.; Friedl, M.A.; Richardson, A.D.; Kiely, G.; Cescatti, A.; Law, B.E.; Wohlfahrt, G.; Gielen, B.; Roupsard, O.; Moors, E.J.; et al. Remote sensing of annual terrestrial gross primary productivity from MODIS: An assessment using the FLUXNET La Thuile data set. Biogeosciences 2014, 11, 2185–2200. [Google Scholar] [CrossRef] [Green Version]
  21. Fensholt, R.; Sandholt, I.; Rasmussen, M.S.; Stisen, S.; Diouf, A. Evaluation of satellite based primary production modeling in the semi-arid Sahel. Remote Sens. Environ. 2006, 105, 173–188. [Google Scholar] [CrossRef]
  22. Krofcheck, D.J.; Eitel, J.U.H.; Vierling, L.A.; Schulthess, U.; Hilton, T.M.; Dettweiler-Robinson, E.; Pendleton, R.; Litvak, M.E. Detecting mortality induced structural and functional changes in a piñon-juniper woodland using Landsat and RapidEye time series. Remote Sens. Environ. 2014, 151, 102–113. [Google Scholar] [CrossRef]
  23. Anderson-Teixeira, K.J.; Delong, J.P.; Fox, A.M.; Brese, D.A.; Litvak, M.E. Differential responses of production and respiration to temperature and moisture drive the carbon balance across a climatic gradient in New Mexico. Glob. Chang. Biol. 2011, 17, 410–424. [Google Scholar] [CrossRef]
  24. Huete, A.R.; Jackson, R.D.; Post, D.F. Spectral response of a plant canopy with different soil backgrounds. Remote Sens. Environ. 1985, 17, 37–53. [Google Scholar] [CrossRef]
  25. Huete, A.R. A soil-adjusted vegetation index (SAVI). Remote Sens. Environ. 1988, 25, 53–70. [Google Scholar] [CrossRef]
  26. Eitel, J.U.H.; Long, D.S.; Gessler, P.E.; Hunt, E.R.; Brown, D.J. Sensitivity of ground-based remote sensing estimates of wheat chlorophyll content to variation in soil reflectance. Soil Sci. Soc. Am. J. 2009, 73, 1715–1723. [Google Scholar] [CrossRef]
  27. Carter, G.A.; Knapp, A.K. Leaf optical properties in higher plants: Linking spectral characteristics to stress and chlorophyll concentration. Am. J. Bot. 2001, 88, 677–684. [Google Scholar] [CrossRef] [PubMed]
  28. Hendry, G.A.F.; Houghton, J.D.; Brown, S.B. The degradation of chlorophyll—A biological enigma. New Phytol. 1987, 107, 255–302. [Google Scholar] [CrossRef]
  29. Carter, G.A.; Miller, R.L. Early detection of plant stress by digital imaging within narrow stress-sensitive wavebands. Remote Sens. Environ. 1994, 50, 295–302. [Google Scholar] [CrossRef]
  30. Eitel, J.U.H.; Long, D.S.; Gessler, P.E.; Smith, A.M.S. Using in-situ measurements to evaluate the new RapidEye satellite series for prediction of wheat nitrogen status. Int. J. Remote Sens. 2007, 28, 4183–4190. [Google Scholar] [CrossRef]
  31. Eitel, J.U.H.; Long, D.S.; Gessler, P.E.; Hunt, E.R. Combined spectral index to improve ground-based estimates of nitrogen status in dryland wheat. Agron. J. 2008, 100, 1694–1702. [Google Scholar] [CrossRef]
  32. Eitel, J.U.H.; Keefe, R.F.; Long, D.S.; Davis, A.S.; Vierling, L.A. Active ground optical remote sensing for improved monitoring of seedling stress in nurseries. Sensors 2010, 10, 2843–2850. [Google Scholar] [CrossRef] [PubMed]
  33. Drought induced Tree Mortality and Ensuing Bark Beetle Outbreaks in Southwestern Pinyon-Juniper Woodlands. Available online: http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.165.4291&rep=rep1&type=pdf#page=49 (accessed on 17 December 2015).
  34. Eitel, J.U.H.; Vierling, L.A.; Litvak, M.E.; Long, D.S.; Schulthess, U.; Ager, A.A.; Krofcheck, D.J.; Stoscheck, L. Broadband, red-edge information from satellites improves early stress detection in a New Mexico conifer woodland. Remote Sens. Environ. 2011, 115, 3640–3646. [Google Scholar] [CrossRef]
  35. Gitelson, A.A.; Merzlyak, M.N. Quantifying estimation of chlorophyll using reflectance spectra. J. Photochem. Photobiol. B Biol. 1994, 22, 247–252. [Google Scholar] [CrossRef]
  36. Webb, E.K.; Pearman, G.I.; Leuning, R. Correction of flux measurements for density effects due to heat and water vapour transfer. Quart. J. R. Met. Soc. 1980, 106, 85–100. [Google Scholar] [CrossRef]
  37. Massman, W.J. A simple method for estimating frequency response corrections for eddy covariance systems. Agric. For. Meteorol. 2000, 104, 185–198. [Google Scholar] [CrossRef]
  38. Lasslop, G.; Reichstein, M.; Papale, D.; Richardson, A.D.; Arneth, A.; Barr, A.; Stoy, P.; Wohlfahrt, G. Separation of net ecosystem exchange into assimilation and respiration using a light response curve approach: Critical issues and global evaluation. Glob. Chang. Biol. 2010, 16, 187–208. [Google Scholar] [CrossRef]
  39. Flanagan, L.; Wever, L.; Carlson, P. Seasonal and interannual variation in carbon dioxide exchange and carbon balance in a northern temperate grassland. Glob. Chang. Biol. 2002, 8, 599–615. [Google Scholar] [CrossRef]
  40. Hsieh, C.; Katul, G.; Chi, T. An approximate analytical model for footprint estimation of scalar fluxes in thermally stratified atmospheric flows. Adv. Water Resour. 2000, 23, 765–772. [Google Scholar] [CrossRef]
  41. Detto, M.; Montaldo, N.; Albertson, J.D.; Mancini, M.; Katul, G. Soil moisture and vegetation controls on evapotranspiration in a heterogeneous Mediterranean ecosystem on Sardinia, Italy. Water Resour. Res. 2006. [Google Scholar] [CrossRef]
  42. Roy, D.P.; Ju, J.; Kline, K.; Scaramuzza, P.L.; Kovalskyy, V.; Hansen, M.; Loveland, T.R.; Vermote, E.; Zhang, C. Web-enabled Landsat Data (WELD): Landsat ETM+ composited mosaics of the conterminous United States. Remote Sens. Environ. 2010, 114, 35–49. [Google Scholar] [CrossRef]
  43. Irish, R.I.; Barker, J.L.; Goward, S.N.; Arvidson, T. Characterization of the Landsat-7 ETM+ automated cloud-cover assessment (ACCA) algorithm. Photogramm. Eng. Remote Sens. 2006, 72, 1179–1188. [Google Scholar] [CrossRef]
  44. Hall, D.K.; Foster, J.L.; Verbyla, D.L.; Klein, A.G. Assessment of snow-cover mapping accuracy in a variety of vegetation-cover densities in central Alaska. Remote Sens. Environ. 1998, 66, 129–137. [Google Scholar] [CrossRef]
  45. Bedrick, E.J.; Tsai, C.L. Model selection for multivariate regression in small samples. Biometrics 1994, 50, 226–331. [Google Scholar] [CrossRef]
  46. Leuning, R.; Cleugh, H.A.; Zegelin, S.J.; Hughes, D. Carbon and water fluxes over a temperate Eucalyptus forest and a tropical wet/dry savanna in Australia: Measurements and comparison with MODIS remote sensing estimates. Agric. For. Meteorol. 2005, 129, 151–173. [Google Scholar] [CrossRef]
  47. Gu, Y.; Hunt, E.; Wardlow, B.; Basara, J.B.; Brown, J.F.; Verdin, J.P. Evaluation of MODIS NDVI and NDWI for vegetation drought monitoring using Oklahoma Mesonet soil moisture data. Geophys. Res. Lett. 2008, 35, 1–5. [Google Scholar] [CrossRef]
  48. Hunt, E.R.; Rock, B.N. Detection of changes in leaf water content using near- and middle-infrared reflectance. Remote Sens. Environ. 1989, 30, 43–54. [Google Scholar]
  49. Eitel, J.U.H.; Gessler, P.E.; Smith, A.M.S.; Robberecht, R. Suitability of existing and novel spectral indices to remotely detect water stress in Populus spp. For. Ecol. Manag. 2006, 229, 170–182. [Google Scholar] [CrossRef]
  50. Stoms, D.M.; Bueno, M.J.; Davis, F.W. Viewing geometry of AVHRR image composites derived using multiple criteria. Photogramm. Eng. Remote Sens. 1997, 63, 681–689. [Google Scholar]
  51. Abuzar, M.; Sheffield, K.; Whitfield, D.; O’Connell, M.; McAllister, A. Comparing inter-sensor NDVI for the analysis of horticulture crops in south-eastern Australia. Am. J. Remote Sens. 2014, 2, 1–9. [Google Scholar] [CrossRef]
  52. Stimson, H.C.; Breshears, D.D.; Ustin, S.L.; Kefauver, S.C. Spectral sensing of foliar water conditions in two co-occurring conifer species: Pinus edulis and Juniperus monosperma. Remote Sens. Environ. 2005, 96, 108–118. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Krofcheck, D.J.; Eitel, J.U.H.; Lippitt, C.D.; Vierling, L.A.; Schulthess, U.; Litvak, M.E. Remote Sensing Based Simple Models of GPP in Both Disturbed and Undisturbed Piñon-Juniper Woodlands in the Southwestern U.S. Remote Sens. 2016, 8, 20. https://doi.org/10.3390/rs8010020

AMA Style

Krofcheck DJ, Eitel JUH, Lippitt CD, Vierling LA, Schulthess U, Litvak ME. Remote Sensing Based Simple Models of GPP in Both Disturbed and Undisturbed Piñon-Juniper Woodlands in the Southwestern U.S. Remote Sensing. 2016; 8(1):20. https://doi.org/10.3390/rs8010020

Chicago/Turabian Style

Krofcheck, Dan J., Jan U. H. Eitel, Christopher D. Lippitt, Lee A. Vierling, Urs Schulthess, and Marcy E. Litvak. 2016. "Remote Sensing Based Simple Models of GPP in Both Disturbed and Undisturbed Piñon-Juniper Woodlands in the Southwestern U.S." Remote Sensing 8, no. 1: 20. https://doi.org/10.3390/rs8010020

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
