# Geo-Positioning Accuracy Using Multiple-Satellite Images: IKONOS, QuickBird, and KOMPSAT-2 Stereo Images

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

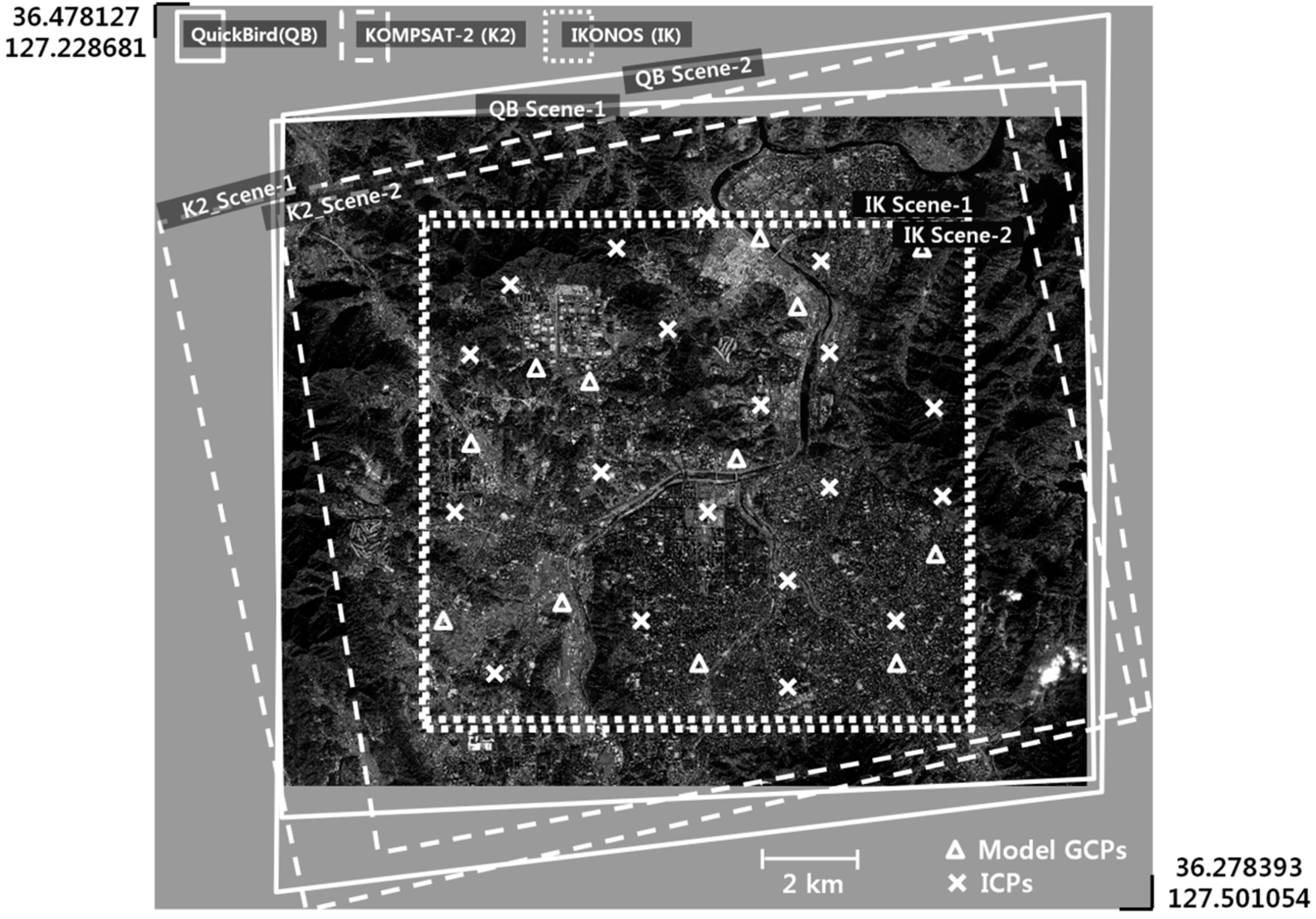

## 2. Experimental Data and Sensor Model

IKONOS | QuickBird | KOMPSAT-2 | ||||
---|---|---|---|---|---|---|

Scene-1 | Scene-2 | Scene-1 | Scene-2 | Scene-1 | Scene-2 | |

Date of acquisition | 7 February 2002 | 7 February 2002 | 16 January 2005 | 16 January 2005 | 10 May 2007 | 6 May 2008 |

Azimuth angle | 338.1° | 234.9° | 199.5° | 5.2° | 79.7° | 256.7° |

Elevation angle | 66.5° | 68.4° | 59.5° | 58.7° | 58.2° | 74.1° |

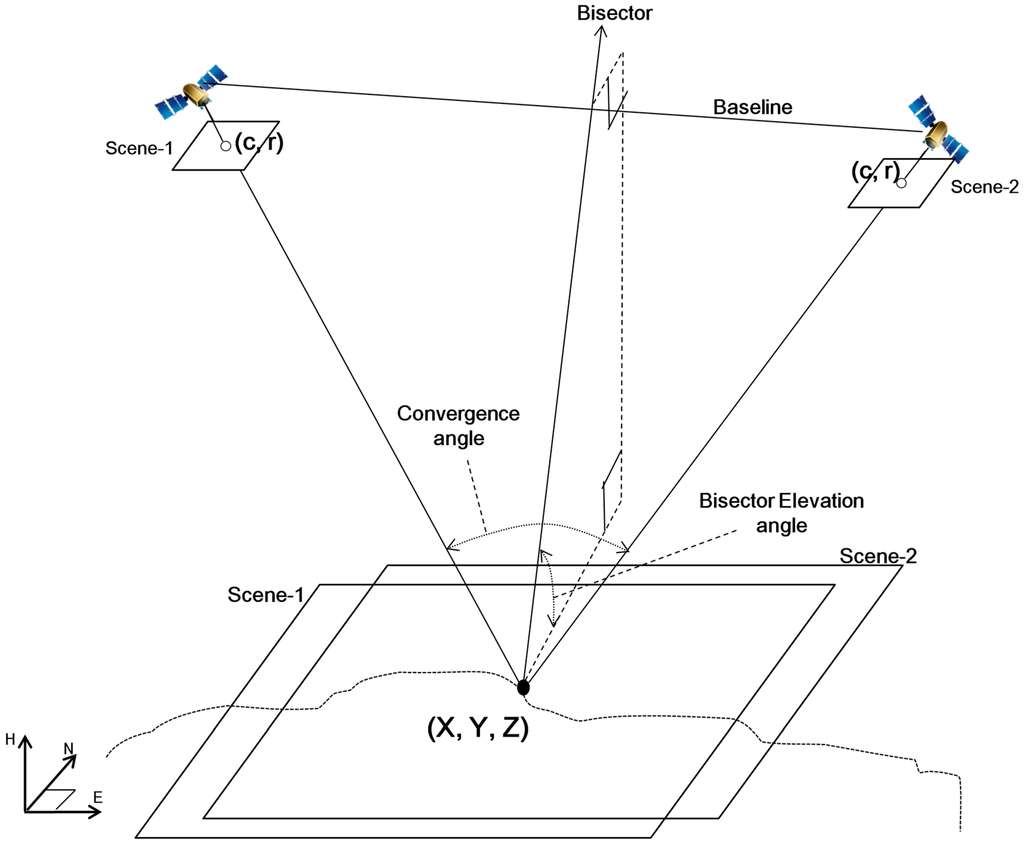

Convergence angle | 35.00° | 61.27° | 47.68° | |||

BIE angle | 75.53° | 85.74° | 89.34° | |||

GSD (column/row) | 0.90 m/0.96 m | 0.92 m/0.90 m | 0.71 m/0.79 m | 0.71 m/0.83 m | 1.30 m/1.10 m | 1.04 m/1.01 m |

## 3. Test Cases for the Use of Multiple-Satellite Images

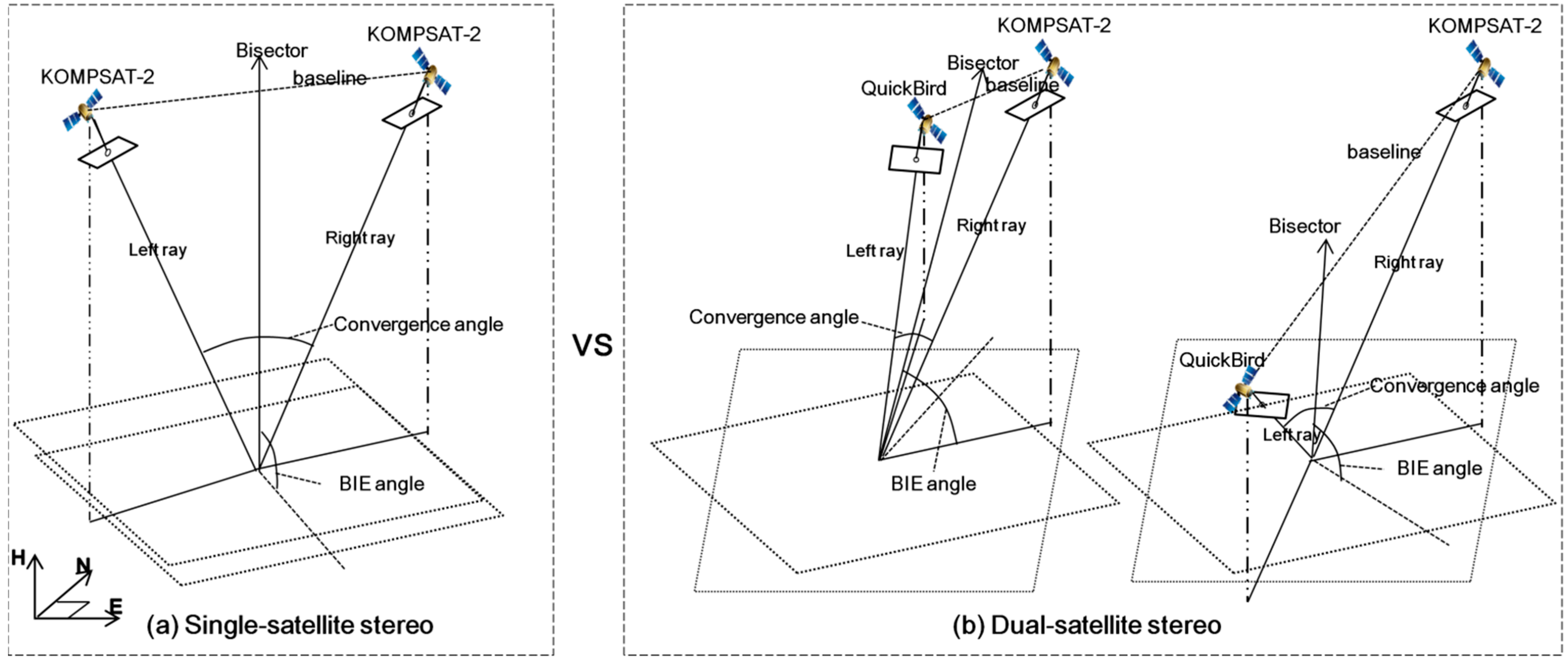

**Figure 3.**Test cases for comparison between single-satellite stereo and dual-satellite integration. (

**a**) single-satellite stereo, (

**b**) dual-satellite stereo.

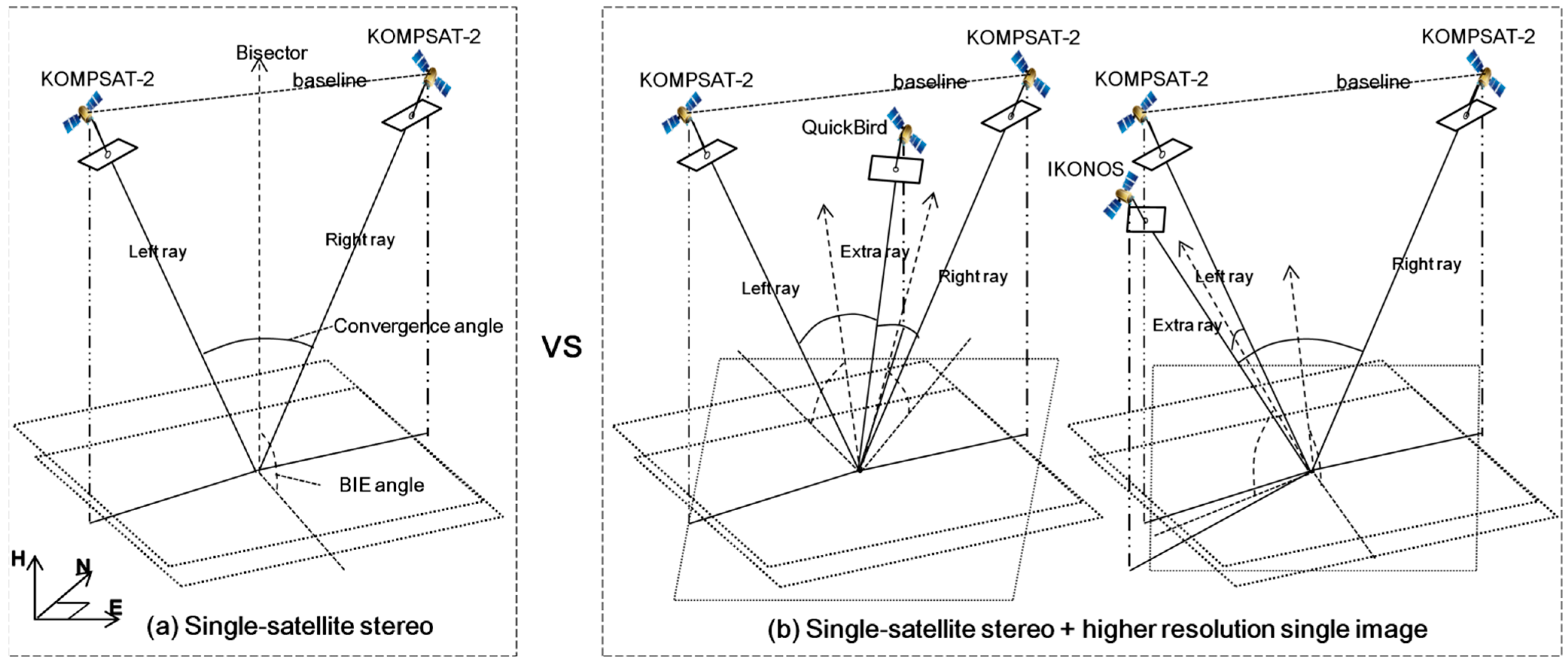

**Figure 4.**Test cases for comparison before and after the integration of higher resolution single image. (

**a**) single-satellite stereo, (

**b**) single-satellite stereo + higher resolution single image.

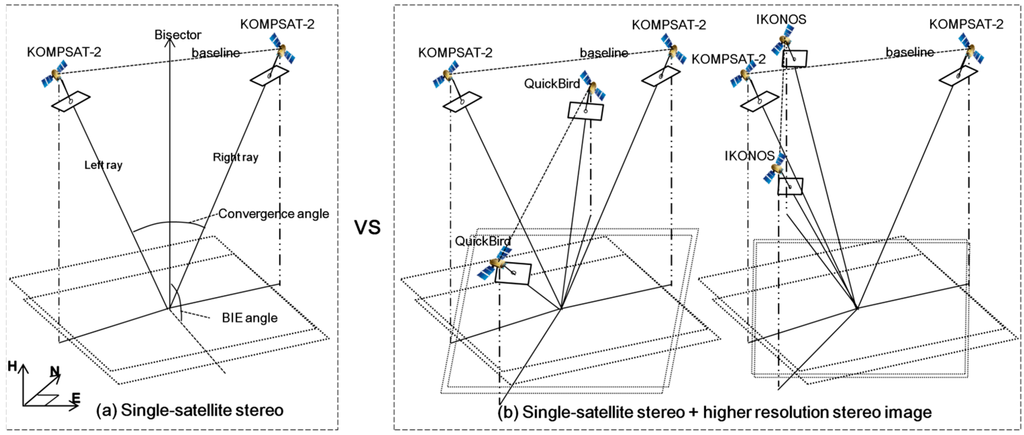

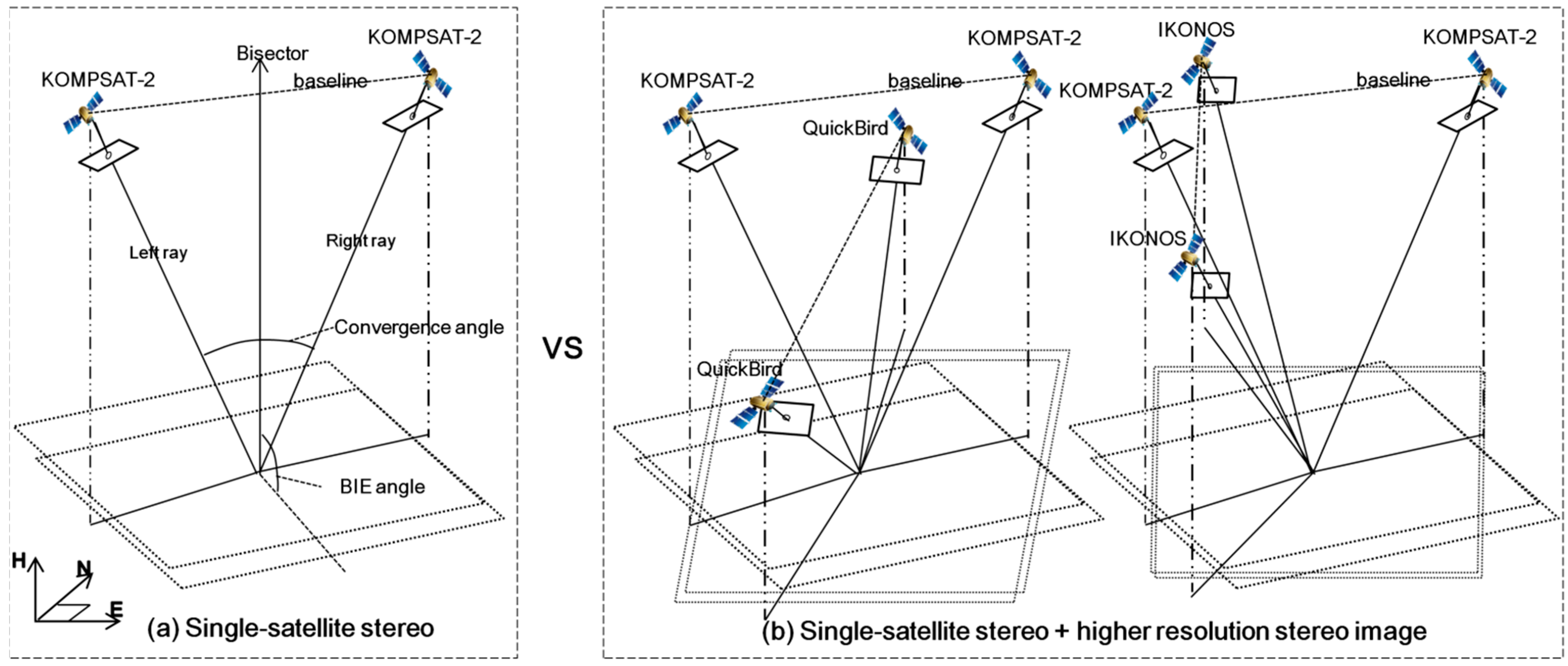

**Figure 5.**Test cases for comparison before and after the integration of higher resolution stereo image. (

**a**) single-satellite stereo, (

**b**) single-satellite stereo + higher resolution stereo image.

## 4. Experimental Results

Convergence Angle | BIE Angle | Horizontal Accuracy | Vertical Accuracy | |
---|---|---|---|---|

KOMPSAT-2 stereo | 47.7° | 89.3° | 2.15 m | 1.75 m |

IKONOS stereo | 35.0° | 75.5° | 1.53 m | 0.86 m |

QuickBird stereo | 61.3° | 85.7° | 1.15 m | 0.63 m |

Image 1 | Image 2 | Convergence Angle | BIE Angle | Horizontal Accuracy | Vertical Accuracy |
---|---|---|---|---|---|

K2-s1 | IK-s1 | 42.5° | 71.7° | 1.65 m | 2.74 m |

K2-s1 | IK-s2 | 52.0° | 83.9° | 1.78 m | 2.39 m |

K2-s2 | IK-s1 | 26.1° | 74.8° | 1.86 m | 2.87 m |

K2-s2 | IK-s2 | 8.90° | 71.6° | 3.87 m | 12.10 m |

K2-s1 | QB-s1 | 53.2° | 73.2° | 1.88 m | 1.65 m |

K2-s1 | QB-s2 | 25.3° | 69.4° | 1.83 m | 2.80 m |

K2-s2 | QB-s1 | 36.9° | 64.0° | 2.12 m | 2.71 m |

K2-s2 | QB-s2 | 39.1° | 75.7° | 1.51 m | 2.02 m |

IK-s1 | QB-s1 | 50.4° | 79.8° | 1.39 m | 1.07 m |

IK-s1 | QB-s2 | 14.5° | 63.2° | 2.80 m | 3.59 m |

IK-s2 | QB-s1 | 17.6° | 65.1° | 1.95 m | 2.86 m |

IK-s2 | QB-s2 | 47.8° | 78.2° | 1.30 m | 1.54 m |

Integration of Three Images (Single-Satellite Stereo + Higher Resolution Single Image) | |||||||||||||||||||

1 | 2 | 3 | Convergence Angle | BIE Angle | Horizontal Accuracy | Vertical Accuracy | |||||||||||||

1-2 | 1-3 | 2-3 | 1-2 | 1-3 | 2-3 | ||||||||||||||

K2-s1 | K2-s2 | IK-s1 | 47.7° | 42.5° | 26.1° | 89.3° | 71.7° | 74.8° | 1.66 m | 1.65 m | |||||||||

K2-s1 | K2-s2 | IK-s2 | 47.7° | 52.0° | 8.9° | 89.3° | 83.9° | 71.6° | 1.72 m | 2.37 m | |||||||||

K2-s1 | K2-s2 | QB-s1 | 47.7° | 53.2° | 36.9° | 89.3° | 73.1° | 64.0° | 1.56 m | 1.60 m | |||||||||

K2-s1 | K2-s2 | QB-s2 | 47.7° | 25.3° | 39.1° | 89.3° | 69.4° | 75.7° | 1.43 m | 1.27 m | |||||||||

IK-s1 | IK-s2 | QB-s1 | 35.0° | 50.4° | 17.6° | 75.5° | 79.8° | 65.1° | 1.31 m | 0.70 m | |||||||||

IK-s1 | IK-s2 | QB-s2 | 35.0° | 14.5° | 47.8° | 75.5° | 63.2° | 78.2° | 1.65 m | 0.89 m | |||||||||

Integration of Four or More Images (Single-Satellite Stereo + Higher Resolution Stereo Image) | |||||||||||||||||||

1 | 2 | 3 | 4 | Convergence Angle | BIE Angle | Horizontal Accuracy | Vertical Accuracy | ||||||||||||

1-2 | 1-3 | 1-4 | 1-2 | 1-3 | 1-4 | ||||||||||||||

2-3 | 2-4 | 3-4 | 2-3 | 2-4 | 3-4 | ||||||||||||||

K2-s1 | K2-s2 | IK-s1 | IK-s2 | 47.7° | 42.5° | 52.0° | 89.3° | 71.7° | 83.9° | 1.62 m | 1.45 m | ||||||||

26.1° | 8.90° | 35.0° | 74.8° | 71.6° | 75.5° | ||||||||||||||

K2-s1 | K2-s2 | QB-s1 | QB-s2 | 47.7° | 53.2° | 25.3° | 89.3° | 73.2° | 69.4° | 1.37 m | 0.92 m | ||||||||

36.9° | 39.1° | 61.3° | 64.0° | 75.7° | 85.7° | ||||||||||||||

IK-s1 | IK-s2 | QB-s1 | QB-s2 | 35.0° | 50.4° | 14.5° | 75.5° | 79.8° | 63.2° | 1.21 m | 0.65 m | ||||||||

17.6° | 47.8° | 61.3° | 65.1° | 78.2° | 85.7° | ||||||||||||||

Integration of All Images (Three Stereo Pairs) | |||||||||||||||||||

Convergence Angle | BIE Angle | Horizontal Accuracy | Vertical Accuracy | ||||||||||||||||

K2stereo + IKstereo + QBstereo | - | - | 1.35 m | 0.68 m |

## 5. Discussion

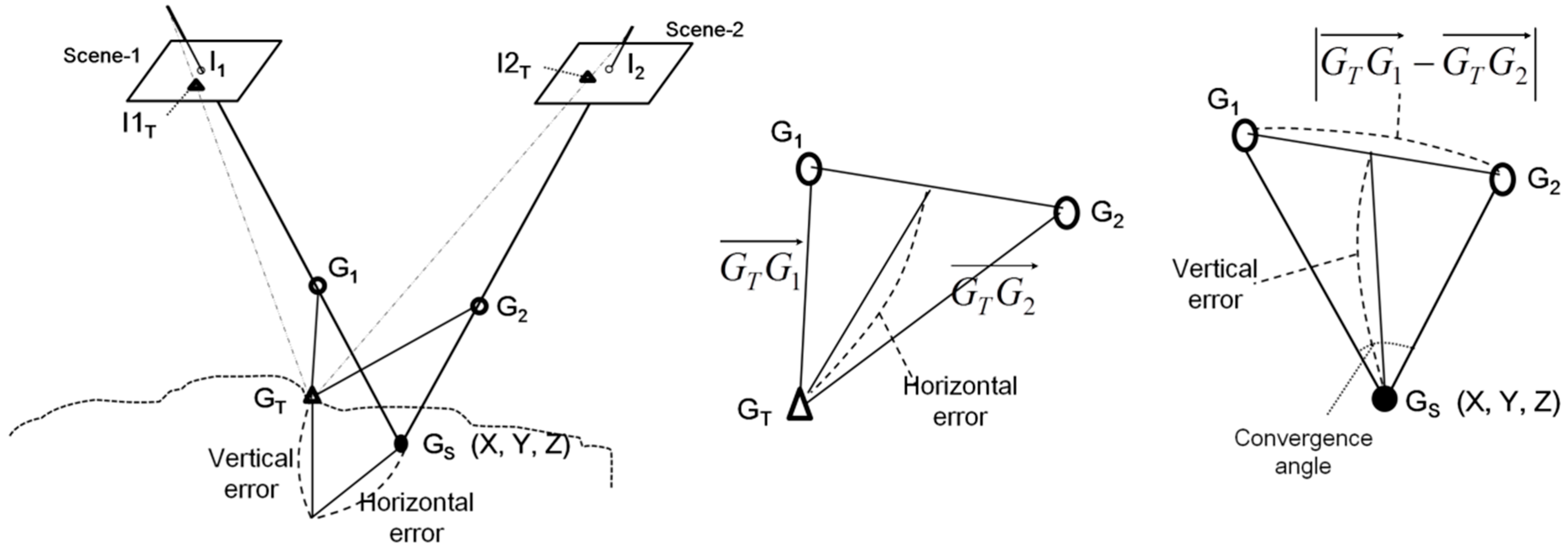

_{S}, estimated using two rays. In the left panel, if the two rays have no errors (the error-free scenario is represented by dashed lines), the two rays will intersect exactly at the true ground point G

_{T}. However, the rays generally have individual pointing errors (represented in the middle panel as $\overrightarrow{{\mathrm{G}}_{\mathrm{T}}{\mathrm{G}}_{\mathrm{1}}}$ and $\overrightarrow{{\mathrm{G}}_{\mathrm{T}}{\mathrm{G}}_{\mathrm{2}}}$) that generate horizontal and vertical errors in object space. G

_{1}and G

_{2}are the intersection points of the two rays of scene-1 and scene-2, respectively, with the horizontal plane containing G

_{T}. The individual pointing errors were previously represented to describe the horizontal and vertical errors [13] but their relationship was not discussed. Here, we discuss how the pointing errors relate to horizontal and vertical accuracy as shown in Figure 6.

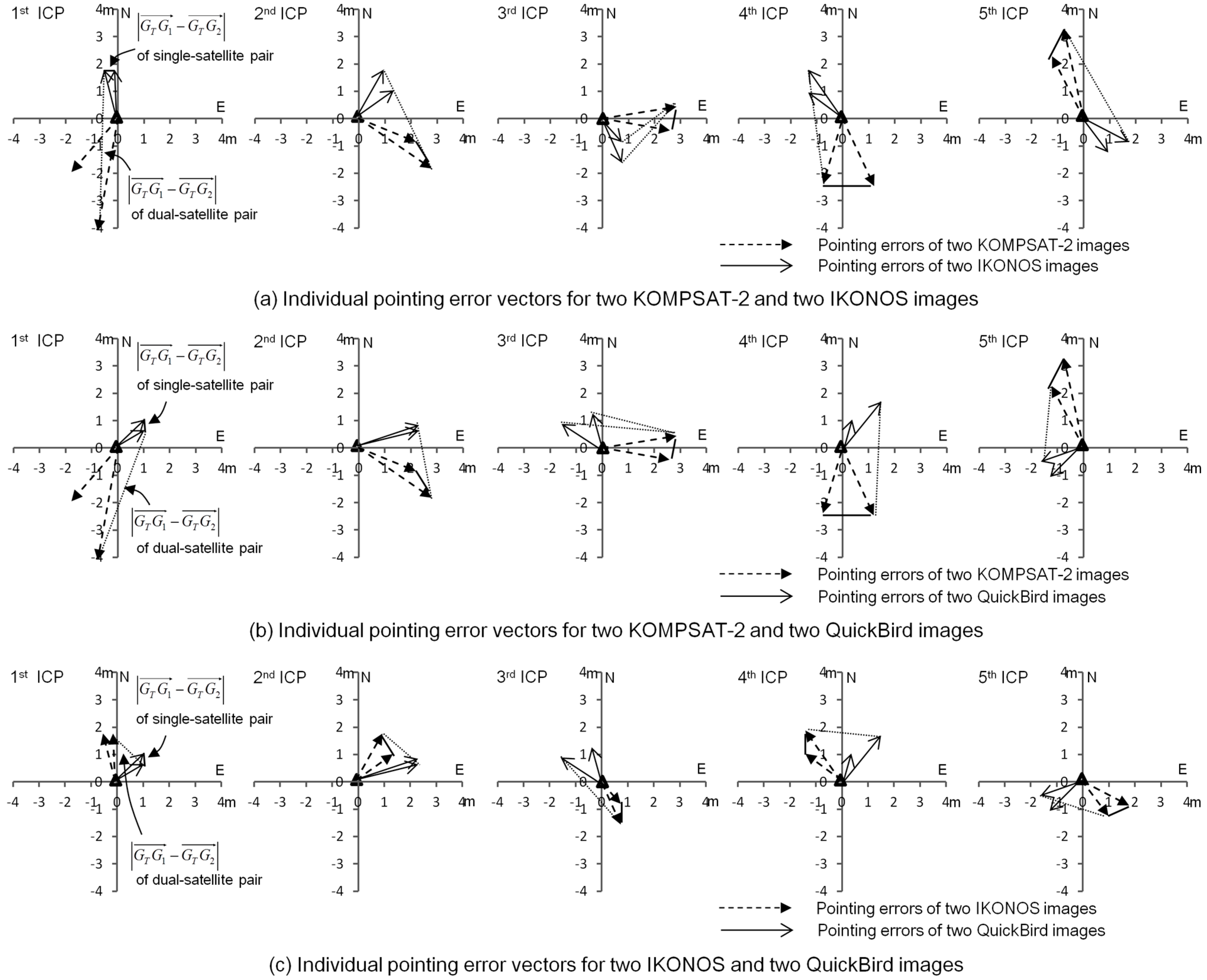

**Figure 7.**Pointing error vectors and their subtracting vectors for single-satellite stereo and dual-satellite stereo (five ICPs). (

**a**) KOMPSAT-2/IKONOS, (

**b**) KOMPSAT-2/QuickBird, (

**c**) IKONOS/QuickBird.

**Table 5.**Similarity of pointing error patterns for single-satellite stereo and dual-satellite stereo (18 ICPs).

Image 1 | Image 2 | Correlation | $\left|\overrightarrow{{G}_{T}{G}_{1}}-\overrightarrow{{G}_{T}{G}_{2}}\right|$ | |
---|---|---|---|---|

Single-satellite stereo pairs | K2-s1 | K2-s2 | 0.651 | 1.26 m |

IK-s1 | IK-s2 | 0.810 | 0.69 m | |

QB-s1 | QB-s2 | 0.760 | 0.83 m | |

Dual-satellite integrations | K2-s1 | IK-s1 | 0.256 | 1.92 m |

K2-s1 | IK-s2 | 0.213 | 2.11 m | |

K2-s2 | IK-s1 | 0.292 | 1.75 m | |

K2-s2 | IK-s2 | 0.310 | 1.69 m | |

K2-s1 | QB-s1 | 0.233 | 2.25 m | |

K2-s1 | QB-s2 | 0.320 | 2.16 m | |

K2-s2 | QB-s1 | 0.342 | 1.83 m | |

K2-s2 | QB-s2 | 0.370 | 1.91 m | |

IK-s1 | QB-s1 | 0.351 | 1.63 m | |

IK-s1 | QB-s2 | 0.392 | 1.57 m | |

IK-s2 | QB-s1 | 0.311 | 1.81 m | |

IK-s2 | QB-s2 | 0.345 | 1.60 m |
