# Post-Eruptive Inflation of Okmok Volcano, Alaska, from InSAR, 2008–2014

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

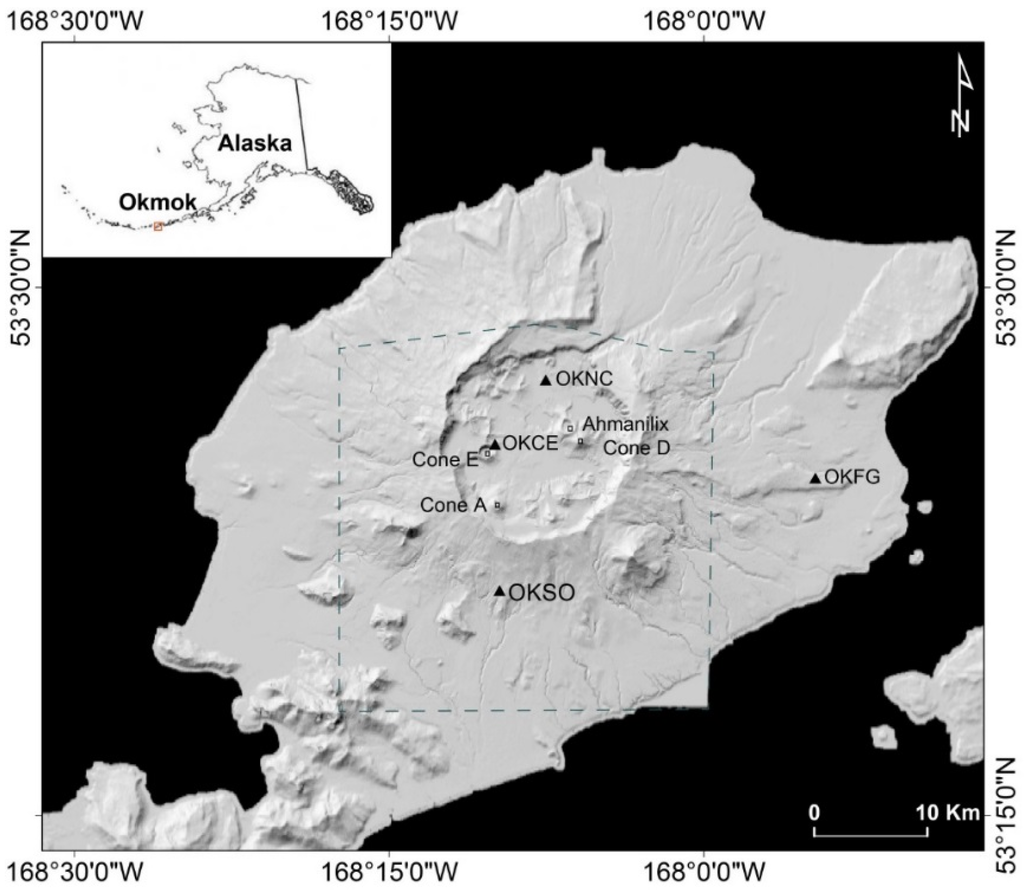

**Figure 1.**Shaded relief image of Okmok volcano, with some of the intra-caldera cones labelled. Cone A was the vent for historical eruptions prior to 2008, while Ahmanilix is the new cone formed during the 2008 eruption. OKSO, OKFG, OKNC, and OKCE are continuous GPS stations. The dashed blue frame shows the area of the DEM created from 21 January 2010 with Worldview imagery [8], while the remaining area topography is from the 1-arc-second (~30 m) SRTM DEM. Inset shows the location of Okmok in the central Aleutian volcanic arc.

## 2. InSAR Processing and Analysis

#### 2.1. Multi-Temporal InSAR Algorithm

#### 2.1.1. PSInSAR Processing

_{x}, which is a representation of variations in the residual phase at the PS candidate pixel [22,33,38] is proposed as the iteration stopping criterion:

^{th}interferogram, $\Delta {\widehat{\psi}}_{\theta ,x,i}^{u}$ is the estimated spatially-uncorrelated look angle error term and ${\tilde{\psi}}_{x,i}$ is the estimate of the spatially-correlated term. The root-mean-square change in γ

_{x}(Equation (1)) is calculated within each iteration. When the value is no longer decreasing, the solution has converged and the iteration stops. More details about StaMPS can be found in Hooper et al. [22,38] and Hooper [33].

#### 2.1.2. SBAS Processing

#### 2.1.3. MTI Processing

#### 2.2. Datasets and Processing

**Figure 2.**Temporal-spatial baseline distributions of interferograms for the four datasets: (

**a**,

**b**) interferograms with perpendicular baselines less than 300 m for ENVISAT C-band data, and (

**c**,

**d**) interferograms with perpendicular baselines less than 200 m for TerraSAR-X X-band data.

Sensor | Envisat ASAR | TerraSAR-X | ||
---|---|---|---|---|

Band | C | X | ||

Polarization | VV | HH | ||

Wavelength (cm) | 5.7 | 3.1 | ||

Track | 222 | 115 | 93 | 116 |

Heading (˚) | −16.4 | −163.5 | 350 | 192.1 |

Incidence angle (˚) | 22.5 | 22.8396 | 41.9804 | 24.625 |

Number of used scenes | 5 | 7 | 11 | 9 |

Number of pairs | 7 | 11 | 23 | 18 |

Date range (yyyymmdd) | 20081029–20100825 | 20090623–20100921 | 20080914–20140912 | 20110727–20141005 |

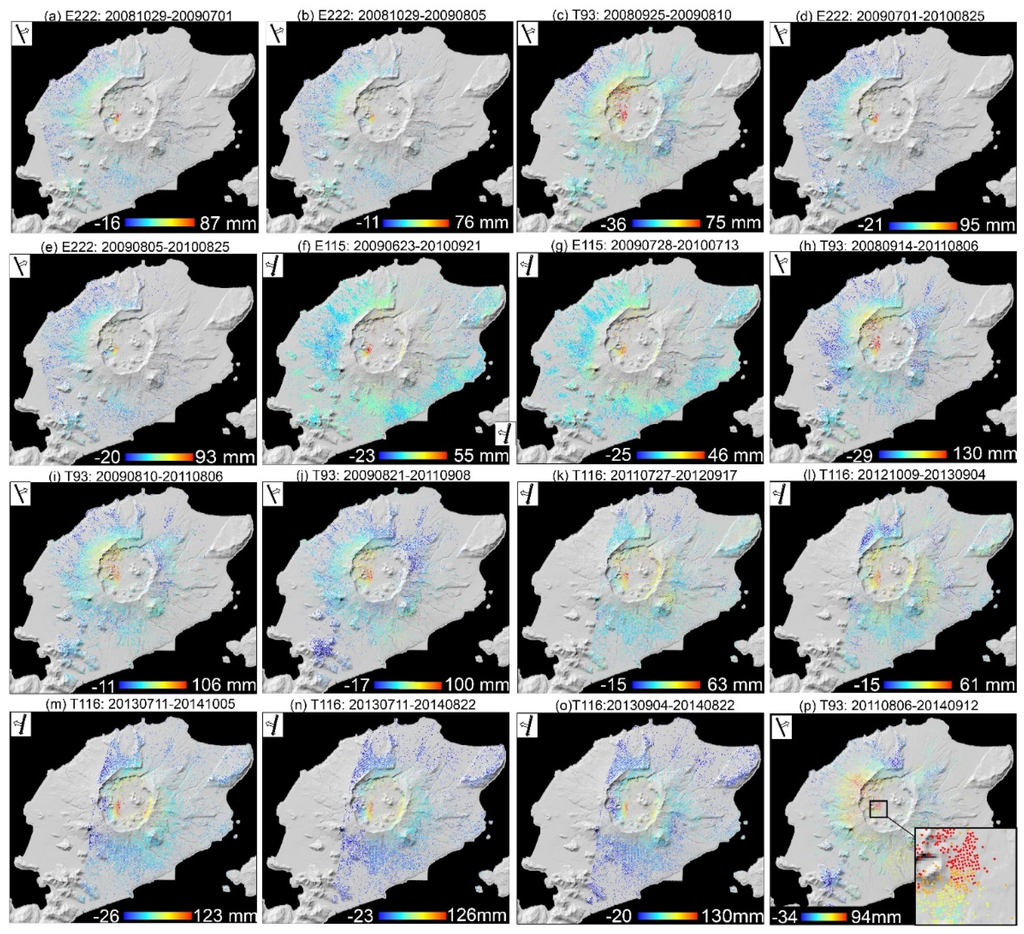

**Figure 3.**Selected interferograms showing surface deformation of Okmok volcano from 2008 to 2014 ordered by start date: (

**a**) 20081029–20090701 (Envisat 222), (

**b**) 20081029–20090805 (Envisat 222), (

**c**) 20080925–20090810 (TerraSAR-X 93), (

**d**) 20090701–20100825 (Envisat 222), (

**e**) 20090805–20100825 (Envisat 222), (

**f**) 20090623–20100921 (Envisat 115), (

**g**) 20090728–20100713 (Envisat 115), (

**h**) 20080914–20110806 (TerraSAR-X 93), (

**i**) 20090810–20110806 (TerraSAR-X 93), (

**j**) 20090821–20110908 (TerraSAR-X 93), (

**k**) 20110727–20120917 (TerraSAR-X 116), (

**l**) 20121009–20130904 (TerraSAR-X 116), (

**m**) 20130711–20141005 (TerraSAR-X 116), (

**n**) 20130711–20140822 (TerraSAR-X 116), (

**o**) 20130904–20140822 (TerraSAR-X 116), (

**p**) 20110806–20140912 (TerraSAR-X 93). Satellite ID (E is Envisat and T is TerraSAR-X), satellite flight direction, and radar look direction are labelled. The total amounts of LOS displacements vary among InSAR images due to the time-varying deformation nature and different time-spans of interferograms, so different color scales are used to highlight the deformation in subfigures.

#### 2.3. InSAR Results

## 3. Model-Assisted Phase Unwrapping

#### 3.1. Deformation Modelling and Analysis

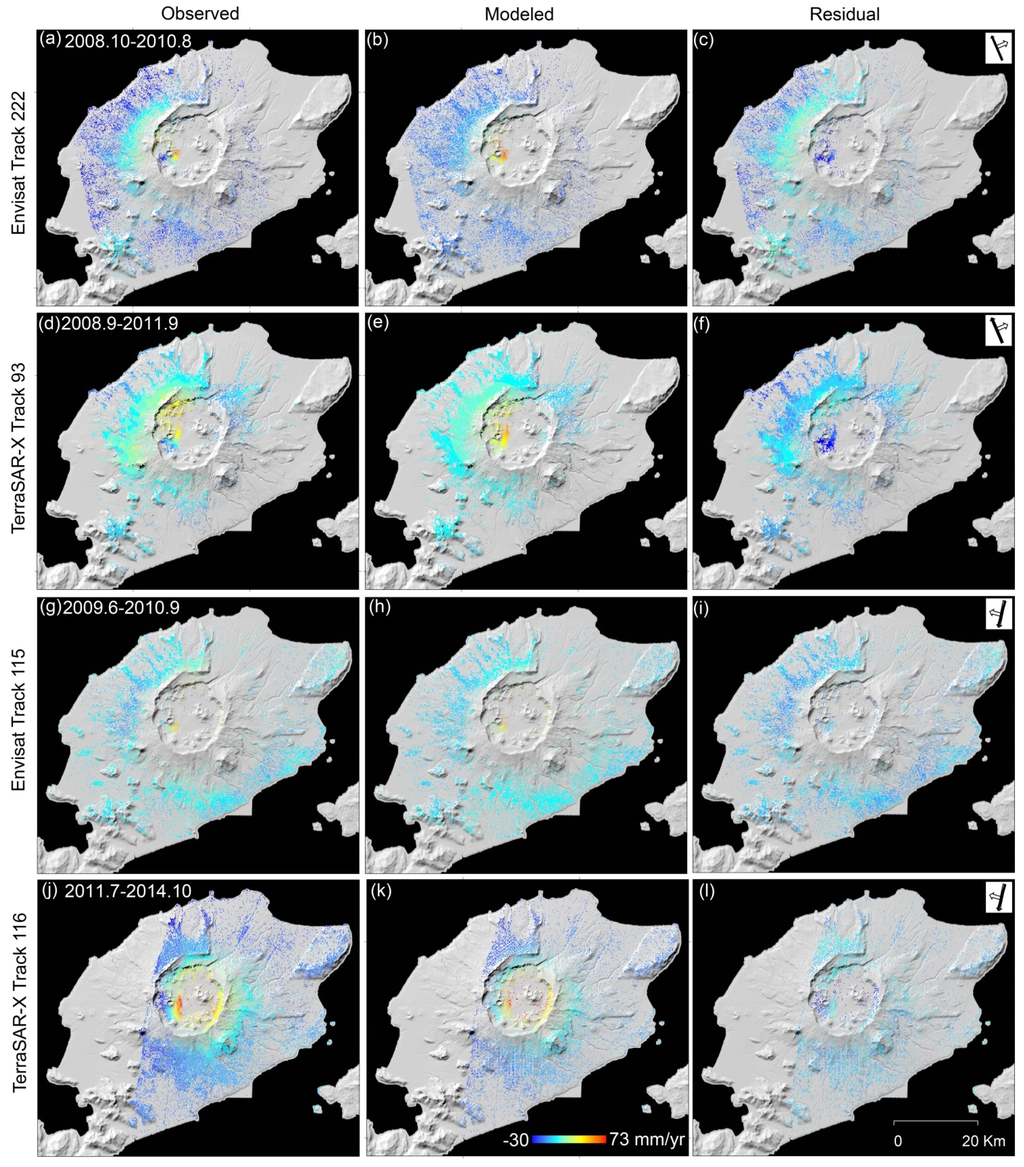

**Figure 4.**Observed (

**Left**), modeled (

**Middle**), and residual (

**Right**) average LOS deformation maps for the four independent tracks of InSAR data during September 2008 to October 2014 (Table 1). Satellite flight direction and radar look direction are labelled. The cold colors (blue to yellow) represent subsidence, i.e., incremental displacement away from the satellite, to low-rate uplift, i.e., displacement towards the satellite, and the hot-colored points show high-rate uplift. The color scale is the same for all images.

#### 3.2. Phase Unwrapping Error Deduction

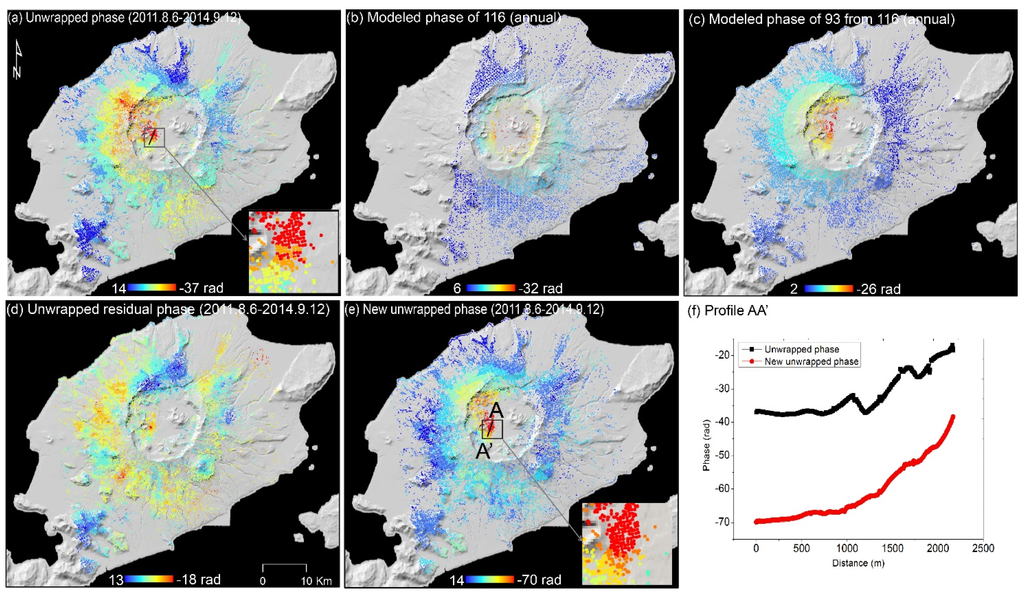

**Figure 5.**(

**a**) Original unwrapped phase of interferogram 20110806–20140912 from TerraSAR track 93, with inset enlarging area marked by black rectangle. (

**b**) Modeled phase from TerraSAR track 116 during the period 2011–2014. (

**c**) Modeled phase for TerraSAR track 93 during 2011–2014 as derived from track 116 model parameters. (

**d**) Unwrapped residual phase for TerraSAR-X track 93 found by subtracting the modelled (c) from the observed (a) phase. (

**e**) New unwrapped phase for interferogram 20110806–20140912 based on addition of residual (d) and modeled (c) phase. (

**f**) LOS deformation along profile A-A’ (e) from unwrapped phase produced using standard (black; part a) and model-assisted (red; part e) techniques.

## 4. Post-2008 Deformation

#### 4.1. Time Series Deformation Since 2008

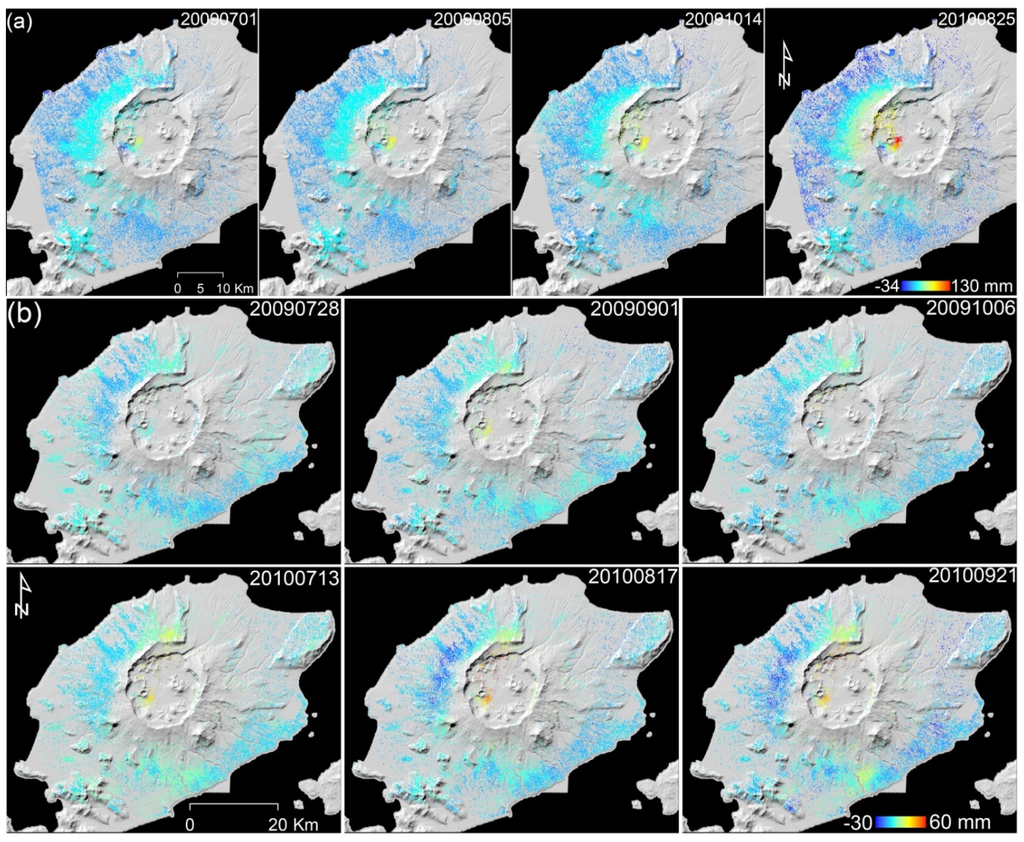

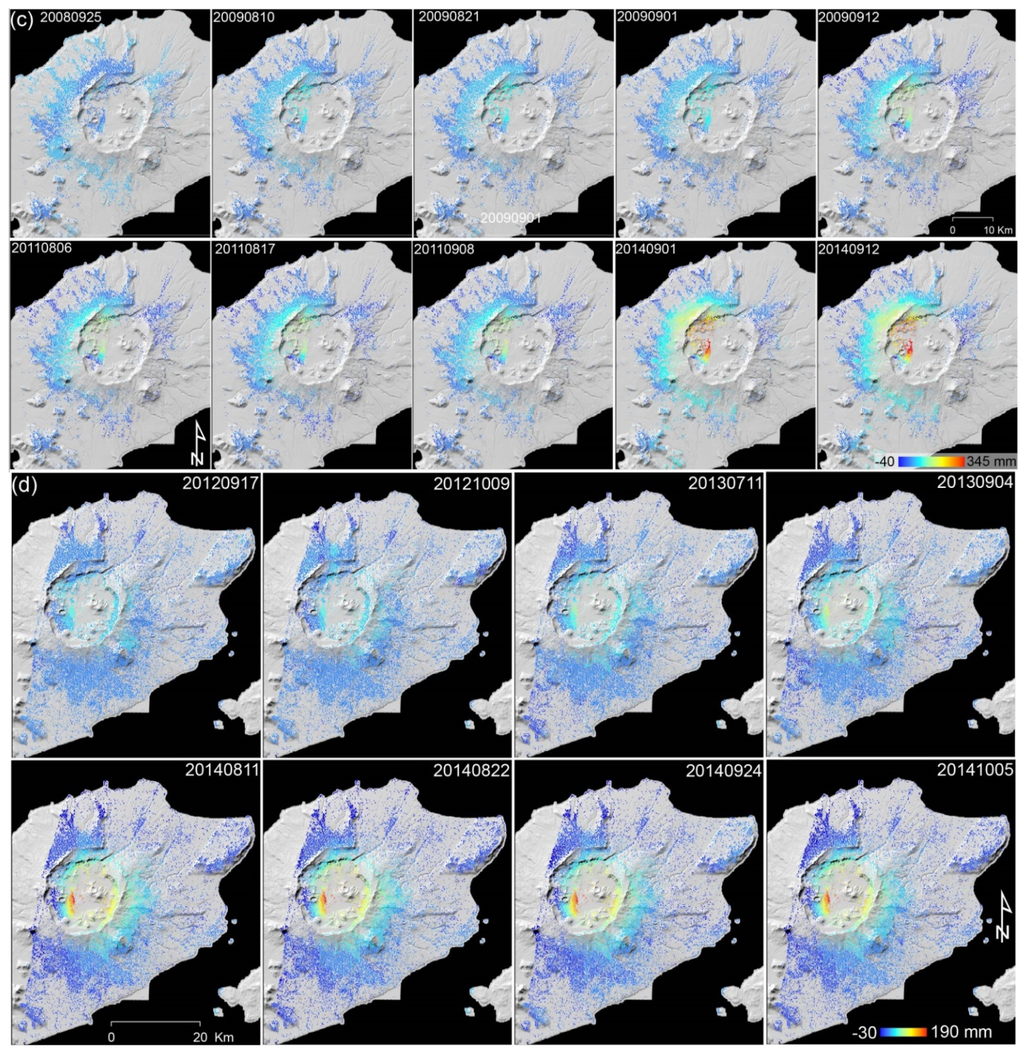

**Figure 6.**Cumulative deformation maps for each InSAR dataset: (

**a**) Envisat track 222, (

**b**) Envisat track 115, (

**c**) TerraSAR-X track 93, (

**d**) TerraSAR-X track 116, all referenced temporally to the earliest scene for each (20090623 for E222, 20081029 for E222, 20080914 for T93, and 20110727 for T116). The cold colors (blue to yellow) represent LOS subsidence (i.e., incremental displacement away from the satellite) to small LOS uplift (i.e., displacement towards the satellite), and the hot-colored points show large LOS uplift.

#### 4.2. Accuracy Assessment of InSAR Results

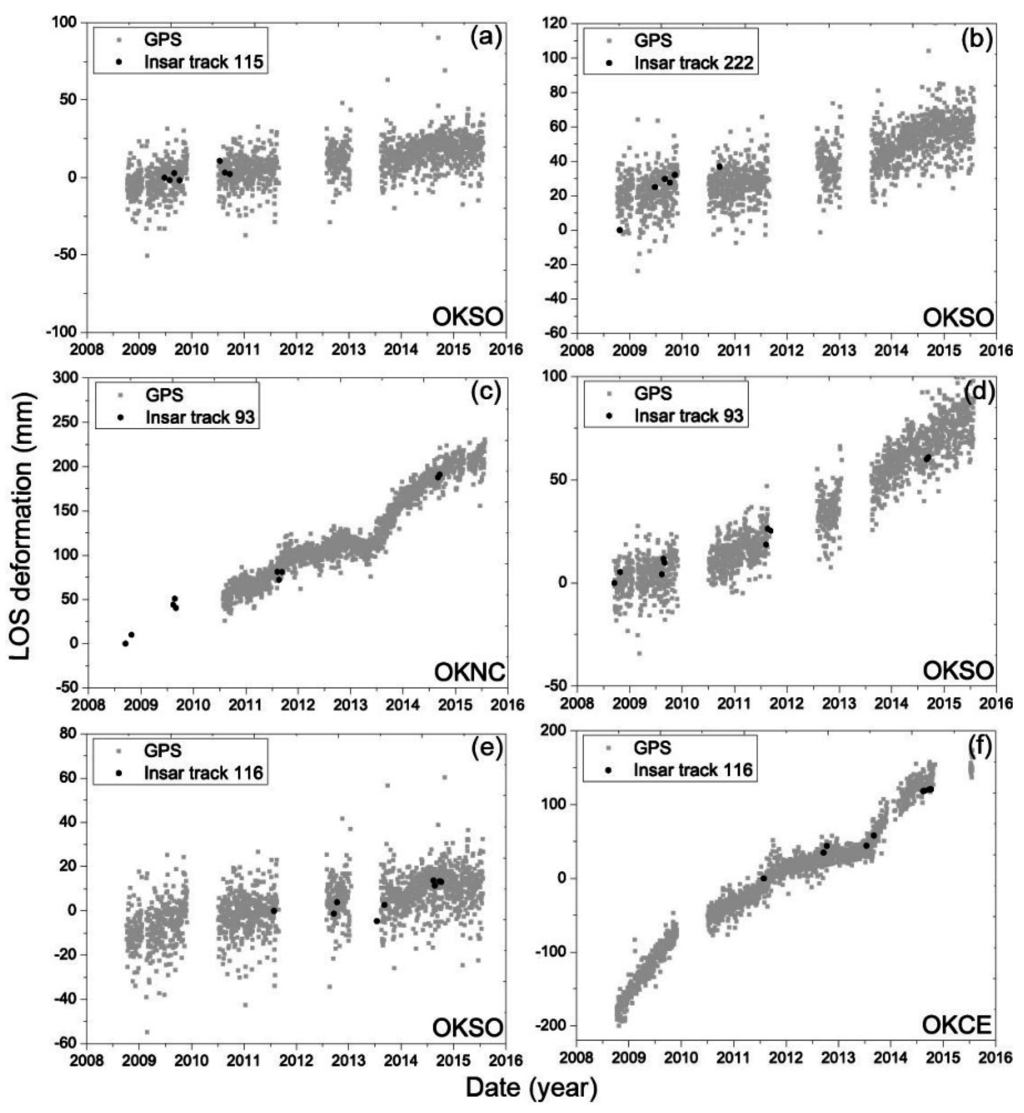

**Figure 7.**Comparison of InSAR-derived LOS deformation with that from GPS: (

**a**) deformation from Envisat track 115 and GPS at station OKSO, (

**b**) deformation from Envisat track 222 and GPS at station OKSO, (

**c**) deformation from TerraSAR-X track 93 and GPS at station OKNC, (

**d**) deformation from TerraSAR-X track 93 and GPS at station OKSO, (

**e**) deformation from TerraSAR-X track 116 and GPS at station OKSO, (

**f**) deformation from TerraSAR-X track 116 and GPS at station OKCE. GPS station locations are shown in Figure 1, and all the GPS measurements are reference to OKFG.

#### 4.3. Mogi Modeling of Time-Series Deformation

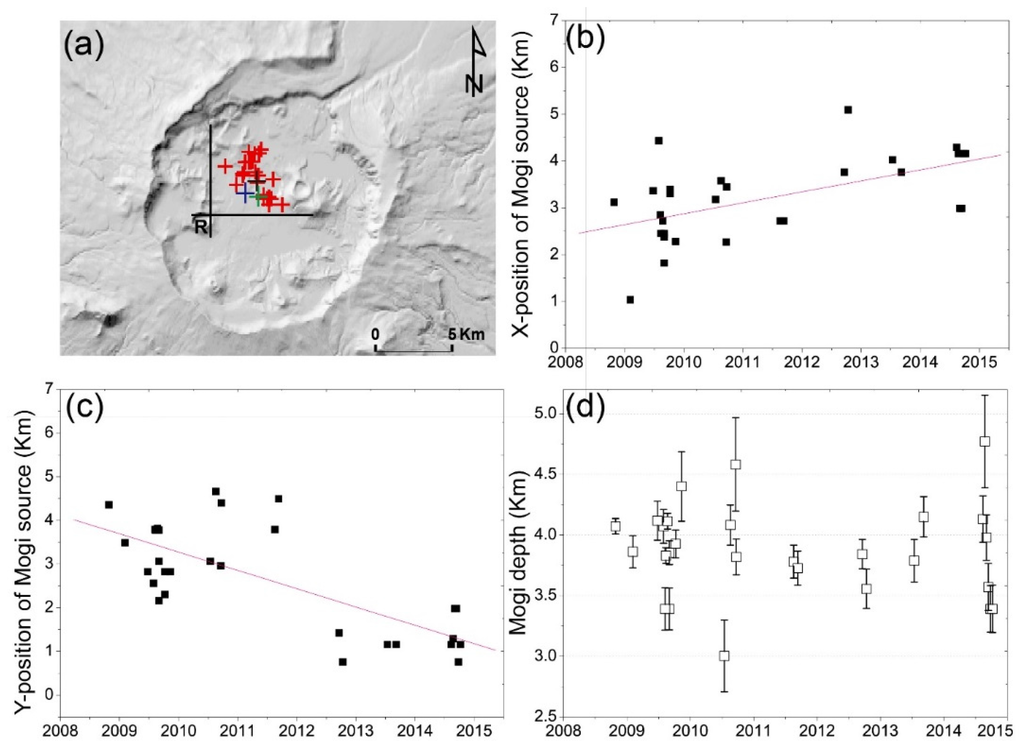

**Figure 8.**(

**a**) Best-fit Mogi source horizontal locations (X is easting and Y is northing) for time-series deformation results from 2008 to 2014, superimposed on a shaded relief DEM image of Okmok volcano. Black cross represents the average position of the Mogi sources, green cross shows the average position of the deformation sources acquired from 1997 to 2008, and blue cross is the average position of the deformation sources from the 2008 eruption interferograms. (

**b**) X position of the best-fit Mogi source as a function of time from 2008 to 2014, plotted relative to an arbitrary reference point R that is shown in Figure 8a. (

**c**) Y position of the best-fit Mogi source as a function of time, plotted relative to an arbitrary reference point R that is shown in Figure 8a. East and north are taken as positive in both plots; (

**d**) Depth of the best-fit Mogi source as a function of time from 2008 to 2014.The average source depth is about 3.9 km below sea level.

^{3}/y, with the rate during 2008–2010 being slightly higher than that of 2010–2013. The rate of magma accumulation increased sharply in 2013, with a volume change of about 0.01 km

^{3}during 2013–2014 (one-year period).

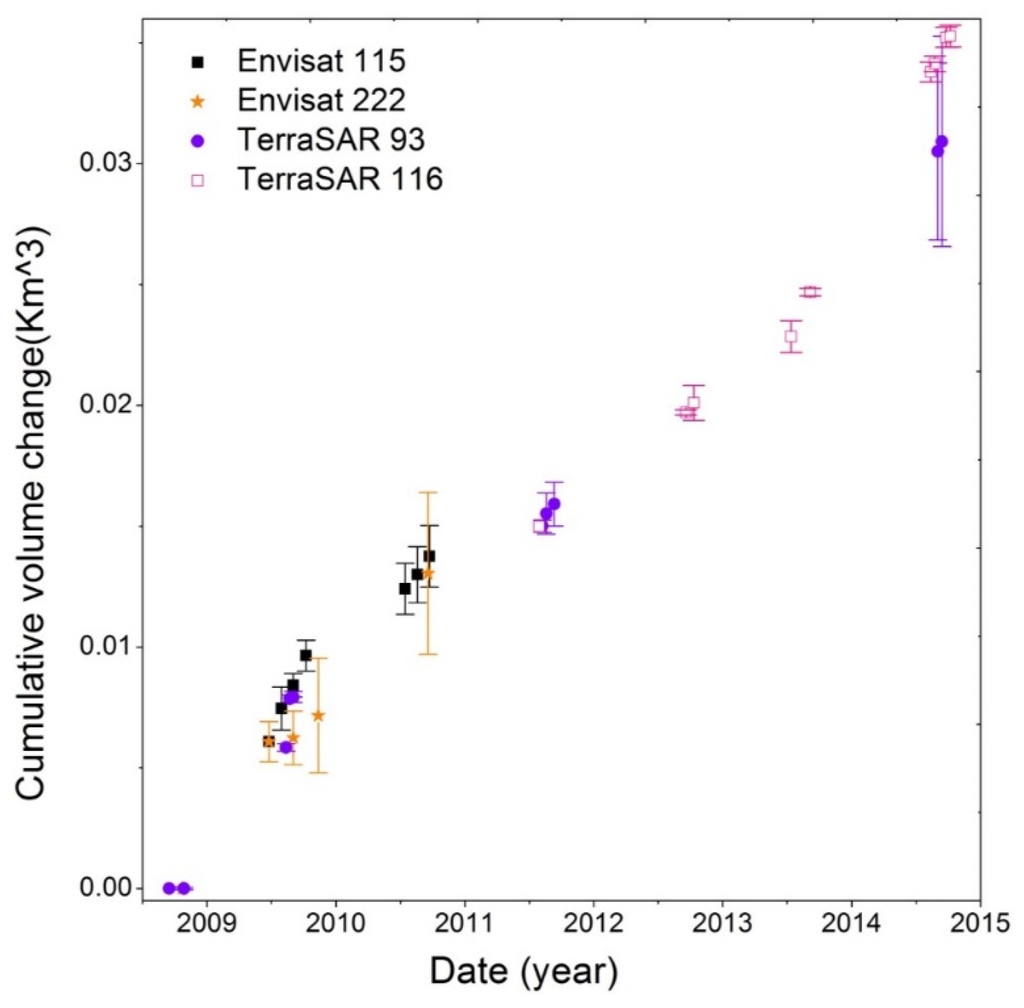

**Figure 9.**Modeled cumulative volume change beneath Okmok as a function of time from 2008 to 5 October 2014 for all four InSAR datasets. The volume of the first scene (20080914) is assumed to be zero.

## 5. Discussion

^{3}[16] and that associated with the 2008 eruption was 0.14 ± 0.01 km

^{3}[18]. The modeled volume of magma accumulated in the reservoir during 2008–2014 is ~0.035 km

^{3}, which is ~75% of the 1997 eruption volume or ~25% of the 2008 eruption volume. We estimate that the post-2008 refilling rate was about 30% more rapid than the post-1997 refilling rate, which required about nine years to recover a similar volume. It should be noted that the time-varying post-eruption inflations could also be due to magma crystallization and degassing and other factors [45].

## 6. Conclusions

^{3}, which is approximately 75% of the 1997 eruption volume and 25% of the 2008 eruption volume.
