Added Value of Assimilating FY-4B AGRI Water Vapor Radiances on Analyses and Forecasts for “23 · 7” Heavy Rainfall

Highlights

What are the main findings?

• The assimilation of FY-4B AGRI clear-sky data produces positive water vapor increments across the lower-to-upper levels in precipitation areas, and the RMSEs of observed and simulated brightness temperatures decrease by 50–60%. This improvement of the analysis field significantly enhances the heavy rainfall forecasts.
• Compared with the two old channels, the addition of the new 7.42 µm channel assimilation can further humidify the air and intensify the ascending motion, thereby improving the accuracy of precipitation location and intensity predictions.

What is the implication of the main finding?

• This study provides an effective framework for the direct assimilation of FY-4B AGRI clear-sky radiance data, which enhances the forecasting of heavy rainfall location and intensity, particularly for extreme weather simulation.
• The FY-4B AGRI water vapor channel demonstrates substantial application potential, highlighting the critical role of China’s independent satellite capabilities in improving the accuracy of numerical weather prediction.

Abstract

The infrared satellite data have become an important source of assimilated data in numerical weather prediction (NWP) models. With the self-constructed assimilated module in the Weather Research and Forecasting model’s Data Assimilation (WRFDA) system, a set of cycling assimilation experiments is conducted to evaluate the added value of assimilating the Fengyun-4B (FY-4B) Advanced Geostationary Radiation Imager (AGRI) water vapor channels clear-sky data on analyses and forecasts for “23 · 7” heavy rainfall. The results show a notable reduction (50~60%) in the root mean square error (RMSE) of observed and simulated brightness temperature after assimilating AGRI and the positive analysis increments in temperature and humidity fields, which are conducive to precipitation formation. Furthermore, changes in humidity analysis caused by AGRI assimilation propagate from the upper to lower levels with assimilation cycling. Compared to the benchmark experiment, the AGRI assimilation experiments produce higher humidity conditions and more pronounced ascending motion, resulting in more realistic rainfall predictions at both location and intensity with higher rainfall scores, especially with the two-step assimilation scheme. Moreover, based on the results from sensitivity experiments, it is proven that the addition of a new channel 11 can further improve humidity and enhance rainfall location and intensity predictions. Overall, the clear-sky assimilation of the FY-4B AGRI water vapor channel data brings notable improvements to “23 · 7” heavy rainfall prediction.

1. Introduction

Heavy rainfall is one of the major meteorological disasters in China, often triggering floods and other hazards that severely impact people’s lives and properties. Consequently, it has remained a persistent research priority in meteorological science. In recent years, the rapid advancement of numerical models and multisource observation systems has significantly improved the capability of numerical weather prediction (NWP) for heavy rainfall forecasting [1,2,3]. Despite these progresses, forecast errors are unavoidable in NWP systems. Studies have demonstrated that initial condition errors constitute a major source of forecast uncertainty, particularly for meso-and micro-scale weather predictions [4,5].

Previous studies have found that satellite data assimilation has become an effective method for improving the initial field of the model, playing a crucial role in weather forecasting and data assimilation [6,7]. In particular, they can supplement land and ocean observations and improve the distribution of atmospheric variables, such as model temperature and water vapor distribution, thereby enabling better detection of weather system evolution [8,9]. At first, owing to constraints in assimilation techniques and observation operators, satellite data assimilation primarily relied on satellite retrievals [10]. Since the 1990s, with the advancement of radiative transfer models and the rise of variational assimilation methods, the direct assimilation of satellite radiances from microwave and infrared sensors became the mainstream approach in satellite data assimilation [11,12]. Although the development of infrared data assimilation from geostationary satellites lags behind that of microwave data from polar-orbiting satellites, many studies have shown that the infrared imager data assimilation can improve both global and regional numerical weather forecasts [13,14,15]. For instance, Stengel et al. [16] found that assimilating Spinning Enhanced Visible and Infrared Imager (SEVIRI) radiance with the High Resolution Limited Area Model four-dimensional variational (4D-Var) method enhances very short-range forecasts at regional scales. However, due to their rapid development and short life cycles, heavy rainfall events pose a significant challenge for numerical weather prediction. Geostationary satellites, with their high spatiotemporal resolution, offer a distinct advantage in capturing the rapid evolution of weather systems, outperforming polar-orbiting satellites that only scan the same region twice daily. The assimilation of satellite infrared imager data can accurately capture the distribution of atmospheric temperature and humidity and adjust the vertical and horizontal wind fields, leading to significant advantages in both analysis and forecasting capabilities, and thus resulting in great improvements in the quantitative precipitation forecast [17,18,19].

Due to limitations in the radiative transfer model, most assimilation efforts for infrared imager data have primarily focused on water vapor channels [19,20,21,22]. These studies indicate that the direct assimilation of water vapor channels from infrared imagers, such as the Advanced Baseline Imager (ABI), the Advanced Himawari Imager (AHI), and SEVIRI, can improve the prediction of water vapor distribution and thermal conditions in the atmosphere, thereby positively impacting numerical forecasts. For instance, Cintineo et al. [23] proved that assimilating ABI water vapor brightness temperature markedly improved both the water vapor field and cloud top analysis, resulting in better forecasts of convective storm structures. Meanwhile, the AHI with high-frequency, every-10-minute assimilation also had a favorable effect on the prediction of convective systems [24]. Overall, the assimilation of water vapor channel data from the geostationary satellite’s infrared imager can clearly improve precipitation forecasts.

The Advanced Geostationary Radiation Imager (AGRI), an infrared imager aboard China’s Fengyun-4 (FY-4) series satellites, has great potential for numerical weather prediction. Previous studies have indicated that the clear-sky assimilation of FY-4A AGRI radiance was beneficial for typhoon and precipitation forecasts [25,26,27]. The subsequent FY-4B AGRI adds a new low-level water vapor channel, expanding the spectral coverage to 15 bands spanning 0.47~13.3 μm and providing more accurate depictions of severe weather [28,29]. Correspondingly, studies utilizing FY-4B AGRI radiances are now widely applied in parameter retrievals [30,31,32,33,34]. Its data assimilation has also achieved application in the NWP systems, such as the China Meteorological Administration Global Forecast System (CMA-GFS) and CMA-MESO [35,36]. Recent work has demonstrated that the direct assimilation of its water vapor channels substantially enhances typhoon intensity and track forecasts [37,38]. However, the direct assimilation of FY-4B AGRI data for heavy rainfall has not yet been thoroughly investigated and should be studied urgently.

This study evaluates the impact of assimilating FY-4B AGRI clear-sky water vapor channel radiance on heavy rainfall forecasting within the Weather Research and Forecasting Data Assimilation (WRFDA) system [39], selecting the “23 · 7” heavy rainfall event as a case study. The subsequent sections of this paper are organized as follows: Section 2 describes the FY-4B AGRI radiance data and assimilation system. The overview of the “23 · 7” heavy rainfall event, the circulation situation, and the experimental configurations are discussed in Section 3. In Section 4, the results of comparative experiments are presented, while the results of sensitive experiments are shown in Section 5. Finally, Section 6 displays the conclusions and discussion.

2. Data and Methods

2.1. Data

AGRI provides continuous observations over East Asia and adjacent regions with high spatiotemporal resolution and multispectral capabilities, which aboard FY-4B shows considerable advancements over its predecessor FY-4A, including the addition of a 7.42 μm low-level water vapor channel and adjustments to the spectral ranges of several other channels [28,29]. These upgrades substantially enhance the instrument’s capacity for precise observation, providing higher-quality data for data assimilation and weather monitoring applications.

Nowadays, the FY-4B satellite has replaced FY-4A at the main operational longitude of 105°E in March 2024. The scanning mode of FY-4B AGRI is to acquire full disk images every 15 min at equal time intervals.

Table 1. Characterization of FY-4B AGRI channels.

Channel	Center Wavelength (μm)	Spatial Resolution (km)	Main Application
1	0.47	1.0	Aerosol
2	0.65	0.5	Fog, cloud
3	0.825	1.0	Vegetation
4	1.379	2.0	Cirrus
5	1.61	2.0	Cloud, snow
6	2.25	2.0	Cirrus, aerosol
7	3.75	2.0	Fire
8	3.75	4.0	Land surface
9	6.25	4.0	High-level water vapor
10	6.95	4.0	Mid-level water vapor
11	7.42	4.0	Low-level water vapor
12	8.55	4.0	Cloud
13	10.80	4.0	Surface temperature
14	12.00	4.0	Surface temperature
15	13.30	4.0	Cloud and water vapor

shows the detailed characteristics of the 15 spectral channels of FY-4B AGRI, with central wavelength ranging from 0.47 μm to 13.3 μm and spatial resolution ranging from 0.5 km to 4.0 km [40,41]. Channels 1–6 are visible and near-infrared channels with central wavelength ranging from 0.47 μm to 2.25 μm, dedicated mostly to daytime observations of the Earth’s surface and atmosphere. Channels 7 and 8 are medium-wave infrared channels with the same center wavelength of 3.75 μm, enabling simultaneous detection of both high-temperature and low-temperature targets. Channels 9–11 are water vapor channels operating at central wavelengths of 6.25 μm, 6.95 μm, and 7.42 μm, respectively, and are sensitive to water vapor at different levels of the troposphere, with channel 11 being a newly introduced low-level water vapor channel. Channels 12–14 are infrared window channels with central wavelengths ranging from 8.55 μm to 12 μm, which can be implemented to identify cloud pixels. Channel 15 is the carbon dioxide absorption channel at 13.3 μm, influenced by carbon dioxide in the troposphere [28,29,41]. Based on previous findings, the assimilation of water vapor channels has a positive impact on weather forecasting [19,20,21,22,23,24]. Therefore, the study also focused on the assimilation of AGRI water vapor channels 9, 10, and the newly added channel 11. The AGRI 4 km Level-1 radiance and geolocation data for the full disk, with a temporal resolution of 15 min, are utilized in this study. Meanwhile, the Level-2 CLM (Cloud Mask) product is utilized to identify clear-sky conditions in quality control schemes.

To evaluate precipitation performance, the triple-source merged precipitation product from the China Meteorological Administration Multisource Precipitation Analysis System (CMPAS) serves as the reference dataset, characterized by a high spatial resolution of 0.01° × 0.01° and an hourly temporal resolution [42,43]. To analyze the circulation situation, this study employs the European Centre for Medium-Range Weather Forecasts (ECMWF) Reanalysis v5 (ERA5) hourly pressure-level dataset, with a temporal resolution of 1 h and a spatial resolution of 0.25° × 0.25° [44]. The National Centers for Environmental Prediction (NCEP) operational Global Forecast System (GFS) analysis and forecast dataset provides dozens of atmospheric and land-soil variables, with 3-hourly intervals from 0 to 240 h, and 12-hourly intervals from 240 to 384 h. The initial and boundary conditions for the model simulations are provided by the NCEP GFS 6-hourly GFS forecasts, with a horizontal resolution of 0.25° × 0.25° [45]. The conventional observations used for assimilation are obtained from the NCEP Administrative Data Processing Global Upper Air and Surface Weather Observations dataset, including land surface, marine surface, radiosonde, pibal and aircraft reports from the Global Telecommunications System (GTS) [46].

2.2. FY-4B AGRI Assimilation Module in WRFDA System

The WRFDA v4.4 system from the Weather Research and Forecasting (WRF) v4.4 model includes 3D-Var, 4D-Var, and a hybrid assimilation method [47]. FY-4B AGRI clear-sky assimilation module is self-constructed within WRFDA v4.4 with the Community Radiative Transfer Model (CRTM). In this study, the 3D-Var method is applied for data assimilation experiments. It estimates the atmospheric state by minimizing a cost function using the conjugate gradient method [48,49]. The cost function is listed as

$$\mathit{J}\left(\mathit{x}\right)={\displaystyle \frac{1}{2}}{\left(\mathit{x}-{\mathit{x}}_b\right)}^T{\mathit{B}}^{-1}\left(\mathit{x}-{\mathit{x}}_b\right)+{\displaystyle \frac{1}{2}}{\left(\mathit{y}-\mathit{H}\left(\mathit{x}\right)\right)}^T{\mathit{R}}^{-1}(\mathit{y}-\mathit{H}\left(\mathit{x}\right)),$$

(1)

where x is the atmospheric state vector, ${\mathit{x}}_b$ is the background state vector, B is the background error (BE) covariance matrix, y is the observation vector, and R is the observation error covariance matrix. H is the observation operator, with CRTM v2.3.0 selected in this study.

Quality control (QC) is an essential step before satellite data assimilation. Based on the data characteristics of AGRI and previous studies [25,26,27], the quality control schemes for the clear-sky assimilation experiment of heavy rainfall in this study are as follows: (1) over land, only retaining observations of the water vapor channel, rejecting all the other channels; (2) ignoring observations with >60° zenith angle; (3) rejecting observations under clouds as defined by the CLM product; (4) discarding observations if their absolute value exceeds 15 K or exceeds three times the standard deviation of the observation error.

Moreover, this study employs the variational bias correction (VarBC) method to correct systematic bias. The corrected observation operator is expressed as a linear combination of BC predictors, as follows:

$$\tilde{\mathit{H}}\left(\mathit{x},\beta \right)=\mathit{H}\left(\mathit{x}\right)+{\beta }_0+{\sum }_{i=1}^{N_p}{\beta }_i{p}_i,$$

(2)

where $\tilde{\mathit{H}}\left(\mathit{x},\beta \right)$ is the observation operator after deviation correction, $\mathit{H}\left(\mathit{x}\right)$ is the observation operator, x is the background field state vector, ${\beta }_0$ is the constant term of the bias,${\beta }_i$ and $p_i$ are the ith prediction factor and its coefficient, and $N_p$ is the number of predictors. This study uses a linear combination of 8 predictors: constants, 1000–300 hPa layer thickness, 200–50 hPa layer thickness, surface temperature, total water vapor, the sine of the satellite zenith angle, and its square and cube. For each assimilation, the BC correction coefficients are updated to adapt and then used in the subsequent time step. In this study, the correction coefficients for the heavy rainfall assimilation experiment are initially derived from offline statistics collected every 6 h between 1200 UTC on 24 July and 0600 UTC on 30 July 2023. To minimize error correlation, a 30 km thinning mesh is used to select satellite observations.

3. Experiment Setup

3.1. Overview of Case

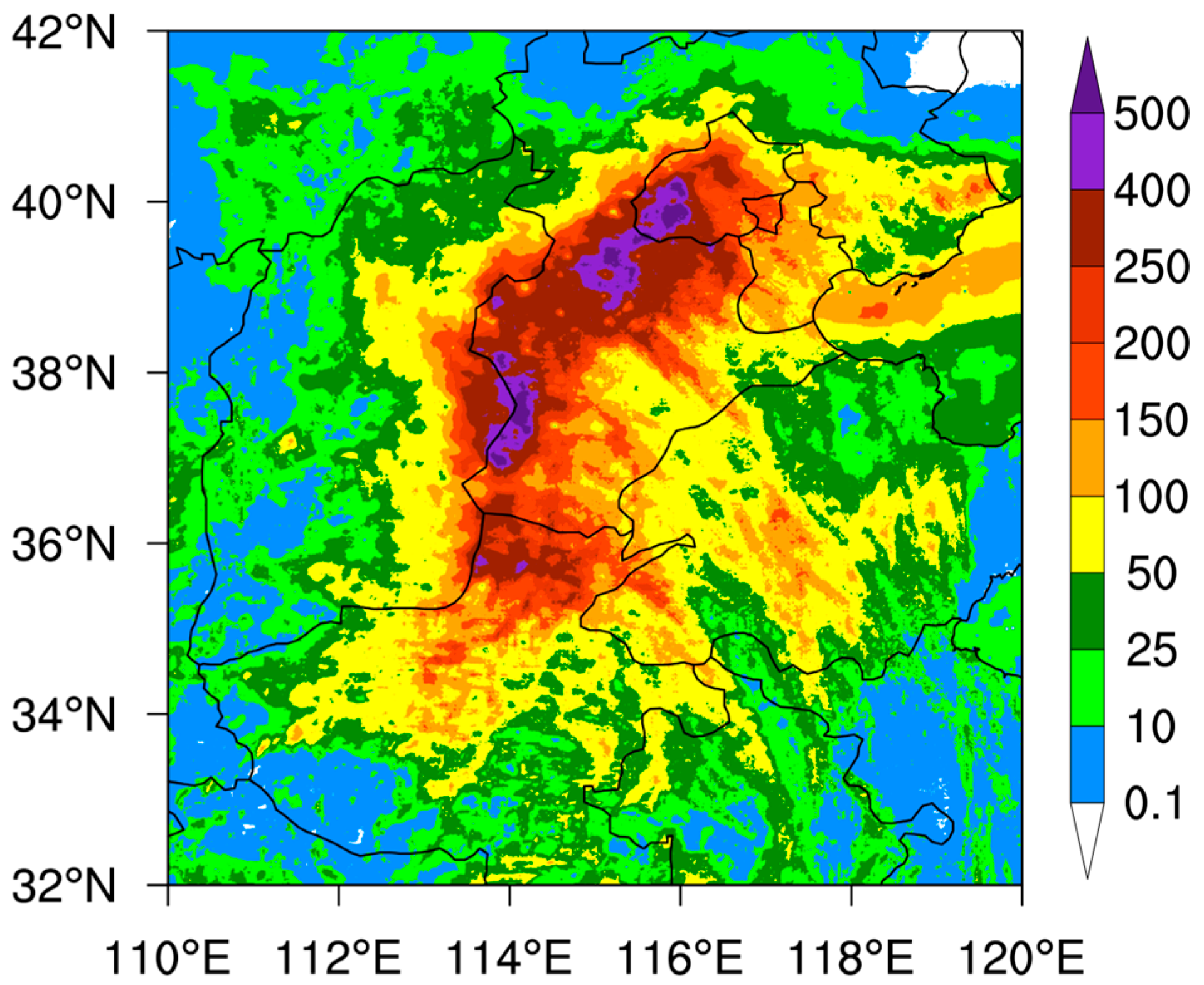

From 29 July to 1 August 2023, the Beijing–Tianjin–Hebei (BTH) region was affected by an extremely heavy rainfall event, known as the “23 · 7” heavy rainfall event. The rainfall first appeared on the eastern side of the Taihang Mountains in northern Henan. Then, the precipitation magnitude increased rapidly, and the rainfall center moved northeast to the northeastern part of BTH. As shown in Figure 1, based on CMPAS data, the 72 h accumulated precipitation band is presented as a bow, crossing the BTH and Henan. The heaviest rainfall centers were located in central Beijing and the southwest of Hebei, with a maximum exceeding 500 mm. This heavy rainfall caused widespread flooding, resulting in significant economic losses and numerous casualties.

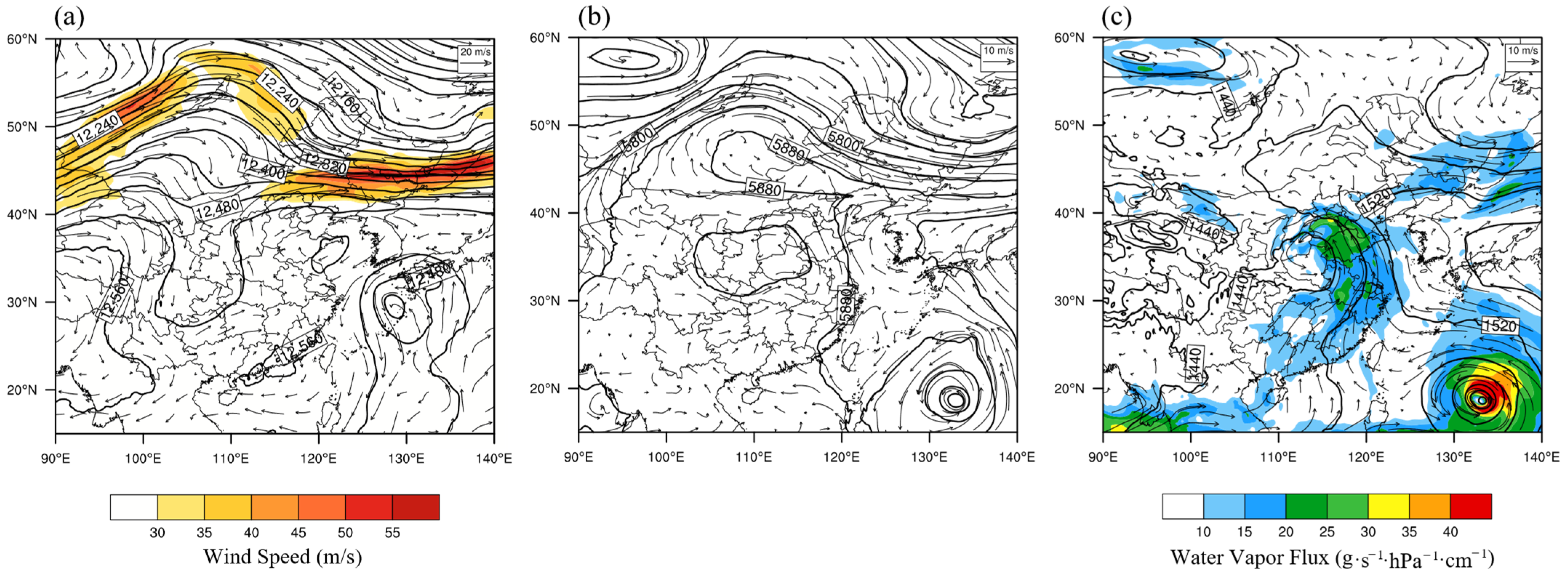

This rainfall event is caused by multiple weather systems. Figure 2 shows the circulation situation at different pressure levels of 200 hPa, 500 hPa, and 850 hPa using ERA5 data. To the north of the BTH region, a westerly jet stream existed at 200 hPa, accompanied by strong horizontal divergence (Figure 2a). This divergence generated a pumping effect that, to satisfy mass conservation, drew up air from the lower troposphere and thus favored ascending motion [50]. At 500 hPa, the remnant circulation of Typhoon Doksuri became quasi-stationary over the western flank of the BTH region, which was blocked by the Western Pacific Subtropical High (WPSH) and an upper-level ridge. Meanwhile, Typhoon Khanun was located over the ocean at approximately 132°E, 17°N (Figure 2b). The southwesterly flow from Doksuri’s remnant circulation converged with Khanun’s southeasterly flow over the BTH region, resulting in persistent moisture transport at 850 hPa (Figure 2c). The nearly stationary typhoon’s inverted trough, combined with the terrain effects of the Taihang Mountain, provided highly favorable conditions for strong ascending motion, sustaining the heavy rainfall event.

3.2. Experiment Design

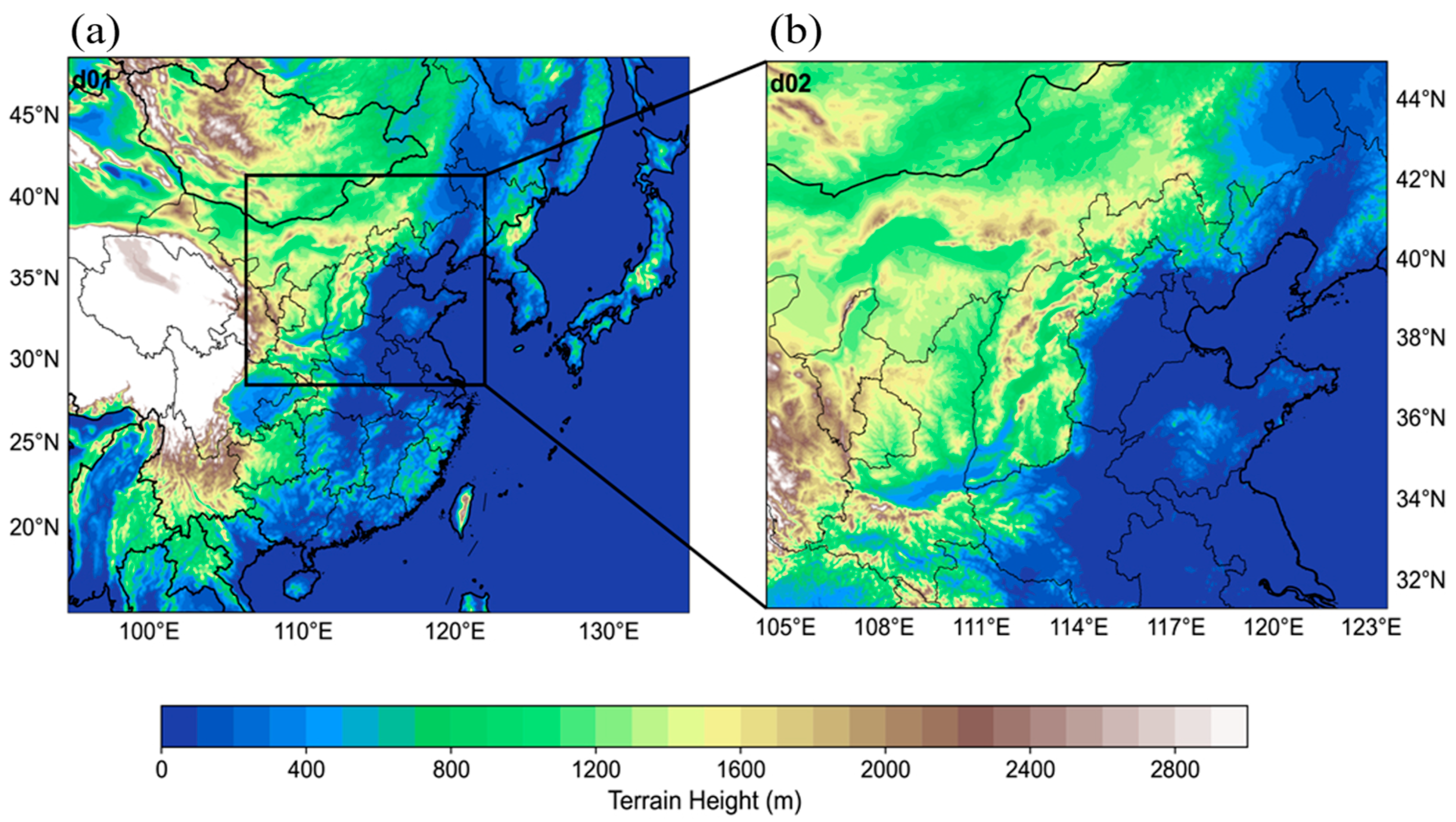

In this study, WRF v4.4 is selected for the forecast. The simulated area is depicted in Figure 3. The heavy rainfall experiments construct a double-nested domain configuration with horizontal resolutions of 9 km (521 × 439 grid points) for domain 1 (d01) and 3 km (601 × 499 grid points) for domain 2 (d02), and 50 vertical levels extending up to 50 hPa. The following physical parameterization schemes are employed: WSM6 for the microphysics scheme [51], RRTMG for the longwave and shortwave radiation schemes [52], Noah for the land surface scheme [53], YSU for the boundary layer scheme [54], KF cumulus scheme for d01 [55], while the cumulus parameterization for d02 is switched off. Initial and boundary conditions are obtained from the NCEP GFS forecasts, with a horizontal resolution of 0.25° × 0.25°.

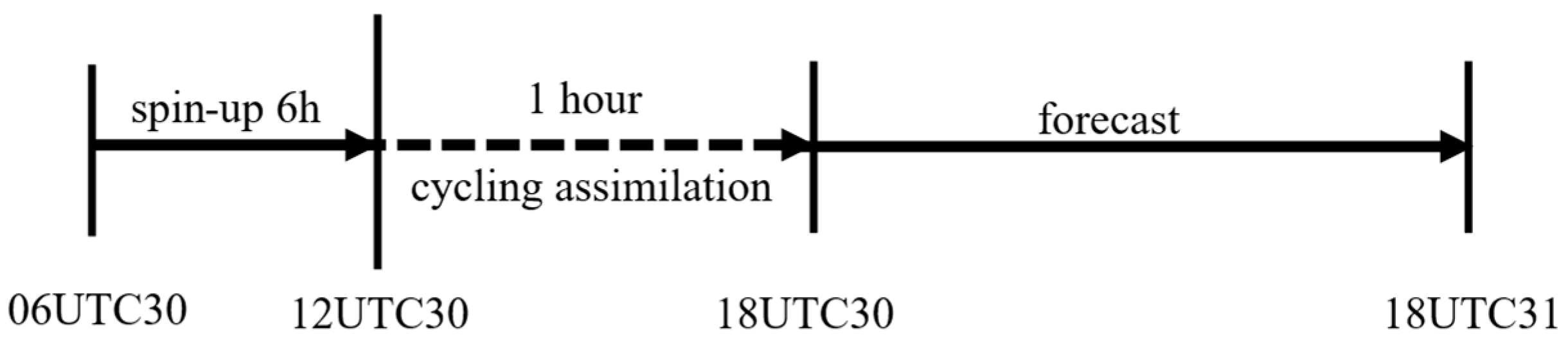

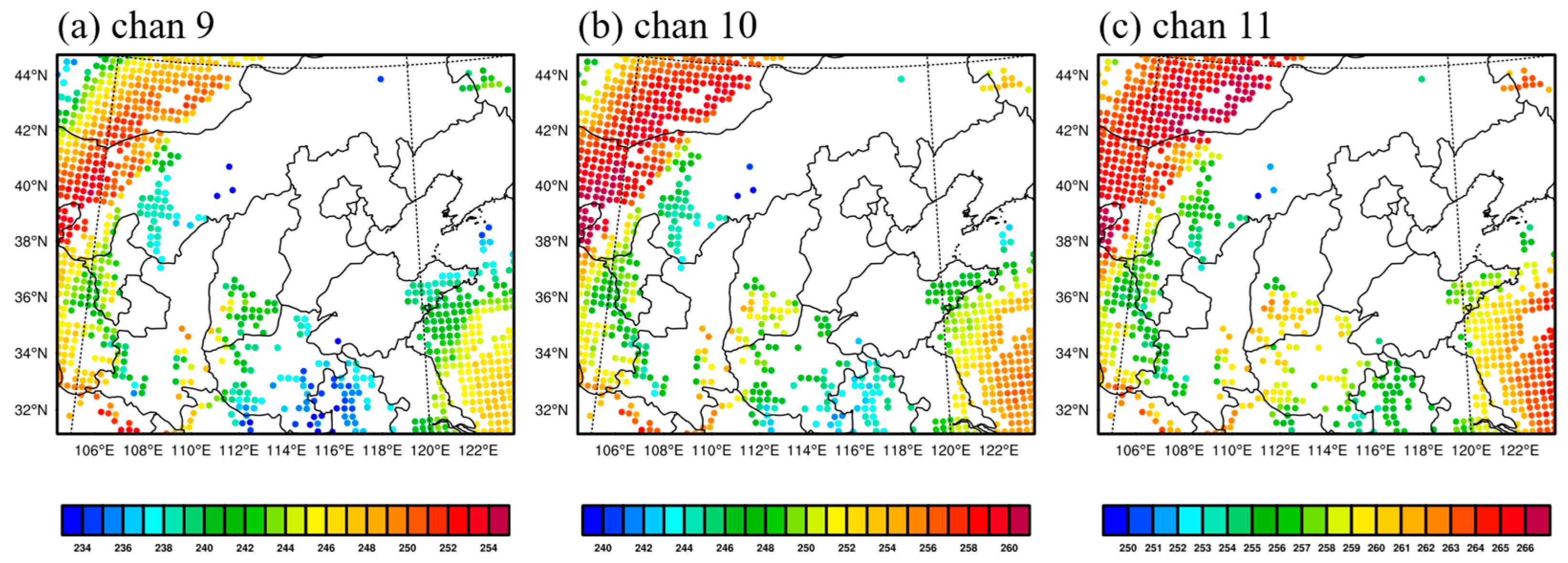

The main precipitation period from 0600 UTC on 30 July to 1800 UTC on 31 July 2023 is selected as the experiment period for assimilation experiments. As shown in the flowchart (Figure 4), a 6 h spin-up is conducted at 0600 UTC on 30 July before the assimilation. Subsequently, hourly data assimilation cycles are performed from 1200 UTC on 30 July to 1800 UTC on 30 July. At the final analysis, a 24 h forecast is carried out from 1800 UTC on July 30 to 1800 UTC on July 31. CV7 scheme of the National Meteorological Center (NMC) [56], which includes the control variables u, v, temperature, pseudo relative humidity (RH_s), and surface pressure (P_s), is selected to generate the BE statistics. These statistics are based on 24 h to 12 h forecast results from 16 July to 15 August 2023, for both d01 and d02.

For assimilation experiments, conventional observations and AGRI clear-sky radiance data from water vapor channels are utilized. Since heavy rainfall over land exhibits stronger local characteristics and more rapid evolution, 1 h assimilation interval is selected for the assimilation scheme. To explore the impact of FY-4B AGRI clear-sky assimilation, a set of comparative experiments is designed (

Table 2. Experiment setup.

Experiment Name	Assimilated Data
CTRL	Conventional observations data assimilation for d01 and d02
DA_wv123	The same as CTRL, but assimilating additionally AGRI clear-sky radiance in d02
DA_2step_wv123	The same as DA_wv123, but firstly assimilating conventional observations in d02

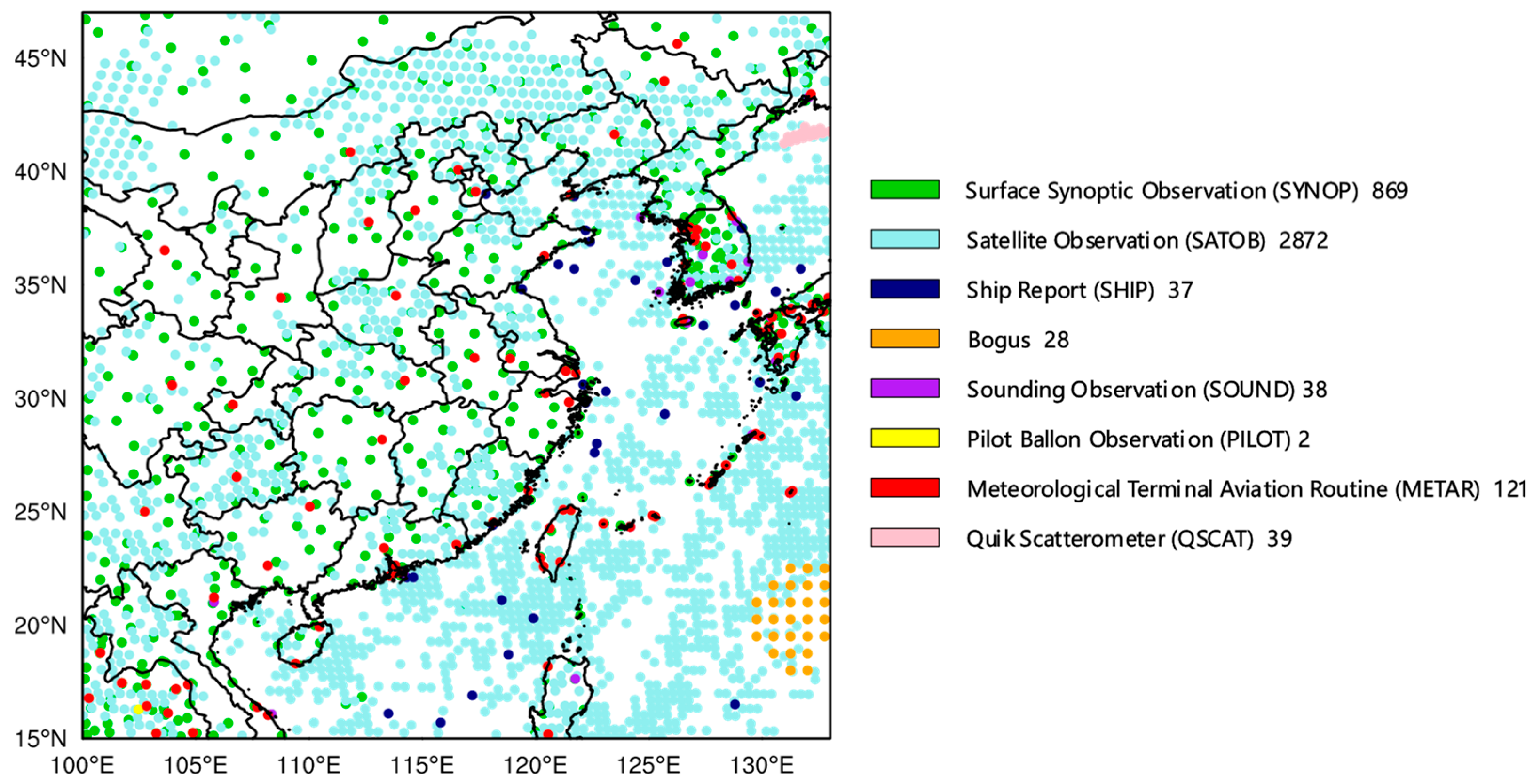

). The first experiment (after as CTRL) assimilates only conventional observations in d01 and d02. Figure 5 shows the distribution of assimilated conventional observations in d01 at 1200 UTC on 30 July, which can be seen to cover the simulation area. The second experiment (DA_wv123) builds upon CTRL by additionally assimilating AGRI clear-sky radiance from water vapor channels 9, 10, and 11 in d02. With the clear-sky assimilation scheme, observations affected by clouds are rejected (Figure 6). Furthermore, in order to achieve better satellite assimilation effects, a two-step assimilation approach is adopted in this study. In d02, conventional observations are assimilated at first to preliminarily improve the initial conditions, thereby facilitating more effective assimilation of subsequent data in the second step. This approach has been further supported and validated by the study of Xu et al. [57], which confirmed that convective-scale information is better captured when conventional and satellite observations are assimilated through this two-step process. Therefore, the third experiment (DA_2step_wv123) is based on DA_wv123 by first assimilating conventional observations in d02.

4. Experimental Results

4.1. Impact on the Analysis

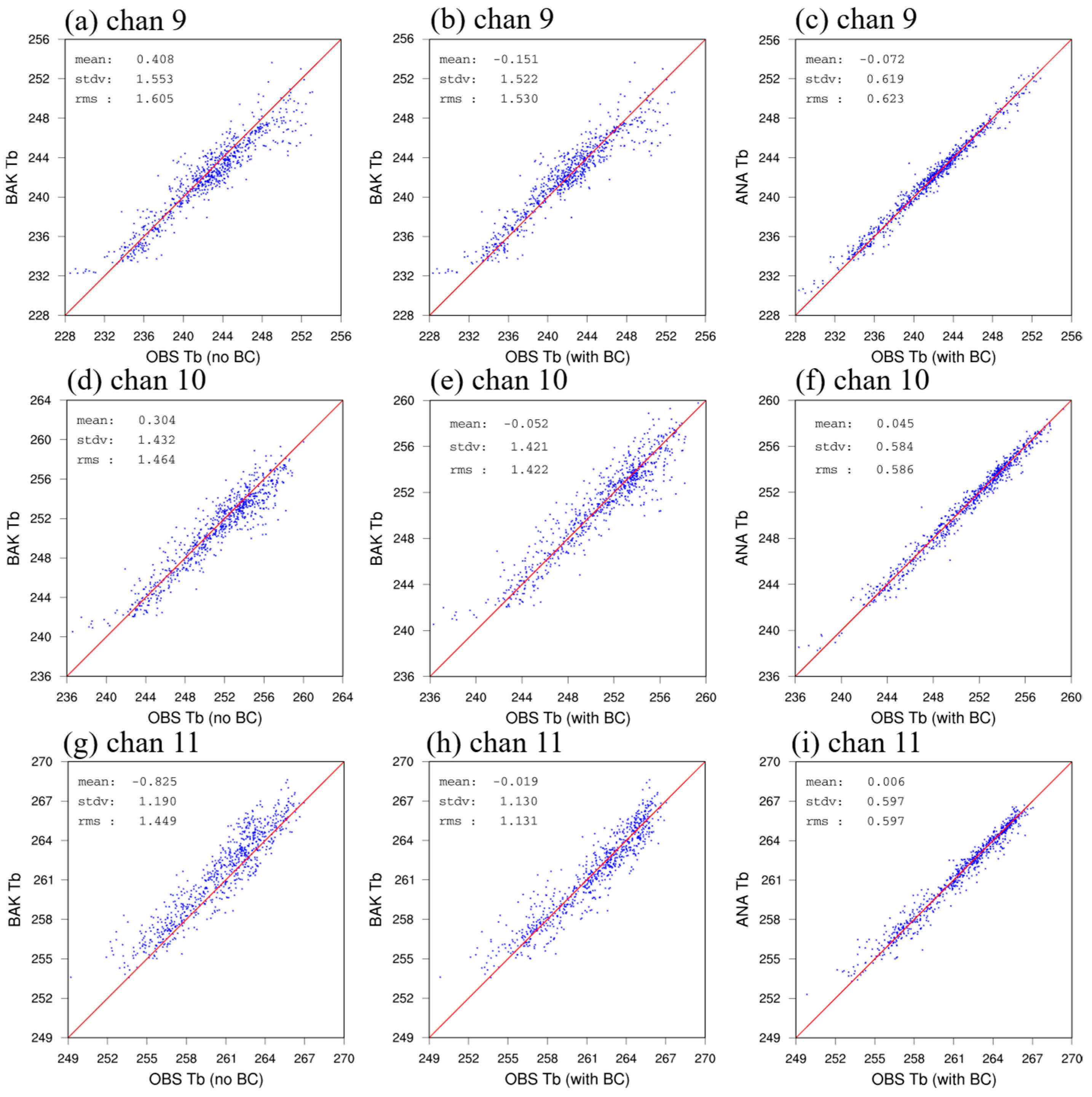

Figure 7 shows the scatter distribution of observation versus background or analysis at 1800 UTC on 30 July of DA_wv123, illustrating an example used to evaluate the bias correction scheme for AGRI data. Without bias correction, there is a positive bias for channels 9 and 10 (Figure 7a,d), while a negative bias is observed for channel 11 (Figure 7g). It means that, before BC, the background simulated brightness temperatures (TBs) from channels 9 and 10 are generally lower than the observations, but that of channel 11 is higher than the observations. From Figure 7b,e,h, there is a significant decline in the mean bias, standard deviation, and root mean square error (RMSE) for all channels after bias correction. Scatter points corresponding to observed and simulated TBs are more evenly distributed on both sides of the diagonal. It proves that the BC scheme is effective for AGRI data. After data assimilation (Figure 7c,f,i), the scatter points of the analysis are more concentrated along the diagonal. The mean bias for the three channels nearly decreases to 0, while the RMSEs are significantly reduced by about 60% for channel 9 and channel 10, and 50% for channel 11. This indicates that AGRI assimilation substantially improves the analysis field.

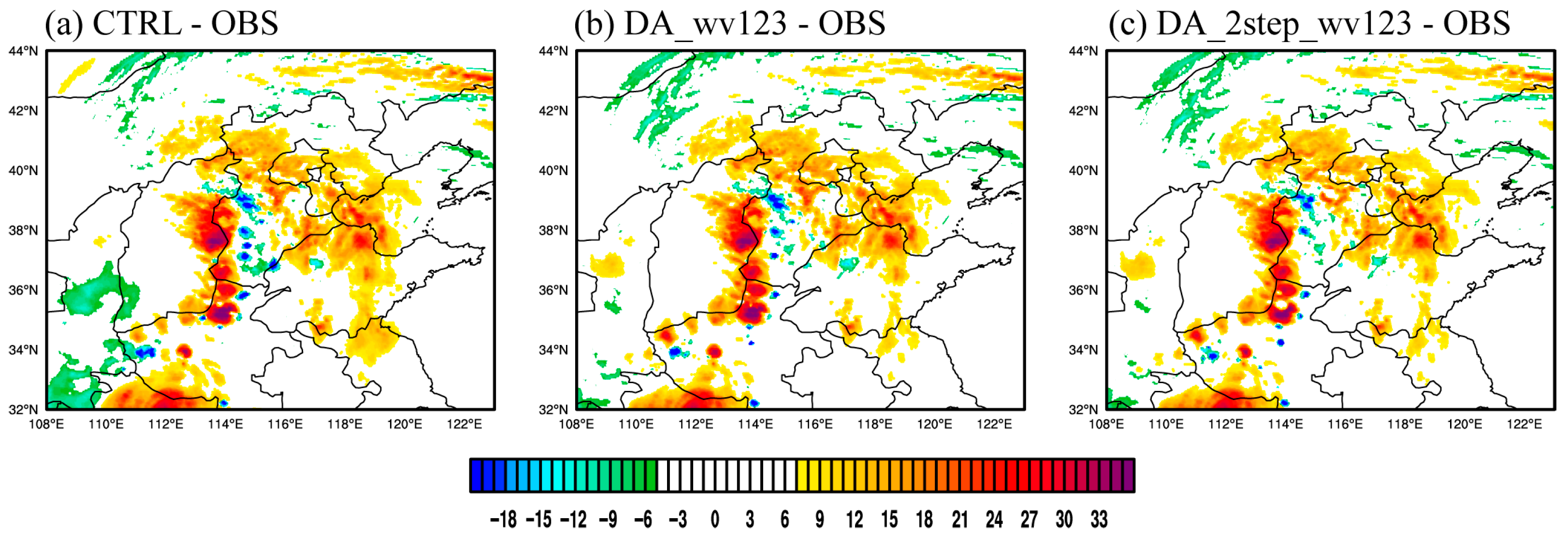

The differences between the simulated channel 9 TBs (with cloudy CRTM) from CTRL, DA_wv123, and DA_2step_wv123 analyses and the observed TBs from AGRI observation are plotted in Figure 8, respectively. It can be observed that the simulated TB from all assimilation experiment analyses shows a clear underestimation in central Hebei, with a negative bias, while it shows an overestimation at the Shanxi–Hebei border (Figure 8). The large positive bias means that all analyses are drier than the observations, leading to the precipitation underestimation in this area. Compared to CTRL (Figure 8a), after AGRI assimilation, both DA_wv123 (Figure 8b) and DA_2step_wv123 (Figure 8c) effectively reduce the TB differences in Shaanxi, northern Jiangsu, Shandong and southern Hebei, bringing the simulation TBs closer to observations. In central Hebei, the different distributions of CTRL and DA_wv123 are similar, while the difference between DA_2step_wv123 and AGRI observation has markedly reduced, making it closer to the observations.

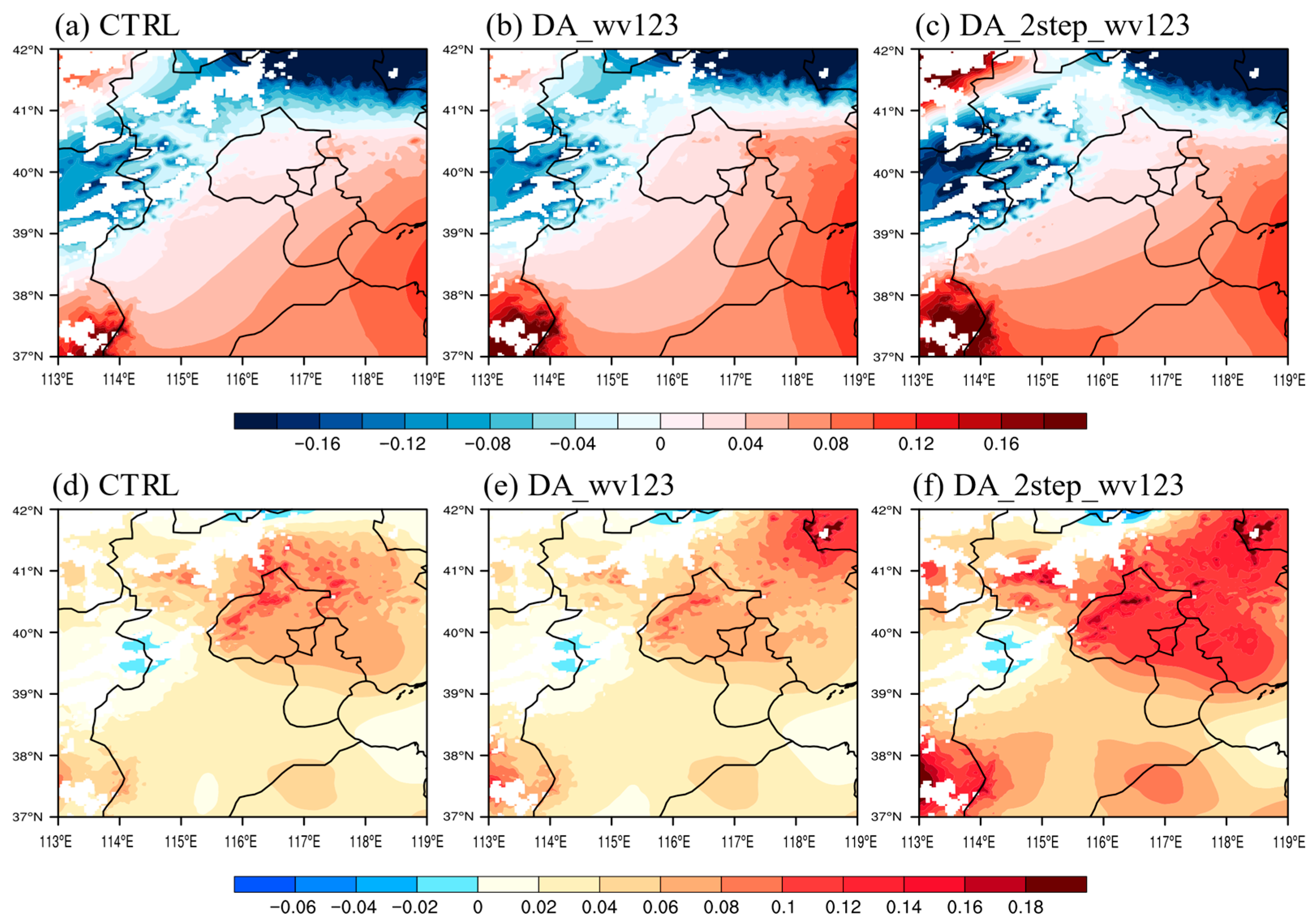

Figure 9 shows the 850 hPa analysis increments of temperature and QVAPOR at 1800 UTC on 30 July 2023. As can be seen in Figure 9a–c, most of the BTH region is dominated by positive analysis temperature increments, contrasting with the negative increment in Northern Hebei. The significant temperature gradient creates favorable thermal conditions for precipitation. Compared with CTRL, DA_wv123 and DA_2step_wv123, which assimilate AGRI data, markedly enlarge the positive increment center and extend its influence to Hebei. Moreover, DA_2step_wv123 produces a warmer center and a sharper temperature gradient than DA_wv123, thereby enhancing low-level instability and creating advantageous thermodynamic conditions for the heavy rainfall event.

Figure 9d–f show that nearly the entire BTH region exhibits a positive QVAPOR increment, demonstrating that data assimilation effectively improves the moisture field, particularly with AGRI assimilation delivering the most marked benefit. Compared with CTRL and DA_wv123, DA_2step_wv123 generates a larger and stronger positive increment area over the BTH and southwest regions, thereby strengthening low-level water vapor and enhancing water vapor prediction.

In summary, AGRI assimilation experiments outperform CTRL, which uses only conventional observations, in improving the analysis of temperature and humidity, with DA_2step_wv123 having the most significant effect.

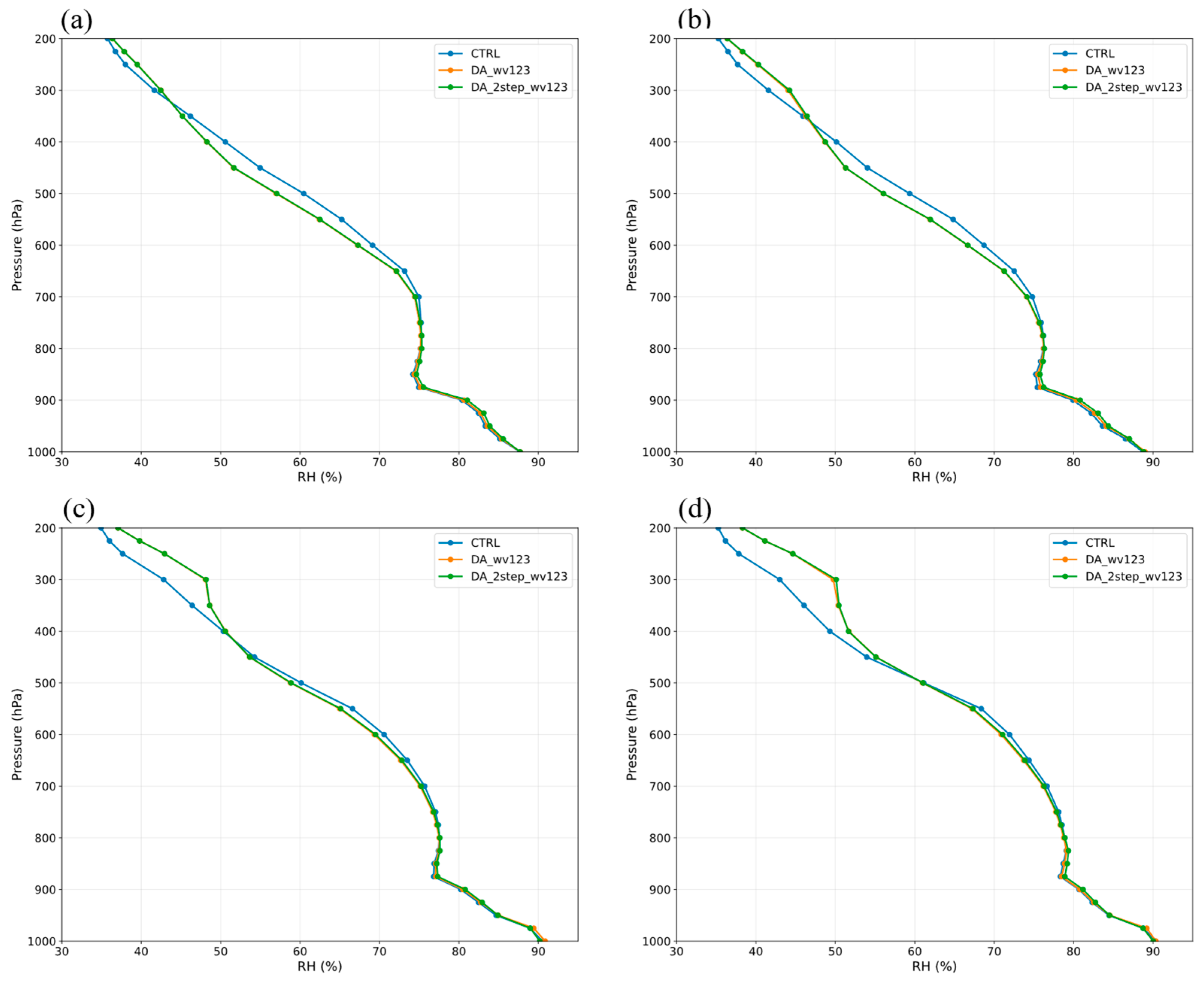

Figure 10 presents domain-averaged vertical distributions of relative humidity from four analyses across three experiments. At the initial cycle (Figure 10a), AGRI assimilation only brings slight humidification below 700 hPa and above 300 hPa, while the middle troposphere shows drier conditions than CTRL. However, with the increase in assimilation cycling, it can be observed that the effects of AGRI assimilation become increasingly pronounced (Figure 10b,d). Compared to the initial assimilation time (Figure 10a), the distributions of relative humidity show a marked enhancement from the lower to upper troposphere, particularly above 450 hPa in the upper atmosphere. Furthermore, it is noted that, from the first assimilation to the final one, the lower bound of significant humidification in the upper level is dropped from 300 hPa to 500 hPa. This indicates that changes in humidity caused by AGRI assimilation propagate from the upper to lower levels with assimilation cycling.

4.2. Impact on the Forecasts

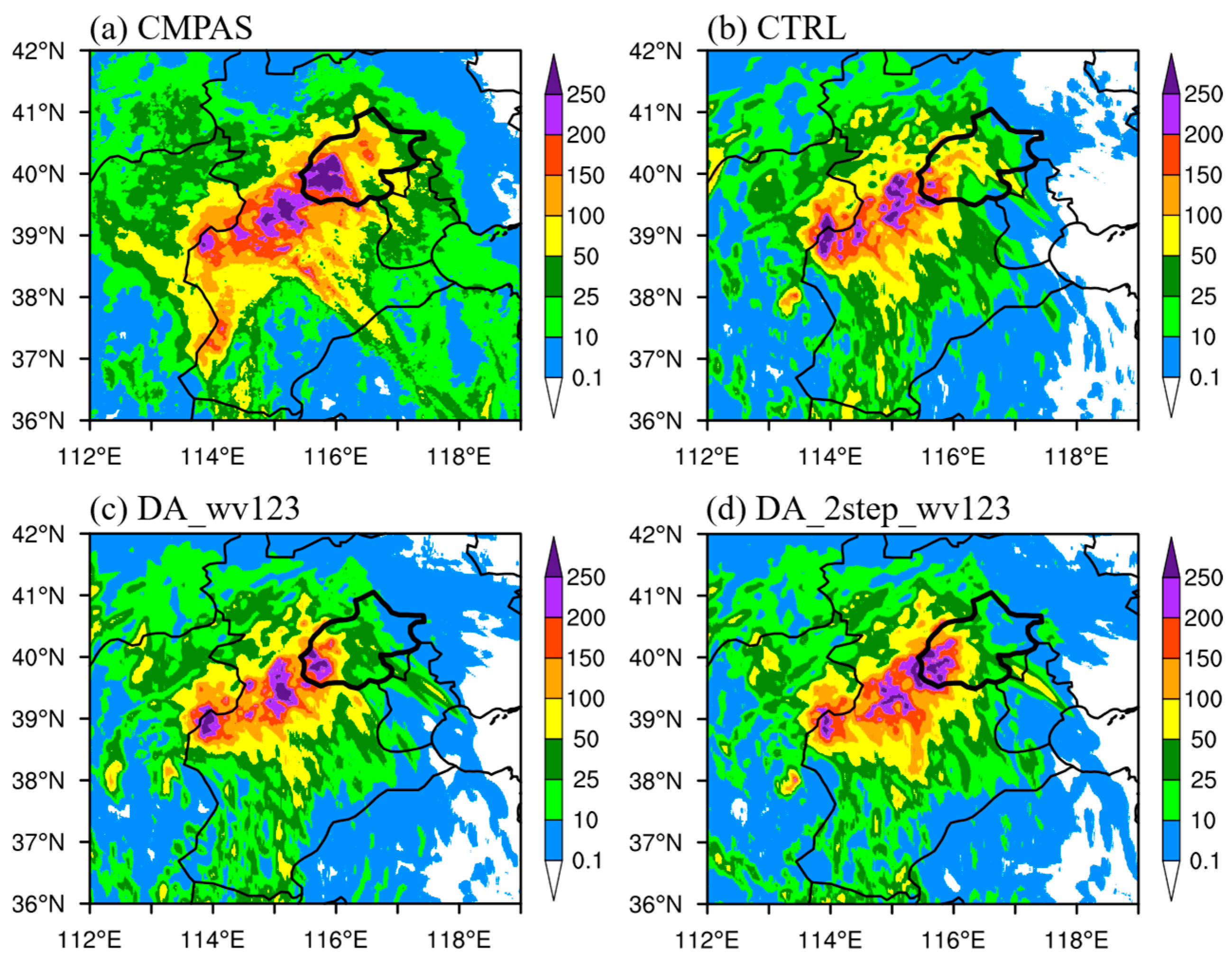

Figure 11 displays the 24 h accumulated precipitation from 1800 UTC on 30 July to 1800 UTC on 31 July 2023. According to the CMPAS estimation (Figure 11a), this heavy rainfall event exhibits a pronounced northeast–southwest-oriented banded distribution, with an extreme rainfall center exceeding 250 mm located in central Hebei and western Beijing, respectively, causing severe flooding in the BTH region. While all three experiments reasonably capture the overall orientation of the rainband, significant discrepancies are observed in their simulations of the heavy precipitation centers. CTRL notably underestimates both the intensity and spatial extent of precipitation. The maximum rainfall near Beijing is below 250 mm, and the heavy precipitation center in central Hebei appears scattered and shifted northward (Figure 11b). Compared with CTRL, with AGRI assimilation, DA_wv123 slightly expands the coverage of the precipitation center in central Hebei and western Beijing (Figure 11c). DA_2step_wv123, which adopts a two-step assimilation strategy, successfully reproduces independent heavy precipitation centers along the Shanxi–Henan border (Figure 11d). Meanwhile, it shows good agreement with the observation in terms of the precipitation center location in central Hebei. Moreover, both the location and intensity of the simulated precipitation center in Beijing are closer to the observation compared to those in other experiments.

Furthermore, to quantitatively evaluate the precipitation simulation performance, the performance diagram method is adopted [58]. This comprehensive approach simultaneously examines four key verification metrics: Probability of Detection (POD), False Alarm Ratio (FAR), BIAS, and Critical Success Index (CSI). The mathematical expressions are defined below:

$$\begin{gathered} \mathrm{P}\mathrm{O}\mathrm{D}={\displaystyle \frac{TP}{TP+FN}},\mathrm{F}\mathrm{A}\mathrm{R}={\displaystyle \frac{FP}{TP+FP}} , \\ \mathrm{B}\mathrm{I}\mathrm{A}\mathrm{S}={\displaystyle \frac{TP+FP}{TP+FN}},\mathrm{C}\mathrm{S}\mathrm{I}={\displaystyle \frac{TP}{TP+FN+FP}} , \end{gathered}$$

(3)

where TP, FN, and FP denote the grid number of hits, misses, and false alarms, respectively. The CSI value spans from 0 to 1, with higher values signifying greater precipitation forecast accuracy. The BIAS quantifies systematic deviations, where BIAS > 1 reflects overestimation, BIAS < 1 indicates underestimation, and BIAS = 1 represents perfect agreement with observations.

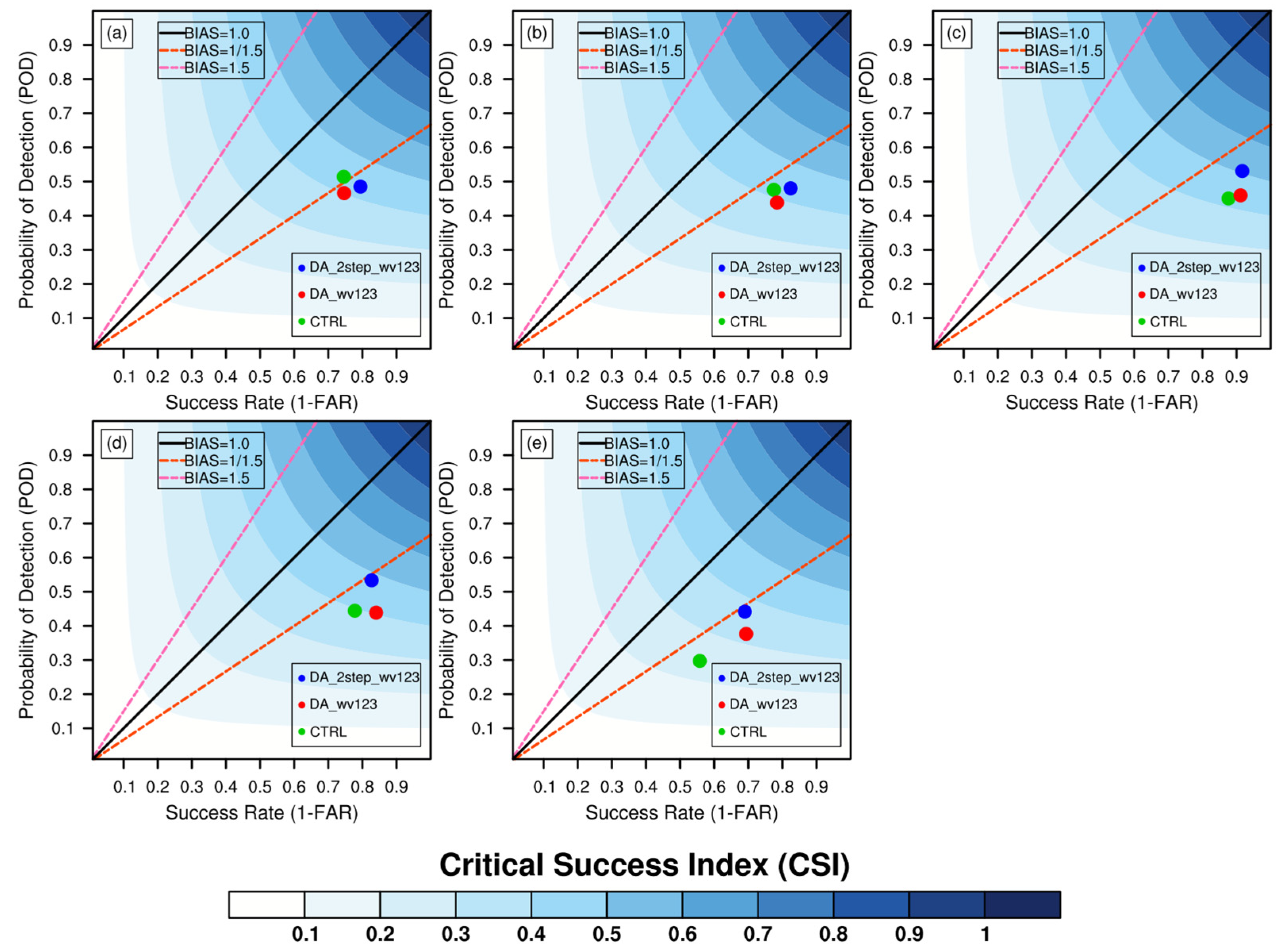

Figure 12 shows the performance diagram for the 24 h accumulated precipitation from 1800 UTC on 30 July to 1800 UTC on 31 July 2023, using the same domain as in Figure 10. The exact values of TP, FN, and FP for each experiment are shown in Table S1 (in Support Material). All three experiments exhibit underestimation in both the intensity and spatial coverage of precipitation (Figure 11b,d), as evidenced by BIAS values consistently around 1/1.5, suggesting a substantial systematic underestimation of rainfall. At lower thresholds of precipitation (Figure 12a,b), the differences among the three assimilation experiments are marginal. By contrast, a distinct shift in result emerges as the precipitation threshold increases (Figure 12c–e), particularly for heavy rainfall events. Compared with CTRL, DA_wv123 shows better simulation capability. Moreover, DA_2step_wv123 demonstrates the best results across all verification metrics, with higher CSI and POD values, and BIAS values closer to 1. Therefore, quantitative precipitation analysis further supports that AGRI assimilation also has a positive impact on heavy rainfall forecasts, and DA_2step_wv123 outperforms other experiments.

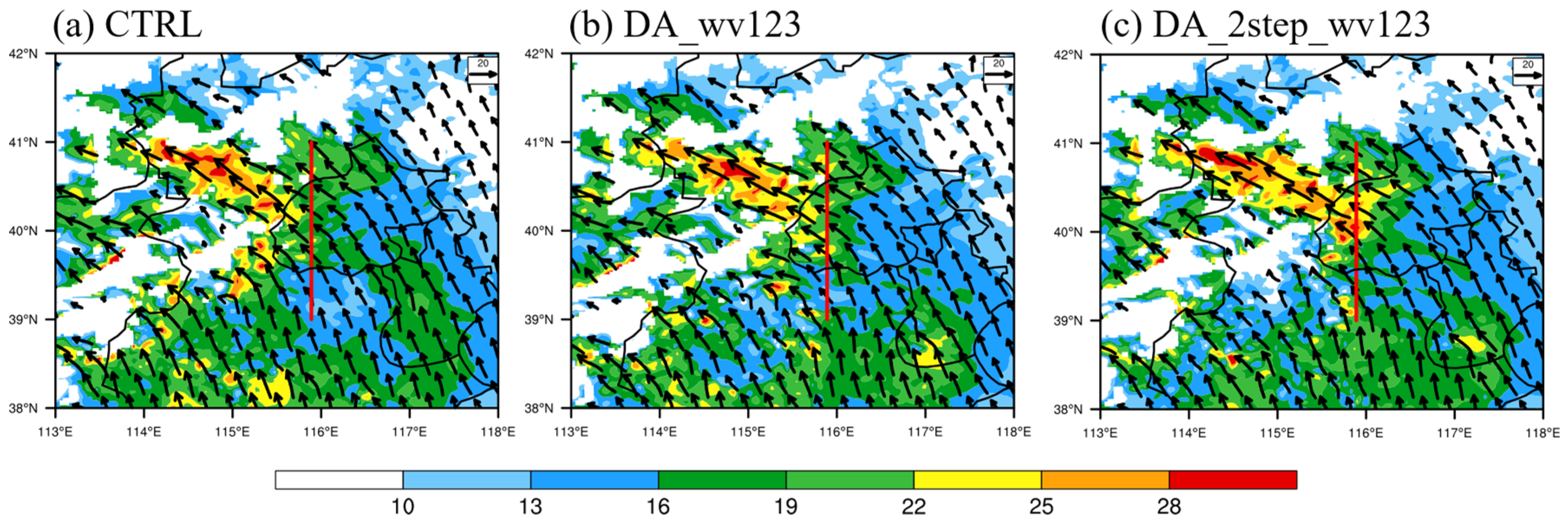

Abundant water vapor is a prerequisite for persistent heavy rainfall. Typhoon Khanun continuously transports substantial water vapor from the southeast to the precipitation zone. As shown in Figure 13, high water vapor fluxes are primarily distributed in a banded pattern across northern Hebei, which can be attributed to the valley effect induced by the local terrain. When water vapor transported by Typhoon Khanun flows through the constricted topographic passageway, the airflow is forced to accelerate. This acceleration enhances water vapor flux, resulting in the observed banded high-value distribution. Both CTRL (Figure 13a) and DA_wv123 (Figure 13b) exhibit relatively weak water vapor flux over the Beijing area, while DA_2step_wv123 (Figure 13c) maintains strong flux in the western part of Beijing, supplying more abundant moisture to the precipitation zone. This moisture supply is conducive to the development of heavy rainfall over Beijing, and can thereby accurately simulate the intensity of the precipitation to a certain extent.

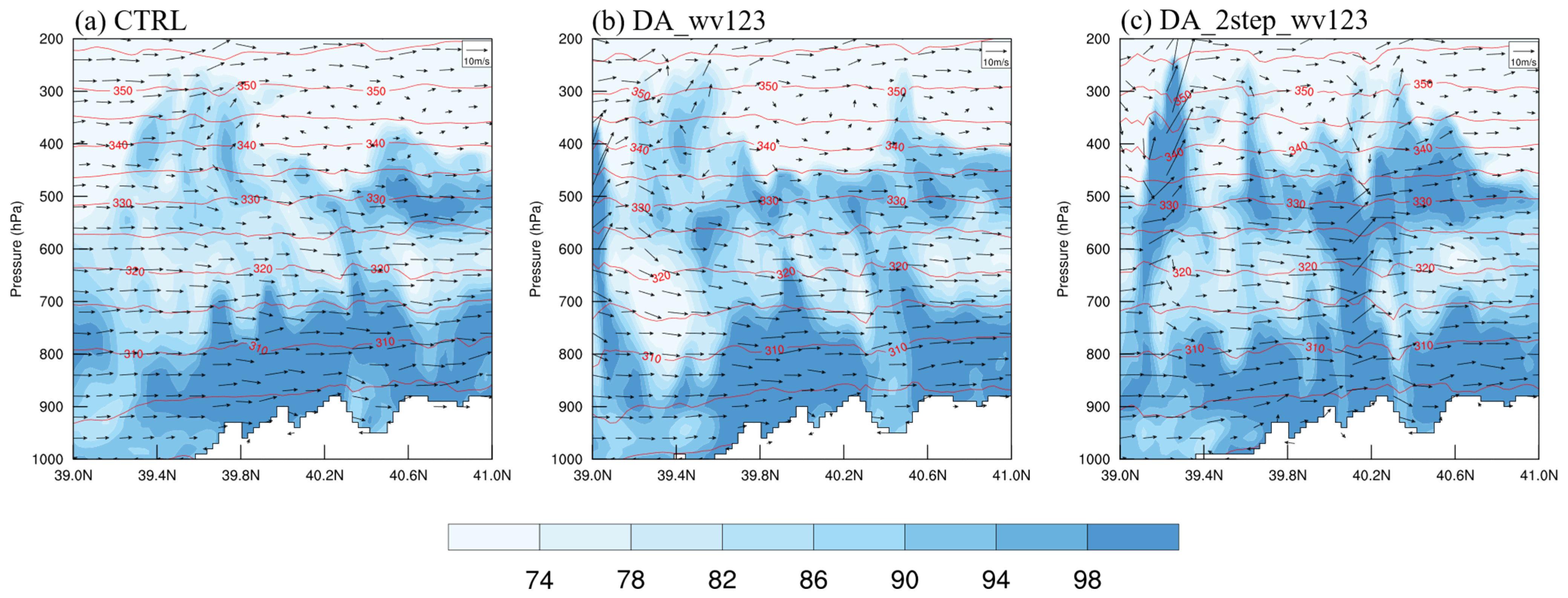

Figure 14 shows the north–south vertical structures of relative humidity, equivalent potential temperature (EPT), and meridional–vertical circulation through the center of the rainstorm system at approximately 115.89°E. Notably, all three experiments exhibit the airflow ascent in the area in front of the mountain range, yet distinct differences emerge in moisture, thermodynamics, and dynamic lifting. Below 700 hPa, favorable humidity conditions are present in all experiments. However, in the CTRL, the mid-to-upper levels are relatively drier compared to the lower levels (Figure 14a). Moreover, the EPT changes rather gently, with weaker upward motion, suggesting weaker convective activity, which may lead to the underestimation of simulated precipitation intensity. In contrast, DA_wv123 exhibits improved mid-level moisture conditions compared to CTRL, along with more obvious EPT variation (Figure 14b). Additionally, regions around 39°N with higher relative humidity display steeper EPT gradients and more pronounced ascending motion, indicating enhanced convective instability. Furthermore, DA_2step_wv123 further adjusts EPT, humidity, and meridional–vertical circulation structure, resulting in consistently high humidity conditions from the lower to the upper levels (Figure 14c). At 39.2°N and 40.2°N, the area of most vigorous convective activity corresponds well with the region of high humidity and strong EPT gradients, which are conducive to precipitation formation. Moreover, a distinct drop in EPT is observed at 40.3°N, likely caused by the intrusion of dry, cold air into the lower levels, further intensifying convective instability. Therefore, AGRI assimilation demonstrates a notable advantage in capturing heavy rainfall, especially DA_2step_wv123.

5. Sensitivity Experiments

The above results have proved that AGRI’s three water vapor channel assimilation is beneficial for precipitation forecast. Actually, channel 11 at 7.42 μm is a newly added water vapor channel in FY-4B. The impact of the addition of channel 11 is also worth evaluating. Following the two-step assimilation configuration as DA_2step_wv123, an additional experiment is constructed, but assimilating only water vapor channels 9 and 10 as DA_2step_wv12. By comparing these two experiments, channel 11’s specific contribution is investigated.

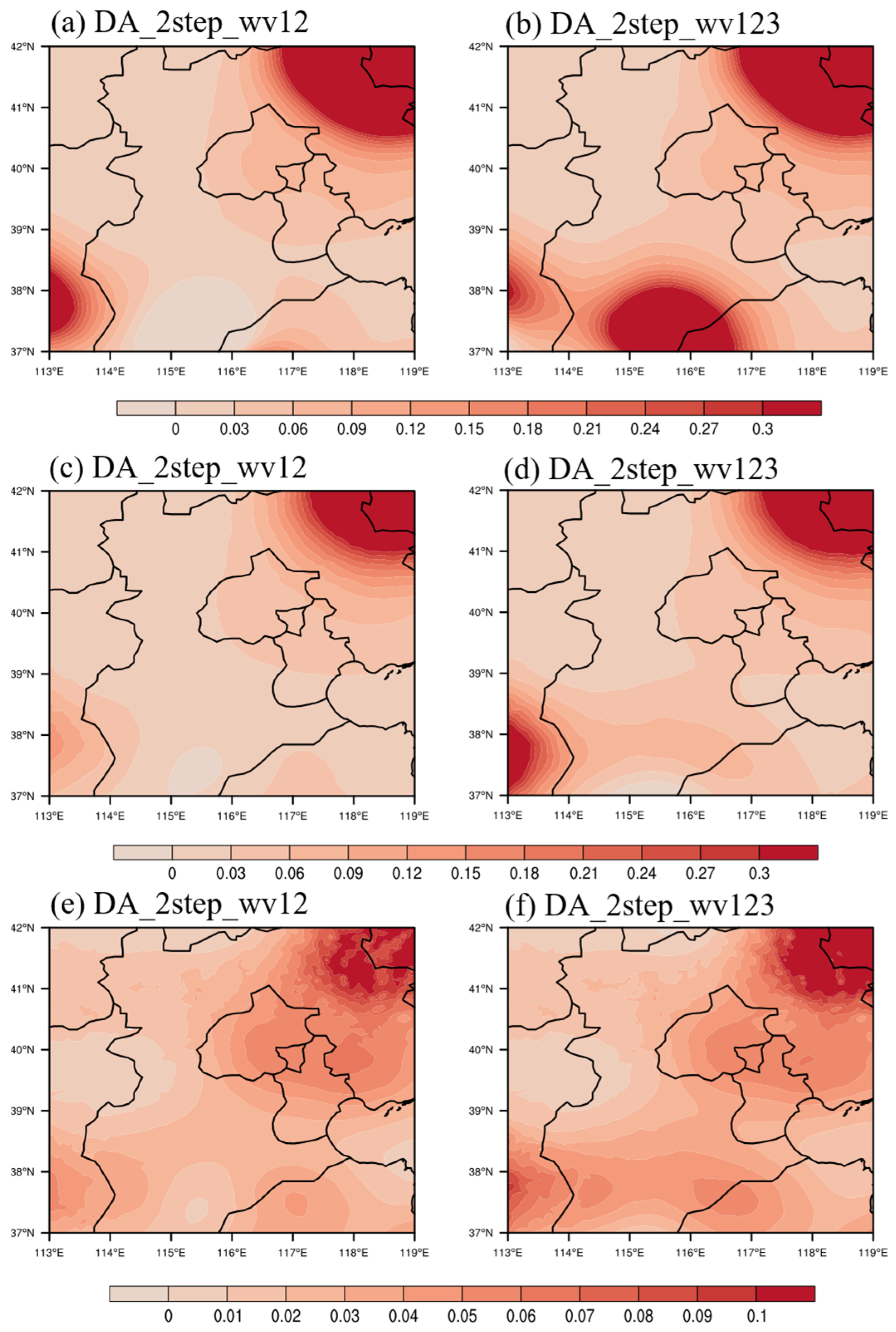

Figure 15 shows the QVAPOR analysis increments of DA_2step_wv12 and DA_2step_wv123 at 200 hPa, 500 hPa, and 700 hPa at 1800 UTC on 30 July 2023. With AGRI assimilation, both DA_2step_wv12 and DA_2step_wv13 show positive increments from low to upper levels in the water vapor field over North China (Figure 15). However, compared with DA_2step_wv123 (Figure 15b,d,f), DA_2step_wv12 (Figure 15a,c,e) exhibits generally weaker and less organized increments across all levels. At 200 hPa, DA_2step_wv12 shows a more limited spatial coverage and a smoother gradient (Figure 15a), whereas DA_2step_wv123 presents stronger, more widespread positive increments with sharper gradients (Figure 15b). The 500 hPa and 700 hPa show similar patterns of increments (Figure 15c–f), but with different intensities, whereas DA_2step_wv12 shows relatively weaker intensities and less defined gradients (Figure 15c,e) than DA_2step_wv123 (Figure 15d,f). Overall, the QVAPOR increments in DA_2step_wv12 are generally weaker and less pronounced than those in DA_2step_wv123. It is clear that DA_2step_wv123, with the new channel 11 assimilation, has effectively optimized the moisture field, resulting in a higher-quality analysis field and promising more accurate results.

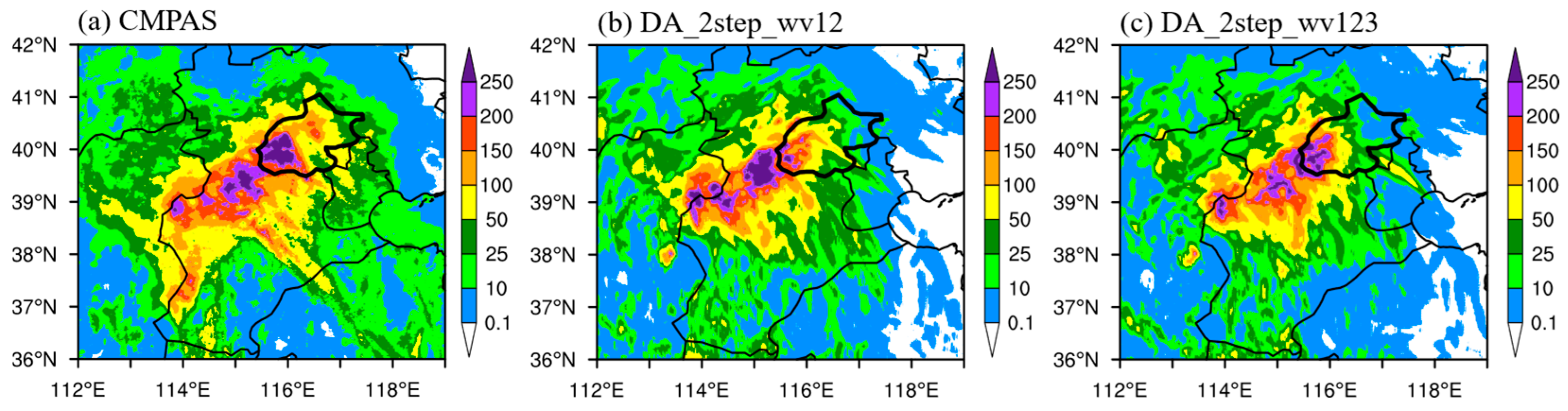

Figure 16 shows the 24 h accumulated precipitation from 1800 UTC on 30 July to 1800 UTC on 31 July 2023. Compared to CMPAS estimation (Figure 16a) and DA_2step_wv123 (Figure 16c), DA_2step_wv12 (Figure 16b) produces a stronger and more northerly concentrated precipitation center in central Hebei, while a weaker center over the western part of Beijing. It demonstrates that the assimilation of low-level water vapor channel 11 can lead to substantial improvements in reproducing the precipitation center, with both spatial positioning and intensity aligning closely with CMPAS estimation. These results highlight the critical role of assimilating channel 11 in heavy rainfall simulations.

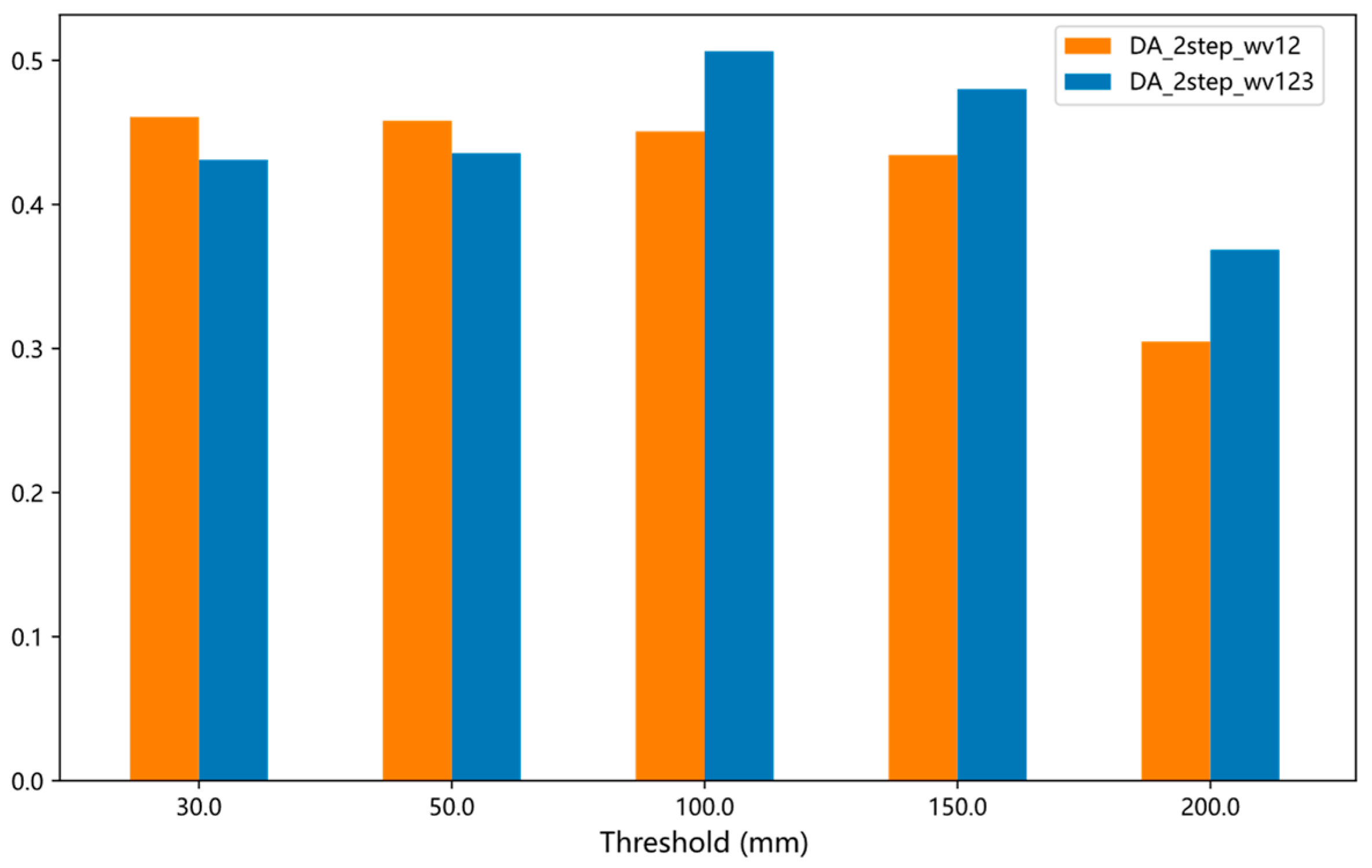

As shown in Figure 16, compared to DA_2step_wv123, DA_2step_wv12 has larger rainfall coverage below 50 mm accumulated precipitation in southern Hebei and northern Shandong, more closely aligning with the CMPAS. As a result, it creates higher CSI values at 30 mm and 50 mm (Figure 17). In contrast, at large thresholds (>100 mm), DA_2step_wv123 better captures the spatial distribution and intensity of heavy precipitation in central Hebei and western Beijing compared to the DA_2step_wv12 (Figure 16). Therefore, it achieves significantly higher CSI values, underscoring its decisive advantage in forecasting the extremely heavy rainfall. This enhanced capability stems primarily from the assimilation of channel 11 data, which provides critical low-level moisture information. The marked improvement in both quantitative precipitation estimation quality and heavy rainfall forecasting highlights the indispensable role of channel 11 in heavy rainfall prediction.

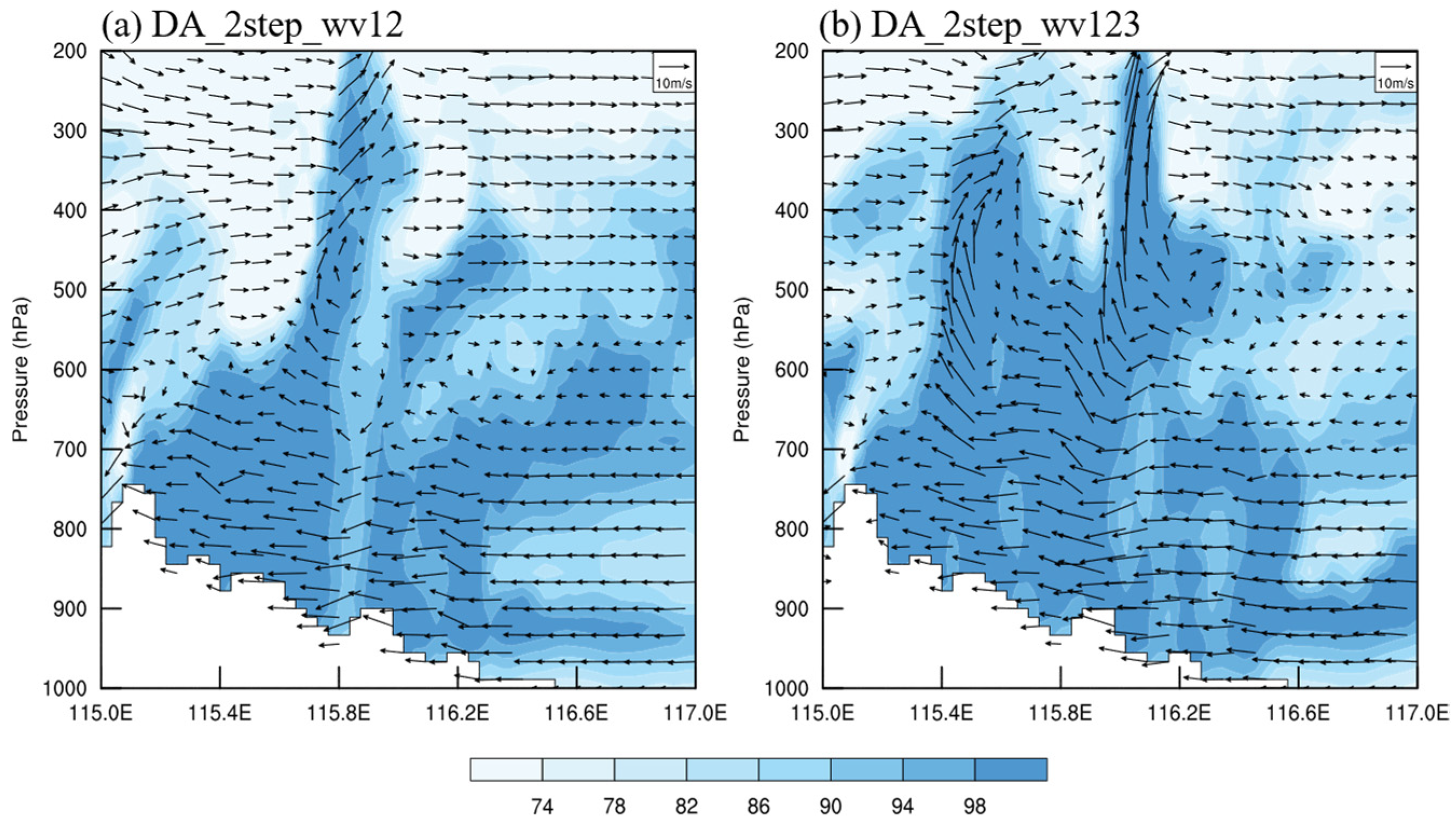

Due to topographic blocking by the Taihang Mountains, low-level easterly winds generate strong convergent uplift over the piedmont plain and windward slopes, which facilitates the accumulation of moisture and leads to higher relative humidity in this region (Figure 18). In the DA_2step_wv12, distinct ascending motion is observed between 600 hPa and 200 hPa, and this ascending zone corresponds well with the areas of high humidity and actual precipitation (Figure 18a). Compared to DA_2step_wv12, the DA_2step_wv123 exhibits two significant ascents induced by the stronger easterly flow, which are located at two sides of the ascending region of DA_2step_wv12. Additionally, the eastern ascending motion extends higher and develops stronger, further enhancing moisture accumulation (Figure 18b). From the lower to the upper levels, high humidity conditions are maintained, indicating more favorable moisture conditions. Combined with the intense ascending flow, these conditions ultimately lead to enhanced precipitation in Beijing.

6. Conclusions and Discussion

The FY-4B AGRI assimilation module is self-developed within the WRFDA v4.4 system, including the CRTM model, the VarBC scheme, and quality control methods. In order to evaluate the impact of AGRI clear-sky assimilation on heavy rainfall, a case study was conducted for the “23 · 7” heavy rainfall in 2023.

Data from channels 9, 10, and 11 from AGRI and conventional observations were directly assimilated into assimilation experiments. Compared to CTRL, which assimilated only conventional observations, AGRI assimilation showed more significant improvements in the analysis fields. After data assimilating AGRI water vapor channel data, the RMSE of observed and simulated TBs from the analysis decreased by 50–60%. Moreover, AGRI assimilation improved the analysis of temperature and humidity. Furthermore, with the increase in assimilation cycling, changes in humidity analysis caused by AGRI assimilation propagated from the upper to lower levels. Based on preliminary results from an additional conventional-observation assimilation, DA_2step_wv123 achieved lower RMSE and further improved temperature and humidity analyses.

With the improved initial condition, AGRI assimilation experiments exhibited higher humidity and stronger EPT gradients than CTRL, which are conducive to precipitation formation. Combined with improved depiction of dynamic and thermodynamic processes, assimilation experiments produced more realistic simulations of both the location and intensity of precipitation. In particular, DA_2step_wv123 outperformed other experiments on the heavy rainfall in Beijing.

The assimilation effect of the newly added low-level water vapor channel 11 was also discussed. Compared with DA_2step_wv123, DA_2step_wv12 without channel 11 showed weaker water vapor increments and smaller CSI values for heavy rainfall. It proved that channel 11 had a significant impact on the analysis fields of humidity, playing a crucial role in enhancing AGRI assimilation performance. Moreover, the incorporation of channel 11 significantly improved both the location and intensity forecasts of precipitation.

Additional sensitivity experiments were also conducted to investigate different assimilation schemes, such as implementing seven predictors for BC, excluding “total water vapor”, and assimilating AGRI data in two domains. However, these experiments showed a larger RMSE between observed and simulated brightness temperatures after BC, resulting in more inaccurate rainfall predictions (Figures S1–S5 in Supplementary Materials).

This study represents an assessment of FY-4B AGRI water vapor channel data assimilation in extreme rainfall forecasts with a self-developed WRFDA module. To further enhance analysis and forecast quality, future efforts should focus on refining quality control and bias correction schemes for AGRI radiance. While this study employed clear-sky radiance assimilation with 3D-Var, more advanced techniques such as 4D-Var, hybrid assimilation, and all-sky data assimilation could be explored to extract atmospheric information more effectively. Additionally, this study assimilated only water vapor channel observations over land, while the potential benefit of other infrared channels for severe weather forecasts is also worth exploring.
