# Spectral Clustering of CRISM Datasets in Jezero Crater Using UMAP and k-Means

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Data and Location

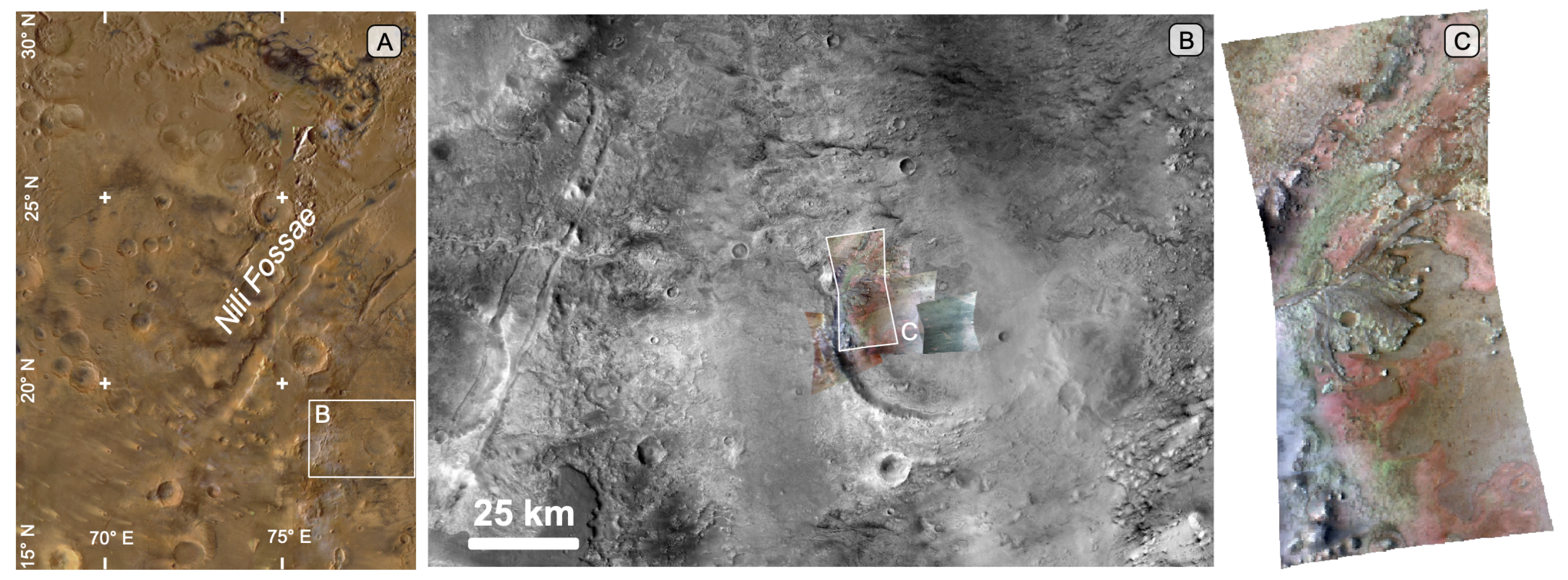

**Figure 1.**Location map of used cubes in the present work. (

**A**) HRSC MC-13 quadrant color basemap [44]: of Nili Fossae and surrounding areas, including Jezero, in the highlighted subset. (

**B**) Jezero Crater CTX mosaic [45,46] with indicated CRISM observation HRL000040FF, highlighed in white of overlapping CRISM MTRDR data covering its delta. (

**C**) IR enhanced color composite (FAL) using as RGB R2529, R1506, R1080 [26] for CRISM observation HRL000040FF.

#### 2.2. Dimensionality Reduction

#### 2.3. Data Pipeline

#### 2.4. Quantitative Metrics

## 3. Results

#### 3.1. Quantitative Analysis

#### 3.2. Qualitative Analysis

## 4. Quantitative Geological Mapping

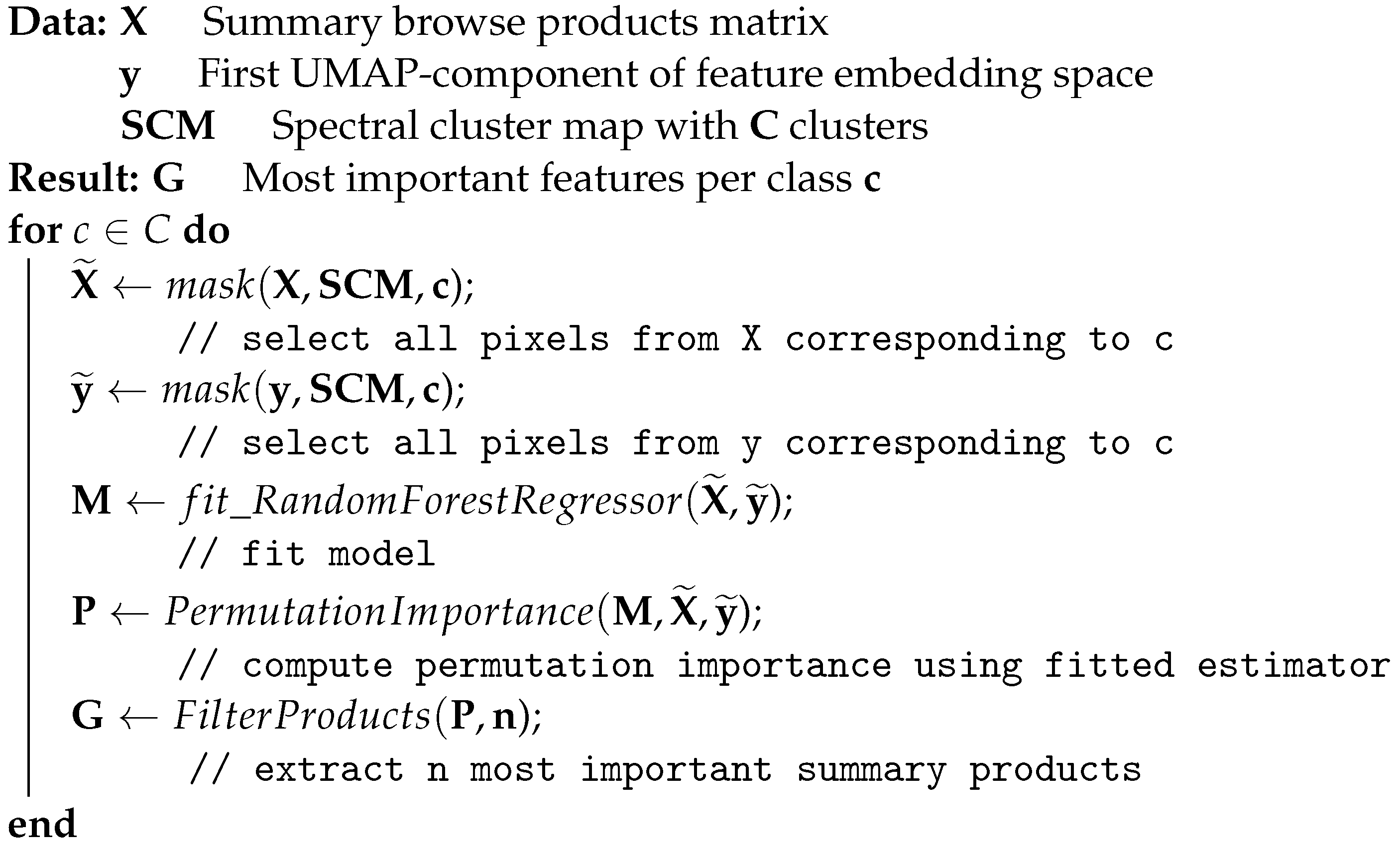

Algorithm 1: Quantitative geological mapping |

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

CRISM | Compact Reconnaissance Imaging Spectrometer |

DB | Davies-Bouldin |

GMM | Gaussian Mixture model |

MRO | Mars Reconnaissance Orbiter |

MTRDR | Map-projected Targeted Reduced Data Record |

PCA | Principal omponent analysis |

SC | Silhouette Coefficient |

SCM | Spectral Cluster Map |

t-SNE | t-distributed Stochastic Neighbor Embedding |

UMAP | Uniform Manifold Approximation and Projection |

## Appendix A

#### Appendix A.1

**Table A1.**Mean of the Calinski-Harabasz and Davies-Bouldin criterion over a range of 5 to 20 clusters for the FRT0000c564 dataset, split by method. The best score for each coefficient is in bold.

Clustering Metrics | ||
---|---|---|

Methods | Calinski-Harabasz | Davies-Bouldin |

UMAP + k-Means | 110,568 | 0.7939 |

UMAP + GMM | 89,283 | 0.8535 |

Autoencoder + k-Means | 28,345 | 1.2651 |

Autoencoder + GMM | 14,133 | 2.0985 |

PCA + k-Means | 40,415 | 1.2055 |

PCA + GMM | 13,995 | 2.8828 |

t-SNE + k-Means | 94,857 | 0.8092 |

t-SNE + GMM | 88,134 | 0.8222 |

**Table A2.**Mean of the Calinski-Harabasz and Davies-Bouldin criterion over a range of 5 to 20 clusters for the FRT0000b776 dataset, split by method. The best score for each coefficient is in bold.

Clustering Metrics | ||
---|---|---|

Methods | Calinski-Harabasz | Davies-Bouldin |

UMAP + k-Means | 216,545 | 0.7192 |

UMAP + GMM | 196,229 | 0.7545 |

Autoencoder + k-Means | 39,897 | 1.1298 |

Autoencoder + GMM | 16,721 | 2.1699 |

PCA + k-Means | 59,637 | 1.3214 |

PCA + GMM | 21,027 | 4.3664 |

t-SNE + k-Means | 152,121 | 0.8279 |

t-SNE + GMM | 144,334 | 0.8501 |

**Table A3.**Mean of the Calinski-Harabasz and Davies-Bouldin criterion over a range of 5 to 20 clusters for the FRT0001c71b dataset, split by method. The best score for each coefficient is in bold.

Clustering Metrics | ||
---|---|---|

Methods | Calinski-Harabasz | Davies-Bouldin |

UMAP + k-Means | 164,883 | 0.6932 |

UMAP + GMM | 139,372 | 0.7362 |

Autoencoder + k-Means | 31,184 | 1.0316 |

Autoencoder + GMM | 17,879 | 1.7953 |

PCA + k-Means | 56,562 | 0.9992 |

PCA + GMM | 25,703 | 1.6261 |

t-SNE + k-Means | 92,332 | 0.8048 |

t-SNE + GMM | 86,278 | 0.8155 |

## Appendix B. Citation of PDS Data Products

HRL000040FF |

FRT0000c564 |

FRT0000b776 |

FRT0001c71b |

## References

- Murchie, S.; Arvidson, R.; Bedini, P.; Beisser, K.; Bibring, J.P.; Bishop, J.; Boldt, J.; Cavender, P.; Choo, T.; Clancy, R.T.; et al. Compact Reconnaissance Imaging Spectrometer for Mars (CRISM) on Mars Reconnaissance Orbiter (MRO). J. Geophys. Res. Planets
**2007**, 112, E05S03. [Google Scholar] [CrossRef] - Naß, A.; Di, K.; van Gasselt, S.; Hare, T.; Hargitai, H.; Karachevtseva, I.; Kersten, E.; Manaud, N.; Roatsch, T.; Rossi, A.; et al. Planetary cartography and mapping: Where we are today, and where we are heading for? Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci.
**2017**, 42, 105–112. [Google Scholar] [CrossRef] - Ramsdale, J.D.; Balme, M.R.; Conway, S.J.; Gallagher, C.; van Gasselt, S.A.; Hauber, E.; Orgel, C.; Séjourné, A.; Skinner, J.A.; Costard, F.; et al. Grid-based mapping: A method for rapidly determining the spatial distributions of small features over very large areas. Planet. Space Sci.
**2017**, 140, 49–61. [Google Scholar] [CrossRef] - Massironi, M.; Rossi, A.P.; Wright, J.; Zambon, F.; Poheler, C.; Giacomini, L.; Carli, C.; Ferrari, S.; Semenzato, A.; Luzzi, E.; et al. From Morpho-Stratigraphic to Geo(Spectro)-Stratigraphic Units: The PLANMAP Contribution. In Proceedings of the 2021 Annual Meeting of Planetary Geologic Mappers, Virtual, 14–15 June 2021; Volume 2610, p. 7045. Available online: https://ui.adsabs.harvard.edu/abs/2021LPICo2610.7045M (accessed on 1 October 2022).
- Semenzato, A.; Massironi, M.; Ferrari, S.; Galluzzi, V.; Rothery, D.A.; Pegg, D.L.; Pozzobon, R.; Marchi, S. An Integrated Geologic Map of the Rembrandt Basin, on Mercury, as a Starting Point for Stratigraphic Analysis. Remote Sens.
**2020**, 12, 3213. [Google Scholar] [CrossRef] - Giacomini, L.; Carli, C.; Zambon, F.; Galluzzi, V.; Ferrari, S.; Massironi, M.; Altieri, F.; Ferranti, L.; Palumbo, P.; Capaccioni, F. Integration between morphological and spectral characteristics for the geological map of Kuiper quadrangle (H06). In Proceedings of the EGU General Assembly Conference Abstracts, Virtual, 19–30 April 2021; p. EGU21-15052. [Google Scholar]
- Pajola, M.; Lucchetti, A.; Semenzato, A.; Poggiali, G.; Munaretto, G.; Galluzzi, V.; Marzo, G.; Cremonese, G.; Brucato, J.; Palumbo, P.; et al. Lermontov crater on Mercury: Geology, morphology and spectral properties of the coexisting hollows and pyroclastic deposits. Planet. Space Sci.
**2021**, 195, 105136. [Google Scholar] [CrossRef] - Schubert, G. Treatise on Geophysics; Elsevier: Amsterdam, The Netherlands, 2015; ISBN 978-0-444-53803-1. [Google Scholar]
- Fawdon, P.; Grindrod, P.; Orgel, C.; Sefton-Nash, E.; Adeli, S.; Balme, M.; Cremonese, G.; Davis, J.; Frigeri, A.; Hauber, E.; et al. The geography of Oxia Planum. J. Maps
**2021**, 17, 621–637. [Google Scholar] [CrossRef] - Zambon, F.; Carli, C.; Wright, J.; Rothery, D.; Altieri, F.; Massironi, M.; Capaccioni, F.; Cremonese, G. Spectral units analysis of quadrangle H05-Hokusai on Mercury. J. Geophys. Res. Planets
**2022**, 127, e2021JE006918. [Google Scholar] [CrossRef] - Gao, A.F.; Rasmussen, B.; Kulits, P.; Scheller, E.L.; Greenberger, R.; Ehlmann, B.L. Generalized Unsupervised Clustering of Hyperspectral Images of Geological Targets in the Near Infrared. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Nashville, TN, USA, 20–25 June 2021; pp. 4294–4303. [Google Scholar]
- Timmerman, M.E. Principal Component Analysis. J. Am. Stat. Assoc.
**2003**, 98, 1082–1083. [Google Scholar] [CrossRef] - Martel, E.; Lazcano, R.; López, J.; Madroñal, D.; Salvador, R.; López, S.; Juarez, E.; Guerra, R.; Sanz, C.; Sarmiento, R. Implementation of the Principal Component Analysis onto High-Performance Computer Facilities for Hyperspectral Dimensionality Reduction: Results and Comparisons. Remote Sens.
**2018**, 10, 864. [Google Scholar] [CrossRef] - Rodarmel, C.; Shan, J. Principal component analysis for hyperspectral image classification. Surv. Land Inf. Sci.
**2002**, 62, 115–122. [Google Scholar] - Melit Devassy, B.; George, S.; Nussbaum, P. Unsupervised Clustering of Hyperspectral Paper Data Using t-SNE. J. Imaging
**2020**, 6, 29. [Google Scholar] [CrossRef] - Pouyet, E.; Rohani, N.; Katsaggelos, A.K.; Cossairt, O.; Walton, M. Innovative data reduction and visualization strategy for hyperspectral imaging datasets using t-SNE approach. Pure Appl. Chem.
**2018**, 90, 493–506. [Google Scholar] [CrossRef] - Song, W.; Wang, L.; Liu, P.; Choo, K.K.R. Improved t-SNE based manifold dimensional reduction for remote sensing data processing. Multimed. Tools Appl.
**2019**, 78, 4311–4326. [Google Scholar] [CrossRef] - Kohonen, T. Adaptive, associative, and self-organizing functions in neural computing. Appl. Opt.
**1987**, 26, 4910–4918. [Google Scholar] [CrossRef] - Picollo, M.; Cucci, C.; Casini, A.; Stefani, L. Hyper-Spectral Imaging Technique in the Cultural Heritage Field: New Possible Scenarios. Sensors
**2020**, 20, 2843. [Google Scholar] [CrossRef] - Wander, L.; Vianello, A.; Vollertsen, J.; Westad, F.; Braun, U.; Paul, A. Exploratory analysis of hyperspectral FTIR data obtained from environmental microplastics samples. Anal. Methods
**2020**, 12, 781–791. [Google Scholar] [CrossRef] - Ferrer-Font, L.; Mayer, J.U.; Old, S.; Hermans, I.F.; Irish, J.; Price, K.M. High-Dimensional Data Analysis Algorithms Yield Comparable Results for Mass Cytometry and Spectral Flow Cytometry Data. Cytom. Part A
**2020**, 97, 824–831. [Google Scholar] [CrossRef] - Yang, Y.; Sun, H.; Zhang, Y.; Zhang, T.; Gong, J.; Wei, Y.; Duan, Y.G.; Shu, M.; Yang, Y.; Wu, D.; et al. Dimensionality reduction by UMAP reinforces sample heterogeneity analysis in bulk transcriptomic data. Cell Rep.
**2021**, 36, 109442. [Google Scholar] [CrossRef] - Fernandes, M.; Pletl, A.; Thomas, N.; Rossi, A.P.; Elser, B. Generation and Optimization of Spectral Cluster Maps to Enable Data Fusion of CaSSIS and CRISM Datasets. Remote Sens.
**2022**, 14, 2524. [Google Scholar] [CrossRef] - Xia, J.; Zhang, Y.; Song, J.; Chen, Y.; Wang, Y.; Liu, S. Revisiting dimensionality reduction techniques for visual cluster analysis: An empirical study. IEEE Trans. Vis. Comput. Graph.
**2021**, 28, 529–539. [Google Scholar] [CrossRef] - Pelkey, S.M.; Mustard, J.F.; Murchie, S.; Clancy, R.T.; Wolff, M.; Smith, M.; Milliken, R.; Bibring, J.P.; Gendrin, A.; Poulet, F.; et al. CRISM multispectral summary products: Parameterizing mineral diversity on Mars from reflectance. J. Geophys. Res. Planets
**2007**, 112, E08S14. [Google Scholar] [CrossRef] - Viviano, C.E.; Seelos, F.P.; Murchie, S.L.; Kahn, E.G.; Seelos, K.D.; Taylor, H.W.; Taylor, K.; Ehlmann, B.L.; Wiseman, S.M.; Mustard, J.F.; et al. Revised CRISM spectral parameters and summary products based on the currently detected mineral diversity on Mars. J. Geophys. Res. Planets
**2014**, 119, 1403–1431. [Google Scholar] [CrossRef] - Fassett, C.I.; Head, J.W., III. Fluvial sedimentary deposits on Mars: Ancient deltas in a crater lake in the Nili Fossae region. Geophys. Res. Lett.
**2005**, 32, L14201. [Google Scholar] [CrossRef] - Schon, S.C.; Head, J.W.; Fassett, C.I. An overfilled lacustrine system and progradational delta in Jezero crater, Mars: Implications for Noachian climate. Planet. Space Sci.
**2012**, 67, 28–45. [Google Scholar] [CrossRef] - Goudge, T.A.; Mohrig, D.; Cardenas, B.T.; Hughes, C.M.; Fassett, C.I. Stratigraphy and paleohydrology of delta channel deposits, Jezero crater, Mars. Icarus
**2018**, 301, 58–75. [Google Scholar] [CrossRef] - Mangold, N.; Dromart, G.; Ansan, V.; Salese, F.; Kleinhans, M.G.; Massé, M.; Quantin-Nataf, C.; Stack, K.M. Fluvial regimes, morphometry, and age of Jezero crater paleolake inlet valleys and their exobiological significance for the 2020 Rover Mission Landing Site. Astrobiology
**2020**, 20, 994–1013. [Google Scholar] [CrossRef] - Mangold, N.; Gupta, S.; Gasnault, O.; Dromart, G.; Tarnas, J.; Sholes, S.; Horgan, B.; Quantin-Nataf, C.; Brown, A.; Le Mouélic, S.; et al. Perseverance rover reveals an ancient delta-lake system and flood deposits at Jezero crater, Mars. Science
**2021**, 374, 711–717. [Google Scholar] [CrossRef] - Stack, K.M.; Williams, N.R.; Calef, F.; Sun, V.Z.; Williford, K.H.; Farley, K.A.; Eide, S.; Flannery, D.; Hughes, C.; Jacob, S.R.; et al. Photogeologic map of the perseverance rover field site in Jezero Crater constructed by the Mars 2020 Science Team. Space Sci. Rev.
**2020**, 216, 127. [Google Scholar] [CrossRef] - Morgan, A.M.; Wilson, S.A.; Howard, A.D. The global distribution and morphologic characteristics of fan-shaped sedimentary landforms on Mars. Icarus
**2022**, 385, 115137. [Google Scholar] [CrossRef] - Weitz, C.M.; Bishop, J.L.; Grant, J.A.; Wilson, S.A.; Irwin, R.P., III; Saranathan, A.M.; Itoh, Y.; Parente, M. Clay sediments derived from fluvial activity in and around Ladon basin, Mars. Icarus
**2022**, 384, 115090. [Google Scholar] [CrossRef] - Ehlmann, B.L.; Mustard, J.F.; Fassett, C.I.; Schon, S.C.; Head, J.W., III; Des Marais, D.J.; Grant, J.A.; Murchie, S.L. Clay minerals in delta deposits and organic preservation potential on Mars. Nat. Geosci.
**2008**, 1, 355–358. [Google Scholar] [CrossRef] - Ehlmann, B.L.; Mustard, J.F.; Swayze, G.A.; Clark, R.N.; Bishop, J.L.; Poulet, F.; Des Marais, D.J.; Roach, L.H.; Milliken, R.E.; Wray, J.J.; et al. Identification of hydrated silicate minerals on Mars using MRO-CRISM: Geologic context near Nili Fossae and implications for aqueous alteration. J. Geophys. Res. Planets
**2009**, 114, E00D08. [Google Scholar] [CrossRef] - Goudge, T.A.; Mustard, J.F.; Head, J.W.; Fassett, C.I.; Wiseman, S.M. Assessing the mineralogy of the watershed and fan deposits of the Jezero crater paleolake system, Mars. J. Geophys. Res. Planets
**2015**, 120, 775–808. [Google Scholar] [CrossRef] - Horgan, B.H.; Anderson, R.B.; Dromart, G.; Amador, E.S.; Rice, M.S. The mineral diversity of Jezero crater: Evidence for possible lacustrine carbonates on Mars. Icarus
**2020**, 339, 113526. [Google Scholar] [CrossRef] - Brown, A.J.; Viviano, C.E.; Goudge, T.A. Olivine-carbonate mineralogy of the Jezero crater region. J. Geophys. Res. Planets
**2020**, 125, e2019JE006011. [Google Scholar] [CrossRef] - Tarnas, J.; Stack, K.; Parente, M.; Koeppel, A.; Mustard, J.; Moore, K.; Horgan, B.; Seelos, F.; Cloutis, E.; Kelemen, P.B.; et al. Characteristics, Origins, and Biosignature Preservation Potential of Carbonate-Bearing Rocks Within and Outside of Jezero Crater. J. Geophys. Res. Planets
**2021**, 126, e2021JE006898. [Google Scholar] [CrossRef] - Sun, V.Z.; Stack, K.M. Geologic Map of Jezero Crater and the Nili Planum Region, Mars; US Geological Survey Scientific Investigations Map; US Department of the Interior, US Geological Survey: Reston, VA, USA, 2020; Volume 3464.
- Wright, J.; Barrett, A.M.; Fawdon, P.; Favaro, E.A.; Balme, M.R.; Woods, M.J.; Karachalios, S. Jezero crater, Mars: Application of the deep learning NOAH-H terrain classification system. J. Maps
**2022**, 18, 484–496. [Google Scholar] [CrossRef] - Bell, J.F.I.; Maki, J.N.; Alwmark, S.; Ehlmann, B.L.; Fagents, S.A.; Grotzinger, J.P.; Gupta, S.; Hayes, A.; Herkenhoff, K.E.; Horgan, B.H.N.; et al. Geological, multispectral, and meteorological imaging results from the Mars 2020 Perseverance rover in Jezero crater. Sci. Adv.
**2022**, 8, eabo4856. [Google Scholar] [CrossRef] - Gwinner, K.; Jaumann, R.; Hauber, E.; Hoffmann, H.; Heipke, C.; Oberst, J.; Neukum, G.; Ansan, V.; Bostelmann, J.; Dumke, A.; et al. The High Resolution Stereo Camera (HRSC) of Mars Express and its approach to science analysis and mapping for Mars and its satellites. Planet. Space Sci.
**2016**, 126, 93–138. [Google Scholar] [CrossRef] - Malin, M.C.; Bell, J.F., III; Cantor, B.A.; Caplinger, M.A.; Calvin, W.M.; Clancy, R.T.; Edgett, K.S.; Edwards, L.; Haberle, R.M.; James, P.B.; et al. Context camera investigation on board the Mars Reconnaissance Orbiter. J. Geophys. Res. Planets
**2007**, 112, E05S04. [Google Scholar] [CrossRef] - Dickson, J.; Kerber, L.; Fassett, C.; Ehlmann, B. A global, blended CTX mosaic of Mars with vectorized seam mapping: A new mosaicking pipeline using principles of non-destructive image editing. In Proceedings of the Lunar and Planetary Science Conference, The Woodlands, TX, USA, 19–23 March 2018; Lunar and Planetary Institute: The Woodlands, TX, USA, 2018; Volume 49, pp. 1–2. [Google Scholar]
- McInnes, L.; Healy, J.; Melville, J. UMAP: Uniform Manifold Approximation and Projection for Dimension Reduction. arXiv
**2018**. [Google Scholar] [CrossRef] - Van der Maaten, L.; Hinton, G. Visualizing data using t-SNE. J. Mach. Learn. Res.
**2008**, 9, 2579–2625. [Google Scholar] - Allaoui, M.; Kherfi, M.L.; Cheriet, A. Considerably Improving Clustering Algorithms Using UMAP Dimensionality Reduction Technique: A Comparative Study. In Proceedings of the Image and Signal Processing, Marrakesh, Morocco, 4–6 June 2020; El Moataz, A., Mammass, D., Mansouri, A., Nouboud, F., Eds.; Springer International Publishing: Cham, Switzerland, 2020; pp. 317–325. [Google Scholar]
- Vermeulen, M.; Smith, K.; Eremin, K.; Rayner, G.; Walton, M. Application of Uniform Manifold Approximation and Projection (UMAP) in spectral imaging of artworks. Spectrochim. Acta Part A Mol. Biomol. Spectrosc.
**2021**, 252, 119547. [Google Scholar] [CrossRef] [PubMed] - Weitz, C.M.; Bishop, J.L. Stratigraphy and formation of clays, sulfates, and hydrated silica within a depression in Coprates Catena, Mars. J. Geophys. Res. Planets
**2016**, 121, 805–835. [Google Scholar] [CrossRef] - Murchie, S.L.; Seelos, F.P.; Hash, C.D.; Humm, D.C.; Malaret, E.; McGovern, J.A.; Choo, T.H.; Seelos, K.D.; Buczkowski, D.L.; Morgan, M.F.; et al. Compact Reconnaissance Imaging Spectrometer for Mars investigation and data set from the Mars Reconnaissance Orbiter’s primary science phase. J. Geophys. Res. Planets
**2009**, 114, E00D07. [Google Scholar] [CrossRef] - Bioucas-Dias, J.M.; Nascimento, J.M.P. Hyperspectral Subspace Identification. IEEE Trans. Geosci. Remote Sens.
**2008**, 46, 2435–2445. [Google Scholar] [CrossRef] - Caliński, T.; Harabasz, J. A dendrite method for cluster analysis. Commun. Stat.-Theory Methods
**1974**, 3, 1–27. [Google Scholar] [CrossRef] - Davies, D.L.; Bouldin, D.W. A Cluster Separation Measure. IEEE Trans. Pattern Anal. Mach. Intell.
**1979**, PAMI-1, 224–227. [Google Scholar] [CrossRef] - Rousseeuw, P.J. Silhouettes: A graphical aid to the interpretation and validation of cluster analysis. J. Comput. Appl. Math.
**1987**, 20, 53–65. [Google Scholar] [CrossRef] - Milligan, G.W.; Cooper, M.C. An examination of procedures for determining the number of clusters in a data set. Psychometrika
**1985**, 50, 159–179. [Google Scholar] [CrossRef] - Kamps, O.; Hewson, R.; van Ruitenbeek, F.; van der Meer, F. Defining surface types of Mars using global CRISM summary product maps. J. Geophys. Res. Planets
**2020**, 125, e2019JE006337. [Google Scholar] [CrossRef] - Breiman, L. Random Forests. Mach. Learn.
**2001**, 45, 5–32. [Google Scholar] [CrossRef] [Green Version]

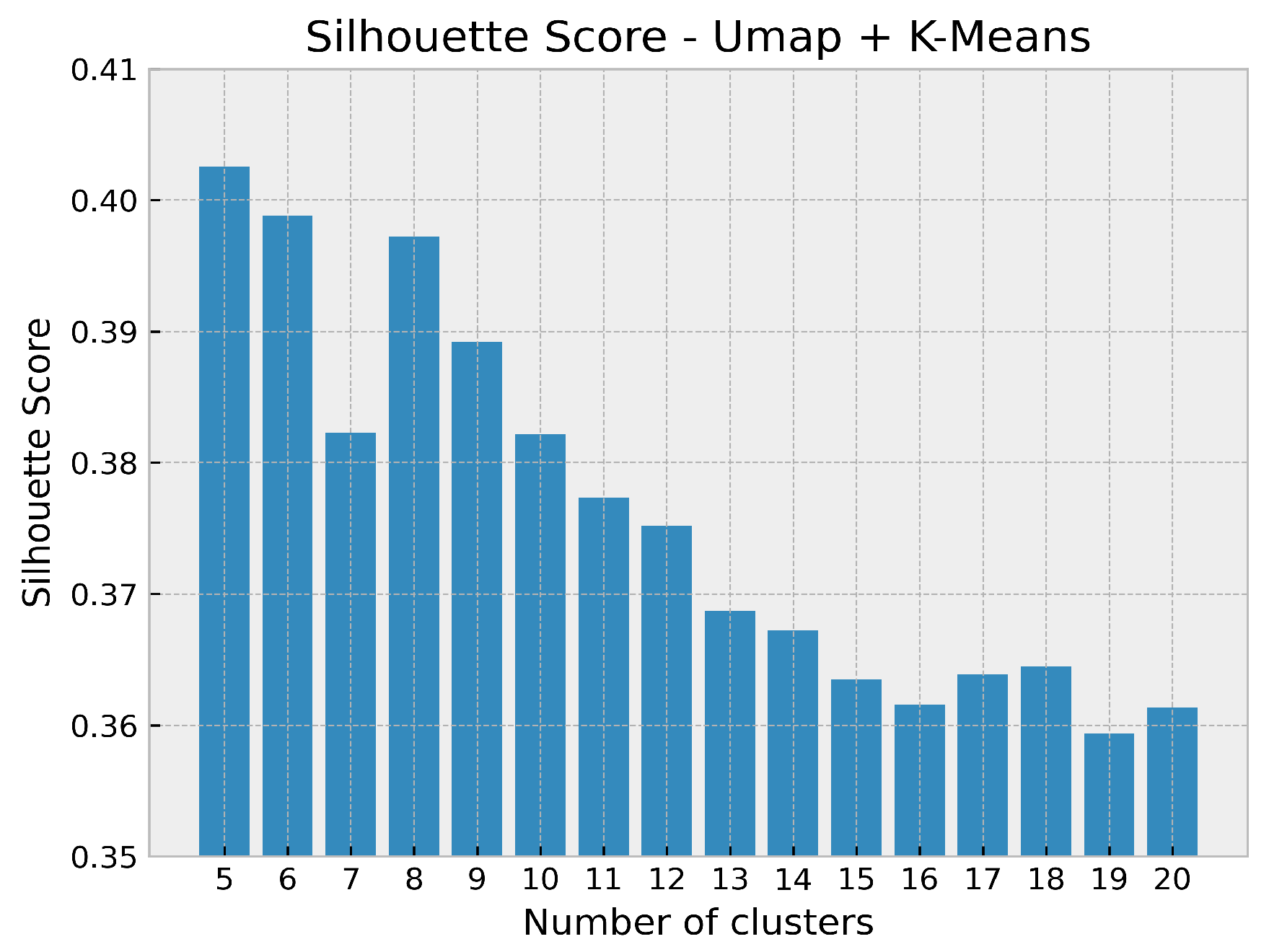

**Figure 2.**Silhouette Score of UMAP+k-Means as a function of the number of clusters for HRL000040FF dataset.

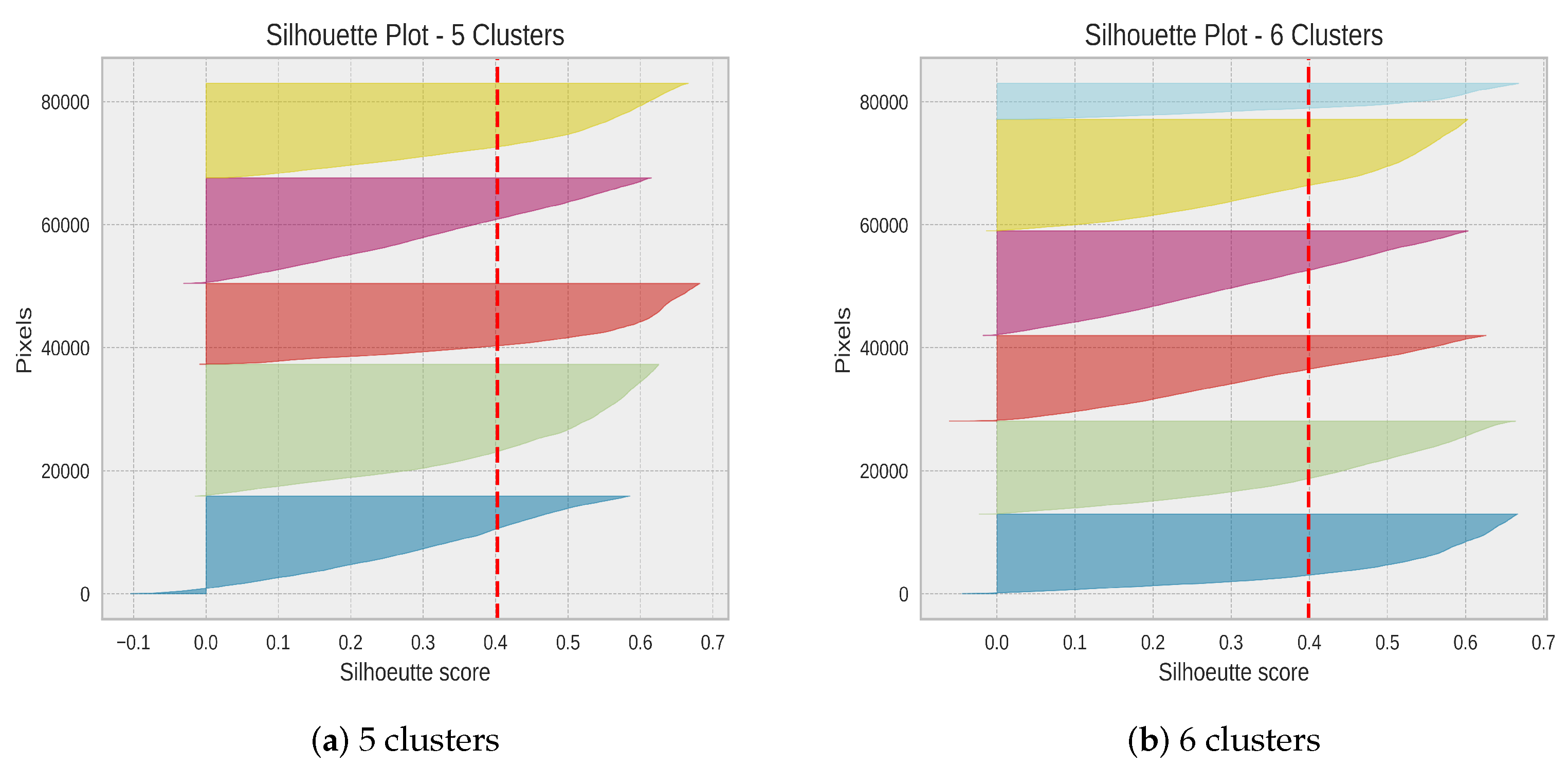

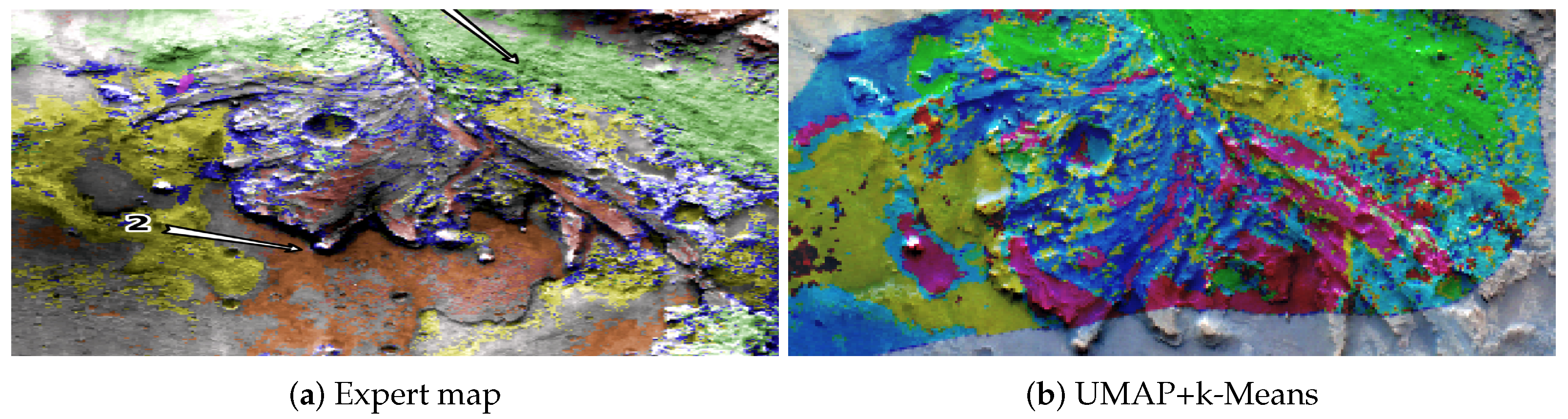

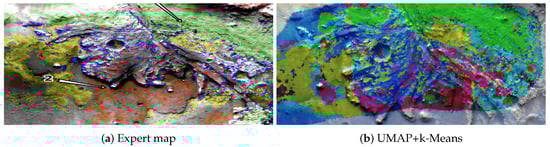

**Figure 4.**On the left side, the expert map used by Gao et al. [11] is presented. Each class is associated with a different color. In total, 6 classes are clustered as follows: olivine, yellow; pyroxene, orange; carbonate, green; Fe/Mg smectite, blue; silica, magenta and unclassified area, gray. On the right side, the UMAP+k-Means generated spectral cluster map with 6 identified clusters is illustrated. The same detail, as captured by expert map (

**a**), is shown.

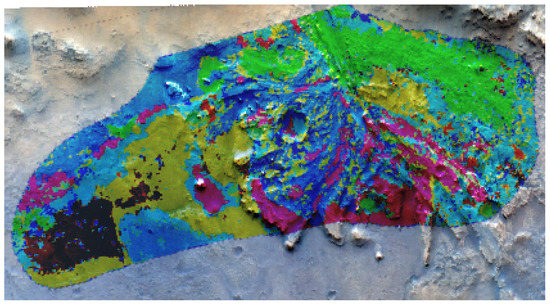

**Figure 5.**Spectral cluster map by UMAP-k-Means and 6 clusters for the complete clustered area of Jezero Crater.

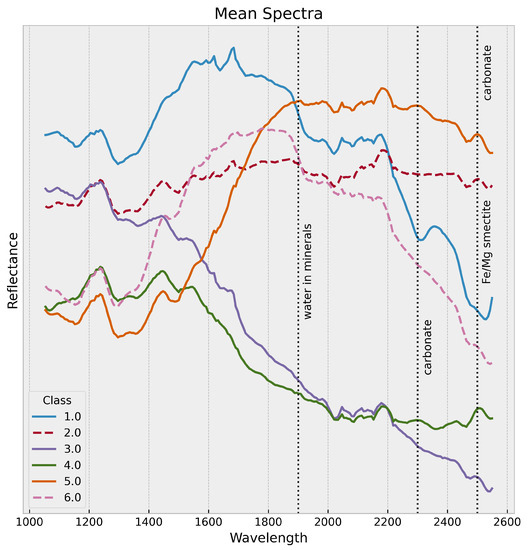

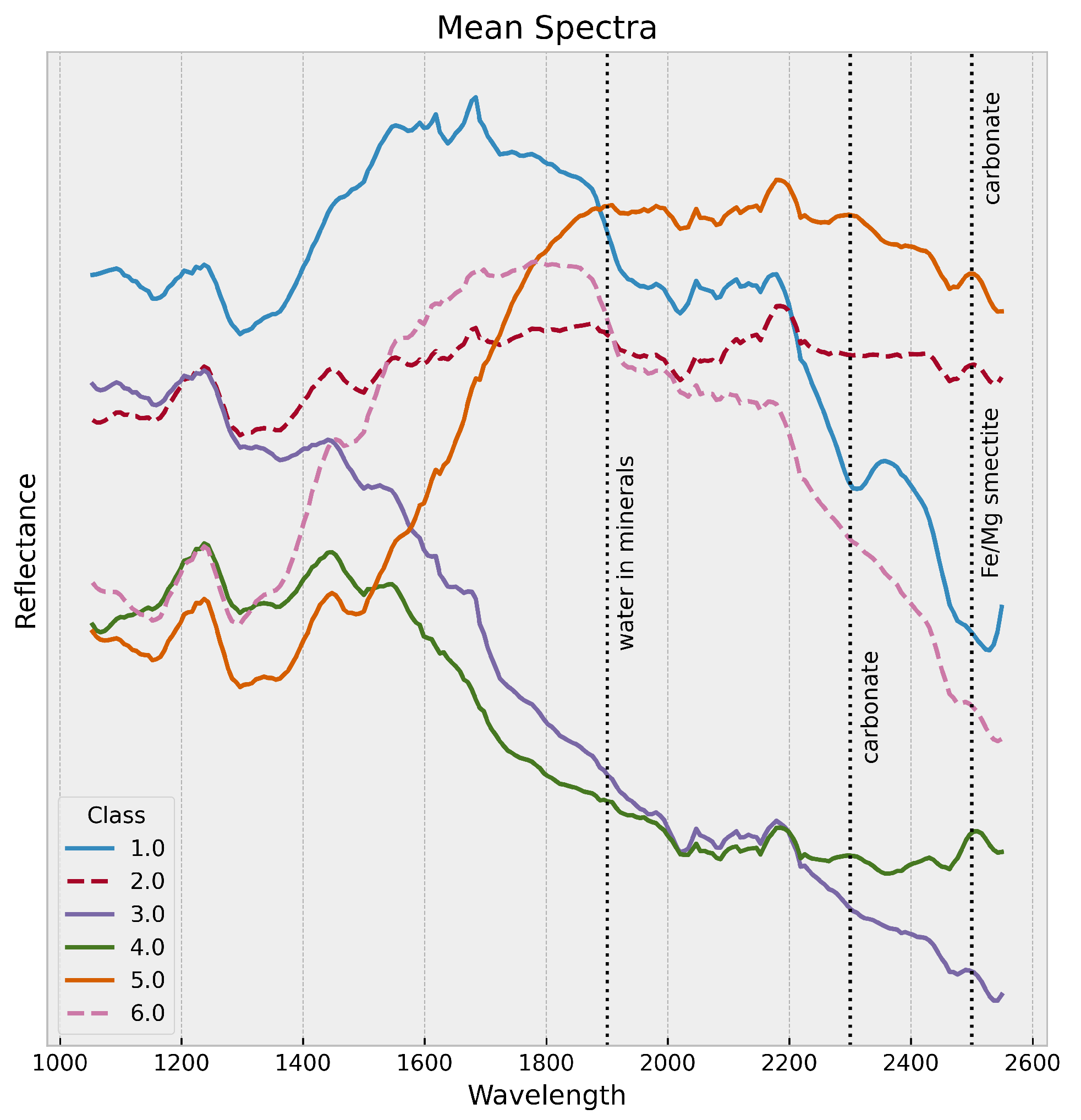

**Figure 6.**Mean spectra per cluster as representative fingerprint. Key unique absorptions at 1900 nm (water in minerals), 2300 nm and 2500 nm (carbonate) and 2300 nm (Fe/Mg smectite) are marked with vertical dotted lines.

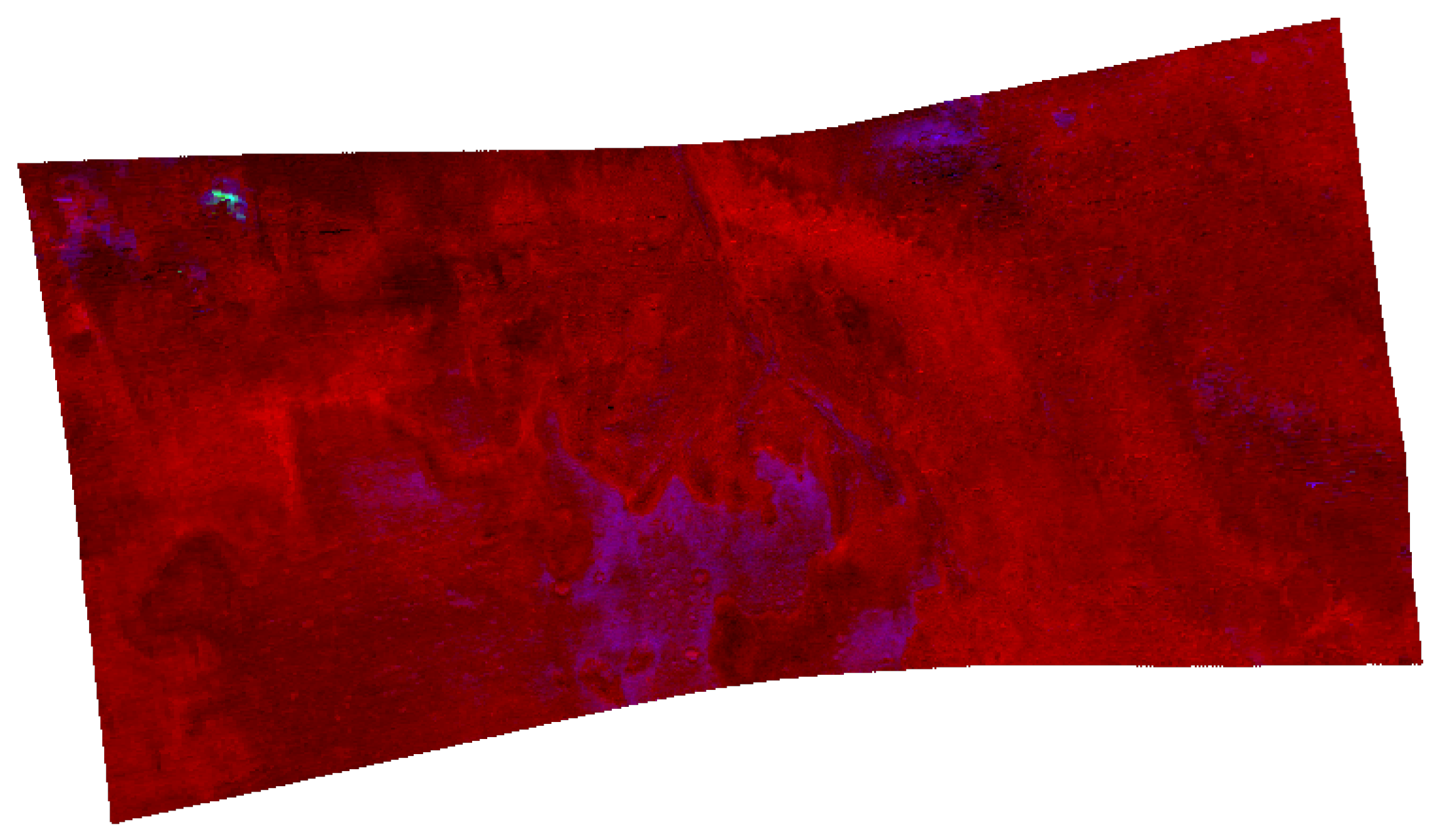

**Figure 7.**The MAF browse product of the MTRDR product HRL000040FF. This image browse product shows information related to mafic mineralogy and denotes olivine and Fe-phyllosilicate in red color [26].

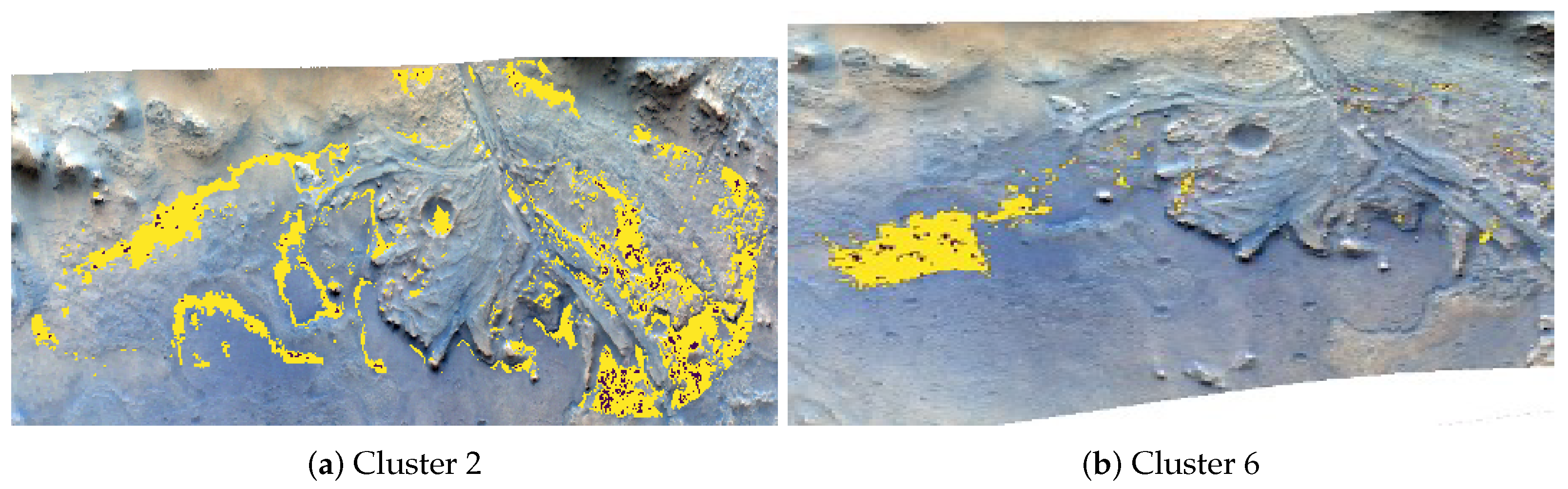

**Figure 8.**The two novel classes identified by the UMAP+k-Means and pictured as an overlay of the true image of Jezero Crater. Left: cluster 2 embraces mainly the unclassified area of expert map (cf. Figure 4a). Right: cluster 6 indicates a new mineralogy class.

**Table 1.**Mean of the Calinski-Harabasz and Davies-Bouldin criterion over a range of 5 to 20 clusters for the HRL000040FF dataset, split by method. The best score for each coefficient is in bold.

Clustering Metrics | ||
---|---|---|

Methods | Calinski-Harabasz | Davies-Bouldin |

UMAP + k-Means | 114,928 | 0.8179 |

UMAP + GMM | 109,469 | 0.8349 |

Autoencoder + k-Means | 25,649 | 1.2435 |

Autoencoder + GMM | 12,648 | 2.5199 |

PCA + k-Means | 53,478 | 1.0643 |

PCA + GMM | 19,594 | 2.6050 |

t-SNE + k-Means | 78,578 | 0.8072 |

t-SNE + GMM | 75,248 | 0.8120 |

Cluster | Selected Products | Geology | Expert Map |
---|---|---|---|

1 | HCPINDEX2, CINDEX2, BD1750_2, | Carbonates | Carbonates |

2 | BD1750_2, HCPINDEX2 | Gypsum, Alunite | unclassified |

3 | CINDEX2, RPEAK1 | Fe, Fe-Carbonate | Fe |

4 | D2300, HCPINDEX2 | Pyroxene, Silicates | Pyroxene |

5 | HCPINDEX2, RPEAK1 | Fe-mineralogy (suggest Olivine) | Olivine |

6 | BD1750_2, OLINDEX3, HCPINDEX2 | Gypsum, Alunite, Olivine | unclassified |
