Underground Morphological Detection of Ground Fissures in Collapsible Loess Area Based on Three-Dimensional Laser Scanning Technology

by
Yibo He
1,
Zhenqi Hu
2,*,
Yaokun Fu
1,
Kun Yang
1,
Rui Wang
2,3,
Guomou Shi
1,
Zhanjie Feng
2,
Qirang Yang
2 and
Liang Yu
1
1
Institute of Land Reclamation and Ecological Restoration, China University of Mining and Technology, Beijing 100083, China
2
School of Environment Science and Spatial Informatics, China University of Mining and Technology, Xuzhou 221116, China
3
College of Resources and Architecture, Gannan University of Science and Technology, Ganzhou 341000, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2022, 14(2), 424; https://doi.org/10.3390/rs14020424
Submission received: 29 December 2021 / Accepted: 13 January 2022 / Published: 17 January 2022
Browse Figures
Versions Notes

Abstract

:
Underground coal mining inevitably causes ground fissures, especially permanent cracks that cannot be closed at the boundary of the working face. Studying the underground three-dimensional morphology of the permanent cracks allows one to accurately constrain the formation and development of the ground fissures. This information will contribute to reducing mine disasters and is also a prerequisites to avoid environmental pollution. We selected the Zhangjiamao coal mine (China), which is situated in a collapsible loess area, as a case study for deciphering the formation of permanent cracks. After injecting gypsum slurry into the mine, a three-dimensional model of the ground fissures is obtained by three-dimensional (3D) laser scanner technology that records the 3D underground morphology. Integrating the geological context of a collapsible loess area, the characteristics and main processes of the ground fissure development are constrained: (1) The width of the ground fissure decreases to 0 with increasing depth and is strongly affected by the soil composition. (2) Along the vertical extension direction, the ground fissures are generally inclined to the inner-side of the working face, but the direction remains uncertain at different depths. (3) The transverse propagation direction of the ground fissure becomes more complex with increasing depth. (4) Under the influence of soil texture and water, loose soil fills the bottom of the ground fissure, thus affecting the underground 3D morphology.

Graphical Abstract

1. Introduction

Coal is currently still the main energy source in China [1]. According to BP’s Statistical Review of World Energy 2020, the world’s coal mining volume was 7.742 billion tons. China’s coal mining volume of 3.902 billion tons accounts for ca. 50% of the world’s volume. In China’s energy structure, coal resources still account for 57% [2]. Due to the geology of the coal seam storage in China, the coal is mainly exploited by underground mining [3]. Underground mining transfers the movement and deformation of the rock strata to the surface, which may cause surface collapse and substantial damage of the environment and infrastructure [4,5]. Ground fissures are widely distributed among the surface damage, causing many, often long-lasting, problems and disasters [6]. This may cause the reduction of the soil quality and the contamination of water resources and may also weaken the structures and stability of buildings [7,8,9,10,11,12,13]. Ground steps and ground fissures caused several damages to building objects, small architecture elements, and roads in surrounding area in the greatest Polish hard coal deposit (Upper Silesian Basin), including a old Catholic Church [14]. Mining activity in a lignite mine near Mavropigi (northern Greece) induced ground fissures that caused the sustained damages of many houses in the village and necessitated the relocation of the village [15]. Ground fissures significantly reduce the shoot and root biomass and the contents of N, P, and K in plants, lower the chlorophyll content and the leaf area, and alter the hormone balance in roots, thus reducing GA, IAA, and CTK levels and increasing the ABA level [16]. Moreover, ground fissures also reduce the soil moisture content [17]. In semi-arid, aeolian sand areas, comparable to the unexploited zone and the uncracked zone, each layer of 10~90 cm in the ground fissures area has a significant impact on the soil water content, which varies with depth [18]. Due to erosion induced by heavy rain, the ground fissures in collapsible loess areas will form scouring ditches, which expand the damage scope of the surface and reinforce the extent of the damage to surface. Beaded holes of different sizes may form under the topsoil and may induce sudden and random damages [19]. Therefore, governing the distribution characteristics and underground development morphology of ground fissures is a primary task to reduce the damage of land resources, infrastructure, and the ecological environment [5].
Several technical methods are currently applied to identify ground fissures, including field survey [20], radar detection technology [13,21,22], satellite remote sensing technology [23,24,25,26], and UAV [23,25,26,27]. The precision of UAV can attain the centimeter level [28]. After the identification of ground fissures, the surface morphology of fissures can be refined. The width and length on the surface are easily obtained. The commonly used methods include steel ruler measurements and image interpretations. However, it is difficult to observe the underground three-dimensional morphological characteristics of ground fissures, such as width, depth, and extension direction. Therefore, subsurface morphology is the focus of current ground fissures research [29]. The detection methods for the 3D analysis of ground fissures mainly include the steel ruler measurement method [30], ground penetrating radar method [31], ultrasonic method [32,33], plastic rod measurement method [34], and on-site excavation method [35]. The principles, advantages, and disadvantages of the detection methods are summarized in Table 1.
All listed methods are limited to constrain the underground morphology of ground fissures and are unsuitable to determine the entire three-dimensional underground morphology of ground fissures with the required high precision. Three-dimensional (3D) laser scanning technology is another technological improvement after the implementation of GPS technology [41,42], which can determine the 3D coordinates of the target through contactless scanning, thus creating a 3D model [43]. It is currently mainly used in cultural relic protection [44], forest parameters [45], scene reconstruction [46], and deformation monitoring [47]. In the present study, the 3D laser scanning techniques is used to obtain the underground morphology of the ground cracks induced by underground mining activity in the Zhangjiamao coal mine (China).

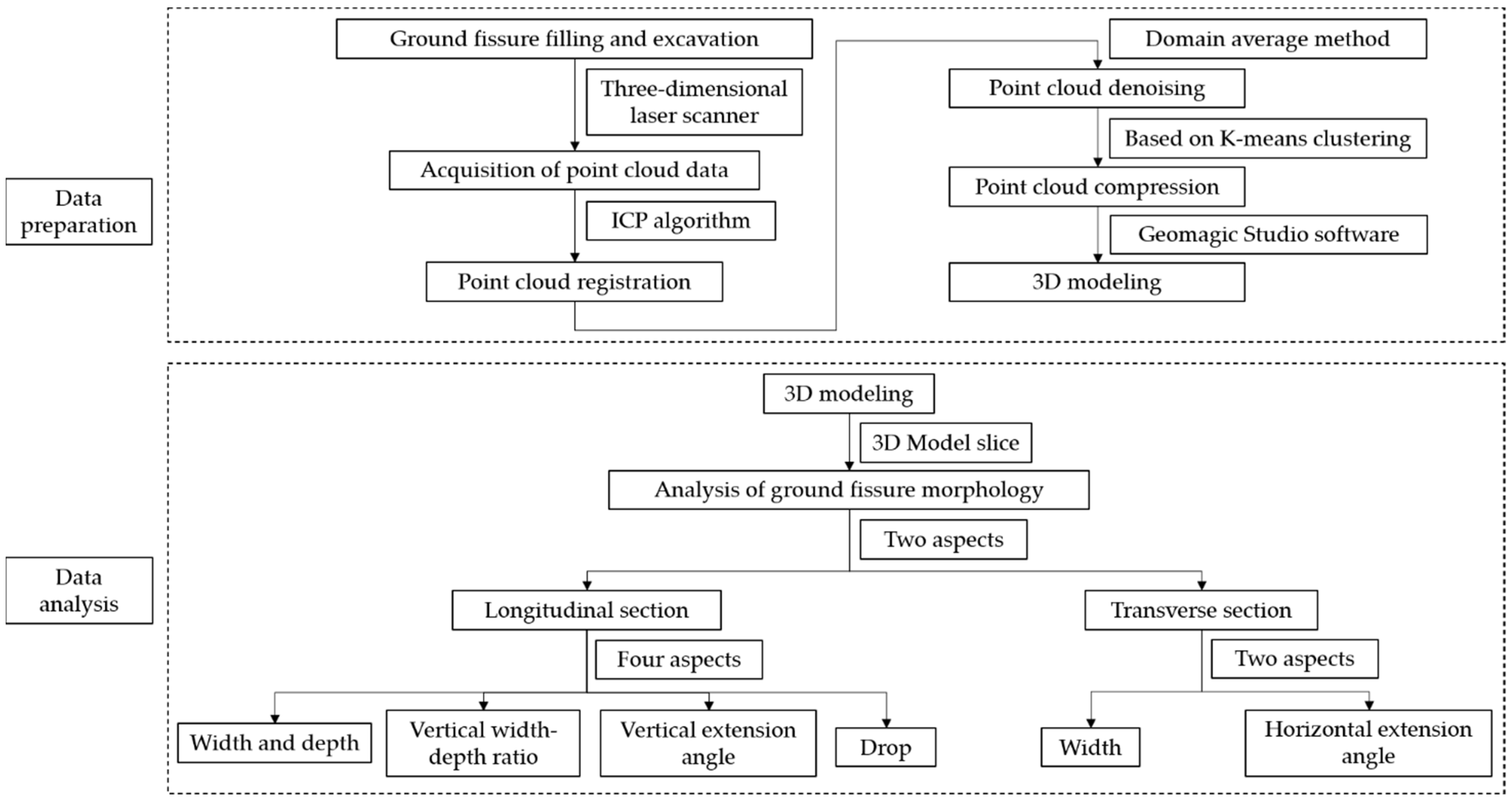

The article is structured as follows: In the section “Materials and Methods”, we describe the sample material, the experimental set-up, and the data acquisition that ultimately leads to the constructing of a 3D model of the ground fissure. In the section “Results” we present the acquired data and analyze the characteristics of the underground morphology of the fissures, including the width, depth, width–depth ratio, extension angle, and drop of the ground fissure in the transverse and longitudinal sections, respectively. In the section “Discussion” we introduce the complexity of the underground morphology of the ground fissure, the rationality of our experimental results, and the deficiencies of the experimental methods, along with suggestions for improvement. In the section “Conclusions” we summarize the main finding of our study and propose possible objects of future work. The data flow chart is shown in Figure 1.

2. Materials and Methods

2.1. Location of Study Area

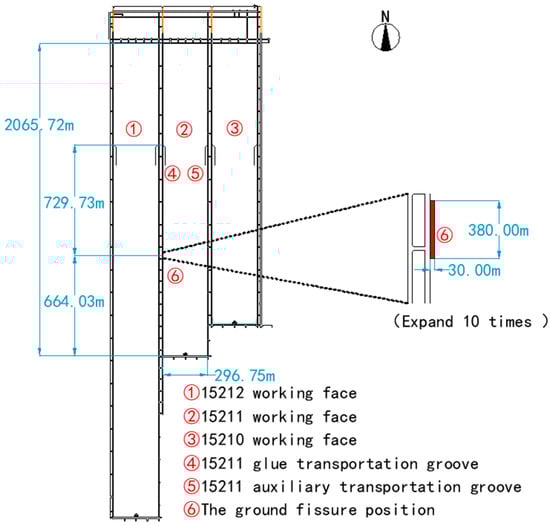

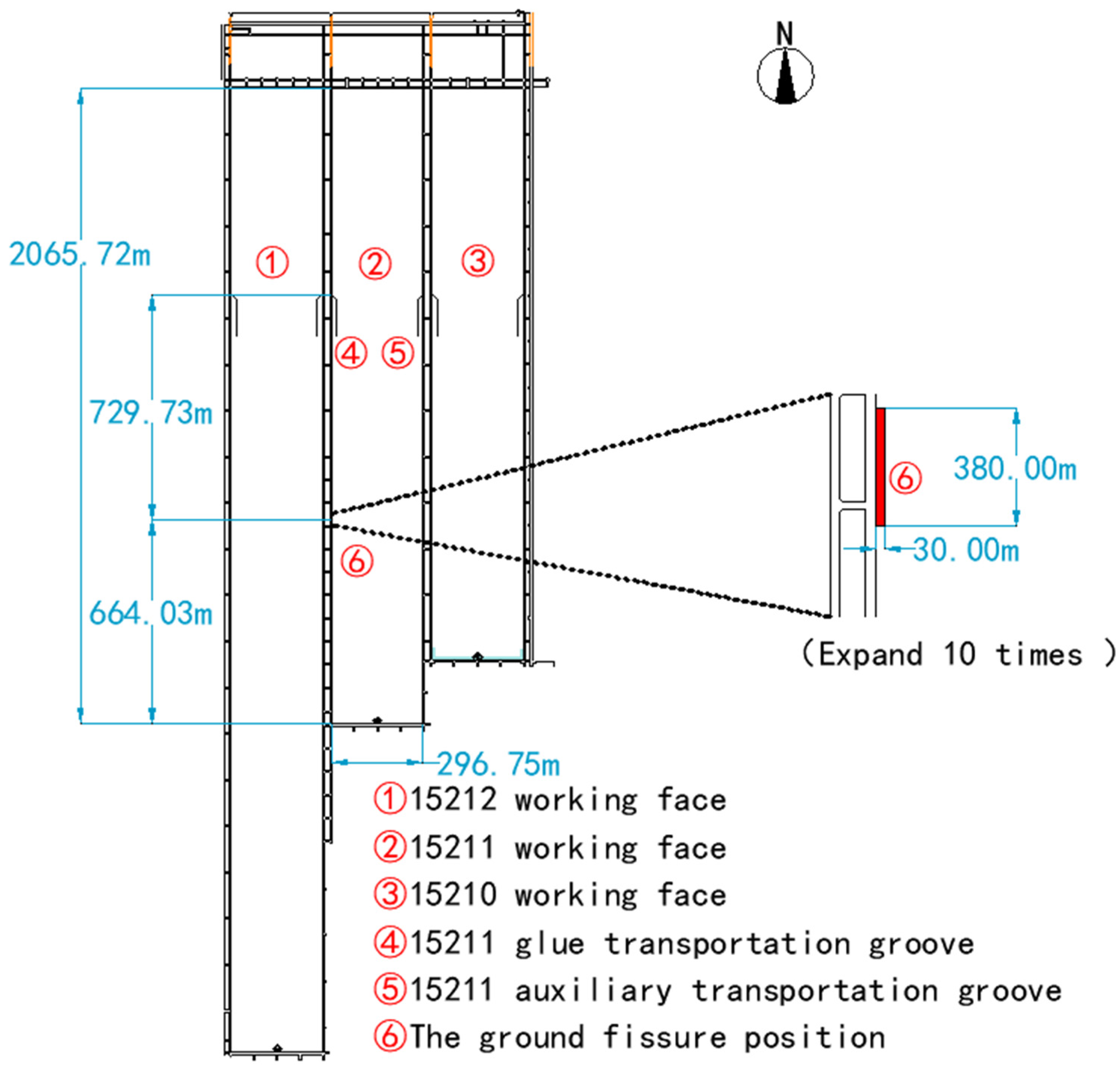

The study area is the 15211 working face in the Zhangjiamao coal mine (China), which is situated in an area of collapsible loess. According to borehole exposure and data from geological mapping, the strata comprise (from bottom to top): the Middle to Upper Triassic Yanchang Formation (T2-3y), followed by the Middle Jurassic Yan’an Formation (J2y), the Neogene Pliocene Baode Formation (N2b), the Quaternary Middle Pleistocene Lishi Formation (Q2l), and Quaternary Holocene Aeolian sand (Q4eol). Quaternary loess with an average thickness of 23.27 m is grayish brown or dark grayish brown. Loess is sparse and porous, with small capacity and low nitrogen content, but high phosphorus and potassium contents. Zinc and manganese are absent. The pH value is 8 to 8.5, and the fertilizer retention ability is weak.
The overall structural type of the working face is monoclinic, with N-S strike and dip to the northwest. The designed mining coal thickness is 5.89~6 m, the cut length is 296.75 m, and the push mining distance is 2065.72 m. There are no old kilns or abandoned shafts around or overlying the working face. On the surface that represents the working face, there are no farms, households, high-voltage power lines, roads, or other structures.

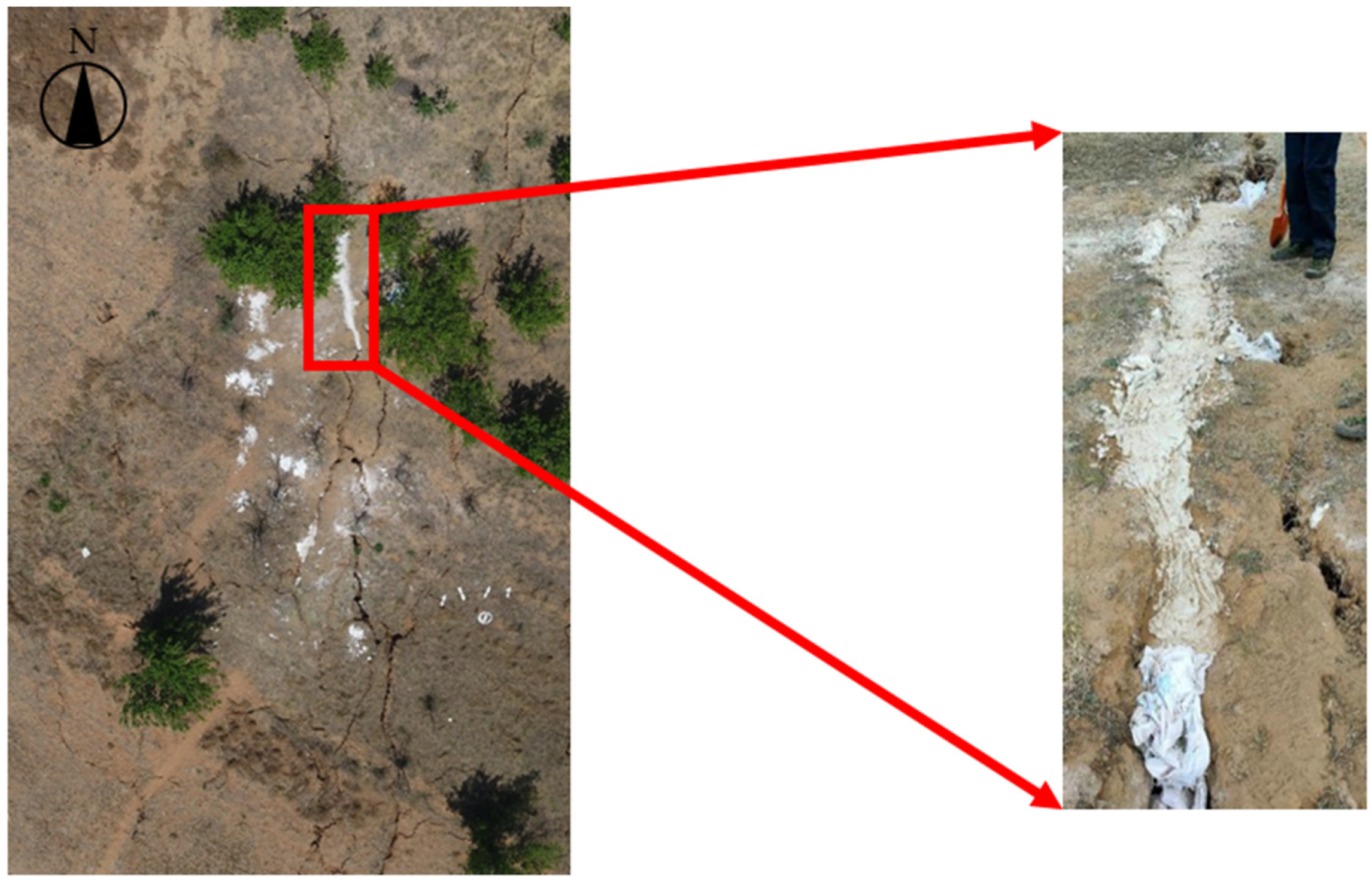

Based on data analysis and field investigation, permanent cracks located at the boundary of the working face were selected for the present study. Position relationships between the ground fissure and the working face are shown in Figure 2. The picture on the right is an enlargement (by 10 times) of the crack. Figure 2 shows that the ground fissure is located near the glue transportation groove in the 15211 working face, 664.03 m away from the open cut. The ground fissure extends along the direction of the glue transportation groove in the 15211 working face.
Considering the costs of the filling materials, the limited site conditions, and the difficulty of excavation, the widest part of the ground fissure was selected, with a length of about 3.8 m and a depth of about 2 m.

2.2. Ground Fissure Filling Method and Observation

2.2.1. Ground Fissure Filling and Excavation

At first, both ends of the ground fissure are blocked to ensure the entire length of the studied ground fissure and to prevent unnecessary consumption of gypsum. Subsequently, the ground fissure is filled by gypsum. Mixtures with mass ratios between standard building gypsum powder (GB97761988) and water of 1:1 and 3:2 are used, and the time of initial setting and the final setting time of the two mixtures are considered. A mixture with a 1:1 ratio is used to fill the bottom part of the ground fissure in the initial period of the measurement. The 3:2 mixture is more viscous and is used to fill the upper part of the ground fissure during the later stage of the measurement [48]. During the filling process, uniform mixing of the two materials ensures the perpetuation of the fluid state of the slurries, which prevent the formation of lumpy textures. The filling height is flush with both ends of the ground. The gypsum consumption is about 1.7 t. The field filling results of the ground fissure are shown in Figure 3. The left picture shows the image obtained by UAV. DJI M210 RTK V2 is selected as the flight platform and is equipped with a Zenmuse XT2 sensor with a 19 mm lens. The aerial height is set at 50 m, and the aerial photograph scale is about 1:2632. The filling length is 3.8 m, and the width ranges between 2.1~3.3 m.
After solidification of the gypsum slurry, the ground fissure excavation is carried out. During this process, it is important not to damage the paste. The further steps are as follows:

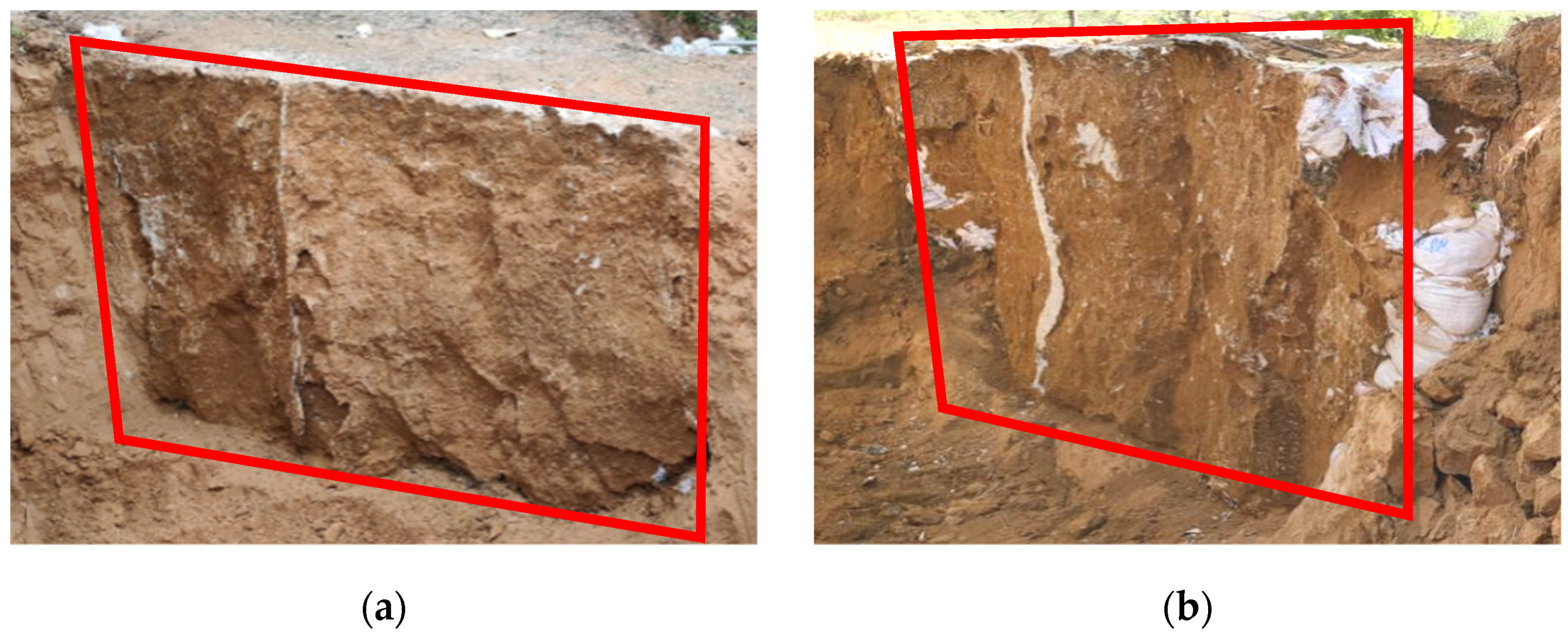

First, the surface of the ground fissure that faces the outside of the working face (i.e., the west side) is excavated. The soil on the paste surface has to be carefully cleaned. The red border in Figure 4a shows the western part of the ground fissure paste. After point cloud data acquisition, the soil is backfilled and compacted.
Subsequently, the surface of the ground fissure that faces the inside of the working face (i.e., the east side) is excavated, and the above-described steps are repeated The red border in Figure 4b is the eastern part of the ground fissure paste.
After completion of this procedure, it is necessary to consider the leveling of the land and to minimize the damage of the excavation to the land resources.

2.2.2. Data Acquisition Method

1.
Instrument Selection
We used the RIEGL VZ-1000 three-dimensional laser scanning system, with a precision of 5 mm/100 m. The supporting camera is a Nikon D600 with an effective pixel density of 24.26 million, and reflectors.
2.
Design of Data Acquisition Scheme

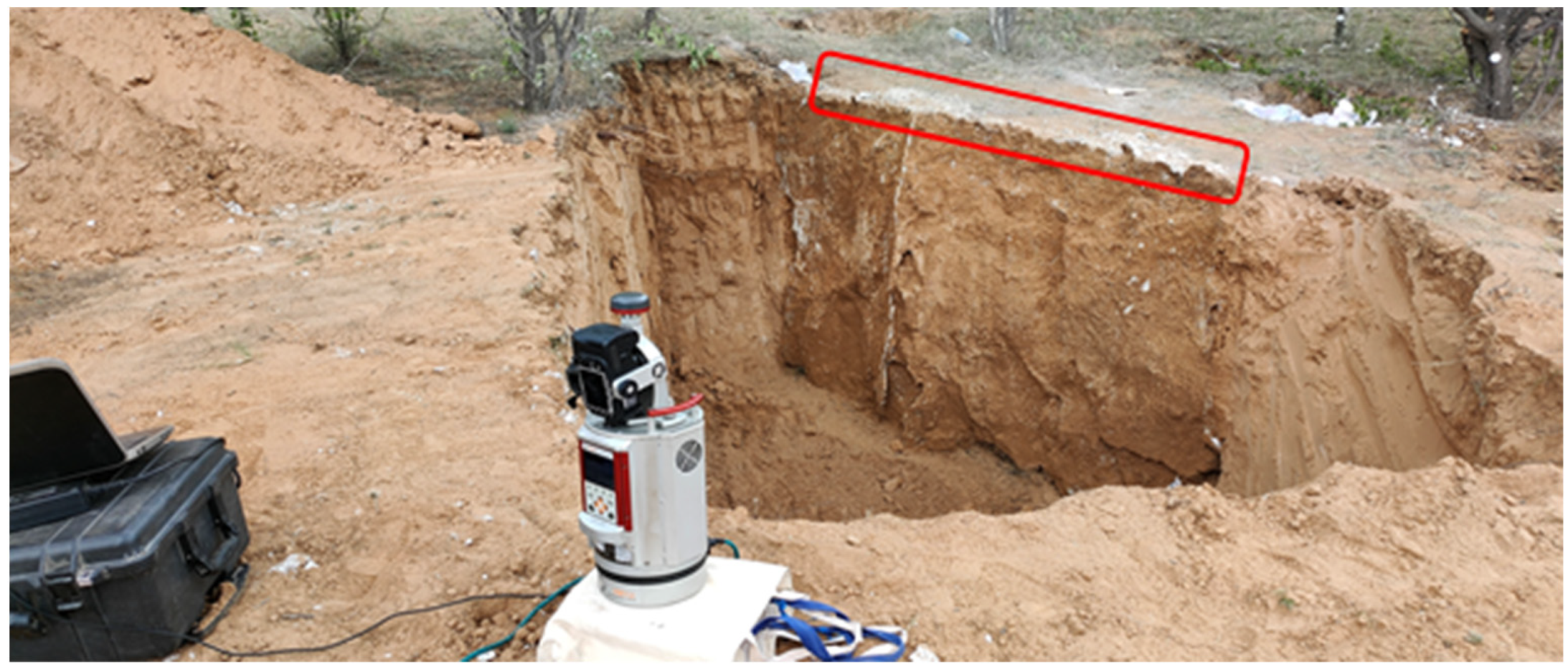

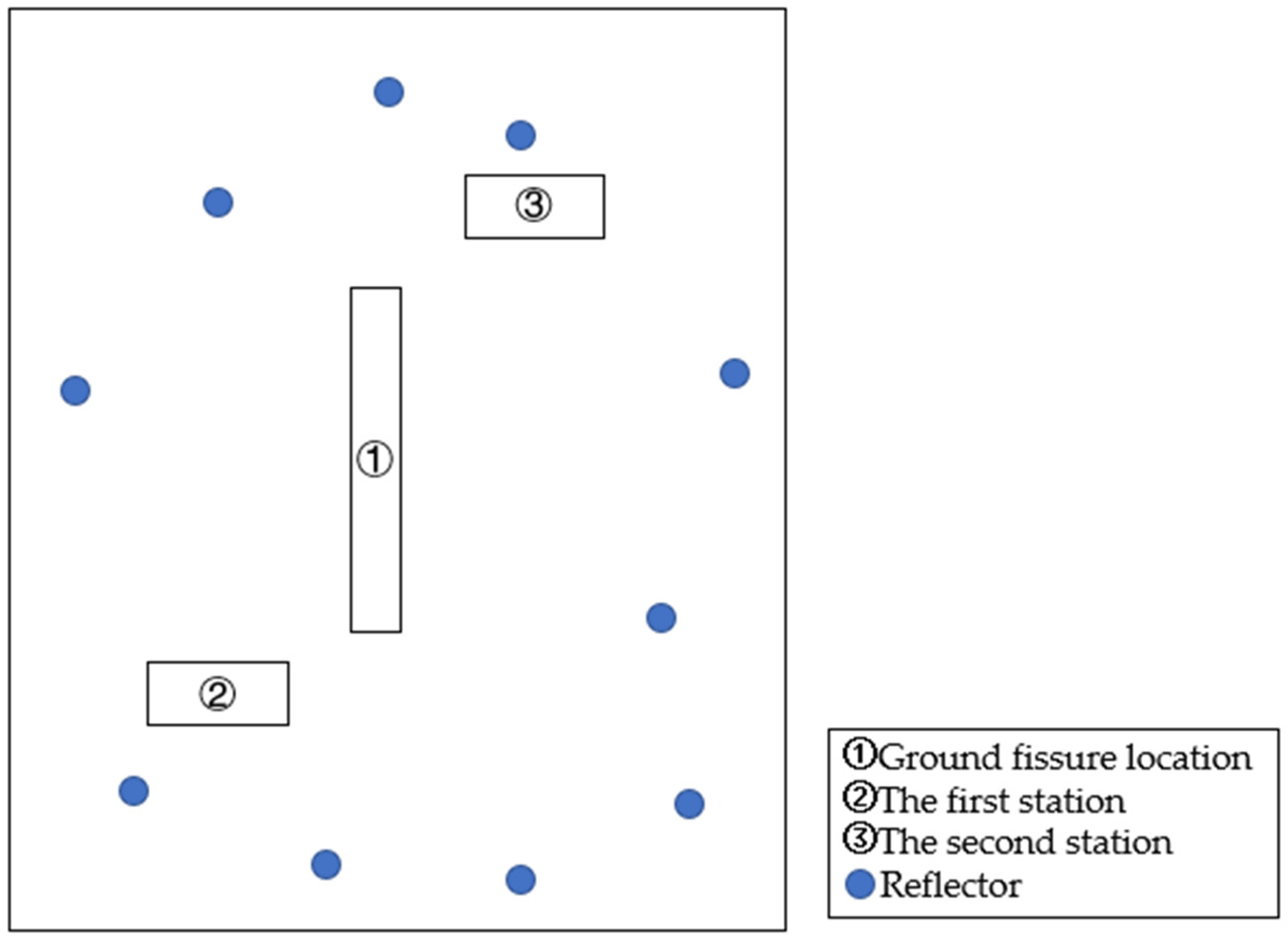

Due to the need to scan the east and west sides of the ground fissure, we use reflectors to ensure the precision of point cloud registration. In this process, information from at least three reflectors is acquired at the same location in two stations. The reflectors are pasted on thick tree trunks, and the lower positions are chosen as far as possible to reduce the influence of the tiny movement of the reflectors caused by the wind. A total of 10 reflectors are arranged in the study area. Their positions are shown in Figure 5.
3.
Acquisition of Point Cloud Data

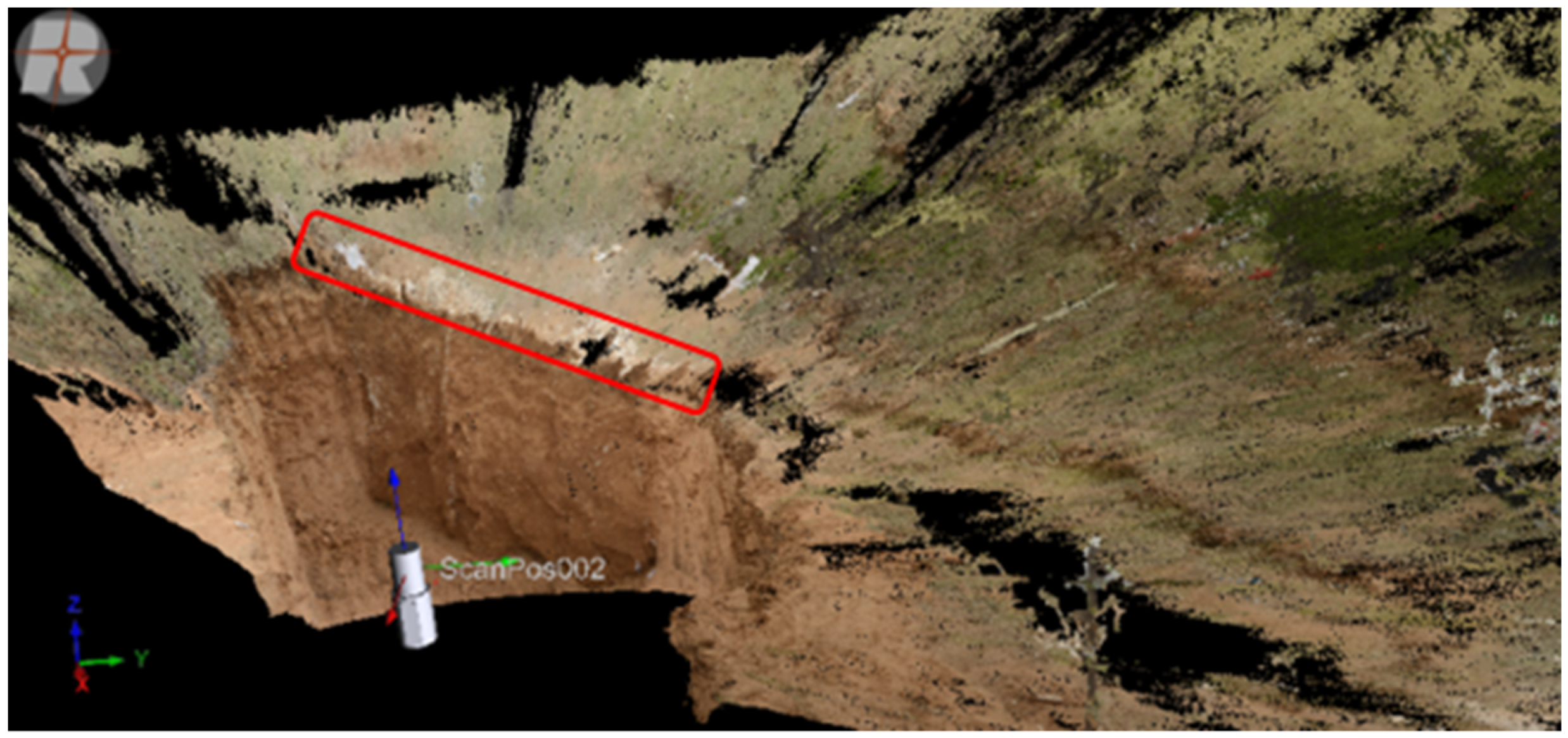

During data acquisition, the scanning distance is set to about 5 m, and the scanning interval is set to 0.002 m. Figure 6 shows field data collected in the western part of the ground fissure, and Figure 7 shoes the original point cloud data in the western part of the ground fissure. The white part in the red frame of the two figures is gypsum, representing the ground position of the ground fissure. The green part in Figure 7 is the surface vegetation.

2.3. Data Processing Results

Data preprocessing includes point cloud registration, point cloud denoising, point cloud compression, and 3D modeling. Considering the boundary effect, a part at both ends of the ground fissure is removed to obtain a length of 2.5 m. The result is shown in Figure 8. Data preprocessing follows a successive scheme:
1.
Point cloud registration
Point cloud registration includes coarse and fine registration. According to the reflectors in the 3D point cloud data of the two stations, the rough registration is completed using RISCAN PRO software. The ICP algorithm is used for the fine registration [49].
2.
Point cloud denoising
The implementation of noise points is inevitable during data acquisition. We selected the domain average method for denoising [43].
3.
Point cloud compression
Massive point cloud data is meaningless to describe the shape of the object but will slow down the speed of data processing. We performed data compression based on K-means clustering [50].
4.
3D modeling

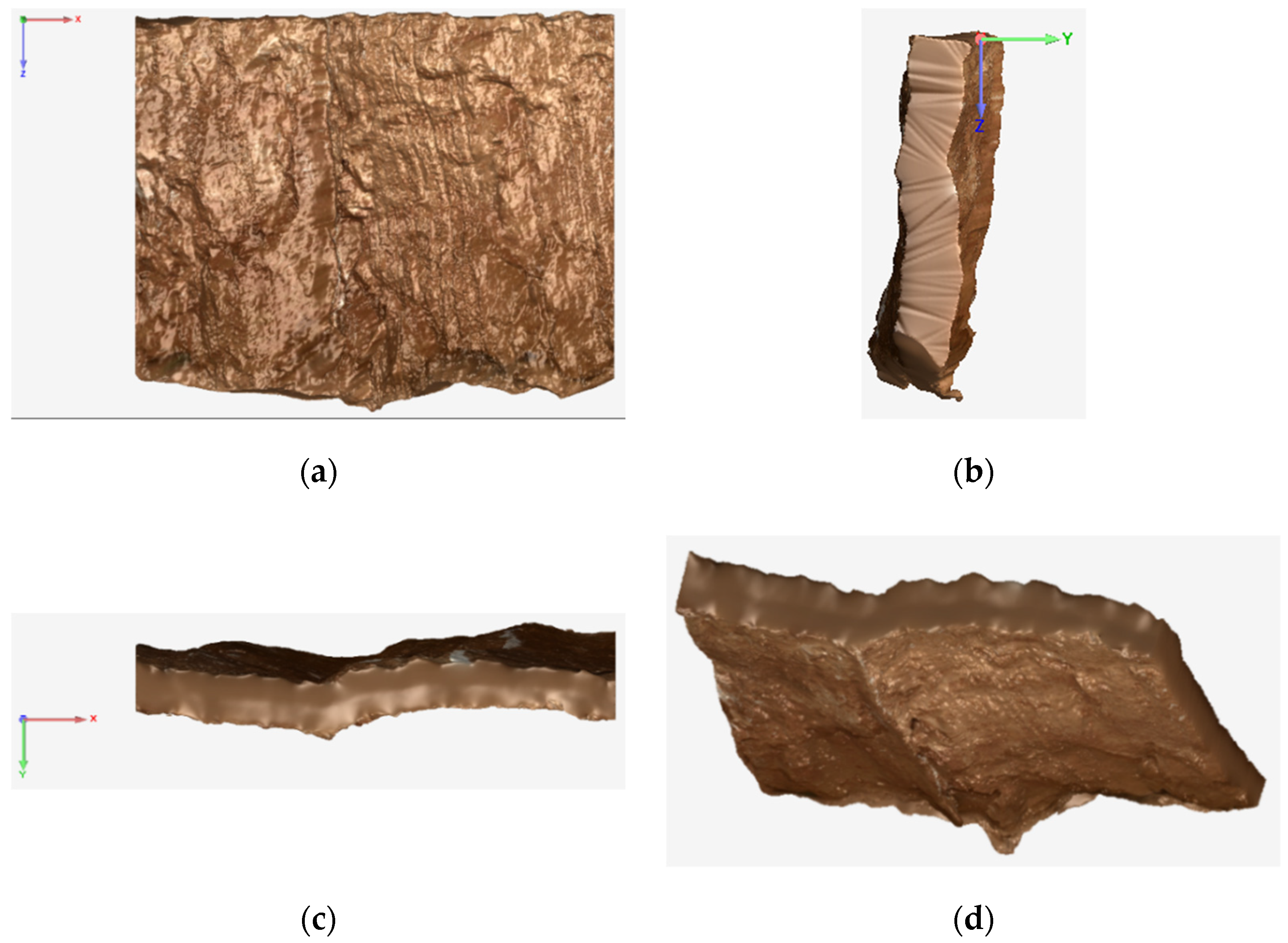

3D modeling uses an algorithm to generate polygons from the chaotic 3D point cloud data, and finally restores the shape of the studied object. This process was carried out with Geomagic Studio 2013 software.

2.4. Description of the Ground Fissures

The description of the ground fissure morphology mainly includes the following parameters:
  • Width: The surface width of the ground fissure represents the extent of the development of the ground fissure along the horizontal direction. The value reflects the damage degree of the ground fissure to surface continuity.
  • Depth: The vertical depth of the ground fissure represents the extent of the development of the ground fissure along the vertical direction. The value reflects the influence of the ground fissure on surface water and mechanical properties.
  • Width–depth ratio: The ratio of the ground fissure width (in cm) to the depth (in cm) is related to the change of the ground fissure width with increasing depth.
  • Extension angle: The angle between the ground fissure and the standard direction reflects the degree of the offset of the ground fissure.
  • Drop: The height of the ground fissure step.

3. Results

3.1. Model Slice

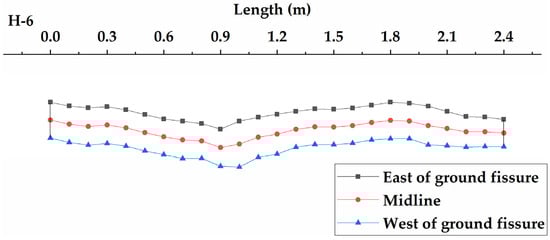

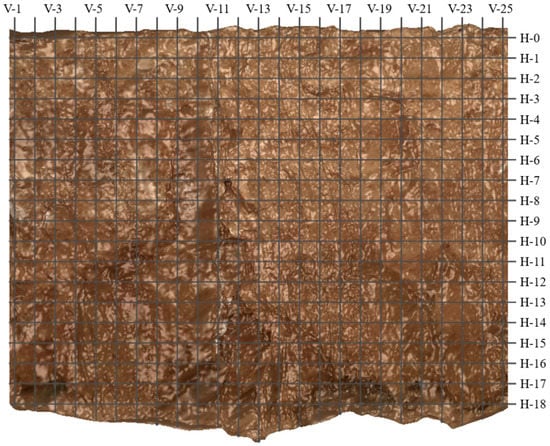

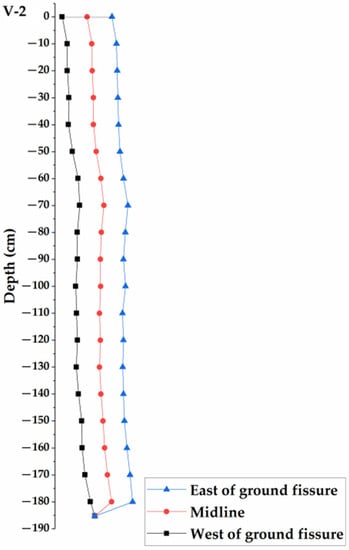

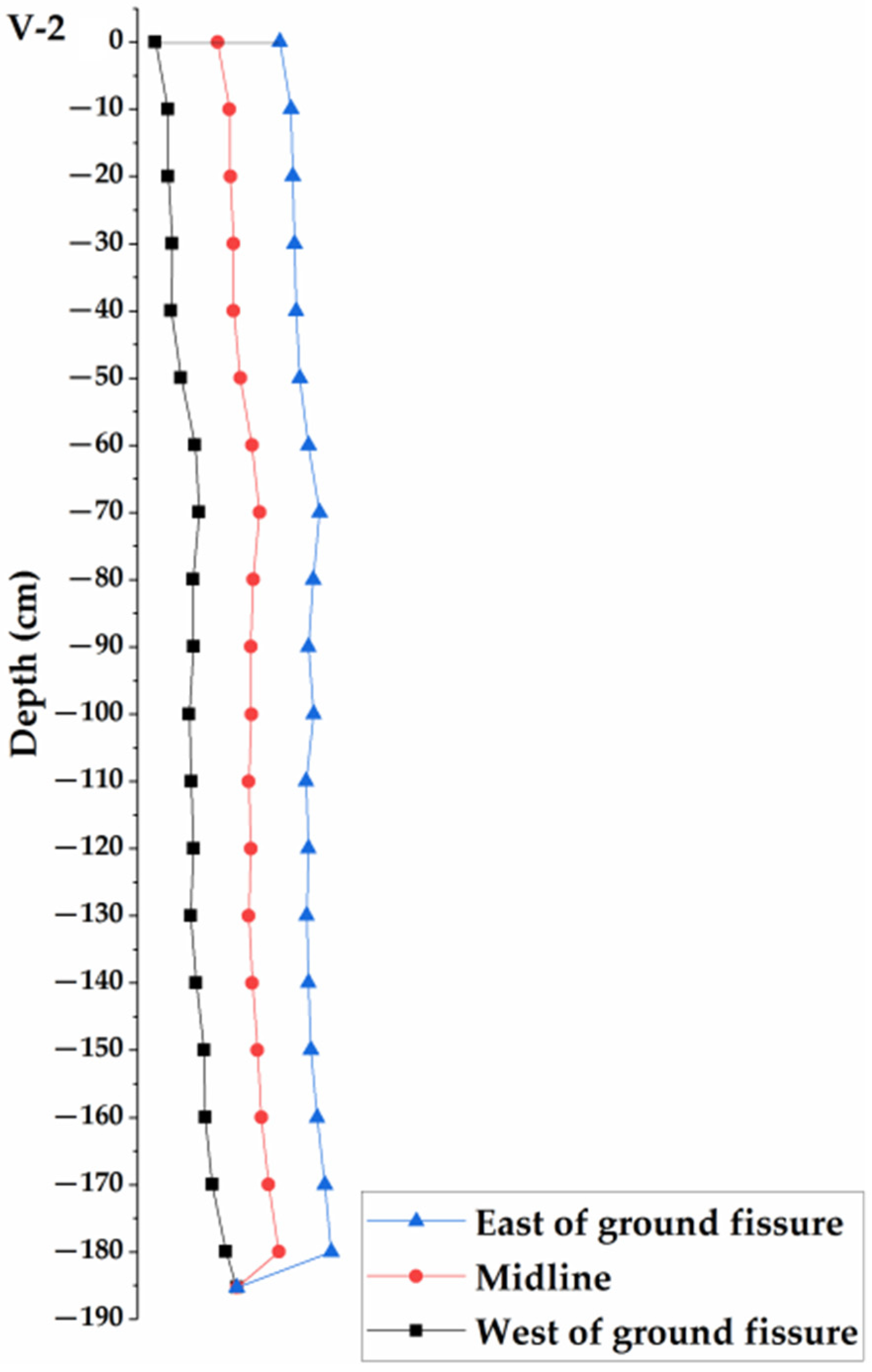

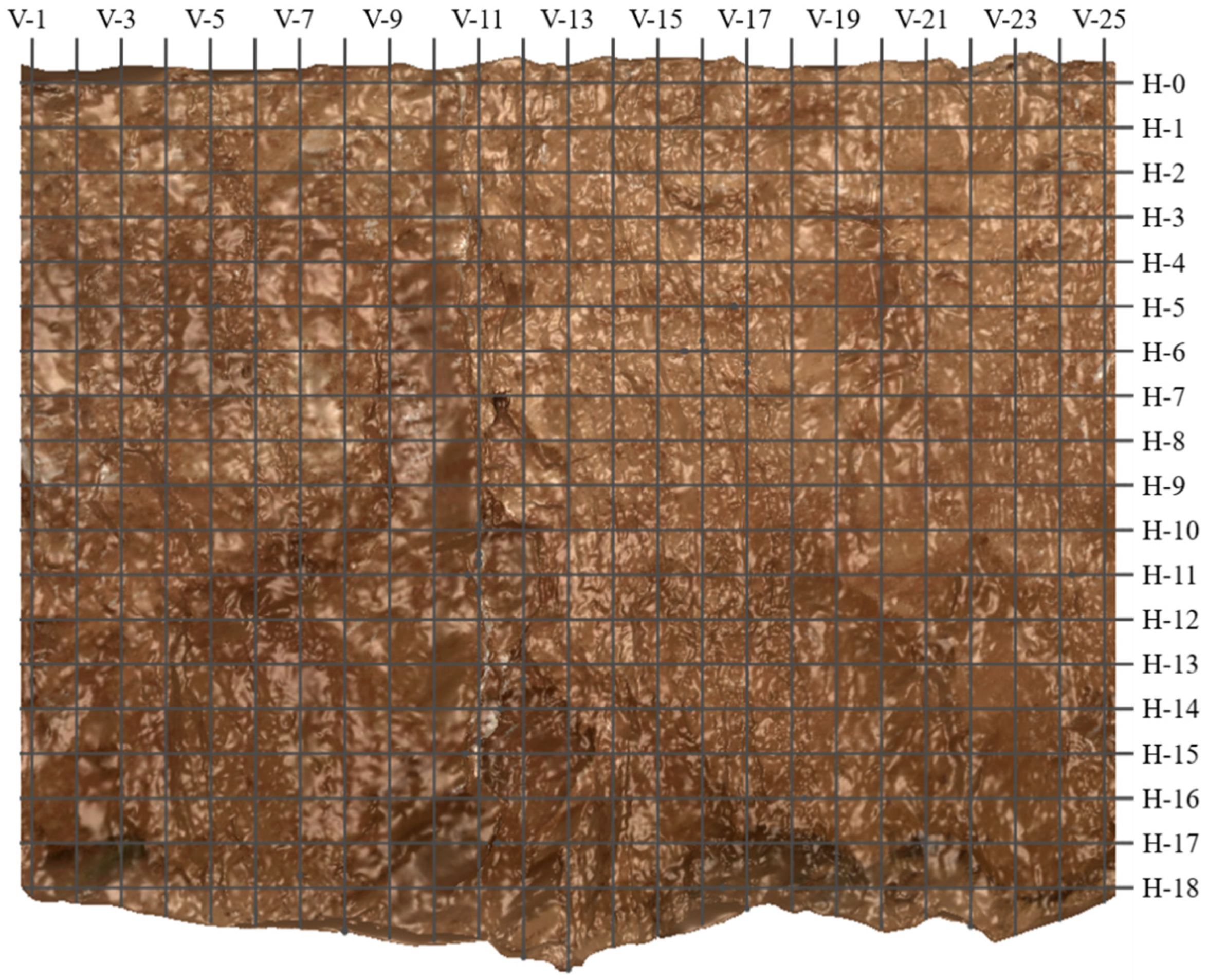

Using Geomagic Studio 2013 software, the ground fissure is cut along the horizontal and vertical directions at 10 cm intervals to obtain 25 longitudinal sections and 19 transverse sections. The longitudinal sections are numbered V-1–V-25, and the transverse sections H-0–H-18. The cutting result is shown in Figure 9. Figure 10 and Figure 11 show the ground fissure morphology of V-2 and H-6, respectively.

3.2. Analysis of Ground Fissure Morphology

We divided the ground fissure morphology into two aspects: A longitudinal section and a transverse section. Once the depth of the ground fissure exceeds 180 cm, the width suddenly drops to 0 (Figure 10), which is related to the influence of the collapsible loess, a rather random process [31,34]. Therefore, we concentrate our investigation on the ground fissure morphology between depths of 0~180 cm.

3.2.1. Longitudinal Section of the Ground Fissure Analysis

1.
Width and Depth of the Ground Fissure

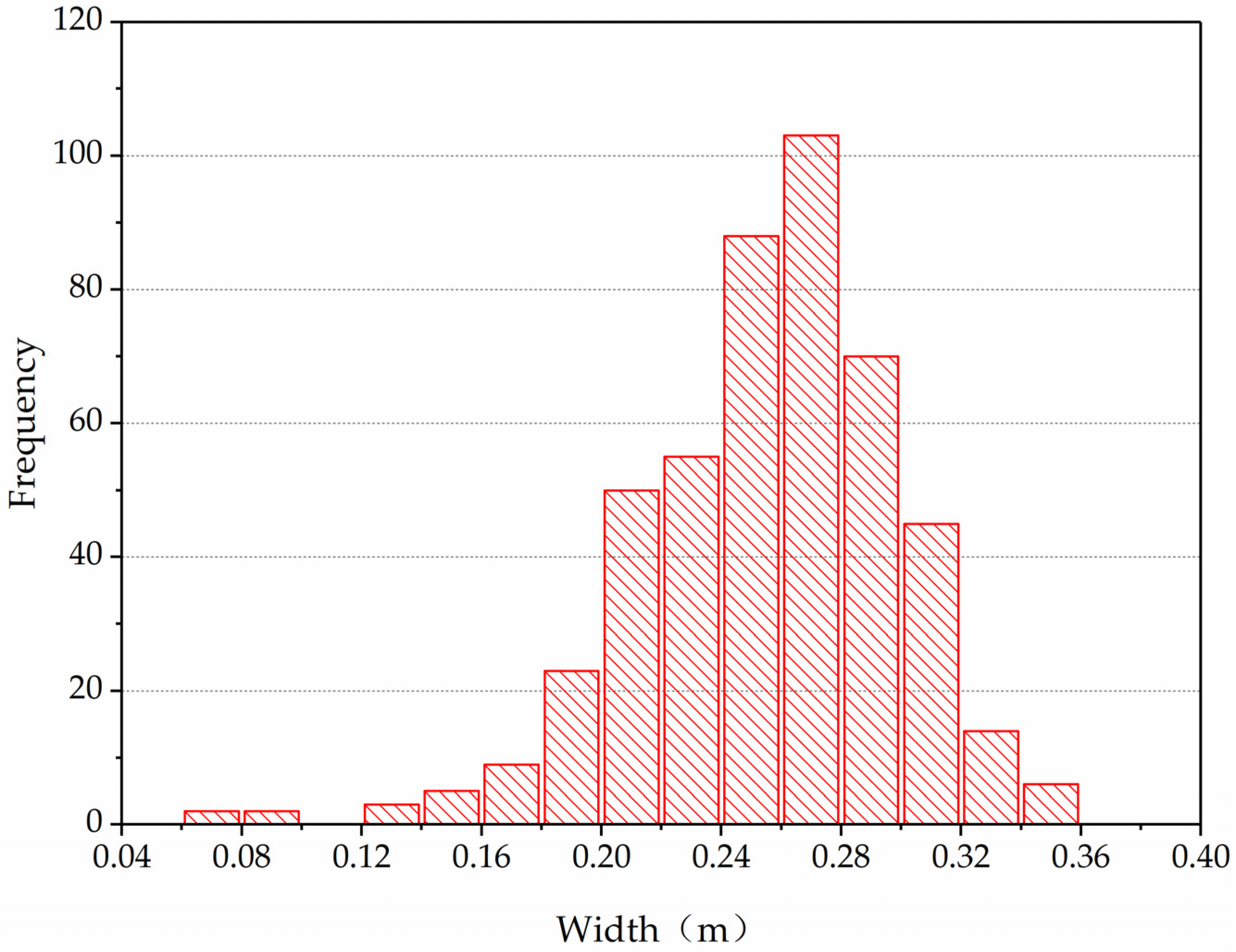

The frequency histogram of the ground fissure width is shown in Figure 12. The width distribution is 0.061~0.358 m, which basically conforms to the normal distribution [32,36]. Almost 80% of the values range between 0.20~0.30 m.

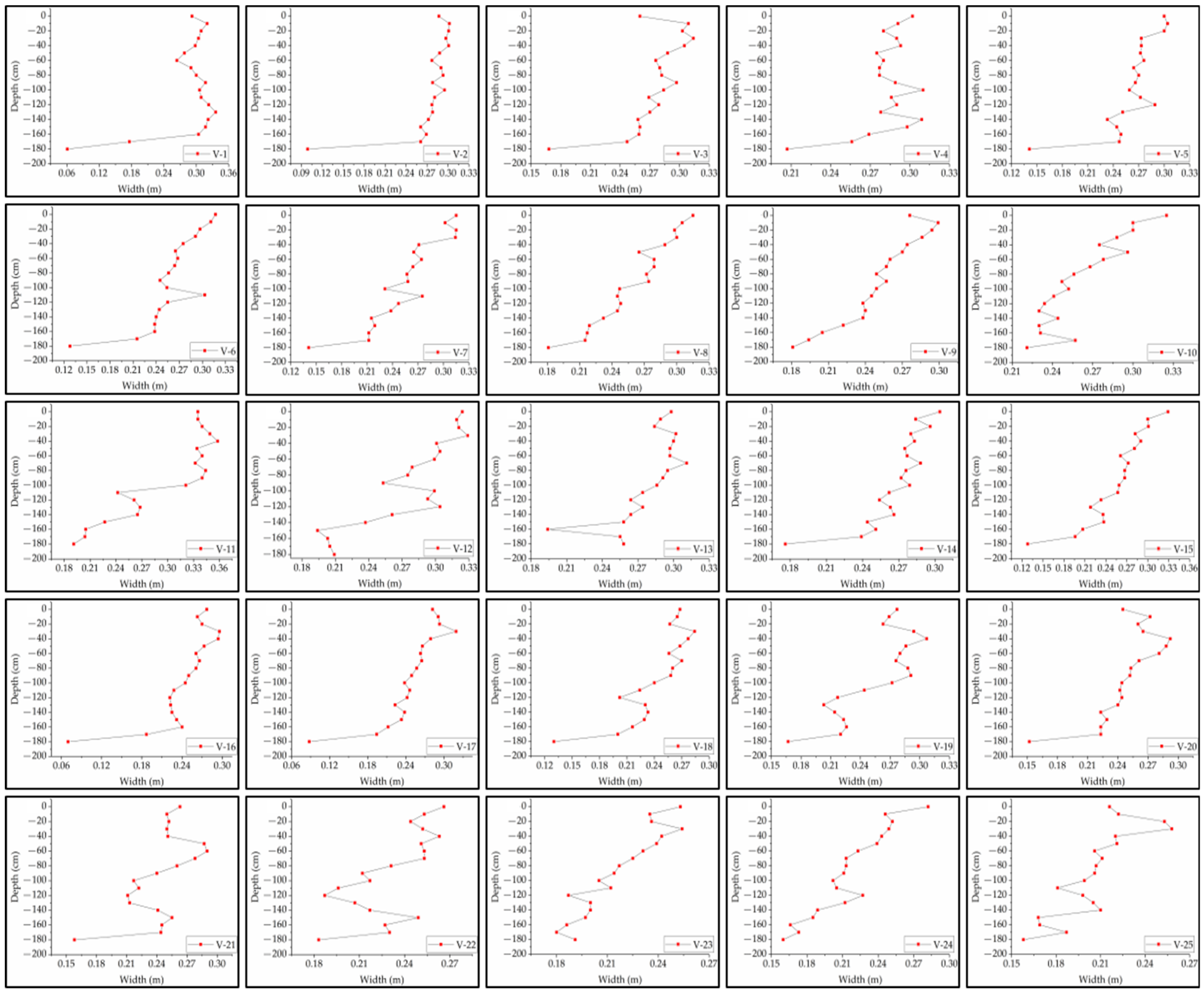

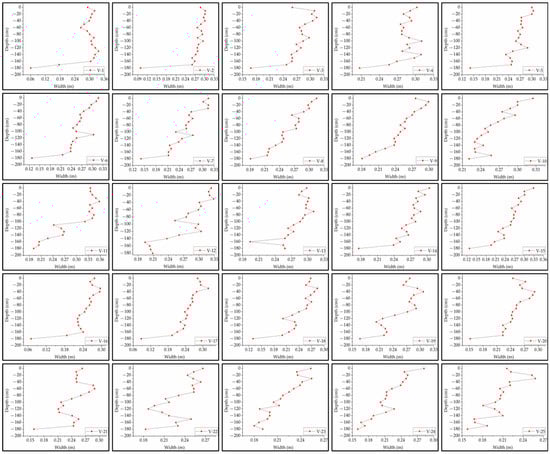

Figure 13 illustrates the variation of the width with depth, and a decrease of the width with increasing depth is evident. However, the variation of depth and width of each longitudinal section varies slightly, and two groups are observed. In the first group, exemplified by V-8, the width slightly increases at some depths, but the overall downward trend remains unaffected. The second group, exemplified by V-12, is characterized by large variation of the width. In the depth range of 100~120 cm, the width largely increases, but decreases rapidly in the depth range of 120~150 cm.
2.
Vertical Width–Depth Ratio of the Ground Fissure

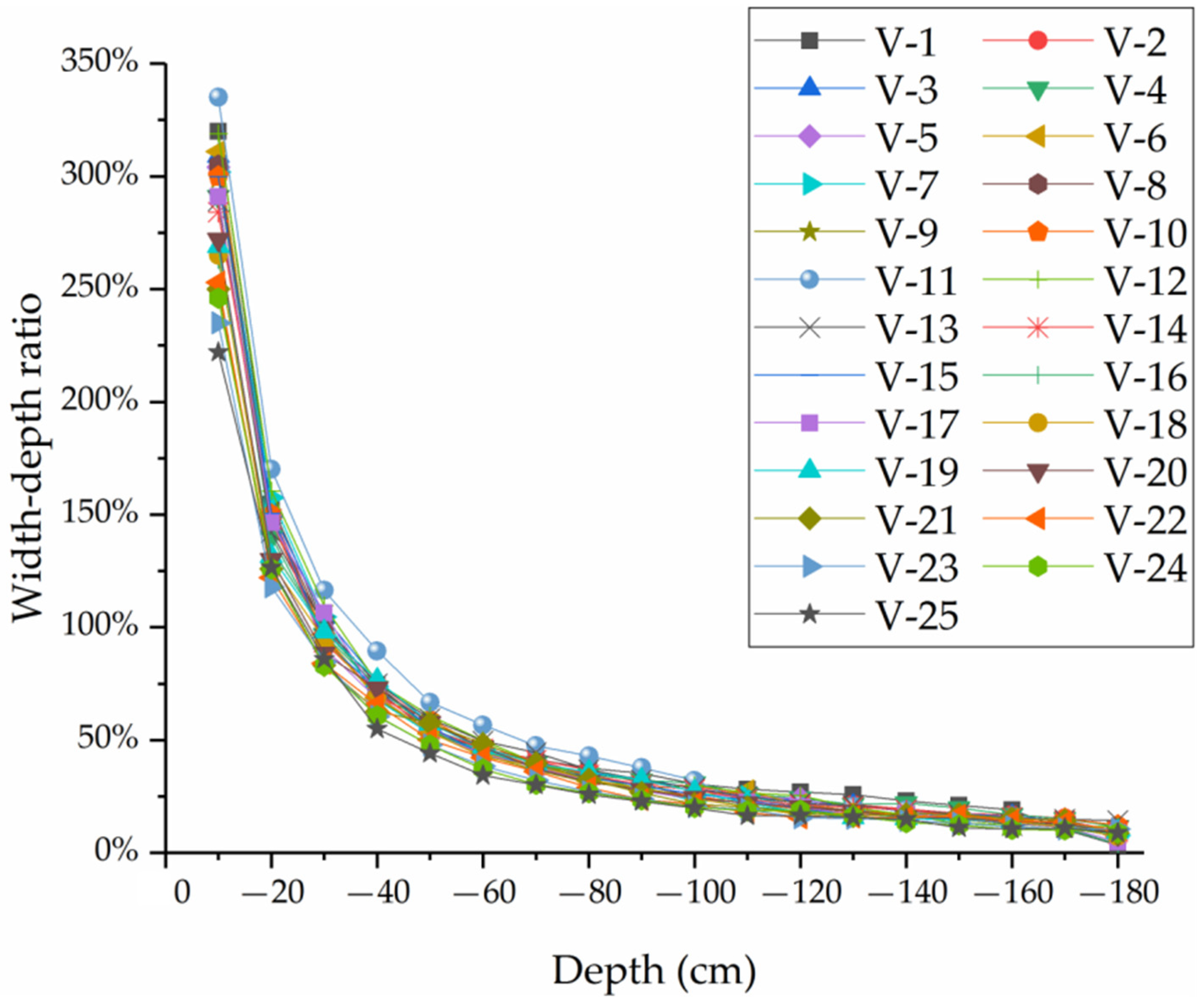

The relationship between width–depth ratio and depth of the ground fissure is illustrated in Figure 14. The diagram documents that the variation trend of the width–depth ratio of each longitudinal section with the depth is consistent. The change is from fast to slow, ranging from 320% to 3.39%. The width–depth ratio changes rapidly at a depth of 0~20 cm and more slowly between 20~70 cm, and it becomes progressively flat at depths of 70~180 cm.
3.
Vertical Extension Angle of the Ground Fissure
The vertical extension angle of the ground fissure refers to the included angle between the ground fissure and the vertical direction. It is positive at the outside of the working face and negative at the inside of the working face. Two aspects of the angle are considered:
(1)
Vertical extension angle of the ground fissure at each depth

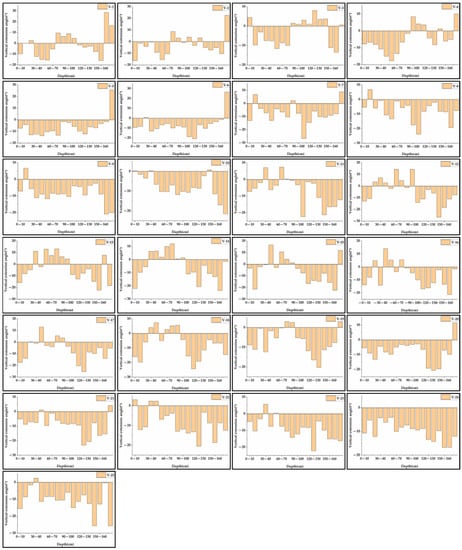

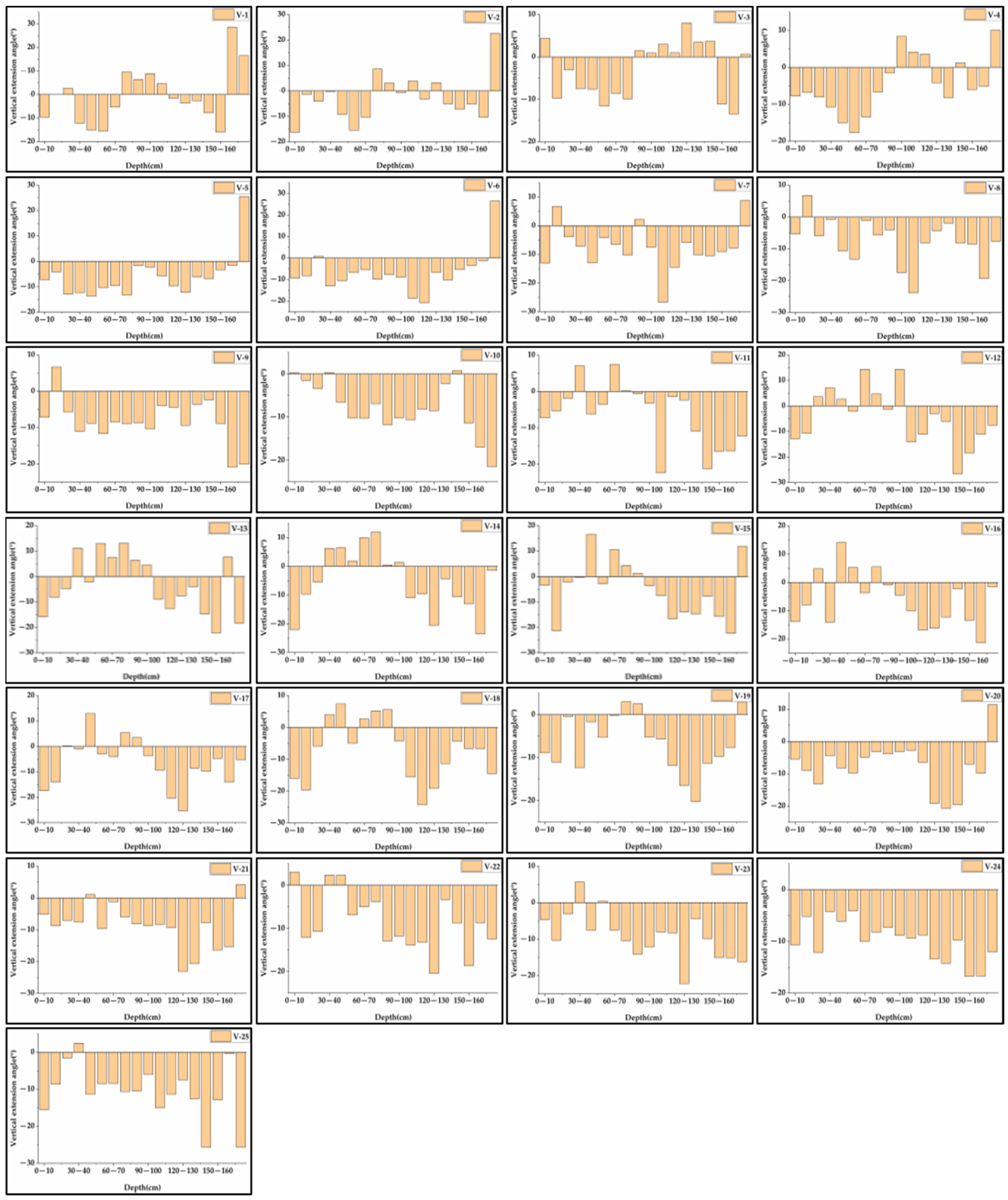

The histogram of the vertical extension angle of the ground fissure in each longitudinal section varies with depth and is constructed at an interval of 10 cm (Figure 15). The variation for the angle ranges between −18.3°~15.5°, showing that the downward extension direction of the ground fissure is inconsistent at different depth levels.
Figure 15 shows that the vertical extension angles of most longitudinal sections are biased towards the inside of the working face. The degree of the bias rises with the depth, and the angle increases slightly. However, some longitudinal sections with large fluctuations in the vertical extension angle remain, such as V-13. The vertical extension angle direction of V-13 is outside-in first, and then inside-out, and finally outside-in of the working face.
(2)
Vertical overall extension angle of the ground fissure

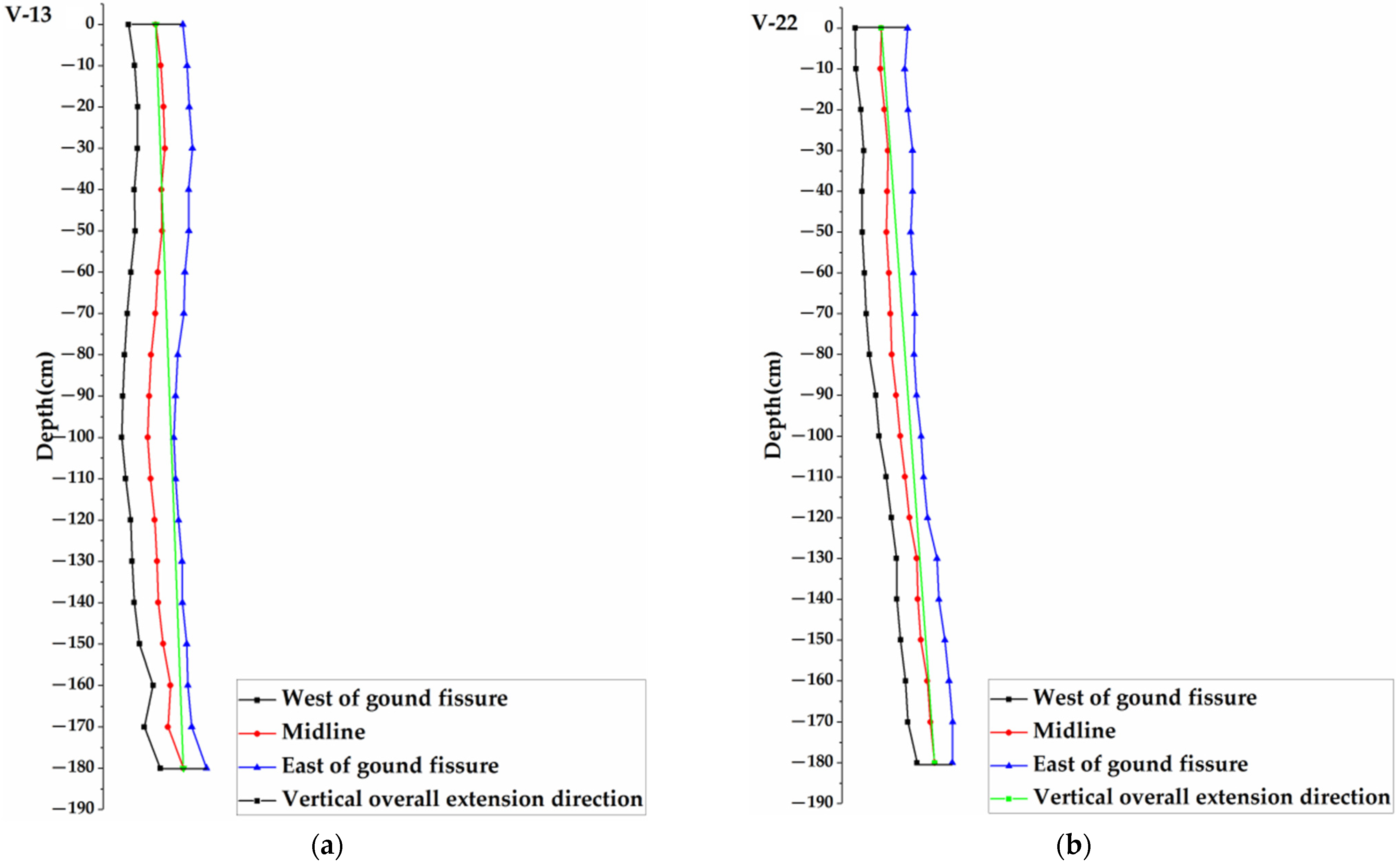

The vertical overall extension angles of V-13 and V-22 are shown in Figure 16. The green line is the vertical overall extension direction. The diagram shows a bias towards the inside of the working face for all measurements (i.e., the direction of the blue line in the figure). The angle is in the range of −11.1~−2.6°.
4.
Drop of the Ground Fissure

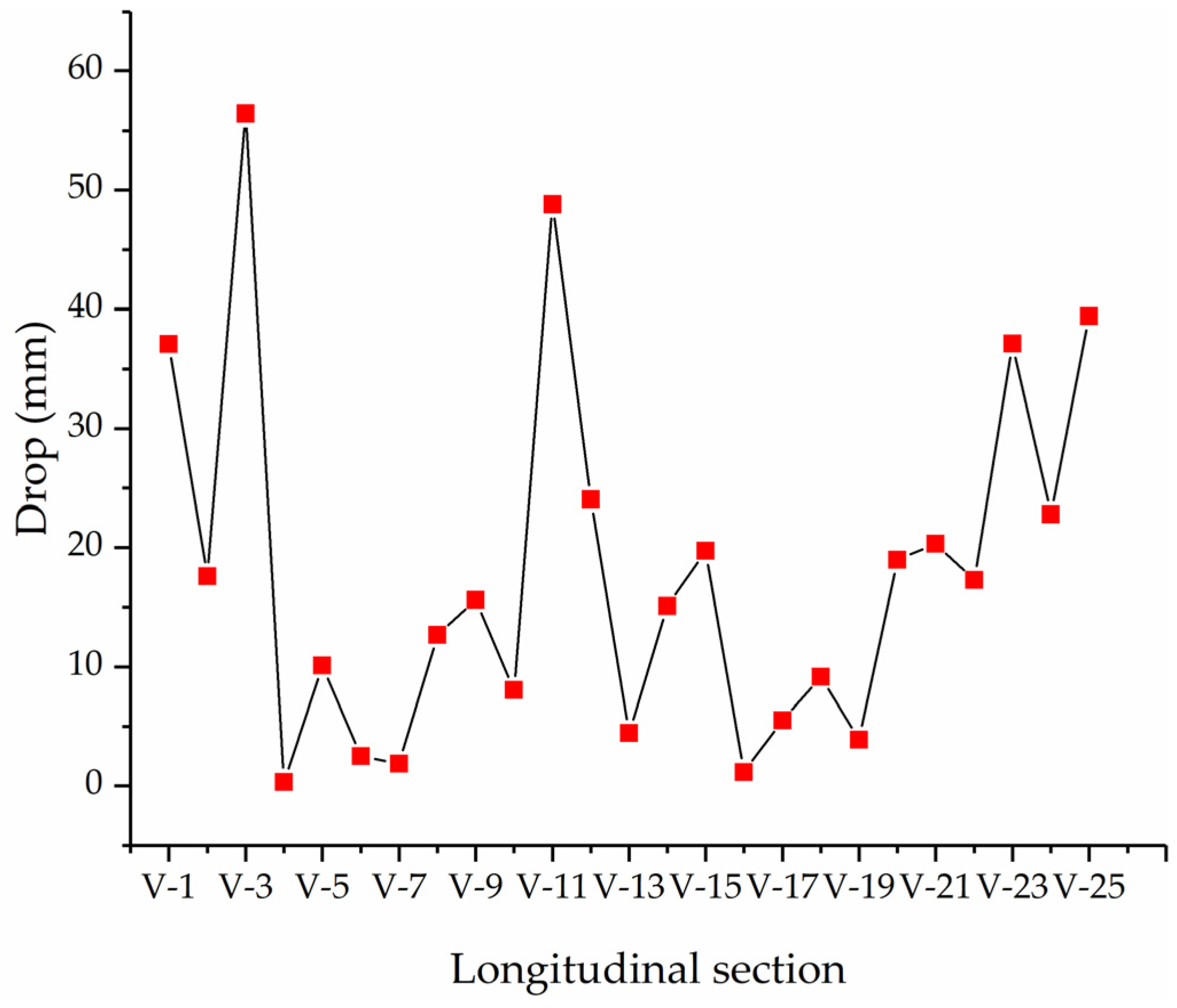

The ground fissure drop in each longitudinal section is shown in Figure 17. The drop shows a large variation, in the range of 0.3~56.4 mm, with an average of 18.0 mm. Most values are below 20 mm. A direct relationship between the drop and the position of the longitudinal section is not evident from the data.

3.2.2. Transverse Section of the Ground Fissure Analysis

1.
Width of the Ground Fissure
Table 2 shows the characteristic values of the ground fissure width in each transverse section. Analyzing the range value of the ground fissure width of each transverse section indicates that the range value of the H-18 width is the largest (0.197 m) and that of the H-17 width is the smallest (0.088 m). Other values are distributed in the range of 0.1~0.149 m. The width of each cross section generally tends towards a constant value.

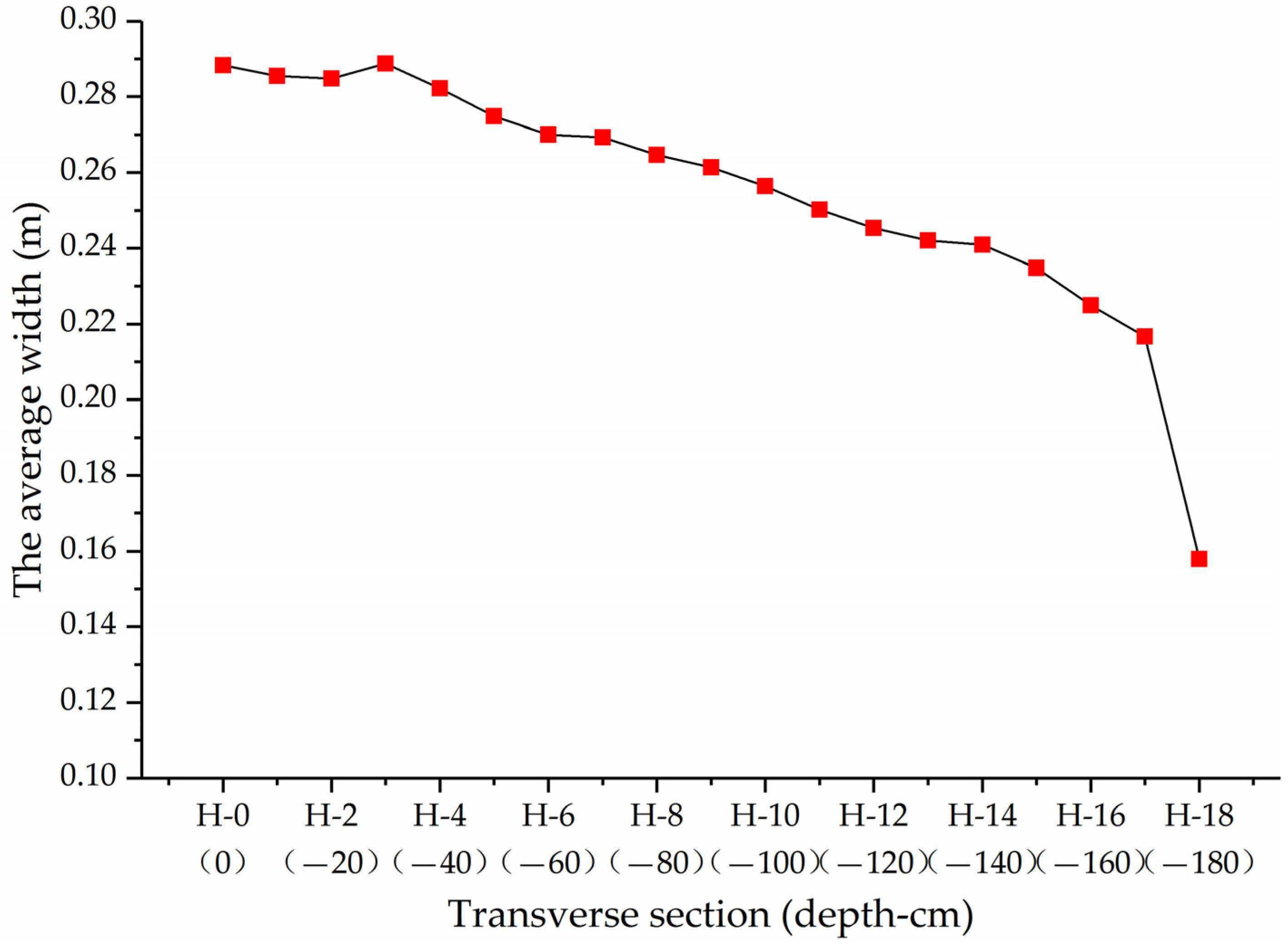

The variation of the average width of the ground fissure in each transverse section with depth is shown in Figure 18. The data show that, with increasing depth, the average width is relatively flat at 0~30 cm and decreases slowly in an approximate straight line at 30~160 cm. This trend accelerates after 170 cm.
2.
Horizontal Extension Angle of the Ground Fissure
The horizontal extension angle of the ground fissure refers to the included angle between the ground fissure and the boundary direction of the working face. It is positive to the outside of the working face and negative to the inside of the working face.
The histogram of the horizontal extension angle of the ground fissure in each transverse section varies with the direction of the working face and is constructed at intervals of 10 cm. The angle varies in the range of −44.88°~28.77°, indicating that the horizontal extension direction of the ground fissure is not strictly parallel to the boundary of the working face.

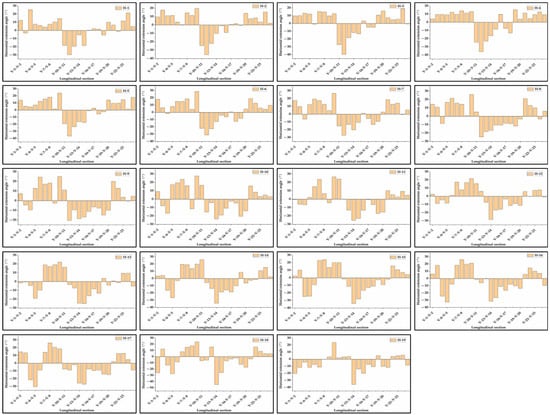

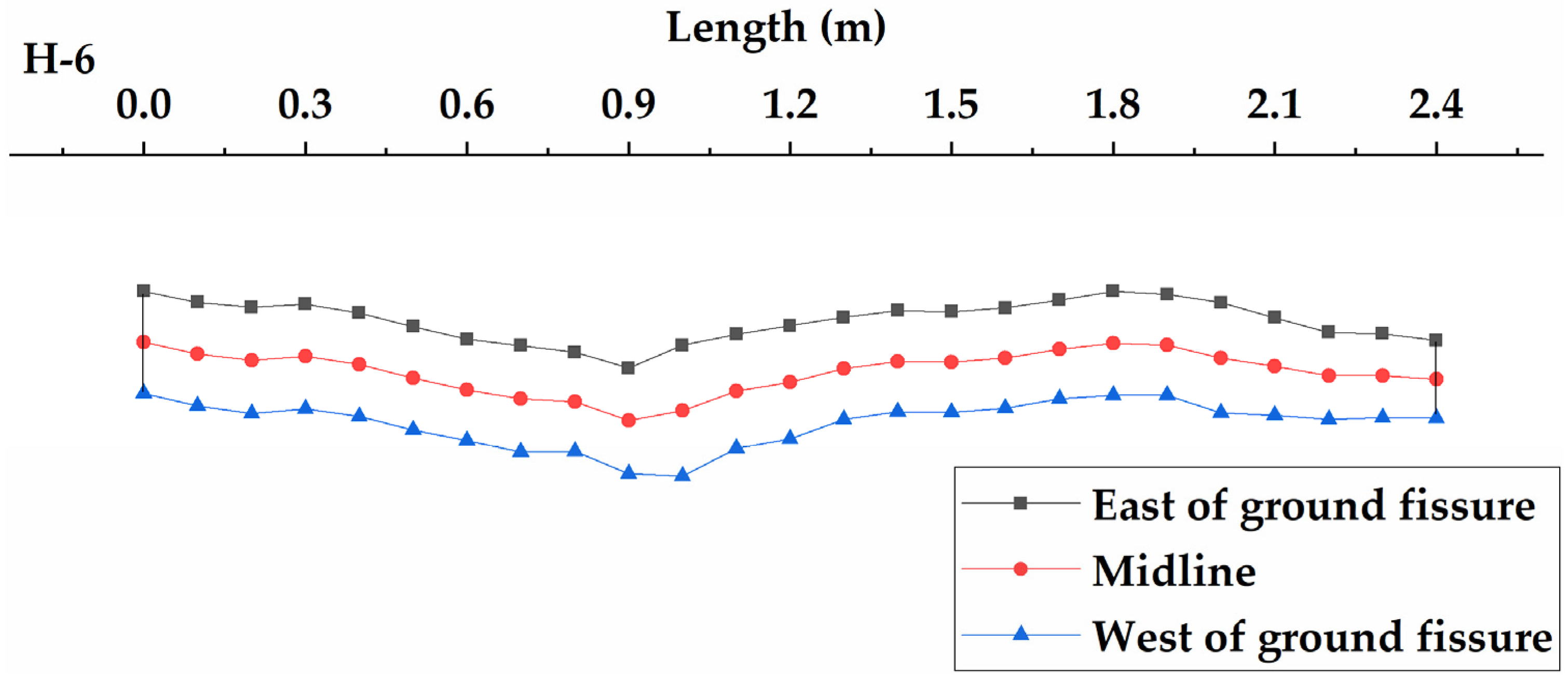

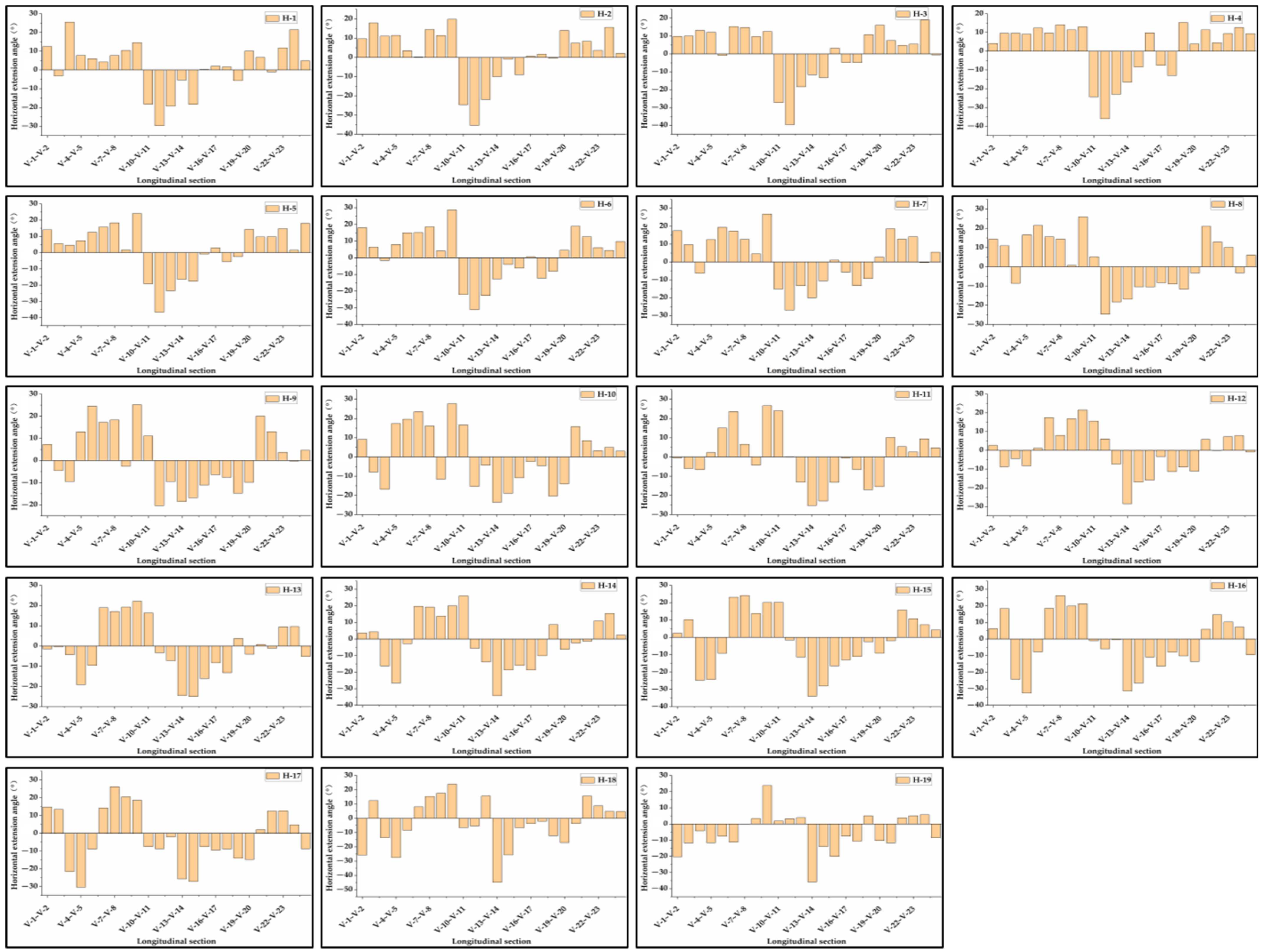

Figure 19 shows the horizontal extension angle of the ground fissure in each transverse section. The diagram documents that only one continuous position (V-10~V-18) of H-1 is biased towards the inside of the working face. Its overall direction is outside-in first, and then inside-out, and finally outside-in of the working face. Starting from H-7, the positions of V-3 and V-4 are biased towards the inside of the working face. Until H-17, two continuous positions (V-3~V-6 and V-11~V-21) are biased towards the inside of the working face. Its overall direction is outside-in first, and then inside-out, outside-in, inside-out, and finally outside-in of the working face. The data show that the horizontal extension angle of the ground fissure becomes progressively complex with increasing depth.

4. Discussion

4.1. Complexity of Underground Morphology of Ground Fissures

The data of ground fissures caused by single seam mining in China document that the distribution of ground fissures on the ground surface presents “O” rings, and that the ground fissures at the boundary of the working faces belong to permanent cracks [51]. However, the underground morphology of the ground fissures remained unresolved because the development of ground fissures is very complex and underground monitoring is difficult.
A comprehensive acquisition of the underground morphology of ground fissures can accurately infer the subsurface degree of their development as well as their evolution [29,48]. Several factors, such as the conditions of coal seam endowment, lithology and property of the roof overlying rocks, lithology of the overlying rocks, technical conditions of mining, surface topography and landforms, surface rock (soil) properties, shallow structure, weak surface conditions, and the amount of rainfall control the morphology of the ground fissures [29].
For example, the depth of ground fissures in areas with thick loess deposits can reach tens of meters, whereas ground fissures in a windy sand area are mostly thin and shallow cracks [31,51]. As the ground fissures develop downwards, they encounter the interlayer of strong-surface–weak-surface–strong-surface, and the width of the ground fissure changes abruptly [31]. The staggered distance of coal pillars can effectively inhibit the development of ground fissures [51,52,53].
This experiment documents an overall gradual decrease of the width of ground fissures with increasing depth, in line with the general law. However, at some specific depths, the width continuously increases. The anomalies are attributed to specific localized processes:
  • Once the ground fissure was excavated, and after the cleaning of the soil surface, we recognized a mixture of the soil surface with some fine-grained pebbles. As the pebbles are harder than the soil, they hinder the development of the ground fissure, thereby destroying the overall trend of width changes and slightly reducing the width increase at specific depth positions.
  • At a depth of 100~120 cm, a new crack developed perpendicular to the direction of the previous ground fissure at V-9–V-12, documenting a crack bifurcation phenomenon. The location and details of the crack bifurcation are shown in Figure 20. The crack bifurcation explains the abnormal value of the ground fissure width at these positions.

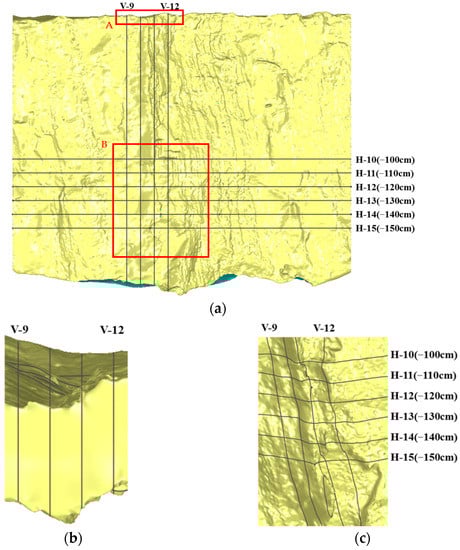

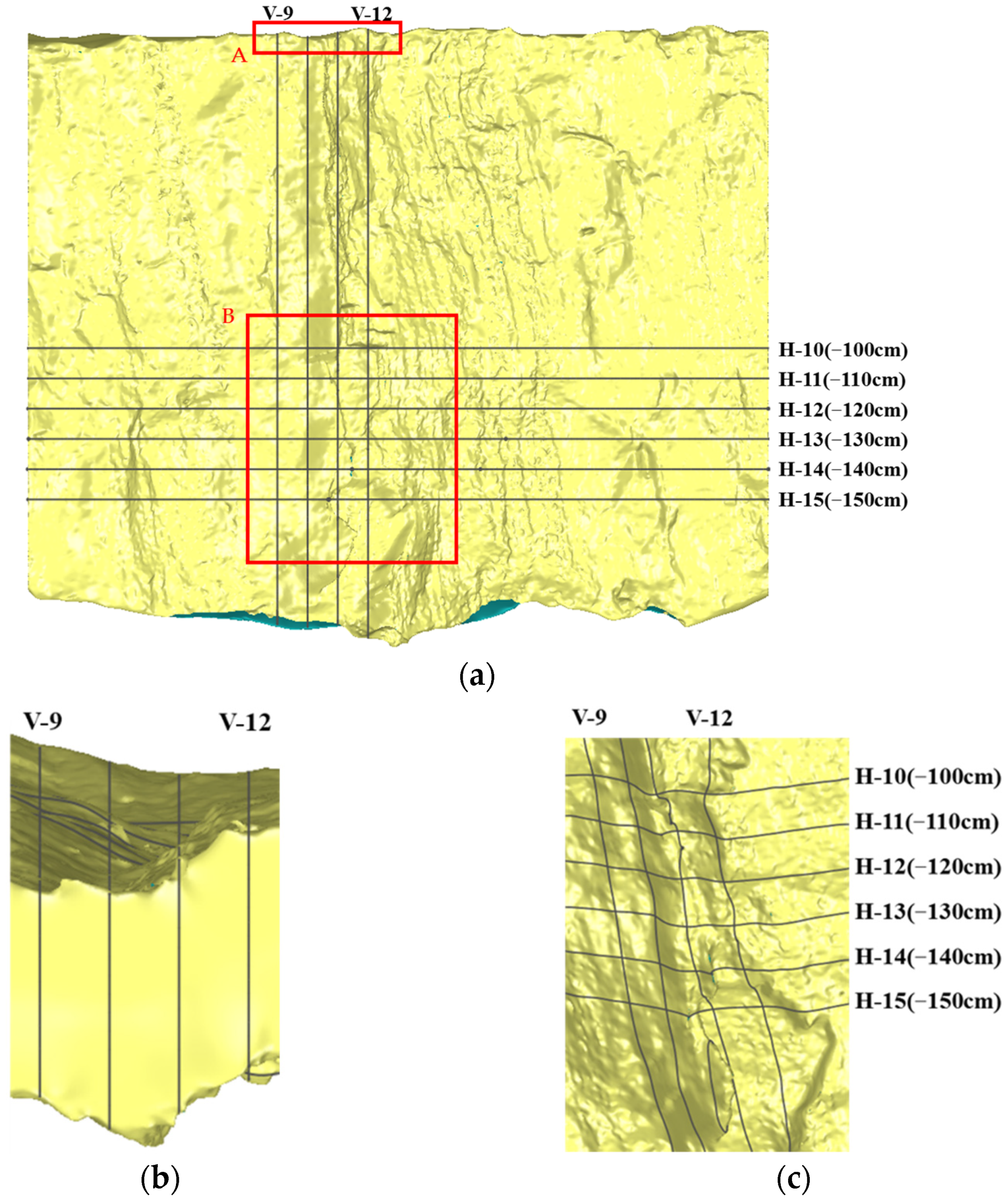

At a depth of 130 cm, the crack bifurcation is more evolved (Figure 20c), with a tendency to separation. At 150 cm, the separation is ultimately complete and the ground fissure forms a groove. Therefore, at depths between 130~150 cm, the ground fissure width exhibits large variations, and at 150 cm the ground fissure width reaches the minimum.
The figure shows that the direction of the crack bifurcation is biased towards the inside of the working face. This is in line with the results of the analysis illustrated in Figure 19, indicating that the horizontal extension direction of the ground fissure is biased towards the inside of the working face within a distance after V-10.

4.2. The Relationship between Ground Fissures and Coal Mining Subsidence

Underground coal mining affects and may destroy the mechanical stability of the overlying rocks, inducing deformation of the overlying rocks and the ground. With expansion of the working face, movement and deformation of the ground surface reaches or exceeds the ultimate tensile strength, and ground fissures may occur on the ground surface [52,53]. The ground fissure starts from the surface and extends downward, and the width gradually decreases to zero.
The development of ground fissures along the vertical direction is not straight. Its bending is mainly controlled by the nature and deformation of the soil layer [54]. For a uniform soil quality and stable structure, the deformation is almost uniform in all layers. At this time, the downward extending direction of the ground fissures is biased towards the inside of the working face [55]. Otherwise, ground fissures will extend along the direction with the weaker mechanical properties, hence, the maximum deformation position of each layer [56].
Our study area is characterized by collapsible loess deposits with uniform soil quality but loose structure. Figure 15 and Figure 16 show that the downward extension direction of the ground fissure is generally biased toward the inside of the working face, but the extension directions vary at different depth levels.

4.3. The Particularity of Ground Fissures in Collapsible Loess Areas

Collapsible loess has a low content of clay particles, weak cementation, small particle contact surface, mainly point contacts, and abundant pores. At dry conditions, the strength is higher. However, hydratization induced by heavy rainfall causes a significant decrease of the stability [55,57]. Coal mining under areas of the collapsible loess may induce the formation of ground fissure that appear on the surface. If a large amount of water during heavy rainfall invades the ground fissure, the soil on the surface will attain the bottom of the fissure as the water scours. Although the width of the fissure increases, the rainwater can transport a large amount of soil to the bottom, thereby filling the bottom. The process reduces the depth of the fissure and changes the bottom width abruptly to 0. Thus, the morphological characteristics of the ground fissure are strongly affected.

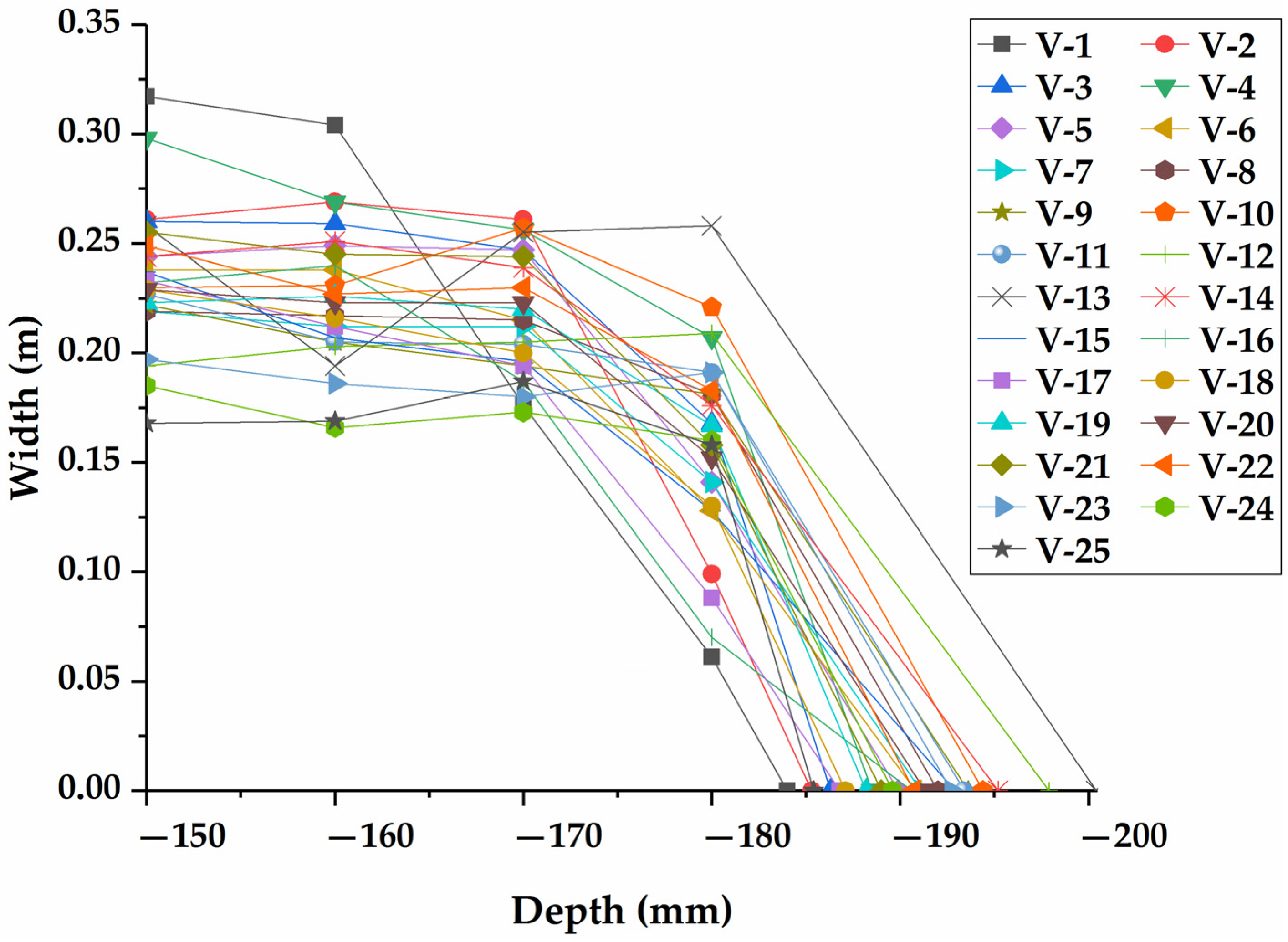

The width change from 150 cm to the bottom of the ground fissure on each longitudinal section is shown in Figure 21. Except for the special longitudinal sections, V-1 (edge effect) and V-13 (crack bifurcation), the other widths vary moderately in the range of 150~170 cm, slightly decrease at 170~180 cm, and significantly decreases at 180~200 cm. The descending range is 0.061~0.258 cm, consistent with the landform characteristics of the collapsible loess areas.

4.4. Deficiency of Three-Dimensional Laser Scanning Technology in Detecting Ground Fissures

Three-dimensional laser scanning technology can completely acquire the 3D model of ground fissures, allowing the reconstruction of their formation and their development. It has a high precision and can obtain the width, depth, and extension angle of cracks at any position. However, some deficiencies exist: (1) The costs of the analysis are high, including the instrument, material costs, and labor costs [30]. (2) The experimental method used in the present study requires a ground fissure filling and excavation. The implementation process is complex and time-consuming [31]. (3) Experiments must be conducted in advance to determine the gypsum–water mass ratio and the time of initial and final setting [48]. (4) Ground fissure excavation inevitably destroys the development of ground fissures and the surrounding soil structure. Therefore, it is unsuitable for dynamic ground fissure monitoring [19].
To minimize the deficiencies, we propose that the gypsum–water mass ratio should be adjusted to the shape and size of the ground fissures and the soil type. Moreover, a variety of mass ratios should be determined to meet the filling requirements of different depths and widths. As the structure of soil types differs, the hardness and looseness of the respective soil type should be considered during ground fissure excavation and paste surface cleaning.

5. Conclusions

We studied permanent cracks with a length of about 2.5 m on the boundary of a collapsible loess area above the Zhangjiamao coal mine (China). An underground 3D model of ground fissures is obtained by gypsum slurry and 3D laser scanning technology, and the subsurface morphological characteristics of the fissures are studied. Our main findings are:
  • The ground fissure is cut along the horizontal and vertical directions at a distance of 10 cm to obtain 25 longitudinal sections and 19 transverse sections. The width is distributed between 0.061~0.358 m, and about 80% are distributed between 0.20~0.30 m. The vertical extension angle ranges between −18.3°~15.5° at different depth levels. The vertical overall extension angle is in the range of −11.1°~−2.6°. The drop is distributed between 0.3~56.4 mm, and the range of variation is relatively large. The horizontal extension angle varies in the range of −44.88°~28.77°.
  • The underground morphology of ground fissures is complex, and the width suddenly increases or decreases in specific depth layers due to the influence of the soil composition and crack bifurcation.
  • The overlying collapsible loess has a uniform lithology and loose structure, and this special soil texture causes unique ground fissures: The vertical extension direction is not regular at all levels but is biased towards the inside of the working face. With increasing depth, the horizontal extension direction becomes more complex, and the extension direction is not strictly parallel to the working face boundary. The bottom will be filled with loosely flowing soil, causing the bottom width to drop to 0, which, in turn, affects the morphological characteristics.
Considering the properties of the filling materials, wider ground fissures are selected, to better obtain the gypsum of ground fissures. The finer ground fissures with shallow visible depths are not considered. Whether or not the underground 3D morphological characteristics of this type of ground fissures are in line with our conclusions will be studied in future projects.
