Estimation of Biomass and N Uptake in Different Winter Cover Crops from UAV-Based Multispectral Canopy Reflectance Data

Abstract

Cover crops are known to provide beneficial effects to agricultural systems such as a reduction in nitrate leaching, erosion control, and an increase in soil organic matter. The monitoring of cover crops’ growth (e.g., green area index (GAI), nitrogen (N) uptake, or dry matter (DM)) using remote sensing techniques allows us to identify the physiological processes involved and to optimise management decisions. Based on the data of a two-year trial (2018, 2019) in Kiel, Northern Germany, the multispectral sensor Sequoia (Parrot) was calibrated to the selected parameters of the winter cover crops oilseed radish, saia oat, spring vetch, and winter rye as sole cover crops and combined in mixtures. Two simple ratios (SR_red, SR_{red edge}) and two normalised difference indices (ND_red, ND_{red edge}) were calculated and tested for their predicting power. Furthermore, the advantage of the species/mixture–individual compared to the universal models was analysed. SR_red best predicted GAI, DM, and N uptake (R²: 0.60, 0.53, 0.45, respectively) in a universal model approach. The canopy parameters of saia oat and spring vetch were estimated by species–individual models, achieving a higher R² than with the universal model. Comparing mixture–individual models to the universal model revealed low relative error differences below 3%. The findings of the current study serve as a tool for the rapid and inexpensive estimation of cover crops’ canopy parameters that determine environmental services.

1. Introduction

Cover crops have gained importance during the last decade, as they provide ecosystem services such as a reduction in nitrate leaching, erosion control, and an increase in soil organic matter (SOM) [1,2,3]. Implementing incentives for growing winter cover crops within the common agricultural policy of the European union has encouraged their widespread cultivation [4]. Closing the nitrogen (N) cycle of arable cropping systems is one of the most relevant advantages of cover crops under European conditions. By storing N in the above- and below-ground biomass over winter months, cover crops prevent N leaching losses [1,5,6,7,8]. A recent meta-analysis estimated a global reduction in N leaching by 69 % across all species compared to fallow [3]. After termination, N from cover crop biomass might be supplied to succeeding spring cash crops, i.e., maize. The amount of additional N supply to subsequent crops strongly depends on the total N amount, the chemical composition (C/N ratio), and on the duration of decomposition and the resulting mineralisation/immobilisation of N [5]. For cover crop residues with wide C/N ratios, the subsequent N supply can be delayed or reduced [8,9]. Recently, cover crops cultivated as mixtures have received wider recognition in order to provide more diversity in agricultural land and to combine different functional traits in a beneficial way [10,11].

The application of remote sensing techniques in agricultural science and practice is becoming increasingly important. The monitoring of canopy characteristics such as the green area index (GAI), N uptake, or dry matter (DM) accumulation during the vegetation period is of major interest to understand physiological processes and to further derive management decisions. Many approaches have been developed for yield prediction, phenotyping, and land use monitoring, or to estimate further derived ecosystem services [12,13,14,15]. Spectral data are either provided by earth-orbiting satellites such as Landsat or Sentinel [16] or can be assessed with multispectral or hyperspectral sensors from handheld devices [17,18] or mounted on an unmanned airborne vehicle (UAV) [15]. The reflectance behaviour of cash crops, such as maize, soybean, or wheat, has been well studied over the past decades, e.g., by Gitelson et al. [17,19,20] and Bukowiecki et al. [15]. However, few authors have studied cover crops using satellite imagery to determine the current growing area and biomass accumulation of cover crops on a large scale [21,22]. Hively et al. [14] evaluated the N uptake of cover crops, combining on-field destructive plant sampling with hyperspectral measurements and satellite image analysis. Prabhakara et al. [23] found a linear relationship between the normalised difference vegetation index (ND_red, commonly known as NDVI) and percent groundcover of six winter cover crop species at the east coast of the United States using a handheld multispectral radiometer. However, so far, no study to our knowledge has estimated the canopy parameters of cover crops on a higher resolution using UAV-based multispectral sensors.

The GAI is a canopy parameter that is directly correlated with the chlorophyll amount and, consequently, can be derived through the spectral reflectance of specific wavelengths. Successful estimates of GAI through remote sensing techniques have been achieved, for example, by Kira et al. [24] for maize and soybean crops using hyperspectral data and by Bukowiecki et al. [15] for wheat with UAV-based multispectral data. Further parameters such as DM and N uptake are regarded as “secondary variables” by Weiss et al. [12]. Compared to the “primary variable” GAI or fraction of photosynthetically active radiation (FPAR), these are not directly correlated to spectral reflectance. Weiss et al. [12] recommended the estimation of “secondary variables” based on knowledge about the physiological dynamics in relation to “primary variables”. However, other authors have estimated additional “secondary” canopy parameters empirically, as well. For example, Tucker et al. [18] achieved an R² of 0.86 after deriving the biomass of winter wheat directly from spectral reflectance data using a handheld radiometer.

Canopy reflectance within the spectrum of visual light is the response of the chlorophyll content of leaves. More precisely, green light is reflected by the leaves while red light is absorbed by the chloroplasts used for photosynthesis, and is therefore informative about the chlorophyll abundance of the canopy [25,26]. Within near infrared (NIR) wavelengths, reflection reaches higher ranges and delivers structural information about the canopy (leaf angle, thickness, canopy architecture) [24,27]. Another interesting area of wavelengths within the photosynthetic spectrum is the red edge (RE) band, which records the maximum slope in the reflectance spectra and is sensitive to the chlorophyll content of a plant [20,28]. A widespread approach used to combine these informative bands and further increase the contrast in the reflection in NIR and the absorption in red is the computation of a vegetation index (VI) [29]. The most common indices are the normalised difference vegetation index (ND_red, commonly known as NDVI [30]) and the simple ratio [31] that is based on red light and NIR reflection. Both VIs can be modified by replacing the red light reflectance with the reflection at RE to increase precision [24,27].

Different canopies show variable reflectance behaviour; hence, the estimations produced by species–individual models tend to be more precise than universal models [27]. Another challenging aspect is the common strategy used to cultivate cover crops as the mixtures of several species for increasing environmental services in an agricultural system [32]. Due to the expected heterogenous spectral response from different species as well as from different mixtures, a comprehensive comparison of universal and individual models seems necessary for winter cover crops. Another challenge is the season in which cover crops are grown. Due to flat sun angles, radiation incidence is reduced in the late autumn and winter months, especially in higher latitudes [33].

The objective of this study was the calibration of the multispectral sensor Sequoia (Parrot) for the canopy parameters of pure stands and mixtures of winter cover crops grown in Northern Germany. Therefore, four different VIs (SR_red, SR_{red edge}, ND_red, ND_{red edge}) were tested for the best regression with each cover crop’s GAI, DM, and N uptake, either as a universal or as a species–individual and mixture–individual approach.

2. Materials and Methods

2.1. Study Site

The study site was located in Northern Germany at the Hohenschulen experimental farm of the Kiel University (10.0 E, 54.3 M, 30 m a.s.l.). Glacial influence led to the small scale heterogeneity of soil types. Main soil type is defined as Luvisol with a sandy loam texture in the topsoil. The temperate oceanic climate in the study area is characterised by a long-term average (1991–2020) mean annual air temperature of 9.3 °C and an annual mean precipitation of 797 mm [34].

2.2. Trial Designs

Data collection was carried out in two trials (A and B) in 2018 and 2019 with winter cover crops from different functional groups (

Table 1. Winter cover crops investigated in this study.

Cover Crop	Oilseed Radish	Saia Oat	Spring Vetch	Winter Rye
Botanical name	Raphanus sativus	Avena strigosa	Vicia sativa	Secale cereale
Family	Brassicaceae	Poaceae	Leguminosae	Poaceae
Abbreviation	OR	SO	SV	WR
Winterhardiness	no	no	no	yes

). From trial A, we used 16 randomised plots with four sole cover crops grown after winter oilseed rape. All cover crop treatments in trial A were unfertilized. Trial B was performed in 32 strips with four cover crops as sole stands and four cover crop mixtures. Variations in biomass growth were achieved by implementing two sowing dates and two different nitrogen levels (with and without N fertilisation, N-level adapted according to sowing date,

Table 2. Trial design, sowing dates, and N-level in Trials A and B.

Trial	Sowing Date	Nitrogen Levels (kg N ha−1)
Trial A	20 August 2018 23 August 2019	0 (0N)
Trial B	17 August 2018 3 September 2018 24 August 2019 10 September 2019	0 (0N); 60 (60N) 0 (0N); 40 (40N) 0 (0N); 60 (60N) 0 (0N); 40 (40N)

). Cover crop mixtures sown in Trial B were all possible combinations of the non-winter-hardy species: OR–SO (oilseed radish, saia oats), OR–SV (oilseed radish, spring vetch), SO–SV (saia oat, spring vetch), and OR–SO–SV (oilseed radish, saia oat, common vetch) (Table 1). Winter-hardy rye was not included in the mixture combinations.

2.3. Reflectance Measurements

Spectral data were collected biweekly with the multispectral camera Sequoia (Parrot), which was mounted to the eBee-X or eBee-SQ drone. The Sequoia (Parrot) camera comprises four spectral bands covering the wavelength ranges of green (550 nm) and red light (660 nm), red edge (RE, 735 nm), and near infrared (NIR, 790 nm). The reflection bands have a bandwidth of 40 nm, except for RE, with 10 nm. Radiometric calibration was performed using a grey scale target, photographed by the camera before each flight. A light sensor on top of the Sequoia (Parrot) camera measured the incoming radiation. Especially considering the poorer light conditions that occur during the autumn and winter seasons, the values for incoming radiation data became more important for corrections during postprocessing. Flight routes were planned with the software eMotion3 from senseFly. Pixel size was set as 8 cm × 8 cm pixel⁻¹. After each flight, the images recorded with the Sequoia sensor were processed with eMotion3 and Pix4Dmapper software (Pix4D SA., Switzerland). Using Pix4Dmapper, recorded images were processed to orthogonal reflection maps for each reflectance band. Recording an additional image after sampling provided the location and area of the harvested biomass in each plot. The reflectance of the regarded sampling areas was extracted using QGIS (version 3.22.7) and R 4.0.4 [35,36]. To avoid bias due to pixels containing soil or shadow, the median of the extracted pixels served as a representative value [15].

2.4. Plant Sampling

Within two days after each UAV’s flight, destructive plant samplings were made. The parameters green area index (GAI, cm² cm⁻²), dry matter (DM, g m⁻²), and N concentration of DM (%) were determined. Therefore, in each plot, 0.5 m² plant material was dug out of the soil. Roots were cut of afterwards to ensure that the complete above-ground biomass was included in the sample. Remaining biomass was fractionated in the green plant material of cover crops, weeds, and senescent plant material. Weeds were dominated by the plants of voluntary oilseed rape. Senescent material was defined as yellow or brown biomass, which was not photosynthetically active. GAI of the green vegetation (cover crop and weed fraction) was measured using the LI-3100C Area Meter (LI-COR Inc., Lincoln, NE USA). The sampled biomass of all fractions was oven-dried at 60 °C for five days and weighted subsequently. N concentration of all fractions was assessed with a CN-Analyser (TruMac CN, LECO) and converted to N uptake g m⁻² of the regarded DM.

2.5. Statistical Analysis

All calculations were performed in R (Version 4.0.4, R Core Team, 2021). For canopy parameter prediction, simple ratios (SRs) and normalised difference indices (NDs) were calculated, combining the spectral bands red and NIR according to

Table 3. Description of vegetation indices investigated in this study with spectral bands used for calculation (NIR: near infrared, RE: red edge, red: red).

Vegetation Index	Abbreviation	Formula	Reference
Simple ratio	SRred	$\frac{\mathrm{NIR}}{\mathrm{red}}$	Jordan [31]
Simple ratio red edge	SRred edge	$\frac{\mathrm{NIR}}{\mathrm{RE}}$	Sims and Gamon [37]
Normalised difference vegetation index	NDred	$\frac{\mathrm{NIR} – \mathrm{red} }{\mathrm{NIR} + \mathrm{red}}$	Rouse et al. [30]
Red edge normalised difference vegetation index	NDred edge	$\frac{\mathrm{NIR} – \mathrm{RE} }{\mathrm{NIR} + \mathrm{RE}}$	Dong et al. [38], Gitelson and Merzlyak [39]
Red: 660 nm; RE: 735 nm; NIR: 790 nm

.

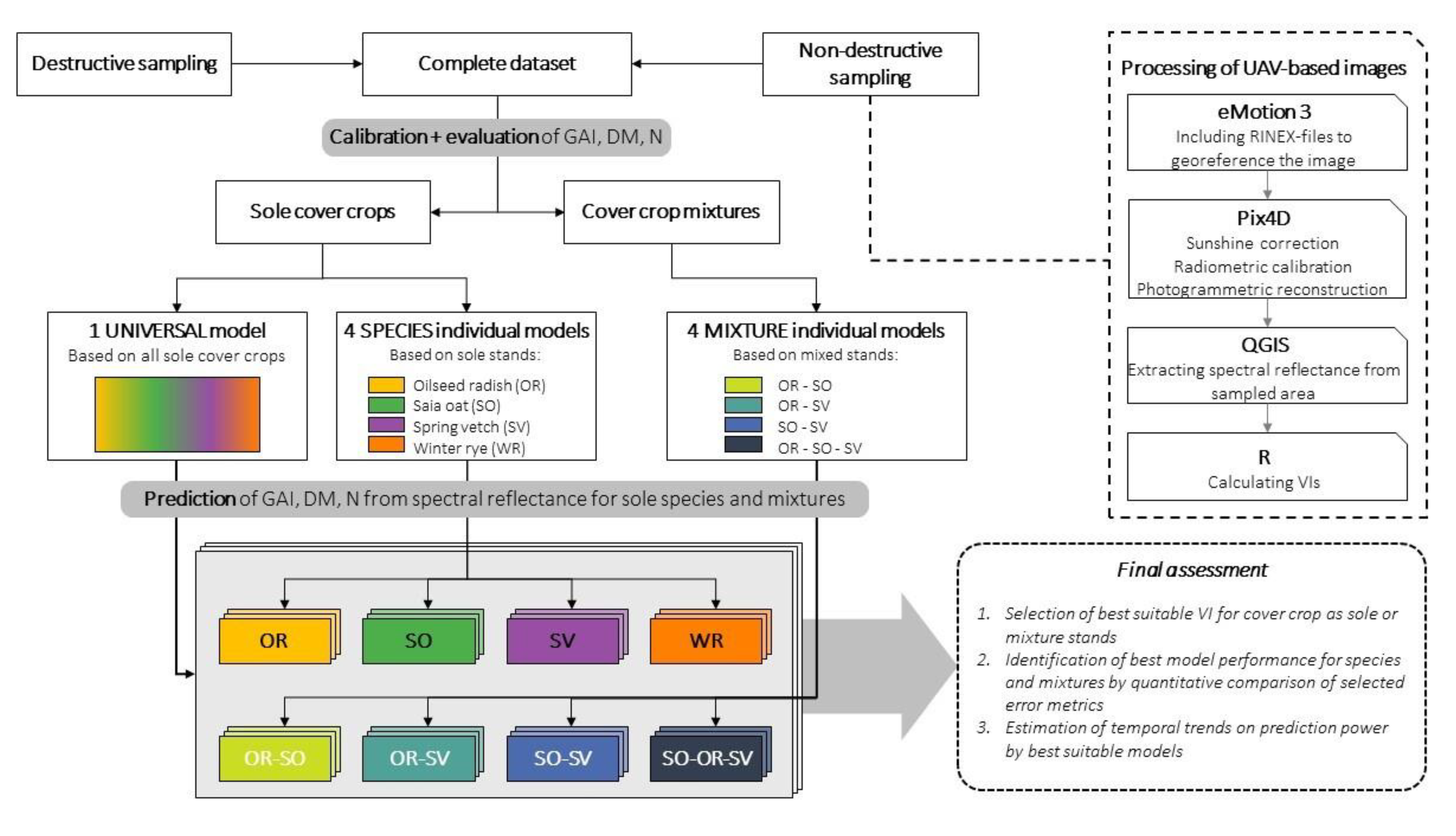

After selecting the most suitable VI, different model approaches were compared (Figure 1). Measured input data for the canopy parameters referred to the green vegetation. Senescent biomass was excluded, as it showed a low spectral response [23]. One approach was the estimation of the cover crop canopy parameters using a universal model (n = 248). Therefore, the best performing vegetation index was correlated with the measured canopy parameters (GAI, DM, N) across all cover crop species. Furthermore, models were generated for each cover crop separately, and were referred to as species–individual models (n = 65 (OR), n = 53 (SO), n = 65 (SV), n = 65 (WR)).

For mixed stands, the two model approaches were tested as well. The first assumption was the calibration of the mixture models similar to the species–individual calibration, referred to as the mixture–combination model. Secondly, the universal model based on the sole cover crops was applied to the mixture data set. The data set for cover crop mixtures was restricted to DM and N uptake in 2018 (n = 27 for each cover crop mixture). Relative mean absolute error (rMAE) and adjusted r² (R²) were used to assess error of prediction and for a performance comparison of the VI models.

3. Results

3.1. Weather Conditions

Measured temperature during the observation period ranged from 30 to −1.1 °C in 2018 and 32.1 to −1.3°C in 2019. Frost events (<0 °C) were documented at 28 November 2018 (−1.1 °C), 31 October 2019 (−1.3 °C), and 1 November 2019 (−0.1 °C). Cumulative PAR saturated towards winter in both years and reached a sum of 402.9 W m⁻² in 2018 and 332.7 W m⁻² in 2019 (Figure 2).

3.2. Cover Crop DM Accumulation

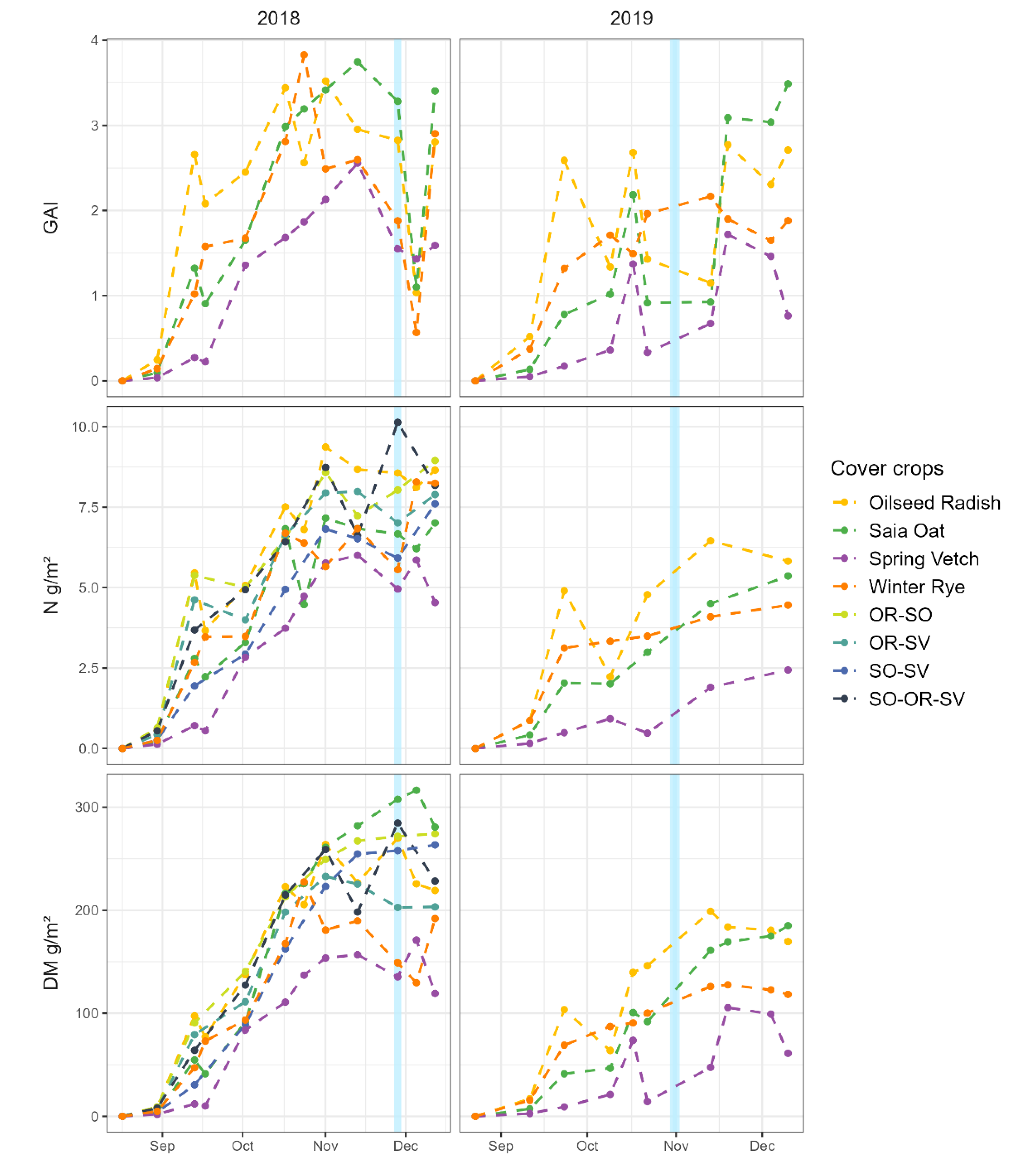

Crop growth within the plots turned out to be heterogenous. Biomass varied strongly with each sampling date. After the frost events, GAI, DM, and N uptake decreased or saturated. In 2019, frost events occurred earlier in the season, reducing living biomass even more clearly, especially for SV. The data for cover crop mixtures were restricted to DM g m⁻² and N uptake g m⁻² in 2018 (Figure 3).

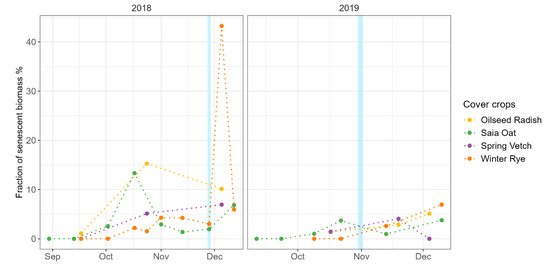

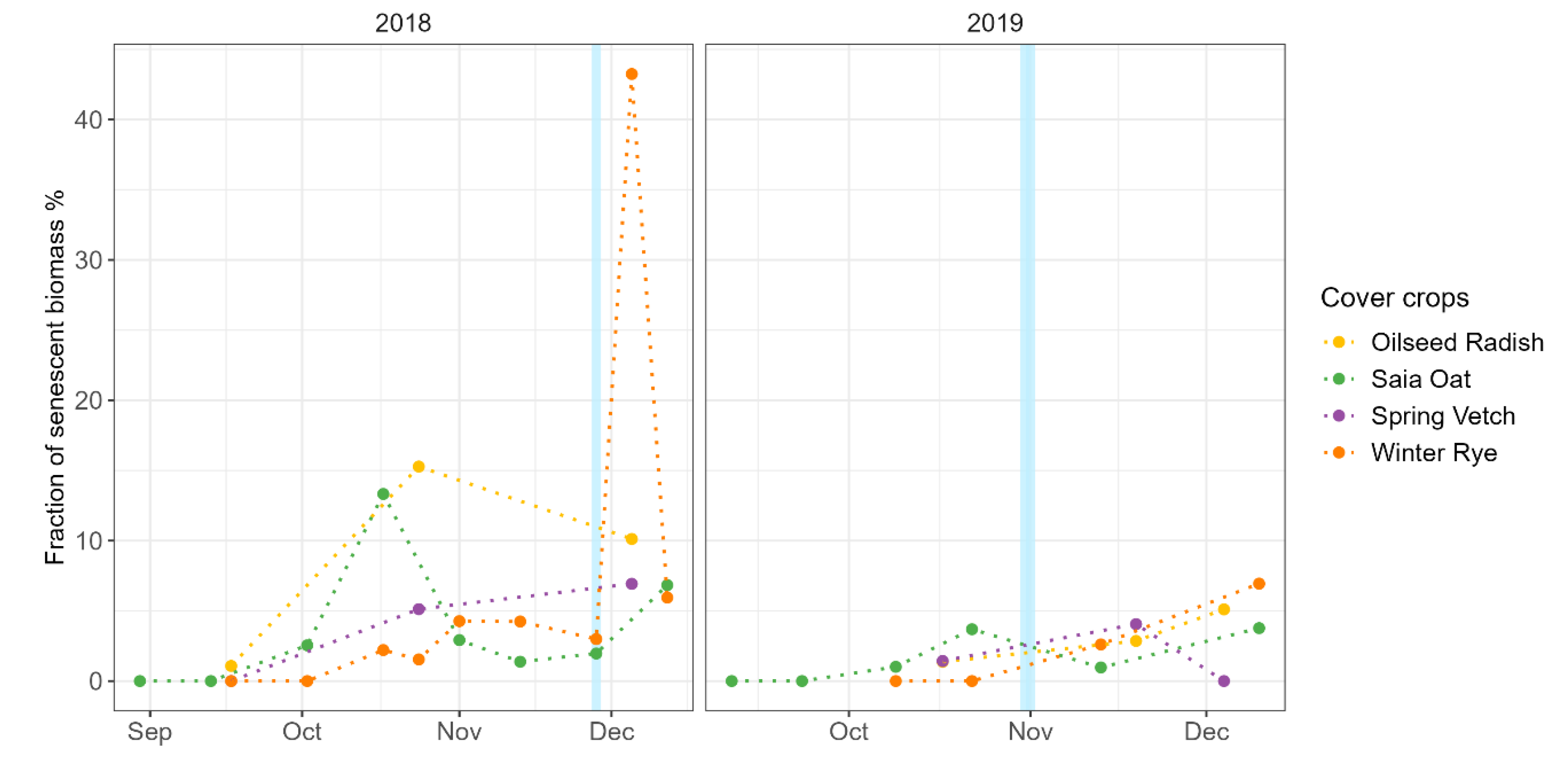

Senescent biomass increased towards the winter month. The highest proportion occurred in winter rye (WR) with 45.7% after a frost event in November 2018. In general, the proportion of senescent plant material was <20% in 2018 and <10%, with the slightly higher values forOR, in 2019. SV showed little to no proportions of senescence for both years (Figure 4).

3.3. Universal Calibration

Linear models were established to predict the parameters GAI, DM, and N uptake of all sole cover crops together by four VIs (SR_red, SR_{red edge}, ND_red and ND_{red edge}). Regarding rMAE and R², the universal calibration using SR_red to predict GAI performed best (Figure 5). Furthermore, SR_red estimated DM and N uptake more precisely than the other VIs (

Table 4. Universal models for predicting canopy parameters (green area index (GAI), dry matter (DM) (g m⁻²), and N uptake (N) (g m⁻²)) of cover crops. For each parameter, four vegetation indices (VIs) (SR_red, SR_{red edge}, ND_red, ND_{red edge}) were tested.

Parameter	VI	Equation	rMAE	R2
GAI	SRred	−0.21 + 0.19x	31.34	0.60
	SRred edge	−4.46 + 4.75x	41.46	0.39
	NDred	−2.46 + 5.51x	39.91	0.43
	NDred edge	−0.05 + 13.74x	40.93	0.40
DM	SRred	−18.51 + 14.56x	50.37	0.53
	SRred edge	−361.79 + 377.76x	63.38	0.36
	NDred	−204.94 + 441.53x	61.81	0.41
	NDred edge	−10.66 + 1097.02x	62.67	0.37
N	SRred	0.43 + 0.4x	35.88	0.45
	SRred edge	−8.1 + 9.72x	43.83	0.26
	NDred	−5.72 + 13.6x	38.91	0.43
	NDred edge	0.88 + 28.68x	43.37	0.27

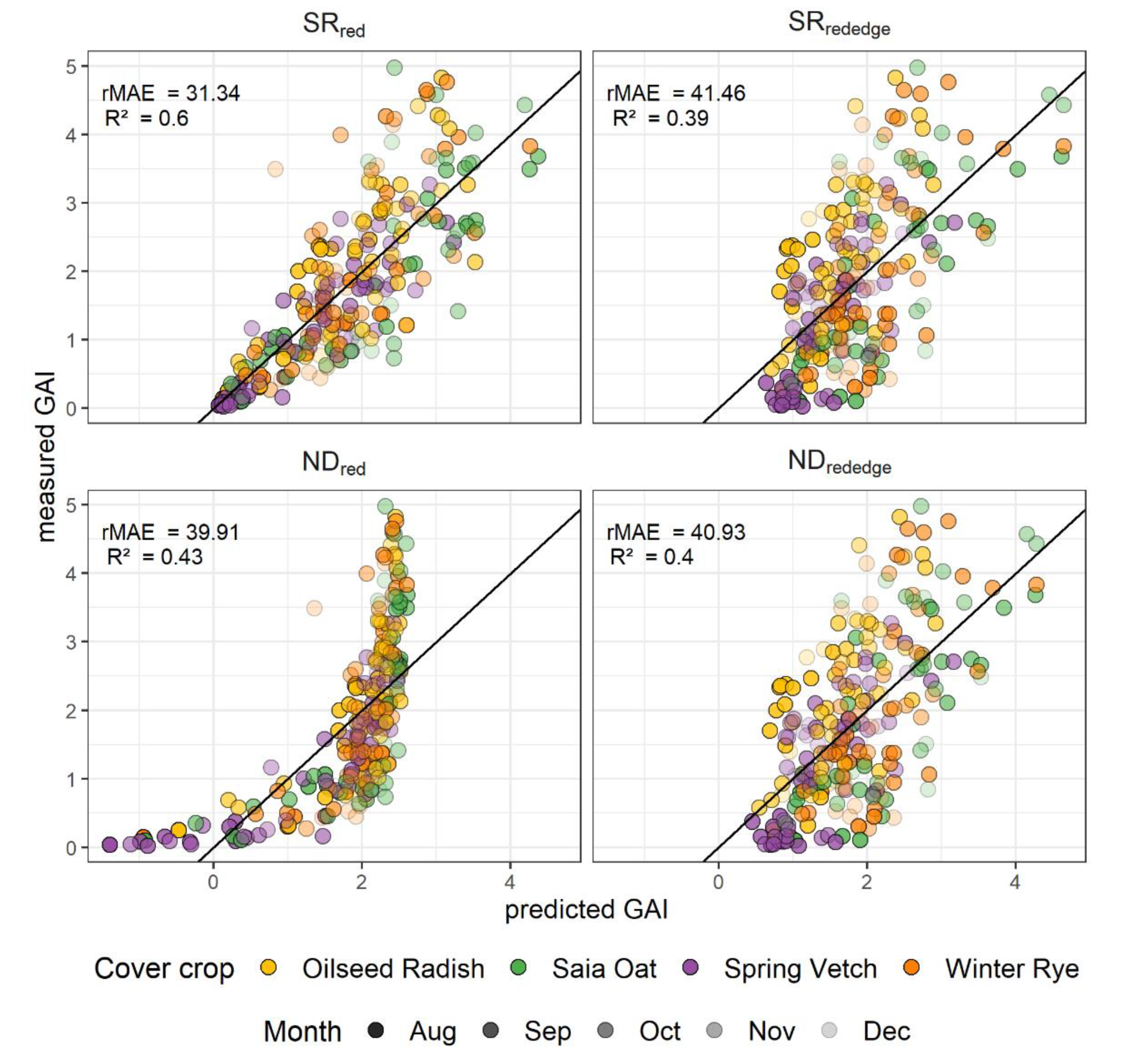

). ND_red models assessed a moderate error but were saturated for GAI values >2 (Figure 5). This also applied for DM g m⁻² and N uptake g m⁻² (Table 4). Within lower GAI ranges, the ND_red estimated negative values (Figure 5). VIs using the RE band, such as ND_{red edge} and SR_{red edge}, showed higher rMAE compared to their red-based counterparts. The performance of RE-based VIs was almost similar for all regarded canopy parameters (Table 4). Towards a later time of the year, the values of rMAE increased while R² decreased (Figure 6), indicating less reliability. Coincidently, a proportion of the senescent biomass increased during the vegetation period (Figure 4). Winter rye reached the highest amount of senescent biomass in December.

3.4. Species–Individual Calibration

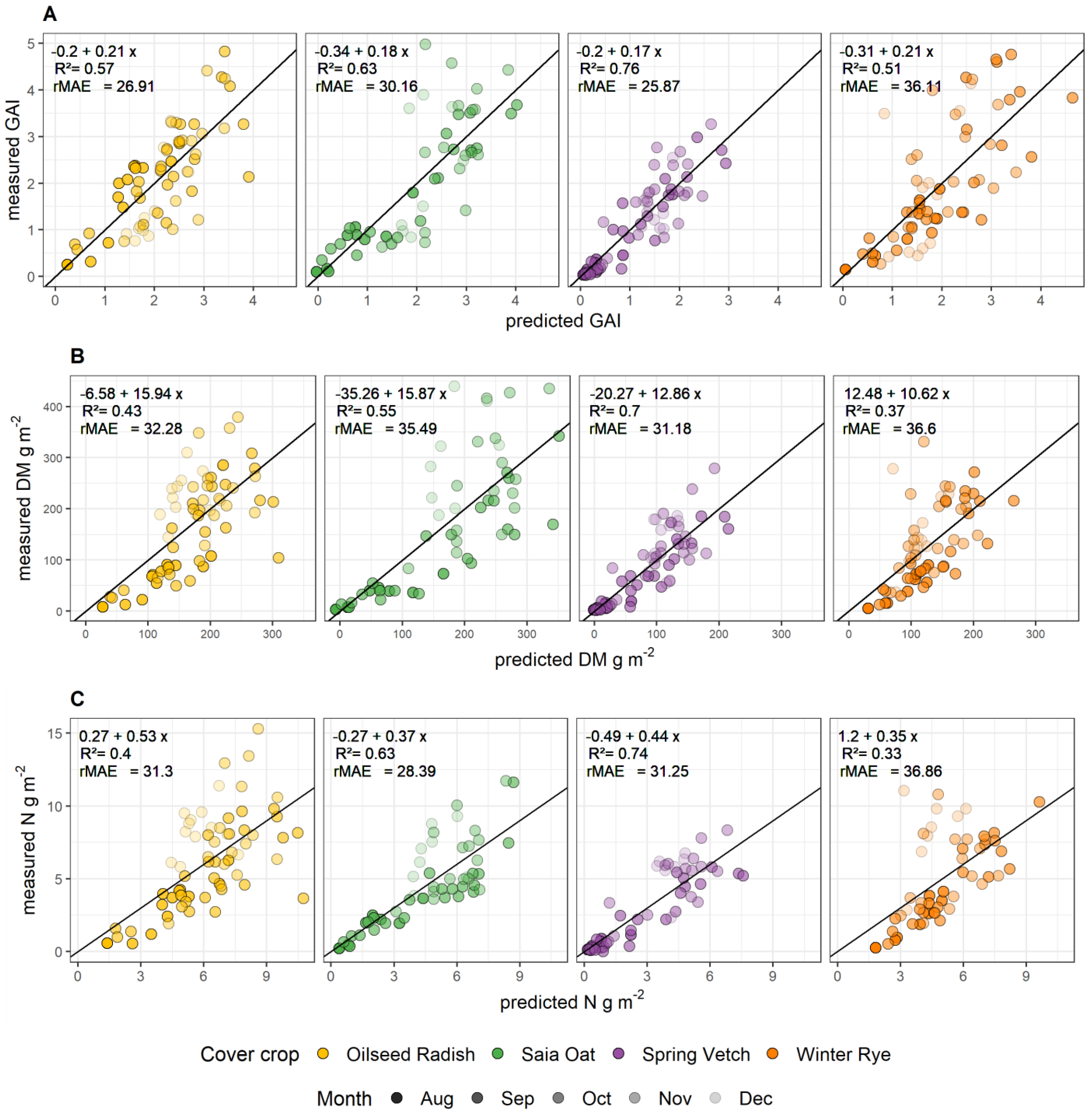

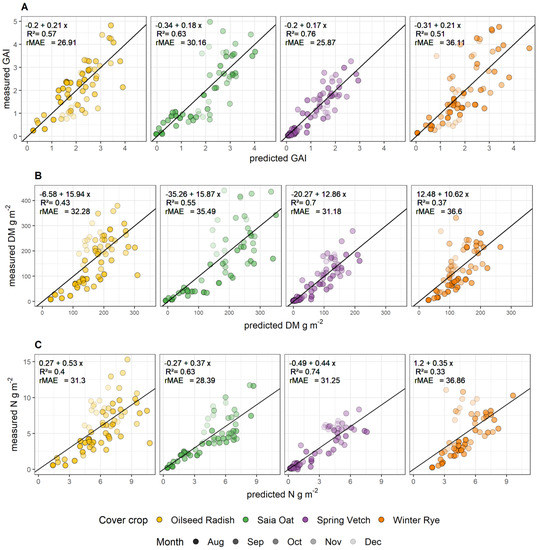

For each individual cover crop, the linear models for all regarded canopy parameters with the generically best performing VI SR_red were established. In general, the best results of the species–individual models were achieved for the GAI prediction, with an R² of 0.76, 0.62, 0.56, and 0.50 for SV, SO, OR, and WR, respectively (Figure 6). The lowest rMAE (25.87%) was calculated for the GAI prediction of SV. The predictions for DM and N uptake were less accurate than GAI (Figure 7). The calibration of SV outperformed the other species with a low average rMAE of 3.68 % and a higher R² of 0.22 for all canopy parameters. The lowest accuracy was found for the prediction related to WR across all canopy parameters. Comparing species–individual with the universal model outputs by rMAE, the predictions for all cover crops except for WR were better when using the species–individual models (Figure 8,

Table 5. Comparison of the two model approaches’ prediction performance (species–individual vs. universal models) for green area index (GAI), dry matter (DM), and N uptake (N) by relative mean absolute error (rMAE) (%) for each separate cover crop (oilseed radish, saia oat, spring vetch, winter rye).

		rMAE %
Parameter	Species	Species–Individual	Universal
GAI	Oilseed Radish	26.91	28.4
	Saia Oat	30.16	32.66
	Spring Vetch	25.87	28.5
	Winter Rye	36.11	35.48
DM	Oilseed Radish	32.28	33.26
	Saia Oat	35.49	45.18
	Spring Vetch	31.18	64.11
	Winter Rye	36.6	51.05
N	Oilseed Radish	31.3	33.79
	Saia Oat	28.39	38.27
	Spring Vetch	31.25	39.1
	Winter Rye	36.86	34.47

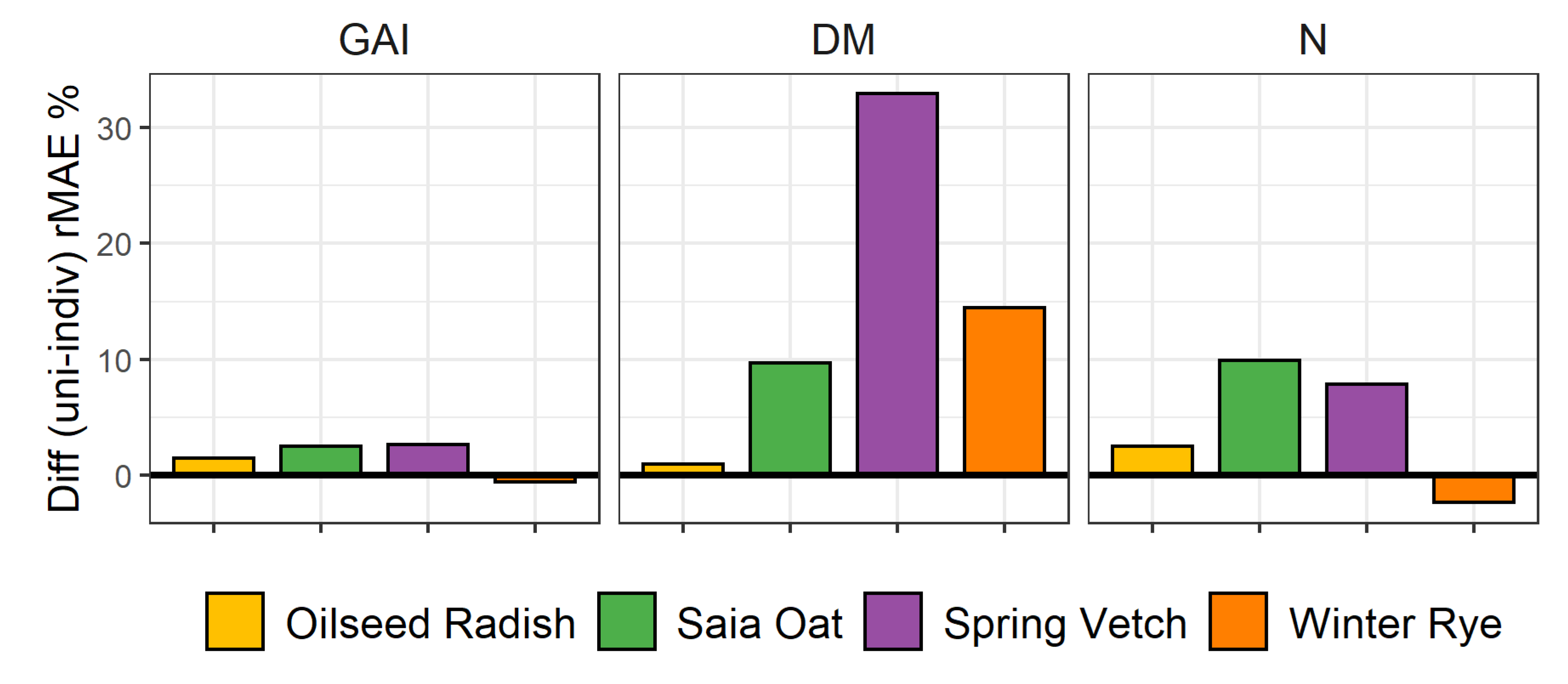

). With minor differences, WR’s DM and N uptake was somewhat predicted by the universal model. In general, the differences in rMAE for GAI prediction were small (OR: 1.49%; SO: 2.50%; SV: 2.63%; WR: −0.63%). A comparison of the DM prediction resulted in larger differences in favour of the species–individual models, especially for SV and WR (32.93% and 14.45%, respectively).

3.5. Mixture Calibration

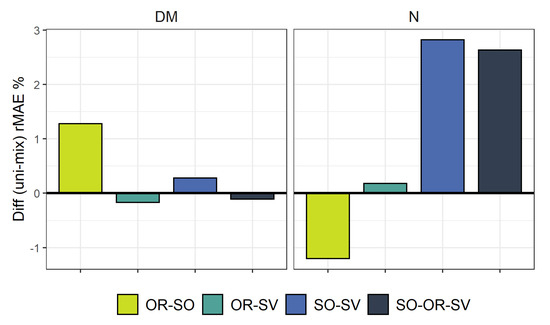

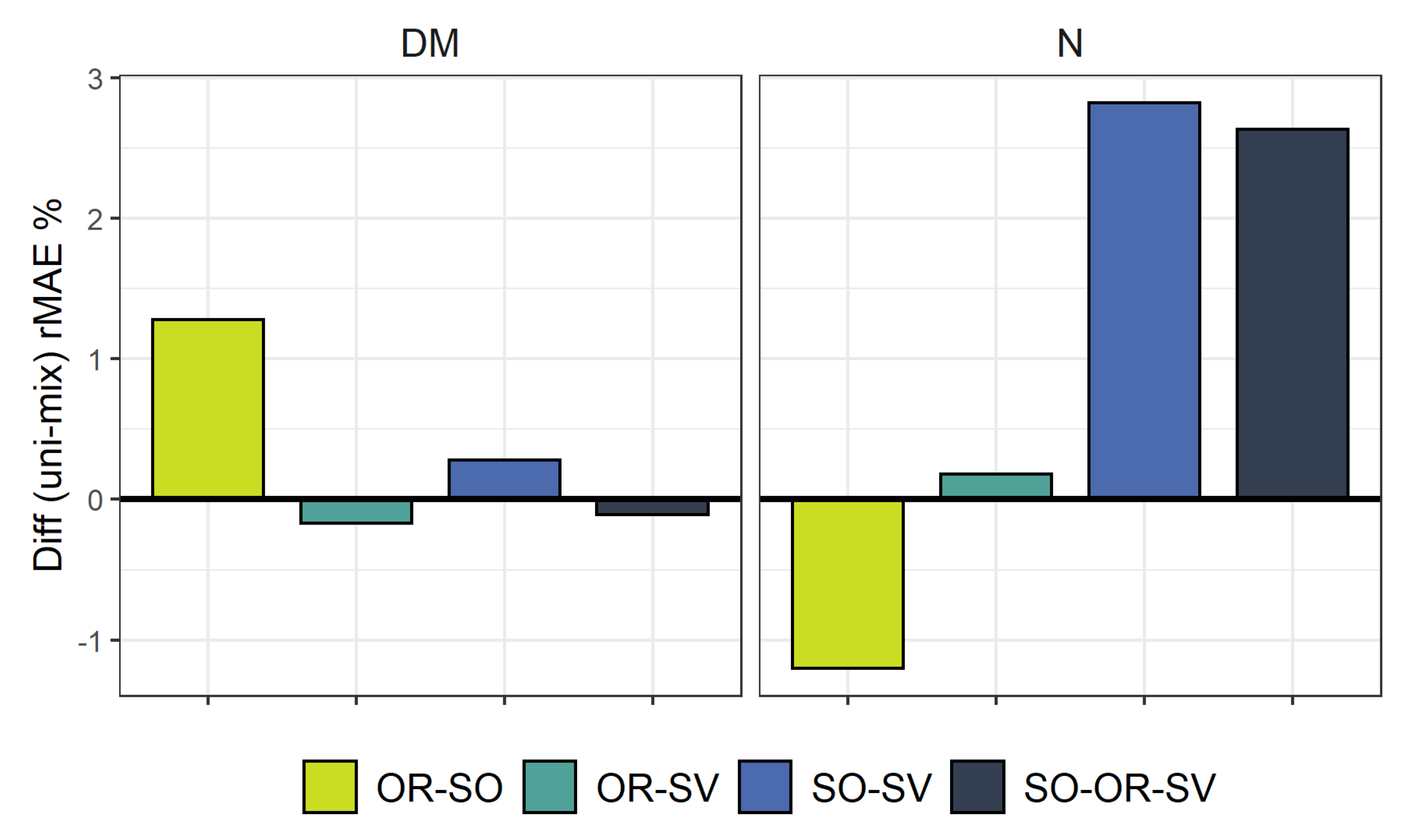

In order to predict the N uptake g m⁻² of cover crop mixtures, two model approaches were compared. The mixture–individual model was related to the spectral reflectance of each cover crop mixtures (Figure 1). The second approach was the estimation made by the universal model, generated with the sole cover crops (OR, SO, WR, SV) based on SR_red (Figure 1, Table 1 and Table 4). As shown in Figure 9, both the mixture–individual and universal models did not differ in their performance of estimating DM g m⁻² and N uptake g m⁻² for mixtures, with relative error differences below 3%. The DM g m⁻² of OR–SO and SO–SV were rather preferably predicted with the mixture–individual model due to a higher rMAE of the universal model prediction. The N uptake g m⁻² estimations for the OR–SV, SO–SV, and SO–OR–SV by mixture–individual models were more precise, while N uptake g m⁻² for OR–SO was somewhat predicted by the universal model. According to R², the best estimation for DM and N was achieved by the three-component mixture (SO–OR–SV), with 0.5 and 0.44, respectively (

Table 6. Mixture–individual models based on SR_red for predicting the canopy parameters (dry matter (DM) (g m⁻²) and N uptake (N) (g m⁻²)) of cover crop mixtures (OR: oilseed radish, SO: saia oat, SV: spring vetch). Model performance was assessed using the relative mean absolute error (rMAE) (%) and R². Calibration formula is noted for each mixture and each canopy parameter.

Parameter	Mixture	Equation	rMAE	R2
DM	OR–SO	−5.18 + 15.51x	30.71	0.3
	OR–SV	−19.56 + 15.23x	29.18	0.37
	SO–SV	−3.78 + 13.15x	49.04	0.25
	SO–OR–SV	−46.26 + 17.42x	30.3	0.5
N	OR–SO	1.68 + 0.37x	27	0.25
	OR–SV	1.53 + 0.38x	27.18	0.25
	SO–SV	0.58 + 0.32x	33.6	0.35
	SO–OR–SV	0.38 + 0.47x	25.18	0.44

).

4. Discussion

4.1. Universal Model Approach

Generating universal models based on SR_red including all cover crops was the first approach used to estimate GAI, DM g m⁻², and N uptake g m⁻² using the entire data set consisting of 248 measurements for 18 dates. The best results were achieved for the canopy parameter GAI, with an R² of 0.60 (Figure 5). GAI directly correlates with the chlorophyll amount in the leaves and thus with the spectral reflectance. The estimations of DM g m⁻² and N uptake g m⁻² were less accurate, with an R² up to 0.53 and 0.45, respectively (Figure 5). Canopy features such as N uptake or DM do not directly correlate to spectral reflectance, as with GAI [12]; however, species-specific correlations between GAI and these secondary traits indirectly lead to a more or less close correlation to VIs. The prediction power for the “secondary variables” [12] is lower than for GAI; however, modelling the physiological dynamics was, in our study, not superior to the directly estimated ones (data not shown). However, empirical derivation and thus direct derivation from reflectance data was achieved by several authors for winter wheat. For example, Chen [40] predicted the biomass of with several VIs, reaching a maximal R² of 0.86 using NDVI. In addition, Feng et al. [41] found correlations for the leaf N concentration of winter wheat with a large range of VIs. Earlier studies of Tucker et al. [18] showed a good biomass prediction power of the common SR based on NIR and red (R²: 0.76).

4.2. VI Selection

In this study, two different approaches for the prediction of winter cover crop canopy parameters were examined. The universal and species–individual models of predictions in sole stands based on a simple ratio (SR_red) were the most precise compared to the other tested VIs. Typically, implementing the RE band into the VIs’ estimations increased the precision due to the strong correlation of chlorophyll content within the RE wavelengths [16,24,28]. Dong et al. [38] compared the performance of conventional VIs, such as SR_red and ND_red, to RE-based VIs estimating the FPAR of wheat and maize. For both crops, their linear correlations were more stable after implementing RE into the indices. However, in our case, neither the SRs nor NDs performed better when using RE. Considering that most studies observed crop-growing periods during the spring and summer months [15], implementing RE may not be appropriate for the predominant light conditions during the winter season (Figure 2 and Figure 5). Another explanation might be that Sequoia’s RE band (10 nm) is narrower than the other bands (40 nm) of the sensor. Due to the heterogenous reflectance of the plants caused by the poor light conditions of autumn and winter, reflectance received in the wavelength of RE in our measurements might be less accurate.

Regarding the most commonly used ND_red, the predictions for GAI did not exceed values of 2.6 for canopies with GAIs up to 4.9 (Figure 5). Saturation effects using ND_red were also found by Nguy-Robertson et al. [42], predicting the GAI of maize, soybean, wheat, and potato. Modifications of ND_red towards the sensitivity of dense stands were partially successful with the wide dynamic range vegetation index (WDRVI), which includes a weighting factor of the vegetative fraction [19,42]. Prabhakara et al. [23] found a linear correlation between ND_red and groundcover percentage, studying the reflectance behavior of winter cover crops by using a handheld multispectral radiometer. Groundcover percentage mostly describes the top of the canopy, while GAI, measured in the current study, includes all green areas within the canopy structure of the respected biomass. Specifically, for further derived parameters such as DM accumulation and the N uptake of cover crops, a detailed knowledge of GAI as the primary driver is more important than a rough estimation of the percentage of ground cover which might be sufficient for the estimations of erosion protection potential. In general, ND_red is not sensitive to structures beneath the canopy surface, and hence saturates with a higher biomass [43]. Therefore, from the quantitative empirical results as well as from theoretical aspects, the SR based on red band was the preferable VI with which to estimate the functional parameters from the spectral information of winter cover crops.

4.3. Universal vs. Species–Individual and Mixture–Individual Approach

Besides the universal model approach including all cover crops, species–individual models were applied in a second step. Comparing the universal model approach and the species–individual model approach resulted in several differences in favour of the species–individual models, especially for DM and N uptake. GAI estimations showed little differences. SV plots in 2018 were strongly influenced by rapeseed volunteers, which limits the results performed by the SV models in terms of the tested species’ characteristics. Corresponding data points were not excluded from the calculations, as a motivation of the study was to reflect the real environmental conditions of winter cover crop cultivation in common cropping sequences. Nevertheless, SV, as a small phenological plant, was easier to calibrate than plants reaching higher values of GAI. The WR–individual model did not perform better than the universal model for GAI and N uptake (Figure 8), which can be traced back to the high amounts of senescent plant material disturbing the reflectance signal (Figure 4).

Typically, VIs are derived from the reflectance of the wavelength in visible light as well as NIR. The information delivered by NIR reflectance is mostly related to the structural properties of a canopy, such as leaf angle and canopy architecture, while visible light is more related to the activity of absorbers, such as chlorophyll, in the canopy [24,29]. Viña et al. [27] evaluated the performance of multiple VIs for a general correlation in the GAIs of soybean and maize. Except for the RE Chlorophyll Index (CI red edge), all investigated VIs differentiated between both crop types, namely, soybean and maize. The authors cited the differences in chlorophyll distribution within the leaf as the main source for the different depths in the absorption of the red light. Additionally, diverse canopy structures led to a higher reflection in NIR compared to homogenous vegetation coverage [27]. Hence, a sensor calibration for each species individually seems to be most appropriate.

The observed canopies of the winter cover crops were partly mixed with weeds and rapeseed volunteers competing for resources, mainly radiation. The canopy structure was not as homogenous as in a pure wheat or maize canopy, and thus also the spectral reflection. The amount of absorbers and reflectance of radiation differs for each leaf shape and plant type [29]. Consequently, in heterogenous canopies, high precision in a canopy parameter estimation should not be expected.

In cover crop mixtures, the combination of several plants with different characteristics, such as growth behaviour, canopy structure, leaf size, etc., leads to a diverse reflectance throughout the season and within the canopy. Competition between the species makes the emergence and the share of the single crops in the final biomass of a mixed stand unforeseeable, even if it is a well-studied seed mixture. Focussing on cover crops, the composition of a canopy mixture depends on management preferences, soil type, and weather conditions, and is usually independent from the ratio of the sown seeds as the only given measure. As the results showed, sensor calibration for a specific mixture was possible; however, its applicability is questionable (Table 6, Figure 9). A more reliable approach might be to utilize the universal calibration for mixtures with only a slightly reduced performance compared to mixture–individual models.

In general, estimations made using species–individual models achieve more precise results than those made using a universal model. Regarding mixture–individual models, the results did not differ fundamentally. Nevertheless, the universal model approach is based on a larger database than individual models, which makes it more reliable. In addition, the universal model successfully predicted the independent data set of cover crop mixtures.

4.4. Seasonal Challenges

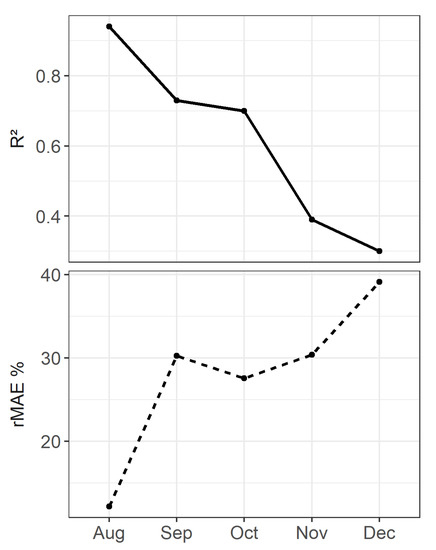

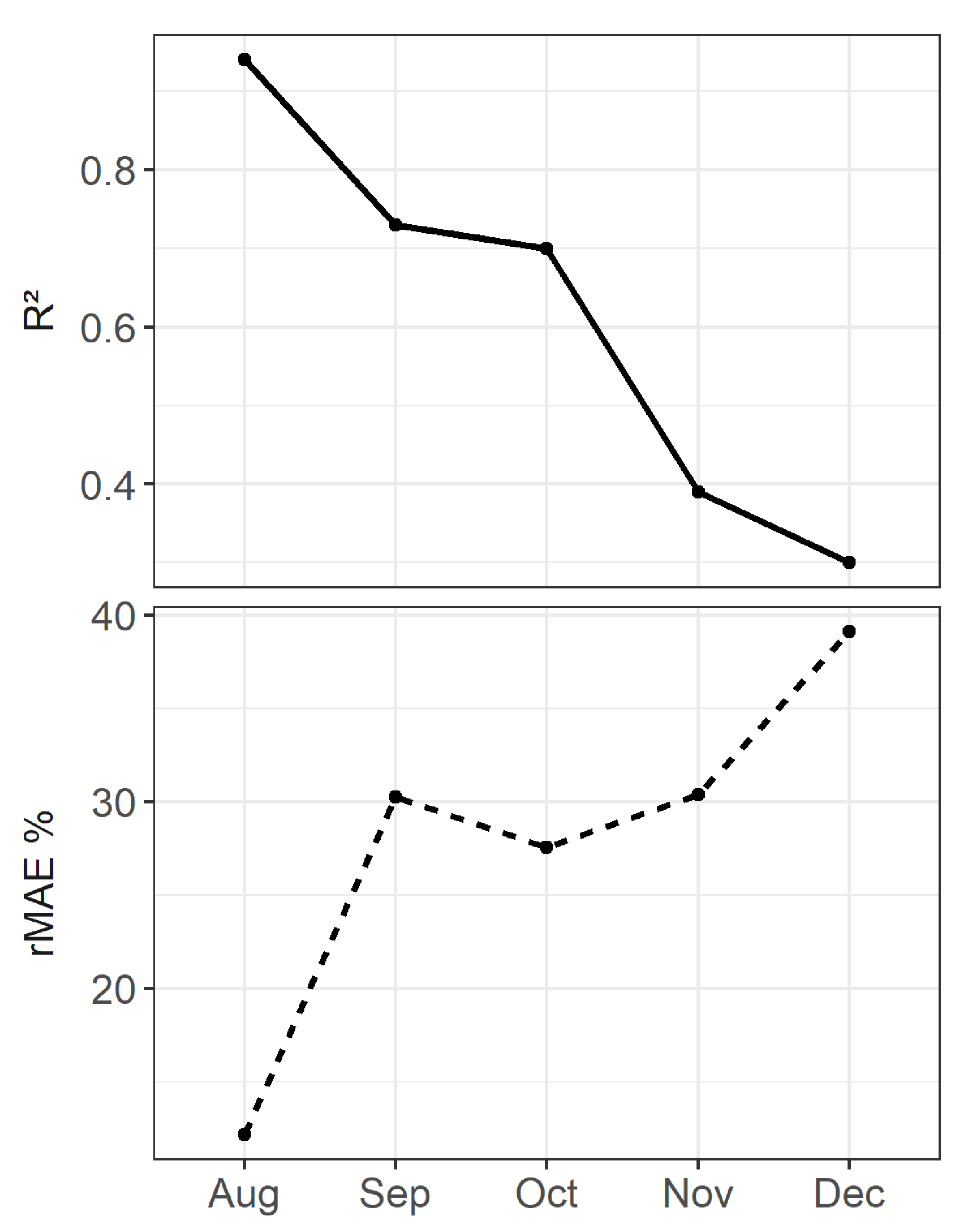

Observing vegetation during autumn and winter using the used Sequoia sensor turned out to be challenging. R² decreased to 0.28 in December, while rMAE increased towards 39.12% (Figure 6). The inaccuracy in the winter month can be explained by the low irradiance. PAR saturated in November and December and was even lower in 2019 (Figure 2). Consequently, the sensor receives only a little of the reflectance of the leaves. A second mitigation source is the low sun angle. Assmann et al. [33] found that variation in the sun angle leads to uncertainties in ND_red estimates by testing the same Sequoia sensor with several flights in diurnal solar motion in the arctic tundra. At higher latitudes such as Northern Germany, the variation of the sun’s angle during a year is up to 40°, resulting in large changes in the incoming radiation. Especially, the growth period of the winter cover crops covers almost the maximum range of the sun’s angle. Therefore, the scattering of raw data as well as canopy parameter estimates during winter months might be explainable due to the drastic decline in light incidence. Moreover, our measurements during the respected season were frequently influenced by clouds casting shadows on the study area, as documented by Assmann et al. [33] in northwestern Canada, by Stow et al. [44] in south–central Scotland, and as reviewed by Aasen et al. [45].

Low temperatures in winter, furthermore, result in an unneglectable and increasing proportion of senescent plant material over time, especially with non-winter-hardy cover crops such as OR, SO, or SV. In the current study, WR—defined as a winter-hardy cover crop—recorded the highest amount of senescent plant material in both years, especially after frost events (Figure 4). Disturbance of the reflectance signal due to senescence was mirrored in the species-individual calibration of WR. The amount of destructive senescent plant material sampled explained a part of the scattering effects in the spectral reflectance. The spectra of the yellow leaves differ from green leaves, as reflection in red and green light increases and decreases in the range of NIR [25,46]. The influence of senescent leaves on the estimates was also shown by Di Bella et al. [47] for ND_red in a canopy of Italian ryegrass.

Another source of error is the effect of the saturation of the pixel values. Illumination geometry adjustments have been studied by Olsson et al. [48], who stated that the sunshine sensor of Sequoia (Parrot) is inaccurate if there is a high contrast in the pixel values of the image. Saturation occurs over bright areas such as bare soil, in between and around the observed vegetation, influencing the reflectance and the extracted pixel values. During a few sampling dates, bare soil surrounded the crops or was visible through a sparse stand and led to a noticeable increase in error values (data not shown). Sorting out single images with saturated pixel values even before pre-processing by Pix4D made the reflectance maps more reliable and reduced scattering.

5. Conclusions

The estimation of cover crop canopy parameters can promote the estimation of their effect on the supply of N to cash crops and thereby improve the nitrogen use efficiency of cropping systems. Remote sensing techniques have brought about a huge development in agricultural science and thus to the practice. This study revealed opportunities and challenges for the utilisation of such methods in winter cover crops dealing with vegetative growth periods characterised by the low irradiance and substantial fractions of senescent biomass.

Applying a universal model for winter cover crops seemed to be a sound solution. Species–individual models resulted in somewhat more precise predictions but were based on smaller sub-datasets. Dealing with cover crops involves a huge variation in species and heterogenous canopies compared to cash crops, which are managed as homogenously as possible. SR_red was the most sufficient VI tested in this study, irrespective of the model approach used, and was consistently superior to the widely used ND_red. In contrast to the often-described advantages of implementing RE instead of red band for the main crops, this did not improve the prediction accuracy in our observed winter cover crops.

Nevertheless, winter cover crops are mostly cultivated for their functional attributes, such as the reduction in nitrate leaching and the improvement of soil properties. Therefore, small inaccuracies in the estimation of GAI, DM g m⁻², or N uptake g m⁻² can be tolerated. The main agronomic focus is to estimate the rough performance of the cultivated winter cover crops in terms of biomass growth and N uptake. Therefore, the findings should serve as a tool for the rapid and inexpensive estimation of the environmental and rotational services of cover crops.
