Article

Normalized Difference Vegetation Index Temporal Responses to Temperature and Precipitation in Arid Rangelands

1
CEIGRAM, Universidad Politécnica de Madrid, 28040 Madrid, Spain
2
Grupo de Sistemas Complejos, Universidad Politécnica de Madrid, 28040 Madrid, Spain
3
Evaluación de Recursos Naturales, ETSI Agronómica, Alimentaria y Biosistemas, Universidad Politécnica de Madrid, 28040 Madrid, Spain
4
AgSystems, ETSI Agronómica, Alimentaria y Biosistemas, Universidad Politécnica de Madrid, 28040 Madrid, Spain
5
Departamento de Análisis Económico y Finanzas, Universidad de Castilla-La Mancha, 45071 Toledo, Spain
6
Economía Agraria y Gestión de los Recursos Naturales, ETSI Agronómica Alimentaria y Biosistemas, Universidad Politécnica de Madrid, 28040 Madrid, Spain
*
Author to whom correspondence should be addressed.
Remote Sens. 2021, 13(5), 840; https://doi.org/10.3390/rs13050840
Submission received: 19 January 2021 / Revised: 17 February 2021 / Accepted: 20 February 2021 / Published: 24 February 2021
(This article belongs to the Special Issue Remote Sensing for Agrometeorology)

Abstract

:
Rangeland degradation caused by increasing misuses remains a global concern. Rangelands have a remarkable spatiotemporal heterogeneity, making them suitable to be monitored with remote sensing. Among the remotely sensed vegetation indices, Normalized Difference Vegetation Index (NDVI) is most used in ecology and agriculture. In this paper, we research the relationship of NDVI with temperature, precipitation, and Aridity Index (AI) in four different arid rangeland areas in Spain’s southeast. We focus on the interphase variability, studying time series from 2002 to 2019 with regression analysis and lagged correlation at two different spatial resolutions (500 × 500 and 250 × 250 m2) to understand NDVI response to meteorological variables. Intraseasonal phases were defined based on NDVI patterns. Strong correlation with temperature was reported in phases with high precipitations. The correlation between NDVI and meteorological series showed a time lag effect depending on the area, phase, and variable observed. Differences were found between the two resolutions, showing a stronger relationship with the finer one. Land uses and management affected the NDVI dynamics heavily strongly linked to temperature and water availability. The relationship between AI and NDVI clustered the areas in two groups. The intraphases variability is a crucial aspect of NDVI dynamics, particularly in arid regions.

Graphical Abstract

1. Introduction

Rangelands cover almost 33% of ice-free land globally. Monitoring rangeland is a key aspect of stopping its degradation. Severe degradation is causing the disappearance of 5–10 million hectares of agricultural lands every year [1,2]. Rangelands management is complex as rangelands are not spatially homogeneous; those with erodible soils and palatable vegetation are more prone to degrade than others. Arid and semiarid rangelands tend to have erodible soils and variable precipitation regimes, making them more sensitive to degradation [3,4]. In addition, different types of rangeland depend on land use, plant communities, soil, and climatic conditions. These include grazed wastelands such as stubble from mainly rainfed cereal crops, other croplands and fallow lands, grasslands, scrublands, and open woodlands [5]. Using remote sensing to monitor these areas and improving the land’s management practices can aid in preventing the degradation and reinforcing the sustainability of these ecosystems [2].
Remote sensing techniques are increasingly used by ecologists and agriculturalists [6,7,8,9], as a cost-effective means to measure the characteristics, biomass, and extent of vegetation [10]. Normalized Difference Vegetation Index (NDVI) is the most widely used vegetation index by rangeland ecologists [11]. It can be obtained at different spatial resolutions, the most common at 500 × 500 m2 and 250 × 250 m2, named Low and Medium Resolution (LR and MR). NDVI shows a good correlation with biomass of different vegetation types in arid and semiarid areas [12,13]. Another useful index is the NDVI anomaly (ZNDVI). This index has shown robust results to identify damaged vegetation, and therefore it is especially suited to analyze the status of semiarid and arid areas [14].
Temperature and precipitation are mostly studied as drivers of NDVI [15,16,17,18,19,20,21,22,23]. However, the interactions among them and with other factors are still not fully comprehended [24]. Temperature effects on NDVI are significant when water is available in the ecosystem; in these circumstances, precipitation plays a minor role. However, this relationship grows more assertive in arid regions, where water availability seems to be one of the main drivers of NDVI [25,26,27]. Furthermore, some authors [28] suggest studying additional climatic factors further to understand thermal and hydric stress effects on NDVI patterns. Other climatic variables that have been reviewed are soil moisture, evapotranspiration, and land use cover [16,22,23]. The relationships of NDVI with these climatic variables differ by season and vegetation type and biome. Another factor that makes it more difficult to disentangle the interactions is the effect of human activities on both NDVI and the ecosystem itself, especially when it comes to overexploitation such as overgrazing or water overuse [29]. Therefore, it is essential to deeply understand NDVI and meteorological variables’ relationship, especially accounting for the differences in this relationship between seasons and across types of land management. This is particularly relevant for agrometeorological indexes that should be calculated during the year, as it is in the case of rangelands [30].
NDVI and its relationship with meteorological variables have reported different results depending on the analyzed spatial scale. Tarnavsky et al. (2008) [31] in Arizona (USA) and Stefanov et al. (2005) [32] in different locations worldwide, described differences in spatial heterogeneity. Peng et al. (2017) [33] studied different spatial scales in China, which exhibited different correlations depending on coarser or finer scales; all were performed at monthly or annual temporal scale. On the other hand, human activities negatively correlated with NDVI at a Medium Resolution (MR) while it exerted a positive correlation at a lower resolution. Therefore, considering different spatial scales to identify the causes of NDVI patterns remains a challenging task.
The Aridity Index (AI) represents water availability, and different expressions have been developed [34]. We used a modified version of a widely accepted ratio of annual precipitation to the annual potential evapotranspiration in this work, developed by the United Nations Environment Programme in 1992 [35,36]. This index has been used to quantify droughts and estimate possible changes in climate regimes [37,38], and manage afforestation and reforestation projects and prioritize and assess future conservation efforts in rangelands [39,40]. It has also been previously compared to vegetation indexes [41].
The objective of the study was to evaluate the responses of the rangeland NDVI to temporal dynamics of temperature and precipitation for an arid environment. To evaluate it, NDVI series from four areas, corresponding to different types of rangeland in Murcia (southeast of Spain), were acquired for 2002 to 2019, at two spatial resolutions (LR and MR). The correlation between the NDVI and the climatic variables and the AI was used to gain better insight into the patterns of rangelands to monitor and characterize them and optimize the management accordingly.

2. Materials and Methods

2.1. Area of Study

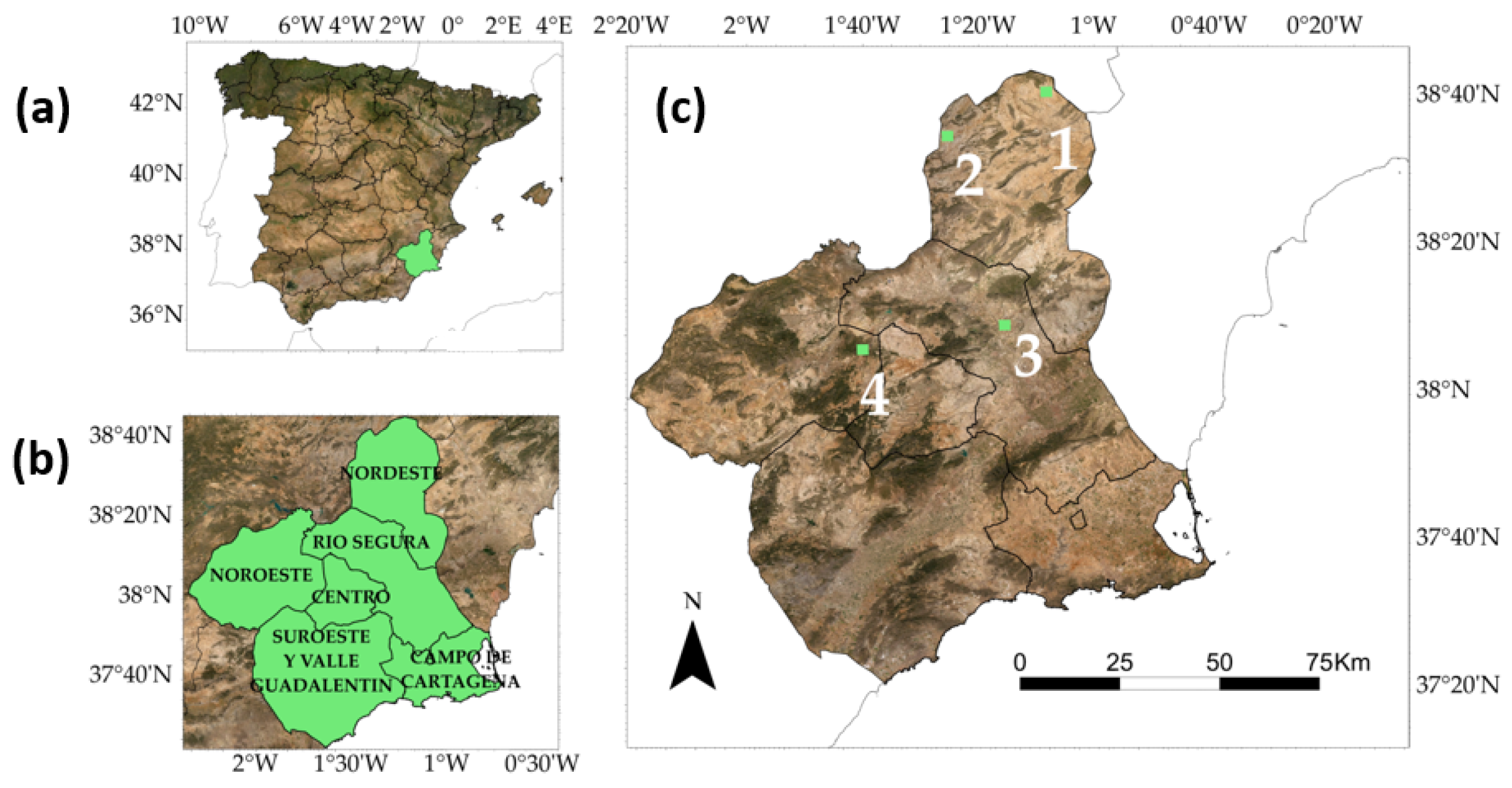

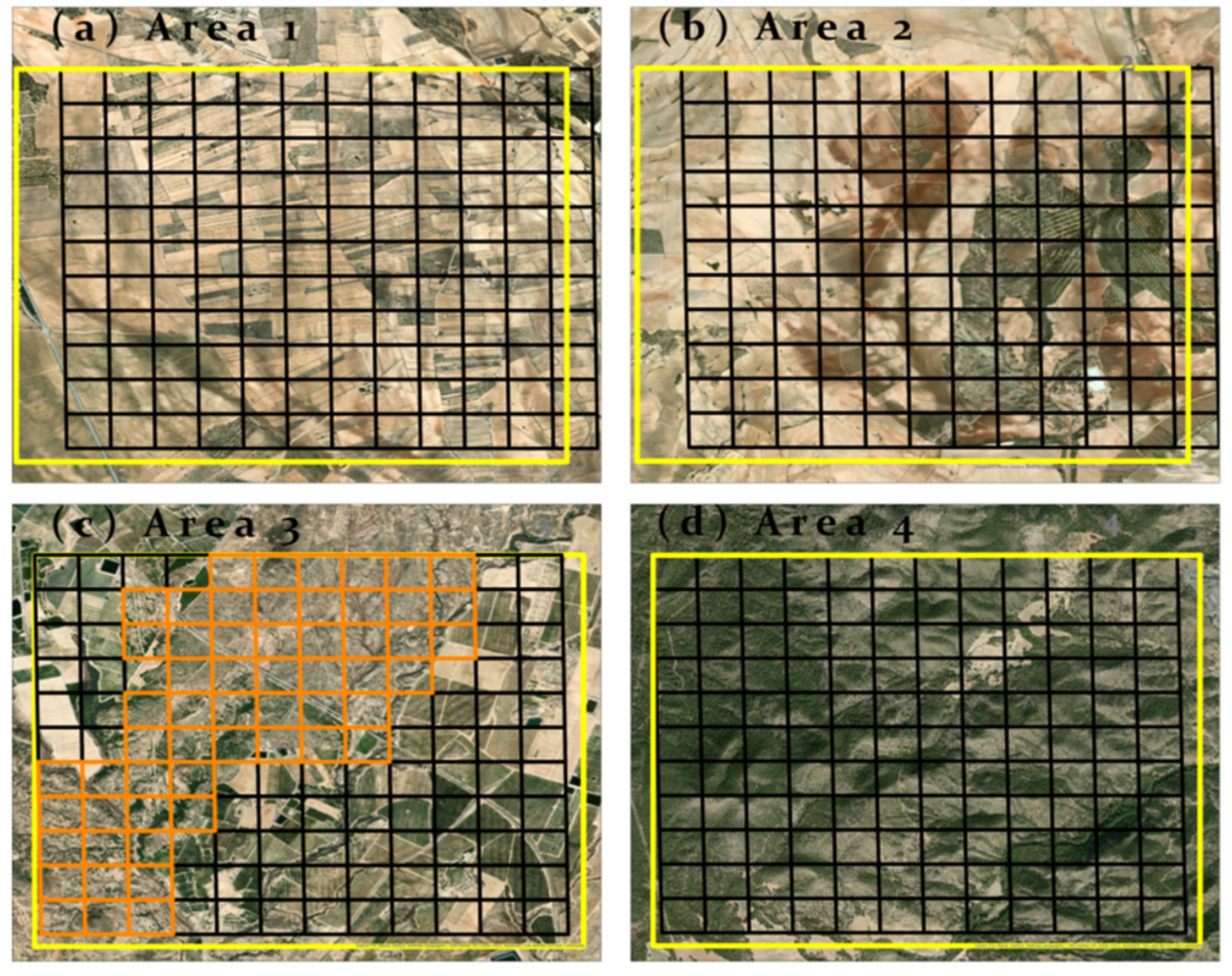

The area selected is located in Murcia province, in the southeast of Spain. The area has a Mediterranean arid climate with annual precipitation less than 300 mm, although there are regional variations [42]. Four square areas with 2.5 km sides were selected for this study. They are situated in the vicinity of a meteorological station, covering three different agricultural regions of Murcia: Northeast, Segura River, and Northwest (Figure 1, Table A1 in Appendix A). The average temperature varies amongst the four areas from 14.7 to 17.3 °C, and the average accumulated precipitation per eight-day period ranges from 262 to 348 mm.
All the areas are used as rangeland, two predominantly herbaceous (A1 and A2) and two mainly covered by trees (A3 and A4). Area 1 (A1) is mostly covered by stubble from cereal crops. Area 2 (A2) is almost entirely covered by mixed croplands used for stubble grazing with some grassland and scrubland. Area 3 (A3) has a top grassy area mixed with shrubs and with few forested areas surrounded by tree crops with irrigation. Concerning Area 4 (A4), it is mainly covered by coniferous woodland with mixed crops on small patches (Figure 2). For the following analyses, 11 and 61 pixels corresponding to rainfed areas were selected for A3 LR and MR, respectively, to eliminate the effects of irrigation in the NDVI dynamics. The other areas are mainly conformed by rainfed crops, grasslands, and reforestation that do not present irrigation [43]. Therefore, all their pixels were used since no irrigation could affect their NDVI dynamics. The selection was made based on each pixel’s average NDVI for summer months (June, July, and August). Pixels with a summer average below 30 and did not have peaks over 40 in its original time series, were selected to be analyzed, and these pixels match the grassy patch that crosses A3 from the top center to the right bottom corner.

2.2. NDVI and Meteorological Data Collection

To study spatial resolution effects, the target areas were studied using 500 × 500 m2, 25 pixels for each area, and 250 × 250 m2, implying a set of 132 pixels (Figure 2). MOD09Q1.006 (LR) and MOD09A1.006 (MR) were collected from AppEEARS [44], downloading the RED (band 1) and NIR (band 2) values for the target areas at these spatial scales. Both had an 8-day temporal resolution from the beginning of 2002 through 2019, a total of 18 years of data. A maximum temporal resolution among the cited literature was found to be biweekly [16], and more commonly by month [15,17,18,19,20,21]. For each pixel series, R was used to calculate the Normalized Difference Vegetation Index (NDVI), using the following formula:
NDVI = 100   ×   NIR RED NIR   +   RED
The possible NDVI values range from 0 to 100. The NDVI obtained values were then checked for quality. If the data were not categorized as ideal quality in the quality band from AppEEARS, less than 0.01% was deleted for every area. The gaps were filled using running averages with a gap interval of seven dates. The time series were then smoothed using the Savitzky–Golay method [45], with a window size of nine selected, based on the best-fitted outputs. The NDVI anomaly (ZNDVI) was calculated by applying a z-score by date [46]:
Z NDVI =   NDVI   μ NDVI σ NDVI
where µNDVI is the average of all data in all available years that were measured in the same calendar date and σ NDVI is the corresponding standard deviation. In this new series, the seasonal variations of NDVI were eliminated. Daily meteorological data from the closest meteorological stations (Table A1) were also used [47]. Average temperature and accumulated precipitation were calculated for every eight days to match the NDVI dates.
To examine the variation of NDVI during the year, boxplots of NDVI and meteorological variables were used. Different phases were defined based on NDVI pattern during the year as this region presents harshness and aridity. These phases ( i ) were based on the trend of NDVI values: increasing, decreasing, or constant. A Chow test [48] of NDVI and time was used to confirm whether NDVI phases presented structural differences at the selected breaking points.

2.3. Correlations of NDVI with Meteorological Variables

The NDVI data were based on eight-day compound images. The image was selected based on criteria such as clouds and solar zenith. The temperature was the average for every eight days. Precipitation was accumulated every eight days, being coherent with the time scale of NDVI series. For exploring the existence of temporal patterns, we focused on two types of correlations:
Pearson’s correlation coefficient of the NDVI values with Temperature (Temp) and Precipitation (Pp) at different phases ( i ) is:
ρ NDVI , Temp , i = cov ( NDVI i t , Temp i t ) σ NDVI i t σ Temp i t
ρ NDVI , P p , i = cov ( NDVI i t , P p i t ) σ NDVI i t σ P p i t
where V i t is the average of the 18 years of the variable V ( NDVI ,   Temp   or   P p ) at time t belonging to phase i ; σ V i t is the standard deviation of the V i t .
Pearson’s correlation coefficient of the NDVI series belonging to phase i , through the 18 years ( j ), with each of the climatic variables ( Temp and P p ) at different time lags ( s ) is:
ρ NDVI , Temp , i s = cov NDV I i j , t , Temp j , t s σ NDV I i j , t σ Temp j , t s
ρ NDVI , P p , i s = cov NDVI i j , t , P p j , t s σ NDVI i j , t σ P p j , t s
where NDVI i j , t   are the NDVI values at year j and time t that belong to phase i . The Temp j , t s are the temperature values at year j and delayed s times the lag time, which is eight days. Analogously, P p j , t s can be defined.

2.4. Aridity Index and NDVI

The aridity index was calculated following [35], but instead of accumulating annually, we used the phases described by the NDVI patterns:
A I i =   P i ETo i
where P i is the summation of the accumulated precipitation of each phase for each year and was analogously done for the accumulated potential evapotranspiration ( ETo i ) . Then, the average NDVI value for each phase was calculated. The cumulative aridity index and the cumulative average NDVI for each phase were plotted, and a linear regression was calculated to compare the four areas. A high slope would indicate an efficient use of its water resources.

3. Results

3.1. Interannual Variation

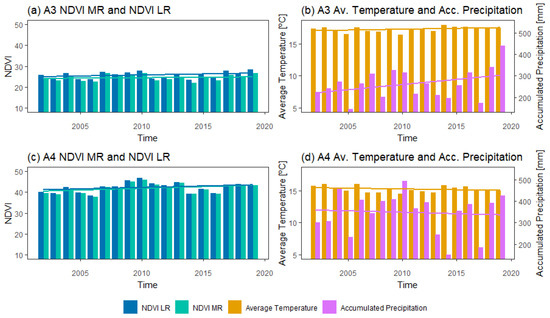

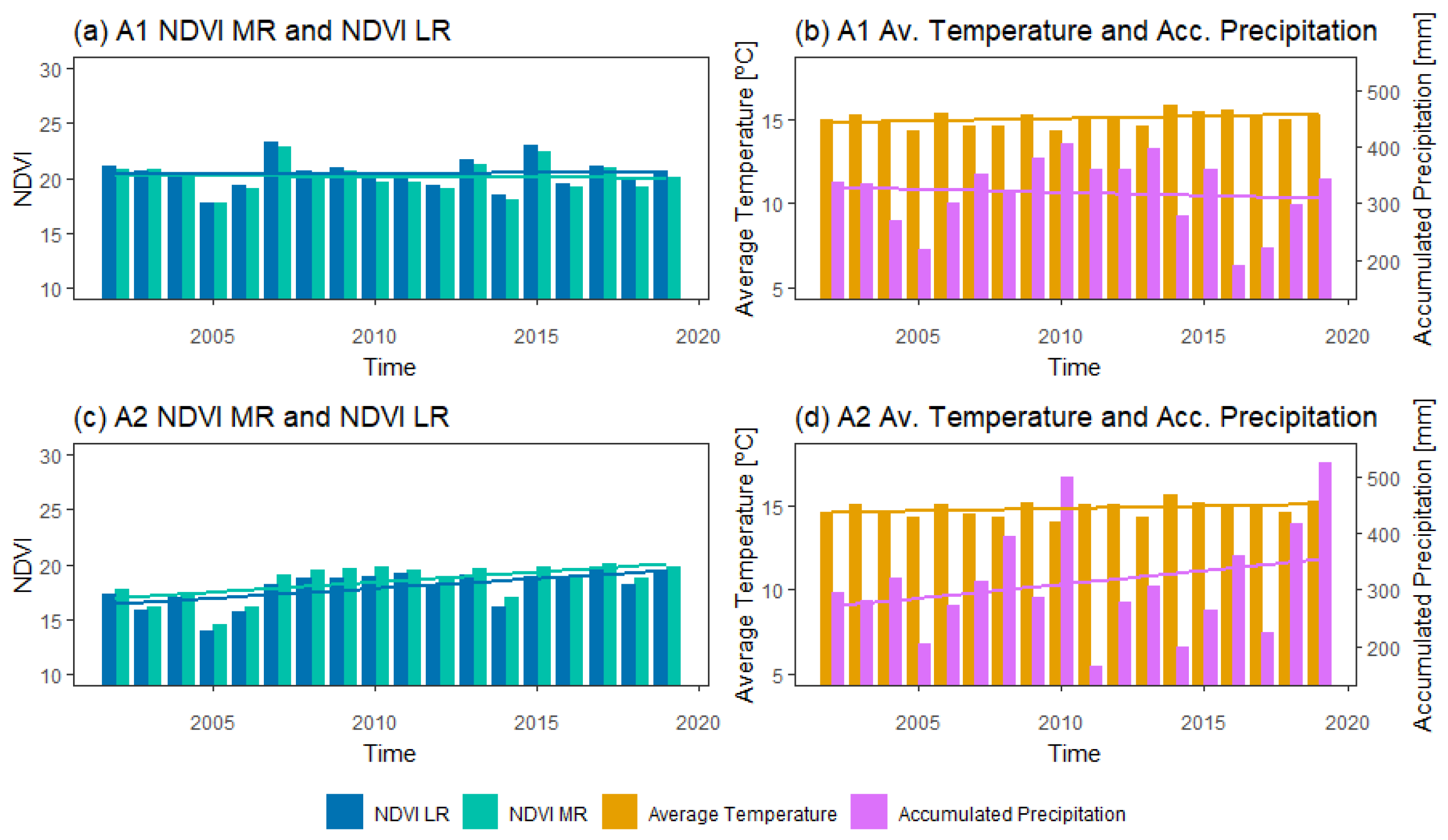

When yearly average NDVI, temperature, and precipitation were plotted at the two resolutions, different behaviors were found in these 18 years (Figure 3 and Figure 4). In all the areas, NDVI at both resolutions were very similar. In A1 and A3, NDVI presents almost a constant value (A1 has 20 and NDVI nearly 30) as does temperature (15 °C in every area, except A3 where it reaches 18 °C). Precipitation is constant in A1 while in A3 it shows an increasing trend (A3 presents the lowest precipitation, mostly below 300 mm and the remaining areas range between 300 and 400 mm). On the other hand, A2 and A4 NDVI present a slight increase (with values around 20 for A2 and 40 for A4). In both areas, temperature and precipitation show different trends.
To study whether these trends, visible in Figure 3 and Figure 4, are statistically significant, a Mann–Kendall test [49,50] was applied in each area (Table 1). A1 shows a decreasing trend with NDVI MR and LR, but it is only significant with MR. On the other hand, A2 to A4 show an increasing trend, significant in both resolutions. The temperature increases in A1 to A3 and decreases in A4 and precipitation decreases in A1 and A4 and increases in A2 and A3. However, temperature and precipitation do not present significant trends, except for precipitation in A4, which decreases significantly (Table 1).

3.2. Low and Medium Resolution NDVI Series

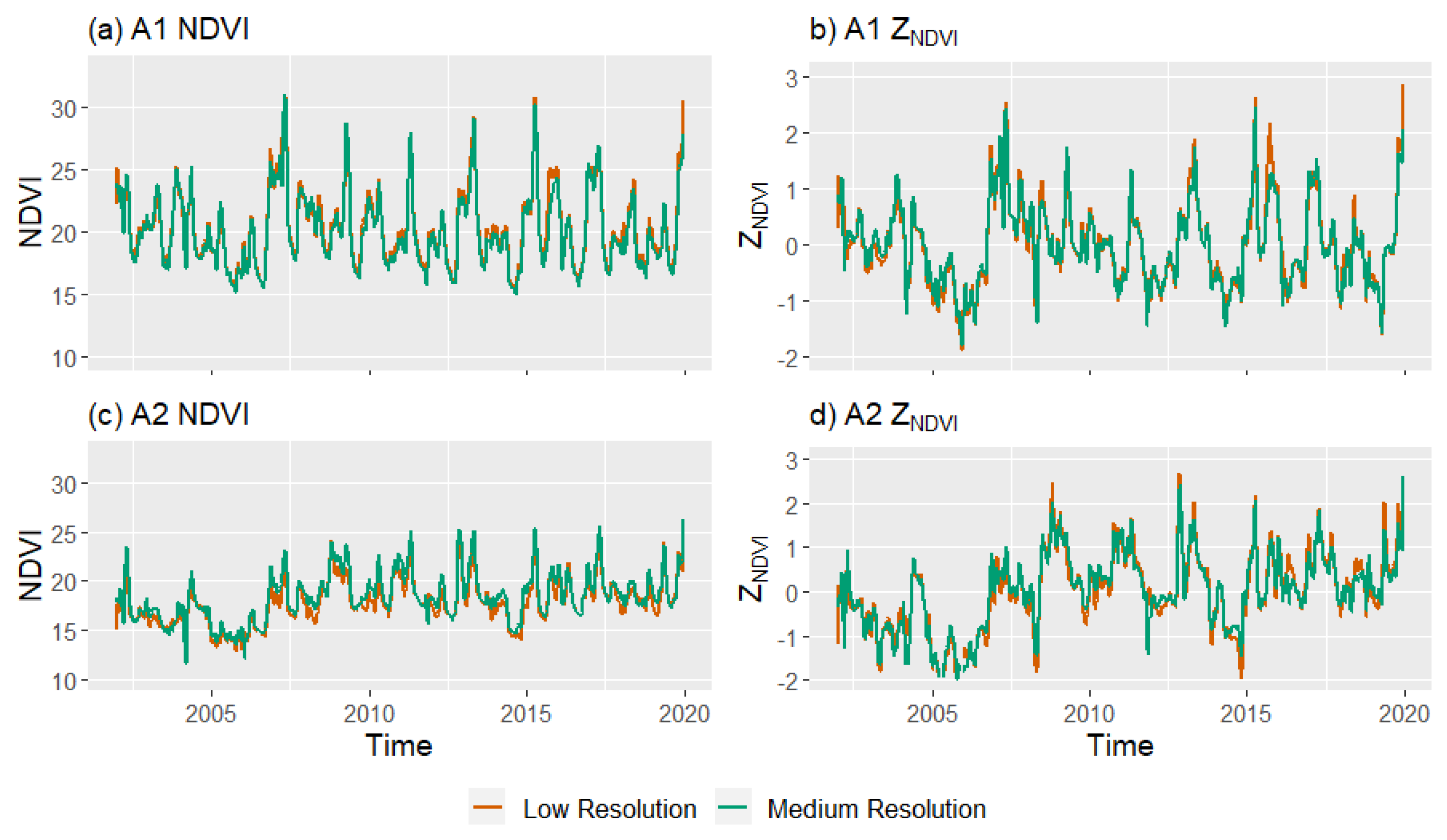

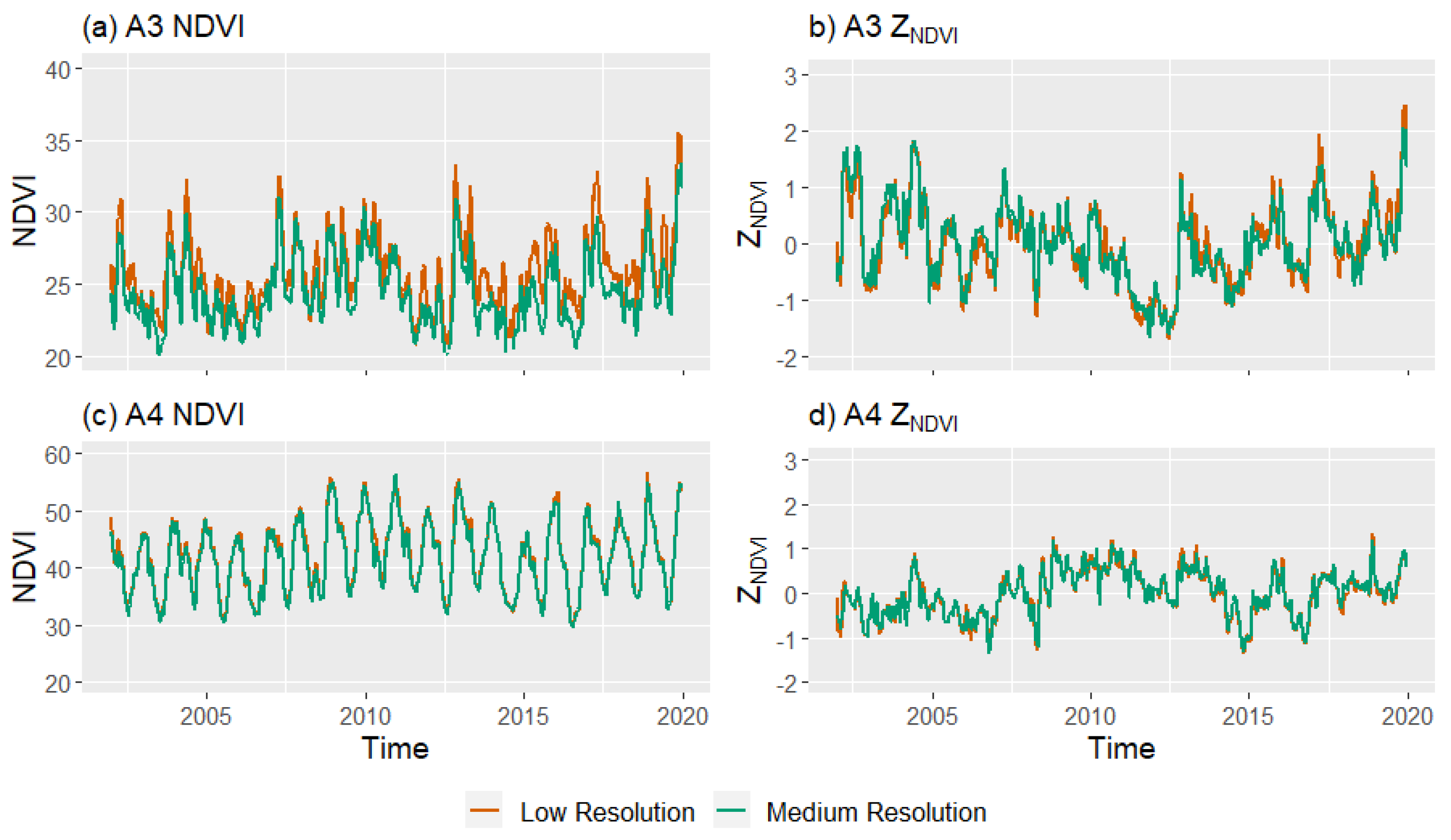

The average NDVI time series with LR and MR are shown in the left column of Figure 5 and Figure 6 for the four areas studied. When the averages of all pixels for both resolutions are plotted, they tend to coincide. Nevertheless, we can differentiate them at the peaks and valleys of most years. In A1 and A2 (Figure 5), the two series are very similar. However, we can see some peaks where LR is higher for A1 and A2. This effect is more prominent in the A3 case. On the other hand, in A4, the differences are minor between the two resolutions. These peaks where LR is higher than MR are due to a few pixels and dates where the NDVI are much higher in both resolutions. However, because the MR has more pixels averaged, the smoothing effect is more noticeable. Since not all pixels were used for A3, this rise of LR is more conspicuous.
On the right column of Figure 5 and Figure 6, we can observe the ZNDVI. In all areas, there is a change in trend during 2006–2008. From 2000 until 2018, the year 2006 was one of the hottest, and after that, 2007 and 2008 were among the coolest years since 1996 [47], as can be observed in Figure 3 and Figure 4. Looking at Figure 3 and Figure 5, A1 and A2 show ZNDVI values in different years beyond +2 and −2. In these years, there are hotter temperatures for negative values with reduced precipitation. When ZNDVI goes above 2, high peaks on precipitation and temperature are lower than in other years. ZNDVI in A3 only goes above two once, at the end of 2019, coinciding with a strong peak in precipitation (Figure 4 and Figure 6). Area 4 does not show values beyond these levels, although it shows how the trend rises or drops with these events. Regarding the resolution in A1 to A3, we can see peaks and valleys where LR has a higher frequency of extreme values. These differences are smoother for A4.

3.3. NDVI Patterns and Meteorological Variables

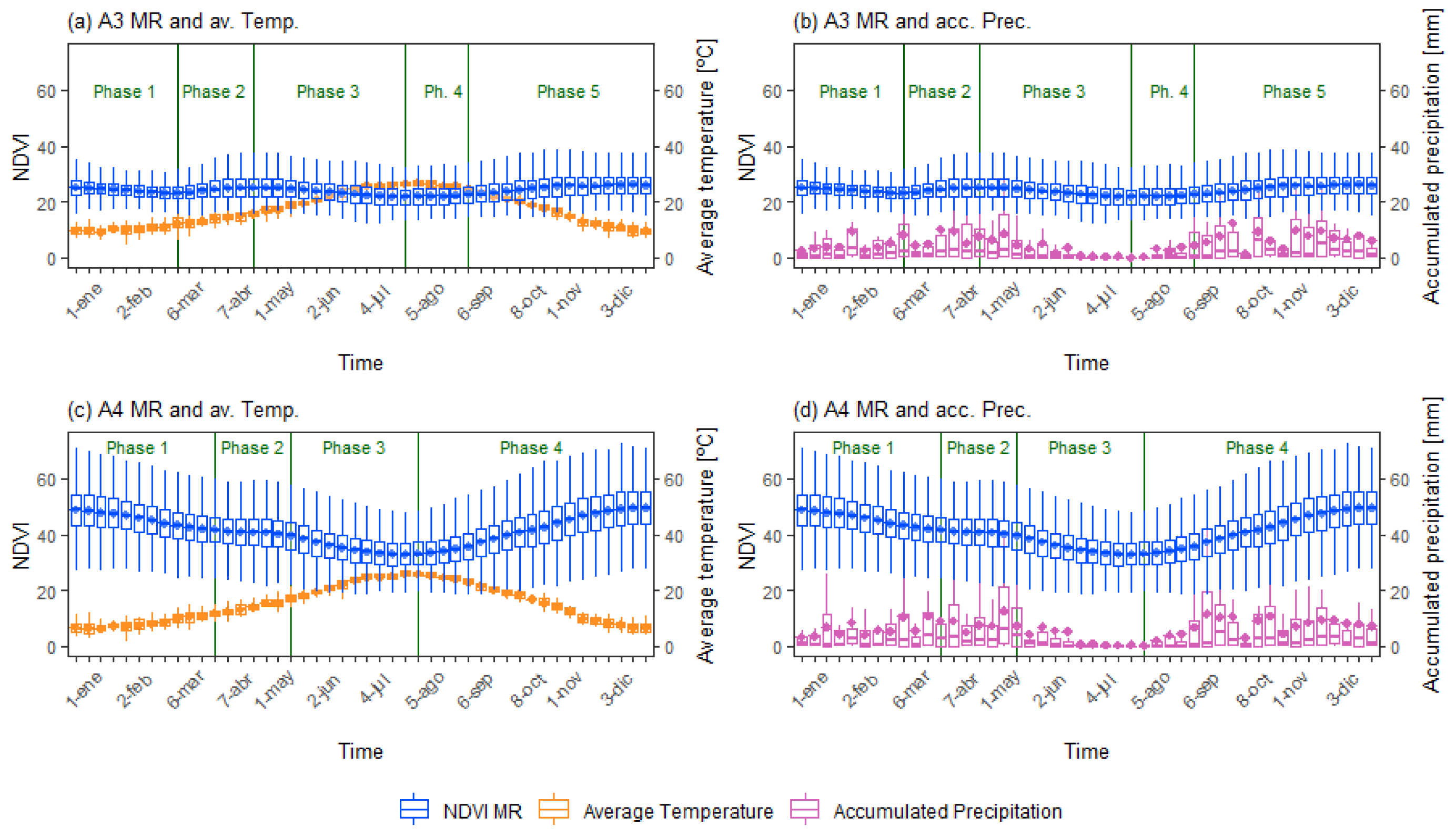

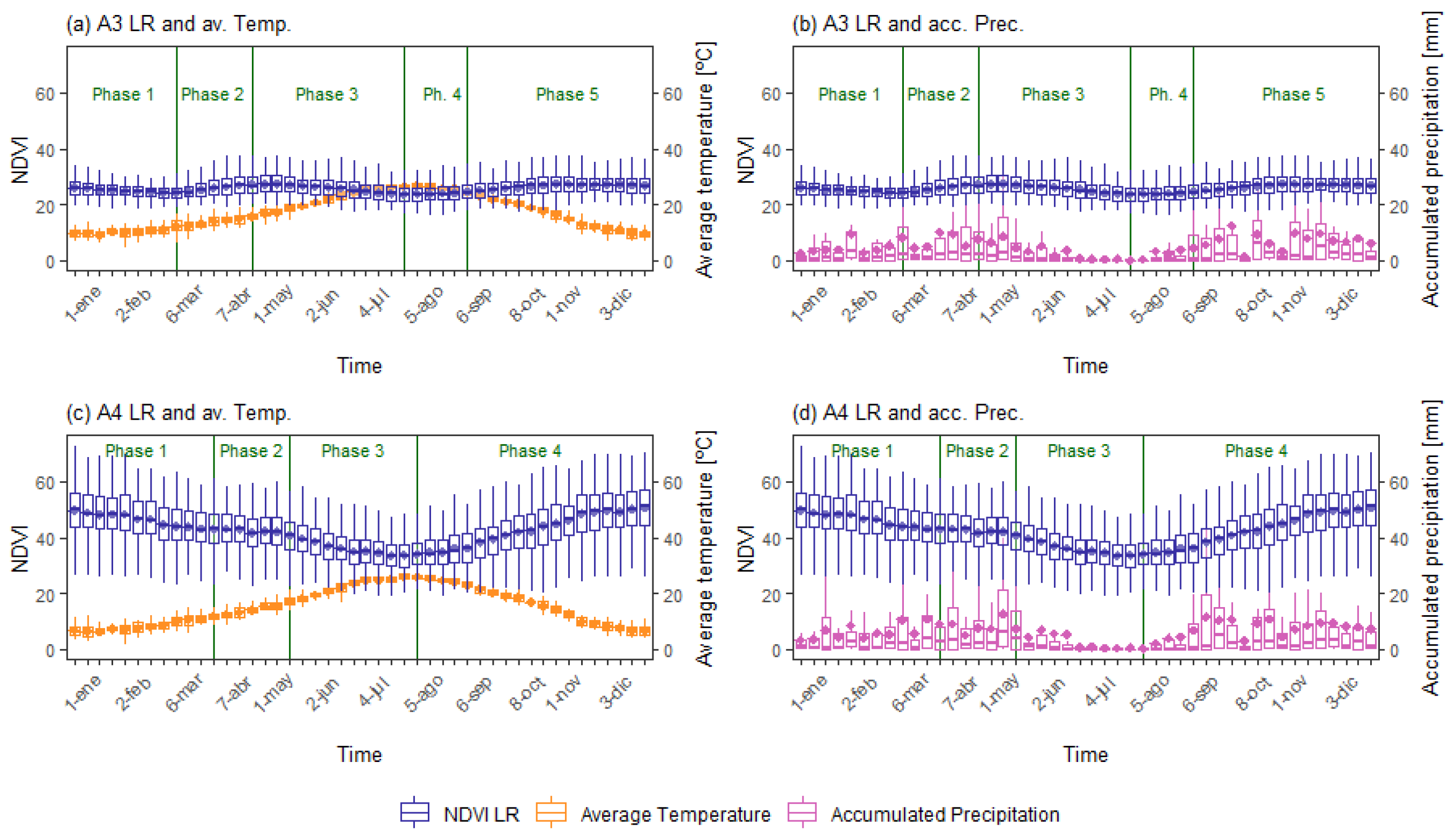

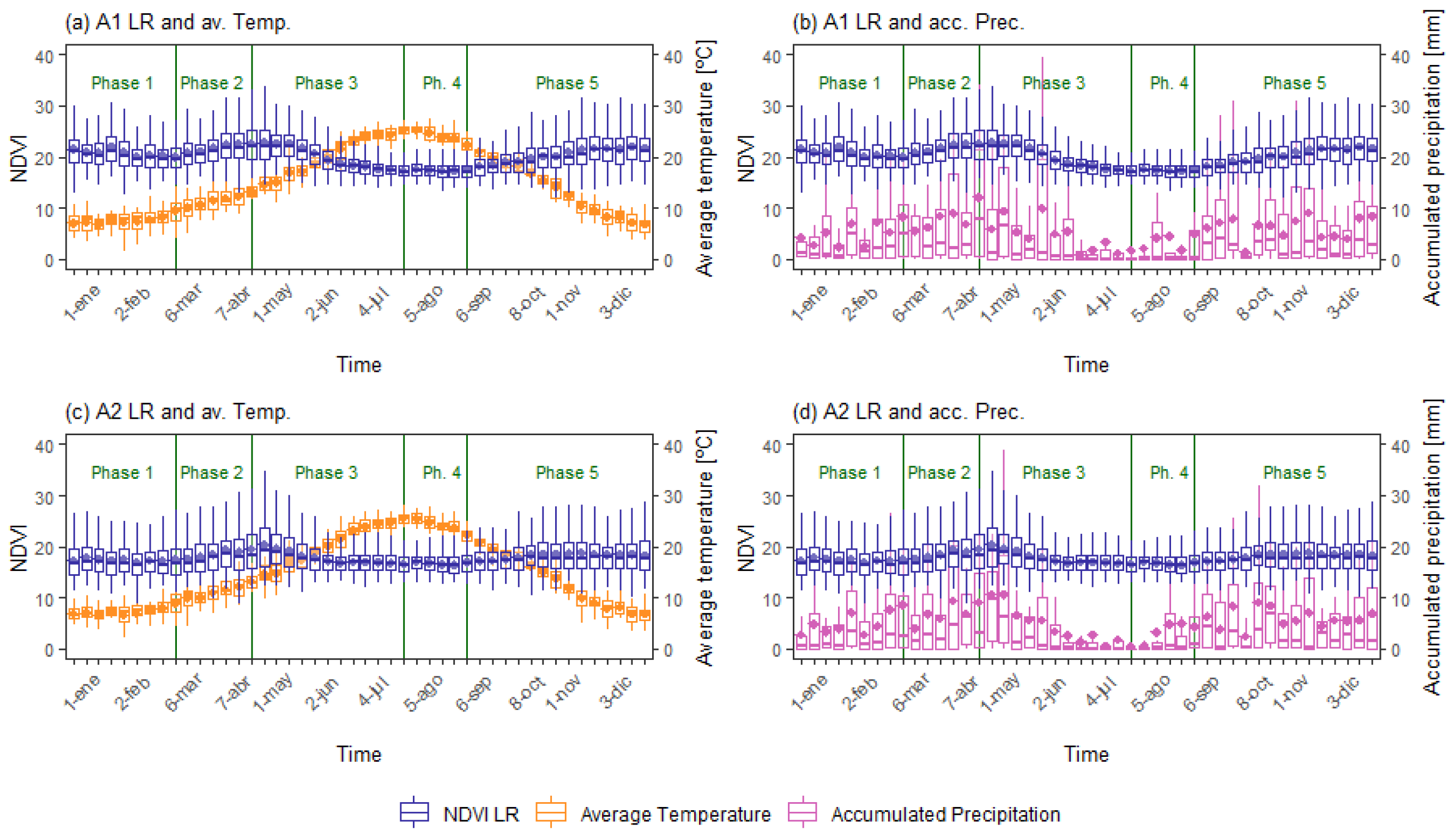

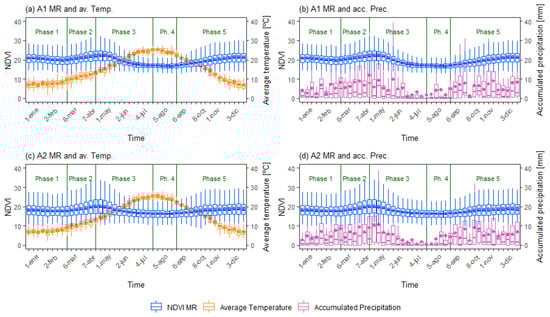

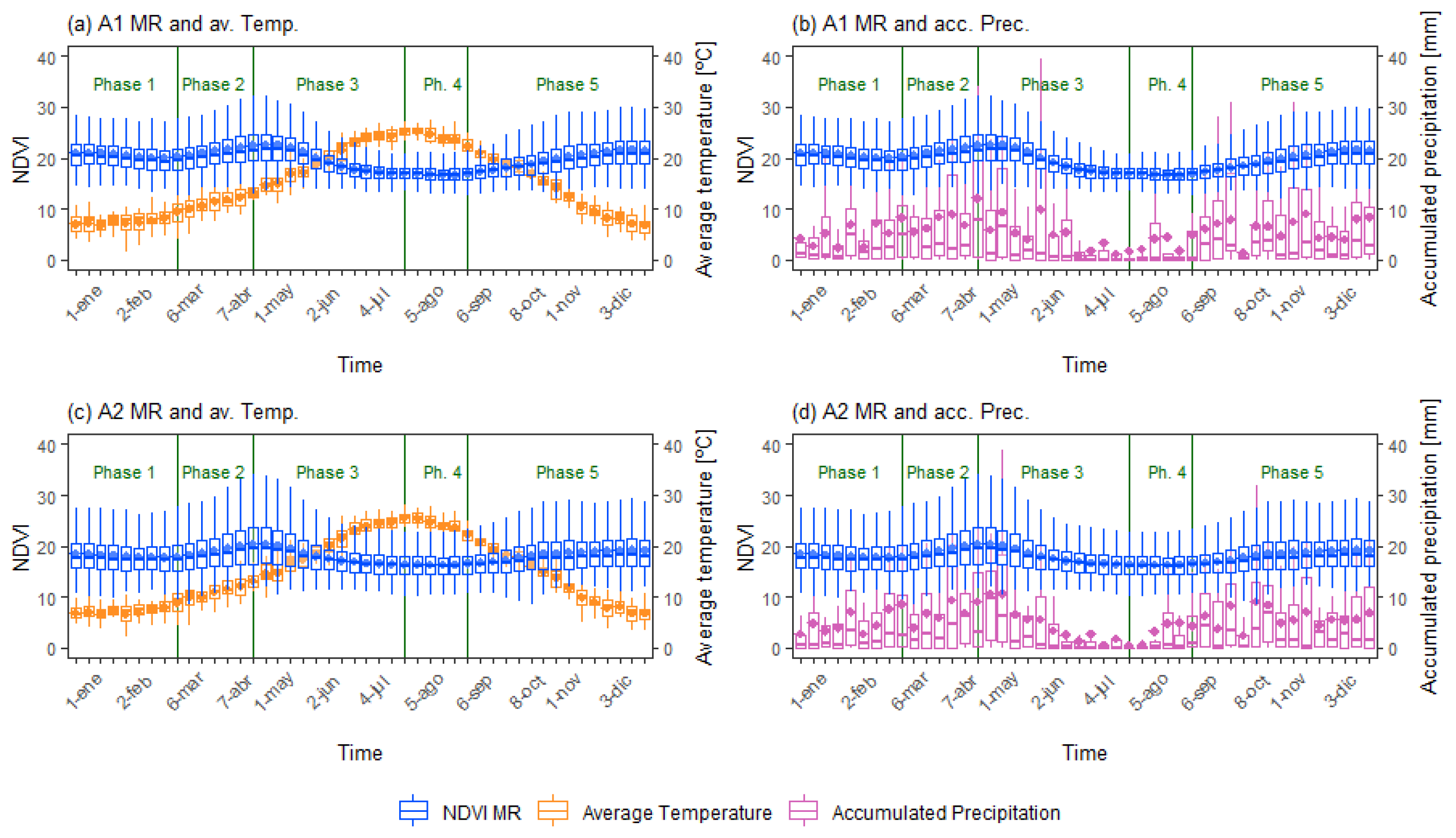

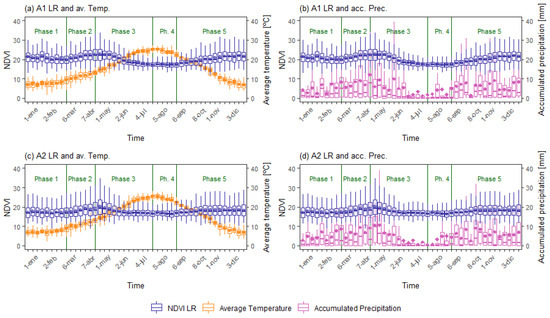

The LR and MR NDVI annual evolution and temperature and precipitation are shown in the following boxplots for each of the studied areas (Figure 7, Figure 8, Figure 9 and Figure 10). The LR and MR NDVI values in A1 and A2 are very similar, then A3 presents an increase in these values, and A4 has much higher NDVI values than the rest. This pattern may be, at least in part, explained by increasing tree coverage in the areas. In each graph, the year was divided into different phases as the NDVI average trend changed.
A1 and A2 present a larger dispersion during the spring (March, April, and May). This dispersion is present but less prominent in A3, probably due to its less abundant precipitation. A4 exhibits a more consistent dispersion of values throughout the year with a reduction during the summer (June, July, and August), given by the almost complete tree coverage of this area. NDVI values decrease during the summer in all areas with a more visible trend in A4. When comparing NDVI and meteorological variables, the former shows greater heterogeneity among areas. NDVI and temperature appear to show a delay between their peak values. The average temperature peaks occur on 28 July in all the zones. The NDVI peaks on the 20 July in all the areas except A4, which showed it on 12 July (Figure 7 and Figure 9 for A1 and A2, and Figure 8 and Figure 10 for A3 and A4). Area A1 to A3 are more heavily influenced by agricultural practices, which may cause the delay between NDVI and temperature, which only takes eight days. Area A4, as open forest, does not have any irrigation regimes that can relate to an earlier peak of NDVI when temperatures rise. No different trends were found when boxplots were plotted for weeks, fortnight, months, or season (data not reported). Meteorological trends remain similar regardless of the temporal scale.
Because the NDVI trends did not match the change of climatic seasons, we separated the NDVI and meteorological variables according to the NDVI trend changes, as shown in Figure 7, Figure 8, Figure 9 and Figure 10. Areas 1–3 were split into five phases, whereas A4 was split into four phases (Table 2).

3.4. Intra-Annual Regression by Phases

The regression analysis results between NDVI with temperature and precipitation by phases using the average of 18 years are shown in Figure A1, Figure A2, Figure A3 and Figure A4 (in Appendix B) for temperature and Figure A5, Figure A6, Figure A7 and Figure A8 (in Appendix B) for precipitation. Phases 1 and 4 were eliminated in A1–A3 and Phase 2 in A4, since their NDVI values were steady (Table 2). The regression analysis shows that for A1 to A3 (Figure A1, Figure A2 and Figure A3, Appendix B) temperature has a more substantial effect in NDVI in phase 2, 3, and 5, compared to phases 1 and 4, although phase 5 shows a slightly weaker relationship for A2, and especially A3. In A4, phases 3 and 4 show a strong relationship in the regression analysis and mild for phase 2 (Figure A4 in Appendix B).
The regression analysis for precipitation shows that for A1 to A3 (Figure A5, Figure A6 and Figure A7 in Appendix B), the herbaceous areas, NDVI in phase 3 is influenced by precipitation, while the others show a fragile relationship. No strong relationships are found in any phases in A4 (Figure A8). Due to the use of average values in the regression, differences between the two resolutions are small, although LR tends to have lower R2 values than MR.

3.5. NDVI and Meteorological Series Correlation

The Chow test confirmed significant structural differences between phases for all areas (Table 3). Medium- and low-resolution NDVI produced similar results in the previous analyses. However, there were differences, particularly regarding the lagged responses. This paragraph describes the results of MR NDVI correlation analysis and discusses the differences with LR NDVI. The correlation values mentioned are the highest lagged correlation (Table 4 and Table 5). NDVI has similar lags in each phase throughout A1 to A3. In phases 1 and 4, the NDVI values experience little change (with a difference within these phases between 4 and 10 in NDVI).
For this reason, temperature and precipitation have a minimal correlation with NDVI during these phases. Phase 2 shows a positive correlation of NDVI and temperature for these three areas: 0.32 for A1, 0.28 for A2, and 0.25 for A3. Phase 3 presents a moderate negative correlation for A1 and A2 (−0.73 and −0.61, respectively) and a low correlation (−0.12) in A3. Phase 5 has a low negative correlation for A1 (−0.32), A2 (−0.35), and A3 (−0.04). Area 4 always presents a negative correlation between temperature and NDVI, all lower than −0.4 except in phase 3, which has a stronger negative correlation of −0.73. Precipitation presents small positive values in all phases and areas, all below 0.35.
Lags on temperature for A1 to A3 in phase 1 and 4 range from 0 to 8 days, except for phase 4 in A2. All of these have very low values due to the constant behavior of NDVI values. In phase 2, the highest correlation between NDVI and temperature is found with a 16-day lag in A1, and 32-day lag in A2 and A3. Phase 3 has lags of 24 and 32 days for these three areas. Phase 5 differs more between areas, with a lag of 32 days for A1, eight days for A2, and 24 days in A3. Area 4 only shows a 16-day lag in phase 3, while the rest of its phases present no lag. The differences between the areas may be related to two factors, differences between their vegetation and their hydrological regimes. Precipitation correlation lags show small similarities between all four areas. The scattered precipitation of these habitats and water scarcity makes it difficult to find a pattern across the areas. These disparities appear to be related to differences in heavy rains at specific times in each phase and area.
Comparing these results with the LR ones (Table 6 and Table 7), correlation exhibited one of our analyses’ significant differences between the two resolutions. The lag presented by the highest correlation with temperature was similar for MR and LR, except for some cases where there was an approximate difference of 8-days lag. However, phases 4 and 5 present more significant differences with a lag of 16 and 32 days, in some cases. The precipitation variable presents an almost constant smaller lag in the LR, ranging from 8 to 48 days. Partial correlation with NDVI, temperature, and precipitation was made, but no significant differences were found (Table A2, Table A3, Table A4, Table A5, in Appendix C). They indicated that water availability is highly affected by temperature in this region.

3.6. Aridity Index and NDVI

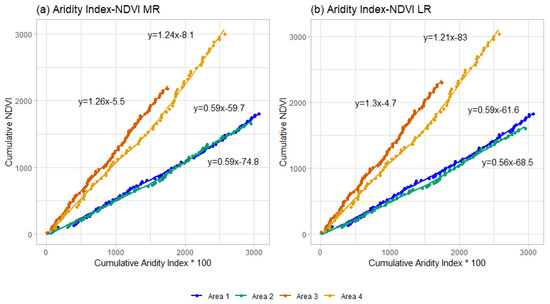

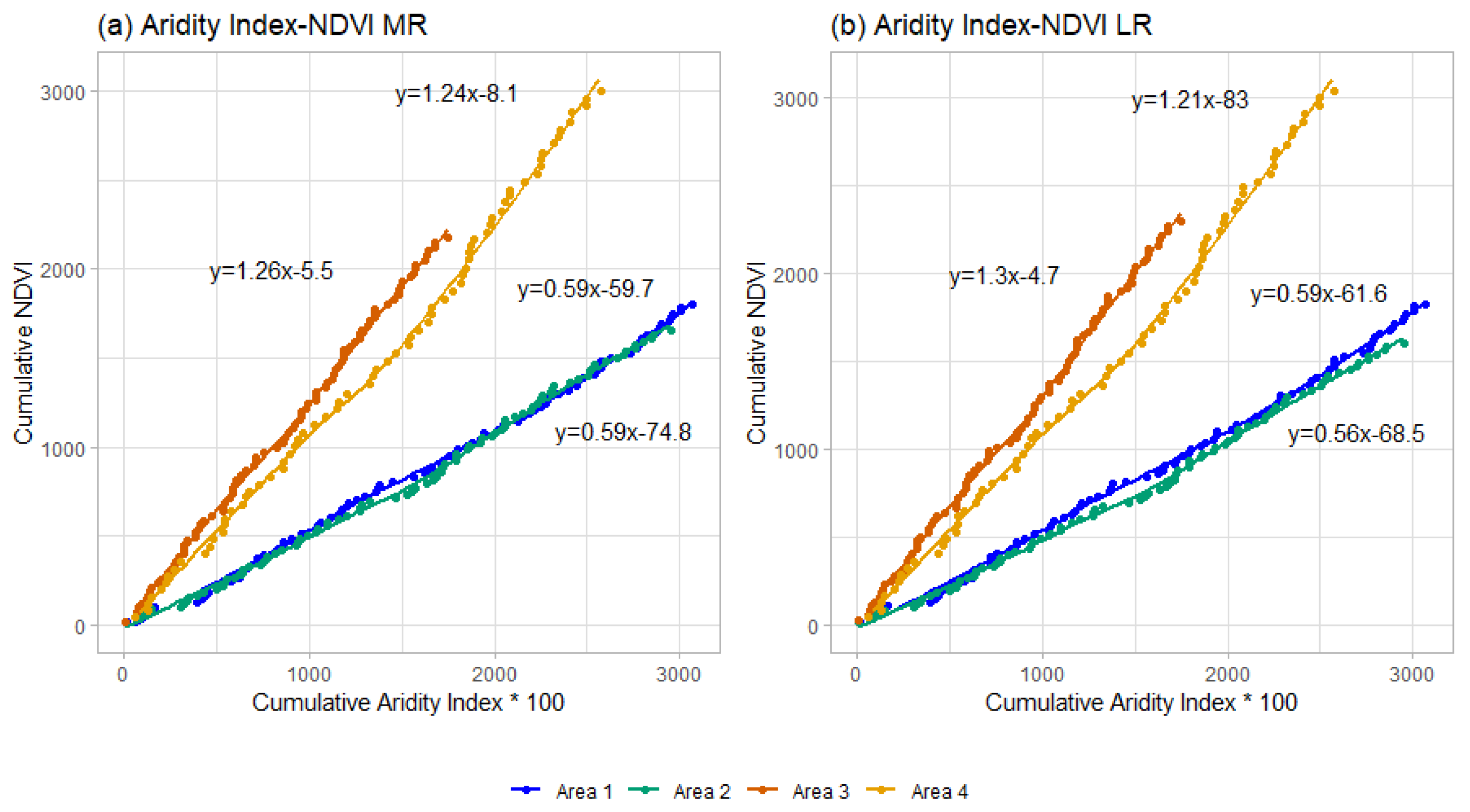

Figure 11 shows the four areas cluster into two groups. On one side, we find A1 and A2 intermingling. These two areas present lower cumulative NDVI than A3 and A4, and higher cumulative values of AI than A4 and A3. The AI for A4 was calculated based on its four phases, instead of five as was done for the other areas. However, this change does not affect the pattern and slope of this graphic. In the upper part of Figure 11, we find A3 and A4 showing efficient use of water resources. Their higher slope reflects the increase of NDVI as AI rises. With more typical Mediterranean vegetation, A3 and A4 have more efficient water use, particularly A3 with xerophilous shrubs as opposed to less xeric shrub vegetation, such as rosemary found in A4.

4. Discussion

4.1. NDVI Series Comparison

The average NDVI values for LR and MR of MODIS display relatively strong similarities. However, differences between them on their series’ peaks and valleys can be detected (Figure 5 and Figure 6). These differential patterns among areas suggest that it is caused by the difference of the averaged pixels within each area, showing that a finer scale is more representative of the area. On the other hand, some peaks and valleys are more pronounced, mainly when extreme meteorological events occur. These differences show a spatial difference among the pixels, which should be further researched.
These differences are confirmed when we compared the boxplots and the results of Pearson correlation and regression analysis. We found the significant differences in the boxplots among resolutions in A4, which is the most heterogeneous landscape, with a mix of tree-, scrub-, and grassy-dominated pixels. The medium resolution provided more significant results when studying their tendencies; the Mann–Kendall test for A1 with MR showed a tendency that was not visible with LR. Regression analysis provided more robust results for the relationship of NDVI and climatic variables with MR in A2 and A3, while A1 and A4 had smoother results than A2 and A3. Additionally, MR NDVI had more delayed lagged correlations. The use of medium or low resolution may depend on the spatial heterogeneity of the areas of study. This is probably due to a more detailed depiction of NDVI values in MR, as a smaller pixel size allows us to separate areas that could be spatially diverse. MR allows emerging a more lagged correlation without being tampered by the surroundings if an area dries at different times.
Using both resolutions shows a clearer image of the selected areas, especially highlighting those that are more heterogeneous. These results are in agreement with [31]. The use of ZNDVI and its comparison to the NDVI series also highlights the more significant changes during the series and the differences between the two resolutions. In particular, we find that extreme events are more pronounced when using LR as compared to MR.

4.2. NDVI Data and Meteorological Variables

NDVI values are highly related to water availability, as stated by [51]. NDVI responses are strongly linked to temperature in Mediterranean habitats, although this relationship weakens when precipitations are high [52]. In Murcia, the precipitations are scarce, with dry winters and almost no precipitation during the summer months. Furthermore, the temperature rises to its peak in July and August, leading to decreasing NDVI values. These values rise when the precipitation begins, and the temperature starts to descend. Our data show similar trends of higher NDVI values when precipitation increases, as highlighted by [53,54]. Area 4, located in the northwest county of Murcia, has relatively more water abundance and larger NDVI values.
Our correlation analysis shows that NDVI data are strongly and negatively correlated to average temperature when precipitation is strongly limited. The intraseasonal variation of the relationship of the NDVI and the meteorological variables has been approached by using different phases based on the NDVI behavior. The patterns of NDVI correlations with temperature change depending on the land use and the phase selected. Phases 1 and 4 show weak correlation values because the NDVI presents a steady pattern. On the other hand, phases 2, 3, and 5 have either increasing or decreasing NDVI trends. These phases present negative values except for phase 2 for A1 to A3 when the spring precipitation occurs. The correlations for NDVI and precipitation are very low, all below 0.35. However, the regression analysis highlights a stronger relationship for A1 to A3 for phase 3, when the precipitation starts high and steadily drops as temperature increases. A4, covered with trees, does not show a strong relationship between NDVI and precipitation where its precipitation in phase 2 is more limited than in the other areas. These changes among phases suggest that one of the critical factors affecting NDVI is water availability, matching other areas with semiarid and arid climates [55,56].
After characterizing the climatic variables and NDVI dynamics, we approached how the NDVI was affected by the AI, as a combination of precipitation and potential evapotranspiration, reflecting the temperature as well. This relation was established by accumulating NDVI and AI by the phases defined in each area. This allowed us to see how the different vegetation types representing each area respond differently to water availability. A3 and A4 show a more efficient response of NDVI to the rise of AI. Among these two areas, A3 exhibits a better response, in agreement with its more xeric vegetation, particularly in the selected top half pixels. No trees are found and xerophilous scrubs, such as esparto, inhabit the area. On the other hand, A1 and A2, representing different types of crops, show a smaller NDVI in response to a similar AI than A4, and higher than A3.

5. Conclusions

Comparison of the two scales of MODIS MOD09Q1.006 (MR) and MOD09A1.006 (LR) show that NDVI is scale dependent. These resolutions show differences, particularly when studying correlation and regression analysis. They are suggesting that medium resolution is more suited for spatial and lagged temporal patterns. However, when averaged, the trends are similar between these two resolutions. Lower resolution scales can be used when the studied areas are not spatially heterogeneous for temporal trend analysis, but larger resolutions scales are recommended on spatially diverse areas.
Among the climatic variables used, temperature shows the strongest relationship with average NDVI. Our results reveal that complex interactions of precipitation and temperature may explain real-time NDVI evolution. However, their behaviors vary across the phases. The use of phases based on NDVI patterns, instead of seasons, allows us to describe a more realistic depiction of the arid environments, based on their vegetation dynamics. The study shows a strong positive correlation of NDVI with temperature when high precipitation occurs. Precipitation, however, shows a weak correlation with NDVI. The behavior of both climatic variables points to water availability as one of the major drivers of NDVI in Murcia, as it is suggested by the positive correlations of temperature and NDVI during phases where heavier precipitation occurs.
Aridity index and NDVI allowed us to cluster our four areas into two large groups, A1 and A2; mainly grazed wastelands showed a low increase of NDVI with a high aridity index. In contrast, A4 and A3 with a similar or lower aridity index presented a higher NDVI accumulation, showing more efficient use of available water; A3, especially, presented a higher slope than A4. However, more rangelands and other ecosystems should be analyzed to determine whether or not these differences can discriminate and characterize among other types of rangelands.
Intraseasonal relationship of NDVI with climatic variables was studied by splitting the analyses according to NDVI patterns. This allowed for viewing NDVI dynamics that were obscured when the seasonal division was followed. Intraseasonal and interseasonal characteristics should be taken into consideration in the definition of agrometeorological indexes in rangelands. This study provides a discriminating technique for rangeland management and policymakers. It is expected that future research will expand the knowledge of NDVI drivers at different scales, to develop tools and indexes that can help further comprehend vegetation communities of agricultural lands.

Author Contributions

Conceptualization, A.M.T., A.S.-R., C.H.D.-A. and E.S.; methodology, A.M.T., A.S.-R., E.I. and E.S.; formal analysis, A.M.T., A.S.-R., M.R.-R. and E.S.; writing—original draft preparation, E.S.; writing—review and editing, E.S., A.S.-R., C.H.D.-A., M.R.-R., A.R., E.I., P.E., B.S. and A.M.T., visualization, A.R., P.E., B.S. and E.S.; supervision, A.M.T.; funding acquisition, A.M.T. All authors have read and agreed to the published version of the manuscript.

Funding

Funding for this work was partially provided by Programme Garantía Juvenil from Comunidad de Madrid, and Boosting Agricultural Insurance based on Earth Observation data–BEACON project under agreement No. 821964, funded under H2020_EU, DT-SPACE-01-EO-2018-2020. The authors also acknowledge support from Project No. PGC2018-093854-B-I00 of the Spanish Ministerio de Ciencia Innovación y Universidades of Spain.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

The data provided by Appears Team and AEMET are greatly appreciated.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Table A1. UTM coordinates of each corner of the areas and the coordinate for their respective meteorological station.
Table A1. UTM coordinates of each corner of the areas and the coordinate for their respective meteorological station.
AreasArea 1Area 2Area 3Area 4
Xmin (m)660,520635,796650,064614,504
Xmax (m)663,020638,296652,564617,004
Ymin(m)4,284,4204,273,3964,225,9854,219,731
Ymax (m)4,286,9204,275,8964,228,4854,222,231
StationsAL-10 (SIAM)AL-06 (SIAR)CI-32 (SIAR)CR-32 (SIAM)
X station (m)675,585630,946652,564615,466
Y station (m)4,289,2704,276,0004,228,4854,218,939

Appendix B

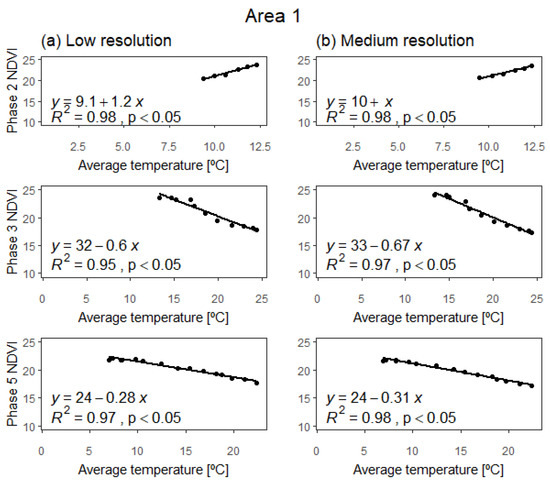

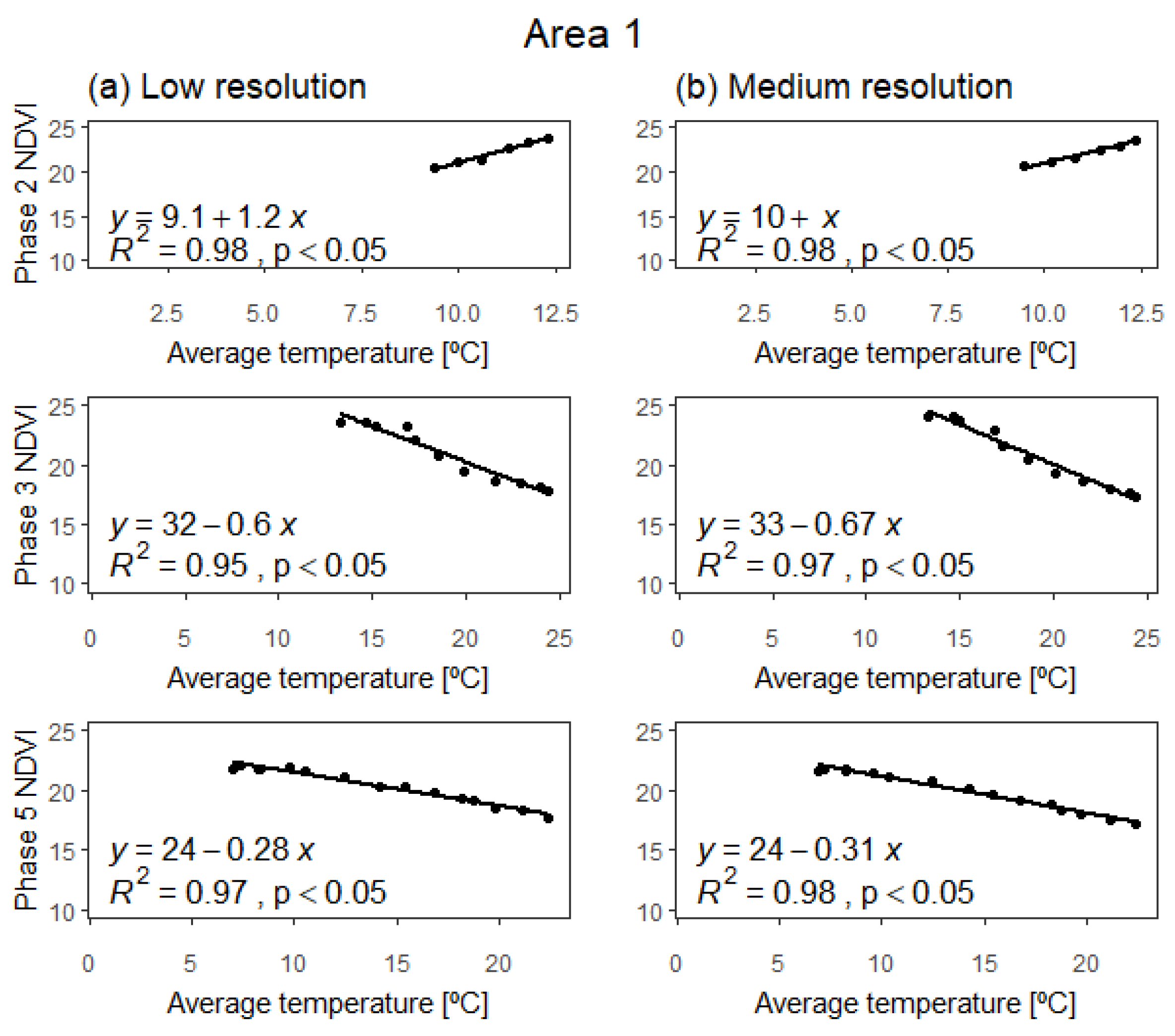

Figure A1. Regression analysis of average NDVI and temperature series separated by phases for LR (a) and MR (b) for A1.
Figure A1. Regression analysis of average NDVI and temperature series separated by phases for LR (a) and MR (b) for A1.
Remotesensing 13 00840 g0a1

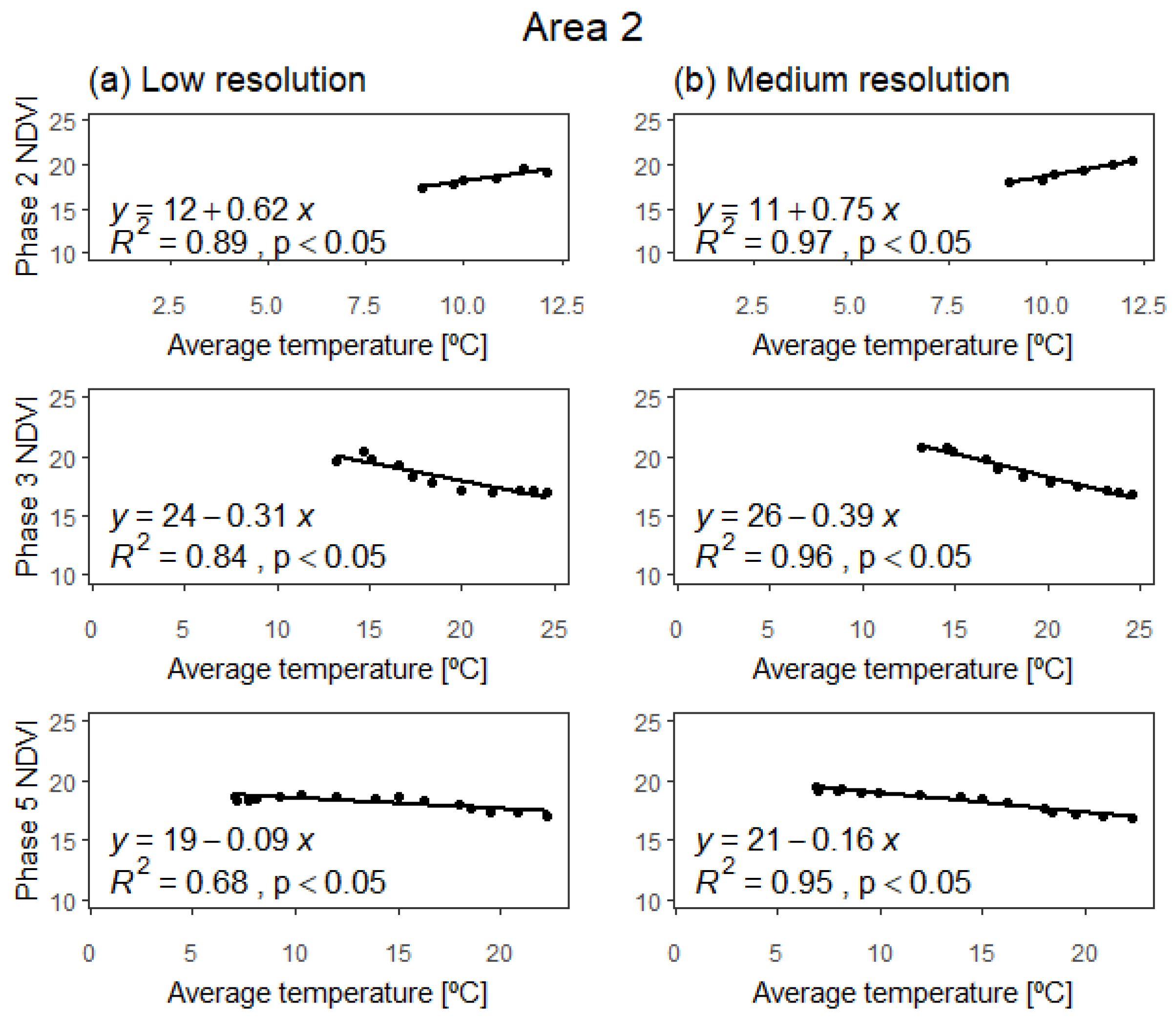

Figure A2. Regression analysis of average NDVI and temperature series separated by phases for LR (a) and MR (b) for A2.
Figure A2. Regression analysis of average NDVI and temperature series separated by phases for LR (a) and MR (b) for A2.
Remotesensing 13 00840 g0a2

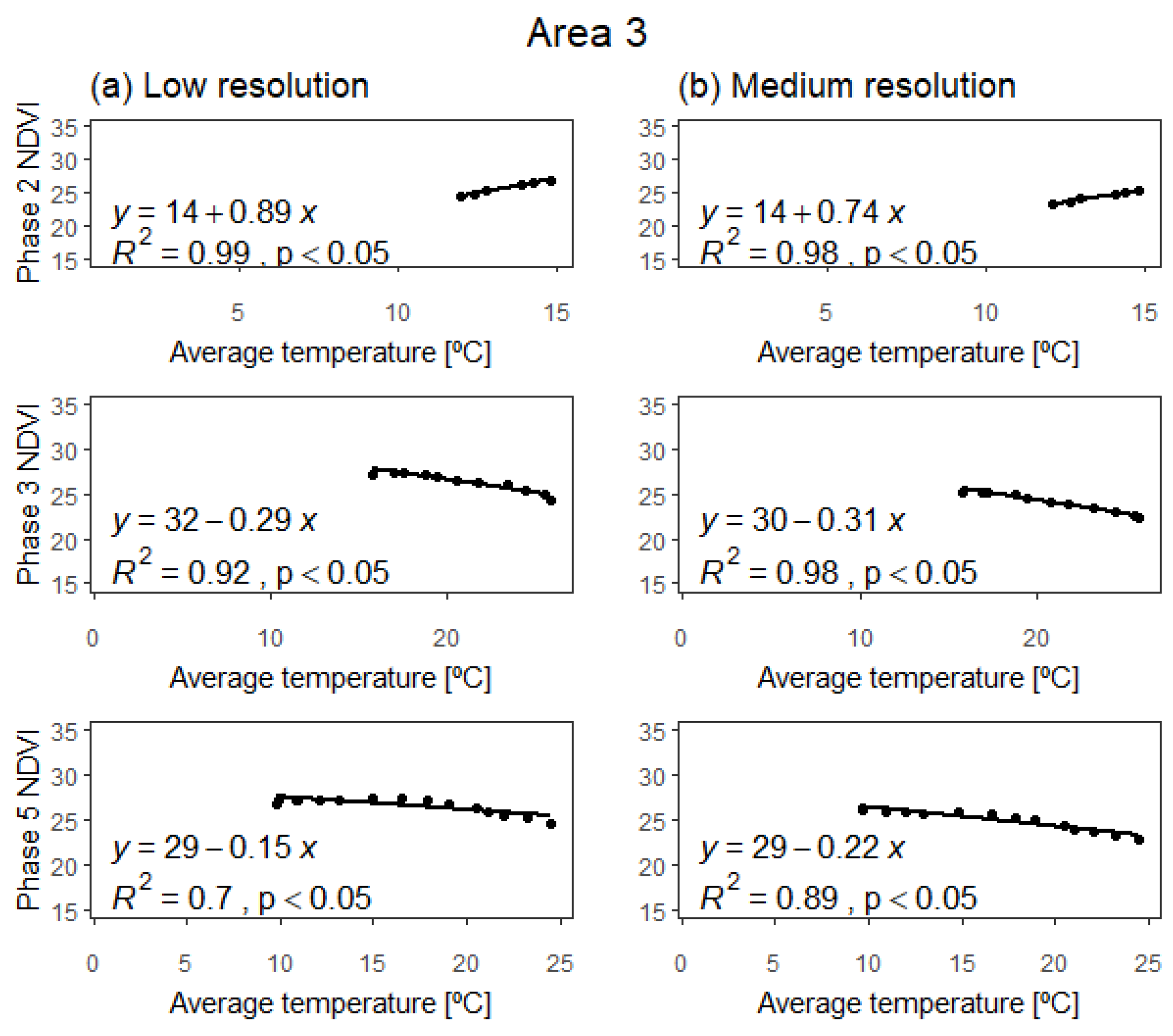

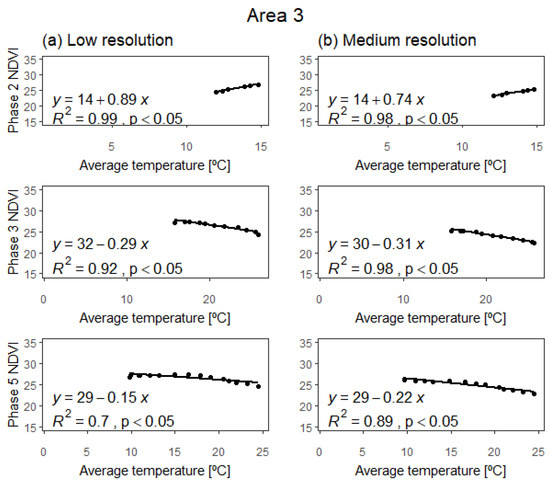

Figure A3. Regression analysis of average NDVI and temperature series separated by phases for LR (a) and MR (b) for A3.
Figure A3. Regression analysis of average NDVI and temperature series separated by phases for LR (a) and MR (b) for A3.
Remotesensing 13 00840 g0a3

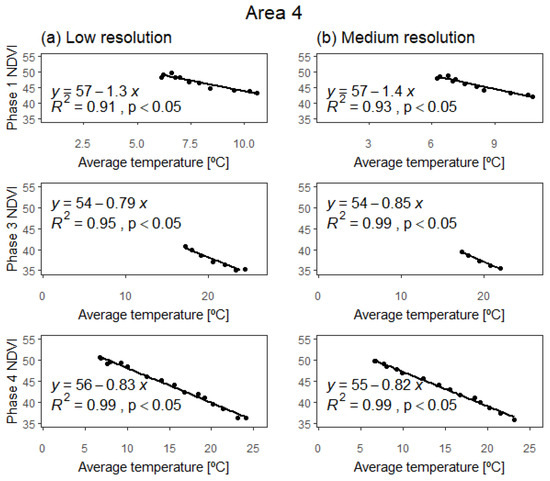

Figure A4. Regression analysis of average NDVI and temperature series separated by phases for LR (a) and MR (b) for A4.
Figure A4. Regression analysis of average NDVI and temperature series separated by phases for LR (a) and MR (b) for A4.
Remotesensing 13 00840 g0a4

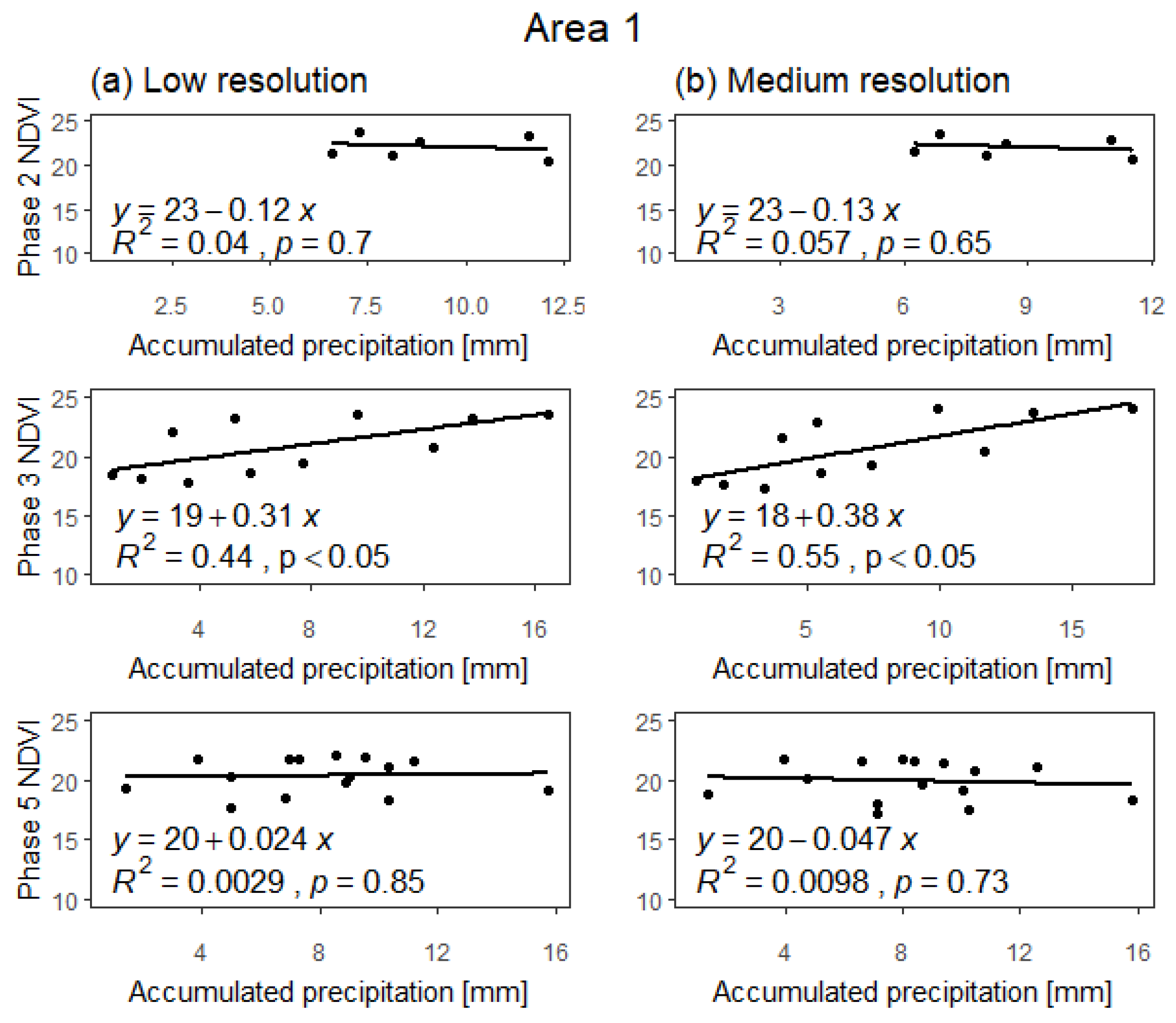

Figure A5. Regression analysis of average NDVI and precipitation series separated by phases for LR (a) and MR (b) for A1.
Figure A5. Regression analysis of average NDVI and precipitation series separated by phases for LR (a) and MR (b) for A1.
Remotesensing 13 00840 g0a5

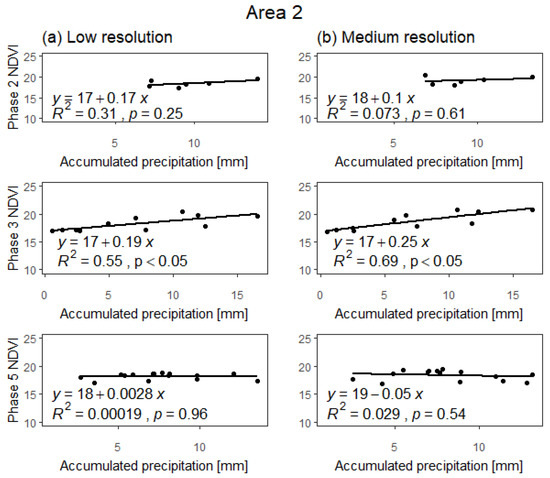

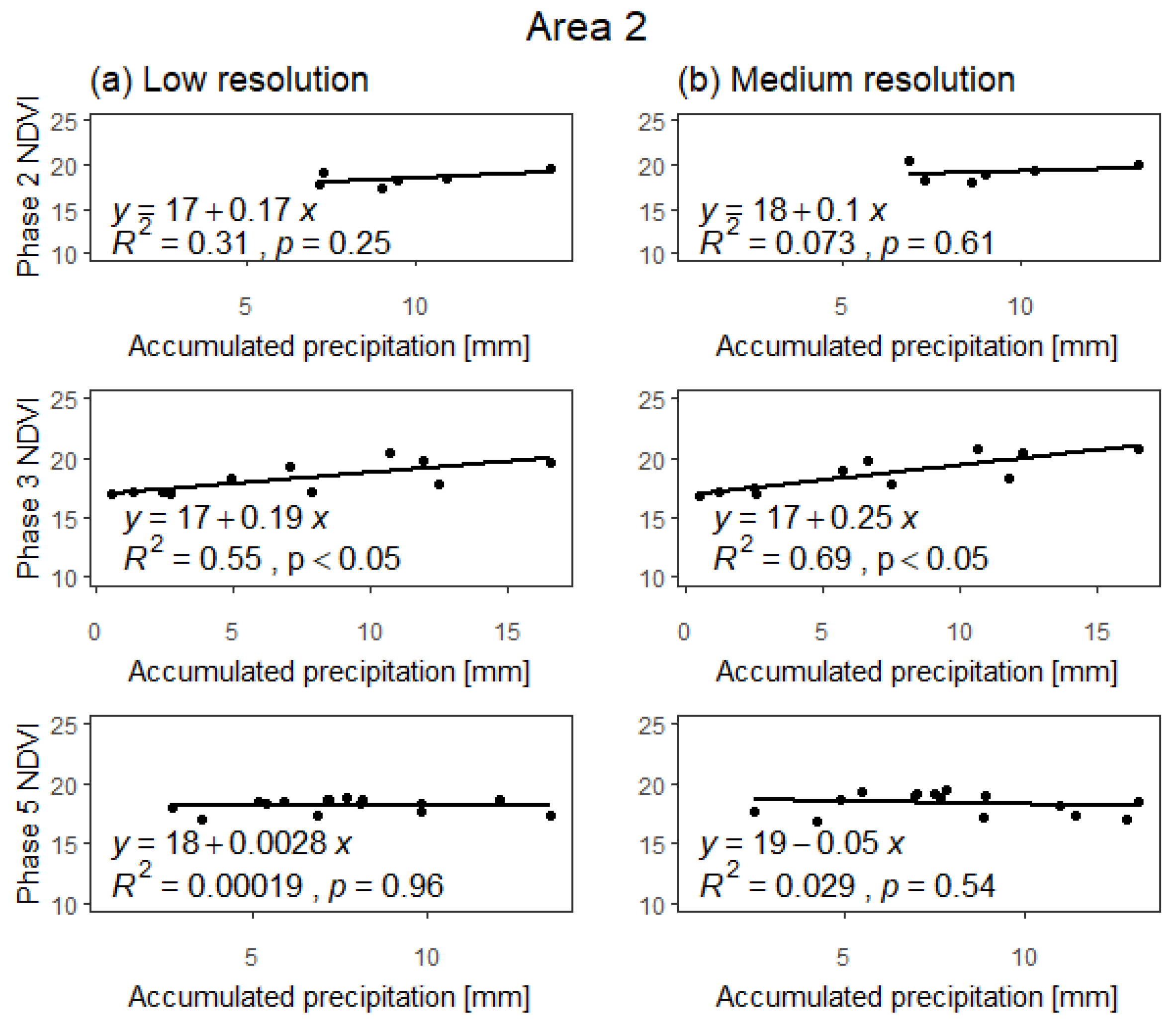

Figure A6. Regression analysis of average NDVI and precipitation series separated by phases for LR (a) and MR (b) for A2.
Figure A6. Regression analysis of average NDVI and precipitation series separated by phases for LR (a) and MR (b) for A2.
Remotesensing 13 00840 g0a6

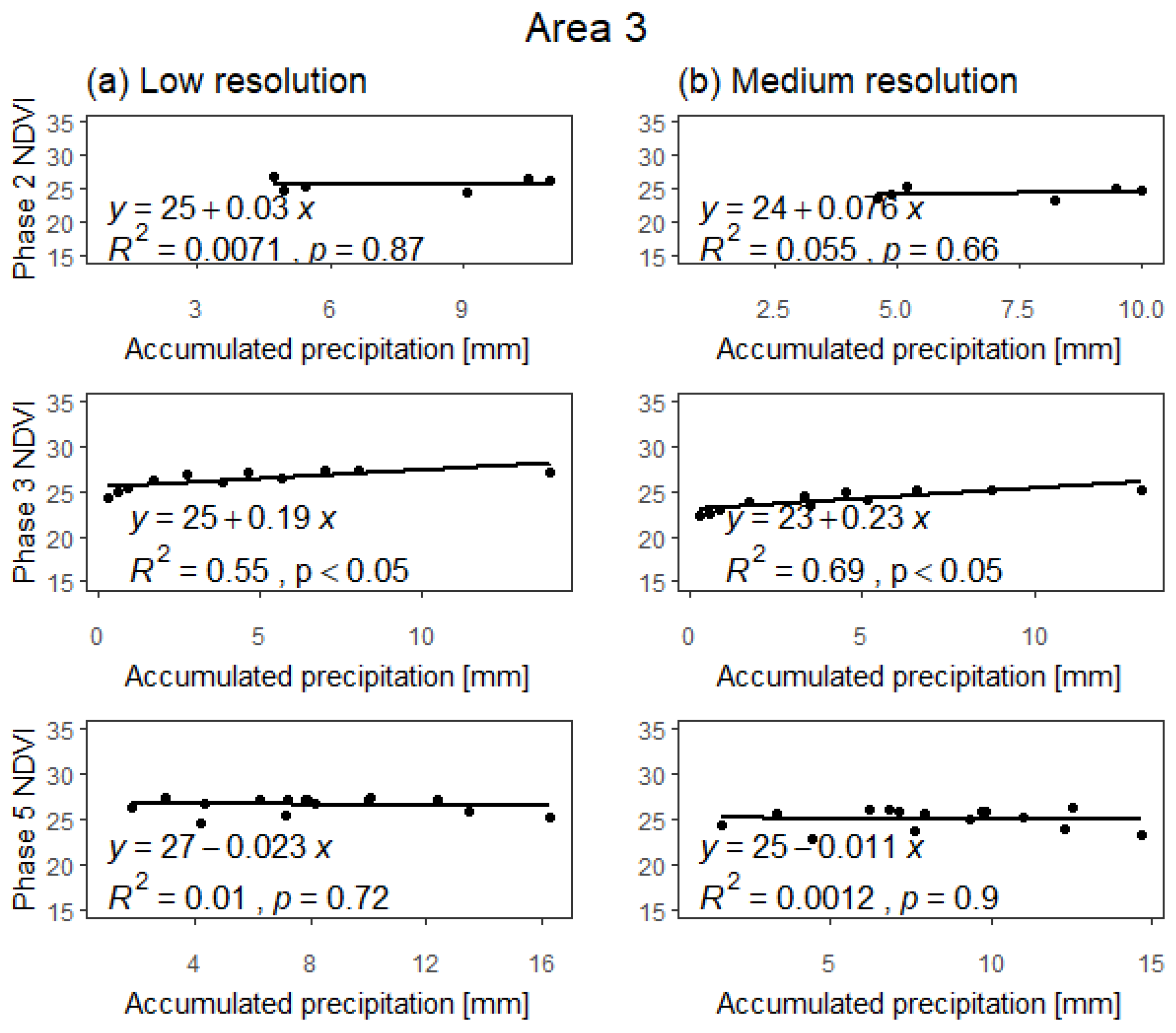

Figure A7. Regression analysis of average NDVI and precipitation series separated by phases for LR (a) and MR (b) for A3.
Figure A7. Regression analysis of average NDVI and precipitation series separated by phases for LR (a) and MR (b) for A3.
Remotesensing 13 00840 g0a7

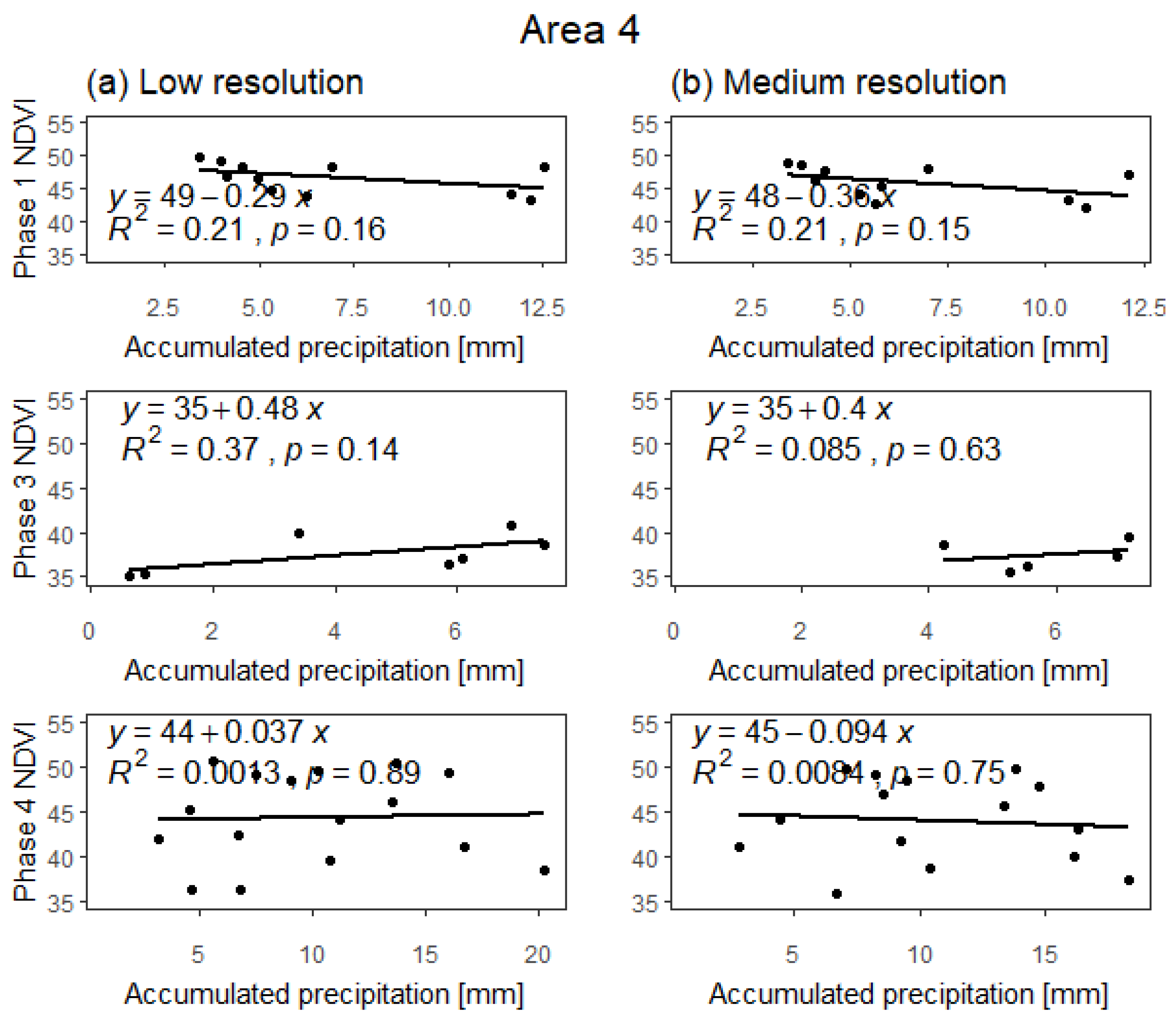

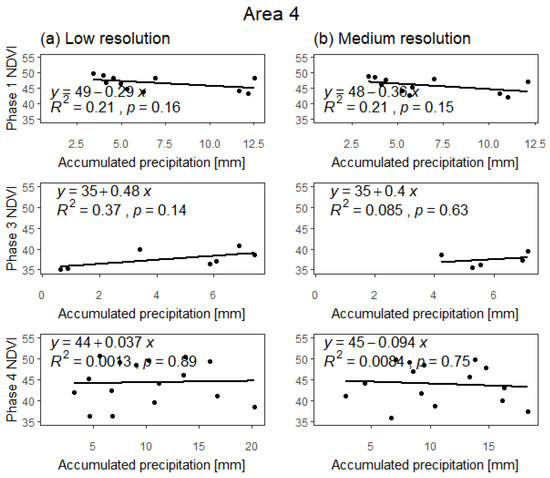

Figure A8. Regression analysis of average NDVI and precipitation series separated by phases for LR (a) and MR (b) for A4.
Figure A8. Regression analysis of average NDVI and precipitation series separated by phases for LR (a) and MR (b) for A4.
Remotesensing 13 00840 g0a8

Appendix C

Table A2. Lagged partial correlations of medium resolution NDVI and meteorological parameters (Meteo) for A1 and A2. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
Table A2. Lagged partial correlations of medium resolution NDVI and meteorological parameters (Meteo) for A1 and A2. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
AreaMeteoPhaseLag Time (Days)
081624324048
A1TempPhase20.280.350.370.310.320.250.19
Phase3−0.71−0.71−0.71−0.7−0.72−0.69−0.65
Phase5−0.5−0.51−0.52−0.51−0.5−0.49−0.47
PpPhase20.190.270.320.270.310.320.23
Phase30.130.170.160.190.010.080.08
Phase50.080.070.090.080.110.150.16
A2TempPhase20.210.240.270.240.30.250.18
Phase3−0.57−0.57−0.56−0.57−0.59−0.57−0.53
Phase5−0.34−0.35−0.34−0.34−0.32−0.31−0.29
PpPhase20.160.160.180.190.190.20.07
Phase3−0.1−0.0400.030.020.060.05
Phase50.130.130.160.170.180.160.19
Average Temperature (Temp) and Accumulated Precipitation (Pp).
Table A3. Lagged partial correlations of medium resolution NDVI and meteorological parameters (Meteo) for A3 and A4. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
Table A3. Lagged partial correlations of medium resolution NDVI and meteorological parameters (Meteo) for A3 and A4. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
AreaMeteoPhaseLag Time (Days)
081624324048
A3TempPhase20.110.180.240.320.320.280.22
Phase3−0.48−0.48−0.49−0.5−0.48−0.47−0.43
Phase5−0.34−0.34−0.33−0.32−0.3−0.28−0.24
PpPhase20.320.310.270.180.180.240.15
Phase3−0.09−0.040.050.110.10.140.14
Phase50.130.120.140.140.150.20.21
A4TempPhase1−0.14−0.11−0.060−0.050.020.07
Phase3−0.69−0.7−0.71−0.7−0.71−0.69−0.67
Phase4−0.23−0.15−0.17−0.07−0.030.030.04
PpPhase1−0.010.010.090.080.120.10.09
Phase3−0.08−0.0200.020.010.040.05
Phase40.260.30.26−0.06−0.020.060.04
Average Temperature (Temp) and Accumulated Precipitation (Pp).
Table A4. Lagged partial correlations of low resolution NDVI and meteorological parameters (Meteo) for A1 and A2. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
Table A4. Lagged partial correlations of low resolution NDVI and meteorological parameters (Meteo) for A1 and A2. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
AreaMeteoPhaseLag Time (Days)
081624324048
A1TempPhase20.240.300.340.310.370.310.24
Phase3−0.07−0.03−0.01−0.04−0.01−0.05−0.04
Phase5−0.45−0.46−0.46−0.45−0.45−0.43−0.40
PpPhase20.230.270.300.240.270.320.24
Phase30.120.180.230.280.060.110.10
Phase50.110.090.110.100.120.170.18
A2TempPhase20.200.200.260.250.330.290.24
Phase3−0.06−0.01−0.12−0.13−0.11−0.09−0.06
Phase5−0.20−0.21−0.20−0.19−0.17−0.15−0.13
PpPhase20.170.160.190.190.180.170.04
Phase30.050.020.050.100.020.150.13
Phase50.140.150.180.180.200.180.20
Average Temperature (Temp) and Accumulated Precipitation (Pp).
Table A5. Lagged partial correlations of low resolution NDVI and meteorological parameters (Meteo) for A3 and A4. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
Table A5. Lagged partial correlations of low resolution NDVI and meteorological parameters (Meteo) for A3 and A4. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
AreaMeteoPhaseLag Time (Days)
081624324048
A3TmepPhase20.110.180.250.340.360.300.23
Phase3−0.15−0.11−0.06−0.04−0.06−0.05−0.03
Phase5−0.28−0.28−0.27−0.26−0.24−0.20−0.17
PpPhase20.310.300.270.180.150.220.14
Phase30.200.230.19−0.060.00−0.04−0.07
Phase50.160.140.160.150.150.210.19
A4TempPhase1−0.14−0.08−0.010.03−0.05−0.010.04
Phase3−0.68−0.69−0.70−0.70−0.70−0.68−0.66
Phase4−0.20−0.14−0.15−0.05−0.020.020.03
PpPhase10.010.020.090.080.150.120.08
Phase3−0.060.000.010.030.010.040.05
Phase40.300.310.27−0.07−0.010.070.04
Average Temperature (Temp) and Accumulated Precipitation (Pp).

References

  1. Ellis, E.C.; Ramankutty, N. Putting people in the map: Anthropogenic biomes of the world. Front. Ecol. Environ. 2008, 6, 439–447. [Google Scholar] [CrossRef] [Green Version]
  2. Zerga, B. Degradation of Rangelands and Rehabilitation efforts in Ethiopia: The case of Afar rangelands. J. Mech. Ind. Eng. Res. 2015, 4, 45. [Google Scholar]
  3. Pickup, G.; Bastin, G.N.; Chewings, V.H. Identifying trends in land degradation in non-equilibrium rangelands. J. Appl. Ecol. 1998, 35, 365–377. [Google Scholar] [CrossRef]
  4. Anderson, D.; Carabias, J.; Gitay, H.; Hennicke, P.; Huntley, B.; Huq, S.; Kapuscinski, A.; Maximov, A.; Nurse, L.; Shanker, A. A Conceptual Design Tool for Exploiting Interlinkages between the Focal Areas of the GEF; GEF working paper; Global Environment Facility: Washington, DC, USA, 2004. [Google Scholar]
  5. Alcaraz, F.; Carreño, F.; Carrizosa, J.A.; Correal, E.; Erena, M.; García, J.; Sánchez, P.G.; Hoyos, A.; Lobera, J.B.; Teruel, A.M.; et al. Tipificación, Cartografía y Evaluación de los Recursos Pastables de la Región de Murcia. Serie Informes. 18; Murcia, C., Ed.; Libecrom: Murcia, Spain, 2007; ISBN 978-84-690-4538-1. [Google Scholar]
  6. Curran, P.J.; Dungan, J.L.; Gholz, H.L. Seasonal LAI in slash pine estimated with Landsat TM. Remote Sens. Environ. 1992, 39, 3–13. [Google Scholar] [CrossRef]
  7. Henebry, G.M. Detecting change in grasslands using measures of spatial dependence with Landsat TM data. Remote Sens. Environ. 1993, 46, 223–234. [Google Scholar] [CrossRef]
  8. Wabnitz, C.C.; Andréfouët, S.; Torres-Pulliza, D.; Müller-Karger, F.E.; Kramer, P.A. Regional-scale seagrass habitat mapping in the Wider Caribbean region using Landsat sensors: Applications to conservation and ecology. Remote Sens. Environ. 2008, 112, 3455–3467. [Google Scholar] [CrossRef]
  9. Fern, R.R.; Foxley, E.A.; Bruno, A.; Morrison, M.L. Suitability of NDVI and OSAVI as estimators of green biomass and coverage in a semi-arid rangeland. Ecol. Indic. 2018, 94, 16–21. [Google Scholar] [CrossRef]
  10. Eisfelder, C.; Kuenzer, C.; Dech, S. Derivation of biomass information for semi-arid areas using remote-sensing data. Int. J. Remote Sens. 2012, 33, 2937–2984. [Google Scholar] [CrossRef]
  11. Yagci, A.L.; Di, L.; Deng, M. The influence of land cover-related changes on the NDVI-based satellite agricultural drought indices. In Proceedings of the 2014 IEEE Geoscience and Remote Sensing Symposium, Quebec City, QC, Canada, 13–18 July 2014; pp. 2054–2057. [Google Scholar]
  12. Hadian, F.; Jafari, R.; Bashari, H.; Tarkesh, M.; Clarke, K.D. Effects of drought on plant parameters of different rangeland types in Khansar region, Iran. Arab. J. Geosci. 2019, 12, 93. [Google Scholar] [CrossRef]
  13. Paltsyn, M.Y.; Gibbs, J.P.; Mountrakis, G. Integrating traditional ecological knowledge and remote sensing for monitoring rangeland dynamics in the Altai Mountain region. Environ. Manag. 2019, 64, 40–51. [Google Scholar] [CrossRef]
  14. Amri, R.; Zribi, M.; Lili-Chabaane, Z.; Duchemin, B.; Gruhier, C.; Chehbouni, A. Analysis of vegetation behavior in a North African semi-arid region, using SPOT-VEGETATION NDVI data. Remote Sens. 2011, 3, 2568–2590. [Google Scholar] [CrossRef] [Green Version]
  15. Hao, F.; Zhang, X.; Ouyang, W.; Skidmore, A.K.; Toxopeus, A.G. Vegetation NDVI linked to temperature and precipitation in the upper catchments of Yellow River. Environ. Model. Assess. 2012, 17, 389–398. [Google Scholar] [CrossRef] [Green Version]
  16. Wang, J.; Rich, P.M.; Price, K.P. Temporal responses of NDVI to precipitation and temperature in the central Great Plains, USA. Int. J. Remote Sens. 2003, 24, 2345–2364. [Google Scholar] [CrossRef]
  17. Ghebrezgabher, M.G.; Yang, T.; Yang, X.; Sereke, T.E. Assessment of NDVI variations in responses to climate change in the Horn of Africa. Egypt. J. Remote Sens. Sp. Sci. 2020, 23, 249–261. [Google Scholar]
  18. Al-Bakri, J.T.; Suleiman, A.S. NDVI response to rainfall in different ecological zones in Jordan. Int. J. Remote Sens. 2004, 25, 3897–3912. [Google Scholar] [CrossRef]
  19. Ichii, K.; Kawabata, A.; Yamaguchi, Y. Global correlation analysis for NDVI and climatic variables and NDVI trends: 1982-1990. Int. J. Remote Sens. 2002, 23, 3873–3878. [Google Scholar] [CrossRef]
  20. Martiny, N.; Camberlin, P.; Richard, Y.; Philippon, N. Compared regimes of NDVI and rainfall in semi-arid regions of Africa. Int. J. Remote Sens. 2006, 27, 5201–5223. [Google Scholar] [CrossRef]
  21. Liu, J.; Wu, J.; Wu, Z.; Liu, M. Response of NDVI dynamics to precipitation in the Beijing–Tianjin sandstorm source region. Int. J. Remote Sens. 2013, 34, 5331–5350. [Google Scholar] [CrossRef]
  22. Yue, W.; Xu, J.; Tan, W.; Xu, L. The relationship between land surface temperature and NDVI with remote sensing: Application to Shanghai Landsat 7 ETM+ data. Int. J. Remote Sens. 2007, 28, 3205–3226. [Google Scholar] [CrossRef]
  23. Joiner, J.; Yoshida, Y.; Anderson, M.; Holmes, T.; Hain, C.; Reichle, R.; Koster, R.; Middleton, E.; Zeng, F.-W. Global relationships among traditional reflectance vegetation indices (NDVI and NDII), evapotranspiration (ET), and soil moisture variability on weekly timescales. Remote Sens. Environ. 2018, 219, 339–352. [Google Scholar] [CrossRef] [Green Version]
  24. Piedallu, C.; Chéret, V.; Denux, J.-P.; Perez, V.; Azcona, J.S.; Seynave, I.; Gégout, J.-C. Soil and climate differently impact NDVI patterns according to the season and the stand type. Sci. Total Environ. 2019, 651, 2874–2885. [Google Scholar] [CrossRef] [PubMed]
  25. Birtwistle, A.N.; Laituri, M.; Bledsoe, B.; Friedman, J.M. Using NDVI to measure precipitation in semi-arid landscapes. J. Arid Environ. 2016, 131, 15–24. [Google Scholar] [CrossRef] [Green Version]
  26. Vicente-Serrano, S.M.; Gouveia, C.; Camarero, J.J.; Beguería, S.; Trigo, R.; López-Moreno, J.I.; Azorín-Molina, C.; Pasho, E.; Lorenzo-Lacruz, J.; Revuelto, J. Response of vegetation to drought time-scales across global land biomes. Proc. Natl. Acad. Sci. USA 2013, 110, 52–57. [Google Scholar] [CrossRef] [Green Version]
  27. Zhang, Y.; Wang, X.; Li, C.; Cai, Y.; Yang, Z.; Yi, Y. NDVI dynamics under changing meteorological factors in a shallow lake in future metropolitan, semiarid area in North China. Sci. Rep. 2018, 8, 1–13. [Google Scholar] [CrossRef] [Green Version]
  28. Piao, S.; Nan, H.; Huntingford, C.; Ciais, P.; Friedlingstein, P.; Sitch, S.; Peng, S.; Ahlström, A.; Canadell, J.G.; Cong, N. Evidence for a weakening relationship between interannual temperature variability and northern vegetation activity. Nat. Commun. 2014, 5, 1–7. [Google Scholar] [CrossRef] [Green Version]
  29. Zewdie, W.; Csaplovics, E.; Inostroza, L. Monitoring ecosystem dynamics in northwestern Ethiopia using NDVI and climate variables to assess long term trends in dryland vegetation variability. Appl. Geogr. 2017, 79, 167–178. [Google Scholar] [CrossRef]
  30. Dhakar, R.; Sehgal, V.K.; Pradhan, S. Study on inter-seasonal and intra-seasonal relationships of meteorological and agricultural drought indices in the Rajasthan State of India. J. Arid Environ. 2013, 97, 108–119. [Google Scholar] [CrossRef]
  31. Tarnavsky, E.; Garrigues, S.; Brown, M.E. Multiscale geostatistical analysis of AVHRR, SPOT-VGT, and MODIS global NDVI products. Remote Sens. Environ. 2008, 112, 535–549. [Google Scholar] [CrossRef]
  32. Stefanov, W.L.; Netzband, M. Assessment of ASTER land cover and MODIS NDVI data at multiple scales for ecological characterization of an arid urban center. Remote Sens. Environ. 2005, 99, 31–43. [Google Scholar] [CrossRef]
  33. Peng, Y.; Wang, Q.; Fan, M. Identification of the key ecological factors influencing vegetation degradation in semi-arid agro-pastoral ecotone considering spatial scales. Acta Oecol. 2017, 85, 62–68. [Google Scholar] [CrossRef]
  34. Nastos, P.T.; Politi, N.; Kapsomenakis, J. Spatial and temporal variability of the Aridity Index in Greece. Atmos. Res. 2013, 119, 140–152. [Google Scholar] [CrossRef]
  35. Middleton, N.; Thomas, D.S.G. World Atlas of Desertification. First Edition 1992; United Nations Environment Programme (UNEP); Edward Arnold: London, UK, 1992. [Google Scholar]
  36. Maestre, F.T.; Salguero-Gomez, R.; Quero, J.L. It is Getting Hotter in Here: Determining and Projecting the Impacts of Global Environmental Change on Drylands. Philos. Trans. R. Soc. B 2012, 367, 3062–3075. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Bannayan, M.; Sanjani, S.; Alizadeh, A.; Lotfabadi, S.S.; Mohamadian, A. Association between climate indices, aridity index, and rainfed crop yield in northeast of Iran. F. Crop. Res. 2010, 118, 105–114. [Google Scholar] [CrossRef]
  38. Sepehr, A.; Hassanli, A.M.; Ekhtesasi, M.R.; Jamali, J.B. Quantitative assessment of desertification in south of Iran using MEDALUS method. Environ. Monit. Assess. 2007, 134, 243–254. [Google Scholar] [CrossRef]
  39. Zheng, X.; Zhu, J. A new climatic classification of afforestation in Three-North regions of China with multi-source remote sensing data. Theor. Appl. Climatol. 2017, 127, 465–480. [Google Scholar] [CrossRef]
  40. Girvetz, E.H.; McDonald, R.; Heiner, M.; Kiesecker, J.; Davaa, G.; Pague, C.; Durnin, M.; Oidov, E. Eastern mongolian grassland steppe. In Climate and Conservation; Springer: Berlin/Heidelberg, Germany, 2012; pp. 92–103. [Google Scholar]
  41. Scordo, A.; Maltese, A.; Ciraolo, G.; La Loggia, G. Estimation of the time lag occurring between vegetation indices and aridity indices in a Sicilian semi-arid catchment. Ital. J. Remote Sens 2009, 41, 33–46. [Google Scholar] [CrossRef]
  42. Barceló, A.M.; Nunes, L.F. Atlas Climático Ibérico—Iberian Climate Atlas 1971–2000; AEMET, IM: Madrid, Spain, 2009; ISBN 9788478370795. [Google Scholar]
  43. SIGPAC. Available online: http://sigpac.mapa.es/fega/visor/ (accessed on 10 February 2021).
  44. Team, A. Application for Extracting and Exploring Analysis Ready Samples (AppEEARS). NASA EOSDIS L. Process. Distrib. Act. Arch. Cent. (LP DAAC), USGS/Earth Resour. Obs. Sci. Cent. Sioux Falls, SD, USA. Available online: https//lpdaacsvc.cr.usgs.gov/appeears/ (accessed on 2 June 2020).
  45. Savitzky, A.; Golay, M.J.E. Smoothing and differentiation of data by simplified least squares procedures. Anal. Chem. 1964, 36, 1627–1639. [Google Scholar] [CrossRef]
  46. Klisch, A.; Atzberger, C. Operational drought monitoring in Kenya using MODIS NDVI time series. Remote Sens. 2016, 8, 267. [Google Scholar] [CrossRef] [Green Version]
  47. AEMET Vigilancia del clima. Available online: http://www.aemet.es/es/serviciosclimaticos/vigilancia_clima (accessed on 25 March 2020).
  48. Chow, G.C. Tests of equality between sets of coefficients in two linear regressions. Econom. J. Econom. Soc. 1960, 28, 591–605. [Google Scholar] [CrossRef]
  49. Mann, H.B. Nonparametric Tests Against Trend. Econometrica 1945, 13, 245. [Google Scholar] [CrossRef]
  50. Kendall, M.G. Rank Correlation Methods; Charles Griffin & Co.: London, UK, 1975. [Google Scholar]
  51. Holzapfel, C.; Tielbörger, K.; Parag, H.A.; Kigel, J.; Sternberg, M. Annual plant–shrub interactions along an aridity gradient. Basic Appl. Ecol. 2006, 7, 268–279. [Google Scholar] [CrossRef]
  52. Alcaraz-Segura, D.; Cabello, J.; Paruelo, J. Baseline characterization of major Iberian vegetation types based on the NDVI dynamics. Plant Ecol. 2009, 202, 13–29. [Google Scholar] [CrossRef]
  53. Chen, F.; Weber, K.T. Assessing the impact of seasonal precipitation and temperature on vegetation in a grass-dominated rangeland. Rangel. J. 2014, 36, 185–190. [Google Scholar] [CrossRef]
  54. Iglesias, E.; Báez, K.; Diaz-Ambrona, C.H. Assessing drought risk in Mediterranean Dehesa grazing lands. Agric. Syst. 2016, 149, 65–74. [Google Scholar] [CrossRef]
  55. Mahyou, H.; Karrou, M.; Mimouni, J.; Mrabet, R.; El Mourid, M. Drought risk assessment in pasture arid Morocco through remote sensing. Afr. J. Environ. Sci. Technol. 2010, 4, 845–852. [Google Scholar]
  56. He, B.; Chen, A.; Wang, H.; Wang, Q. Dynamic response of satellite-derived vegetation growth to climate change in the Three North Shelter Forest Region in China. Remote Sens. 2015, 7, 9998–10016. [Google Scholar] [CrossRef] [Green Version]
Figure 1. Location of the study area. (a) Autonomous Community of Murcia. (b) Agricultural regions of Murcia. (c) Selected areas in three agricultural regions of Murcia province. Numbers refer to the sampling areas. Source base map: Invierno 2020. Gobierno de España y Comunidad Autónoma de Murcia. CC-BY 4.0 scne.es 2020.
Figure 1. Location of the study area. (a) Autonomous Community of Murcia. (b) Agricultural regions of Murcia. (c) Selected areas in three agricultural regions of Murcia province. Numbers refer to the sampling areas. Source base map: Invierno 2020. Gobierno de España y Comunidad Autónoma de Murcia. CC-BY 4.0 scne.es 2020.
Remotesensing 13 00840 g001
Figure 2. The four areas studied: (a) Area 1 with mostly stubble; (b) Area 2 with mixed crops and grasslands; (c) Area 3, with scrublands and mixed crops; (d) Area 4 with open woodland. In yellow, the area used for Low Resolution (LR); in black, the area used for Medium Resolution (MR) and orange, the selected pixels without irrigation. Source base map: Esri, DigitalGlobe, GeoEye, i-cubed, USDA FSA, USGS, AEX, Getmapping, Aerogrid, IGN, IGP, swisstopo, and the GIS User Community.
Figure 2. The four areas studied: (a) Area 1 with mostly stubble; (b) Area 2 with mixed crops and grasslands; (c) Area 3, with scrublands and mixed crops; (d) Area 4 with open woodland. In yellow, the area used for Low Resolution (LR); in black, the area used for Medium Resolution (MR) and orange, the selected pixels without irrigation. Source base map: Esri, DigitalGlobe, GeoEye, i-cubed, USDA FSA, USGS, AEX, Getmapping, Aerogrid, IGN, IGP, swisstopo, and the GIS User Community.
Remotesensing 13 00840 g002
Figure 3. Bar plots of yearly average NDVI, temperature, and accumulated precipitation for A1 (a,b) and A2 (c,d) for Medium and Low resolutions.
Figure 3. Bar plots of yearly average NDVI, temperature, and accumulated precipitation for A1 (a,b) and A2 (c,d) for Medium and Low resolutions.
Remotesensing 13 00840 g003
Figure 4. Bar plots of yearly average NDVI, temperature, and accumulated precipitation for A3 (a,b) and A4 (c,d) for Medium and Low resolutions.
Figure 4. Bar plots of yearly average NDVI, temperature, and accumulated precipitation for A3 (a,b) and A4 (c,d) for Medium and Low resolutions.
Remotesensing 13 00840 g004
Figure 5. Series of average NDVI and ZNDVI for A1 (a,b) and A2 (c,d) for both resolutions: orange shows low resolution (500 × 500 m2) and green shows medium resolution (250 × 250 m2).
Figure 5. Series of average NDVI and ZNDVI for A1 (a,b) and A2 (c,d) for both resolutions: orange shows low resolution (500 × 500 m2) and green shows medium resolution (250 × 250 m2).
Remotesensing 13 00840 g005
Figure 6. Series of average NDVI and ZNDVI for A3 (a,b) and A4 (c,d) for both resolutions: orange shows low resolution (500 × 500 m2) and green shows medium resolution (250 × 250 m2).
Figure 6. Series of average NDVI and ZNDVI for A3 (a,b) and A4 (c,d) for both resolutions: orange shows low resolution (500 × 500 m2) and green shows medium resolution (250 × 250 m2).
Remotesensing 13 00840 g006
Figure 7. Boxplots of NDVI Medium Resolution (MR) for A1 (a,b) and A2 (c,d) in blue, average temperature in orange, and accumulated precipitation in purple.
Figure 7. Boxplots of NDVI Medium Resolution (MR) for A1 (a,b) and A2 (c,d) in blue, average temperature in orange, and accumulated precipitation in purple.
Remotesensing 13 00840 g007
Figure 8. Boxplots of NDVI Medium Resolution (MR) for A3 (a,b) and A4 (c,d) in blue, average temperature in orange, and accumulated precipitation in purple.
Figure 8. Boxplots of NDVI Medium Resolution (MR) for A3 (a,b) and A4 (c,d) in blue, average temperature in orange, and accumulated precipitation in purple.
Remotesensing 13 00840 g008
Figure 9. Boxplots of NDVI Low Resolution (LR) for A1 (a,b) and A2 (c,d) in dark blue, average temperature in orange, and accumulated precipitation in purple.
Figure 9. Boxplots of NDVI Low Resolution (LR) for A1 (a,b) and A2 (c,d) in dark blue, average temperature in orange, and accumulated precipitation in purple.
Remotesensing 13 00840 g009
Figure 10. Boxplots of NDVI Low Resolution (LR) for A3 (a,b) and A4 (c,d) in dark blue, average temperature in orange, and accumulated precipitation in purple.
Figure 10. Boxplots of NDVI Low Resolution (LR) for A3 (a,b) and A4 (c,d) in dark blue, average temperature in orange, and accumulated precipitation in purple.
Remotesensing 13 00840 g010
Figure 11. Linear regression analysis of cumulative AI and cumulative NDVI of all areas for MR (a), and LR (b). All R2 values are above 0.99.
Figure 11. Linear regression analysis of cumulative AI and cumulative NDVI of all areas for MR (a), and LR (b). All R2 values are above 0.99.
Remotesensing 13 00840 g011
Table 1. Mann–Kendall test results of the four areas; * means that the trend was found significant. De: Decreasing; In: Increasing; Temp: Temperature; Precip: Precipitation.
Table 1. Mann–Kendall test results of the four areas; * means that the trend was found significant. De: Decreasing; In: Increasing; Temp: Temperature; Precip: Precipitation.
AreasTrendS-StatisticsKendall’s taup-Value
A1-MRDe *−15,213−0.04<0.05
A1-LRDe−7466−0.020.34
A1-TempIn88490.030.03
A1-PrecipDe−7547−0.020.34
A2-MRIn *89,5240.26<0.05
A2-LRIn *98,2920.28<0.05
A2-TempIn91150.020.25
A2-PrecipDe−4599−0.010.55
A3-MRIn *18,6490.05<0.05
A3-LRIn *42,3380.12<0.05
A3-TempIn99120.020.21
A3-PrecipDe−6017−0.020.44
A4-MRIn *29,0960.08<0.05
A4-LRIn *24,7620.07<0.05
A4-TempDe−126−0.00040.98
A4-PrecipDe *−17,068−0.05<0.05
Table 2. Division of phases following the behavior of NDVI. The selected phases in which there is an NDVI trend are shown in bold.
Table 2. Division of phases following the behavior of NDVI. The selected phases in which there is an NDVI trend are shown in bold.
Initial DatesArea 1 to 3Area 4
PhasesNDVI TrendPhasesNDVI Trend
1-JanPhase 1SteadyPhase 1Decreasing
6-MarPhase 2Increasing
30-MarPhase 2Steady
23-AprPhase 3Decreasing
17-MayPhase 3Decreasing
28-JulPhase 4SteadyPhase 4Increasing
6-SepPhase 5Increasing
Table 3. Chow test of NDVI and time of all areas and phases, given with F-statistic and p-value for each continuous phase pair: phase 1 (P1), phase 2 (P2), phase 3(P3), and phase 4 (P4).
Table 3. Chow test of NDVI and time of all areas and phases, given with F-statistic and p-value for each continuous phase pair: phase 1 (P1), phase 2 (P2), phase 3(P3), and phase 4 (P4).
PhasesA1A2A3A4
F-Statisticp-ValueF-Statisticp-ValueF-Statisticp-ValueF-Statisticp-Value
P1–P27.050.0017.440.0016.310.00271.160.000
P2–P34.670.0103.330.0374.540.011108.000.000
P3–P460.960.00033.810.00022.640.00099.950.000
P4–P553.440.00034.650.00048.390.000
Table 4. Lagged correlations of medium resolution NDVI and meteorological parameters (Meteo) for A1 and A2. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
Table 4. Lagged correlations of medium resolution NDVI and meteorological parameters (Meteo) for A1 and A2. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
AreaMeteoPhaseLag Time (Days)
081624324048
A1TempPhase 20.230.30.320.290.290.190.13
Phase 3−0.72−0.72−0.72−0.72−0.73−0.7−0.66
Phase 5−0.5−0.52−0.52−0.51−0.52−0.51−0.5
PpPhase 20.110.190.260.240.280.280.2
Phase 30.210.220.210.20.150.120.15
Phase 50.080.080.110.130.170.230.25
A2TempPhase 20.180.220.250.240.290.210.17
Phase 3−0.58−0.58−0.59−0.59−0.61−0.58−0.55
Phase 5−0.35−0.35−0.34−0.34−0.34−0.33−0.32
PpPhase 20.120.120.150.190.170.150.03
Phase 30.170.190.220.230.190.170.17
Phase 50.230.30.320.290.290.190.13
Average Temperature (Temp) and Accumulated Precipitation (Pp).
Table 5. Lagged correlations of medium resolution NDVI and meteorological parameters (Meteo) for A3 and A4. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
Table 5. Lagged correlations of medium resolution NDVI and meteorological parameters (Meteo) for A3 and A4. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
AreaMeteoPhaseLag Time (Days)
081624324048
A3TempPhase 2−0.090.040.130.250.250.210.20
Phase 3−0.04−0.06−0.09−0.12−0.11−0.09−0.07
Phase 5−0.02−0.03−0.04−0.04−0.03−0.02−0.01
PpPhase 20.280.220.140.010.070.100.09
Phase 30.060.080.150.190.160.180.17
Phase 50.120.100.100.080.080.130.14
A4TempPhase 1−0.14−0.11−0.07−0.01−0.040.040.09
Phase 3−0.71−0.72−0.73−0.72−0.73−0.71−0.69
Phase 4−0.31−0.23−0.17−0.07−0.020.000.03
PpPhase 10.020.030.100.080.120.110.11
Phase 30.250.240.250.250.240.210.23
Phase 40.340.340.27−0.05−0.020.060.02
Average Temperature (Temp) and Accumulated Precipitation (Pp).
Table 6. Lagged correlations of Low Resolution (LR) NDVI and meteorological parameters (Meteo) for A1 and A2. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
Table 6. Lagged correlations of Low Resolution (LR) NDVI and meteorological parameters (Meteo) for A1 and A2. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
AreaMeteoPhaseLag Time (Days)
081624324048
A1TempPhase 20.20.250.340.250.330.320.16
Phase 3−0.67−0.66−0.66−0.65−0.66−0.64−0.61
Phase 5−0.41−0.43−0.44−0.44−0.44−0.42−0.41
PpPhase 20.180.160.230.260.180.190.18
Phase 30.190.190.190.210.150.130.18
Phase 50.170.10.110.130.160.230.24
A2TempPhase 20.160.160.230.20.30.330.22
Phase 3−0.45−0.46−0.46−0.46−0.48−0.46−0.46
Phase 5−0.18−0.2−0.19−0.19−0.17−0.16−0.15
PpPhase 20.190.060.160.20.150.03−0.03
Phase 30.130.120.210.270.180.20.15
Phase 50.20.250.340.250.330.320.16
Average Temperature (Temp) and Accumulated Precipitation (Pp).
Table 7. Lagged correlations of Low Resolution (LR) NDVI and meteorological parameters (Meteo) for A3 and A4. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
Table 7. Lagged correlations of Low Resolution (LR) NDVI and meteorological parameters (Meteo) for A3 and A4. Only the phases with an increasing or decreasing NDVI trend are included. For each phase, bold values show the strongest correlations among the different time lags tested.
AreaMeteoPhaseLag Time (Days)
081624324048
A3TempPhase 20.090.120.120.120.010.050.09
Phase 3−0.40−0.41−0.41−0.420.41−0.39−0.36
Phase 5−0.28−0.28−0.27−0.26−0.24−0.20−0.16
PpPhase 20.310.290.270.180.150.210.14
Phase 3−0.08−0.020.040.090.080.120.15
Phase 50.160.140.160.150.150.200.19
A4TempPhase 1−0.17−0.1000.05−0.070.000.02
Phase 3−0.66−0.65−0.67−0.66−0.67−0.64−0.63
Phase 4−0.29−0.14−0.13−0.010.020.050.08
PpPhase 10.14−0.010.030.060.130.090.09
Phase 30.250.250.220.260.220.180.22
Phase 40.410.300.18−0.09−0.070.01−0.02
Average Temperature (Temp) and Accumulated Precipitation (Pp).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sanz, E.; Saa-Requejo, A.; Díaz-Ambrona, C.H.; Ruiz-Ramos, M.; Rodríguez, A.; Iglesias, E.; Esteve, P.; Soriano, B.; Tarquis, A.M. Normalized Difference Vegetation Index Temporal Responses to Temperature and Precipitation in Arid Rangelands. Remote Sens. 2021, 13, 840. https://doi.org/10.3390/rs13050840

AMA Style

Sanz E, Saa-Requejo A, Díaz-Ambrona CH, Ruiz-Ramos M, Rodríguez A, Iglesias E, Esteve P, Soriano B, Tarquis AM. Normalized Difference Vegetation Index Temporal Responses to Temperature and Precipitation in Arid Rangelands. Remote Sensing. 2021; 13(5):840. https://doi.org/10.3390/rs13050840

Chicago/Turabian Style

Sanz, Ernesto, Antonio Saa-Requejo, Carlos H. Díaz-Ambrona, Margarita Ruiz-Ramos, Alfredo Rodríguez, Eva Iglesias, Paloma Esteve, Bárbara Soriano, and Ana M. Tarquis. 2021. "Normalized Difference Vegetation Index Temporal Responses to Temperature and Precipitation in Arid Rangelands" Remote Sensing 13, no. 5: 840. https://doi.org/10.3390/rs13050840

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
