Integration of Sentinel-3 OLCI Land Products and MERRA2 Meteorology Data into Light Use Efficiency and Vegetation Index-Driven Models for Modeling Gross Primary Production

Abstract

Accurately and reliably estimating total terrestrial gross primary production (GPP) on a large scale is of great significance for monitoring the carbon cycle process. The Sentinel-3 satellite provides the OLCI FAPAR and OTCI products, which possess a higher spatial and temporal resolution than MODIS products. However, few studies have focused on using LUE models and VI-driven models based on the Sentinel-3 satellites to estimate GPP on a large scale. The purpose of this study is to evaluate the performance of Sentinel-3 OLCI FAPAR and OTCI products combined with meteorology reanalysis data in estimating GPP at site and regional scale. Firstly, we integrated OLCI FAPAR and meteorology reanalysis data into the MODIS GPP algorithm and eddy covariance light use efficiency (EC-LUE) model (GPP_MODIS-GPP and GPP_EC-LUE, respectively). Then, we combined OTCI and meteorology reanalysis data with the greenness and radiation (GR) model and vegetation index (VI) model (GPP_GR and GPP_VI, respectively). Lastly, GPP_MODIS-GPP, GPP_EC-LUE, GPP_GR, and GPP_VI were evaluated against the eddy covariance flux data (GPP_EC) at the site scale and MODIS GPP products (GPP_MOD17) at the regional scale. The results showed that, at the site scale, GPP_MODIS-GPP and GPP_EC-LUE agreed well with GPP_EC for the US-Ton site, with R² = 0.73 and 0.74, respectively. The performance of GPP_GR and GPP_VI varied across different biome types. Strong correlations were obtained across deciduous broadleaf forests, mixed forests, grasslands, and croplands. At the same time, there are overestimations and underestimations in croplands, evergreen needleleaf forests and deciduous broadleaf forests. At the regional scale, the annual mean and maximum daily GPP_MODIS-GPP and GPP_EC-LUE agreed well with GPP_MOD17 in 2017 and 2018, with R² > 0.75. Overall, the above findings demonstrate the feasibility of using Sentinel-3 OLCI FAPAR and OTCI products combined with meteorology reanalysis data through LUE and VI-driven models to estimate GPP, and fill in the gaps for the large-scale evaluation of GPP via Sentinel-3 satellites.

1. Introduction

Gross primary production (GPP) usually refers to the total amount of CO₂ assimilated in photosynthesis [1]. GPP has been an important indicator for quantitatively describing the global carbon cycle and evaluating the sustainable development of terrestrial ecosystems [2,3]. Therefore, the real-time monitoring of changes in GPP is essential for the field of regional and global change studies [4]. The eddy covariance (EC) technique is the most widely used approach to measure CO₂ net uptake and can obtain GPP through different modeling methods [5]. However, the limitations of this technique: the limited number of EC towers and their spatial distribution, mean that EC is not suitable for quantifying and monitoring GPP on regional, continental, and global scales [6,7,8].

Therefore, many models were developed for estimating GPP with various spatial scales, and they were categorized as follows: meteorological statistical models, dynamic global vegetation models (DGVMs), and remote sensing (RS)-driven models [9]. Meteorological statistical models [10,11,12] establish a simple statistical regression model between GPP and climate factors through a large amount of measured data. Due to the lack of a strict ecological mechanism, these models have great uncertainty and can only be used for interannual GPP estimation [13]. DGVMs simulate changes in the various processes, structures, and functions of the ecosystem [14,15,16]. However, their complex model structure and the uncertainty of the input data and parameters have caused these models to produce large errors when estimating GPP [17,18]. With a simple theoretical basis and practicality, RS-driven models were developed for continuously observing spatial−temporal variations in GPP [19,20]. At present, the most frequently used RS-driven models can be divided into light use efficiency (LUE) models [21,22] and vegetation index (VI)-driven models [23,24].

LUE models were developed according to Monteith’s light use efficiency concept, utilizing absorbed photosynthetically active radiation (APAR) and LUE to estimate GPP [25,26]. A large number of LUE models are widely applied in GPP estimation due to their clear mechanism and simple structure [27,28,29,30,31,32]. The fraction of absorbed photosynthetically active radiation (FAPAR) is a significant input parameter within LUE models [32,33,34]. VI-driven models estimate GPP by building an empirical relationship between in situ measurement GPP and vegetation indices (VIs) [35]. However, numerous VIs have been used to estimate GPP [36,37,38,39]. EVI is the most widely used VI amongst them [40]. For example, Wu et al. [41] used EVI to replace the chlorophyll content to estimate GPP in the greenness and radiation (GR) model. The VI model [42] was applied to estimate GPP using several VIs and EVI was proved the best indicator of LUE and FAPAR. Moreover, the temperature and greenness (TG) model [23] was employed to estimate GPP with the combination of EVI and land surface temperature (LST).

Although LUE and VI-driven models are widely used, the application of these models still has several shortcomings. For example, MODIS GPP products (MOD17), which are based on the MODIS GPP algorithm and MODIS FAPAR products (MOD15A2H), are cumulative eight-day composite products with a 500-m pixel size [43,44,45]. The standard EVI product is MODIS EVI, and its temporal resolution is 16 days. Numerous studies have utilized the 8-day MODIS Terra Surface Reflectance Product (MOD09, 500m) to calculate EVI to obtain a higher temporal resolution, rather than directly using the MODIS EVI product [46,47,48]. Besides, the MTCI is one of the VIs, and Harris and Dash [49] concluded that the MTCI could replace EVI for estimating GPP across different biomes. However, MTCI products were discontinued in 2012 [50].

The success of launching an Ocean and Land Colour Instrument (OLCI) onboard the Sentinel-3 satellite offers a new possibility for GPP estimation. This instrument provides a higher spatial and temporal resolution of FAPAR and MTCI products than MODIS. Sentinel-3 OLCI was the push-broom imaging spectrometer used to measure the Earth’s solar radiation in 21 spectral bands [51,52]. Moreover, the double satellite system (Sentinel-3A and -3B) mean that the OLCI revisiting period is less than two days [53]. OLCI products are mainly divided into two levels, namely level-1 and level-2 (land and water), with spatial resolutions of about 300 m and 1200 m, respectively [54]. The OLCI Global Vegetation Index (OGVI) and OLCI Terrestrial Chlorophyll Index (OTCI) (the proxy of MTCI [55]) are two of the OLCI level-2 full-resolution land and atmosphere geophysical products, providing an estimate of the FAPAR in the plant canopy and the chlorophyll index, respectively. Compared with the MODIS FAPAR product (MOD15) and surface reflectance composite data (MOD09), OGVI and OTCI use the actual value for each day rather than cumulative eight-day values. Moreover, the spatial resolution is also better than that of MOD15 and MOD09 [56]. Several studies have used Sentinel-3 satellite products for GPP evaluation. For example, Zhang et al. [34] explored the relationship between the products of satellite FAPAR and solar-induced chlorophyll fluorescence (SIF). They proved the potential correlation between FAPAR products and GPP. Harris et al. [49] demonstrated that OTCI might be an effective substitute for MODIS to estimate GPP. Zhang et al. [50] combined OLCI FAPAR with in situ meteorological data to drive the MODIS GPP algorithm to estimate GPP across several biomes. The results indicated that the Sentinel-3 OLCI FAPAR products performed better than MODIS FAPAR products at the site scale in estimating GPP and demonstrated a significant correlation between OTCI and GPP. Nevertheless, the studies mentioned above were all based on the site scale, and the estimation of GPP on a large scale was not involved. Moreover, only a single LUE model was adopted, or only a simple relationship between in situ GPP and FAPAR was established. None of these studies utilized multiple LUE or VI models to estimate GPP.

This paper aims to demonstrate the potential of combining Sentinel-3 OLCI FAPAR and OTCI with meteorology reanalysis data in estimating GPP with multiple models at multiple scales. Specifically, this study has four objectives (1) integrating Sentinel-3 OLCI FAPAR and MERRA2 meteorology reanalysis data into the MODIS GPP algorithm and EC-LUE model to estimate GPP, (2) combining Sentinel-3 OTCI and MERRA2 meteorology reanalysis data with the GR and VI models to estimate GPP, (3) comparing the GPP obtained from four RS-driven models with on-site measured GPP and MODIS GPP products, and (4) applying Sentinel-3 OLCI FAPAR and meteorology reanalysis to estimate GPP at the regional scale and compare it with MODIS GPP products.

2. Materials and Methods

2.1. Research Sites and Region

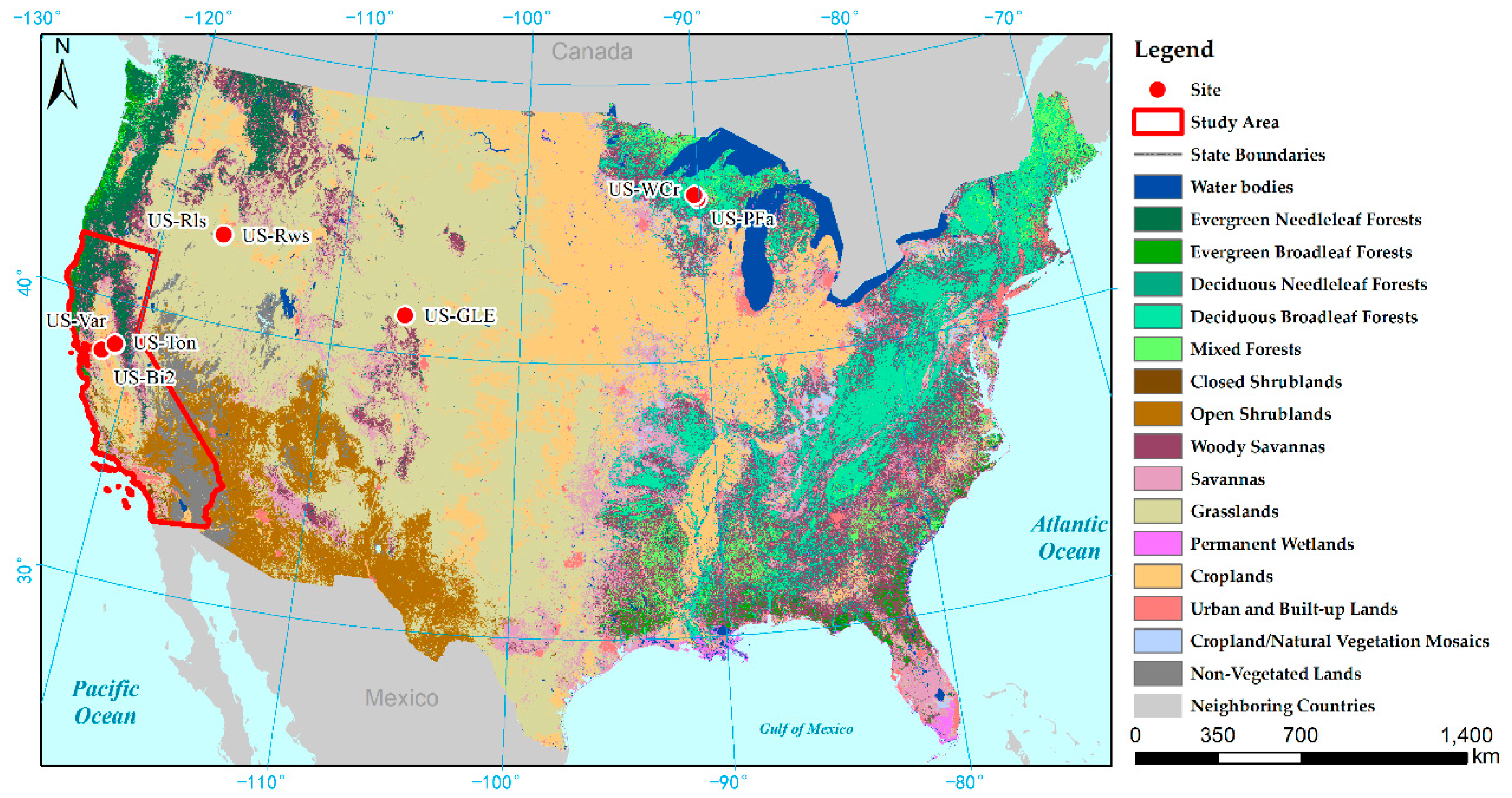

The interest area covers regions from the upper-left corner at 45°N and −124°W to the bottom-right corner at 25°N and −89°W in North America (Figure 1). The AmeriFlux eddy covariance flux tower data were used in the study. Since the full year of available measurements by the satellite products is from 2017, we chose sites with data after 2017. The eight EC flux sites cover eight biome types, including evergreen needleleaf forests (ENF), deciduous broadleaf forests (DBF), mixed forests (MF), closed shrublands (CSH), open shrublands (OSH), woody savannas (WAS), grasslands (GRA), and croplands (CRO). Since the EC flux sites with the biome types of evergreen broadleaf forests (EBF), deciduous needleleaf forests (DNF), and savannas (SAV) are not matched in time with Sentinel-3 OLCI, this research did not estimate the GPP under these biome types at the site scale. Additionally, due to rich biome types, California was selected as the study area for regional GPP estimation.

2.2. Data

2.2.1. Sentinel-3 OLCI Land Product

Sentinel-3 OLCI is an inheritor of the Medium Resolution Imaging Spectrometer (MERIS) and has many enhancements [51,57]. There are three main kinds of OLCI products available to the public (i.e., level-1B products, level-2 land products, and level-2 water products). The level-2 land product provides land and atmospheric geophysical products at full and reduced resolution, where full resolution is approximately 300 m on the ground and reduced resolution is approximately 1200 m on the ground. An OLCI Level-2 Land Full Resolution (OL_2_LFR) product includes an OGVI band and OTCI band. OGVI describes FAPAR in the plant canopy and OTCI represents the terrestrial chlorophyll index. Sentinel-3 OLCI products applied in this study covered January 2017 to December 2018 at the US-WCr site, US-Ton site, US-PFa site and US-Var site, respectively. However, due to the lack of site data, Sentinel-3 OLCI products from January 2017 to September 2018 at the US-Rls site and US-Rws site, January 2017 to March 2018 at the US-GLE site and April 2017 to December 2018 at the US-Bi2 site were used.

The Sentinelsat module offers a powerful Python API for searching and downloading the metadata of Sentinel satellite images from the Copernicus Open Access Hub (https://scihub.copernicus.eu/dhus (accessed on 13 January 2021)) through executing condition and spatial queries (a region of interest can be created with a polygon on the GeoJSON website) and was used to batch download the OLCI online and offline products. The filtered OLCI products were automatically downloaded and stored locally as compressed files, and a total of about 5200 scene data were downloaded in this work. Then, we developed a complete set of OLCI product preprocessing processes, including mosaic, reprojection, resampling, and subset processes. The snappy module developed by the European Space Agency (ESA) and a custom script written in Python was applied to complete these data preprocessing operations. The traditional data processing software (i.e., SNAP and ENVI) either cannot batch process or takes a long time. Our python script can dramatically improve the efficiency of data processing through fully automatic data retrieval, batch processing and multithreading technology.

2.2.2. MERRA2 Daily Meteorology Reanalysis Data

Second Modern-Era Retrospective analysis for Research and Applications (MERRA2) meteorology reanalysis data with a 0.5° × 0.625° spatial resolution have been widely used in GPP modeling [5,58,59]. The data were downloaded from GMAO/NASA (https://disc.gsfc.nasa.gov (accessed on 13 January 2021)). Four MERRA2 variables were used for this study: (1) daily surface incoming shortwave flux (SWGDN, W/m²), (2) daily minimum air temperature at 2 m (T2MMIN, K), (3) daily mean air temperature at 2 m (T2MMEAN, K), and (4) relative humidity (RH, %). The SWGDN was discovered within the “Single-Level Radiation Diagnostics” collection (M2T1NXRAD), T2MMIN and T2MMEAN were found in the “Single-Level Diagnostics” collection (M2SDNXSLV), and RH was discovered within the “Assimilated Meteorological Fields” collection (M2I3NPASM).

In order to run GPP estimation models at the same spatial resolution as OLCI products, we adopted the nonlinear spatial interpolation method developed by Zhao et al. [60] for downsizing the MERRA2 meteorology reanalysis data from a 0.5° × 0.625° resolution to a 300 m OLCI pixel resolution [43,59]. This method utilizes the fourth power of the cosine function and the weighted distance in the closest four grid cell for computing the value of every output pixel with an OLCI resolution [61]. The spatial interpolation scheme may improve the meteorological input data accuracy of every 300 m pixel, eliminating sudden changes between the two sides of the MERRA2 boundary [62].

2.2.3. EC Flux Data

The EC flux data of eight AmeriFlux sites were downloaded from the AmeriFlux data portal (https://ameriflux.lbl.gov/ (accessed on 13 January 2021)). These eight AmeriFlux sites are GLEES (US-GLE), Willow Creek (US-WCr), SE5 Aspen-5 CHEESEHEAD 2019 (US-PFs), RCEW Low Sagebrush (US-Rls), Reynolds Creek Wyoming big sagebrush (US-Rws), Tonzi Ranch (US-Ton), Vaira Ranch-Ione (US-Var), and Bouldin Island corn (US-Bi2), represented by ENF, DBF, MF, CSH, OSH, WSA, GRA, and CRO, respectively (

Table 1. List of AmeriFlux eddy covariance tower sites adopted within the research.

Site ID	Lat (°N)	Lon (°E)	Biome Type	Location	Height	Period Used	Reference
US-GLE	41.37	−106.24	ENF	Wyoming	22.65 m	2017.01–2018.03	[65]
US-WCr	45.81	−90.08	DBF	Wisconsin	29.60 m	2017.01–2018.12	[66]
US-PFa	45.94	−90.24	MF	Wisconsin	--	2017.01–2018.12	[67]
US-Rls	43.14	−116.74	CSH	Idaho	2.09 m	2017.01–2018.09	[68]
US-Rws	43.17	−116.71	OSH	Idaho	2.05 m	2017.01–2018.09	[68]
US-Ton	38.43	−120.97	WSA	California	23.50 m	2017.01–2018.12	[69]
US-Var	38.41	−120.95	GRA	California	2.00 m	2017.01–2018.12	[70]
US-Bi2	38.11	−121.54	CRO	California	5.11 m	2017.04–2018.12	[71]

ENF: evergreen needleleaf forests; DBF: deciduous broadleaf forests; MF: mixed forests; CSH: closed shrublands; OSH: open shrublands; WSA: woody savannas; GRA: grasslands; and CRO: croplands.

). The EC flux data have a half-hourly temporal resolution, and the daily GPP values were calculated as a sum of 30-min GPP fluxes. The REddyProc online tool (https://www.bgc-jena.mpg.de/REddyProc/brew/REddyProc.rhtml (accessed on 13 January 2021)) [63,64] implements a standardized approach for processing EC data and was used to calculate GPP for the EC flux tower when GPP was not provided. Furthermore, the online tool filters out data collection during stable atmospheric conditions using u* (friction velocity) filtering, and gap-fills missing data using a marginal distribution sampling approach. Flux measurements (net ecosystem exchange, latent heat flux and sensible heat flux) and meteorology measurements (incoming shortwave radiation, vapor pressure deficit, relative humidity, air temperature, soil temperature and friction velocity) were obtained to calculate GPP.

2.2.4. MODIS Products

The most widely used GPP product is MOD17A2H, which uses updated Biome Property look-up tables and an updated version of the daily GMAO meteorological data as input data. Since the time resolution is 8 days, there are a total of 92 scene MODIS GPP products used within two years. The purpose of using MOD17A2H is to compare of the model prediction accuracy.

The MOD12Q1 land cover product with a 500 m spatial resolution, which is one of the MODIS products, was used in the MODIS GPP algorithm. Boston University’s UMD classification scheme within the dataset was also employed for offering biome-specific information for GPP estimation models [6]. Moreover, a 1.5 km × 1.5 km area centered on every flux tower site was extracted to represent the flux footprint, the mean values of the 5 × 5 pixels and the mean values of the 3 × 3 pixels were the final GPP values for Sentinel-3 OLCI products and MODIS GPP products, respectively [5,50].

2.3. Methods

2.3.1. MODIS GPP Algorithm

Firstly, we used the MODIS GPP algorithm to estimate GPP. The MODIS GPP algorithm is applied based on the LUE model, which mainly uses the relationship between LUE and environmental factors (temperature, water vapor, and light) [28,72]. The algorithm can be expressed as follows:

$$\mathrm{GPP}= \mathsf{\epsilon }\ast \mathrm{FAPAR}\ast \mathrm{IPAR}$$

(1a)

$$\mathsf{\epsilon }={ \mathsf{\epsilon }}_{\max }\ast \mathrm{TMIN}\_\mathrm{scalar}\ast \mathrm{VPD}\_\mathrm{scalar}$$

(1b)

$$\mathrm{TMIN}\_\mathrm{scalar} = \{\begin{array}{cc}0& {\mathrm{T}}_{\min }<{\mathrm{TMIN}}_{\min }\\ \frac{{\mathrm{T}}_{\min }-{\mathrm{TMIN}}_{\min }}{{\mathrm{TMIN}}_{\max }-{\mathrm{TMIN}}_{\min }}& {\mathrm{TMIN}}_{\min }<{\mathrm{T}}_{\min }<{\mathrm{TMIN}}_{\max }\\ 1& {\mathrm{T}}_{\min }>{\mathrm{TMIN}}_{\max }\end{array}$$

(1c)

$$\mathrm{VPD}\_\mathrm{scalar}=\{\begin{array}{cc}0& \mathrm{VPD}>{\mathrm{VPD}}_{\max }\\ \frac{{\mathrm{VPD}}_{\max }-\mathrm{VPD}}{{\mathrm{VPD}}_{\max }-{\mathrm{VPD}}_{\min }}& {\mathrm{VPD}}_{\min }<\mathrm{VPD}<\\ 1& \mathrm{VPD}<{\mathrm{VPD}}_{\min }\end{array}{\mathrm{VPD}}_{\max }$$

(1d)

where Ɛ_max, TMIN_max, TMIN_min, VPD_max, and VPD_min are shown in

Table 2. Biome properties look-up table parameters for daily gross primary production (GPP) [50,74].

Parameter	Description
Ɛmax	The maximum light use efficiency
TMINmax	Daily minimum temperature where Ɛ = Ɛmax
TMINmin	Daily minimum temperature at which Ɛ = 0.0
VPDmax	Daylight average vapor pressure deficit at which Ɛ = Ɛmax
VPDmin	Daylight average vapor pressure deficit at which Ɛ = 0.0

. The biome-specific physiological parameters for each biome type are determined according to the MOD12Q1 UMD classification scheme and BPLUT (

Table 3. Biome properties look-up table for the moderate resolution imaging spectroradiometer (MODIS) GPP algorithm [50].

Biome Types	ENF	DBF	MF	CSH	OSH	WSA	GRA	CRO
Ɛmax(gC/m2/d/MJ)	0.962	1.165	1.051	1.281	0.841	1.239	0.860	1.044
TMINmax (°C)	−8.00	−6.00	−7.00	−8.00	−8.00	−8.00	−8.00	−8.00
TMINmin (°C)	8.31	9.94	9.50	8.61	8.80	11.39	12.02	12.02
VPDmax (Pa)	650.0	650.0	650.0	650.0	650.0	650.0	650.0	650.0
VPDmin (Pa)	4600.0	1650.0	2400.0	4700.0	4800.0	3200.0	5300.0	4300.0

ENF: evergreen needleleaf forests; DBF: deciduous broadleaf forests; MF: mixed forests; CSH: closed shrublands; OSH: open shrublands; WSA: woody savannas; GRA: grasslands; and CRO: croplands.

) [59]. TMIN and VPD scalars are simple linear ramp saturated at the maximum and minimum, respectively, and the range is from 0 to 1 [73]. FAPAR was obtained from the OLCI FAPAR product (OGVI). IPAR is equal to SWRad times 0.45 (Equation (1e)):

$$\mathrm{IPAR}=\mathrm{SWRad}\ast 0.45$$

(1e)

where SWRad, T_min and VPD are obtained from MERRA2 meteorology reanalysis data. VPD is calculated with T2MMEAN and RH (Equation (1f)) [73]:

$$\mathrm{VPD}=610.78{\ast \mathrm{e}}^{\left(\frac{17.2694\ast \mathrm{T}2\mathrm{MMEAN}}{\mathrm{T}2\mathrm{MMEAN}+238.3}\right)}\left(1-\frac{\mathrm{RH}}{100}\right)$$

(1f)

2.3.2. EC-LUE

Yuan et al. [32] developed the EC-LUE model which is mainly driven by FAPAR, PAR, the air temperature, and the Bowen ratio of sensible to latent heat flux. Because of the weak simulation of sensible and latent heat fluxes on a large spatial scale, adopting the Bowen ratio for presenting water stress factors (W_s) will hinder EC-LUE model application on a large scale [75]. In this study, VPD was used to replace sensible and latent heat fluxes to calculate W_s [21]. The GPP in EC-LUE is estimated as follows:

$$\mathrm{GPP}={\mathrm{FAPAR}\ast \mathrm{IPAR}\ast \mathsf{\epsilon }}_{\max }\ast \mathrm{Min}\left({\mathrm{T}}_{\mathrm{S}},{\mathrm{W}}_{\mathrm{S}}\right)$$

(2a)

where FAPAR is obtained from the OLCI FAPAR product (OGVI). IPAR is the same as in the MODIS GPP algorithm. ${\mathsf{\epsilon }}_{\max }$ is the potential LUE without environmental stress and is set to 2.14 (gC/m²/d) [33]. T_s and W_s are the downward-regulation scalars for the individual influences of temperature and humidity on LUE. Min denotes the minimum value of T_s and W_s. T_s indicates a limiting influence of temperature on vegetation photosynthesis, based on the algorithm of the temperature limiting factor in the Terrestrial Ecosystem Model (TME) [76,77]:

$${\mathrm{T}}_{\mathrm{s}}=\frac{\left(\mathrm{T}-{\mathrm{T}}_{\min }\right)\left(\mathrm{T}-{\mathrm{T}}_{\max }\right)}{\left(\mathrm{T}-{\mathrm{T}}_{\min }\right)\left(\mathrm{T}-{\mathrm{T}}_{\max }\right)-{\left(\mathrm{T}-{\mathrm{T}}_{\mathrm{opt}}\right)}^2}$$

(2b)

where T is the average air temperature (°C), and T_min, T_max, and T_opt represent the minimum, maximum, and optimum air temperatures (°C), respectively, for photosynthetic activities. If the air temperature is below T_min or exceeds T_max, Ts is set to zero. According to [32], this study set T_min and T_max to 0 and 40 °C, respectively, and T_opt was determined to be 20.33 °C through nonlinear optimization. The W_s can be expressed as follows:

$${\mathrm{W}}_{\mathrm{s}}=\frac{{\mathrm{VPD}}_0}{{\mathrm{VPD}}_0+\mathrm{VPD}}$$

(2c)

where VPD₀ is the half-saturation coefficient of the Equation (2c), obtained from previous research (

Table 4. VPD₀ of the eddy covariance light use efficiency (EC-LUE) model for various biome types [21].

Biome Types	ENF	DBF	MF	CSH	OSH	WSA	GRA	CRO-C4
VPD0(kPa)	0.72	0.93	0.58	1.23	1.23	1.24	1.31	0.94

) [21].

2.3.3. The Greenness and Radiation Model (GR)

Gitelson et al. first introduced the GR model [78]. The GR model estimates GPP by adopting the chlorophyll content, as well as incoming solar radiation. This model was successfully applied within irrigated and rainfed maize, wheat cropland, and forest [48]. The GR model can be expressed as follows:

$$\mathrm{GPP}=\mathrm{Chl}\ast \mathrm{IPAR}\ast \mathrm{m}$$

(3)

where Chl was replaced with OTCI in this study. The parameter m is a scalar decided by the model calibration. The calculation method of model calibration is described in Section 2.3.5.

2.3.4. The Vegetation Index Model (VI)

The VI model employed for GPP estimation was proposed by Wu et al. and applied in crop and deciduous forest ecosystems [42]. It assumes that the VIs are a reliable proxy of both LUE and FAPAR, so the product VIs ∗ VIs ∗ IPAR is used to estimate GPP. In this paper, VIs is same, so the VI model can be expressed as:

$$\mathrm{GPP}={\mathrm{VIs}}^2\ast \mathrm{IPAR}\ast \mathrm{m}$$

(4)

where OTCI is regarded as the VI parameter of the model input, m is the same as in the GR model.

2.3.5. Calibration of the GR and VI Model

Model calibration is an important step for the operational application of the GR and VI models and greatly impacts model accuracy [48,79]. GR and VI model calibration mainly involves the calculation of scalar m. At present, calibration methods can be divided into adopting the half-data method (the rest of the data are used for model validation) [23] and the all-data method (all data are applied to model calibration and validation) [46,48]. In this work, to conduct a rigorous test of the model, we chose half-data to calibrate the model. The rest of the data were then applied when testing the model. The values of scalar m were obtained through establishing a directly linear relationship between in situ measured GPP and model-estimated GPP values, and scalar m is the slope of linear function.

2.3.6. Analytical Methods

Three statistic analytical indices can be adopted for evaluating the accuracies and uncertainties of all GPP models: (1) the coefficient of determination (R²), which expresses the fit between model prediction results and true values; (2) the root mean square error (RMSE), which refers to sample standard deviation between predictions and measurements; and (3) bias, which reflects the differences between the estimates and the observation. RMSE and bias are calculated as follows:

$$\mathrm{RMSE}=\sqrt{\frac{1}{\mathrm{n}}\ast {\displaystyle \sum }_{\mathrm{i}=1}^{\mathrm{n}}{\left({\mathrm{M}}_{\mathrm{i}}-{\mathrm{E}}_{\mathrm{i}}\right)}^2}$$

(5a)

$$\mathrm{Bias}=\frac{1}{\mathrm{n}}\ast {\displaystyle \sum }_{\mathrm{i}=1}^{\mathrm{n}}\left({\mathrm{M}}_{\mathrm{i}}-{\mathrm{E}}_{\mathrm{i}}\right)$$

(5b)

where M_i and E_i are the predicted GPP and measured GPP values, respectively. Notably, in subsequent chapters, GPP_EC represents the on-site measured GPP values, and GPP_MOD17 represents the GPP values from MODIS-GPP products. GPP_MODIS-GPP, GPP_EC-LUE, GPP_GR, and GPP_VI represent GPP estimation values obtained from the MODIS-GPP algorithm, EC-LUE model, GR model, and VI model, respectively.

3. Results

3.1. Meteorology Variables

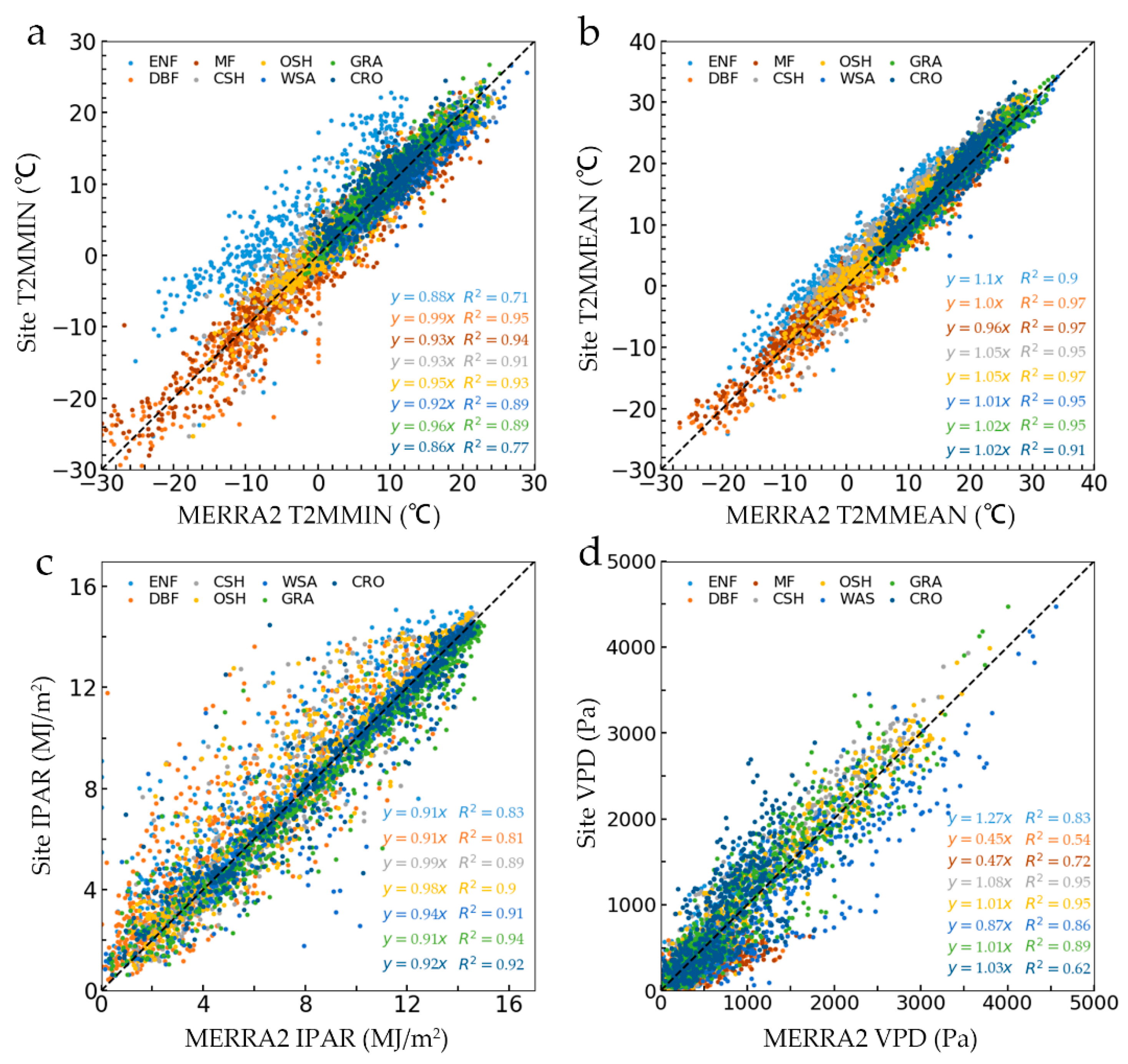

In this study, the MERRA2 meteorology reanalysis data were taken as site meteorological data for four GPP estimation models. For determining the meteorological data effects on GPP estimation, we conducted a direct comparison of daily MERRA2 meteorology reanalysis data and site meteorological data (Figure 2). The two datasets have a strong correlation with T2M_MIN and T2M_MEAN (Figure 2a,b), suggesting that the MERRA2 meteorology reanalysis data can be reliably applied to estimate the on-site temperature conditions. The IPAR (Figure 2c) at the eight sites had a high correlation with the measured data. The R² was above 0.8, and the scatter distribution was very close to the 1:1 line, which indicated that the on-site IPAR could be reliably calculated from the MERRA2 meteorology reanalysis data. For VPD (Figure 2d), R² varied at different sites, and the range of R² was 0.51–0.95. Among them, VPD at the US-WCr (DBF) and US-Bi2 (CRO) obtained a relatively low accuracy, with R² = 0.54 and 0.62, respectively. The VPD across shrublands obtained the highest accuracy (R² = 0.95).

3.2. Agreement between GPP_MODIS-GPP, GPP_EC-LUE, GPP_MOD17 and GPP_EC

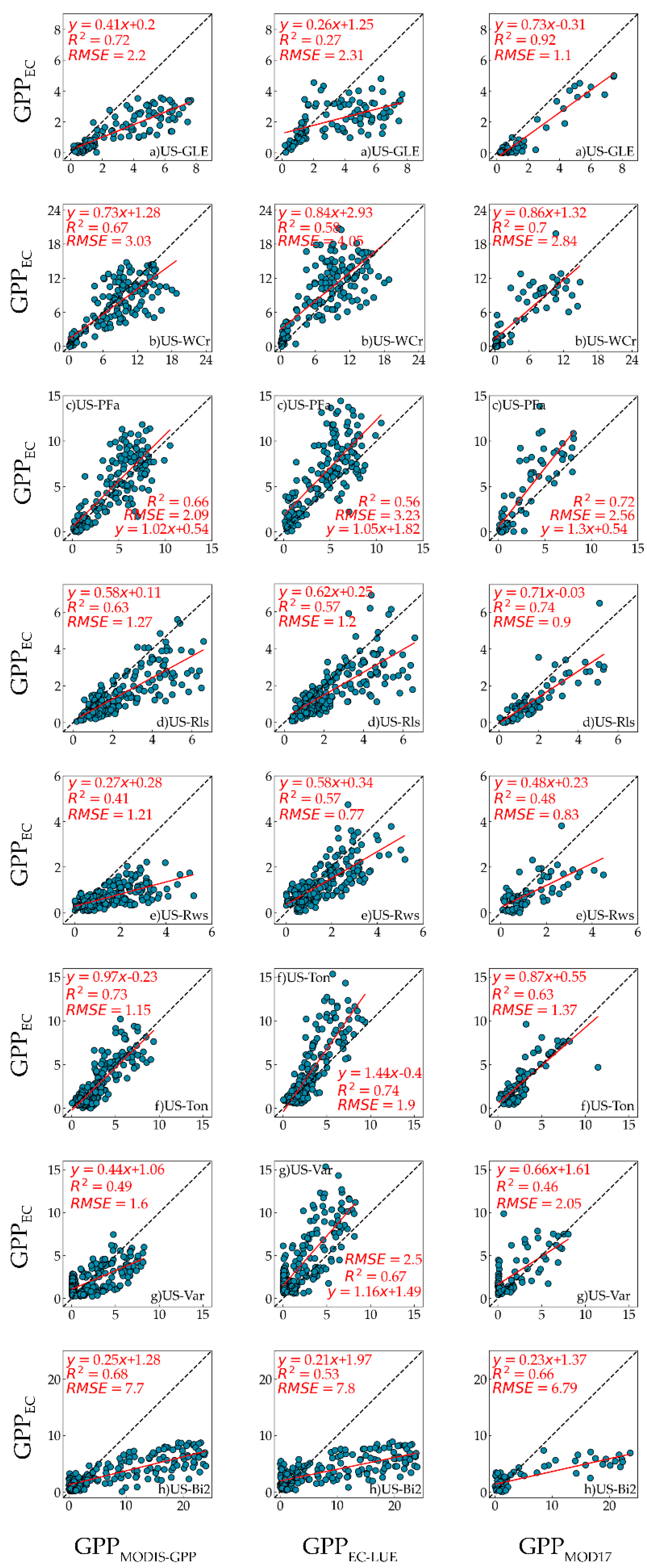

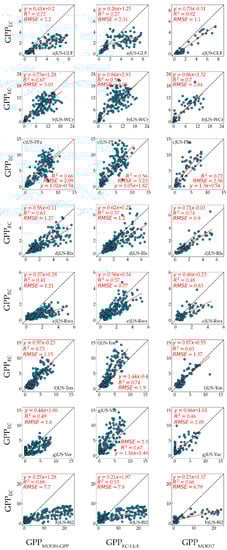

We first compared the performance of GPP_MODIS-GPP and GPP_EC-LUE against that of the GPP_EC at all sites for 2017 and 2018 (Figure 3). For the MODIS-GPP algorithm, the results showed that the US-Ton site obtained the best performance (R² = 0.73), followed by US-GLE with R² = 0.72, US-Bi2 with R² = 0.68, US-WCr with R² = 0.67, US-PFa with R² = 0.66, and US-Rls with R² = 0.63 (

Table 5. Coefficient of determination (R²), root mean square error (RMSE, gC/m²/d) and bias (gC/m²/d) for GPP_MODIS-GPP, GPP_EC-LUE, GPP_MOD17 and GPP_EC.

Site ID	GPPMODIS-GPP			GPPEC-LUE			GPPMOD17
	R2	RMSE	Bias	R2	RMSE	Bias	R2	RMSE	Bias
US-GLE	0.72	2.20	−1.65	0.27	2.31	−1.39	0.92	1.10	−0.83
US-WCr	0.67	3.02	−0.70	0.58	4.05	1.71	0.70	2.84	0.71
US-PFa	0.66	2.09	0.62	0.56	3.23	2.07	0.72	2.56	1.34
US-Rls	0.63	1.27	−0.86	0.57	1.20	−0.64	0.74	0.90	−0.53
US-Rws	0.41	1.21	−0.83	0.57	0.77	−0.29	0.48	0.83	−0.40
US-Ton	0.73	1.14	−0.30	0.74	1.90	0.70	0.63	1.37	0.21
US-Var	0.49	1.60	0.19	0.67	2.50	1.73	0.46	2.05	1.00
US-Bi2	0.68	7.70	−4.53	0.53	7.80	−4.15	0.66	6.80	−3.12

Note: Highest R², lowest RMSE, and lowest Bias value are shown in bold. GPP_MODIS-GPP: GPP values obtained from MODIS-GPP algorithm; GPP_EC-LUE: GPP values obtained from EC-LUE model; GPP_MOD17: GPP values are from MODIS GPP products.

). The R² values between the GPP_MODIS-GPP and GPP_EC at the US-Var site and US-Rws site were lower than 0.5. In terms of the RMSE, the US-Bi2 site produced the maximum error (RMSE = 7.70 gC/m²/d) and the US-Ton site displayed the lowest error with RMSE = 1.15 gC/m²/d.

For the EC-LUE model, the results showed that the US-Ton site obtained the best performance (R² = 0.74), followed by the US-Var with R² = 0.67, US-WCr with R² = 0.58, US-Rws with R² = 0.57, US-PFa with R² = 0.57, US-PFa with R² = 0.56, and US-Bi2 with R² = 0.53. However, insignificant correlations were obtained at the US-GLE site, and this situation was mainly influenced by the ENF when using EC-LUE model [32,75]. For MODIS-GPP products, the US-GLE site exhibited the best performance, with R² = 0.92. At the US-Rws site and US-Var site, GPP_MOD17 performed relatively poorly, with R² = 0.48 and 0.46, respectively. These results were consistent with GPP_MODIS-GPP. It is worth noting that the performance of GPP_MOD17 was worse than GPP_MODIS-GPP for the US-Ton, US-Var, and US-Bi2 site and worse than GPP_EC-LUE for the US-Rws, US-Ton, and US-Var site.

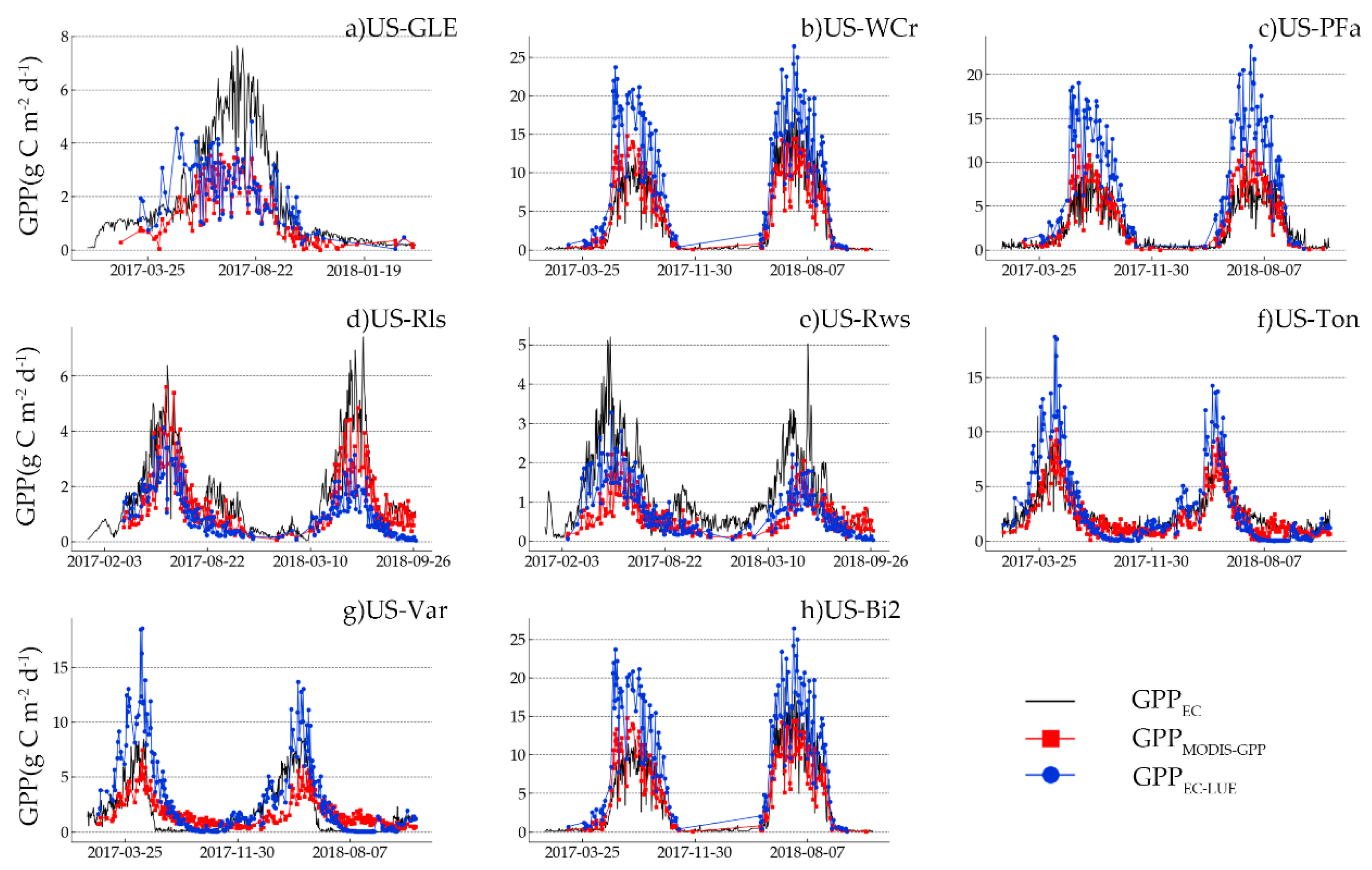

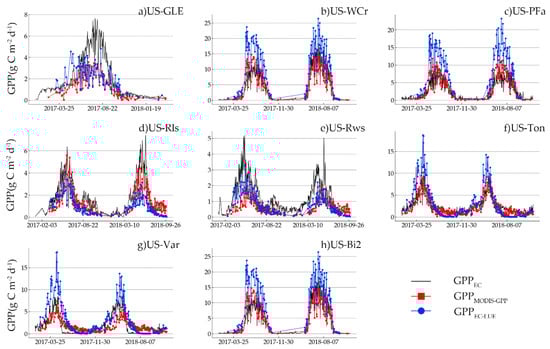

Figure 4 illustrates the temporal variation of GPP_MODIS-GPP, GPP_EC-LUE and GPP_EC for all sites. Overall, GPP_MODIS-GPP and GPP_EC-LUE effectively matched GPP_EC and generally captured the seasonal variations aligned with the GPP_EC. As shown in Table 5, GPP_MODIS-GPP tracked GPP_EC well at the US-Ton site, with the lowest RMSE (1.14 gC/m²/d) and the second-lowest bias (−0.30 gC/m²/d). Similarly, GPP_EC-LUE tracked GPP_EC well at the US-Rws site, with the lowest RMSE (1.01 gC/m²/d) and bias (−0.72 gC/m²/d). However, there were still substantial underestimations and overestimations in some sites among GPP_MODIS-GPP, GPP_EC-LUE and GPP_EC. For example, for the MODIS-GPP algorithm, at the US-Bi2 site, GPP_MODIS-GPP were underestimated (RMSE = 7.70 gC/m²/d, bias = −4.53 gC/m²/d). For the EC-LUE model, GPP fluxes were underestimated at several sites, such as the US-Bi2 site (RMSE = 7.80 gC/m²/d, bias = −4.15 gC/m²/d) and the US-GLE site (RMSE = 2.31 gC/m²/d, bias = −1.39 gC/m²/d), but GPP_EC-LUE values at the US-PFa site (RMSE = 3.23 gC/m²/d, bias = 2.07 gC/m²/d) and the US-WCr site (RMSE = 4.05 gC/m²/d, bias = 1.71 gC/m²/d) were overestimated. Notably, GPP_MODIS-GPP at the US-WCr site and GPP_EC-LUE at the US-Ton site obtained a low bias but high RMSE. It was because the underestimation of GPP offset part of the deviation during the months of 2017, as well as the overestimation of compensation in 2018 or GPP underestimation during the growing season, alongside overestimation during the nongrowing season.

3.3. Agreement between GPP_GR, GPP_VI and GPP_EC

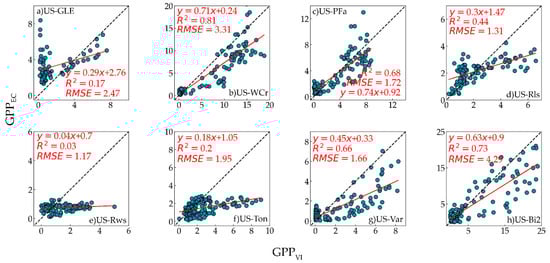

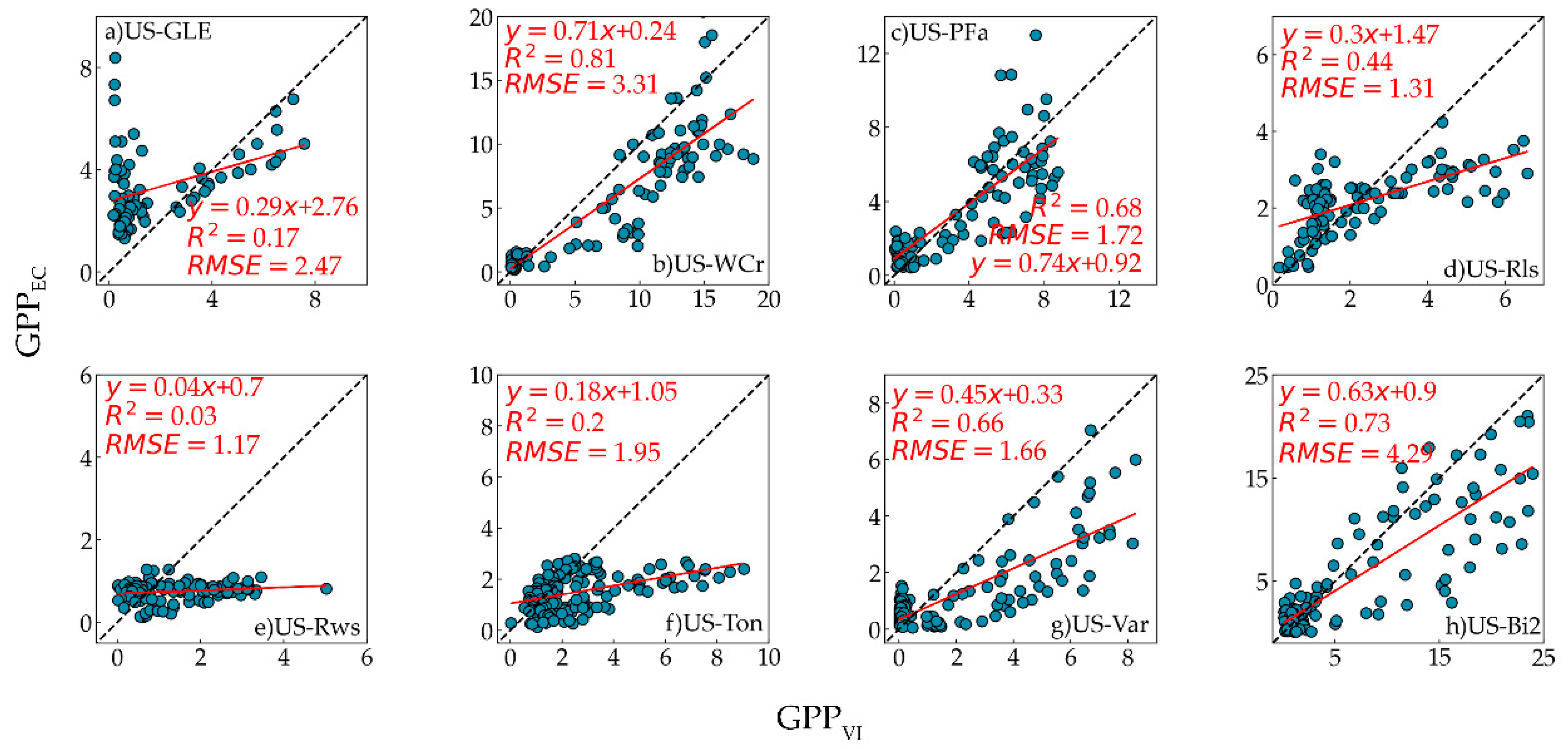

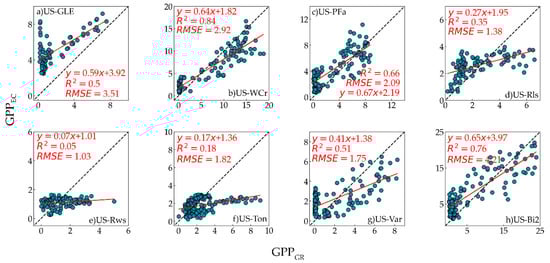

The scatter plots between the GPP_GR, GPP_VI, and GPP_EC for every site are displayed in Figure 5 and Figure 6. The performance of the two models is different at various sites. Therefore, the two models’ applicability depends on the biome type. For example, insignificant correlations between the GR and VI models were obtained at the US-Rws site, US-Ton site and US-Rls site. Even for the same biome type, their performance was different. For instance, the GR model had a better performance than the VI model at the US-GLE site. Additionally, strong relationships between GPP_GR, GPP_VI and GPP_EC were established at the US-WCr site, US-Bi2 site, US-PFa site, and US-Var site. In particular, the GR and VI models both obtained the best performance at the US-WCr site, with R² = 0.84 and 0.81, respectively.

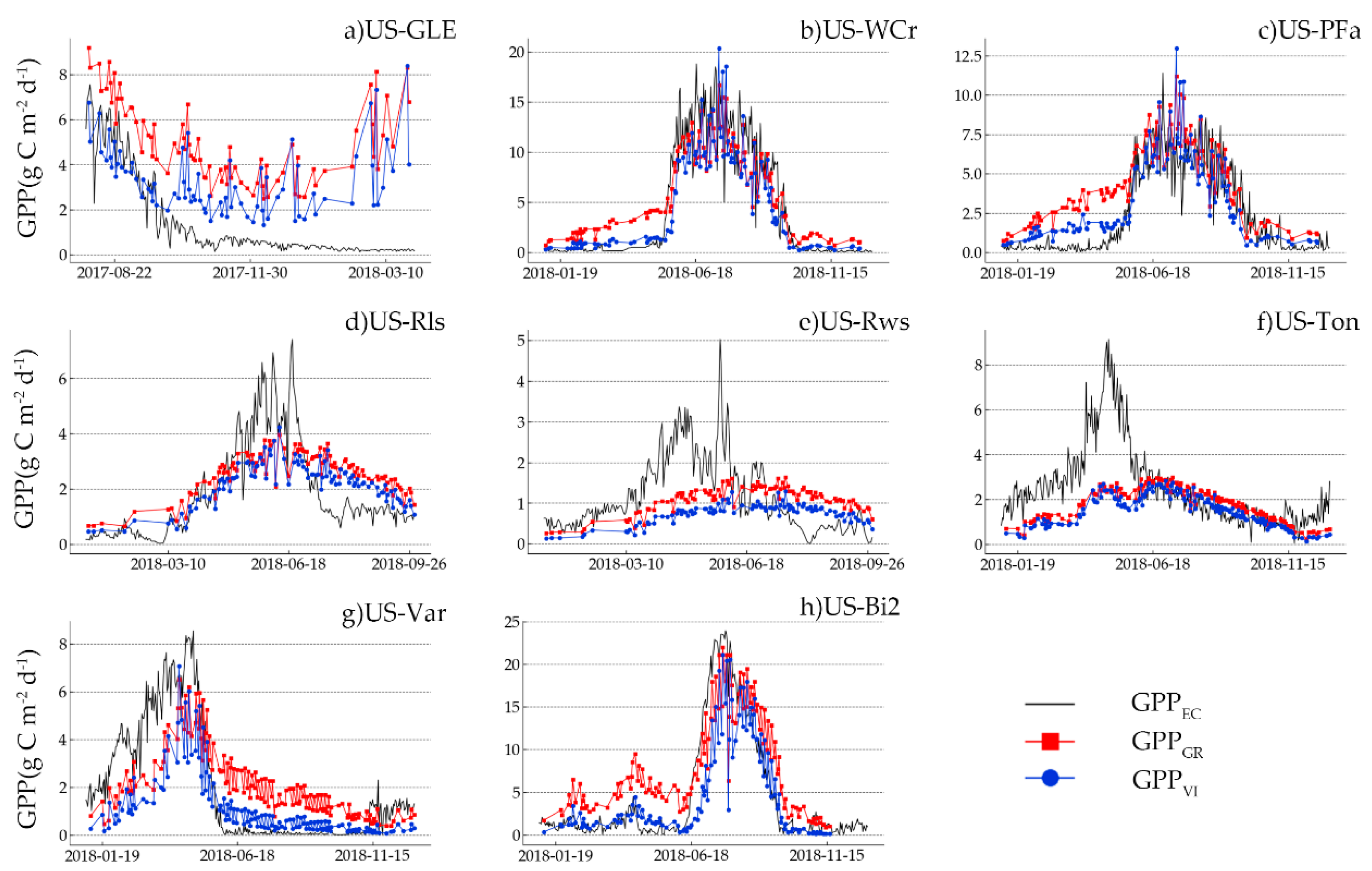

The time series of GPP_GR, GPP_VI and GPP_EC in 2017–2018 are presented in Figure 7. Overall, the temporal dynamics of GPP_GR and GPP_VI are roughly the same. The GPP_GR and GPP_VI tracked the GPP_EC well at the US-Bi2 site, US-PFa site, US-Var site, and US-WCr site. As shown in

Table 6. Coefficient of determination (R²), root mean square error (RMSE, gC/m²/d) and bias (gC/m²/d) for GPP_GR, GPP_VI, and GPP_EC.

Site ID	GR Model			VI Model
	R2	RMSE	Bias	R2	RMSE	Bias
US-GLE	0.50	3.51	3.18	0.17	2.47	1.46
US-WCr	0.84	2.92	−0.66	0.81	3.31	−1.76
US-PFa	0.66	2.09	1.12	0.68	1.72	0.09
US-Rls	0.35	1.38	0.24	0.44	1.31	−0.15
US-Rws	0.05	1.03	−0.22	0.03	1.17	−0.57
US-Ton	0.18	1.82	−0.75	0.20	1.95	−1.48
US-Var	0.51	1.75	0.34	0.66	1.67	−0.63
US-Bi2	0.76	4.21	1.66	0.73	4.29	−1.48

Note: Highest R², lowest RMSE, and lowest Bias value are shown in bold. GPP_GR: GPP values are calculated from GR model; GPP_VI: GPP values are calculated from VI model.

, GPP_GR and GPP_VI at the US-GLE site were overestimated, with bias = 3.18 gC/m²/d and 1.16 gC/m²/d, respectively. Additionally, GPP_GR and GPP_VI were underestimated at the US-Ton site, with bias = −0.75 gC/m²/d and −1.48 gC/m²/d, respectively. Notably, both GPP_GR and GPP_VI showed a poor relationship with GPP_EC at the US-Rls site and US-Rws site. This situation was mainly due to the underestimated GPP values during the growing season and overestimating GPP values during the nongrowing season.

3.4. Spatial−Temporal Consistency between GPP_MODIS-GPP, GPP_EC-LUE and GPP_MOD17

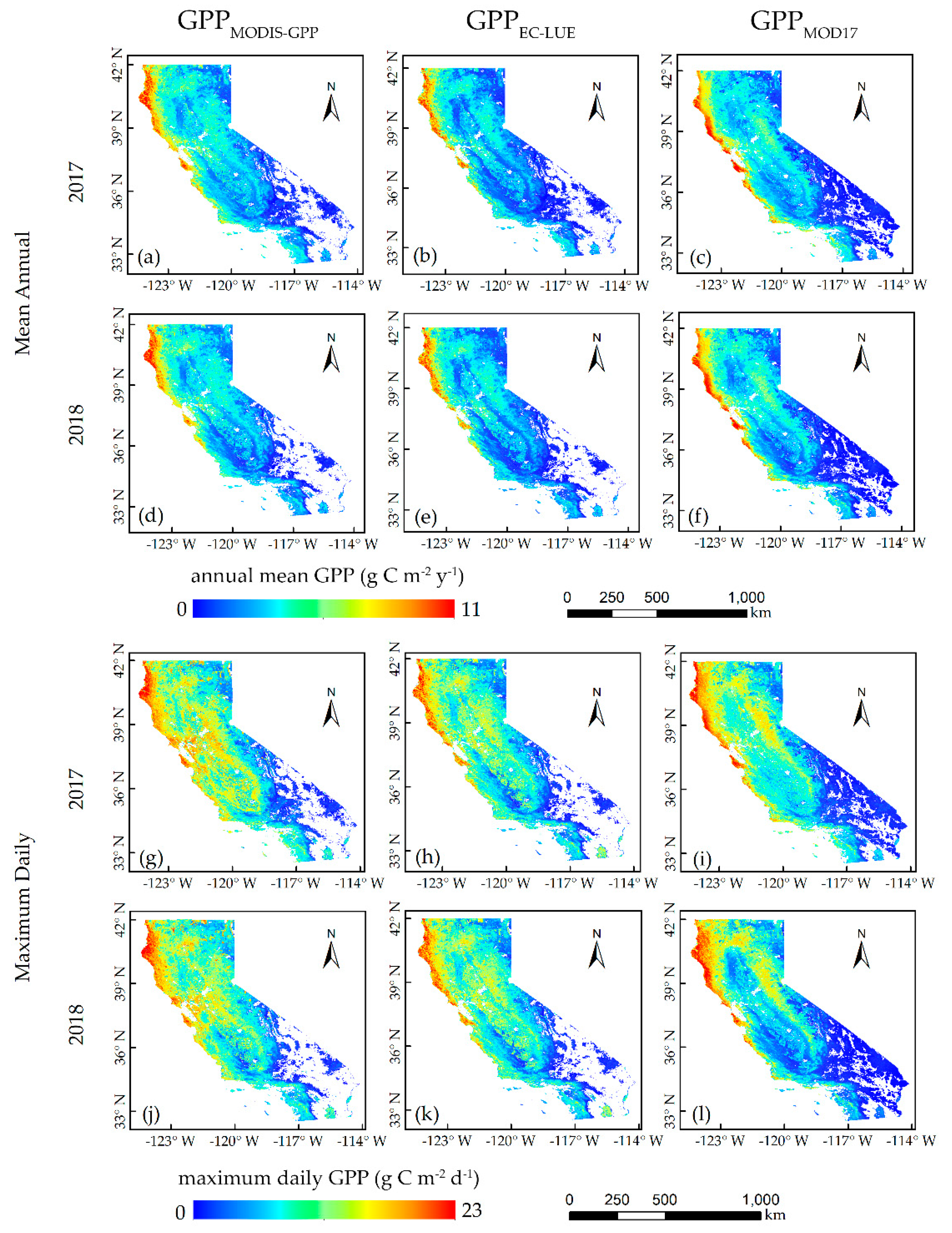

We compared the spatial distribution of the annual mean GPP (gC/m²/d) and maximum daily GPP (gC/m²/d) from GPP_MODIS-GPP and GPP_EC-LUE across California in North America during 2017 and 2018 at a 300 m spatial resolution. The annual mean GPP was the average of each pixel throughout the year. The maximum daily GPP was the maximum value of each pixel throughout the year. Notably, the spatial distributions of GPP_GR and GPP_VI were not shown here due to the insufficient calibration data for upscaling to the regional scale. Figure 8a−f show the spatial distribution of the annual mean GPP throughout California. The GPP_MODIS-GPP and GPP_EC-LUE reached the highest values in the western coastal area and decreased along a longitudinal gradient from the west (dominated by forest) to the east (dominated by shrubland and grassland). For the maximum daily GPP (Figure 8g−l), the highest value was ~23 gC/m²/d for the Northwest Coastal Forest Belt. The southeastern shrubland region had low GPP values. From 2017 to 2018, the maximum daily GPP decreased significantly in the southwestern shrubland (35°N–37°N, −121°W–199°W). The biggest discrepancy between the annual mean GPP value and maximum daily GPP value could be found in the central croplands, where the maximum daily GPP was high, and the annual mean GPP was moderate. Overall, the GPP_MODIS-GPP and GPP_EC-LUE showed similar spatial−temporal patterns to GPP_MOD17. Notably, compared with GPP_MOD17, GPP_MODIS-GPP, and GPP_EC-LUE relatively underestimated the GPP values for cropland.

4. Discussion

The R² between GPP_MODIS-GPP, GPP_EC-LUE, and GPP_EC showed the strong correlation between modelled GPP and measured GPP. The performance of RMSE varied at different sites. Compared with GPP_MOD17, GPP_MODIS-GPP offered better GPP prediction at the US-Ton site and US-Bi2 site, and GPP_EC-LUE offered better GPP prediction at the US-Ton site, US-Var site, and US-Rws site. At the US-Ton site, GPP_MODIS-GPP and GPP_EC-LUE obtained the best performance. Previous research showed that the savanna GPP estimation accuracy was smaller than other biome types because of the misclassification and sparse vegetation cover [50,74,80]. However, the woody savanna has a denser vegetation cover than the savanna [74,80,81]. This structure can reduce the influence of understory vegetation and improve GPP estimation accuracy [82]. Additionally, GPP_MODIS-GPP and GPP_EC-LUE also obtained a good performance at the US-WCr site and US-PFa site. This finding was consistent with previous studies [5,83]. For the US-WCr site, both GPP_MODIS-GPP and GPP_EC-LUE performed best in estimating GPP. The reasons for this can be summarized as follows. Firstly, DBF has obvious seasonal and phenological characteristics which can be monitored by satellites in real time [32]. Secondly, the vegetation structure of DBF is simple and the vegetation coverage varies greatly in different seasons, so the estimation of FAPAR is relatively simple and accurate [32]. Thirdly, DBF usually grows at mid and high latitudes with less cloudiness so that high-quality time-series images can be obtained [44]. For the US-PFa site, GPP_MODIS-GPP and GPP_EC-LUE represented the growth status of MF. However, compared with GPP_MODIS-GPP, GPP_EC-LUE was overestimated (RMSE = 3.23 gC/m²/d, bias = 2.07 gC/m²/d). The factor that caused this overestimation was the complex vegetation structure of the mixed forest, which had various Ɛ_max due to abundant plant species. Moreover, the leaf shape, tree height, and light energy absorption conditions are different among tree species. Therefore, a single Ɛ_max used in the input model causes certain errors [84,85]. The performance of GPP_MODIS-GPP and GPP_EC-LUE at two shrubland sites varied. For the US-Rls site, GPP_MODIS-GPP and GPP_EC-LUE both had a moderate correlation against GPP_EC, with R² = 0.63 and 0.57, respectively. However, for the US-Rws site, the accuracy of GPP_MODIS-GPP was the lowest, and the performance of GPP_EC-LUE was better than that of GPP_MODIS-GPP. The factor that caused this phenomenon was the estimation accuracy of GPP at shrubland sites, which varied in different areas [22,86]. The growth of shrubland is mainly affected by water, so more consideration should be given to water influence factors when estimating shrubland GPP [81,84]. Therefore, for shrubland in temperate and frigid zones, GPP estimation accuracy is higher, but in the tropics, affected by VPD and FAPAR, the accuracy of shrubland GPP estimation is lower. At the US-Var site, the performance of GPP_EC-LUE was also better than GPP_MODIS-GPP, and the accuracy of the GPP_EC-LUE was the second highest (R² = 0.67). The accuracy of GPP_MODIS-GPP (R² = 0.49) was consistent with that of GPP_MOD17 (R² = 0.46). However, the performance of GPP_MODIS-GPP at the US-GLE site was far better than that of GPP_EC-LUE. For the US-GLE site, the accuracy of GPP_MODIS-GPP was worse than the US-Ton site (R² = 0.72). For the US-Bi2 site, the relationship between GPP_MODIS-GPP, GPP_EC-LUE and GPP_EC was moderate, and GPP_MODIS-GPP and GPP_EC-LUE obviously underestimated the cropland GPP (RMSE = 7.70 gC/m²/d, bias = −4.53 gC/m²/d and RMSE = 7.80 gC/m²/d, Bias = −4.15 gC/m²/d, respectively). This finding is aligned with previous research [50,87]. In crop ecosystems, different crops have different Ɛ_max and growth cycles, so a single Ɛ_max cannot represent well all types of crops [88,89]. Additionally, the rotation period varies for different crop types. Therefore, if the same input variables are used to estimate GPP for different crops, this can lead to a large deviation in GPP estimation [90].

The performance of GPP_GR and GPP_VI was diverse for different biome types. The correlation between GPP_GR, GPP_VI, and GPP_EC was strongest at the US-WCr site, with R² = 0.84 and 0.81, respectively. Compared to the US-WCr site, the correlation between GPP_GR, GPP_VI and GPP_EC was relatively weak at the US-GLE site. This result was consistent with previous research, where OTCI was highly correlated with tower GPP across deciduous forests and weakly correlated with tower GPP across evergreen forests [49,50]. The reason for this phenomenon could be that stress causes a decrease of the photosynthetic efficiency [91], the conical canopy structure, and the density of evergreen needleleaf trees. The consequent shadowing effect leads to the failure of OTCI for detecting subtle changes within the seasonal chlorophyll content of evergreen needleleaf forests [92,93]. Additionally, GPP_GR and GPP_VI showed moderate correlations with GPP_EC at the US-PFa site. The factors that caused this can be considered from two aspects. Firstly, the vegetation structure of mixed forests is complex, and different vegetation types will affect the estimation of GPP. Secondly, mixed forest productivity will drop sharply when the temperature drops in a short period. However, the vegetation index cannot change significantly in this case, leading to its failure in capturing the impact of temperature change on GPP [47,94,95]. A strong correlation could also be observed between GPP_GR, GPP_VI, and GPP_EC at the US-Bi2 site. Previous studies have found a similar relationship between OTCI or other chlorophyll indices and GPP [49,78,96]. Notably, GPP_GR and GPP_VI had the highest RMSE (4.21 gC/m²/d and 4.29 gC/m²/d, respectively) at the US-Bi2 site. The reason for this is that compared with GPP_EC, GPP_GR and GPP_VI overestimated GPP in the nongrowing season and underestimated it in the growing season (Figure 7h). A previous study demonstrated that OTCI started to increase earlier than the time of corn sowing [49]. The high GPP_GR and GPP_VI obtained in the nongrowing season may represent fallow land, which is gradually colonized by weed species or affected by humidity changes, and not represent actual crop growth [49]. At the US-Var site, the correlation between GPP_VI and GPP_EC (R² = 0.66) was better than that between GPP_GR and GPP_EC (R² = 0.50). This difference may be related to the vertical and horizontal heterogeneity of grasslands [49]. C3 annual grasses dominated the US-Var site. Previous studies [49,97] showed that, compared with grasslands dominated by C4 species, C3 grasslands exhibited lower OTCI values during the peak growth period, explaining why GPP_VI had a higher accuracy than GPP_GR. However, GPP_GR and GPP_VI performed poorly in woody savannas and two shrubland sites. The probable reason for this was that the influence of the soil background on the low vegetation coverage at these sites led to the failure of OTCI in tracking GPP [50].

At the regional scale, GPP_MODIS-GPP and GPP_EC-LUE agreed quite well with GPP_MOD17. For the annual mean GPP, GPP_MODIS-GPP and GPP_EC-LUE were relatively high in the western coastal areas, where the biome types were mainly evergreen forests. The low GPP_MODIS-GPP and GPP_EC-LUE were obtained in grasslands. The finding aligned with a previous study [61], where evergreen forests exhibited strong photosynthesis and open shrublands were the least productive. Forest ecosystems have a relatively higher maximum daily GPP, and open shrublands have the lowest maximum daily GPP compared with other vegetation types. Notably, the maximum daily GPP across grasslands in the northeast was larger than in central areas, and the high sensitivity to soil moisture may be the cause of this phenomenon [61]. The inconsistency between the annual mean GPP and maximum daily GPP may be mostly due to the influence of temperature and rainfall on the length of the different growing seasons [61].

In addition, we further analyzed the uncertainty in simulating GPP using Sentinel-3 OLCI products and MERRA2 meteorology reanalysis data in this study. Several factors can influence the GPP estimation using the MODIS-GPP algorithm and EC-LUE model. First is the inconsistency of the spatial resolution between Sentinel-3 and meteorology reanalysis data. The errors may have been derived from the interpolation of MERRA2 meteorology reanalysis data from 0.5° × 0.625° to 300 m. Second is the coarse classification of vegetation types on land cover maps. Boston University’s UMD classification scheme in the MOD12Q1 land cover dataset classifies croplands as one category and does not distinguish between C3 and C4 crops. C3 and C4 crops possess various photosynthetic pathways and light use efficiencies [88,89]. Because the C3/C4 mixing ratio for each cropland pixel is unknown, we simply used the single Ɛ_max and meteorological parameters to estimate GPP on a large scale. Therefore, GPP_MODIS-GPP and GPP_EC-LUE are underestimated or overestimated in croplands. Thirdly, the image data quality is also a significant factor influencing GPP estimation. Due to atmospheric contamination (i.e., clouds, aerosols), Sentinel-3 OLCI products have more missing data and low reliability during winter. Future work should be focused on spatial−temporal fusion techniques, which can further enhance the temporal and spatial continuity of Sentinel-3 OLCI products by fusing Sentinel-2 images with Sentinel-3 OLCI to achieve more accurate regional and large-scale GPP estimation [98,99].

Although our results showed that GPP_MODIS-GPP, GPP_EC-LUE, GPP_GR and GPP_VI did not always perform better than GPP_EC or GPP_MOD17, it needs to be emphasized that the objective of our study was not to distinguish which model was superior for GPP estimation. Our study aimed to demonstrate the potential of integrating Sentinel-3 OLCI products and MERRA2 meteorology reanalysis data to estimate GPP at site and regional scales. Our results also demonstrated that the LUE model and VI-driven model were suitable for ESA’s Sentinel-3 data. The Sentinel-3 Sea and Land Surface Temperature Radiometer (SLSTR) provides land surface temperature (LST) products with a higher temporal resolution. In future research, the integration of SLSTR LST products and OLCI FAPAR or meteorology reanalysis data in other models for estimating GPP should be conducted. For a wider application of Sentinel-3 OTCI products, future work requires more in situ data to explore the OTCI and GPP’s relationship. Moreover, further investigations should focus on combining other remote sensing data or satellite-driven models with OTCI-based models. Previous studies have found that meteorological factors could improve VI-driven GPP estimation models [23]. Some existing satellite-driven models could make up for the insufficiency of GPP models based on physiologically driven spectral indices, such as MTCI [100,101]. Additionally, the Fluorescence Explorer satellite, the ESA’s eighth Earth Explorer, is expected to be launched by 2022, which can offer important auxiliary data for using Sentinel-3 products to estimate GPP [33,102].

5. Conclusions

Within this research, we assessed the performance of two Sentinel-3 OLCI products (FAPAR and OTCI) combined with MERRA2 meteorology reanalysis data to estimate GPP through four GPP models (the MODIS GPP algorithm, EC-LUE model, GR model, and VI model) at the site and regional scales during 2017 and 2018. The following major conclusions can be drawn from the study:

(1) The relationship between GPP_MODIS-GPP, GPP_EC-LUE and GPP_EC is obvious for all sites. GPP_MODIS-GPP exhibited the best performance with GPP_EC at the US-Ton site (R² = 0.73), and the weakest performance for the US-Rws site (R² = 0.41). In addition, GPP_MODIS-GPP and GPP_EC-LUE were underestimated or overestimated at several sites, such as the US-Bi2 site, US-GLE site, US-WCr site and US-PFa site. Compared with GPP_MOD17, GPP_MODIS-GPP was superior to GPP_EC at the US-Ton site, US-Var site, and US-Bi2 site, and GPP_EC-LUE was superior at the US-Ton site, and the US-Var site;

(2) Compared with GPP_EC, the performance of GPP_GR and GPP_VI varied across different biome types. Good performances were obtained across deciduous broadleaf forests, mixed forests, grasslands, and croplands, and low R² values were obtained across evergreen needleleaf forests, shrublands, and woody savannas;

(3) At the regional scale, GPP_MODIS-GPP and GPP_EC-LUE both showed a very high spatial−temporal consistency with GPP_MOD17. The GPP value was high in the western coastal area and low in southwestern shrubland across California. The annual mean GPP value and maximum daily GPP exhibited a strong correlation with GPP_MOD17 in broadleaf forests, mixed forests, grasslands and croplands, but a relatively weak correlation in evergreen needleleaf forests and shrublands.
