Theoretical Uncertainty Analysis of Satellite Retrieved Aerosol Optical Depth Associated with Surface Albedo and Aerosol Optical Properties

Abstract

Deriving aerosol optical depth (AOD) from space-borne observations is still challenging due to uncertainties associated with sensor calibration drift, cloud screening, aerosol type classification, and surface reflectance characterization. As an initial step to understanding the physical processes impacting these uncertainties in satellite AOD retrievals, this study outlines a theoretical approach to estimate biases in the satellite aerosol retrieval algorithm affected by surface albedo and prescribed aerosol optical properties using a simplified radiative transfer model with a traditional error propagation approach. We expand the critical surface reflectance concept to obtain the critical surface albedo (CSA), critical single scattering albedo (CSSA), and critical asymmetry parameter (CAP). The top-of-atmosphere (TOA) reflectance is not sensitive to significant variability in aerosol loading (AOD) at the critical value; thus, the AOD cannot be determined. Results show that 5% bias in surface albedo (A), single scattering albedo (SSA), or asymmetry parameter (g) lead to large retrieved AOD errors, especially high under conditions when A, SSA, or g are close to their critical values. The results can be useful for future research related to improvements of satellite aerosol retrieval algorithms and provide a preliminary framework to analytically quantify AOD uncertainties from satellite retrievals.

1. Introduction

One significant role of atmospheric aerosols in assessing and predicting climate change can be attributed to direct scattering and absorption of solar and terrestrial radiation [1,2,3,4]. Accurately quantifying the aerosol direct radiative effects on the Earth’s changing energy budget is desired, but it is often particularly challenging [5,6,7]. Though the mechanism of direct aerosol effects is theoretically well understood [8,9,10], far greater uncertainties in accessing the contribution of aerosols to the radiative balance are caused by insufficient knowledge concerning physicochemical and optical properties of aerosols as well as surface reflectance characterization [11,12,13]. Many of these uncertainties arise because aerosols are complex mixtures varying widely across space and time in the atmosphere.

As the importance of aerosols in climate studies has become highly recognized, the level of scientific understanding of the direct aerosol effects has been improved through largely model-based studies [14,15,16,17,18] and increasingly measurement-based estimates [19,20,21,22,23]. In many cases, observations of aerosol optical and microphysical properties are essential tools for radiative transfer calculations, along with inputs from global aerosol models. Unfortunately, long-term and well-characterized in-situ measurements are constrained by achieving comprehensive coverage due to expensive instrumentation [24]. Thanks largely to the advent of the earth observation system (EOS) era, satellite retrievals are the only means capable of providing global aerosol products to measure the perturbation of radiative fluxes [25].

Radiative transfer models (RTMs) rely on aerosol information from both the model-based and measurement-based aerosol monitoring approaches. To describe the extinction magnitude of incident light by aerosols from the surface to the top of the atmosphere (TOA), aerosol optical depth (AOD) has gained attention as one of the most common aerosol products retrieved from spaceborne observations [26,27], which at different spectral wavelengths (mostly in the visible range) helps derive information about other aerosol optical properties and understand their impact on the radiation balance. In an atmospheric solar RTM framework, satellite AOD [21] together with single scattering albedo (SSA) and asymmetry parameter (g), taken from global aerosol models [28,29] or ground-based sun-photometers [19,20], are fundamental inputs to determine the scattering and the absorption of radiation by an aerosol layer. SSA not only largely influences the strength of the aerosol-induced change in TOA radiative balance but also can modify its sign from negative (cooling effect) to positive (warming effect) [30]. Moreover, the variation of g (defined as the cosine-weighted mean of the phase function) from −1 (pure backward scattering) to 1 (pure forward scattering) can provide information about the distribution of scattered radiation [31].

The general RTM techniques are commonly used for the direct calculation of satellite AOD via analytical equations. Several satellite measurement platforms have successfully provided AOD data based on reflected solar radiance measurements using RTM approaches. However, there is a fair amount of uncertainty associated with satellite AOD retrieval algorithms because it is difficult to parameterize fundamental aerosol optical properties (e.g., SSA and g) effectively for use in RTMs [32]. Wong and Li (2002) [33] explored AOD data from the Advanced Very High Resolution Radiometer (AVHRR) built by ITT Aerospace/Defense Communications in Fort Wayne, IN during heavy wildfire smoke periods across the western U.S. and found the AOD values to be very sensitive to the assumptions made regarding the smoke aerosols due to a knowledge gap related to the optical properties (SSA and g). The low correlation between NASA MODIS (Moderate Resolution Imaging Spectroradiometer [34] developed by Raytheon Santa Barbara Remote Sensing (SBRS) in Goleta, CA) AOD and ground “truth” NASA AERONET (Aerosol Robotic Network [35] established by NASA and PHOTONS) AOD also lies, in part, in the reliance of aerosol model schemes in the look-up tables (LUT) that prescribe SSA and g in the remote sensing algorithm [36].

Most importantly, acquiring satellite-derived AOD with high accuracy is quite tricky over regions with complex terrain and in arid or semi-arid environments, especially the western U.S. [37,38]. Satellite AOD retrievals are typically overestimated over desert regions because the bright surfaces restrict the retrieval in moderate and low dust loading conditions, and the upwelling radiance due to aerosol loading is small compared to the surface reflectance making it difficult to separate the aerosol signal from the surface contribution [39,40,41]. It has been found that uncertainty in the surface albedo of 1% can translate to at least 100% AOD retrieval error [42]. Concerns about the potential role for the critical surface albedo (CSA) in uncertainty estimates of AOD in remote sensing was first proposed by Fraser and Kaufman (1985) [43] based on radiative transfer simulations. This research suggested that, at the CSA, additional aerosol loading should not generate a net change in the upward radiance since the enhanced aerosol backscattering at the TOA is balanced by the increased attenuation of light by the aerosol layer [44]. Great efforts have been made by exploiting this critical value concept to identify the relationships between CSA and SSA [45,46,47,48] and further studying the implications of the CSA in aerosol remote sensing [38,42,49,50].

To the best of our knowledge, it appears that there have been no analytical studies that consider how AOD uncertainties are simultaneously correlated with surface albedo (A), single scattering albedo (SSA), and asymmetry parameter (g) in the satellite retrieval algorithms. Our work builds on the CSA concept and considers the AOD sensitivity to the critical surface albedo (CSA), the critical single scattering albedo (CSSA), and the critical asymmetry parameter (CAP). The CSA, CSSA, and CAP are respectively defined as the values of surface albedo, single scattering albedo, and asymmetry parameter where the TOA reflectance is independent of the AOD value. While investigating the CSSA and CAP does not provide as useful information as the CSA, these parameters included in our model are also essential to providing an analytical method to quantify uncertainties in these variables on the AOD values obtained from satellites. The CSSA and CAP play a crucial role when values are prescribed in the RTM from the LUT, and the aerosol type may not align with the actual aerosol type, or realistic aerosol mixture, in the atmosphere. We use a simplified radiative transfer model to analytically determine the CSA, CSSA, and CAP through the propagation of error approach that results in the partial derivatives of AOD with respect to A, SSA, and g. Furthermore, to elucidate the importance of the uncertainties in A, SSA, and g on AOD, we determine the CSA, CSSA, and CAP using multiple aerosol models. At or near these critical values, the uncertainty in AOD retrievals is considerable because a change in AOD has almost no influence on the TOA reflectance. Additionally, these critical values are where the aerosol forcing changes sign. This approach also allows us to investigate the physical characteristics related to surface albedo and aerosol optical properties that lead to uncertainties in AOD retrievals.

Understanding and quantifying the AOD uncertainties from satellite remote sensing platforms is critical in improving the global estimates of AOD. Previous methods have been used to quantify these uncertainties; however, many of them face limitations. A common, well-accepted approach to determine the retrieval error of satellite AOD datasets is the comparison of satellite measurements and ground-based sensor data [51,52,53,54]. While this approach is meaningful, it should be regarded as an evaluation of the retrieval algorithm rather than an uncertainty analysis [55]. Knapp et al. (2002) [56] used an ensemble approach with numerous AOD retrieval simulations and summarized the retrieval uncertainties of satellite AOD to be 18% to 34%, depending upon the certainty of the assumed radiative transfer model parameters. Sayer et al. (2013) [57] defined retrieval-level absolute uncertainties of satellite AOD products by formulating a linear relationship ($a+b\tau$) between uncertainties in modeled surface reflectance (a), assumptions about aerosol microphysical properties made in the retrieval algorithm (b) and satellite AOD at 550 nm (τ). Still, in essence, this empirical model was obtained in terms of an absolute error of the satellite 550 nm AOD compared to AERONET AOD. The error calculation in Sayer et al. (2013) [57] is only applicable for cases where there are AERONET sensors, and physical processes do not stratify the uncertainties in satellite AOD, so it is unrealistic to determine the sensitivity of AOD to A, SSA, and g using this approach.

Our overarching study goal is to provide an initial framework to better understand satellite AOD retrieval uncertainties associated with surface albedo, single scattering albedo, and asymmetry parameter. Other important factors to consider in AOD uncertainties using satellite retrieval algorithms are solar geometry and satellite viewing angle [25,58,59,60]. However, the simplified model proposed here does not account for changes in either of these variables. This paper proposes a 1-D fast and simple radiative transfer model and emphasize the use of traditional error propagation to quantify the uncertainty estimates for inclusion in satellite AOD algorithms according to well-understood perturbations (i.e., surface variations and uncertainties in aerosol optical properties). The two main research objectives of this study are: (1) outline the importance of the CSA, CSSA, and CAP concepts in next-generation satellite AOD products to the scientific user community; (2) elaborate on a mathematical and physical framework to compute uncertainties in satellite AOD retrievals using analytical equations.

2. Model Development

To derive our fast and simple atmospheric solar 1-D radiative transfer model, we need to consider that a sensor is above the TOA looking down toward the surface in the case of normal illumination where 3-D effects (i.e., horizontal transport of photons) and polarization are ignored. We use the propagation of error approach [61] to quantify the uncertainty of aerosol optical depth concerning the uncertainty of surface albedo (A), single scattering albedo of aerosols (SSA), and asymmetry parameter (g). Here A, SSA, and g are independent variables (neglecting their correlations for simplicity). Our model makes simplifying assumptions: (1) the atmosphere is one-dimensional, and it varies only in the vertical direction while horizontal variations are neglected; (2) the aerosol layer is infinitesimally thin and is in a plane-parallel, uniform atmosphere under clear-sky conditions; (3) both Rayleigh (e.g., at 660 nm, ~0.04) and aerosol optical depth (<0.1) are far less than unity, which requires the aerosol layer to be optically thin enough so that the single-scattering approximation is valid.

The development of this model is motivated by the desire to investigate the impact of surface reflectance on satellite AOD retrievals, described by Boehmler et al. (2018) [38], in the atmosphere with a limited amount of scattering. A general mathematical framework for the application of atmospheric solar radiative transfer in a simplified 1-D scene is presented in this study (see Figure 1) to calculate the sensitivity of AOD to surface reflectance (A), single scattering albedo (SSA), and asymmetry parameter (g). The purpose of this model is to provide an analytical expression for quantifying and understanding the uncertainty in AOD retrievals as a function of surface albedo (A) and aerosol optical properties (e.g., SSA and g) using the propagation of error approach.

This work aims to investigate this key question: How do we identify trends in performance degradation from satellite AOD retrievals caused by the gradual shift in three parameter values (A, SSA, g) from their true values? The analytical solution proposed here is used to obtain the partial derivatives—$\partial AOD/\partial A$, $\partial AOD/\partial SSA$, and $\partial AOD/\partial g$ so that we can determine uncertainty estimates within satellite AOD datasets as it relates to the uncertainty in surface albedo ($\Delta A$), single scattering albedo ($\Delta SSA$), and asymmetry parameter ($\Delta g)$:

$$\Delta AOD=\sqrt{{\left(\Delta A\left(\frac{\partial AOD}{\partial A}\right)\right)}^2+{\left(\Delta SSA\left(\frac{\partial AOD}{\partial SSA}\right)\right)}^2+{\left(\Delta g\left(\frac{\partial AOD}{\partial g}\right)\right)}^2}.$$

(1)

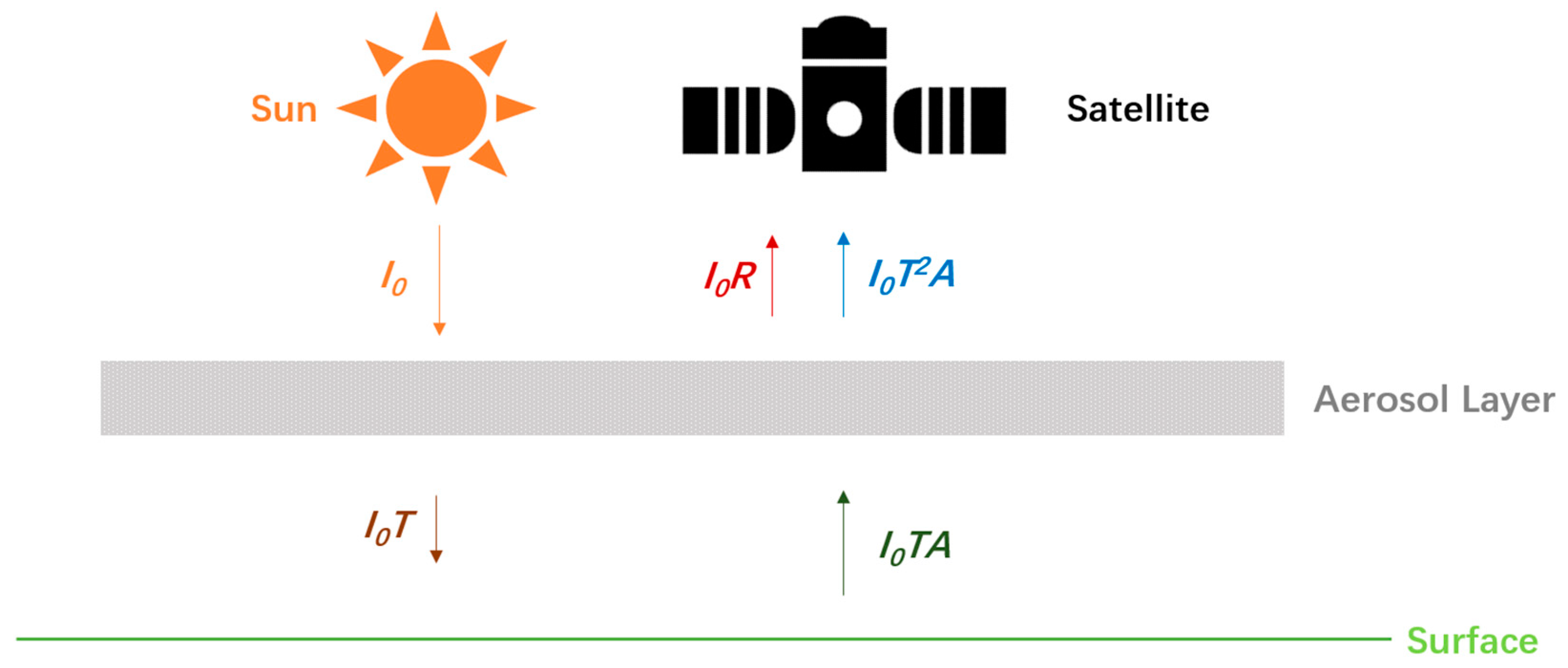

We adopt two-stream approximations for solar radiation transfer through one plane-parallel uniform scattering layer (e.g., an aerosol layer) in the atmosphere. This single-scatter model makes less restrictive assumptions regarding the nature of the radiance field and scattering phase function but does not incorporate second- or higher-order terms of the radiance field into the solution. Thus, this approach is only directly applicable under weak scattering conditions (i.e., minimal scattering optical depth). We define the satellite-received total radiation $I_{tot}$ as

$$I_{tot}=I_1+I_2,$$

(2)

where I₁ is the backscattered radiation by the aerosol layer, and I₂ is the sum of the direct beam radiation reflected by the surface and the diffusely scattered radiation due to 2-times forward scattering from the presence of aerosol in the atmosphere affected by the surface. I₁ is given by

$$I_1=I_{0}R,$$

(3)

where I₀ is the TOA solar irradiance and R is the fraction of the incident beam backward scattered by the aerosol layer. R is given by

$$R\cong SSA·AOD·\frac{1-g}{2}.$$

(4)

and I₂ is given by

$$I_2=I_0{T}^{2}A+I_0{T}^2{A}^{2}R,$$

(5)

where T is the fraction of total radiation (diffuse and direct) transmitted through the aerosol layer. T is given by

$$T\cong \left(1-AOD\right)+SSA·AOD·\frac{1+g}{2}.$$

(6)

By neglecting high order terms in AOD, T to the second power with Taylor series approximation is given by

$$T^2\cong {\left(\left(1-AOD\right)+SSA·AOD·\frac{1+g}{2} \right)}^2$$

$$\cong \left(1-2AOD+SSA·AOD·\left(1+g\right)\right).$$

(7)

Thus,

$$I_{tot}\cong I_0\left[\left(1+A^2\right)SSA·AOD·\frac{1-g}{2}+\left(1-2AOD\right)A+SSA·AOD·A\left(1+g\right)\right].$$

(8)

To solve Equation (8) for AOD, the total spectral reflectance at TOA, $\gamma$ is defined by

$$\gamma =\frac{I_{tot}}{I_0}~const,$$

(9)

where γ is the ratio of the total radiation received by the satellite to the top of the atmosphere solar irradiance. Substituting Equation (9) into Equation (8), and solving for AOD,

$$AOD\cong \frac{\gamma -A}{\left[\left(1+A^2\right)SSA\frac{1-g}{2}+A\left(SSA\left(1+g\right)-2\right)\right]}.$$

(10)

Starting with Equation (10) and taking the partial derivatives of AOD with respect to A, SSA, and g [61], and then using Equation (9) for $\gamma$ gives (where AOD < 0.1),

$$\{\begin{array}{cc}\frac{\partial AOD}{\partial A}\cong \frac{1}{\left[2A\left(1-SSA\frac{1+g}{2}\right)-\left(1+A^2\right)SSA\frac{1-g}{2}\right]}\hfill & \mathrm{(a)}\\ \frac{\partial AOD}{\partial SSA}\cong -\frac{AOD}{SSA-\frac{2A}{\left(1+A^2\right)\frac{1-g}{2}+A\left(1+g\right)}}\hfill & \mathrm{(b)}\\ \frac{\partial AOD}{\partial A}\cong \frac{AOD}{\frac{\left(1+A^2\right)\frac{1-g}{2}+A\left[\left(1+g\right)-\frac{2}{SSA}\right]}{\frac{1+A^2}{2}-A}}\hfill & \mathrm{(c)}\end{array}$$

(11)

We further analytically quantify the total uncertainty in AOD in terms of A, SSA, and g, based upon propagation of error by substituting the results from the above Equation (11) back into Equation (1):

$$\Delta AOD=\sqrt{{\left(\Delta A\left(\frac{\partial AOD}{\partial A}\right)\right)}^2+{\left(\Delta SSA\left(\frac{\partial AOD}{\partial SSA}\right)\right)}^2+{\left(\Delta g\left(\frac{\partial AOD}{\partial g}\right)\right)}^2}$$

$$=\sqrt{{\left(\Delta A\left(\frac{1}{\left[2A\left(1-SSA\frac{1+g}{2}\right)-\left(1+A^2\right)SSA\frac{1-g}{2}\right]}\right)\right)}^2+{\left(\Delta SSA\left(-\frac{AOD}{SSA-\frac{2A}{\left(1+A^2\right)\frac{1-g}{2}+A\left(1+g\right)}}\right)\right)}^2+{\left(\Delta g\left(\frac{AOD}{\frac{\left(1+A^2\right)\frac{1-g}{2}+A\left[\left(1+g\right)-\frac{2}{SSA}\right]}{\frac{1+A^2}{2}-A}}\right)\right)}^2.}$$

(12)

Taking the limits of Equation (11), first notice that $\partial AOD/\partial A\to \infty$, $\partial AOD/\partial SSA\to \infty$ and $\partial AOD/\partial g\to \infty$ when their denominators in Equation (11) are set equal to zero to find a critical value of surface albedo (A), single scattering albedo (SSA), and asymmetry parameter (g),

$$\{\begin{array}{cc}{A}_{crit}=\frac{2-SSA\left(1+g\right)\pm 2\sqrt{1+SSA\left[g\left(SSA-1\right)-1\right]}}{SSA\left(1-g\right)}\hfill & \mathrm{(a)}\\ {SSA}_{crit}=\frac{2A}{\left(1+A^2\right)\frac{1-g}{2}+A\left(1+g\right)}\hfill & \mathrm{(b)}\\ g_{crit}=\frac{SSA{(1+A)}^2-4A}{SSA{(1-A)}^2}\hfill & \mathrm{(c)}\end{array}$$

(13)

Note that in Equation (11a) the TOA reflectance (i.e., $\gamma =\frac{I_{tot}}{I_0}$) has a non-linear relationship with surface albedo, which means there are two roots for solving for the critical surface albedo [see Equation (13a)]. However, the value of surface albedo should range from 0 to 1. The first solution of $A_{crit}\left(\mathrm{i}.\mathrm{e}., \frac{2-SSA\left(1+g\right)+2\sqrt{1+SSA\left[g\left(SSA-1\right)-1\right]}}{SSA\left(1-g\right)}\right)$ is always greater than 1 when $SSA, g \mathsf{ϵ} \left(0,1\right)$. In this case, we used the second solution of $A_{crit}\left(\mathrm{i}.\mathrm{e}., \frac{2-SSA\left(1+g\right)-2\sqrt{1+SSA\left[g\left(SSA-1\right)-1\right]}}{SSA\left(1-g\right)}\right)$ to investigate the sensitivity of TOA reflectance to AOD.

Now, we will briefly discuss the physical interpretation of the theoretical model. Since $\gamma =\frac{I_{tot}}{I_0}$ we find that

$$\gamma \cong AOD\left[{\left(1+A\right)}^{2}SSA\frac{\left(1-g\right)}{2}-A\left(2-SSA\left(1+g\right)\right)\right]+A.$$

(14)

When the first term in Equation (14) goes to 0, then $\gamma \cong A$. Here A is equal to $A_{crit}$. Thus, the physical meaning of critical surface albedo can be explained as a circumstance when aerosol backscatter ${\left(1+A\right)}^{2}SSA\frac{\left(1-g\right)}{2}$ counterbalances the net loss due to forward scattering $\left(A\left(2-SSA\left(1+g\right)\right)\right)$. Or we can arrange Equation (14) as

$$\gamma \cong AOD\left[{\left(1+A\right)}^{2}SSA\frac{\left(1-g\right)}{2}+A·SSA\left(1+g\right)-2A\right]+A.$$

(15)

Alternatively, another physical meaning of critical surface albedo is to strike a balance between diffuse radiation adding to TOA radiance $\left(AOD{\left(1+A\right)}^{2}SSA\frac{\left(1-g\right)}{2}+AOD·A·SSA\left(1+g\right)\right)$ and the loss of TOA radiance due to the interaction between the direction beam with the surface disturbance $\left(2AOD·A\right)$.

3. Model Limitations

The fundamental assumption for the validity of the 1-D radiative transfer model, provided single scattering of the detected photons, is that no scattered photon that leaves the geometrical field of view of the receiver will be detected by neglecting all possible successive orders of scattering contributions. Multiple-scattering media have high albedo (at visible wavelengths) because incident photons reemerge after having been scattered many times by particles that are only weakly absorbing. For a sufficiently large optical depth of aerosols (when AOD >> 1), the thick aerosol layer will experience multiple scattering events that cannot be ignored. During high-AOD conditions, our simplified 1-D radiative transfer model would not be applicable in evaluating the uncertainties of AOD from satellite retrievals.

The model assumptions here require that the AOD values be much less than 1 to account for neglecting high order terms in AOD in the mathematical model. Thus, our study emphasizes conditions where AOD $\le$ 0.1. There are many time periods in regions with low air pollution emissions that have total aerosol loadings that would be within the assumed limits of our radiative transfer model. For example, Figure 2a shows the spectral variation of measured AOD (340–1064 nm) from AERONET at the University of Nevada, Reno (UNR) on 17 October 2019. From 5:00 p.m. to 12:00 a.m., the AERONET AOD data is far smaller than one for all wavelengths. Whereas, Figure 2b shows daily AOD values (0.1 < AOD < 0.3) that are higher than the previous example at smaller wavelengths on 1 October–20 October 2019. The retrieval of AOD at wavelengths shorter than 500 nm, in this case, would have significant uncertainties using our simple 1-D radiative model since both the Rayleigh (~0.1) and aerosol optical depth (>0.1) are outside the limits of our initial model assumptions. The 800 nm thus was picked as a representative wavelength to demonstrate the model results. Though the AOD range within 0.1 considered in our model is small, low-AOD cases, in fact, match the global average AOD value [57].

4. Aerosol Models

Numerous studies have focused on measuring and interpreting aerosol optical proprieties [62,63,64,65,66], and their findings can be used in an RTM to approximate the aerosol conditions in the atmosphere. We consider several generalized categories for aerosol types with distinctly different optical properties to evaluate the models of representative aerosols. To use our 1-D radiative model and examine the impacts of aerosol properties on AOD retrievals, we pick five different aerosol models defined by the OPAC (Optical Properties of Aerosols and Clouds) software package [67]. Given the single scattering approximation in our 1-D radiative transfer model, we use the aerosol model properties at 800 nm as the representative wavelength to satisfy the constraint on aerosol loading (i.e., AOD << 1), by assuming 50% relative humidity and externally mixed typical aerosol components to form aerosol types.

The following is a brief description of the five aerosol types obtained from OPAC [64]: (1) the continental clean aerosol represents remote continental locations with no or little anthropogenic influence; (2) the continental average aerosol comes from anthropogenically influenced continental areas; (3) the continental polluted aerosol depicts highly polluted continental (not urban) areas heavily influenced by anthropogenic emissions; (4) the urban aerosol is used to describe strong pollution from fossil fuel combustion in densely populated industrial areas; (5) the desert aerosol made up of mineral dust over all deserts of the world with no local distinction. These five general aerosol types are associated with different sources and emission mechanisms and are expected to exhibit significant differences in aerosol optical properties. A shortlist of these properties is given in

Table 1. Microphysical and optical properties of the aerosol models grouped by aerosol types and aerosol components, with OPAC values for the number densities (N_i) of aerosol components in particles cm⁻³, single scattering albedo (SSA) and asymmetry parameter (g) at a wavelength of 0.8 micrometers for 50% relative humidity.

Aerosol Types	Components	Ni (cm−3)	SSA	g
Continental clean	total	2600	0.933	0.655
	water soluble	2600	0.956	0.634
	insoluble	0.15	0.777	0.797
Continental average	total	15,300	0.861	0.620
	water soluble	7000	0.956	0.634
	insoluble	0.4	0.777	0.797
	soot	8300	0.135	0.266
Continental polluted	total	50,000	0.812	0.588
	water soluble	15700	0.956	0.634
	insoluble	0.6	0.777	0.797
	soot	34,300	0.135	0.266
Urban	total	158,000	0.711	0.545
	water soluble	28,000	0.956	0.634
	insoluble	1.5	0.777	0.797
	soot	130,000	0.135	0.266
Desert	total	2300	0.922	0.703
	water soluble	2000	0.956	0.634
	mineral (nuc. mode)	269.5	0.977	0.633
	mineral (acc. mode)	30.5	0.932	0.7
	mineral (coa. mode)	0.142	0.754	0.854

. We use the properties in the ‘total’ row for each aerosol type.

5. Results

5.1. RTM Results

Under the single scattering assumption, we generate a synthetic dataset of TOA reflectance with multiple values of single-scattering albedo, asymmetry parameter, surface albedo, and AOD values ranging from 0 to 0.1 at 800 nm. Aerosol optical parameters from the five different aerosol modes are used in the radiative transfer equations to calculate uncertainties and critical parameters. According to Equation (13), we get the critical value of one of the three variables (A, SSA, and g) when given the other two. For a given aerosol of fixed SSA and g (e.g., from Table 1), there is a specific surface albedo, namely CSA, at which the TOA reflectance is nearly insensitive to aerosol loading based on Equation (13a). Because we are unable to analyze the CSSA or CAP using surface albedo measurements from ground observations or satellite remote sensing data, we must rely on another method to obtain the CSSA or CAP. A shortcut to get the critical values for the aerosol properties is to rely on the CSA calculated in the way mentioned above, using it as the input surface albedo while assuming only one of modeled aerosol values (i.e., SSA or g) since we are able to obtain these aerosol optical properties given a specific aerosol type (from Table 1). Then we compute the CSSA[CAP] by substituting the CSA and g[SSA] into Equation (13b) [(13c)].

Table 2. Summary of CSA, CSSA, CAP values for the five different aerosol types listed in Table 1.

Aerosol Type	CSA	CSSA	CAP
Continental clean	0.413	0.933	0.655
Continental average	0.294	0.861	0.62
Continental polluted	0.25	0.812	0.588
Urban	0.186	0.711	0.545
Desert	0.36	0.922	0.703

gives a summary of the CSSA, CAP, and CSA values for the different aerosol classes according to this special situation. The CSA values in Table 2 are computed from the aerosol types using the specific SSA and g listed in Table 1. The CSSA and CAP are included in Table 2 for clarity, but are the same as the SSA and g values in Table 1 due to the shortcut method used for calculating the CSSA and CAP where the surface albedo is assumed to be equal to the CSA since measurements are not available. It is important to note that these critical values of SSA and g are crucial because they are associated with the CSA. Location-specific albedo measurements are required to calculate the appropriate CSSA and CAP values related to the observed albedo.

In Figure S1 (Supplementary Materials), the modeled TOA reflectance is a function of surface albedo (A), single scattering albedo (SSA), and asymmetry parameter (g) for a continental clean (a), continental average (b), continental polluted (c), urban (d), or desert (e) aerosol model stratified by AOD values. Different values of AOD and the selection of aerosol models both influence the TOA reflectance. However, critical values (the CSA, CSSA, and CAP) for the different aerosol types are based on the same principle that the TOA reflectance is almost insensitive to AOD. Note that the low sensitivity of the TOA reflectance with respect to AOD as a function of A shown in Figure S1 (Supplementary Materials) illustrates that within the narrow range of AOD values considered in this study, it is virtually imperceptible to spot the CSA in the figure. However, there is still a CSA that makes an inflection point and causes large uncertainties in the AOD values, as we describe below in Section 5.2, even at this low AOD range.

Equation (14) can explain why the CSA of the example aerosol models here are the same as the amount of the TOA reflectance (i.e., γ = CSA) because the contribution part of aerosol backscatter $\left(\frac{SSA\left(1-g\right)}{2}\right)$ balances the net loss of aerosol radiance due to forward scattering $\left(SSA\left(1+g\right)\right)$. The TOA reflectance for a continental clean aerosol model, subplot (a) in Figure S1 (Supplementary Materials), becomes independent of AOD at a surface albedo of 0.413, which we define as the CSA where both processes (forward and backward scattering) compensate each other. The distribution of CSA depends on the aerosol absorption ratio (i.e., SSA) and the aerosol type. As shown in Table 2, the more scattering the aerosol, the larger value of CSA. At the CSA, there is a reversal of the TOA reflectance concerning the aerosol loading, indicating that the TOA reflectance decreases with increasing AOD for brighter surfaces (when surface albedo is larger than the critical value) but increases with increasing AOD for dark surfaces (when surface albedo is smaller than the critical value). This is because aerosol absorption dominates over aerosol scattering if the atmosphere is sufficiently illuminated from below and vice versa [43,44].

The CSSA and CAP, as seen from Figure S1 (Supplementary Materials), are associated with the inherent optical properties of the selected aerosol models. Using the three different continental aerosol models (see Figure S1a–c (Supplementary Materials)), we can investigate how the absorbing properties of aerosols impact the TOA reflectance. The higher fraction of absorbing aerosols in the aerosol model, the more distinct increases in TOA reflectance with increasing AOD (when the single scattering albedo is larger than the critical value), and vice versa, which is attributable to their lower CSSA. However, the TOA reflectance decreases if the amount of aerosol loading increases (when the asymmetry parameter is larger than the critical value) due to the increased forward-scattering fraction of light caused by additional aerosols, and the opposite situation is also true. This illustrates the influence of the aerosol properties on the AOD sensitivity to the TOA reflectance. Absorbing aerosol types have a much lower CSA and CSSA. For instance, the urban model with a very low SSA of 0.711 has a CSA of 0.186, while the desert model with an SSA of 0.922 has a CSA value of 0.36. Moreover, the desert aerosol model with more absorbing aerosol species (e.g., desert dust) compared to the continental clean aerosol model exhibits a higher CAP. The desert aerosol model has more large particles, so the forward scattering probability for the particles is increased.

Though a simplified form of the 1-D radiative transfer model is used in this paper, the results are comparable to previous investigations that used more sophisticated models. For example, Figure S1c,d (Supplementary Materials) and Figure 3c,d in this paper are consistent with Figures 2c, 3b, and 9a,c in Seidel and Popp (2012) [42], respectively, where their studies are based on the Second Simulation of a Satellite Signal in the Solar Spectrum (6S) radiative transfer model. Due to these similarities, the proposed 1-D radiative transfer model presented in this paper captures the underlying physical system behind the overall radiative effects of aerosols, even if the successive higher-order scattering is neglected. Therefore, this analytical approach provides a useful method to quantify uncertainties in AOD remote sensing by a first-order approximation.

5.2. AOD Uncertainty Analysis

The simplified RTM offers insight into investigating errors in retrieved AOD associated with physical processes quantitatively. It is helpful to start with a conceptual description of the AOD errors related to the critical values of A, SSA, and g. The TOA reflectance remains constant at the CSA, CSSA, or CAP despite increasing or decreasing AOD; therefore, satellite sensors are unable to retrieve the correct aerosol signal at the CSA, CSSA, or CAP. Similarly, when parameters A, SSA, or g approach their critical values (CSA, CSSA, or CAP), large uncertainties arise in the retrieved AOD. At these critical values, there is also a change in the sign of the AOD uncertainty, related to the over- or under-estimation of retrieved AOD, an important distinction when using AOD to estimate global air pollution exposure and health impacts. This section focuses on using an analytical framework to quantify retrieval-level AOD uncertainty on a constant assumed error in the related physical quantities (A, SSA, and g).

The AOD retrieval errors as a function of surface albedo (A), single scattering albedo (SSA), and asymmetry parameter (g) with an 0.05 under- (marked as the blue minus symbols) and over-estimation (marked as the red plus symbols) of each corresponding properties (A, SSA, and g) for different aerosol types are shown in Figure 3. This error is defined as the difference between the ‘true’ AOD and the satellite retrieved AOD (i.e., $∆AOD=AO{D}_{true}-AO{D}_{retrieved}$), where the negative (positive) error is the overestimated (underestimated) retrieved AOD. A 0.05 deviation of A, SSA, or g from their true values illustrates these parameters’ influence on the under- and over-estimation of AOD. In Figure 3, we set the ‘true’ AOD to 0.08, and the curves were calculated using Equation (11). Figure 3 shows that it is impossible to retrieve AOD from satellite remote sensing under conditions at or close to the critical values because the uncertainty of AOD is infinite. This can be seen on the curves where the AOD retrieval errors approach infinity near the CSA, CSSA, and CAP (indicated by the vertical black dashed lines). For example, for the continental clean aerosol model (in Figure 3a), if the actual aerosol SSA is 0.7 and the critical SSA is 0.933, a $\pm$5% error in the SSA would results in small AOD retrieval errors because the actual SSA is far from the critical SSA. However, as one gets close to the critical SSA, a $\pm$5% error of SSA will induce a much larger error in the AOD retrieval. In contrast, if the simulated errors of surface albedo, single scattering albedo, and asymmetry parameter are small, say within a $\pm$5% interval, the retrieved AOD errors will be small, provided that the actual surface albedo, single scattering albedo, and asymmetry parameter are far enough away from their critical values (i.e., CSA, CSSA, and CAP).

As shown in Figure 3, for surface albedo less than the CSA, overestimating the surface albedo will result in an underestimated AOD, that is, a positive retrieval error in this example. However, when it comes to the positive departure of surface albedo from the CSA, a negative retrieval error of the surface albedo value will introduce an overestimated AOD. Likely, for single scattering albedo smaller (larger) than the CSSA or asymmetry parameter smaller (larger) than the CAP, an overestimation of the single scattering albedo or asymmetry parameter turns out to be an overestimation (underestimation) of AOD and therefore a negative (positive) retrieval error. This behavior can be seen for the single scattering albedo and asymmetry parameter impacts on the AOD errors indicated by the curves for each aerosol model in Figure 3.

An interesting finding is that for the urban aerosol model with strong absorption characteristics (see Figure 3d), quite low AOD retrieval errors are noticeable over extremely bright surfaces provided an aerosol retrieval algorithm that does not rely on the surface being darker than the aerosol [68]. This is an indication that higher reflectance surfaces, such as those covered by fresh snow and ice, will promise a more accurate satellite retrieved AOD of strongly absorbing aerosols (e.g., black carbon). The concern for very bright desert regions, a major natural source of desert dust, is having a surface albedo near the CSA but without available accurate satellite AOD measurements [38,47]. Understanding the CSA might improve both AOD and SSA retrievals in arid and semi-arid environments and would offer an incentive to carefully evaluate albedo products for bright surfaces derived from remote sensing data.

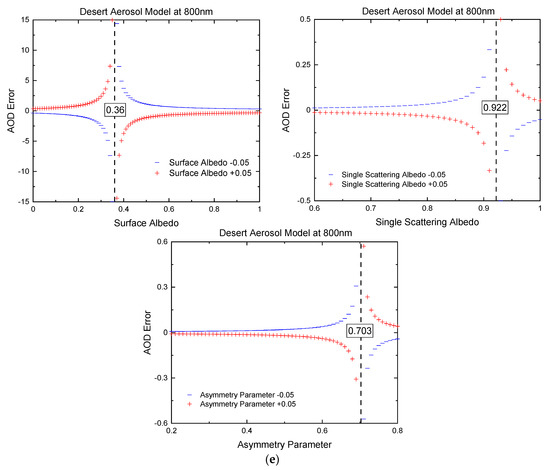

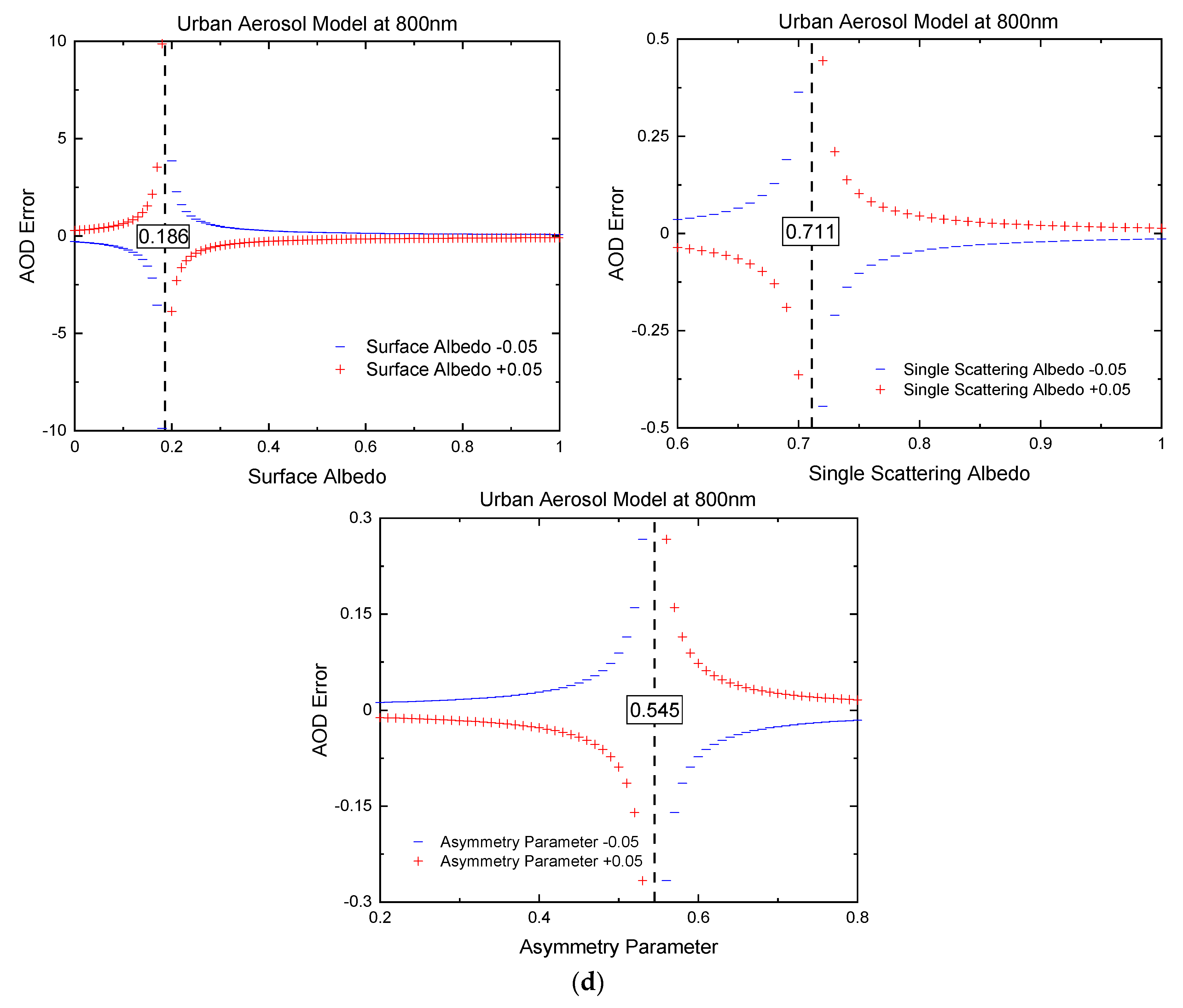

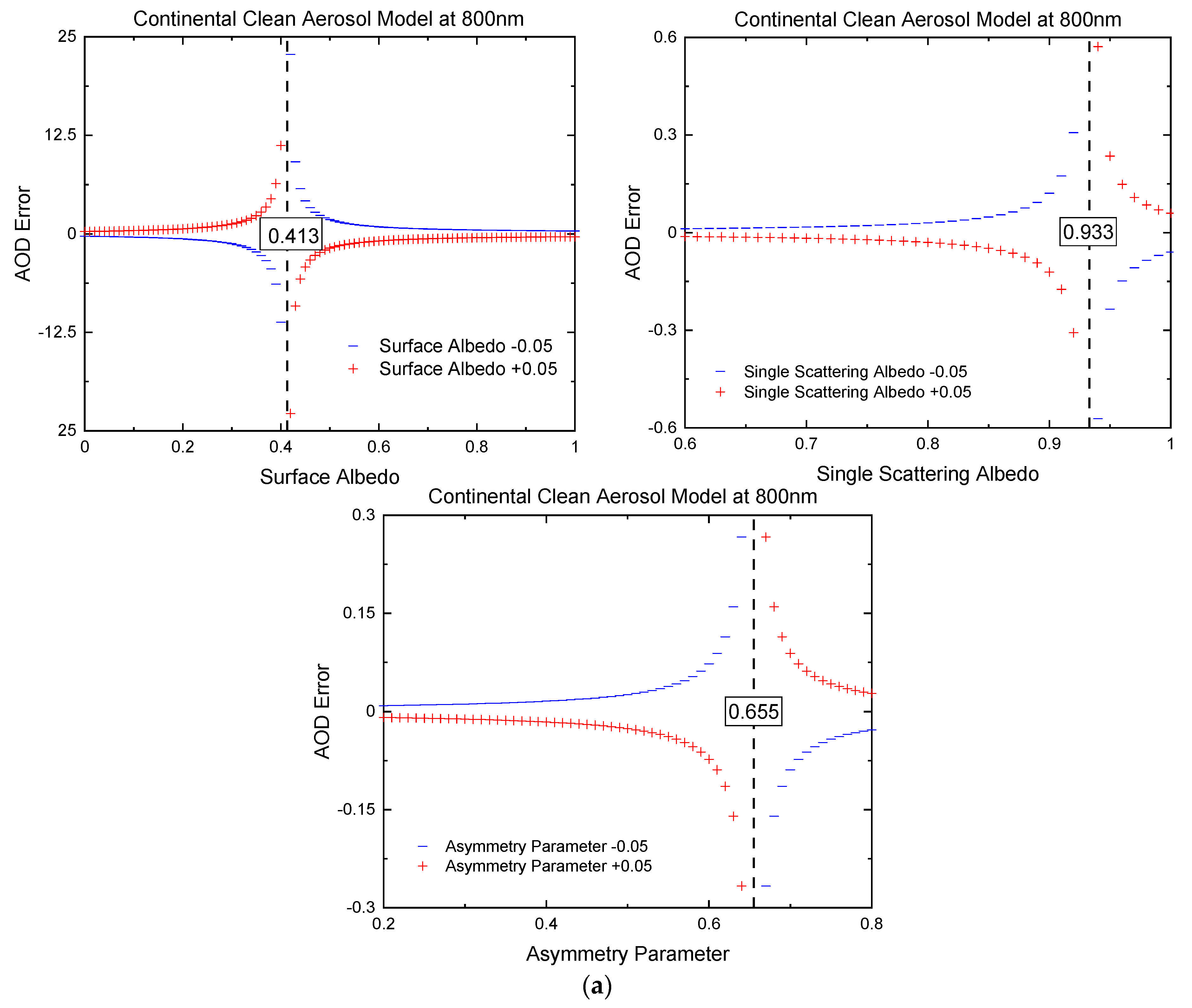

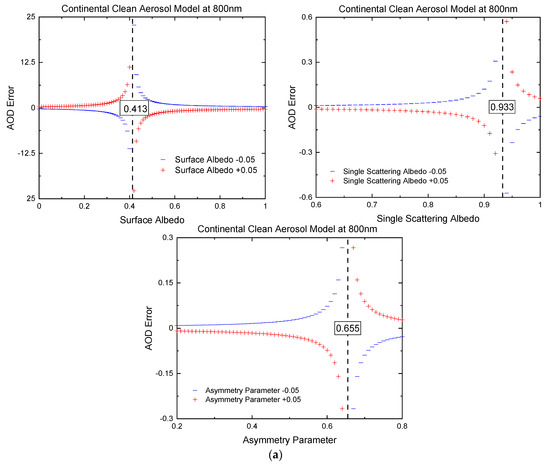

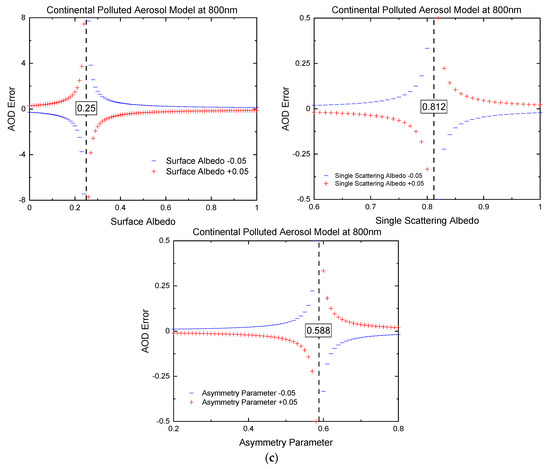

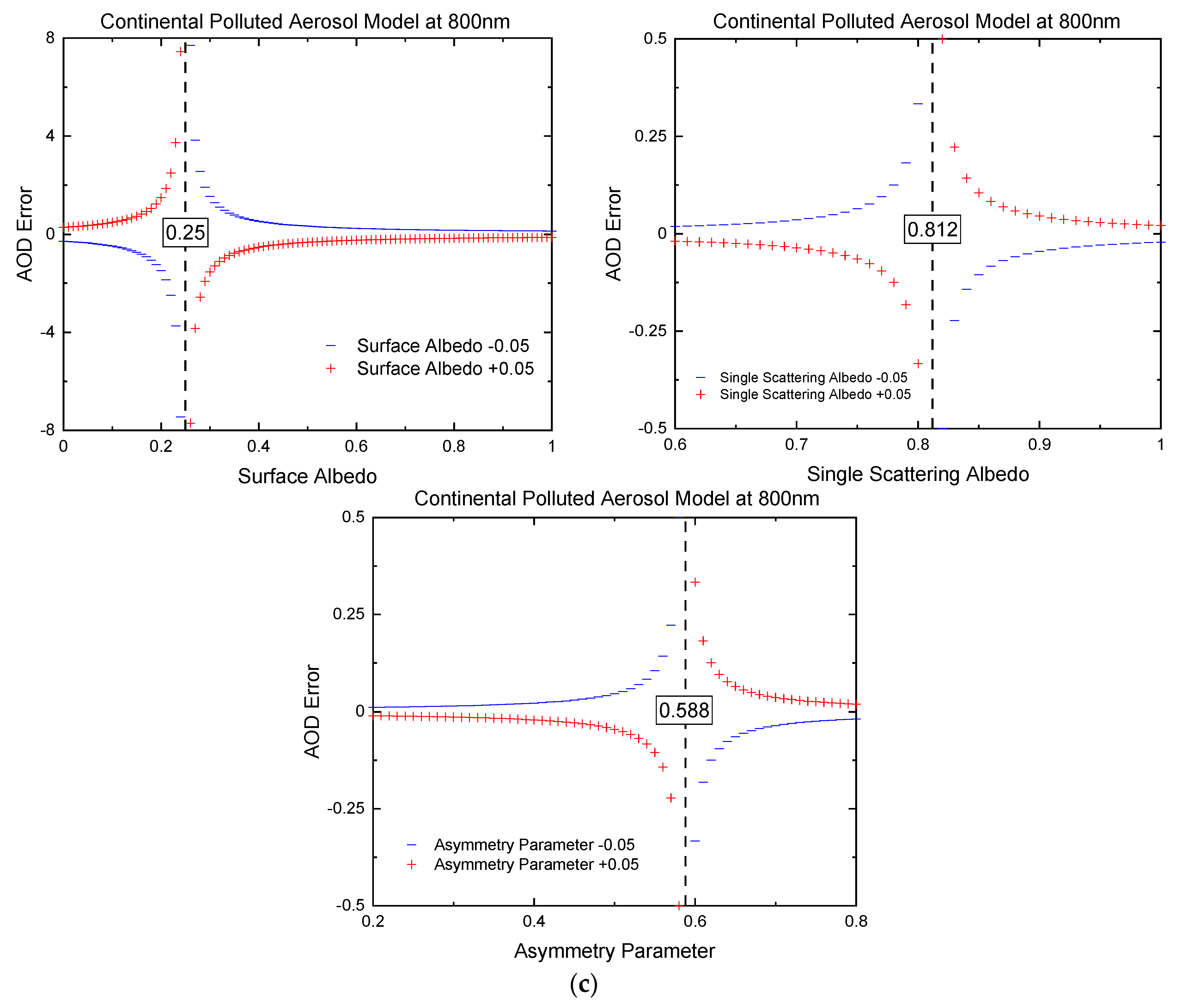

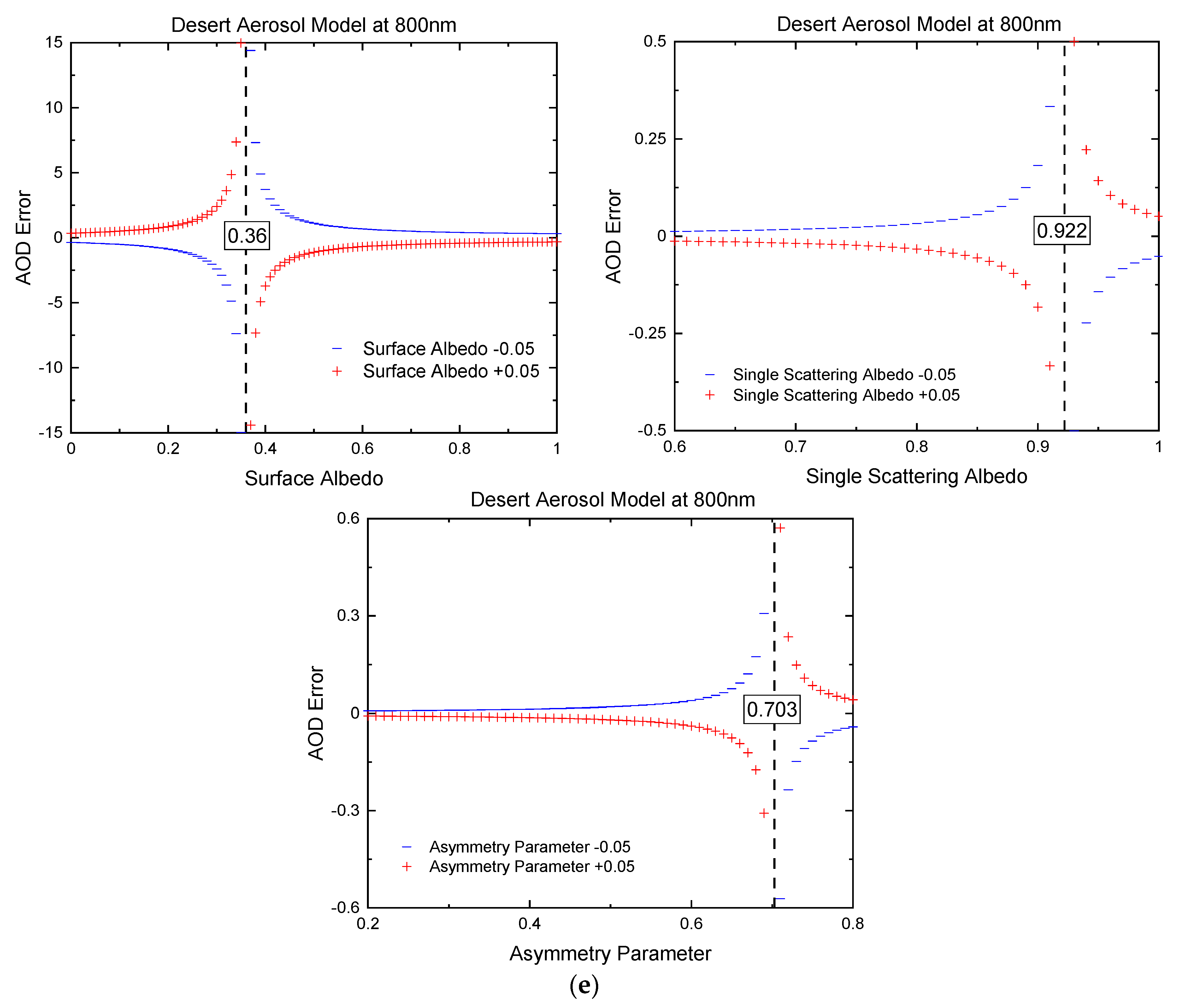

Figure 3. AOD errors for an AOD of 0.08 as function of surface albedo (top left), single scattering albedo (top right) and asymmetry parameter (bottom) for a continental clean (a), continental average (b), continental polluted (c), urban (d) or desert (e) aerosol model at the wavelength of 800 nm. The red plus sign denotes an overestimation of surface albedo (single scattering albedo or asymmetry parameter) by +0.05 and the blue minus sign denotes an underestimation of surface albedo (single scattering albedo or asymmetry parameter) by −0.05. The critical values are given in the box along with the dashed line.

Figure 3. AOD errors for an AOD of 0.08 as function of surface albedo (top left), single scattering albedo (top right) and asymmetry parameter (bottom) for a continental clean (a), continental average (b), continental polluted (c), urban (d) or desert (e) aerosol model at the wavelength of 800 nm. The red plus sign denotes an overestimation of surface albedo (single scattering albedo or asymmetry parameter) by +0.05 and the blue minus sign denotes an underestimation of surface albedo (single scattering albedo or asymmetry parameter) by −0.05. The critical values are given in the box along with the dashed line.

5.3. Real World Case Study

Nevada’s Black Rock Desert (BRD) is a semi-arid area covered by a series of lava beds, playa, and alkali flats, located in the far northwestern Nevada section of the Great Basin with a lakebed that is a dry remnant of the prehistoric Lake Lahontan. Predominant natural aerosol sources in the semi-arid environments come from windblown mineral dust [69]. Large quantities of wildfire-generated biomass burning aerosols in the east-northeast direction during the California fire season (May–October) are another primary aerosol source affecting the local air pollution [70]. In addition to the effects of dust episodes and wildfire smoke, relatively high particulate levels in the BRD region can result from the annual Burning Man event held in September.

The high surface reflectance over arid and semi-arid regions produces extensive non-random missing grid-specific satellite AOD values as they are quality flagged, which impairs the spatial-temporal coverage in observing local aerosols globally. Another challenge is AOD artifacts over very bright surfaces. For example, monthly averages of columnar AOD in the BRD region during the 2012 summer were abnormally high (~0.7) at 550 nm in the absence of anthropogenic or wildfire aerosol emissions [37]. This indicates that when the desert surface has an albedo value within the 0.4–0.5 range [38] that is smaller than the CSA (~0.55) and the corresponding scattering angle <100° [42], the underestimated satellite-retrieved surface albedo leads to unrealistically high AOD values over the BRD.

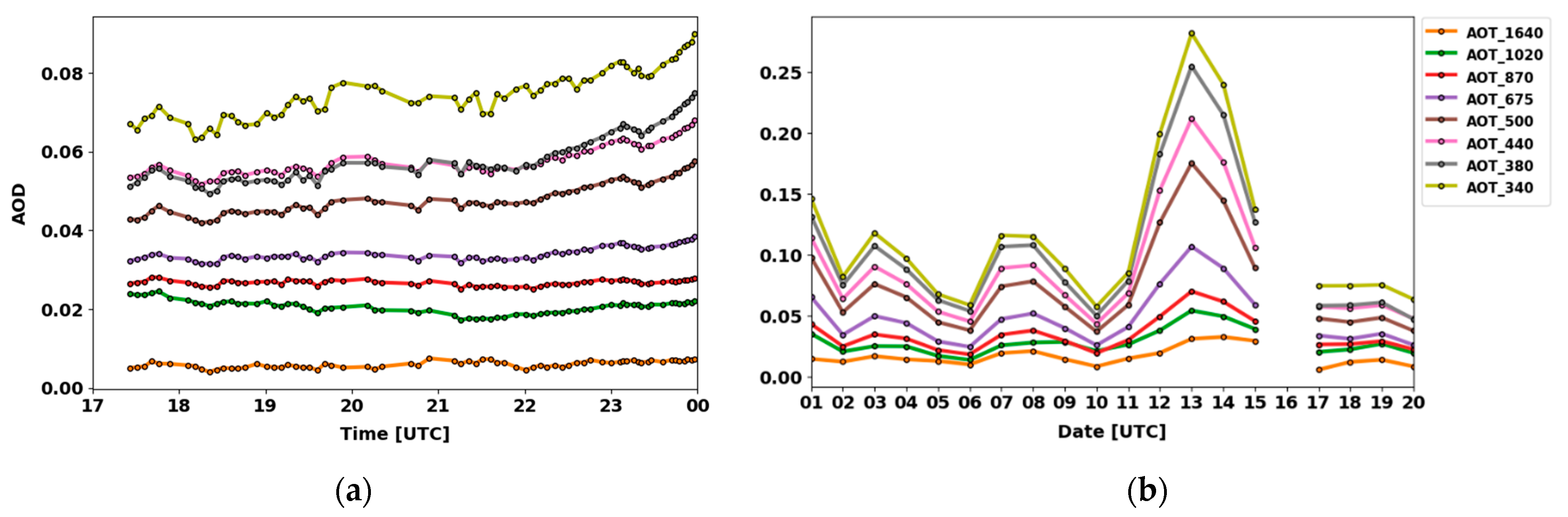

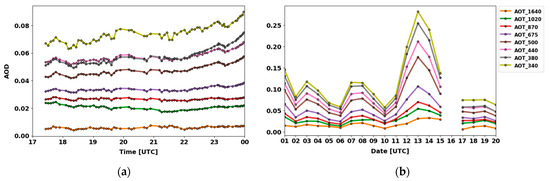

To illustrate the importance of quantifying AOD retrieval uncertainties associated with errors in A, SSA, and g, we use our 1-D model with real values from the BRD as a case study. Based on Boehmler et al. (2018) [38], the dry lake beds of the BRD have an actual albedo value of ~0.59 over non-road areas and ~0.56 over road locations for the wavelength range of 770–900 nm. Uncertainties in measured versus satellite estimated albedo propagate through to uncertainties in the satellite retrieved AOD. The albedo retrievals from Land Satellite 7 Enhanced Thematic Mapper Plus (Landsat-7 ETM+) manufactured by Lockheed Martin Space Systems in Denver, CO are lower than the measured albedometer values by 13.56% for non-road areas and 16.07% for road areas. AOD errors associated with uncertainties in surface albedo estimates over the BRD region can be explained by the closeness of the surface albedo to the CSA (0.36) for desert (mineral dust) aerosols. According to Equation (11a), the deviation of AOD (∆AOD, also known as AOD error) due to the difference in surface albedo is 1.16 when A ~0.59 for the non-road surface, assuming the aerosols are windblown dust. Extending this to calculate the AOD errors for a polluted air mass transported over the BRD, the deviation of AOD is 0.51 when A ~0.56 over the road surface. The AOD uncertainty associated with uncertainties in A decreases for the polluted air mass scenario because the CSA decreases, compared to mineral dust aerosols, and is significantly lower than the real albedo value. Physically, the CSA for the polluted scenario is less than the mineral dust because the aerosols are more absorbing, which, in turn, reduces the satellite AOD bias over deserts. We make additional calculations to determine uncertainties in AOD retrievals associated with the sensitivity of AOD to single scattering albedo and asymmetry parameter. For single scattering albedo, $\frac{\partial AOD}{\partial SSA}$ is 0.52 for desert aerosols around non-road areas but increases to 0.65 for continental polluted aerosols around road areas. For asymmetry parameter, $\frac{\partial AOD}{\partial g}$ is −0.03 for desert aerosols above non-road areas but tends to −0.04 for continental polluted aerosols above road areas. This indicates that selecting an inaccurate aerosol type from the LUT by mistake propagates the errors in SSA and g through to the retrieved AOD. The AOD uncertainties associated with each of these physical parameters are not insignificant. For mineral dust with a retrieved AOD value of 0.03 (approximate 870 nm AOD from Figure 2) above a non-road location and a polluted air mass with a retrieved AOD value of 0.1 above a road location, both have uncertainties far greater than 100%.

In light of the discussion above, the sign of the AOD retrieval error depends on the wavelength of the retrieval where it switches from negative to positive due to the actual albedo becoming larger than the CSA at the higher bands. Also, the low background aerosol concentrations in desert regions render the AOD uncertainty unreasonably large for any type of aerosol. Retrieving AOD for bright (e.g., mineral dust) aerosols over bright surfaces (e.g., deserts) is a more complicated process than retrieving AOD for dark (e.g., black carbon) aerosols over regions with high reflectance. Sparse AERONET sites in the remote areas of the western U.S. make it impossible to quantify the satellite AOD retrieval error in these areas. Thus, it is difficult to account for these errors in the current satellite AOD products, except for multiangle observations (e.g., MISR, ATSR-2, and AATSR) which have been shown to be less susceptible to CSA-related retrieval degeneracies [71,72]. Consequently, the sensitivity of AOD to the parameters A, SSA, and g are needed in future satellite algorithm development to investigate uncertainties in AOD retrievals over bright surfaces, especially semi-arid environments across the globe.

6. Conclusions

Previous studies mainly focused on applying the critical reflectance derived from satellite data to retrieve aerosol absorption [45,46,47,48]. Seidel and Popp (2012) [42] summarized the relationships of CSA with various parameters such as SSA, scattering angle, and wavelength. Our goal is to complement these investigations by estimating the satellite AOD uncertainty based on a 1-D radiative transfer model and determining the CSA, CSSA, and CAP using this model. The sensitivity analysis of TOA reflectance as a function of surface albedo, single scattering albedo, and asymmetry parameter to AOD as well as the resulting CSA, CSSA, and CAP is comprehensively discussed through physical examples of each parameter and its impact on AOD retrievals.

This study concludes that satellite AOD retrievals under conditions when A, SSA, or g are close to the CSA, CSSA, or CAP would give rise to large errors due to the observed TOA radiance’s low sensitivity to the retrieved quantity. In such a case, we find that even small inaccuracies of the model-based or measurement-based estimated surface albedo and aerosol optical properties lead to large AOD retrieval errors. When surface albedo is smaller than the CSA, an overestimation of surface albedo (+5%) leads to the underestimated retrieved AOD and thus a positive retrieval error ($∆AOD>0$). The same AOD pattern holds when the single scattering albedo or asymmetry parameter is larger than the critical value (CSSA or CAP) with an overestimation of single scattering albedo or asymmetry parameter (+5%). These critical values would be great supplements to satellite aerosol retrieval algorithms by considering the AOD retrieval accuracy given different aerosol types over multiple surfaces. Results in this paper also reaffirm that the retrieval error in AOD becomes negligible for two cases: (1) strongly absorbing aerosols with high surface reflectance; (2) weakly absorbing aerosols over dark land surfaces. The methods provided in this paper can be used for the development and refinement of satellite-based AOD estimation using the CSA, CSSA, and CAP concepts. In particular, the quick, simplified model shown here can be used to target which improvements to make in the retrieval algorithms and provide an initial estimate of the associated AOD uncertainty.

Establishing a simple and fast radiative transfer model of atmospheric aerosols to estimate AOD uncertainties not only facilitates data use, but it also better informs scientific users of the AOD retrieval quality by establishing a method to quantify uncertainties. In the future, additional sensitivity analyses for the analytical solution of the TOA reflectance as a function of AOD needs to be done with a variety of parameters (e.g., surface albedo, single scattering albedo, asymmetry parameter, wavelength, solar zenith angle, viewing zenith angle). The uncertainty analysis of satellite AOD in this paper is useful but can only describe limited aspects of the uncertainty—the ‘unknowns’ that are known and quantifiable. More complex systematic errors in the model approximations and assumptions can be incorporated in an updated version of the radiative transfer model.
