Article

Monitoring Small Water Bodies Using High Spatial and Temporal Resolution Analysis Ready Datasets

1
Center for Geospatial Analytics, North Carolina State University, 2800 Faucette Drive, Raleigh, NC 27606, USA
2
Planet Labs Inc., San Francisco, CA 94107, USA
3
USDA-ARS Delta Water Management Research Unit, Arkansas State University, Jonesboro, AR 72467, USA
4
Center for Applied Earth Science and Engineering Research, The University of Memphis, 11 3675 Alumni Drive, Memphis, TN 38152, USA
*
Author to whom correspondence should be addressed.
Remote Sens. 2021, 13(24), 5176; https://doi.org/10.3390/rs13245176
Submission received: 17 November 2021 / Revised: 11 December 2021 / Accepted: 13 December 2021 / Published: 20 December 2021
(This article belongs to the Topic Water Management in the Era of Climatic Change)

Abstract

:
Basemap and Planet Fusion—derived from PlanetScope imagery—represent the next generation of analysis ready datasets that minimize the effects of the presence of clouds. These datasets have high spatial (3 m) and temporal (daily) resolution, which provides an unprecedented opportunity to improve the monitoring of on-farm reservoirs (OFRs)—small water bodies that store freshwater and play important role in surface hydrology and global irrigation activities. In this study, we assessed the usefulness of both datasets to monitor sub-weekly surface area changes of 340 OFRs in eastern Arkansas, USA, and we evaluated the datasets main differences when used to monitor OFRs. When comparing the OFRs surface area derived from Basemap and Planet Fusion to an independent validation dataset, both datasets had high agreement (r2 ≥ 0.87), and small uncertainties, with a mean absolute percent error (MAPE) between 7.05% and 10.08%. Pairwise surface area comparisons between the two datasets and the PlanetScope imagery showed that 61% of the OFRs had r2 ≥ 0.55, and 70% of the OFRs had MAPE <5%. In general, both datasets can be employed to monitor OFRs sub-weekly surface area changes, and Basemap had higher surface area variability and was more susceptible to the presence of cloud shadows and haze when compared to Planet Fusion, which had a smoother time series with less variability and fewer abrupt changes throughout the year. The uncertainties in surface area classification decreased as the OFRs increased in size. In addition, the surface area time series can have high variability, depending on the OFR environmental conditions (e.g., presence of vegetation inside the OFR). Our findings suggest that both datasets can be used to monitor OFRs sub-weekly, seasonal, and inter-annual surface area changes; therefore, these datasets can help improve freshwater management by allowing better assessment and management of the OFRs.

Graphical Abstract

1. Introduction

Planet Labs currently operates more than 200 PlanetScope satellites in sun-synchronous orbits and frequently launches new satellites that are designed to have a short operational lifetime (<4 years). The PlanetScope satellite constellation enables near-daily monitoring with multi-spectral imagery at high spatial resolution (3 m) [1]. PlanetScope imagery has been applied to a variety of studies to monitor phenomena that require both high spatial and temporal resolution, for instance, to monitor small water bodies [2,3,4], estimate methane emissions from forested wetlands [5], assess river-ice and water velocity [6], improve crop leaf-area-index estimation with sensor data fusion [7,8,9], and monitor near-real-time aboveground carbon emissions from tropical forests [10,11,12].
A recent global analysis of PlanetScope’s temporal availability [13] showed that the annual and monthly number of PlanetScope observations does not vary uniformly across the globe. The authors attributed this finding to different PlanetScope orbits (i.e., altitude and inclinations), due to different numbers of sensors in orbit, which vary when PlanetScope satellites are decommissioned and replaced with new sensors, and due to images that cannot be geolocated [13]. In addition, it is well known that the number of observations from optical wavelength satellite imagery will vary according to dynamic and global cloud obscuration. While the PlanetScope cloud mask, Usable Data Mask 2 (UDM2), is available [1] and allows for discernment of classes like cloud, cloud shadow, and heavy, haze among others, its accuracy has not been thoroughly assessed [13,14,15] and it is not available for images prior to 2018 [1]. Aiming to overcome these limitations—irregular cadence and cloud obscuration—and to increase the applications of PlanetScope imagery, Planet Labs has focused on developing the next generation of tiled analysis ready datasets—Basemap [16] and Planet Fusion [17]—which are less affected by the presence of clouds and are set for a fixed temporal cadence.
Basemap is generated by mosaicking the whole or part of the highest quality PlanetScope imagery, which is selected based on cloud cover and image acutance (i.e., sharpness). For example, for a given period of interest—Basemap can be processed using different image cadences, e.g., daily, weekly, biweekly—PlanetScope images are ranked based on these metrics such that cloud-free images have higher scores than cloudy images [16,18]. Basemap is designed to monitor changes over time and for analytics-driven use cases, and it has been applied to several research projects, including monitoring of forest biomass [10,11,12], to assess carbon emissions from drainage canals [19], and to monitor coral reef map probabilities [20]. Planet Fusion, on the other hand, is based on the CubeSat-enabled spatiotemporal enhancement method [8], and it leverages the high spatial and temporal resolution provided by PlanetScope scenes with rigorously calibrated publicly available multispectral satellites (i.e., Sentinel-2, Landsat, MODIS, and VIIRS) to provide daily and radiometrically consistent and gap-filled surface-reflectance images that are free of clouds and shadows [17]. Planet Fusion is suitable to assess inter-day changes, for time-series analysis, and monitoring of disturbances of Earth’s surface. Recently, Planet Fusion has been applied to monitor crop phenology, using the normalized difference vegetation index and leaf area index [21,22]. Given that these datasets are cloud-free and processed to have daily cadence at high spatial resolution—both Basemap and Planet Fusion have 3 m pixel size—they provide an unprecedented opportunity to improve the monitoring of dynamic small water bodies, for instance, on-farm reservoirs (OFRs) that are used by farmers to store water during the wet season and for crop irrigation during the dry season. OFRs have a dynamic surface area time series, especially during the crop-growing season, when farmers are irrigating their crops and may pump water from nearby streams [23,24,25].
There are more than 2.6 million OFRs in the USA alone, and these OFRs play a key role in surface hydrology by storing fresh water and as an essential component of global irrigation activities [26,27,28]. Nonetheless, OFRs can contribute to downstream water stress by decreasing stream discharge and peak flow in the watersheds where they are built [24,29,30]. Therefore, monitoring OFRs sub-weekly surface area changes is critical to the assessment of their seasonal and inter-annual variability, as well as to mitigation of their downstream impacts, with implications concerning how OFRs are managed and where they are built. Previous research assessed the spatial and temporal variability of OFRs by leveraging the long-term (≥25 years) Landsat-based inundation datasets [23,31,32]. Nonetheless, these datasets are limited to a few annual observations—due to clouds, sensor issues, and the 16-day repeat cycle—and Landsat’s spatial resolution (30 m) limits the applications of these datasets to monitor OFRs smaller than 5 ha (i.e., high surface area uncertainties ~ 20%). Aiming to overcome these limitations, other studies [4,33,34] have applied a multi-sensor satellite imagery approach, including sensors of higher spatial and temporal resolution (e.g., PlanetScope [3 m] and Sentinel-2 [10 m]) when compared to Landsat. However, a multi-sensor approach requires processing of satellite imagery of different spatial resolution from multiple platforms, which can be time-consuming and a limiting factor if it is necessary to process, download, and move the satellite imagery across multiple platforms [33]. In this study, we propose a novel use of the analysis ready datasets Basemap and Planet Fusion, and we aim (1) to assess the usefulness of both datasets to monitor OFRs sub-weekly surface area changes and (2) to compare the two datasets and describe their differences when used to monitor OFRs.

2. Methods

2.1. Study Region

Eastern Arkansas is one of the largest irrigated regions in the USA that has seen a rapid increase in the number of OFRs during the last 40 years [35,36,37]. The region has a humid subtropical climate with an average annual precipitation of 1300 mm, mostly distributed between March and May and November and January [23]. Recent studies [35,36] mapped the spatial distribution of 340 OFRs with surface area <30 ha and distributed across three sub-watersheds in the study region (Figure 1). The OFR dataset was manually mapped using the high-resolution (1 m) National Agriculture Imagery Program archive in combination with 2015 Google Earth satellite imagery. The authors of the OFR dataset used Google Earth Explorer to sharpen the image details when zooming in and to provide a validation for features appearing indistinct or pixelated in the 1-m mosaic imagery [35]. We assigned the OFRs to three size classes (0.1–5 ha, 5–10 ha, and 10–30 ha) based on the surface area mapped in the OFR dataset. These classes were used to support the surface area monitoring analyses when accounting for different OFR sizes (Figure 1).
We downloaded PlanetScope images and processed daily Basemap and Planet Fusion images between July 2020 and July 2021. This time frame was chosen based on the imagery availability to generate both analysis ready datasets. The images spatial resolution and band-wavelength ranges are presented in Table 1. In addition, the general workflow used to assess the OFRs’ surface area time series is provided in Figure 2.

2.2. Satellite Imagery Datasets

2.2.1. PlanetScope CubeSat Surface-Reflectance Ortho Tiles

We used the OFRs’ shapefile to search for and clip Level 3A surface-reflectance imagery available through Planet Orders API. The PlanetScope surface-reflectance ortho tiles use a fixed UTM grid system in 25 km by 25 km tiles with 1 km overlap [1]. We filtered out all images with more than 10% cloud using an image-based cloud-cover filter—this cloud-cover filter threshold allowed us to download mostly cloud-free images; however, because it is an image-based filter rather than an OFR or area-of-interest-based cloud filter, some useful observations (i.e., when the OFR is not covered with clouds but the image is filtered out) were not downloaded, decreasing the total number of observations per OFR. In addition, to deal with potential cloud-obscuration outliers, we used the PlanetScope UDM2 to filter out all image clips that contained more than 5% unusable pixels (i.e., pixels covered by clouds, cloud shadow, with light and heavy haze).
The PlanetScope ortho tiles were resampled to 3 m and projected using the WGS84 datum. The ortho tiles were radiometrically, sensor, and geometrically corrected and aligned to a cartographic map projection. These images were atmospherically corrected using the 6S radiative transfer model with ancillary data from MODIS [1,38,39], and the positional accuracy has been reported to be smaller than 10 m [1].

2.2.2. Normalized Surface-Reflectance Basemap

We processed daily Basemap images corrected to surface reflectance using PlanetScope scenes, and a “best scene on top” algorithm [16,18] that selects the highest quality imagery from the PlanetScope catalog. This algorithm ranks the PlanetScope scenes based on their quality by assessing the scenes’ acutance (i.e., sharpness), the fraction of cloud cover, cloud shadow, haze, and presence of unusable pixels (e.g., no data). Briefly, this algorithm is based on a linear regression model approach that uses the clear pixels from the best-ranked scenes; we selected the best scenes first, then progressed successively until the images were filled or no scenes remained [18]. To obtain Basemap at a daily cadence, we employed a 30-day rolling window that may use PlanetScope scenes collected up to 15 days before or after the target date; however, if no usable pixels (i.e., cloud-free) are available in this time range, the image will contain no data. We did not observe any Basemap image with no-data in our study period. The rolling window approach weights on the image recency, for instance, a slightly hazy scene (e.g., ~<10% hazy pixels) on the day of the Basemap image, will score higher than a very clear scene (i.e., no haze) from a few days before/after. In addition, due to the daily cadence, there may be Basemap images with the same PlanetScope scene composition, which leads to repetitive information when using the Basemap images to monitor OFRs.
Basemap images were generated employing a two-step process: normalization and seamline removal. Normalization aims to radiometrically calibrate the Basemap images and to minimize the scene-to-scene variability when mosaicking PlanetScope scenes. For this step, the Framework for Operational Radiometric Correction for Environmental Monitoring (FORCE) [40] was used to generate a combined Landsat 8 and Sentinel-2 surface-reflectance product to be used as the “gold” radiometric reference during normalization. FORCE infers surface reflectance from Landsat 8 and Sentinel-2 by employing the 5S (simulation of the satellite signal in the solar spectrum) approach [41]. The aerosol optical depth is estimated using a dark-object-based approach where in water vapor content is derived from Landsat 8 (obtained from MODIS database) and Sentinel-2 (estimated on a pixel-specific basis) imagery. In addition, clouds and shadows are detected using a modified version of Fmask [42] for Sentinel-2 images [43] (see [16,17,44] for further details). An assessment of the FORCE atmospheric correction was performed as part of the atmospheric correction inter-comparison exercise [45], and the FORCE implementation uses the Landsat 8 and Sentinel-2 imagery mapped onto a common UTM grid to produce 30 m spatial-resolution imagery. Seamline removal enhances the visual appearance of the Basemap image edges. In this step, each PlanetScope scene used in the Basemap mosaic is set to match its neighbor—pixel values near a scene boundary change more than values away from the boundary; however, the pixel values are not modified. Specifically, we first calculated the Basemap mosaic pixel values gradient, then set the gradient values between 1 and 0 (scene boundary) and fixed the original pixel values along the Basemap mosaic edge. This process was applied independently for each band; therefore, it may alter band ratios near scene edges—this is most apparent when scenes do not match locally, for instance, for unmasked clouds. Lastly, the seamline removal may introduce artifacts (e.g., straight lines, distortions) at the Basemap mosaic boundary, which is most frequent over water when normalization cannot fully correct for differences between scenes due to waves and sun glint.

2.2.3. Planet Fusion Surface Reflectance

We processed Planet Fusion images using an algorithm based on the CubeSat-enabled spatiotemporal enhancement method [8], which enhances, inter-calibrates, and fuses satellite imagery from multiple sensors. Planet Fusion has unique features, including (1) precise co-registration and sub-pixel fine alignment for different image sources, (2) PlanetScope scenes with near-nadir field of view, resulting in minimal bidirectional reflectance distribution function (BRDF) variation effects, and (3) pixel traceability to identify imagery sources and to assess the confidence of daily gap-filled images.
To generate Planet Fusion surface-reflectance images, we used the same approach described for Basemap (i.e., FORCE [40]), with top-of-atmosphere (TOA) PlanetScope scenes (3 m), Sentinel-2 TOA reflectance (10–20 m), Landsat 8 TOA reflectance (30 m), and daily tile-based MODIS or VIIRS normalized to a nadir-view direction and local-solar-noon surface reflectance. The Planet Fusion algorithm uses MODIS MCD43A4 surface-reflectance product in seven spectral bands that are corrected for reflectance anisotropy using a semi-empirical BRDF [46], which utilizes the best observations collected over a 16-day period centered on the day of interest. In addition, VIIRS products (VNP43IA4 and VNP43MA4) are used as a backup to ensure continuity if MODIS data is not available.
The Planet Fusion algorithm guarantees spatially complete and temporally continuous images by gap-filling radiometric data (i.e., synthetic pixel values). The gap-filling process uses both spatial (i.e., neighboring and class-specific pixel information) and temporal interpolation techniques to estimate the pixel values. In general, uncertainty will vary based on Earth’s surface characteristics (e.g., vegetation dynamic changes), and it will be higher for longer daily interval gaps. Planet Fusion images are accompanied by a quality-assurance product, which is a thematic raster layer using the same spatial grid (i.e., UTM grid system in 24 km by 24 km tiles) as the corresponding Planet Fusion spectral data [17]. We used the quality-assurance product to assess the percentage of synthetic (i.e., gap-filled) versus observation data (PlanetScope and Sentinel-2) used to generate the pixel value. The observation data can be a combination of PlanetScope and Sentinel-2. A value of 1 indicates no gap-filling, whereas a value of 100 indicates an entirely gap-filled pixel value. Specifically for our study case, when clipping Planet Fusion images using the OFR boundaries, the clips can have real pixels, synthetic pixels, or a combination of both. Additionally, there are known issues associated with the gap-filling process used by the Planet Fusion algorithm, including false cloud or cloud-shadow detection and image artifacts (e.g., strips, distortions). These issues are most common during prolonged cloudiness and in study regions with significant terrain shadowing.

2.3. Data Analysis

To classify the OFR surface area from PlanetScope, Basemap, and Planet Fusion, we clipped all available images using each OFR shapefile buffered to 100 m. Then, we calculated the normalized difference water index (NDWI) using the green and NIR bands [47], and we applied an adaptive Otsu threshold [48] for each image in the time series to separate water from non-water pixels. The Otsu threshold is a well-known algorithm used to classify surface water of inland water bodies [2,4,49,50,51,52,53]. In addition, the Otsu threshold optimizes the separability of pixel values is contingent on the bimodal distribution of the pixel values (i.e., water and non-water pixels), which was ensured by clipping the satellite imagery using each OFR shapefile. After calculating the Otsu threshold and separating water from non-water pixels, we clipped the images one more time using the OFRs’ shapefiles buffered at 20 m. This last step was done to minimize the impact (i.e., inflating surface area) of adjacent water bodies when estimating OFR surface area. All surface area image classification was done in Google Earth Engine [54].
PlanetScope has a near-daily revisit time; however, the number of usable satellite images varies throughout the year due to the presence of clouds and sensor-related issues. To assess the number of different PlanetScope observations, we first counted the total number of observations for each OFR and for each month; then, we plotted the monthly distribution of this number, including all OFRs (i.e., one boxplot for each month of the year that represents the variability in the number of monthly observations according to different OFRs). In addition, we evaluated the total number of different observations for each OFR along the year (i.e., a histogram that represents the distribution of the total number of observations for each OFR). A similar approach was used to assess the number of different Basemap observations and to count the number of Planet Fusion observations that were real, mixed (i.e., including real and synthetic pixels), and synthetic. Basemap images with the same PlanetScope scene composition were counted only once.
For the different OFR surface area size classes (Figure 1), we assessed the uncertainties in the Basemap and Planet Fusion images by pairwise comparing them with PlanetScope and calculating the percent error (Equation (1)) monthly distribution and the monthly mean absolute percent error (MAPE; Equation (2)). In addition, for Planet Fusion, we divided the pairwise comparisons between real, mixed and synthetic surface area observations. We illustrated the surface area time series derived from PlanetScope, Basemap, and Planet Fusion for six OFRs of different sizes (Table 2). These OFRs were chosen to demonstrate the surface area time series variability from the different images and for OFRs located under different environmental conditions (e.g., presence of vegetation inside the OFR, close to adjacent water bodies, a multi-part OFR). In addition, we overlaid the OFRs’ shapefile on high-resolution Google Maps satellite imagery to show the environmental conditions where the OFRs are located.
Percent error ( % ) = ( ( y i x i ) / x i )   100
Mean absolute percent error ( % ) = 1 n Σ | y i x i x i | 100
where x i is the SkySat or PlanetScope surface area and y i is the Basemap or Planet Fusion surface area.

2.4. Validation Scheme

To validate the surface area classification using the Otsu thresholding approach, we downloaded five orthorectified and multispectral SkySat images [17] (Blue: 0.450–0.515 µm, Green: 0.515–0.595 µm, Red: 0.605–0.695 µm, and NIR: 0.740–0.900 µm) at sub-meter (0.66–0.73 m) spatial resolution (Table 3). For each image, we overlaid the OFR geometry and manually delineated the OFR surface area, which resulted in 144 validation surface areas from 71 different OFRs for multiple observations in time. Then, we conducted a pairwise comparison of the validation surface area with the surface area obtained from PlanetScope, Basemap, and Planet Fusion. When the PlanetScope surface area date did not correspond exactly to the SkySat dates, we used the closest observation in time, which had a maximum difference of three days before or after the SkySat date. In addition, we assessed the uncertainties of PlanetScope, Basemap, and Planet Fusion for different surface area size classes: 0.1–5 ha (n = 50), 5–10 ha (n = 46), and 10–50 ha (n = 48).

3. Results

3.1. Surface Water Area Validation Using SkySat Imagery

The surface area obtained from PlanetScope, Basemap, and Planet Fusion showed great agreement (r2 ≥ 0.98) with the validation dataset. In addition, PlanetScope had the smallest MAPE (8.09%), followed by Basemap (8.21%) and Planet Fusion (9.17%) (Figure 3). When splitting the validation surface area observations into different size classes (Table 4), all three image sources presented similar agreement (r2 ≥ 0.87), and the highest r2 values were found for surface area observations between 10 and 30 ha (r2 ≥ 0.95). All three sources had a similar MAPE for observations between 0.1 and 5 ha (~7.55%) and between 10 and 30 ha (~7.98%), while the highest values were found for observations between 5 and 10 ha (~10.27%).

3.2. Number of Surface Area Observations per Dataset

The number of PlanetScope observations varied throughout the year and varied across different OFRs (Figure 4). The months with the highest number of PlanetScope images were November–December 2020 (~17) and March–April 2021 (~14), while the months with the lowest numbers were July–September 2020 (<10) and February 2021 (<3) (Figure 4A). In addition, most of the OFRs (~60%) had 80–100 PlanetScope observations per year (Figure 4B). Basemap images were processed at a daily cadence, and we considered a new Basemap observation every time a new image composite was used. In this regard, the number of Basemap images followed a similar pattern found for PlanetScope; however, the mean number of Basemap observations per month was higher than of PlanetScope in 10 out of the 12 months analyzed, and most of the OFRs (~75%) had 90–120 Basemap observations per year (Figure 4A,B).
Planet Fusion images were derived from real and synthetic pixel values, and the number of real and synthetic observations varied throughout the year (Figure 4C). The number of images derived from real pixels reached its peak (~13–15) between November and December 2020, and the lowest numbers were found in February 2021 (~2) and between May and June 2021 (<5). In general, most of the OFRs had ~ 80–100 real observations per year. The number of mixed images (i.e., composed by real and synthetic pixels) tended to be < 10 for all months, and most of the OFRs had <50 mixed observations per year (Figure 4C,D). The number of synthetic images is higher than real and mixed observations for all months of the year, and the highest values (~22–26) occurred in July 2021 and May–June 2020, with the lowest values between November and December 2020 (~14–16) (Figure 4C). In addition, most of the OFRs had ~250–260 synthetic observations per year (Figure 4D).

3.3. Planet Fusion Comparison with PlanetScope

We found a high agreement (r2 ≥ 0.90) for the same-day surface area pairwise comparisons between Planet Fusion and PlanetScope for all size classes (Figure 5). MAPE decreased as observations increased in size, and the highest MAPE values were found for synthetic, mixed, and real for all size classes (Figure 5). The number of pairwise comparisons for real was higher than mixed and synthetic, to a large extent (~60%). This finding is somewhat expected, as the Planet Fusion algorithm uses PlanetScope images as an input to generate daily Planet Fusion imagery.

3.4. Monthly Comparisons between Basemap and Planet Fusion with PlanetScope

When comparing each OFR surface area time series derived from Basemap and Planet Fusion with PlanetScope, for both datasets, most of the OFRs (63% and 61% for Basemap and Planet Fusion, respectively) showed good agreement with r2 ≥ 0.55, and 74% and 70% of the OFRs presented small uncertainties with MAPE <5% (Figure 6).
The mean monthly percent error—calculated by comparing Basemap and Planet Fusion with PlanetScope—for Basemap and Planet Fusion varied between −2.45–1.48% and between −3.36%–1.66% for 0.1–5 ha, between −2.88–1.11% and between −3.56–0.51% for 5–10 ha, and between −2.23–0.53% and −3.13–0.76% for 10–30 ha. These values were stable throughout the year (Figure 7). The percent error variability decreased as the surface area observations increased in size, and the observations between 10 and 30 ha had the least variability. In addition, Planet Fusion presented smaller percent error variability when compared to Basemap for all size classes (Figure 7). The highest MAPE values for Basemap (4.73%) and Planet Fusion (5.80%) were found for observations between 0.1 and 5 ha, and the MAPE was <4.40% for all months for both Basemap and Planet Fusion for observations between 5 and 10 ha and 10 and 30 ha, respectively. This indicates that even when there are fewer PlanetScope images available to generate Basemap and Planet Fusion due to clouds, shadow, and haze, both products tend to have surface area uncertainties <5%.

3.5. OFR Surface Area Time Series

We selected six OFRs (Table 2) to illustrate the surface area time series derived from PlanetScope, Basemap, and Planet Fusion (Figure 8). The surface area time series show that different OFRs have different surface area change patterns. In general, the OFR surface area decreased between 20 July and 20 November (e.g., Figure 8, OFRs A–D), period of the year when farmers are irrigating their crops [23], and it increased between 21 January and 21 May, which are the months when the study region receives most of its annual precipitation [23].
When compared to PlanetScope and Basemap, Planet Fusion had a smoother surface area time series with less variability (e.g., Figure 8 OFRs A–D). In addition, the Planet Fusion time series was less affected by the presence of clouds and haze, which can increase or decrease OFR surface area. Even though we used a low cloud-cover threshold (<10%) for PlanetScope, there are several PlanetScope and Basemap images contaminated with cloud shadows and haze (e.g., Figure 8, OFR A, between 20 August and 20 September), indicating surface area ~20% larger than that of Planet Fusion. Other examples were observed between 20 July and 20 August and between 21 May and 21 June in Figure 8, OFR B, in which there were no PlanetScope images available and the Basemap shows abrupt changes in surface area—a drop of 20% and 15% for both dates—which were caused by the presence of cloud shadows and haze. In Figure 9, we highlighted the impact of clouds and haze for OFR A (16 August 2020) and OFR B (30 August 2020). For OFR A, PlanetScope and Basemap surface areas were ~20% larger than those of Planet Fusion, which is explained by the misclassification of water on the lower-right corner of the OFR. For OFR B, while the PlanetScope image had a surface area ~13% larger than that of Planet Fusion, the Basemap image indicated a surface area ~14% smaller. These discrepancies are caused by the presence of clouds in the PlanetScope image and haze in the Basemap image.
OFR surface water classification is impacted by the OFRs’ environmental conditions and their shape geometry. OFRs with complex geometries (e.g., not circular or square and shapes with a large number of edges) tend to have higher surface area classification uncertainties [33]. For example, Figure 8, OFR D, shows a multi-part OFR that may not have all parts inundated at the same time, which can explain part of the variability in the surface area time series for PlanetScope, Basemap, and Planet Fusion. The surface area time series from OFR E and OFR F (Figure 8) are influenced by the presence of vegetation within the OFRs. The presence of vegetation impacts surface water classification [5,33,55], leading to noisy surface area time series and abrupt changes (e.g., OFR E between 20 September and 21 January). In addition, the high variability in surface area for OFRs E and F is related to the presence of adjacent water bodies, which can inundate during flood events and contribute to changes on OFR boundary limits. We highlighted the impact of vegetation on the OFR E time series for two different occasions: 14 July 2020 and 16 October 2020 (Figure 10). During the first occasion, PlanetScope and Basemap indicated surface area (~9.5 ha) 95% greater than Planet Fusion (0.5 ha); on the second occasion, a contrasting scenario in which Planet Fusion surface area (12.25 ha) was 86% higher than that of PlanetScope and Basemap (~2 ha). These results shed light on the importance of assessing the OFR environmental conditions and how they impact the OFR surface area time series before employing these datasets to monitor surface area changes.

4. Discussion

The surface area validation carried out using multiple SkySat imagery showed that the methodology used to classify OFR surface area performed well for PlanetScope, Basemap, and Planet Fusion, with high agreement r2 ≥ 0.87 and MAPE between 7.05% and 10.08% for all image sources and all size classes (Table 4). Comparisons between Basemap and Planet Fusion with PlanetScope highlighted that most of the OFRs had good agreement with 61% of the OFRs with r2 ≥ 0.55, and small uncertainties with 70% of the OFRs with MAPE < 5% (Figure 6). Basemap and Planet Fusion presented similar monthly mean percent error (~−3–3%) and MAPE (~2.20–5.80%) throughout the year (Figure 7). In addition, percent error variability and MAPE decreased for the larger surface area observations (Figure 7). The highest monthly MAPE (5.80%) was found for Planet Fusion for observations between 0.1 and 5 ha, and the MAPE was ≤4.40% for Basemap and Planet Fusion for observations between 5 and 10 ha and between 10 and 30 ha. Furthermore, when analyzing the three Planet Fusion data categories (i.e., real, mixed, and synthetic), the greatest uncertainties were found for the synthetic images (MAPE ~ 5%), followed by mixed (MAPE ~ 4%) and real (MAPE ~ 3%) (Figure 5). These findings indicate that Basemap and Planet Fusion images can be employed to monitor OFRs with uncertainties < 10% when the sources are compared to the validation dataset and with uncertainties < 5% when compared to PlanetScope. However, time series obtained from Basemap and Planet Fusion can be highly variable (Figure 8E,F), as surface water classification can be impacted by the size of water bodies (Table 4, Figure 2, Figure 4 and Figure 6) and the environment in which OFRs are located (e.g., presence of vegetation within the OFRs; Figure 8, OFRs D–F).
The number of cloud-free observations offered by Basemap and Planet Fusion enlightens the potential of these datasets to monitor OFR surface area changes (Figure 4). Both datasets pose advantages when compared to a single sensor approach—employing PlanetScope alone (Figure 4), or other sensors, for example, Landsat [23,31,56], Sentinel 1 [57], and Sentinel-2 [58,59,60]—or a multi-sensor approach [4,33,34]. Briefly, the use of a single sensor is limited to a few observations a month, and in some periods of the year in eastern Arkansas, there could be weeks without a cloud-free image [33]. Although the number of observations is improved when employing a multi-sensor approach, daily to sub-weekly monitoring is not attainable unless an assimilation algorithm [33] is implemented. In addition, when implementing a multi-sensor approach, it is necessary to acquire the data from different platforms (e.g., Planet Explore, Sentinel Hub, and Google Earth Engine), which can be time-consuming and a limiting factor if it is necessary to process, download, and move the satellite imagery across multiple platforms. In this study, we demonstrated that Basemap and Planet Fusion imagery processing can be done entirely in the cloud environment by leveraging the integration of Planet’s Platform, Google Cloud Storage, and Google Earth Engine. This integration allows for swift analysis, and it can be used for other study regions without the need to acquire data from multiple platforms.
Daily OFR surface area time series derived from Basemap and Planet Fusion revealed important differences between the two datasets. In general, Basemap had higher surface area variability, and it was more susceptible to the presence of cloud shadows and haze when compared to Planet Fusion, which had a smoother time series with less variability and fewer abrupt changes throughout the year (Figure 8). The Planet Fusion algorithm combines data from multiple satellites to establish a baseline of OFR surface area time series by filling gaps with synthetic pixels. Nonetheless, the smoothing effect should be interpreted cautiously, as some changes in the time series due to large rainfall events or frequent irrigation activities may be smoothed out. This is especially relevant for the periods of the year when there are more synthetic observations (Figure 4) and the uncertainties in surface area tend to be higher (Figure 5). Additionally, because Planet Fusion is based on a robust algorithm that uses data from various satellites, this dataset requires more image processing steps and higher computing power when compared to Basemap, which is generated at a faster speed with lower processing costs. Meanwhile, the Basemap time series may contain a “stair-step” effect caused by repeated observations when the Basemap scene composition was kept constant due to a lack of new cloud-free scenes (e.g., Figure 8, OFR D, early March 2021). By keeping the same image composition, the Basemap algorithm avoids generating synthetic pixel values while still providing a cloud-free observation. Nonetheless, it is important to keep in mind that there could be scenarios (e.g., when there is a lack of a new cloud-free scene for weeks or more) in which the Basemap may have the same number of observations as PlanetScope, hence decreasing its monitoring capabilities.
Our findings have important implications to future hydrological studies that aim to monitor small water bodies at large scale and high temporal frequency. For the OFRs in eastern Arkansas, the Basemap and Planet Fusion surface area time series helped unravel sub-weekly changes in OFR surface area, as well as yearly seasonality (Figure 8). OFRs surface area changes are pivotal information for calculation of OFR water volume inflows and outflows. This can be achieved by combining the surface area time series with the area-volume equations (e.g., hypsometry), which are derived using the OFRs’ geometric shape and depth [56,61,62]. Estimating OFRs volume change helps bridge one of the key limitations when modeling the cumulative impacts of OFRs on surface hydrology, as OFR water volume change is commonly assumed to be equal to all OFRs located in a watershed [24,25,63]. In addition, as the number of OFRs is projected to increase globally [24,27], understanding the impact of OFRs on surface hydrology is pivotal when seeking indicators to determine the optimal spatial distribution and number of OFRs, as well as their storage capacities and water management plans aiming to mitigate downstream impacts. Beyond implications to hydrological studies, we demonstrated that Basemap and Planet Fusion can be used to monitor surface area changes for a network of OFRs (Figure 8). This information can be used by regulatory agencies to create water status reports to improve regional water management and water use efficiency. These reports would be especially relevant during the dry critical period of the year when farmers are frequently irrigating.

5. Known Issues and Limitations

We applied Basemap and Planet Fusion imagery for a one-year analysis. More research is necessary to assess the performance of these datasets for a longer study period (e.g., including periods of prolonged droughts ~3–5 years) and in other study regions—for example, in Southern India, where OFRs are common [4], and where there is a monsoon climate in which there could be weeks without a clear-sky image [64]. In addition, the validation of this study was conducted using cloud-free SkySat imagery; therefore, there is still a need to further evaluate the performance of both datasets under cloudy conditions. However, this will require extensive field work, including visiting multiple OFRs on cloudy days, which imposes several challenges, as most of the OFRs in eastern Arkansas are located on private properties. Furthermore, we assumed that OFR surface area would vary within known and limited boundaries (i.e., OFR shapefile buffered to 20 m). However, different results might be obtained if the Basemap and Planet Fusion images are used to monitor water bodies that frequently change their boundaries—water impoundments that are located close to water streams and rivers that flood frequently, impacting the edges of water bodies. Lastly, although we calculated the uncertainties introduced by Basemap and Planet Fusion, when using these datasets for monitoring purposes, it would be helpful to have an estimated uncertainty accompanying every surface area observation. For instance, whenever there are repeated observations by the Basemap or continuous synthetic observations from Planet Fusion, the uncertainties from these images will be higher; however, as of now, we cannot estimate an observation based uncertainty.

6. Conclusions

We presented a novel application of Basemap and Planet Fusion analysis ready datasets to monitor sub-weekly OFRs surface area changes. We tested both datasets to monitor 340 OFRs of different sizes, and we found that these datasets can be employed to monitor OFRs with uncertainties < 10% when compared to an independent validation dataset and with uncertainties < 5% when compared to PlanetScope imagery. While Basemap had higher surface area variability and it was more susceptible to the presence of cloud shadows and haze, Planet Fusion had a smoother time series with less variability and fewer abrupt changes throughout the year. Given that the surface area classification can be impacted by the OFR environmental conditions (e.g., presence of vegetation inside the OFR), therefore limiting the use of these datasets, we recommend assessing the OFRs’ surface area time series before employing them for monitoring purposes. As the number of OFRs is expected to increase globally, the use of these datasets is of great importance to understanding OFR sub-weekly, seasonal and inter-annual surface area changes, and to improving freshwater management by allowing better assessment and management of OFRs.

Author Contributions

Conceptualization, V.P., S.R., J.K., T.H. and M.G.T.; methodology, V.P., S.R. and J.K.; software, V.P., S.R. and J.K.; validation, V.P.; formal analysis, V.P.; investigation, V.P.; resources, V.P., S.R. and J.K.; data curation, V.P., S.R., J.K., N.S., T.B., M.R. and M.A.Y.; writing—V.P.; writing—review and editing, V.P., S.R., J.K., T.H., N.S., T.B., M.R. and M.A.Y.; visualization, V.P.; supervision, T.H.; project administration, T.H.; funding acquisition, V.P., T.H. and M.G.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The first author is supported by NASA through the Future Investigators in NASA Earth and Space Science and Technology fellowship. The first author acknowledges the support provided by Planet Labs throughout his internship at the company, which included access to SkySat and PlanetScope imagery and on-demand generation of Basemap and Planet Fusion specifically for this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Planet Team Planet Imagery Product Specifications. Available online: https://assets.planet.com/docs/Planet_Combined_Imagery_Product_Specs_letter_screen.pdf (accessed on 8 September 2021).
  2. Cooley, S.W.; Smith, L.C.; Stepan, L.; Mascaro, J. Tracking Dynamic Northern Surface Water Changes with High-Frequency Planet CubeSat Imagery. Remote Sens. 2017, 9, 1306. [Google Scholar] [CrossRef] [Green Version]
  3. Mishra, V.; Limaye, A.S.; Muench, R.E.; Cherrington, E.A.; Markert, K.N. Evaluating the performance of high-resolution satellite imagery in detecting ephemeral water bodies over West Africa. Int. J. Appl. Earth Obs. Geoinf. 2020, 93, 102218. [Google Scholar] [CrossRef]
  4. Vanthof, V.; Kelly, R. Water storage estimation in ungauged small reservoirs with the TanDEM-X DEM and multi-source satellite observations. Remote Sens. Environ. 2019, 235, 111437. [Google Scholar] [CrossRef]
  5. Hondula, K.L.; DeVries, B.; Jones, C.N.; Palmer, M.A. Effects of Using High Resolution Satellite-Based Inundation Time Series to Estimate Methane Fluxes From Forested Wetlands. Geophys. Res. Lett. 2021, 48, e2021GL092556. [Google Scholar] [CrossRef]
  6. Kääb, A.; Altena, B.; Mascaro, J. River-Ice and Water Velocities Using the Planet Optical Cubesat Constellation. Hydrol. Earth Syst. Sci. 2019, 23, 4233–4247. [Google Scholar] [CrossRef] [Green Version]
  7. Kimm, H.; Guan, K.; Jiang, C.; Peng, B.; Gentry, L.F.; Wilkin, S.C.; Wang, S.; Cai, Y.; Bernacchi, C.J.; Peng, J.; et al. Deriving High-Spatiotemporal-Resolution Leaf Area Index for Agroecosystems in the U.S. Corn Belt Using Planet Labs CubeSat and STAIR Fusion Data. Remote Sens. Environ. 2020, 239, 111615. [Google Scholar] [CrossRef]
  8. Houborg, R.; McCabe, M.F. A Cubesat Enabled Spatio-Temporal Enhancement Method (CESTEM) Utilizing Planet, Landsat and MODIS Data. Remote Sens. Environ. 2018, 209, 211–226. [Google Scholar] [CrossRef]
  9. Sadeh, Y.; Zhu, X.; Dunkerley, D.; Walker, J.P.; Zhang, Y.; Rozenstein, O.; Manivasagam, V.S.; Chenu, K. Fusion of Sentinel-2 and PlanetScope Time-Series Data into Daily 3 m Surface Reflectance and Wheat LAI Monitoring. Int. J. Appl. Earth Obs. Geoinf. 2021, 96, 102260. [Google Scholar] [CrossRef]
  10. Csillik, O.; Asner, G.P. Near-Real Time Aboveground Carbon Emissions in Peru. PLoS ONE 2020, 15, e0241418. [Google Scholar] [CrossRef]
  11. Csillik, O.; Kumar, P.; Mascaro, J.; O′Shea, T.; Asner, G.P. Monitoring Tropical Forest Carbon Stocks and Emissions Using Planet Satellite Data. Sci. Rep. 2019, 9, 17831. [Google Scholar] [CrossRef] [Green Version]
  12. Csillik, O.; Kumar, P.; Asner, G.P. Challenges in Estimating Tropical Forest Canopy Height from Planet Dove Imagery. Remote Sens. 2020, 12, 1160. [Google Scholar] [CrossRef] [Green Version]
  13. Roy, D.P.; Huang, H.; Houborg, R.; Martins, V.S. A Global Analysis of the Temporal Availability of PlanetScope High Spatial Resolution Multi-Spectral Imagery. Remote Sens. Environ. 2021, 264, 112586. [Google Scholar] [CrossRef]
  14. Cheng, Y.; Vrieling, A.; Fava, F.; Meroni, M.; Marshall, M.; Gachoki, S. Phenology of Short Vegetation Cycles in a Kenyan Rangeland from PlanetScope and Sentinel-2. Remote Sens. Environ. 2020, 248, 112004. [Google Scholar] [CrossRef]
  15. Wang, J.; Yang, D.; Chen, S.; Zhu, X.; Wu, S.; Bogonovich, M.; Guo, Z.; Zhu, Z.; Wu, J. Automatic Cloud and Cloud Shadow Detection in Tropical Areas for PlanetScope Satellite Images. Remote Sens. Environ. 2021, 264, 112604. [Google Scholar] [CrossRef]
  16. Planet Team Planet Basemaps Product Specification. Available online: https://assets.planet.com/products/basemap/planet-basemaps-product-specifications.pdf (accessed on 8 September 2021).
  17. Planet Team Planet Fusion Monitoring Technical Specification. Available online: https://assets.planet.com/docs/Planet_fusion_specification_March_2021.pdf (accessed on 8 September 2021).
  18. Kington, J.D.; Jordahl, K.A.; Kanwar, A.N.; Kapadia, A.; Schönert, M.; Wurster, K. IN13B-0716 Spatially and Temporally Consistent Smallsat-Derived Basemaps for Analytic Applications. In Proceedings of the American Geophysical Union, Fall Meeting 2019, San Francisco, CA, USA, 9–13 December 2019. [Google Scholar]
  19. Dadap, N.C.; Hoyt, A.M.; Cobb, A.R.; Oner, D.; Kozinski, M.; Fua, P.V.; Rao, K.; Harvey, C.F.; Konings, A.G. Drainage Canals in Southeast Asian Peatlands Increase Carbon Emissions. AGU Adv. 2021, 2, e2020AV000321. [Google Scholar] [CrossRef]
  20. Li, J.; Knapp, D.E.; Fabina, N.S.; Kennedy, E.V.; Larsen, K.; Lyons, M.B.; Murray, N.J.; Phinn, S.R.; Roelfsema, C.M.; Asner, G.P. A Global Coral Reef Probability Map Generated Using Convolutional Neural Networks. Coral Reefs 2020, 39, 1805–1815. [Google Scholar] [CrossRef]
  21. Kong, J.; Ryu, Y.; Huang, Y.; Dechant, B.; Houborg, R.; Guan, K.; Zhu, X. Evaluation of Four Image Fusion NDVI Products against In-Situ Spectral-Measurements over a Heterogeneous Rice Paddy Landscape. Agric. For. Meteorol. 2021, 297, 108255. [Google Scholar] [CrossRef]
  22. Houborg, R.; McCabe, M. Daily Retrieval of NDVI and LAI at 3 m Resolution via the Fusion of CubeSat, Landsat, and MODIS Data. Remote Sens. 2018, 10, 890. [Google Scholar] [CrossRef] [Green Version]
  23. Perin, V.; Tulbure, M.G.; Gaines, M.D.; Reba, M.L.; Yaeger, M.A. On-Farm Reservoir Monitoring Using Landsat Inundation Datasets. Agric. Water Manag. 2021, 246, 106694. [Google Scholar] [CrossRef]
  24. Habets, F.; Molénat, J.; Carluer, N.; Douez, O.; Leenhardt, D. The Cumulative Impacts of Small Reservoirs on Hydrology: A Review. Sci. Total Environ. 2018, 643, 850–867. [Google Scholar] [CrossRef] [Green Version]
  25. Fowler, K.; Morden, R.; Lowe, L.; Nathan, R. Advances in Assessing the Impact of Hillside Farm Dams on Streamflow. Australas. J. Water Resour. 2015, 19, 96–108. [Google Scholar] [CrossRef]
  26. Renwick, W.H.; Smith, S.V.; Bartley, J.D.; Buddemeier, R.W. The Role of Impoundments in the Sediment Budget of the Conterminous United States. Geomorphology 2005, 71, 99–111. [Google Scholar] [CrossRef]
  27. Downing, J.A. Emerging Global Role of Small Lakes and Ponds: Little Things Mean a Lot. Limnetica 2010, 29, 9–24. [Google Scholar] [CrossRef]
  28. Downing, J.A.; Prairie, Y.T.; Cole, J.J.; Duarte, C.M.; Tranvik, L.J.; Striegl, R.G.; McDowell, W.H.; Kortelainen, P.; Caraco, N.F.; Melack, J.M.; et al. The Global Abundance and Size Distribution of Lakes, Ponds, and Impoundments. Limnol. Oceanogr. 2006, 51, 2388–2397. [Google Scholar] [CrossRef] [Green Version]
  29. Habets, F.; Philippe, E.; Martin, E.; David, C.H.; Leseur, F. Small Farm Dams: Impact on River Flows and Sustainability in a Context of Climate Change. Hydrol. Earth Syst. Sci. 2014, 18, 4207–4222. [Google Scholar] [CrossRef] [Green Version]
  30. Mime, M.M.; Young, D.W. The Impact of Stockwatering Ponds (Stockponds) On Runoff from Large Arizona Watersheds. JAWRA J. Am. Water Resour. Assoc. 1989, 25, 165–173. [Google Scholar] [CrossRef]
  31. Jones, S.K.; Fremier, A.K.; DeClerck, F.A.; Smedley, D.; Pieck, A.O.; Mulligan, M. Big Data and Multiple Methods for Mapping Small Reservoirs: Comparing Accuracies for Applications in Agricultural Landscapes. Remote Sens. 2017, 9, 1307. [Google Scholar] [CrossRef] [Green Version]
  32. Ogilvie, A.; Belaud, G.; Massuel, S.; Mulligan, M.; Le Goulven, P.; Malaterre, P.-O.; Calvez, R. Combining Landsat Observations with Hydrological Modelling for Improved Surface Water Monitoring of Small Lakes. J. Hydrol. 2018, 566, 109–121. [Google Scholar] [CrossRef]
  33. Perin, V.; Tulbure, M.G.; Gaines, M.D.; Reba, M.L.; Yaeger, M.A. A Multi-Sensor Satellite Imagery Approach to Monitor on-Farm Reservoirs. Remote Sens. Environ. 2021, 112796. [Google Scholar] [CrossRef]
  34. Ogilvie, A.; Belaud, G.; Massuel, S.; Mulligan, M.; Le Goulven, P.; Calvez, R. Surface Water Monitoring in Small Water Bodies: Potential and Limits of Multi-Sensor Landsat Time Series. Hydrol. Earth Syst. Sci. 2018, 22, 4349–4380. [Google Scholar] [CrossRef] [Green Version]
  35. Yaeger, M.A.; Reba, M.L.; Massey, J.H.; Adviento-Borbe, M.A.A. On-Farm Irrigation Reservoirs in Two Arkansas Critical Groundwater Regions: A Comparative Inventory. Appl. Eng. Agric. 2017, 33, 869–878. [Google Scholar] [CrossRef]
  36. Yaeger, M.A.; Massey, J.H.; Reba, M.L.; Adviento-Borbe, M.A.A. Trends in the Construction of On-Farm Irrigation Reservoirs in Response to Aquifer Decline in Eastern Arkansas: Implications for Conjunctive Water Resource Management. Agric. Water Manag. 2018, 208, 373–383. [Google Scholar] [CrossRef]
  37. Shults, D.D.; Nowlin, W.J.; Yaeger, M.A.; Massey, J.H.; Reba, M.L. A Spatiotemporal Anlysis Quantifying the Need for More On-Farm Reservoirs to Reduce Groundwater Use in the Cache and L′Anguille River Regions in Northeaster AR. In Proceedings of the ESRI User Conference, Online, 13–16 July 2020. [Google Scholar]
  38. Kotchenova, S.Y.; Vermote, E.F.; Matarrese, R.; Klemm, F.J., Jr. Validation of a Vector Version of the 6S Radiative Transfer Code for Atmospheric Correction of Satellite Data Part I: Path Radiance. Appl. Opt. 2006, 45, 6762–6774. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Kotchenova, S.Y.; Vermote, E.F. Validation of a Vector Version of the 6S Radiative Transfer Code for Atmospheric Correction of Satellite Data Part II Homogeneous Lambertian and Anisotropic Surfaces. Appl. Opt. 2007, 46, 4455–4464. [Google Scholar] [CrossRef] [Green Version]
  40. Frantz, D. FORCE—Landsat + Sentinel-2 Analysis Ready Data and Beyond. Remote Sens. 2019, 11, 1124. [Google Scholar] [CrossRef] [Green Version]
  41. Tanre, D.; Deroo, C.; Duhaut, P.; Herman, M.; Morcrette, J.J.; Perbos, J.; Deschamps, P.Y. Technical Note Description of a Computer Code to Simulate the Satellite Signal in the Solar Spectrum: The 5S Code. Int. J. Remote Sens. 1990, 11, 659–668. [Google Scholar] [CrossRef]
  42. Zhu, Z.; Woodcock, C.E. Object-Based Cloud and Cloud Shadow Detection in Landsat Imagery. Remote Sens. Environ. 2012, 118, 83–94. [Google Scholar] [CrossRef]
  43. Frantz, D.; Haß, E.; Uhl, A.; Stoffels, J.; Hill, J. Improvement of the Fmask Algorithm for Sentinel-2 Images: Separating Clouds from Bright Surfaces Based on Parallax Effects. Remote Sens. Environ. 2018, 215, 471–481. [Google Scholar] [CrossRef]
  44. Planet Team Planet Basemaps: Comprehensive, High-Frequency Mosaics for Analysis. Available online: https://www.planet.com/products/basemap/ (accessed on 10 December 2021).
  45. Doxani, G.; Vermote, E.; Roger, J.-C.; Gascon, F.; Adriaensen, S.; Frantz, D.; Hagolle, O.; Hollstein, A.; Kirches, G.; Li, F.; et al. Atmospheric Correction Inter-Comparison Exercise. Remote Sens. 2018, 10, 352. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Schaaf, C.B.; Gao, F.; Strahler, A.H.; Lucht, W.; Li, X.; Tsang, T.; Strugnell, N.C.; Zhang, X.; Jin, Y.; Muller, J.-P.; et al. First Operational BRDF, Albedo Nadir Reflectance Products from MODIS. Remote Sens. Environ. 2002, 83, 135–148. [Google Scholar] [CrossRef] [Green Version]
  47. McFeeters, S.K. The Use of the Normalized Difference Water Index (NDWI) in the Delineation of Open Water Features. Int. J. Remote Sens. 1996, 17, 1425–1432. [Google Scholar] [CrossRef]
  48. Otsu, N. A Threshold Selection Method from Gray-Level Histograms. IEEE Trans. Syst. Man Cybern. 1979, 9, 62–66. [Google Scholar] [CrossRef] [Green Version]
  49. Du, Z.; Li, W.; Zhou, D.; Tian, L.; Ling, F.; Wang, H.; Gui, Y.; Sun, B. Analysis of Landsat-8 OLI Imagery for Land Surface Water Mapping. Remote Sens. Lett. 2014, 5, 672–681. [Google Scholar] [CrossRef]
  50. Li, J.; Wang, S. An Automatic Method for Mapping Inland Surface Waterbodies with Radarsat-2 Imagery. Int. J. Remote Sens. 2015, 36, 1367–1384. [Google Scholar] [CrossRef]
  51. Liu, Z.; Yao, Z.; Wang, R. Assessing Methods of Identifying Open Water Bodies Using Landsat 8 OLI Imagery. Environ. Earth Sci. 2016, 75, 873. [Google Scholar] [CrossRef]
  52. Sheng, Y.; Song, C.; Wang, J.; Lyons, E.A.; Knox, B.R.; Cox, J.S.; Gao, F. Representative Lake Water Extent Mapping at Continental Scales Using Multi-Temporal Landsat-8 Imagery. Remote Sens. Environ. 2016, 185, 129–141. [Google Scholar] [CrossRef] [Green Version]
  53. Wang, Z.; Zhang, R.; Zhang, Q.; Zhu, Y.; Huang, B.; Lu, Z. An Automatic Thresholding Method for Water Body Detection from SAR Image. In Proceedings of the 2019 IEEE International Conference on Signal, Information and Data Processing (ICSIDP), Chongqing, China, 11–13 December 2019; pp. 1–4. [Google Scholar]
  54. Gorelick, N.; Hancher, M.; Dixon, M.; Ilyushchenko, S.; Thau, D.; Moore, R. Google Earth Engine: Planetary-Scale Geospatial Analysis for Everyone. Remote Sens. Environ. 2017, 202, 18–27. [Google Scholar] [CrossRef]
  55. DeVries, B.; Huang, C.; Lang, M.; Jones, J.; Huang, W.; Creed, I.; Carroll, M. Automated Quantification of Surface Water Inundation in Wetlands Using Optical Satellite Imagery. Remote Sens. 2017, 9, 807. [Google Scholar] [CrossRef] [Green Version]
  56. Avisse, N.; Tilmant, A.; Müller, M.F.; Zhang, H. Monitoring Small Reservoirs′ Storage with Satellite Remote Sensing in Inaccessible Areas. Hydrol. Earth Syst. Sci. 2017, 21, 6445–6459. [Google Scholar] [CrossRef] [Green Version]
  57. López-Caloca, A.A.; Escalante-Ramírez, B.; Henao, P. Mapping Small and Medium-Sized Water Reservoirs Using Sentinel-1A: A Case Study in Chiapas, Mexico. J. Appl. Remote Sens. 2020, 14, 036503. [Google Scholar] [CrossRef]
  58. Pena-Regueiro, J.; Sebastiá-Frasquet, M.-T.; Estornell, J.; Aguilar-Maldonado, J.A. Sentinel-2 Application to the Surface Characterization of Small Water Bodies in Wetlands. Water 2020, 12, 1487. [Google Scholar] [CrossRef]
  59. Yang, X.; Zhao, S.; Qin, X.; Zhao, N.; Liang, L. Mapping of Urban Surface Water Bodies from Sentinel-2 MSI Imagery at 10 m Resolution via NDWI-Based Image Sharpening. Remote Sens. 2017, 9, 596. [Google Scholar] [CrossRef] [Green Version]
  60. Yang, X.; Qin, Q.; Yésou, H.; Ledauphin, T.; Koehl, M.; Grussenmeyer, P.; Zhu, Z. Monthly Estimation of the Surface Water Extent in France at a 10-m Resolution Using Sentinel-2 Data. Remote Sens. Environ. 2020, 244, 111803. [Google Scholar] [CrossRef]
  61. Yao, F.; Wang, J.; Yang, K.; Wang, C.; Walter, B.A.; Crétaux, J.F. Lake Storage Variation on the Endorheic Tibetan Plateau and Its Attribution to Climate Change since the New Millennium. Environ. Res. Lett. 2018, 13, 064011. [Google Scholar] [CrossRef]
  62. Zhang, S.; Foerster, S.; Medeiros, P.; de Araújo, J.C.; Motagh, M.; Waske, B. Bathymetric Survey of Water Reservoirs in North-Eastern Brazil Based on TanDEM-X Satellite Data. Sci. Total Environ. 2016, 571, 575–593. [Google Scholar] [CrossRef] [PubMed]
  63. Hughes, D.A.; Mantel, S.K. Estimation Des Incertitudes Lors de La Simulation Des Impacts de Petites Retenues Agricoles Sur Les Régimes d′écoulement En Afrique Du Sud. Hydrol. Sci. J. 2010, 55, 578–592. [Google Scholar] [CrossRef]
  64. Ahmad, S.K.; Hossain, F.; Eldardiry, H.; Pavelsky, T.M. A Fusion Approach for Water Area Classification Using Visible, Near Infrared and Synthetic Aperture Radar for South Asian Conditions. IEEE Trans. Geosci. Remote Sens. 2020, 58, 2471–2480. [Google Scholar] [CrossRef]

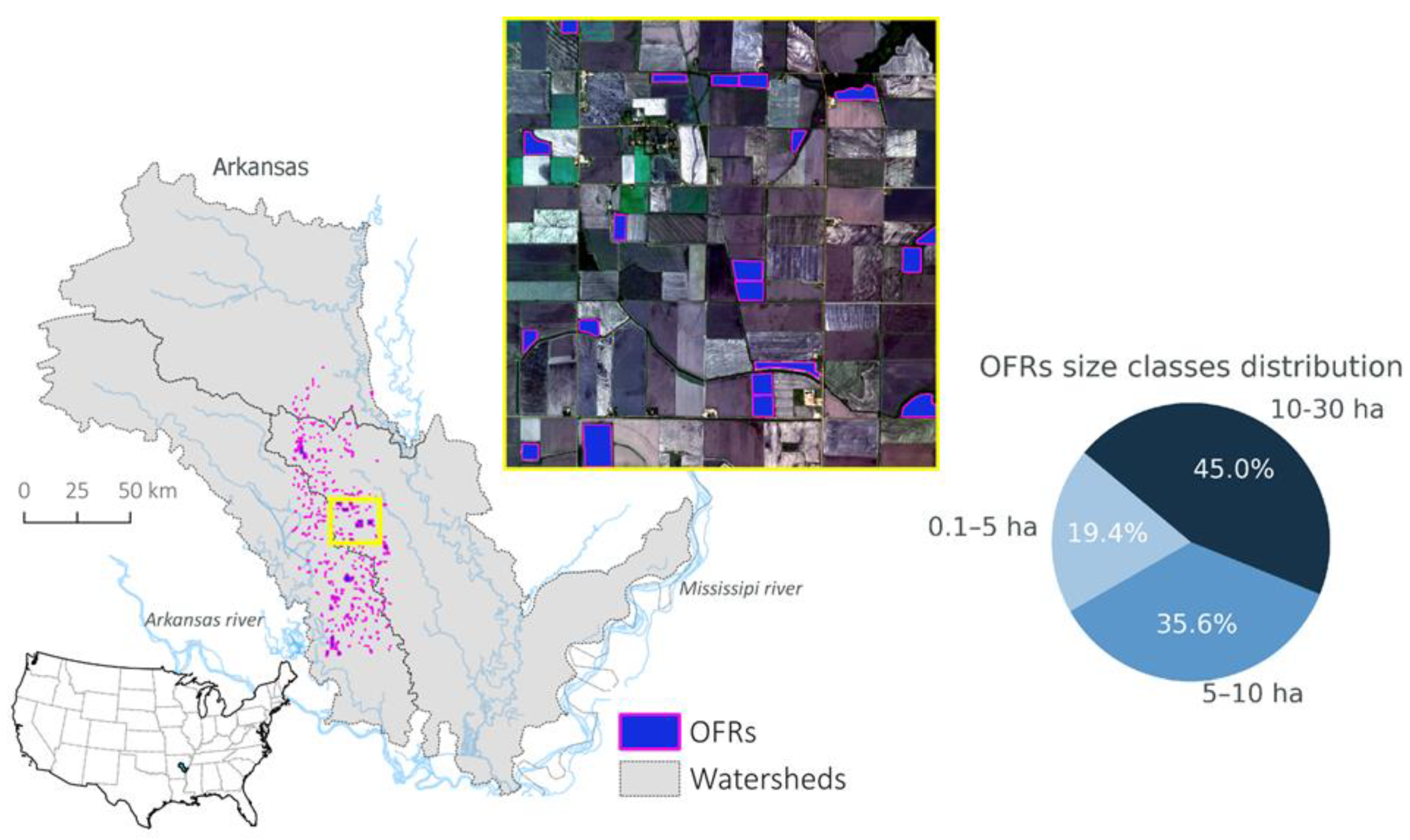

Figure 1. Study region in eastern Arkansas, USA, and the OFRs size distribution. The inset map represents the OFRs shapefile overlaid on SkySat satellite imagery.
Figure 1. Study region in eastern Arkansas, USA, and the OFRs size distribution. The inset map represents the OFRs shapefile overlaid on SkySat satellite imagery.
Remotesensing 13 05176 g001

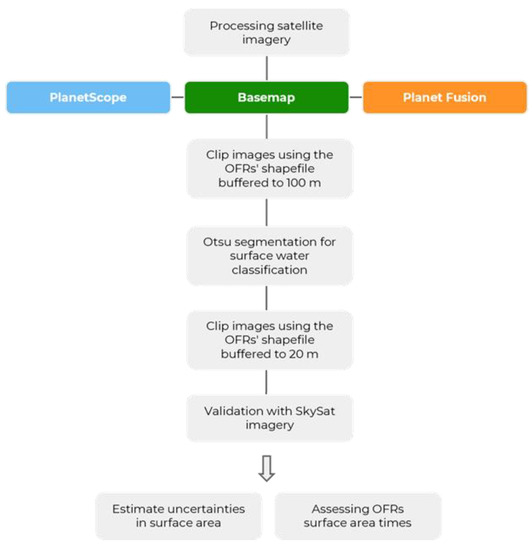

Figure 2. Workflow used to estimate the OFRs’ surface area-time series from PlanetScope, Basemap, and Planet Fusion between July 2020 and July 2021.
Figure 2. Workflow used to estimate the OFRs’ surface area-time series from PlanetScope, Basemap, and Planet Fusion between July 2020 and July 2021.
Remotesensing 13 05176 g002

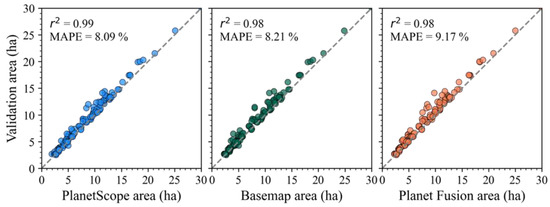

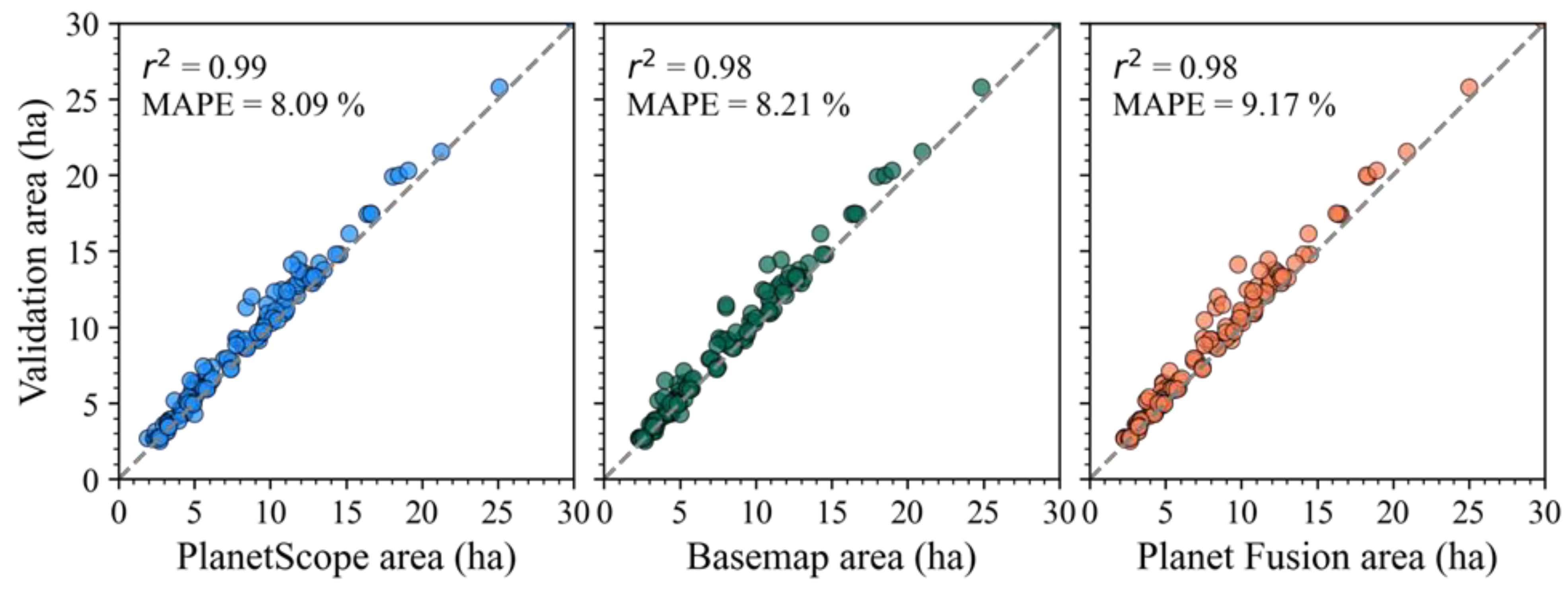

Figure 3. Pairwise comparisons between the SkySat validation surface area and the surface area obtained from PlanetScope, Basemap, and Planet Fusion for multiple observations in time.
Figure 3. Pairwise comparisons between the SkySat validation surface area and the surface area obtained from PlanetScope, Basemap, and Planet Fusion for multiple observations in time.
Remotesensing 13 05176 g003

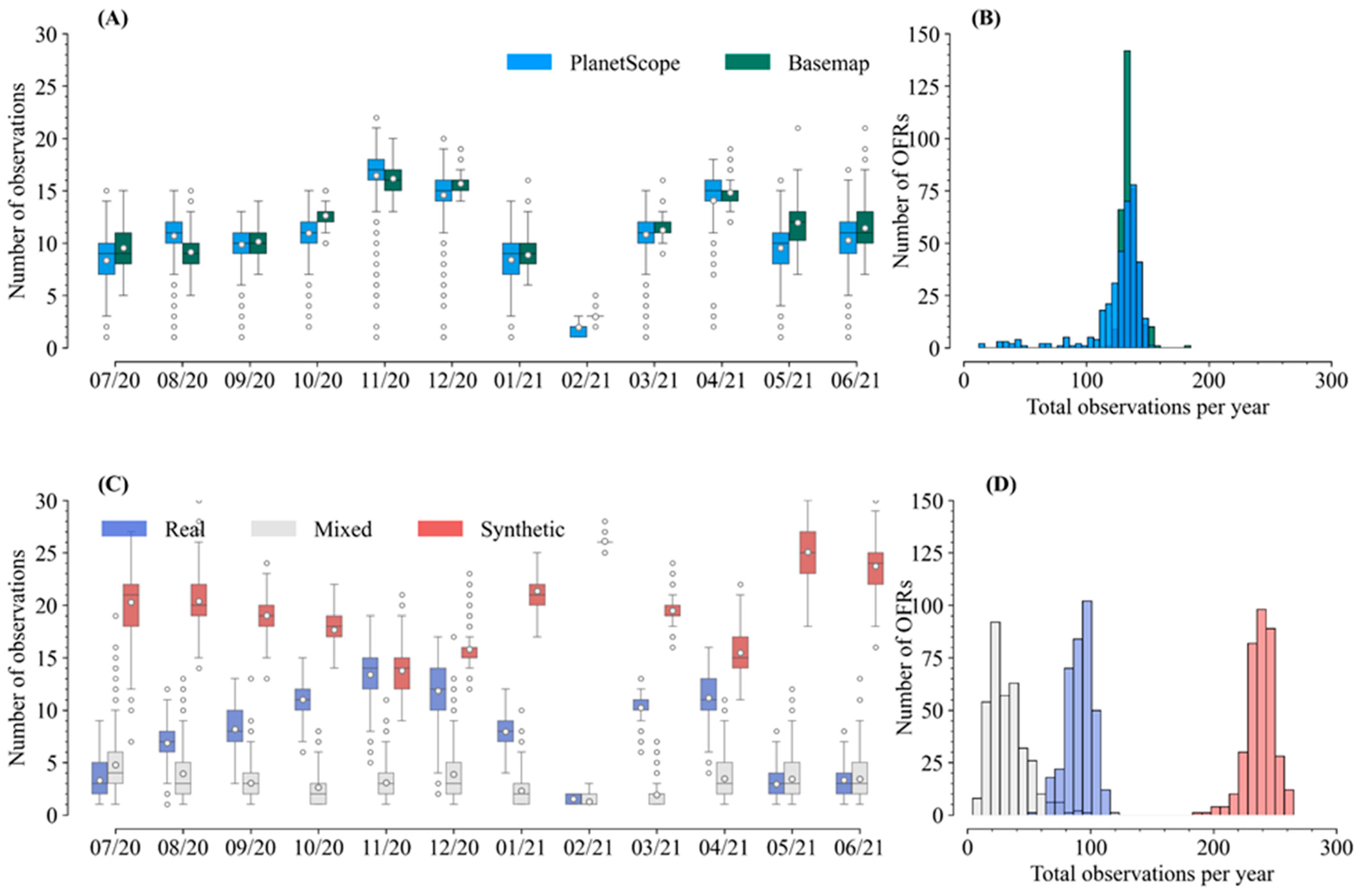

Figure 4. Number of surface area observations per month for PlanetScope and Basemap (A) and for Planet Fusion real, mixed, and synthetic (C). Frequency distribution of the total number of observations per OFR per year for PlanetScope and Basemap (B) and for Planet Fusion real, mixed, and synthetic (D).
Figure 4. Number of surface area observations per month for PlanetScope and Basemap (A) and for Planet Fusion real, mixed, and synthetic (C). Frequency distribution of the total number of observations per OFR per year for PlanetScope and Basemap (B) and for Planet Fusion real, mixed, and synthetic (D).
Remotesensing 13 05176 g004

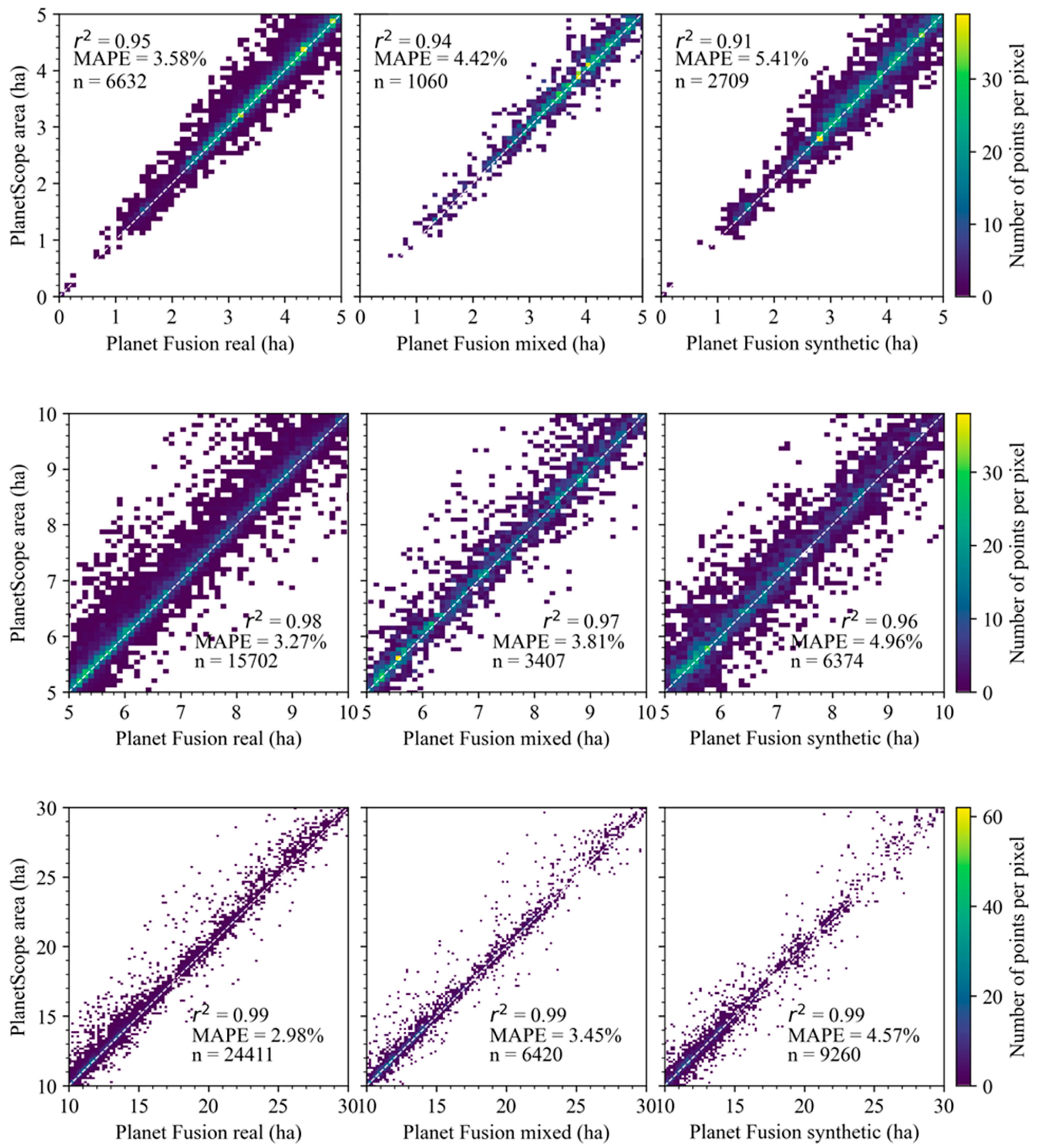

Figure 5. Same-day pairwise comparisons between PlanetScope and Planet Fusion real, mixed, and synthetic for multiple observations in time and for all OFRs divided into three size classes (0.1–5 ha, 5–10 ha, and 10–30 ha). Brighter colors indicate higher point density.
Figure 5. Same-day pairwise comparisons between PlanetScope and Planet Fusion real, mixed, and synthetic for multiple observations in time and for all OFRs divided into three size classes (0.1–5 ha, 5–10 ha, and 10–30 ha). Brighter colors indicate higher point density.
Remotesensing 13 05176 g005

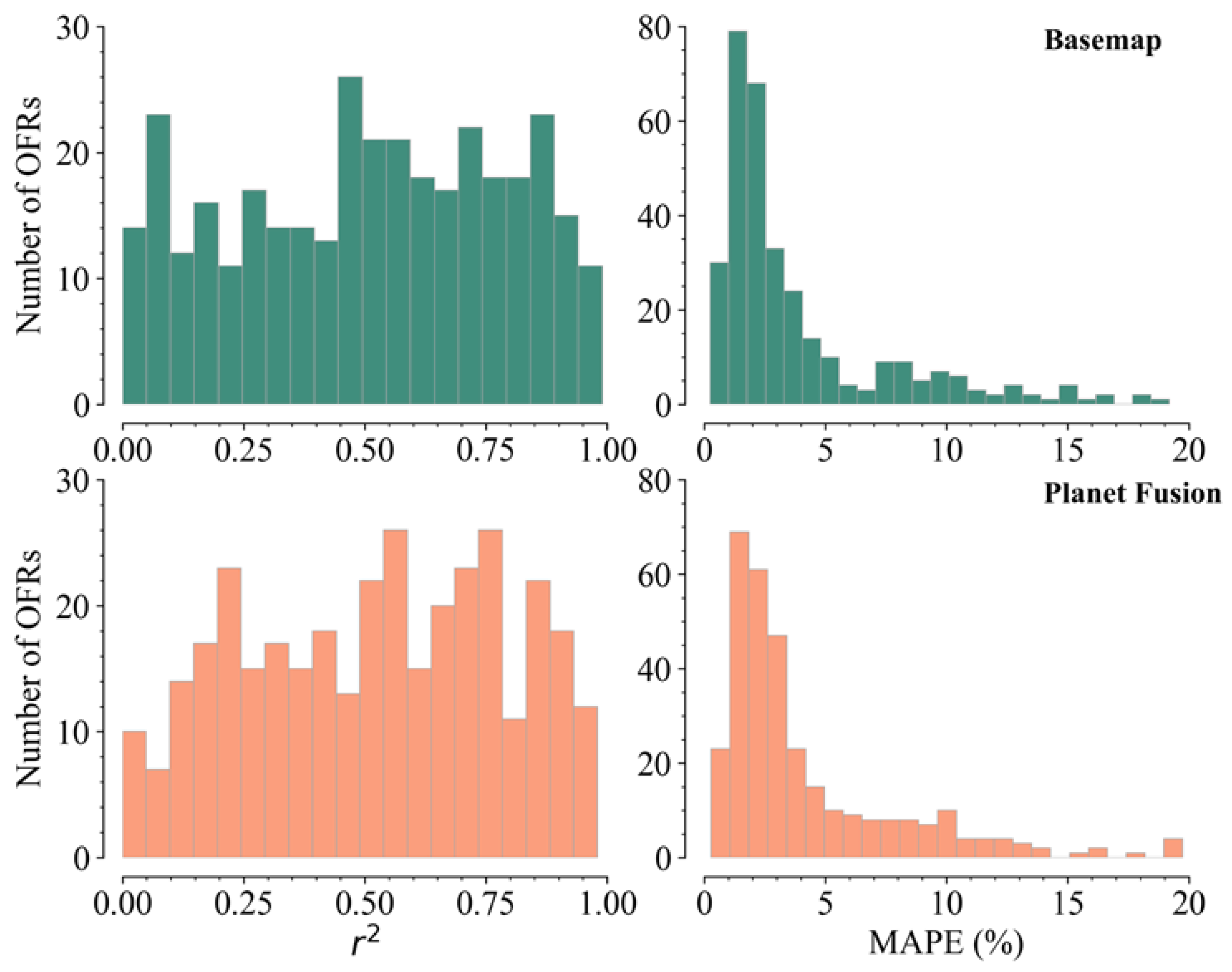

Figure 6. Frequency distribution of r2 and MAPE calculated by comparing the OFR time series from Basemap and Planet Fusion with PlanetScope.
Figure 6. Frequency distribution of r2 and MAPE calculated by comparing the OFR time series from Basemap and Planet Fusion with PlanetScope.
Remotesensing 13 05176 g006

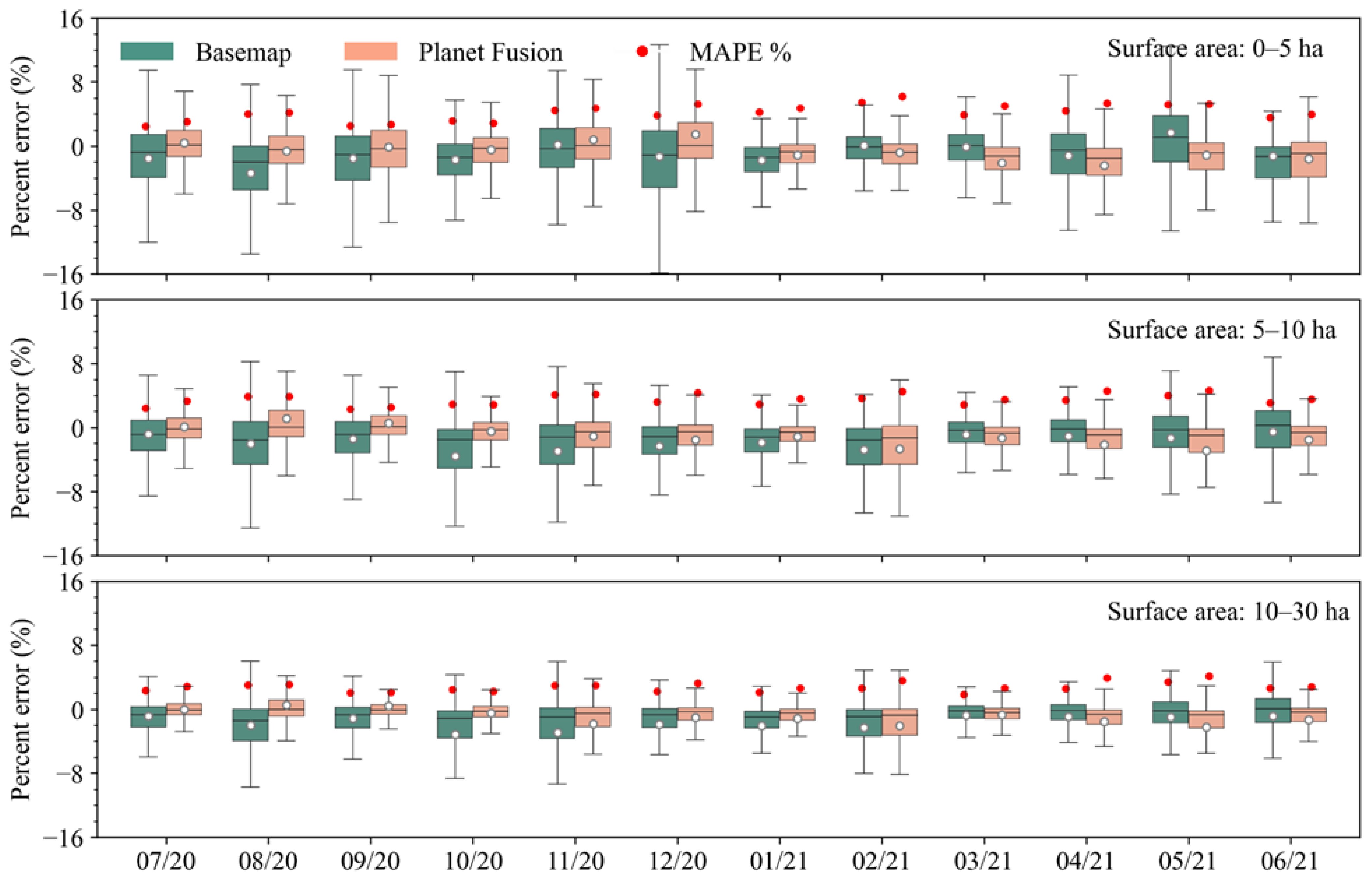

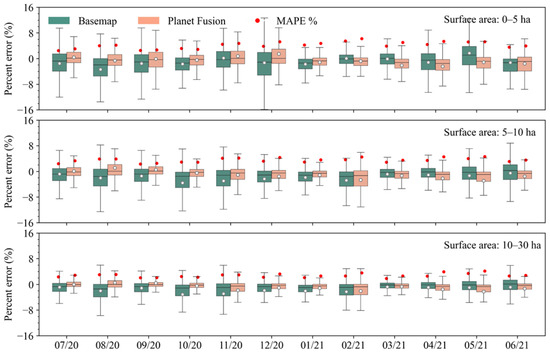

Figure 7. Monthly percent error variability and MAPE calculated from the same-day pairwise comparisons between Basemap and Planet Fusion with PlanetScope for the three size classes (0.1–5 ha, 5–10 ha, and 10–30 ha).
Figure 7. Monthly percent error variability and MAPE calculated from the same-day pairwise comparisons between Basemap and Planet Fusion with PlanetScope for the three size classes (0.1–5 ha, 5–10 ha, and 10–30 ha).
Remotesensing 13 05176 g007

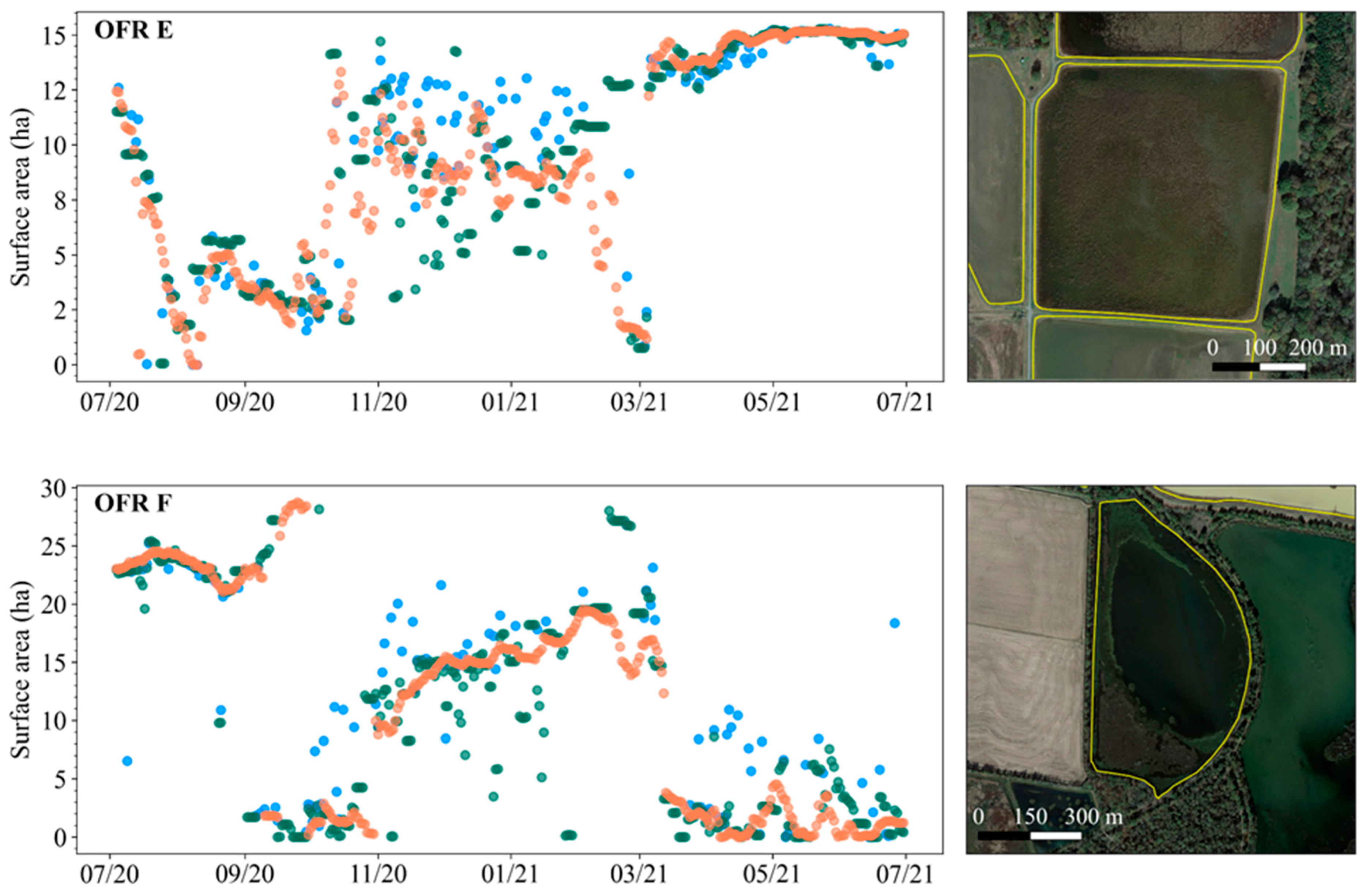

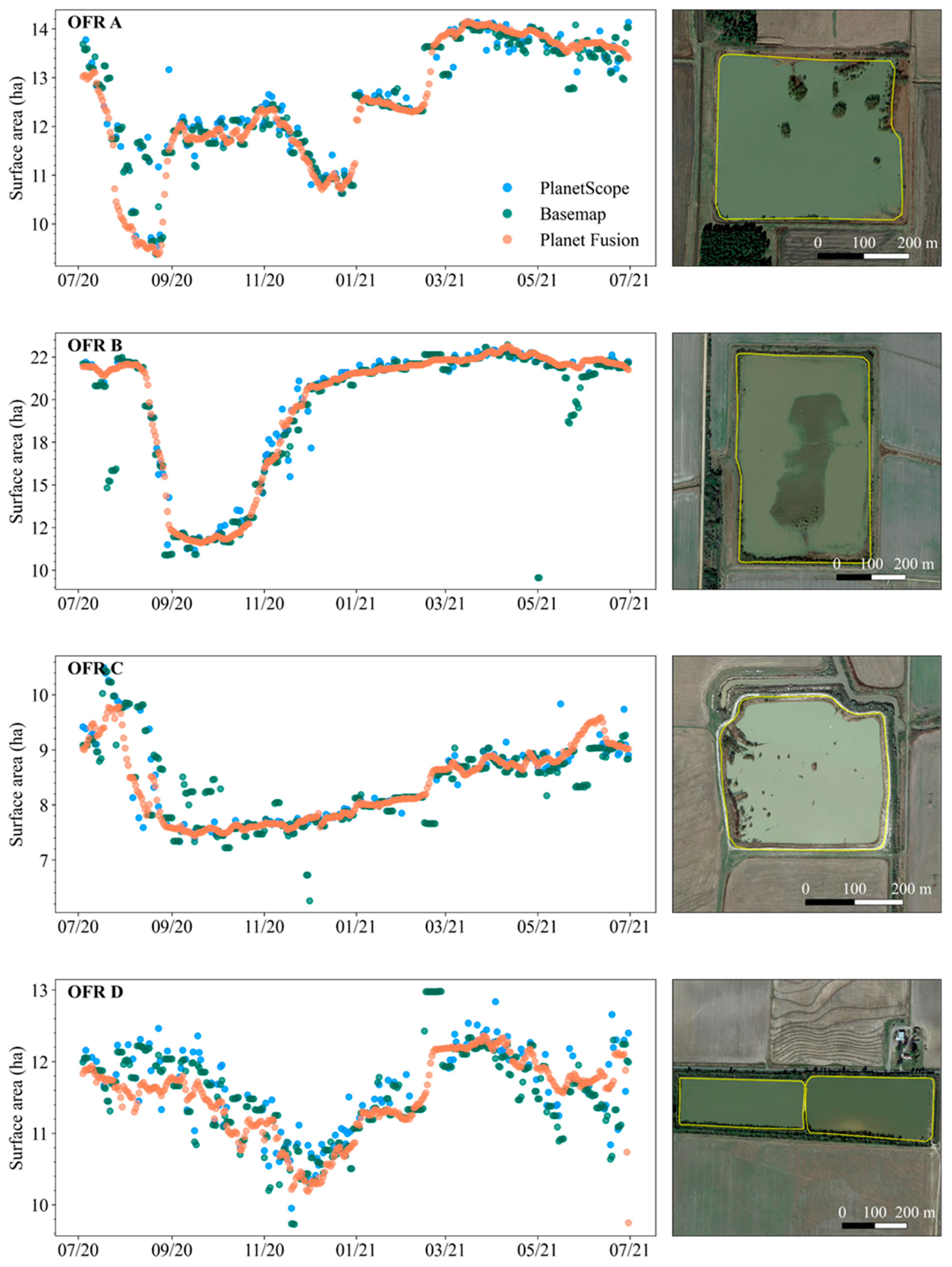

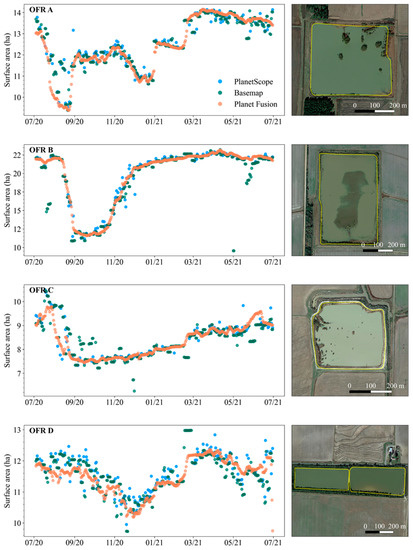

Figure 8. OFRs (see Table 2) surface-area time series derived from PlanetScope, Basemap, and Planet Fusion and OFR shapefiles overlaid on high-resolution Google Satellite imagery.
Figure 8. OFRs (see Table 2) surface-area time series derived from PlanetScope, Basemap, and Planet Fusion and OFR shapefiles overlaid on high-resolution Google Satellite imagery.
Remotesensing 13 05176 g008aRemotesensing 13 05176 g008b

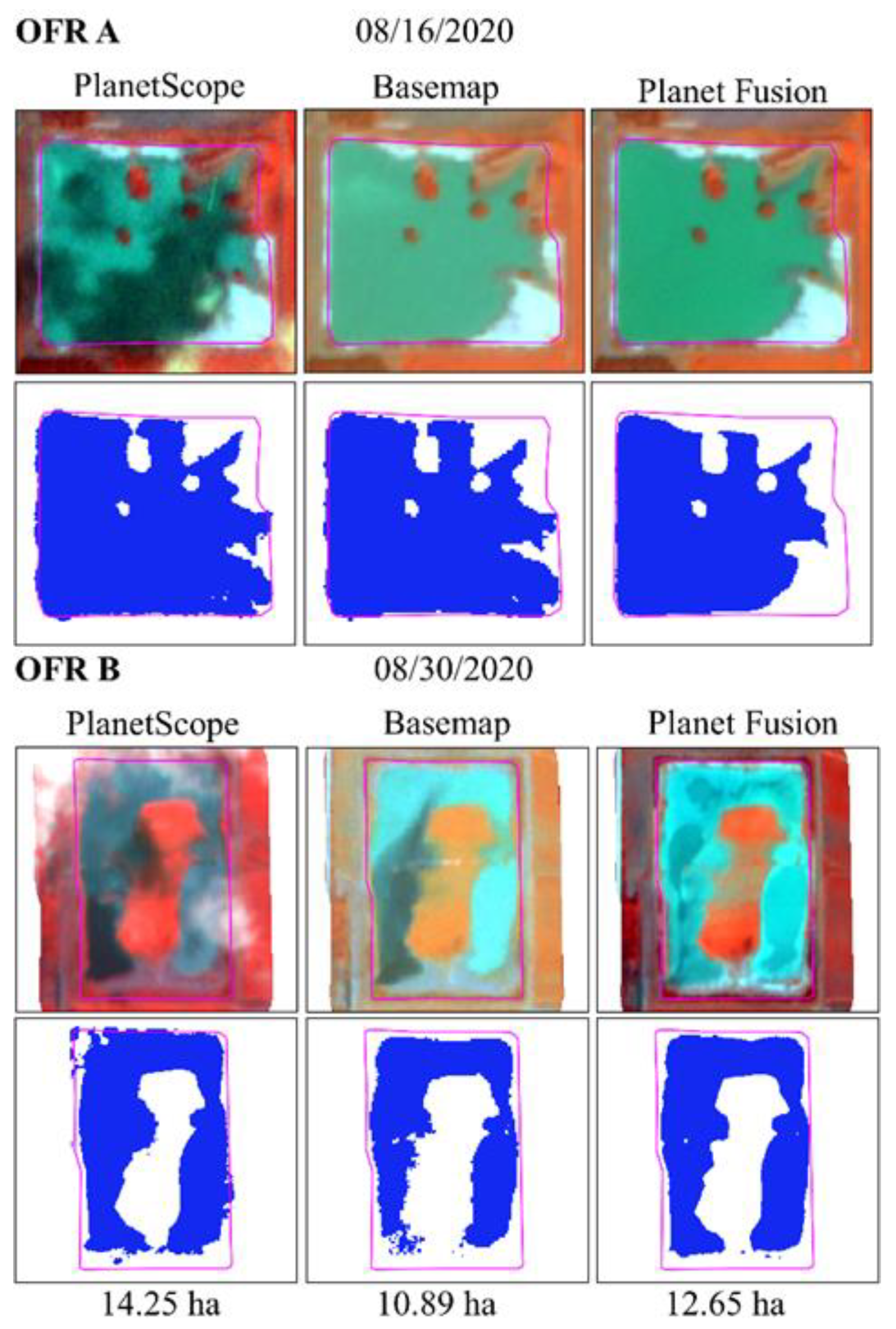

Figure 9. OFRs A and B (see Table 2) PlanetScope, Basemap, and Planet Fusion false-color composites (blue: red, green: green, and red: NIR) and the surface-water classification for 16 August 2020 (OFR A) and 30 August 2020 (OFR B).
Figure 9. OFRs A and B (see Table 2) PlanetScope, Basemap, and Planet Fusion false-color composites (blue: red, green: green, and red: NIR) and the surface-water classification for 16 August 2020 (OFR A) and 30 August 2020 (OFR B).
Remotesensing 13 05176 g009

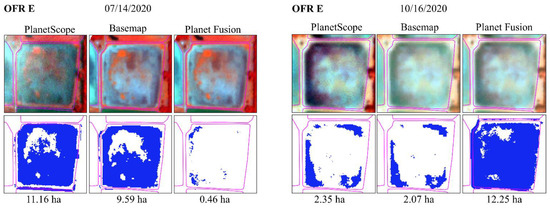

Figure 10. OFR E (see Table 2) PlanetScope, Basemap, and Planet Fusion false-color composites (blue: red, green: green, and red: NIR) and the surface water classification for 14 July 2020 and 16 October 2020.
Figure 10. OFR E (see Table 2) PlanetScope, Basemap, and Planet Fusion false-color composites (blue: red, green: green, and red: NIR) and the surface water classification for 14 July 2020 and 16 October 2020.
Remotesensing 13 05176 g010
Table 1. PlanetScope, Basemap, and Planet Fusion image spatial resolutions and different wavelengths bands.
Table 1. PlanetScope, Basemap, and Planet Fusion image spatial resolutions and different wavelengths bands.
SourcePixel Size (m)Blue (µm)Green (µm)Red (µm)NIR (µm)
PlanetScope30.455–0.5150.500–0.5900.590–0.6700.780–0.860
Basemap30.450–0.5100.530–0.5900.640–0.6700.850–0.860
Planet Fusion30.450–0.5100.530–0.5900.640–0.6700.850–0.880
Table 2. Selected OFRs to illustrate PlanetScope, Basemap, and Planet Fusion surface area time series and their size according to the OFR dataset.
Table 2. Selected OFRs to illustrate PlanetScope, Basemap, and Planet Fusion surface area time series and their size according to the OFR dataset.
OFR idOFR Size (ha)
A13.62
B22.60
C9.83
D12.73
E13.82
F29.72
Table 3. SkySat image identification, acquisition date, number of OFRs surface area observations per image, percent clear (indicates the presence or absence of cloud cover; higher values indicate fewer clouds), ground-control ratio (defines the image positional accuracy; values closer to 1 mean higher accuracy), and ground-sampling distance in meters.
Table 3. SkySat image identification, acquisition date, number of OFRs surface area observations per image, percent clear (indicates the presence or absence of cloud cover; higher values indicate fewer clouds), ground-control ratio (defines the image positional accuracy; values closer to 1 mean higher accuracy), and ground-sampling distance in meters.
SkySat ImageDateOFRs ObservationsPercent Clear (%)Ground-Control
Ratio
Ground Sampling Distance (m)
20200929_193409_ssc10_u000129 September 202035870.910.66
20201013_194518_ssc6_u000113 October 202044990.970.73
20201102_193752_ssc9_u00012 November 2020161000.970.67
20201102_193752_ssc9_u00022 November 2020101000.960.67
20201210_194154_ssc11_u000110 December 202039990.910.68
Table 4. Pairwise comparisons between the SkySat validation surface area and the surface area obtained from PlanetScope, Basemap, and Planet Fusion for multiple observations in time and divided into three size classes.
Table 4. Pairwise comparisons between the SkySat validation surface area and the surface area obtained from PlanetScope, Basemap, and Planet Fusion for multiple observations in time and divided into three size classes.
PlanetScopeBasemapPlanet Fusion
0.1–5 ha5–10 ha10–30 ha0.1–5 ha5–10 ha10–30 ha0.1–5 ha5–10 ha10–30 ha
r20.910.910.940.910.870.900.960.960.95
MAPE (%)7.057.147.689.9110.110.87.377.469.11
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Perin, V.; Roy, S.; Kington, J.; Harris, T.; Tulbure, M.G.; Stone, N.; Barsballe, T.; Reba, M.; Yaeger, M.A. Monitoring Small Water Bodies Using High Spatial and Temporal Resolution Analysis Ready Datasets. Remote Sens. 2021, 13, 5176. https://doi.org/10.3390/rs13245176

AMA Style

Perin V, Roy S, Kington J, Harris T, Tulbure MG, Stone N, Barsballe T, Reba M, Yaeger MA. Monitoring Small Water Bodies Using High Spatial and Temporal Resolution Analysis Ready Datasets. Remote Sensing. 2021; 13(24):5176. https://doi.org/10.3390/rs13245176

Chicago/Turabian Style

Perin, Vinicius, Samapriya Roy, Joe Kington, Thomas Harris, Mirela G. Tulbure, Noah Stone, Torben Barsballe, Michele Reba, and Mary A. Yaeger. 2021. "Monitoring Small Water Bodies Using High Spatial and Temporal Resolution Analysis Ready Datasets" Remote Sensing 13, no. 24: 5176. https://doi.org/10.3390/rs13245176

APA Style

Perin, V., Roy, S., Kington, J., Harris, T., Tulbure, M. G., Stone, N., Barsballe, T., Reba, M., & Yaeger, M. A. (2021). Monitoring Small Water Bodies Using High Spatial and Temporal Resolution Analysis Ready Datasets. Remote Sensing, 13(24), 5176. https://doi.org/10.3390/rs13245176

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
