FA-RDN: A Hybrid Neural Network on GNSS-R Sea Surface Wind Speed Retrieval

Abstract

Based on deep learning, this paper proposes a new hybrid neural network model, a recurrent deep neural network using a feature attention mechanism (FA-RDN) for GNSS-R global sea surface wind speed retrieval. FA-RDN can process data from the Cyclone Global Navigation Satellite System (CYGNSS) satellite mission, including characteristics of the signal, spatio-temporal, geometry, and instrument. FA-RDN can receive data extended in temporal dimension and mine the temporal correlation information of features through the long-short term memory (LSTM) neural network layer. A feature attention mechanism is also added to improve the model’s computational efficiency. To evaluate the model performance, we designed comparison and validation experiments for the retrieval accuracy, enhancement effect, and stability of FA-RDN by comparing the evaluation criteria results. The results show that the wind speed retrieval root mean square error (RMSE) of the FA-RDN model can reach 1.45 m/s, 10.38%, 6.58%, 13.28%, 17.89%, 20.26%, and 23.14% higher than that of Backpropagation Neural Network (BPNN), Recurrent Neural Network (RNN), Artificial Neural Network (ANN), Random Forests (RF), eXtreme Gradient Boosting (XGBoost), and Support Vector Regression (SVR), respectively, confirming the feasibility and effectiveness of the designed method. At the same time, the designed model has better stability and applicability, serving as a new research idea of data mining and feature selection, as well as a reference model for GNSS-R-based sea surface wind speed retrieval.

1. Introduction

Global Navigation Satellite System Reflectometry (GNSS-R) technology is a relatively new remote sensing technology. Using navigation satellites as the transmitting source, it receives and processes the reflected signals to obtain corresponding geophysical information.

The concept of this technology was first proposed by Martin-Neria in 1993 [1]. Auber discovered in 1994 that the GPS scattering signal, which was usually regarded as noise elimination, could be received and detected [2]. In 1997, NASA scientists found that there was a certain relationship between the reflecting surface roughness and the characteristics of the correlation function of the emission signal through experiments, from which the sea surface information could be retrieved [3]. Since then, this technology has been referred to as GNSS-R, attracting broad attention and developing rapidly.

In October 2003, the British space center launched the United Kingdom-Disaster Monitoring Constellation (UK-DMC) to verify the principle of GNSS-R in orbit. Different studies showed that GPS reflections over the sea surface, sea ice, and land could be collected. These results proved the feasibility of spaceborne GNSS-R [4,5]. In July 2014, the British Surrey company launched the Technology Demonstration Satellite-1 (TDS-1), aiming to carry out on-orbit experimental verification of SGR-ReSI payload developed by SSTL (Surrey satellite technology company) before operational application. This satellite acquired a large number of time-delay Doppler images of reflected signals, which provided large amounts of data support for various research [6,7,8]. NASA launched the Cyclone Global Navigation Satellite System (CYGNSS) mission at the end of 2016. It was a GNSS-R constellation composed of eight microsatellites in synchronous orbit. It provided higher spatiotemporal sampling and showed great potential in retrieving sea surface wind speed and tropical cyclone prediction [9,10]. Nowadays, GNSS-R application research has been widely carried out in various fields, such as sea breeze retrieval [11], sea ice detection [12], soil moisture (SM) [13], desert surface roughness [14], and biomass retrieval [15].

GNSS-R first to be experimentally validated is in the marine field and is expected to achieve operational applications. Moreover, it is relatively mature in the measurement of sea surface wind field. Compared with traditional wind measurement methods, such as microwave scatterometers and synthetic aperture radars [16,17] GNSS-R can use the electromagnetic wave signals emitted by existing navigation systems and have abundant signal sources. Moreover, it has the advantages of all-weather, all-day time, global coverage, high spatial and temporal resolution, and less susceptibility to climatic conditions such as clouds and rain.

Most of the traditional GNSS-R methods for retrieval of sea surface wind speed are developed by extracting one or two features from the delay-Doppler map (DDM), such as normalized bistatic radar cross-section (NBRCS) or the leading edge of the slope (LES). Then, the functional relationship between one or two physical quantities and sea surface wind speed is established through vast amounts of measured data. This method is often referred to the geophysical model function (GMF) method [18]. However, the GMF method usually selects fewer feature parameters, making the constructed function model relatively simple. It will lead to limited retrieval accuracy and has the shortcomings of ignoring factors that may impact the retrieval result, such as the instrument-related properties of GNSS and other features.

With the development of computer algorithms, improvement of computer hardware storage and computing capabilities, machine learning has been widely used in computer vision, natural language processing, and speech recognition. Preliminary attempts have been made in some applications in the field of remote sensing. For example, Frate et al. used a multilayer perceptron (MLP) to distinguish artificial coverage areas in urban areas with high-resolution satellite remote sensing images [19]. M. Chi et al. applied the Support Vector Machine (SVM) and the genetic algorithm performed feature selection on hyperspectral data [20]. O. Eroglu et al. used three commonly used machine learning algorithms, Artificial Neural Network (ANN), Random Forest (RF), and SVM, to retrieve SM by GNSS-R data [21]. However, the use of machine learning in GNSS-R to invert the sea surface wind speed is still in the preliminary research and exploration stage. J. Reynolds and M. Asgarimehr used ANN to retrieve sea surface wind speed by TDS-1 satellite data and CYGNSS data, respectively. Compared with the geophysical model, the retrieval accuracy has been improved to a certain extent [22,23]. With improved retrieval accuracy requirements and the need to simplify data feature extraction, some researchers began to use deep learning to retrieve wind speed. Y. Liu et al. built a multi-hidden-layer neural network with deeper network layers to invert wind speed by CYGNSS data and obtained more accurate results compared with SVM and RF [24]. In addition, X. Chu et al. had also explored wind speed retrieval with TDS-1 data using deep learning [25].

Machine learning is a data-driven science. It uses algorithms to parse data and mine the rules between input data and target to accomplish different tasks. Deep learning is one of the most critical research branches of machine learning. Its network has a deeper number of layers and a more complex structure with better feature learning ability. Different network models can be designed and built according to different task requirements. For example, the convolutional neural network is commonly used to process image recognition or classification tasks, while the Recurrent Neural Network (RNN) is often used in Natural Language Processing (NLP). This paper builds a new hybrid neural network model to retrieve the global sea surface wind speed through deep learning. We select CYGNSS feature data and ECWMF wind speeds as the training and testing data for the model. A feature analysis experiment is also designed to summarize the effect of different types of input feature schemes on the wind speed retrieval and demonstrate the scientific and effectiveness of the feature selection. Through the experiments of retrieval performance comparison and effectiveness analysis, we demonstrate the retrieval accuracy of the model.

The contributions of this paper are as follows:

• It provides a new feature reference for GNSS-R sea surface wind speed retrieval through feature engineering;
• A new network structure is devised to extract the feature time dimension information in GNSS-R sea surface wind speed retrieval for the first time;
• The feature attention mechanism is added to implement attention weighting factors from the dimensions of feature types.

FA-RDN has preferable retrieval capability with relatively high precision and a low dispersion degree of retrieval results at high wind speed. Therefore, it can be used as a new model reference for GNSS-R global sea surface wind speed retrieval.

The remainder of the paper is organized as follows: Section 2 presents the data used in this paper, including original data collection and data pre-processing. Section 3 details the model designed in this paper, including the structure of the model, the model building process, and parameter details. Section 4 introduces the evaluation criteria, comparison models, and experimental design. In Section 5, the experimental results are given and analyzed. Section 6 and Section 7 discuss and summarize the article, respectively, and provide new ideas for future research.

2. Data

2.1. Data Acquisition

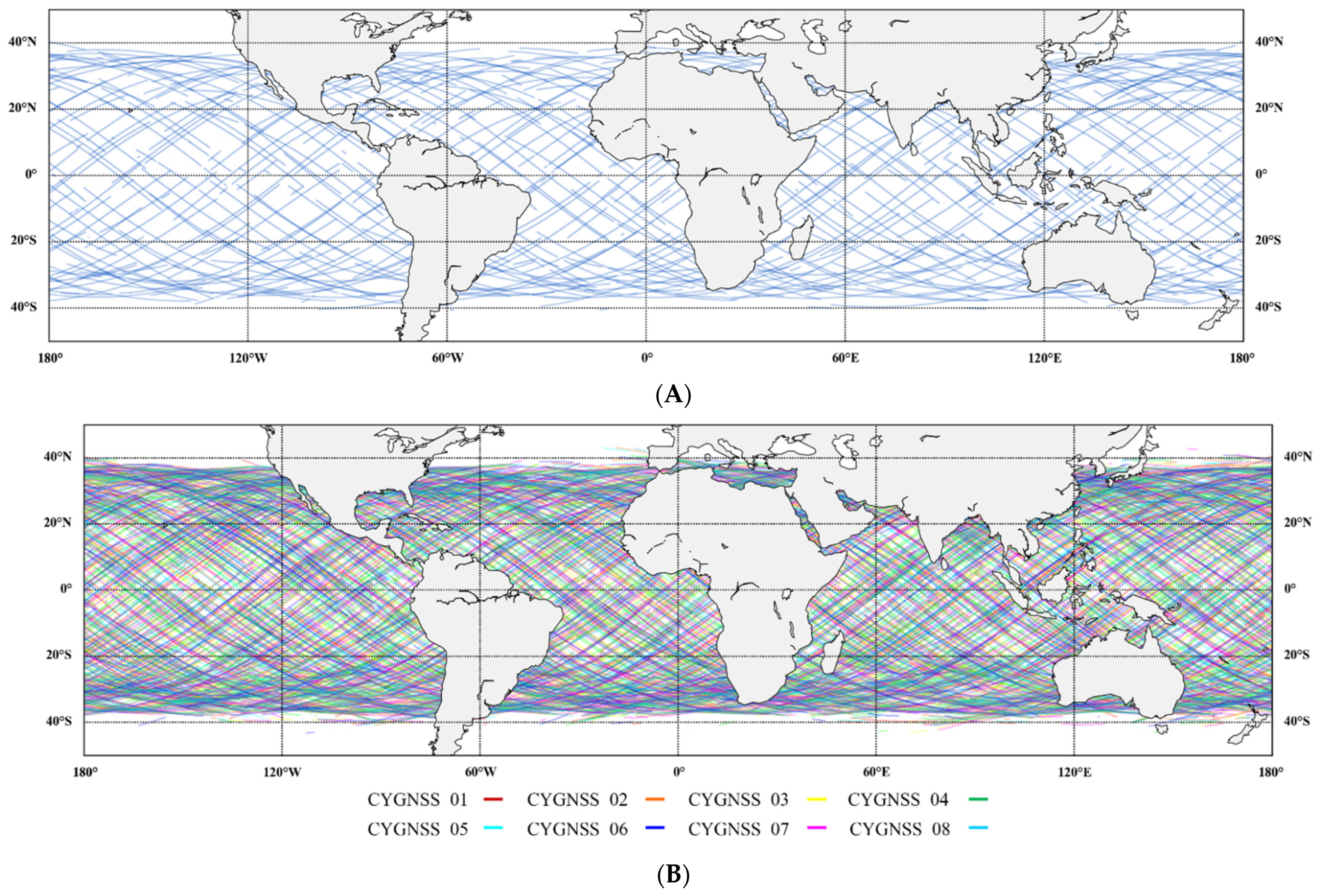

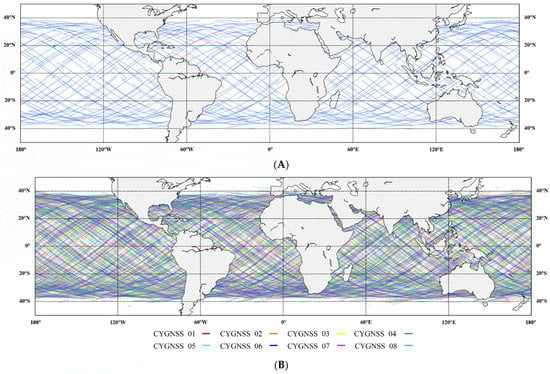

The original data is the L1 band data of the CYGNSS, which consists of eight sub-satellites that can work simultaneously to receive GPS signals reflected from the sea surface with latitude coverage of 38°N to 38°S, and with a spatial resolution of 25 km × 25 km. Figure 1 shows the distribution of specular point trajectories of CYGNSS on 7 August 2019, in which Figure 1A shows the specular point tracks of the CYGNSS 01 satellite, and Figure 1B shows the specular point tracks of 8 CYGNSS satellites. It is evident in Figure 1 that the data type is time series trajectory data, and the data is correlated in the time dimension.

The data spanning from 1 August 2019 to 30 August 2019, are selected as the original data set for training and testing the model. Furthermore, the feature selection refers to the characteristic parameters used in the sea surface wind speed retrieval by the GMF method, the error analysis, and the calibration experience of GNSS-R data. A total of 13 features involving signal attribute, instrument attribute, spatio-temporal attribute and geometry attribute are selected [26,27], as shown in

Table 1. List of selected features.

NO	Name	Type
1	SNR	Signal attribute
2	NBRCS	Signal attribute
3	LES	Signal attribute
4	SP_gain	Instrument attribute
5	PRN	Instrument attribute
6	SP_Lon	Spatio-temporal attribute
7	SP_Lat	Spatio-temporal attribute
8	SP_Time	Spatio-temporal attribute
9	SP_Angle	Geometry attribute
10	SP_AZ_orbit	Geometry attribute
11	SP_AZ_body	Geometry attribute
12	SP_Theta_orbit	Geometry attribute
13	SP_Theta_body	Geometry attribute

.

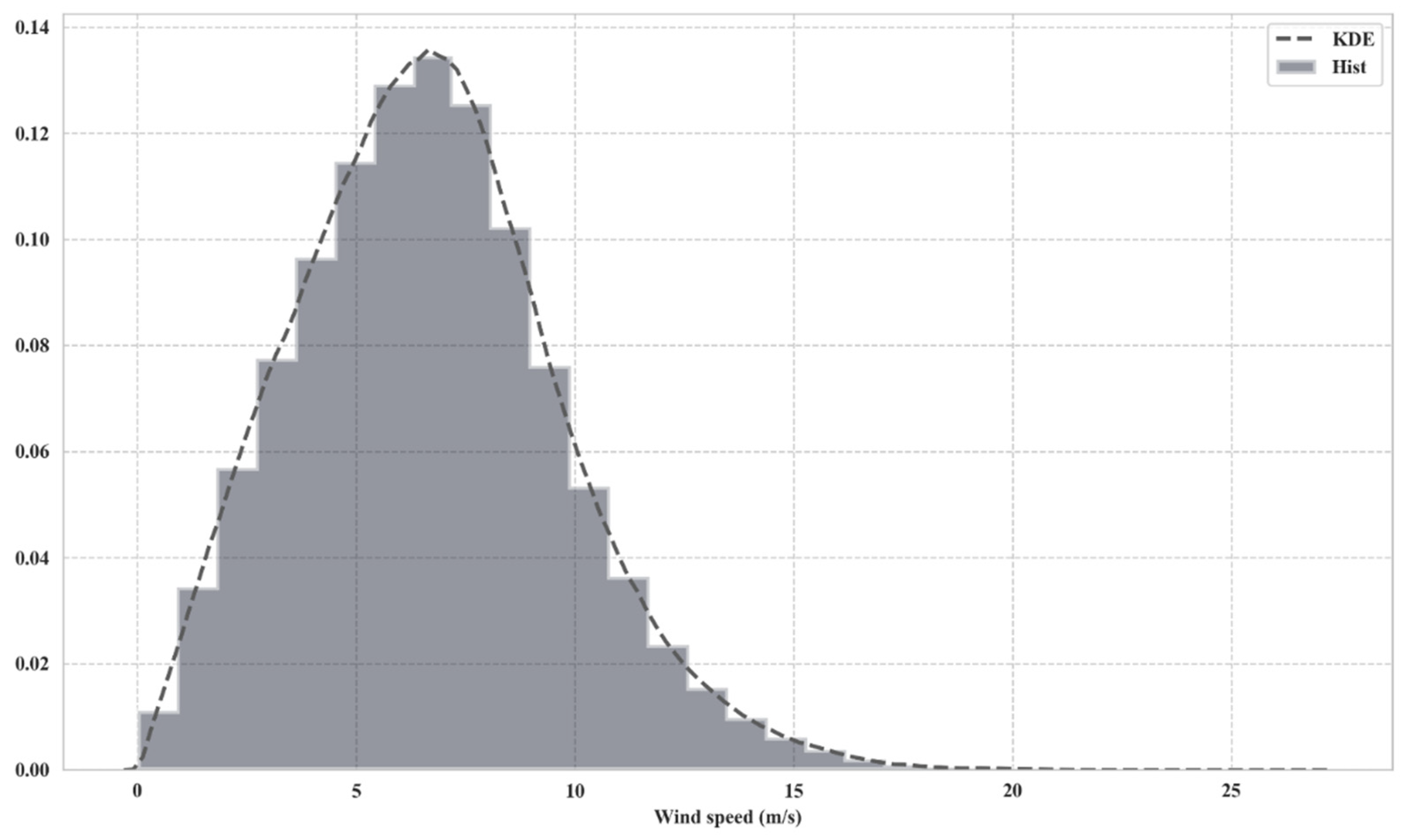

Besides, the European Centre for Medium-Range Weather Forecasts (ECMWF) reanalysis data from the Copernicus Climate Change Service (C3S) climate data repository, which provides global wind speed with a spatio-temporal resolution of 12.5 km × 12.5 km and one hour, are selected as the real sea surface wind speed.

2.2. Data Pre-Processing

To ensure the data quality, the data are quality controlled and screened. The CYGNSS feature data and wind speed with a value of NAN are excluded, the CYGNSS feature data are screened according to the quality control (QC) tags, which are used to filter the data by setting different QC bits, such as spacecraft attitude error, specular point position, data transmission and calibration error, and noise interference or abnormal data, and then the CYGNSS feature data are matched with the ECWMF wind speed data in time and space based on bilinear interpolation. Figure 2 shows the histogram and kernel density estimation of wind speed distribution after spatio-temporal matching. From Figure 2, we can see that the wind speed is mainly in the range of 3~9 m/s, and the number of low and high wind speeds is less compared to the medium wind speed.

Due to the difference in dimension and order of magnitude between feature data, the feature data need to be normalized. The calculation formula is as follows:

$$h_i^{\prime }=\frac{h_i-h_{min}}{h_{max}-h_{min}}$$

(1)

By scaling the feature data value to the interval [0, 1], the effects of dimension and order of magnitude are eliminated. It also improves the computational efficiency of the model and accelerates the convergence speed of the model.

3. Method

3.1. Objective

The neural network can be regarded as a complex nonlinear system, which solves regression or classification problems by fitting the nonlinear relationship between input data and the output. GNSS-R sea surface wind speed retrieval is classified as a regression problem. At present, most of the wind speed retrieval network models or GMF models can be expressed as follows:

$$y_t=M\left(x_t\right)$$

(2)

M is the designed network model or function model, $y_t$ is the wind speed value at time $t$, $x_t=\left[x_t^1,x_t^2,x_t^3,\dots ,x_t^m\right]$ is the feature data input to the model at that time, and $m$ is the number of feature types.

In this article, we feature of the current moment and plan to mine the historical information of the features. Therefore, the input data of the model are represented by the following matrix:

$$X_t=\begin{array}{cccc}{x}_{t_1}^1& x_{t_1}^2& \cdots & x_{t_1}^m\\ x_{t_2}^1& x_{t_2}^2& \cdots & x_{t_2}^m\\ \cdots & \cdots & & \cdots \\ x_{t_w}^1& x_{t_w}^2& \cdots & x_{t_w}^m\end{array}\in R^{w\times m}$$

(3)

$w$ is the time window, that is, the step length of historical information. $X_t$ is the input data matrix at this moment, where $x^i=\left[x_{t_1}^i,x_{t_2}^i,x_{t_3}^i,\dots ,x_{t_w}^i\right]$ is the expansion of the i-th feature in the time dimension. The number of feature types is determined by feature engineering, as described in Section 4.3 of the article.

Hence, to satisfy the purpose of mining historical information, we add the LSTM network layer. Besides, to speed up model training efficiency and improve model retrieval accuracy, we add the feature attention mechanism by shifting the weight factor mining from the temporal dimension to the feature type dimension.

3.2. Model and Algorithm

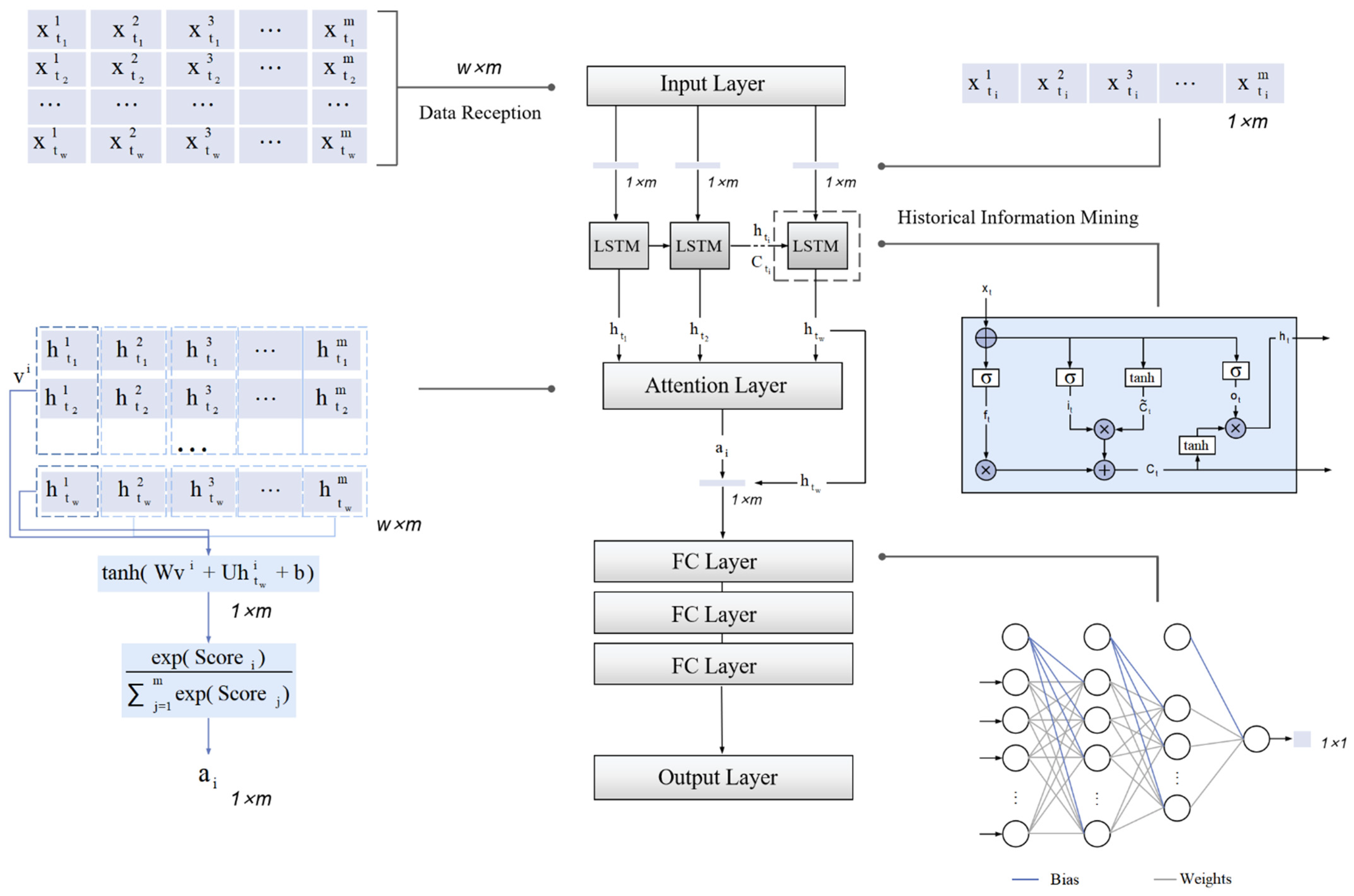

The model consists of five parts: the input layer, the LSTM layer, the feature attention mechanism module, the fully connected layers, and the output layer. The overall structure of the model is shown in Figure 3.

The input layer is utilized to receive the input feature data. LSTM layer realizes time correlation capture of input data. The feature attention mechanism layer calculates the contribution of each feature to the wind speed retrieval and outputs the corresponding weighting factor, which is used for weighting. Then the weighted data is calculated through the fully connected layer, and finally, the wind speed calculated by the model is output through the output layer.

3.2.1. Lstm Layer

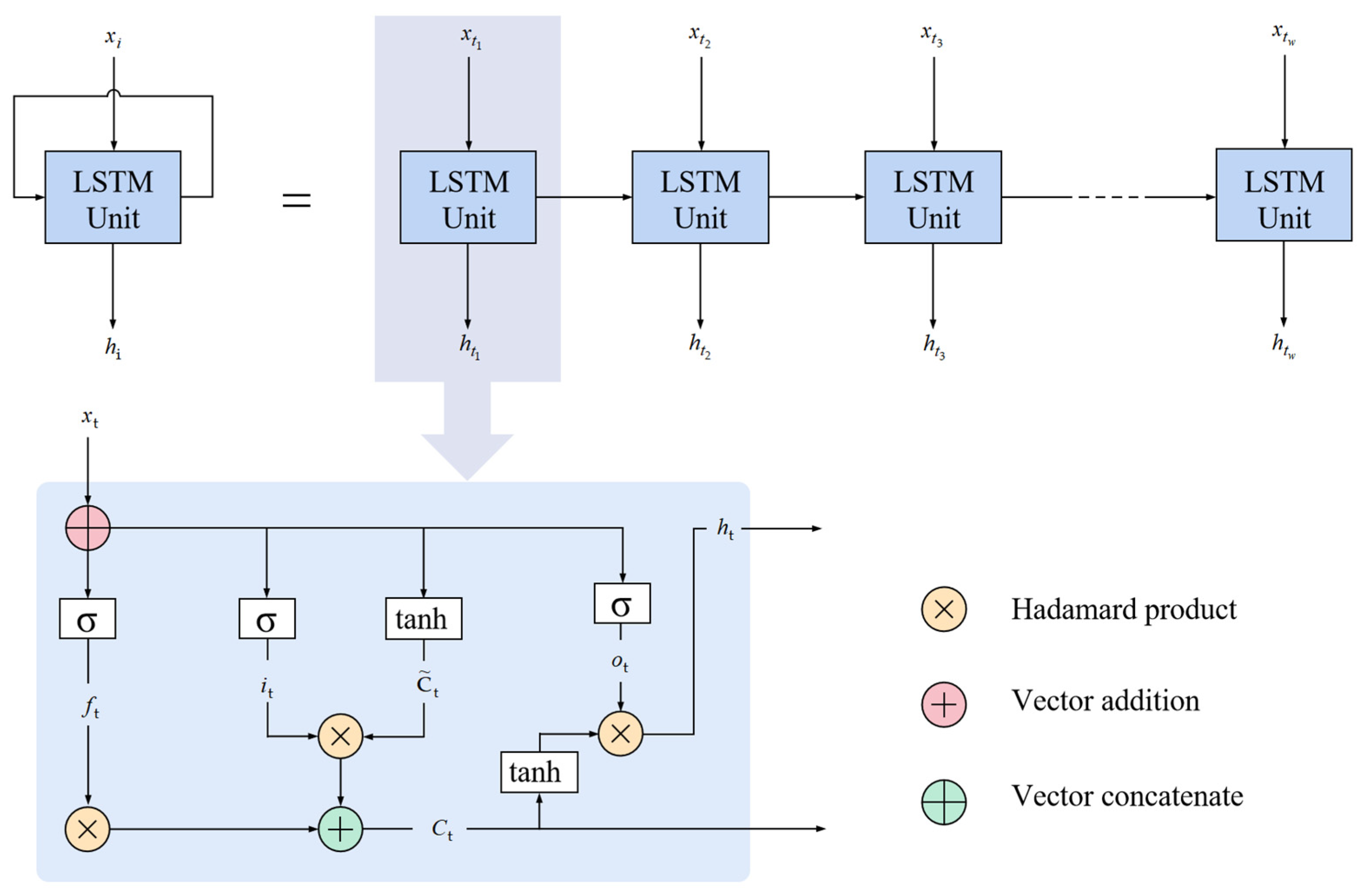

The LSTM neural network is a variant of RNN, proposed by Hochreiter and Schmidhuber [28], which solves the problem of vanishing gradient as well as gradient explosion that occurs in RNN [29].

LSTM adjusts the degree of retention, reception, and deletion of node information through gates, including forget gate, input gate, and output gate. The node structure is shown in Figure 4.

The calculation formulas of forget gate, input gate, and output gate are as follows:

$$f_t=\sigma \left(W_f\left[h_{t-1},x_t\right]+b_f\right)$$

(4)

$$i_t=\sigma \left(W_i\left[h_{t-1},x_t\right]+b_i\right)$$

(5)

$$o_t=\sigma \left(W_o\left[h_{t-1},x_t\right]+b_o\right)$$

(6)

Among them, $W$ and $b$ are the weight matrix and bias of the gating mechanism, respectively, $h_{t-1}$ and $x_t$ are the output of the LSTM node at the previous moment and the input feature data at the current moment, respectively. $\sigma$ is the sigmoid activation function that scales the output to the [0, 1] interval as the control weights. Each gating mechanism realizes the control of the degree of information forgetting, receiving, and output by outputting the control weight of the current node information.

Subsequently, the cell state is updated by short-term memory and gating weight. It is also referred to as long-term memory. The formula for calculating short-term memory ${\tilde{C}}_t$ is as follows:

$${\tilde{C}}_t=tanh(W_c\left[h_{t-1},x_t\right]+b_c)$$

(7)

where $W_c$ and $b_c$ are the weight matrix and bias term of short-term memory, respectively, and tanh is the tanh activation function. The current cell state is then updated with the following calculation equation.

$$C_t=C_{t-1}\cdot f_t+{\tilde{C}}_t\cdot i_t$$

(8)

The output of the LSTM layer at the current moment is calculated as follows:

$$h_t=tanh(C_t)\cdot o_t$$

(9)

After that, $C_t$ and $h_t$ will be passed on to the next moment. LSTM achieves sequence learning by transferring data information in the temporal dimension through cell state and short-term memory.

3.2.2. Attention Mechanism

The attention mechanism is often applied to deal with NLP problems, such as machine translation, public opinion monitoring, and automatic summarization. The idea is derived from the selective attention mechanism of the human brain, which focuses the gaze on key characteristic regions to enhance the efficiency of information utilization [30]. In the NLP problem, we calculate the attention distribution between the current and previous words by the attention mechanism. It can be seen as performing correlation calculations in the time dimension.

The weight is calculated by designing a scoring function score, which calculates the correlation between the current state and the historical state. Typically used scoring functions include the dot product, cosine similarity, and the introduction of an additional neural network layer. In this paper, we use the neural network layer as the scoring function, and the calculation formula is as follows:

$$Scor{e}_t=tanh(W{h}_i+U{h}_t+b)$$

(10)

where $h_i$ is the historical state, $W$ and $U$ are the weights of this network layer, and $b$ is the bias. Then, using the softmax function calculates the scoring result, and the computed result is the weight corresponding to the historical state and the current state. The calculation formula is as follows:

$$a_i=\frac{exp(Scor{e}_i)}{{{\displaystyle \sum }}_{j=1}^{m}exp(Scor{e}_j)}$$

(11)

However, in the face of regression problems, this weight calculation method is suitable for time-dimensional attention mining that contains only a single feature. In the GNSS-R sea surface wind speed retrieval problem, the input contains multiple characteristic variables. Therefore, we can transfer the attention calculation to the feature type dimension by improving the scoring function. The calculation formula is as follows:

$$Scor{e}^i=tanh(W{v}_{}^i+U{h}_{t_w}^i+b)$$

(12)

where, $v_{}^i=[h_{t_1}^i,h_{t_2}^i,∆,h_{t_{w-1}}^i]$, then the weight factor of the ith feature can be obtained after calculation by softmax function.

3.3. Realization

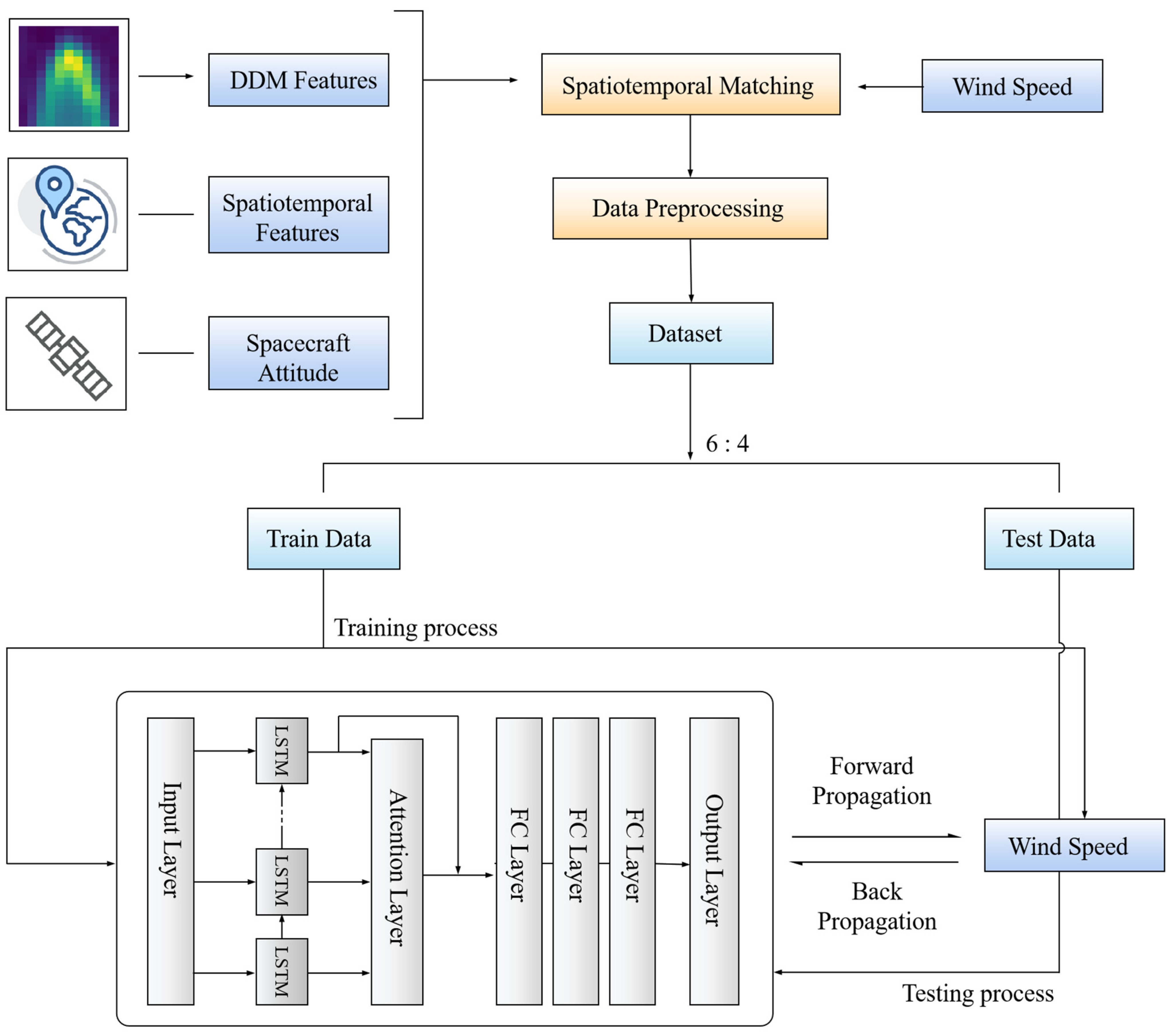

The implementation of the model includes three phases: data processing, training period of the model, and testing period of the model. The overall process is shown in Figure 5.

The data processing stage provides the dataset used for training and testing the model. The original data collection, data spatio-temporal matching, and quality control are described in Section 2 of the article. Then the time series data are transformed into supervised learning data required for training and testing the network model, $Dataset=\left\{\left(X_1,y_1\right),\left(X_2,y_2\right),\dots \left(X_n,y_n\right)\right\}$, and $n\in R$ is the total amount of data. The data are divided 6:4 into train data set and test data set used in the training and testing phases of the model, respectively. Furthermore, 20% of the data in the training data are reserved as a validation data set, which are utilized to verify and analyze the model after each parameter update to prevent the model from overfitting.

The training process of the neural network is briefly described as updating the weights and biases of each layer of the model to minimize the difference between the output result and the real value. This quantification process is usually implemented by defining a loss function. The loss function selected in proposed model is the same as the one used in previous studies, which is the mean square error (MSE) function [25].

The training process consists of two stages, forward propagation and backward propagation. First, the model parameters, namely the weights and biases of each layer, are initialized randomly [24]. Subsequently, we select a random portion of training data and obtains the wind speed through the forward propagation process. Then a backward propagation process calculates the gradient of the loss function concerning each parameter. The parameters are updated slightly along the gradient direction, and the cycle continues until the optimal model is trained. This model training method is called batch training.

Finally, we evaluate the performance of the trained model by test data. Besides, we compare it with frequently used regression models to validate the designed model’s effectiveness. The specific experiments and their results are shown in Section 4.

In addition, the other hyperparameters of the FA-RDN model are shown in

Table 2. Hyperparameters configuration of FA-RDN model.

Hyperparameter	Size/Type	Definition/Application
Batch size	64	The size of the dataset that uses part of the training data to complete the training once and update the network weights.
Activation function	$f\left(x\right)=\frac{x}{1+\left|x\right|}$	It is used for model computation, providing nonlinearity to the model, and improving the expressiveness of the network.
Loss function	MSE	The way of measuring the difference between the computed output of the network and the true value in the training process.
Optimizer	Adam	The way to calculate the optimal weights as well as bias of neural network through loss function.
Epoch	In this article, it is determined by early termination.	The number of a complete traversal of the entire train dataset at training time.

.

4. Experiment

4.1. Evaluation Criteria

To evaluate the wind speed retrieval results of the FA-RDN model, three evaluation criteria, MSE, root mean square error (RMSE), and mean absolute error (MAE), are used in this paper. The model which obtains the lower results of the above three evaluation criteria means that model’s output is close to the actual wind speed.

$$\mathrm{MSE}=\frac{1}{m}{\displaystyle \sum }_{i=1}^m{\left(y_i-y_i^{\prime }\right)}^2$$

(13)

$$\mathrm{RMSE}=\sqrt{\frac{1}{m}{\displaystyle \sum }_{i=1}^m{\left(y_i-y_i^{\prime }\right)}^2}$$

(14)

$$\mathrm{MAE}=\frac{1}{m}{\displaystyle \sum }_{i=1}^m\left|\left(y_i-y_i^{\prime }\right)\right|$$

(15)

where $y$ is the actual wind speed, $y^{\prime }$ is the wind speed calculated by the model, and $m$ is the total number of test data.

Aiming to represent the enhancement effect of the FA-RDN model more visually, the percentage improvement compared to the comparison model is presented according to MSE, RMSE, and MAE. That is, the percent improvement in MSE ($P_{\mathrm{MSE}}$), the percent improvement in RMSE ($P_{\mathrm{RMSE}}$), and the percent improvement in MAE ($P_{\mathrm{MAE}}$), the comparison models used are described in Section 4.2, and each percent improvement is calculated as follows:

$$P_{\mathrm{MSE}}=\frac{{\mathrm{MSE}}_1-{\mathrm{MSE}}_2}{{\mathrm{MSE}}_1}\times 100\%$$

(16)

$$P_{\mathrm{RMSE}}=\frac{{\mathrm{RMSE}}_1-{\mathrm{RMSE}}_2}{{\mathrm{RMSE}}_1}\times 100\%$$

(17)

$$P_{\mathrm{MAE}}=\frac{{\mathrm{MAE}}_1-{\mathrm{MAE}}_2}{{\mathrm{MAE}}_1}\times 100\%$$

(18)

${\mathrm{MSE}}_1$, ${\mathrm{RMSE}}_1$ and ${\mathrm{MAE}}_1$ are calculated from the retrieval results of the comparison model, while ${\mathrm{MSE}}_2$, ${\mathrm{RMSE}}_2$ and ${\mathrm{MAE}}_2$ are from the FA-RDN model.

In addition, to intuitively reflect the distribution of the retrieval error, we introduce the cumulative distribution function (CDF) of the absolute error (AE) between the model retrieval wind speed and the actual wind speed. The AE calculation formula is as follows:

$$A{E}_i=\left|y_i-y_i^{\prime }\right|$$

(19)

Then the CDF of AE is calculated as follows:

$$F_{AE}\left(x\right)=P\left(AE\le x\right)$$

(20)

4.2. Comparison Model

In this paper, seven comparison models are used to compare and validate the retrieval performance of the FA-RDN model, including four neural network models, Back Propagation Neural Network (BPNN), RNN, LSTM, and ANN, and three machine learning models, RF, eXtreme Gradient Boosting (XGBoost), and Support Vector Regression (SVR).

BPNN, RNN, and LSTM are commonly used neural network models in regression problems. At the same time, LSTM is also used for comparative verification analysis of the effectiveness of attention mechanisms. All models are implemented in Python and built on the Keras platform. The parameters of each neural network model are shown in

Table 3. Comparison model’s parameters.

Model	Parameter	Value
BPNN	Hidden neurons Number of hidden layers	{32,16,16} {3}
RNN	Hidden neurons Number of RNN layers Number of FC layers	{13,16,16,8} {1} {3}
LSTM	Hidden neurons Number of LSTM layers Number of FC layers	{13,16,16,8} {1} {3}
ANN	Hidden neurons Number of hidden layers	{16,16} {2}

.

BPNN: BPNN trains the model using an error backpropagation algorithm based on the gradient descent algorithm and obtains the final model by minimizing the MSE between the model output and the actual value. It is now one of the most used regression models. The BPNN usually consists of an input layer, several hidden layers, and an output layer. In this paper, a BPNN consisting of three hidden layers is built.

RNN: RNN is one of the common regression models, that can model sequence data and obtain the time correlation. The model’s training also uses the backpropagation algorithm.

LSTM: The LSTM is part of the FA-RDN model. See Section 3.1 for a detailed description of the LSTM. The network model architecture and parameters of the LSTM are the same as those of the corresponding components in the FA-RDN, and the LSTM consists of an input layer, LSTM network layer, fully connected layers, and an output layer.

ANN: ANN is a feedforward neural network designed by the literature [22]. Since that paper also studies the GNSS-R-based global sea surface wind speed retrieval problem and selects the feature data from CYGNSS, this model is selected as one of the benchmark models for comparative validation. This model consists of an input layer, two hidden layers, and an output layer with 16 neurons in the hidden layers.

RF: Ensemble learning is a frequently used method in machine learning, which improves classification or regression performance by integrating multiple models [31]. RF is an ensemble learning algorithm based on Decision Tree [32], which has a wide range of applications in classification or regression problems, such as classifying land types based on remote sensing information, estimating SM, and predicting solar radiation [33,34,35].

XGBoost: XGBoost, an ensemble learning method based on tree models, was proposed in 2016 [36]. The basic idea is to combine multiple tree models through continuous iteration to obtain a model with higher accuracy eventually. This method has been used in solving both regression and classification problems [37,38].

SVR: SVR is one of the essential methods in machine learning. It is an applied branch of SVM, specifically used to solve regression problems [39]. The idea of SVR is to search for the optimal hyperplane such that the minimum distance to the hyperplane is obtained for all elements in the original dataset.

4.3. Feature Engineering

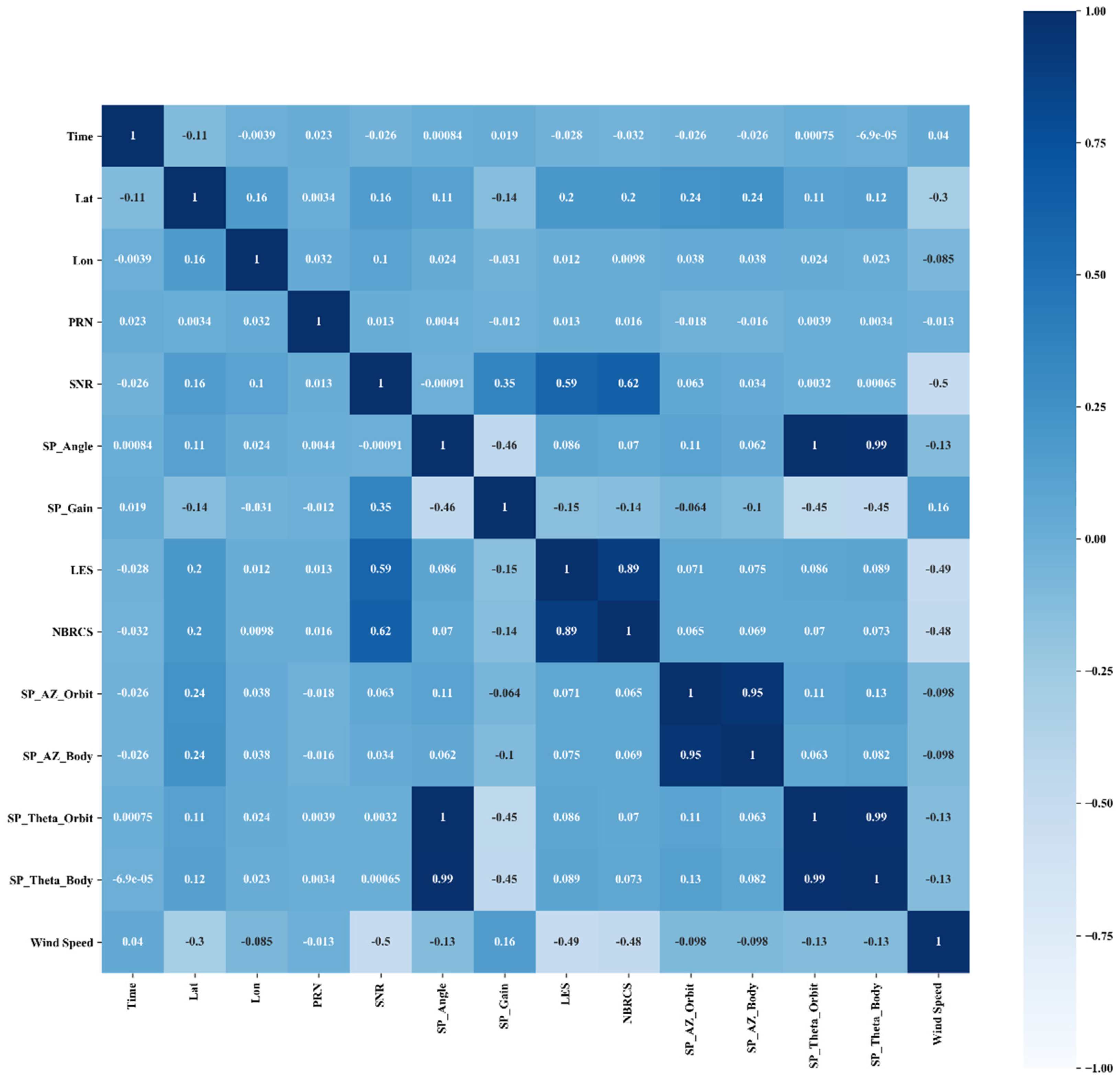

The wide variety of input features is one of the advantages of neural networks compare with GMF methods. The scientific and practical features are critical factors affecting the accuracy of neural network retrieval, so assessing the contribution of different types of features to the retrieval results and selecting the optimal combination of features through feature engineering are essential steps in retrieving sea surface wind speed.

Five data combination schemes are constructed to discuss the effects of spatio-temporal geographic information, spacecraft systems, and attitude information, respectively. All features and corresponding types are listed in Table 1. Each scheme is shown in

Table 4. The scheme of feature division.

Scheme	Dataset	Features
1	Dataset 1	SNR, BNRES, and LES (benchmark dataset)
2	Dataset 2	Benchmark dataset + spatio-temporal attribute
	Dataset 3	All features − spatio-temporal attribute
3	Dataset 4	Benchmark dataset + instrument attribute
	Dataset 5	All features − instrument attribute
4	Dataset 6	Benchmark dataset + geometry attribute
	Dataset 7	All features − geometry attribute
5	Dataset 8	All features

. Scheme 1 is the benchmark dataset. The GMF method often selects one or more of SNR, BNRES, and LES as input feature data. For example, NBRCE and LES are chosen in the article [40], and the article [41] usages SNR. Therefore, these three features, SNR, BNRES, and LES, are taken as the benchmark dataset in this article. Scheme 2 discusses the impact of spatiotemporal geographic information: the longitude, latitude, and time of the specular point. Scheme 3 is the effect of the spacecraft system, including antenna gain and PRN. Scheme 4 investigates the influence of spacecraft attitude. We choose the angle between the transmitter to specular point ray and the surface normal and the azimuth angle and theta angle of the specular point to receiver vector in the receiver’s orbit reference frame and body reference frame, respectively.

The retrieval results and analysis of the FA-RDN model under each dataset are presented in Section 5.2.1. Through the feature analysis results, it is possible to analyze the degree of influence of each type of feature on the retrieval result.

4.4. Experimental Design

Comparative experiments and verification experiments are designed to verify the improvement of the FA-RDN model’s retrieval accuracy, evaluate the effectiveness of each module, and analyze the model’s wind speed sensitivity.

A.

Performance evaluation

Firstly, to verify the overall retrieval performance of the FA-RDN model, we compare it with four neural network models, BPNN, RNN, LSTM, and ANN, and three machine learning models, RF, XGBoost, and SVR under each evaluation criteria. Draw the CDF of the AE between the retrieval results and the actual wind speeds to reflect the overall distribution of the retrieval error intuitively.

B.

Validity verification

Secondly, we compare and analyze the retrieval results of the FA-RDN and the LSTM model to verify the effectiveness of the feature attention mechanism. The LSTM’s structure and hyperparameter settings are the same as the FA-RDN model except that the attention mechanism module is not added.

C.

Stability analysis

Intending to realize the practical application of the model in the future, we need to validate the retrieval performance of the model from multiple aspects. The retrieval results of the designed model in the article [23] show high calculated values for low wind speed models and low values for high wind speeds. At the same time, the article [25] also shows that the retrieval error increases gradually with the rise of wind speed at medium and high wind speeds. Therefore, it is necessary to conduct an experimental analysis on the retrieval results of the FA-RDN model at various wind speeds, which is divided according to the Beaufort scale.

5. Experimental Results and Analysis

5.1. Feature Analysis

The retrieval results of the FA-RDN model under each dataset are shown in

Table 5. Characteristic analysis.

	Metrics			Improvement
	MAE	MSE	RMSE	PMAE	PMSE	PRMSE
Dataset 1	1.36	3.34	1.83	\	\	\
Dataset 2	1.24	2.76	1.66	8.56%	17.38%	9.11%
Dataset 4	1.28	2.99	1.73	5.60%	10.43%	5.36%
Dataset 6	1.27	2.91	1.71	6.35%	12.68%	6.56%
Dataset 3	1.25	2.82	1.68	13.55%	25.65%	13.77%
Dataset 5	1.21	2.62	1.62	10.64%	20.12%	10.63%
Dataset 7	1.21	2.58	1.61	10.30%	18.73%	9.85%
Dataset 8	1.08	2.10	1.45	\	\	\

, where dataset 1 consisting of SNR, BNRES, LES is the benchmark dataset, dataset 8 contains all features. The percentage improvement of dataset 2, dataset 4, dataset 6 compared to dataset1, and the percentage improvement of dataset 8 compared to dataset 3, dataset 5, dataset 7 under each evaluation criteria are given. Figure 6 is the correlation matrix heatmap which shows the correlation coefficients among features and between each feature and wind speed.

The results presented in Table 5 show that all three types of features improve the retrieval accuracy to a certain extent. The retrieval result of adding the geospatial coordinate information is better than the benchmark dataset, reduces MAE, MSE, and RMSE by 8.56%, 17.38%, and 9.11%, respectively. This result is consistent with the experimental results in the article [22]. The addition of systematic effects and spacecraft attitude information can also improve the retrieval accuracy. The retrieval results of dataset 4 and dataset 6 reduce the MAE, MSE, and RMSE by 5.60% and 6.35%, 10.43% and 12.68%, 5.36% and 6.56%, respectively, compared to the benchmark dataset. Figure 7 describes the trend of retrieval error in each dataset.

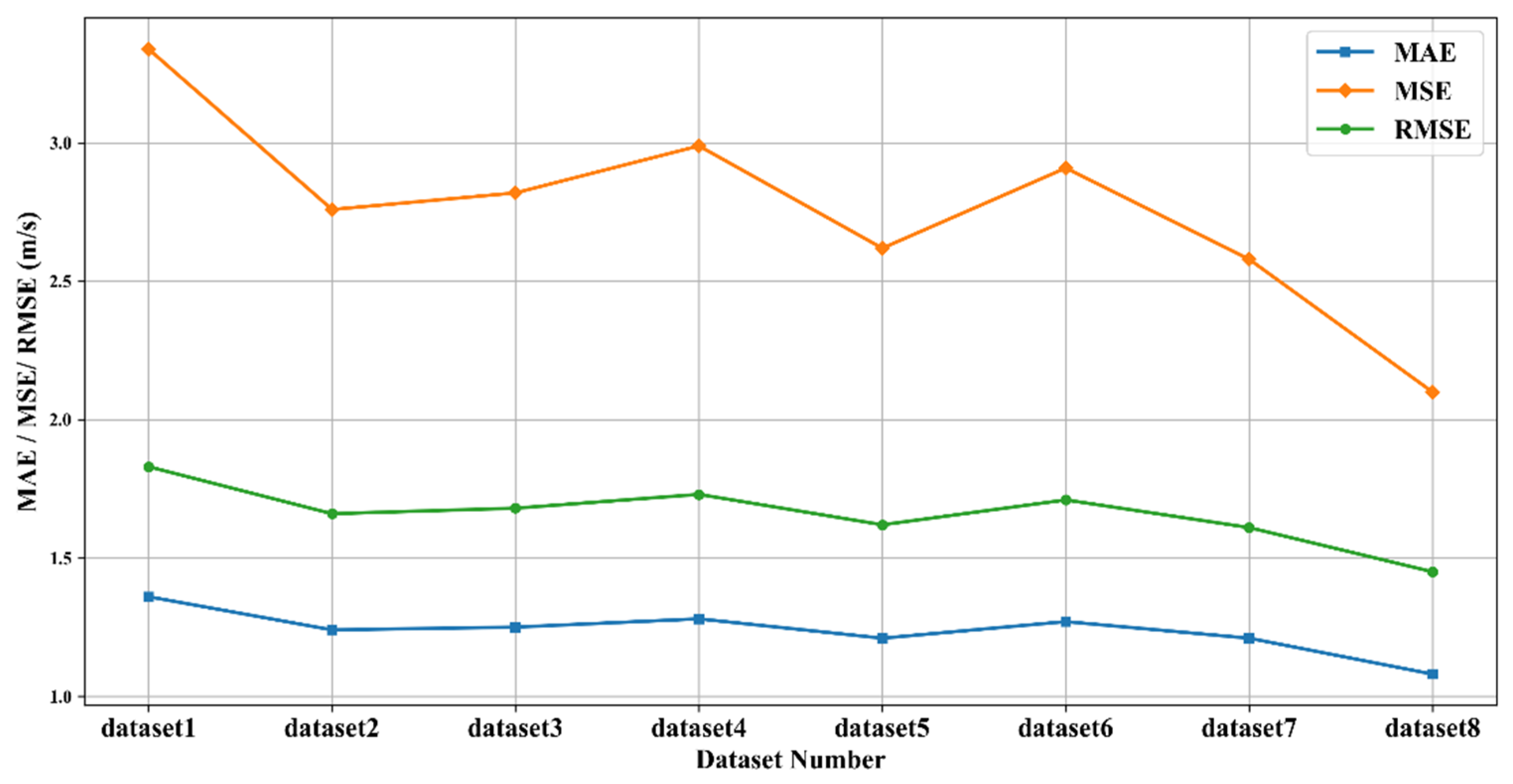

As can be seen from Figure 6, among all feature combination schemes, dataset 8 has the best retrieval results. Therefore, this set of features is taken as the final input features for the FA-RDN model.

5.2. Comparative Verification Experiments

5.2.1. Performance Evaluation

A. Comparison results with neural network models

Table 6. Experimental results of comparison and verification of retrieval performance.

	Metrics			Improvement
	MAE	MSE	RMSE	PMAE	PMSE	PRMSE
BPNN	1.21	2.61	1.62	10.71%	19.67%	10.38%
RNN	1.17	2.40	1.55	6.95%	12.73%	6.58%
ANN	1.25	2.79	1.67	13.05%	24.80%	13.28%
FA_RDN	1.08	2.10	1.45	\	\	\

lists the retrieval result of the FA-RDN model and the comparison model. It also shows the percentage improvement of the FA-RDN model under each evaluation criteria compared to each comparison model. The bold values in Table 6 represents the optimal value of the evaluation criteria.

It is apparent from Table 6 that the FA-RDN model has the best retrieval result compared with BPNN, RNN, and ANN, reduces MAE by 10.71%, 6.95%, and 13.05%, reduces MSE by 19.67%, 12.73%, and 24.80%, reduces RMSE by 10.38%, 6.58%, and 13.28%, respectively. Moreover, in the evaluation results of the compared models, RNN outperforms BPNN and ANN, which confirms from another perspective that mining historical information helps to improve the inversion accuracy of the models.

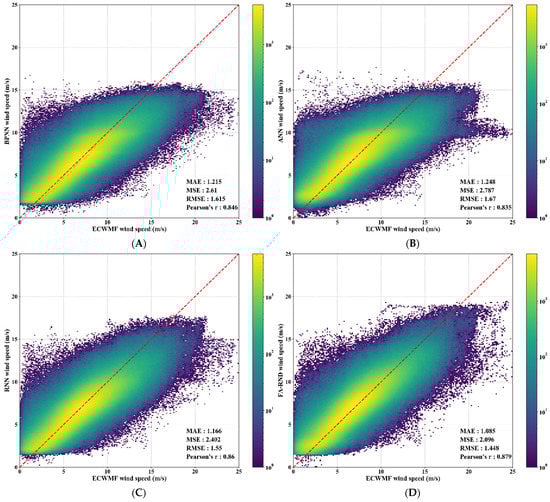

Figure 8 shows the scatter plots of model outputs of BPNN, ANN, RNN, and FA-RDN with the ECWMF wind speed, respectively, and the best regression fitting value, the red dashed line x = y. The closer the scatter distribution is to the dotted line, the more accurate the retrieval result of the model is.

In Figure 8, it can be seen that in terms of the overall fit results, the FA-RDN has the best fit, with the overall scatter distribution closest to the red dashed line and the least dispersion, with a Pearson correlation coefficient (Pearson’s r) of 0.879. The second is the RNN model with a Pearson’s r of 0.86, while the third and fourth are BPNN and ANN with Pearson’s r of 0.846 and 0.835, respectively.

B. Comparison results with machine learning models

Table 7. Retrieval results for each model and percentage improvement compared to machine learning models.

	Metrics			Improvement
	MAE	MSE	RMSE	PMAE	PMSE	PRMSE
RF	1.32	3.11	1.76	18.10%	32.57%	17.89%
XGBoost	1.45	3.30	1.82	24.94%	36.42%	20.26%
SVR	1.50	3.55	1.88	27.55%	40.92%	23.14%
FA-RDN	1.08	2.10	1.45	\	\	\

shows the retrieval results for each model and percentage improvement compared to machine learning models. The evaluation criteria results indicate that FA-RDN has the best performance. Compared with RF, XGBoost, and SVR, FA-RDN model reduces MAE by 18.10%, 24.94%, and 27.55%, reduces MSE by 32.57%, 36.42%, and 40.92%, reduces RMSE by 17.89%, 20.26%, and 23.14%, respectively.

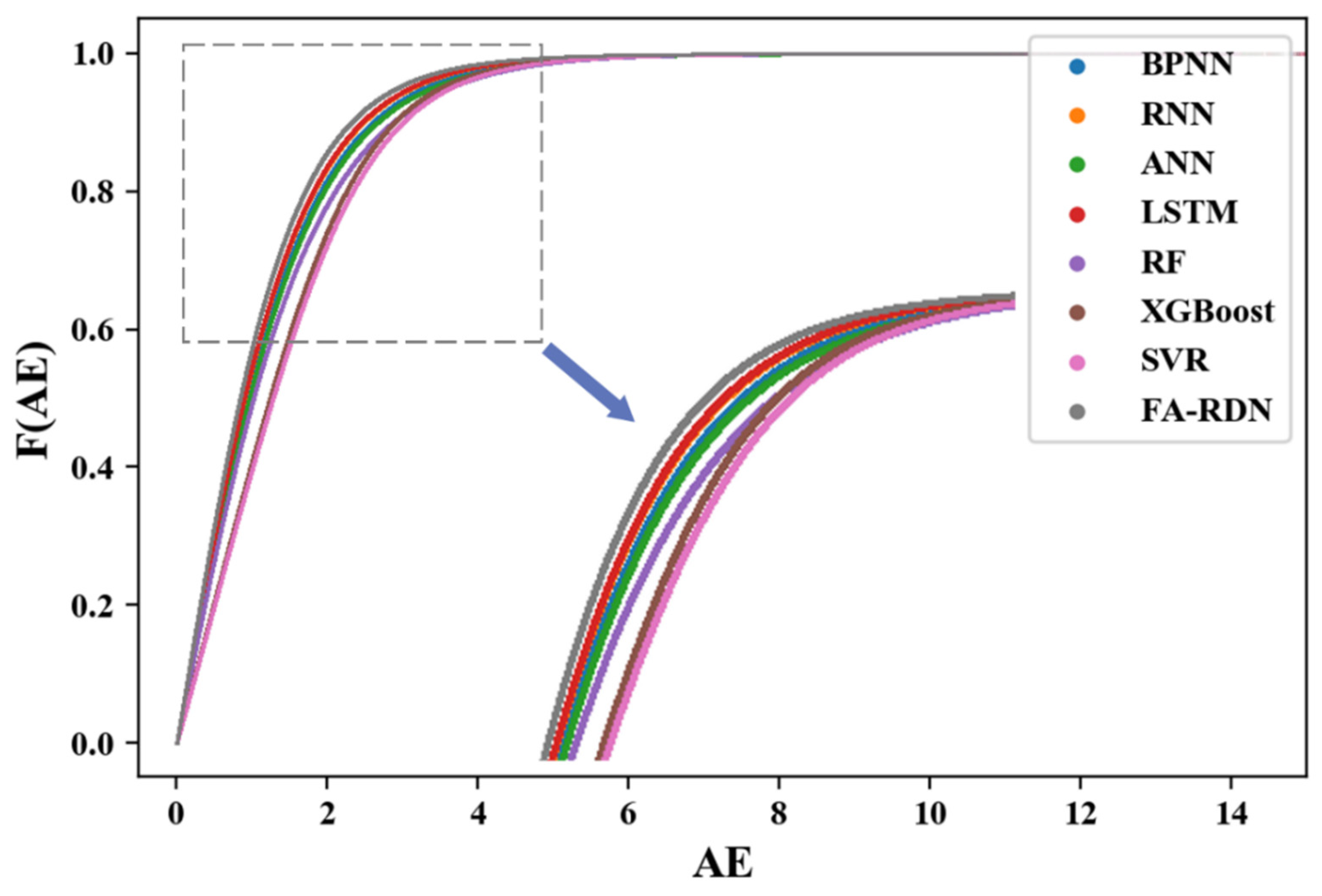

Figure 9 presents the AE CDF plots for the FA-RDN model as well as all comparison models. The model with larger function values for a given AE has better performance.

The AE CDF value of the FA-RDN model is always greater than that of the comparison models, which confirms that the FA-RDN model always has a better performance among comparison models.

5.2.2. Validity Verification

To further confirm the effectiveness of the feature attention mechanism in improving the accuracy of wind speed retrieval, the FA-RDN model is compared with the LSTM model in that experiment. The experimental results are shown in

Table 8. Experimental results of verification of the effectiveness of the attention mechanism.

	Metrics			Improvement
	MAE	MSE	RMSE	PMAE	PMSE	PRMSE
LSTM	1.15	2.34	1.53	5.78%	10.45%	5.37%
FA_RDN	1.08	2.10	1.45	\	\	\

.

The retrieval result of the FA-RDN model is better than the comparison model, and reduces the MAE, MSE, and RMSE by 5.78%, 10.45%, and 5.37%, respectively. It further confirms the effectiveness of the attention mechanism in improving the wind speed retrieval accuracy.

5.2.3. Stability Analysis

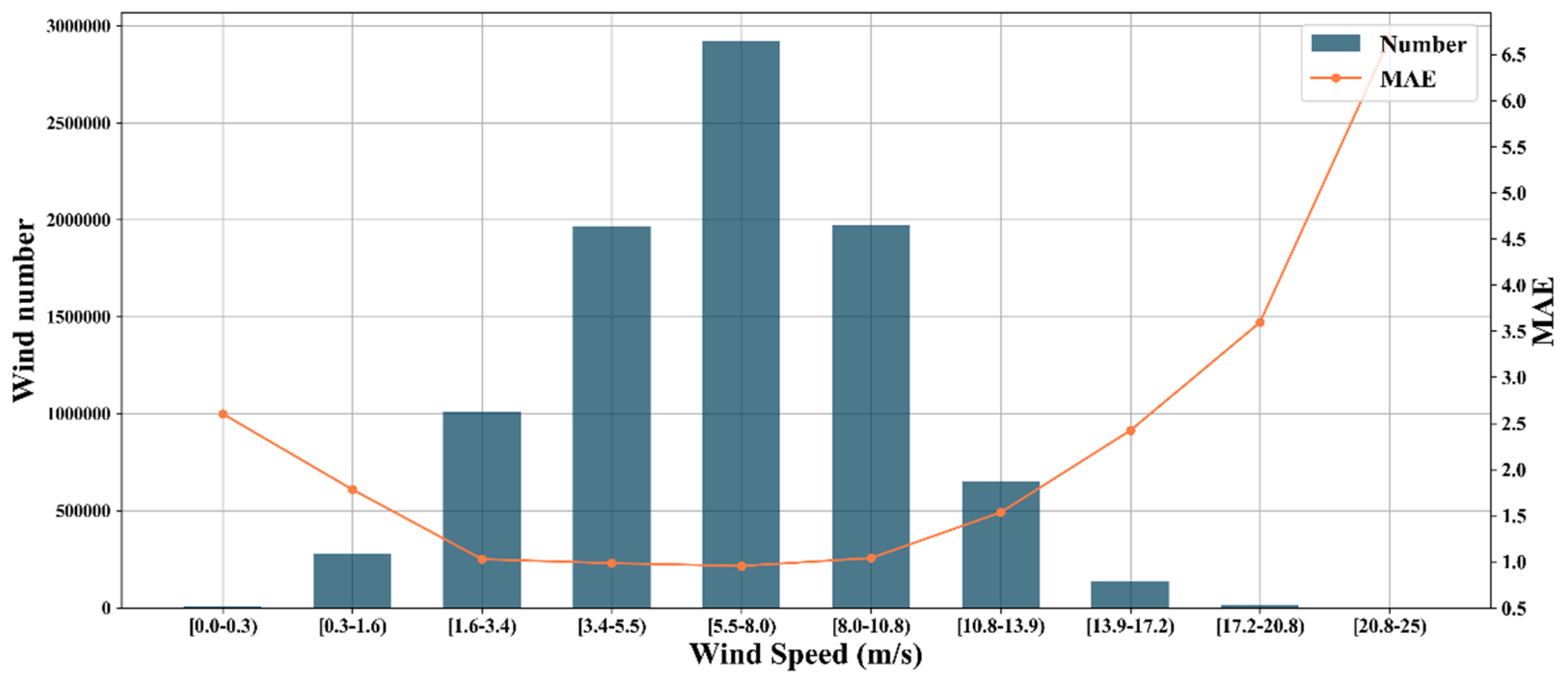

Figure 10 shows the retrieval results and the amount of data at different wind speeds, which are divided refer to the Beaufort scale. This figure can also be seen as a numerical representation of Figure 8D.

As can be seen in Figure 10, FA-RDN has higher retrieval accuracy in light air to strong breeze, that is, wind speeds from 0.3 m/s to 13.9 m/s. In calm and moderategale, that is, wind speed from 0.0 m/s to 0.3 m/s and from 13.9 m/s to 17.2 m/s, the retrieval error increases slightly, and has a significant increase after the wind speed is higher than 20.8 m/s. This result is consistent with the result of article [25], that is, in calm and higher wind speed, the retrieval results are worse than low and medium wind speed. In general, the FA-RDN model has less error fluctuation and better stability under the wind speed range of 20.8 m/s.

6. Discussion

In the feature analysis, all datasets are divided into five groups based on different combinations of features, as shown in Table 5. The percentage improvement after adding different types of features compared to the baseline dataset is compared separately by experiment. The experiments confirm that adding the selected feature types, i.e., spatio-temporal geographic information, spacecraft systems, and attitude information, all influence the overall retrieval results. After comparing the retrieval results of all datasets under each evaluation metric, as shown in Figure 6, the final input feature scheme is selected for the designed model, that is, dataset8 with all features is added, which improves MAE, MSE, and RMSE by 20.22%, 37.15%, and 20.72%, respectively, compared with the benchmark dataset. However, it is worth noting that the three feature types mentioned above are still the result of manual selection after analysis. In the follow-up research, we are designing an end-to-end retrieval model that can expand the selection range of feature types, and has the ability to automatically select feature types that have a proportional boost to the retrieval results [42].

Table 6, Table 7 and Table 8 list the retrieval results of each model, and Figure 7 shows the fitting between the retrieval results of the model and the true value of wind speed. The FA-RDN model has optimal results for each evaluation metric, MAE, MSE, and RMSE, with results of 1.08 m/s, 2.10 m/s, and 1.45 m/s, respectively. Besides, the overall density distribution and the distribution of the highest density for the fitted scatter of the designed model are closest to the x = y line, having the smallest offset at high wind speeds and the highest Pearson’s r value of 0.879 compared to other network models. Meanwhile, RNN has suboptimal retrieval result, which further confirms that mining the data’s temporal correlation information helps improve retrieval accuracy. In combination with Figure 9, the retrieval results are inferior at high wind speeds compared to low and medium wind speeds. This result may be due to the low sensitivity of the CYGNSS L1 observations at high wind speeds [40,43], and the small percentage of data samples at high wind speeds, see Figure 2. Therefore, in the future study, in addition to further expanding the selection of model input features, it is planned to add sea surface information to assist in the retrieval, such as sea surface height, wavelength, wave direction, and alleviate the data imbalance problem to improve the model retrieval accuracy.

7. Conclusions

This paper proposes a hybrid network model for the retrieval of global sea surface wind speeds. The recurrent deep neural network using improved attention mechanism can mine the temporal correlation information of the input features from the temporal dimension. The original data is from the L1 band data of the CYGNSS and the ECMWF. We compare and analyze the influence of temporal-spatial geographical features, systematic effects, and spacecraft attitude information on the retrieval accuracy through feature engineering.

It is confirmed that the FA-RDN model has better wind speed retrieval results, reducing the RMSE by 12% to 40% compared to all comparison models. Moreover, the retrieval results verify the effectiveness of the attention mechanism in optimizing the retrieval results and the historical reference information that helps to improve the model’s accuracy. In general, this paper provides a feature reference and a new reference model for retrieving GNSS-R sea surface wind speed based on neural network.

In future research, in addition to the temporal dimension, information can also be added for reference from a spatial perspective. Satellites network observations can be carried out to simultaneously extract information on the spatial correlation between multiple reflection points. Besides, further research and experiments can be conducted on the architecture of the network model.
