1. Introduction to SAGE Instruments
The SAGE missions are a series of remote sensing instruments deployed in Low-Earth Orbit (LEO) with the intent of observing key atmospheric constituents, in particular aerosol, ozone, and water vapor. SAGE I [
1,
2], operational between 1979 and 1981, successfully used the technique of solar occultation (i.e., using the Sun as a light source through long atmospheric path lengths to measure weakly absorbing/scattering species) to make some of the first vertically resolved measurements of stratospheric aerosol and ozone. These measurements contributed to the earliest assessments of the impact of chlorofluorocarbons on the ozone layer [
3] and the passing of the Montreal Protocol to phase out, and eventually ban, the use of these substances. SAGE II [
4,
5], active from 1984 until its decommissioning in 2005, provided the longest single-instrument data records of stratospheric ozone, aerosol, and water vapor. These data have been crucial to assessing the efficacy of the Montreal Protocol [
6]. SAGE II also observed one of the largest volcanic eruptions of the 20th century, Mount Pinatubo in 1991, and its impacts on the stratosphere [
7]. The SAGE III instruments [
8] were built as a trio, with one to fly on an independent spacecraft, one that was meant to be mounted to the International Space Station (ISS), and one to be used as a flight of opportunity. For various reasons, the free-flyer was active from 2002–2005 while the other two were put into storage until SAGE III/ISS was launched and installed in 2017.
Over the past few years, SAGE III/ISS has demonstrated an ability to provide high-quality measurements of stratospheric ozone [
9], aerosol [
10], and water vapor [
11,
12]. These atmospheric species are of particular importance. Stratospheric ozone, for example, is a targeted observable in the 2017 Decadal Survey [
13], and NASA is mandated to monitor the health of the ozone layer under the Clean Air Act as amended [
14]. Aerosol is a designated observable under the Decadal Survey because it is a key input to climate models, has an important role in atmospheric chemistry [
15], and is a large source of uncertainty to Earth’s energy balance [
16,
17,
18]. Water vapor is another key component of Earth’s energy budget [
16], a key driver of stratospheric chemistry [
19], and a tracer for stratospheric circulation and stratosphere–troposphere exchange [
20,
21,
22,
23]. Despite the importance of these constituents, there is uncertainty about the future of availability of measurements and data continuity. While the SAGE III mission is in extended operation, it is important to think about what instruments can be deployed in the future to ensure proper continuity of these critical data records.
2. ISS as a Platform for SAGE III
Unlike previous SAGE instruments, which were mounted on free-flying spacecraft of different sizes, SAGE III on the ISS operates from a unique platform that furnishes both benefits and challenges. The ISS sits in a mid-inclination (51.6) low-altitude orbit (≈400 km) similar to SAGE II (57 inclination at 650 km), which is ideal for solar occultation observations. While SAGE instruments do not create excessive amounts of data, the ISS provides communications through the Tracking and Data Relay Satellites (TDRS) and the Space Network not only for large volumes of data to downlink for archiving and processing, but also often real-time streaming of telemetry with minimal latency. Additionally, as an inhabited space station there is the possibility of servicing the aging auxiliary hardware, such as when a Battery Charge/Discharge Unit (BCDU) failure in the ExPRESS Logistics
Carrier-4 (ELC-4) power system interrupted operational power to the SAGE III instrument payload for one month in September–October 2019. A spacewalk to replace the bcdu was completed on 18 October 2019 by astronauts Jessica Meir and Christina Koch. However, as a very large, multi-module habitat with regularly visiting vehicles, the ISS provides unique challenges to a remote sensing instrument. These challenges generally fall into one of two categories: interruptions to operations and pointing anomalies.
2.1. Operational Interruptions
By its nature as a manned space station, there is a routine schedule of visiting spacecraft to the iss. Like most instruments, SAGE is sensitive to its environment, and visiting vehicles have a tendency to temporarily contaminate that environment through the release of propellants and molecular outgassing and desorption from spacecraft exteriors. Because of the unique platform, SAGE III/ISS has two Contamination Monitoring Packages (CMPs) that are designed to measure molecular contaminant flux from eight directions covering the
steradians on the payload side of the Expedite the Processing of Experiments to the Space Station (ExPRESS) payload adapter [
24]. Additionally, all SAGE instruments have a contamination door containing an optically transparent window meant to cover the optics prior to and during launch. Previous SAGE instruments opened this door after launch and left it in that position, but SAGE III/ISS routinely opens and closes this door as vehicles come and go and contaminant fluxes wax and wane. The contamination door is meant to prevent contaminants from entering the scan head and optical train while allowing science measurements to continue through the optical window with a reduction in measurement signal-to-noise ratio as contamination adsorbs on the window. The relative nature of occultation atmospheric transmission measurements permits this functionality, and window noise is reflected in the species product error bars. Through 5 November 2021, SAGE III/ISS executed 42,112 solar occultation events and 5518 lunar occultation events, with more science events being collected every orbit. The contamination door has been open for only 58.1% of solar occultation events and 55.0% of lunar occultation events. While science operations with a somewhat diminished signal-to-noise ratio have taken place with the contamination door closed, operations are halted during active docking/undocking maneuvers and nearby space walks, or during periods of unusually high contamination as detected by the CMPs. Through 5 November 2021, 736 solar occultation opportunities and 269 lunar occultation opportunities have been lost to SAGE operational pauses from these ISS activities. A further 848 solar opportunities and 164 lunar opportunities have been lost to ISS power outages at the SAGE III ELC-4 site. Other sources of operational interruptions are less direct and unintentional. Because of its size and configuration, and because of the changing orbital solar beta angle, there are some modules that routinely obstruct SAGE’s view of the Sun. Visiting vehicles act similarly. Sometimes these obstructions occur for a short enough period of time that the instrument continues to function normally, while at other times it fails to reacquire the Sun and ceases an active science event. This both reduces the total number of science events collected and presents additional challenges to identify these events in processing, such as modifying the science retrieval algorithm to exclude the use of data obscured by station components to the extent possible [
25]. Through 5 November 2021, 2507 solar occultation opportunities and 715 lunar occultation opportunities were lost to ISS line-of-sight obstructions.
2.2. Pointing Anomalies
When it comes to solar occultation measurements, pointing knowledge is critical. This
is primarily because the Sun is not a uniform light source and, while pointing uncertainty
in the atmosphere degrades vertical resolution, pointing uncertainty on the face of the Sun
results in radiometric uncertainty. As such, a significant effort is expended to characterize
and calibrate the mechanisms that control the rotating scan head or the pivoting scan mirror.
Even still, there are certain assumptions that are made during data processing. For example,
the science processing algorithm assumes that the spacecraft maintains attitude such that
the primary axis of the science instrument is oriented towards nadir. For past SAGE
instruments, onboard free-flying spacecraft, this was a reasonable assumption. However,
the ISS is, relatively speaking, an enormous spacecraft composed of multiple modules
that can bend and flex relative to each other. Additionally, the overall attitude of the ISS
changes temporarily as visiting vehicles come and go, modifying the mass distribution and
drag profile of the station. The primary SAGE III/ISS science instrument is mounted to a
Hexapod assembly that can alter the orientation of the instrument to help compensate for
changes in the overall orientation of the ISS. However, this does not account for movements
of the SAGE payload from station bending modes. Instead, SAGE III/ISS has a Disturbance
Monitoring Package (DMP), which is a three-axis ring laser gyro mounted at the base of
the Hexapod, to help measure these rotational changes so that they can be accounted for
during the science retrieval algorithm.
3. ISS Lessons Learned for Future Payloads
During a project’s life cycle, specialized knowledge and experience are ideally documented with review and other process controls ensuring accuracy, clarity, traceability, and accessibility. A typical document product includes engineering drawings, bills of material, schematics, traveler logs, quality assurance certifications, reports and manuals, theoretic basis and control documents, requirements and verification artifacts, schedule and budget records, risk and project management plans, milestone review material, procedures, photographs, waivers, and nonconformance reports, along with electronic source files, software, and firmware contained in version control repositories with commit logs and a ticketing system. To stimulate a culture of learning the SAGE III/ISS project also tracked Lessons Learned in a database. These lessons included cases where the project team executed well and cases where execution could have been improved. A culture of learning gains knowledge from both successful and unsuccessful work and captures that knowledge in a consumable way. Specific lessons are then generalized and ultimately translated into future best practices that can mature the overall project management processes. nasa project management is the dynamism for deriving value from taxpayer money. Tremendous value is lost to nasa when knowledge and experience are neglected or abandoned through attrition. Knowledge captures pertinent to external payloads aboard the ISS generally fell into the categories of Hardware, Software, Documentation, Science, Mission Operations, and Personnel lessons. Selected examples of general interest follow.
3.1. Hardware: The Anticipated ISS Pitch Bias Was Mutable
The ISS orbits in a Torque Equilibrium Attitude (TEA) to limit the rate at which the station’s control moment gyroscopes accumulate the angular momentum induced by external torques such as atmospheric drag and gravity gradient torques. TEA will change with visiting vehicles and with the arrival of new modules. Several external payloads have been designed with fixed instrument attitude offsets narrowly tailored to the latest ISS attitude assumptions. For instance, the SAGE III static Hexapod lower wedge offset was determined during the Assembly, Integration, and Test (AI&T) Phase D based on the contemporary ISS configuration as well as the imminent arrival of the Nauka module. The static wedge pitches the Hexapod at its base by 7
in anticipation of the TEA needed to support Nauka. Because the launch of this module was delayed several years past the February 2017 arrival of SAGE III/ISS, the Hexapod typically operated closer to its outer range of motion envelope during the Prime Mission. The SAGE III Hexapod has a ±8
range of motion in the pitch and roll directions. Most of the pitch compensation was used to correct the superfluous 7
produced by the static offset wedge. (Scan head yaw is corrected using an azimuth rotor with 360
freedom.) Because of this, the instrument scan head was occasionally unable to account for the ISS operational pitch and attain a proper nadir orientation for science events. Through 5 November 2021, the Hexapod was unable to achieve a scan head nadir orientation for 1555 solar occultation opportunities and 255 lunar occultation opportunities with an uncompensated off-nadir error up to about 1.5
. (As another example, the ISS-RapidScat payload experienced similar problems with its forward pitch offset [
26,
27]). The arrival of Nauka in July 2021 means that the ISS is now in the configuration for which the SAGE III static wedge and Hexapod were designed, and thus the attitude offset will be nominal—absent future changes—during the ongoing SAGE III Extended Mission phase.
It should not be assumed that ISS attitude forecasts are highly accurate. Early in the design phase, ISS external remote sensing instruments with strict pointing requirements should consider design features that permit operability over a wider platform pitch or utilize a dynamic pointing platform with a wide range of mobility to appropriately account for possible ISS configuration delays.
3.2. Hardware: Track Limited Lifetime Mechanisms Early
Life-cycle design engineering combined with mechanical testing established the reliability of limited lifetime mechanisms over the three-year Prime Mission. As the Prime Mission was unfolding and consideration turned to the Extended Mission, engineering concerns arose about the operational failure to track the number of cycles executed by limited lifetime mechanisms such as within the instrument solar attenuator assembly, contamination door assembly, and Hexapod pointing mechanisms over the project life-cycle (Phases D-System Assembly, Integration, Test, and Launch and E-Science Operations [
28]).
Finite mechanism cycles need to be allocated towards mission success. Meticulously tracking these cycles enables time-to-failure analyses, operational decision-making and schedule optimizing for producing the best science record over the duration of the mission, and correlations of mechanism health and status telemetry with mechanism use. A review of SAGE III Phase D procedures and data was necessary to establish total cycles. On an operational level, limited lifetime mechanisms should be identified early, expected total lifetime cycles should be clearly documented, and a record of the number of executed cycles on the mechanisms should be established beginning in Phase D making use of traveler log books.
3.3. Hardware: Visiting Vehicles Introduce the Most Molecular Contamination
The SAGE III grating spectrometer measures light within the spectral range 280nm to 1037nm at approximately 1nm resolution, but retrievals in the ultraviolet (UV) are particularly sensitive to contamination of the optical train. Therefore, a contamination door that contains a quartz optical window can be closed over the telescope aperture during periods of enhanced external contaminant flux. This optically transparent window
permits continued science event acquisition during periods of enhanced contamination at an acceptably diminished signal-to-noise ratio, which is expected to decline with ongoing accretion of contaminant material. To date, this impact has been short-term, and science quality through the window returns to baseline performance after a contamination source is removed and both spontaneous desorption and atomic oxygen scrubbing from the orbital ram direction remove material from the low-affinity quartz surface. The contamination door continues to prevent deposition of external contaminants into the instrument telescope. When contamination returns to a tolerable flux, the contamination door is opened to retrieve the best science measurements.
Two Contamination Monitoring Packages (CMPs) consisting of eight Mark 24 Thermoelectric
Quartz Crystal Microbalances (TQCMs) from QCM Research provide characterization and
redundant monitoring of contaminant deposition from the steradian solid angle on
the payload side of the ExPRESS Payload Adapter. CMP data are closely examined by
the SAGE III mission operations team to determine when the contamination door should
remain closed during science events and in what relatively clean direction the instrument
assembly azimuth scan head should stow when not acquiring science measurements.
Additionally, should the CMPs indicate an unacceptable contaminant flux, the flight
computer will close the contamination door as part of the automatic fault detection
system. Along with spectrometer measurements of the quartz window’s transmission, the
payload CMPs enable auditing of the mission contamination budget and correlations with
performance changes in the payload thermal control surfaces. The process of Thermogravimetric
Analysis (TGA) can be used to help identify chemical constituents accreted on the CMP
sensors and to burn off contamination.
To identify sources of contamination in the local ISS environment, each SAGE III
TQCM sensor faces a unique direction. While molecular contamination in the free molecular
flow regime of LEO is dominated by rectilinear motions, it is also subject to redistribution
by, for example, energetic solar flux and ISS scattering surfaces. It is essential that fields of
view and Clausing conductance factors for all vacuum inlets be well characterized for each
TQCM sensor so that accurate fluxes and directions can be retrieved. Tightly controlling
the conductance factors for each TQCM sensor should be a system design requirement,
and modifications should be considered carefully and designated quality sensitive. Prior to
launch it was anticipated that ISS solar panels would be the largest source of contamination.
Solar panel contribution to the background contamination over an orbit is coupled to the
solar flux term, and exposure to a given TQCM is related to panel articulation. The solar
flux variation over an orbit also induces noise on individual CMP sensors by producing a
thermal gradient across the sensor. This makes characterizing the contamination from solar
panels on their own problematic. However, contamination from the solar panels seems
to be no worse than the background contamination flux, and visiting vehicles have been
the largest source of attributable contamination measured [
24]. To mitigate their effects on
the instrument, the contamination door is closed when vehicles arrive and depart. When
vehicles not previously observed by the CMPs arrive, the instrument is commanded into a
safe mode for contamination characterization to determine future response.
3.4. Hardware: Measure the Payload Mechanical Environment When Pointing Is Critical
Unlike its predecessors, the SAGE III/ISS instrument payload encounters off-nadir attitudes along with jitter conditions caused by the mechanical instability of the ISS environment. The retrieval algorithm for the SAGE III occultation science data product requires precise and accurate knowledge of the instrument boresight pointing with respect to Earth and the radiant target, either Sun or Moon. Shock or random vibration loading on the ISS structure energizes internal modes that translate directly into rapid attitude deviations of the payload from the reported ISS body-fixed coordinate system. Without knowledge of the attitude drifts at the instrument scan head and the associated mechanical jitter, atmospheric data retrieval quality is reduced. Limb scatter science events that measure the scattering of solar radiation by Earth’s lit atmosphere do not track a celestial target and therefore do not use the same method to register altitude, latitude, and longitude of retrievals as solar and lunar occultation events. To accurately account for pointing during limb events an absolute attitude product of the ExPRESS Logistics Carrier-4 (ELC-4)
is needed.
A subsystem on the payload designated as the Disturbance Monitoring Package
(DMP), comprising a Miniature Inertial Measurement Unit (MIMU) built by Honeywell
Aerospace of Clearwater, Florida, was added to quantify mechanical disturbances. Employing
three highly sensitive Honeywell GG1320 Ring Laser Gyroscopes (RLGs), the DMP measures
angular attitude rates in three orthogonal axes and reports integrated angular position
at 200 Hz. By calibrating to the ISS body coordinate frame on orbit and using attitude
determination algorithms, the pointing information needed for post-processing solar, lunar,
and limb science is derived, ensuring that the data retrievals maintain the high standard
expected of this class of instrument.
The ISS mechanical transfer function between the DMP and the instrument scan head
was not assessed during AI&T. Planned vibration testing originally included a LASER
vibrometer characterization of the (linearized) transfer function but was de-scoped because
of schedule prioritization. To extend utilization of the DMP to correct (or filter) science
data and boresight pointing for the ISS mechanical environment, the phase and amplitude
response of the measured DMP vibration that is transmitted to the scan head and scan
mirror needs to be understood. The mechanical transfer function can only practically be
measured on the ground, and the DMP team has required considerable time to derive a
suitable transfer function from science data observations. De-scope will occur, but it is
important to recognize that de-scoped characterization testing has mission operational
consequences only distantly related to the hardware delivery goals of AI&T.
3.5. Software: Flight Projects Need Dedicated it System Administrators
Even small flight projects accumulate copious quantities of servers and client systems
over time, requiring patches, new software, hard-drive replacements, etc. As the network
of computers grows, upkeep falls to existing personnel. In the case of SAGE III, this
became a burden on the Ground Systems team. Projects only run as smoothly as their
supporting hardware and software. If these activities grow to a full-time job, existing
personnel will likely shoulder this responsibility on top of nominal work priorities. A
dedicated team of Information Technology (IT) system administrators is advantageous
because they understand the latest security concerns and system vulnerabilities and are
able to dedicate their time to keeping the systems updated and running.
3.6. Mission Operations: The International Space Station Offers a Dynamic Environment
New circumstances serially arise on the ISS. Brand new vehicles arrive bringing
novel contaminant fluxes and attitude equilibria, off-nominal crew or robotic operations
require flexible mission planning or unexpectedly block science measurements and initiate
inquiries by the hosted payload team into root cause, and other emergent circumstances
can interrupt daily operations. For example, failure of an ISS BCDU in the ELC-4 power
system shut off operational power to the SAGE III instrument payload for one month.
Survival power remained available during that time.
These operational challenges imply the need for a relatively sizeable team of mission
operations engineers. External ISS payloads should expect that more coverage is needed
for mission operations tasks than for free-flying instruments.
3.7. Mission Operations: Establish a System Early for Trending All Telemetry
Long-term trending of on-orbit data and telemetry has been a considerable effort. Development and several iterations of the trending product occurred late—beginning in Phase E and requiring significant Phase D reachback to subject matter experts. It is essential to establish a data and telemetry trending protocol along with actionable metrics and a periodic review timeline to monitor the health and reliability of the instrument payload.
Preparation is key. Subject matter experts are the best personnel to determine what data should be trended and how the data are displayed. Trending algorithms, visualizations, and metrics should be established early in Phase D. Deliverables should be built into the AI&T timeline for this development. A centrally-managed document should direct the
trending effort and enumerate metrics.
3.8. Personnel: Hands-On Training Is Essential for New Operators
Initial mission operator training requirements for the Flight Operations Review were extensive and included many hands-on hours with the flight payload prior to launch. As new team members were added to accommodate personnel turnover, general training packages introduced them to the subsystems. However, this does not replace hands-on experience with flight hardware.
The SAGE III Spread System laboratory allows new operators to run procedures in a high-fidelity, simulated environment without any risk of mistreating the active mission payload. Mission operations is highly process-driven and refined. A flight project should be prepared to supply new personnel with an appropriate level of training to properly prepare them for action. Extensive hours running nominal and off-nominal procedures in a realistic development environment are necessary for operators to properly mature their capabilities.
4. SAGEiv Instrument
The Stratospheric Aerosol and Gas Experiment IV (SAGE IV) concept is a solar
occultation imager CubeSat capable of measuring ozone, aerosols, and other trace gas
species at the same quality as previous SAGE instruments (including SAGE III/ISS). The
SAGE IV instrument adapts successful ideas from its predecessors but with a modified

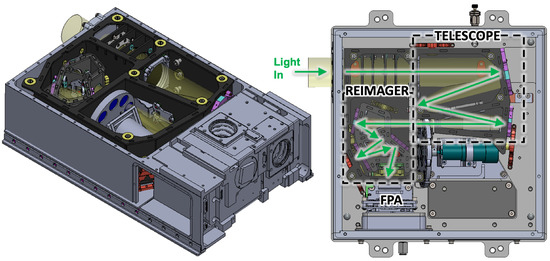

approach to fit inside of a 6U CubeSat bus as is seen in
Figure 1. The methodology has been
transformed from a legacy solar-scanning technique with a grating spectrometer to imaging
of the entire solar disk directly. Direct imaging is now possible through increased accuracy
in CubeSat pointing and higher data rates from LEO. SAGE IV is capable of providing
continuity for critical data products, particularly ozone and aerosol in the stratosphere, as
described in the 2017 Decadal Survey for Earth Science and Applications from Space [
13], albeit at a significantly reduced size and cost.
Table 1 contains the species-dependent precision and vertical resolution requirements for the mission.
The SAGE IV Pathfinder instrument was funded by the NASA Earth Science Technology
Office (ESTO) in 2017 under an Instrument Incubator Program (IIP) to develop a ground
demonstration prototype. Taking lessons learned from a long heritage of SAGE instruments,
a SAGE IV solar occultation imager concept was developed that could still meet critical
atmospheric data continuity needs in the coming decades, but at an order-of-magnitude
reduction in cost relative to prior missions. Significant cost savings in instrument and
mission architecture enable sustainability of the measurements through repeated deployment
of less expensive instruments over time. The smaller form-factor and reduced cost also
allow for a small constellation of CubeSats for increased geospatial sampling and increased
synergy with other instruments using different observing techniques. The IIP goal was to
deliver an instrument prototype that met the science requirements of a potential future
flight instrument while only selecting components that have a flight analogue or a clear
path to space. Currently, no SAGE IV instrument is funded for a flight mission.
4.1. Optical Layout
The apparent solar disk from Earth is ≈32 arcminutes in diameter, and the science field of view (FOV) encompasses ≈40 arcminutes. To add a margin for pointing uncertainty for a future on-orbit mission, the total fov was required to be ≈60 arcminutes (1) across.
To satisfy vertical resolution requirements, the instantaneous FOV of an individual detector
pixel had to be no more than 0.5 arcminutes, which corresponds to 30 microns at the
focal plane (i.e., the pitch of a single pixel) for the detector employed in the delivered IIP
instrument. In addition, to utilize spectral filters for distinct science channels, the telescope
had to afford a location where collimated light could be passed through those filters.
Beyond these requirements, care was taken during the design process of the telescope to
ensure the best possible performance. Solar occultation measurements routinely span 4–5
orders of magnitude in brightness, and switching from scanning to imaging means that the
full range would be contained in a single image. The dynamic range in the observations
means that mitigating stray light (i.e., image ghosting, out-of-field stray light, and in-field
stray light) is of paramount importance. Furthermore, the telescope needed to maintain
these performance requirements throughout the on-orbit thermal environment that could
be encountered. Lastly, like previous SAGE instruments, the optical train would require an
attenuator to block the majority ( ) of light from the Sun to prevent saturating the detector, but the spectrally dependent solar attenuator’s final throughput is determined as the last step to optimize the overall throughput of the system.
Key optical requirements that drove the design of the multispectral imager include (1) image quality, measured as encircled energy at the focal plane, (2) out-of-field stray light rejection, and (3) suppression of ghost images from Fresnel reflections. As image quality and encircled energy are a function of in-field stray light, only unobscured systems were considered with the largest reasonable aperture that could fit within a CubeSat as shown in
Figure 1. It is expected that there will be meaningful temporal and spatial thermal gradients during operations caused by periodic solar flux and the small size of the host spacecraft and as such, the selection of thermally insensitive materials for each of the primary component types (metering structure, mounts, and optics) is critical to maintaining alignment through the range of operating conditions, as well as ensuring the structural survivability during launch. Exhaustive materials trade studies were performed to understand which metering structure material would perform best (i.e., find a cost-effective solution that satisfies requirements), and ultimately a carbon fiber metering structure, with invar-36 mounts and
zerodur® mirrors was selected [
29].
The amount of stray light incident on the Focal Plane Array (FPA) because of in-field
or out-of-field scattering and ghost reflections was quantified to verify that it would not
be strong enough to corrupt the science image. The stray light requirement is defined by
no greater than a relative signal strength of
, which was exceeded by a performance of a maximum contribution of
, and the ghost reflection requirement is defined by no greater than a relative contribution of
and to be outside the fov by at least
, which was also met with a performance of
. Testing performed at the Space
Dynamics Laboratory (SDL) of Utah State University (USU) stray light testing facility
provided a strong correlation between the measurements and conservative simulations and
modeling. The single and unavoidable ghost introduced by the wedged attenuator showed
up out of field where expected and agreed with modeling, with a marginal variation in
magnitude [
29]. Because of the success of the measurements and their agreement with simulation, the model has been validated ensuring a successful flight design provided good qualification of components is achieved. Encircled energy within the essentially diffraction limited telescope was measured to be between 92.4% and 94.2% within an individual pixel area across the image plane, which exceeded requirements and was within the predicted as-built performance range, including manufacturing tolerances.
4.2. Filter Wheel Assembly
The imaging technique necessitated the use of spectral interference filters, since it
is impossible to simultaneously image and perform spectroscopy without a complicated
design. A similar approach—of using filters for different science channels—was used by
the highly successful SAGE II instrument during its 21 years of operation. For SAGE IV,
the decision was made to incorporate a filter wheel into the design. The wheel itself would
need to fit within a CubeSat (i.e., <10 cm + margin), while incorporating as many filter
locations as possible to maximize the number of observable species. To achieve science
and onboard characterization goals (e.g., dark current and flat-fielding), the filter wheel
would need at least 9 locations. With a sampling frequency requirement of one image at
each wavelength of interest every two seconds, the wheel would need to spin at 0.5 Hz.
The size of each filter is a coupled requirement with the telescope design (beam width
at filtering location) and detector timing to allow for adequate integration time through
the clear aperture of each filter as the filter wheel rotates without obscuring the light or
introducing vignetting. Lastly, to ensure detector integration is appropriately timed, the
rotational location of the filter wheel would need to be known to within the timing limits
of the ability to readout the detector. Regarding this design choice, it is worth noting that,
while the addition of a moving part is not ideal, alternatives (such as an acoustic optical
tunable filter) that met our form, fit, and functional requirements were not available at the
beginning of the development process. Naturally, this design choice may be revisited in
the future as available technology advances.

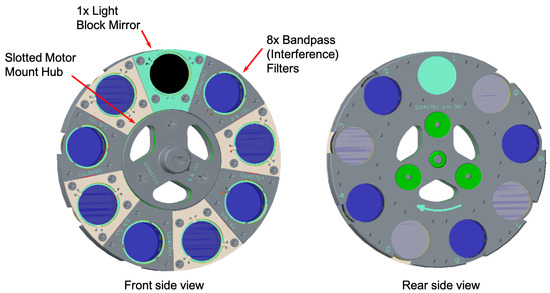

The SAGE IV Filter Wheel Assembly (FWA) is designed to house eight transmissive
bandpass filters and filter/diffuser combinations along with one opaque flat mirror. The
filter wheel and motor are supported by the motor mount, which holds the full assembly at a 7.5
angle from the chief ray to direct Fresnel reflections into a beam dump. The assembled filter wheel is shown in
Figure 2. Each of the nine positions in the filter wheel is either a science channel specifically chosen to observe a target species or as a characterization channel chosen to enable characterization of the instrument’s performance on-orbit. To enable measurements of detector dark current and telescope background during science observations, one spot within the wheel has a counter-bore with a flat mirror inserted. The counter-bore ensures that no light passes through and that the mirror is representative of the interference filters that reflect the majority of incident light—the out-of-band portion—back to the telescope’s beam dump. With a “light block” as an element in the filter wheel, both a dark current image and a background image of critical surface stray light can be taken
as part of the standard 0.5Hz data collection, and potential thermal transient effects can
be observed, characterized, and removed. The spectral locations of the bandpass filters
used for the delivered IIP system are similar to those used for the SAGE II mission and are
detailed in
Table 2.
In addition to the “light block”, diffusers are the other characterization element within the filter wheel. Where two (or more) pixels on a detector look at different spatial scenes and need to be compared, a pixel-to-pixel cross-calibration or “flat-fielding” correction will need to be applied to the data to account for spatial non-uniformities in pixel responsivity. This is a standard step in scientific image processing that is often not required for simple pushbroom spectrometers. While flat-fielding is easily characterized in the laboratory, this behavior will change on orbit from radiation displacement damage and might also be susceptible to minor changes in temperature. As such, it is necessary to perform this kind of instrument characterization operationally in outer space. For a highly sensitive measurement such as solar occultation, observing the solar disk through a diffuser can provide a sufficiently uniform source to perform pixel-to-pixel cross-calibrations. Incorporating such a characterization measurement into the filter wheel has the added bonus of observing how pixel response differs with changes in the thermal profile of the sensorcraft through extended exoatmospheric measurements. Such thermal transients have been shown to be potentially problematic and difficult to characterize for previous SAGE incarnations.
4.3. Detector
The SAGE IV detector is key to meeting the measurement requirements shown in
Table 1. Water vapor is the most difficult species to measure and requires a Signal-to-Noise
Ratio (SNR) of ≈2000 over a 30
m × 30
m spot (i.e., the size of an individual pixel). The large snr requirement is in a shot-noise-limited regime (i.e., where the noise follows Poisson statistics and is equivalent to the square root of the signal) and so to achieve a snr of ≈2000, a pixel on the detector would need a minimum well-depth of 4 million electrons in the linear range. It was assumed the detector would be linear when the well-depth was between 10% and 90% full; therefore, the detector’s well depth would need
to be 25% larger than the 4 million electrons for a total of 5 million electrons. The desired
spectral range in the UV/VIS/NIR, the deep well-depth required, and a desire to have low
dark-current at ambient temperatures (no significant cooling required) compelled the use
of silicon as the photosensitive substrate. Silicon requires a stable temperature during the
few minutes encompassed by an occultation measurement, which is possible through either
a Thermoelectric Cooler (TEC) or a heater, and does not require cryocooling. In addition,
for the imaging concept to work, each pixel must be read out individually, requiring a
PIN diode array such as in a Complementary Metal Oxide Semiconductor (CMOS) sensor,
as opposed to a typical Charge-Coupled Device (CCD) read out. The telescope produces
an image of the full FOV of roughly 3.6 mm × 3.6 mm at the focal plane that must be
captured by an array of pixels. The number and pitch of pixels are unimportant provided
the effective SNR is achievable over the 30
m × 30
m spot through the binning of pixels.
4.4. Sunlook Testing
To evaluate the operational performance of the SAGE IV IIP instrument an equatorial
mount carrying a surrogate 6U CubeSat chassis were deployed outdoors to house the
Pathfinder instrument for extended Sunlook testing over several months. These tests
rigorously examined telescope, filter wheel, and detector performances while tracking
the Sun terrestrially during daylight hours. The surrogate chassis was placed under dry
nitrogen purge to test thermoelectric control of the focal plane temperature. Embedded
software and firmware along with telemetry, command, and control through the ground
systems were proven, including fine tracking of the solar target via closed-loop instrument
commanding of the equatorial mount. The image data met science requirements for image
quality, signal, and noise characteristics and the system was shown to function as desired
after a few technical challenges were resolved [
30]. For example, driving of the focal plane
TEC with Pulse-Width Modulation (PWM) directly from embedded firmware, while more
power efficient than using a DC driving current, proved to radiate too much noise from the
Peltier element directly at the detector. Consequently, an analog DC driver has replaced
the embedded firmware PWM driver. Sunlook testing greatly increases confidence in flight
mission success, and laboratory testing and characterizations have continued subsequent
to Sunlook.
